IDEC FT1A Features and Benefits

IDEC FT1A SmartAXIS

Value. Versatility. The New Breed of Controllers.

Design-in More Function with Affordable FT1A PLCs

Value. Versatility. The New Breed of Controller!

The ideal solution for a variety of applications.

Presenting FT1A, the newest family of SmartAXIS controllers from the industry’s
original manufacturer of micro PLCs. FT1A controllers deliver affordability without
compromise. Features and functions are already built in, so engineers can now enjoy
more versatility and more choices for their automation needs than ever before.

Designed to give you the most bang for your buck, these simple, powerful controllers
deliver an exceptional value. FT1A controllers are available with 12, 24, 40, or 48 I/O,
while a 3.8-inch HMI + PLC with sophisticated features and a super-bright LCD screen
is also available.

All FT1A controllers meet the highest industry standards for quality and safety. The
FT1A SmartAXIS family is CE compliant, cULus listed, has an ABS type approval and
is Class I Division 2 rated for hazardous locations. Whatever your application requires,
the FT1A SmartAXIS family has a solution!

32

FT1A Touch HMI + PLC

A Breed of Its Own

The perfect combination of PLC processing and HMI monitoring and control, the 3.8-inch FT1A Touch is an all-in-one
touchscreen interface and logic controller. With a compact body and full complement of features, FT1A Touch is perfect for
small systems that require a graphical user interface along with versatile I/O controls at a truly affordable price.

Analog Expansion Cartridges (Transistor
Output Models)

• Up to 2 analog expansion adapters can be configured

on the FT1A Touch with 12-bit resolution.

• Maximum combination of 2in/6out, 4in/4out, or

6in/2out analog I/O can be configured.

RS232C and RS485 ports

• Built-in RS232C, RS422/485

interface for serial communication.

• Communication with IDEC or other PLCs

also supported through this serial port.

Relay or Transistor Outputs

• Relay output type equipped with 10A contact, so no interposing

relays required.

• Transistor output type equipped with 300mA per channel.

USB-A Port

Embedded USB-A port for data logging
and recipe data, as well as for performing
program updates.

USB Mini-B

Embedded USB mini-B port
for programming.

3 Bezel Colors

Available in silver, light gray
and dark gray bezel.

STN Monochrome or 65K TFT Color

• 400cd/m2 color

• 740cd/m2 monochrome

Analog Outputs (Transistor Output
Models)

2 built-in 0-10VDC, 4-20mA analog outputs.

Digital, Analog and High-speed Inputs

8 built-in DC inputs

2 inputs (I6 and I7) can be configured as 0-10V DC

•

or 4-20mA analog inputs (transistor output models)
– 10-bit resolution

4 high-speed counters

•

– Up to 10kHz

Harsh Enviroments

• Class I, Division 2 for hazardous locations

• -20 to 55°C operating temperature (color models)

Actual Size

RJ45 Ethernet Port

• Supports remote Ethernet communication

and Modbus TCP.

• Communication with IDEC or other PLCs

also supported through the Ethernet port.

IP66f (water and oil tight),
NEMA 4X (indoor) and 13

5MB Screen Editing Memory

Provides users with more flexibility and
stress-free programming.

800.262.4332



54

FT1A Touch Features

Control Functions

Fast Processing Speed

Basic instructions can be processed in 1850µs per 1000
steps of programming.

Data Logging

Critical data can be saved and logged into a USB memory
stick then retrieved over an Ethernet connection or by
removing the USB memory stick from the FT1A Touch and
inserting it into a laptop or PC.

Easy Program File Transfer

Project files can be transferred between a USB memory
stick and the FT1A Touch. It is a quick and convenient way
for an OEM to program multiple units and for users to
quickly update ladder and HMI programs.

Easy data transfer

Digital and Analog Inputs

The FT1A Touch is equipped with 8 digital inputs, two of
which can be configured as 0-10V DC or 4-20mA analog
inputs with 10-bit resolution, reducing overall system cost.

Remote I/O

Up to three FT1A controllers (24, 40 and 48 I/O) can be
configured as remote I/O slaves for the FT1A Touch,
expanding your system’s potential. A maximum of 158 I/O
can be achieved.

Ethernet hub

Master
14-I/O type

Slave
48-I/O type

Slave
48-I/O type

Slave
48-I/O type

Analog Expansion Cartridges

Using analog expansion cartridges, FT1A Touch can accept
0-10V DC, 4-20mA, RTD and Thermocouple inputs, with 12 to
15-bit resolution.

PID Controls

With an improved PID algorithm and easier-to-configure dialog
box, PID controls can be monitored using a single screen.
Advanced PID control functions, such as auto-tuning, ARW
(anti-reset windup) and bumpless transfer, are also supported.

Large Programming Memory

With 47.4KB of logic controls programming memory, complex
PLC programs can be constructed without much restriction. And
with 5MB of configuration memory for the display, a unique and
professional display interface can be easily configured.

10A Relay Outputs

With 10A contact ratings on all four of the relay outputs, the
FT1A Touch can be directly connected to a solenoid valve or
motor, which eliminates interposing relays and reduces wiring.

65,536 TFT Color LCD

With so many color combinations, an intuitive and
crisp graphical user interface can be constructed with
unparalleled visibility.

Super-Bright LED

The 65K TFT color unit is rated at 400cd/m2, while the
monochrome unit is rated at 740cd/m
brightness control, the backlight can even be adjusted
according to the surrounding conditions.

2

. With 32 levels of

Drivers for IDEC and other PLCs

FT1A Touch can easily be configured to communicate with
IDEC or other PLCs such as Siemens, Automation Direct,
Mitsubishi, Omron, and more.

Display Functions

Ethernet Connectivity

With the embedded RJ45 Ethernet port, FT1A project files
can be remotely uploaded or downloaded over an Ethernet
connection. Critical logging data can also be retrieved quickly.

Modbus TCP or RTU

The built-in Ethernet ports allow the FT1A Touch to be
configured as a Client (Master) or Server (Slave) on the
Modbus network. Modbus RTU (Master/Slave) is also
supported. With these capabilities, FT1A Touch can
communicate with other PLCs or devices using Modbus
protocol.

Ladder Program and I/O status

Ladder programs can easily be monitored and controlled
on the 3.8” (3.7”monochrome) display. It is a unique tool
to debug the system without using WindLDR software and
a PC. I/O status and any control parameter such as data
register, timer, and internal relay can also be monitored
and controlled.

Fast Start-up

Once power is applied to the FT1A Touch, it takes only 3
seconds for it to be fully functional. The fast start-up allows
for fast, easy debugging and stress-free operation.

High-speed Counters

With 8 built-in inputs, 4 can be configured as high-speed
counters, with a maximum frequency (range) of 10kHz for
single-phase or 5kHz for dual-phase.

800.262.4332



3 sec

76

The Value of Our Controllers is in the Details

FT1A Controllers

FT1A controllers are designed for a range of applications that demand powerful and abundant features. Available
with 12, 24, 40 and 48 I/O with and without embedded LCD/keypad, these controllers enable engineers to design
cost-effective solutions.

Universal Voltages

24V DC or 100-240V AC

Smart LCD Screen

The display (24 digits x 4 lines) can provide
visual feedback of system status, I/O status, user
configurable messages with dynamic data, bar graph,
and ladder program monitor and controls.

Digital, Analog and High-speed Inputs

Inputs on the 24V DC power models can be configured as
digital, 0-10V DC analog or high-speed counters. Up to 8
analog inputs with 10-bit resolution and up to 6 HSC 100kHz
can be configured.

RJ45 Ethernet Port

The embedded Ethernet port on the FT1A controllers
provides users with easy access for remote maintenance and
communication. It also supports industry standard Modbus
TCP protocol. With Ethernet Remote I/O capability, the FT1A
controller’s I/O can be easily expanded.

Non-LCD Model

FT1A controllers are also available without embedded
LCD/keypad. It’s a cost-effective, tamper-proof solution.

USB mini-B

With the USB mini-B port, communication with FT1A
controllers is extremely convenient as standard USB
Type A to mini-B cables can be used.

Note: Features available on specific models.
See page 14 for selection guide.

800.262.4332



Actual Size

Memory Cartridge

The optional memory cartridge can be used to easily
transfer programs from the internal ROM memory of FT1A
controllers to a memory cartridge or vice versa. It’s a
convenient method to update the PLC program in the field.

10A Relay and High-speed Outputs

The FT1A controller with relay outputs is equipped with
four 10A relay contacts. The transistor outputs model is
also equipped with two 100kHz high-speed outputs for
simple positioning controls. With remote I/O capability,
additional outputs can easily be added.

Real-Time Clock

Every FT1A controller is equipped with an embedded real-time
clock for time-controlled applications. With the built-in, real­time clock, log data can also be tracked and, with just a click,
daylight savings time can easily be setup.

RS232C and RS485 Ports

Up to two RS232C and/or RS485 communication cartridges
can be plugged into the FT1A controllers to allow the PLC to
communicate with other serial devices. It also supports industry
standard Modbus RTU protocol.

Large Programming Memory

With up to 47.4KB (11,850 steps) of programming memory,
FT1A controllers have enough memory for even complex
PLC programming.

SD Memory Card

With the embedded SD memory slot, critical data can be
easily logged and retrieved over Ethernet connections or
simply remove the SD card and plug it into your PC.

98

A Closer Look at Our Feature-rich Controllers

From Connecting to Remote Access

From connectivity to remote access to visual display, FT1A leads the way with versatile, full-featured controllers. No other
controllers offer such a broad range of capabilities at such a competitive price.

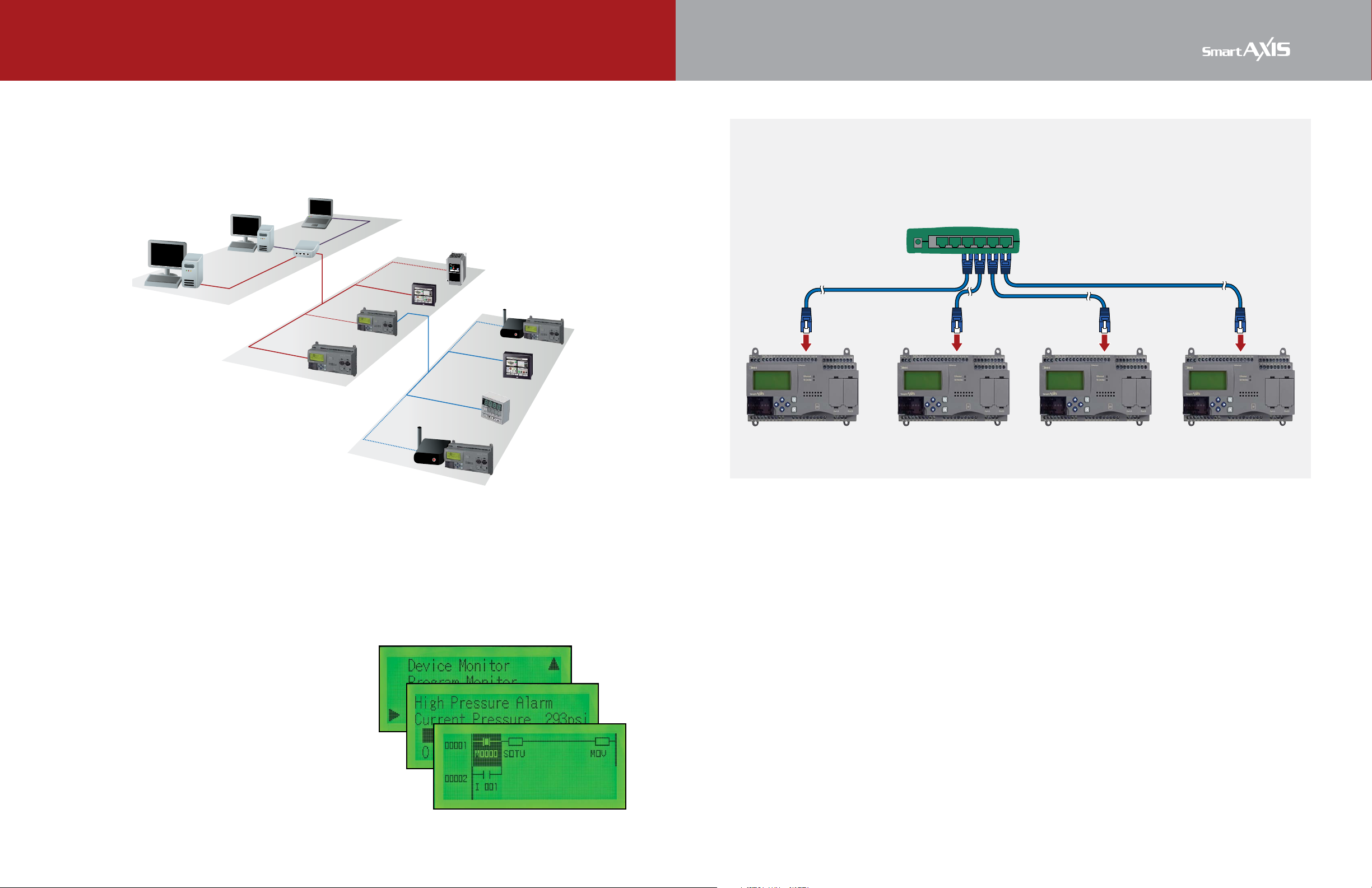

Remote I/O

The FT1A remote I/O, available in all Ethernet-capable modules, enables you to expand the number of inputs and out puts by
simply connecting separate FT1A modules via Ethernet as remote I/O slaves. The FT1A remote I/O can monitor and control a
total of 192 points of I/O.

Ethernet hub

Modbus TCP and RTU

Modbus communication is the most common protocol in the
automation industry. The entire FT1A family (except the 12
I/O CPU) supports Modbus TCP and Modbus RTU, making
communication with other devices a breeze.

Ethernet Connectivity

Thanks to the embedded RJ45 Ethernet port (on all models
except 12 I/O), FT1A controllers can be easily accessed
from remote locations. Using WindLDR software, PLC programs
can be updated remotely and critical parameters monitored
and controlled. Remote connectivity is a critical part of today’s
control environment, and FT1A controllers meet every challenge
with fast, easy, and reliable Ethernet connectivity.

SD Memory Card

FT1A 40 and 48 I/O controllers are equipped with an SD
memory slot for data logging. Memory cards up to 32GB
are supported. Log data is time/date stamped and stored in
.CSV format, making it simple to review and analyze critical
system data.

Smart LCD Display

With the embedded LCD screen, I/O status, system menus,
customized dynamic messages, and bar-graph readouts
can all be config ured and displayed. Ladder programs can
be displayed and controlled as well. You can configure up
to 50 customized messages, all with dynamic values (24
digits by 4 lines max.). The backlight can be turned on or off.
Scrolling and flashing are also supported.

Master
48-I/O type

48-I/O type (master) + 48-I/O type (slave) + 48-I/O type (slave) + 48-I/O type (slave) = 192 I/O
(30 inputs, 18 outputs) + (30 inputs, 18 outputs) + (30 inputs, 18 outputs) + (30 inputs, 18 outputs) = 120 inputs, 72 outputs

Slave
48-I/O type

Built-in Analog Inputs

The FT1A controllers support up to 8 built-in, 0-10V DC analog
inputs with 10-bit resolution, depending on the model. Having
the option to configure the analog inputs on the CPU saves you
time, space and money.

Slave
48-I/O type

Built-in Real Time Clock

Equipped with a real-time clock for use with any time­controlled applications, FT1A controllers have built-in
support for US, Canadian, European, and Australian daylight
savings time. The option for the user to configure their own
custom daylight savings schedule is also available, providing
the utmost in flexibility.

100kHz, High-Speed Counters and Outputs

Models with transistor outputs feature two 100kHz high-speed
outputs for positioning control and all FT1A controllers are
equipped with up to six 100kHz high-speed counters.

USB Maintenance Port

A convenient USB mini-B maintenance port is standard on
all FT1A controllers, which means any standard Type A to
mini-B USB cable can be used. No special cable is necessary.

10 Amp Relay Contacts

FT1A controllers with relay outputs offer 10 Amp rated
contacts. Traditional PLC relays are only rated for 2 Amps.
Therefore, FT1A controllers reduce the need for, and spare
you the cost of, using interposing relays.

Slave
48-I/O type

800.262.4332



1110

Our Automation Organizer Software is Simple and Intuitive

A Complete Automation Suite: All-in-one Configuration Software

Automation Organizer (AO) is a powerful software suite containing WindLDR PLC programming software, WindO/I-NV2 HMI
configuration software, WindO/I-NV3 FT1A Touch configuration software, and WindCFG system configuration software. AO is
an all-in-one automation software package for IDEC PLCs and IDEC HMIs. The news gets even better, because AO software
upgrades are always FREE.

WindO/I-NV3

WindO/I-NV3 is our exclusive configuration software for the
FT1A Touch. Using the same platform as WindO/I-NV2 HG
HMI program ming software, WindO/I-NV3 provides users with
the same intuitive experience. Users can easily display alarm
screens, trend and bar graphs, scrolling texts and meters. With
thousands of industry-standard bitmap libraries, creating a
professional interface is just a click away.

WindLDR

All IDEC PLCs—including the FT1A family—are programmed
with WindLDR software. This icon-driven programming tool
combines logic and intuition with an incredibly easy-to-use
interface. Offline simulation, I/O Force and program bookmarks
are just some of the standard features you’ll find in WindLDR.
Newly added for FT1A are Function Block Diagram (FBD) and
Script programming. Over the years, WindLDR has proven
to be the most user-friendly, intuitive software available for
beginners and advanced programmers alike.

Simulation Mode

WindLDR allows you to simulate ladder and Function Block
Diagram (FBD) programs in FT1A. You can easily test and verify
functionality of your ladder and FBD programs without having
to connect any hardware.

Comment Download Settings

The comment download settings allow you to choose
whether to download Tag names, rung comments, custom
monitor dialog boxes or file names. The biggest advantage of
utilizing these settings is that once a program is retrieved from
the PLC, all these important parameters will be available.

Function Block and Scripting

In addition to ladder logic, WindLDR now supports Function
Block Diagram (FBD) and Script programming. With the FT1A
controllers, you now have the flexibility and convenience of
programming using any or all of these methods.

800.262.4332



1312

Selection Guide and Part Number Listing

Touch Part Numbers

Touch Part Number Screen Type Total I/O Input Type

FT1A-M14KA-W

FT1A-M14KA-B

FT1A-M14KA-S

FT1A-M14SA-W

FT1A-M14SA-S

FT1A-C14KA-W

FT1A-C14KA-B

FT1A-C14KA-S

FT1A-C14SA-W

FT1A-C14SA-S

FT1A-M12RA-W

FT1A-M12RA-B

FT1A-M12RA-S

FT1A-C12RA-W

FT1A-C12RA-B

FT1A-C12RA-S

3.7” STN

Monochrome

(8 shades)

3.8” TFT

65,536 colors

3.7” STN

Monochrome

(8 shades)

3.8” TFT

65,536 colors

14 I/O

(8 in,

6 out)

12 I/O

(8 in,

4 out)

Source

Sink Transistor SourceFT1A-M14SA-B

Source Transistor Sink

Sink Transistor SourceFT1A-C14SA-B

Sink

Embedded

Analog

Inputs

2pt (0-10VDC,

4-20mA, 10-bit

Resolution)

2pt (0-10VDC,

10-bit

Resolution)

Embedded

Analog

Outputs

2pt (0-10VDC,

4-20 mA, 10-bit

Resolution)

–

Output Type

Transistor Sink

Relay

Analog
Expansion
Cartridges

Yes, up to 2

cartridges

–

Touch Starter Kits

Part Number Description

KIT-TOUCH- KW FT1A Touch Starter Kit, Transistor sink output type, Light bezel, USB cable, 30W PS and software

KIT-TOUCH- KB FT1A Touch Starter Kit, Transistor sink output type, Dark bezel, USB cable, 30W PS and software

KIT-TOUCH-

KIT-TOUCH-

KIT-TOUCH-

KIT-TOUCH-

KI T-TOUCH

KI T-TOUCH

KI T-TOUCH

KS FT1A Touch Starter Kit, Transistor sink output type, Silver bezel, USB cable, 30W PS and software

SW FT1A Touch Starter Kit, Transistor source output type, Light bezel, USB cable, 30W PS and software

SB FT1A Touch Starter Kit, Transistor source output type, Dark bezel, USB cable, 30W PS and software

SS FT1A Touch Starter Kit, Transistor source output type, Silver bezel, USB cable, 30W PS and software

W FT1A Touch Starter Kit, Relay output type, Light bezel, USB c able, 30 W PS and software

-

B FT1A Touch S tarter Kit, Relay output t ype, Dark bezel, USB cable, 30W PS and sof tware

-

S FT1A Touch S tarter Kit, Relay output t ype, Silver bezel, USB cable, 30W PS and sof tware

-

In place of insert code for display type: C = color, M = monochrome

Touch Accessories Controller Accessories

Part Number Description Part Number Description

FC6A-PJ2A

FC6A-PJ2CP

FC6A-PK2AV

FC6A-PK2AW

FT9Z-1D3PN05 FT1A Touch screen protective sheet (5 per pack) FT9Z-PSP1PN05 Extra direct mounting hook (5 per pack)

FT9Z-1E3PN05 FT1A Touch protective cover (5 per pack)

FT9Z-1A01 FT1A Touch rear mount adapter

FT9Z-1T09 FT1A Touch extra communication terminal block

FT9Z-1X03 FT1A Touch extra power supply terminal block

HG9Z-4K2PN04 FT1A Touch extra mounting brackets (4 per pack)

HG9Z-XU1PN05 USB cable lock-in (5 per pack)

HG9 Z-XCM2A USB programming cable

SW1A-W1C Automation Organizer Software Suite

2-pt 0-10V, 4-20mA Analog input cartridge

2-pt RTD, Ther mocouple car tridge

2-pt 0-10V Analog output cartridge

2-pt 4-20mA Analog output cartridge

FT1A-PC1 RS232C communication adapter, mini-DIN type

FT1A-PC2 RS485 communication adapter, mini-DIN type

FT1A-PC3 RS485 communication adapter, screw terminal type

FT1A-PM1 Optional memory cartridge

SW1A-W1C Automation Organizer Software Suite

HG9 Z-XCM2A USB programming cable

800.262.4332



Power

Voltage

24V DC

Remote I/O

Master

Yes

–

Controller Part Numbers

12 I/O CPU

24 I/O CPU

40 I/O CPU

48 I/O CPU

Part Number

FT1A-H12RC 100-240V AC

FT1A-H12RA 24V DC Sink

FT1A-B12RC 100-240V AC Contact

FT1A-B12RA 24V DC Sink

FT1A-H24RC 100-240V AC

FT1A-H24RA 24V DC Sink

FT1A-B24RC 100-240V AC Sink/Source

FT1A-B24RA 24V DC Sink

FT1A-H40RC 100-240V AC

FT1A-H40RKA

FT1A-H40RSA Sink Relay/Trans. Source

FT1A-B40RC 100-240V AC Sink/Source Relay

FT1A-B40RKA

FT1A-B40RSA Sink Relay/Trans. Source

FT1A-H48SC 100-240V AC

FT1A-H48SA 24V DC Sink

FT1A-H48KC 100-240V AC Sink/Source

FT1A-H48KA 24V DC Source

FT1A-B48SC 100-240V AC Sink/Source

FT1A-B48SA 24V DC Sink

FT1A-B48KC 100-240V AC Sink/Source

FT1A-B48KA 24V DC Source

Power

Voltage

24V DC

24V DC

Total I/O Input Type Output Type

Contact

12 I/O

(8 in,

4 out)

Sink/Source

24 I/O
(16 in,
8 out)

Sink/Source Relay

Source Relay/Trans. Sink

40 I/O
(24 in,

16 out)

Source Relay/Trans. Sink

Sink/Source

48 I/O
(30 in,

18 out)

Relay —

Relay Yes

Transistor Source

Transistor Sink

Transistor Source

Transistor Sink

Controller Starter Kits

Type Part Number Description

12 I/O CPU

24 I/O CPU

40 I/O CPU

48 I/O CPU

KIT-SMART-12-

KIT-SMART-12-

KIT-SMART-24-

KIT-SMART-24-

KIT-SMART-40- AC-R SmartAXIS Starter Kit, 40 I/O AC, USB cable and software

KIT-SMART-40-

KIT-SMART-40- DC-RS SmartAXIS Starter Kit, 40 I/O DC, Source outputs, USB cable, 30W PS and software

KIT-SMART-48-

KIT-SMART-48-

KIT-SMART-48-

KIT-SMART-48-

In place of insert code: H = includes display/keypad, B = without display/keypad

AC SmartAXIS Starter Kit, 12 I/O AC, USB cable and software

DC SmartAXIS Starter Kit, 12 I/O DC, USB cable and software

AC SmartAXIS Starter Kit, 24 I/O AC with display/keypad , USB cable and software

DC SmartAXIS Starter Kit, 24 I/O DC, USB cable and software

DC-RK SmartAXIS Starter Kit, 40 I/O DC, USB cable and software

AC-K SmartAXIS Starter Kit, 48 I/O AC with display/keypad Sink, USB cable and software

AC-S SmartAXIS Starter Kit, 48 I/O AC Source outputs, USB cable and software

DC-K SmartAXIS Starter Kit, 48 I/O DC Sink outputs, USB cable, 30W PS and software

ADC-S SmartAXIS Starter Kit, 48 I/O DC Source outputs, USB cable, 30W PS and software

Ethernet

Port

Yes

Yes

Screen Type

2.1”

Monochrome

—

2.1”

Monochrome

—

2.1”

Monochrome

—

2.1”

Monochrome

—

Embedded

Analog Inputs

— —

2pt, 0-10VDC,

10-bit

— —

2pt, 0-10VDC,

10-bit

— —

4pt, 0-10VDC,

10-bit

— —

4pt, 0-10VDC,

10-bit

— —

6pt, 0-10VDC,

10-bit

— —

6pt, 0-10VDC,

10-bit

— —

8pt, 0-10VDC,

10-bit

— —

8pt, 0-10VDC,

10-bit

— —

8pt, 0-10VDC,

10-bit

— —

8pt, 0-10VDC,

10-bit

High-Speed

Counter

4 x 100kHz

4 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

6 x 100kHz

SD Memory

Slot

— —

—

Yes

Yes

RS232C,

RS485 Port

Optional

Adapter

Optional
Adapters

(x2)

Optional
Adapters

(x2)

1514

Specifications

General Specifications

Touch (PLC + HMI)

Part Number FT1A-*12RA-* FT1A-*14KA-* / FT1A-*14SA-*

Output Relay output Transistor output

Rated Power Voltage 24V DC

Allowable Voltage Range 20.4 to 28.8V DC (including ripple)

Power Consumption 9.2W maximum 10.1W maximum

Allowable Momentary Power Interruption 10ms maximum

Dielectric Strength

Between power terminal and FG: 500V AC, 5mA, 1 minute,
Between power terminal and output terminal: 2,300V AC, 5mA, 1 minute

EMC Immunity IEC/EN 61131-2:2007 compliant

Inrush Current 50A maximum (5ms maximum)

Operating Temperature

Color display: –20 to +55°C, Monochrome display: 0 to +55°C

Storage Temperature –20 to +60°C (no freezing)

Relative Humidity 10 to 95% RH (no condensation)

Pollution Degree 2 (IEC 60664-1)

Corrosion Immunity Atmosphere free from corrosive gases

Degree of Protection IP66F, Type 4X & 13 (Panel front)

Ground Functional grounding

Protective Grounding Conductor UL1007 AWG16

Vibration Resistance 5 to 8.4Hz half amplitude 3.5mm, 8.4Hz to 150Hz acceleration 9.8m/s

2

Shock Resistance 147m/s

, 11ms, X, Y, Z directions 3 times (IEC 61131-2)

Mounting Structure Panel mount

Weight (approx.) 300g

1. Operation not guaranteed when used with certain types of oils. 2. FT1A-*12RA-* hardware version V130 and earlier is UL, c-UL listed at 0 to +50°C.

Pro/Lite (LCD Model/No LCD Model)

Part Number

12-I/O Type 24-I/O Type 40-I/O Type 48-I/O Type

H12RC / H12RA
B12RC / B12RA

H24RC / H24RA
B24RC / B24RA

Rated Power Voltage AC power: 100 to 240V AC, DC power: 24V DC
Allowable Voltage Range AC power: 85 to 264V AC, DC power: 20.4 to 28.8V DC (including ripple)
Rated Power Frequency AC power: 50 to 60Hz (47 to 63Hz)

Power
Consumption

AC Power 12-I/O: 18VA maximum, 24-I/O: 41VA maximum, 40-I/O: 48VA maximum, 48-I/O: 43VA maximum

DC Power 12-I/O: 4.3W maximum, 24-I/O: 4.8W maximum, 40-I/O: 7.9W maximum, 48-I/O: 6.0W maximum

Allowable Momentary Power Interruption AC power: 20ms maximum; DC power: 10ms maximum

Dielectric Strength

AC power type: Between power/input and PE terminals: 1,500V AC, 5mA, 1 minute

DC power type: Between power/input and FE terminals: 500V AC, 5mA, 1 minute

Between transistor output and PE terminals: 1,500V AC, 5mA, 1 minute
Between relay output and PE terminals: 2,300V AC, 5mA, 1 minute
Between power and input terminals: 1,500V AC, 5mA, 1 minute
Between power/input and transistor output terminals: 1,500V AC, 5mA, 1 minute
Between power/input and relay output terminals: 2,300V AC, 5mA, 1 minute

Between transistor output and FE terminals: 500V AC, 5mA, 1 minute
Between relay output and FE terminals: 2,300V AC, 5mA, 1 minute
Between power/input and transistor output terminals: 500V AC, 5mA, 1 minute
Between power/input and relay output terminals: 2,300V AC, 5mA, 1 minute

EMC Immunity IEC/EN 61131-2:2007 compliant
Inrush Current AC power: 35A maximum (Cold start with Ta=25°C, 200V AC), DC power: 30A maximum (5ms maximum)
Operating Temperature 0 to +55°C

Storage Temperature –25 to +70°C (no freezing)

Relative Humidity 10 to 95% RH (no condensation)

Pollution Degree 2 (IEC 60664-1)

Corrosion Immunity Atmosphere free from corrosive gases

Degree of Protection IP20 (IEC 60529)

Ground D-type ground (Class 3 ground)

Protective Grounding Conductor UL1007 AWG16

Vibration Resistance 5 to 8.4Hz half amplitude 3.5mm, 8.4Hz to 150Hz acceleration 9.8m/s

2

Shock Resistance 147m/s

, 11ms, X, Y, Z directions 3 times (IEC 61131-2)

Mounting Structure DIN rail or direct mount

Weight (approx.)

FT1A Version V110 are UL, c-UL Listed at 0 to +50°C.

AC Power 12-I/O: 230g, 24-I/O: 400g, 40-I/O: 580g, 48-I/O: 540g

DC Power 12-I/O: 190g, 24-I/O: 310g, 40-I/O: 420g, 48-I/O: 380g

Between power terminal and FG: 500V AC, 5mA, 1 minute,
Between power terminal and output terminal: 500V AC, 5mA, 1 minute

Note 2

Note 1

, IP20 (Rear)

2

(1G), 2 hours per axis on each of three mutually perpendicular axis (IEC 61131-2)

250g

H40RC / H40RKA / H40RSA
B40RC / B40RKA / B40RSA

Note 1

2

(1G), 2 hours per axis on each of three mutually perpendicular axis(IEC 61131-2)

H48KC / H48SC / H48KA / H48SA
B48KC / B48SC / B48KA / B48SA

Touch (PLC + HMI) Pro/Lite FT1A (LCD Model/No LCD Model)

Part Number

FT1A-*
12RA-*
(Relay)

FT1A-*14KA-* (Sink)
FT1A-*14SA-*(Source)

H12RA
B12RA

H12RC
B12RC

H24RA
B24RA

H24RC
B24RC

H40RKA
H40RSA
B40RKA
B40RSA

H40RC
B40RC

H48KA
H48SA
B48KA
B48SA

Control System Stored program system

Instruction
Words

Program Capacity

User Program Storage
Processing

Time
Function Block

Function Block Progr am Capacity

No of Function
Blocks

Processing
Time

I/O Points Inputs / Outputs 8 / 4
Analog Input / Ou tput 2 / – 2 / 2 2 / – 4 / –

Basic Instructions 42 types
Advanced Instructions 98 types 99 types 98 types 103 types

Program size: 47.4KB

Configuration memory capacity: 5MB

12KB 47.4KB

Flash ROM (100,000 times)

102 types 110 types 104 types 110 type s 109 types

Built-in Flash ROM (10,000 times rewritable)
Basic Instruction 1850μs/1,000 steps 950μs/1,000 steps
END Processing 5msec minimum 2ms (Pro) / 640μs (Lite)

Note 1

Configuration memory capacity: 5MB

37 ty pes

Program size: 3 8KB

38 types 37 types 38 types 37 types 45 types 39 types 45 types 44 types

10KB 38KB

Function Blocks 1,000 200 1,000

Timer ( T) / Counter (C) 200 / 200 100 / 10 0 2 00 / 200

Basic Instruction 4ms/100 1.3ms/100
END Processing 5ms minimum 2.5ms (Pro) /1ms (Lite)

8 / 6

8 / 4 16 / 8 24 /16 30 / 18

—

6 / –

—

8 / –
Internal Relays / Shift Registers 1024 / 128 256 / 128 1024 / 128
Data Registers / Special Data Registers 2000 / 200 400 / 200 2000 / 200
Adding/Reversible Counters 200 100 200
Timer (1ms, 10ms, 100ms, 1s) 200 100 200
Clock Precision: ±30 seconds/month (25°C, typical)

Backup Data / Backup Duration Internal relays, shift registers, counters, data registers, clock data / Approximately 30 days (typical) at 25°C after backup battery is fully charged
Battery / Charging Time Lithium secondary battery / Approximately 15 hours required to charge from 0 to 90%

RAM

Backup

Replaceability Not possible

Self-Diagnostic Functions

Keep data check, power failure check, clock error check, watchdog timer check, timer/counter preset value change error check, user program syntax check, user

program execution check, system error check, memory cartridge transfer error check (Pro/Lite only)
Input Filter No filter, 3 to 15ms (selectable in increments of 1ms)

Catch Input / Interrupt Input 4 / 4 4 / 4 6 / 6

Maximum
Counting
Frequency
& Points

Counter

High-speed

Counting Range 0 to 4,294,967,295 (32 bits)

Single/two-phase
Selectable

Single-phase 4 (x 10kHz)

1 (5kHz, multiple 2/4, single phase not

available)

Note 2

2

2 (x

100kHz)

Note 2

—

2

4 (x

—

100kHz)

—

— 4 (x 100kHz) —

Note 2

2

—

Note 2

2

4 (x

100kHz)

Operation Mode Rotary encoder mode and adding counter mode

Points 2 2 None 4 None 6 None 8 None

Analog Voltage
Inputs

Input Range 0 to 10V DC

Input Impedance 78kΩ

Digital Resolution 0 to 1,000 (10 bits)

Output Type 10A Relay Transistor

Built-in Points

Analog Output

Output Range

Digital Resoltuion

No. of
Outputs

100 kHz

Pulse Outputs

External Output
Power Supply for
Sensor

USB-mini B
USB-A
RS232C
RS485/422

Note 3

Note 3

Note 3

Note 3

Function — — — — —

No. of
Outputs

5 kHz

Function — — — — — PULS, PWM — PULS, PWM

Output Voltage — — — —

Output Current — — — — 250mA — 300mA — 300mA
Overload Detection — — — — Not Available — Not Available — Not Available
Insulation — — — — Internal Circuit — Internal Circuit — Internal Circuit

0 to 10V DC (voltage input)

/4 to 20m A (current input)
78kΩ (voltage input)
/ 250Ω (current input)

—

0 to 10V DC (voltage output)

—

/4 to 20m A (current output)

—

0 to 1,000 (10 bits)

— — — — — 2 — 2

— — — — — 2 — 2

0 to 10V DC

78kΩ

10A Relay

Note 6

10A Relay

/Transistor

10A Relay

Note 6

Transistor

Note 6

2

—

24V DC

(+10%,-15%)

PULS, PWM, RAMP,

ARAMP, ZRN

—

—

24V DC

(+10%, -15%)

PULS, PWM,

RAMP, ARAMP, ZRN

—

X X X X X
X — — — —
X —
X —

Note 4

X

Note 4

X

Note 4

X

Note 4

X

Ethernet X — X X X
Expansion Communication

Ports
Memory Cartridge — X X X X

SD Memory Card — — —
Analog Cart ridge

Interface

1. Except for timer, counter, input Function Block, and output Function Block. 2. 100kHZ when single-phase, 50kHz when two-phase multiple 2.4. 3. Not isolcated from internal circuits.

4. When communication cartridge is installed. 5. The maximum capacity is 32 GB. DLOG and TRACE instructions are used to write data. 6. First four outputs are 10A. Remaning are 2A.

Port 2 — — X X X
Port 3 — —

Number of Ports
Connectable Cards

—
—

4
2

— X X

Note 5

X
—
—

H48KC
H48SC
B48KC
B48SC

24V DC

(+10%, -15%)

Note 4

X

Note 4

X

Note 5

X

—

—

—

1716

Specifications

Display Specifications

Touch/Pro (PLC + HMI/Built-In LCD)

Model Touch Pro (Built-in LCD)

Display Element TFT color LCD STN monochrome LCD STN monochrome LCD

Colors/Shades 65,536 colors Monochrome 8 shades Monochrome

Effective Display Area 88.92 W x 37.05 H mm 87.59 W x 35.49 H mm 47.98 W x 18.22 H mm

Display Resolution 240 W x 100 H pixels 192 W x 64 H pixels

View Angle Left/right 40°, top 20°, bottom 60° Left/right/top/bottom: 45° Left/right 30°, top 20°, bottom 40°

Contrast Adjustment Not Available 32 levels Not Available

Backlight LED LED (white, red, pink) LED (green)

Backlight Life 50,000 hours

Brightness 400cd/m2

Note 2

Note 1

740cd/m2

Note 2

45cd/m

—

2 Note 2

Brightness Adjustment 32 levels Not Available

Backlight Control On/off

Backlight Replacement Not Available

8 x 8 pixels (Japanese Katakana, JIS 8-bit code,

1/4 Size

ISO 8859-1 [Latin 1], ANSI 1250 [Central Europe]),

—

ANSI 1257 (Baltic), ANSI 1251 (Cyrillic)

8 x 16 pixels (Japanese Katakana, JIS 8-bit code,

ISO 8859-1 [Latin 1], ANSI 1250 [Central Europe]),

1/2 Size

ANSI 1257 (Baltic), ANSI 1251 (Cyrillic)

16 x 32 pixels, 24 x 48 pixels, 32 x 64 pixels

(Western European languages: ISO 8859-1)

Display Character Size

Full Size

16 x 16 pixels (Japanese JIS first and second level characters,

simplified Chinese, traditional Chinese, Korean)

Double Size 32 x 32 pixels (Japanese JIS first level characters, Mincho font)

1/4 Size 30 characters x 12 lines/screen

8 x 16 pixels Japanese Katakana, JIS

8-bit code, ISO 8859-1 (Latin 1),

ANSI 1251 (Cyrillic)

—

16 x 16 pixels (Japanese JIS first level

characters, Chinese)

—

—

1/2 Size 30 characters x 6 lines/screen 24 characters x 4 lines

Full Size 15 characters x 6 lines/screen 12 characters x 4 lines

Double Size 7 characters x 3 lines/screen

No. of Characters

Character Magnification 0.5x, 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x, vertically and horizontally

Character Attributes

Graphics

Line, polyline, polygon, rectangle, circle, ellipse, arc, pie, equilateral

Blink, reverse, bold, shadowed

(blink is 1 or 0.5sec)

polygons (3, 4, 5, 6, 8), fill, picture

Window Display 3 pop-up screens + 1 system screen

1. The backlight life refers to the time until the brightness reduces by half after use at 25°C.

2. Brightness of LCD only (monochrome LCD: when lit white).

—

—

Blink, reverse

—

—

Operation Specifications

Touch/Pro (PLC + HMI/LCD Models)

Model Touch Pro (Built-in LCD)

Switching Element Analog resistive membrane (touch panel) Rubber switches

Operating Force 0.2 to 2.5N 2.0N minimum

Mechanical Life 1 million operations 10,000 operations

Acknowledgment Sound Electric Buzzer Not provided

Multiple Press Not possible Possible

Analog Cartridge Specifications (Touch Transistor Output Model)

Part No.

Type Voltage/Current Input Temperature Input

Rated Voltage 5.0V, 3.3V (supplied from the Touch)

Consumption Current

Weight 15g

FC6A-PJ2A FC6A-PJ2CP FC6A -PK 2 AV FC 6A-PK2 AW

Voltage Output Current Output

5.0V: –

3.3V: 30mA

5.0V: 70mA

3.3V: 30mA

Input Specifications

Part No. FC6A-PJ2A FC6A-PJ2CP

Input Type Voltage Input Current Input

Input Range 0 to 10V DC

Input Impedance 1MΩ min.

Allowable Conductor Resistance —

Input Detection Current —

Sample Duration Time 10ms

Sample Interval 20ms 500ms

Total Inpu t System

Transfer Ti me

Type of Input Single-ended input

A/D Conversion

Operating Mode Self-Scan

Conversion Method SAR

Maximum Error at

25°C

Temperature Coefficient ±0.02%/

Input Error

Reproducibility After

Stabilization Time

Non-liniarity ± 0.01% of full scale

Maximum Error ±1.0% of full scale

Digital Resolution 4096 increments (12 bit)

Data

LSB Input Value 2.44mV (0 to 10V DC

Data Format in

Application

Monotonicity Yes

Maximum Temporary

Deviation During

Electrcal Noise Tests

Noise

Recommended Cable Shielded twisted pair

Resistance

Isolation
Effe ct When Input is Incorrectly

Wired
Maximum Allowable Cons tant

Load (non-destructive)
Input Type Modif ication Software programming
Calibration to Maintain Rated

Accuracy

Crosstalk 1LSB max.

±0.1% of full scale ±0.1% of full scale

20ms + 1 scan 500ms + 1 scan

Can be arbitrarily set for each channel in the range of –32,768 to 32,773

13V DC 40mA 13V DC

4 to 20m A DC
0 to 20m A DC

250Ω max. 1MΩ min.

±0.5% of full scale

4.88µA (DC0 to 20 mA)

3.91µA (DC4 to 20mA)

±4.0% full scale max.

No damage

Impossible

Resistance

Thermometer

Pt100: –200 to + 850°C
Pt1000: –200 to +600°C
Ni100: –60 to +180° C
Ni1000: – 60 to +180°C
3-wire RTD

10Ωmax —

Typ: 0.2m A, 1.0mA max. —

±0.1% of full scale Cold junction compens ation
accuracy ±4.0°C or less. Exceptions
R, S ther mocouple error: ±6.0°C (0 to200°C
range only)
B thermocouple error :
Not guar anteed (0 to 300°C range only)
K, J, E, T, N thermocouple error:
±0.4% of full scale (0°C or lower range only)

°C of full scale

Pt100: 10,500 (14bit)
Pt1000: 8000 (13 bit)
Ni100: 2400 (12 bit)
Ni1000: 2400 (12bit)

None

K: –20 0 to 1300°C
J: –200 to 1000°C
R: 0 to 1760 °C
S: 0 to 1760 °C
B: 0 to 1820°C
E: –20 0 to 800°C
T: –20 0 to 800°C
N: –200 to 1300°C
C: 0 to 2315° C

250ms

K: 15,000 (14 bit)
J: 12,00 0 (14 bit)
R: 17,600 (15 bit)
S: 17,600 (15 bit)
B: 18,200 (15 bit
E: 10,000 (14 bit)
T: 6,000 (13 bit)
N: 15,000 (14 bit)
C: 23,150 (15 bit)

0.1° C

0.18 °F

Thermocouple

800.262.4332



5.0 V: 18 5m A

3.3V: 30mA

Output Specifications

Part No. PC6A-PK2AV FC6A-PK2AW

Type Voltage Output Current Output

Voltage Output 0 to 10V DC —

Type

Current Output — 4 to 20mA DC

Output

Impedance 2kΩ min. 500kΩ max.

Load

Load Type Resistance Load

Cycle Time 20ms

Settling Time 40ms max. 20ms max.

D/A

Total Output System

Conversion

Transfer Type

Maximum Error at

°C

25

Temperature

Coefficient

Reproducibility after

Stabbilization Time

Non-linearity ±0.01% of full scale
Output Ripple 30mV max.

Output Error

Overshoot 0%

Maximum Error ±1.0% of full scale

Effect of Improper

Output Terminal

Connection

Digital Resolution 4096 incrememts (12 bits)

LSB Output Value 2.44mV (0 to10V) 3.91µA (4 to 20mA)

Data Format in

Data

Application

Monotonicity Yes

Open Current Loop — Cannot be detected

Maximum Temporary

Deviation During

Electrical Noise Tests

Noise

Recommended Cable Shieleded twisted pair

Resistance

Isolation None
Calibration to Maintain Rated

Accuracy
Selection of Output Signal Type Voltage output only Current output only

Crosstalk 1 LSB max.

60ms+1 scan 40ms+1 scan

±0.3% of full scale

°C of full scale

±0.02%/

±0.4% of full scale

No damage

0 to 4095 (0 to 10V)

±4.0 full scale max.

Impossible

Applicable Wire

Cartridge
Part No.

Applicable

FC6A-PJ2A FC6A-PJ2CP FC6A-PK2AV FC6A-PK2AW

Wire

0.3mm²
(AWG22)
shielded

twisted pair

0.3mm²

(AWG22)

cable

0.3mm² (AWG22) shielded
twisted pair

1918
