IDEC FL1E-H12RCA, FL1E-H12SND, FL1E-H12RCC, FL1E-H12RCE, FL1E-B12RCA User Manual

B-1090(6)

DEC

FL 1 E

series

DEC

5mar'tRelay

User's

Manual

••••••••••

•

IDEC CORPORATION

Revision History

Date Manual No. Description

November, 2008 B-1090(0)

First print

December, 2008 B-1090(1)

Sensor connections for IDEC SmartRelay:
FL1E-H12RCA / FL1E-B12RCA /
FL1E-H12RCE / FL1E-B12RCE / FL1E-H12SND

February, 2009 B-1090(2)

• Compatibility (FL1C-PM3 memory cartridge in FL1E)

• Compatibility (FL1E-PM4 memory cartri dg e in ol d er
IDEC SmartRelay modules)

July, 2009 B-1090(3) Deleting the circuit program and passwor d “Note”

September, 2009 B-1090(4)

• 1. The analog output module (FL 1D-K 2B M 2) stru c ture

• 1. How to identify the IDEC SmartRelay
(Analog output module )

• 2.1.2 Setup with different voltage classes

• 2.1.3 Compatibility (F L1D-K2BM2)

• 2.2.3 Mounting the Text Display

• 2.3.4 Connecting outputs, Output Internal Circuit

(FL1D-K2BM2)

• 3.6.5 Password

• 3.6.5 Changing IDEC SmartRelay fr om RUN to STOP

mode from the Text Display

• 4.4.20 Analog amplifier (Analog output )

• 6. Compatibility (FL1C-PM3 memory cartrid ge i n FL1E)

• 6. Compatibility (FL1E-PM4 memory cartrid ge in older

IDEC SmartRelay modules)

• A.1 General technical data (Degree of protection)

• A.11 T echnical data: FL1D-K2BM2

• E: Type Number (FL1D-K2BM 2)

July, 2010 B-1090(5)

• 1. How to identify the IDEC SmartRelay
(Base module)

• 4.4.11 Seven-day time switch

• 4.4.12 Twelve-month time switch

• A.4 Technical data: FL1E-H12SND

(Backup of the real-time clock at 25°C,
Accuracy of the real-time clock)

• E: Type Number (FL1E-H12SND)

December, 2011 B-1090(6)

• 7. IDEC SmartRelay software

Adding Windows 7 to the supporting OS.

• Deleting the description for LONWORKS.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual i

Safety guidelines

This manual contains notices you have to observe in order
to ensure

your personal safety, as well as to prevent damage
to property. The notices referring to your personal safety are
highlighted in the manual by a safety alert symbol, notices
referring to property damage only have no safety alert
symbol. The notices shown below are graded according to
the degree of danger.

If more than one degree of danger is present, the warning
notice representing

the highest degree of danger will be used.

A no

tice warning of injury to persons with a safety alert symbol

may also include a warning relating to property damage.

!

Danger

indicates that death or severe personal injury will result if proper
precautions are not taken.

!

Warning

indicates that death or severe personal injury may result if proper
precautions are not taken.

!

Caution

with a safety alert symbol indicates that minor personal injury can
result if proper precautions are not taken.

Caution

without a safety alert symbol indicates that property damage can
result if proper precautions are not taken.

Note

indicates that an unintended result or situation can occur if the cor­responding notice is not taken into account.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

ii IDEC SmartRelay Manual

Qualified Personnel

The device/system may only be set up and used in
conjunction with this documentation. Commissioning and
operation of a device/system may only be performed by
qualified personnel. Within the context of the safety notices
in this documentation qualified persons are defined as
persons who are authorized to commission, ground and
label devices, systems and circuits in accordance with
established safety practices and standards.

Prescribed Usage

Note the following:

Copyright  IDEC

CORPORATION

All rights reserved

The reproduction, distribution or use of this document or its
contents

is not permitted without express written authority.
Offenders will be liable for damages. All rights reserved, in
particular in the event of patents being granted or the 
registration of a utility model or design.

Disclaim of Liability

We have reviewed the contents of this publication to ensure
co

nsiste

ncy with the hardware and software described.
Since variance cannot be precluded entirely, we cannot
guarantee full consistency. However, the information in this
publication is reviewed regularly an d an y ne cessa ry 
corrections are included in subsequent editions.

!

Warning

This device and its components may only be used for the
applications described in the catalog or the technical description,
and only in connection with devices or components from other
manufacturers which have been approved or recommended by
IDEC.
Correct, reliable operation of the product requires proper transport,
storage, positioning and assembly as well as careful operation and
maintenance.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Preface

IDEC SmartRelay Manual iii

Preface

Dear customer
We thank you for purchasing IDEC SmartRelay and

congratulate you on y

our decision. With IDEC SmartRelay
you have acquired a logic module that meets the stringent
quality requirements of ISO 9001.
IDEC SmartRelay can be used in ma

ny fiel

ds of applications.
Due to its high functionality and easy operation, IDEC
SmartRelay offers you the utmost efficiency for almost any
application.

Purpose of this manual

This IDEC SmartRelay manual provides you with information
ab

out the cre

ation of circuit programs, about the installation
and use of FL1E IDEC SmartRelay base m odules, th e Te xt
Display and the IDEC SmartRelay exp ansion mo dules , and
about their compatibility with the previous FL1A–FL1D
versions (FL1x are the last four characters of the order
number of the base modules and differentiate the device
series).

IDEC SmartRelay’s place in information technology

The wiring information in your IDEC SmartRelay manual is
also found in the

IDEC SmartRe

lay Product Info included
with all devices. For further information on programming the
IDEC SmartRelay on your PC, refer to the Online Help for
WindLGC.
WindLGC is the programming software for PCs. It runs

un

der Win

dows



. It helps you to get started with IDEC
SmartRelay and to write, test, print out and archive your
programs, independent of the IDEC SmartRelay.

Guide

The manual is divided into 8 chapters:

• Getting started with IDEC SmartRelay

• IDEC SmartRelay installation and wiring

• Programming IDEC SmartRelay

• IDEC SmartRelay functions

• Configuring IDEC SmartRelay

• IDEC SmartRelay memory and battery cartridges

• IDEC SmartRelay software

• Applications

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Preface

iv IDEC SmartRelay Manual

Valid range of this manual

The manual applies to devices of series FL1E.

New features of the FL1E IDEC SmartRelay device series

• The Text Display provides an additional display device for
me

ssages, a

nd contains four cursor keys and four functions

keys that can be used in the circuit program.

• An additional password protection function is available in
the

Te

xt Display (version 4 or later) and can only be enabled
when the Text Display is used together with IDEC
SmartRelay Base modules (version 4 or later).

• The new IDEC SmartRelay Battery cartridge and the
IDEC Smar

tRel

ay Combined Memory/Battery cartridge
provide up to two years of backup time for the real-time
clock. The new IDEC SmartRelay Memory cartridge and
the Combined Memory/Battery cartridge provide 32
Kbytes memory space.

• Additional optional analog inputs and fast digital inputs are
available on

some of the F

L1E IDEC SmartRelay base

modules.

• FL1E IDEC SmartRelay configuration menus can be
d

isp

layed in ten supported languages. You have a
configuration choice to specify the language for IDEC
SmartRelay menus.

• New instruction blocks are available: Pulse Width Modulator
(PWM), Ana

lo

g Math, and Analog Math Error Detection.

• Message texts can tick on and off the display; can include
bar

graphs, can switch between two character sets, and
can be displayed on either the IDEC SmartRelay Display,
the Text Display, or both. Full editing capabilities are
available from WindLGC; editing from the IDEC
SmartRelay base module is limited to simple text. See
section 2.1.3 for further details.

• USB PC cable between a PC and IDEC SmartRelay base
mo

dule is ava

ilable as an option.

• You can now have up to 200 program blocks in your
circuit prog

ram.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Preface

IDEC SmartRelay Manual v

Additional differences compared to previous devices 
(FL1A to FL1D)

• Extended set of reference parameters for function blocks.

• Enhancements to up/down counter, Operating hours
counter,

Twelve-month time switch and analog watchdog

instruction blocks.

• You can find information on compatibility

of IDEC Smart-

Relay FL1

E to previous devices at section 2.1.3.

Additional support

At our Internet address
you can quickly and easily find answers to your
queries about IDEC SmartRelay.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Preface

vi IDEC SmartRelay Manual

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual vii

Contents

Preface.....................................................................iii

Contents.................................................................vii

1 Getting started with IDEC SmartRelay...................1

2 IDEC SmartRelay installation and wiring ............17

2.1 Modular IDEC SmartRelay setup...................................................20

2.1.1 Maximum setup................ ............................................... ..............20

2.1.2 Setup with different voltage classes ..............................................22

2.1.3 Compatibility..................................................................................24

2.2 Installing/removing IDEC SmartRelay...........................................25

2.2.1 DIN rail mounting.......................................... ......................... ........26

2.2.2 Wall-mounting................................................................................29

2.2.3 Mounting the Text Display .............................................................30

2.3 Wiring IDEC SmartRelay ................................................................32

2.3.1 Connecting the power supply........................................................33

2.3.2 Connecting the Text Display power supply....................................34

2.3.3 Connecting IDEC SmartRelay inputs.............................................35

2.3.4 Connecting outputs........................................................................44

2.3.5 Connecting the AS interface bus...................................................49

2.4 Putting into operation............................................ ... ......................51

2.4.1 Switching on the IDEC SmartRelay/Power On..............................51

2.4.2 Operating states............................................................................54

3 Programming IDEC SmartRelay ..........................57

3.1 Connectors......................................................................................58

3.2 Blocks and block numbers............................................................60

3.3 From circuit diagram to IDEC SmartRelay program....................63

3.4 The four golden rules for operating IDEC SmartRelay................66

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

viii IDEC SmartRelay Manual

3.5 Overview of IDEC SmartRel ay me nu s .............................. .. ... ... ... .68

3.6 Writing and starting the circuit program......................................69

3.6.1 Selecting programming mode ....................................................... 69

3.6.2 The first circuit program .................................................................70

3.6.3 Circuit program input........................................................... .......... 72

3.6.4 Assigning a circuit program name.................................................77

3.6.5 Password.......................................................................................78

3.6.6 Switching IDEC SmartRelay to RUN mode...................................84

3.6.7 Second circuit program .................................................................86

3.6.8 Deleting a block................................................................... ... ....... 92

3.6.9 Deleting block groups................ ....................................................93

3.6.10 Correcting programming errors.....................................................94

3.6.11 Selecting analog output values for RUN/STOP transition............. 94

3.6.12 Defining the type of analog outputs............................................... 95

3.6.13 Deleting the circuit program and password...................................96

3.6.14 Summertime/wintertime conversion..............................................97

3.6.15 Synchronization...........................................................................101

3.7 Memory space and circuit program size....................................103

4 IDEC SmartRelay functions ................................109

4.1 Constants and conn ec tors - Co..................... ... ... .. ......................110

4.2 Basic functions list - GF............................................................... 114

4.2.1 AND..............................................................................................115

4.2.2 AND with Edge Detection.............................................................116

4.2.3 NAND (not AND).........................................................................116

4.2.4 NAND with Edge Detection..........................................................117

4.2.5 OR................................................................................................118

4.2.6 NOR (not OR)..............................................................................119

4.2.7 XOR (exclusive OR).................................................................... 120

4.2.8 NOT (Negation, Inverter).............................................................120

4.3 Special functions.......................................................................... 121

4.3.1 Designation of the inputs.............................................................121

4.3.2 Time response ............................................................................. 122

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual ix

4.3.3 Backup of the real-time clock .......................................... ... .........123

4.3.4 Retentivity....................................................................................123

4.3.5 Parameter protection.......................................................... .........124

4.3.6 Calculating the gain and offset of analog values............. ... .........125

4.4 Special functions list - SF ............................................................128

4.4.1 On-delay......................................................................................131

4.4.2 Off-delay......................................................................................135

4.4.3 On-/Off-delay...............................................................................136

4.4.4 Retentive on-delay.......................................................................138

4.4.5 Interval time-delay relay/Pulse output .........................................139

4.4.6 Edge-triggered interval time-delay rela y......................................140

4.4.7 Asynchronous pulse generator........................................ ............142

4.4.8 Random generator.......................................................................144

4.4.9 Stairwell Light Switch...................................................................146

4.4.10 Dual-function switch ....................................................................148

4.4.11 Seven-day time switch....................................... ... .......................150

4.4.12 Twelve-month time switch ...........................................................155

4.4.13 Up/down counter ................................. ......................... ...............161

4.4.14 Operating hours counter..............................................................164

4.4.15 Frequency trigger ........................................................................168

4.4.16 Analog trigger ..............................................................................171

4.4.17 Analog differential trigger.............................................................174

4.4.18 Analog comparator ......................................................................177

4.4.19 Analog watchdog.........................................................................182

4.4.20 Analog amplifier...........................................................................185

4.4.21 Latching relay ...................................... ... ......................... ............190

4.4.22 Current impulse relay .................................................................191

4.4.23 Message texts..............................................................................193

4.4.24 Softkey.........................................................................................205

4.4.25 Shift register.................................................................................208

4.4.26 Analog Multiplexer.......................................................................210

4.4.27 Analog Ramp Control..................................................................212

4.4.28 PI controller .................................................................................216

4.4.29 Pulse Width Modulator (PWM)....................................................222

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

x IDEC SmartRelay Manual

4.4.30 Analog math................................................................................225

4.4.31 Analog math error detection........................................................ 230

5 Configuring IDEC SmartRelay............................233

5.1 Selecting parameter assignment mode...................................... 234

5.1.1 Parameters..................................................................................235

5.1.2 Selecting the parameters.............................................................236

5.1.3 Modifying parameters..................................................................237

5.2 Setting the default values for IDEC SmartRelay........................ 239

5.2.1 Setting the time of day and date (FL1E-H12RC...)...................... 240

5.2.2 Setting the display contrast and backlight choice........................241

5.2.3 Setting the menu language ......................................................... 243

5.2.4 Setting the number of AIs in the base module ............................ 244

5.2.5 Setting the start screen................................................................245

6 IDEC SmartRelay memory



and battery cartridge (card)................................247

6.1 Security function (CopyProtect)..................................................250

6.2 Inserting and removing memory and battery cartridges .......... 252

6.3 Copying data from IDEC SmartRelay



to the memory cartridge............................................................... 254

6.4 Copying data from the memory cartridge



to IDEC SmartRelay....................... ... ......................... ... ... ... .......... 256

7 IDEC SmartRelay software..................................259

7.1 Connecting IDEC SmartR e lay to a PC ........................... ... .. ... ... ..261

8 Applications .........................................................263

8.1 Stairway or corridor lighting........................................................ 265

8.1.1 Requirements for a stairway lighting system....................... ... ..... 265

8.1.2 Previous solution........................................... ... ...........................265

8.1.3 Lighting system with IDEC SmartRelay............................... ... ..... 266

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual xi

8.1.4 Special features and expansion options......................................268

8.2 Automatic door .............................................................................269

8.2.1 Requirements of an automatic door.............. ......................... ......269

8.2.2 Conventional solution ..................................................................270

8.2.3 Door control system with IDEC SmartRelay................................270

8.2.4 Special features and expansion options......................................273

8.2.5 Extended solution with FL1E-H12RCC .......................................273

8.3 Air-conditioning sys te m....................... ... ......................... ... ... ......276

8.3.1 Requirements for an air-conditioning system ............................. .276

8.3.2 Advantages of using IDEC SmartRelay........................... ............279

8.4 Factory door..................................................................................281

8.4.1 Requirements for a gate control system......................................281

8.4.2 Previous solution.........................................................................282

8.4.3 Extended IDEC SmartRelay solution...........................................284

8.5 Centralized control and monitoring of several factory doors. .. 285

8.5.1 Requirements for a gate control system......................................286

8.6 Luminous rows ............................. ... .. .......................... .. ...............289

8.6.1 Requirements for a lighting system.............................................289

8.6.2 Previous solution.........................................................................290

8.6.3 Luminous row control system with FL1E-H12RCC......................291

8.7 Service water pump............. ... ... ... ......................... ... ... .................293

8.7.1 Requirements for a control system of a service water pump.......294

8.7.2 Previous solution.........................................................................294

8.7.3 Service water pump system with FL1E-H12RCC........................295

8.7.4 Special features and expansions.................................................296

A Technical data......................................................297

A.1 General technical da ta.............................................. ... .. ...............297

A.2 Technical data: FL1E-H12RCC/FL1E-B1 2RCC .............. ............. 299

A.3 Technical data: FL1B-M08C2R2 ..................................................302

A.4 Technical data: FL1E-H12SND.....................................................305

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

xii IDEC SmartRelay Manual

A.5 Technical data: FL1B-M08B1S2 ................................................. 307

A.6 Technical data: FL1E-H12RCA/FL1E-B12RCA........................... 309

A.7 Technical data: FL1B-M08D2R2.................................................. 312

A.8 Technical data: FL1E-H12RCE/



FL1E-B12RCE and FL1B-M08B2R2.............................................314

A.9 Switching capacity and serv ice life of the relay outputs .......... 317

A.10 Technical data: FL1B-J2B2.......................................................... 318

A.11 Technical data: FL1D-K2B2, FL1D-K2BM2.................................319

A.12 Technical data: Text Display .......................................................320

B Determining the cycle time.................................321

C IDEC SmartRelay without display .....................325

D IDEC SmartRelay menu structure ......................329

D.1 IDEC SmartRelay base module ...................................................329

D.2 Text Display................................................................................... 331

E Type Numbers...... ............ ........... ............ ........... ..333

Index......................................................................335

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual 1

1

Getting started with IDEC 
SmartRelay

Here’s IDEC SmartRelay

IDEC SmartRelay is a universal logic module made by IDEC
that integrate

s:

• Controls

• Operator and display panel with background lighting

• Power supply

• Int er fa ce fo r exp a nsion modules

• Interface for a memory cartridge, battery cartridge,
combined

memory/battery cartridge, IDEC SmartRelay

PC cable or USB PC cable

• Int er fa ce fo r an opti onal te xt disp la y (T D) mo d ule

• Pre-configured standard functions, for example, on-and
off-delays, cur

rent impulse relay and softkey

•Timers

• Digital and analog memory markers

• Inputs and outputs, according to the device type

What IDEC SmartRelay can do for you

IDEC SmartRelay offers solutions for domestic and
installa

tion

engineering applications such as stairway
lighting, external lighting, sun blinds, shutters, shop window
lighting and more; switch cabinet engineering, as well as for
mechanical and apparatus engineerin g such as gate control
systems, air-conditioning systems, rand ainwater pumps.

IDEC SmartRelay can also be implemented for special
contr

ol syste

ms in conservatories or greenhouses, for
control signal processing and, by connecting a
communication module such as an AS-i module, for
distributed local controlling of machines and processes.

Special versions without operator panel a nd display unit are
a

va

ilable for series production applications in small machine,

apparatus, switching cabinet and installation engineering.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

2 IDEC SmartRelay Manual

Which devices are available?

IDEC SmartRelay Base is available in two voltage classes:

• Class 1  24 V, i.e.

12 V DC, 24 V DC, 24 V AC

• Class 2 > 24 V, i.e. 100...240 V AC/DC
IDEC SmartRelay Base is available in two versions:

• With display:

8

inputs and 4 outputs

• Without display (”

IDEC SmartRelay Pure”): 8 inputs and

4 outputs

Each version is integrated into four subunits, is equipped
with an e

xpansion interface and Text Display interface and
provides 39 pre-configured standard and special function
blocks for the creation of your circuit program.

Which expansion modules are available?

• IDEC SmartRelay digital modules are available for

o

peration

with 12 V DC, 24 V AC/DC and 100...240 V AC/

DC, and are equipped with four inputs and four outputs.

• IDEC SmartRelay analog modules are available for

o

peration

with 24 V DC and some with 12 V DC,
depending on the specific module. Each is equipped with
two analog inputs or two analog outputs.

The digital/analog modules are integrated in two or four
sub

un

its. Each one is equipped with two expansion

interfaces for connecting additional modules.

Which display modules are available?

• IDEC SmartRelay Base with display

• Text Display

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 3

Features of the Text Display

The Text Display is available with the FL1E series. It
provides an additional display that is wider than the Base
module. It has four function keys that you can program in
your circuit program as inputs. Like the IDEC SmartRelay
Base module, it has four cursor keys, an ESC key and an OK
key that you can also program in your circuit program and
use for navigation on the Text Display.

You can create and download a power-up screen for the
Tex

t D

isplay from WindLGC. This screen displays briefly
when you initially power on the Text Display. You can also
upload the power-up screen from the Text Display to
WindLGC.

The menus for the Text Display are shown in Appendix
sect

ion D.2. You

configure the settings for the Text Disp

lay
independently from the IDEC SmartRelay Base module . The
settings can be d

ifferent.

Which communication modules are available?

• IDEC SmartRelay communication module (CM) AS

interface, which is described

in more detail in a separate

documentation.
The communication module has four virtual inputs and

outputs, and

acts as an interface between an AS­Interface system and an IDEC SmartRelay system. The
module enables four data bits to be transferred from the
IDEC SmartRelay base module to the AS-Interface
system and vice versa.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

4 IDEC SmartRelay Manual

It’s your choice

The various IDEC SmartRelay Base versions, expansion
modules, Text Display and communication modules offer
you a highly flexible and adaptive system to suit your specific
tasks.

The IDEC SmartRelay system offers you many solutions
such as

for small domes

tic installations, simple automation
tasks, and even complex engineering tasks involving its
integration into a bus system (e.g. communication mod ule
AS interface).

Note

IDEC SmartRelay base module may only be equipped with
expansion modules of the same voltage class. Mechanical
encoding pins in the housing prevent you from connecting devices
of a different voltage class.

Exception: The left-hand interface of an analog module or
communication module is galvanically isolated.

This type of expansion module can therefore be connected to
devices of a different voltage class. See also Chapter 2.1.

A Text Display, if used, can be connected only to an FL1E IDEC
SmartRelay base module.

Each IDEC SmartRelay base module supports the following
connections for the creation of the circuit program, regardless of the
number of connected modules:

• Inputs 11 to I24

• Analog inputs AI1 to AI8

• Outputs Q1 to Q16

• Analog outputs AQ1 and AQ2

• Memory Markers M1 to M27:

- M8: Startup marker

- M25: Backlight flag: IDEC SmartRelay Display

- M26: Backlight flag: Text Display

- M27: Message text character set flag

• Analog Memory Markers AM1 to AM6

• Shift register bits S1 to S8

• 4 cursor keys

• 16 blank outputs X1 to X16

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

I7 I8

Q1 Q2 Q3 Q4

4

L1 N

09

I5 I6I2 I3 I4I1

72

55

53

1 2 1 2 1 2 1 2

6

IDEC SmartRelay Base 

(e.g.: FL1E-H12RCC)

Q4

Q1 Q2

L1 N I2 I3 I4I1

36

09

53

4

Q3

RUN/STOP

53

1 2 1 2

1 2 1 2

IDEC SmartRelay 

expansion module 

(e.g.: FL1B-M08C2R2)

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 5

The IDEC SmartRelay structure

Power supply Control panel 

(not for FL1E­B12...)

Mechanical coding
pins

Inputs LCD 

(not for FL1E­B12...)

Mechanical coding
sockets

Outputs RUN/STOP

indicator

Slide

Module slot
with cap

Expansion
interface

Text Display
cable connector

Version number

(example: 

represents Version 1.)

15926103711481213

X 2
3 4

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

I7 I8

Q1 Q2 Q3 Q4

4

L+ M

4

6

5

09

I5 I6I2 I3 I4I1

72

55

53

1 2 1 2 1 2 1 2

IDEC SmartRelay Base 

(e.g.: FL1E-H12RCE)

Q3 Q4

Q1 Q2

L+ M I2 I3 I4I1

09

4

36

53

53

RUN/STOP

1 2 1 2

1 2 1 2

IDEC SmartRelay 

expansion module 

(e.g.: FL1B-M08B2R2)

Getting started with IDEC SmartRelay

6 IDEC SmartRelay Manual

Power supply Control panel 

(not for FL1E­B12...)

Mechanical coding
pins

Inputs LCD 

(not for FL1E­B12...)

Mechanical coding
sockets

Outputs RUN/STOP

indicator

Slide

Module slot
with cap

Expansion
interface

Text Display
cable connector

Version number

15926103711481213

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 7

FL1B-J2B2

I1

PE

INPUT2x(0..10V/0..20mA)

L+ M

09

M1U1 M2U2I2

4

L+ M

RUN/STOP

36 53

53

FL1D-K2B2

Power supply Mechanical

coding pins

PE terminal, for
connecting earth and
the shielding of
analog measuring
cables.

Inputs Mechanical

coding sockets

RUN/STOP
indicator

Slide Version number

Expansion interface

Power supply Expansion

interface

Slide

Outputs Mechanical

coding pins

PE terminal, for
connecting earth

Version number

RUN/STOP
indicator

Mechanical
coding sockets

191221071113818112912710

13

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

8 IDEC SmartRelay Manual

FL1D-K2BM2

V1+

OUTPUT 2x(0..10V or 0/ 4..20mA)

L+M

36

RU N / ST O P

1

7

9

9

88

M1PEM2V2+

4

L+M

2

11

10

12

53

90

35

13

I2I1

Power supply Expansion

interface

Slide

Outputs Mechanical

coding pins

PE terminal, for
connecting earth

Version number

RUN/STOP
indicator

Mechanical
coding sockets

1811291271013

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 9

Text Display

 Communication interface
 Power supply

The Text Display includes a wid

er

display area than the
IDEC SmartRelay Display. It includes four programmable
cursor keys, four programmable function keys, and a n ESC
and OK key. You use the included Text Display cable to
connect from the communication interface on the right side
of the Text Display to the corresponding interface on the left
side of the IDEC SmartRelay base module.

How to identify the IDEC SmartRelay

The IDEC SmartRelay identifier informs you of various
pr

operties

.
Base module
FL1E-
 B: Base module without display 

H: Base module with display

 Number of Inputs and Outputs
 R: Relay output S: Tr. (source) output
 C: With clock N: Without clock
 D: 24V DC E: 12/24V DC A: 24V AC/DC

B: 100...240V AC C: 100...240V AC/DC

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

10 IDEC SmartRelay Manual

Expansion module
Digital module
FL1B-M

 Number of Inputs and Outputs
 B1: 24V DC B2: 12/24V DC

C2: 100...240V AC/DC D2: 24V AC/DC

 S: Tr. (source) output R: Relay output
 Terminal type 2: non-removable terminal

Analog input module
FL1B-J
 Number of Inputs

 Resolution B: 10bit
 Terminal type 2: non-removable terminal

Analog output module
FL1D-K
 Number of Outputs

 Resolution B: 10bit
 blank: 0 ... 10V M: 0 ... 10V, 0/4 ... 20 mA
 Terminal type 2: non-removable terminal

Communication module
FL1B-
 C: Communication module

 AS: AS-Interface
 blank: AS-Interface rated voltage (30V DC) C1: 24V AC/

DC

 Terminal type 2: non-removable terminal
Text Display

FL1E-
 RD: Remote Display
 Version type

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 11

Symbols

Version with display unit is equipped with 8 inputs and 4 outputs

Version without display unit is equipped with 8 inputs and 4 outputs

The digital module is equipped with 4 digital inputs and 4 digital
outputs

The analog module is equipped with 2 analog inputs or two analog
outputs, according to the device type

The communication module (CM); for example, AS Interface is
equipped with 4 virtual inputs and 4 virtual outputs

The Text Display

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

12 IDEC SmartRelay Manual

Versions

The following IDEC SmartRelay versions are available:

(1): Of those can be used alternatively: 4 analog inputs (0 ... 10V) and 4 fast inputs.
(2): AC versions: Two groups consisting of 4 inputs each. Each input within a group

must be connected to the same phase. It is possible to interconnect groups with
a different phase.

(3): The digital inputs can be operated with P or N action.

Symbol Designation Supply

volta

ge

I

nputs Outputs Properties

FL1E-H12RCE 12/24 V DC 8 digital

(1)

4 relays 
(10 A)

FL1E-H12SND 24 V DC 8 digital

(1)

4 solid state 
24V / 0.3A

no clock

FL1E-H12RCA

(3)

24 V AC/
24 V DC

8 digital 4 relays

(10A)

FL1E-H12RCC

(2)

100...240 V
AC/DC

8 digital 4 relays

(10A)

FL1E-B12RCE 12/24 V DC 8 digital

(1)

4 relays
(10A)

no display unit
no keyboard

FL1E-B12RCA

(3)

24 V AC /
24 V DC

8 digital 4 relays

(10A)

no display unit
no keyboard

FL1E-B12RCC

(2)

100...240 V
AC/DC

8 digital 4 relays

(10A)

no display unit
no keyboard

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 13

Expansion modules

The following expansion modules can be con nected to IDEC
SmartRelay:

(1): Different phases are not allowed within the inputs.
(2): 0 ... 10 V, 0 ... 20 mA can be connected optionally.
(3): Digital inputs can be operated either with P or with N action.
(4): 0 ... 10 V, 0/4 ... 20 mA can be connected optionally.

Communication modules

The following communication modules can be co nnected
to IDEC

SmartRelay:








Text Display Module

The following Text Display module is available:

Symbol Name Power supply Inputs Outputs

FL1B-M08B2R2 12/24 V DC 4 digital 4 relays (5A)
FL1B-M08B1S2 24 V DC

4 digital 4 solid state 24V

/ 0.3A

FL1B-M08D2R2

(3)

24 V AC/DC 4 digital 4 relays (5A)

FL1B-M08C2R2 100...240 V

AC/DC

4 digital

(1)

4 relays (5A)

FL1B-J2B2 12/24 V DC 2 analog

0 ... 10V or 
0 ... 20mA

(2)

none

FL1D-K2B2 24 V DC none 2 analog

0 ... 10 V DC

FL1D-K2BM2 24 V DC none 2 analog

0 ... 10 V DC,
0/4 ... 20 mA

(4)

Symbol Name Power supply Inputs Outputs

IDEC Smart­Relay CM AS
Interface

30 V DC the

next four inputs
after the physical
inputs of IDEC
SmartRelay
(I

n

... I

n+3

)

the next four
outputs after the
physical outputs of
IDEC SmartRelay
(Q

n

... Q

n+3

)

Symbol Name Supply voltage Display

Text Display 24 V AC/DC

12 V DC

LCD (128 x 64)
4-row display

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

14 IDEC SmartRelay Manual

Certification and approvals

IDEC SmartRelay is certified to cULus and FM.

• cULus Haz. Loc.
Underwriters Laboratories Inc. (UL) to

- UL 508 (Industrial Control Equipment)

- CSA C22.2 No. 142 (Process Control Equipment)

- UL 1604 (Hazardous Location)

- CSA–213 (Hazardous Location)
APPROVED for use in
Class I, Division 2, Group A, B, C, D Tx
Class I, Zone 2, Group IIC Tx

•

FM Approval
Factory Mutual Research (FM) to
Appro

val Standard Class Number 3611, 3600, 3810
APPROVED for use in
Class I, Division 2, Group A, B, C, D Tx
Class I, Zone 2, Group IIC Tx
For further information, see our Internet address

Note

You will find current approvals on the rating plate of the relevant
module.

IDEC SmartRelay is issued with the CE Certificate of
Conformity. It is compliant with IEC 60730 -1 and IEC 61131­2 and interference-proof to EN 55011, Limit Class B.

Marine certification has been requested.

• ABS (American Bureau of Shipping)

• BV (Bureau Veritas)

• DNV (Det Norske Veritas)

• GL (Germanischer Lloyd)

• LRS (Lloyds Register of Shipping)

• Class NK (Nippon Kaiji Kyokai)
IDEC SmartRelay modules are there

fore suitable for

use in
industrial and residential areas. Use in Class I, Division 2,
Group A, B, C and D locations or in non- hazardous locations
is supported.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

IDEC SmartRelay Manual 15

Marine certification requires the surge protective device what
manufactured by DEHN+SÖHNE GmbH+Co., in a case of
12/24V DC or 24V DC power line. The required Type No. and
Part No.: BVT AD 24, 918 402. See Note on page 298.
For further information, see our Internet address

✔

ID for Australia

Recycling and Disposal

IDEC SmartRelay units can be fully recycled , du e to the ir
low-

pollutant equip

ment. Contact a certified electronic waste
disposal center for environmentally accept able recycling and
disposal of your old devices.

Our products carrying the label shown at the side are compliant
with AS/NZS 2064:1997 (Class A) standard.

!

Warning

Risk of death, personal injury or property damage can occur if you
do not follow safety precautions for hazardous locations.

In potentially explosive atmospheres, do not disconnect
connectors when the system is in RUN. Always switch off the
power supply to IDEC SmartRelay and its components before you
disconnect any connectors or components.

Substitution of components can impair suitability for Class I,
Division 2 locations. Combinations of equipment are subject to
investigation by the local authority having jurisdiction at the time of
installation.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Getting started with IDEC SmartRelay

16 IDEC SmartRelay Manual

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual 17

2

IDEC SmartRelay installation 
and wiring

General guidelines

Please note the following guidelines for installing and w

iring

your IDEC SmartRelay:

• Always ensure that the wiring of your IDEC SmartRelay

is compliant with current ru

les and standards. Also,
conform with all national and regional regulations when
you install and operate the devices. For information on
standards and regulations that apply to your specific
case, contact your local authorities.

• Always switch off power before you wire or install/remove
a module

.

• Always use cables with appropriate conductor cross­sections

for the relevant current. You can wire IDEC

SmartRelay with cable conductor cross-sections from

1.5 mm

2

to 2.5 mm2; see Chapter 2.3.

• Do no t exc ee d th e scr ew torque

of the terminals. The

maximum torque is: 0.5 Nm, see Chapter 2.3.

• Keep the cabling as short as possible. If longer cables are
necessar

y, you should use shielded versions. You should
always route your cables in pairs: i.e. one neutral
conductor plus one phase conductor or signal line.

• Always keep separate:

- The AC wiring

- High-vo

ltage DC circuits with high-frequency

switching cycles

- Low-voltage signal wiring

• Ensure that the wires are installed with

appropriate strain

relief.

• Provide a suitable lightning surge ar

rester for cables

installed in hazardous areas.

• Do not connect an external power supply in parallel to the
output

load of a DC output. This could develop a reverse
current at the output if you have not installed a diode or
similar barrier device.

• Reliable functioning of the equipment is only ensured with
certified compon

ents!

Note

IDEC SmartRelay devices may only be installed and wired by
skilled personnel who are familiar with and follow general
engineering rules and relevant regulations and standards.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

18 IDEC SmartRelay Manual

What you must note when installing

IDEC SmartRelay is designed for fixed and enclosed
installation in the housing or the control cabinet.

Safety of electronic control equipment

Introduction

The notes below apply regardless of the type or
manufa

cturer of the electronic control.

Reliability

Maximum reliability of IDEC SmartRelay device

s and
components is achieved by implementing extensive and
cost-effective measures during development and
manufacture.

This includes the following:

• Use of high-quality components

• Worst-case design of all circuits

• Systematic and computer-aided testing of all

comp

onents

•

Burn-in of all large-scale integrated circuits (e.g.
processors, memory

, etc.)

• Measu re s pr eve n tin g static ch ar ge whe n ha ndlin g MOS

ICs

• Visual checks at different stages of manufacture

• Continuous heat-run test at elevated

ambi

ent

temperature over a period of several days

• Careful computer-controlled final testing

• Statist ica l evalu a tio n of all re tu rn ed syst em s an d

comp

onents to en

able the immediate initiation of suitable

corrective measures

• Monitoring of major control components, using online

tests (cyclic

interrupt for the CPU, etc.)

!

Warning

Death, serious bodily injury or considerable damage to property
can occur.

Modules of an IDEC SmartRelay are open facilities. This means
that you must install IDEC SmartRelay only in a housing or cabinet.

Allow access to the housings or cabinets only with the use of a key
or a tool and only allow access to authorized or approved
personnel.

It is permissible to operate IDEC SmartRelay from the front at any
time.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 19

These measures are referred to as basic measures.

Carrying out tests

You must, however, ensure safety in your plant.
Before finally commissioning a sy

stem, carry

out complete

functional testing as well as all the necessary safety testing.
In testing, also include any predictable fa

ults that can occur.
This means that you will avoid any danger to the plant or to
people during operation.

Risks

In all cases where the occurrence

of failures can result in
material damage or injury to persons, special measures
must be taken to enhance the safety of th e installation – and
therefore also of the situation. System-specific and special
regulations exist for such applications. They must be
observed on installing the control system (for example, VDE
0116 for burner control systems).

For electronic control equipment with a safety func

tion, the
measures that have to be taken to prevent or rectify faults
are based on the risks involved in the installation. Beyond a
certain degree of hazard the basic measures mentioned
above are not sufficient. Additional measures must be
implemented and approved for the controller.

Important information

The instructions in the operating manual must be followed
exactly. In

corr

ect handling can render measures intended to
prevent dangerous faults ineffective, or generate additional
sources of danger.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

20 IDEC SmartRelay Manual

2.1 Modular IDEC SmartRelay setup

2.1.1 Maximum setup

As defined in Chapter 1, IDEC SmartRelay supports a
maximum of 24 digital inputs, 8 analog inputs, 16 digital
outputs, and 2 analog outputs . You ca n ac hie ve the
maximum setup in different ways as shown below:

Maximum setup of an IDEC SmartRelay with analog inputs - four
in use
(FL1E-H12RCE/FL1E-B12RCE and FL1E-H12SND)

IDEC SmartRelay base module, 4 digital m odules, 2 analog
modules and

1 analog output module (example)

FL1B-M08 FL1B-M08 FL1B-M08 FL1B-M08

FL1B-J2B2

FL1B-J2B2

I9...I12 I13...I16 I17...I20 I21...I24

AI5, AI6

AI7, AI8

I1, I2, I3 ... I6 I7, I8

Q1...Q4 Q5...Q8 Q13...Q16Q9...Q12

AI3, AI4, AI1, AI2

IDEC SmartRelay
base module

FL1D-K2B2

AQ1, AQ2

FL1D-K2BM2

Maximum setup of an IDEC SmartRelay with analog inputs - two
in use
(FL1E-H12RCE/FL1E-B12RCE and FL1E-H12SND)

IDEC SmartRelay base module, 4 digital m odules, 3 analog
modules and

1 analog output module (example)

FL1B-J2B2

AI3, AI4

FL1B-M08 FL1B-M08 FL1B-M08 FL1B-M08

FL1B-J2B2

FL1B-J2B2

I9...I12 I13...I16 I17...I20 I21...I24

AI5, AI6

AI7, AI8

I1, I2, I3 ... I6 I7, I8

Q1...Q4 Q5...Q8 Q13...Q16Q9...Q12

AI1, AI2

IDEC SmartRelay
base module

FL1D-K2B2

AQ1, AQ2

FL1D-K2BM2

Maximum setup of an IDEC SmartRelay without analog inputs
(FL1E-H12RCA/FL1E-B12RCA and FL1E-H12RCC/FL1E-B12RCC)

IDEC SmartRelay base module, 4 digital m odules, 4 analog
modules and

1 analog output module (example)

FL1B-J2B2

AI3, AI4

FL1B-M08 FL1B-M08 FL1B-M08 FL1B-M08

FL1B-J2B2

FL1B-J2B2

I9...I12 I13...I16 I17...I20 I21...I24

AI5, AI6

AI7, AI8

I1, I2, I3 ... I6 I7, I8

Q1...Q4 Q5...Q8 Q13...Q16Q9...Q12

IDEC SmartRelay
base module

AQ1, AQ2

FL1B-J2B2

AI1, AI2

FL1D-K2B2

FL1D-K2BM2

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 21

With any setup, you can plug in an analog output modu le,
which has the maximum of two analog outputs.

For FL1E-H12RCE/FL1E-B12RCE and FL1E-H12SND
modules

, you can configure whether the module uses two or
four of the four possible analog inputs. AI inputs are
numbered consecutively depending on how many you
configure the base module to use. If you configure two
inputs, they are numbered AI1 and AI2, and correspond to
the I7 and I8 input terminals. Subsequent AI expansions
modules would begin numbering at AI3. If you configure four
inputs, they are numbered AI1, AI2, AI3, and AI4, and
correspond to I7, I8, I1, and I2 in that order. Subsequent AI
expansions modules would begin numbering at AI5. See
sections 4.1 and 5.2.4.

High-speed/optimal communication performance

For optimal and high-speed communication performance
be

tween IDEC Smar

tRelay base module and the various
modules, we recommend that you install the digi tal modules
first, then the analog modules (examples above). (The
special function PI controller is an exception: the AI used for
the value PV should be on the IDEC SmartRelay base
module or an analog input module adjacent to the IDEC
SmartRelay base module).

We recommend that yo

u position the CM AS Interface on
the far right-hand side. (If the AS Interface voltage fails,
communication between the IDEC SmartRelay system and
expansion modules that are arrange d to the right of the IDEC
SmartRelay CM AS Interface expansion module is
interrupted).

The Text Display module is installed separ

ately. You
connect it to the IDEC SmartRelay base module with the
included Text Display cable.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

22 IDEC SmartRelay Manual

2.1.2 Setup with different voltage classes

Rules

Digital modules can only be directly connected to devices of
the same voltage c

lass.

You can connect analog and communication modules to
devices of any voltage

class.

Overview: Connecting an expansion module to IDEC SmartRelay

base module

In the

following tables, “X” means that

the connection is

possible; “-” means that the connection is not possible.

IDEC

SmartRelay

base module

Expansion modules

FL1B-

M08B2R2

FL1B-

M08B1S2

FL1B-

M08D2R2

FL1B-

M08C2R2

FL1B-

J2B2,
FL1D­K2B2,
FL1D-

K2BM2

CM

FL1E-H12RCE xxx-xx
FL1E-H12SND xxx-xx
FL1E-H12RCA xxx-xx
FL1E-H12RCC ---xxx
FL1E-B12RCE xxx-xx
FL1E-B12RCA xxx-xx
FL1E-B12RCC ---xxx

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 23

Overview: Connecting an additional expansion module to an

expansion module

When setting up expansion modules of different power volt­ages, take the following restrictions into consideration.

Note

When you use a 24V DC power supply to supply power to 12/24V
DC power type base module and 24V DC power type expansion 
I/O modules, use a 24V DC power supply which starts up within 10
seconds, otherwise the base module does not recognize the
expansion I/O modules. When the power supply voltage varies
while the base module and the expansion I/O modules are
operating, they normally operate within the permissible operating
voltage range. 
When using different power supplies, supply power to the base
module and expansion modules at the same time, or supply power
to expansion modules before the base module.When supplying
power to expansion modules after the base module, expansi on
modules may not be recognized by the base module.
When using different power supplies, the fast transient/burst
immunity (IEC61000-4-4) will be 1 kV (power supply).
A 100 to 240V AC/DC module cannot be connected to the right side
of a 12/24V DC, 24V DC, or 24V AC/DC module.
For analog input module and AS-Interface communication module,
a module of any voltage can be connected to the left side. To the
right side, however, a 100 to 240V AC/DC module cannot be
connected.

Expansion

module

Additional expansion modules

FL1B-

M08B2R2

FL1B-

M08B1S2

FL1B-

M08D2R2

FL1B-

M08C2R2

FL1B-

J2B2,
FL1D­K2B2,
FL1D-

K2BM2

CM

FL1B-M08B2R2 xxx-xx
FL1B-M08B1S2 xxx-xx
FL1B-M08D2R2 xxx-xx
FL1B-M08C2R2 ---xxx
FL1B-J2B2,

FL1D-K2B2
FL1D-K2BM2

xxx-xx

CM AS Interface xxx-xx

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

24 IDEC SmartRelay Manual

2.1.3 Compatibility

The Text Display module can only be used with equipment
series FL1E.

You cannot edit message texts from the IDEC SmartRelay
base mo

dule that contain any of the following parameters:

•Par

•Time

•Date

•EnTime

•EnDate
You can only edit such message texts from WindLGC.
When using FL1D-K2B2 and FL1D-K2BM2 with equipment

ser

ies FL1

C or FL1D, the functions are limited to the ones
available on this equipment. You cannot use the module with
equipment series FL1B or earlier.

All other expansion modules are completely c

ompatible with
the basic modules of equipment series FL1B, FL1C, FL1D,
and FL1E.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 25

2.2 Installing/removing IDEC SmartRelay

Dimensions

The IDEC SmartRelay installation dimensions are compliant
with DIN 43880.

IDEC SmartRelay can be snap–mounted to 35 mm DIN rails
to EN 50022 or on the wall.

IDEC SmartRelay width:

• Text Display has a width of 128.2 mm, which corresponds
to 8 subunits

• IDEC SmartRelay base modules have a width of 72 mm,
wh

ich corr

esponds to 4 subunits

• IDEC SmartRelay expansion modules have a width of
36 mm, which corresponds to 2 or 4 subunits

Note

The figure below shows you an example of the installation and
removal of a FL1E-H12RCC and a digital module. The measures
shown apply to all other IDEC SmartRelay Base versions and
expansion modules

!

Warning

Always switch off power before you “remove” and “insert” an
expansion module.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

26 IDEC SmartRelay Manual

2.2.1 DIN rail mounting

Mounting

How to mount an IDEC Sm

artRelay base module and a

digital module onto a DIN rail:

IDEC SmartRelay base module:

1. Hook the IDEC SmartRelay base module onto the rail.

2. Push down the lower end to snap it o n. The mounting
in

terloc

k at the rear must engage.

1

2

3

4

5

6

IDEC SmartRelay digital module:

3. On the right side of the IDEC SmartRelay base module/
IDEC SmartRelay expan

sion module, remove the

connector cap.

4. Place the digital module onto the DIN rail on the right­hand side

of the IDEC SmartRelay base module.

5. Slide the digital module towards the left until it contacts
the IDEC

SmartRelay base module.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 27

6. Using a screwdriver, push the interlock to the left. In its
end position the slide interlock engages in IDEC
SmartRelay base module.

Repeat steps 3 through 6 to mount further expansion
modules.

Note

The expansion interface on the last expansion module must be
covered.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

28 IDEC SmartRelay Manual

Removal

To remove IDEC SmartRelay:

....... if you have installed only one IDEC SmartRelay

base

module:

Part

A

1. Insert a screwdriver into the eyelet at the bottom of the
slide interlock and move the latch downward.

2. Swing the IDEC SmartRelay base module off the DIN rail.

1

2

1

2

3

4

AB

....... if you have connected at least one expansion

module to IDEC SmartRelay base module:

Part

B

1. Using a screwdriver, push the integr ate slide interlo ck to
the right.

2. Slide the expansion module off towards the right.

3. Insert a screwdriver into the eyelet at the bottom of the
slide interlock and lever it dow

nward.

4. Swing the expansion module off the profile rail.

Repeat steps 1 to 4 for all other expansion modules.

Note

If you have connected more than one expansion module, it is
advisable to start removal with the last module at the right-hand
side.

Make sure the slide interlock of the module to be installed/removed
is not engaged in the next module.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 29

2.2.2 Wall-mounting

For wall-mounting, first slide the mounting slides on the rear
side of the devices towards the outside. You can now wall­mount IDEC SmartRelay by means of two mounting slides
and two



M4 screws (tightening torque 0.8 to 1.2 Nm).

Mounting slides

Drilling template for wall-mounting

Before you can wall-mount IDEC SmartRelay, you need to
drill holes using the template shown below.

98 +/– 0.3

1

2

2 2

+0.2

53.5–0.0

+0.2

35.5–0.0

+0.2

n x 35.5–0.0

All dimensions in mm
Bore hole for



M4 screw, tightening torque 0.8 to 1.2 Nm

1) IDEC SmartRelay base module

2) IDEC SmartRelay expansion modules

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

30 IDEC SmartRelay Manual

2.2.3 Mounting the Text Display

To prepare the mounting surface for the optiona l Text
Display and mount it, follow these steps:

1. Cut a 119.5 mm x 78.5 mm hole in the mounting surface.

119.5+0.5mm

78.5+0.5mm

2. Place the included gasket on the frontplate of the Text
Display.

3. Fit the Text Display into the cutout you made in the
mounting

surface.

4. Attach the mounting brackets (included) to the Text
Display.

5. Tighten the mo unting screws on the mounting brackets to

0.

15...0.2 Nm torque to

secure the Text Display.

¿

Mounting brackets

¡ Mounting screws
¬ Gasket
Ð Cabinet door or con-

trol panel (Thick­ness: 1.5 to 4 mm)

You can then use the included cable to connect the Text
Display to the IDEC SmartRelay base module up to a
distance of 2.5 meters. You can extend this distance to up to
ten meters by using a standard Sub-D cable together with
the Text Display cable.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 31

Note

The number of supplied mounting screws and brackets on the
FL1E-RD1 text display depends on the version. The version
number of the FL1E-RD1 is found in the lower-right corner on the
back of the module. For identifying the version, see page 5.

For versions 3 and earlier, 2 screws and brackets are provided.
For versions 4 and later, 4 screws and brackets are provided. Listed

by UL type 4x / 12 for a tightening torque of 0.2 Nm.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

32 IDEC SmartRelay Manual

2.3 Wiring IDEC SmartRelay

Wire IDEC SmartRelay using a screwdriver with a 3-mm
blade.

You do not need wire ferrules for th e terminals. You can use
conduc

tors with cross-sections of up to the following

thicknesses:

• 1 x 2.5 mm

2

• 2 x 1.5 mm2 for each second terminal chamber

Tightening torque: 0.4...0.5 Nm or 3...4 in-lbs.

Recommended ferrules

Ferrules order No.
For 1-cable connection

For 2-cable connection

Note

Always cover the terminals after you have completed the
installation. To protect IDEC SmartRelay adequately from
impermissible contact to live parts, comply with local standards.

Cross-section

[mm

2

]

AWG

Phoenix Contact

Ferrule type No.

NIC HIFU

Blade Terminals

type No.

NIC HIFU

Insulated Pin Terminals

type No.

0.3 22 AI0,5-10WH
BT1.25-10-1



0.5 20 AI0,5-10WH

TGN-TC-1.25-11T

0.75 18 AI0,75-8GY

1.25 18 AI1,5-8BK

BT1.25-10-1

BT2-9-1

2.0 16 AI2,5-8BU BT2-9-1 

Recommended

crimping tool

CRIMPFOX ZA 3

NH1

NH61

NH11
NH32
NH65

Cross-section

[mm

2

]

AWG

Phoenix Contact

Ferrule type No.

0.3 22 AI-TWIN2X0,5-8WH

0.5 20 AI-TWIN2X0,5-8WH

0.75 18 AI-TWIN2X0,75-8GY

1.25 18 AI-TWIN2X1,5-8BK

Recommended

crimping tool

CRIMPFOX ZA 3

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 33

2.3.1 Connecting the power supply

IDEC SmartRelays (FL1E-*12RCC, FL1B-M08C2R2) are
suitable for nominal line voltages of 100 V AC/DC and 240 V
AC/DC. IDEC SmartRelays (FL1E-*12RCA, FL1B­M08D2R2) are suitable for a supp ly voltage of 24 V AC/DC.
IDEC SmartRelays (FL1E-H12SND, FL1B-M08B1S2) are
suitable for a supply voltage of 24 V DC. IDEC SmartRelays
(FL1E-*12RCE, FL1B-M08B2R2) are suitable for a supply
voltage of 12 V AC/DC or 24 V AC/DC.
Note the information on connection in the product
informat

ion document shipped with your device and the
technical specifications in Appendix A relating to permissible
voltage tolerances, line frequency and curre nt consumpt ion.

The Text Display must be supplied with a voltage of 12 V DC
or 24 V AC/DC.

Note

A power failure might cause an additional edge triggering signal at
the special functions.

The stored data will be from the last uninterrupted cycle.

Connecting IDEC SmartRelay

To connect IDEC SmartRelay to the power supply:

L+
M

ML+ I1 I2 I3 I4 I5

L1
N

I1 I2 I3 I4L1 N

IDEC SmartRelay .....

with DC power supply

IDEC SmartRelay .....

with AC power supply

Protection with safety fuse if
required (recommended) for:
FL1E-H12RCE: 0.8 A
FL1E-H12SND: 2.0 A

To suppress surge voltages,
install varistors (MOV) with an
operating voltage at least 20 %
above the rated voltage.

Note

IDEC SmartRelay is a double-insulated switchgear. You do not
need to connect an equipment grounding conductor.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

34 IDEC SmartRelay Manual

Circuit protection with AC voltage

To suppress voltage peaks on the power supply lines, you
can install a metal oxide varistor (MOV). Make sure the
operating voltage of the varistor (MOV) used lies at least 
20 % above the rated voltage.

2.3.2 Connecting the Text Display power supply

The Text Display must be connected to an external power
supply that supplies a voltage of 12 V DC or 24 V AC/DC. A
power connector is included with the Text Display.

 Power supply
 Communication interface

The power connection is non-polar. If you connect a DC
p

ower

supply to the Text Display, you can connect the
positive supply wire or negative supply wire to either the left
or right side.

Note

IDEC recommends that you protect the Text Display with a 0.5 A
safety fuse on the power supply.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 35

2.3.3 Connecting IDEC SmartRelay inputs

Requirements

At the inputs you connect sensor elements such as:
moment

ary pushbuttons, switches, light barriers, daylight

control switches etc.

Sensor characteristics for IDEC SmartRelay

(1): 1.0 mA (Version 1 to 5 specifications)
(2): 8 V DC (Version 1 to 5 specifications)
(3): 1.0 mA (Version 1 to 4 specifications)
(4): 8 V DC (Version 1 to 4 specifications)
(5): 1.5 mA (Version 1 to 4 specifications)

Note

The digital inputs of FL1E-H12RCC/FL1E-B12RCC are divided into
two groups, each consisting of four inputs. Within the same group,
all inputs must be operated on the same phase. Different phases
are only possible between the groups.

Example: I1 to I4 on phase L1, I5 to I8 on phase L2.
Inputs within the FL1B-M08C2R2 may not be connected to

different phases.

FL1E-H12RCE/

FL1E-B12RCE

FL1E-H12SND FL1B-

M08B2R2

FL1B-

M08B1S2

I3 ... I6 I1,I2,I7,I8 I3 ... I6 I1,I2,I7,I8 I1 ... I8 I1 ... I8

Signal status 0 < 5 V DC < 5 V DC < 5 V DC < 5 V DC < 5 V DC < 5 V DC

Input current

< 0.85 mA < 0.05 mA < 0.85 mA < 0.05 mA

< 0.85 mA

(1)

< 0.85 mA

(3)

Signal status 1

> 8.5 V DC > 8.5 V DC > 12 V DC > 12 V DC

> 8.5 V DC

(2)

> 12 V DC

(4)

Input current

> 1.5 mA > 0.1 mA > 2 mA > 0.15 mA > 1.5 mA > 2 mA

(5)

FL1E-H12RCA/

FL1E-B12RCA

FL1B-

M08D2R2 (AC)

FL1E-H12RCA/
FL1E-B12RCA

FL1B-

M08D2R2 (DC)

FL1E-H12RCC/

FL1E-B12RCC

FL1B-

M08C2R2 (AC)

FL1E-H12RCC/
FL1E-B12RCC

FL1B-

M08C2R2 (AC)

Signal status 0

Input current

< 5 V AC
< 1.0 mA

< 5 V DC
< 1.0 mA

< 40 V AC

< 0.03 mA

< 30 V DC

< 0.03 mA

Signal status 1

Input current

> 12 V AC

> 2.5 mA

> 12 V DC

> 2.5 mA

> 79 V AC
> 0.08 mA

> 79 V DC
> 0.08 mA

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

36 IDEC SmartRelay Manual

Sensor connections

Connecting glow lamps and 2-wire proximity switches
(Bero) to FL1E-H12RCC/FL1E-B12RCC or FL1B­M08C2R2 (AC)

The figure below shows how you connect a switch with a
glow lamp to IDEC SmartRelay.

The current that flows
through the glow lamp allows IDEC SmartR ela y to de te ct a
“1” signal even though the switch contact is not closed. If,
however, you use a switch the glow lamp of which is fitted
with a power supply, this response does not occur.

L1
N

NL1

C

X-capacitor 2.5 kV, 100 nF

Take into account the quiescent current of any 2-wire
proximity switches used. The level of the quiescent current
of some 2-wire proximity switches is high enough to trigger a
logical ”1” signal at the IDEC SmartRelay input. You should
therefore compare the quiescent current of the proximity
switches with the technical data of inputs in Appendix A.

Remedy

To suppress this response, use an X capacitor rated at 
100 nF and 2.5 kV. In a destructive situation, this type of
capacitor

safely disconnects. You must choose the voltage
level for which the capacitor is rated such that it is not
destroyed in the case of overvoltage!
At 230 V AC, the voltage between N and an input I(n) must
not be gr

eater than 40 V to guarantee a ”0” signal. You can

connect approximately ten glow lamps to the capacitor.

Restrictions

Signal status transitions 0  1 / 1  0:

After a

0 to 1 or 1 to 0 transition, the signal must

remain
constant at the input at least for the duration of one pro gram
cycle, so that IDEC SmartRelay can detect the new signal
status.
The program execution time is determined by the size of the
circui

t program. Appendix B contains a benchmark test
routine that you can use to determine the current scan cycle
time.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 37

Special features of FL1E-H12RCE/FL1E-B12RCE and FL1E-H12SND

Fast inputs: I3, I4, I5 and I6:

These versions are also equipped with fast in

puts (up/down
counters, frequency triggers). The restrictions mentioned
earlier do not apply to these fast inputs.

Note

The fast inputs I3, I4, I5 and I6 are the same as in the previous
versions FL1A to FL1D; therefore, a circuit program that is written
in these versions can be transferred to the new FL1E devices with
the programming software WindLGC, without any changes to these
features. The fast inputs have increased from 2 kHz to 5 kHz with
the FL1E series.

Expansion modules do not have fast inputs.

Analog inputs: I1 and I2, I7 and I8:

The inputs I1, I2, I7 and I8 of IDEC SmartRelay versions
FL1E-H12RCE/FL1E-B12RCE and FL1E-H12SND can be
used as either digital inputs or analog inputs. The input mode
is defined in the IDEC SmartRelay circuit program.

The inputs I1, I2, I7 and I8 provide digital inputs, and the
inputs

AI3, AI4, AI1 and AI2 provide analog inputs, as
described in Chapter 4.1. AI3 corresponds to the input
terminal I1; AI4 corresponds to I2; AI1 corresponds to I7; AI2
corresponds to I8. The use of AI3 and AI4 is optional. You
configure your IDEC SmartRelay to use either two or four
analog inputs as described in section 5.2.4.

When using inputs I1, I2, I7 and I8 as analog inputs, only the
range fr

om 0 to 10 V DC is available.

Connecting a potentiometer to inputs I1, I2, I7 and I8

To allow you to achieve 10 V as the maximum value when
you completely turn

the potentiometer once, you must
connect a series resistor on the potentiometer’s input side
regardless of the input voltage (see figure below).

We suggest the following sizes of pote

ntiometers and

associated series resistors:

Voltage Potentiometer Series Resistor

12 V 5

k -

24 V 5

k 6.6 k

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

38 IDEC SmartRelay Manual

When using a potentiometer and 10 V input voltage as the
maximum value, you must ensure that with a connected
input voltage of 24 V, 14 V must release via the series
resistor so that a maximum of 10 V are supplied when you
turn the potentiometer one full rotation. With a voltage of 
12 V, this can be neglected.

Note

The FL1B-J2B2 expansion module provides additional analog
inputs.

Always use twisted and shielded cables for analog signals, and
keep these as short as possible.

Sensor connections

To connect sensors to IDEC SmartRelay :

FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCE / FL1E-B12RCE /
FL

1E-H12SND

FL1E-H12RCC / FL1E-B12RCC

!

Warning

Current safety regulations (VDE 0110, ... and IEC 61131-2, ... as
well as cULus) do not permit the connection of different phases to
an AC input group (I1 to I4 or I5 to I8) or to the inputs of a digital
module.

L+

M

ML+ I1 I2 I3 I4 I5 I8

*)

The inputs of these devices are not
isolated and therefore require a
common reference potential (chassis
ground ).
With FL1E-H12RCE / FL1E-B12RCE
and FL1E-H12SND modules, you can
tap analog signals between the
supply voltage and chassis ground
(* = series resistor with 24 V DC).

On the FL1E-H12RCA/-B12RCA, P1 and P2
are indicated in place of L+ and M, respectively

.

L1

N

L3
L2

NL1 I1 I2 I3 I4 I5 I6

The inputs of these devices are
arranged in 2 groups, each
consisting of 4 inputs. Different
phases are only possible between
blocks, but not within the blocks.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

ML+

L+
M

U1 I2 M2 U2I1 M1

PE

L+M

M

ML+

PE terminal for
connecting earth and
shielding the analog
measuring cable

 Earth
 Cable shielding
 DIN rail

PE

RUN/STOP

Current

0...20mA

Reference
Current

Current measurement

Voltage measurement

0-10V

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 39

FL1B-J2B2

The illustration above shows an example of four–wire
current measurement and two–wire voltage measurement.

Connecting a two–wire sensor to the FL1B-J2B2

Wire up the two–wire sensor’s connecting wires as follows:

1. Connect the sensor’s output to connection U (0 ... 10 V

vo

ltage

measurement) or to connection I (0 ... 20 mA

current measurement) of the FL1B-J2B2 module.

2. Connect the plus connector on the sensor to the 24 V

supply voltage (L+)

.

3. Connect the ground connection of the current output M

(on the righ

t side of the sensor, as shown in the figure
above) to the corresponding M input (M1 or M2) on the
FL1B-J2B2 module.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

40 IDEC SmartRelay Manual

Input Internal Circuit
FL1E-H12RCC / FL1E-B12RCC

FL1B-M08C2R2

I1~I8

N

100nF

390kΩ 180kΩ 270kΩ

47kΩ

Internal Circuit

Digital AC/DC Input

AC
2-wire
Sensor

I1 to I8

R4

100 to 240 V AC

N

L1

When using the AC two-wire sensor

I1~I8

N

100nF

390kΩ 390kΩ

62kΩ

Internal Circuit

270kΩ

Digital AC/DC Input

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 41

FL1E-H12RCA / FL1E-B12RCA

FL1B-M08D2R2

I1~I8

4.3kΩ

+5V

510Ω

150kΩ

100nF

100nF

P2

Internal Circuit

Internal

Circuit

Digital AC/DC Input

AC
2-wire
Sensor

I1 to I8

R3

240 V AC

P1

P2

When using the AC two-wire sensor

I1~I8

4.3kΩ

+5V

510Ω100nF

P2

Internal Circuit

Internal

Circuit

100nF

Digital AC/DC Input

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

42 IDEC SmartRelay Manual

FL1E-H12RCE / FL1E-B12RCE / FL1E-H12SND

FL1B-M08B2R2/FL1B-M08B1S2

FL1E-H12RCE / FL1E-B12RCE / FL1E-H12SND

I1~I8

3.6kΩ 270kΩ

2.21kΩ47nF

M

Internal Circuit

Digital DC Input

I1~I8

3.6kΩ

2.2kΩ100nF

M

Internal Circuit

270kΩ

Digital DC Input

I1, I2, I7, I8

M

54kΩ

+5V

18kΩ

10nF

Internal Circuit

Analog Input (0-10V)

U1, U2

M1, M2

38kΩ

+5V

38kΩ

10nF

Internal Circuit

FL1B-J2B2 

Analog Input (0-10V)

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 43

FL1B-J2B2

Note

Fluctuating analog values are due to screening on the connecting
wire from the analog valuator de vi ce to th e a na l og FL 1B-J2B2
expansion module (encoder wire) that has either been mounted
incorrectly or not at all.
To avoid fluctuating analog values when using these expansion
modules, proceed as follows:

• Use only shielded encoder wires.

• Shorten the encoder wire as much as possible. The encoder
wire must not be more than 10 meters long.

• Clamp the encoder wire on one side only an d clamp it only to
the PE terminal on the FL1B-J2B2 / FL1D-K2B2 / FL1D-K2BM2
expansion module.

• Connect ground on the encoder supply to the PE terminal on the
expansion module.

Internal

Circuit

Analog Input (0-20mA)

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

44 IDEC SmartRelay Manual

2.3.4 Connecting outputs

FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCC / FL1E-B12RCC /
FL1E-H12RCE / FL1E-B12RCE

The FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCC /
FL1E-B12RCC / FL1E-H12RCE / FL1E-B12RCE version

is
equipped with relay outputs. The potential of the relay
contacts is isolated from the power supply and the inputs.

Requirements for relay outputs

You can connect various loads to the outputs, e.g. lamps,
fluorescent lamps, motors,

contactor relays etc. For
information on the properties required for the loads
connected to FL1E-H12RCA / FL1E-B12RCA / FL1E­H12RCC / FL1E-B12RCC / FL1E-H12RCE / FL1E-B12RCE,
refer to Appendix A.

Connecting

This is how you connect the load to FL1E-H12RCA / FL1E­B12RC

A / FL1E-H12RCC

/ FL1E-B12RCC / FL1E-H12RCE

/ FL1E-B12RCE:

FL1B-M08

1 2

Q1

Q2

1 2

Q5 Q6

1 2

1 2

Load Load

Protection with autom atic circuit-breaker, max. 16 A, characteristics
B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)

IDEC SmartRelay with transistor outputs

IDEC SmartRelay versions with transistor

outputs can be
identified by the fact that the letter R is missing from their
type name. The outputs are short circuit-proof an d overload­proof. An auxiliary load voltage supply is not necessary,
because IDEC SmartRelay supplies the load voltage.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 45

Requirements for transistor outputs

The load connected to IDEC SmartRelay must have the
following characteristics:

• The maximum switched current is 0.3 A per output.

Connecting

This is how you connect the load to an IDEC SmartRelay
with transistor ou

tputs:

FL1B-M08

Q1Q2M

M

Q5 Q6MM

Load: 24 V DC, 0.3 A max.

Load Load

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

V1, V2: 0 - 10 V DC

V1, V2: 0 - 10 V DC
R1: >= 5 k



I1, I2: 0/4 - 20 mA
R2: <= 250



① Earth
② DIN rail

FL1D-K2B2

FL1D-K2BM2

V1, V2: 0 - 10 V DC
R1: >= 5 k



I1, I2: 0/4 - 20 mA
R2: <= 250



V1 +

V2 +

RU N / ST O P

M2

M1

L

+

M

L+ M

L+ M

OUT P UT 2x( 0.. 1 0V )

PE

㨪8

㨪8

2

1

4 4

V1+

176276 Z8QTO#

L+M

RU N / ST O P

M1PEM2V2 +

L+M

I2I1

L

+

M

2

㨪O#

8

4

4

1

The terminal arrangement
on the FL1D-K2BM2 is
different from that of the
FL1D-K2B2.
Check the analog output
terminals on the FL 1D­K2BM2, and replace the
FL1D-K2B2 with the
FL1D-K2BM2.

FL1D-K2BM2: Voltage ou tput:

IDEC SmartRelay installation and wiring

46 IDEC SmartRelay Manual

FL1D-K2B2 / FL1D-K2BM2

Note

Caution for wiring the analog output terminals:
Check the analog output terminals, and wire each output terminal

to the external equipment, according to the type of analog
outputs.Incorrect wiring may cause damage to the equipment

connected to the analog output terminals.

!

The terminal arrangement on the FL1D-K2BM2 is different from
that of the FL1D-K2B2. Check the analog output terminals on the
FL1D-K2BM2, and replace the FL1D-K2B2 with the FL1D-K2BM2.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 47

Output Internal Circuit
FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCC / FL1E-B12RCC /

FL1E-H12RCE / FL1E-B12RCE / FL1B-M08B2R2 / FL1B-M08C2R2 /
FL1B-M08D2R2 
Relay Output

FL1E-H12SND / FL1B-M08B1S2
Transister Output (Source)

FL1D-K2B2 / FL1D-K2BM2
Analog Output (0-10V)

27kΩ

47kΩ

+24V

2

1

Q1~Q4

Internal

Circuit

Internal Circuit

+24V

10kΩ10nF 10nF

M

Q1~Q4

Internal

Circuit

Internal Circuit

10Ω

100nF

+24V Internal Circuit

4.7kΩ

+

-

Internal

Circuit

(

V1+, V2+

)

(

M1, M2

)

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

48 IDEC SmartRelay Manual

FL1D-K2BM2
Analog Output (0/4 ... 20mA)

22Ω

10nF

+14V

(

I1, I2

)

(

M1, M2

)

Internal

Circuit

Internal Circuit

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 49

2.3.5 Connecting the AS interface bus

To set the address of the module on the AS interface bus,
you need an addressing unit.
Valid addresses are in the range of 1 to 31. Use each
address once only.

You

can set the address on the AS interface bus before or
after installation.
If th

e installed module is addressed via the address socket,

the AS-Interface voltage

must be disconnected beforehand.

This is necessary for safety reasons.

+–

ADDR

RUN/STOP
AS-I

+–

AS-I

Networking on the AS interface bus

To make the connection to the AS interface bus, you need a
communications-capable

IDEC SmartRelay variant:

• IDEC SmartRelay base module + CM AS-I.
To be

able to send data across the AS interface bus to IDEC

SmartRelay a

nd to receive data from it in the same way, you

also need:

• an AS interface power supply and

• an AS interface master.
IDEC SmartRelay can only be accepted as a slave on the AS

inter

face bus. This mea

ns that it is not possible to directly
exchange data between two IDEC SmartRelay devices.
Data is always exchanged across the AS interface master.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

50 IDEC SmartRelay Manual

Logic Assignments

”n” depends on the plug–in positio n of the expansion module
relative to the IDEC SmartR

elay base module. It indicates
the number of the input or output in IDEC SmartRelay
program code.

Note

Ensure that there is enough space for the inputs/outputs of the AS
interface in the IDEC SmartRelay’s address space. If you are
already using more than 12 physical outputs or more than 20
physical inputs, it is no longer possible to operate the CM AS
interface!

!

Warning

The AS-Interface and IDEC SmartRelay systems must never be
connected together electrically!

Use safe isolation acc. to IEC 61131-2, EN 50178, UL 508, CSA
C22.2 No. 42.

IDEC SmartRelay sys-

tem

AS Interface system

Inputs Output data bits

I

n

D0

I

n+1

D1

I

n+2

D2

I

n+3

D3

Outputs Output data bits

Q

n

D0

Q

n+1

D1

Q

n+2

D2

Q

n+3

D3

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 51

2.4 Putting into operation

2.4.1 Switching on the IDEC SmartRelay/Power On

IDEC SmartRelay does not have a power switch. The
reaction of IDEC SmartRelay during startup depends on the
following:

• Whether a circuit program is stored in IDEC SmartRelay

• Whether a memory cartridge or combined memory/
batter

y car

tridge is inserted

• Whether this is an IDEC SmartRel

ay version without

display unit (FL1E-B12...)

• The status of IDEC SmartRelay at the tim

e of power

failure.

All possible reactions of IDEC SmartRelay are described on
the following

page.

To ensure that the expansion module on IDEC SmartRelay
changes to RUN mod

e, check the following:

• Has the sliding contact between IDEC SmartRelay and
the expansion

module snapped into place properly?

• Is the power supply connected to the expansion module?

• In addition, always ensure that you switch on the power
su

pply to the

expansion module first before activating the
power supply to the IDEC SmartRelay base module (or
activate both power supplies at the same time); if you do
not do this, the system does not detect the expansion
module when you start up the IDEC SmartRelay base
module.

Note

After power-up, the FL1E performs initialization. After completing
initialization, the FL1E is ready to start to run. During initialization,
a sandglass is displayed on the CPU module with display, or the
LED is lit red on the CPU module without display.

Initialization time (regardless of expansion module)
When a memory cartridge or a combined memory/battery cartridge

is installed: Max. 10 sec
When a cartridge is not installed or when a battery cartridge is

installed: Max. 9 sec
*The initialization time depends on the program size.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

52 IDEC SmartRelay Manual

Notes for Using Expansion I/O Modules of Version 7 or ear lier

When using 3 or more expansion I/O modules including
those of the versions listed below, immediately after power­up, it takes a specific period of time for the base module to
accept input signals from the expansion I/O modules. Until
the output terminals on the expansion I/O module are actu­ally turned on or off.

Expansion I/O Modules

FL1B-M08C2R2(Version 1 to 7), 
FL1B-M08B1S2(Version 1 to 7), 
FL1B-M08B2R2(Version 1 to 7), 
FL1B-M08D2R2(Version 1 to 7), 
FL1B-J2B2(Version 1 to 7), 
FL1D-K2B2(Version 1)

For identifying the version, see page 5.

10sec

Power supply

External input signal to base module and expansion modules

I/O signal of base module is reflected

F

B process

During t

he ini

tialization of expansion modules

The initialization period

of base module

I/O signal of expansion modules

I/O signal of expansion modules is reflected

in the user program.

*1

is reflected.

in the user program. *1

Version 7 or earlier *2

Version 8 or later

*1 Output signal of base module and expansion modules
are reflected 1 scan time after each input sign al has been re­flected.

*2 During the initialization period of expansion I/O modules,
inputs and outputs are off. In addition, the length of initializa­tion period varies with expansion I/O modules , and I/O re­sponse depends on the expansion I/O modules.

For further information, see our Internet address

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

>Program..

Card..
Setup..
Start

>Program..

Card..
Setup..
Start

2008-05-05

Mo 09:00

>Program..

Card..
Setup..
Start

2002-01-31

&

B1

Q1

2003-01-27

Mo 09:00

No program
Press ESC

No Program
Press ESC

Mo 09:00

I:

0.. 123456789

1..0123456789

2..01234

Q:

0..123456789

1..0123456

0.. 123456789

1..0123456789

2..01234

I:

B3:

Cnt = 0028

Par = 0300

0.. 123456789

1..0123456789

2..01234

I:

Before power off After power on

No program in
memory

or

(empty)

(with program )

IDEC SmartRelay
in RUN mode

or

(empty)

(with program)

with stored program from
IDEC SmartRelay

with a program copied from
the memory cartridge or
combined memory/battery
cartridge in IDEC
SmartRelay

IDEC SmartRelay in
RUN mode

or

(empty)

(with program)

Program in
memory

with stored program from
IDEC SmartRelay

with program copied from
the memory cartridge or
combined memory/battery
cartridge in IDEC
SmartRelay

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 53

You can also memorize four simple rules for starting IDEC
SmartRelay :

1. If neither IDEC SmartRe lay nor the inserted memory
cartridge

or combined memory/battery cartridge con tains
a circuit program, IDEC SmartRelay (with display unit)
reports: ’No Program / Press ESC’.

2. A circuit program on the memory cartridge or combined
memory/bat

tery cartridge is automatically copied to IDEC
SmartRelay. The circuit program in IDEC SmartRelay is
overwritten.

3. If there is a circuit pr ogram in IDEC SmartRelay or on the
memory cart

ridge or combined memory/battery cartridge,
IDEC SmartRelay adopts the operational state it had prior
to POWER-OFF. Versions without display unit (FL1E­B12...) automatically change from STOP to RUN (LED
changes from red to green).

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

54 IDEC SmartRelay Manual

4. If you have enabled retentivity for at least one function, or
a function is permanently retentive, the curren t values are
retained at POWER-OFF.

Note

When a power failure occurs while you ar e en te ri n g a ci rcu it
program, the program in IDEC SmartRelay will be deleted after
power is returned.

Before you modify the circuit program, save a backup copy of your
original to a memory cartridge, a combined memory/battery
cartridge or to a computer (WindLGC).

2.4.2 Operating states

IDEC SmartRelay base module operating states

IDEC SmartRelay base module/Pure knows has two
operating states: S

TOP and RUN.

Note

After switching the power on, the system briefly switches through
the outputs on the FL1E-H12SND. With an open circuit, a voltage
of > 8 V can occur for up to approximately 100 ms; when loaded,
this time reduces to a matter of microseconds.

STOP RUN

• The display shows: ’No Program’
(not FL1E-B12...)

• Switching IDEC SmartRelay to
programming mode
(not FL1E-B12...)

•LED is red
(only FL1E-B12...)

• Display: Screen mask for
monitoring I/Os and messages
(after START in the main menu)
(not FL1E-B12...)

• Switching IDEC SmartRelay to
parameter assignment mode
(not FL1E-B12...)

• LED is green
(only FL1E-B12...)

Action of IDEC SmartRelay:

• The input data is not read.

• The circuit program is not
executed.

• The relay contacts are
permanently open or the
transistor outputs are switched
off.

Action of IDEC SmartRelay:

• IDEC SmartRelay reads the
status of the inputs.

• IDEC SmartRelay uses the circuit
program to calculate the status of
the outputs.

• IDEC SmartRelay switches the
relay/transistor outputs on or off.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

IDEC SmartRelay Manual 55

IDEC SmartRelay expansion modules, operating states

IDEC SmartRelay expansion modules have three operating
states: The LED (RUN/STOP) is lit green, red or orange.

CM AS Interface, communication states

The CM AS Interface has three commu nic atio n stat es: The
LED is lit gr

een, red or flashes red/yellow.

CM AS Interface, behavior on communicat

ion failure

• If the AS Interface voltage fails, communication between
t

he IDEC SmartRelay system and the expansion
modules, which are arrange d to th e rig ht of the ID EC
SmartRelay CM AS Interface expansion module, is
interrupted.
Recommendation: Position IDEC SmartRelay CM AS
Interf

ace on the far right side.

• If communication is interrupted, the switching outputs are
reset

after about 40 to 100 ms.

LED (RUN/STOP) is lit

Green (RUN) Red (STOP) Orange/Yellow

The expansion module
communicates with the
device to the left.

The expansion module
does not communicate
with the device to its
left.

Initialization phase of
the expansion module

LED AS-I is lit

Green Red Red/Yellow

AS Interface
communication OK

AS Interface
communication failed

Slave has address ”0”.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay installation and wiring

56 IDEC SmartRelay Manual

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

IDEC SmartRelay Manual 57

3

Programming IDEC SmartRelay

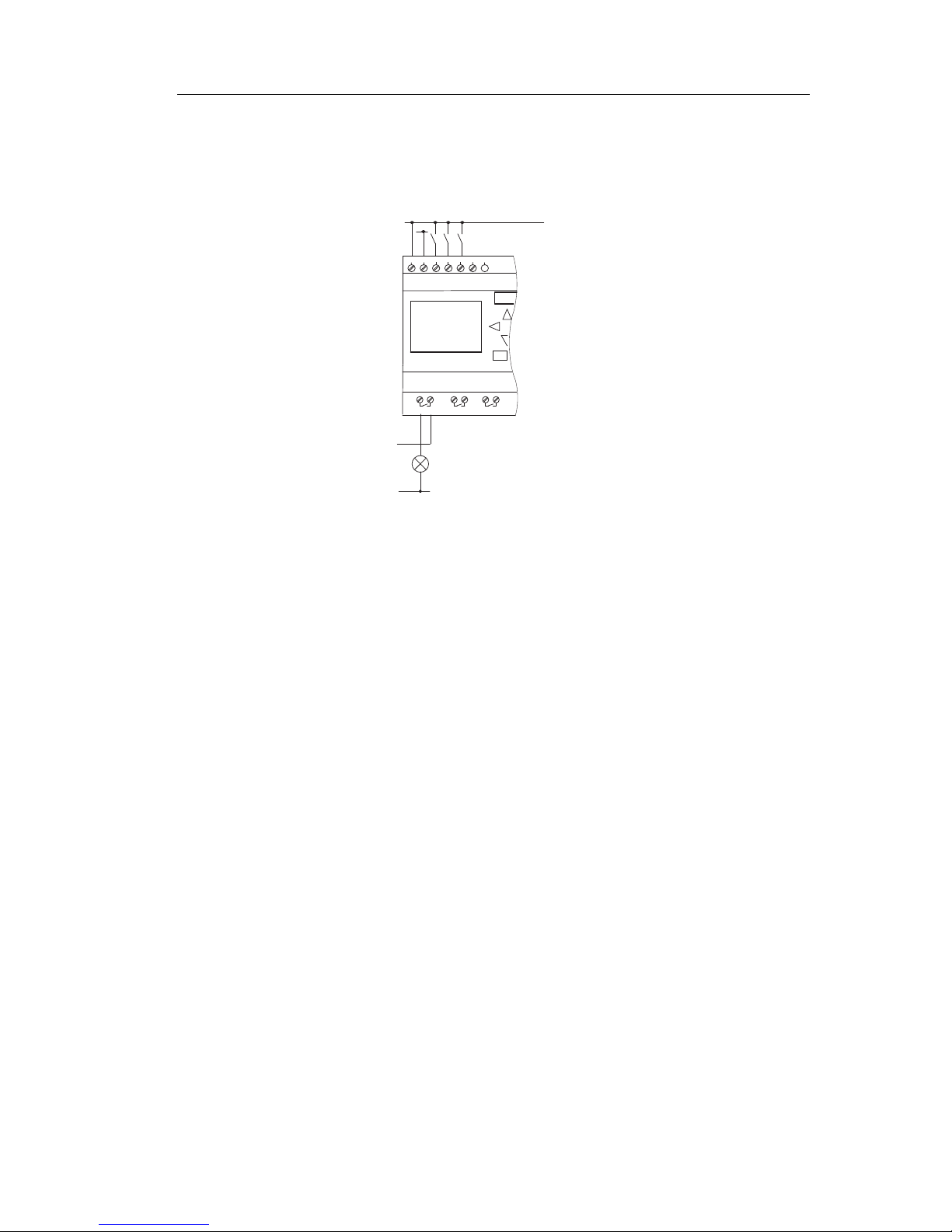

Getting started with IDEC SmartRelay

Programming refers to creating a circuit progr

am from the

IDEC SmartRelay base module.
In this chapter you will learn how to use IDEC SmartRelay to

cre

ate the IDEC SmartRelay circuit programs for your

application.
WindLGC is the IDEC SmartRelay programming software

that you can use

on your PC to quickly and easily create,
test, modify save and print the circuit programs. The topics
in this manual, however, relate only to the creation of circuit
programs on the actual IDEC SmartRelay base module. The
programming software WindLGC contains extensive online
help. See also Chapter 7 for additional information.

Note

IDEC SmartRelay versions without a display unit; that is, the FL1E­B12RCE, FL1E-B12RCA and FL1E-B12RCC versions, do not have
an operator panel and display unit. They are primarily designed for
use in small machine and process equipment engineering systems
for series production.

FL1E-B12... versions are not programmed directly on the device.
Instead, the circuit program is downloaded to the device from
WindLGC or from memory cartridges or combined memory/battery
cartridges from other IDEC SmartRelay devices.

IDEC SmartRelay versions without a display cannot write data to
memory cartridges or combined memory/battery cartridges.

See Chapters 6, 7 and Appendix C.

A small example in the first part of this chapter introduces the
operating principles of IDEC SmartRelay:

• You will learn the meaning of two basic terms, namely the

connector and the block.

• As the next step, you will create a circuit program based

on a simp

le conventional circuit.

• Lastly, you will enter this program directly in IDEC

SmartRe

lay.

It will take you only a few pages of this manual to

st

ore your
first executable circuit program in the IDEC SmartRelay unit.
With suitable hardware (switches etc.), you will then be able
to carry out initial tests.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

AI4

1 2 1 2

1 2 1 2

L+ M I13I14I15I16

Q11Q9Q12

Q10

RUN/STOP

L+ M

AI5

RUN/STOP

L+ M AI3 I3 I4 I5 I6

Q1 Q2 Q3 Q4

AI1 AI2 L+ M I9 I10I11I12

Q7

Q5

Q8

Q6

RUN/STOP

M3U3AI6M4 U4

1 2 1 2

1 2 1 2 1 2 1 2

1 2 1 2

PE

INPUT 2x (..10 V/..20 mA)

L+ M

Inputs

Outputs Analog inputs

Programming IDEC SmartRelay

58 IDEC SmartRelay Manual

3.1 Connectors

IDEC SmartRelay is equipped with inputs and outputs
Example of a configuration with several modules :

Each input is identified by the letter I plus a number. When
you look at IDEC SmartRelay from the front, yo u can see the
input terminals at the top. Only analog modules FL1 B-J2B2
have the inputs at the bottom.
Each output is identified by the letter Q plus a number
(FL1

D-K2B2, FL1D-K2BM2: AQ plus number). In the figure,

you can see the output terminals at the bottom.

Note

IDEC SmartRelay can recognize, read and switch the I/O of all
expansion modules regardless of their type. The I/Os are presented
in the installation order of the modules.
The following I/Os and marker blocks are available for creating your
circuit program: : I1 to I24, AI1 to AI8, Q1 to Q16, AQ1 and AQ2,
M1 to M27 and AM1 to AM6. Also available are the shift register bits

S1 to S8, 4 cursor keys: C , C , C and C , four function keys
on the Text Display: F1, F2, F3, and F4 as well as 16 blank outputs
X1 to X16. See Chapter 4.1 for more details.
The following applies to inputs I1, I2, I7 and I8 of FL1E-H12RCE/
FL1E-B12RCE and FL1E-H12SND versions: If you use I1, I2, I7 or
I8 in the circuit program, this input signal is digital. If you use AI3,
AI4, AI1, or AI2, the input signal is analog. The numbering of the
analog inputs is significant: AI1 and AI2 corresponded to I7 and I8
on the FL1D module. With the addition of two new analog inputs for
the FL1E series, these modules optionally use I1 for AI3 and I2 for
AI4. See the graphical representation at 2.1.1. Also note that you
can also use I3, I4, I5, and I6 as fast digital inputs.

The illustration above with numbered AI inputs shows the
conceptual usage of the inputs, not the actual physical
markings on the module.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 59

IDEC SmartRelay’s connectors

The term connector refers to all connections and states in
IDEC SmartRelay.

The digital I/O status can be ’0’ or ’1’. Status ’0’ means that
the

input does not carry a specific voltage. Status ’1’ means

that the input does carry a specific voltage.
The ’hi’, ’lo’ and ’x’ connectors have been introduced to

make

it easier for you to create the circuit program: 
’hi’ (high) is assigned the status ’1’, 
’lo’ (low) is assigned the status ’0’.

You do not have to use all of the con

nectors

of a block. The
circuit program automatically assigns the unused co nnectors
a status that ensures proper functioning of the relevant
block. If you prefer to do so, you can identify unused
connectors with an ’x’.

For information on the meaning of t

he

term “block”, refer to

Chapter 3.2.

IDEC SmartRelay has the following conn

ectors:

Connectors IDEC SmartRelay base module DM AI

AO

Inputs FL1E-H12RCC/

FL1E-B12RCC,
FL1E-H12RCA/
FL1E-B12RCA

Two groups: 
I1... I4 and
I5 ... I8

I9 ...
I24

AI1...
AI8

none

FL1E-H12RCE/
FL1E-B12RCE,
FL1E-H12SND

I1,I2, I3-I6, I7, I8 
AI3,AI4 ...AI1,
AI2

I9 ...
I24



AI5...
AI8

Outputs Q1...Q4 Q5 ...

Q16

none AQ1,

AQ2
lo Logical ’0’ signals (off)
hi Logical ’1’ signals (on)
x An existing connection that is not used

DM: Digital module
AI: Analog input module
AO: Analog output module

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

60 IDEC SmartRelay Manual

3.2 Blocks and block numbers

This chapter shows you how to use IDEC SmartRe l ay
elements to create complex circuits and how blocks and I/O
are interconnected.

In Chapter 3.3 you will learn how to transform a conventional
circuit into an IDEC SmartRelay circuit program.

Blocks

A block in IDEC SmartRelay represents a function that is
used

to convert input information into output information.
Previously you had to wire the individual elements in a
control cabinet or terminal box.

When you create the circuit pr

ogram, you in

terconnect the
blocks. To do so, simply select the connection you require
from the Co menu. The menu name Co is an abbreviation of
the term “Connector”.

Logic operations

The most elementary blocks are the logic operations:

•AND

•OR

• ...

I1
I2

x

1

Q

x

Inputs I1 and I2 are here connected to the
OR block. The last two inputs of the block
remain unused and are identified by the
creator of the circuit program with an ‘x’.

These special functions offer you significantly greater
performance:

• Current impulse relay

• Up/down counter

•On-delay

• Softkey

• ...
Chapter 4 gives a full list of the IDEC SmartRelay functions.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 61

Block representation on the IDEC SmartRelay display

The figure below shows a typical view of the IDEC
SmartRelay display. As you can see, it can show only one
block at a time. We have therefore introduced block numbers
to help you check the circuit structure.

1

B2
I3

Q1

B1

x

x

View of the IDEC SmartRelay

Input

This connector is
not required

Block

Block number -assigned
by IDEC SmartRelay

Output

Another block is connected
at this point

Assigning a block number

IDEC SmartRelay assigns each new block in a circuit
program a

block number.

IDEC SmartRelay uses these block numbers to indicate the
block inte

rconnections. This means that these numbers are

mainly an aid to your orientation in the circuit program.

I1
I2
I3

1

B1

B2

B2

1

B3

Q1

B1

B1

I4
I5
I6

1

B1

Q1

x

B3

x

x

x

Block numbers

These blocks are
interconnected

Scrolling the circuit program using the key

The figure above shows you three views of the IDEC
SmartRelay display, which represent th e circuit program. As
you can see, IDEC SmartRelay interconnects the blocks
using their numbers.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

62 IDEC SmartRelay Manual

Advantages of block numbers

You can connect almost any block to an input of the current
block by means of its block number. In this way, you can
reuse the interim results of logical or other operations,
reduce programming effort, save memory space and clean
up your circuit layout. To do so, however, you need to know
how IDEC SmartRelay has named the blocks.

Note

We advise you to create an organizational program chart. You will
find this a valuable aid when you create the circuit program
because you can enter in this chart all the block numbers that IDEC
SmartRelay assigns.

By using the WindLGC software to program IDEC SmartRelay, you
can directly create a function chart of your circuit program.
WindLGC also allows you to assign eight-char acter names to up to
100 blocks, and to view these on the IDEC SmartRelay display in
parameter assignment mode (see Chapter 3.4).

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 63

3.3 From circuit diagram to IDEC SmartRelay
program

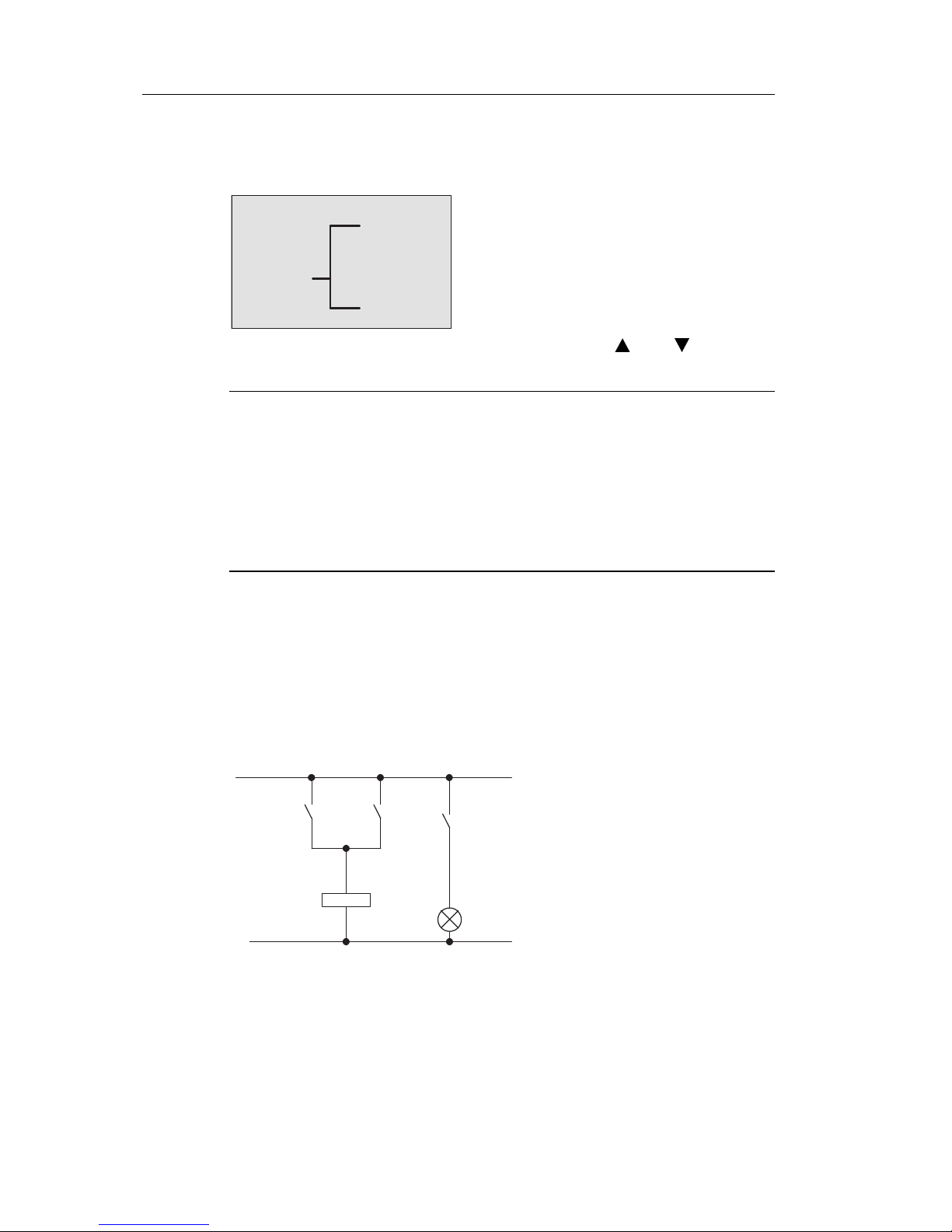

View of a circuit diagram

You know, of course, how a circuit logic is represented in a
circuit diagram. Nevertheless, here is an example:

K1

S1

K1

S2

E1

S3

Load E1 is switched on and off by
means of the switches (S1 OR S2)
AND S3.

Relay K1 picks up when condition
(S1 OR S2) AND S3 is met.

Creating this circuit with IDEC SmartRelay

In IDEC SmartRelay you create a circuit logic by
interconnecting blo

cks and connectors:

S1 ... S3

I3

x

Q1

&

1

I1
I2

x

L1

N

Wiring of the inputs

Circuit program in IDEC SmartRelay

Wiring of the outputs

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

64 IDEC SmartRelay Manual

Note

Although you have four inputs available for logic operations (Basic
functions, see Chapter 4.2), most of the views will only show three
inputs for reasons of clarity. You program this fourth input and 
assign parameters just like you do with the other three inputs.

To create a circuit logic in IDEC SmartRelay, start at the
circuit output.
The output is the load or relay that is to be switched.
Convert the circuit logic into blocks by working through the
circuit, star

ting at the output and ending at the input:

Step 1: The Normally Open Contact S3 is interconnected in

series to output Q1 and to

a further circuit element.
A series connection corresponds with the AND
block:

I3

x

Q1

&

Step 2: S1 and S2 are connected in parallel. A parallel circuit

corresponds with the OR block:

I3

x

Q1

&

1

I1
I2

x

Unused inputs

The circuit program automatically assigns the unused
connecto

rs a status that ensures proper functioning of the
relevant block. If you like, you can label unused connectors
with an ’x’ identifier.
In our example we shall use only two inputs of the OR block
and

two inputs of the AND block; the relevant unused third
and fourth inputs are identified at the connector with an ’x’.
Now connect the I/Os to IDEC SmartRelay.

Wiring

Connect the switches S1 to S3 to the screw terminals of your
IDEC

SmartRelay :

• S1 to connector I1 of ID

EC SmartRelay

• S2 to connector I2 of IDEC SmartRelay

• S3 to connector I3 of IDEC SmartRelay
The output of the AND block con trols the relay at output Q1.
The load

E1 is connected to output Q1.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 65

Wiring example

The following figure shows you the wiring, based on a 230 V
AC version of IDEC SmartRelay.

L1

N

Input wiring

Output wiring

S3S2S1

L1

N

NL1 I1 I2 I3 I4

1 2

Q1

Last

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

66 IDEC SmartRelay Manual

3.4 The four golden rules for operating IDEC
SmartRelay

Rule 1
Changing the operating mo de

• You cre a te th e circ uit pro gr am in programming mode.
After power is on, and when the display shows “No
Program / Press ESC”, press the ESC key to select
programming mode.

• Timer and parameter values of an existing circuit
prog

ram can be edited both in parameter assignment

mode and in programming mode. During parameter
assignment IDEC SmartRelay is in RUN mode; that is,

it continues executing the circuit program (see Chapter

5). To work in prog

ramming mode, yo

u need to

terminate the circuit program by calling

the “Stop”

command.

• Select the ’Start’ command on the main menu to set RUN
mode.

• W

hen the system is in RUN, you can return t

o parameter

assignment mode by pressing the ESC key.

•When paramet

er assignment mode is open and you
want to return to programming mode, select the “Stop”
command from the parameter assignment menu, and
confirm “Stop Prg” prompt with “Yes”. To do so, move
the cursor to “Yes” and confirm with OK.

For more details on operating modes, refer to Appendix D.

Rule 2
Ou

tputs

and inputs

• Always create your circuit program by working from the
o

utput to

the input.

• You can connect an output to several inputs

, but

not the

same input to several outputs.

• Within the same program path you may not connect an
o

utput to an

upstream input. For such internal recursions

you should interconnect memory markers or outputs.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 67

Rule 3
Cursor and cursor movement

The following applies when you edit a circuit program:

• You can move th

e cursor when it appears in the form of

an underscore:

- Press

, , or to move the cursor in the circuit

program.

- Press OK

to change

to ”Select connector/block”.

- Press ESC to exit

programming mode.

• You select a connector/block
when the

cursor appears as a solid square

- Press

or to select a connector or a block.

- Confirm with OK.

- Press ESC t

o return to t

he previous step.

Rule 4
Planning

• Befor

e you start to create a circuit program, you should

eithe

r firs

t create a design on paper or program IDEC

SmartRelay directly using WindLGC.

• IDEC SmartRelay can only save complete and faultless
c

ircui

t programs.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

68 IDEC SmartRelay Manual

3.5 Overview of IDEC SmartRelay menus

Programming mode

Parameter assignment mode

Parameter assignment menu

>Stop
Set Param
Set..
Prg Name

For more details on these menus, refer to Appendix D.
The Text Display menus provide configuration settings for

the Text Display. Thes

e menus are a subset of the IDEC
SmartRelay menus and are operated in mu ch the same way.
Appendix section D.2 shows the Text Display menus.

>Program..
Card..
Setup..
Start

>Edit..
Clear Prg
Password
Msg Config

> Card
Card
CopyProtect

= IDEC
SmartRelay

>Clock
LCD
Menu Lang
BM AI NUM

Main Menu

Programming menu

OK

ESC

OK

ESC

Transfer menu

Setup menu

Note: The ‘BM AI NUM’ selection is
only available on base modules that
support four analog inputs.

OK

ESC

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 69

3.6 Writing and starting the circuit program

After you have designed a circuit, you want to wr ite it to your
IDEC SmartRelay. The small example below shows how to
do this.

3.6.1 Selecting programming mode

You have connected IDEC SmartRelay to the powe r supply
and switched it on. The display now shows you th e message:

No Program
Press ESC

Switch IDEC SmartRelay to programming mode by pressing
ESC. This will take you to the main menu of IDEC
SmartRelay:

>Program..

Card..
Setup..
Start

IDEC SmartRelay’s main menu

The first character in the first line is the ”>” cursor. Press
and

to move the ”>” cursor up and down. Move it to
”Program..” and confirm with OK. IDEC SmartRelay opens
the programming menu.

>Edit..

Clear Prg
Password

Msg Config

IDEC SmartRelay’s programming
menu

Here you can also move the ”>” cursor by pressing and .
Move the ”>” cursor to ”Edit..” and confirm with OK.

>Edit Prg

Edit Name
AQ
Memory?

The Edit menu of IDEC SmartRelay

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

70 IDEC SmartRelay Manual

Move the ”>” cursor to ”Edit Prg” (for editing the circuit
program) and confirm with OK. IDEC SmartRelay now
shows you the first output:

Q1

The first output of IDEC SmartRelay

You are now in programming mode. Press and to select
the other outputs. Now start to edit your circuit prog ram.

Note

Because we have not yet saved a password for the circuit program
in IDEC SmartRelay, you can directly enter editing mode. When
you select “Edit” after you have saved a password-prot ected circuit
program, you are prompted to enter a password and to confirm it
with OK. You can only edit the program after you have entered the
correct password (see Chapter 3.6.5.).

3.6.2 The first circuit program

Let us now take a look at the following parallel circuit
consisting of two switches.

Circuit diagram

The corresponding circuit diagram:

K1

S1

K1

S2

E1

The load is switched on
with S1 OR S2. IDEC
SmartRelay interprets this
parallel circuit as an ‘OR’
logic, because S1 OR S2
switches on the output.

Translated into an IDEC SmartRelay circuit program this
means: Relay K1 is (at output Q1) is controlled by means of
an OR block.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 71

Circuit program

S1 is connected to the I1 and S2 to the I2 input conn ector of
the OR block.

The corresponding layout of the circuit program

in IDEC

SmartRelay:

I1
I2

x

Q1

1

Wiring

The corresponding wiring:

L1 N I4 I5 I6 I7 I8

Q1 Q2 Q3 Q4

L1

N

S1

S2

L

N

I1I1 I3I1I1

I2

1 2 1 2 1 2 1 2

S1 switches input I1, while S2 switches input I2. The load is
connected to the relay Q1.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

72 IDEC SmartRelay Manual

3.6.3 Circuit program input

Let us now write the circuit program, starting at the output
and working towards the input. IDEC SmartRelay initially
shows the output:

Q1

The first IDEC SmartRelay output

You will see an underscore below the Q in Q1, which is the
cursor. The cursor indicates your current position in the
circuit program. You can move the cursor by pr essing the

, , and keys. Now press the key. The cursor moves

to the left.

Q1

–

The cursor indicates your current
position in the circuit program.

At this point you enter only the first (OR) block. Press OK to
select editing mode.

Q1

Co

The cursor is displayed as a solid
square: You can now select a connector
or a block

The cursor no longer appears in the form of an underscore;
but instead as a flashing solid square. IDEC SmartRelay
offers you various options here.

Select GF (basic functions) by pressing the

key until GF

appears, and confirm with OK. IDEC Sma

rtRelay now shows

the first block from the list of basic functions:

&

B1

Q1

The AND is the first block of the basic
functions list. The solid square cursor
prompts you to select a block.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 73

Now press or until the OR block appears on the display:

1

B1

Q1

The solid square cursor is still
positioned on the block.

Press OK to confirm your entries and exit the dialog.

1

B1

Q1

B1

1

Q1

–

The display now shows:

Block
number

Your complete circuit
program layout

You have now entered the first block. Each new block is
automatically assigned a block number. The on ly thing left to
do is interconnect the block inputs. This is how it is done:

Press OK.

1

B1

Q1

Co

The display now shows:

Select the Co list: Press OK

1

B1

Q1

x

The display now shows:

The first element of the Co list is the ”Input 1” character,
namely ’I1’.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

1

Q1

I1

B1

Programming IDEC SmartRelay

74 IDEC SmartRelay Manual

Note

Press to go the start of the Co list: I1, I2 .... to lo. Press to go

to the end of the Co list: lo, hi, ..... to I1.

Inputs F1, F2, F3, and F4 are new as of the FL1E device series.
They correspond to the four function keys on the optional Text Dis­play.

Press OK. I1 is now connected to the input of the OR block.
The cursor jumps to the next input of the OR block.

1

B1

Q1

1

Q1

I1

I1

B1

–

The display now shows: Your complete circuit program

in IDEC SmartRelay up to now:

Now you connect input I2 to the input of the OR block. You
already know how to do this:

1. Switch to editing mode: Press OK

2. Select the Co list: Press

or

3. Confirm the Co list with: Press OK

4. Select I2: Press

or

5. Apply I2: Press OK
I2 is now connected to the input of the OR block:

1

B1

Q1

1

Q1

I1

I1

B1

I2

I2

The display now shows: Your circuit program layout in

IDEC SmartRelay up to now

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 75

We do not need the last two inputs of the OR block for this
circuit program. You can mark the unused inputs with an ’x’.
Enter the ’x’ character twice:

1. Switch to editing mode: Press OK

2. Select the Co list:

Press

or

3. Accept the Co list: Press OK

4. Select ’x’: Press

or

5. Apply x: Press OK

1

Q1

I1

B1

I2

Q1B1

x

The display now shows: This is the layout of your circuit

program

Note

You can invert individual inputs of the basic and special functions;
that is, if an input carries a logical “1” signal, the circuit program will
output a logical “0”. On the other hand, a logical -0" is inverted into
a logical “1” signal.

To invert an input, move the cursor to the relevant position,
e.g.:

1

B1

Q1

I2
I3
x

I1

Confirm with OK.
Now press

or to invert this input:

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

76 IDEC SmartRelay Manual

Next, press ESC.

1

B1

Q1

I2
I3

1

Q1

I2

B1

I3

x

x

I1

I1

Your circuit program layout

You can review your first circuit program by pressing or
to move the cursor through the circuit program.

We shall now exit circuit programming mode. This is how it
is done:

Return to the prog

ramming menu: Press ESC

Note

IDEC SmartRelay has now saved your circuit program to
nonvolatile memory. The circuit program remains in the IDEC
SmartRelay memory until you explicitly delete it.

You can save the actual values of special functions in the case of a
power outage assuming that these functions support the
“Retentive” parameter and that the necessary program memory is
available. The Retentive parameter is deactivated when you insert
a function; to use it, you must enable this option.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 77

3.6.4 Assigning a circuit program name

You can assign your circuit program a name that consists of
up to 16 uppercase/lowercase letters, numbers and special
characters.
In the programming menu:

1. Move the “>” cursor to ’Edit..’:

Press

or

2. Accept ’Edit’: Press OK

3. Move the “>” cursor to ’Edit Name’: Pr

ess or

4. Accept ’Edit Name’: Press OK
Press

and to list the alphabet, numbers and special
characters, either in ascending or descending order. You
can select any letter, number

or character.
To enter a space character, simply move the cursor with
to the next position. This character is the first one in the list.
Examples:

Press

once to select an “ A ”

four times to select “ { ”, etc.

The following character set is available:

Let us assume you want to name your circuit program
“ABC”:

5. Select “ A”:

Press

6. Move to the next letter: Press

7. Select “ B”: Press

8. Move to the next letter: Press

9. Select “ C”: Press

10.Confir m th e com plete name: Press OK
Your circuit program is now named “ABC”, and you ar

e
returned to the programming menu.
To change the name of your

circuit program, proceed in the

same way.

Note

You can change the name of the circuit program only in
programming mode. You can read the name both in programming
and in parameter assignment mode.

ABCDEFGHI JKLMNO

PQRSTUVWXYZa b cd e

fghi j klmnopqrs tu

vwxyz0123456789!

”#$%&’()*+,-./:;

<=>?@[ \ ]^_ ‘ { | }~

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

78 IDEC SmartRelay Manual

3.6.5 Password

You can protect a circuit program from unau thorized access
by assigning it a password.

You can only assign or deactivate a password from the IDEC
Sm

artRelay Base mo

dule or from WindLGC. You can only
change a password from the IDEC SmartRelay Base
module. If you have assigned a password, and are using a
Text Display (version 4 or later) together with an IDEC
SmartRelay Base module (version 4 or later) , you must enter
this password if you want to change IDEC SmartRelay from
RUN mode to STOP mode from the Text Display. You can
not stop the execution of the circuit program in IDEC
SmartRelay from the Text Display without entering the
password.

Note

This additional password protection function is only available
in the Text Display with version number 4 or later. This
function is only available under the following conditions:

• The version number of both the IDEC SmartRelay Base

and the Text Displ

ay installed is at least version 4

• IDEC SmartRelay is currently in RUN mode and you want

to switch to STO

P mode

There is only one password that you can assign for IDEC
SmartRel

ay. You can only assign it from the IDEC
SmartRelay base module or from WindLGC. To change
IDEC SmartRelay from RUN to STOP from the Text Display,
you must enter the password from the Tex t Displa y as
described below in the section “Changing IDEC SmartRela y
from RUN to STOP mode from the Text Display”.

Assigning a password from the IDEC SmartRelay Base module

A password can have a maximum length of 10 characters,
and consists only of uppercase lette rs . On IDEC
SmartRelay, the password can be assigned, edited or
deactivated only in the “Password” menu.

To enter a password, follow these steps in the programming
m

enu:

1.

Move the “>” cursor to ’Password’: Press

or

2. Confirm the ’Password’: Press OK
Press

or to move up and down the alphabet to select

your letters. Because

IDEC SmartRelay only provides

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 79

uppercase letters for the password, you can quickly access
letters “at the end“ of the alphabet ( in this example, English)
by using the

button:

Press

once to select “Z”

Press

twice to select “Y”, etc.

Let us assign the password “AA” to our first

circuit program.

The display now shows:

Old:

No Password

New:

This procedure is the same as for entering the name of the
circuit program. Select “New” and enter:

3. Select “ A”: Press

4. Move to the next letter: Press

5. Select “ A”: Press

The display now shows:

Old:

No Password

New:

AA

6. Confirm the password: Press OK
Your circuit program is now protected with the password

“AA”, and you are re

turned to the programming menu.

Note

You can cancel the input of a new password with ESC. In this case,
IDEC SmartRelay returns to the programming menu without saving
the password.

You can also set your password using WindLGC. You cannot edit
a password-protected circuit program on IDEC SmartRelay or
upload it to WindLGC unless you enter the correct password.

To allow you to create and edit a circuit program for a protected
module (Card), you first need to assign a password to this new
program (see Chapter 6.1).

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

80 IDEC SmartRelay Manual

Changing the password from the IDEC SmartRelay Base module

You must know the current password in order to change it.
In the programming menu:

1. Move the ’>’ cursor to ’Password’: Press or

2. Confirm the ’Password’: Press OK

Select “Old” and enter your old password (in our case: ’AA’) by repeating
steps 3 through 6 as described earlier.

The display now shows:

Old:

AA

New:

Old:

AA

New:

Now you can select “New” to enter the new password, e.g.
“ZZ”:

3. Select “Z”: Press

4. Move to the next letter: Press

5. Select “Z”: Press
The display now shows:

Old:

AA

New:

Z

Z

6. Confirm your new password: Press OK
Your new password “ZZ” is now se

t, and you are returned to

the programming menu.

Deactivating the password from the IDEC SmartRelay Base module

To deactivate the password to allow, for example, another
user

to edit your circuit program, you must know your current
password (in our example “ZZ”), the same as if you were
changing it.

To deactivate the password, following these steps in the
pr

ogram

ming menu:

1. Move the ’>’ cursor to ’Password’:

Press or

2. Confirm the ’Password’: Press OK
Select “Old” and enter your current password as descri bed

in

steps 3 to 5. Co

nfirm your entries with OK.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 81

The display shows:

Old:

ZZ

New:

Old:

ZZ

New:

Clear the password by leaving the input box blank:

3. Confirm the “blank” password: Press OK
The password is ”cleared”, and you are returned to the

pr

ogramming

menu.

Note

This action disables the password prompt, and thus permits access
without a password.

Let the password prompt be deactivated for the time being, in
order to accelerate progress in our further exercises and examples.

Password: Wrong Password!

When the user inputs the wrong password and confirms the
input with OK, IDEC SmartRelay does not open editing
mode, but returns to the programming menu. This repeats
itself over and again until you input the correct password.

Changing IDEC SmartRelay from RUN to STOP mode from the
T

ext Di

splay

A change from RUN mode to STOP mode from the Text
Display r

equires password entry if one is assigned. You
must know the existing password if one is assign ed. If there
is no password assigned on the IDEC SmartRelay Base
module, the Text Display will not prompt you for password
entry.

To change IDEC SmartRelay

from RUN mode to STOP

mo

de from the Text Display when IDEC SmartRelay is

password-protected, follow these steps:

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

82 IDEC SmartRelay Manual

1. On the Text Display, press ESC to switch IDEC SmartRe­lay from RUN mode to STOP mode. Text Display show

s

the following menu:

>Stop
Set Param

Msg Config

Set..

2. Press OK. The Text Display shows you the followin g dis­play:

Stop Prg
>No

Yes

3. Press to move the cursor to “Yes”, and press OK. Enter
the correct password (in this case: “ZZ

”). If you enter an
incorrect password, the Text Display returns to the dis­play in Step 1.

Password?

ZZ

4. Press OK to exit the password entry screen form. The
Text Display opens the main menu:

>Setup
Msg Config

Start

IDEC SmartRelay changes to STOP mode.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

IDEC SmartRelay Manual 83

Note

Whenever the Text Display is initialized, th e password needs
to be inputted again. The next time you start it and access
this password-protected function (RUN to STOP), you will be
prompted for password entry on the Text Display.

When IDEC SmartRelay subsequently changes from STOP
to

RUN mode, y

ou will again be prompted for password entry
to change IDEC SmartRelay to STOP mode from the Text
Display if more than one minute has elapsed sinc e you
pressed any key on the Text Display.

The Text Display can also cha

nge IDEC

SmartRelay from
STOP to RUN mode, but no password is required in this
case.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

Programming IDEC SmartRelay

84 IDEC SmartRelay Manual

3.6.6 Switching IDEC SmartRelay to RUN mode

In the main menu, select RUN to start IDEC SmartRelay.

1. Return to the main menu: Press ESC

2. Move the ’>’ cursor to ’Start’: Press

or

3. Confirm ’Start’: Press OK
IDEC SmartRelay runs the circuit program and shows the

following display:

Display field of IDEC SmartRelay in RUN mode

2008-05-26

Mo 09:00

I:

0.. 123456789

1..0123456789

2..01234

Q:

0.. 123456789

1..0123456

AI:

1: 00000
2: 01000
3: 00253

AI:

4: 00010
5: 00000
6: 00005

Start screen: Date and current time-of­day (only for versions with real-time
clock). This element flashes if the date
and time are not set.
Or: Start screen digital inputs (see
Chapter 5.2.5)

Press

Press

Press

Press

Press

Inputs I1 to I9
Inputs I10 to I19

Inputs I20 to I24

Outputs Q1 to Q9
Outputs Q10 to Q16

Analog inputs AI1 to AI3

Analog inputs AI4 to AI6

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

M:

0.. 123456789

1..0123456789

2..01234567

ESC+C

AI:

7: 00000
8: 00000

AQ:

1: 00000
2: 01000

Analog inputs AI7 to AI8

Analog outputs AQ1 to AQ2

Memory Markers M1 to M9
Memory Markers M10 to M19

Memory Markers M20 to M27

4 cursor keys for manual intervention
in the circuit program (ESC+key)

Press

Press

Press

Programming IDEC SmartRelay

IDEC SmartRelay Manual 85

What is meant by: “IDEC SmartRelay is in RUN”?

In RUN mode, IDEC SmartRelay executes the circuit
program

. To do so, IDEC SmartRelay first reads the status
at the inputs, determines the status of the outputs by means
of the user program, and switches these on or off according
to your settings.

This is how IDEC SmartRelay indicates the I/O status :

Q:

0.. 123456789

1..0123456

Input/output status is ’1’:
inverted
Input/output status is ’0’: not
inverted

I:

0.. 123456789

1..0123456789

2..01234

In this example, only the inputs I1, I15, Q8 and Q12 are set “high”.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

I:

0.. 123456789

1..0123456789

2..01234

L1

N

V4 V5

=1

L4

L5

T4

Q:

0.. 123456789

1..0123456

Let us examine
this using our
example:

When switch S1 is
closed, the status at
input I1 is hi.
IDEC SmartRelay
computes the output
states by means of the
circuit program.

Output Q1 = ‘1’, in this
case.
When Q1 = ‘1’, IDEC
SmartRelay sets relay
Q1, and the load

Programming IDEC SmartRelay

86 IDEC SmartRelay Manual

Status indication on the display

3.6.7 Second circuit program

Up to this point, you have successfully created your first
circuit and assigned it a name and, if desired, a passwo rd. In
this section we will show you how to modify existing circuit
programs and how to use the special functions.

Using this second circuit program, we will show you how to:

• Add a blo ck to an exis ting ci rcu it pr og ra m .

• Select a block for a special function.

• Assign parameters.

Modifying circuits

We shall use the first circuit program as a basis for the
second, with som

e slight modifications.

First of all take a look at the circuit diagra

m for the second

circuit program:

L1

N

S1

S2

K1

K1

E1

You already know the first part of
the circuit. S1 and S2 switch a
relay, which is to be used to
switch on the load E1, and to
switch off the load with a delay of
12 minutes.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]
