LS1403 Flush Ceiling Mount Occupancy/Vacancy Sensor
NDXXXX-X 12/2018 Users Manual – LS1403 Occupancy/Vacancy Sensor
Page 1
www.idealindustries.com
PRODUCT DESCRIPTION
The Audacy LS1403 Occupancy/Vacancy
Sensor is a battery powered device specially
designed to detect the presence or absence
of occupants and wirelessly transmit this
information to the Audacy Gateway. The
information provided by the sensor is used
to determine whether lights should remain
on or turned off to reduce energy
consumption. The product has a 25-year
battery life design and will not require AC or
DC line power, providing building owners
and occupants placement flexibility.
KEY FEATURES
FCC and IC approved
Flexible ceiling mounting options
25+ year battery life
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
PRODUCT CONTENTS
The following items are included inside the
package:
Qty
Description
1
Occ/Vac Sensor LS1403
1
Trim Ring
1
Instruction card
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
All other trademarks are the property of their respective owners.
SET-UP AND OPERATION
Product Manual
LS1403 Flush Ceiling Mount Occupancy/Vacancy Sensor
NDXXXX-X 12/2018 Users Manual – LS1403 Occupancy/Vacancy Sensor
Page 2
www.idealindustries.com
1. Cut 2.5 in-dia hole in ceiling (drywall or ceiling tiles)
2. Insert the base of the Occ/Vac Sensor 1403 through the hole until the flange is flat
against the ceiling.
3. Screw mounting screws until the wing locking tabs are tight against the back side of the
ceiling.

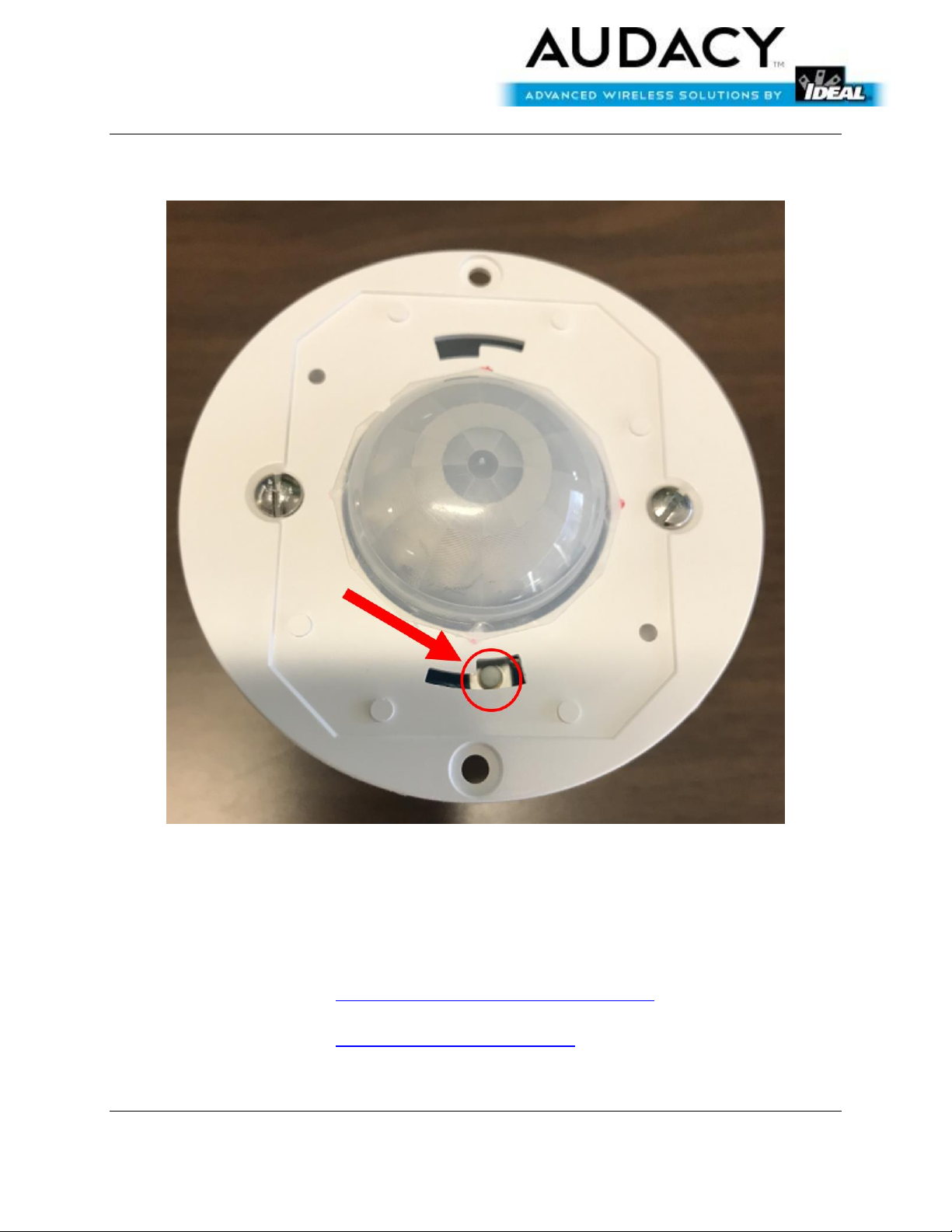

4. Press the button located on the Occ/Vac Sensor LS1300 to activate device.
5. Install trim ring to cover screw holes.
SPECIFICATIONS
Item
Description
Radio
915 MHz Internal Antenna
Regulatory Approvals
FCC Part 15 and Industry Canada
Contains FCC ID: 2AAMXLS1403
Contains IC: 11250A-LS1403
Transmit Range
100 ft. indoors to an Audacy Gateway or Smart Connector in a typical
commercial office building
Power
25+ year Li battery, non-replaceable
Operating
Temperature
10°C to 32°C
Storage Temperature
-20°C to 50°C
Installation
Environment
Indoor use only
Mounting
Flush mounted (See mechanical drawing for dimensions)
Color
White
Dimensions
3”dia x 3”
Weight
6.1 oz
Warranty
1 year
Product Manual
LS1403 Flush Ceiling Mount Occupancy/Vacancy Sensor
NDXXXX-X 12/2018 Users Manual – LS1403 Occupancy/Vacancy Sensor
Page 3
www.idealindustries.com
MECHANICAL (SIDE VIEW)
*Dimensions in inches
MECHANICAL (TOP VIEW)
*Dimensions in inches
