Mini IP Dome Camera User’s Manual
Version 1.0.0
Welcome
Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
i
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
ii
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
IPC Unit
Accessories bag
Quick Start Guide
CD
1
1
1
1
iii
Table of Contents
1 General Introduction ..................................................................................................................1
1.1 Overview........................................................................................................................1
1.2 Features.........................................................................................................................1
1.3 Specifications................................................................................................................2
1.3.1 Performance...........................................................................................................2
1.3.2 Factory Default Setup...........................................................................................3
2 Framework...................................................................................................................................9
2.1 Dimensions....................................................................................................................9
2.2 Structure ......................................................................................................................10
3 Installation .................................................................................................................................12
3.1 Device Installation ......................................................................................................12
3.2 SD Card Installation ...................................................................................................13
4 Quick Configuration Tool.........................................................................................................15
4.1 Overview......................................................................................................................15
4.2 Operation .....................................................................................................................15
5 Web Operation..........................................................................................................................18
5.1 Network Connection...................................................................................................18
5.2 Login and Main Interface...........................................................................................18
6 FAQ ............................................................................................................................................21
Appendix Toxic or Hazardous Materials or Elements ...............................................................22
iv
1 General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts audio
and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.
This series IPC uses standard H.264 video compression technology and MJPEG audio compression
technology, which maximally guarantee the audio and video quality.
This series IPC enclosure has the strong resistance capacity, which can guarantee the proper work
performance under heavy strike. It supports real-time monitor and motion detect function.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, this series
IPC is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
Storage
Function
Alarm
Function
Network
Monitor
Network
Management
Peripheral
Equipment
z Different user rights for each group, one user belongs to one group.
z The user right shall not exceed the group right.
z Support central server backup function in accordance with your configuration
and setup in schedule setting
z Support record via Web and the recorded file are storage in the client-end
PC.
z Support built-in Micro SD card. Support short-time storage when encounter
disconnection.
z Support network storage such as FTP.
z Real-time respond to video detect as user pre-defined activation setup and
exert corresponding message in screen and audio prompt(allow user to prerecord audio file)
z Real-time video detect: motion detect, camera masking.
z Can generate an alarm when network abnormal, SD card abnormal event
occurred.
z IPC supports one-channel video data transmit to network terminal and then
decode. Delay is within 270ms (network bandwidth support needed)
z Max supports 20 connections.
z Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
RTP/RTCP, RTSP and etc.
z Support web access, widely used in WAN.
z Realize IPC configuration and management via Ethernet.
z Support device management via web or client-end.
z Support various network protocols.
z Support peripheral equipment connection via the RS232 port, each peripheral
equipment control protocol and interface can be set freely.
z Support serial port (RS232/RS485) transparent data transmission.
Power
Assistant
Function
z External power adapter DC12V
z Support PoE.
z Log function
z Support PAL/NTSC
z Support system resource information and running status real-time display.
1
z Day/Night mode auto switch.
z Backlight compensation: screen auto split to realize backlight compensation
to adjust the bright.
z Support electronic shutter and gain setup.
z Support video watermark function to avoid vicious video modification.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for IPC performance specification.
Model
Parameter
System
Main
Processor
OS Embedded LINUX
System
Resources
User Interface Remote operation interface such as WEB, DSS, PSS
System Status SD card status, bit stream statistics, log, and software version.
Video Parameter
Image Sensor
Pixel
Day/Night
Mode
Gain Control Fixed/Auto
TI Davinci high performance DSP
Support real-time network, local record, and remote operation at the
same time.
1/2.9-inch CMOS
1920(H)*1080(V)
Support day/night mode switch.
IPC-HDB3200CP(N) Series
White Balance Manual/Auto
BLC On/off
Electronic
Shutter
Video
Compression
Standard
Video Frame
Rate
Video Bit Rate
Video Flip
Snapshot Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask Supports max 4 privacy mask zones
Video Setup Support parameter setup such as bright, contrast.
Video
Information
Lens 2.8mm/3.6mm/6mm/8mm MP
Lens Interface M12. Lens is the default accessories
Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.
H264/JPEG/MJPEG
PAL:
Main stream（1920*1080@25fps）
extra stream（704*576@25fps）
NTSC：
Main stream (1920*1080@30fps)
Extra stream (704*480@30fps)
H.264: 56Kbps-8192Kbps.
ＭJPEG: 128-20480Kbps.The bit rate is adjustable.
Support customized setup.
Support mirror function.
Support flip function.
Channel title, time title, motion detect, privacy mask.
2
Video
Motion Detect
Video Loss
Alarm Input
Record
and
Record
Priority
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The
6th level has the highest sensitivity)
Activation event: Video storage, image snapshot, log, email SMTP
function and etc.
Activation event: Video storage, image snapshot, log, email SMTP
function and etc.
2-channel input，1-channel output
Manual> Video detect>Schedule
Local Storage
Network
Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
Platform
interface
Standard
Remote
Operation
AUX
Interf
Video Output
Reset Built-in RESET button
General Parameter
Power Support DC12V and PoE
Power
Consumption
Working
Temperature
Working
Humidify
Dimensions(m
m)
Weight
Installation Installed in the places such as wall or the ceiling
Support Micro SD card storage
Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP,
UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,
SNMP, NFS.
ONVIF
Monitor, system setup, log information, maintenance , upgrade and etc
1-channel analog video output，BNC port, 9-pin port connection
2.5W MAX
-10℃~+60℃
10%~90%
¢110×54
0.25Kg
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Function
Setup Type
Camera Setup
Item
Conditions
Brightness 50
Contrast 50
Hue 50
Saturation 50
Gain mode Auto
Gain limit 80
Exposure mode Auto
Scene mode Auto
Day/night mode Auto
BLC Off
Mirror Disable
Default setup
IPC-HDB3200CP(N) Series
3
Function
Setup Type
Item
Flip Disable
Video
Main
stream
Video bit
stream
Extra
stream
Bit stream
type
Encode
mode
Resolution 1080P（1920*1080）
Frame rate
（FPS）
Bit stream
type
Reference bit
rate
Bit rate 8192
I frame
interval
Watermark
settings
Watermark
character
Enable Enable
Bit stream
type
Encode
mode
Resolution CIF(352×288/352×240)
Frame rate
（FPS）
Bit rate type CBR
Reference bit
rate
Bit rate 1024
I frame
interval
Snap type General snap
Default setup
IPC-HDB3200CP(N) Series
General
H.264B
PAL: 25
NTSC:30
CBR
3584-8192 Kb/S
50
Enable
DigitalCCTV
General
H.264B
PAL: 25
NTSC:30
192-1024Kb/S
50
Snapshot
Overlay
Path
Image size 1080P（1920*1080）
Quality Better
Interval 1picture/s
Privacy mask Disable
Channel title Enable
Time title Enable
Snapshot
path
Record path C:\RecordDownload
C:\PictureDownload
4
Function
Setup Type
Network setup
Item
Host name IPC
Ethernet card Wire(Default)
Mode Static
MAC
address
IP version IPV4
IP address 192.168.1.168
Subnet mask 255.255.255.0
TCP/IP
Connection
PPPoE
DDNS
IP filter Trusted sites Disable
SMTP（email）
Default
gateway
Preferred
DNS
Alternate
DNS
Enable
ARP/Pingto
to set IP
address
service
Max
connection
TCP port 37777
UDP port 37778
HTTP port 80
RTSP port 554
Enable Disable
User name N/A
Password N/A
Server type Disable, CN99 DDNS
Server IP none
Port 80
Domain
name
User name none
Password N/A
Update
period
SMTP server none
Port 25
Anonymity Disable
User name anonymity
Password N/A
Sender none
Default setup
IPC-HDB3200CP(N) Series
Depends on the device
192.168.1.1
8.8.8.8
8.8.8.8
Enable
10
none
5m
5
Function
Setup Type
Event
management
Item
Authenticatio
n (Encrypt
mode)
Title
(Subject)
Main
Receiver
Interval 0s
Health email Disable ，interval=60m
UPnP Enable UPnP Disable
SNMP v1 Disable
SNMP v2 Disable
SNMP port 161
Read
SNMP
Bonjour
Multicast
Auto register
WIFI On(Enable) Enable
QoS
Video detect
community
Write
community
Trap address N/A
Trap port 162
Enable Enable
Server name
Multicast
address
Port 36666
Enable Disable
SN 1
Server IP 0.0.0.0
Port 7000
Sub-device
ID
Real-time
monitor
Command 0
Motion detect
Enable Disable
Anti-dither 5 seconds
Sensitivity 3
Record
Channel
Record
Delay
Send email Disable
Snapshot Disable
Default setup
IPC-HDB3200CP(N) Series
N/A
IPC Message
N/A
public
private
“Device name+SN”.
Depends on the device.
239.255.42.42
none
0
Enable
10 seconds
6
Function
Setup Type
Item
Abnormity
Default setup
IPC-HDB3200CP(N) Series
Video (Camera)
masking
Enable Disable
Record
Channel
Record
Delay
Send email Disable
Snapshot Disable
No SD
card
Enable Disable
Send email Disable
Capacity
warning
Enable Disable
Capacity limit
(Space
threshold)
Send email Disable
SD card
error
Enable Disable
Enable
10 seconds
10%
Storage
management
Destination(Storag
e )
Send email Disable
Disconn
ection
Enable Disable
Record Enable
Record delay 10s
IP
conflict
Enable Disable
Record Enable
Record delay 10s
FTP enable Disable
Server IP N/A
Port 21
User name anonymity
Password N/A
FT
Remote
P
storage path
Emergency
storage to
local path
Network storage
NAS enable Disable
Mode NFS
Server IP N/A
Port 21
User name N/A
Password N/A
share
Disable
7
Function
Setup Type
System
management
Item
Remote
storage path
Pack
duration
Conditions (Record
control)
General setup
Auto maintenance
Pre-record 5s
Disk full Overwrite
Record mode Auto
Local
setup
Device name Device factory SN
Language English
Video
standard
Date and time
Date format Y-M-D
Time format 24H
Time zone GMT+08:00
Current time Sync PC
DST Disable
DTS type Week
Start time
End time
Synchronize
with NTP
NTP server clock.isc.org
Port 37
Update
period
Auto reboot Enable
Auto delete
old files
Default setup
IPC-HDB3200CP(N) Series
N/A
8m
NTSC NTSC
00:00:00 of the first Sunday of the
month
00:00:00 of the second Monday of
the month
Disable
10m
Disable
8
2 Framework
2.1 Dimensions

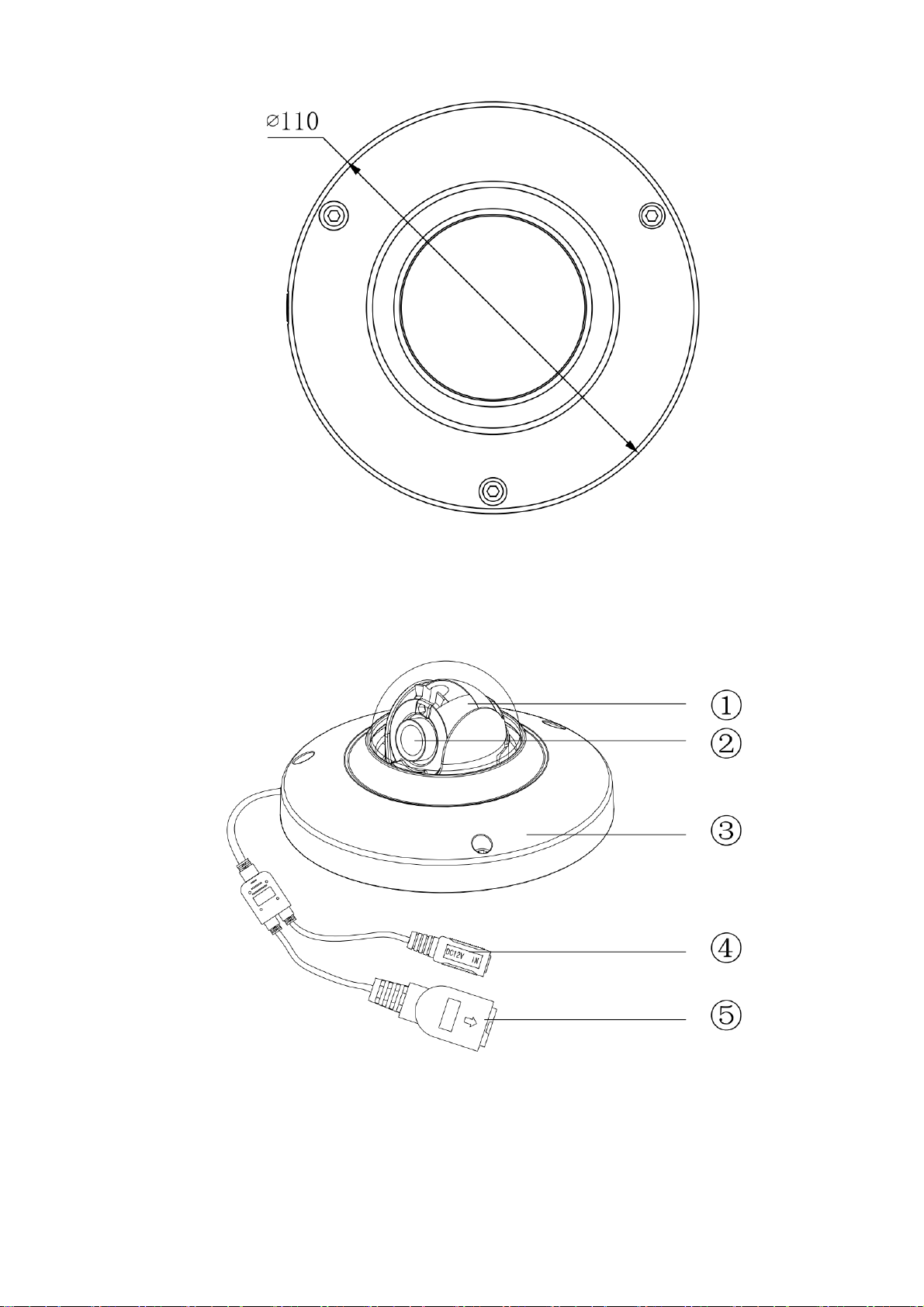

Please refer to the following figure for the dimension information. The unit is mm. See Figure 2-1
through Figure 2-3.
Figure 2-1
Figure 2-2
9
Figure 2-3
2.2 Structure
Please refer to the following figure for detailed information. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
10
SN Name
1 X-Y-Z rotation module
2 Device lens
3 Dome camera enclosure
4 Power input port
5 Network port
Connect to the DC 12+ power to
input the power.
Network data input, output and
PoE.
11
3 Installation
3.1 Device Installation

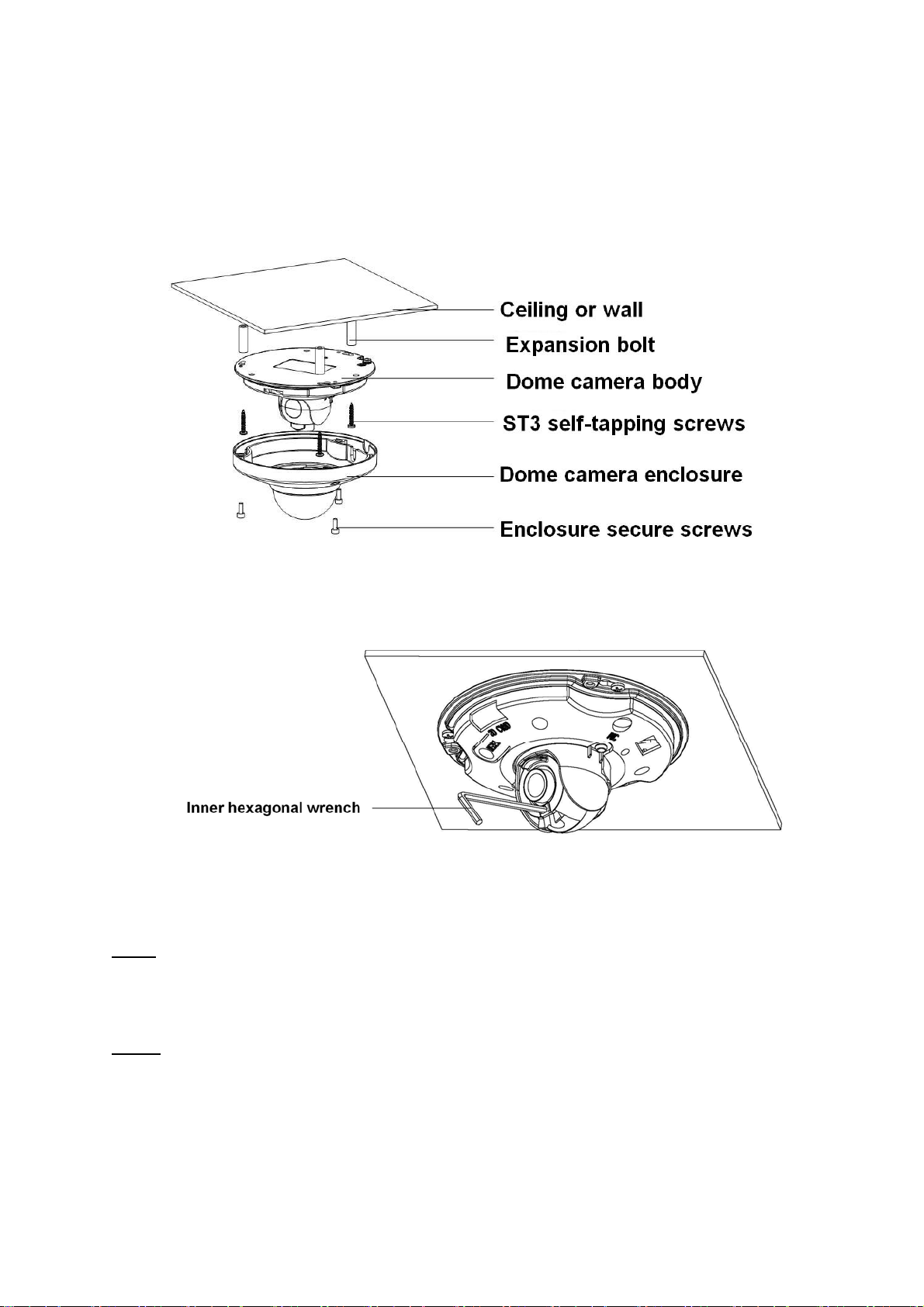

This series IPC can be put on the table to realize surveillance. Or you can use the bracket or the in-
ceiling installation to realize the hang function. Please refer to the steps listed below.
Figure 3-1
Figure 3-2
Step1
Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws in the dome cover
and then open the cover.
Step 2

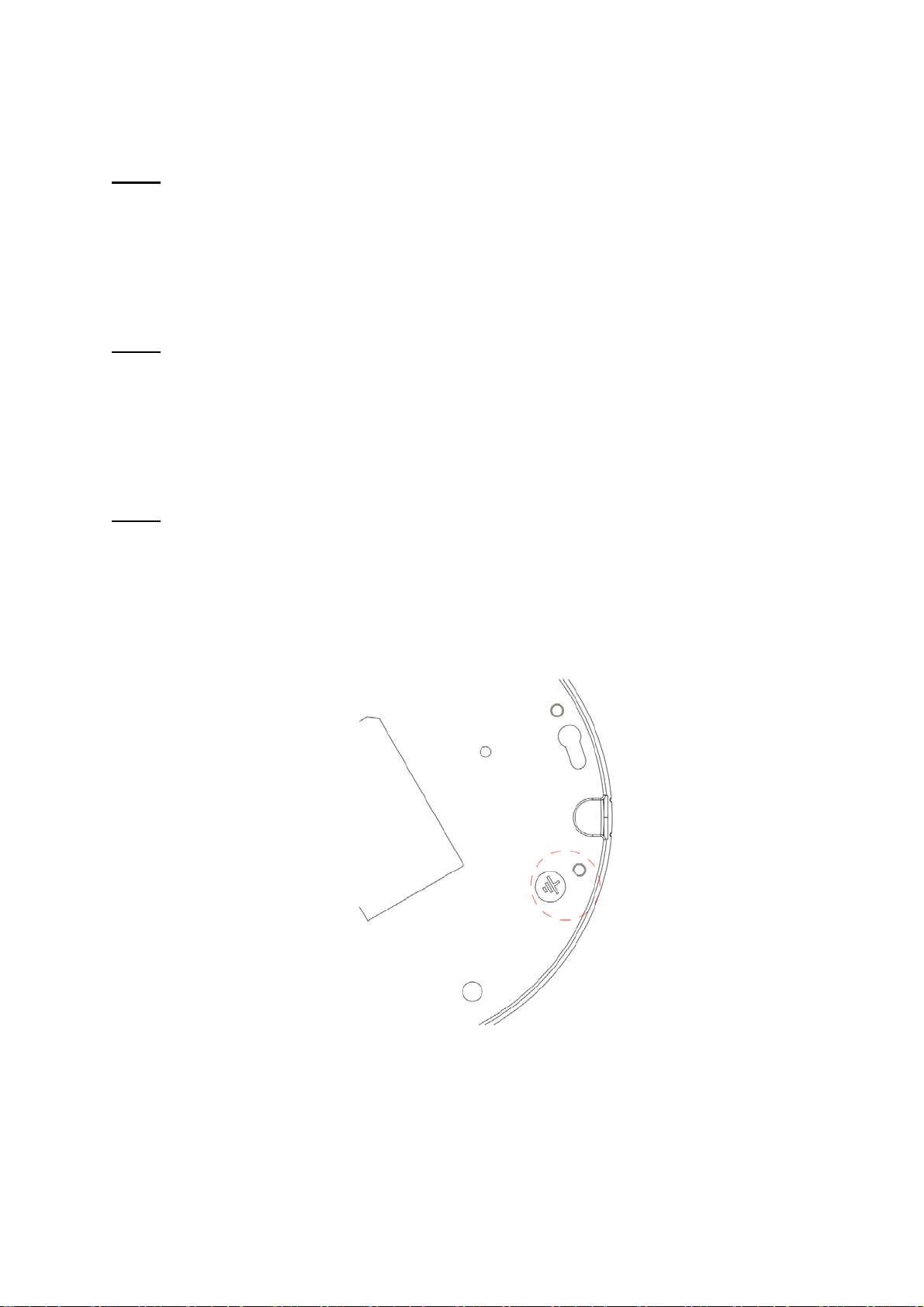

Please take the installation position map in the accessories bag, and then paste it on the ceiling or the
wall according to your monitor area requirements. Draw and then dig three plastic expansion bolts
holes in the installation surface and then insert three expansion bolts in the holes. Secure these three
bolts firmly. Please dig a “cable exit hole” in the surface according to the installation position map if
you want to draw out the cable from the top of the installation surface. You need to use the proper tool
to open up the side port of the U-cable channel of the dome camera pedestal if you want to draw out
12
the cable from the side port of the cable channel when you are installing the device cable. And then
you can draw out the cable from the cable channel of the pedestal.
Step 3
Adjust the device installation pedestal to the proper position and then draw the cable through the cable
exit you just dug in the ceiling (wall). Line up the TOP direction of the device to the installation position
map and then line up the three screw holes in the device pedestal to the three plastic expansion bolt
holes in the installation position. Put the three self-tapping screws in the three plastic expansion bolts
firmly. Now the dome camera is secure in the installation surface.
Step 4
Loosen the two M3 secure screws of the lens rotation structure (Do not remove, loosen a little bit will
be OK.). Use the inner hexagonal wrench to insert them to the inner hexagonal holes and then use the
wrench to turn the lens. Adjust the lens to the proper monitor angle and then secure the screws of the
lens rotation structure. The lens adjust angle ranges are: flip (0°~+75°),video pan rotation (-15°
~+15°) , video rotation angle(-15°~+15°).
Step 5
Line up the dome camera cover to the cable exits and put the cover back. Use the inner hexagonal
wrench to secure the three inner hexagonal screws firmly. Now the installation completed.
Note:
The device GND cable can effectively enhance the device reliability. The GND hole is near the cable
exit of the back of the enclosure. The GND screw specification is M3. See Figure 3-3.
Figure 3-3
3.2 SD Card Installation
Important
Please shut down the power and then turn off the device before you install the SD card.
13
Step 1
Please refer to the step 1 in chapter 2.1 to open the device.
Step 2
Find the “SD CARD” indicator in the enclosure. Adjust the SD card to the proper direction and then
install. See Figure 3-4.
Step 3
Please refer to the step 5 in chapter 2.1 to complete the installation.
Figure 3-4
14
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe’” icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 4-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Figure 4-2
15
Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure
4-3.
Figure 4-3
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the Login
button to go to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you can not login the device.
If you are use device background upgrade port 3800 to login, other setups are all invalid.
Figure 4-4
After you logged in, the configuration tool main interface is shown as below. See Figure 4-5.
16
Figure 4-5
17
5 Web Operation
This series IPC product support the Web access and management via PC.
Web includes several modules includes monitor channel preview, PTZ control, system configuration,
alarm and etc.
IP camera factory default setup:
z IP address: 192.168.1.108.
z User name: admin
z Password: admin
5.1 Network Connection
Please follow the steps listed below for network connection.
z Make sure the IPC has connected to the network properly.
z Please set the IP address, subnet mask and gateway of the PC and the IPC respectively. IPC
default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1
z Use order ping ***.***.***.***(* IP camera address) to check connection is OK or not.
5.2 Login and Main Interface
Open IE and input IP camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108 in IE address
bar. See Figure 5-1.
Input your IP
address here
Figure 5-1
The login interface is shown as below. See Figure 5-2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
18
Figure 5-2
If it is your first time to login in, system pops up warning information to ask you whether install control
webrec.cab
automatically install the control. When system is upgrading, it can overwrite the previous Web too.
If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable
the control download. Or you can lower the IE security level. See Figure 5-3.
or not after you logged in for one minute. Please click OK button, system can
Figure 5-3
After you logged in, you can see the main window. See Figure 5-4.
19
Figure 5-4
Please refer to the Web Operation Manual included in the resource CD for detailed operation
instruction.
20
6 FAQ
Bug
I can not boot up
the device.
SD card write
times
I can not use the
disk as the storage
media.
I can not upgrade
the device via
network.
Recommended SD
card brand
Save setup Please use active device for the audio monitor input, otherwise there
Power adapter The power adapter in the accessories bag work temperature ranges
Please click RESET button for at least five seconds to restore
factory default setup.
Do not set the SD card as the storage media to storage the
schedule record file. It may damage the SD card duration.
When disk information is shown as hibernation or capacity is 0,
please format it first (Via Web).
When network upgrade operation failed, you can use port 3800 to
continue upgrade.
Kingston 4GB, Kingston 1GB, Kingston 16GB, Transcend 16GB,
SanDisk 1G, SanDisk 4G.
Usually we recommend the 4GB (or higher) or industry-level high
speed card in case the slow speed results in data loss.
is no audio in the client-end.
from 0℃ to 40℃. It may result in unstable performance if it works in
the extremely too hot or too cold environments. In this case, you
may need to use the industrial-level power adapter.
21
Appendix Toxic or Hazardous Materials or Elements
Component
Name
Circuit Board
Component
Device
Construction
Material
Wire and Cable
Packing
Components
Accessories ○ ○ ○ ○ ○ ○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes.
Note
Pb Hg Cd Cr VI PBB PBDE
○ ○ ○ ○ ○ ○
○
○
○ ○ ○ ○ ○ ○
Toxic or Hazardous Materials or Elements
○ ○ ○ ○ ○
○ ○ ○ ○ ○
z This user’s manual is for reference only. Slight difference may be found in user interface.
z All the designs and software here are subject to change without prior written notice.
z If there is any uncertainty or controversy, please refer to the final explanation of us.
z Please visit our website for more information.
22
Loading...
