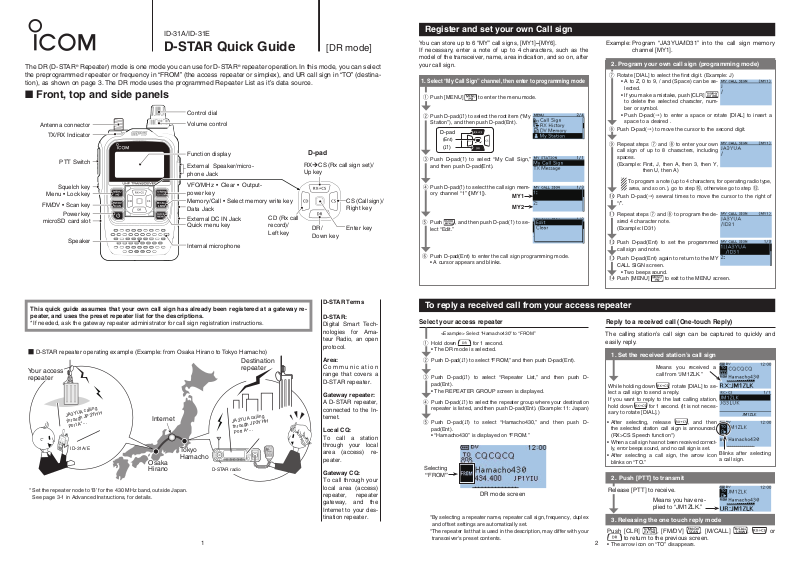

Icom ID-31A, ID-31E Quick Manual
ID-31A/ID-31E
JA3YUA calling
through JP3YHH
Port A*...
Osaka
Hirano
Osaka
Hirano
Tokyo
Hamacho
Tokyo
Hamacho
D-STAR radio
■ D-STAR repeater operating example (Example: from Osaka Hirano to Tokyo Hamacho)
Your access
repeater
Destination
repeater
Internet
JA3YUA calling
through JP3YHH
Port A*...
ID-31A/E
D-pad
(�)
(Ent)
D-STAR Quick Guide
[DR mode]
The DR (D-STAR® Repeater) mode is one mode you can use for D-STAR® repeater operation. In this mode, you can select
the preprogrammed repeater or frequency in “FROM” (the access repeater or simplex), and UR call sign in “TO” (destination), as shown on page 3. The DR mode uses the programmed Repeater List as it’s data source.
Front, top and side panels ■
Control dial
Antenna connector
TX/RX Indicator
PTT Switch
Squelch key
Menu • Lock key
FM/DV • Scan key
Power key
microSD card slot
Speaker
Volume control
Function display
External Speaker/microphone Jack
VFO/MHz • Clear • Outputpower key
Memory/Call • Select memory write key
Data Jack
External DC IN Jack
Quick menu key
CD (Rx call
record)/
Left key
Internal microphone
D-pad
RXÚCS (Rx call sign set)/
Up key
CS (Call sign)/
Right key
DR/
Down key
Enter key
Register and set your own Call sign
You can store up to 6 “MY” call signs, [MY1]–[MY6].
If necessary, enter a note of up to 4 characters, such as the
model of the transceiver, name, area indication, and so on, after
your call sign.
1.
Select “My Call Sign” channel, then enter to programming mode
Push [MENU] q to enter the menu mode.
Push D-pad( w ) to select the root item (“My
Station”), and then push D-pad(Ent).
Push D-pad( e ) to select “My Call Sign,”
and then push D-pad(Ent).
Push D-pad( r ) to select the call sign mem-
ory channel “1” ([MY1]).
Push t
lect “Edit.”
Push D-pad(Ent) to enter the call sign programming mode. y
• A cursor appears and blinks.
, and then push D-pad() to se-
MY1
MY2
Example: Program “JA3YUA/ID31” into the call sign memory
channel [MY1].
2. Program your own call sign (programming mode)
Rotate [DIAL] to select the rst digit. (Example: J) u
• A to Z, 0 to 9, / and (Space) can be se-
lected.
• If you make a mistake, push [CLR]
to delete the selected character, num-
ber or symbol.
• Push D-pad(") to enter a space or rotate [DIAL] to insert a
space to a desired .
Push D-pad( i ") to move the cursor to the second digit.
o Repeat steps u and i to enter your own
call sign of up to 8 characters, including
spaces.
(Example: First, J, then A, then 3, then Y,
!0 Push D-pad(") several times to move the cursor to the right of
“/”.
!1 Repeat steps u and i to program the de-
sired 4 character note.
(Example: ID31)
!2 Push D-pad(Ent) to set the programmed
call sign and note.
!3 Push D-pad(Ent) again to return to the MY
CALL SIGN screen.
• Two beeps sound.
!4 Push [MENU]
then U, then A)
To program a note (up to 4 characters, for operating radio type,
area, and so on.), go to step !0, otherwise go to step !2.
to exit to the MENU screen.
This quick guide assumes that your own call sign has already been registered at a gateway repeater, and uses the preset repeater list for the descriptions.
*If needed, ask the gateway repeater administrator for call sign registration instructions.
* Set the repeater node to ‘B’ for the 430 MHz band, outside Japan.
See page 3-1 in Advanced Instructions, for details.
1 2
D-STAR Terms
D-STAR:
Digital Smart Technologies for Ama-
teur Radio, an open
protocol.
Area:
C o m m u n i c a t i o n
range that covers a
D-STAR repeater.
Gateway repeater:
A D-STAR repeater,
connected to the Internet.
Local CQ:
To call a station
through your local
area (access) repeater.
Gateway CQ:
To call through your
local area (access)
repeater, repeater
gateway, and the
Internet to your destination repeater.
To reply a received call from your access repeater
Select your access repeater
<Example> Select “Hamacho430” to “FROM”
Hold down q for 1 second.
• The DR mode is selected.
Push D-pad( w ) to select “FROM,” and then push D-pad(Ent).
Push D-pad( e ) to select “Repeater List,” and then push D-
pad(Ent).
• The REPEATER GROUP screen is displayed.
Push D-pad( r ) to select the repeater group where your destination
repeater is listed, and then push D-pad(Ent). (Example: 11: Japan)
Push D-pad( t ) to select “Hamacho430,” and then push D-
pad(Ent).
• “Hamacho430” is displayed on “FROM.”
Selecting
“FROM”
DR mode screen
* By selecting a repeater name, repeater call sign, frequency, duplex
and offset settings are automatically set.
* The repeater list that is used in the description, may differ with your
transceiver's preset contents.
Reply to a received call (One-touch Reply)
The calling station’s call sign can be captured to quickly and
easily reply.
1. Set the received station’s call sign
While holding down , rotate [DIAL] to select a call sign to send a reply.
If you want to reply to the last calling station,
hold down
sary to rotate [DIAL].)
• After selecting, release , and then
the selected station call sign is announced.
(RX>CS Speech function*)
•
When a call sign has not been received correctly, error beeps sound, and no call sign is set.
• After selecting a call sign, the arrow icon
blinks on “TO.”
2. Push [PTT] to transmit
Release [PTT] to receive.
3. Releasing the one touch reply mode
Push [CLR] , [FM/DV] , [M/CALL] ,
• The arrow icon on “TO” disappears.
Means you received a
call from “JM1ZLK.”
for 1 second. (It is not neces-
Means you have re-
plied to “JM1ZLK.”
to return to the previous screen.
Blinks after selecting
a call sign.
or
Operation Operation
Internet
Internet
JA3YUA
calling through
JP3YHH...
Example: Set the "Hirano430" repeater name in “FROM”
Hold down q for 1 second to enter the DR mode.
Push D-pad( w $) to select “FROM,”
and then push D-pad(Ent).
Push D-pad( e ) to select “Repeater List,”
and then push D-pad(Ent).
• The REPEATER GROUP is displayed.
Push D-pad( r ) to select the repeater
group where your destination repeater is
listed, and then push D-pad(Ent).
(Example: 11: Japan)
Push D-pad( t ) to select “Hirano430,” and
then push D-pad(Ent).
• “Hirano430” is displayed on “FROM.”
“Hirano430” setting is
• When you select just the repeater name, the repeater call sign, its
frequency, duplex setting and frequency offset are automatically set.
• The repeater list, described in this manual, may differ from your
transceiver’s preset contents.
• You have four other ways to set your access repeater, other than
selecting it from repeater list.
You can select by rotating [DIAL], Search for the nearest repeat-
er, Setting from the TX History or Search for a repeater using the
DR mode scan. See the Advanced Instruction for more details.
Simplex operation in the DR mode
When setting a Simplex frequency in the
Simplex group to “From,” simplex contacts
can be made in the DR mode.
completed.
Operation
q Select the “Repeater List” screen, as
described in steps q to e above.
w Select “20: Simplex” described in step
r above.
e Push D-pad(E ) to se lect a de si red
frequency, and then push D-pad(Ent)
r Hold down [PTT] to transmit.
20: Simplex group
TX display in the DR
mode
2. “TO” (Destination) setting1. Set your access repeater（FROM）
Push D-pad( q ) to select “TO,” and then push D-pad(Ent).
• Local area call
FROM: Hirano430 repeater
(JP3YHH A*)
MY
JA3YUA
TO: Local CQ
(CQCQCQ)
CQ
Area
• Gateway call
FROM: Hirano430 repeater
(JP3YHH A*)
(GW)
MY
JA3YUA
TO: Hamacho430
(JP1YIU A*)
CQ
Area
• “Your Call Sign” setting
FROM: Hirano430 repeater
(JP3YHH A*)
(GW)
MY
JA3YUA
* Set the repeater node to ‘B’ for the 430 MHz band, outside Japan.
See page 3-1 in Advanced Instructions, for details.
• When you call an individual station call sign through a gateway,
the signal is automatically sent to the last repeater that the station
accessed.
So, even if you don't know where the station is, you can make a
call using call sign routing.
• See ‘Your (destination) call sign programming’ described in
Advanced Instructions, section 4, for details.
TO: TOM
(JM1ZLK)
Area
Push D-pad( w ) to select “Local CQ,” and then push D-pad(Ent).
Settings are
complete
Push D-pad( w ) to select the item, and then push D-pad(Ent).
“Gateway CQ” “11:Japan” “Hamacho430”
Settings are complete
Select “11: Japan”
where “Hamacho430”
repeater is listed.
Push D-pad( w ) to select the item, and then push D-pad(Ent).
“Your Call Sign” “TOM”
The call sign of the
selected station is
displayed.
The following destination station/repeater setting methods are also
possible. See the ‘ “TO” (Destination) setting’ described in Advanced
Instructions, section 3, for details.
• Using [DIAL]
• Setting from the RX History
• Setting from the TX History
• Direct Input (UR)
• Direct Input (RPT)
“TOM” setting is
completed.
3 Hold down [PTT] to transmit
Following screen appears after making the call
• Local area call
CQCQCQ scrolls.
• Gateway call
Hamacho430 call sign
with “/” automatically
added, scrolls.
• “Your Call Sign” setting
TOM’s call sign scrolls.
• To maximize the readability of your signal, hold the microphone 5
to 10 cm (2 to 4 inches) from your mouth, then speak at a normal
voice level.
• In the DR mode, the previously used setting remain programmed.
Therefore, we select “CQCQCQ” in “TO” after you nish last call, to
prevent an accidental transmission to an undesired destination.
• Hold down for 1 second to exit the DR mode and return to
the main screen..
After you finish the setting:
Hold down [S.MW] q for 1 second to en-
ter the memory select write mode.
Rotate [DIAL] to select the Memory channel w
001.
Hold down [S.MW] e
store the setting, and the transceiver returns
to the DR mode.
• The memory contents are displayed for a
Blinks
Blinks
moment.
• If the selected channel is blank, the name
from the “FROM”/“TO” setting is automati-
cally saved into the Memory channel.
NOTE:
for 1 second to
If the selected channel in step w has
memory contents already programmed,
the Repea ter N ame wil l not be
programmed.
When Memory chan-
nel 001 is selected.
About “UR?” and “RPT?” indicationsYou can save the temporary settings to memory channel
“UR?” appears
The call was successfully sent, but no station’s signal was
immediately received.
The listening station may missed your call, so after waiting
for a while, try calling again.
T he l o cal a re a c al l i s
success fu ll y s en t, bu t no
station’s signal is immediately
received.
The destination repeater is
busy, when making a gateway
communication from Hirano430 to
Hamacho430.
“RPT?” or “RX” appears
The destination repeater was not found, there is a programming error, or the destination repeater was busy.
When “RPT?” is displayed, wait for a while, then try calling
again, because in the gateway call, a signal is sent even if
the destination repeater is busy.
NOTE: “RPT?” is displayed when;
• the repeater call sign programming is error.
• your own call sign is not registered on a gateway re-
peater, or the registration contents is not matched.
• the destination call sign is not registered on a gateway
repeater, or the registration contents is not matched.
• the destination repeater cannot be accessed.
“RX” is displayed when a blank MY call sign memory
has been selected.
43
A-6986H-3EX Printed in Japan © 2011 Icom Inc.
Loading...
