Icom IC-V85-T, IC-V85 User Manual

INSTRUCTION MANUAL

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

FM TRANSCEIVER

iV85
iV85-T

i

FOREWORD

Thank you for purchasing this Icom transceiver. The IC-V85

FM TRANSCEIVER

is designed and built with Icom’s superior
technology and craftsmanship. With proper care, this trans­ceiver should provide you with years of trouble-free operation.

We want to take a couple of moments of your time to thank
you for making the IC-V85 your radio of choice, and hope you
agree with Icom’s philosophy of “technology first.” Many hours
of research and development went into the design of your IC­V85.

DD

FEATURES

❍ 7 W*— high transmit output power

*7 W : IC-V85 except [THA] version,

5.5 W : IC-V85 [THA] version

❍ CTCSS and DTCS encoder/decoder stan-

dard

❍ Optional DTMF decoder

IMPORTANT

READ ALL INSTRUCTIONS carefully and completely

before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This in-

struction manual contains important operating instructions for
the IC-V85.

EXPLICIT DEFINITIONS

WORD DEFINITION

R WARNING!

CAUTION

NOTE

Personal injury, fire hazard or electric shock
may occur.

Equipment damage may occur.

Recommended for optimum use. No risk of
personal injury, fire or electric shock.

Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United States, the United Kingdom, Ger­many, France, Spain, Russia and/or other countries.

ii

RWARNING RF EXPOSURE! This device emits

Radio Frequency (RF) energy. Extreme caution should be ob­served when operating this device. If you have any questions
regarding RF exposure and safety standards please refer to
the Federal Communications Commission Office of Engi­neering and Technology’s report on Evaluating Compliance
with FCC Guidelines for Human Radio frequency Electro­magnetic Fields (OET Bulletin 65)

RWARNING! NEVER hold the transceiver so that the

antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(2 to 4 inches) away from the lips and the transceiver is verti­cal.

RWARNING! NEVERoperate the transceiver with a

headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume op­eration. If you experience a ringing in your ears, reduce the
volume or discontinue use.

RWARNING! NEVER operate the transceiver while

driving a vehicle. Safe driving requires your full attention—
anything less may result in an accident.

RWARNING! NEVER connect the transceiver to an AC

outlet. This may pose a fire hazard or result in an electric shock.

NEVER connect a power supply of more than 16 V DC

through the optional CP-19R

CIGARETTE LIGHTER CABLE

to the

[DC 11V] jack to prevent damaging the transceiver.

NEVER connect the transceiver to a power source using

reverse polarity. This will ruin the transceiver.

NEVER cut the DC power cable between the DC plug and

fuse holder. If an incorrect connection is made after cutting,
the transceiver may be damaged.

NEVERexpose the transceiver to rain, snow or any liquids.

The transceiver may be damaged.

NEVER operate or touch the transceiver with wet hands.

This may result in an electric shock or ruin the transceiver.

NEVER attempt to charge alkaline or dry cell batteries. Be

aware that external DC power connections will charge batter­ies inside the battery case. This will damage not only the bat­tery case but also the transceiver.

DO NOTpush the PTT when not actually desiring to trans-

mit.

PRECAUTIONS

iii

SUPPLIED ACCESSORIES

q Antenna* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

w Hand strap* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

e 2251 OPT sheet*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

r Battery pack*/Battery case* . . . . . . . . . . . . . . . . . . . . . . 1

t Belt clip* (with screws) . . . . . . . . . . . . . . . . . . . . . . . . . . 1

y AC Adapter*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

*Not supplied with some versions.

y

qw t

e

r

DO NOToperate the transceiver near unshielded electrical

blasting caps or in an explosive atmosphere.

BE CAREFUL! The transceiver will become hot when

operating it continuously for long periods.

AVOID using or placing the transceiver in direct sunlight or

in areas with temperatures below –10°C (+14˚F) or above
+60°C (+140˚F).

Place the unit in a secure place to avoid inadvertent use by
children.

AVOID the use of chemical agents such as benzine or al-

cohol when cleaning, as they can damage the transceiver’s
surfaces.

Even when the transceiver power is OFF, a slight current still
flows in the circuits. Remove the battery pack or case from
the transceiver when not using it for a long time. Otherwise,
the battery pack (Li-Ion: BP-227) or installed batteries will be­come exhausted.

For USA only:

Caution: Changes or modifications to this transceiver, not ex­pressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.

PRECAUTIONS—continued

iv

• BP-226

BATTERY CASE

Battery case for 5×AA (LR6) size alkaline batteries.

• BP-227

LI-ION BATTERY PACK

7.2 V/1700 mAh Lithium-Ion battery pack.

• BC-119N

DESKTOP CHARGER

+ AD-100

CHARGER ADAPTER

For rapid charging of battery packs. An AC adapter is sup­plied with the charger. Charging time: approx. 2–2.5 hrs.

• BC-121N

MULTI-CHARGER

+ AD-100

CHARGER ADAPTER

(6 pcs.)
For rapid charging of up to 6 battery packs (six AD-100’s are
required) simultaneously. An AC adapter may be supplied
depending on version. Charging time: approx. 2–2.5 hrs.

• CP-19R

CIGARETTE LIGHTER CABLE WITH NOISE FILTER

Used for operation and charging a battery pack connected
to transceiver via a DC power source. (11.7 V–15.9 V DC)

• MB-98

BELT CLIP

MB-98: Same as that supplied with the transceiver.

• UT-108

DTMF DECODER UNIT

Provides pager and code squelch capabilities.

• SP-13

EARPHONE

Provides clear receive audio in noisy environments.

• FA-B2E

WHIP ANTENNA

Same as that supplied with transceiver.

• HM-75A/HM-131L/HM-158L

SPEAKER-MICROPHONES

Combination speaker-microphones that provide convenient
operation while hanging the transceiver from your belt.
HM-75A has 4 function switches for remote control capabilities.
HM-131L/HM-158L are equipped with an earphone jack and
a revolving clip.

• HM-128L/HM-153L/HM-166L

EARPHONE-MICROPHONE

You can clip the microphone with PTT switch to your lapel or
breast pocket.

• HS-85

HEADSET

Allows you hands-free operation. Includes VOX, PTT and
“one-touch” PTT with time-out timer.

• VS-1L

PTT/VOX UNIT

+HS-94

HEADSET

VS-1L

PTT/VOX UNIT

Required when using the headset.
HS-94

EAR-PIECE TYPE HEADSET

Earhook headset with flexible boom microphone.

• CS-V85

CLONING SOFTWARE

+OPC-478/U/UC

CLONING CABLE

Provide quick and easy programming of memory channel,
memory name etc.

• OPC-474

CLONING CABLE

For cloning between transceivers.

• LC-167

CARRYING CASE

Helps protect the transceiver from scratches, etc..

OPTION LIST

v

TABLE OF CONTENTS

FOREWORD ........................................................................ i

IMPORTANT......................................................................... i

EXPLICIT DEFINITIONS...................................................... i

PRECAUTIONS .............................................................. ii–iii

SUPPLIED ACCESSORIES ............................................... iii

OPTION LIST .................................................................... iv

TABLE OF CONTENTS .................................................. v–vi

QUICK REFERENCE GUIDE ......................................... I–VI

■ Preparation................................................................... I

■ Your first contact ........................................................ IV

■ Repeater operation..................................................... V

■ Programming memory channels................................ VI

1 ACCESSORIES.......................................................... 1–2

■ Accessory attachment................................................. 1

2PANEL DESCRIPTION .............................................. 3–8

■ Switches, controls, keys and connectors .................... 3

■ Function display .......................................................... 7

3BATTERY PACKS.................................................... 9–16

■ Battery pack replacement ........................................... 9

■ Cautions .................................................................... 11

■ Regular charging ...................................................... 13

■ Rapid charging ......................................................... 14

■ External DC power operation.................................... 16

4 BASIC OPERATION............................................... 17–21

■ Power ON.................................................................. 17

■ VFO mode selection.................................................. 17

■ Setting a frequency ................................................... 17

■ Setting audio/squelch level ....................................... 19

■ Receive and transmit ................................................ 19

■ Monitor function......................................................... 19

■ Display type............................................................... 20

■ Key lock function....................................................... 20

■ Weather channel operation

(USA version only) .................................................... 21

5 REPEATER OPERATION ...................................... 22–25

■ General ..................................................................... 22

■ Reversed duplex mode ............................................. 22

■ Offset frequency........................................................ 23

■ Subaudible tones ...................................................... 23

■ Repeater lockout....................................................... 24

■ Auto repeater function (USA version only) ................ 25

6 MEMORY/CALL OPERATION............................... 26–31

■ General description................................................... 26

■ Selecting a memory channel..................................... 26

■ Selecting the call channel ......................................... 26

■ Programming the memory/call channels................... 27

■ Channel name programming..................................... 28

■ Memory transfers ...................................................... 28

vi

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Memory bank selection ............................................. 30

■ Memory bank setting................................................. 30

■ Transferring bank contents........................................ 31

7 DTMF MEMORY..................................................... 32–34

■ Programming a DTMF code sequence ..................... 32

■ Transmitting a DTMF code sequence....................... 33

■ DTMF transmission rate............................................ 34

8 SCAN OPERATION................................................ 35–38

■ Scan types ................................................................ 35

■ Programmed scan..................................................... 35

■ Memory scan..............................................................36

■ Skip channels............................................................ 37

■ Scan resume condition.............................................. 37

■ Priority watch............................................................. 38

9 SUBAUDIBLE TONES........................................... 39–42

■ Tone squelch............................................................. 39

■ Pocket beep operation .............................................. 41

■ Tone scan.................................................................. 42

10PAGER/CODE SQUELCH

(Requires Optional UT-108).................................. 43–46

■ Pager function........................................................... 43

■ Code programming ................................................... 43

■ Pager operation......................................................... 45

■ Code squelch ............................................................ 46

11 SET MODES........................................................... 47–56

■ SET MODE ............................................................... 47

■ INITIAL SET MODE .................................................. 51

12SET MODE INSPECTION ...................................... 57–58

13CLONING ............................................................... 59–60

■ Transceiver-to-transceiver cloning............................ 59

■ Cloning using a PC ................................................... 60

14RESETTING FUNCTIONS ........................................... 61

■ Partial reset............................................................... 61

■ CPU reset.................................................................. 61

15TROUBLESHOOTING ................................................. 62

16OPTION ........................................................................ 63

■ Optional UT-108 installation ...................................... 63

17SPECIFICATIONS........................................................ 64

■ General ..................................................................... 64

■ Transmitter................................................................ 64

■ Receiver.................................................................... 64

18CE........................................................................... 65–66

I

QUICK REFERENCE GUIDE

■ Preparation

D Antenna

Attach the antenna to the transceiver
as illustrated at right.

D Belt clip

Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.

D Battery pack replacement

Before replacing the battery pack, push and hold [PWR] for 1
sec. to turn the power OFF.

• To attach the battery pack

Slide the battery pack on the back of the transceiver in the di­rection of the arrow (q), then lock it with the battery release
button.

• Slide the battery pack until the battery release button makes a ‘click’
sound.

• To release the battery pack

Push the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.

w

q

Battery pack

Battery release button

To attach the belt clip

II

QUICK REFERENCE GUIDE

Quick reference guide

D Battery case— optional for some versions

When using a BP-226

BATTERY CASE

attached to the trans­ceiver, install 5 AA (LR6) size alkaline batteries as illustrated
at right.

q Hook your finger under the latch, and open the cover in the

direction of the arrow (q). (Fig.1)

w Then, install 5 × AA (LR6) size alkaline batteries. (Fig.2)

• Install the alkaline batteries only.

• Be sure to observe the correct polarity.

• Do not pin the ribbon under the batteries.

e Close the cover with fitting in the direction of the arrow (w)

first, then firm the latch in place (e). (Fig.1)

• Be sure to the gasket and the ribbon are set correctly,
and do not protrude out of the battery case. (Fig.3)

R CAUTION!

• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.

• Keep battery contacts clean. It’s a good idea to clean bat­tery terminals once a week.

q

w

e

BP-226

Latch

Fig.1

Fig.2

Ribbon

Fig.3

Gasket

Ribbon

III

QUICK REFERENCE GUIDE

DD

Regular charging

When using a BP-227

BATTERY PACK

attached to the trans-

ceiver, prior to using the transceiver for the first time, the bat­tery pack must be fully charged for optimum life and
operation.

DD

Charging note

• Be sure to turn the transceiver power OFF.

Otherwise the battery pack will not be charged completely or takes
longer charging time periods.

• External DC power operation becomes possible when using
an optional CP-19R. The attached battery pack is also
charged simultaneously, except during transmit. (see p. 16
for more details)

Even through there is no indication during regular charg­ing, the transceiver automatically stops charging the bat­tery pack when the battery pack is fully charged (BP-227’s
voltage becomes approx. 7.2 V) or the continuous charg­ing time is over 15 hours.

• BC-167A/D

• CP-19R (Optional)

to AC outlet

to cigarette lighter
socket (12 V DC)

Transceiver

to
[DC 11V]

Turn power OFF
while charging the
battery pack.

• Charging time period:

Approx. 12–13 hours

■ Your first contact

Now that you have your IC-V85 ready, you are excited to get
on the air. We would like to walk you through a few basic op­erational steps to make your first “On The Air” use an enjoy­able experience.

D About default setting

The [VOL] control function can be exchanged with [YY]/[ZZ]
keys function in

INITIAL SET MODE

. However, in this QUICK

REFERENCE, the factory default setting ([VOL] controls
audio output level) is used to simplify instructions.

D Basic operation

1. Turning ON the transceiver

Although you have purchased a brand new transceiver, some
settings may be changed from the factory defaults because
of the Quality Control
process. Resetting the CPU
is necessary to start from
factory default.

➥ While pushing [MONI]

and [CLR], push and
hold [PWR] for 1 sec. to
reset the CPU and turn
power ON.

2. Adjusting audio output level

➥ Rotate [VOL] to set the desired

audio level.

3. Adjusting the squelch level

➥ While pushing and holding

[MONI], push [YY] or [ZZ] to set
the squelch level.

4. T une the desired frequency

The up/down keys, [YY]/[ZZ], will
allow you to tune to the frequency
that you want to operate on. Page
18 will instruct you on how to adjust
the tuning step size.

➥ Push [YY] or [ZZ] to adjust the fre-

quency.

IV

QUICK REFERENCE GUIDE

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

CLR

D

MONI

PWR

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

MONI

[VOL]

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

Quick reference guide

V

QUICK REFERENCE GUIDE

Direct frequency input from the
keypad is also available.

➥ To enter the desired frequency,

enter 6 digits starting from the
100 MHz digit.

• Entering three* to five digits then

pushing [✱

ENT

] will also set the fre-

quency. (*Some versions only re­quires two digits.)

• When a digit is mistakenly input,

push [CLR] to abort input.

5. Transmit and receive

➥ Push and hold [PTT] to transmit, then speak into the mi-

crophone; release to receive.

■ Repeater operation

1. Setting duplex

➥ Push [FUNC], then [

DUP

](4) sev-

eral times to select minus duplex
or plus duplex.

• The USA version has an auto re­peater function, therefore, setting du­plex is not required.

2. Repeater tone

➥ Push [FUNC], then [

TONE

](1) sev-

eral times until “ ” appears, if re­quired.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

A

FUNC

1

TONE

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

A

4

FUNC

DUP

• Example 1— when entering 145.525 MHz

Push

• Example 2— when entering 144.800 MHz

Push

1

TONE

4

DUP

1

TONE

4

DUP4DUP

2

P

.B

E

E

P

5

S

C

A

N

5

S

C

A

N

5

S

C

A

N

8

S

E

T

0

OPT

ENT

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

ENT

D

CLR

Keypad

VI

QUICK REFERENCE GUIDE

Quick reference guide

The IC-V85 has a total of 107 memory channels (including 6
scan edges and 1 call channel) for storing often used operat­ing frequency, repeater settings, etc.

1. Setting frequency

In VFO mode, set the desired operating frequency with other
desired settings, such as repeater and subaudible tone.

2. Selecting a memory channel

➥ Push [FUNC] and [MR] then push

[YY] or [ZZ] several times to select

the desired memory channel.

•“X” indicator and memory channel
number blink.

3. Writing a memory channel

➥ Push [FUNC], then push and hold

[MR] for 1 sec. to program.

•3 beeps sound.

• Continue to push and hold [MR] for 1 sec. after 3 beeps are emit-

ted, to increment the displayed memory channel number.

■ Programming memory channels

C

PWR

A

BDC

CALL

MR

TONE

T.SCAN

P.BEEP

1

2

3

DUP

SKIP

SCAN

4

56

PRIO

SET

H/M/L

7

8

9

MR

CLRFUNC

A

BANK

OPT

FUNC

0

ENT

PWR

A

BDC

CLRFUNC

CALL

MR

BANK

TONE

T.SCAN

P.BEEP

1

2

3

DUP

OPT

SKIP

SCAN

0

4

56

PRIO

SET

H/M/L

7

ENT

8

9

C

MR

A

FUNC

1

ACCESSORIES

1

■ Accessory attachment

D Antenna

Attach the antenna to the transceiver as illustrated below. Keep the [SP/MIC] cap (SP/MIC jack cover) attached when

jacks are not in use to keep the contacts clean.

Attach the
[SP/MIC] cap.

[SP/MIC] cap

2

1

ACCESSORIES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

D Belt clip

Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.

D Hand strap

Slide the hand strap through the loop on the top of the rear panel
as illustrated below. Facilitates carrying.

To attach the belt clip

3

PANEL DESCRIPTION

2

■ Switches, controls, keys and connectors

q

!0

o

u

i

w

e

r

Speaker

Microphone

CONTROL DIAL

ANTENNA CONNECTOR

EXTERNAL SPEAKER/
MICROPHONE JACKS

FUNCTION DISPLAY

POWER KEY

EXTERNAL DC JACK

PTT SWITCH

UP/DOWN KEYS

KEYPAD

SQUELCH/MONITOR SWITCH

t

y

4

2

PANEL DESCRIPTION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

q CONTROL DIAL [VOL] (p. 19)

Rotate to adjust the volume level.

The assigned function for [VOL] and [YY]/[ZZ] can be ex-

changed in

INITIAL SET MODE

(pgs. 18, 53).

w PTT SWITCH [PTT]

Push and hold to transmit; release to receive.

e SQUELCH/MONITOR SWITCH [MONI] (p. 19)

➥ Push and hold to open the squelch temporarily and

monitor the operating frequency.

➥ While pushing and holding this key, push [YY] or [ZZ] to

adjust the squelch level.

The assigned function for [VOL] and [YY]/[ZZ] can be
exchanged in

INITIAL SET MODE

(pgs. 18, 53).

r UP/DOWN KEYS [YY]/[ZZ] (p.18)

Selects the operating frequency, set mode items, etc.

The assigned function for [VOL] and [YY]/[ZZ] can be ex-

changed in

INITIAL SET MODE

(pgs. 18, 53).

t KEYPAD (pgs. 5, 6)

Used to enter operating frequency, the DTMF codes, etc.

y EXTERNAL DC JACK [DC 11V]

➥ Connect an external DC power supply through the op-

tional CP-19R for external DC operation. (p. 16)

➥ Connect the supplied (or optional) wall charger, BC-

167A/D, to charge the attached battery pack. (p. 13)

u POWER KEY [PWR] (p. 17)

Push and hold for 1 sec. to turn the power ON and OFF.

i FUNCTION DISPLAY (pgs. 7, 8)
o EXTERNAL SPEAKER/MICROPHONE JACKS [SP/MIC]

Connect an optional speaker-microphone or headset, if de­sired. The internal microphone and speaker will not func­tion when a connector is inserted.
See page iv for a list of available options.

!0 ANTENNA CONNECTOR (p. 1)

Connects the supplied antenna.

5

2

PANEL DESCRIPTION

D Keypad

[FUNC]

Access to secondary function.

[CALL]

Selects the call channel. (p. 26)

[MR]

➥ Selects a memory mode. (p. 26)
➥ After pushing [FUNC], enter into memory pro-

gramming/editing mode. (pgs. 27–29)

➥ After pushing [FUNC], programs/transfers

VFO/memory or call channel contents into
memory channel/VFO when pushed and held
for 1 sec. (pgs. 27–29)

[CLR]

Selects VFO mode, aborts direct frequency input,
or cancels scanning, etc. (pgs. 17, 35)

[1•

TONE

]

➥ Input digit “1” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], selects the subaudible

tone function. (pgs. 22, 39)

[2•

P.BEEP

]

➥ Input digit “2” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], turns the pocket beep

function ON and OFF. (p. 41)

[3•

T.SCAN

]

➥ Input digit “3” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], starts tone scanning.

(pgs. 24, 42)

[4•

DUP

]

➥ Input digit “4” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], selects duplex function

(–duplex, +duplex, simplex). (p. 22)

[5•

SCAN

]

➥ Input digit “5” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], starts scanning. (p. 35)

5

SCAN

4

DUP

3

T.SCAN

2

P.BEEP

1

TONE

D

CLR

C

MR

B

CALL

A

FUNC

A

1

4

7

FUNC

TONE

DUP

PRIO

B

2
5

8

CALL

P.BEEP

SCAN

SET

C

3
6
9

S

K

IP

T.SCAN

MR

H

/

M

/

L

D

0

CLR

B

A

N

K

O

PT

ENT

6

2

PANEL DESCRIPTION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

[6•

SKIP

]

➥ Input digit “6” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], sets and cancels skip

setting for memory scan during memory mode.
(p. 37)

[7•

PRIO

]

➥ Input digit “7” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], starts priority watch.

(p. 38)

[8•

SET

]

➥ Input digit “8” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], enters into

SET MODE

.

(p. 47)

[9•

H/M/L

]

➥ Input digit “9” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], switches transmit power

between high, middle and low output power.
(p. 19)

When the transceiver becomes hot during
high or middle output power operation, the
built-in protection circuit activates to reduce
the transmit output power to 3 W

(approx.).

[0•

OPT

]

➥ Input digit “0” during frequency input, memory

channel selection, etc. (pgs. 17, 26)

➥ After pushing [FUNC], selects an optional func-

tion mode, such as pager or code squelch op­eration. (pgs. 45, 46)

[#•

BANK

]

After pushing [FUNC], enters a memory bank se­lection. (p. 30)

[✱

ENT

•]

➥ Sets the frequency even if the full 6 digits of

frequency have not been entered. (p. 17)

➥ After pushing [FUNC], switches key lock func-

tion ON and OFF when pushed and held for 1
sec. Lock all keys, except [PWR], [PTT],
[MONI] and audio level adjustment. (p. 20)

ENT

B

A

N

K

0

O

PT

9

H

/

M

/

L

8

SET

7

PRIO

6

S

K

IP

7

2

PANEL DESCRIPTION

q BUSY INDICATOR

➥ Appears when a signal is being received or the squelch

is open.

➥ Blinks while the monitor function is activated. (p. 19)

w SIGNAL INDICATOR

➥ Shows receiving signal strength as below.

➥ Shows the output power level while transmitting.

e TRANSMIT INDICATOR (p. 19)

Appears during transmit.

r PAGER CALL INDICATOR (p. 46)

Blinks when a pager call is received. (This indicator ap­pears only when an optional UT-108

DTMF DECODER UNIT

is installed.)

t DUPLEX INDICATOR (p. 23)

“+” appears when plus duplex, “–” appears when minus

duplex is selected.

Low Middle High

Weak ⇐ RX Signal level ⇒ Strong

■ Function display

w

qqq

e

q

r

q

!4
!3

!2

t

q

quqiq

oy

!0

!1

8

2

PANEL DESCRIPTION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

y TONE INDICATOR

➥ “” appears while the subaudible tone encoder is in

use. (p. 23)

➥ “” appears while the tone (CTCSS) squelch function

is in use. (p. 39)

➥ “” appears while the tone (DTCS) squelch function is

in use. (p. 39)

➥ “” appears with the “ ” or “ ” indicator while the

pocket beep function (CTCSS or DTCS) is in use.
(p. 41)

u OUTPUT POWER INDICATOR (p. 19)

➥ “L” appears when the low output power is selected.
➥ “M” appears when the middle output power is selected.
➥ “H” appears when high output power is selected.

i KEY LOCK INDICATOR (p. 20)

Appears when the key lock function is ON.

o FUNCTION INDICATOR

Appears while a secondary function is being accessed.

!0AUTO POWER OFF INDICATOR (p. 52)

Appears while the auto power OFF function is activated.

!1 FREQUENCY READOUT

Shows operating frequency, channel number or channel
names, depending on display type (p. 20).

!2 MEMORY CHANNEL INDICATOR (p. 26)

➥ Shows the selected memory channel number.
➥ “C” appears when the call channel is selected.

!3 MEMORY MODE INDICATOR (p. 26)

Appears while in memory mode or channel number indica­tion mode.

!4 SKIP CHANNEL INDICATOR (p. 37)

Appears when the selected memory channel is specified
as a skip channel.

9

BATTERY PACKS

3

■ Battery pack replacement

q Before replacing the battery

pack, push and hold [PWR]
for 1 sec. to turn the power
OFF.

w Push the battery release button in the direction of the

arrow as shown below. The battery pack is then released.

DD

Battery packs

*1Operating periods are calculated under the following conditions;

Tx : Rx : standby =1 : 1 : 8, power save function: auto setting is
activated

*2Operating period depends on the alkaline cells used.

Battery pack

Battery release button

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

PWR

Battery

Voltage Capacity Battery life*

1

pack

BP-226

Battery case for AA

—*

2

(LR6)×5 alkaline

BP-227 7.2 V 1700 mAh 7 hrs.

10

3

BATTERY PACKS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

D Battery case— optional for some versions

When using a BP-226

BATTERY CASE

attached to the trans­ceiver, install 5 AA (LR6) size alkaline batteries as illustrated
at right.

q Hook your finger under the latch, and open the cover in the

direction of the arrow (q). (Fig.1)

w Then, install 5 × AA (LR6) size alkaline batteries. (Fig.2)

• Install the alkaline batteries only.

• Be sure to observe the correct polarity.

• Do not pin the ribbon under the batteries.

e Close the cover with fitting in the direction of the arrow (w)

first, then firm the latch in place (e). (Fig.1)

• Be sure to the gasket and the ribbon are set correctly,
and do not protrude out of the battery case. (Fig.3)

R CAUTION!

• When installing batteries, make sure they are all the

same brand, type and capacity. Also, do not mix new and
old batteries together.

• Keep battery contacts clean. It’s a good idea to clean bat-

tery terminals once a week.

q

w

e

BP-226

Latch

Fig.1

Fig.2

Ribbon

Fig.3

Gasket

Ribbon

11

3

BATTERY PACKS

■ Cautions

• R DANGER! Use and charge only specified Icom battery

packs with Icom radios. Only Icom battery packs are tested
and approved for use with Icom radios. Using third-party or
counterfeit battery packs may cause smoke, fire, or cause
the battery to burst.

DD

Battery caution

• R DANGER! DO NOT hammer or otherwise impact the bat-

tery. Do not use the battery if it has been severely impacted
or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.

• R DANGER! NEVER use or leave battery pack in areas

with temperatures above +60˚C (+140˚F). High temperature
build up in the battery, such as could occur near fires or
stoves, inside a sun heated car, or in direct sunlight may
cause the battery to rupture or catch fire. Excessive temper­atures may also degrade battery performance or shorten
battery life.

• R DANGER! DO NOT expose the battery to rain, snow,

seawater, or any other liquids. Do not charge or use a wet
battery. If the battery gets wet, be sure to wipe it dry before
using.

• R DANGER! NEVER incinerate an used battery pack since

internal battery gas may cause it to rupture, or may cause
an explosion.

• R DANGER! NEVER solder the battery terminals, or
NEVER modify the battery pack. This may cause heat gen­eration, and the battery may burst, emit smoke or catch fire.

• R DANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this in­struction manual.

• R DANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean
water, without rubbing them, and see a doctor immediately.

• WARNING! Immediately stop using the battery if it emits an
abnormal odor, heats up, or is discolored or deformed. If any
of these conditions occur, contact your Icom dealer or dis­tributor.

• WARNING! Immediately wash, using clean water, any part
of the body that comes into contact with fluid from inside the
battery.

Misuse of Lithium-Ion batteries may result in the follow­ing hazards: smoke, fire, or the battery may rupture.
Misuse can also cause damage to the battery or degra­dation of battery performance.

12

3

BATTERY PACKS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

• WARNING! NEVER put the battery in a microwave oven,

high-pressure container, or in an induction heating cooker.
This could cause a fire, overheating, or cause the battery to
rupture.

• CAUTION!Always use the battery within the specified tem-

perature range for the transceiver (–10˚C to +60˚C; +14˚F
to +140˚F) and the battery itself (–10˚C to +60˚C; +14˚F to
+140˚F). Using the battery out of its specified temperature
range will reduce the battery’s performance and battery life.

• CAUTION! Shorter battery life could occur if the battery is

left fully charged, completely discharged, or in an excessive
temperature environment (above +45˚C; +113˚F) for an ex­tended period of time. If the battery must be left unused for a
long time, it must be detached from the radio after discharg­ing. You may use the battery until the battery becomes
about half-capacity, then keep it safely in a cool dry place
with the temperature between –20˚C to +35˚C (–4˚F to
+95˚F).

DD

Charging caution

• R DANGER! NEVER charge the battery pack in areas with

extremely high temperatures, such as near fires or stoves,
inside a sun heated car, or in direct sunlight. In such envi­ronments, the safety/protection circuit in the battery will acti­vate, causing the battery to stop charging.

• WARNING! DO NOT charge or leave the battery in the bat-

tery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may rup­ture.

• WARNING! NEVER insert the transceiver (battery attached

to the transceiver) into the charger if it is wet or soiled. This
could corrode the battery charger terminals or damage the
charger. The charger is not waterproof.

• CAUTION! DO NOT charge the battery outside of the spec-

ified temperature range: 10˚C to +40˚C (+50˚F to +104˚F).
Icom recommends charging the battery at +20˚C (+68˚F).
The battery may heat up or rupture if charged out of the
specified temperature range. Additionally, battery perfor­mance or battery life may be reduced.

13

3

BATTERY PACKS

■ Regular charging

When using a BP-227

BATTERY PACK

attached to the trans-

ceiver, prior to using the transceiver for the first time, the bat­tery pack must be fully charged for optimum life and
operation.

DD

Charging note

• Be sure to turn the transceiver power OFF.

Otherwise the battery pack will not be charged completely or takes
longer charging time periods.

• External DC power operation becomes possible when using
an optional CP-19R. The attached battery pack is also
charged simultaneously, except during transmit. (see p. 16
for more details)

Even through there is no indication during regular charg­ing, the transceiver automatically stops charging the bat­tery pack when the battery pack is fully charged (BP-227’s
voltage becomes approx. 7.2 V) or the continuous charg­ing time is over 15 hours.

• BC-167A/D

• CP-19R (Optional)

to AC outlet

to cigarette lighter
socket (12 V DC)

Transceiver

to
[DC 11V]

Turn power OFF
while charging the
battery pack.

• Charging time period:

Approx. 12–13 hours

14

3

BATTERY PACKS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Screws supplied with
the charger adapter

Desktop charger adapter

Connectors

BC-119N

AD-100

Plugs

■ Rapid charging

D AD-100 installation

Install the AD-100 desktop charger adapter into the holder
space of the BC-119N/121N.

Connect the plugs of the BC-119N/121N to the AD-100 desk­top charger adapter with the connector, then install the
adapter into the charger with the supplied screws.

15

3

BATTERY PACKS

D Rapid charging with the BC-119N+AD-100

The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.

• AD-100 (Charger Adapter).

• An AC adapter (may be supplied with the BC-119N depending on
version) or the DC power cable (OPC-515L/CP-17L).

D Rapid charging with the BC-121N+AD-100

The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.

• Six AD-100 (Charger Adapter).

• An AC adapter (BC-157; may be supplied with the BC-121N de­pending on version) or the DC power cable (OPC-656).

MULTI-CHARGER

Turn power OFF.

Battery packTransceiver

AC adapter
(purchased
separately)

AD-100 charger
adapters are installed
in each slot.

DC power cable (OPC-656)

(Connect with the DC power supply; 13.8 V/at least 7 A)

Charge indicator

(each indicator functions independently)

AC adapter
(Not supplied with
some versions.)

OPC-515L or
CP-17L

AD-100 charger
adapter is instal­led in BC-119N.

Optional OPC-515L (for 13.8 V
power source) or CP-17L (for
12 V cigarette lighter socket)
can be used instead of the AC
adapter.

Turn power OFF.

Battery packTransceiver

16

3

BATTERY PACKS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ External DC power operation

An optional cigarette lighter cable (CP-19R; for 12 V cigarette

lighter socket) can be used for external power operation.

DD

Operating note

• BE SURE to use optional CP-19R when connecting a regu-

lated 12 V DC power supply into the [DC 11V] jack of the
transceiver.

• The voltage of the external power supply must be within

11.7–15.9 V DC when using CP-19R.

• NEVER CONNECT OVER 16 V DC through CP19R.

Use an external DC-DC converter to connect the transceiver
through CP-19R to a 24 V DC power source.

• Disconnect the power cables from the transceiver when not
using it. Otherwise, the vehicle battery will become ex­hausted.

• The power save function is deactivated automatically during
external DC power operation.

CP-19R (Optional)

to cigarette lighter
socket (12 V DC)

Transceiver

to
[DC 11V]

17

BASIC OPERATION

4

■ Power ON

➥ Push and hold [PWR] for 1

sec. to turn power ON.

■ VFO mode selection

The transceiver has 2 basic oper­ating modes: VFO mode and
memory mode.

➥ Push [CLR] to select VFO

mode.

■ Setting a frequency

D Via the keypad

q Push [CLR] to select VFO mode, if necessary.
w To enter the desired frequency, enter 6 digits starting from

the 100 MHz digit.

• Entering three* to five digits then pushing [✱

ENT

] will also set

the frequency. (*Some versions only requires two digits.)

• When changing 100 kHz and below, push [#] then enter the de-

sired digits.

• When a digit is mistakenly input, push [CLR] to abort input.

• Example 1— when entering 145.525 MHz

Push

• Example 2— when entering 144.800 MHz

Push

• Example 3— when entering 145.000 MHz

Push

1

TONE

4

DUP

1

TONE

4

DUP4DUP

2

P

.B

E

E

P

5

S

C

A

N

5

S

C

A

N

5

S

C

A

N

8

S

E

T

0

OPT

ENT

ENT

BANK

from 145.525 MHz

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

D

CLR

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

PWR

18

4

BASIC OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

D By other methods

Via the [YY]/[ZZ] keys

➥ Push [YY] or [ZZ] several times to set the desired frequency.

• Each push increases/decreases the frequency by the selected
tuning step. See next set of instructions for setting tuning step
size.

D Tuning step selection

The IC-V85 has 8 tuning steps—
5, 10, 12.5, 15, 20, 25, 30 and
50 kHz. The tuning step is selec­table in

SET MODE

.

qPush [FUNC] then [

SET

](8) to

enter

SET MODE

.

wPush [YY] or [ZZ] several times

to select the tuning step item.

eRotate [VOL] to select the desired tuning step.
rPush [✱

ENT

] (or [CLR]) to exit

SET MODE

.

✔ For your information— [VOL] function assignment

The [VOL] control can be
used as a tuning dial for fre­quency tuning instead of

[YY]/[ZZ] keys. However, when
[VOL] functions as tuning

dial, [YY]/[ZZ] keys function as
volume control.

qWhile pushing and holding

[YY] and [ZZ], turn power
ON to enter

INITIAL SET

MODE

.

w Push [YY] or [ZZ] several

times to select the dial as­signment item, “tOP.”

e Rotate [VOL] to select the condition.

r To exit

INITIAL SET MODE

, push [✱

ENT

] (or [CLR]).

[VOL] is assigned as
AF volume control.

[VOL] is assigned as
tuning dial.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

PWR

ENT

A

BDC

CALL

MR

TONE

T.SCAN

P.BEEP

1

2

3

DUP

SKIP

SCAN

4

56

PRIO

SET

H/M/L

7

8

9

[VOL]

PWR

CLRFUNC

BANK

OPT

0

A

FUNC

ENT

ENT

SET

8

19

4

BASIC OPERATION

■ Setting audio/squelch level

D To set the audio level

Rotate [VOL] to set the desired
audio level while receiving a
signal.

• When no signal is received, push

and hold [MONI] while setting the
audio level.

• When [VOL] is assigned as tun­ing dial, push [YY]/[ZZ] to adjust
the audio output level. (pgs. 18,

53)

D To set the squelch level

While pushing [MONI], push
[YY]/[ZZ] to set the squelch

level.

• The squelch level “10” is tight
squelch, “1” is loose squelch and
“0” is open squelch.

• When [VOL] is assigned as tun­ing dial, rotate [VOL] while press­ing [MONI]. (pgs. 18, 53)

■ Receive and transmit

qPush and hold [PWR] for 1 sec. to turn the power ON.
wAdjust audio volume to the desired level.
eSet the frequency.

When a signal is received:

• Squelch opens and audio is emitted from the speaker.

• Signal indicator shows the relative signal strength level.

rPush [FUNC], then [

H/M/L

](9) to select output power be-

tween high, middle and low.

• “H” appears when high power is selected.

• “M” appears when middle power is selected.

• “L” appears when low power is selected.

tPush and hold [PTT] to transmit, then speak into the micro-

phone.

• “

$

” appears.

• Do not hold the microphone too close to your mouth or

speak too loudly. This may distort the signal.

yRelease [PTT] to receive.

■ Monitor function

This function is used to listen to weak signals without disturb­ing the squelch setting or to open the squelch manually even
when mute functions such as the tone squelch are in use.

➥ Push and hold [MONI] to monitor the operating frequency.

The [MONI] key can be set to ‘sticky’ operation in

INITIAL

SET MODE

. See page 55 for details.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

MONI

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

20

4

BASIC OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Display type

The transceiver has 3 display types to suit your operating
style during memory mode operation. The display type is
selected in

INITIAL SET MODE

(p. 53).

“Frequency Indication” type

Displays operating frequency.

“Channel Number Indication” type

Displays memory channel number. In this type only pre­programmed memory channel numbers are displayed.

VFO mode cannot be selected.

• When the channel indication type is selected, only the following
functions can be performed.

- Scan function (p. 35)

- Output power setting (p. 19)

- DTMF memory function (p. 32)

- Key lock function (see next set of instructions)

- Scan pause timer setting, function key timer setting and LCD
backlight setting in

SET MODE

(p. 49)

“Channel Name Indication” type

Displays memory channel name you have assigned. In this
display pre-programmed memory channel names are dis­played.
VFO mode is selectable.

• Programmed frequencies are indicated when you have not pre­programmed the channel names in the selected memory channel.

• Push and hold [MONI] to display the operating frequency.

■ Key lock function

The key lock function prevents accidental frequency changes
and function activation.

Push [FUNC] then push and hold
[](✱

ENT

) for 1 sec. to toggle the

function ON and OFF.

•“ ” appears while the lock function is ac­tivated.

• [PWR], [PTT], [VOL] and [MONI] can be
operated regardless of this setting.

USING

INITIAL SET MODE

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

A

FUNC

ENT

21

4

BASIC OPERATION

DD

Weather channel selection

q Push [MR] several times to select weather channel group.

w Push [YY] or [ZZ] several times to select the desired

weather channel.

e Push [MR] to select memory mode, or push [CLR] to se-

lect VFO mode.

DD

Weather alert function

An NOAA broadcast station transmits weather alert tone be­fore important weather announcements. When the weather
alert function is turned ON, the selected weather channel is
monitored each 5 sec. for the announcement. When the alert
signal is detected, the “ALt” and the WX channel are dis­played alternately and sounds a beep tone until the trans­ceiver controls are manipulated. The previously selected
weather channel is checked periodically during standby or
while scanning.

q Select the desired weather channel.
w Turn the weather alert function ON in

SET MODE

.

➥ Push

[FUNC] and

[

SET

](8) to enter

SET MODE

.

➥ Push

[YY]

or [ZZ] to select the weather alert item, then

rotate [VOL] to set ON.

➥ push [✱

ENT

] (or [CLR]) to exit

SET MODE

.

e Select the desired stand-by condition.

• Select VFO, memory or call channel.

• Scan or priority watch operation can also be selected.

r When the alert is detected, a beep sounds and the follow-

ing indication will be displayed.

• Weather alert function OFF

➥ Turn the weather alert function OFF in

SET MODE

.

• Repeat above procedure described at step w

NOTE: While receiving a signal (on a frequency other than
the weather alert ON frequency), the receiving signal or
audio will be interrupted momentarily every 5 sec.

(approx.)

in case the alert function is turned ON. This is caused by
the WX alert function. To eliminate the interruptions, set the
weather alert item OFF in

SET MODE

.

Shows above indications alternately.

USING

SET MODE

Weather channel group indication

■ Weather channel operation (USA version only)

22

5

REPEATER OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ General

When using a repeater, the transmit frequency is shifted from
the receive frequency by the offset frequency. It is convenient
to program repeater information into memory channels.

qSet the receive frequency (repeater output frequency).
wPush [FUNC] and

[

DUP

](4)

several times to select “–” or “+.”

• “–” indicates the transmit frequency is shifted down; “+” indicates
the transmit frequency is shifted up.

• Blinking “–” or “+” indicates the reversed duplex mode is selected
in

SET MODE

(p. 48).

ePush [FUNC] and [

TONE

](1) several times to activate the

subaudible tone encoder, if required.

•“ ” appears.

• Select the desired subaudible tone frequency, if necessary.
(p. 23)

rPush and hold [PTT] to transmit.

• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).

• If “OFF” appears, check the offset frequency (see next page for
details) and direction.

tRelease [PTT] to receive.
yPush and hold [MONI] to check whether the other station’s

transmit signal can be directly received.

■ Reversed duplex mode

When the reversed duplex mode is selected, the receive fre­quency shifts.

(Transmit frequency shifts in normal duplex mode.)

Each receive and transmit frequency is shown in the table
below with the following conditions;

Input frequency : 145.30 MHz
Direction : – (negative)
Offset frequency : 0.6 MHz

qPush [FUNC], then push [

SET

](8) to enter

SET MODE

.

w Push [YY] or [ZZ] several times until “REV” appears.

e Rotate [VOL] to turn the reversed duplex mode ON or

OFF.

r Push [✱

ENT

] (or [CLR]) to exit

SET MODE

.

USING

SET MODE

Reversed OFF ON

Rx freq. 145.30 MHz 144.70 MHz
Tx freq. 144.70 MHz 145.30 MHz

23

5

REPEATER OPERATION

■ Offset frequency

When communicating through a repeater, the transmit fre­quency is shifted from the receive frequency by an amount
determined by the offset frequency.

qPush [FUNC], then push [

SET

](8) to enter

SET MODE

.

wPush [YY] or [ZZ] several times until “±” and offset frequency

appear.

eRotate [VOL] to select the desired offset frequency.

• Selectable steps are the same as the pre-set tuning steps.

• The unit of the displayed offset frequency is “MHz.”

rPush [✱

ENT

] (or [CLR]) to set the offset frequency and exit

SET MODE

.

■ Subaudible tones

Some repeaters require subaudible tones to be accessed.
Subaudible tones are added to your normal signal and must
be set in advance.

qPush [FUNC], then push [

SET

](8) to enter

SET MODE

.

wPush [YY] or [ZZ] several times until “rt” appears.

eRotate [VOL] to select the desired subaudible tone.
rPush [✱

ENT

] (or [CLR]) to set the selected tone and exit

SET MODE

.

• Available subaudible tone frequencies (unit: Hz)

67.0

69.3

71.9

74.4

77.0

85.4

88.5

91.5

94.8

97.4

100.0

103.5

79.7

82.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

USING

SET MODE

USING

SET MODE

24

5

REPEATER OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

Tone information

Some repeaters require different tone system to be accessed.

DTMF TONES
While pushing [PTT], push the desired DTMF keys ([0]–[9],
[A], [B], [C], [D], [#] and [✱]) to transmit DTMF tones.

• [✱] transmits tone “E,” [#] transmits tone “F.”

•The transceiver has 16 DTMF memory channels (p. 32).

1750 Hz TONE

While pushing [PTT], push [YY] or [ZZ] to transmit a 1750 Hz
tone signal.

✔ Convenient

Tone scan function:When you don’t know the subaudible
tone used for a repeater, the tone scan is convenient for de­tecting the tone frequency.

Push [FUNC], then push [

T.SCAN

](3) to start the tone scan.

• Push [CLR] to cancel the scan.

• When the required tone frequency is detected, the scan pauses.

■ Repeater lockout

This function helps prevent interference to other stations by
inhibiting your transmission when a signal is received. The
transceiver has two inhibiting conditions, repeater and busy.

q While pushing and holding [YY] and [ZZ], turn the power ON

to enter

INITIAL SET MODE

.

w Push [YY] or [ZZ] several times until “RLO” appears.
e Rotate [VOL] to select the repeater lockout function to

“RP,” “bU” or OFF.

• “RP”: Transmit is inhibited when a signal with un-matched sub­audible tone is received.

• “bU”: Transmit is inhibited when a signal is received.

r Push [✱

ENT

] (or [CLR]) to exit

INITIAL SET MODE

.

USING

INITIAL SET MODE

25

5

REPEATER OPERATION

The USA version automatically activates the repeater settings
(duplex ON/OFF, duplex direction, tone encoder ON/OFF)
when the operating frequency falls within or outside of the
general repeater output frequency range. The offset and re­peater tone frequencies are not changed by the auto repeater
function. Reset these frequencies, if necessary.

q While pushing and holding [YY] and [ZZ], turn the power ON

to enter

INITIAL SET MODE

.

w Push [YY] or [ZZ] several times until “RPt” appears.
e Rotate [VOL] to select the desired condition.

• “OF”— the auto repeater function is turned OFF;

• “R1”— the auto repeater function activates duplex only;

• “R2”— the auto repeater function activates duplex and tone.

r Push [✱

ENT

] (or [CLR]) to exit

INITIAL SET MODE

.

• Frequency range and offset direction
Frequency range Duplex direction

145.200–145.495 MHz
“–” appears

146.610–146.995 MHz

147.000–147.395 MHz “+” appears

■ Auto repeater function (USAversion only)

USING

INITIAL SET MODE

26

6

MEMORY/CALL OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Selecting a memory channel

qPush [MR] to select memory mode.

•“X” appears.

wEnter 2 digits to select the desired memory channel (or

push the [YY]/[ZZ] keys).

• The memory channels 0–9 are proceeded by a “0.”

• When [VOL] is assigned as tuning dial, rotate [VOL] to select

the memory channel. (pgs. 18, 53)

■ Selecting the call channel

➥ Push [CALL] to select the call channel.

• “C” is displayed instead of the memory channel number.

• Push [CLR] or [MR] to select VFO or memory mode, respec-

tively.

Push

CALL

B

“C” appears

Push

(Selection example: Memory channel 14)

DUP

TONE

4

1

Push

MR

C

The transceiver has 107 memory channels including 6 scan
edge memory channels (3 pairs), and 1 call channel. Each
of these channels can be individually programmed with op­erating frequency (pgs. 17, 18), duplex direction (p. 22) and
offset (p. 23), subaudible tone encoder or tone squelch and
its tone frequency (pgs. 23, 40) and skip information* (p. 37).

*except for scan edge memory channels.

In addition, a total of 10 memory banks, A to J, are available
for usage by group, etc.

■ General description

27

6

MEMORY/CALL OPERATION

qPush [CLR] to select VFO mode, if necessary.
wSet the desired frequency.
eSet other information, such as tone, duplex, as desired.
rPush [FUNC], then [MR] momentarily.

•“X” and memory channel number blink.

tPush [YY] or [ZZ] to select the desired memory channel.

• When programming the call channel, select “C.”

• When [VOL] is assigned as tuning dial, rotate [VOL] to select

the memory channel. (pgs. 18, 53)

yPush [FUNC], then push and hold [MR] for 1 sec., when 3

beeps will sound to program the information into the se­lected memory channel and return to VFO.

• After 3 beeps are emitted, continue to hold [MR] to increment the

displayed memory channel number.

■ Programming the memory/call channels

C

PWR

A

BDC

CALL

MR

TONE

T.SCAN

P.BEEP

1

2

3

DUP

SKIP

SCAN

4

56

PRIO

SET

H/M/L

7

8

9

MR

A

CLRFUNC

BANK

FUNC

OPT

0

ENT

C

P.BEEP

SCAN

PWR

D

C

B

A

2
5

SET

8

R

L

C

MR

L

L

K

N

A

B

T.SCAN

3

T

P

O

IP

K

S

0

6

L

/

M

/

H

T

N

E

9

A

F

U

N

C

T

O

N

E

1

D

U

P

4

P

R

IO

7

C

PWR

A

BDC

CALL

MR

TONE

T.SCAN

P.BEEP

1

2

3

DUP

SKIP

SCAN

4

56

PRIO

SET

H/M/L

7

8

9

MR

A

CLRFUNC

BANK

FUNC

OPT

0

ENT

28

6

MEMORY/CALL OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Channel name programming

qSelect a “Channel Name Indication” type in

INITIAL SET

MODE

(p. 53).

wPush [MR] to select memory

mode, if necessary.

ePush [FUNC], then push

[

SET

](8) to enter to the channel

name programming mode.

• The character to be edited blinks.

rRotate [VOL] to select a char-

acter.

tPush [YY] to move the cursor to

right, [ZZ] to move the cursor to
left.

• Up to 5 characters can be used for channel name.

• Usable characters are A–Z, 0–9, “space,” +, –, =, ✱, /, [, ] and :.

y Push [✱

ENT

] (or [CLR]) to set the name and exit the chan-

nel name programming mode.

■ Memory transfers

This function transfers a memory channel’s contents to VFO
(or another memory/call channel). This is useful when search­ing for signals around a memory channel frequency and for
recalling the offset frequency, subaudible tone frequency etc.

D Memory/call ➾ VFO

qSelect the memory (call) chan-

nel to be transferred:
➥ Push [MR] (or [CALL]) to se-

lect memory (call channel)
mode.

➥ Push [YY] or [ZZ] to select the

memory channel.

• When [VOL] is assigned as
tuning dial, rotate [VOL] to se­lect the memory channel. (pgs.
18, 53)

wPush [FUNC], then push and

hold [MR] for 1 sec. to transfer
the selected memory contents
to the VFO.

• VFO mode is selected automatically.

A

TONE

1

DUP

4

PRIO

7

BDC

CALL

P.BEEP

2

SCAN

56

SET

8

PWR

CLRFUNC

MR

BANK

T.SCAN

3

OPT

SKIP

0

H/M/L

ENT

9

[VOL]

C

MR

A

FUNC

ENT

SET

8

A

BDC

CALL

MR

TONE

T.SCAN

P.BEEP

1

2

3

DUP

SKIP

SCAN

4

56

PRIO

SET

H/M/L

7

8

9

[VOL]

PWR

C

MR

CLRFUNC

BANK

B

OPT

0

CALL

ENT

A

FUNC

29

6

MEMORY/CALL OPERATION

D Memory/call ➾ memory/call

qSelect the memory (call) chan-

nel to be transferred:
➥ Push [MR] (or [CALL]) to se-

lect the memory (call chan­nel) mode.

➥ Push [YY] or [ZZ] to select the

memory channel.

• When [VOL] is assigned as
tuning dial, rotate [VOL] to se­lect the memory channel. (pgs.
18, 53)

wPush [FUNC], then push [MR]

momentarily.

• “--” and “X” blink.

ePush [YY] or [ZZ] to select the target memory.

• When [VOL] is assigned as tuning dial, rotate [VOL] to select

the target channel. (pgs. 18, 53)

rPush [FUNC], then push and hold [MR] for 1 sec.

• Memory mode is selected and the contents are transferred to the
target memory.

D Clearing a memory

qPush [CLR] to select VFO mode, if necessary.
wPush [FUNC], then push [MR] to enter the memory trans-

fer mode.

•“X” and a memory channel
number blink.

ePush [YY] or [ZZ] to select the

memory channel to be cleared.

• When [VOL] is assigned as tun-

ing dial, rotate [VOL] to select the
memory channel. (pgs. 18, 53)

• The call channel cannot be

cleared.

rPerform the following operation

within 1 sec, otherwise the
transceiver returns to the mem­ory mode without clearing the
memory.

- Push [FUNC], then push [MR] momentarily.

- Push [FUNC], then push and hold [MR] for 1 sec.

• The contents of the selected memory are cleared.

tPush [CLR] to return to regular operation.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

A

FUNC

B

CALL

C

MR

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

A

FUNC

C

MR

30

6

MEMORY/CALL OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Memory bank selection

The IC-V85 has a total of 10 banks (A to J). Each memory
channel, 0 to 99, may be assigned to one of the banks for
easy memory management.

q Push [MR] to select memory mode.

w Push [FUNC] and [

BANK

](#) to

enter memory bank selection.

• Bank indicator blinks.

e Rotate [VOL] to select the de-

sired bank, A to J.

• Banks that have no programmed
contents are skipped.

r Push [✱

ENT

] (or [CLR]) to select

the bank.

• Indicator stops blinking.

t Push [YY] or [ZZ] to select the channel in the bank.

• No channel numbers are displayed for memory bank operation.

y To return to regular memory condition, push [FUNC] and

[

BANK

](#) to enter memory bank mode, then push [✱

ENT

]

(or [CLR]).

■ Memory bank setting

q Push [MR] to select memory mode, then select the desired

memory channel via [YY] or [ZZ].

w Push [FUNC] and [

SET

](8) to

enter

SET MODE

.

e Push [YY] or [ZZ] several times

until “bAk” appears.

r Rotate [VOL] to select the de-

sired bank.

t Push [✱

ENT

] (or [CLR]) to assign the channel to the bank

and return to regular memory condition.

y Repeat steps q to t to assign another memory channel

to the same or another bank.

NOTE: Display type setting (pgs. 20, 53) in

INITIAL SET

MODE

must be selected “FR,” otherwise the memory bank

operation cannot be performed.

C

Push

MR

PWR

A

BDC

CLRFUNC

CALL

MR

BANK

TONE

T.SCAN

P.BEEP

1

2

3

DUP

OPT

SKIP

SCAN

0

4

56

PRIO

SET

H/M/L

ENT

8

9

7

[VOL]

N

A

B

ENT

A

FUNC

K

C

Push

MR

A

BDC

CALL

TONE

P.BEEP

1

2

DUP

SCAN

4

56

PRIO

SET

7

8

PWR

CLRFUNC

MR

BANK

T.SCAN

3

OPT

SKIP

0

H/M/L

ENT

9

[VOL]

A

FUNC

ENT

SET

8

31

6

MEMORY/CALL OPERATION

■ Transferring bank contents

Contents of programmed memory banks can be cleared or
transferred to another bank.

INFORMATION: Even if the memory bank contents are
cleared, the memory channel contents still remain pro­grammed.

q

Select the desired bank contents to be transferred or erased.

➥ Push [MR] to select memory mode.
➥ Push [FUNC] and [

BANK

](#),

then rotate [VOL] to select the
desired memory bank.

• Bank indicator blinks.

➥ Push [✱

ENT

] (or [CLR]) to se-

lect the bank then push [YY]
and [ZZ] to select the desired
contents.

• Bank indicator stops blinking.

w Push [FUNC] and [

SET

](8) to

enter

SET MODE

.

e Push [YY] or [ZZ] several times

until “bAk” appears.

• Bank indicator appears.

r Rotate [VOL] to select the de-

sired bank to receive the trans­ferred information or erase the
bank contents.

• Select “– –” indication when erasing
the contents from the bank.

t Push [✱

ENT

] (or [CLR]) to transfer or erase, and return to

regular memory mode.

y Repeat steps q to t for transferring or erasing an an-

other bank’s contents.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

A

FUNC

8

SET

ENT

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

A

FUNC

B

A

N

K

ENT

32

7

DTMF MEMORY

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Programming a DTMF code sequence

The transceiver has 16 DTMF memory channels (d0 to dF)
for storage of often-used DTMF code sequence of up to 24
digits. DTMF memories are used to store phone numbers or
control codes.

qPush [FUNC], then push

[

OPT

](0)

to enter

OPTION SET MODE

.

• Rotate [VOL] to select “dtm.OF,” if necessary.

w Push and hold

[

OPT

](0)

for 1 sec. to select the DTMF mem-

ory.

• One of “d0” to “dF” appears.

e

Rotate [VOL] to select the desired DTMF memory.

rPush and hold [

OPT

](0) for 1 sec. to enter the DTMF pro-

gramming mode.

•“_____” appears.

• Programmed memories can be cleared in this way.

tEnter the desired DTMF code sequence by pushing the

digit keys, [A], [B], [C], [D], [#] and [✱], in the desired
sequence.

•Amaximum of 24 digits can be input.

• [✱] enters tone “E”, [#] enters tone “F.”

• If a digit is mistakenly input, push [MONI] or [PTT] momentarily

then repeat from step q.

yPush [MONI] or [PTT] to save the digits and exit the DTMF

programming mode.

• Programmed DTMF code sequence sounds when [MONI] is

pushed.

• Or after 24th digit is input, the transceiver automatically saves

the digits and returns to step w.

A

OPT

Push

FUNC

0

OPT

Push

0

for 1 sec.

OPT

Push

0

for 1 sec.

MONI

A

B

FUNC

CA

LL

T

O

N

E

PWR

A

BDC

CLRFUNC

CALL

MR

BANK

TONE

T.SCAN

P.BEEP

1

2

3

DUP

OPT

SKIP

SCAN

56

SET

H/M/L

8

0

ENT

9

4

PRIO

7

P.BEEP

1

2

D

U

P

SCAN

4

5

P

R

IO

SET

7

8

C

M

T.SCAN

S

H

D

R

L

C

R

BANK

3

OPT

IP

K

0

6

L

/

M

/

T

N

E

9

33

7

DTMF MEMORY

• DTMF memory indication

■ Transmitting a DTMF code
sequence

D Using a DTMF memory channel

qPush [FUNC], then push

[

OPT

](0)

to enter

OPTION SET MODE

.

• Rotate [VOL] to select “dtm.OF,” if necessary.

w Push and hold

[

OPT

](0)

for 1 sec. to select the DTMF mem-

ory.

eRotate [VOL] to select the desired memory.
rPush [MONI] or [PTT] to exit the DTMF memory mode.

• Selected DTMF code sequence sounds when [MONI] is pushed.

tWhile pushing [PTT], push [MONI] to transmit the selected

DTMF memory.

• After the DTMF code sequence is transmitted, the transceiver re­turns to receive automatically.

The DTMF memory consists of 5 pages that are 1st to 5th,
6th to 10th, 11th to 15th, 16th to 20th and 21st to 24th dig­its.

• 1st page indication

• 2nd page indication

A

Push

FUNC

OPT

0

• 3rd page indication

• 5th page indication

Blinks

Appears

• 4th page indication

AppearsAppears

OPT

Push

0

for 1 sec.

34

7

DTMF MEMORY

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

D Manual DTMF code transmission

While pushing [PTT], push digit keys, [A], [B], [C], [D], [#]
and [✱] to transmit a DTMF code sequence manually.

• [✱] transmits tone “E”, [#] transmits tone “F.”

■ DTMF transmission rate

When slow DTMF transmission rates are required with DTMF
memory transmission (as for some repeaters), the trans­ceiver’s rate of DTMF transmission can be adjusted.

qWhile pushing and holding [YY]

and [ZZ], turn the power ON to
enter

INITIAL SET MODE

.

wPush [YY] or [ZZ] several times

until “dtd” appears.

eRotate [VOL] to select the de-

sired DTMF transmission rate.

• Four rates are available: “1” (100
msec. intervals) is the fastest; “5”
(500 msec. intervals) is the slow­est.

rPush [✱

ENT

] (or [CLR]) to exit

INITIAL SET MODE

.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

[VOL]

PWR

ENT

USING

INITIAL SET MODE

A

B

FUNC

CA

LL

T

O

N

E

P.BEEP

PWR

A

BDC

CLRFUNC

CALL

MR

BANK

TONE

T.SCAN

P.BEEP

1

2

3

DUP

OPT

SKIP

SCAN

0

4

56

PRIO

SET

H/M/L

ENT

7

8

9

1

D

U

4

P

R

IO

7

T.SCAN

2

P

SCAN

S

5

SET

H

8

D

C

R

L

C

R

M

BANK

3

OPT

IP

K

0

6

L

/

M

/

T

N

E

9

35

SCAN OPERATION

8

■ Programmed scan

Programmed scan repeatedly scans between two user pro­grammed frequencies (memory channels “1A–3A” and
“1b–3b”) or scans between upper and lower band edges. This
scan is useful for checking for signals within a specific fre­quency range such as repeater output frequencies, etc.
Scans between lower (start) and high (stop) frequency.

qPush [CLR] to select VFO mode, if necessary.
wPush [FUNC] and [

SCAN

](5) to start a scan.

ePush [FUNC] and [

SET

](8) several times to select the de-

sired scan edge, “P1,” “P2,” “P3” or “AL.”

• “AL” for full scan, “P1”, “P2” and “P3” for programmed scan be­tween the programmed scan edge channels as “1A”–“1b,”
“2A”–“2b” and “3A”–“3b.”

•To change the scan direction, push [YY] or [ZZ].

• When [VOL] is assigned as tuning dial, rotate [VOL] to change
the scan direction. (pgs. 18, 53)

rPush [CLR] to stop the scan.

Push

SET

8

FUNC

A

Push

FUNC

A

SCAN

5

PROGRAMMED SCAN

MEMORY (SKIP) SCAN

PRIORITY WATCH

Band
edge

Band
edge

Start

1A
2A
3A

End

1b
2b
3b

Scan edges

Scan
Jump

SKIP

SKIP

SKIP

Mch 1

Mch 0

Mch 2 Mch 3

Mch 3

Mch 4 Mch 5

Mch 10

Mch 99

Mch 9 Mch 8 Mch 7

Mch 6

Mch 1

Mch 2

Mch 3

Mch 4

Mch 5

Mch 99

Mch 6

VFO frequency

145.20 MHz

VFO frequency

145.20 MHz

5 sec. 50 msec.

5 sec. 50 msec.

Priority channel

Priority channels

Memory
scan

Priority memory channel watch

Priority memory channel scan

Programmed scan P1 scans between 1A and 1b, P2 scans be­tween 2A and 2b, and P3 scans between 3A and 3b frequencies.

■ Scan types

36

8

SCAN OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

NOTE: Scan edges, 1A–3A/1b–3b, must be programmed

in advance. Program them in the same manner as regular
memory channels. (p. 27)

If identical frequencies are programmed into the scan
edges, programmed scan will not proceed.

■ Memory scan

Memory scan repeatedly scans all programmed memory
channels, except those set as skip channels.

qPush [MR] to select memory mode, if necessary.

•“X” appears.

• See below to select bank scan.

wPush [FUNC] and [

SCAN

](5) to start the scan.

•To change the scan direction, push [YY] or [ZZ].

• When [VOL] is assigned as tuning dial, rotate [VOL] to change

the scan direction. (pgs. 18, 53)

e Push [CLR] to stop the scan.

• Bank scan —Select the desired bank in step q above.
q Push [FUNC] and [

BANK

](#) to select memory bank mode.

w Rotate [VOL] to select the desired bank, A to J.
e Push [✱

ENT

] (or [CLR]) to select the bank.

Push

FUNC

A

SCAN

5

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

PWR

A

1
4
7

F

U

N

C

T

O

N

E

D

U

P

P

R

IO

B

2
5
8

C

A

L

L

P.BEEP

SCAN

SET

C

3
6
9

S

K

IP

T.SCAN

MR

H

/

M

/

L

D

0

C

L

R

B

A

N

K

O

P

T

E

N

T

37

8

SCAN OPERATION

■ Skip channels

In order to speed up the scan rate, you can select memory
channels you don’t wish to scan as skip channels.

qPush [MR] to select memory mode, if necessary.

•“X” appears.

wSelect a memory channel to set as a skip channel.
ePush [FUNC] and [

SKIP

](6) to toggle the skip setting ON

and OFF.

• “SKIP” appears when the channel is set as a skip channel.

■ Scan resume condition

When a signal is received during scanning, the scan resume
condition determines what action the transceiver takes. The
transceiver has 2 scan resume conditions available as
illustrated below. Use

SET MODE

to select the one which best

suits your needs.

qPush [FUNC], then push [

SET

](8) to enter

SET MODE

.

wPush [YY] or [ZZ] several times until “SCP” or “SCt” ap-

pears.

eRotate [VOL] to select the desired scan resume condition.

• Pause scan:

When receiving a signal, scan pauses
on the signal until it disappears. Re­sumes 2 sec. after the signal disap­pears.

• Timer scan:

When receiving a signal, scan pauses
on the signal for 5 sec., 10 sec. or 15
sec., then resumes.

r Push [✱

ENT

] (or [CLR]) to set and

exit

SET MODE

.

Timer scan

Pause scan

USING

SET MODE

Push

SKIP

FUNC

A

6

“SKIP” appears

38

8

SCAN OPERATION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Priority watch

Priority watch checks for signals on “priority channels” while
operating on a VFO frequency.

D Memory or call channel watch

While operating on a VFO frequency, memory or call channel
watch monitors for signals in the selected memory or call
channel every 5 sec.

qSelect the desired memory channel or the call channel.
wPush [CLR] to select VFO mode.
ePush [FUNC], then push [

PRIO

](7) to start watching.

• VFO is displayed, then the decimal point “.”, on the frequency

readout blinks.

• The priority channel is monitored every 5 sec.

• When the signal is detected on the priority channel, the watching
is suspended according to the setting of the scan resume condi­tion.

rPush [CLR] to stop watching.

D Memory scan watch

While operating on a VFO frequency, memory scan watch
monitors for signals in each memory channel in sequence,
every 5 sec.

qPush [MR] to select memory mode, if necessary.

•“X” appears.

wPush [FUNC], then push [

SCAN

](5) to start the memory

scan.

ePush [FUNC], then push [

PRIO

](7) to start the watching.

• VFO is displayed, then the decimal point “.”, on the frequency

readout blinks.

• When the signal is detected on the priority channel, the watching
is suspended according to the setting of the scan resume condi­tion.

rPush [CLR] to stop the watching.

SKIP

Mch 1

Mch 2

Mch 3

Mch 4

Mch 5

Mch 99

Mch 6

Priority channel

Memory
scan

5 sec.

50 msec.

VFO frequency

5 sec. 50 msec.

VFO frequency Memory channel

39

SUBAUDIBLE TONES

9

■ Tone squelch

D Operation

The tone squelch opens only when receiving a signal con­taining a matching subaudible tone. You can wait for calls
from group members using the same tone and not hear other
signals.

q Set the operating frequency.

•

Set the volume and squelch to the desired level as the normal op­eration.

w Set the desired subaudible tone in

SET MODE

.

• See page 40 for programming.

e Push [FUNC], then push [

TONE

](1).

• Repeat several times until “ ” appears when selecting CTCSS,
or “ ” appears when selecting DTCS.

r When the received signal includes a matching tone,

squelch opens and the signal can be heard.

• When the received signal’s tone does not match, tone squelch
does not open, however, the S-indicator shows signal strength.

• To open the squelch manually, push and hold [MONI].

t Transmit in the normal way.
y To cancel the tone squelch, push [FUNC] and [

TONE

](1).

• Repeat several times until “ ” or “ ” disappears.

NOTE: The transceiver has 50 tone frequencies and con­sequently their spacing is narrow compared to units having
38 tones. Therefore, some tone frequencies may receive
interference from adjacent tone frequencies.
To prevent interference from adjacent tone frequencies,
using the frequencies as in the following table, is recom­mended.

• Recommended CTCSS frequencies (Unit: Hz)

• Recommended DTCS codes

023
025
026
031
032
043
047

051
054
065
071
072
073
074

114
115
116
125
131
132
134

143
152
155
156
162
165
172

174
205
223
226
243
244
245

251
261
263
265
271
306
311

315
331
343
346
351
364
365

371
411
412
413
423
431
432

445
464
465
466
503
506
516

532
546
565
606
612
624
627

631
632
654
662
664
703
712

723
731
732
734
743
754

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

162.2

167.9

173.8

179.9

186.2

192.8

203.5

210.7

218.1

225.7

233.6

241.8

250.3

D

Push

TONE

1

FUNC

A

CTCSS DTCS

D

40

9

SUB AUDIBLE TONES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Separate tone frequencies can be select for tone squelch op­eration rather than repeater operation (the same range of
tones is available— see right below). Like the repeater tones,
these are set in

SET MODE

.

q Select VFO or memory channel.
w Push [FUNC], then push [

SET

](8) to enter

SET MODE

.

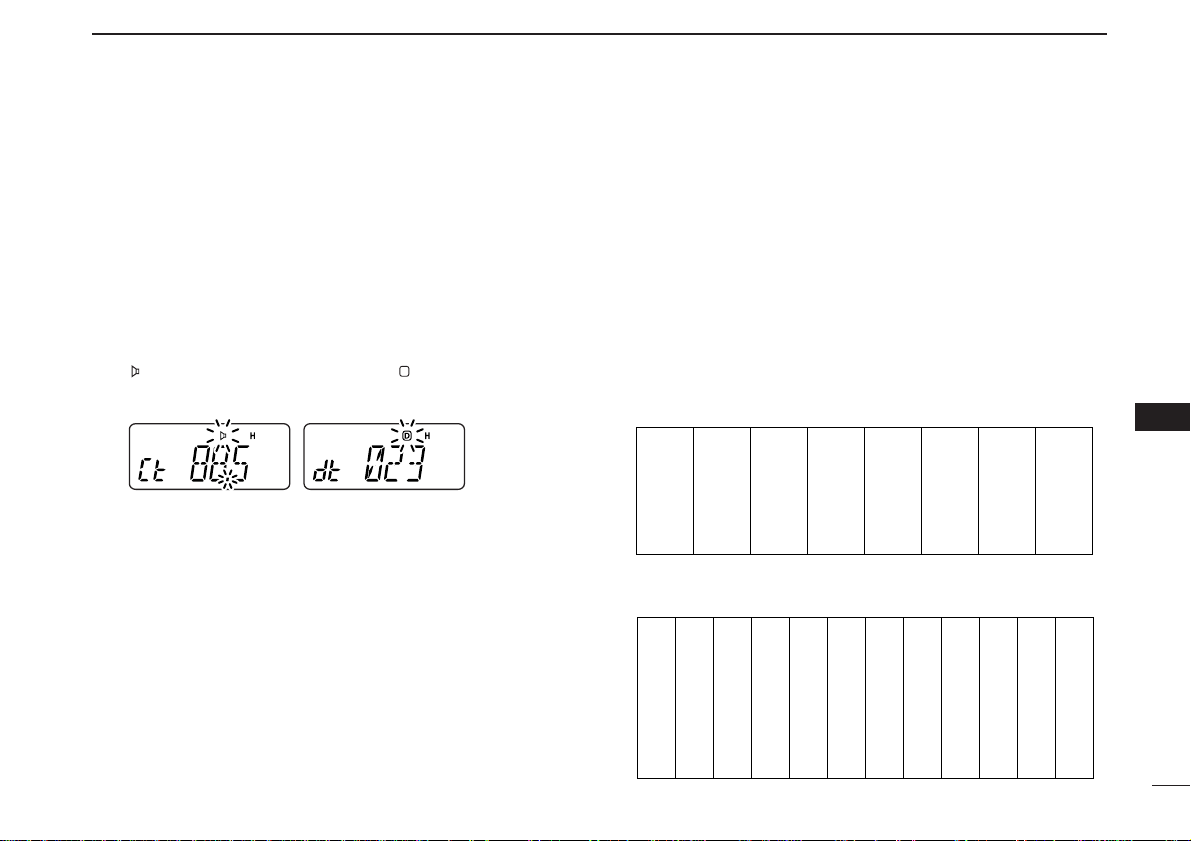

e Push [YY] or [ZZ] several times until “Ct” appears when se-

lecting CTCSS, or “dt” appears when selecting DTCS.

•“ ” blinks when selecting CTCSS, or “ ” blinks when selecting
DTCS.

r Rotate [VOL] to select the desired subaudible tone.
t Push [✱

ENT

] (or [CLR]) to program the selected tone and

exit

SET MODE

.

• The recommended CTCSS frequencies or DTCS codes are

shown at previous page.

When

SET MODE

is selected from memory mode.

The tone squelch frequency is not stored in the selected
memory channel unless you follow steps y and u.

y Push [FUNC], then push and hold [MR] for 1 sec. to trans-

fer the contents to VFO.

•3 beeps are emitted.

• VFO mode is selected automatically.

u Push [FUNC], then push and hold [MR] for 1 sec.

•3 beeps are emitted.

•Available CTCSS tone frequency (unit: Hz)

•Available DTCS codes

023
025
026
031
032
036
043
047
051

116
122
125
131
132
134
143
145
152

225
226
243
244
245
246
251
252
255

371
411
412
413
423
431
432
445
446

516
523
526
532
546
565
606
612
624

053
054
065
071
072
073
074
114
115

155
156
162
165
172
174
205
212
223

325
331
332
343
346
351
356
364
365

452
454
455
462
464
465
466
503
506

627
631
632
654
662
664
703
712
723

731
732
734
743
754

261
263
265
266
271
274
306
311
315

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

CTCSS DTCS

D

D Setting subaudible tones for tone squelch operation

41

9

SUBAUDIBLE TONES

■ Pocket beep operation

This function listens for subaudible tones and can be used as
a “common pager” to inform you that someone has called
when you were away from the transceiver.

D Waiting for a call from a specific station

q Set the operating frequency.
w Set the desired CTCSS tone frequency or DTCS code in

SET MODE

.

• See p. 40 for programming details.

e Push [FUNC], then push [

TONE

](1).

• Repeat several times until “ ” appears when CTCSS, or “ ” ap­pears when DTCS is selected.

r Push [FUNC], then push [P.

BEEP

](2) to activate the pocket

beep function.

•“” appears.

t When a signal with the matching tone is received, the

transceiver emits beep tones and blinks “ .”

• Beep tones sound for 30 sec. and “ ” blinks. To stop the beeps

manually, push any key. “ ” continues blinking until step y is
operated.

y Push [PTT] to answer.

• “ ” disappears and cancels the pocket beep function automati­cally.

CTCSS DTCS

Push

P.BEEP

2

FUNC

A

CTCSS DTCS

Push

TONE

1

FUNC

A

CTCSS DTCS

D

42

9

SUB AUDIBLE TONES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ Tone scan

By monitoring a signal on a repeater, or using pocket beep or tone
squelch function, you can determine the tone frequency necessary to
access a repeater or open the squelch.

q Set the frequency to be checked for a tone frequency or code.
w Push [FUNC], then push [

TONE

](1).

• Repeat several times to select the type of tone to be scanned. (One of “ ,”
“” or “ ” appears)

•Tone scan may be used even if the tone condition or type is not selected.

e Push [FUNC], then push [T.

SCAN

](3) to start the tone scan.

• To change the scanning direction, push [YY] or [ZZ].

Push

T.SCAN

3

FUNC

A

Push

TONE

1

FUNC

A

D

r When the CTCSS tone frequency or DTCS code

is matched, the squelch opens and the tone fre­quency or code is temporarily programmed into
the selected mode such as memory or call chan­nel.

• The tone scan pauses when a CTCSS tone fre­quency or 3-digit DTCS code is detected.

• The decoded CTCSS tone frequency or 3-digit DTCS
code is used for the tone encoder or tone encoder/de­coder depending on the selected tone condition or
type in step w.

- No indication : Cannot be used for operation.

-“ ” : CTCSS tone encoder

-“ ” : CTCSS tone encoder/decoder

-“ ” : DTCS tone encoder/decoder

t Push [CLR] to stop the scan.

D

43

PAGER/CODE SQUELCH

10

■ Pager function

This function uses DTMF codes for paging and can be used
as a “message pager” to confirm you of a caller’s identification
even when you leave the transceiver temporarily unattended.

■

Code programming

DD

Before programming

The pager and code squelch functions require ID codes and a
group code. These codes are 3-digit DTMF codes and must
be written into the code channels before operation.

q Decide the ID code of each transceiver and a group code

for your group.

w Decide whether you want to return to normal operation or

code squelch operation after a connection is made.

e Program the ID code, group code and transmit codes

(other station’s codes) as below.

DD

Code channel assignment

*

Channel CP automatically memorizes an ID code when receiving a
pager call. The contents in channel CP cannot be changed manually.

Pager selective code (push [PTT])

Beep Beep

Beep

Answer back (manual)

Beep Beep

Beep

Set both transceivers to either

code squelch or non-coded operation

Communication

ID OR CODE CHANNEL “RECEIVE ACCEPT” OR

GROUP CODE NUMBER “RECEIVE INHIBIT”

Your ID code

Other parties’

ID code

Group code

Memory space*

0

1–6

One of 1–6

P

“Receive accept” only

“Receive inhibit” should be

programmed in each channel.

“Receive accept” must be

programmed in one channel.

“Receive inhibit” only.

Requires Optional UT-108

Optional UT-108 is required when using the pager/code squelch functions.

44

10

PAGER/CODE SQUELCH

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

Code programming

Your ID code MUST be programmed into code channel C0.
Up to 6 transmit codes (codes that you transmit) are pro­grammable into code channels, C1 to C6, if required.

q Push [FUNC], then push [

OPT

](0) to enter

OPTION SET

MODE

.

• Rotate [VOL] to select “dtm.PG” or “dtm.CS,” if “dtm.OF” ap-

pears.

w Push and hold [

OPT

](0) for 1

sec. to enter the code selection
mode.

• One of either “CP” or “C0” to “C6”
blinks.

• “C0” is your ID code and “C1” to “C6” are transmit codes.

e Rotate [VOL] (or push [YY]/[ZZ]) to select code channel C0.

•Each transceiver should have a different ID code.

r Enter the desired 3-digit ID

code via the keypad.

t Rotate [VOL] (or push

[YY]/[ZZ]) to select a transmit

code channel from C1 to C6.

y Enter the desired 3-digit transmit code via the keypad.

u Push [FUNC], then push [

SKIP

](6) to set the channel to “re-

ceive inhibit” or “receive accept.”

• When “receive inhibit” is set, “SKIP” appears as below.

• Code channel C0 cannot be set as “receive inhibit.”

• See the table for “receive accept” and “receive inhibit” details
(p. 43).

i Repeat steps t and y to set additional transmit code

channels, if desired.

o Push [✱

ENT

] (or [CLR]) to exit code selection mode.

•Receive accept/receive inhibit

➥ “Receive accept” (“SKIP” indicator does not appear) ac-

cepts pager calls when the transceiver receives a signal
with a code the same as that in the code channel.

➥ “Receive inhibit” (“SKIP” indicator appears) ignores calls

even when the transceiver receives a code the same as
that in the code channel. Transmit codes should therefore
be programmed for “receive inhibit,” otherwise the trans­ceiver will not reject unnecessary calls.

or

45

10

PAGER/CODE SQUELCH

■ Pager operation

D Calling a specific station

q Program the code channel in advance (p. 44).
w Set the operating frequency.

•

Set the volume and squelch to the desired level as in normal op­eration.

e Push [FUNC], then push [

OPT

](0).

• Rotate [VOL] to select “dtm.PG,” if “dtm.CS” or “dtm.OF” ap-

pears.

r Select the desired transmit code channel:

➥ Push and hold [

OPT

](0) for 1 sec. to enter the code se-

lection mode.

➥ Rotate [VOL] (or push [YY]/[ZZ]) to select the desired

code channel.

➥ Push [✱

ENT

] (or [CLR]) to return to previous mode.

• 100 MHz digit shows “P.”

t Push [PTT] to transmit the pager code.
y Wait for an answer back.

• When the transceiver receives an answer back code, the func­tion display shows the other member’s ID or group code.

u After confirming a connection, push [FUNC] and [

OPT

](0)

to enter

OPTION SET MODE

, then rotate [VOL] to select the

code squelch operation “dtm.CS,” or non-selective calling
system “dtm.OF.”

• DO NOT push any digit keys while code channels C0 to C6 are
displayed, otherwise code channel contents will be changed.

i Communicate with the other party as normal: push [PTT]

to transmit; release to receive.

D Waiting for a call from a specific station

q Set the operating frequency.
w Push [FUNC], then push [

OPT

](0).

➥ Rotate [VOL] to select “dtm.PG,” if “dtm.CS” or

“dtm.OF” appears.

➥ Push [✱

ENT

] (or [CLR]) to return to previous mode.

• 100 MHz digit shows “P.”

e Wait for a call.

• When receiving a call, the caller’s ID or group code appears as
shown at next page.

• DO NOT push any digit keys while code channels C0 to C6 are
displayed, otherwise code channel contents will be changed.

r Push [PTT] to send an answer back call and display the

operating frequency.

t After confirming a connection, push [FUNC] and [

OPT

](0)

to enter

OPTION SET MODE

, then rotate [VOL] to select the

code squelch operation “dtm.CS,” or non-selective calling
system “dtm.OF.”

Push

FUNC

A

OPT

0

46

10

PAGER/CODE SQUELCH

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

• PERSONAL CALLS

This display appears when you are called with your ID code
and the calling station’s ID code is 123.

• GROUP CALLS

This display appears when you are called with the group
code, 888, and 888 has been programmed into code channel
C6.

• ERROR INFORMATION

When the transceiver receives an incomplete code, “E” and
previously received code appear.

■ Code squelch

When using code squelch you will only receive calls from sta­tions which know your ID or group code. A 3-digit code is sent
each time [PTT] is pushed in order to open the receiving sta­tion’s code squelch prior to voice transmission.

q Set the operating frequency.

• Set the volume and squelch to the desired level as in normal op­eration.

w Push [FUNC], then push [

OPT

](0).

• Rotate [VOL] to select “dtm.CS,” if “dtm.PG” or “dtm.OF” ap­pears.

e Select the desired transmit code channel:

➥ Push and hold [

OPT

](0) for 1 sec. to enter code selec-

tion mode.

➥ Rotate [VOL] (or push [YY]/[ZZ]) to select the desired

code channel.

➥ Push[✱

ENT

] (or [CLR]) to exit code selection mode and

return to previous mode.

• 100 MHz digit shows “C.”

r Operate the transceiver in the normal way (push [PTT] to

transmit; release [PTT] to receive).

t To cancel the code squelch, push [FUNC] and [

OPT

](0),

then rotate [VOL] to select “dtm.OF.”

• 100 MHz digit shows “1” when the function is cancelled.

Previously received code.

Code channel

“CP” and “ ” blink.

During channel number indication (described on page 20)
To use these functions in channel number indication, the
pager/code squelch setting must be programmed with other
memory contents before selecting channel number indication.

47

SET MODES

11

■ SET MODE

DD

Entering SET MODE

q Push [FUNC], then push [

SET

](8) to enter

SET MODE

.

w Push [YY] or [ZZ] to select the desired item.
e Rotate [VOL] to select the condition/value.

•To exit

SET MODE

, push [✱

ENT

] (or [CLR]).

NOTE: When the display type setting (pgs. 16, 65) in

INI

-

TIAL SET MODE

is selected other than “FR” (“CH” or “nm”)

and accessing

SET MODE

from memory mode, most of set

mode items are restricted.

DD

Repeater tone frequency

Selects tone encoder frequency for accessing a repeater, etc.
from one of 50 available frequencies.

• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)

DD

Tone squelch frequency

Selects frequency for tone squelch or pocket beep operation
from one of 50 available frequencies.

• 67.0–254.1 Hz (50 tones): 88.5 Hz (default)

•Available subaudible tone frequencies

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

A

BDC

CALL

TONE

P.BEEP

1

2

DUP

SCAN

4

56

PRIO

SET

7

8

PWR

CLRFUNC

MR

BANK

T.SCAN

3

OPT

SKIP

0

H/M/L

ENT

9

Enter ExitSet

[VOL]

A

FUNC

SET

8

ENT

48

11

SET MODES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

DTCS code

Selects DTCS (both encoder/decoder code) for DTCS
squelch operation. Total of 104 codes are available.

• 023–754: 023 (default)

DD

DTCS polarity

Selects DTCS polarities for transmission and reception from
“nn (default),” “nR,” “Rn” and “RR.” (n: normal/R: reverse)

DD

Tuning step

Selects tuning step from 5, 10, 12.5, 15, 20, 25, 30 and
50 kHz for [YY]/[ZZ] or [VOL] (

When [VOL] is assigned as tuning

dial

) operation. (default value may differ depending on trans-

ceiver types and versions)

DD

Offset frequency

Sets the duplex offset frequency within 0 to 20 MHz range.
During duplex (repeater) operation, transmit frequency (or re­ceive when reverse function is set to ON) shifts the set fre­quency. (default value may differ depending on transceiver
types and versions)

DD

Reverse function

Turns the reverse function ON and OFF (default).

Reverse function OFF Reverse function ON

49

11

SET MODES

DD

Scan pause timer

Selects the scan pause time from SCt.5, SCt.10, SCt.15 and
SCP. 2. When receiving signals, the scan pauses according
to the scan pause time.

• SCt. 5/10/15: Scan pauses for 5/10/15 sec.
(default: SCt.15)

• SCP. 2 : Scan pauses until the signal disappears. Re­sumes 2 sec. after the signal disappears.

DD

Function key timer

Selects the function indicator display timer (when pushed

[FUNC]) from F0.At, F1.At, F2.At, F3.At and F .m.

• F0.At : “ ” disappears immediately after secondary func-

tion is operated. (default)

• F1/2/3.At: “ ” disappears after 1/2/3 sec. after secondary

function is operated.

•F .m : “ ” appears until [FUNC] is pushed again.

DD

LCD backlight

Selects LCD backlight lighting condition from auto, ON and
OFF.

• LIG.At : Lights when any key except [PTT] is pushed. (de-

fault)

• LIG.ON: Lights continuously while the transceiver is pow­ered ON.

• LIG.OF : Never lights.

DD

Transmission permission

Turns transmission permission ON and OFF. This function
can be set for each memory and call channel, independently.

• tX .On : Transmission is permitted. (default)

• tX .OF : Transmission is inhibited.

F

F

F

50

11

SET MODES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

Memory bank setting

Sets the desired memory bank (A to J and OFF) to assign the
regular memory channels.
This item appears when

SET MODE

is accessed from memory

mode only.

DD

Memory bank link function

Sets the memory bank link function ON and OFF (default).
The link function provides continuous banks scan, scanning
all contents in the selected banks during bank scan.
This item appears when

SET MODE

is accessed from memory

mode only.

• Bank link setting

q Rotate [VOL] to select the memory bank link function ON.
w Push [YY] or [ZZ] to select the desired bank to be linked.

• bLA: Bank A, bLb: Bank B, bLC: Bank C, bLd: Bank D,
bLE: Bank E, bLF: Bank F, bLG: Bank G, bLH: Bank H,
bLI: Bank I, bLJ: Bank J

e Rotate [VOL] to “ON” to link the bank.
r Repeat steps w and e to link other banks.

DD

Weather alert function

Turns weather alert function ON and OFF (default).

USA version only

51

11

SET MODES

■ INITIAL SET MODE

The

INITIAL SET MODE

is accessed at power on and allows you
to set seldom-changed settings. In this way, you can “cus­tomize” transceiver operations to suit your preference and op­erating style.

DD

Entering INITIAL SET MODE

q While pushing and holding [YY] and [ZZ], turn power ON.
w Push [YY] or [ZZ] to select the desired item.
e Rotate [VOL] to select the condition or value.

•To exit

INITIAL SET MODE

, push [✱

ENT

] (or [CLR]).

DD

Key-touch beep

Turns key-touch beep emission ON (Beep level 1 to 3) or
OFF. (default: 3)

NOTE: The pocket beep level (Beep level 1 to 3 or OFF)
also changes as this setting.

DD

Time-out timer

To prevent accidental prolonged transmission, etc., the trans­ceiver has a time-out timer. This function cuts a transmission
OFF after 1–30 min. of continuous transmission. This timer
can be cancelled.

• tOt.OF : The time-out timer is turned OFF.

• tOt. 1–30: The transmission is cut OFF after the set period
elapses. (default: 3)

• BE CAREFUL! The transceiver will become hot when

this time-out timer function is turned OFF and transmis­sion is made for long periods.

• NOTE: When the battery pack (BP-227) becomes hot

from continuous transmittion, etc., the battery’s protection
circuit may activate to protect the battery itself and then
shut off the transceiver power until it has cooled down.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

Enter ExitSet

[VOL]

PWR

ENT

AT

POWER ON

52

11

SET MODES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

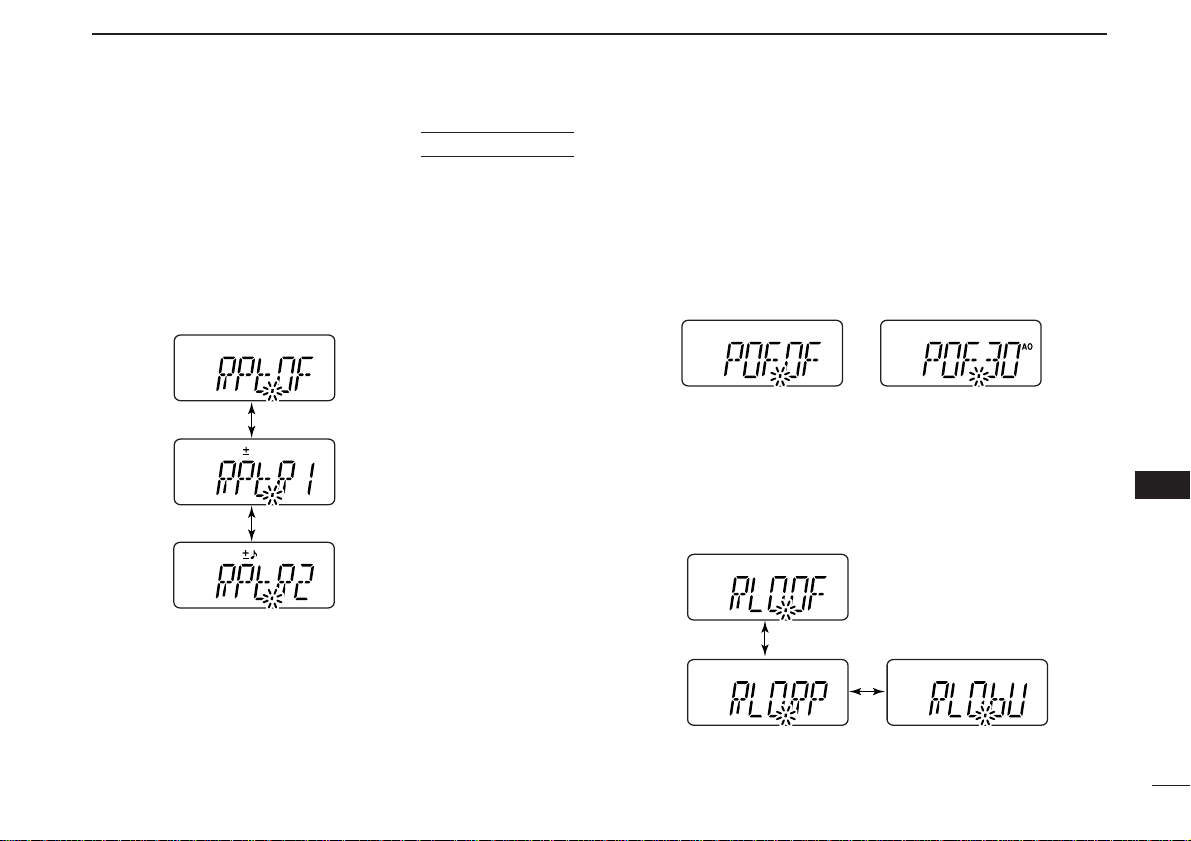

Auto repeater

The auto repeater function automatically turns ON or OFF the
duplex operation and tone encoder. The offset and repeater
tone is not changed by the auto repeater function. Reset
these frequencies, if necessary.

• RPt.OF : The auto repeater function is turned OFF.

• RPt.R1 : Activates for duplex only. (default)

• RPt.R2 : Activates for duplex and tone.

DD

Auto power-off

The transceiver can be set to automatically turn OFF after a
specified period with a beep when no key operations are per­formed.

•30min., 1 hour, 2 hours and OFF (default) can be specified.
The specified period is retained even when the transceiver
is turned OFF by the auto power-off function. To cancel the
function, select “

POF.OF” in this

SET MODE

.

DD

Repeater lock-out

Selects lockout type from repeater, busy and OFF.

• RLO.OF : No lockout is activated. (default)

• RLO.RP : The repeater lockout is turned ON.

• RLO.bU : The busy lockout is turned ON.

USA version only

53

11

SET MODES

DD

Squelch delay

Selects squelch delay from short and long to prevent re­peated opening and closing of the squelch during reception
of the same signal.

•Sqt. S : The squelch closes in short delay. (default)

• Sqt. L : The squelch closes in long delay.

DD

DTMF rate

The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.

• 1: 100 msec. interval; 5.0 cps rate (default)

• 2: 200 msec. interval; 2.5 cps rate

• 3: 300 msec. interval; 1.6 cps rate

• 5: 500 msec. interval; 1.0 cps rate (cps=characters/sec.)

DD

Dial assignment

Selects [VOL] control action from volume and tuning dial.

• tOP.VO : AF volume (default)

• tOP.dI : Tuning dial

DD

Display type

Selects LCD indication type from frequency, channel number
and channel names.

• dSP.FR : Shows frequency (default)

• dSP.CH : Shows channel number*

• dSP.nm : Shows channel names

†

*Only memory channels can be selected.

†

Frequency indication will be displayed when the selected memory
channel has no programmed memory name.

NOTE: When this setting is selected other than “FR” (“CH”
or “nm”) and accessing

SET MODE

from memory mode,

most of set mode items are restricted.

54

11

SET MODES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

DD

LCD contrast

Selects LCD contrast from auto, high and low.

• LCd.At : Automatic (default)

• LCd.HI : High contrast

• LCd.LO : Low contrast

DD

Power save

Selects duty cycle for power save function from auto, 1:32,
1:16, 1:8, 1:2 and OFF.

•P–S.At : Duty cycle changes automatically. (default)

• P–S.32 : 1:32 duty cycle

• P–S.16 : 1:16 duty cycle

• P–S. 8 :

1:8 duty cycle

• P–S. 2 :

1:2 duty cycle

• P–S.OF : The power save function is turned OFF.

NOTE: During pager or code squelch operation (with UT-

108), the active duty cycle is fixed 1:1 only (even for duty
cycle settings other than OFF).

55

11

SET MODES

DD

Monitor key action

The monitor key, [MONI], can be set as a ‘sticky’ key. When
set to the sticky condition, each push of [MONI] toggles the
monitor function ON and OFF.

•PU (Push) : Pushing and holding [MONI] to monitor the fre-

quency. (default)

• HO (Hold) : Push [MONI] to monitor the frequency and push

again to cancel it.

DD

Tuning speed acceleration

The tuning speed acceleration automatically speeds up the
tuning speed when pushing and holding [YY] or [ZZ], or rotat­ing [VOL] rapidly.*

•S–S.At : The tuning speed acceleration is activated. (de­fault)

• S–S. m : The tuning speed acceleration is not activated.

*When tuning dial is assigned with [VOL].

DD

Mic simple mode

This item turns the microphone simple mode ON and OFF.
Microphone simple mode is used to change the function as­signments for keys in the optional HM-75A

REMOTE CONTROL

SPEAKER

-

MICROPHONE

as below. This assignment is conve-

nient for 3-channel use of simple operation.

• mIC.n1 : Normal 1 (default)

• mIC.n2 : Normal 2

• mIC.Sm: Simple mode

A 1750 Hz tone can be transmitted with the HM-75A opera­tion.
➥ Push [A] while pushing [PTT].

Optional HM-75A required

HM-75A

Mode NORMAL1 NORMAL2 SIMPLE

key

[A]

Freq. [CALL]

[MONI] [MONI]

CH Null

[B]

Freq. VFO/Memory VFO/Memory

[CALL]

CH Null Null

[YY]

Freq. Freq. Up Freq. Up

MR-00CH

CH Memory CH Up Memory CH Up

[ZZ]

Freq. Freq. Down Freq. Down

MR-01CH

CH Memory CH Down Memory CH Down

56

11

SET MODES

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

NOTE:

Turn power OFF when connecting the HM-75A to the
transceiver.
VFO mode cannot be selected via the microphone when
SIMPLE mode is selected.

DD

Battery protection function

Sets the Battery protection function from LI (Li-Ion) (default)
and OFF.

LI(Li-Ion):
➥ The transceiver does not memorized the transceiver

ON/OFF condition when battery is detached, and automat­ically returns to OFF condition even if you detach the bat­tery with the transceiver ON condition. You are required to
turn ON the transceiver by pushing [PWR] for every bat­tery attach.

➥ Beep sounds when the attached battery is exhaustion.

• The battery must be charged presently.

OFF : The transceiver memorizes the transceiver ON/OFF

condition when battery is detached.

NOTE: This item MUST be set “LI” (Li-Ion) when the at­taching battery is BP-227 (Li-Ion).

57

SET MODE INSPECTION

12

• Repeater tone
frequency (p. 47)

SET MODE

A

FUNC

Push , then push to enter SET MODE (p. 47).

• Tone squelch
frequency (p. 47) • DTCS code (p. 48) • DTCS polarity (p. 48)

SET

8

• Tuning step (p. 48)

• Weather alert* (p. 50)

†

• Bank link function
(p. 50)

• Bank setting†
(p. 50)

*Available for [USA] version only.

†

Appears when accessing SET MODE from memory mode only.

NOTE: When the display type setting (pgs. 20, 53) in INITIAL

SET MODE

accessing
items are restricted.

• Tx permission
(p. 49)

: Push

: Push

is selected other than “FR” (“CH” or “nm”) and

SET MODE from memory mode, most of set mode

• LCD backlight
(p. 49)

• Function key timer
(p. 49)

• Offset frequency (p. 48)

• Reverse function
(p. 48)

• Scan pause timer
(p. 49)

58

12

SET MODE INSPECTION

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

While pushing and holding , push to enter INITIAL SET MODE (p. 51).

INITIAL SET MODE

• Key touch beep (p. 51) • Time-out timer (p. 51) • Auto repeater* (p. 52) • Auto power-off (p. 52)

• Battery protection function (p. 56)

: Push

• Mic simple mode (p. 55)

: Push

*Available for [USA] version only.

• Tuning speed acceleration (p. 55)

• Monitor key action (p. 55)

PWR

• Repeater lock-out (p. 52)

• Squelch delay (p. 53)

• DTMF rate (p. 53)

• Dial assignment (p. 53)

• Display type (p. 53)• LCD contrast (p. 54)• Power save (p. 54)

59

CLONING

13

q Connect the OPC-474

CLONING CABLE

to the [SP] jack of

the master and sub-transceivers.

• The master transceiver is used to send data to the sub-trans­ceiver.

w While pushing [FUNC] and [YY], turn power ON to enter

cloning mode (master transceiver only— power ON for
sub-transceiver).

• “CLONE” appears and the
transceivers enter the clone
standby condition.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

A

FUNC

PWR

Cloning allows you to quickly and easily transfer the pro­grammed contents from one transceiver to another trans­ceiver.

■ Transceiver-to-transceiver cloning

AT

POWER ON

Master transceiver

Sub transceiver

60

13

CLONING

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

Please refer to the HELP file that comes with CS-V85

CLONING SOFTWARE

.

■ Cloning using a PC

e Push [PTT] on the master

transceiver.

•“CL OU” appears in the master
transceiver’s display and S­meter indicator shows that
data is being transferred to
the sub-transceiver.

•“CL In” appears automatically in the sub-transceiver’s display and
S-meter indicator shows that data is being received from the
master transceiver.

r When cloning is finished, turn power OFF, then ON again

to exit cloning mode.

NOTE: DO NOT push [PTT] on the sub-transceiver during
cloning. This will cause a cloning error.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

OPC-478

(RS-232C type)

OPC-478UC

(USB type)

TRANSCEIVER

to USB port

OPC-478U
(USB type)

to RS-232C port

to USB port

PC

61

RESETTING FUNCTIONS

14

■ Partial reset

If you want to initialize the operating conditions (VFO fre­quency, VFO settings, set mode contents) without clearing
the memory contents, a partial resetting function is available
for the transceiver.

➥ While pushing [CLR], push and hold [PWR] for 1 sec. to

partially reset.

■ CPU reset

The function display may occasionally display erroneous in­formation (e.g. when first applying power). This may be
caused externally by static electricity or by other factors.

If this problem occurs, turn power OFF. After waiting a few
seconds, turn power ON again. If the problem persists, per­form the following procedure.

• Partial resetting is also available. See left for details.

IMPORTANT!:

Resetting the transceiver CLEARS all memory information
and initializes all values in the transceiver.

➥ While pushing [MONI] and [CLR], push and hold [PWR]

for 1 sec. to reset the CPU.

• “CLEAR” indicates, then initial display appears.

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

CLR

D

MONI

PWR

AT

POWER ON

DUP

SCAN

PRIO

SET

H/M/L

OPT

SKIP

BANK

TONE

T.SCAN

P.BEEP

A

BDC

CALL

ENT

MR

CLRFUNC

PWR

9

8

7

4

1

2

3

56

0

CLR

D

PWR

AT

POWER ON

62

15

TROUBLESHOOTING

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

PROBLEM

No power comes ON.

No sound comes from the
speaker.

Transmitting is impossible.

No contact possible with
another station.

Frequency can not be set.

Program scan function
can not start.

Memory scan function can
not start.

The displayed frequency is
erroneous.

Can not charge the battery
with BC-167A/D.

If your transceiver seems to be malfunctioning, please check the following points before sending it to a service center.

POSSIBLE CAUSE

• The batteries are exhausted.

• The battery polarity is reversed.

• Battery’s temperature protection circuit is ac­tivate.

• Volume level is too low.

• Different tone is selected with tone/DTCS
squelch.

• The batteries are exhausted.

• Different tone is selected with tone/DTCS
squelch.

• The key lock function is activated.

• Memory mode or call channel is selected.

• Memory mode or call channel is selected.

• Same frequencies are programmed both “✱A”
and “✱b” of scan edge memory channel.

• VFO mode or call channel is selected.

• The programmed memory channel is only
one.

• The CPU malfunctioned.

• External factors caused a fault.

• Turn the transceiver’s power ON.

SOLUTION

• Replace the batteries or charge the battery pack.

• Check the battery polarity.

• Cool down the BP-227.

• Rotate [VOL] to suitable level.

• Check the tone using tone/DTCS scan.

• Replace the batteries or charge the battery pack.

• Check the tone/DTCS using tone scan.

• Push [FUNC] then push and hold

[]

(✱

ENT

)

for 1 sec. to cancel the function.

• Push [CLR] to set VFO mode.

• Push [CLR] to set VFO mode.

• Programming different frequencies in “✱A” and
“✱b” respectively.

• Push [MR] to set memory mode.

• Program more than 2 memory channels.

• Reset the transceiver.

• Remove and re-attach the battery pack or battery
case.

• Turn the transceiver’s power OFF, then connect
the BC-167A/D to charge.

REF.

pgs. 9, 13–15
p. 10

–

p. 19
p. 42

pgs. 9, 13–15

p. 42

p. 20

p. 17

p. 17
p. 27

p. 26
p. 27

p. 61
p. 9

pgs. 13 ,17

63

OPTION

16

■ Optional UT-108 installation

q Remove the optional connector access cover

(named 2251

OPT sheet)

.

• Insert a screwdriver into the hollow of the chassis, then lift and
take away the cover. (The removed cover cannot be used
again.)

WARNING!

NEVER attempt to remove the optional connector cover

using your finger nails, this may result in injury.

w Attach the optional unit. Insert the connector firmly to avoid

a bad contact.

• Remove the paper baking of the optional unit before installing.

e Remove the paper backing of 2251 OPT sheet supplied as

an accessory.

r Attach the new 2251 OPT sheet to the service window.
t Program the necessary information from the transceivers

keypad or using the cloning software, before operation.

r

e

w

q

64

17

SPECIFICATIONS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

■ General

• Frequency coverage : (unit: MHz)
USA Tx: 144–148/Rx: 136–174*

1

Taiwan, Thailand, Korea Tx/Rx: 144–146
General (LM) Tx/Rx: 136–174*

1

*

1

: Guaranteed: 144–148 MHz range only

•Type of emission : FM

• Number of memory channels : 107 (incl. 6 scan edges and 1 call)

• Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30, 50 kHz

• Operating temperature range : –10°C to +60°C; +14˚F to +140˚F

•Frequency stability : ±2.5 ppm

(–10°C to +60°C; +14˚F to +140˚F)

• Power supply requirement :

Supplied (or optional) Icom’s battery
pack or 11.0 V±15% external DC power

• Current drain :

(at 7.2 V DC: approx.)

Transmit at 7 W (High) 2.6 A

at 4 W (Middle) 2.0 A
at 0.5 W (Low) 1.0 A

Receive standby 80 mA

power save 30 mA
max. audio 250 mA

• Antenna connector : BNC

(50 Ω)

• Dimensions (proj. not included) : 56(W) × 110(H) × 34.4(D) mm

27⁄32(W)×411⁄32(H)×111⁄32(D) in

(with BP-227)

•Weight (approx.) : 310 g; 12.5 oz

(with BP-227 and Ant.)

165 g; 5.8 oz

(without battery pack and Ant.)

■ Transmitter

• Modulation system : Variable reactance frequency mod.

• Output power (at 7.2 V) :
[Thailand] 5.5 W/4 W/0.5 W (High/Mid/Low)
[Others] 7 W/4 W/0.5 W (High/Mid/Low)

• Max. frequency deviation : ±5.0 kHz

• Spurious emissions : Less than –60 dBc

• Microphone connector :

3-conductor 2.5 (d) mm (1⁄10″)/2.2 kΩ

■ Receiver

• Receive system : Double-conversion superheterodyne

• Intermediate frequencies : 1st: 46.35 MHz, 2nd: 450 kHz

• Sensitivity (at 12 dB SINAD) : Less than 0.2 µV

• Squelch sensitivity (threshold) : Less than 0.16 µV

• Selectivity : More than 55 dB

• Spurious and image rejection : More than 60 dB

• Intermodulation : More than 55 dB

•

Audio output power

: More than 0.3 W at 10% distortion with

(at 7.2 V DC)

an 8 Ω load

• Ext. speaker connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω

All stated specifications are subject to change without notice or obligation.
