Icom IC-V82, IC-U82 Leaflet

VHF AND UHF TRANSCEIVERS

144MHz

430(440)MHz

High Power! Digital Capability!
Power to Go Anywhere!

Optional digital unit, UT-118

The optional UT-118 provides D-STAR format digital voice and slow
data communication. The UT -118 includes the following digital fea­tures.

Callsign calling

In the digital mode, your callsign and the receiving callsign (or CQ

message) are included in each transmission. The callsign squelch

allows you to choose an incoming call selected by the callsign.
Also, received callsigns are automatically stored in the memory.

Position exchange with external GPS receiver

When connected to an external GPS receiver*, position informa­tion can be exchanged with other stations. When the receiving
side is connected to a PC**, position monitoring is possible.

* NMEA 0183 output and RS-232C interface are required.
** Position mapping software required (Not supplied by Icom ).

And more digital features

• 20-character short data message

• Digital code squelch • EMR communication

• Digital pocket beep • Stand-by beep

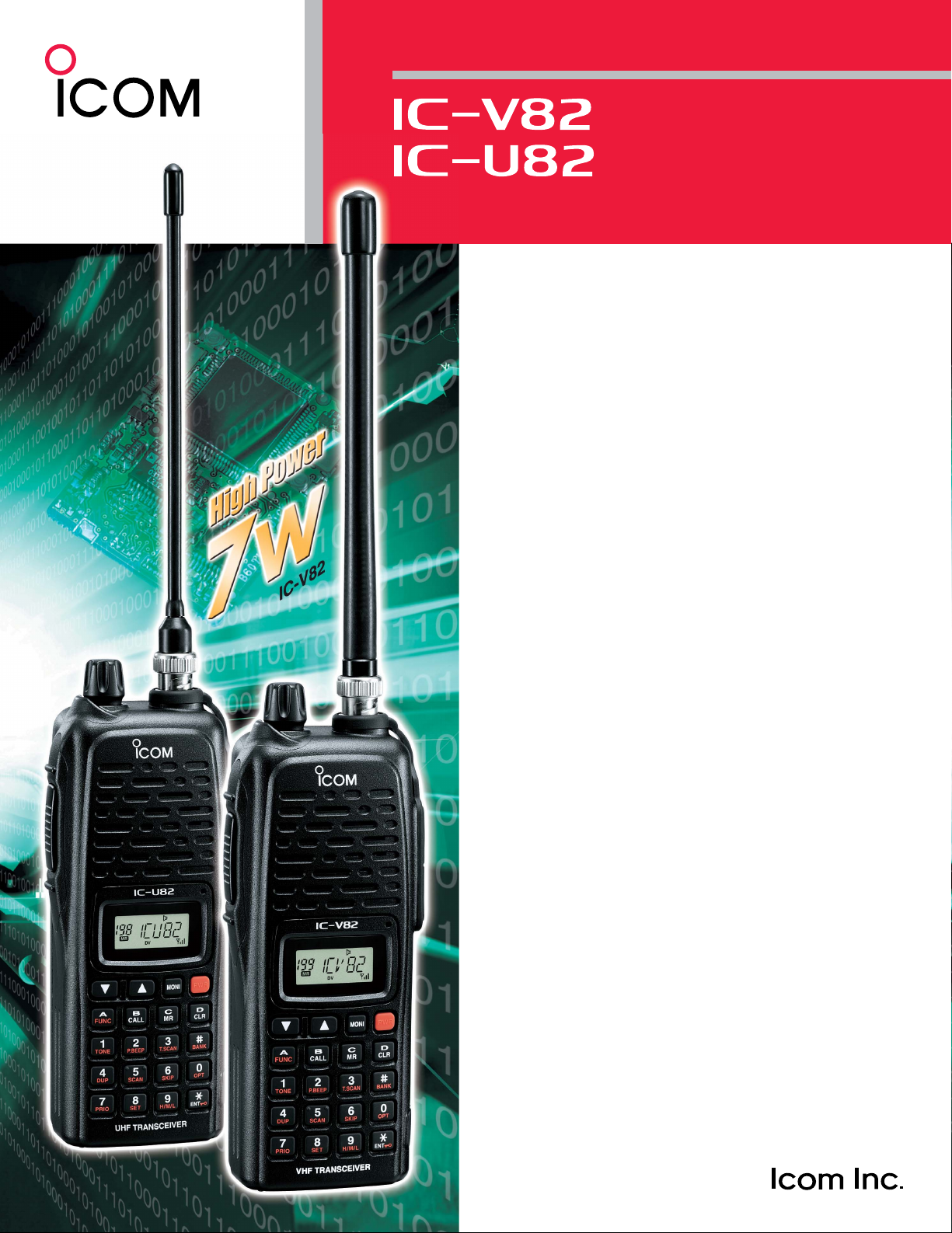

IC-U82 IC-V82

7W powerful output power

A powerful 7W* output power provides superior transmit power. All
this power is available with the supplied battery pack. Reduced
power settings also allow you to adapt to the communication con­ditions and provide longer operating time.

* 5W for UHF.

200 memory channels and 10 memory banks

Up to 200 regular memory channels can be stored with a 6-charac­ter channel name, tone and duplex settings. The memory channels
can be tagged with A-J bank name and allows you easy channel
management. In addition, use Icom’s exclusive DMS

ory Scan)

and deleting bank links.

system to scan selected memory banks by simply adding

(Dynamic Mem-

Built-in CTCSS/DTCS

Built-in CTCSS/DTCS tone codes provide quiet stand-by and allow
you to access a closed repeater. The pocket beep alerts you when
a matched tone frequency is received. The tone scan detects the
tone frequency used in the receiving frequency.

Other features

• NOAA weather channel receive * (* IC-V82 USAversion only)

• Automatic repeater function (USAversion only)

• Reversible control knob and up/down buttons assignment

• Durable construction and simple operation

• 16 DTMF dial memory

• PC cloning capability

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan Phone: [phone] Fax: [phone]

Count on us!

URL: http://www.icom.co.jp/world/index.html

Printed in Japan

2380 116th Avenue NE,
Bellevue, WA 98004, U.S.A.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomamerica.com

Communication Equipment
Himmelgeister Str. 100,
D-40225 Düsseldorf, Germany
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomeurope.com

A.B.N. 88 006 092 575
290-294 Albert Street, Brunswick,
Victoria, 3056, Australia
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icom.net.au

Unit 9, Sea St., Herne Bay,
Kent, CT6 8LD, U.K.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomuk.co.uk

Zac de la Plaine, 1,
Rue Brindejonc des Moulinais BP 5804,
31505 Toulouse Cedex, France
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icom-france.com

Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, Spain
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomspain.com

146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icom.co.nz

Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.icomcanada.com

Icom America Inc.

Icom (Europe) GmbH

Icom Spain S.L.

Icom (UK) Ltd.

Icom France S.a

Icom Canada

Icom (Australia) Pty. Ltd.

Icom New Zealand

Your local distributor/dealer:

JP98/14190QA

TW03/00288EM

Icom Inc. (Japan), is an ISO 9001 and ISO

14001 certification acquired company.

6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : [phone]
Fax : [phone]
E-mail : [e-mail]
URL : http://www.asia-icom.com

Asia Icom Inc.

1305, Wanshang Plaza, Shijingshan Road,
Beijing, China
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.bjicom.com

Beijing Icom Ltd.

Sopot, 3 maja 54, Poland
Phone : [phone]
Fax: [phone]
E-mail : [e-mail]
URL : http://www.icompolska.com.pl

Icom Polska

VHF AND UHF TRANSCEIVERS

SPECIFICATIONS

GENERAL

• Frequency coverage

Version IC-V82 IC-U82

USA

Europe 144–146 430–440

Guaranteed range *1144–148MHz, *2440–450MHz

• Mode : F3E, F2D, F7W*

• No. of memory Ch. : 207

•

Operating T emp. range

• Frequency stability : ±2.5ppm

•Power supply : 7.2V DC (6.0–10.3V DC accept-
requirement able; Icom’s battery pack only)

• Current drain

Tx High (7W/5W) 2.6A 2.0A

Max. audio 250mA 250mA

Rx Standby 80mA 80mA

Power save 30mA 30mA

(unit : MHz):

Tx 144–148*
Rx 136–174*

1

1

* Optional UT-118 required.

(incl. 6 scan edges and 1 call)

:

–10˚C to +60˚C; +14˚F to +140˚F

(–10˚C to +60˚C)

(at 7.2V DC):

IC-V82 IC-U82

Tx 420–450*
Rx 400–479*

OPTIONS

BP-209N Ni-Cd

BP-208N

AA (LR6)
batteries × 6

7.2V/1100mAh
BP-222N Ni-Cd

7.2V/600mAh

BP-210N

Ni-MH

7.2V/1650mAh

BP-211N

Li-Ion

7.4V/1800mAh

• Antenna impedance : 50Ω

• Dimensions (W×H×D) : 54 × 139 × 36.7 mm;

(Projections not included)

•Weight (approx.) : 390g; 13.8oz

2
2

(BNC)

1

⁄8 × 515⁄32 × 17⁄16

2

TRANSMITTER

• Output power
IC-V82 7.0/4.0/0.5W
IC-U82 5.0/2.0/0.5W

• Spurious emissions : Less than –60dBc

• Max. freq. deviation : ±5.0/±2.5kHz

• External

connector

Supplied accessories

● Battery case or battery pack* ● Desktop charger*

● Antenna ● Belt clip

REGULAR CHARGER RAPID CHARGERS

▼BC-147A/E

(at 7.2V DC):

microphone

: 3-conductor 2.5(d)mm (1⁄10″)

/2.2kΩ

*depending on version

in

(w/ant. and BP-222N)

(High/mid/low)
(High/mid/low)

(Wide/narrow)

▼BC-145

A/E/V

RECEIVER

• Receiving system : Double conversion super-

• Intermediate freq. : 46.35MHz/450kHz

• Sensitivity : 0.16µV

• Squelch sensitivity : 0.11µV (typ.; threshold)

• Selectivity :

• Intermodulation : 65dB (typ.)

• Spurious and image : 80dB
rejection 70dB

• Audio output power : 300mW

•

Ext. speaker connector

• Ext. Data connector : 3-conductor 2.5(d)mm (

All stated specifications are subject to change without
notice or obligation.

heterodyne

(typ.; at 12dB SINAD)

(1st/2nd)

More than 55/50dB (wide/narrow)

(typ.; VHF)
(typ.; UHF)

with an 8Ω load

: 3-conductor 3.5(d)mm (1⁄8″)/8Ω

1

⁄10″)

▼BC-124

BATTERYPACKS

AND CASE

BATTERY
LIFE

Battery life is approx. time; Tx (Hi): Rx: standby=1:1: 8 power save func­tion when set at auto.

BP-208N BP-209N BP-210N BP-211N BP-222N

VHF (7W)
UHF (5W)

–

3 h 20 min 6 hours 6 h 10 min 2 h 15 min

–

3 h 40 min 7 hours 8 h 15 min 2 h 50 min

SPEAKER-MICROPHONES

▲HM-75A

HM-75A : Allows you to remotely select operating chan-

nel, etc., according to program.

HM-131L: Compact and durable body. Equipped with an

earphone jack and a revolving clip.

HM-128L: Lightweight earphone-microphone.

▲HM-131L

▲BC-146

BC-146 DESKTOP CHARGER
+ BC-147A/E AC ADAPTER

Charges the Ni-Cd or Ni-MH battery pack, BP-209N,
BP-210N, BP-222N with/without transceiver in 12,

18.5, 6.5 hours (approx.), respectively. The BC-147
AC adapter is additionally required. Cannot charge
Li-Ion battery pack, BP-211N.

HEADSETS and
PTT/VOX UNIT

▼HS-94

▲HS-95

HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97: Throat microphone fits around your neck and picks up speech vibration.
VS-1L :PTT/VOX unit. Required when using these headsets with the transceiver.
HS-85: For hands-free operation. Includes VOX, PTT and “one-touch” PTT with a

time-out timer.

BC-144N DESKTOP CHARGER + BC-145A/E/V AC ADAPTER

For rapid charging of battery pack, BP-209N, BP-210N or BP-222N. An AC adapter, BC-145, is supplied with
the charger depending on version. Charging time: 1.5 to 2 hours. Cannot charge Li-Ion battery pack, BP-211N.
BC-119N+AD-101+BC-145A/E/V Rapidly charges BP-211N as well as other battery packs.

BC-121N MULTI-CHARGER + AD-101 CHARGER ADAPTER + BC-124 AC ADAPTER

For rapid charging of up to 6 battery packs (including BP-211N) in 1.5 to 2 hours. Six AD-101s are required.

OPC-656 DC POWER CABLE;

▲VS-1L

▲HS-97

▲BC-121N+AD-101

▲BC-144N

(6 pcs.)

For use with the BC-121N.

INTERNAL UNITS

▲UT-118

UT-108 DTMF DECODER

Provides DTMF decode and
pager capabilities.

UT-118DIGITAL UNIT

Provides digital voice and data ca­pability at 4.8kbps (Voice + Data).

04YS0180 ©2004 Icom Inc.

(12–20 V DC required)

CS-V82 CLONING SOFTWARE
+ OPC-478/U CLONING CABLE
Provides quick and easy program­ming of memory channel, names,
etc. OPC-478U is USB cable type.

OPC-474 CLONING CABLE
Use for transceiver-to-transceiver
data cloning.

MB-86/MB-103 BELTCLIPS
MB-103: Alligator type clip.

Same as supplied.

MB-86: Swivel belt clip.

MB-96N/MB-96F

LEATHER BELT HANGERS
MB-96N: Swivel belt hanger.
MB-96F: Fixed type belt hanger.

Use with MB-103.

SP-13 EARPHONE
Provides clear audio even in noisy
environments.
