Icom IC-F6022, IC-F5022 User Manual

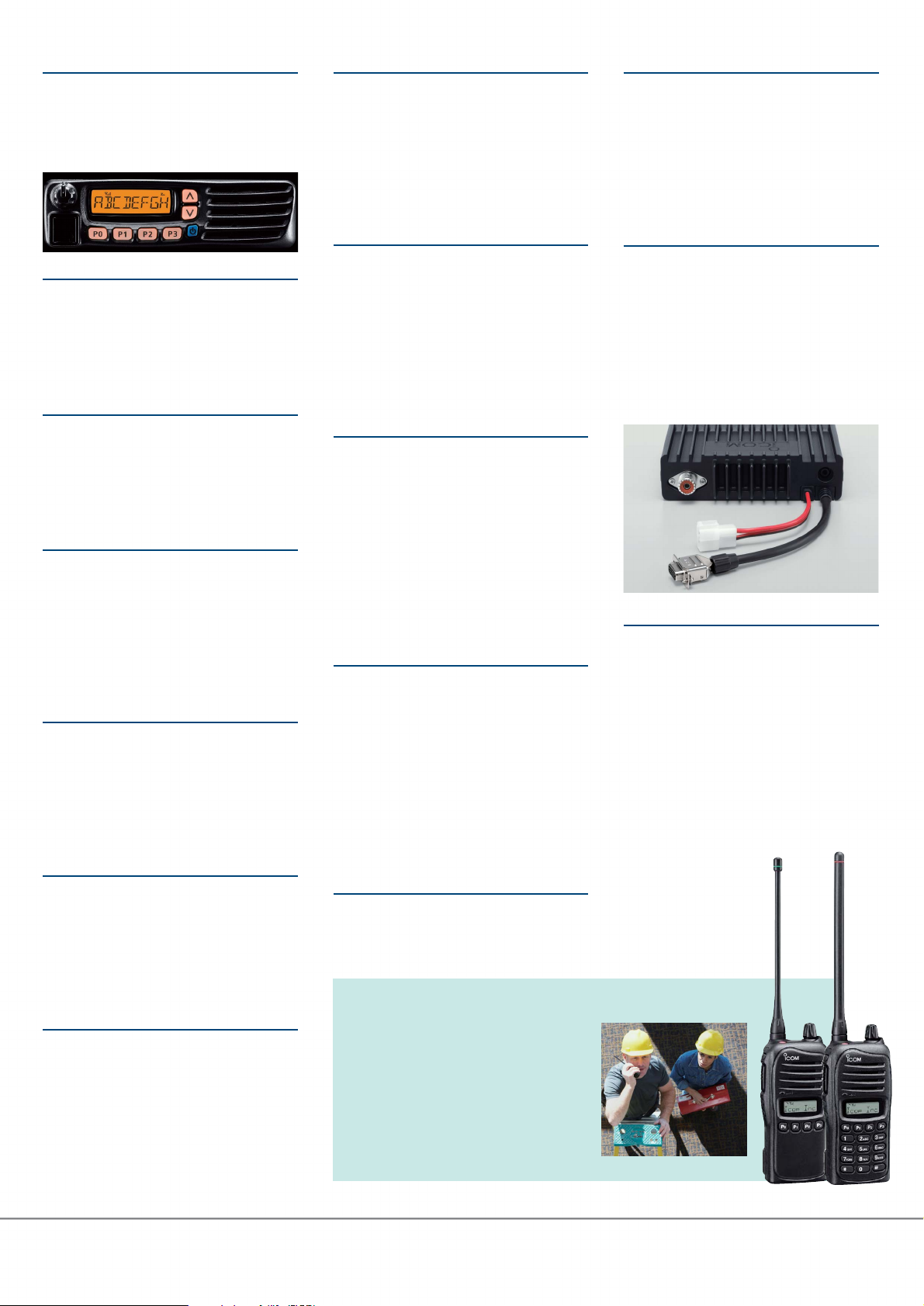

The IC-F5022 series is ideal for small-to-mid sized sys­tems for public safety, large industry to light commer­cial users.
The IC-F5022 series offers multiple signaling, ad­vanced scanning, improved external channel control
capability and wide frequency coverage packed in a
compact body . This rugged mobile easily exceeds your
expectations with its reliable performance and commu­nication quality.

Features,
Performance,
Value
For the Everyday
PMR User

25W

25W

Optional internal units

The IC-F5022 series has a 40-pin option
slot for adding an optional internal unit.
Optional voice scrambler units, UT-109R
or UT-110R provide secure private con­versation. Optional DTMF decoder unit,
UT-108R offers DTMFdecode capability.

External memory channel
control with optional ACC cable

With the optional OPC-1939 D-SUB 15­pin ACC cable, the IC-F5022 series can
be programmed to control an operating
channel from an external device

(up to 16

preprogrammed channels). The ACC con-

nector also provides an ignition sensing
function, external PTT, PC command,
horn honk, audio output and modulated
signal input depending on programming.

Other features

• BIIS 1200 PTT ID transmission

•

Microphone hanger action programmable

• Wide, middle and narrow channel spac­ing

(25, 20, 12.5kHz) programmable

(* Programmable 25/12.5kHz or 20/12.5kHz)

• Direct 5-Tone TX code channel input
from optional DTMF microphone

(HM-

152T or HM-148T)

• Time-out-timer, lock-out penalty timer
and more • 8 DTMF autodial memories

• Power-on password function

• Nuisance delete function

• Embedded ESN

128 memory channels

128 channels

(Max.) separated into 8

memory zones. Memory channels can be
identified with the 8-character channel
name and selected easily with the
up/down buttons.

Front mounted speaker

4 watts (typ.) front mounted speaker deliv­ers clear and loud audio. With the
speaker facing the operator, audio can be
clearly heard without impediment during
operation.

6 programmable buttons

Apair of up/down and P0–P3 function as­signable buttons allow you to customize
functions to meet specific needs. An inde­pendent volume knob offers simple, con­venient operation.

MIL grade rugged construction

The tough aluminum die-cast chassis and
polycarbonate front panel have been
tested to the MIL standard 810F. With this
heavy-duty construction, the IC-F5022 se­ries provides reliable operation over the
long term in all manners of rugged envi­ronments.

Most popular signalings built-in

Use the built-in 2-Tone, 5-Tone, CTCSS
and DTCS capabilities as standard to set
up your own talk groups, PTT ID and
quiet stand-by when others are talking.
The IC-F5022 series has added CTCSS/
DTCS high speed decode.

MDC 1200 compatible

The following MDC features are available
with the built-in MDC signaling.

• PTT ID

(TX/RX) • Radio check (RX)

• Radio stun (RX) • Radio revive (RX)

• Emergency TX/RX (No ACK)

• 5 alias table (Max.)

Multiple 2-T one, Multiple 5-Tone

Up to ten 2-Tone and eight 5-Tone codes
can be decoded on a channel. When a
matched tone is received, the following
items are programmable for each code.

• Beep sound • Answer back • Scan

• Bell icon • Radio stun/kill/revive

Radio kill, stun and revive

The radio kill/stun functions disable a lost
or stolen radio over the air, eliminating se­curity threats from undesired listeners.
When the stun command is received, all
functions will be temporary locked out
until the revive command is received or
the unlock password is entered.

Lone worker function

When the radio is not operated for a pre­set period, the radio sounds a beep and
requires you to push any button. If the
radio is still not operated for a specified
wait period, an emergency signal auto­matically transmits and informs co-work­ers that something may have happened
to the individual worker.

Mode dependent scan

In the mode dependent setting, the scan­ning setting is dependent on the operat­ing channel. When you change the
operating channel, the scanning list auto­matically changes to the list set for that
channel. It is convenient when you move
to a different operating area and change
operating channel, you don’t have to
change the scanning setting.

Tx channel setting and
Talk back function

The Tx channel setting allows you to pro­gram a transmission channel while scan­ning. Start channel, last detected channel,
priority and preprogrammed channel are
selectable. Prior to the Tx channel setting,
the talk back function allows you to talk on
the last detected channel, while scanning
resumes after a preset time. The user can
easily make a quick response with this
function.

Wide frequency coverage

The IC-F5022 series covers a wide fre­quency range in one version

(VHF 136–

174, UHF 400–470MHz).

The IC-F5022/F6022 series is designed
to be a

companion to our IC-F3022/F4022

series

handheld transceiver

. The number
of channels and banks, signaling formats,
programming software and voice scram­bler are compatible. Take advantage of
the shared functionality to complete your
communications requirements.

Compatible with IC-F3022/F4022 series handheld

Photo includes optional OPC-1939

• Frequency range :
IC-F5022 136–174MHz
IC-F6022 400–470MHz

• Number of Channels : Max. 128 Ch/ 8 zones

• Channel spacing : 12.5/20/25kHz

• PLL channel step : 2.5kHz, 3.125 kHz

• Antenna impedance : 50Ω

(SO-239)

• Operating temp. range :

–25˚C to +55˚C

•

Power supply requirement

: 13.2V DC

• Current drain

(approx.) :

Tx 25W 5.0A
Rx Max. audio 0.7A

Stand-by 250mA

• Dimensions

(W×H×D) : 150×40×117.5 mm

(Projections not included)

•Weight : 0.8kg

(approx.)

• Output power (VHF/UHF): 25W

(at 13.2V DC)

• Max. frequency deviation: ± 5.0/4.0/2.5kHz (W/M/N)

• Frequency error : ±1.5kHz

• Spurious emissions : 0.25µW

(≤ 1GHz)

1.0µW (> 1GHz)

• Adjacent channel power : 70/70/60dB min. (W/M/N)

•

Audio harmonic distortion

: 3% typ. (40% deviation)

• Residual modulation : 55/53/50dB typ. (W/M/N)

• Modulation limiting : 70–100% of Max. deviation

• External Mic. impedance: 600Ω(8-pin modular)

• Sensitivity : –4dBµV typ. (emf, at 20 dB

SINAD)

• Squelch sensitivity : –4dBµV typ. (at threshold)

•

Adjacent Ch. selectivity

: 75/75/65dB typ. (W/M/N)

• Spurious response : 80dB

typ.

• Intermodulation : 67dB

typ.

• Hum and noise ratio : 55/53/50dB typ. (W/M/N)

• Audio output power : 4W typ. at 5% distortion with

a 4Ω load

• External SP connector : 2-conductor 3.5

(d) mm

(

1

⁄8″)/4Ω

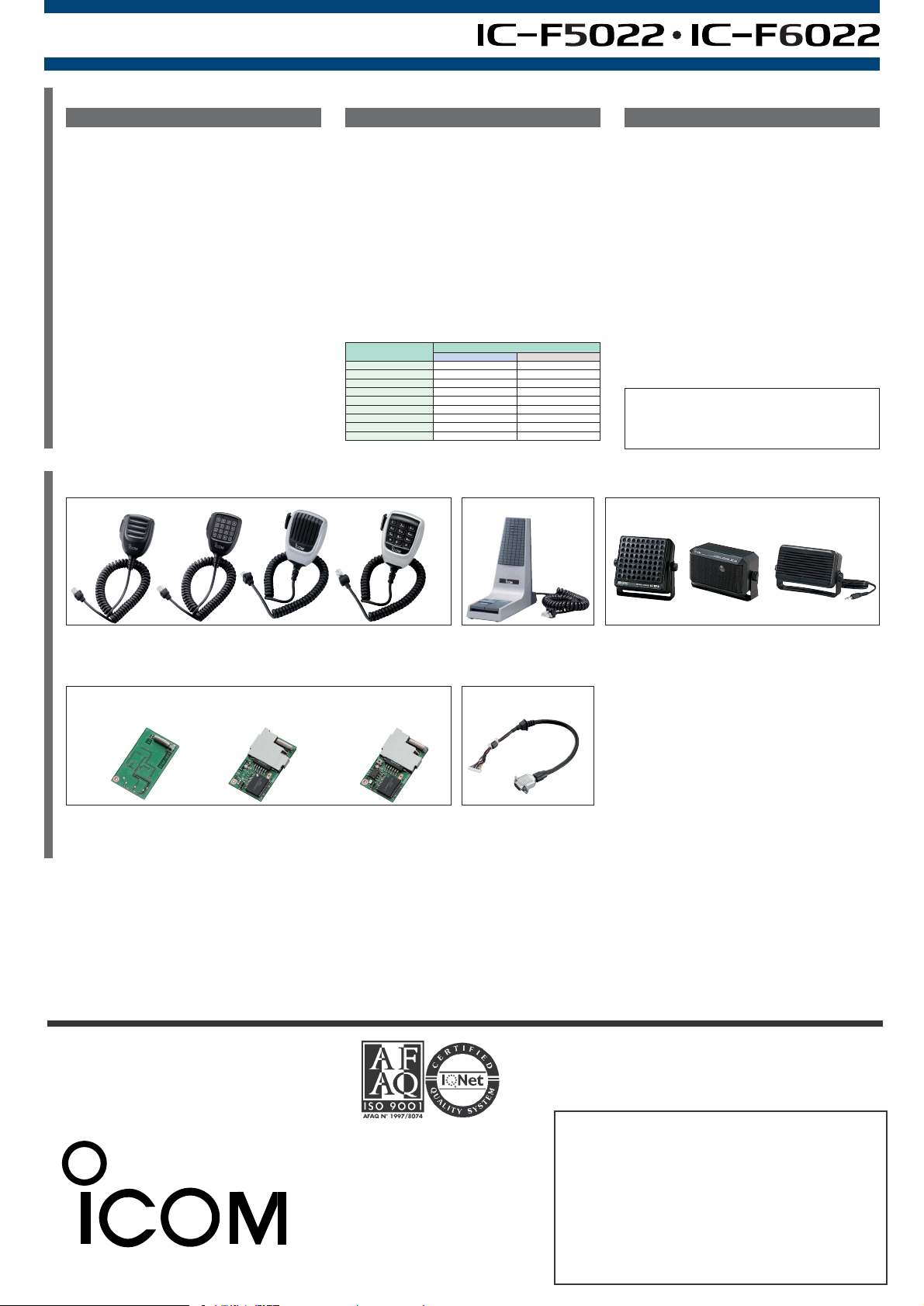

VHF AND UHF TRANSCEIVERS

SPECIFICATIONS

GENERAL TRANSMITTER RECEIVER

Measurements made in accordance with EN 300-086.
All stated specifications are subject to change without no-

tice or obligation.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.
All trademarks are the properties of their respective holders.

Standard

MIL 810F

Method Procedure

Low Pressure 500.4 I, II
High Temperature 501.4 I, II
Low Temperature 502.4 I, II
Temperature Shock 503.4 I
Solar Radiation 505.4 I
Humidity 507.4 –
Settling Dust 510.4 III
Vibration 514.5 I
Shock 516.5 I, IV
Also meets equivalent MIL-STD-810-C, -D and -E.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the
following MIL-STD requirements and strict environmental standards.

Supplied Accessories

• Hand mic. (HM-152) • DC power cable

• Mounting bracket kit • Microphone hanger

• Key assign stickers

OPTIONS

UT-108R : Provides DTMF decode capability.
UT-109R : Up to 32 scrambling codes are available.
UT-110R : Provides higher operating security. Up to 1020

(255 codes × 4 groups) scrambling

codes are available.

UT-108R DTMF DECODER

INTERNAL UNITS

Some options may not be available in some countries. Please ask your dealer for details.

EXTERNAL SPEAKERS

SP-22HM-148THM-152THM-152

HM-152 : Regular hand microphone. Same as supplied.
HM-152T : DTMF microphone.
HM-148G: Heavy duty microphone. Self-grounding type.
HM-148T : Heavy duty microphone with DTMF keypad. Self-grounding type.

HAND MICROPHONES

HM-148G

DESKTOP MICROPHONE

SM-25

Convenient for dispatching,
equipped with monitor switch.

15-pin ACC cable. For connect­ing with a PC, external speaker,
external channel control, ignition
sense line or vehicle’s horn.

SP-5 : Large external speaker.
SP-10 : Mid sized external speaker.
SP-22 : Compact and easy-to-install external speaker.

SP-10SP-5

ACC CABLE

OPC-1939

UT-109R

VOICE SCRAMBLER
UNIT

UT-110R

VOICE SCRAMBLER
UNIT
