Icom IC-F2710, IC-F2810, IC-F1710, IC-F1810 User Manual

INSTRUCTION MANUAL

UHF MOBILE TRANSCEIVER

iF2810

iF2710

VHF MOBILE TRANSCEIVER

iF1810

iF1710

Above photo shows the IC-F1810 or IC-F2810.

i

EXPLICIT DEFINITIONS

RWARNING! NEVER connect the transceiver to an

AC outlet. This may pose a fire hazard or result in an electric
shock.

NEVER connect the transceiver to a power source of more

than 16 V DC such as a 24 V battery. This connection will ruin
the transceiver.

NEVER cut the DC power cable between the DC plug and

fuse holder. If an incorrect connection is made after cutting,
the transceiver might be damaged.

NEVER place the transceiver where normal operation of

the vehicle may be hindered or where it could cause bodily
injury.

NEVER allow children to touch the transceiver.
NEVER expose the transceiver to rain, snow or any liquids.
USE the specified microphone only. Other microphones

have different pin assignments and may damage the trans­ceiver.

DO NOT use or place the transceiver in areas with tem-

peratures below –30°C or above +60°C, or in areas subject to
direct sunlight, such as the dashboard.

PRECAUTION

WORD DEFINITION

RWARNING

Personal injury, fire hazard or electric shock
may occur.

CAUTION

Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This

instruction manual contains important operating instructions
for the IC-F1710, IC-F1810, IC-F2710 and IC-F2810 VHF/
UHF MOBILE TRANSCEIVERS.

IMPORTANT

Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United states, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.

ii

AVOID operating the transceiver without running the vehi-

cle’s engine. The vehicle’s battery will quickly run out if the
transceiver transmits while the vehicle’s engine OFF.

AVOID placing the transceiver in excessively dusty envi-

ronments.

AVOID placing the transceiver against walls. This will

obstruct heat dissipation.

AVOID the use of chemical agents such as benzine or

alcohol when cleaning, as they damage the transceiver sur­faces.

BE CAREFUL! The transceiver will become hot when

operating continuously for long periods.

iii

TABLE OF CONTENTS

IMPORTANT ....................................................................................... i

EXPLICIT DEFINITIONS .................................................................... i

PRECAUTION .................................................................................... i

TABLE OF CONTENTS .................................................................... iii

1 PANEL DESCRIPTION .............................................................. 1–7

■ Front panel .................................................................................. 1

■ Function display .......................................................................... 2

■ Programmable function keys ...................................................... 3

2 BASIC OPERATION ................................................................ 8–13

■ Turning power ON ....................................................................... 8

■ Channel selection ....................................................................... 8

■ Call procedure ............................................................................ 9

■ Receiving and transmitting ......................................................... 9

D Transmitting notes.................................................................. 10

D TX code channel selection ..................................................... 10

D TX code number edit .............................................................. 11

D DTMF transmission ................................................................ 12

■ Scrambler function .................................................................... 12

■ User set mode .......................................................................... 13

3 BIIS OPERATION ................................................................... 14–24

■ Default setting ........................................................................... 14

■ Receiving a call ......................................................................... 14

D Individual call.......................................................................... 14

D Group call............................................................................... 15

D Displaying the received call record—Queue indication.......... 15

■ Transmitting a call ..................................................................... 16

D Using call memory.................................................................. 16

D Calling back from the queue channel..................................... 16

D Direct code entry .................................................................... 17

■ Receiving a message ............................................................... 18

D Receiving a status message .................................................. 18

D Receiving an SDM (Short Data Message) ............................. 18

D Received message selection.................................................. 19

■ Transmitting a status ................................................................. 20

D General................................................................................... 20

D Transmitting a status.............................................................. 20

■ Transmitting an SDM (Short Data Message) ............................. 21

D General................................................................................... 21

D Transmitting an SDM.............................................................. 21

D Programming an SDM memory.............................................. 22

■ Position data transmission ........................................................ 23

■ Printer connection ..................................................................... 23

■ Digital ANI ................................................................................. 23

■ Auto emergency transmission ................................................... 23

■ Stun function ............................................................................. 24

■ BIIS indication ........................................................................... 24

■ Priority A channel selection ....................................................... 24

■ Horn output ............................................................................... 24

4 CONNECTION AND MAINTENANCE ................................... 25–29

■ Rear panel connection .............................................................. 25

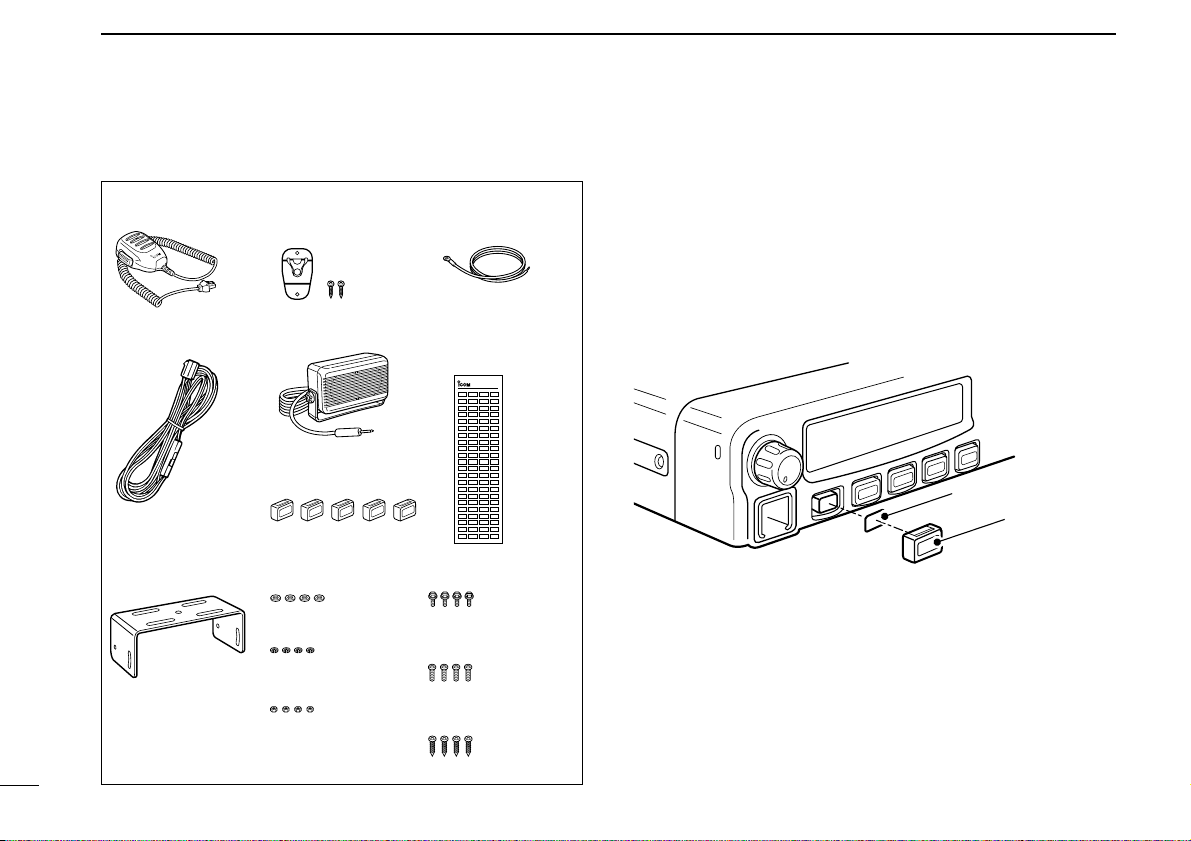

■ Supplied Accessories ................................................................ 26

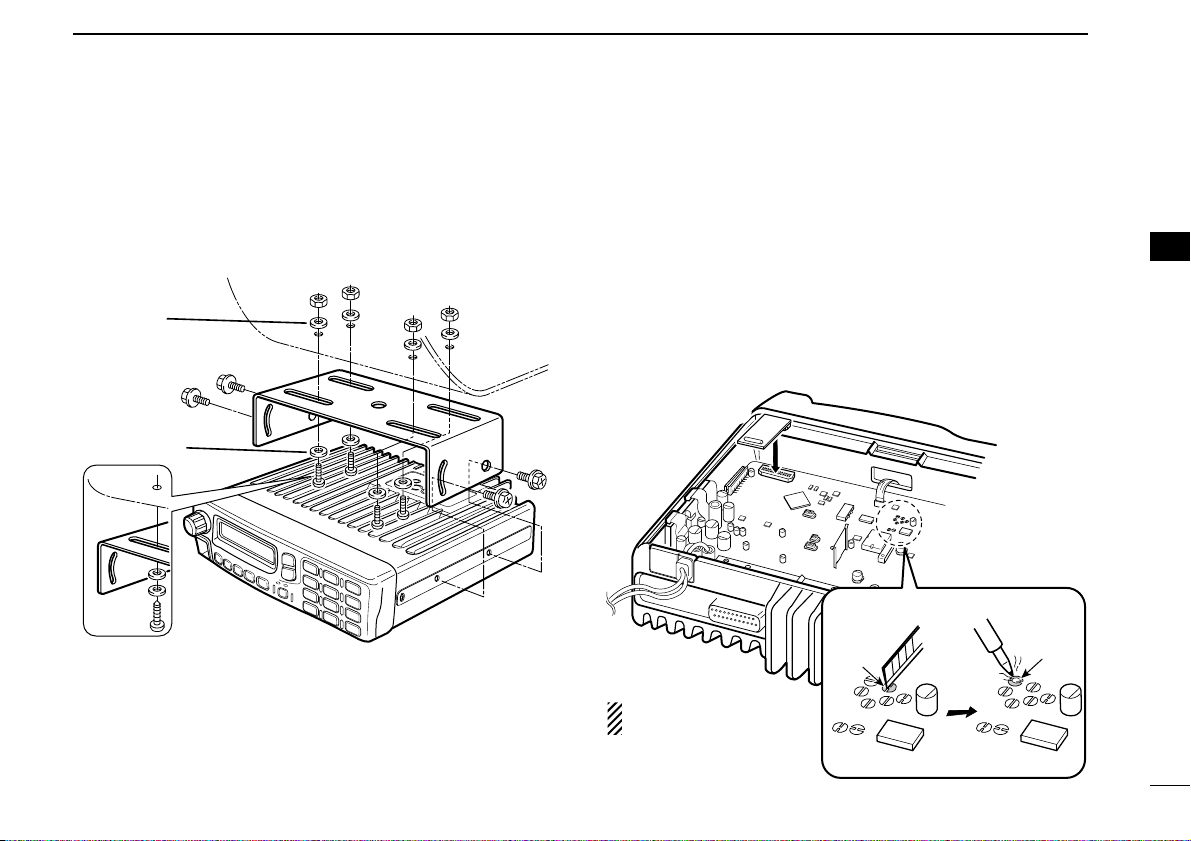

■ Mounting the transceiver ........................................................... 27

■ Optional UT-111 installation ...................................................... 27

■ Optional UT-109 or UT-110 installation ..................................... 28

■ Optional OPC-617 installation ................................................... 28

■ Antenna...................................................................................... 29

■ Fuse replacement ..................................................................... 29

■ Cleaning .................................................................................... 29

■ Options ..................................................................................... 29

5 DOC .............................................................................................. 30

1

1

PANEL DESCRIPTION

1

Icom Inc

yoruti

q

e*w

e*

IC-F1710

IC-F1810

F2710

F2810

■ Front panel

q AF VOLUME CONTROL KNOB

Rotate the knob to adjust the audio output level.

• Minimum audio level is pre-programmed.

w FUNCTION DISPLAY (p. 2)

Displays a variety of information, such as an operating
channel number/name, 5-tone code, DTMF numbers and
audible condition, etc.

e DIAL or UP/DOWN KEYS

• IC-F1710, F2710: DIAL
Rotate to select an operating channel, etc.

• IC-F1810, F2810: UP/DOWN Keys
Push to select an operating channel, etc.

*The desired function can be assigned by your dealer. (p. 3)

r 10-KEYPAD (IC-F1810 or IC-F2810 only)

The keypad allows you to enter digits to:

• Select memory channels, tone channels and DTMF codes
(when in the DTMF code channel selection mode)

• Set TX codes and BIIS status number

• Input text message for SDM operation

• Start up with a password

t BUSY INDICATOR

Lights green while receiving a signal, or when the squelch
is open.

2

1

PANEL DESCRIPTION

y POWER SWITCH [POWER]

Push to turn the power ON and OFF.

• The following functions are available at power ON as options:

- Automatic scan start

- Password prompt

- Set mode

u TRANSMIT INDICATOR

Lights red while transmitting.

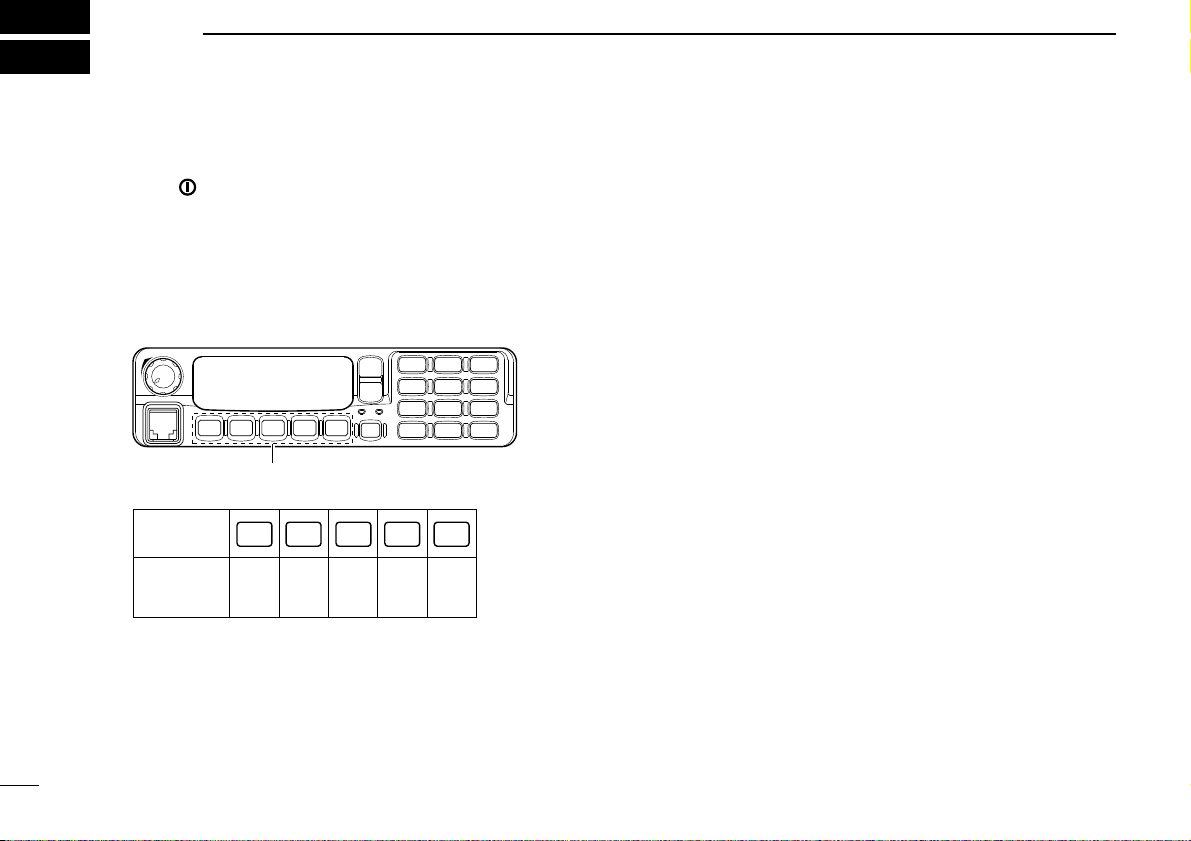

i DEALER-PROGRAMMABLE KEYS

Desired functions can be programmed independently by
your dealer. (p. 3)

In this instruction manual, these keys are from the left,
called [P0]/[P1]/[P2]/[P3]/[P4].

o MICROPHONE CONNECTOR

Connect the supplied microphone or optional DTMF micro­phone.

NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.

DD

MICROPHONE

The supplied microphone has a PTT switch and a hanger
hook.

• The following functions are available when the microphone is on or
off hook:

- Automatic scan start when on hook.

- Automatic priority channel selection when off hook.

- Sets to ‘Inaudible’ condition (mute condition) when on hook.

- Sets to ‘Audible’ condition (unmute condition) when off hook.

■ Function display

q SIGNAL STRENGTH INDICATOR

Indicates relative signal strength level.

w LOW POWER INDICATOR

Appears when low output power is selected.

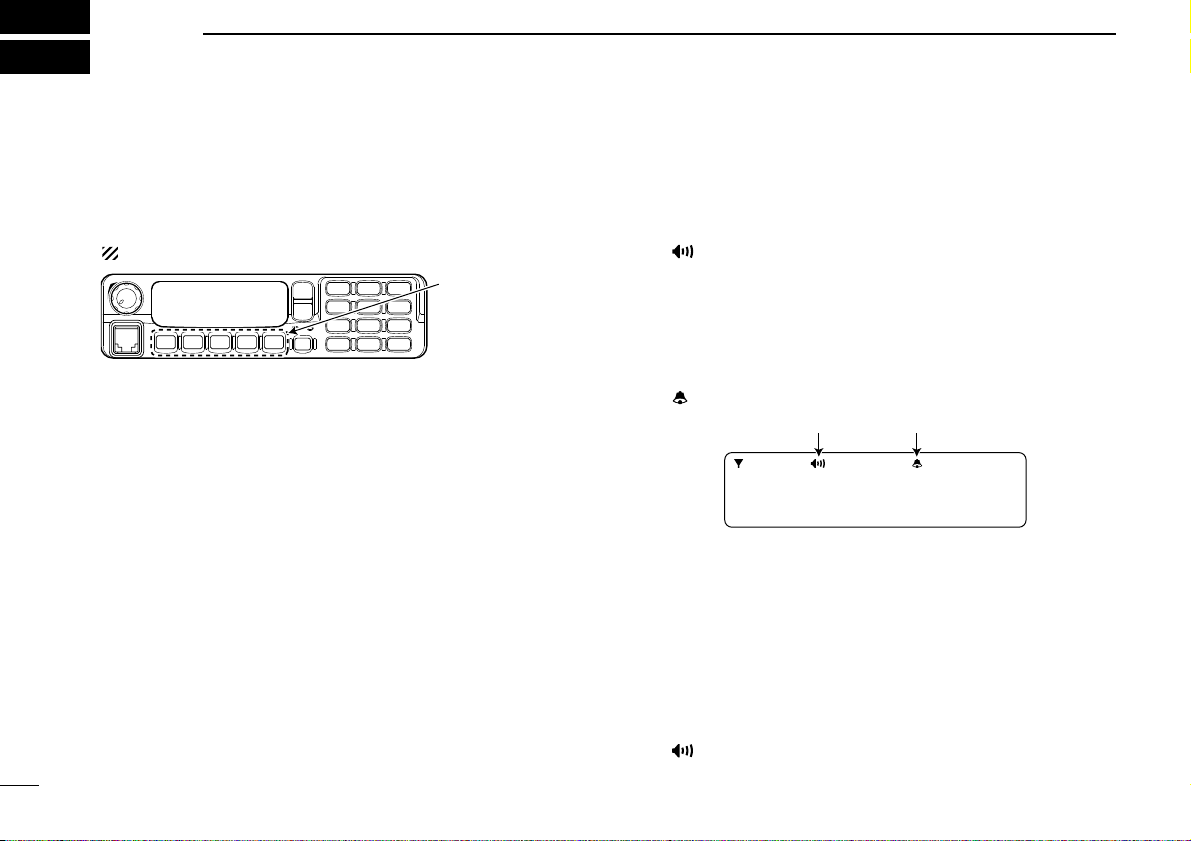

e AUDIBLE INDICATOR

➥ Appears when the channel is in the ‘audible’ (unmute)

condition.

➥ Appears when the specified 5-tone/BIIS code is

received.

r COMPANDER INDICATOR

Appears when the compander function is activated.

t SCRAMBLER INDICATOR

Appears when the voice scrambler function is activated.

136.1 Nar

q w e rty uio

!1

!0

3

1

PANEL DESCRIPTION

1

y BELL INDICATOR

Appears/blinks when the specific 5-tone/BIIS code is
received, according to the pre-programming.

u CALL CODE MEMORY INDICATOR

Appears when the call code memory is selected.

i SDM MEMORY INDICATOR

Appears when the SDM memory is displayed.

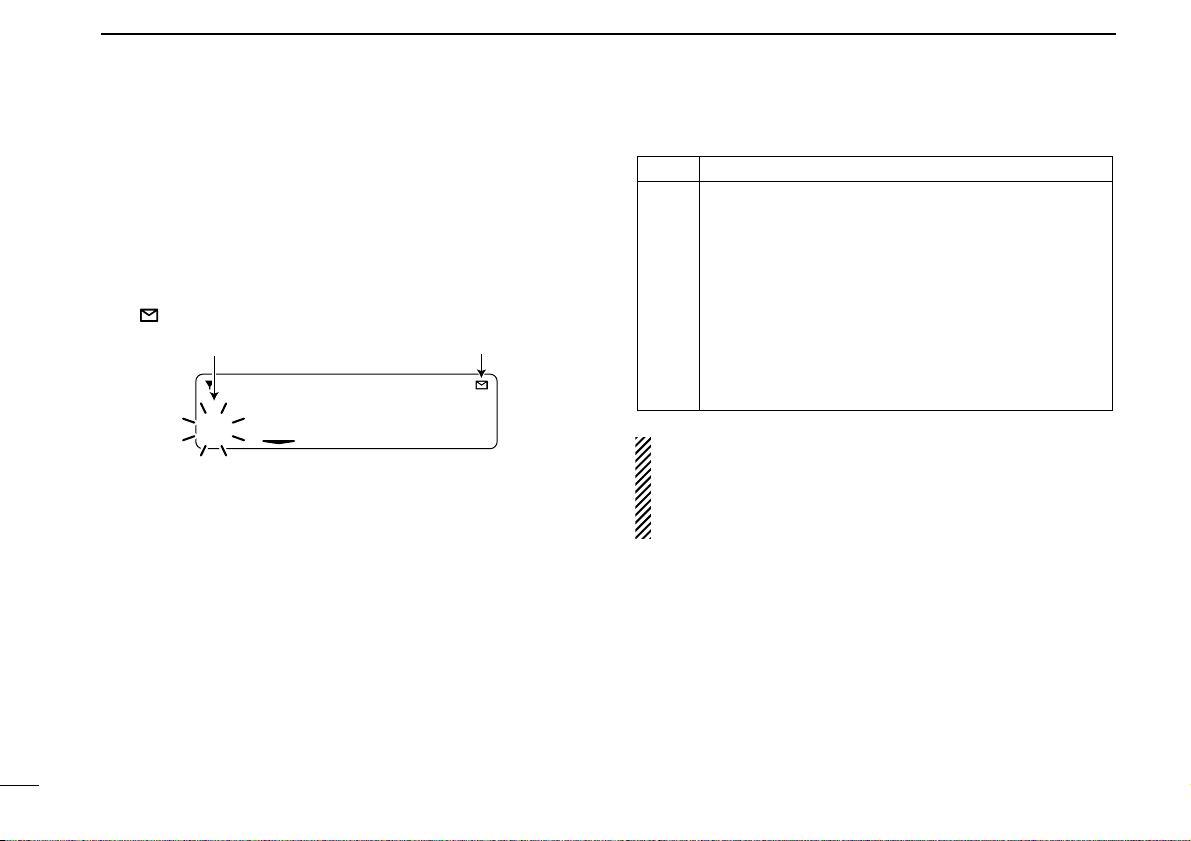

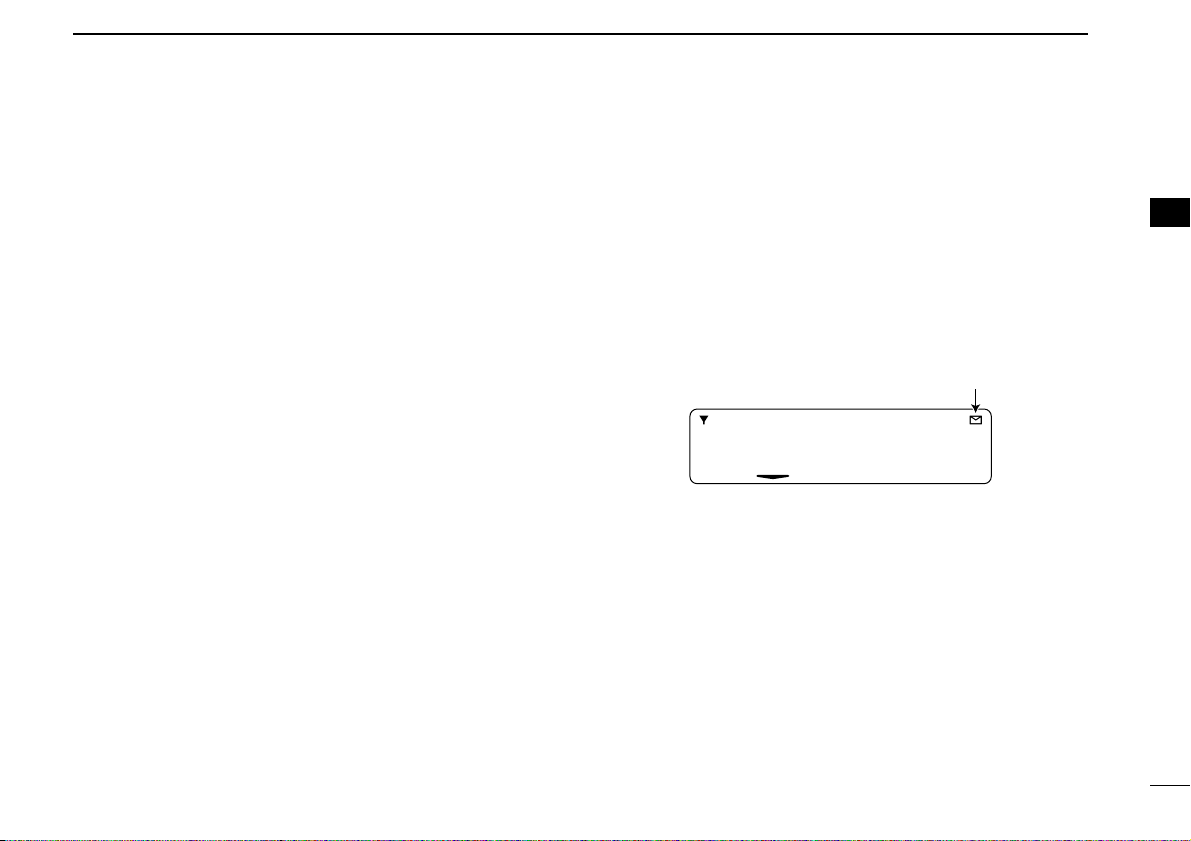

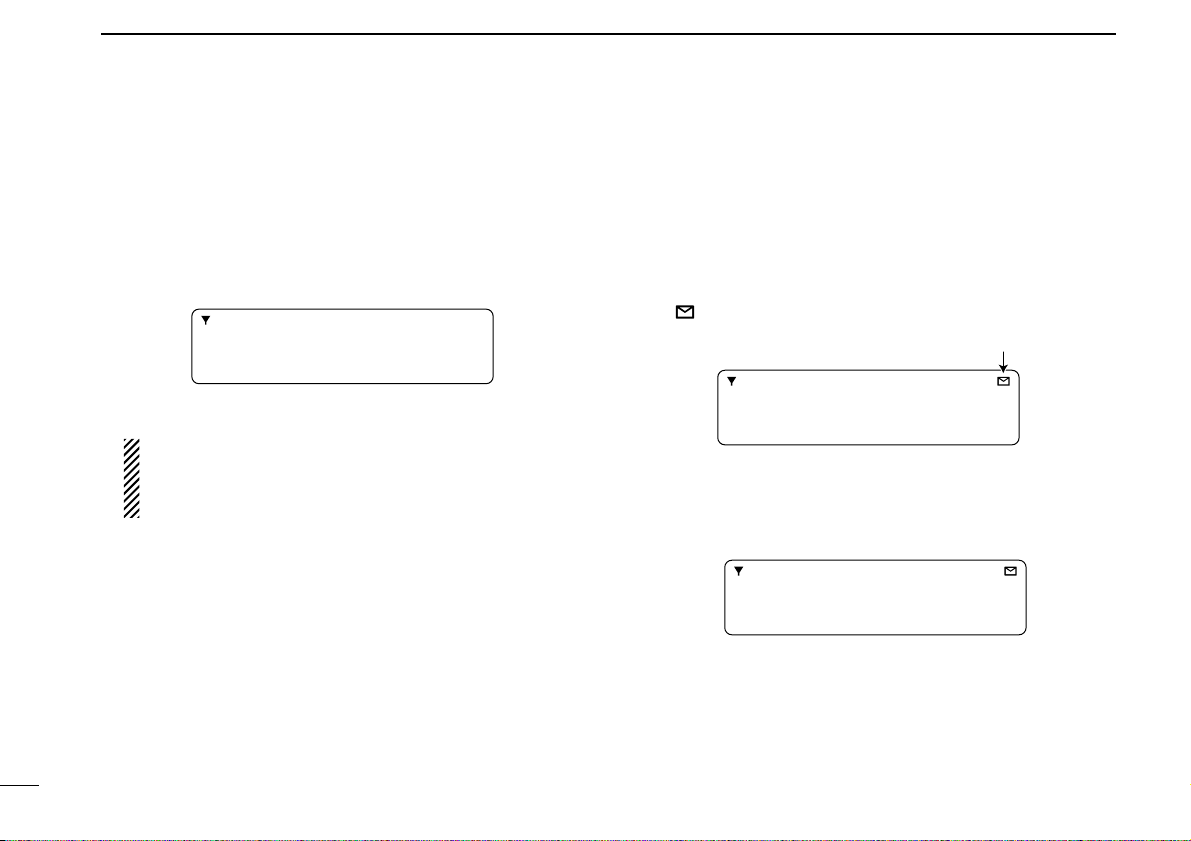

o SDM INDICATOR

Appears when an SDM is received, or a transmit SDM is
selected.

!0 ALPHANUMERIC DISPLAY

Displays an operating channel number, channel name, Set
mode contents, DTMF code, etc.
The indication mode can be selected from 1 line or 2 lines.
Ask your dealer for details.
In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.

!1 ACTIVATED KEY INDICATOR

Appears above the key assigned as [DIGITAL] key when
that key has been activated.

■ Programmable function keys

The following functions can be assigned to [DIAL]*, [UP],
[DOWN], [P0], [P1], [P2], [P3] and [P4] programmable func-

tion keys.
Consult your Icom dealer or system operator for details con­cerning your transceivers programming.
If the programmable function names are bracketed in the fol­lowing explanations, the specific key is used to activate the
function depends on the programming.
*The functions you can assign to [DIAL] are limited.

(Only functions marked with ✩ can be assigned.)

✩ CH UP AND DOWN KEYS
➥ Push (or Rotate)* to select an operating channel.
➥ Push (or Rotate)* to select a transmit code channel after

pushing [TX Code CH Select].

➥ Push (or Rotate)* to select a DTMF channel after pushing

[DTMF Autodial].

➥ Push (or Rotate)* to select a scan group after pushing and

holding [Scan A Start/Stop]/[Scan B Start/Stop].

➥ Push (or Rotate)* to select a BIIS code, status number or

SDM after pushing [Digital].

*Rotate when this function is assigned to [DIAL].

✩ ZONE UP AND DOWN KEY

(This function is for [DIAL] only)

Rotate to select the desired zone.

4

1

PANEL DESCRIPTION

ZONE KEY

Push this key, then select the desired zone using [CH Up]/
[CH Down].

What is “zone”?—The desired channels are assigned
into a zone according to the intended use for grouping.
For example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into a
“Private” zone.

SCAN A START/STOP KEY

➥ This key’s operation depends on the Power ON Scan setting.

When the power ON scan function is turned OFF;

Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.

When the power ON scan function is turned ON;

Push to pause scanning. Scanning resumes after a speci­fied time period has passed. In case of transmission during
scan, pauses scanning. Scanning resumes after a specified
time period has passed after the transmission is finished.

➥ Push and hold this key for 1 sec. to indicate the scan group,

then select the desired group using [CH Up]/[CH Down].

SCAN B START/STOP KEY

➥ Push to start and cancel scanning operation. In case of

transmission during scan, pauses scanning. Scanning
resumes after a specified time period has passed after the
transmission is finished.

➥ Push and hold this key for 1 sec. to indicate the scan

group, then select the desired group using [CH Up]/
[CH Down].

SCAN ADD/DEL (TAG) KEY

Push to add or delete the selected channel to/from the scan
group.

PRIO A/B KEYS

➥ Push to select Priority A or Priority B channel.
➥ Push and hold [Prio A (Rewrite)] to rewrite the Prio A chan-

nel.

MR-CH 1/2/3/4 KEYS

Push to select an operating channel directly.

MONI (AUDI) KEY

Activates one of (or two of) the following functions on each
channel independently:

• Push and hold to un-mute the channel (audio is emitted; ‘Audible’
condition).

• Push to mute the channel (sets to ‘Inaudible’ only).

• Push to un-mute the channel (sets to ‘Audible’ only).

• Push after the communication is finished to send a ‘reset code’.

NOTE: The un-mute condition (‘Audible’ condition) may
automatically return to the mute condition (‘Inaudible‘ con­dition) after a specified period depending on programming.

5

1

PANEL DESCRIPTION

1

PUBLIC ADDRESS KEY

While in the hailer mode, push this key for the audio output
via the hailer amplifier. Ask your dealer for details.
While in the normal mode, the audio output via the cable can
be controlled from the transceiver separately from [VOL] con­trol knob when an optional OPC-617

ACC CABLE

is installed.

•This audio output can be used as a ‘public address’ function when
an external audio amplifier and speaker are connected additionally.

•Push this key, then speak into the microphone while pushing the
PTT switch.

• [CH Up]/[CH Down] allow you to set the audio output level from min­imum to maximum.

RX SPEAKER KEY

While in the hailer mode, the external speaker drive function
is also available simultaneously when the external connec­tions are made for the ‘public address’ function. The received
audio can be heard via the external speaker when this key is
pushed.

•This function is useful when you are out of the vehicle.

•The audio output level is linked to the transceiver’s volume control.

LIGHT KEY

Push to turn the transceiver’s backlight ON for about 5 sec.
when the backlight function is turned OFF in user set mode.

LOCK KEY

Push and hold to electronically lock all programmable keys
except the following:
[Call] (incl. Call A and Call B), [Moni(Audi)] and [Emergency].

HIGH/LOW KEY

Push to select the transmit output power temporarily or per­manently, depending on the pre-setting.

•Ask your dealer for the output power level for each selection.

C.TONE CH ENT KEY

Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting after
pushing this key. The selected channel remains set as the
continuous tone channel until another channel is designated
as such.

TALK AROUND KEY

Turn the talk around function ON and OFF.

•The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.

WIDE/NARROW KEY

Push to toggle the IF bandwidth between wide and narrow.

• The wide passband width can be selected from 25.0 or 20.0 kHz

using the CS-F70/F1700

CLONING SOFTWARE

. Ask your Dealer for

details.

DTMF AUTODIAL KEY

➥ Push to enter the DTMF channel selection mode. Then

select the desired DTMF channel using [CH Up]/[CH Down].

➥ After selecting the desired DTMF channel, push this key to

transmit the DTMF code.

6

1

PANEL DESCRIPTION

RE-DIAL KEY

Push to transmit the last-transmitted DTMF code.

CALL KEYS

Push to transmit a 5-tone/BIIS ID code.

•Call transmission is necessary before calling another station
depending on your signalling system.

•[Call A] and/or [Call B] may be available when your system employs
selective ‘Individual/Group’ calls. Ask your dealer which call is
assigned to each key.

EMERGENCY KEYS

➥ Push and hold to transmit an emergency call.
➥ When [Emergency Single (Silent)] or [Emergency Repeat

(Silent)] is pushed, an emergency call is transmitted without
a beep emission and LCD indication change.*

• If you want to cancel the emergency call, push (or push and
hold) the key again before transmitting the call.

• The emergency call is transmitted one time only or repeatedly
until receiving a control code depending on the pre-setting.

*BIIS PMR operation only

SURVEILLANCE KEY

Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and
the LCD backlight does not light when a signal is received or
a key is pushed, etc.

TX CODE ENTER KEY

Push to enter the ID code edit mode directly, for both 5-tone
and BIIS. Then set the desired digit using [CH Up]/
[CH Down] or 10-keypad*. (p. 11)
*IC-F1810 or IC-F2810 only

TX CODE CHANNEL SELECT KEY

➥ Push to enter the ID code channel selection mode directly.

Then set the desired channel using [CH Up]/[CH Down].
(p. 10)

➥ During ID code channel selection mode, push for 1 sec. to

enter the ID code edit mode for 5-tone and BIIS. Then set
the desired digit using [CH Up]/[CH Down] or 10-keypad*.
(p. 11)
*IC-F1810 or IC-F2810 only

✩ TX CODE CHANNEL UP/DOWN KEYS

Push (or Rotate)* to select a TX code channel directly.
*Rotate when this function is assigned to [DIAL].

ID-MR SELECT KEY

➥ Recalls detected ID codes.

•Push this key, then select the ID code using [CH Up]/[CH Down].

• Up to 5 ID’s are memorized.

➥ Push and hold to erase the selected ID’s.

SCRAMBLER KEY

Push to toggle the voice scrambler function ON and OFF.

7

1

PANEL DESCRIPTION

1

COMPANDER KEY

Push to toggle the compander function ON and OFF.
The compander function reduces noise components from the
transmitted audio to provide clear communication.

HOOK SCAN KEY

When the hook on scan function is turned ON, push this key
to stop scanning temporarily. Push this key again to re-start
scanning.

USER SET MODE KEY

➥ Push and hold to enter user set mode.

• During user set mode, push this key to select an item, and
change the value or condition using push [CH Up]/[CH Down].

➥ Push and hold this key again to exit user set mode.
User set mode is also available via the ‘Power ON function.’
Refer to p. 13 also.

OPT 1/2/3 KEYS

Push to control the output signal level of the optional ports in
the optional unit connector.

DIGITAL BUTTON KEY (BIIS operation only)
➥ Push to select the call ID list, transmit message and stand-

by condition. Toggles between queue channel and
received message record indication after queue channel is
selected.

➥ Push and hold to select queue channel indication.

✩ STATUS UP/DOWN KEYS (BIIS operation only)
➥ While in the standby condition, push (or rotate)* to display

the transmit status indication and select a status number.

➥ When a received SDM is displayed, push (or rotate)* to

cancel the automatic scroll and scroll the message manu­ally.

➥ When an SDM that contains more than 12 characters is

displayed, push (or rotate)* to scroll the message manually.

*Rotate when this function is assigned to [DIAL].

8

2

BASIC OPERATION

■ Turning power ON

q Push []to turn the power ON.
w If the transceiver is programmed for a start up password,

input the digit codes as directed by your dealer.

• 10-keypad* can be used for password input.
*IC-F1810 or IC-F2810 only

• The keys as below can be used for password input:
The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.

e When the “PASSWORD” indication does not clear after

inputting 6 digits, the input code number may be incorrect.
Turn the power off and start over in this case.

■ Channel selection

Several types of channel selections are available. Methods
may differ according to your system set up.

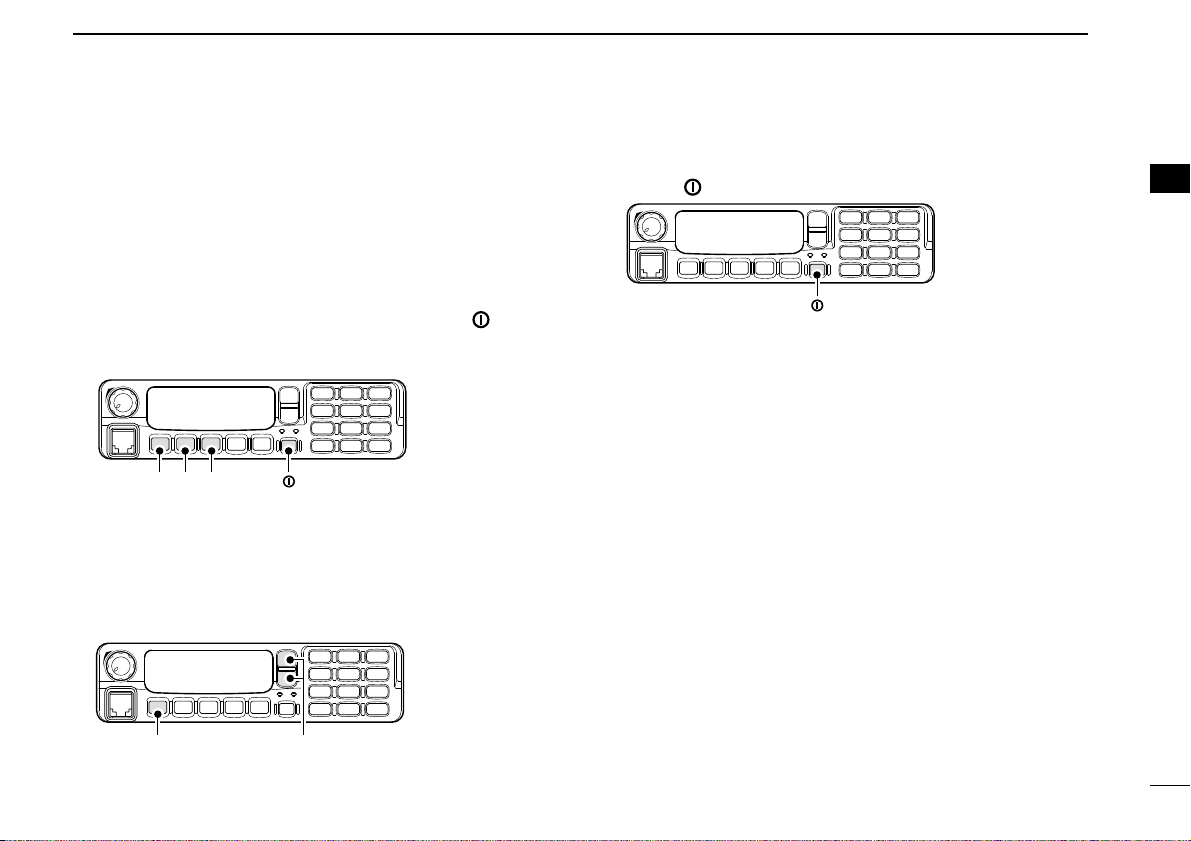

NON-ZONE TYPE:

Push [CH Up] or [CH Down], or rotate [CH Up/Down] to select
the desired operating channel, in sequence; or, push one of
[MR-CH 1] to [MR-CH 4] keys to select a channel directly.

ZONE TYPE:

Push [Zone] then push [CH Up] or [CH Down], or rotate [Zone
Up/Down] to select the desired zone.

AUTOMATIC SCAN TYPE:

Channel setting is not necessary for this type. When turning
power ON, the transceiver automatically starts scanning.
Scanning stops when receiving a call.

KEY

NUMBER

0

5

4

9

3

8

2

7

1

6

P0 P4P3P2P1

P0 P4P3P2P1

In this instruction manual, these keys are
from the left, called [P0]/[P1]/[P2]/[P3]/[P4].

9

2

BASIC OPERATION

2

■ Call procedure

When your system employs tone signaling (excluding CTCSS
and DTCS), the call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec­tive calling system which allows you to call specific station(s)
only and prevent unwanted stations from contacting you.

q Select the desired TX code channel or 5-tone code

according to your System Operator’s instructions.

• This may not be necessary depending on programming.

• Refer to pgs. 10–11 for selection.

w Push the call key (assigned to one of the dealer program-

mable keys) or [PTT].

e After transmitting, the remainder of your communication

can be carried out in the normal fashion.

■ Receiving and transmitting

Receiving:

q Push [ ] to turn the power ON.
w Push [CH Up] or [CH Down], or rotate [CH Up/Down] to

select a channel, in sequence.

e When receiving a call, adjust the audio output level to a

comfortable listening level.

Transmitting:

Wait for the channel to become clear to avoid interference.
q Take the microphone off hook.

• 5-tone mute may be released. (The ‘audible’ condition is select­ed and BUSY indicator lights green.)

• A priority channel may be selected automatically.

w Wait for the channel to become clear.

• The channel is busy when BUSY indicator lights green.

e Push [CALL] when initiating a call from your side.

• Coded audio may be heard from the transceiver, then “”
appears.

• This operation may not be necessary depending on your signal­ing system. Ask your dealer for details.

r While pushing and holding [PTT], speak into the micro-

phone at your normal voice level.

t Release [PTT] to receive.

IMPORTANT: To maximize the readability of your signal;

1. Pause briefly after pushing [PTT].

2. Hold the microphone 5 to 10 cm from your mouth, then
speak into the microphone at a normal voice level.

Selective calling

Non-selective calling

10

2

BASIC OPERATION

D Transmitting notes

• Transmit inhibit function

The transceiver has several inhibit functions which restrict
transmission under the following conditions:

- The channel is in mute condition (‘Inaudible’ condition;
“”does not appear.)

- The channel is busy.

- Un-matched (or matched) CTCSS is received.
(Depending on the pre-setting.)

- The selected channel is a ‘receive only’ channel.

• Time-out timer

After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the transceiv­er to stop transmitting.

• Penalty timer

Once the time-out timer is activated, transmission is further
inhibited for a period determined by the penalty timer.

D TX code channel selection

If the transceiver has [TX Code CH Select] assigned to it, the
indication can be toggled between the operating channel
number (or name) and TX code channel number (or name).
When the TX code channel number (or name) is displayed,
[CH Up]/[CH Down] selects the TX code channel.

USING [TX CODE CH SELECT] KEY:

q Push [TX Code CH Select]— a TX code channel number

(or name) appears.

w Push [CH Up] or [CH Down], or rotate [CH Up/Down] to

select the desired TX code channel.

e Push [Call] (or [PTT] during BIIS operation) to transmit the

selected TX code.

USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:

If the transceiver has a [TX Code CH Up], [TX Code CH
Down] or [TX Code CH Up/Down] key assignment, the pro­grammed TX code channel can be selected directly when
pushed or rotated.

NOTE for PMR or BIIS PMR operation:

• The LCD indication does not change when the operating
channel number (or name) is displayed. (Depending on
the pre-setting)

• To check the selected TX code, push [TX Code CH
Select].

11

2

BASIC OPERATION

2

D TX code number edit

If the transceiver has [TX Code CH Select] or [TX Code
Enter] assigned to it, TX code contents can be edited within
the allowable digits.

USING [TX CODE CH SELECT] KEY:

q Push [TX Code CH Select] to enter the TX code channel

selection mode.

• Select the desired channel before entering the TX code channel
selection mode if necessary.

w Push [TX Code CH Select] for 1 sec. to enter the TX code

edit mode.

e Push [TX Code CH Select] to select the desired digit to be

edited.

• The digit to be edited blinks.

r Push [CH Up], [CH Down] or 10-keypad*, or rotate [CH

Up/Down] to set the desired digit.

t Push [TX Code CH Select] to set the digit. The digit to the

right will blink automatically.

• When the 10-keypad* is used for setting, the digit to the right will
blink automatically without pushing [TX Code CH Select].

y Repeat r and t to input all allowable digits.
u Push [Call] or [PTT] to transmit the edited TX code.

*IC-F1810 or IC-F2810 only

USING [TX CODE ENTER] KEY:

q Select the desired TX code channel via [TX Code CH

Select]+[CH Up] or [CH Down], [TX Code CH Up], [TX
Code CH Down] or [TX Code CH Up/Down].

w Push [TX Code Enter] to enter the TX code edit mode.
e Push [TX Code Enter] to select the desired digit to be edit-

ed.

• The digit to be edited blinks.

r Push [CH Up], [CH Down] or 10-keypad*, or rotate [CH

Up/Down] to set the desired digit.

t Push [TX Code Enter] to set the digit. The digit to the right

will blink automatically.

• When the 10-keypad* is used for setting, the digit to the right will
blink automatically without pushing [TX Code CH Select].

y Repeat r and t to input all allowable digits.
u Push [Call] or [PTT] to transmit the edited TX code.

*IC-F1810 or IC-F2810 only

12

2

BASIC OPERATION

D DTMF transmission

If the transceiver has [DTMF Autodial] assigned to it, the auto­matic DTMF transmission function is available. Up to 8 DTMF
channels are available.

TO SELECT A TX CODE:

q Push [DTMF Autodial]— a DTMF channel appears.
w Push [CH Up] or [CH Down], or rotate [CH Up/Down] to

select the desired DTMF channel.

e Push [DTMF Autodial] to transmit the DTMF code in the

selected DTMF channel.

■ Scrambler function

The voice scrambler function provides private communication
between stations. The frequency inversion type is equipped
to all versions, moreover, the optional Rolling or Non-rolling
type can be available.

q Push [Scrambler] to turn the scrambler function ON.

• “ ” appears.

w Push [Scrambler] again to turn the scrambler function

OFF.

• “ ” disappears.

13

2

BASIC OPERATION

2

■ User set mode

User set mode is accessed with [User Set Mode] and allows
you to set seldom-changed settings. In this case you can
“customize” the transceiver operation to suit your preferences
and operating style.

Entering the user set mode:

q While pushing and holding [P1] and [P2], push []to turn

the power ON. Then, push and hold [P0] to enter user set
mode.

w Push [P0] several times to select the appropriate item.

Then, push [Up] or [Down] or rotate [DIAL] to set the
desired level/condition.

• Available set mode functions are Backlight, LCD Contrast,
Beep, Beep Level, SQL Level, AF Min Level, Mic Gain, Horn
and Signal Moni.

e Push []again to exit set mode.

User set mode is also available via a programmable key.
Please refer to p. 7 [User Set Mode] section.

[ ]

[P0] [Up]/[Down] or [DIAL]

[P1][P0] [P2] [ ]

14

3

BIIS OPERATION

■ Default setting

The following functions are assigned to each programmable
key as the default. However, the assigned function can be
changed by your dealer. Ask your dealer for details.

NOTE: [TX Code Enter] must be assigned to a key.

[P0]; Call : Push to transmit a 5-tone/BIIS call

when the selected channel is a 5­tone or BIIS channel.

[P1]; Digital : Push to select the call list ID/transmit

message, or to display the receive
message record for selection.

[P3]; TX Code Enter : Push to enter the ID code edit mode

directly for both 5-tone and BIIS.

[P4]; Moni(Audi) : Push this key after the communica-

tion to send a ‘Clear down’ signal

during BIIS channel operation.
[P2]; Null : No function is assigned.
[Up]/[Down]/[DIAL]; CH Up/Down

: While in the standby condition,

selects the operating channel.

After pushing [Digital] or [TX Code

CH Select], selects call list or TX

code channel, respectively.

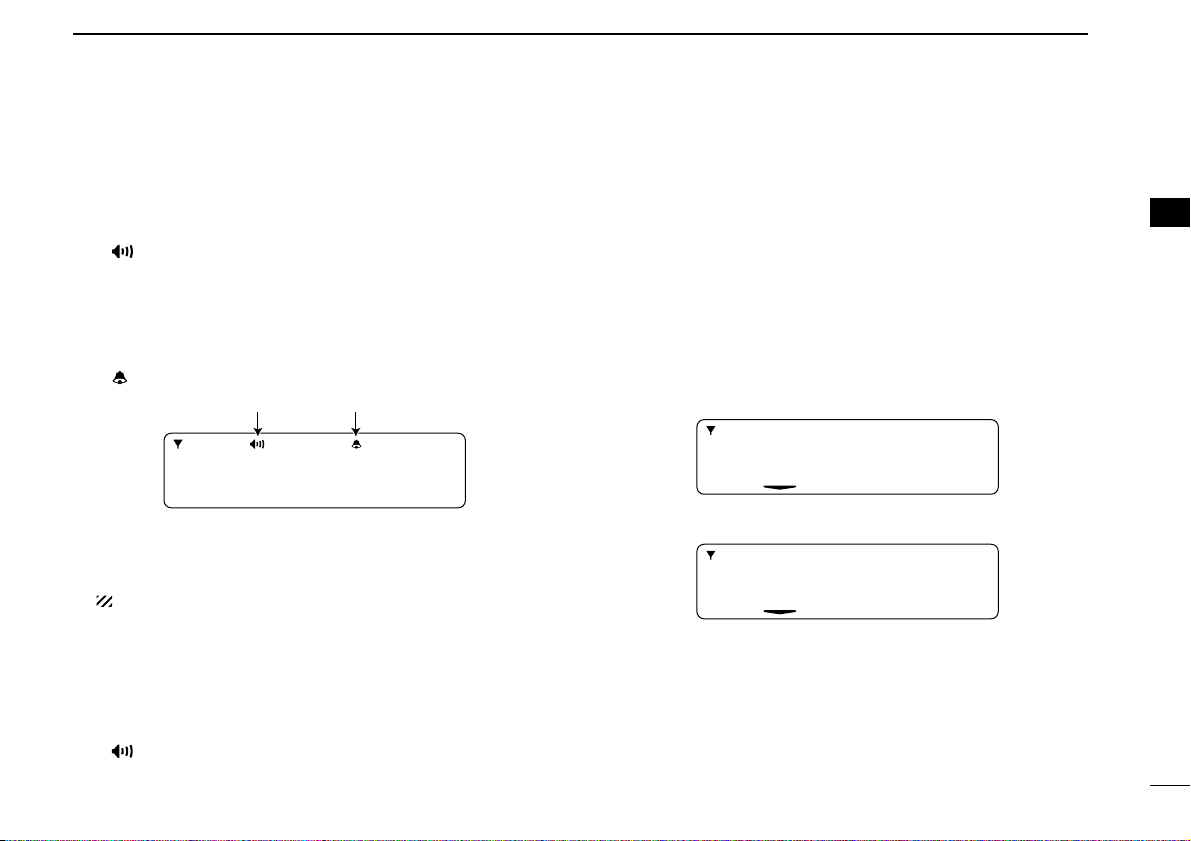

■ Receiving a call

DD

Individual call

q When an individual call is received;

• Beeps sound.

• “ ” appears and the mute is released.

• The programmed text message (e.g.“CALLING”) and the calling

station ID (or text) is displayed when the indication mode is 2
lines.

• The programmed text message (e.g.“CALLING”) and the calling

station ID (or text) is displayed alternately when the indication
mode is 1 line, depending on the setting.

• “ ” appears or blinks depending on the setting.

w Push and hold [PTT], then speak into the microphone at a

normal voice level.

• TX indicator lights red.

e Release [PTT] to return to receive.

• BUSY indicator lights green while receiving a signal.

r To finish the conversation, push [P4] (Moni(Audi)) to send

the ‘Clear down’ signal.

• Either station can send a ‘Clear down’ signal.

•“CLR DOWN” is displayed for 2 sec. (approx.).

• “ ” disappears and the transceiver returns to the standby con­dition.

Appears or blinksAppears

CALLING

0500

P0 P4P3P2P1

In this instruction
manual, these keys
are from the left,
called [P0]/[P1]/
[P2]/[P3]/[P4].

15

3

BIIS OPERATION

3

DD

Group call

q When a group call is received;

• Beeps sound.

• “ ” appears and the mute is released.

• The programmed text message (e.g.“GROUP”) and the calling sta-

tion ID (or text) is displayed when the indication mode is 2 lines.

•The programmed text message (e.g.“GROUP”) and the calling

station ID (or text) is displayed alternately when the indication
mode is 1 line, depending on the setting.

• “ ” appears or blinks depending on the setting.

w Push and hold [PTT], then speak into the microphone at a

normal voice level.

• TX indicator lights red.

NOTE: Only one station is permitted to speak.

e Release [PTT] to return to receive.

• BUSY indicator lights green while receiving a signal.

r To finish the conversation, push [P4] (Moni(Audi)) to send

the ‘Clear down’ signal.

• Either station can send a ‘Clear down’ signal.

•“CLR DOWN” is displayed for 2 sec. (approx.)

• “ ” disappears and the transceiver returns to the standby con­dition.

DD

Displaying the received call record
— Queue indication

The transceiver memorizes the calling station ID in the mem­ory. Up to 3 calls can be memorized, and the oldest call
record is erased when a 4th call is received. However, once
the transceiver is powered OFF, the all records are cleared.

q Push [P1] (Digital) for 1 sec.

• Displays following indication.

When a record is available

When no record is available

w Push [Up] or [Down], or rotate [DIAL] to select the desired

call.

e Push [P1] (Digital) for 1 sec. again to return to the standby

condition.

•When no operation is performed for 30 sec., the transceiver
returns to the standby condition automatically.

<QUEUE>
NO QUEUE

<QUEUE>

-QUEUE!-

Appears or blinksAppears

GROUP

1120

16

3

BIIS OPERATION

■ Transmitting a call

A total of 3 ways for code selection are available—selecting
the call code from memory, entering the call code from the
keypad and calling back from the queue channel record.

DD

Using call memory

q While in the standby condition, push [P1] (Digital) to enter

the call code memory channel selection mode.

• “ ” appears.

w Push [Up] or [Down], or rotate [DIAL] to select the desired

call code.

e Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“WAIT” is displayed during each call. However, an

error beep sounds and

“FAILED” is displayed when no

answer back is received after the calls.

r Push [PTT] to transmit; release to receive.
t Push [P4] (Moni(Audi)) to send the ‘Clear down’ signal.

DD

Calling back from the queue channel

q While in the standby condition, push [P1] (Digital) for

1 sec. to enter the queue memory channel selection mode.

w Push [Up] or [Down] or rotate [DIAL] to select the desired

record.

e Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“WAIT” is displayed during each call. However, an

error beep sounds and

“FAILED” is displayed when no

answer back is received after the calls.

r Push [PTT] to transmit; release to receive.
t Push [P4] (Moni(Audi)) to send the ‘Clear down’ signal.

<QUEUE>

-QUEUE!-

CALLING

0500

Appears

17

3

BIIS OPERATION

3

DD

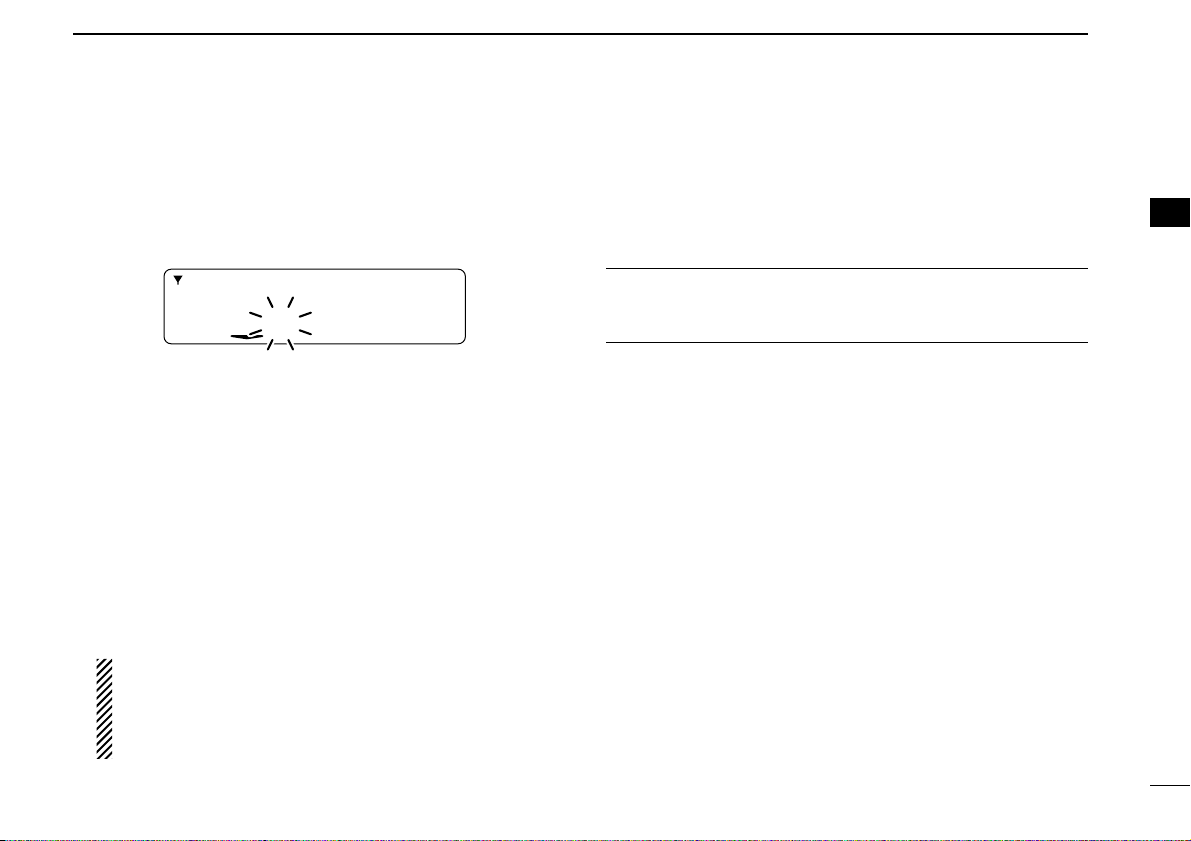

Direct code entry

q While in the standby condition, push [P3] (TX Code Enter)

to enter the TX code edit mode.

• Code digit for editing blinks.

w Push [P3] (TX Code Enter) to select the desired digit to be

edited.

• Digit for editing differs according to the setting.

e Set the desired digit using [CH Up]/[CH Down]/[DIAL] or

10-keypad*.

*IC-F1810 or IC-F2810 only

r Push [P3] (TX Code Enter) to set the digit, then the digit

to the right will blink automatically.

• When the 10-keypad is used for setting, the digit to the right will
blink automatically without pushing [P3] (TX Code Enter).

t Repeat e and r to input all allowable digits.
y Push [P0] (Call) or [PTT]* to call.

*PTT call can be made only when PTT call capability is permitted.

NOTE: When no answer back is received, the trans­ceiver repeats the call 3 times (default) automatically,
and

“WAIT” is displayed during each call. However, an

error beep sounds and

“FAILED” is displayed when no

answer back is received after the calls.

u Push [PTT] to transmit; release to receive.
i Push [P4] (Moni(Audi)) to send the ‘Clear down’ signal.

For your information

When the “UpDate” setting for the call code is enabled, the
set code is overwritten into the call code memory.

0500

18

3

BIIS OPERATION

■ Receiving a message

DD

Receiving a status message

q When a status message is received;

• Beeps sound.

• The calling station ID (or text) and the status message is dis­played alternately when the indication mode is 1 line, depending
on the setting.

w Push [P4] (Moni(Audi)) to return to the standby condition.

NOTE: Only the calling station ID (or text) is displayed (no
message is displayed alternately) when the scroll timer is
set to ‘OFF.’ In this case, push [Status Up]/[Status Down]
to display the status message manually.

DD

Receiving an SDM (Short Data Message)

q When an SDM is received;

• Beeps sound.

• The calling station ID (or text) and the SDM is displayed alter­nately when the indication mode is 1 line, depending on the set­ting.

• “ ” appears.

w When the received SDM includes more than 12 charac-

ters, the message scrolls automatically, when the auto­matic scroll function is activated.

• Push [Status Up]/[Status Down] to scroll the message manually.

e Push [P4] (Moni(Audi)) to return to the standby condition.

SDM 12345678
BASE

SDM 8
BASE

Appears

RX Status 01
BASE

19

3

BIIS OPERATION

3

DD

Received message selection

The transceiver memorizes the received message in the
memory. Up to 6 messages for status and SDM, or 95 char­acter SDM’s can be memorized. The oldest message is
erased when the 7th message is received. However, once the
transceiver is powered OFF, all messages are cleared.

q Push [P1] (Digital) for 1 sec.

• Displays queue memory.

w Push [P1] (Digital) momentarily.

• Displays message memory.

When a message is available

When no message is available

e Push [Up] or [Down], or rotate [DIAL] to select the desired

message.

•When selecting the SDM that includes more than 12 characters,
the message scrolls automatically when the automatic scroll
function is activated.

• Push [Status Up]/[Status Down] to scroll the message manually.

r Push [P1] (Digital) for 1 sec. again to return to the standby

condition.

•When no operation is performed for 30 sec., the transceiver
returns to the standby condition automatically.

MESSAGE

-NO MSG-

MESSAGE

-MSG!-

20

3

BIIS OPERATION

■ Transmitting a status

DD

General

The status message can be selected with the programmed
text, and the message text is also displayed on the function
display of the called station.
Up to 24 status types (1 to 24) are available, and the status
messages 22 and 24 have designated meanings.

Status 22: Emergency*
Status 24: GPS request

*The status 22 can also be used as a normal status message by

disabling the designated meaning. However, the status 24 is fixed.

The status call can be sent with both individual and group
calls.

DD

Transmitting a status

q While in the standby condition, push [P1] (Digital), then

push [Up] or [Down], or rotate [DIAL] to select the desired
station/group code.

w Push [P1] (Digital) again, then push [UP] or [DOWN] to

select the desired status message.

Or, you can select the desired status message using
[Status Up]/[Status Down] key directly.

e Push [P0] (Call) or [PTT]* to transmit the status message

to the selected station/group.

*PTT call can be made only when PTT call capability is permitted.

•2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.

STATUS 01

TX Status 01

Status message is displayed.

21

3

BIIS OPERATION

3

DD

General

The short data message, SDM, can be sent to an individual
station or group stations. Also, 8 SDM memory channels are
available and the messages can be edited via PC program­ming.

DD

Transmitting an SDM

q While in the standby condition, push [P1] (Digital), then

push [Up] or [Down] or rotate [DIAL] to select the desired
station/group code.

w Push [P1] (Digital) again, then push [Up] or [Down] or

rotate [DIAL] to select the desired SDM.

Or, you can select the desired SDM using [Status Up]/
[Status Down] key directly.

e Push [P0] (Call) or [PTT]* to transmit the SDM to the

selected station/group.

*PTT call can be made only when PTT call capability is permitted.

•2 beeps will sound and the transceiver returns to the standby
condition automatically when the transmission is successful.

MESSAGE 1

SDM 1

SDM is displayed.

Appears

■ Transmitting an SDM (Short Data Message)

22

3

BIIS OPERATION

DD

Programming an SDM memory

(IC-F1810 or IC-F2810 only)

q During standby condition, push [P1] (Digital) twice, then

push [Up] or [Down] to select the desired SDM to be edit­ed.

w Push [M] or [#] to enter the message editing condition.

•The first character blinks when [#] is pushed, the last character

blinks when [M] is pushed.

• “ ” blinks.

e Push the appropriate digit key, [0] to [9], to enter the

desired character.

• See the table at right for the available characters.

•Pushing [UP] also enters space, pushing [DOWN] deletes the
selected character.

r Push [#] to move the cursor to the right, push [M] to move

the cursor to the left.

t Repeat steps e and r to set the desired text message.
y Push [P1] (Digital) for 1 sec. to overwrite the set content

into the memory.

• Push [P1] (Digital) momentarily to cancel the editing and return to
the original message indication.

• Available characters

NOTE: A decimal point can only be written with the CS-

F70/F1700

CLONING SOFTWARE

. Pre-programmed charac­ters can be rewritten with the 10-keypad, except for the
decimal point, as it is not included in the transceiver char­acter list, and cannot be displayed again.

Key

[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]

Characters

0 ! ? ' " , ; : _ ( ) < > [ ]
1 (space) # * / + - = & % $ @ ^
2 A B C a b c
3 D E F d e f
4 G H I g h i
5 J K L j k l
6 M N O m n o
7 P Q R S p q r s
8 T U V t u v
9 W X Y Z w x y z

/

!

MESSAGE 8

SDM 8

BlinksBlinks

When [#] is pushed.

23

3

BIIS OPERATION

3

■ Position data transmission

When the optional cable and a GPS receiver is connected to
the transceiver, the position (longitude and latitude) data can
be transmitted automatically.
Ask your dealer or system operator for connection details.

The position data is transmitted when;

• Status 24 message is received

*When the status 24 message, GPS request, is received.

• Fully automatic
When automatic position transmission is enabled, send
the position data according to ‘Time Marker’ and ‘Interval
Timer’ settings.

• PTT is released
When ‘Send with Logoff’ is enabled.

-Set the ‘Log-In/Off’ item as ‘L-OFF.’

• After sending a status message
When ‘Send with Status’ is enabled.

• After sending an SDM
When ‘Send with SDM’ is enabled.

• After sending status 22 (Emergency)
When ‘Send with Emergency’ is enabled.

■ Printer connection

When the optional cable is connected to the transceiver, a
printer can be connected to print out the received SDM con­tent and the ID of the station who sent the message.
Ask your dealer or system operator for connection details.

■ Digital ANI

The own ID can be transmitted each time the PTT is pushed
(log-in) or released (log-off) during individual or group call
communications.
By receiving the ANI, the communication log can be recorded
when using a PC dispatch application.

In addition, when using the ANI with log-in, the PTT side tone
function can be used to inform you that the ID is sent and
voice communication can be performed.

■ Auto emergency transmission

When [Emergency Single (Silent)] or [Emergency Repeat
(Silent)] is pushed, an emergency signal is automatically
transmitted for the specified time period.

The status 22 (Emergency) is sent to the selected ID station,
and the position data is transmitted after the emergency sig­nal when a GPS receiver is connected to the transceiver.

The emergency transmission is performed on the emergency
channel, however, when no emergency channel is specified,
the signal is transmitted on the previously selected channel.

There is no change in the function display or beep emission
during automatic emergency transmission.

24

3

BIIS OPERATION

■ Stun function

When the specified ID, set as a killer ID, is received, the stun
function is activated.

When the killer ID is received, the transceiver switches to the
password required condition. Entering of the password via the
keypad is necessary to operate the transceiver again in this
case.

■ BIIS indication

The following indications are available for the BIIS operation
on a BIIS channel.

CONNECT : Individual/group call is successful.
OK : Message (status or SDM) transmission is suc-

cessful.

FAILED : No answer back is received.
WAIT : Appears during retry of the call (2nd call).
CLR DOWN : End the communication.
BUSY : Operating channel is in the busy condition.

■ Priority A channel selection

When one of the following operations is performed, the trans­ceiver selects the Priority A channel automatically.

Priority A is selected when;

• Clear down signal is received/transmitted

- Set the ‘Move to PrioA CH’ item as ‘Clear down.’

• Turning the power ON
The Priority A channel is selected each time the transceiv­er power is turned ON.

• Status call
The Priority A channel is selected when transmitting a sta­tus call.

-Enable the ‘Send Status on PrioA CH’ item in the BIIS

configuration.

■ Horn output

Automatic honking function is available when the optional
OPC-617

ACC CABLE

is connected. When a status message
is received, the transceiver controls the vehicles horn for the
specified time period to inform a status message is received.

This function is convenient when the operator away from the
transceiver.

Ask your dealer or system operator, or refer to the service
manual for connection and setting details.

25

4

CONNECTION AND MAINTENANCE

3
4

r

t

Antenna

Black

Red

12V
Battery

Solder

Crimp

NOTE: Use the terminals as shown
below for the cable connections.

R CAUTION! NEVER remove
the fuse-holder from the DC
power cable.

q ANTENNA CONNECTOR

Connects to an antenna.
Contact your dealer about
antenna selection and
placement.

q

ew

e EXTERNAL

SPEAKER JACK

w Reserved for a

future function.

Connect a 4–8 Ω
external speaker.

r MICROPHONE HANGER

Connect the supplied mi­crophone hanger to the
vehicle’s ground for mi­crophone on/off hook
functions. (See p. 2)

t OPTIONAL CABLE

(OPC-617)

Connect an external mo­dem unit, dimmer control,
etc.

y

y DC POWER RECEPTACLE

Connects to a 12 V DC battery. Pay atten­tion to polarities. NEVER connect to a 24 V
battery. This could damage the transceiver.

Supplied speaker SP-22
(IC-F1810 or IC-F2810 only.

IC-F1710 and IC-F2710 has a
built-in speaker.)

■ Rear panel connection

26

4

CONNECTION AND MAINTENANCE

■ Supplied Accessories

• Function name stickers

There are no names on the programmable function keys
since the functions can be freely assigned to these keys.
Attach the supplied function name stickers as below to the
appropriate keys for easy recognition of that key’s assigned
function.
Then, protect the attached stickers from unsticking with the
supplied key cap as below.

Function name sticker

Key cap

KEY-STICKER

Microphone

Microphone hanger
and screw set

Microphone
hanger cable

DC power cable

Mounting bracket

Speaker*

Key cap

Function name
stickers

Flat washers

Spring washers

Bracket bolts

Mounting screws
(M5×12)

Self-tapping screws
(M5×16)

Nuts

*IC-F1810/F2810 only

27

4

CONNECTION AND MAINTENANCE

4

■ Mounting the transceiver

The universal mounting bracket supplied with your transceiv­er allows overhead mounting.

•Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg.

■ Optional UT-111 installation

Install the optional UT-111 unit as follows:

q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom

cover.

e Cut the pattern on the PCB at the CP57, then solder CP58

as shown below.

r Install the unit as shown in the diagram below.
t Replace the bottom cover and screws, then re-connect the

DC power cable.

e

r

CP57

CP58

Flat washer

Spring washer

When using
self-tapping screws

See p. 28 when unin­stalling the unit.

28

4

CONNECTION AND MAINTENANCE

■ Optional UT-109 or UT-110
installation

q Turn the power OFF, then disconnect the DC power cable.
w Unscrew the 4 cover screws, then remove the bottom cover.
e Cut the pattern on the PCB at the TX mic circuit (MIC) and

RX AF circuit (AF OUT), then solder CP37 as shown below.

r Install the scrambler unit as described in the installation of

optional UT-111 installation on p. 27

t Replace the bottom cover and screws.

■ Optional OPC-617 installation

Install the OPC-617 as shown below.

q

Dimmer cont. IN

w AF OUT
e Det. AF OUT
r Mod. IN
t PTT control IN or

y Horn drive cont. OUT
u AF GND
i Det. AF GND
o Mod. GND

OPTIONAL CABLE PIN ASSIGNMENT

t r e w q

o i u y

FTSW control IN

OPC-617

Cut off the bushing as in the
illustration, when you install
the optional OPC-617.

FRONTFRONT

MIC and AF OUT

CP37

Un-solder

Re-solder

Remove

NOTE: When uninstalling

the unit

Be sure to re-solder the
disconnected points and
un-solder the connected
points as above when you
remove the unit. Otherwise
no TX modulation or AF
output is available.

29

4

CONNECTION AND MAINTENANCE

4

■ Antenna

A key element in the performance of any communication sys­tem is an antenna. Contact your dealer about antennas and
the best places to mount them.

■ Fuse replacement

A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem if possible, and replace the damaged
fuse with a new rated one.

❑ Fuse rating: 10 A

USE the 10 A fuse only.

■ Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.

AVOID the use of solvents such as benzene or
alcohol, as they may damage the transceiver sur­faces.

■ Options

• RMK-2

SEPARATION KIT

+ OPC-609

SEPARATION CABLE

Allows you to install the transceiver main unit separately
from the front panel for operating convenience.

• SP-5/SP-22

EXTERNAL SPEAKER

Input impedance : 4 Ω

Max. input power : 5 W
SP-5 : Large speaker for good audio quality.
SP-22 : Compact and easy-to-install. The same as supplied

with the transceiver (depending on version.)

• HM-152/HM-152T/HM-148

HAND MICROPHONE

HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148 : Heavy duty microphone

• SM-25

DESKTOP MICROPHONE

• UT-109 (#02)/UT-110 (#02)

SCRAMBLER UNITS

Non-rolling type (UT-109)/Rolling type (UT-110) voice
scrambler unit provides higher communication security.

• UT-111

LTR TRUNKING BOARD

Provides trunking operation.

• OPC-617

ACC CABLE

Allows you to connect to an external terminal.

30

5

DOC

CE Versions of the IC-F1710/F1810/F2710/
F2810 which display the “CE” symbol on the
serial number seal, comply with the essential
requirements of the European Radio and
Telecommunication Terminal Directive
1999/5/EC.

This warning symbol indicates that this equipment
operates in non-harmonised frequency bands
and/or may be subject to licensing conditions in the
country of use. Be sure to check that you have the
correct version of this radio or the correct pro­gramming of this radio, to comply with national
licensing requirement.

DECLARATION

OF CONFORMITY

We Icom Inc. Japan

1-1-32, Kamiminami, Hirano-ku
Osaka 547-0003, Japan

Kind of equipment:

VHF TRANSCEIVER

This compliance is based on conformity with the following harmonised
standards, specifications or documents:

i) EN 301 489-1 v1.2.1 (2000-8)
ii) EN 301 489-5 v1.2.1 (2000-8)
iii) EN 60950 2000
iv) EN 300 086-2 v1.1.1 (March 2001)
v) EN 300 219 (March 2001)
vi) EN 300 113-2 v1.1.1 (March 2001)

Type-designation: iC-f1710/f1810

Signature

Authorized representative name

Place and date of issue

Düsseldorf 15th Mar. 2005

Declare on our sole responsibility that this equipment complies with the
essential requirements of the Radio and Telecommunications Terminal
Equipment Directive, 1999/5/EC, and that any applicable Essential Test
Suite measurements have been performed.

Version (where applicable):

0168

136–174 MHz 12.5 KHz/ 25 KHz
136–174 MHz 12.5 KHz/ 20 KHz

5

DECLARATION

OF CONFORMITY

We Icom Inc. Japan

1-1-32, Kamiminami, Hirano-ku
Osaka 547-0003, Japan

Kind of equipment:

UHF TRANSCEIVER

This compliance is based on conformity with the following harmonised
standards, specifications or documents:

i) EN 301 489-1 v1.2.1 (2000-8)
ii) EN 301 489-5 v1.2.1 (2000-8)
iii) EN 60950 2000
iv) EN 300 086-2 v1.1.1 (March 2001)
v) EN 300 219 (March 2001)
vi) EN 300 113-2 v1.1.1 (March 2001)

Type-designation: iC-f2710/f2810

Signature

Authorized representative name

Place and date of issue

Düsseldorf 25th Feb. 2005

Declare on our sole responsibility that this equipment complies with the
essential requirements of the Radio and Telecommunications Terminal
Equipment Directive, 1999/5/EC, and that any applicable Essential Test
Suite measurements have been performed.

Version (where applicable):

0168

400–470 MHz 12.5 KHz/ 25 KHz
400–470 MHz 12.5 KHz/ 20 KHz

About e-marking: Detailed installation notes for Icom
mobile transceivers to be fitted into vehicles are available.
Please contact your Icom dealer or distributor.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

< Intended Country of Use >

GER
AUT
GBR
IRL
NOR

FRA
NED
BEL
LUX

ESP
POR
ITA
GRE

SWE
DEN
FIN
SUI

A-6407H-1EU-w
Printed in Japan
© 2004–2006 Icom Inc.

Printed on recycled paper with soy ink.
