SERVICE/INSTALLATION MANUAL
HOTEL DISPENSER
MODEL CD40030 and CD40022
Ice-O-Matic |
|
11100 East 45th Ave |
|
Denver, Colorado 80239 |
|
Part Number 9081317-01 |
Print Date 10/08 |
Introduction |
CD40030/CD40022 |
To the owner or user: This product manual is a source of information about the installation, start up, cleaning, maintenance and repair of the product.
Table of Contents
Introduction |
Page 1 |
General Description and Warranty Information |
Page 2 |
Specification/Limitations |
Page 5 |
Product Description |
Page 6 |
Unpacking |
Page 7 |
Installation-Plumbing |
Page 8 |

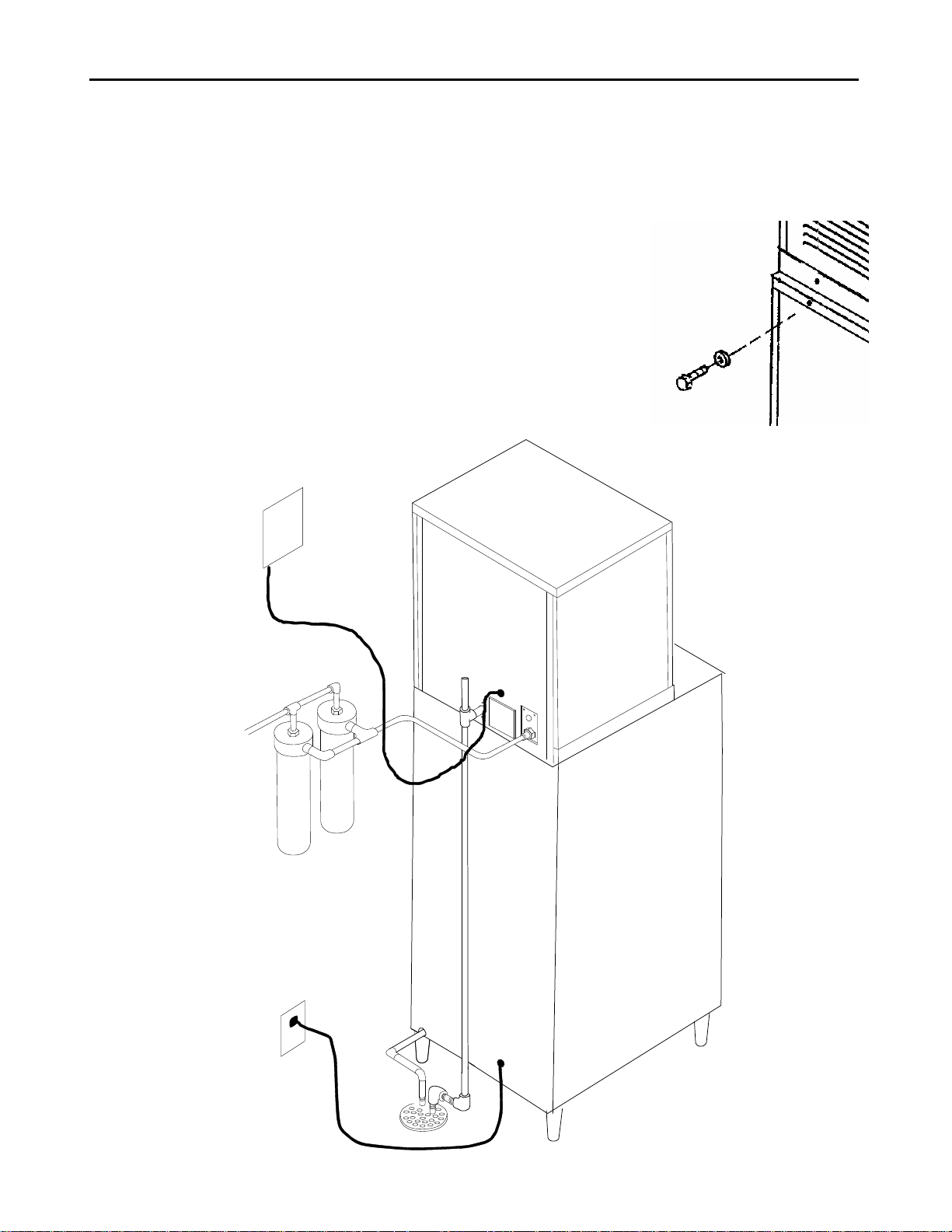

Installation-Electrical and Ice Machine Assembly |
Page 9 |
Final Check List/Initial Start Up |
Page 10 |
Dispenser Use |
Page 11 |
General Care and Cleaning |
Page 12 |
Maintenance |
Page 14 |
Adjustments |
Page 15 |
Service Diagnosis |
Page 16 |

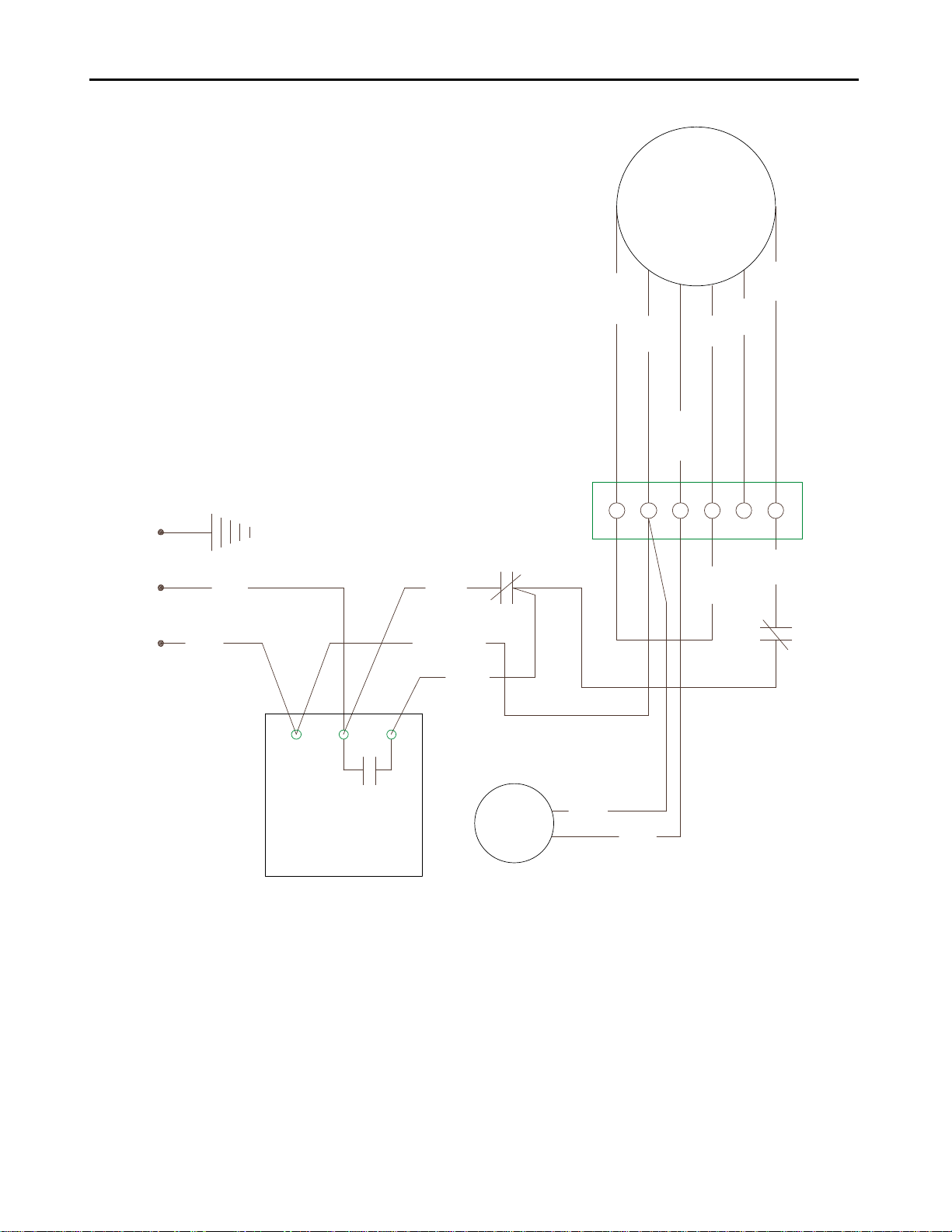

Wiring Diagram-115 volt 60Hz. Basic and Water Station |
Page 17 |
Wiring Diagram-Coin Mechanism |
Page 18 |
Wiring Diagram-230 volt, 50HZ basic |
Page 19 |
Ice-O-Matic 11100 E. 45th Ave.
Denver, Co. 80239 800-423-3367
The CD400 Service Parts Manual is available separately, Part Number 9081317-02
Page 1
General Description |
CD40030/CD40022 |
The CD40022 is a 22 inch wide hotel/motel cubed ice dispenser. It is designed to use an
Ice-O-Matic ICE0320 or ICE0520 cube ice machine as the source for ice.
The CD40030* is a 30 inch wide version of the CD40022 and is designed to use Ice-O-Matic
ICE0250 through ICE0500 cubers as its source of ice. Note: 22 inch wide ice machines are not for use on the 30 inch wide dispensers.
*Higher capacity cubers, ICE0606, ICE0806 and ICE1006 may also be used, but they require 230-volt power.

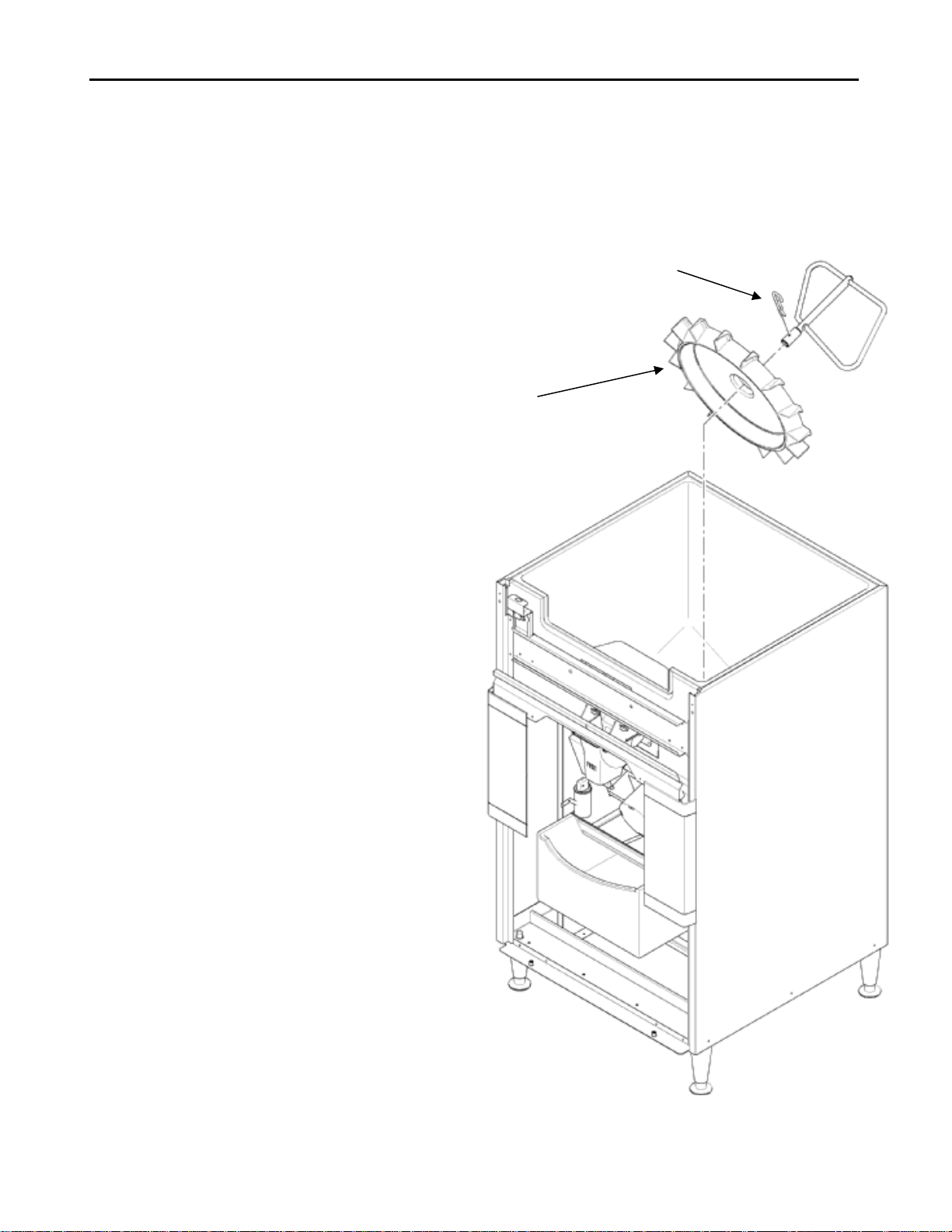

Ice from the cuber falls into the insulated hopper, where it is stored until needed. When a user pushes the dispense chute a rotating wheel scoops the ice up to the top front of the hopper where there is an outlet to the ice chute. Ice is directed into the users container.
Flaked or nugget ice should not be used in these dispensers.
Do not double stack cubers on these dispensers.
Condensate drain pumps are not recommended for drainage.
This is not a waterglass style dispenser.
Basic Specifications
Model |
Dimensions |
Electrical |
Model Description |
Bin Storage |
|
W x H x D |
|
|
Capacity ARI |
|
With 6” Legs |
|
|
|
CD40022 |
22 x 53 x 33½ |
115/60/1 |
Basic 22” Model 60 Hz. |
120 Lbs. |
CD40522 |
22 x 53 x 33½ |
230/50/1 |
Basic 22” Model 50 Hz. |
120 Lbs. |
Note: The factory installed Water Dispenser and Coin /Token features are not available on the 22-inch wide Basic Push Button dispenser and are not available as a field installed kits.
CD40030 |
30 x 53 x33½ |
115/60/1 |
Basic 30” Model 60 |
Hz |
180 Lbs. |
CD40130 |
30 x 53 x33½ |
115/60/1 |
Basic 30” / Water Filler |
180 Lbs. |
|
CD40230 |
30 x 53 x33½ |
115/60/1 |
Coin/Token |
|
180 Lbs. |
CD40530 |
30 x 53 x33½ |
230/50/1 |
Basic 30” Model 50 |
Hz. |
180 Lbs. |
Note: The factory installed Water Dispenser is only available on the 30-inch wide Basic Push Button dispenser and is not available as a field installed kit. The Coin/Token model is not available with a Water Filler and is not available as a field installed Water Filler Kit.
Basic models dispense ice when their chute is pushed and will continue to dispense ice until the chute is released or the bin is emptied. Coin/Token models require a coin or token first. Tokens are available from Ice-O-Matic, the part number for 500 tokens is TKNS. Water
Dispenser models are basic models with a factory installed separate water dispenser.
Bin Thermostats
Bin Thermostats are not required in ICE series cubers on CD400 Series Dispensers.
Warranty
The CD40030 and CD40022 have a 3 year parts and labor warranty from date of install.
Page 2
General Description |
558.8 |
CD40030/CD40022 |
|
|
|
Dimensions |
22" |
|
|
|
|
CD40022 |
|
|
|
|
ICE FILL STATION |
|
|
8 3/4 [221.5] HIEGHT |
|
|
13 1/2 [342.9] WIDTH |
|
|
8 1/2 [215.9] DEPTH |
|
|
1351.3 |
|
|
53 1/4" |
|
|
152.4 |
|
FRONT |
6" |
|
|
650.6
25 5/8"
850.1
33 1/2"
RIGHT SIDE
Page 3
General Description |
762.4 |
|
CD40030/CD40022 |
|
|
|
|
Dimensions |
30" |
|
|
|
|
|
|
CD40030 |
|
|
|
|
|
|
ICE FILL STATION |
|
|
|
8 3/4 [221.5] HIEGHT |
|
|
|
13 1/2 [342.9] WIDTH |
|
|
|
8 1/2 [215.9] DEPTH |
254.8 |
|
|
|
10" |
|
|
|
WATER VALVE HEIGHT |
|
|
|
(WATER FILLER ONLY - Optional) |
|
|
|
|
|
1351.3 |
|
|
|
53 1/4" |
|
|
FRONT |
152.4 |
(2) 5/16-18 UNC |
|
6" |
ICE HEAD MOUNTING |
|
|
|
||
609.6 |
|
|
24.1 |
24" |
|
451.1 |
1" |
|
|
17 3/4" |
|
POWER
CORD
WATER INLET
3/8 FLARE
(WATER FILLER ONLY)
|
|
Machine Support |
|
650.5 |
|
Screwed to Back Panel |
|
|
|
|
|
25 5/8" |
|
|
|
|
|
|
444.4 |
|
179.1 |
|
17 1/2" |
|
|
|
|
|
7" |
3/4 FPT |
|
|
|
|
|
849.4 |
|
DRAIN |
|
|
189.4 |
189.7 |
|
33 1/2" |
|
7 1/2" |
|
|
|
BACK |
7 1/2" |
RIGHT SIDE |
|
|
|
|
|
|
Page 4
Specification & Limitations |
CD40030/CD40022 |
This dispenser is designed to be installed and operated indoors, in a controlled environment. It’s minimum and maximum operating temperature limits are the same as those for the ice machine.
|
Minimum |
Maximum |
|
Air Temp |
50oF |
100oF |
|
Water Pressure* |
20 psi |
60 psi |
* for water dispenser model |
Check the dispenser nameplate, located on the back of the cabinet for specific information. Ice-O-Matic reserves the right to make design changes and/or improvements at any time.
Specifications and designs are subject to change without notice.
Ice-O-Matic assumes no liability or responsibility of any kind for products manufactured by
Ice-O-Matic that have been altered in any way, including the use of any parts and/or other components not specifically approved by Ice-O-Matic.
Models
There are three versions of the CD40030 dispensers: Basic, Coin/token and Water Dispenser. The Basic version is constructed to deliver ice when the ice chute is pushed in, and it continues to vend ice as long as the ice chute is held in or until the bin is empty.

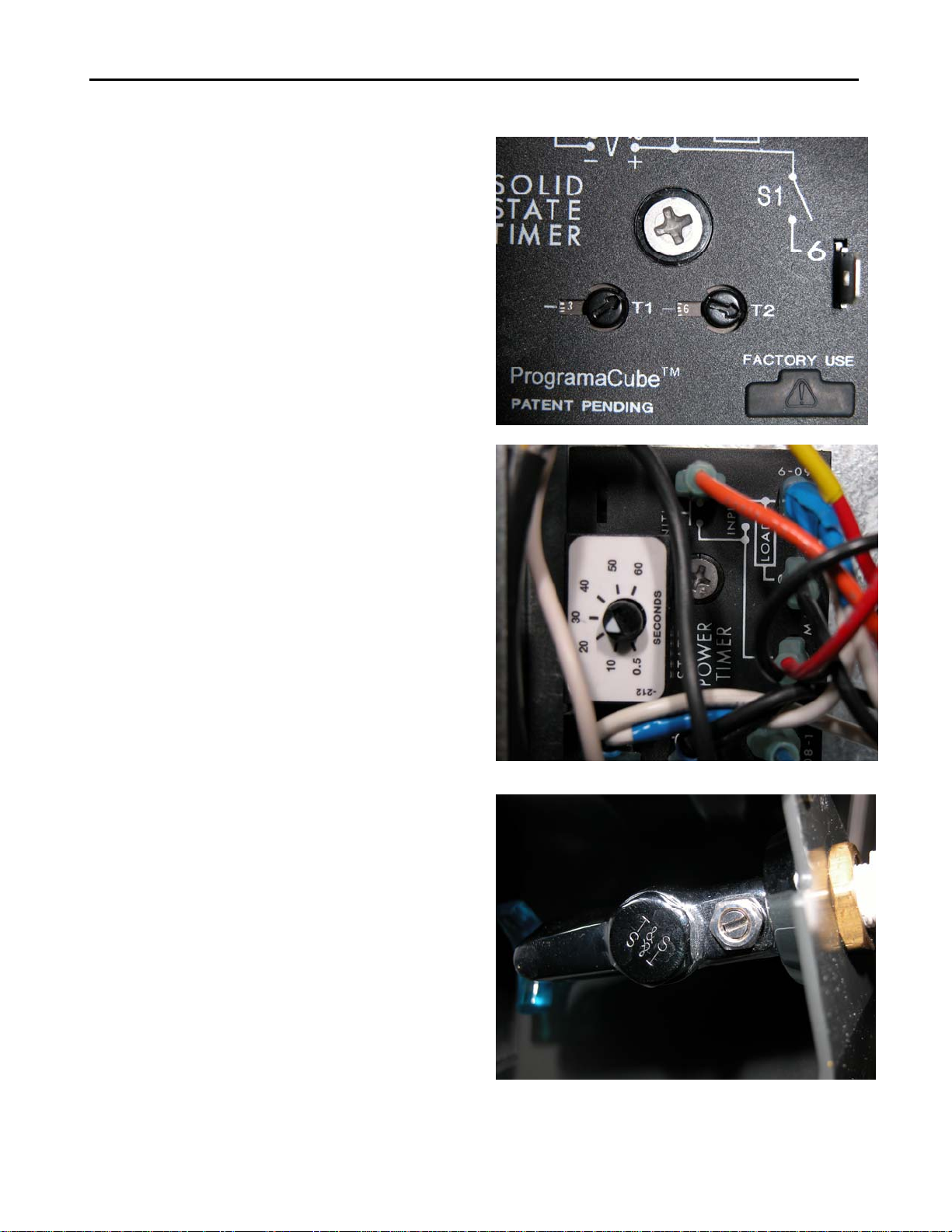

The Coin/token version is designed to deliver ice after a coin or token is inserted into the coin slot and then the ice chute is pushed in. Ice vending is limited to a preset time per coin or token use. Coins or tokens are collected in a coin box at the bottom of the dispenser. A keyed door allows access to the coin box without removing the front panel.
The Water Dispenser version is a Basic version with a mechanical water faucet added to the left of the ice chute. Water is dispensed whenever the faucet lever is pushed back. The CD40030 is available in all versions; the CD40022 is only available as a Basic model.
The Basic models of the CD40022 and CD40030 are available in 230 volt 50 Hz electrical for those countries with that type of electrical service.
Kits: Bin tops and bin thermostats are not required. No other kits are available.
Warranty If, during the warranty period, customer uses a part for this Ice-O-Matic equipment other than that an unmodified new part purchased directly from Ice-O-Matic, Ice-O-Matic
Distributors, or any of its authorized service agents and/or the part being used is modified from its original configuration, this warranty will be void. Further, Ice-O-Matic and its affiliates will not be liable for any claims, damages or expenses incurred by customer which arises directly or indirectly, in whole or in part, due to the installation of any modified part and/or part received from an unauthorized service center. Adjustments are not covered under warranty.
Warranty Procedure If the customer is using a part that results in a voided warranty and an Ice-O-Matic authorized representative travels to the installation address to perform warranty service, the service representative will advise customer the warranty is void. Such service call will be billed to the customer at the authorized service center’s then-applicable time and material rates.
Page 5
