Hardware Maintenance Manual ThinkPad 365X, 365XD, 560

February 1997

We Want Your Comments! (Please see page 205)

S84H-8101-00

This Manual Supports:

ThinkPad 365X (2625) ThinkPad 365XD (2625) ThinkPad 560 (2640)

IBM Mobile Systems

Hardware Maintenance Manual ThinkPad 365X, 365XD, 560

February 1997

We Want Your Comments! (Please see page 205)

S84H-8101-00

IBM

Note

Before using this information and the product it supports, be sure to read the general information under “Notices” on page 210.

First Edition (February 1997)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL

BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time.

This publication was produced in the United States of America. IBM may not offer the products, services, or features discussed in this document in other countries, and the information is subject to change without notice. Consult your local IBM representative for information on the products, services, and features available in your area.

Requests for technical information about IBM products should be made to your IBM reseller or IBM marketing representative.

Note to U.S. Government users–Documentation related to Restricted rights–Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

ii IBM Mobile Systems HMM

About This Manual

This manual contains service and reference information for IBM ThinkPad 365X, 365XD, and 560 products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.

The manual is divided into sections as follows:

The Introduction section provides general information, guidelines, and safety information required to service computers.

The product-specific sections include service, reference, and product-specific parts information.

The Common Devices Checkout section provides procedures for testing the devices that are commonly attached to ThinkPad computers.

The Miscellaneous Information section contains information about acronyms, abbreviations, terms, and a telephone number listing.

Important

This manual is intended for trained servicers who are familiar with ThinkPad products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.

Before servicing an IBM ThinkPad product, be sure to review the safety information under “Safety Notices (Multi-lingual Translations)” on page 8 and “Safety Information” on page 15.

iii

Related Publications

The following product publications are available through IBM or your IBM Authorized Dealer.

Publication Part, Form Number

Mobile Systems HMM Volume 1: Laptop, Notebook, Portable, and ThinkPad Computers (Models L40, CL57, N45, N51, P70/P75, ThinkPad 300, 350, 500, 510, 710T, Expansion Unit, Dock I, Dock II)

Mobile Systems HMM Volume 2: ThinkPad Computers (Models 340, 355, 360, 370, 700, 701, 720, 750, 755)

Mobile Systems HMM Volume 3: ThinkPad Computers (Models 365, 560, 760, SelectaDock)

ThinkPad 700 (9552) HMS 42G2016, S42G-2016 ThinkPad 700 (9552) HMR 42G2015, S42G-2015 ThinkPad 700C (9552) HMS 42G2022, S42G-2022 ThinkPad 700C (9552) HMR 42G2021, S42G-2021 ThinkPad 720/720C (9552)

HMS ThinkPad 720/720C (9552)

HMR ThinkPad 730T (2524) HMM 82G5497, S82G-5497 ThinkPad Exp. Crtg. (3550)

HMS ThinkPad Exp. Crtg. (3550)

HMR PS/2 FaxConcentrator HMS 15F2262, S15F-2262 PS/2 FaxConcentrator HMR 84F8541, S84F-8541 PS/2 Comm. Cartridge I

HMS PS/2 Comm. Cartridge I

HMR IBM High Speed Internal,

PCMCIA Data/Fax Modems

30H2356, S82G-1501-01

30H2357, S82G-1502-03

78H6675, S82G-1503-04

61G1193, S61G-1193

61G1187, S61G-1187

42G2338, S42G-2338

42G2339, S42G-2339

10G5993, S10G-5993

10G5992, S10G-5992

61G1556, S61G-1556

iv IBM Mobile Systems HMM

Related Diskettes

The following diskettes are available through IBM or your IBM Authorized Dealer.

Diskette Part, Form Number

ThinkPad 300 (2615) Advanced Diagnostics Diskette

ThinkPad 350, 350C, 425, 425C (2618) Advanced Diagnostics Diskette

ThinkPad 365 (2625) Advanced Diagnostics Diskette

ThinkPad 500 (2603) Advanced Diagnostics Diskette

ThinkPad 510 (2604) Advanced Diagnostics Diskette

ThinkPad 700 (9552) Reference Diskette

ThinkPad 700C (9552) Reference Diskette

ThinkPad 720/720C (9552) Reference Diskette

ThinkPad Hardware Maintenance Diskette (for all Models 355, 360, 560, 750, 755, 760)

ThinkPad Dock I (3545) 71G4140, S71G-4140 Docking Station (3550) 42G2428, S42G-2428 Data/Fax Modem 61G1556, S61G-1556 FaxConcentrator/A 84F8540, S84F-8540

33G9361, S33G-9361

A211000, GA21-1000

76H7578, S30H-2498

71G3702, S71G-3702

83G8095, S83G-8095

42G2017, S42G-2017

42G2023, S42G-2023

61G1194, S61G-1194

78H5384, S78H-5384

vi IBM Mobile Systems HMM

Contents

Introduction . . . . . . . . . . . . . . . . . . . 1

Portable Computer Descriptions .......... 2

Drive and Diskette Compatibility Matrix ....... 5

Important Service Information ........... 6

Safety Notices (Multi-lingual Translations) ..... 8

Safety Information . . . . . . . . . . . . . . . . 15

Laser Compliance Statement ........... 20

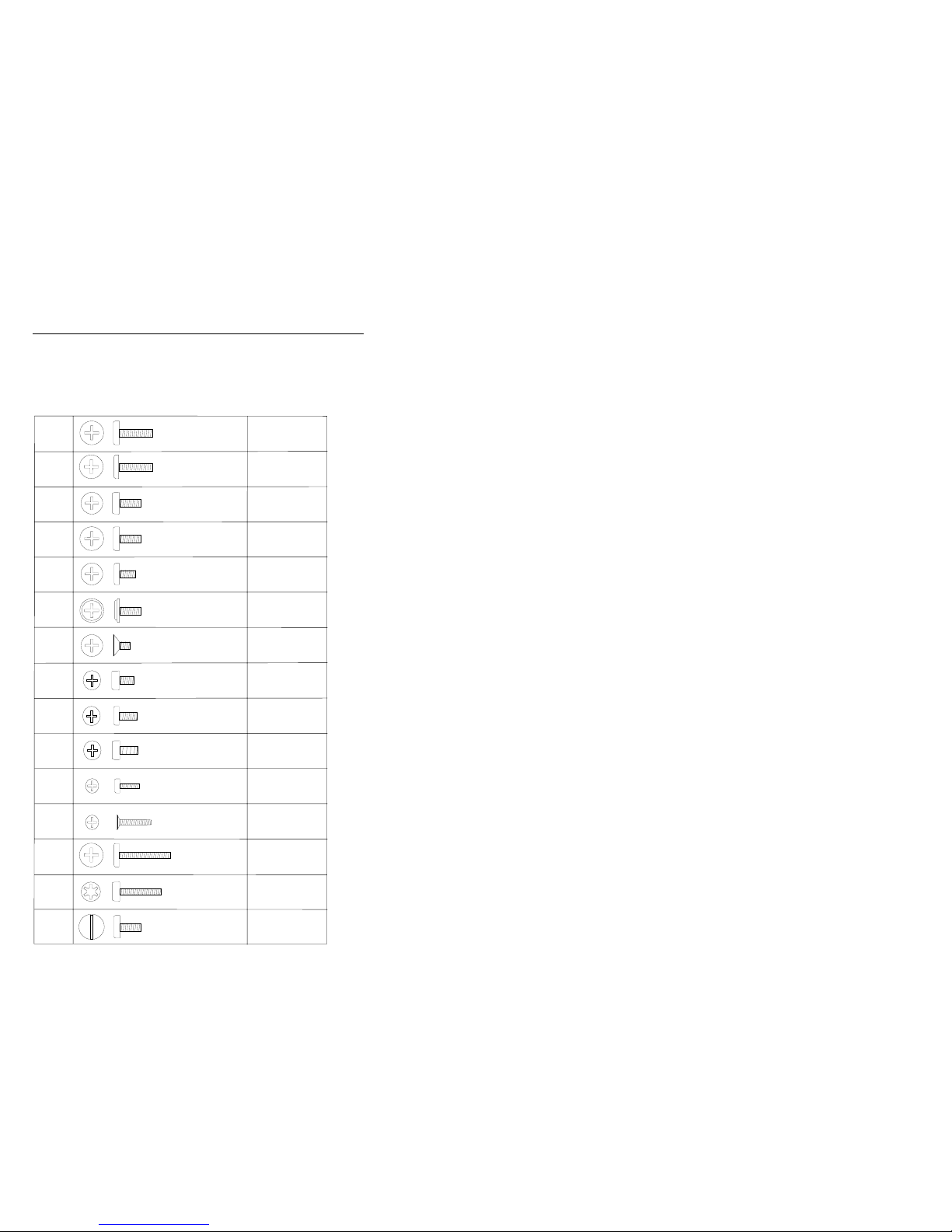

Screw Size Chart ................. 22

ThinkPad 365X, 365XD (2625) .......... 25

Read This First .................. 27

Checkout Guide . . . . . . . . . . . . . . . . . 30

Symptom-to-FRU Index . . . . . . . . . . . . . . 40

Related Service Procedures ............ 51

Product Overview (365X, 365XD) . . . . . . . . . 60

FRU Removals and Replacements ......... 61

Locations . . . . . . . . . . . . . . . . . . . . . 96

Parts Listing 365X, 365XD (2625) ........ 102

ThinkPad 560 (2640) . . . . . . . . . . . . . 115

Read This First ................. 117

Checkout Guide . . . . . . . . . . . . . . . . 121

Symptom-to-FRU Index . . . . . . . . . . . . . 132

Related Service Procedures ........... 144

Product Overview (560) . . . . . . . . . . . . . 149

FRU Removals and Replacements ........ 150

Locations . . . . . . . . . . . . . . . . . . . . 174

Parts Listing 560 (2640) ............. 178

Common Devices Checkout .......... 189

External Diskette Drive Test ........... 190

External Display Self-Test ............ 190

External Keyboard/Auxiliary Input Device Checkout 191

Fax/Modem Checkout . . . . . . . . . . . . . . 192

Printer Checkout . . . . . . . . . . . . . . . . 194

Port Replicator Checkout ............ 195

TrackPoint Checkout . . . . . . . . . . . . . . 196

TV Tuner . . . . . . . . . . . . . . . . . . . . 197

Miscellaneous Information . . . . . . . . . . . 203

Acronyms, Abbreviations and Terms ....... 203

Send Us Your Comments! ............ 205

Do You Need Technical References? ...... 206

Problem Determination Tips ........... 207

Notices . . . . . . . . . . . . . . . . . . . . . 210

viii IBM Mobile Systems HMM

Introduction

Portable Computer Descriptions .......... 2

Drive and Diskette Compatibility Matrix ....... 5

Important Service Information ........... 6

How to Use Error Messages .......... 7

How to Read POST Error Messages ...... 7

Safety Notices (Multi-lingual Translations) ..... 8

Safety Information . . . . . . . . . . . . . . . . 15

General Safety . . . . . . . . . . . . . . . . 15

Electrical Safety . . . . . . . . . . . . . . . . 16

Safety Inspection Guide ............ 17

Handling Electrostatic Discharge-Sensitive Devices 19

Grounding Requirements . . . . . . . . . . . . 19

Laser Compliance Statement ........... 20

Screw Size Chart ................. 22

Portable Computer Descriptions

Models N51, CL57, and P70/75 and Thinkpads 700x and 720x are Micro Channel systems. All others are AT/ISA bus systems.

Model Type Processor Memory Hrd Dsk

Model L40SX 8543-044 386SX-20 2M/18M 60M Model N45 SL 2614-065 386SL-25 2M/8M 80M

Model N51 SLC 8551-025 386SLC-16 2M/10M 80M Model N51 SX 8551-033 386SX-16 2M/10M 40M Model CL57 SX 8554-045 386SX-20 2M/16M 80M Model P70 386 8573-031 80386-16 2M/8M 30M

Model P75 486 8573-161 80486-33 8M/16M 160M

ThinkPad 300 2615-065 386SL-25 4M/12M 80M

ThinkPad 340 2610 486SLC2-50/25 4M/12M 125M ThinkPad 340CSE 2610 486SLC2-50/25 4M/12M 200M ThinkPad 340CSE 2610 486SLC2-66/33 4M/12M 360M ThinkPad 345 2610 486DX4-75 4M/20M 360M ThinkPad 345CS 2610 DX4-75 4M/20M 540M ThinkPad 350 2618-AOE 486SL-25 4M/20M 85M

ThinkPad 350C 2618-NOA 486SL-25 4M/20M 125M

ThinkPad 355 2619 486SX-33 4M/16M 125M ThinkPad 355C 2619 486SX-33 4M/16M 125M

ThinkPad 355Cs 2619 486SX-33 2M/16M 170M

ThinkPad 360 2620 486SX-33 4M/16M 170M

ThinkPad 360C 2620 486SX-33 4M/16M 170M

ThinkPad 360Cs 2620 486SX-33 4M/16M 170M

ThinkPad 360Ce 2620 486DX2-50/25 4M/16M 170M

ThinkPad 360Cse 2620 486DX2-50/25 4M/16M 170M

ThinkPad 360P 2620 486SX-33 4M/16M 170M

ThinkPad 365C 2625-205 486DX4-75 8M/24M 340M

ThinkPad 365E 2625 5x86-100/33 8M/24M 540M ThinkPad 365ED 2625 5x86-100/33 8M/24M 540M ThinkPad 365X/XD 2625 Pentium-100 8M/24M 540M

ThinkPad 365X/XD 2625 Pentium-120 8M/24M 540M

ThinkPad 365X/XD 2625 Pentium-133 8M/40M 810M

ThinkPad 370C 9545 486DX4-75/25 4M/32M 340M

C Color M Megabyte P Pen

2614-067 386SL-25 2M/8M 120M

8573-061 80386-20 2M/8M 60M 8573-121 80386-20 2M/8M 120M

8573-401 80486-33 8M/16M 400M

2615-067 386SL-25 4M/12M 120M

2618-JOA 486SL-25 4M/20M 125M 2618-LOA 486SL-25 4M/20M 250M

2618-POA 486SL-25 4M/20M 250M

2619 486SX-33 4M/16M 250M

2619 486SX-33 2M/16M 250M

2620 486SX-33 4M/16M 340M

2620 486DX2-50/25 4M/16M 340M 2620 486DX2-50/25 4M/16M 540M

2620 486SX-33 4M/16M 340M

2625-x05 486DX4-75 8M/24M 540M

2625 Pentium-100 8M/24M 810M 2625 Pentium-100 8M/24M 1.0G

2625 Pentium-120 8M/24M 810M 2625 Pentium-120 8M/24M 1.0G

2625 Pentium-133 8M/40M 1.0G 2625 Pentium-133 8M/40M 1.3G

9545 486DX4-75/25 4M/32M 540M 9545 486DX4-75/33 4M/32M 810M

T Tablet TPF ThinkPad File

2 IBM Mobile Systems HMM

Model Type Processor Memory Hrd Dsk

ThinkPad 500 2603-081 486SLC2-50/25 4M/12M 80M

ThinkPad 560 2630 Pentium-100 8M/40M 540M

ThinkPad 560 2630 Pentium-120 8M/40M 540M

ThinkPad 560 2640 Pentium-130 8M/40M 540M

ThinkPad 700 9552-300 486SLC-25 4M/16M 80M

ThinkPad 700C 9552-30B 486SLC-25 4M/16M 120M ThinkPad 701C 2630 486DX2-25/50 4M/32M 360MB

ThinkPad 701Cs 2630 486DX2-25/50 4M/32M 360MB

ThinkPad 710T 2523-09Y 486SLC2-25 4M/12M TPF

ThinkPad 720 9552-307 486SLC-25/50 4M/16M 120M

ThinkPad 720C 9552-30J 486SLC-25/50 4M/16M 160M ThinkPad 730T 2524 486SLC2-25 4M/12M 0M

ThinkPad 750 9545-006 486SL-33 4M/20M 170M

ThinkPad 750C 9545-306 486SL-33 4M/20M 170M

ThinkPad 750Ce 9545 P24S-50/25 4M/20M 340M ThinkPad 750Cs 9545 486SL-33 4M/20M 170M

ThinkPad 750P 9545-40C 486SL-33 4M/20M 170M

ThinkPad 755C 9545 486DX4-50/25 4M/32M 170M

ThinkPad 755CD 9545 486DX4-100/33 8M/32M 540M

ThinkPad 755CDV 9545 486DX4-100/33 8M/32M 540M

ThinkPad 755Ce 9545 486DX4-100/33 8M/32M 340M

ThinkPad 755Cs 9545 486DX4-50/25 8M/32M 170M

ThinkPad 755Cse 9545 486DX4-100/33 8M/32M 340M

ThinkPad 755CV 9545 486DX4-100/33 8M/32M 540M

C Color M Megabyte P Pen

2603-171 486SLC2-50/25 4M/12M 170M

2630 Pentium-100 8M/40M 810M 2630 Pentium-100 8M/40M 1.0G

2630 Pentium-120 8M/40M 810M 2630 Pentium-120 8M/40M 1.0G

2640 Pentium-130 8M/40M 810M 2640 Pentium-130 8M/40M 1.0G

9552-301 486SLC-25 4M/16M 120M

2630 486DX2-25/50 4M/32M 540MB 2630 486DX4-25/75 8M/32M 360MB 2630 486DX4-25/75 8M/32M 540MB

2523-302 486SLC2-25 4M/12M 60M 2523-303 486SLC2-25 4M/12M 60M

9552-308 486SLC-25/50 4M/16M 160M

2524 486SLC2-25 4M/12M 60M

9545-008 486SL-33 4M/20M 340M

9545-308 486SL-33 4M/20M 340M

9545 486SL-33 4M/20M 340M

9545-40E 486SL-33 4M/20M 340M

9545 486DX4-50/25 4M/32M 340M 9545 486DX4-50/25 4M/32M 540M 9545 486DX4-75/25 4M/32M 170M 9545 486DX4-75/25 4M/32M 340M 9545 486DX4-75/25 4M/32M 540M

9545 486DX4-100/33 8M/32M 810M

9545 486DX4-100/33 8M/32M 540M 9545 486DX4-100/33 8M/32M 810M

9545 486DX4-50/25 8M/32M 340M 9545 486DX4-50/25 8M/32M 540M 9545 486DX4-75/25 8M/32M 170M 9545 486DX4-75/25 8M/32M 340M 9545 486DX4-75/25 8M/32M 540M

9545 486DX4-100/33 8M/32M 540M 9545 486DX4-100/33 8M/32M 810M

9545 486DX4-100/33 8M/32M 810M

T Tablet TPF ThinkPad File

Introduction 3

Model Type Processor Memory Hrd Dsk

ThinkPad 760C/CD 9546 Pentium-90 8M/40M 360M

ThinkPad 760E/ED 9546 Pentium-120 8M/80M 810M

ThinkPad 760EL/ELD9547 Pentium-100 8M/80M 810M

ThinkPad 760L/LD 9546 Pentium-90 8M/40M 810M

C Color M Megabyte P Pen

9546 Pentium-120 8M/40M 720M 9546 Pentium-90 8M/40M 810M 9546 Pentium-120 8M/40M 1.2G

9546 Pentium-133 8M/80M 1.0G 9546 Pentium-150 8M/80M 1.2G 9546 Pentium-166 8M/80M 1.3G 9546 Pentium-166 8M/80M 2.1G

9547 Pentium-100 8M/80M 1.0G 9547 Pentium-100 8M/80M 1.2G 9547 Pentium-120 8M/80M 810M 9547 Pentium-120 8M/80M 1.0G 9547 Pentium-120 8M/80M 1.2G 9547 Pentium-133 8M/80M 810M 9547 Pentium-133 8M/80M 1.0G 9547 Pentium-133 8M/80M 1.2G

9546 Pentium-90 8M/40M 1.1G 9546 Pentium-90 8M/40M 1.2G 9546 Pentium-120 8M/40M 810M 9546 Pentium-120 8M/40M 1.1G 9546 Pentium-120 8M/40M 1.2G

T Tablet TPF ThinkPad File

4 IBM Mobile Systems HMM

Drive and Diskette Compatibility Matrix

The following table provides identification information for

3.5-inch drives.

Diskette Drive

3.5-Inch - 1.44MB 1.44 on the eject button

3.5-Inch - 2.88MB 2.88 on the eject button

Identifying Mark

The following table provides compatibility information for

3.5-inch diskettes and 3.5-inch diskette drives.

Diskette Capacity

1.0MB Read/Write Read/Write

2.0MB Read/Write Read/Write

4.0MB Not Compatible Read/Write

1.44MB Drive

2.88MB Drive

The following table provides identification information for

5.25-inch diskette drives.

Diskette Drive

5.25-Inch - 360KB (External) Asterisk on bezel

5.25-Inch - 1.2MB (Internal) 1.2 on the eject button

Identifying Mark

The following table provides compatibility information for

5.25-inch diskettes and 5.25-inch diskette drives.

Diskette Capacity

360KB Read/Write Read/Write

1.2MB Not Compatible Read/Write

360KB Drive

1.2MB Drive

Note: A 360KB diskette written to or formatted on a

1.2MB drive can be read reliably only on a 1.2MB drive.

Introduction 5

Important Service Information

Important

Diskette fixes are customer installable. The diskette fixes are located on the PC Company Bulletin Board Service (BBS). The direct phone line for modem connection is 919-557-0001 or tieline 255-0001.

Advise customers to contact the PC Company HelpCenter at 800-772-2227 if they need assistance in obtaining or installing any diskette fixes.

Customers in Canada should call IBM HelpPC at 800-565-3344 for assistance or down-load information. The Canadian BBS phone numbers are:

Montreal 514-938-3022 Toronto 905-316-4255 Vancouver 604-664-6464 Winnipeg 204-934-2735

FRU Replacement Strategy

Before Replacing Parts

Ensure that all diskette fixes are installed prior to replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary FRU replacement and service expense:

If you are instructed to replace a FRU and that

does not correct the problem, reinstall the original

FRU before you continue.

Some computers have both a processor board and a system board. If you are instructed to replace either the processor board or the system board, and the first board that you replaced does not correct the problem, reinstall the original board, then replace the other (processor or system) board.

If an adapter or device consists of more than one FRU, an error code may be caused by any of the FRUs. Before replacing the adapter or device, remove the FRUs, one by one, to see if the symptoms change. Replace only the FRU that changed the symptoms.

Attention

A customized setup configuration (other than default settings) may exist on the computer you are servicing. Running Automatic Configuration may alter those settings. Note the current configuration settings (using the View Configuration option) and verify that the settings are in place when service is complete.

6 IBM Mobile Systems HMM

The advanced diagnostic tests are intended to test

only

IBM products. Non-IBM products or modified options can give false errors and invalid responses.

Hard Disk Drive Replacement Strategy:

Always try to run a low-level format before replacing a hard disk drive.

Attention

The drive startup sequence in the computer you are servicing might have been changed. Be extremely careful during write operations such as copying, saving, or formatting. Data or programs can be overwritten if you select an incorrect drive.

How to Use Error Messages

Use the error codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. The cause of the first error code can result in false error codes being displayed. If no error code is displayed, see if the error symptom is listed in the Symptom-to-FRU Index for the computer you are servicing.

How to Read POST Error Messages

POST error messages are displayed on the screen as three, four, five, or eight digits. The error messages that can be displayed as shorter POST messages are highlighted in this index. Some digits will represent different information for SCSI errors versus non-SCSI errors.

The following example shows which digits display the shorter POST error messages and also defines the SCSI information in an eight-digit error message.

Shorter POST Messages

Reserved Size (SCSI)

ID (SCSI)

All SCSI devices are set to a different SCSI ID. Duplicate SCSI ID settings can generate a false error message. Use the SCSI ID to determine whether the error message is coming from an internal or an external device.

Device Code Logical Unit Number (SCSI)

Slot Number (SCSI)

Introduction

Safety Notices (Multi-lingual Translations)

In this manual, safety notices appear in English with a page number reference to the appropriate multi-lingual, translated safety notice found in this section.

The following safety notices are provided in English, French, German, Italian, and Spanish languages.

Safety Notice 1

Before the computer is powered-on after FRU replacement, make sure all screws, springs, or other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Avant de remettre l'ordinateur sous tension après remplacement d'une unité en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour ce faire, secouez l'unité et assurez-vous qu'aucun bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer wieder angeschlossen wird, muß sichergestellt werden, daß keine Schrauben, Federn oder andere Kleinteile fehlen oder im Gehäuse vergessen wurden. Der Computer muß geschüttelt und auf Klappergeräusche geprüft werden. Metallteile oder

-splitter können Kurzschlüsse erzeugen. Prima di accendere l'elaboratore dopo che é stata

effettuata la sostituzione di una FRU, accertarsi che tutte le viti, le molle e tutte le altri parti di piccole dimensioni siano nella corretta posizione e non siano sparse all'interno dell'elaboratore. Verificare ciò scuotendo l'elaboratore e prestando attenzione ad eventuali rumori; eventuali parti o pezzetti metallici possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.

8 IBM Mobile Systems HMM

Safety Notice 2

Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble it, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

Certaines batteries de secours contiennent du nickel et du cadmium. Ne les démontez pas, ne les rechargez pas, ne les exposez ni au feu ni à l'eau. Ne les mettez pas en court-circuit. Pour les mettre au rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la pile de sauvegarde ou celle de l'horloge temps réel, veillez à n'utiliser que les modèles cités dans la liste de pièces détachées adéquate. Une batterie ou une pile inappropriée risque de prendre feu ou d'exploser.

Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Bereitschafts- oder Systembatterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell'acqua né cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria dell'RTC (real time clock) o la batteria di supporto, utilizzare soltanto i tipi inseriti nell'appropriato Catalogo parti. L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.

Algunas baterías de reserva contienen una pequeña cantidad de níquel y cadmio. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de piezas. La utilización de una batería no apropiada puede provocar la ignición o explosión de la misma.

Introduction 9

Safety Notice 3

The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack. Use of an incorrect battery can result in ignition or explosion of the battery.

La batterie contient du nickel. Ne la démontez pas, ne l'exposez ni au feu ni à l'eau. Ne la mettez pas en court-circuit. Pour la mettre au rebut, conformez-vous à la réglementation en vigueur. Lorsque vous remplacez la batterie, veillez à n'utiliser que les modèles cités dans la liste de pièces détachées adéquate. En effet, une batterie inappropriée risque de prendre feu ou d'exploser.

Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o nell'acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell'appropriato Catalogo parti. L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.

Las baterías contienen pequeñas cantidades de níquel. No las desmonte, ni recargue, ni las eche al fuego o al agua ni las cortocircuite. Deséchelas tal como dispone la normativa local. Utilice sólo baterías que se encuentren en la lista de piezas al sustituir la batería. La utilización de una batería no apropiada puede provocar la ignición o explosión de la misma.

10 IBM Mobile Systems HMM

Safety Notice 4

The lithium battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

La pile de sauvegarde contient du lithium. Elle présente des risques d'incendie, d'explosion ou de brûlures graves. Ne la rechargez pas, ne retirez pas son connecteur polarisé et ne la démontez pas. Ne l'exposez pas à une temperature supérieure à 100°C, ne la faites pas brûler et n'en exposez pas le contenu à l'eau. Mettez la pile au rebut conformément à la réglementation en vigueur. Une pile inappropriée risque de prendre feu ou d'exploser.

Die Systembatterie ist eine Lithiumbatterie. Sie kann sich entzünden, explodieren oder schwere Verbrennungen hervorrufen. Batterien dieses Typs dürfen nicht aufgeladen, zerlegt, über 100 C erhitzt oder verbrannt werden. Auch darf ihr Inhalt nicht mit Wasser in Verbindung gebracht oder der zur richtigen Polung angebrachte Verbindungsstecker entfernt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist. Der Einsatz falscher Batterien kann zu Entzündung oder Explosion führen.

La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla in acqua. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). L'impiego di una batteria non adatta potrebbe determinare l'incendio o l'esplosione della batteria stessa.

La bateria de repuesto es una bateria de litio y puede provocar incendios, explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como dispone la normativa local.

Introduction 11

Safety Notice 5

If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes. Seek medical care if any symptoms from the fluid are present after washing.

Si le panneau d'affichage à cristaux liquides se brise et que vous recevez dans les yeux ou sur les mains une partie du fluide, rincez-les abondamment pendant au moins quinze minutes. Consultez un médecin si des symptômes persistent après le lavage.

Die Leuchtstoffröhre im LCD-Bildschirm enthält Quecksilber. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Der LCD-Bildschirm besteht aus Glas und kann zerbrechen, wenn er unsachgemäß behandelt wird oder der Computer auf den Boden fällt. Wenn der Bildschirm beschädigt ist und die darin befindliche Flüssigkeit in Kontakt mit Haut und Augen gerät, sollten die betroffenen Stellen mindestens 15 Minuten mit Wasser abgespült und bei Beschwerden anschließend ein Arzt aufgesucht werden.

Nel caso che caso l'LCD si dovesse rompere ed il liquido in esso contenuto entrasse in contatto con gli occhi o le mani, lavare immediatamente le parti interessate con acqua corrente per almeno 15 minuti; poi consultare un medico se i sintomi dovessero permanere.

Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como mínimo. Obtenga atención medica si se presenta algún síntoma del fluido despues de lavarse.

12 IBM Mobile Systems HMM

Safety Notice 6

To avoid shock, do not remove the plastic cover that surrounds the lower portion of the inverter card.

Afin d'éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d'alimentation.

Aus Sicherheitsgründen die Kunststoffabdeckung, die den unteren Teil der Spannungswandlerplatine umgibt, nicht entfernen.

Per evitare scosse elettriche, non rimuovere la copertura in plastica che avvolge la parte inferiore della scheda invertitore.

Para evitar descargas, no quite la cubierta de plástico que rodea la parte baja de la tarjeta invertida.

Safety Notice 7

Though main batteries have low voltage, a shorted or grounded battery can produce enough current to burn combustible materials or personnel.

Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à la masse d'une batterie peut produire suffisamment de courant pour brûler des matériaux combustibles ou causer des brûlures corporelles graves.

Obwohl Hauptbatterien eine niedrige Spannung haben, können sie doch bei Kurzschluß oder Erdung genug Strom abgeben, um brennbare Materialien zu entzünden oder Verletzungen bei Personen hervorzurufen.

Sebbene le batterie di alimentazione siano a basso voltaggio, una batteria in corto circuito o a massa può fornire corrente sufficiente da bruciare materiali combustibili o provocare ustioni ai tecnici di manutenzione.

Aunque las baterías principales tienen un voltaje bajo, una batería cortocircuitada o con contacto a tierra puede producir la corriente suficiente como para quemar material combustible o provocar quemaduras en el personal.

Introduction 13

Safety Notice 8

Before removing any FRU, power-off the computer, unplug all power cords from electrical outlets, remove the battery pack, then disconnect any interconnecting cables.

Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d'alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d'interface.

Die Stromzufuhr muß abgeschaltet, alle Stromkabel aus der Steckdose gezogen, der Akku entfernt und alle Verbindungskabel abgenommen sein, bevor eine FRU entfernt wird.

Prima di rimuovere qualsiasi FRU, spegnere il sistema, scollegare dalle prese elettriche tutti i cavi di alimentazione, rimuovere la batteria e poi scollegare i cavi di interconnessione.

Antes de quitar una FRU, apague el sistema, desenchufe todos los cables de las tomas de corriente eléctrica, quite la batería y, a continuación, desconecte cualquier cable de conexión entre dispositivos.

14 IBM Mobile Systems HMM

Safety Information

The following section contains the safety information that you need to be familiar with before servicing an IBM mobile computer.

General Safety

Follow these rules to ensure general safety:

Observe good housekeeping in the area of the

machines during and after maintenance.

When lifting any heavy object:

1. Ensure you can stand safely without slipping.

2. Distribute the weight of the object equally between your feet.

3. Use a slow lifting force. Never move suddenly or twist when you attempt to lift.

4. Lift by standing or by pushing up with your leg muscles; this action removes the strain from the muscles in your back.

objects that weigh more than 16 kg (35 lb) or objects that you think are too heavy for you.

Do not perform any action that causes hazards to the

customer, or that makes the equipment unsafe.

Before you start the machine, ensure that other service representatives and the customer's personnel are not in a hazardous position.

Place removed covers and other parts in a safe place, away from all personnel, while you are servicing the machine.

Keep your tool case away from walk areas so that other people will not trip over it.

Do not wear loose clothing that can be trapped in the moving parts of a machine. Ensure that your sleeves are fastened or rolled up above your elbows. If your hair is long, fasten it.

Insert the ends of your necktie or scarf inside clothing or fasten it with a nonconductive clip, approximately 8 centimeters (3 inches) from the end.

Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your clothing.

Attention: Metal objects are good electrical conductors.

Wear safety glasses when you are: hammering, drilling soldering, cutting wire, attaching springs, using solvents, or working in any other conditions that might be hazardous to your eyes.

After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that is worn or defective.

Reinstall all covers correctly before returning the machine to the customer.

Do not attempt to lift any

Introduction

Electrical Safety

Observe the following rules when working on electrical equipment.

Important

Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents.

Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges. Do not use this type of mat to protect yourself from electrical shock.

Find the room emergency power-off (EPO) switch, disconnecting switch, or electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly.

Do not work alone under hazardous conditions or near equipment that has hazardous voltages.

Disconnect all power before:

– Performing a mechanical inspection – Working near power supplies – Removing or installing main units

Before you start to work on the machine, unplug the power cord. If you cannot unplug it, ask the customer to power-off the wall box that supplies power to the machine and to lock the wall box in the off position.

If you need to work on a machine that has electrical circuits, observe the following precautions:

– Ensure that another person, familiar with the

power-off controls, is near you. Attention: Another person must be there to

switch off the power, if necessary.

– Use only one hand when working with

powered-on electrical equipment; keep the other hand in your pocket or behind your back.

Attention: There must be a complete circuit to cause electrical shock. By observing the above rule, you may prevent a current from passing through your body.

– When using testers, set the controls correctly

and use the approved probe leads and accessories for that tester.

– Stand on suitable rubber mats (obtained locally,

if necessary) to insulate you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages; these instructions are in the safety sections of maintenance information. Use extreme care when measuring high voltages.

exposed

16 IBM Mobile Systems HMM

Regularly inspect and maintain your electrical hand

tools for safe operational condition.

Do not use worn or broken tools and testers.

Never assume

from a circuit. First, powered-off.

Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds.

Do not touch live electrical circuits with the reflective surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machine damage.

Do not service the following parts when they are removed from their normal operating places in a machine:

– Power supply units

– Pumps

– Blowers and fans

– Motor generators and similar units. (This practice ensures correct

grounding of the units.)

If an electrical accident occurs:

– Use caution; do not become a victim

yourself. – Switch off power. – Send another person to get medical aid.

that power has been disconnected

check

that it has been

with the power on

Safety Inspection Guide

The intent of this inspection guide is to assist you in identifying potentially unsafe conditions on these products. Each machine, as it was designed and built, had required safety items installed to protect users and service personnel from injury. This guide addresses only those items. However, good judgment should be used to identify potential safety hazards due to attachment of non-IBM features or options not covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

Consider these conditions and the safety hazards they present:

Electrical hazards, especially primary power (primary voltage on the frame can cause serious or fatal electrical shock).

Explosive hazards, such as a damaged CRT face or bulging capacitor

Mechanical hazards, such as loose or missing hardware

Introduction

The guide consists of a series of steps presented in a checklist. Begin the checks with the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).

2. Power-off the computer. Disconnect the power cord.

3. Check the power cord for:

a. A third-wire ground connector in good condition.

Use a meter to measure third-wire ground continuity for 0.1 ohm or less between the external ground pin and frame ground.

b. The power cord should be the appropriate type

as specified in the parts listings.

c. Insulation must not be frayed or worn.

4. Remove the cover.

5. Check for any obvious non-IBM alterations. Use good judgment as to the safety of any non-IBM alterations.

6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.

7. Check for worn, frayed, or pinched cables.

8. Check that the power-supply cover fasteners (screws or rivets) have not been removed or tampered with.

18 IBM Mobile Systems HMM

Handling Electrostatic Discharge-Sensitive Devices

Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all at the same charge.

Notes

1. Use product-specific ESD procedures when they

exceed the requirements noted here.

2. Make sure that the ESD protective devices you

use have been certified (ISO 9000) as fully effective.

When handling ESD-sensitive parts:

Keep the parts in protective packages until they are

inserted into the product.

Avoid contact with other people. Wear a grounded wrist strap against your skin to

eliminate static on your body.

Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.

Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.

Select a grounding system, such as those listed below, to provide protection that meets the specific service requirement.

Note

The use of a grounding system is desirable but not required to protect against ESD damage.

– Attach the ESD ground clip to any frame ground,

ground braid, or green-wire ground.

– Use an ESD common ground or reference point

when working on a double-insulated or battery-operated system. You can use coax or connector-outside shells on these systems.

– Use the round ground-prong of the AC plug on

AC-operated computers.

Grounding Requirements

Electrical grounding of the computer is required for operator safety and correct system function. Proper grounding of the electrical outlet can be verified by a certified electrician.

Introduction

Laser Compliance Statement

Some IBM Personal Computer models are equipped from the factory with a CD-ROM drive. CD-ROM drives are also sold separately as options. The CD-ROM drive is a laser product. The CD-ROM drive is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

When a CD-ROM drive is installed, note the following.

CAUTION: Use of controls or adjustments or performance of

procedures other than those specified herein might result in hazardous radiation exposure.

O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui especificados pode resultar em perigosa exposição à radiação.

Pour éviter tout risque d'exposition au rayon laser, respectez les consignes de réglage et d'utilisation des commandes, ainsi que les procédures décrites.

Werden Steuer- und Einstellelemente anders als hier festgesetzt verwendet, kann gefährliche Laserstrahlung auftreten.

L'utilizzo di controlli, regolazioni o l'esecuzione di procedure diverse da quelle specificate possono provocare l'esposizione a

El uso de controles o ajustes o la ejecución de procedimientos distintos de los aquí especificados

20 IBM Mobile Systems HMM

puede provocar la exposición a radiaciones peligrosas.

Opening the CD-ROM drive could result in exposure to hazardous laser radiation. There are no serviceable parts inside the CD-ROM drive. Do not open.

Some CD-ROM drives contain an embedded Class 3A or Class 3B laser diode. Note the following.

DANGER: Laser radiation when open. Do not stare into the

beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

Rayonnement laser si carter ouvert. Évitez de fixer le faisceau, de le regarder directement avec des instruments optiques, ou de vous exposer au rayon.

Laserstrahlung bei geöffnetem Gerät. Nicht direkt oder über optische Instrumente in den Laserstrahl sehen und den Strahlungsbereich meiden.

Kinyitáskor lézersugár ! Ne nézzen bele se szabad szemmel, se optikai eszközökkel. Kerülje a sugárnyalábbal való érintkezést !

Aprendo l'unità vengono emesse radiazioni laser. Non fissare il fascio, non guardarlo direttamente con strumenti ottici e evitare l'esposizione diretta al fascio.

Radiación láser al abrir. No mire fijamente ni examine con instrumental óptico el haz de luz. Evite la exposición directa al haz.

Introduction

Screw Size Chart

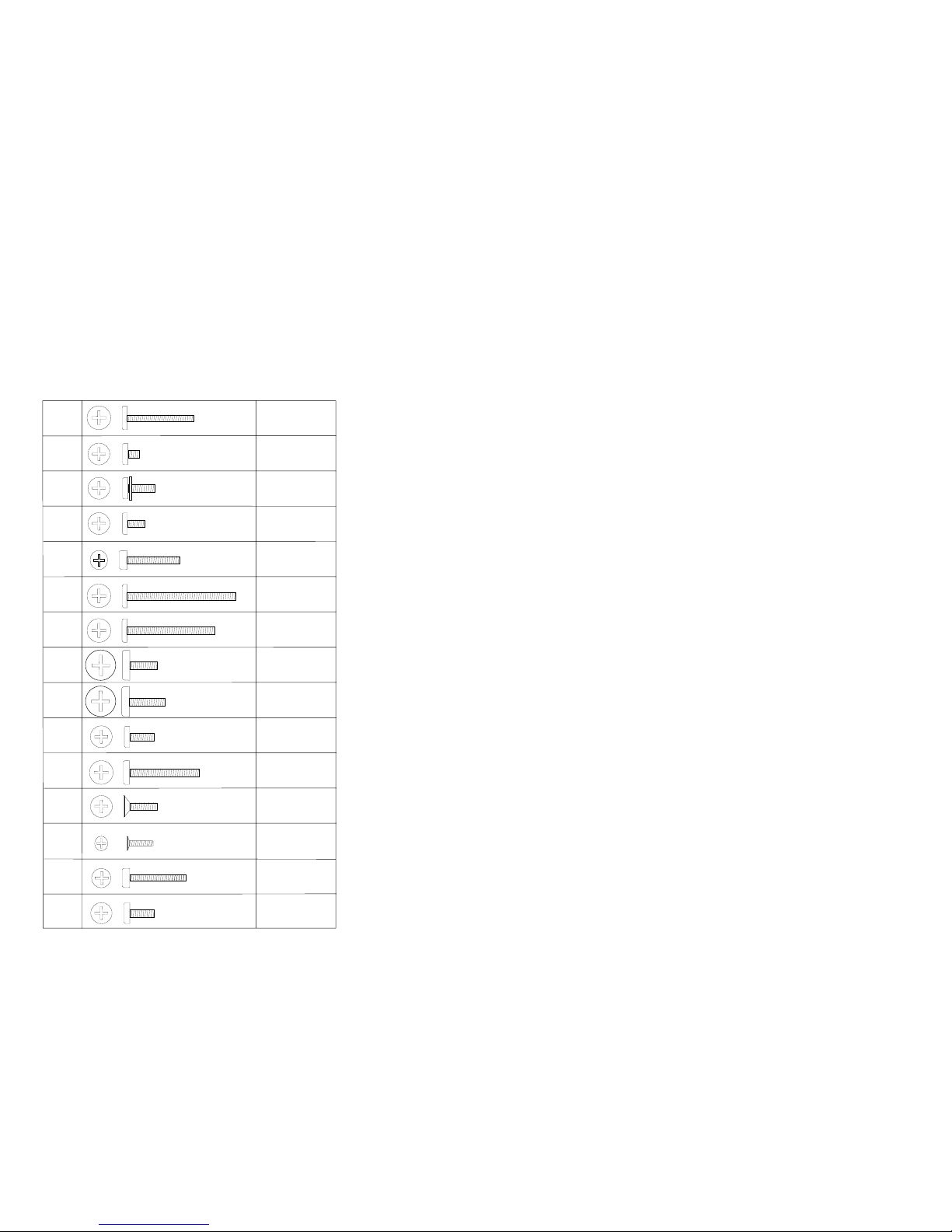

Use the chart below to match the size and shape of the screws used in the computer you are servicing.

Silver

Black

Silver

Brass

Black

Brass

Silver

Brass

Silver

Black

Brass

22 IBM Mobile Systems HMM

Screw Size Chart (continued):

to match the size and shape of the screws used in the computer you are servicing.

Use the chart below

Brass

Black

Brass

Black

Brass

Black

Brass

Black

Brass

Black

Introduction 23

Black

Silver

Screw Size Chart (continued):

to match the size and shape of the screws used in the computer you are servicing.

Use the chart below

Silver

Brass

Silver

Black

Brass

Silver

Brass

Black

Silver

Black

24 IBM Mobile Systems HMM

ThinkPad 365X, 365XD (2625)

Read This First .................. 27

Checkout Guide . . . . . . . . . . . . . . . . . 30

Memory Checkout . . . . . . . . . . . . . . . 31

System Board and CPU Card Checkout ..... 32

Keyboard/Auxiliary Input Device Checkout .... 32

TrackPoint III Checkout ............ 33

Port Replicator Game Port Checkout ...... 33

Diskette Drive Test .............. 33

Status Indicators Checkout ........... 34

Power Systems Checkout ........... 34

Power Management Features ......... 38

Symptom-to-FRU Index . . . . . . . . . . . . . . 40

Numeric Error Codes .............. 40

Beep Symptoms . . . . . . . . . . . . . . . . 44

No-Beep Symptoms . . . . . . . . . . . . . . 45

LCD–Related Symptoms . . . . . . . . . . . . 46

Keyboard/TrackPoint III–Related Symptoms . . . 47

Indicator–Related Symptoms . . . . . . . . . . 47

Power–Related Symptoms . . . . . . . . . . . 47

Function–Related Symptoms . . . . . . . . . . 48

Peripheral Device–Related Symptoms ...... 49

Infrared–Related Symptoms . . . . . . . . . . 49

Other Symptoms . . . . . . . . . . . . . . . . 49

Intermittent Problems . . . . . . . . . . . . . 49

Undetermined Problems . . . . . . . . . . . . 50

Related Service Procedures ............ 51

Status Indicators . . . . . . . . . . . . . . . . 51

How to Run the Diagnostics .......... 54

Error Log . . . . . . . . . . . . . . . . . . . 55

Diagnostic Error Codes ............ 55

Checking the Installed Devices List ....... 57

Password Combinations (POP, HDP, PAP) . . . 58

How to Run a Low-Level Format ........ 58

PC Test Card LED ............... 58

Fn Key Combinations ............. 59

Product Overview (365X, 365XD) . . . . . . . . . 60

FRU Removals and Replacements ......... 61

1010 Rear Connector Door .......... 62

1020 Battery Pack . . . . . . . . . . . . . . 63

1025 Insulator Sheet . . . . . . . . . . . . . 64

1030 DIMM Card (If Installed) ......... 66

1040 Diskette Drive / CD-ROM Drive ...... 67

1045 Base Cover Assembly / Keyboard Latch . 69

1050 Hard Disk Drive ............. 70

1060 Top Cover . . . . . . . . . . . . . . . 71

1070 Keyboard Unit . . . . . . . . . . . . . . 73

1080 LCD Assembly . . . . . . . . . . . . . 74

1085 LCD Panel . . . . . . . . . . . . . . . 75

1090 Indicator Card . . . . . . . . . . . . . . 87

1100 Volume Switch / Speaker Assembly .... 88

1110 Keyboard Card / Cable .......... 89

1120 CPU Card and System Board Card .... 91

1130 System Board / PCMCIA Slot Assembly . . 94

Locations . . . . . . . . . . . . . . . . . . . . . 96

Front View . . . . . . . . . . . . . . . . . . 96

Inside View . . . . . . . . . . . . . . . . . . 97

Bottom View . . . . . . . . . . . . . . . . . . 98

Rear View . . . . . . . . . . . . . . . . . . . 99

Power-On Password Jumper Pads ...... 100

Parts Listing 365X, 365XD (2625) ........ 102

Model 365X - Diskette Drive ......... 102

Model 365XD - CD-ROM Drive ........ 104

Common/Option Parts List .......... 111

26 IBM Mobile Systems HMM

Read This First

Before you go to the checkout guide, be sure to read this section.

Important Notes

Only certified trained personnel should

service the computer.

Read FRU service procedures before replacing

any FRUs.

Be extremely careful during write operations

such as copying, saving, or formatting. Drives

in the computer that you are servicing might have been rearranged or the drive startup sequence might have been altered. If you select an incorrect drive, data or programs can be written over.

Replace FRUs only for the correct model.

When you replace the FRU, make sure the model of the machine and FRU part number are correct by referring to the parts list.

FRUs should not be replaced because of a

single, un-reproducible failure. Single failures

can occur from a variety of reasons that have nothing to do with a hardware defect such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should only be considered when a recurring problem exists. If this is suspected, clear the error log and run the test again. Do not replace any FRUs if log errors do not reappear.

Be careful not to replace a non-defective FRU.

How to Use Error Messages: Use the error

codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. The cause of the first error code can result in false error codes being displayed. If no error code is displayed, see if the error symptom is listed in the “Symptom-to-FRU Index” on page 40.

Port Replicator Problems: If you suspect a

problem with the Port Replicator, see “Port Replicator Checkout” in the “Common Devices Checkout” section.

How to Diagnose Multiple FRUs: When the

adapter or device has more than one FRU, the error code could be caused by either FRU. Before replacing multiple FRUs, try removing or exchanging each FRU, one by one in the designated sequence, to see if the symptoms change.

ThinkPad 365X, 365XD (2625)

What to Do First: The servicer must include the

following information on the parts exchange form or parts return form that is attached to the returned FRU:

1. Name and phone number of servicer.

2. Date of service.

3. Date when part failed.

4. Date of purchase.

5. Failure symptoms, error codes appearing on display, and beep symptoms.

6. Procedure index and page number in which failing FRU was detected.

7. Failing FRU name and part number.

8. Machine type, model number, and serial number.

9. Customer's name and address.

Before checking problems with the computer, determine whether or not the damage is covered by the warranty by referring to the following:

Warranty Note

During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer. The following list provides some common items that are not covered under warranty and some symptoms that may indicate the system was subjected to stresses beyond normal use.

LCD panel cracked by excessive force or being

dropped.

Scratched (cosmetic) parts.

Cracked or broken plastic parts, broken latches, broken pins, or broken connectors caused by excessive force.

Damage caused by liquid spilled into the system.

Damage caused by improperly inserting a PCMCIA card or installation of an incompatible card.

Damage caused by foreign material in the diskette drive slot.

Diskette drive damage caused by pressing the diskette drive cover or inserting diskettes with multiple labels.

Damaged or bent diskette eject button.

CD-ROM drive damage caused by excessive force, shock, or from being dropped.

Fuses blown by attaching a non-supported device.

Forgotten computer or hard disk password (making computer or hard disk unusable).

28 IBM Mobile Systems HMM

If the following symptoms are present, they may indicate damage caused by non-warranted activity:

Missing parts may be a symptom of unauthorized

service or modification.

HDD spindles can become noisy if subjected to

excessive force or if the HDD is dropped.

I9990303 errors can be caused by exposure to

strong magnetic fields.

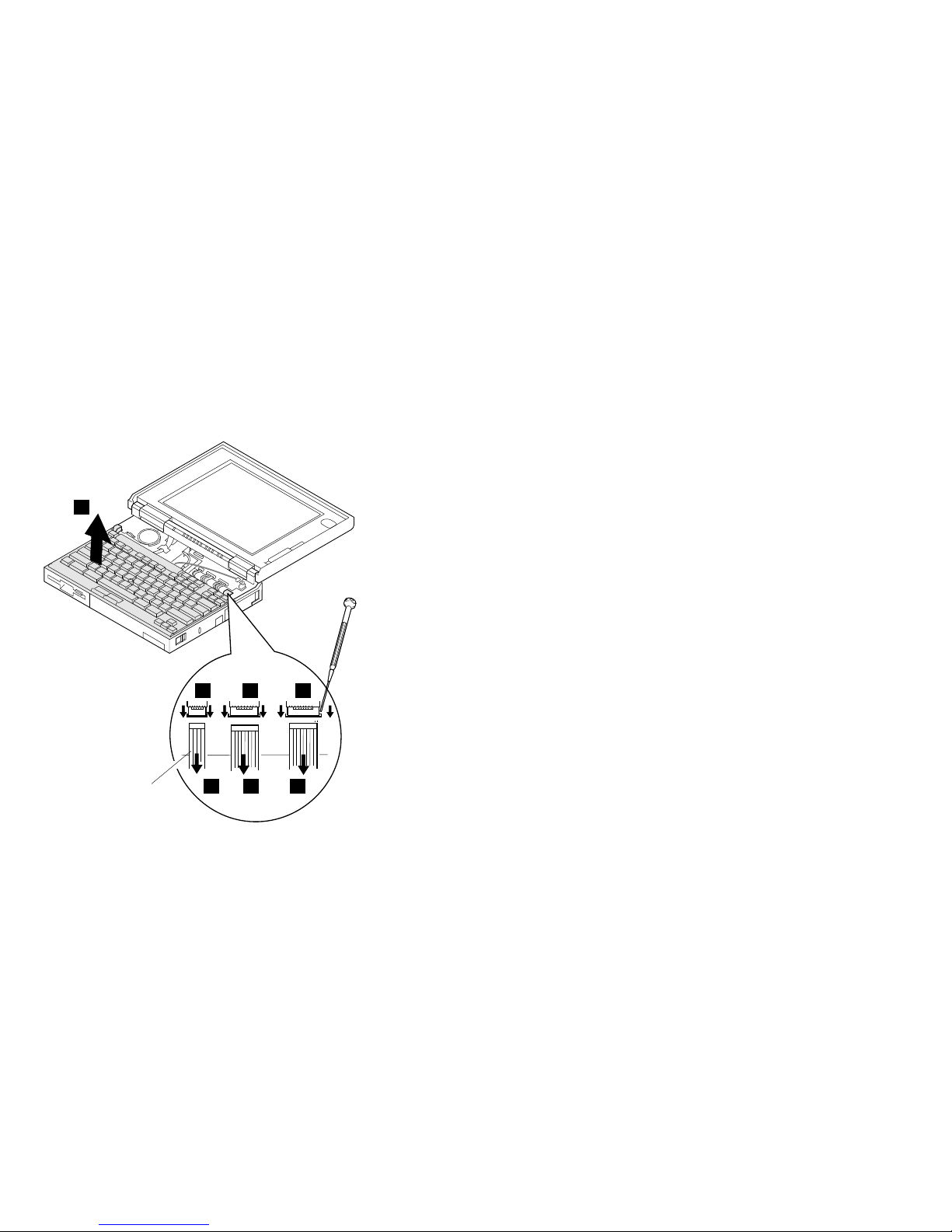

How to Disable the Power-On Password:

1. Power off the computer.

2. Open the keyboard and lift the right-most section of the insulator sheet.

3. Push out the small door on the right side of the base cover. See page 100 for location.

4. Apply a short across the Power-On Password Jumper Pads.

Warning: When using a metal tool to short the two jumper pads, make sure the metal tool does not touch any metal parts other than the two jumper pads.

5. With the jumper tool in place, power on the computer to clear the password.

6. Remove the jumper and power off the computer.

7. Power on the computer and verify that the password has been cleared.

To reactivate the password, set the password again.

Supervisor and Hard Disk Passwords: The

Supervisor Password and the Hard Disk Password (HDP) are security features that are used to protect the system and the hard disk data from unauthorized access. No overriding capability is provided. If only a hard disk password is set, obtaining permission from the password owner to unlock the password is a prerequisite for running diagnostic tests and performing service. If both supervisor password and hard disk password are set, you can enter Easy-Setup by pressing the Enter key or power-on password at the supervisor password prompt. In this case, the Password, Start up, and Initialize icons cannot be selected.

See “Password Combinations (POP, HDP, PAP)” on page 58 for more information about passwords.

ThinkPad 365X, 365XD (2625) 29

Checkout Guide

Use the following procedure as a guide for computer problems.

Note

The diagnostic tests are intended to test only IBM products. Non-IBM products, prototype cards, or modified options can give false errors and invalid system responses.

1. Obtain the failing symptoms in as much detail as possible.

2. Verify the symptoms by attempting to recreate the failure by running the diagnostic test or by repeating the same operation.

Note

To run the diagnostics, refer to “How to Run the Diagnostics” on page 54.

3. Use the following table with the verified symptom to determine which page to go to. Search the symptoms column and find the description that best matches your symptom; then go to the page shown in the “Go to” column.

Symptoms (Verified) Go to

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beeps or error codes are indicated.

POST beeps, but no error codes are displayed.

POST detected an error and displayed numeric error codes.

The diagnostic test detected an error and displayed a FRU code.

The configuration is not the same as the installed devices.

“Power Systems Checkout” on page 34.

“Symptom-to-FRU Index” on page 40, and then use the No-Beep Symptoms table.

“Symptom-to-FRU Index” on page 40, and then use the Beep Symptoms table.

“Symptom-to-FRU Index” on page 40, and then use the Numeric Error Codes table.

“FRU Codes” on page 57.

“Checking the Installed Devices List” on page 57.

30 IBM Mobile Systems HMM

Symptoms (Verified) Go to

Other symptoms (such as LCD display problems).

“Symptom-to-FRU Index” on page 40, and then use the Other Symptoms table.

Symptoms cannot be recreated. (Intermittent problems.)

Use the customer reported symptoms and go to “Symptom-to-FRU Index” on page 40.

Memory Checkout

DIMM cards are available for increasing memory capacity.

DIMM Displayed Value

No DIMM installed 7808KB 8MB 16000KB 16MB 24192KB 32MB 40576KB

Memory errors might stop system operations, show error messages on the screen, or hang the system.

Use the following procedure to isolate memory problems.

Note

Make sure that the DIMM is fully installed into the connector. Both latches must be latched completely. A loose connection can cause error code 195.

1. Power off the computer and remove the DIMM from its slot (if installed).

2. Press and hold the F1 key; then power on the computer. Hold the F1 key down until the Easy-Setup screen appears.

3. Select Test and press Enter.

4. Select Memory and press Enter to run the memory test on base memory. If an error appears, replace the system board.

5. Power off the computer and reinstall the DIMM; then power on the computer. Verify the memory size; then test the memory. If an error appears, replace the DIMM.

If memory problems occur intermittently, make sure the DIMM socket latches are latched completely. If the DIMM latches are securely latched, use the loop option to repeat the test. When the test detects an error, an error log is printed on the printer connected to the parallel port. See “Error Log” on page 55 for more information.

ThinkPad 365X, 365XD (2625) 31

System Programs in Flash Memory:

programs and diagnostic tests are stored in flash memory.

System setup

Flash Memory Update:

required for the following conditions:

New versions of system programs. New features or options are added.

To update the flash memory, do the following:

1. Get the appropriate diskette containing the update.

2. Insert the System Program Service Diskette into drive A and power on the computer.

3. Select Update system programs from the menu.

A flash memory update is

System Board and CPU Card Checkout

The processing functions are performed by both the system board and the CPU card. Processor problems can be caused by either FRU. However, the CPU card generally has a lower probability of failure. When a numeric code calls the system board or the CPU card as a FRU, or the CPU card is called by a diagnostic test by showing FRU code 11, use the following procedure to isolate the problem:

1. Run the system board test to verify the symptom. This test verifies both the system board and the CPU card. If no error is detected, return to “Checkout Guide” on page 30.

2. If FRU code 10 appears, replace the system board but do not replace the CPU card. Transfer the CPU card from the old system board to the new system board.

3. If FRU code 11 appears, reseat the CPU card.

4. Rerun the test to verify the fix.

5. If FRU code 11 remains, replace the CPU card.

If above procedure does not correct the problem, go to “Undetermined Problems” on page 50.

Keyboard/Auxiliary Input Device Checkout

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the three flexible cables extending from the keyboard are correctly seated in the connectors on the keyboard card.

If the keyboard cable connections are correct, check the keyboard card.

32 IBM Mobile Systems HMM

TrackPoint III Checkout

If the TrackPoint III will not work, check the configuration in the ThinkPad Features program. If the configuration of the TrackPoint III is disabled, select Enable to enable it.

If this does not correct the TrackPoint III problem, continue with the following steps.

The TrackPoint III does automatic compensations to adjust the pointer sensor. During this process, the pointer moves on the screen automatically for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the TrackPoint III pointer while the computer is powered on or while the system is running, or when re-adjustment is required because the temperature has exceeded its normal temperature range. This symptom does not indicate a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

If a click button problem or pointing stick problem occurs, do the following:

1. Go to the Easy-Setup screen.

2. Select an item with the pointing stick.

3. Press either the left or right click button.

4. Verify that both buttons work correctly.

If either the pointing stick or the click button do not work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU.

Reseat the keyboard card cables. Replace the keyboard. Replace the keyboard card. Replace the system board.

Port Replicator Game Port Checkout

Do the following if a Port Replicator joystick problem occurs:

1. Connect the joystick to the Port Replicator game port.

2. Go to the Easy-Setup screen.

3. Select an item with the joystick.

4. Press any button of the joystick.

5. Verify that all buttons work correctly.

If either the joystick or a button does not work, replace the Port Replicator. If the problem still remains, replace the system board.

Diskette Drive Test

Do the following to isolate the problem to a controller, drive, or diskette. A scratch, write enabled, non-defective 2HD diskette is required.

FDD-1 represents the built-in diskette drive for 365X. FDD-2 represents a diskette drive in the Port Replicator or

ThinkPad 365X, 365XD (2625)

a diskette drive attached through the external diskette drive connector.

Warning: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Select the advanced diagnostics mode and select Tool; then select the FDD-1 or FDD-2 icon and press the spacebar. A mark appears next to the selected icon. Insert a blank diskette when instructed.

2. Run the diskette drive test.

3. If the controller test detects an error, FRU code 10 appears. Replace the system board.

4. If the controller test runs without errors, the drive read/write tests start automatically.

5. If the drive test detects an error, FRU code 50 for FDD-1 or 51 for FDD-2 appears. If the diskette itself is known to be good, replace the drive.

Status Indicators Checkout

If a status indicator LED problem occurs, do the following:

1. Power off the computer.

2. Power on the computer.

3. All the LEDs in the status indicator panel turn on for a moment soon after the computer is powered on. Verify that all indicators turn on correctly.

If some of the indicators do not turn on, replace the LED indicator card.

If the problem still remains, replace the keyboard card.

Power Systems Checkout

To verify the symptom of the problem, power on the computer using each of the power sources as follows:

1. Remove the battery pack, diskette drive, and hard disk drive.

2. Connect the AC Adapter and check that power is supplied.

3. Install the diskette drive or hard disk drive one at a time, and check that power is supplied from each power source.

4. Disconnect the AC Adapter, remove the hard disk and diskette drive, and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check listed below.

“Checking the AC Adapter” on page 35. “Checking Operational Charging” on page 36. “Checking the Battery Pack” on page 36. “Checking the Backup Battery” on page 37.

34 IBM Mobile Systems HMM

Checking the AC Adapter: You are here

because the computer fails only when the AC Adapter is used.

If the power problem occurs only when a Port

Replicator is used, replace the replicator.

If the power-on indicator does not turn on, check the power cord of the AC Adapter for correct continuity and installation.

If the operational charge does not work, go to “Checking Operational Charging” on page 36.

Note

There are two types of adapters. The procedure for checking both types is the same.

1. Unplug the AC Adapter cable from the computer and measure the output voltage at the plug of the AC Adapter cable. See the following figure:

(16 - 10 V)

Pin Voltage (V dc)

1 +14.5 to +17.0 2 Ground

If the voltage is correct, replace the system board. If the problem is not corrected, go to “Undetermined

Problems” on page 50.

If the voltage is not correct, go to the next step.

2. Unplug the AC Adapter cable from the ac power outlet and wait five minutes or longer to allow the over-voltage protection circuit to be fully discharged and initialized.

3. Plug the AC Adapter cable into the ac power outlet.

4. Measure the output voltage of the AC Adapter.

5. If the voltage is still not correct, replace the AC Adapter.

Note

An audible noise from the AC Adapter does not always indicate a defective adapter.

ThinkPad 365X, 365XD (2625) 35

Checking Operational Charging: To check

operational charging, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

Perform operational charging. If the battery status indicator does not turn on, remove the battery pack and leave it to return to room temperature. Reinstall the battery pack. If the charge indicator still does not turn on, replace the battery pack.

Checking the Battery Pack: Battery charging will

not start until the Fuel-Gauge shows that less than 95% of the total power remains; with this condition the battery pack will charge to 100% of its capacity. This protects the battery pack from being overcharged or having a shortened life.

Do the following:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 2 (+) and 6 (−). See the following figure:

(-)

(T)

(+)

Terminal Voltage (V dc) / Signal

1 —

2 +8 to +13.5

3 — 4 —

5 Thermal 6 Ground (−)

Note

Signal lines, not used in these steps, are used for communication between the system and the battery.

36 IBM Mobile Systems HMM

3. If the voltage is less than +9.6 V dc, the battery pack has been discharged. Recharge the battery pack.

If the voltage is still less than +9.6 V dc after recharging, replace the battery.

Note

If the voltage of the battery pack is 0 V, it is not defective.

4. If the voltage is more than +9.6 V dc, measure the resistance between battery terminals 5 and 6. The resistance must be 4 K to 30 K ohm.

If the resistance is not correct, replace the battery pack. If the resistance is correct, replace the system board.

Checking the Backup Battery

1. Power off the computer and unplug the AC Adapter from the computer.

2. Open the keyboard and remove the battery pack.

3. Lift the right-hand section of the black insulator sheet.

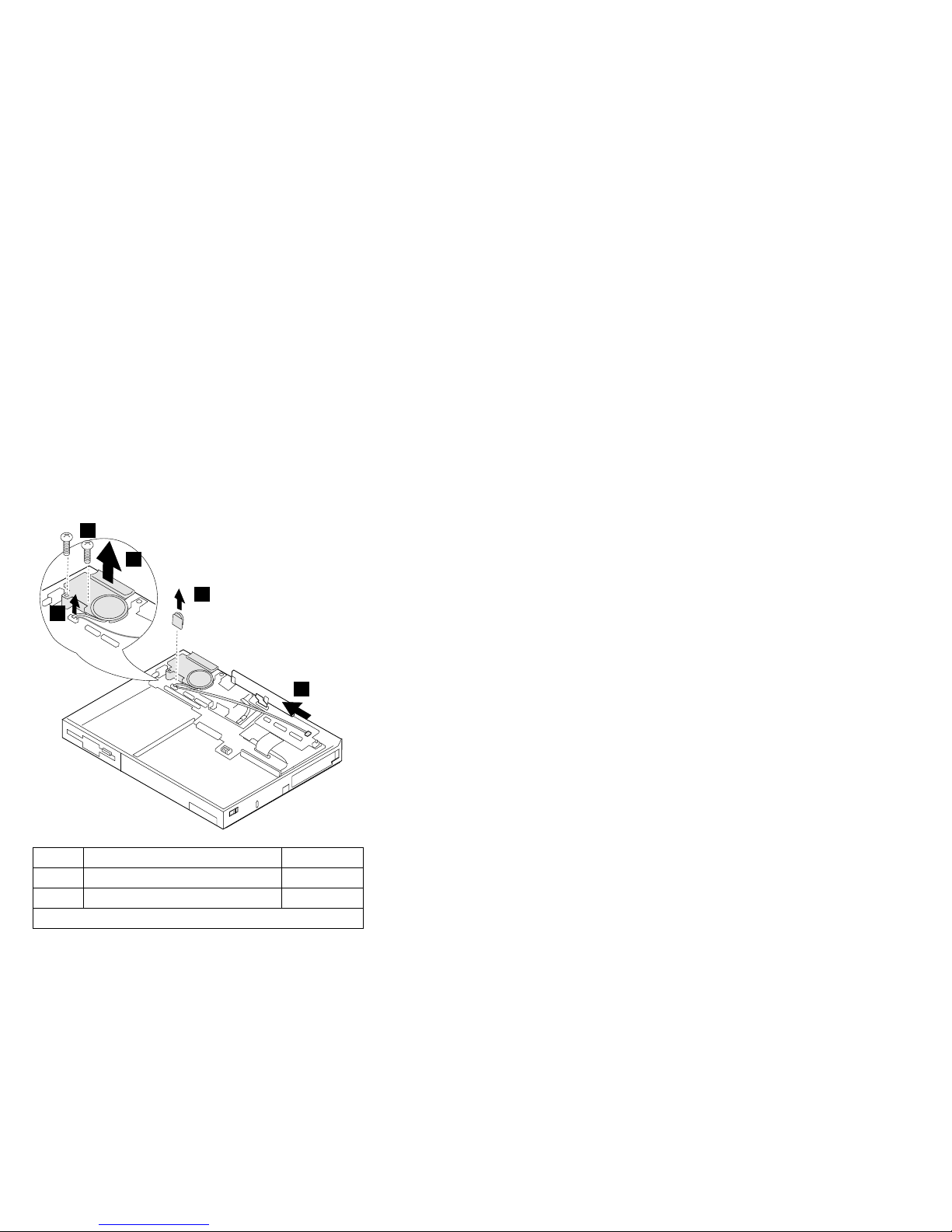

4. Locate the backup battery on the system board, shown at 1 .

5. Using a plastic tool, remove the backup battery from the system board.

DANGER

Do not use a metal tool when removing the backup battery. Use only a plastic tool.

ThinkPad 365X, 365XD (2625) 37

6. Measure the voltage of the backup battery. Refer to the following table for voltages:

Wire Voltage (V dc)

+ +2.5 to +3.7

− Ground

If the voltage is correct, replace the system board. If the voltage is not correct, the backup battery has

been discharged. Replace the backup battery.

If the backup battery discharges quickly after

replacement, replace the system board.

Power Management Features

Three power management modes are provided by the computer to reduce power consumption and prolong battery power.

Standby Mode: When in standby mode the following

occurs:

The LCD backlight turns off. The hard disk motor stops.

Events that cause the computer to enter standby mode:

Standby requested by the Fn key. (Fn+F3) No activity under auto-standby enabled by the

ThinkPad Features program.

Events that cause the computer to exit or resume standby mode:

(Resume) Any key operation.

Suspend Mode: When in suspend mode, the

following, in addition to the two actions of standby mode, occur:

The LCD is powered off. The hard disk is powered off. The CPU is stopped.

Notes

1. In the ThinkPad Features Program, the computer can be set to “Will not suspend even if LCD is closed.”

2. When the computer is powered with ac power and is used with one of the communication PC cards, the computer enters PC card and application program remain active.

3. The computer cannot enter suspend mode while a communication link is running.

38 IBM Mobile Systems HMM

standby mode

; the

Events that cause the computer to enter suspend mode:

Suspend mode is requested by the Fn key (Fn+F4). The LCD is closed.

The specified time has elapsed from the last operation with the keyboard, mouse, hard disk drive, parallel connector, or diskette drive; or the AC Adapter is plugged in. The time is specified by

Suspend Timer

The battery condition is low. The battery power indicator blinks amber.

Either the set in the ThinkPad Features program.

Events that cause the computer to exit or resume suspend mode:

(Resume) The LCD is opened.

(Resume) The real time clock alarm is signaled.

(Resume) The ring indicator (RI) is signaled by a serial or PCMCIA device.

(Resume) The Fn key is pressed.

(Resume) An external keyboard key is pressed while operating with ac power.

(Exit) Timer (timeout) conditions are satisfied for entering hibernation mode.

in the ThinkPad Features program.

PS2 OFF

PS2 SUSpend

command is

Hibernation Mode: When in hibernation mode, the

following occurs:

The system status, RAM, VRAM, and setup data are stored on the hard disk.

The system is powered off.

Note

The computer cannot enter hibernation mode when the computer is powered with ac power and a communication PC card is used.

Events that cause the computer to enter hibernation mode:

The keyboard is opened.

Hibernation mode is requested by the Fn key (Fn+F12).

Timer/timeout conditions are satisfied in suspend mode.

A critical low battery condition occurs.

The

PS2 HIB

ThinkPad Features program.

Event that causes the computer to exit hibernation mode:

The power-on switch is operated.

When power is turned on, the hibernation history in the boot record on the hard disk is recognized and system status is restored from the hard disk to resume operation.

ThinkPad 365X, 365XD (2625)

ernation command is set in the

Symptom-to-FRU Index

The Symptom-to-FRU Index lists the symptoms and errors and the possible causes. The most likely cause is listed first.

Note

Perform the FRU replacement or actions in the sequence shown in the “FRU/Action” columns. If a FRU did not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also be used to help you decide which FRUs to have available when servicing a computer.

Numeric error codes show the errors detected in POST or system operation. In the following error codes, X can be any number.

If no codes are available, use narrative symptoms. If the symptom is not listed, go to “Undetermined

Problems” on page 50.

Note

For any IBM device not supported by the diagnostic codes in this ThinkPad computer, see the manual for that device.

Numeric Error Codes

Symptom / Error FRU / Action in Sequence 10X

101 Interrupt failure. 102 Timer failure. 103 Timer interrupt failure. 104 Protected mode

failure.

105 Last 8042 command

not accepted. 107 NMI test failure. 108 Timer bus test failure. 109 Low meg-chip select

test.

110

(Planar parity.)

40 IBM Mobile Systems HMM

1. System Board

1. Go to “Memory

Checkout” on page 31.

2. DIMM

3. The computer is attached to a Port Replicator.

4. System Board

Symptom / Error FRU / Action in Sequence 111

(I/O parity.)

158

(HDP was not set even though the supervisor password is set.)

159

(HDP is not set the same as the supervisor password.)

161

(Dead battery.)

163

(Time and Date were not set.)

173

(Configuration data was lost.)

174

(Configuration error: Perform “Checking the Installed Devices List” on page 57 before changing any FRUs.)

175, 177, 178

175 EEPROM CRC #1

error.

177 Supervisor password

check sum error.

178 EEPROM is not

functional.

183

(Incorrect password entered at the supervisor password prompt.)

184

(POP check sum error.)

185

(The startup sequence is not valid. Suspect that power was off when the startup sequence was being updated.)

186 1. System Board

1. Go to “Memory

Checkout” on page 31.

2. Port Replicator

3. System Board

1. Set an HDP for the

hard disk drive.

1. Set a correct HDP for

the hard disk drive.

1. Go to “Checking the

Backup Battery” on page 37.

2. Backup Battery

3. System Board

1. Set Time and Date.

2. Backup Battery

3. System Board

1. Select OK in the error

screen; then set the time and date.

2. Backup Battery

3. System Board

1. Check Device

Configuration.

2. System Board

3. Diskette Drive Assembly

4. Hard Disk Drive Assembly

1. System Board

1. Have the user

examine the password.

1. Reset the POP (power-on password) in Easy-Setup.

1. Reset the startup sequence in Easy-Setup.

ThinkPad 365X, 365XD (2625) 41

Symptom / Error FRU / Action in Sequence 188

(EEPROM CRC #2 error.)

190

(Depleted battery pack was installed when the power was on.)

191XX

(PM initialization error.)

195

(The configuration read from the hibernation area does not match the actual configuration.)

196

(Read error occurred in the hibernation area of the HDD.)

199XX

(Resume error.)

1XX 1. System Board 2XX

201 Memory data error. 202 Memory line error

00–15.

203 Memory line error

16–23.

205 Memory test failure

on on-board memory.

221 ROM to RAM remap

error.

301, 303, 304, 305, 3XX

(301: Keyboard error.)

1. Set the system

identification using the ThinkPad 750Ce hardware maintenance diskette.

1. Go to “Checking the

Battery Pack” on page 36.

1. System Board

2. CPU card

1. Check if the

configuration was changed.

For example, check if the hard disk drive is from another computer. Also, when a DIMM card has been installed, unsecured DIMM latches can result in this error. Make sure the DIMM is securely seated and fully latched into place.

1. Run the hard disk

drive test.

2. Hard Disk Drive

1. System Board

1. Go to “Memory

Checkout” on page 31.

2. DIMM

3. System Board

1. Go to

“Keyboard/Auxiliary Input Device Checkout” on page 32.

2. Keyboard

3. External Numeric Keypad

4. External Keyboard

5. Keyboard/Mouse Cable

6. Keyboard Card

7. System Board

42 IBM Mobile Systems HMM

Symptom / Error FRU / Action in Sequence 601, 6XX

(601: Diskette drive or controller error.)

602

(Diskette read error.)

604

(Unacceptable ID was read from the diskette drive.)

11XX

1101: Serial_A test failure.

12XX

1201: Serial_B test failure.

17XX

1701 Hard disk controller

failure.

1780, 1790 Hard disk 0

error.

1781, 1791 Hard disk 1

error.

24XX

(2401: System board video error.)

808X

8081 PCMCIA presence

test failure. (PCMCIA revision number also checked.)

8082 PCMCIA register

test failure.

860X

(Pointing device error when TrackPoint III is disabled.)

8601 System bus

error–8042 mouse interface.

8602 External mouse

error.

8603 System bus error or

mouse error.

1. Go to “Diskette Drive

Test” on page 33.

2. Diskette Drive Assembly

3. Diskette

4. System Board

1. Go to “Diskette Drive

Test” on page 33.

2. Diskette

3. Diskette Drive Assembly

1. Go to “Diskette Drive

Test” on page 33.

2. Diskette Drive Assembly

3. System Board

1. Serial Device

2. Communication Cable

3. System Board

1. System Board

1. Hard Disk Drive

2. System Board

1. System Board

1. Reseat the PCMCIA

Connector.

2. PCMCIA Slot Assembly

3. PCMCIA Device

4. System Board

1. External Mouse

2. External Keyboard

3. System Board

ThinkPad 365X, 365XD (2625) 43

Symptom / Error FRU / Action in Sequence 861X

(Pointing device error when TrackPoint III is enabled.)

8611 System bus

error–I/F between

8042 and IPDC. 8612 TrackPoint error. 8613 System board or

TrackPoint error.

I9990301 I9990302 I9990305

I9990301 Hard disk error. I9990302 Invalid hard

disk boot record.

I9990305 No bootable

device.

I9990303

(Bank 2 flash ROM check sum error.)

Other codes not listed above

1. Reseat the keyboard

connector.

2. Reseat the keyboard TrackPoint III cable on the keyboard card. See “1070 Keyboard Unit” on page 73.

3. Keyboard

4. External Mouse

5. System Board

1. Reseat the boot

device.

2. Check the startup sequence for the correct boot device.

3. Check that the operating system has no failure and is installed correctly.

1. System Board

1. Go to “Undetermined

Problems” on page 50.

Beep Symptoms

Symptom / Error FRU / Action in Sequence

Continuous beeps. System Board One beep and a

blank, unreadable, or flashing LCD.

One beep, and the message “Unable to access boot source.”

One long beep, two short beeps, and a blank or unreadable LCD.

One long beep followed by four short beeps each time the power switch is operated. (System cannot power on because of low battery voltage.)

One beep every second. (System shuts down because of low battery voltage.)

44 IBM Mobile Systems HMM

1. Reseat the LCD connector.

2. LCD Assembly

3. System Board

1. Boot device

2. System Board

1. System Board

2. LCD Assembly

Connect the AC Adapter or install a fully charged battery.

Connect the AC Adapter or install a fully charged battery (allows system to complete shutdown before changing the battery).

Symptom / Error FRU / Action in Sequence

Two short beeps with error codes.

Two short beeps with blank screen.

POST error. See “Numeric Error Codes” on page 40.

System Board

No-Beep Symptoms

Symptom / Error FRU / Action in Sequence

No beep, power-on indicator not on, and a blank LCD during POST.

No beep, power-on indicator on, and a blank LCD during POST.

No beep, power-on indicator on, and a blinking cursor only during POST.

No beep during POST but system runs correctly.

1. Go to “Power Systems

Checkout” on page 34.

2. System Board

3. Power sources

1. System Board

2. CPU Card

1. System Board

2. CPU Card

1. Turn the volume up and

check the speaker.

2. Speaker / Volume Switch Assembly

ThinkPad 365X, 365XD (2625) 45

LCD–Related Symptoms

Important

The TFT LCD on some models of this computer contains over 1,440,000 thin-film transistors (TFTs). A small number of missing, discolored, or lighted dots (on all the time) is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. The LCD should be replaced if the number of dots satisfies the following condition:

The number of missing, discolored, or lighted

dots in any background is 21 or more.

Symptom / Error FRU / Action in Sequence

No beep, power-on indicator on, and a blank LCD during POST.

LCD backlight

not working, or

LCD too dark, or

LCD brightness

cannot be adjusted, or

LCD contrast

cannot be adjusted.

LCD screen

unreadable, or

Characters

missing pels, or

Screen

abnormal, or

Wrong color

displayed.

LCD has extra horizontal or vertical lines displayed.

1. System Board

2. CPU Card

1. Reseat the LCD connectors.

2. LCD Assembly

1. See important note for

“LCD–Related Symptoms.”

2. Reseat all LCD connectors.

3. LCD Assembly

4. System Board

LCD Assembly

46 IBM Mobile Systems HMM

Keyboard/TrackPoint III–Related Symptoms

Symptom / Error FRU / Action in Sequence

Keyboard (one or more keys) does not work.

TrackPoint III does not work.

Pointer moves automatically or does not work correctly.

1. Reseat the keyboard

connector.

2. Reseat the three keyboard cables on the keyboard card.

3. Keyboard

4. Keyboard Card

5. System Board

1. Reseat the keyboard

connector.

2. Go to “TrackPoint III Checkout” on page 33.

3. Keyboard

4. System Board

1. See “TrackPoint III

Checkout” on page 33.

Indicator–Related Symptoms

Symptom / Error FRU / Action in Sequence

Indicator incorrectly remains off or on, but system runs correctly.

1. Reseat the LED Indicator

Card cable.

2. LED Indicator Card

3. System Board

Power–Related Symptoms

Symptom / Error FRU / Action in Sequence

Power shuts down during operation.

The system will not power off.

ThinkPad 365X, 365XD (2625) 47

1. Go to “Power Systems Checkout” on page 34.

2. Battery Pack

3. Remove the battery pack and let it cool for two hours.

4. Power sources

System Board

Function–Related Symptoms

Symptom / Error FRU / Action in Sequence

The system will not enter hibernation mode by opening the keyboard.

The system will not suspend or resume by opening or closing the LCD.

Battery Fuel-Gauge does not go higher than 90%.

Memory count (size) appears different from actual size.

System configuration does not match the installed devices.

System hangs intermittently.

1. Go to “Hibernation Mode”

on page 39 and check whether the computer can enter hibernation mode.

2. Enable hibernation mode using the ThinkPad Features program.

3. Boot an operating system and press Fn+F12. If the computer enters hibernation mode, suspect that the application program is not working properly.

4. CPU Card

5. Initialize the system in Easy-Setup.

6. System Board

1. Go to “Suspend Mode” on

page 38, and check that the computer can enter suspend mode.

2. Boot an operating system and press Fn+F4. If the computer enters suspend mode, suspect that the application program is not working properly.

3. Initialize the system in Easy-Setup.

4. Keyboard Card

5. System Board

Go to “Checking the Battery Pack” on page 36 and see the note.

Go to “Memory Checkout” on page 31.

Go to “Checking the Installed Devices List” on page 57.

Go to “Intermittent Problems” on page 49.

48 IBM Mobile Systems HMM

Peripheral Device–Related Symptoms

Symptom / Error FRU / Action in Sequence

External display does not work correctly.

Printer problems. 1. Run Printer Self-test.

Serial or parallel port device problems.

1. See “External Display

Self-Test” in “Common Devices Checkout” section.

2. Parallel Port Device

3. Cable

4. System Board

1. Device

2. Device Cable

3. System Board

Infrared–Related Symptoms

Symptom / Error FRU / Action in Sequence

Unable to communicate using the Infrared (IR) Port.

1. Make sure the setup for the

IR is correct.

2. Make sure there are no fluorescent lights near the computer. The computer may receive optical interference from the fluorescent light.

3. Reseat the IR unit.

4. Run the advanced diagnostic test. If an error occurs and a FRU code is displayed, replace the parts shown by the FRU code.

Other Symptoms

Symptom / Error FRU / Action in Sequence

Errors occur only when Port Replicator is used.

PCMCIA slot pin is damaged.

See “Port Replicator Checkout” in the “Common Devices Checkout” section.

PCMCIA Slots Assembly

Note

If you cannot find a symptom or error in this list and the problem remains, see “Undetermined Problems” on page 50.

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should only be considered when a recurring problem exists.

When analyzing the intermittent problem, do the following:

ThinkPad 365X, 365XD (2625)

1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

3. If any error is detected, replace the FRU shown by the FRU code. Rerun the test to verify that no more errors exist.

Undetermined Problems

You are here because the diagnostic tests did not identify which adapter or device failed, installed devices are incorrect, a short circuit is suspected, or the system is inoperative. Follow the procedures below to isolate the failing FRU (do not isolate non-defective FRUs).

Verify that all attached devices are supported by the computer.

Verify that the power supply being used at the time of the failure is operating correctly. (See “Power Systems Checkout” on page 34.)

1. Power off the computer.

2. Check the cables, wires, and connectors for short circuits and open circuits. Visually check them for damage. If any problems are found, replace the FRU.

3. Remove or disconnect all of the following devices. a. Non-IBM devices

b. Devices attached to the expansion bus

connector

c. Printer, mouse, and other external devices

d. Battery pack

e. Hard disk drive

f. Internal diskette drive or CD-ROM drive g. DIMM h. PC Cards

4. Power on the computer.

5. Determine if the problem has changed.

6. If the problem does not occur again, reconnect the removed devices one at a time until you find the failing FRU.

7. If the problem still remains, remove the backup battery and wait for 3 minutes; then replace the backup battery and set current date and time.

8. Determine if the problem has changed.

9. If the problem remains, replace the following FRUs one at a time. Do not replace a non-defective FRU. Keyboard card LCD assembly System board CPU card

50 IBM Mobile Systems HMM

Related Service Procedures

This section provides information about the following: “Status Indicators”

“How to Run the Diagnostics” on page 54 “Diagnostic Error Codes” on page 55 “Error Log” on page 55 “Checking the Installed Devices List” on page 57 “Password Combinations (POP, HDP, PAP)” on

page 58

“How to Run a Low-Level Format” on page 58 “PC Test Card LED” on page 58 “Fn Key Combinations” on page 59 “Keyboard/Auxiliary Input Device Checkout” on

page 32

Status Indicators

The system status LED indicators show the current computer status in green and amber using symbols. The following shows the location of each symbol and the meaning of each indicator.

Symbol Color Meaning

1 Battery

Power Status

Green Indicates that sufficient

Blinking Amber

power remains for operation. The battery power status cannot be determined when the battery is not installed in the computer.

Indicates that the battery pack needs charging. When the indicator starts blinking amber, the computer beeps three times.

952 6374 8

ThinkPad 365X, 365XD (2625) 51

Symbol Color Meaning

2 Battery

Charging

3 Diskette

Drive In Use

4 Hard Disk

In-Use

5 Numeric

Lock

6 Caps Lock Green When on, indicates the

7 Scroll Lock Green Alternately turns on and

Green Indicates that the battery

pack is charging. When the indicator turns off, the battery pack is fully charged.

Off Indicates that the battery

pack is charged (if the AC Adapter is attached).

Amber Turns on when data is

written to or read from the internal diskette drive.

Amber Turns on when data is

read from or written to the hard disk or internal CD-ROM. Do not enter suspend mode or turn off the computer when this indicator is on.

Green When on, indicates the

numeric keypad on the keyboard is enabled. You enable and disable the keypad by pressing and holding the Shift key. Then press the NumLk key.

Caps Lock mode is enabled. All alphabetic characters (A–Z) are entered in capital letters without pressing the Shift key. You enable and disable Caps Lock mode by pressing the Caps Lock key.

off each time the Scroll Lock key is pressed.

While this indicator is on, the Arrow keys are used as screen-scroll function keys. In this state, the cursor cannot be moved with the Arrow keys. Not all application programs support this function.

52 IBM Mobile Systems HMM

Symbol Color Meaning

8 Suspend

Mode

9 Power On Green Shows that the computer

1 CD-ROM

Drive / Diskette Drive In-Use LED

Green When on, indicates the

Blinking Green

Amber 365XD: turns on when

Amber 365X: turns on when

computer is in suspend mode.

Indicates that the computer is entering suspend mode or hibernation mode, or the computer is resuming normal operation.

is operational. This indicator turns on when the computer is turned on and the computer is not in suspend mode.

data is read from a CD in the CD-ROM drive. Do not enter suspend mode or eject the CD when this indicator is on.

data is read from or written to a diskette in the internal diskette drive. Do not enter suspend mode or eject the diskette when this indicator is on.

ThinkPad 365X, 365XD (2625) 53

How to Run the Diagnostics

Use either the TrackPoint III or the cursor move keys to interact with the tests. The Enter key works the same as selecting the OK icon to reply OK.

Note

Make sure you have the following tools available before starting the tests:

Wrap Plug (P/N 72X8546) for the serial and

parallel connector tests.

Wrap Plug (P/N 35G4680) for the PCMCIA tests. Scratch diskette for the FDD1 or FDD2 tests. Any data CD for the CD-ROM drive test.

1. Press and hold the F1 key; then power on the computer. Hold the F1 key down until the Easy-Setup screen appears.

2. Select Test and press Enter.

3. Select a device and press Enter to run the test.

4. The test progress screen appears.

5. OK appears when the test ends without any errors.

6. Start the Advanced Diagnostic test by pressing Ctrl+A on the basic diagnostic menu screen.

7. Select Tool to install the tools.

8. Select a device, press the Spacebar and install the tool. Multiple devices can be selected by repeating this step.

A mark appears beside the selected devices.

9. Select OK and press Enter if the selection is OK.

10. Select a device and press Enter to start the tests.

11. Select Test All to test all devices.

12. Select Loop Test to run the tests in a repeated loop. A loop option menu appears in which a device loop or

all-device loop can be selected. Select a device and press the Spacebar to select a device. Repeat this step to select multiple devices. Press Enter to start the diagnostic loop. If no device is selected, all device tests are looped.

13. To exit the loop, keep pressing Ctrl+Pause until the test exits. A beep sounds to notify that the exit interrupt is sensed by the test program.

54 IBM Mobile Systems HMM

Error Log

Diagnostic errors are printed on the printer that is attached to the parallel port when the error is detected. The error is also logged in the system memory.

Do the following to display the errors:

1. End the test, if it is running.

2. Press Ctrl+A to select the advanced diagnostic mode.

3. Press Ctrl+E.

4. The error log appears.

5. To exit the screen, select the cancel icon or press Esc.

The error log is not saved when the system is powered-off.

Diagnostic Error Codes

If an error is detected, the following appears:

Large X on the left side of the device icon. Device ID (three digit) Error code (two digit) FRU code (four digit)

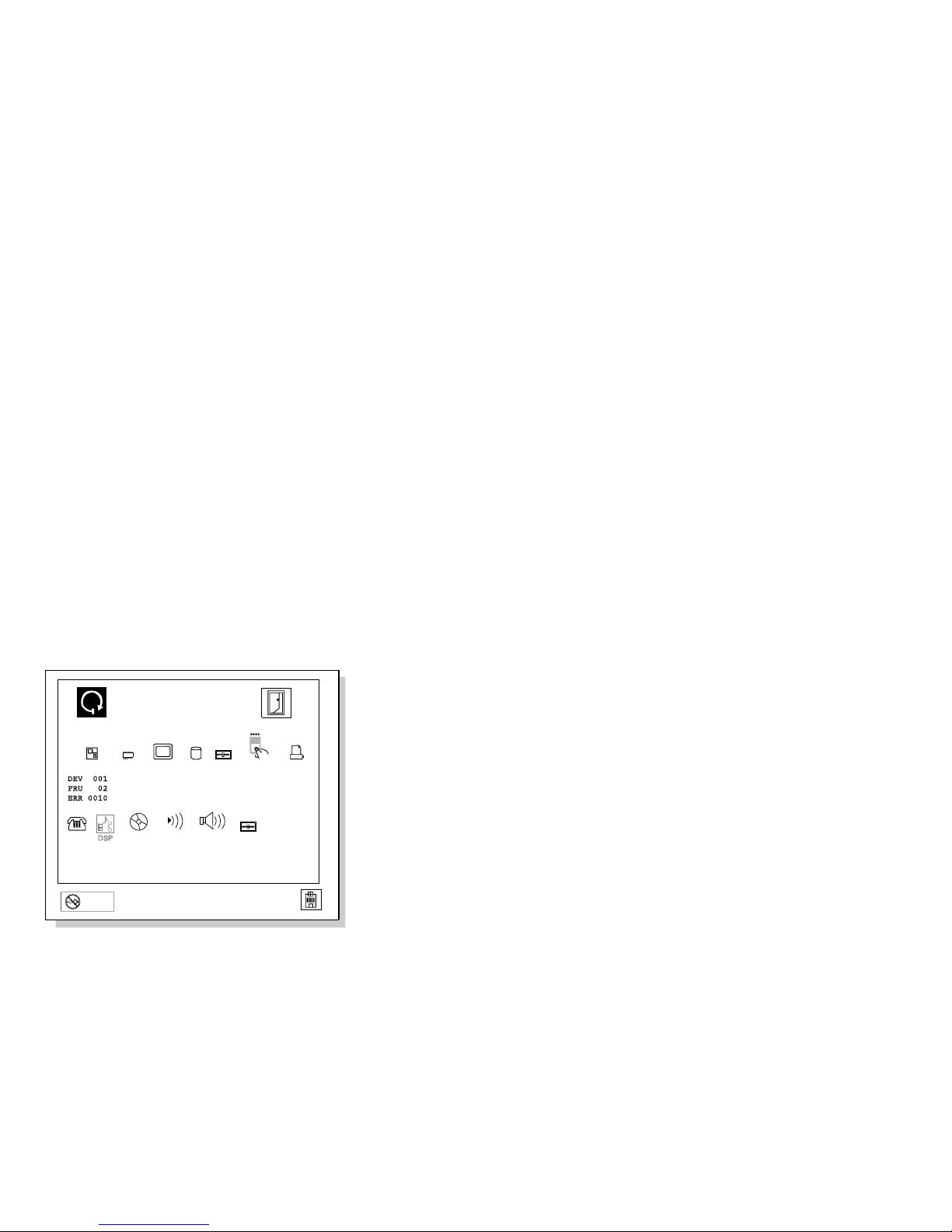

Start

Restart

SystemBoard Memory Display

HDD

FDD-1

PCMCIA

Parallel

Serial

CDROM

Exit

AudioInfrared

FDD-2

The device ID and error code are used to indicate the detail portion of the FRU which caused the error. If replacing a FRU does not correct the problem, see the device ID or error code from the previous failure. If they have changed, the cause might be because the new FRU is defective or that the FRU was incorrectly installed.

ThinkPad 365X, 365XD (2625)

Device ID: If an error is detected by the diagnostic

tests, a three-digit device ID is displayed. The device ID indicates the suspected device.

Icon DeviceIDSuspected Device

001 System Board

SystemBoard

Memory

Display

HDD

FDD-1

003 Keyboard 007 Math Coprocessor 086 Pointing Device 002 Memory

050 Display

017 Hard Disk Drive

006 Diskette Drive

066 External Diskette Drive

FDD-2

080 PCMCIA

009 Parallel

Parallel

011 Serial

Serial

215 CD-ROM

CDROM

103 Infrared port

Infrared

150 Audio (ESS AudioDrive

Audio

Sound Chip)

56 IBM Mobile Systems HMM

FRU Codes: If an error is detected by the diagnostic

tests, a

four-digit

indicates two suspected FRUs. Replace the FRU that is indicated by the FRU indicated by the assigned to code 00. If only one FRU is suspected, the other FRU code is filled with zeros. See the referenced page before replacing the FRU.

FRU Code FRU/Action

10 System Board 11 CPU Card 20 Memory

30 Reserved 32 External Keyboard 33 External Mouse 40 LCD Assembly 45 External CRT 50 1. Reseat the Diskette Drive (FDD-1)

51 1. Reseat the Diskette Drive (FDD-2)

60 1. Reseat the Hard Disk Drive (HDD)

72 PCMCIA Slot Assembly 90 CD-ROM Drive

FRU code is displayed. The FRU code

two leftmost digits

two rightmost digits

(See “Memory Checkout” on page 31.)

2. Diskette Drive (FDD-1)

2. Diskette Drive (FDD-2)

2. Hard Disk Drive (HDD)

first, then replace the

. No FRU is

If the problem remains after replacement of the FRUs, go to “Undetermined Problems” on page 50.

Checking the Installed Devices List

If a device is installed but the icon appears in a gray shade rather than a dark shade on the basic diagnostics screen, the device is defective. Reseat the device connectors. If the symptom remains, replace the device or the system board. If needed, adjust the contrast control to clearly distinguish the shade of the icon.

If a device that is not installed appears in a dark shade (for example, FDD-2 appears in a dark shade when FDD is installed), do the following:

1. Replace the first device in the configuration, such as the FDD-1.

2. If the problem remains, replace the system board.

The PCMCIA, Parallel, and Serial icons are always displayed in a dark shade because the icons represent subsystems of the system board and not the actual attachment of the devices.

ThinkPad 365X, 365XD (2625)

second

The FDD-1 icon represents the first drive in the system configuration. Similarly, the FDD-2 icon represents the second drive, attached to the external diskette drive connector or through a Port Replicator.

Password Combinations (POP, HDP, PAP)

When the power-on password (POP), hard disk password (HDP), and supervisor password (PAP) are used, the following situations may occur:

When the POP is the same as the HDP

The POP prompt appears, but the HDP prompt does not appear.

When the POP is not the same as the HDP

The POP and HDP prompts both appear.

When the PAP and HDP are enabled

When a PAP is used, the HDP is enabled automatically, but no HDP prompt appears. The HDP is set to the same password as the PAP.

How to Run a Low-Level Format

Do the following to format the hard disk. Warning: Make sure the drive address to be formatted is correct. This procedure will erase all information on the disk.

1. Power off the computer.

2. Insert the ThinkPad 750Ce hardware maintenance diskette into diskette drive A and power on the computer.

Note

You can use this maintenance diskette for the ThinkPad 365X and 365XD computers.

3. Select Format the hard disk from the main menu.

4. Select the drive from the menu.

5. Follow the instructions on the screen.

PC Test Card LED

The green LED on the PC test card turns on when the PCMCIA test is running. If the LED does not turn on, check that the card is installed correctly by reseating the card. If it still does not turn on after it is reseated, try using another slot for the test. If the LED still does not turn on and the test fails, replace the FRU shown by the diagnostic error code.

58 IBM Mobile Systems HMM

Fn Key Combinations

The following table shows the Fn key and function key combinations and their corresponding functions.

The Fn key works independently from the operating system. The operating system obtains the status through the system management interface to control the system.

Fn + Description

F1 Reserved F2 Fuel-Gauge display ON/OFF F3 Standby mode invocation F4 Suspend mode invocation F5 Reserved F6 Reserved F7 LCD/CRT display switching F8 Reserved F9 Reserved F10 Reserved F11 Power management mode switching

F12 Hibernation invocation Page

Up Page

Down

(Toggles between High Power, Auto, and Customize settings.)

Reserved

ThinkPad 365X, 365XD (2625) 59

Product Overview (365X, 365XD)

The following table shows an overview of the system features.

Feature Description

Processor Intel** Pentium** 100 MHz,

Bus Architecture PCI Memory (Standard) 8MB Memory (Option) 8 MB, 16 MB, or 32 MB

CMOS RAM 114 bytes SVGA Video 10.4-inch, 65,536 colors

Diskette Drive (For 365X: built-in; for 365XD: external)

Hard Disk Drive 810MB, 2.5-inch, IDE

I/O Port Headphone

Audio ESS AudioDrive Sound Chip

CD-ROM (For 365XD: built-in)

Infrared Transfer Rear IR port

PCMCIA** Cards One Type III

120 MHz, or 133 MHz.

DIMM card, maximum 40 MB (70ns, 144-pin EDO)

800×600 pixel TFT color LCD

11.3-inch, 65,536 colors

800×600 pixel TFT color LCD

10.4-inch, 256 colors, 800×600 pixel DSTN color LCD

11.3-inch, 256 colors, 800×600 pixel DSTN color LCD

1.44MB (2-mode), 3.5-inch

1.44MB (3-mode), 3.5-inch, for Japan

interface

1.08GB, 2.5-inch, IDE interface

1.4GB, 2.5-inch, IDE interface

2.1GB, 2.5-inch, IDE interface

Microphone Stereo Line-In Port Replicator

Internal speaker Mechanical volume

5-inch, X4, X6, or X8 speed,

IDE interface

IrDA** 1.0 compliant

115K bps

or two Type II

60 IBM Mobile Systems HMM

FRU Removals and Replacements

This section contains information about removals and replacements.

Do not damage any part. Only certified and trained

personnel should service the computer.

The arrows in the “Removals and Replacements” section show the direction of movement to remove a FRU, or to turn a screw to release the FRU. The arrows are marked in numeric order, in square callouts, to show the correct sequence of removal.

When other FRUs must be removed before removing the failing FRU, they are listed at the top of the page.

To replace a FRU, reverse the removal procedure and follow any notes that pertain to replacement. See “Locations” for internal cable connections and arrangement information.

When replacing a FRU, use the correct screw size as shown in the procedures.

Safety Notice 1: Translation on page 8

Before the computer is powered-on after FRU replacement, make sure all screws, springs, or other small parts, are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.

Safety Notice 3: Translation on page 10

The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations.

Safety Notice 8: Translation on page 14

Before removing any FRU, power-off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables.

ThinkPad 365X, 365XD (2625) 61

1010 Rear Connector Door

Remove the center latch, then remove the rear connector door by flexing it.

62 IBM Mobile Systems HMM

1020 Battery Pack

Note

Be careful that the computer does not fall backward when the battery pack is removed.

ThinkPad 365X, 365XD (2625) 63

1025 Insulator Sheet

To access items under the keyboard other than the battery pack, first raise the black insulator sheet as shown in the figures.

To access the hard disk drive and DIMM slots, remove the three screws and raise the middle section of the insulator sheet, as shown in the figures.

The location of the screws is different according to the model.

64 IBM Mobile Systems HMM

Step Screw Location (Quantity) Length

1 Insulator Sheet (2) M3 x 3 mm 2 HDD Bracket (1) M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 65

1030 DIMM Card (If Installed)

Battery Pack (1020) Lift Insulator Sheet (1025)

Notch

66 IBM Mobile Systems HMM

1040 Diskette Drive / CD-ROM Drive

Battery Pack (1020)

Lift Insulator Sheet (1025)

Diskette Drive (Model 365X):

Note

Release the latch at the left side of the diskette drive, as shown in the figure at 3 , and remove the diskette drive.

Step Screw Location (Quantity) Length

1 Diskette Drive (2) M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 67

CD-ROM Drive (Model 365XD)

Warning

Remove the CD-ROM drive exactly as shown in the figure. Do not apply any extra force to the CD-ROM drive when removing it.

Step Screw Location (Quantity) Length

1 CD-ROM Drive (2) M2 x 8 mm

Note: Make sure you use the correct screws when replacing.

68 IBM Mobile Systems HMM

1045 Base Cover Assembly / Keyboard Latch

Battery Pack (1020)

Diskette Drive / CD-ROM Drive (1040)

Note

Push the keyboard latch from the outside of the base cover ( 1 ), then pull out the latch ( 2 ). Some pressure might be needed to push the latch.

When replacing:

Assemble the parts as shown below; then replace the latch.

ThinkPad 365X, 365XD (2625) 69

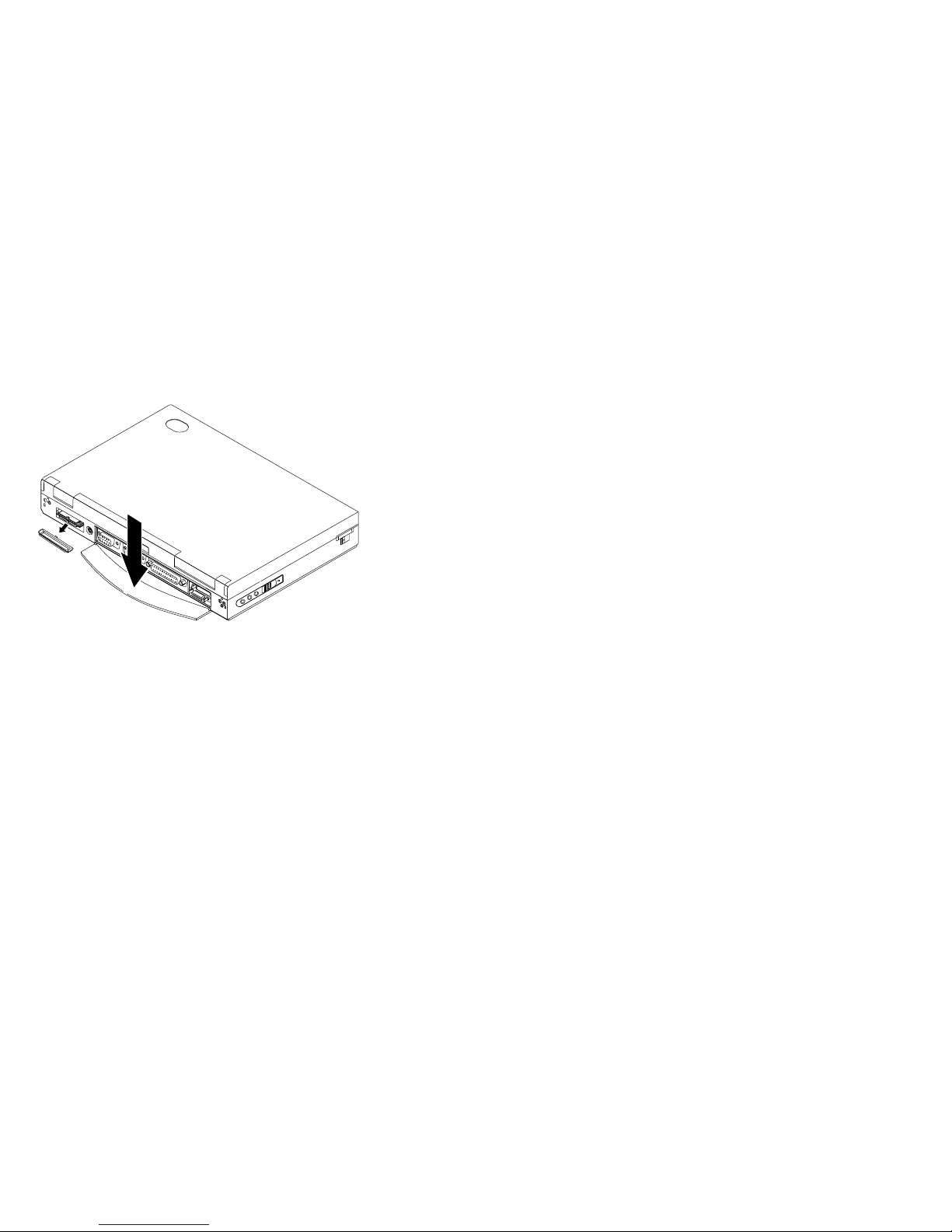

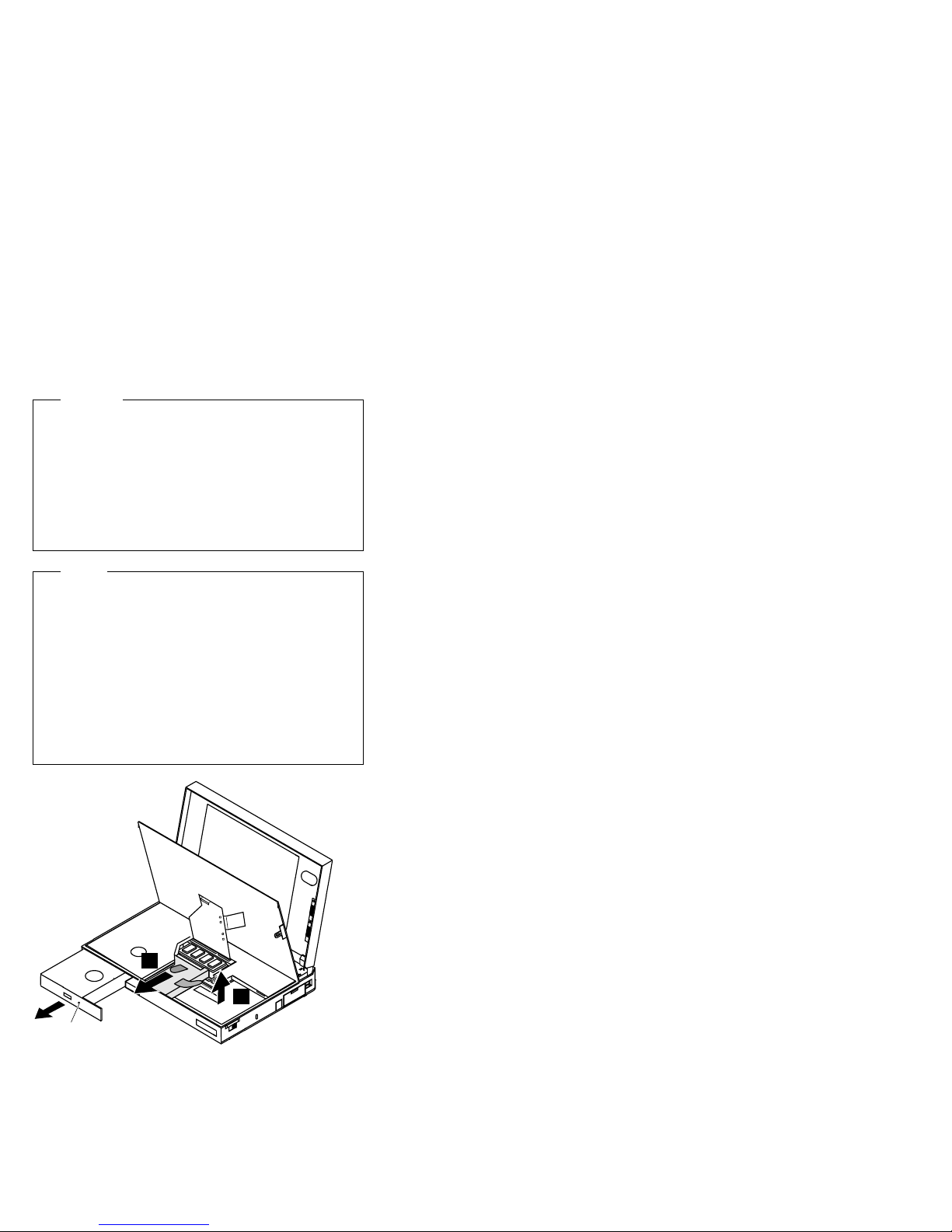

1050 Hard Disk Drive

Battery Pack (1020) Lift Insulator Sheet (1025)

Warning

Do not drop or apply any shock to the hard disk drive. The hard disk drive is sensitive to physical

shock. Incorrect handling can cause damage and permanent loss of data on the hard disk. Before removing the hard disk drive, have the user make a backup copy of all the information on the hard disk. Never remove the hard disk drive while the system is operating or is in suspend mode.

Notes

1. Before removing the hard disk drive, eject the CD-ROM tray by by inserting a pin into the mechanical eject hole on the front of the CD-ROM drive. Pull the tray out fully. Otherwise, the CD-ROM drive may be damaged when you remove the hard disk drive.

2. Remove the hard disk drive exactly as shown in the figure. Do not apply any extra force to the hard disk drive when removing it.

3. This procedure is the same for Model 365X and Model 365XD.

Eject hole

70 IBM Mobile Systems HMM

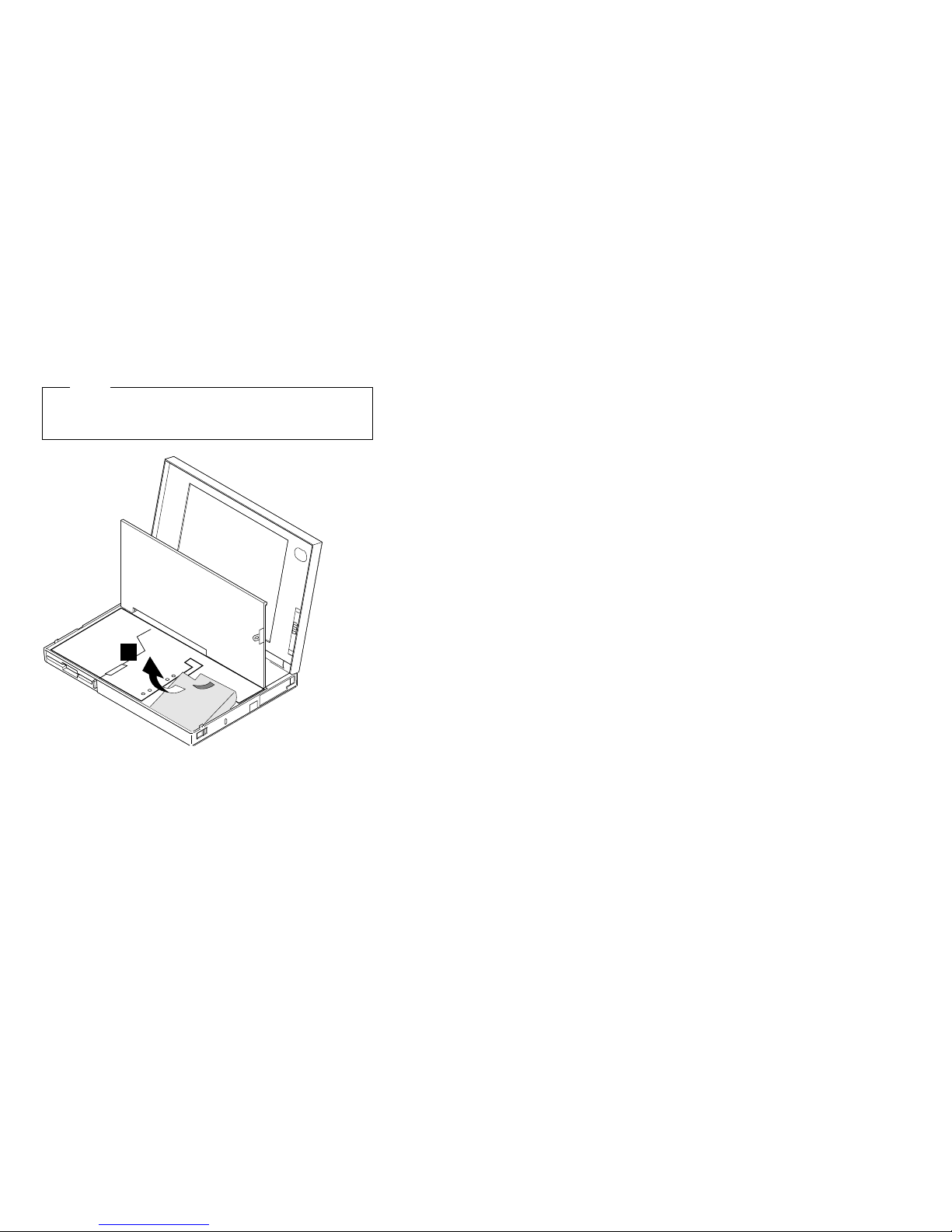

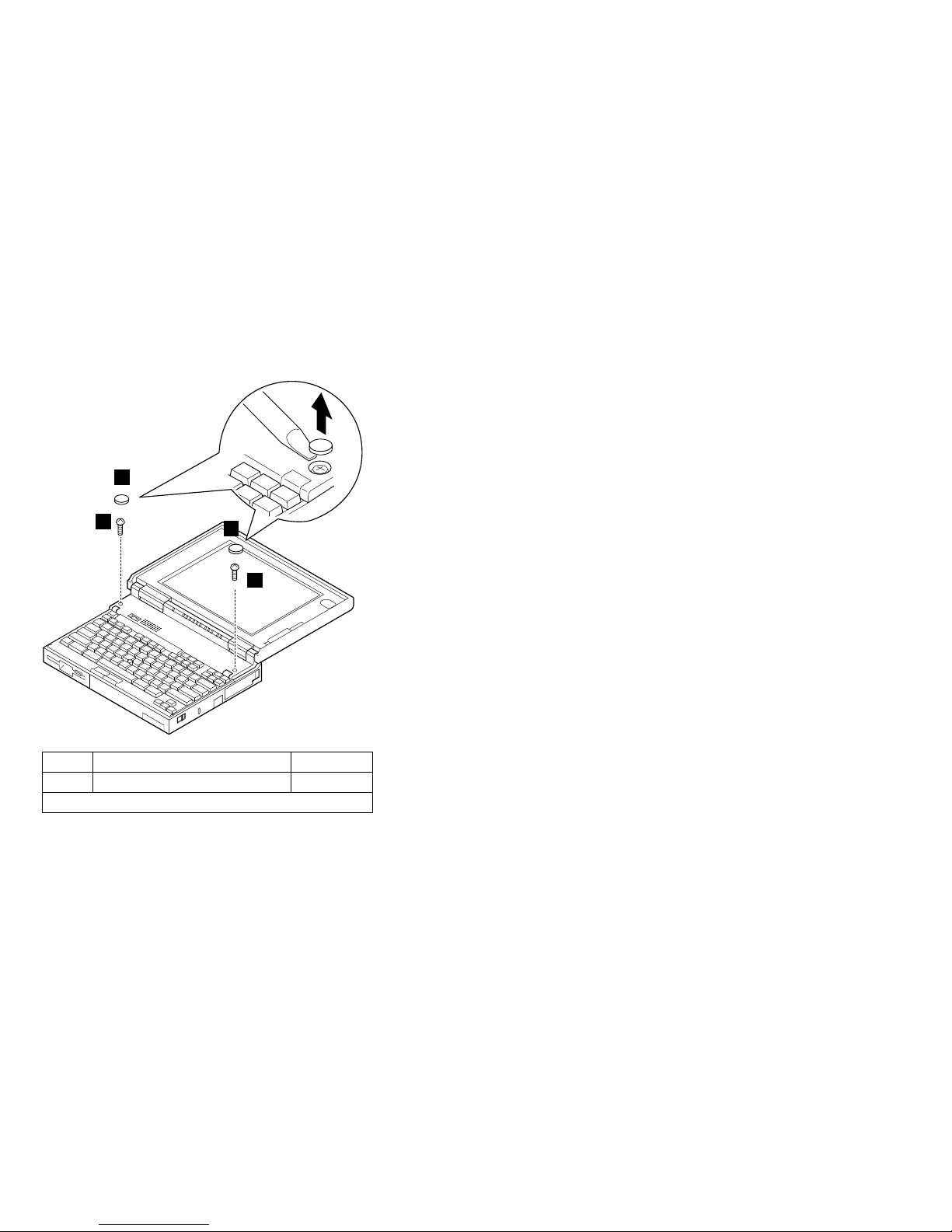

1060 Top Cover

Battery Pack (1020)

Step Screw Location (Quantity) Length

2 Top Cover (2) M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 71

Note

When replacing the top cover, be careful not to damage the resume switch. Ensure that the resume switch extends through the hole, as shown in the figure.

When replacing

Resume switch

72 IBM Mobile Systems HMM

1070 Keyboard Unit

Battery Pack (1020) Top Cover (1060)

When replacing the keyboard unit, connect the keyboard connector as shown in the figure; then replace the keyboard.

111

Cable of the

222

TrackPoint

ThinkPad 365X, 365XD (2625) 73

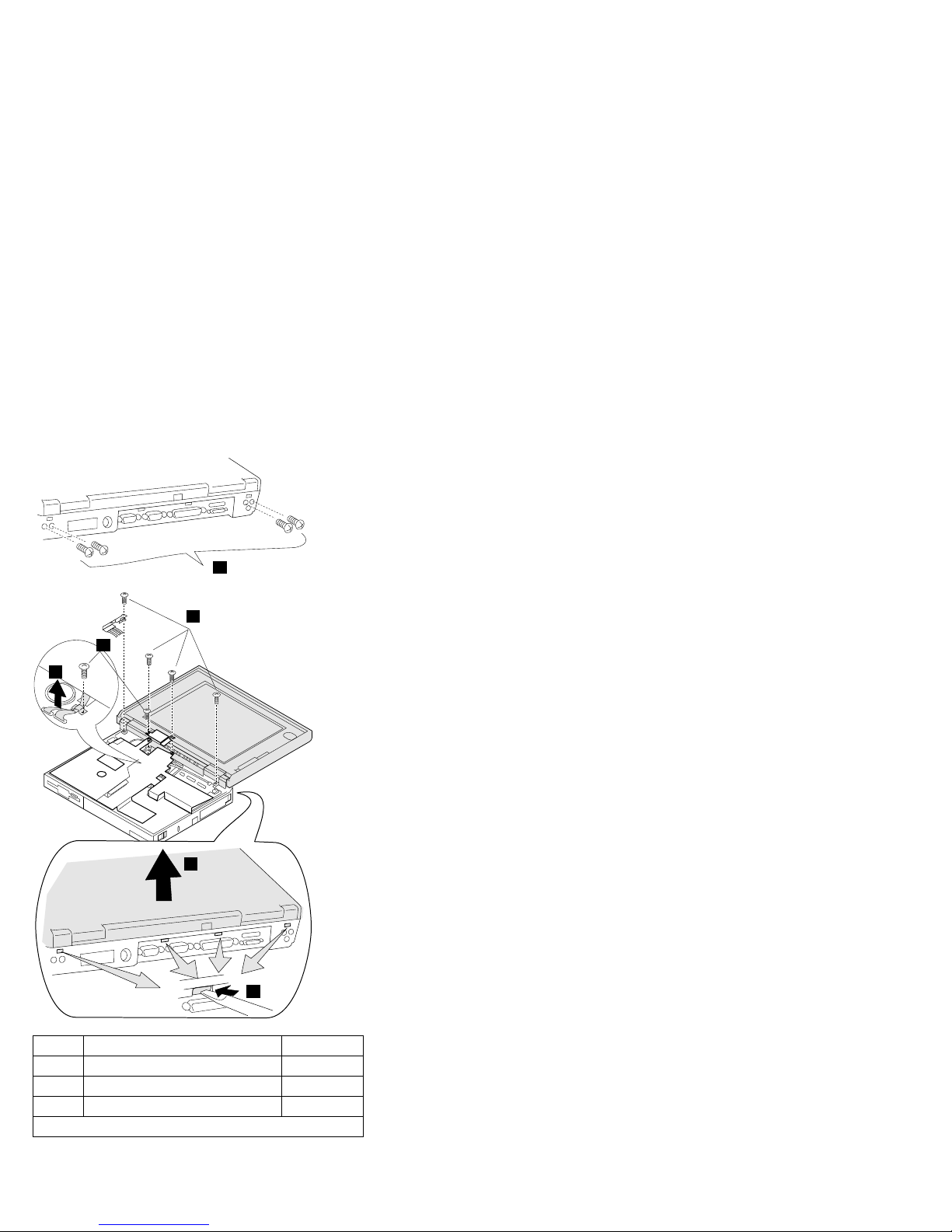

1080 LCD Assembly

Battery Pack (1020) Insulator Sheet (1025) Diskette Drive / CD-ROM Drive (1040) Hard Disk Drive (1050) Top Cover (1060) Keyboard Unit (1070)

Step Screw Location (Quantity) Length

1 Base Cover (4) M3 x 5 mm 2 LCD Assembly (4) M2 x 5 mm 3 LCD Cable (1) M3 x 4 mm

Note: Make sure you use the correct screws when replacing.

74 IBM Mobile Systems HMM

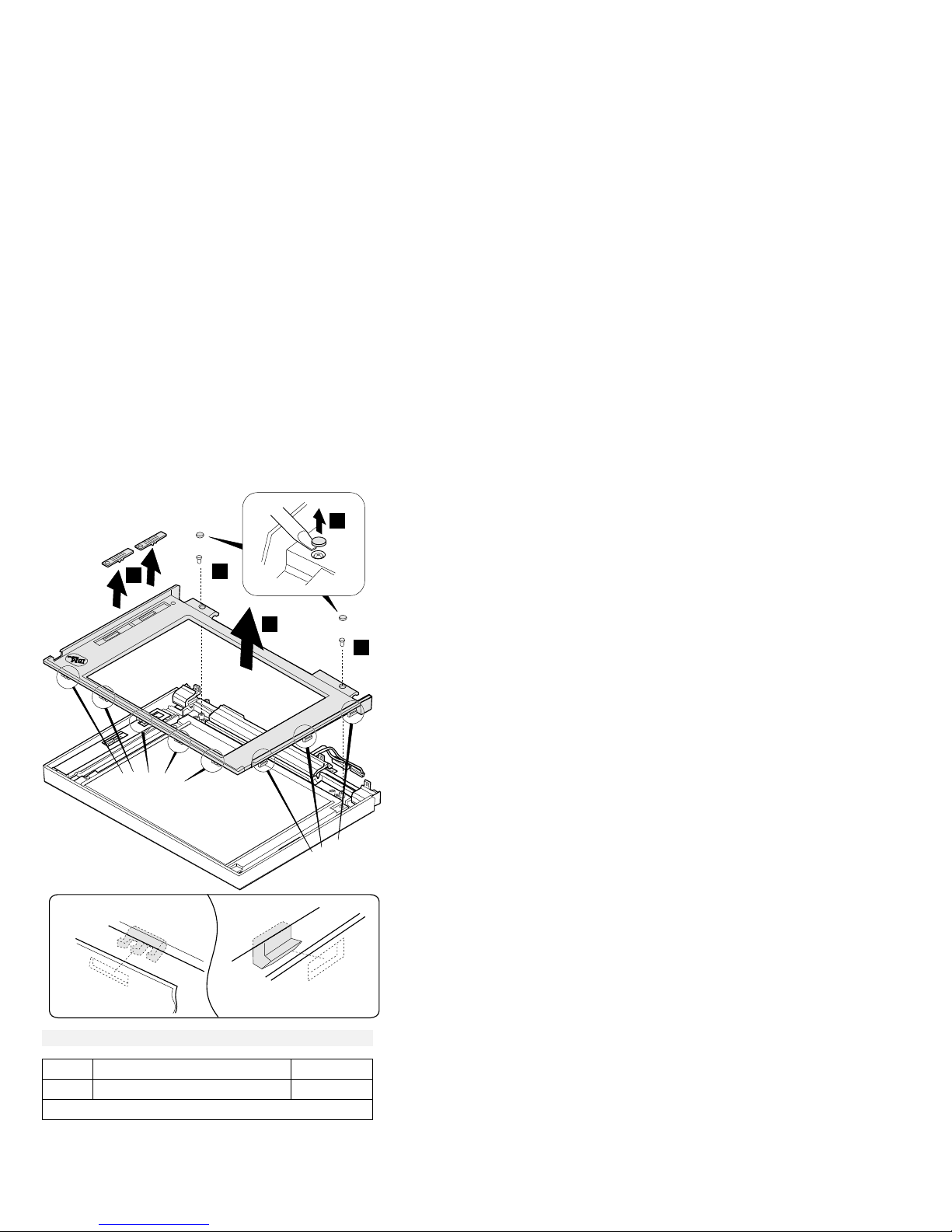

1085 LCD Panel

Battery Pack (1020) Insulator Sheet (1025) Diskette Drive / CD-ROM Drive (1040) Hard Disk Drive (1050) Top Cover (1060) Keyboard Unit (1070) LCD Assembly (1080)

DSTN LCD Panel

Latches A

Latches B

Latches only for 11.3-inch LCDs (total 5 latches).

Step Screw Location (Quantity) Length

2 LCD Front Cover (2) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 75

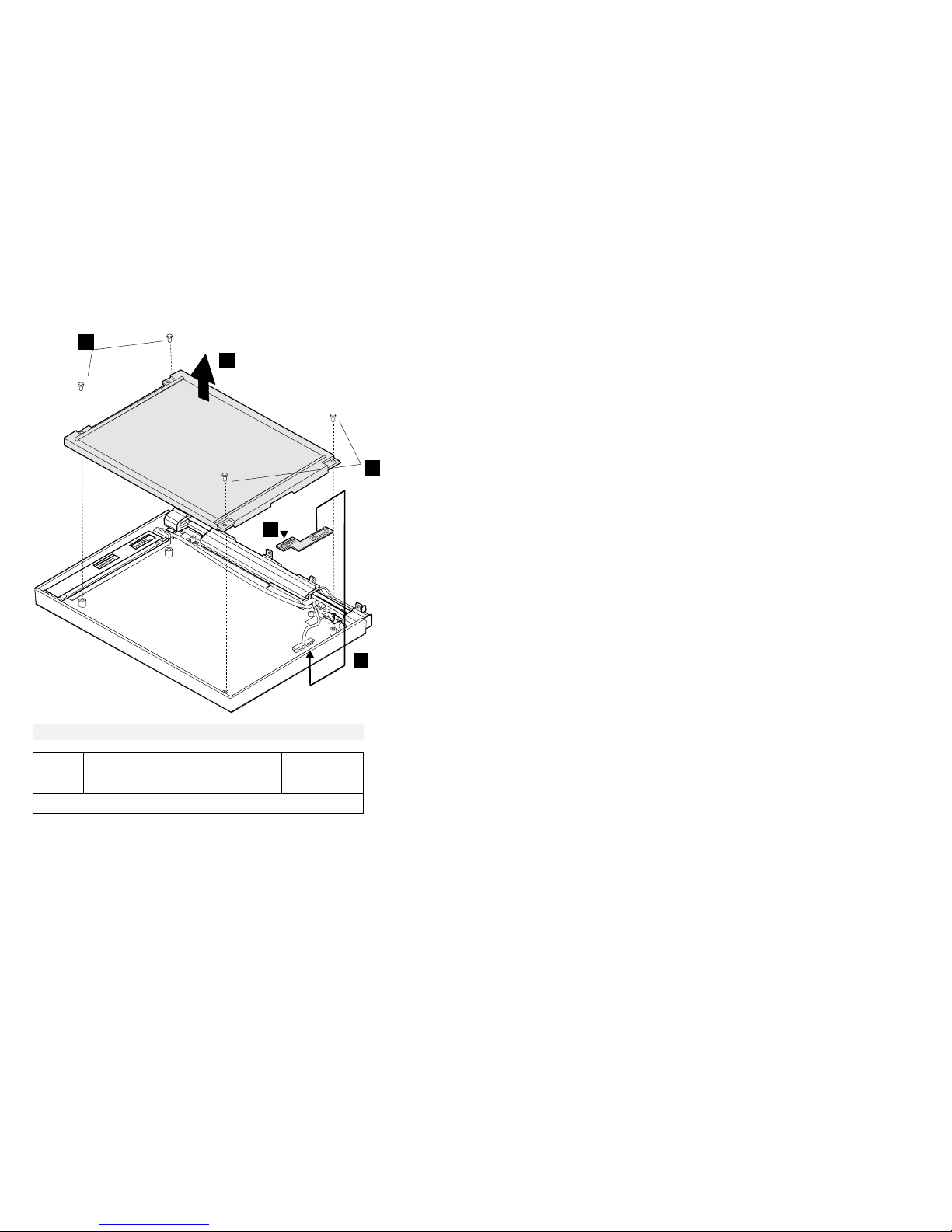

Part only for 10.4-inch LCDs.

Step Screw Location (Quantity) Length

5 LCD Panel (4) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

76 IBM Mobile Systems HMM

Step Screw Location (Quantity) Length

9 LCD Cable (1) M3 x 6 mm 11 Inverter Card (1) ST2.9 x

13 Right Hinge (1) M3 x 6 mm 14 Hinge (2) M2 x 4 mm

Note: Make sure you use the correct screws when replacing.

4.5 mm (10.4-inch LCD) M3 x 6 mm (11.3-inch LCD)

ThinkPad 365X, 365XD (2625) 77

TFT 10.4-inch LCD Panel (A)

TFT 10.4 (A) P/N 46H8093 69H7947 82H8039

Note: You can replace the entire 10.4-inch TFT LCD unit

(A) with the entire LCD unit (B), or vice versa. But you cannot replace parts of (A) with parts of (B), or vice versa.

Latches A

Latches B

Latches A

Step Screw Location (Quantity) Length

2 LCD Front Cover (2) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

78 IBM Mobile Systems HMM

Latches B

Step Screw Location (Quantity) Length

6 LCD Panel (4) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 79

Step Screw Location (Quantity) Length

9 LCD Cable (1) M3 x 6 mm 11 Inverter Card (1) ST2.9 x

13 Right Hinge (1) M3 x 6 mm 14 Hinge (2) M2 x 4 mm

Note: Make sure you use the correct screws when replacing.

When replacing:

4.5 mm

When replacing the LCD cable, replace the copper tape and gasket top as shown below.

Gasket Top

80 IBM Mobile Systems HMM

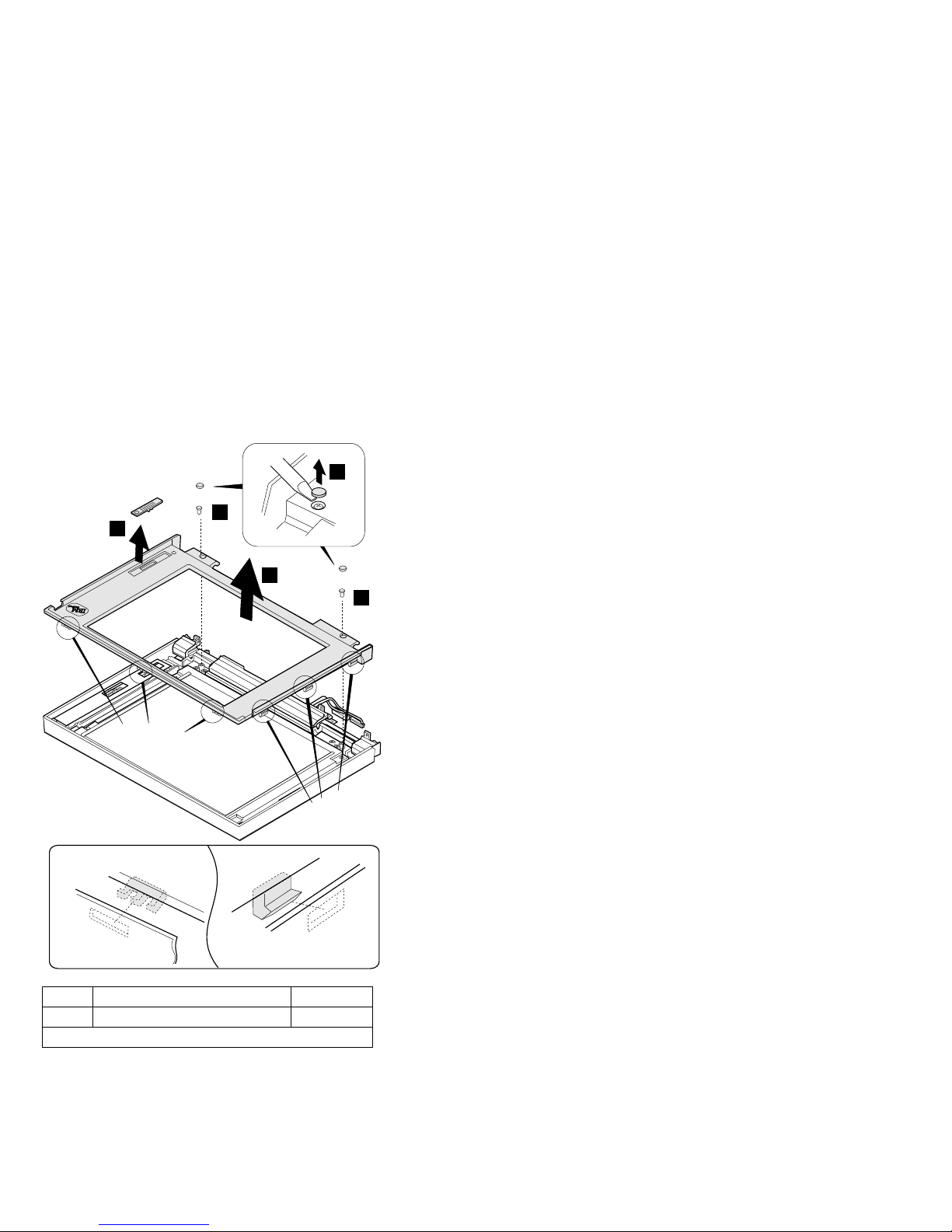

TFT 10.4-inch LCD Panel (B)

TFT 10.4 (B) P/N 83H5349 83H5350

Note: You can replace the entire 10.4-inch TFT LCD unit

(A) with the entire LCD unit (B), or vice versa. But you cannot replace parts of (A) with parts of (B), or vice versa.

Latches A

Latches B

Latches A

Step Screw Location (Quantity) Length

2 LCD Front Cover (2) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 81

Latches B

Step Screw Location (Quantity) Length

5 LCD Panel (4) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

82 IBM Mobile Systems HMM

Step Screw Location (Quantity) Length

8 LCD Cable (1) M3 x 6 mm 1 Inverter Card (1) ST2.9 x

12 Right Hinge (1) M3 x 6 mm 13 Hinge (2) M2 x 4 mm

Note: Make sure you use the correct screws when replacing.

4.5 mm

ThinkPad 365X, 365XD (2625) 83

TFT 11.3-inch LCD Panel

Latches A

Latches B

Latches A

Step Screw Location (Quantity) Length

2 LCD Front Cover (2) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

Latches B

84 IBM Mobile Systems HMM

Step Screw Location (Quantity) Length

5 LCD Panel (4) M3 x 6 mm

Note: Make sure you use the correct screws when replacing.

When replacing:

When replacing the LCD panel, glue the rear foam on the rear of the LCD as shown below.

ThinkPad 365X, 365XD (2625) 85

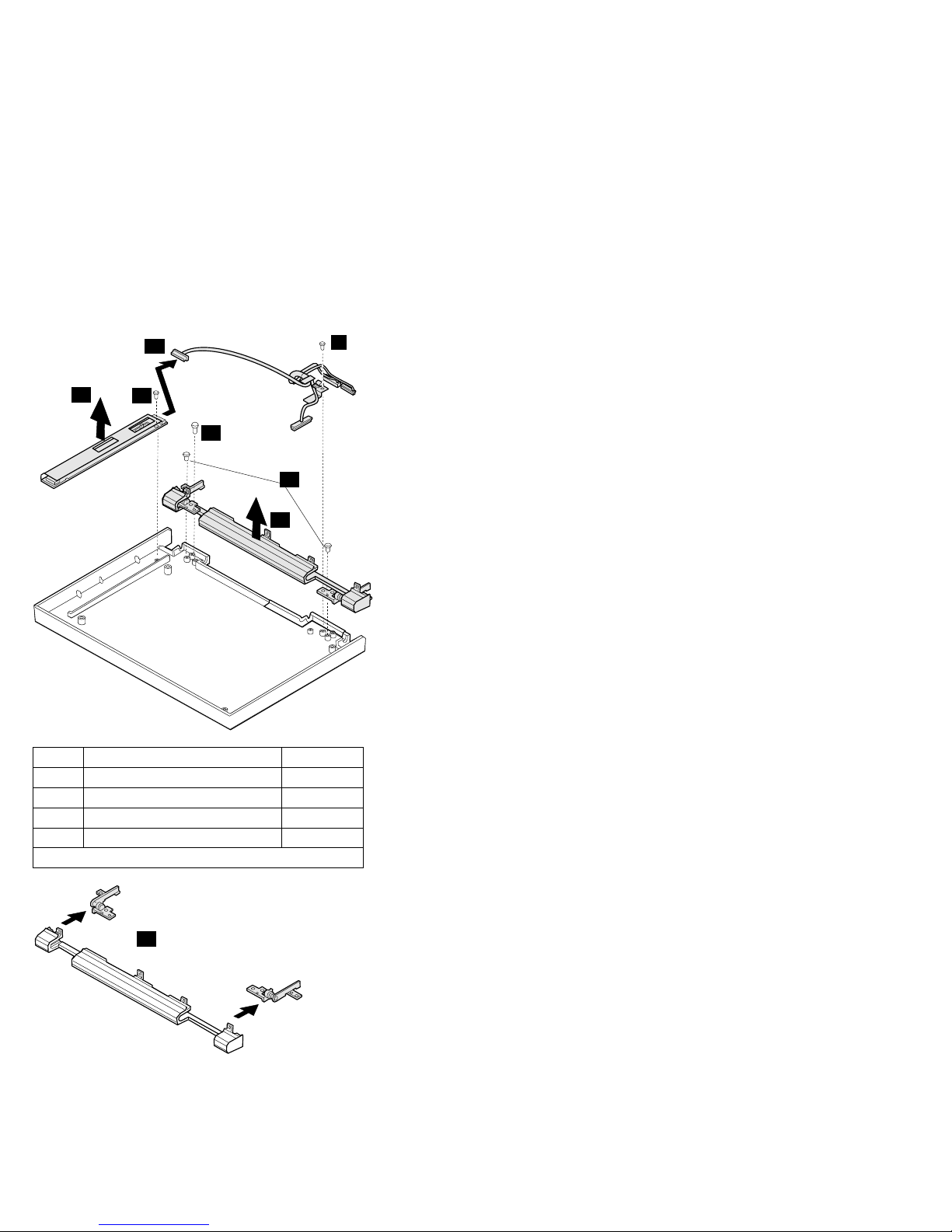

Step Screw Location (Quantity) Length

9 LCD Cable (1) M3 x 6 mm 11 Inverter Card (1) M3 x 6 mm 13 Right Hinge (1) M3 x 6 mm 14 Hinge (2) M2 x 4 mm

Note: Make sure you use the correct screws when replacing.

86 IBM Mobile Systems HMM

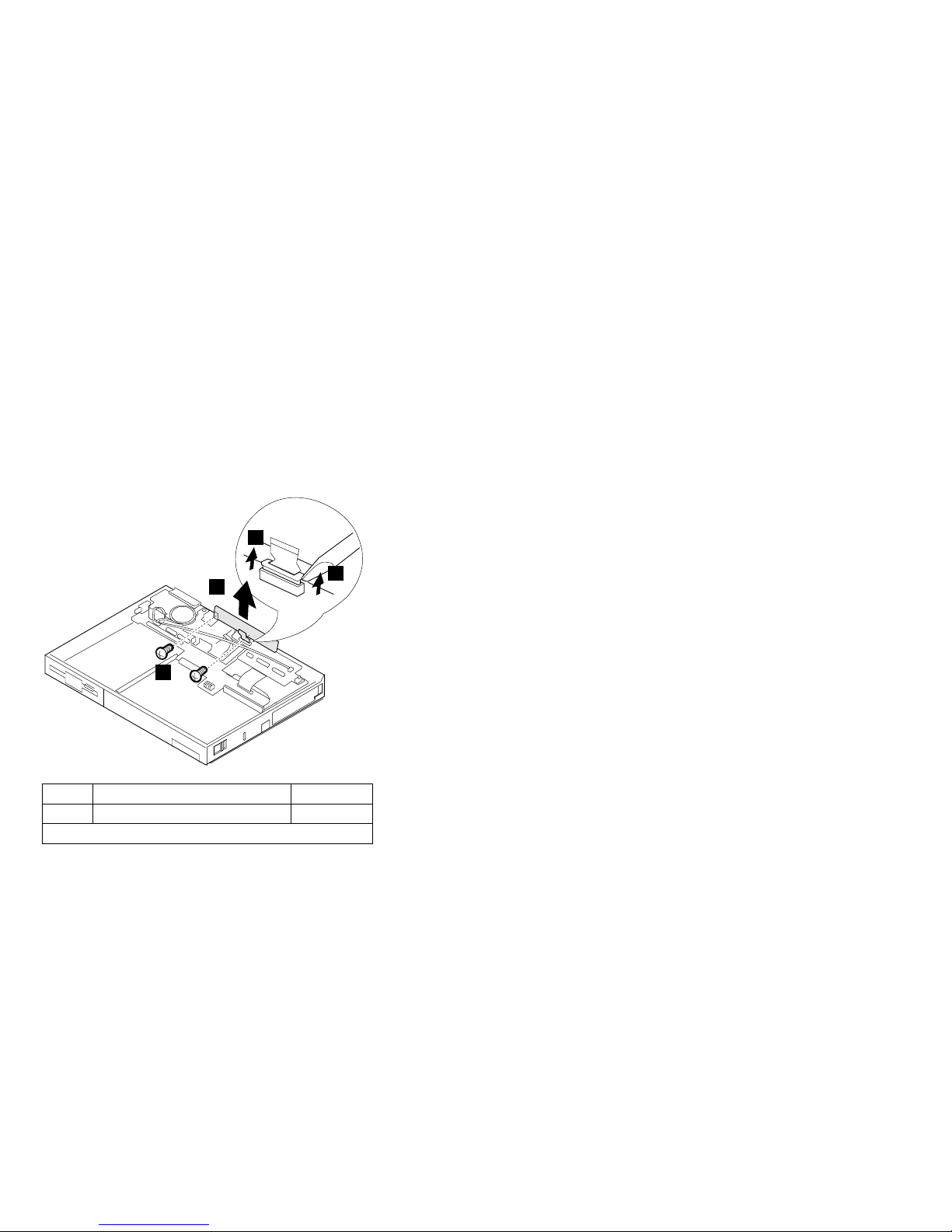

1090 Indicator Card

Battery Pack (1020) Insulator Sheet (1025) Diskette Drive / CD-ROM Drive (1040) Hard Disk Drive (1050) Top Cover (1060) Keyboard Unit (1070) LCD Assembly (1080) LCD Panel (1085)

Step Screw Location (Quantity) Length

2 Indicator Card (2) M2 x 4 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 87

1100 Volume Switch / Speaker Assembly

Battery Pack (1020) Insulator Sheet (1025) Diskette Drive / CD-ROM Drive (1040) Hard Disk Drive (1050) Top Cover (1060) Keyboard Unit (1070) LCD Assembly (1080) LCD Panel (1085) Indicator Card (1090)

Step Screw Location (Quantity) Length

2 Speaker Assembly (1) M2 x 4 mm 3 Speaker Assembly (2) M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

88 IBM Mobile Systems HMM

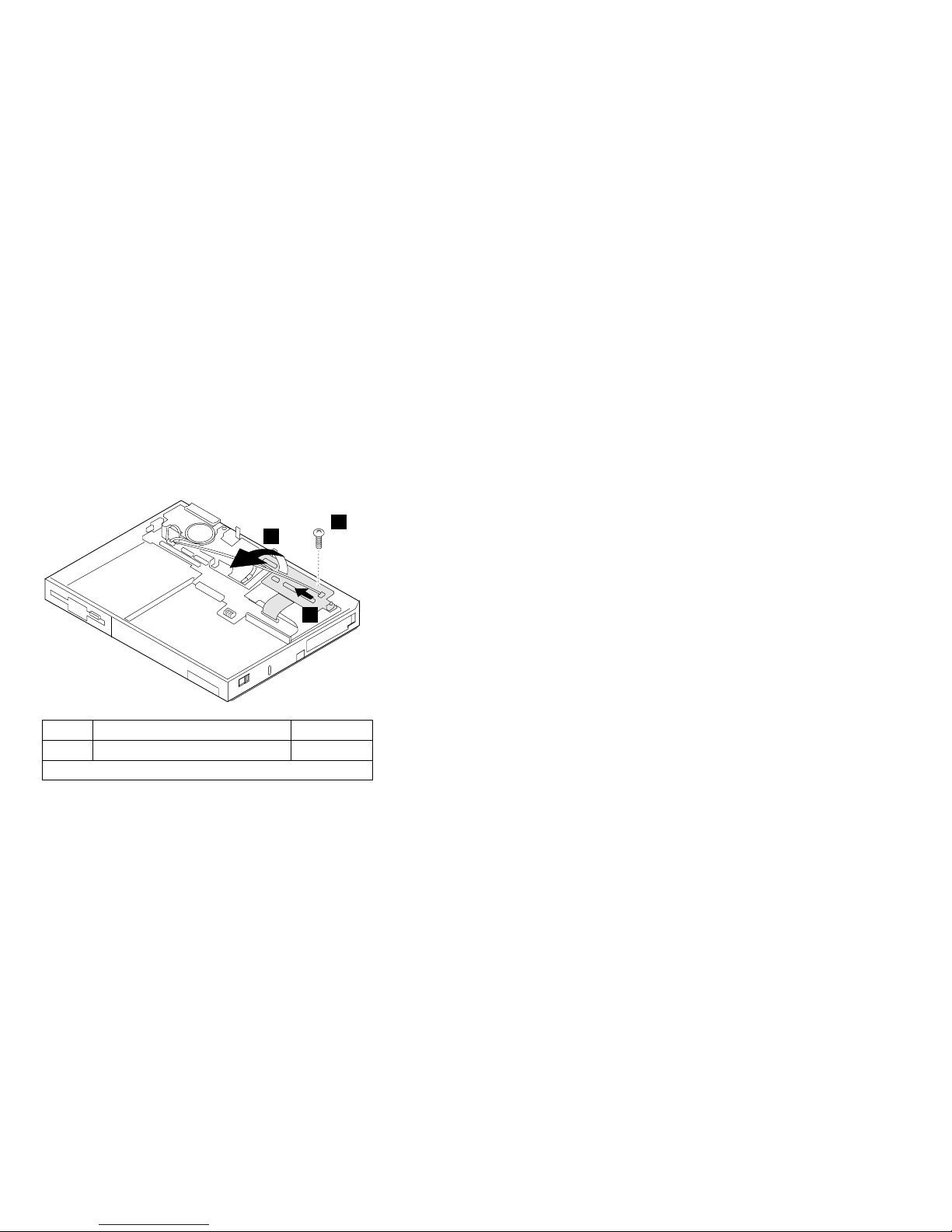

1110 Keyboard Card / Cable

Battery Pack (1020) Insulator Sheet (1025) Diskette Drive / CD-ROM Drive (1040) Hard Disk Drive (1050) Top Cover (1060) Keyboard Unit (1070) LCD Assembly (1080) LCD Panel (1085) Indicator Card (1090)

Step Screw Location (Quantity) Length

1 Keyboard Card (1) M2 x 5 mm

Note: Make sure you use the correct screws when replacing.

ThinkPad 365X, 365XD (2625) 89

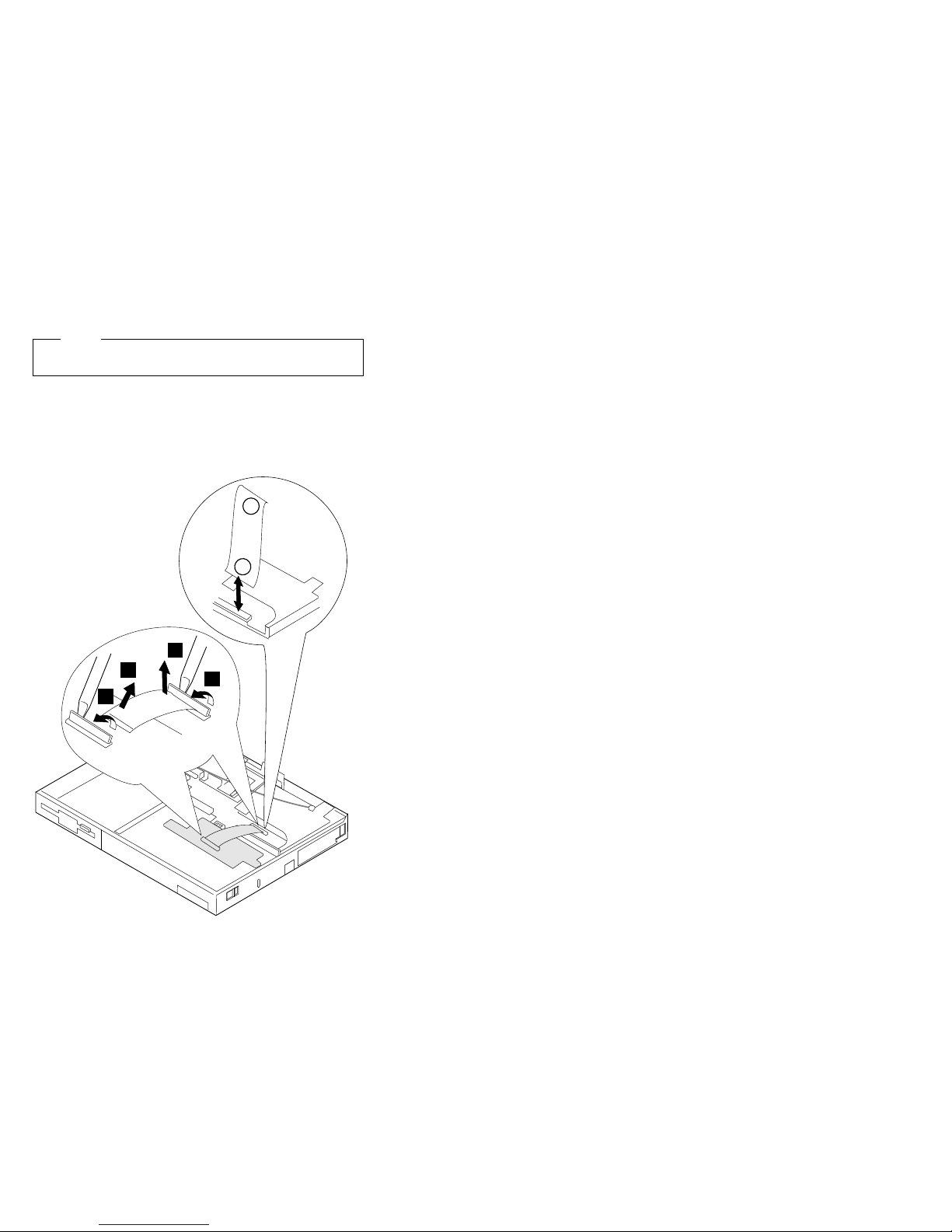

Note

To remove the cable, do steps 6 and 7.

When reinstalling the cable, make sure the cable end with the letter P is installed in the system board connector. The end with the letter K should be installed in the keyboard card connector. (The letters should be facing you when you install the cable from the front of the machine.)

90 IBM Mobile Systems HMM

IBM 365xX, ThinkPad 365XD, 560, ThinkPad 365X, ThinkPad 560 Hardware Maintenance Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
