IBM ThinkPad 240 Service Manual

Download

IBM Mobile Systems

ThinkPad 240

Hardware Maintenance Manual

December 2000

S09N-8590-00

Before using this information and the product it supports, be sure to read the general information under “Read This First” on page 1.

Second Edition (October 1999)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time.

It is possible that this publication may contain references to, or information about, IBM products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that IBM intends to announce such IBM products, programming, or services in your country.

Requests for technical information about IBM products should be made to your IBM Authorized Dealer or your IBM Marketing Representative.

Users — Documentation related to restricted rights — Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.

Contents

ThinkPad 240 Hardware Maintenance Manual .. 1

Read This First .................. 1

What to Do First ................ 2

How to Disable the Password ......... 3

Product Overview . . . . . . . . . . . . . . . . . 4

Fn Key Combinations ............. 5

Status Indicators . . . . . . . . . . . . . . . . 6

Checkout Guide . . . . . . . . . . . . . . . . . 7

Audio Checkout . . . . . . . . . . . . . . . . 8

Fan ASM Checkout .............. 8

Keyboard and Auxiliary Input Device Checkout . 9

Memory Checkout . . . . . . . . . . . . . . . 9

Modem Board Checkout ............ 10

Power System Checkout ............ 10

TrackPoint Checkout . . . . . . . . . . . . . . 12

I/O Ports Checkout .............. 13

Power Management Features ......... 13

Symptom-to-FRU Index . . . . . . . . . . . . . . 16

Numeric Error Codes .............. 16

Error Messages . . . . . . . . . . . . . . . . 18

No Beep Symptoms .............. 19

LCD-Related Symptoms . . . . . . . . . . . . 19

Keyboard-Related Symptoms . . . . . . . . . . 19

Indicator-Related Symptoms . . . . . . . . . . 19

Power-Related Symptoms . . . . . . . . . . . 20

PC Card (PCMCIA)-Related Symptoms ..... 20

Speaker-Related Symptoms . . . . . . . . . . 20

Power Management-Related Symptoms ..... 20

Peripheral-Device-Related Symptom . . . . . . 21

Intermittent Problems . . . . . . . . . . . . . 21

Undetermined Problems . . . . . . . . . . . . 22

CE Utility Program Diskette ............ 23

Writing the VPD Data ............. 23

Flash UUID . . . . . . . . . . . . . . . . . . 23

Running the Diagnostics .............. 23

FRU Removals and Replacements ......... 24

FRU Service Procedures ............ 24

1010 Battery ASM ............... 26

1020 Hard Disk Drive ............. 27

1030 Keyboard . . . . . . . . . . . . . . . . 28

1040 Modem Card ............... 30

1050 DIMM Card ............... 31

1060 LCD Unit ASM .............. 32

1070 Upper Cover ASM ............ 34

1080 Speaker ASM .............. 36

1085 Select Button ASM ............ 37

1090 Cable ASM and Cable ASM LED-R .... 38

1100 Fan ASM ................ 39

1110 Modem Cable ASM ............ 41

1120 Water Channel ASM ........... 42

1130 System Board .............. 43

Contents

iii

1135 Rear Bracket ............... 45

1140 PCMCIA Slots .............. 46

1150 LCD Bezel ASM ............. 47

1160 LCD Inverter ASM ............ 48

1170 LCD Panel ASM (LCD Type A and B) . . . 49

1180 LCD FPC ASM (LCD Type A) ....... 51

1185 LCD FPC ASM (LCD Type B) ....... 52

1190 Hinge ASM ............... 53

Computer Parts Listing .............. 54

LCD Unit Parts Listing (LCD Type A) ........ 58

LCD Unit Parts Listing (LCD Type B) ........ 59

Service Tools . . . . . . . . . . . . . . . . . . . 59

Notices . . . . . . . . . . . . . . . . . . . . . . 61

Trademarks . . . . . . . . . . . . . . . . . . . 61

iv ThinkPad 240

ThinkPad 240 Hardware Maintenance Manual

About This Manual

This manual contains service and reference information for the IBM ThinkPad 240 products. Use this manual along with the diagnostics tests to troubleshoot problems effectively.

There are two models of LCD panel used with the ThinkPad 240: LCD Type A and LCD Type B. Check the last five letters of the unit's serial number you are servicing to determine the model.

LCD Type A:

All ThinkPad 240 computers that have serial numbers whose last five "YZZZZ" are fitted with Type A panels.

Note: The number range is from 00001 to 99999, and the

LCD Type B:

All ThinkPad 240 computers that have serial numbers whose last five with Type B panels.

The servicer need only check the fifth letter from the end. If the fifth letter from the end is "0 — Y" (inclusive), then the LCD panel is Type A. If the fifth letter from the end is "Z", then the LCD panel is Type B.

The manual is divided into sections as follows:

 The introduction section provides general information,

guidelines, and safety information required to service computers.

 The product-specific section includes service, refer-

ence, and product-specific parts information.

This manual is intended for trained servicers who are familiar with ThinkPad products. Use this manual along with the PC Doctor to troubleshoot problems effectively.

alphanumeric characters

letter range is from AAAAA to YZZZZ.

letters

are "ZAAAA" to "ZZZZZ" are fitted

are "00001" to

Read This First

Before you go to the checkout guide, be sure to read this section.

Important Notes

 Only certified trained personnel should service

the computer.

 Read the entire FRU service procedures before

replacing any FRUs.

ThinkPad 240 1

 Use new nylon-coated screws when you replace

FRUs.

 Be extremely careful during write operations such

as copying, saving, or formatting. Drives in the

computer that you are servicing might have been rearranged or the drive startup sequence might have been altered. If you select an incorrect drive, data or programs might be overwritten.

 Replace FRUs only for the correct model. When

you replace a FRU, make sure the model of the computer and FRU part number are correct by referring to the FRU parts list.

 A FRU should not be replaced because of a

single, unreproducible failure. Single failures can

occur for a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists. If this is suspected, clear the error log and run the test again. Do not replace any FRUs if log errors do not reappear.

Be careful not to replace a non-defective FRU.

What to Do First

The servicer must include the following in the parts exchange form or parts return form that is attached to the returned FRU:

1. Name and phone number of servicer

2. Date of service

3. Date when part failed

4. Date of purchase

5. Failure symptoms, error codes appearing on the display, and beep symptoms

6. Procedure index and page number in which the failing FRU was detected

7. Failing FRU name and part number

8. Computer type, model number and serial number

9. Customer's name and address

Before checking problems with the computer, determine whether or not the damage applies to the warranty by referring to the following:

Note for Warranty: During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer. The following list provides some common items that are not covered under warranty

2 ThinkPad 240

and some symptoms that may indicate that the system was subjected to stresses beyond normal use:

The following is not covered under warranty:

 LCD panel cracked by applying excessive force or

from being dropped

 Scratched (cosmetic) parts  Cracked or broken plastic parts, broken latches,

broken pins, or broken connectors caused by excessive force

 Damage caused by liquid spilled into the system  Damage caused by the improper insertion of a PC

Card or the installation of an incompatible card

 Damaged or bent PC Card eject button  Fuses blown by attachment of a non-supported

device

 Forgotten computer password (making the computer

unusable)

The following symptoms might indicate damage caused by non-warranted activities:

 Missing parts might be a symptom of unauthorized

service or modification.

 Hard disk drive spindles can become noisy from

being subjected to excessive force or from being dropped.

How to Disable the Password

There are three passwords used at a typical customer site: the Supervisor Password, the hard disk drive password, and the Power On password.

 Power On password:

1. Power off the computer.

2. Remove the battery pack and AC Adapter.

3. Open the keyboard and disconnect the keyboard connector from the system board, see “1030 Keyboard” on page 28.

4. Short the jumper JP1. See the following figure:

ThinkPad 240 3

5. Close the keyboard.

6. Power on the computer and wait until POST ends.

7. Verify that the password prompt does not appear.

 Supervisor and hard disk drive passwords:

The Supervisor Password and hard disk drive password are security features that are used to protect the system and the hard disk drive data from unauthorized access. No overriding capability is provided, so it cannot be replaced if they are forgotten. If the customer forgets the Supervisor Password, the system board must be replaced. If the customer forgets the hard disk drive password, the hard disk drive must be replaced.

Product Overview

The following shows an overview of the system features of the ThinkPad 240 computer.

Feature Description

Processor Intel** Celeron** processor

366 MHz, 128KB L2 cache Bus architecture PCI Bus Memory 64 MB SDRAM onboard only

32 MB, 64 MB or 128 MB DIMM

card (max. 192 MB) BIOS ROM up to 512 Kbytes Video  10.4–inch, 16M colors,

800x600 pixel TFT color LCD

4 ThinkPad 240

Feature Description

Audio  16–bit audio

 Internal speaker  Internal microphone

Hard disk drive  3.2/6.4GB, 2.5–inch, IDE

I/O ports  External monitor

Infrared transfer IrDA 1.1 Internal modem 56Kbps (depends on the model) PC Card (PCMCIA) One Type II

AC Adapter 56–Watt type

interface

 Headphone/line-out  Line-in  Microphone-in  Mouse/keyboard  Parallel  Serial  USB  RJ11

 External diskette drive

CardBus support

Fn Key Combinations

The following table shows the Fn key and function key combinations and their corresponding functions.

The Fn key works independently of the operating system. The operating system obtains the status through the system management interface to control the system.

Fn + Result

F3 Standby mode F4 Suspend mode F5 Decrease brightness F6 Increase brightness F7 Switch between the LCD, the external monitor,

F8 Switch power mode F9 Hibernation mode F10 Print screen F11 Scroll lock F12 Pause 0 (zero) Activates the system request function

(minus)

= Signals a break

and both the LCD and external monitor.

Enables the numeric keypad

ThinkPad 240 5

Fn + Result

Up arrow

Down arrow

Left arrow

Right arrow

Insert Decreases the internal speaker volume Delete Increases the internal speaker volume Back-

space

Page up

Page down

Home

End

Mutes the internal speaker

Status Indicators

The system status LED indicators show the current computer status. The following shows the location of each indicator symbol and the meaning of each indicator.

ThinkPad

Symbol Color Meaning

(1) Battery status Green Enough battery power

Blinking orange

Orange The battery pack is being

(2) Suspend mode

Green The computer is in

Blinking green

remains for operation. The battery pack needs

to be charged.

charged.

suspend mode. The computer is entering

suspend mode.

6 ThinkPad 240

Symbol Color Meaning

(3) Drive in use Orange Data is being read from

(4) Numeric lock Green The numeric keypad on

(5) Caps lock Green Caps Lock mode is

(6) Scroll lock Green Scroll Lock mode is

(7) Power on Green The computer is opera-

or written to the hard disk drive. Do not enter hibernation mode or power off the computer when this indicator is on.

the keyboard is enabled. You enable or disable the keypad by pressing and holding the Fn key, and pressing the NumLk key. For details, see the User's Reference.

enabled. All alphabetic characters entered in capital letters without the Shift key being pressed. You enable or disable the Caps Lock mode by pressing and holding the

Fn key, and pressing the Caps Lock key.

enabled. The Arrow keys can be used as screen-scroll function keys. The cursor cannot be moved with the Arrow keys.

application programs support this function.

You enable or disable Scroll Lock mode by pressing and holding the

Fn key, and pressing the ScrLk key.

tional. This indicator is always on when the computer is on and not in suspend mode.

(A-Z)

Not all

are

Checkout Guide

Use the following procedure as a guide for computer problems.

Note: The diagnostic tests are intended to test only IBM

products. Non-IBM products, prototype cards, or modified options can give false errors and invalid system responses.

ThinkPad 240

1. Obtain the failing symptoms in as much detail as possible.

2. Verify the symptoms by attempting to recreate the failure by running the diagnostic test or by repeating the same operation.

Note: To run the diagnostics, refer to “Running the

Diagnostics” on page 23

3. Use the following table with the verified symptom to determine which page to go to. Search the symptoms column and find the description that best matches your symptom; then go to the page shown in the "Go to" column.

Symptoms (Verified) Go to

Power failure. (The power-on indicator does not go on or stay on.)

POST does not complete. No beeps or error codes/messages are indicated.

POST beeps, but no error codes are displayed.

POST detected an error and displayed numeric error codes.

The diagnostic test detected an error and displayed a FRU code.

Other symptoms (such as LCD display problems).

Symptoms cannot be recreated (intermittent problems).

“Power System Checkout” on page 10, then use table in “Power-Related Symptoms” on page 20.

“Symptom-to-FRU Index” on page 16, then use table in “No Beep Symptoms” on page 19.

“Symptom-to-FRU Index” on page 16.

“Symptom-to-FRU Index” on page 16, then use table in “Numeric Error Codes” on page 16.

“Running the Diagnostics” on page 23.

“Symptom-to-FRU Index” on page 16.

Use the customer-reported symptoms, and go to “Symptom-to-FRU Index” on page 16.

Audio Checkout

Do as follows:

1. Boot from the diagnostics diskette and start the program.

2. Go to Interactive Tests on the main menu and select the Internal Speaker test.

3. If no sound is heard, replace the speaker.

Fan ASM Checkout

To check the fan ASM, do the following:

1. Boot from the diagnostics diskette and start the program.

8 ThinkPad 240

2. Go to Diagnostics on the main menu and select Other Devices.

3. Follow the description in the window. If the test detects a fan ASM problem, replace the fan.

Keyboard and Auxiliary Input Device Checkout

Note: Remove the external keyboard if the internal key-

board is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated on the connector.

If the keyboard cable connection is correct, run the Keyboard Test. See “Running the Diagnostics” on page 23 for details.

If the test detects a keyboard problem, do the following one at a time to correct the problem. Do not replace a nondefective FRU.

1. Replace the keyboard.

2. Replace the system board.

The following auxiliary input devices are supported for this computer:

 Numeric keypad

 Mouse (PS/2 compatible)  External keyboard (with keyboard/mouse cable)

If any of these devices do not work, reseat the cable connector and repeat the failing operation.

If the problem does not reoccur, replace the device and then the system board.

Memory Checkout

DIMM are available for increasing memory capacity.

Onboard (MB) Slot (MB) Total Memory

32 0 32 32 32 64 32 64 96 32 128 160 64 0 64 64 32 96 64 64 128 64 128 192

ThinkPad 240 9

(MB)

Memory errors might stop system operation, show error messages on the screen, or hang the system.

Use the following procedure to isolate memory problems:

1. Turn off the computer and remove any installed DIMM from its slot.

2. Boot from the diagnostics diskette and start the program.

3. Go to Diagnostics on the main menu and select Memory Test.If an error appears, replace the system board.

4. Turn off the computer and reinstall the DIMM; then turn on the computer. Verify the memory size; then test the memory. If an error appears, replace the DIMM.

Note: Make sure that the DIMM is properly installed into

the connector. A loose connection can cause an error.

Modem Board Checkout

Do the following to isolate the problem to the system internal modem:

1. Boot from the diagnostics diskette and start the program.

2. Go to Diagnostics on the main menu and select Other Devices.

3. Follow the description in the window.

4. If the test detects a modem problem, replace the modem card.

Power System Checkout

To verify the symptom of the problem power on the computer using each of the following power sources:

1. Remove the battery ASM.

2. Connect the AC Adapter and check that power is supplied.

3. Disconnect the AC Adapter and install the charged battery ASM; then check that power is supplied by the battery ASM.

If you suspect a power problem, refer to the appropriate power supply check listed below:

 “Checking the AC Adapter” on page 11  “Checking the Operational Charging” on page 11  “Checking the Battery ASM” on page 11

10 ThinkPad 240

Checking the AC Adapter: You are here

because the computer fails only when the AC Adapter is used:

 If the power-on indicator does not turn on, check the

power cord of the AC Adapter for correct continuity and installation.

 If the operational charge does not work, go to

“Checking the Operational Charging.”

Unplug the AC Adapter cable from the computer and measure the output voltage at the plug of the AC Adapter cable. See the following figure.

Pin Voltage (V dc)

1 +15.5 to +17.0 2 Ground

If the voltage is not correct, replace the AC Adapter. If the voltage is within the range, do the following:

 Replace the system board.  If the problem is not corrected, go to “Undetermined

Problems” on page 22

Note: An audible noise from the AC Adapter does not

always indicate a defective adapter.

Checking the Operational Charging: To

check operational charging, use a discharged battery pack (battery ASM) or a battery ASM that has less than 50% of the total power remaining when installed in the computer.

Perform operational charging. If the battery status indicator does not turn on, remove the battery ASM and let it return to room temperature. Reinstall the battery ASM.

If the charge indicator still does not turn on, replace the battery ASM. If the charge indicator still does not turn on, replace the system board. Then reinstall the battery ASM. If the reinstalled battery ASM is not charged, go to the next section.

Checking the Battery ASM: Do the following:

1. Power off the computer.

2. Remove the battery ASM and measure the voltage between battery terminals 1(+) and 5(-). See the following figure:

ThinkPad 240 11

Note: Signal lines, not used in these steps, are used

for communications between the system and the battery.

3. If the voltage is less than 10.6V, the battery ASM has been discharged, recharge the battery ASM. If the voltage is still less than 10.6V, replace the battery.

TrackPoint Checkout

If the external mouse is connected, the TrackPoint does not work. In this case, please detach the external mouse to check the TrackPoint.

If this does not correct the TrackPoint problem, continue with the following:

After you use the TrackPoint, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the TrackPoint pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

If a click button problem or pointing stick problem occurs, do the following:

1. Boot from the diagnostics diskette and start the program.

2. Go to Interactive Tests on the main menu and select Mouse.

3. Follow the instructions in the message window.

If either the pointing stick or the click button does not work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU.

1. Reseat the keyboard Touchbutton cables.

2. Replace the keyboard.

3. Replace the system board.

12 ThinkPad 240

I/O Ports Checkout

Note: Be sure to enable the serial and parallel ports in

the BIOS setup utility before performing diagnostics tests on the I/O ports.

Also, be sure to write down the I/O address for the serial port to identify the port in the diagnostic test.

Do perform a diagnostics checkout on the I/O ports:

1. Boot from the diagnostics diskette and start the program.

2. Go to Diagnostics on the main menu and select

Serial Ports or Parallel Ports. Note: If you want to do a check on the infrared port,

select Serial Ports.

3. In the Serial Port Test Category, you can check four items:

 Registers and Interrupts  Internal Loopback  External Loopback

 FIFO Buffers (16550A) Move the cursor to the item you want to check, and

press Enter. Then follow the instructions on the screen.

Note: To do an External Loopback test, you must

have a Loopback plug.

4. In the Parallel Port Test Category, you can check two items:

 Command And Data Port  External Loopback And IRQ

Move the cursor to the item you want to check, and press Enter. Then follow the instructions on the screen.

Note: To do an External Loopback And IRQ test,

you must have a Loopback plug.

Power Management Features

Three power management modes are available in the computer system to reduce power consumption and to prolong battery life.

Standby Mode: In standby mode, the following

occurs:

 The LCD backlight turns off.  The hard disk drive motor stops.

Events that cause the computer to enter standby mode:

 Standby mode requested by the Fn key (Fn+F3).

ThinkPad 240

The computer exits standby and resumes operation when any key is pressed.

Suspend Mode: In suspend mode, the following

occurs:

 The LCD is powered off.  The hard disk drive is powered off.  The CPU stops.

Events that cause the computer to enter suspend mode:

 Suspend mode requested by the Fn key (Fn+F4).  The Lid is closed.  The specified time has elapsed.  Battery low occurs and hibernation conditions are

insufficient. Note: When battery is low, the battery status indi-

cator blinks orange.

Note: In the IBM BIOS Setup Utility, the computer can be

set to suspend when the lid is closed.

The following events cause the computer to resume operation from suspend mode:

 The Lid is opened.  The real time clock alarm is signaled.  The ring indicator (RI) is signaled by a PC Card

device or the internal modem.

 The Fn key is pressed.  Power switch is pressed.

The computer also exits suspend mode when the battery is critically low or timer conditions are satisfied for entering hibernation mode.

Hibernation Mode: For Windows NT user:

A Windows NT user cannot create a hibernation file in a Windows NT system that uses the NTFS format system. If you want to use hibernation mode, you should reinstall Windows NT with a FAT format system. Also, if boot manager is installed, the computer cannot enter hibernation mode.

Note: Before using hibernation mode, you need a

hibernation file.

In hibernation mode, the following occurs:

 The system status, RAM, VRAM, and setup data are

stored on the hard disk.

 The system is powered off.

Events that cause the computer to enter hibernation mode:

 Hibernation mode requested by function key (Fn+F9).

14 ThinkPad 240

 Timer conditions are satisfied in suspend mode when

hibernate by timer is enabled.

 A critically low battery condition occurs.  The power switch is pressed. (BIOS Setup)

The computer exits hibernation mode and resumes operation when the power-on switch is pressed. When power is turned on, the hibernation file in the boot record on the hard disk drive is read and the system status is restored from the hard disk drive.

The power switch must be pressed to cause the computer to resume operation from hibernation mode.

How to Create the Hibernation Function:

follows:

 Turn off the computer.  Insert the hibernation utility diskette into the diskette

drive (you can create the diskette using the Diskette Factory).

 Turn on the computer.  Follow the instructions on the screen.

Note: If you change the memory size, you need to

recreate the hibernation file or partition. For partition-based hibernation, use the hibernation utility to delete the partition first before creating a new one.

Do as

ThinkPad 240

Symptom-to-FRU Index

The Symptom-to-FRU Index lists the symptoms and errors and the possible causes. The most likely cause is listed first.

Note: Perform the FRU replacement or actions in the

sequence shown in the FRU/Action columns. If a FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also be used to help you decide the next possible FRUs to be replaced when servicing a computer.

Numeric error codes show the errors detected in POST or system operation (runtime). In the following error codes, X can be any number. If no codes are available, use narrative symptoms.

If the symptom is not listed, go to “Undetermined Problems” on page 22.

Note: For IBM devices not supported by diagnostic codes

in this ThinkPad computer, see the manual for that device.

Numeric Error Codes

The following is a list of the message that the BIOS can display. Most of them occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured. Following the list are explanations of the messages and remedies for reported problems.

If the system fails after you make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults or correct the error.

Symptom/Error FRU/Action in Sequence

0200 Failure Fixed

Disk

0211 Stuck Key

0211 Keyboard

error 0212

Keyboard Controller Failed

1. Reseat hard disk drive.

2. Load Setup Defaults in BIOS Setup Utility.

3. Hard disk drive

4. System board Go to “Keyboard and Auxiliary Input

Device Checkout” on page 9. Go to “Keyboard and Auxiliary Input

Device Checkout” on page 9.

Go to “Keyboard and Auxiliary Input Device Checkout” on page 9.

16 ThinkPad 240

Symptom/Error FRU/Action in Sequence

0213 Keyboard

locked — Unlock key switch

0220 Monitor type

does not match CMOS — Run Setup

0230 Shadow RAM

Failed at offset:nnnn

0231 System RAM

Failed at offset:nnnn

0232 Extended

RAM Failed at offset:nnnn

0250 System

battery is dead

0251 System

CMOS checksum bad — Default configuration used

0260 System timer

error 0270

Real time clock error

0280 Previous boot

incomplete — Default configuration used

Unlock external keyboard.

Load Setup Defaults in BIOS Setup Utility.

System board

1. DIMM

2. System board

1. DIMM

2. System board

System board

1. Run BIOS Setup Utility to reconfigure the system, then reboot the system.

2. System board

1. Run BIOS Setup Utility to reconfigure the system, then reboot the system.

2. System board

1. Load Setup Defaults in the BIOS Setup Utility.

2. System board

ThinkPad 240 17

Symptom/Error FRU/Action in Sequence

0281 Memory size

found by POST differed from CMOS

02D0 System

cache error — Cache disabled

02F0 CPU ID:

02F5 DMA Test

Failed 02F6

Software NMI Failed

02F7 Fail-Safe

Timer NMI Failed

1. Load Setup Defaults in the BIOS Setup Utility.

2. DIMM

3. System board

System board

1. DIMM

2. System board

1. DIMM

2. System board

1. DIMM

2. System board

Error Messages

Symptom/Error FRU/Action in Sequence

Device Address Conflict

Allocation Error for: device

Failing Bits: nnnn

Invalid System Configuration Data

I/O device IRQ conflict

Operating system not found

18 ThinkPad 240

1. Load Setup Defaults in BIOS Setup Utility.

2. System board

1. Load Setup Defaults in BIOS Setup Utility.

2. System board

1. DIMM

2. System board System board

1. Load Setup Defaults in BIOS Setup Utility.

2. System board

1. Enter BIOS Setup Utility and see if the hard disk drive and diskette drive A: are properly identified.

2. Hard disk drive

3. System board

No Beep Symptoms

Symptom/Error FRU/Action in Sequence

No beep, power-on indicator on, LCD blank, no POST

No beep, power-on indicator off, LCD blank during POST

No beep, power-on indicator on, LCD blank during POST

No beep during POST but system runs correctly.

 Ensure every connector is

connected tightly and cor-

rectly.  DIMM  System board

 Battery ASM  AC Adapter  System board

 Reseat DIMM.  System board

Speaker

LCD-Related Symptoms

Symptom/Error FRU/Action in Sequence

LCD backlight not working

LCD too dark LCD brightness

cannot be adjusted LCD contrast cannot

be adjusted LCD screen unread-

able Character missing

pels Screen abnormal Wrong color dis-

played LCD has extra hori-

zontal or vertical lines displayed.

1. Reseat the LCD connector.

2. LCD FPC ASM

3. LCD inverter

4. LCD

5. System board

1. Reseat the LCD connector.

2. LCD FPC ASM

3. LCD inverter

4. LCD

5. System board

1. LCD FPC ASM

2. LCD inverter

3. LCD

4. System board

Keyboard-Related Symptoms

Symptom/Error FRU/Action in Sequence

Keyboard (one or more keys) doesn't work.

1. Reseat the keyboard cable.

2. Keyboard

3. System board

Indicator-Related Symptoms

ThinkPad 240 19

Symptom/Error FRU/Action in Sequence

Indicator incorrectly remains off or on, but system runs correctly.

1. Reseat the LED cable.

2. LED cable

3. System board

Power-Related Symptoms

Symptom/Error FRU/Action in Sequence

Power shuts down during operation.

The system will not power on.

The system will not power off.

Battery can't be charged.

1. Battery

2. AC Adapter

3. System board

1. Battery ASM

2. AC Adapter

3. System board

1. System board

 Battery  System board

PC Card (PCMCIA)-Related Symptoms

Symptom/Error FRU/Action in Sequence

System cannot detect the PC Card (PCMCIA)

1. PC Card (PCMCIA) slots assembly

2. System board

Speaker-Related Symptoms

Symptom/Error FRU/Action in Sequence

Speakers make noise or no sound comes from system.

In DOS or Windows multimedia programs, no sound comes from the computer.

1. Speaker

2. System board

1. Speaker

2. System board

Power Management-Related Symptoms

Symptom/Error FRU/Action in Sequence

The system will not enter hibernation mode.

The system will not wake up from hibernation mode.

20 ThinkPad 240

1. Keyboard (if control is from the keyboard)

2. Hard disk drive

3. System board

1. Keyboard (if control is from the keyboard)

2. Hard disk drive

3. System board

Symptom/Error FRU/Action in Sequence

The system will not enter suspend mode after closing the LCD.

Battery fuel-gauge does not go higher than 90%.

System configuration does not match the installed devices.

System hangs intermittently.

1. LED Card ASM (R)

2. System board

1. Remove battery ASM and let it cool for 2 hours.

2. Refresh battery (continue using battery in BIOS Setup mode until power off, then charge battery).

3. Battery

4. System board

1. Load Setup Defaults and reboot the system.

1. Fan ASM

2. System board

Peripheral-Device-Related Symptom

Symptom/Error FRU/Action in Sequence

External display does not work correctly.

USB does not work correctly.

Print problems  Run printer self-test.

Serial or parallel port device problems

System board

 Printer driver  Printer cable  System board

 Device driver  Device cable  Device  System board

Note: If you cannot find a symptom or an error in this list

and the problem remains, see “Undetermined Problems” on page 22.

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as cosmic radiation, electronic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRUs.

ThinkPad 240

3. If any error is detected, replace the FRU shown by the FRU code. Rerun the test to verify that no more errors exist.

Undetermined Problems

You are here because the diagnostic tests did not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative. Follow these procedures to isolate the failing FRU (do not isolate non-defective FRUs).

Verify that the power supply being used at the time of the failure is operating correctly. (See “Power System Checkout” on page 10.)

1. Power off the computer.

2. Visually check for damage. If any problems are found, replace the FRU.

3. Remove or disconnect all of the following devices: a. Non-IBM devices

b. Printer, mouse, and other external devices

c. Battery ASM

d. Hard disk drive

e. DIMM

f. PC Cards (PCMCIA)

4. Power on the computer.

5. Determine if the problem has changed.

6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRUs one at a time. Do not replace a non-defective FRU.

a. System board

b. LCD panel ASM

22 ThinkPad 240

CE Utility Program Diskette Writing the VPD Data

The EEPROM on the system board contains the Vital Product Data (VPD) — that is, a computer serial number and a system board serial number. When you replace the system board, restore the computer serial number using the VPD Data Utility in the ThinkPad CE Utility Diskette. The serial number label is attached to the computer.

Flash UUID

The EEPROM on the system board contains the Universal Unique ID (UUID) — that is, for Microsoft or Internet use. When you replace the system board using the Flash UUID Utility in the ThinkPad CE Utility Diskette. The UUID utility will automatically assign the UUID via Windows.

Running the Diagnostics

Use either the TrackPoint or the cursor move keys to interact with the tests.

1. Connect the external floppy disk drive to the computer.

2. Insert the PC Doctor startup disk into the diskette drive.

3. Power-on the computer.

4. From the PC DOS 7.0 Startup Menu, select 1. ThinkPad 240 and press Enter.

The PC-Doctor diagnostic program will load.

5. At the main menu, select the test to run.

6. Press Enter to run the test selected.

7. After starting a test, do not press any key until prompted, then follow the instructions on the screen.

8. When the test is completed, press Esc to return to the main menu.

9. Select Quit/Exit Diags to exit the diagnostics utility.

ThinkPad 240

FRU Removals and Replacements

This section contains information about removals and replacements.

 Do not damage any parts. Only certified and trained

personnel should service the computer.

 The arrows in this section show the direction of move-

ment to remove a FRU, or to turn a screw to release the FRU. The arrows are marked in numeric order, in square callouts, to show the correct sequence of removal.

 When other FRUs must be removed before the failing

FRU is removed, they are listed at the top of the page.

 To replace a FRU, reverse the removal procedure

and follow any notes that pertain to replacement.

 When replacing a FRU, use the correct screw size, as

shown in the procedures.

Safety Notice 1:

Before the computer is powered on after FRU replacement, make sure all screws, springs, or other small parts, are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause an electrical short circuit.

Safety Notice 4:

The battery can cause a fire, explosion, or severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212 °F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

Safety Notice 8:

Before removing any FRU, power-off the computer, unplug all power cords from electrical outlets, remove the battery ASM, and then disconnect any interconnecting cables.

An electrostatic discharge (ESD) strap (P/N 6405959) must be used to establish personal grounding.

FRU Service Procedures

Review the following procedures before replacing any FRU.

24 ThinkPad 240

LCD FRU Replacement Notice: The TFT LCD

for the notebook computer contains over 2,359,296 thinfilm transistors (TFTs). A small number of missing, discolored, or lighted dots (on all the time) is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. The LCD should be replaced if the number of missing, discolored, or lighted dots in any background is 8 or more.

Replacing the System Board: When you

replace the system board, restore the computer serial number using the VPD Data Utility and reassign the UUID using the Flash UUID Utility in the ThinkPad 240 ThinkPad Hardware Maintenance Diskette.

Note: Do not power off the computer while restoring the

VPD.

Important Notice

This computer uses special nylon-coated screws with the following characteristics:

 They maintain tight connections.  They do not easily come loose, even with shock

or vibration.

 They need additional force to tighten.  They should be used only once.

Do the following when you service this computer:

 Have a screw kit (10L1956) available.  Always use new screws if you are instructed.  Use a torque screwdriver if you have one.

ThinkPad 240 25

1010 Battery ASM

To remove the battery ASM:

1. Slide the release lock as shown.

2. Slide the release latch as shown.

3. Remove the battery ASM.

Reverse the steps described above when installing a new battery pack.

26 ThinkPad 240

1020 Hard Disk Drive

Warning

 Do not drop or apply any shock to the hard disk drive.

The hard disk drive is sensitive to physical shock. Incorrect handling can cause damage and permanent loss of data on the drive.

 Before removing the drive, have the user make a

backup copy of all the information on the drive if possible.

 Never remove the drive while the system is operating

or is in suspend mode.

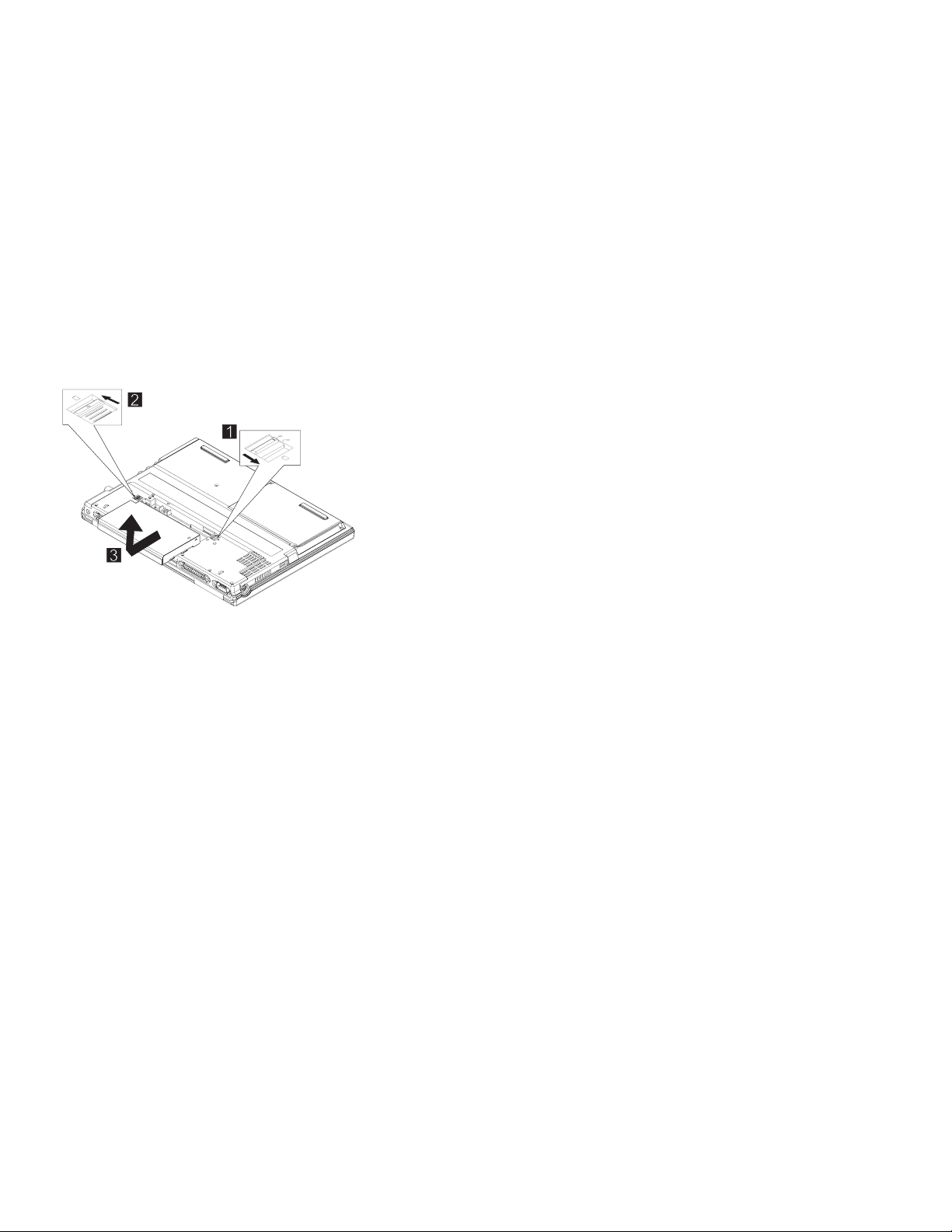

To remove the hard disk drive:

1. Remove the two screws from the hard disk cover.

2. Slide the hard disk drive module as shown.

3. Lift as shown to remove the hard disk drive module.

Step

1 M2.5 x 7L (2) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.5 kgf-cm

black

ThinkPad 240 27

1030 Keyboard

 1010 Battery ASM

To remove the keyboard:

1. Remove the three screws securing the keyboard.

2. Turn the notebook over; then lift the keyboard as shown.

ThinkPadThinkPad

3. Remove the keyboard stopper sheet screw.

4. Disconnect the keyboard connector from the system board. Remove the keyboard from the lower case.

28 ThinkPad 240

ThinkPadThinkPad

Step

tity)

1 M2.0 x 9L (3) Flat head,

Size (Quan-

Head & Color Torque

2.5 kgf-cm

black

3 M2.5 x 6L (1) Flat head,

2.5 kgf-cm

silver

Note: Make sure you use the correct screw for replacement.

ThinkPad 240 29

1040 Modem Card

 1010 Battery ASM

 1030 Keyboard To remove the modem card:

1. Carefully release the latches on both sides of the modem card.

ThinkPadThinkPad

2. Disconnect the modem cable from the connector.

3. Gently remove the modem card.

30 ThinkPad 240

1050 DIMM Card

 1010 Battery ASM

 1030 Keyboard To remove the memory card:

1. Carefully release the latches on both sides of the memory card.

ThinkPadThinkPad

2. Gently remove the memory card.

ThinkPad 240

1060 LCD Unit ASM

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

 1010 Battery ASM  1030 Keyboard Note: The Cu tape must be reseated firmly after the LCD

unit ASM is replaced .3/.

To remove the LCD unit ASM:

1. Remove the screws as shown.

2. Turn the notebook over; then remove the hinge covers.

3. Remove the Cu tape from the FPC cable.

4. Disconnect the LCD FPC cable from the system board.

5. Remove the LCD hinge screws.

6. Raise the upper cover enough to remove the FPC cable. Remove the LCD unit.

32 ThinkPad 240

Step

1 M2.0 x 4L (2) Flat head,

5 M2.5 x 6 L

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

(4)

Head & Color Torque

black Flat head,

silver

2.5 kgf–cm

3.5 kgf-cm

ThinkPad 240 33

1070 Upper Cover ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM

To remove the upper cover ASM:

1. Remove the screw cover.

2. Remove the screw.

3. Remove the other screw as shown.

Step

2 M2.0 x 4L (1) Flat head,

3 M2.5 x 7L (1) Flat head,

4 M2.0 x 4L Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.5 kgf-cm

black

2.5 kgf-cm

black

2.0 kgf-cm

black

4. Turn the notebook over; then remove the two screws.

34 ThinkPad 240

5. Disconnect the Touchbutton cable from the system board.

6. Carefully lift the upper cover to expose the speaker connector as shown.

7. Disconnect the speaker cable from the main unit. Now you can remove the upper cover ASM from the base cover ASM.

ThinkPad 240 35

1080 Speaker ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM

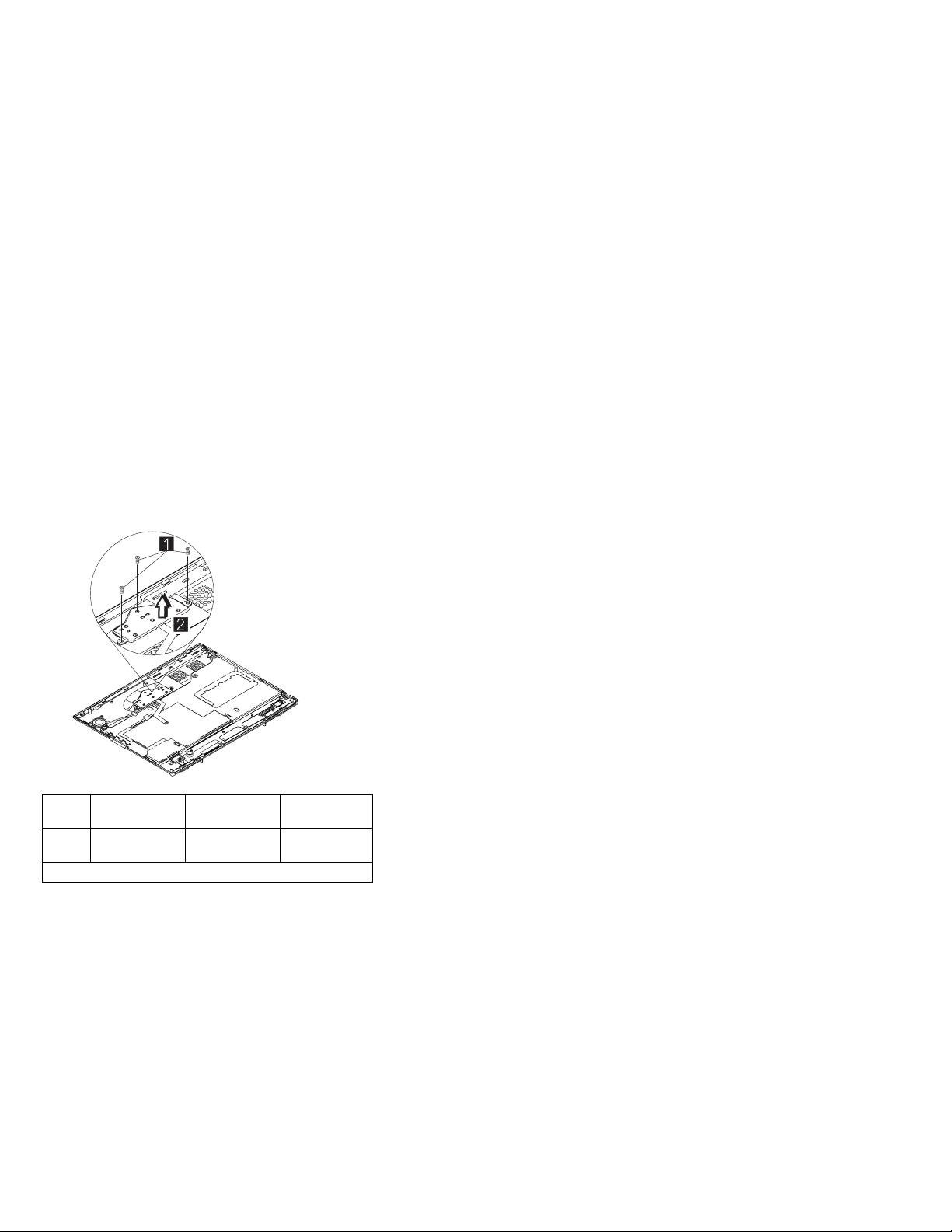

To remove the speaker:

1. Remove the three screws securing the speaker.

2. Remove the securing tape from the cable.

3. Gently lift the speaker away from the upper cover.

Step

1 M2.0 x 3L (3) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.5 kgf-cm

silver

36 ThinkPad 240

1085 Select Button ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM

To remove the select button ASM:

1. Remove the three screws as shown.

2. Remove the select button ASM from the top cover ASM.

Step

1 M2.5 x 2.5L

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

(3)

Head & Color Torque

Flat head, silver

2.0 kgf-cm

ThinkPad 240 37

1090 Cable ASM and Cable ASM LED-R

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM

To remove the hinge LED cable:

1. Disconnect the LED cable, then lift it as shown. (The cable is fixed with double-sided tape.)

To remove the cable ASM LED-R:

1. Remove the screw.

2. Disconnect the LED board, then lift it as shown.

Step

1 M2.0 x 7L (1) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.0 kgf-cm

silver

38 ThinkPad 240

1100 Fan ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM  1090 Cable ASM and Cable ASM LED-R

Warning

Do not apply pressure on the fan blades or hub assembly; doing so can damage the fan bearings.

To remove the fan ASM:

1. Remove the two screws securing the fan ASM.

2. Carefully lift the fan ASM.

3. Disconnect the cable from the system board.

Warning

When reassembling the fan, ensure that you insert the screws in the order shown in the following illustration:

Step

1 M2.0 x 7L (2) Flat head,

Size (Quantity)

Head & Color Torque

2.0 kgf-cm

silver

ThinkPad 240 39

Step Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

40 ThinkPad 240

1110 Modem Cable ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM

To remove the modem cable ASM:

 Disconnect the modem cable from the system board.

Remove the cable as shown.

ThinkPad 240 41

1120 Water Channel ASM

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM

To remove the water channel ASM:

 Remove the water channel ASM as shown.

42 ThinkPad 240

1130 System Board

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM  1090 Cable ASM and Cable ASM LED-R  1100 Fan ASM  1120 Water Channel ASM

Note: See “Replacing the System Board” on page 25

before proceeding.

1. Remove the screws as shown.

2. Turn the notebook over; remove the two screws from the diskette drive connector.

3. Remove the screw from the PCMCIA slot.

4. Remove the battery terminal screw.

5. Gripping firmly as shown, separate the base cover around the sides from the system board.

ThinkPad 240

6. Remove the system board from the base cover ASM.

Step

1 M2.0 x 4L (5) Flat head,

2 M2.0 x 6L (2) Flat head,

3 M2.0 x 4L (1) Flat head,

4 M2.0 x 8L (1) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.5 kgf-cm

black

2.0 kgf-cm

black

2.0 kgf-cm

black

2.0 kgf-cm

black

44 ThinkPad 240

1135 Rear Bracket

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM  1090 Cable ASM and Cable ASM LED-R  1100 Fan ASM  1120 Water Channel ASM  1130 System Board

Note: See “Replacing the System Board” on page 25

before proceeding.

1. Remove the six hexagonal studs as shown.

2. Remove the microphone.

3. Remove the rear bracket.

Step

1 M2.5 x 4.5L

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

(6)

Head & Color Torque

Hex head, silver

4.0 kgf-cm

ThinkPad 240 45

1140 PCMCIA Slots

 1010 Battery ASM  1020 Hard Disk Drive

 1030 Keyboard

 1060 LCD Unit ASM  1070 Upper Cover ASM  1090 Cable ASM and Cable ASM LED-R  1100 Fan ASM  1120 Water Channel ASM  1130 System Board

Warning

Special care must be taken when disconnecting the PCMCIA card not to cause a short or damage the connector.

To remove the PCMCIA slots:

1. Remove the screw securing the PCMCIA slot board.

2. Use a flat-bladed screwdriver to disconnect the PCMCIA card from the connector.

3. Carefully remove the PCMCIA card.

Step

1 M2.0 x 7L (1) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.0 kgf-cm

silver

46 ThinkPad 240

1150 LCD Bezel ASM

 1010 Battery ASM

1. Remove the screw cap covers.

2. Remove the screws as shown.

ThinkPadThinkPad

3. Gripping as shown, remove the LCD bezel.

4. The LCD latches must be opened as shown to remove the bezel.

ThinkPadThinkPad

5. Remove the bezel from the LCD unit.

Step

2 M2.5 x 5L (2) Flat head,

2A M2.5 x 5L (2) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

2.5 kgf-cm

black

1.5 kgf-cm

black

ThinkPad 240 47

1160 LCD Inverter ASM

 1010 Battery ASM  1150 LCD Bezel ASM

To remove the LCD inverter ASM:

1. Disconnect the flex cable from the inverter card.

2. Disconnect the FPC cable from the inverter card.

ThinkPad

3. Remove the inverter card. (The inverter card is fixed to the rear cover with double-sided tape.)

48 ThinkPad 240

1170 LCD Panel ASM (LCD Type A and B)

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

 1010 Battery ASM

 1030 Keyboard

 1150 LCD Bezel ASM  1160 LCD Inverter ASM

To remove the LCD Panel:

1. Remove the screws as shown.

2. Turn the notebook over; remove the CU tape and disconnect the FPC cable.

3. Remove the four screws securing the LCD Panel.

ThinkPad

4. Lift the top cover enough to pass the FPC connector through.

ThinkPad 240

5. Remove the LCD panel.

Step

1 M2.0 x 4L (2) Flat head,

3 (LCD Type A)

3 (LCD Type B)

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

M2.5 x 4L (4) Flat head,

M2.0 x 4L (4) Flat head,

Head & Color Torque

2.5 kgf–cm

black

3.0 kgf–cm

silver

3.0 kgf–cm

silver

50 ThinkPad 240

1180 LCD FPC ASM (LCD Type A)

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

 1010 Battery ASM

 1030 Keyboard

 1150 LCD Bezel ASM  1160 LCD Inverter ASM  1170 LCD Panel ASM (LCD Type A and B)

Note: When replacing the flex cable in the following pro-

cedure, the labelled face of the cable must face away from the LCD panel.

1. Remove the tape from the FPC cable.

2. Disconnect the FPC connector from the LCD panel.

Bs1 FPC 1A P/N DEPC1222AA

Career B through

Bs1 FPC 1A P/N DEPC1222AA

3. Disconnect the flex cable from the LCD panel.

ThinkPad 240 51

1185 LCD FPC ASM (LCD Type B)

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

 1010 Battery ASM

 1030 Keyboard

 1150 LCD Bezel ASM  1160 LCD Inverter ASM  1170 LCD Panel ASM (LCD Type A and B)

1. Remove the tape from the FPC cable.

2. Open the fasteners on the FPC cable holder.

3. Disconnect the FPC connector from the LCD panel.

52 ThinkPad 240

1190 Hinge ASM

 1010 Battery ASM

 1030 Keyboard

 1060 LCD Unit ASM  1150 LCD Bezel ASM

1. Remove the screws as shown.

2. Remove the hinge ASM.

Step

1 M2.5 x 4L (2) Flat head,

Note: Make sure you use the correct screw for replacement.

Size (Quantity)

Head & Color Torque

3.5 kgf–cm

silver

ThinkPad 240 53

Computer Parts Listing

Index Description FRU

a — d

1 HINGE CAP L/R 10L1954 2 UPPER COVER ASM 10L1944 3 REAR BRACKET 10L1952 4 LED CARD ASM (L) 10L1303 5 SERIAL/VGA CAP 10L1951 6 STD BATTERY PACK 02K6606 7 PCMCIA SLOT 10L1945 8 DISKETTE DRIVE CONNECTOR

9 TRACKPOINT CAP 84G6536 10 See Keyboard list 11 SELECT BUTTON ASM 10L1958

See MISC PARTS list 10L1955

LID

54 ThinkPad 240

Number

10L1953

Index Description FRU

12 FAN ASM 10L1957 13 SPEAKER ASM 02K6307 14 LED CARD ASM (R) 10L1304 15 SYSTEM BOARD ASM 32 MB

(Model 1)

15 SYSTEM BOARD ASM 64 MB

(Model 2)

15 SYSTEM BOARD ASM 64 MB

(Model 3)

15 SYSTEM BOARD ASM 64 MB

(Model 4) 16 MODEM CARD ASM 10L1305 17 BASE COVER ASM 10L1946

BASE COVER ASM PRC 10L1948

BASE COVER ASM Korea 10L1949 18 HARD DISK DRIVE ASM 3.2 GB

(Model 1)

HARD DISK DRIVE ASM 6.4 GB

(Model 2)

HARD DISK DRIVE DOOR 10L1950

Description FRU

AC ADAPTER

AC Adapter 56W (2 PIN) 02K6554 AC Adapter 56W (2 PIN) 02K6548 AC Adapter 56W (3 PIN) 02K6555 AC Adapter 56W (3 PIN) 02K6550

KEYBOARD

KBD ASM US English 02K6302 KBD ASM Japanese 02K6303 KBD ASM Traditional Chinese 02K6304 KBD ASM Korean 02K6305 KBD ASM Canadian French 02K6306 KBD ASM UK English 02K4938 KBD ASM German 02K4939 KBD ASM French 02K4940

Miscellaneous

Screw Kit 10L1956 MODEM CABLE ASM INTERNAL 05K2860 TELEPHONE CABLE US 27L0478 TELEPHONE CABLE Australia 27L0479

Number

10L1302

30L2766

08K3426

08K3143

05K9117

05K9119

Number

ThinkPad 240 55

Description FRU

TELEPHONE CABLE UK 27L0480 TELEPHONE CABLE Germany 27L0481 TELEPHONE CABLE France 27L0482 32 MB DIMM 42H2819 64 MB DIMM 10L1313 128 MB DIMM 01K1153 EXTERNAL DISKETTE DRIVE CABLE 12J1711 EXTERNAL DISKETTE DRIVE ASM 05K8989

LARGE BATTERY 02K6607 MISC PARTS

(a) MODEM DOOR (b) SHUTTER (PCMCIA) (c) SPRING SHUTTER (d) WATER CHANNEL (e) FPC HOLDER (upper) (f) FPC HOLDER (lower) (g) HOOK KNOB - R (h) SPRING HOOK - R (i) HOOK KNOB - L (j) SPRING-HOOK - L

Others

Power cord (Japan 2 PIN) 13H5273 Power cord (Argentina, Australia, Papua New

Guinea, New Zealand, Paraguay, Uruguay) Power cord (Bahamas, Barbados, Bermuda,

Bolivia, Canada, Cayman Islands, Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Guyana, Haiti, Honduras,Jamaica, Korea (South), Mexico, Netherlands, Antilles, Nicaragua, Panama, Peru, Philippines, Saudi Arabia, Suriname, Taiwan, Trinidad (West Indies), U.S.A., Venezuela)

Power cord (Austria, Belgium, Bulgaria, Czech Republic, Egypt, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Spain, Sweden, Turkey, former Yugoslavia)

Power cord (Denmark) 76H3520 Power cord (Bangladesh, Pakistan, South

Africa, Sri Lanka)

Number

05K8990

10L1955

76H3514

76H3516

76H3518

76H3522

56 ThinkPad 240

Description FRU

Power cord (Abu Dhabi, Albania, Antigua, Bahrain, Brunei, Dubai, Fiji, Hong Kong, India, Ireland, Kenya, Kuwait, Macao, Malaysia, Nigeria, Oman, People's Republic of China, Qatar, Singapore, United Kingdom)

Power cord (Switzerland) 76H3528 Power cord (Israel) 76H3532 Power cord (Chile, Italy) 76H3530 Power cord (Korea) 76H3535 Power cord (PRC) 02K0539

Number

76H3524

ThinkPad 240 57

LCD Unit Parts Listing (LCD Type A)

j i

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

Index Computer FRU

e — j See MISC PARTS list 10L1955 1 LCD BEZEL ASM 10L1941

LCD BEZEL ASM Korea 10L1942 2 LCD UNIT-TFT 10.4-inch 05K9523 3 LCD CABLE ASM 05K2859 4 HINGE ASM L/R 10L1943 5 LCD REAR COVER ASM 10L1939

LCD REAR COVER ASM Korea 10L1940

LCD REAR COVER ASM Korea

(Hitachi panel) 6 INVERTER CARD ASM 10L1306

Number

08K5925

58 ThinkPad 240

LCD Unit Parts Listing (LCD Type B)

Note: Refer to “ThinkPad 240 Hardware Maintenance

Manual” on page 1 for information on LCD Type A and LCD Type B panel designations.

Index Computer FRU

e — j See MISC PARTS list 10L1955 1 LCD BEZEL ASM 10L1941

LCD BEZEL ASM Korea 10L1942 2 LCD UNIT-TFT 10.4-inch 05K9589 3 LCD CABLE ASM 27L0489 4 HINGE ASM L/R 10L1943 5 LCD REAR COVER ASM 08K5820

LCD REAR COVER ASM Korea 10L1940

LCD REAR COVER ASM Korea

(Hitachi panel) 6 INVERTER CARD ASM 10L1431

Service Tools

Description FRU No.

Diagnostic Diskette N/A CE Utility Diskette N/A

Number

08K5925

ThinkPad 240 59

Description FRU No.

Tri-Connector Wrap Plug 72X8546 PC Test Card 35G4703 Audio Wrap Cable 66G5180 Screwdriver Kit 95F3598 USB Parallel Test Cable 05K2580 Torque Screwdriver 05K4695 5 mm Socket Wrench 05K4694 Screwdriver 27L8126

60 ThinkPad 240

Notices

References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program, or service is not intended to state or imply that only IBM product, program, or service may be used. Subject to IBM's valid intellectual property or other legally protectable rights, any functionally equivalent product program, or service may be used instead of the IBM product, program, or service. The evaluation and verification of operation in conjunction with other products, except those expressly designated by IBM, are the responsibility of the user.

IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation 500 Columbus Avenue Thornwood, NY 10594 U.S.A.

Trademarks

The following terms are trademarks or service marks of IBM Corporation in the United States and other countries:

IBM PS/2 ThinkPad TrackPoint TrackPoint IV

The following terms are trademarks or service marks of other companies as follows:

Intel Intel Corporation Mylar E.I. Du Pont de Nemours and Company PCMCIA Personal Computer Memory Card Interface

Pentium Intel Corporation

Association

ThinkPad 240 61

IBM

Part Number: 09N8590

Printed in U.S.A.

S09N-8590-ðð

IBM ThinkPad 240 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ThinkPad 240 Hardware Maintenance Manual

Read This First

Product Overview

Fn Key Combinations

Status Indicators

Checkout Guide

Audio Checkout

Fan ASM Checkout

Keyboard and Auxiliary Input Device Checkout

Memory Checkout

Modem Board Checkout

Power System Checkout

TrackPoint Checkout

I/O Ports Checkout

Power Management Features

Symptom-to-FRU Index

Numeric Error Codes

Error Messages

No Beep Symptoms

LCD-Related Symptoms

Keyboard-Related Symptoms

Indicator-Related Symptoms

Power-Related Symptoms

PC Card (PCMCIA)-Related Symptoms

Speaker-Related Symptoms

Power Management-Related Symptoms

Peripheral-Device-Related Symptom

Intermittent Problems

Undetermined Problems

Flash UUID

Running the Diagnostics

FRU Removals and Replacements

1010 Battery ASM

1020 Hard Disk Drive

1030 Keyboard

1040 Modem Card

1050 DIMM Card

1060 LCD Unit ASM

1070 Upper Cover ASM

1080 Speaker ASM

1085 Select Button ASM

1090 Cable ASM and Cable ASM LED-R

1100 Fan ASM

1110 Modem Cable ASM

1120 Water Channel ASM

1130 System Board

1135 Rear Bracket

1140 PCMCIA Slots

1150 LCD Bezel ASM

1160 LCD Inverter ASM

1180 LCD FPC ASM (LCD Type A)

1185 LCD FPC ASM (LCD Type B)

1190 Hinge ASM

Computer Parts Listing

LCD Unit Parts Listing (LCD Type A)

LCD Unit Parts Listing (LCD Type B)

Notices

Trademarks
