IBM 1U 17-inch and 19-inch Flat Panel Console Kits
IBM System x at-a-glance guide
These cost-effective Flat Panel Console Kits offer a powerful and convenient way to manage space
constrained rack environments from a single console. These densely packed 1U solutions let you easily
set up and control rack-mounted IBM System x or BladeCenter servers and offer additional space savings
by allowing the mounting of the KVM switch in the 0U space behind the console.
These kits include either a 17" or 19" LCD display and accept an UltraNav keyboard available in 29
languages (the keyboard must be ordered separately). The 19-inch kit also includes as standard a
multi-burner drive and USB port for additional convenience.

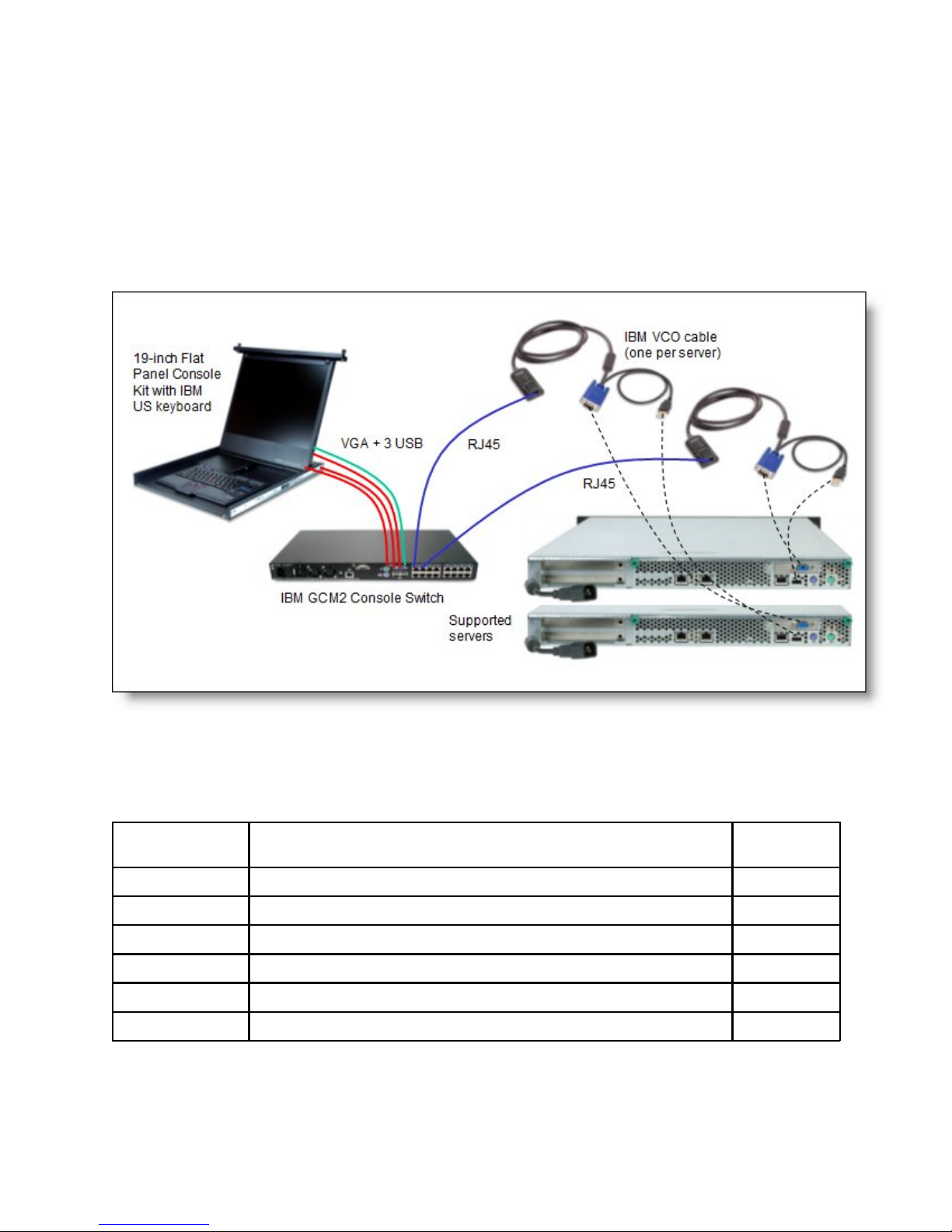

Figure 1. IBM 1U 19-inch Flat Panel Console Kit with the IBM UltraNav USB US English keyboard
Did You Know?
Beyond a larger screen size, the 19” Console Kit, when coupled with the IBM GCM2 or LCM 2 and VCO
dongles, creates a virtual media solution that allows for the out-of-band transfer of data to deploy or patch
multiple servers from one local console either through the integrated USB pass thru or integrated optical
drive. This solution offers potential savings by allowing the removal of the optical drive in each server and
eliminating the need to physically locate each server to insert media at the rack.
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 1
Part number information
Table 1. Ordering part numbers and feature codes
Description Part number Feature code
IBM 1U 17-inch Flat Panel Console Kit 172317X 1723HC1 fc 0051
IBM 1U 19-inch Flat Panel Console Kit with Multi-Burner Drive 172319X 1723HC1 fc 0052
The part number for the IBM 1U 17-inch Flat Panel Console Kit includes the following items:
One console unit with a 17" LCD display, AC adapter, and cable-management arm
Rails and mounting brackets
One 2.4 m (8 ft) IEC connector power cable
Miscellaneous hardware kit (cage nuts, clip nuts, screws, cable straps)
Hook-and-loop fastener strips
IBM Documentation CD
The part number for the IBM 1U 19-inch Flat Panel Console Kit includes the following items:
One console unit with 19" LCD display, optical drive, AC adapter, and cable-management arm
Rails and mounting brackets
One 2.4 m (8 ft) IEC connector power cable
Miscellaneous hardware kit (cage nuts, clip nuts, screws, cable straps)
Hook-and-loop fastener strips
IBM Documentation CD
Note: The console kits do not include a keyboard. See Table 2 for the supported USB keyboards and
Table 3 for the supported PS/2 keyboards.
Figure 2. IBM 1U 17-inch Flat Panel Console Kit with the IBM UltraNav USB US English keyboard
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 2
Table 2. Supported USB keyboards
Description Part number Feature code
IBM UltraNav USB keyboard - Arabic 253 40K5373 8661
IBM UltraNav USB keyboard - Belgium/UK 120 40K5374 8662
IBM UltraNav USB keyboard - Chinese/US 467 40K5375 8663
IBM UltraNav USB keyboard - Czech 489 40K5376 8664
IBM UltraNav USB keyboard - Danish 159 40K5377 8665
IBM UltraNav USB keyboard - Dutch 143 40K5378 8666
IBM UltraNav USB keyboard - French 189 40K5379 8667
IBM UltraNav USB keyboard - French/Canadian 445 40K5380 8668
IBM UltraNav USB keyboard - German 129 40K5381 8669
IBM UltraNav USB keyboard - Greek 219 40K5382 8670
IBM UltraNav USB keyboard - Hebrew 212 40K5383 8671
IBM UltraNav USB keyboard - Hungarian 208 40K5384 8672
IBM UltraNav USB keyboard - Italian 141 40K5385 8673
IBM UltraNav USB keyboard - Japanese 194 40K5386 8674
IBM UltraNav USB keyboard - Korean 413 40K5387 8675
IBM UltraNav USB keyboard - LA Spanish 171 40K5388 8676
IBM UltraNav USB keyboard - Norwegian 155 40K5389 8677
IBM UltraNav USB keyboard - Polish 214 40K5390 8678
IBM UltraNav USB keyboard - Portugese 163 40K5391 8679
IBM UltraNav USB keyboard - Russian Cyrillic 441 40K5392 8680
IBM UltraNav USB keyboard - Slovak 245 40K5393 8681
IBM UltraNav USB keyboard - Slovenian 40K5401 8689
IBM UltraNav USB keyboard - Spanish 172 40K5394 8682
IBM UltraNav USB keyboard - Swedish/Finnish 153 40K5395 8683
IBM UltraNav USB keyboard - Swiss French/German 150 40K5396 8684
IBM UltraNav USB keyboard - Thai 191 40K5397 8685
IBM UltraNav USB keyboard - Turkish 179 40K5398 8686
IBM UltraNav USB keyboard - UK English 166 40K5399 8687
IBM UltraNav USB keyboard - US English 103P 40K5372 8660
IBM UltraNav USB keyboard - US Euro 103P 40K5400 8688
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 3
Table 3 lists the supported PS/2 keyboards. As of October 31, 2009, each of these keyboards was
withdrawn from marketing.
Table 3. Supported PS/2 keyboards (all now withdrawn from marketing)
Description Part number
IBM Keyboard w/ Integrated Pointing Device PS/2 - Arabic 253 42C0031
IBM Keyboard w/ Integrated Pointing Device PS/2 - Belgium/UK 120 42C0032
IBM Keyboard w/ Integrated Pointing Device PS/2 - Chinese/US 467 42C0033
IBM Keyboard w/ Integrated Pointing Device PS/2 - Czech 489 42C0034
IBM Keyboard w/ Integrated Pointing Device PS/2 - Danish 159 42C0035
IBM Keyboard w/ Integrated Pointing Device PS/2 - Dutch 143 42C0036
IBM Keyboard w/ Integrated Pointing Device PS/2 - French 189 42C0037
IBM Keyboard w/ Integrated Pointing Device PS/2 - French/Canada 445 42C0038
IBM Keyboard w/ Integrated Pointing Device PS/2 - German 129 42C0039
IBM Keyboard w/ Integrated Pointing Device PS/2 - Greek 219 42C0040
IBM Keyboard w/ Integrated Pointing Device PS/2 - Hebrew 212 42C0041
IBM Keyboard w/ Integrated Pointing Device PS/2 - Hungarian 208 42C0042
IBM Keyboard w/ Integrated Pointing Device PS/2 - Italy/Italian 141 42C0043
IBM Keyboard w/ Integrated Pointing Device PS/2 - Japanese 194 42C0044
IBM Keyboard w/ Integrated Pointing Device PS/2 - Korean 413 42C0045
IBM Keyboard w/ Integrated Pointing Device PS/2 - LA Spanish 171 42C0046
IBM Keyboard w/ Integrated Pointing Device PS/2 - Norwegian 155 42C0047
IBM Keyboard w/ Integrated Pointing Device PS/2 - Polish 214 42C0048
IBM Keyboard w/ Integrated Pointing Device PS/2 - Portugese 163 42C0049
IBM Keyboard w/ Integrated Pointing Device PS/2 - Russian 441 42C0050
IBM Keyboard w/ Integrated Pointing Device PS/2 - Slovak 245 42C0051
IBM Keyboard w/ Integrated Pointing Device PS/2 - Slovenian 234 42C0059
IBM Keyboard w/ Integrated Pointing Device PS/2 - Spanish 172 42C0052
IBM Keyboard w/ Integrated Pointing Device PS/2 - Swed/Finn 153 42C0053
IBM Keyboard w/ Integrated Pointing Device PS/2 - Swiss F/G 150 42C0054
IBM Keyboard w/ Integrated Pointing Device PS/2 - Thai 191 42C0055
IBM Keyboard w/ Integrated Pointing Device PS/2 - Turkish 179 42C0056
IBM Keyboard w/ Integrated Pointing Device PS/2 - UK English 166 42C0057
IBM Keyboard w/ Integrated Pointing Device PS/2 - US English 103P 42C0030
IBM Keyboard w/ Integrated Pointing Device PS/2 - US Euro 103P 42C0058
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 4
Features
The features of the 17-inch Flat Panel Console Kit are as follows:
Integrated 17-inch display supports maximum resolution of 1280X1024 @ 75 Hz
Display features an anti-reflective coating that reduces surface reflectivity by approximately 25%
Installable in a rack - consumes only 1U of rack space
Includes rail kit and cable-management arm so the unit can close and slide back into the rack
Provides easy local access and control of a server
Compatible with all IBM Console Managers and Switches for control and access of multiple servers
Allows installation of console switch in the same 1U space
The features of the 19-inch Flat Panel Console Kit are as follows:
Integrated 19-inch display supports maximum resolution of 1280X1024 @ 75 Hz
Display features an anti-reflective coating that reduces surface reflectivity by approximately 25%
USB pass-through port on the front of the tray
USB Multi-burner optical drive
Installable in a rack - consumes only 1U of rack space
Includes rail kit and cable-management arm so the unit can close and slide back into the rack
Provides easy local access and control of a server
Compatible with all IBM Console Managers and Switches for control and access of multiple servers
Allows installation of console switch in the same 1U space
Integrated USB port and optical drive pair with an LCM2 or GCM2 Console Switch for remote USB
media support
Figure 3 shows the IBM 1U 19-inch Flat Panel Console Kit in the closed position.
Figure 3. IBM 1U 19-inch Flat Panel Console Kit
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 5
Table 4 shows a comparison of the two console kits.
Table 4. Feature comparison
Feature 17-inch Flat Panel Console Kit 19-inch Flat Panel Console Kit
Form Factor 1U 1U
Monitor 17” Clam-shell 19” Clam-shell
Keyboard and mouse Accepts any UltraNav Keyboard Accepts any UltraNav Keyboard
Pass-through USB None Yes
Rack shippable Yes Yes
KVM in same 1U space Yes Yes
Cable management arm Yes Yes
Optical media None Standard DVD Multiburner
Figure 4 shows the 17-inch Flat Panel Console Kit in the closed position.
Figure 4. IBM 1U 17-inch Flat Panel Console Kit
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 6
Display specifications
The 17-inch and 19-inch displays have the following specifications:
Table 5. Display specifications
Specification 17-inch Flat Panel Console Kit 19-inch Flat Panel Console Kit
Screen size 17.0 inch diagonal 19.0 inch diagonal
Display Area 338 x 270 mm 376 x 301 mm
Type TFT active matrix
Pixel pitch 0.264 x 0.264 mm
Contrast 400:1
Brightness: 250 cd/m2
Viewing angle: 150 degrees to 115 degrees (H/V)
Frequency
Horizontal 30 - 79 kHz 31 - 80 kHz
Vertical 50 - 77 Hz 56 - 75 Hz
Display Color 16.7 M colors
Display Resolution
Optimum Mode 1280 x 1024 at 60 Hz
Maximum Mode 1280 x 1024 at 75 Hz
Input Signal
Connector VGA (DB15)
Power Supply AC 100 - 240 V, 60 Hz - 50 Hz to dc 12 V/ 5.0 A
Power Consumption
Normal operation Less than 36 watts Less than 40 watts
Power Saving mode Less than 2 watts Less than 1 watts
Environmental
Operating Temperature (0°C to 50°C)
Operating Humidity 10% to 80%
Operating Altitude Maximum 3000 meters
Storage Temperature (-20°C to +60°C)
Storage Humidity 5% to 95%
Storage Altitude Maximum 3000 meters
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 7
Multi-burner specifications
A
The specifications for the optical drive standard in the 19-inch Flat Panel Console Kit are as follows.
Table 6. Multi-burner specifications
Performance
verage access time: DVD-ROM 160 ms
(1/3 stroke) CD-ROM 140 ms
Write speed:
DVD-R 2x CLV, 4x ZCLV, 8x CAV
DVD-R DL 2x CLV, 4x ZCLV, 6x ZCLV
DVD-RW 1x, 2x CLV, 4x, 6x ZCLV
DVD-RAM 2x, 3x ZCLV, 5x PCAV (Ver.2.2)
(16x Media: Not support)
DVD+R 2.4x CLV, 4x ZCLV, 8x CAV
DVD+R DL 2.4x CLV, 4x ZCLV, 6x ZCLV
DVD+RW 2.4x, 3.3x CLV, 4x ZCLV, 8x ZCLV
(8x Speed disc: 3.3x CLV, 8x ZCLV)
CD-R 10x CLV, 16x, 24x ZCLV
4x, 10x CLV, 16x ZCLV
CD-RW (High Speed: 10x CLV, Ultra Speed: 16x ZCLV,
Ultra Speed plus: 16x ZCLV)
Read speed:
DVD-R/RW/ROM 8x/8x/8x max.
DVD-R DL 8x max.
DVD-RAM (Ver.1.0) 2x
(Ver.2.2) 2x, 3x, 5x
DVD-Video (CSS Compliant Disc) 8x max. (Single/Dual layer)
DVD+R/+RW 8x/8x max.
DVD+R DL 8x max
CD-R/RW/ROM 24x/24x/24x max.
CD-DA (DAE) 20x max.
Sustained Transfer rate:
DVD-ROM 11.08 MBps (8x) max.
CD-ROM 3,600 KBps (24x) max
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 8
Physical specifications
Height: 43 mm (1.7 in)
Width: 483 mm (19.0 in)
Depth: 711 mm (28.0 in)
Weight: 12.3 kg (27.3 lb)
Warranty
Three year, customer replaceable unit (CRU), limited warranty.
Supported racks
The 1U 17-inch and 1U 19-inch Flat Panel Console Kits require 1U of rack space in one of the following
rack cabinets:
IBM 11U Office Enablement Kit
IBM 25U S2 standard rack
IBM 25U Static S2 Standard Rack
IBM 42U 1200mm Deep Dynamic Expansion Rack
IBM 42U 1200mm Deep Dynamic Rack
IBM 42U 1200mm Deep Static Expansion Rack
IBM 42U 1200mm Deep Static Rack
IBM 42U Enterprise Expansion Rack
IBM 42U Enterprise Rack
IBM 42U S2 expansion rack
IBM 42U S2 standard rack
IBM 47U 1200mm Deep Static Expansion Rack
IBM 47U 1200mm Deep Static Rack
IBM S2 42U Dynamic Expansion Rack
IBM S2 42U Dynamic Standard Rack
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 9
Popular configurations
Figure 5 shows the 19-inch Flat Panel Console Kit with an UltraNav keyboard and USB optical drive
connected to the IBM GCM2 Console Switch. The console switch is connected to each managed server
using IBM Virtual Media Conversion Option (VCO) cables, one for each server. These VCO cables enable
the sharing of the USB devices (optical drive and any device attached to the USB pass-through port on
the Flat Panel Console Kit) to the managed servers.
Note: The VCO cables do not support chaining of cables.
Figure 5. 19-inch Flat Panel Console Kit sample configuration
The parts used are listed in Table 7.
Table 7. Components used when the 19-inch Flat Panel Console Kit is connected to the GCM2 Console
Switch
Part number/
machine type
172319X IBM 1U 19-inch Flat Panel Console Kit 1
40K5372 IBM UltraNav USB keyboard - US English 1
17352GX IBM Global 2 x 16 Console Manager (GCM2) 1
39M2894 IBM Virtual Media Conversion Option cable (one per managed server) 2 (as shown)
Varies Ethernet cabling 2 (as shown)
Varies Servers with USB and VGA ports 2 (as shown)
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 10
Description Quantity
Related publications
For more information refer to these documents:
1U 17-inch and 1U 19-inch Flat Panel Console Kits product page
http://www.ibm.com/systems/x/hardware/options/flatpanel.html
Overview - IBM 1U 17-inch Flat Panel Console Kit and IBM 1U 19-inch Flat Panel Console Kit with a
multi-burner drive
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5079181
Installation and Maintenance Guide - 1U 17-inch Flat Panel Console Kit
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5079448
Installation and Maintenance Guide - 1U 19-inch Flat-Panel Console Kit with Multi-Burner Drive
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5079449
IBM US Announcement Letter
http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS109-019
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 11
Notices
/
©
This information was developed for products and services offered in the U.S.A.
IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local
IBM representative for information on the products and services currently available in your area. Any reference to an
IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may
be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property
right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any non-IBM
product, program, or service. IBM may have patents or pending patent applications covering subject matter described
in this document. The furnishing of this document does not give you any license to these patents. You can send
license inquiries, in writing, to:
IBM Director of Licensing, IBM Corporation, North Castle Drive, Armonk, NY 10504-1785 U.S.A.
The following paragraph does not apply to the United Kingdom or any other country where such provisions
are inconsistent with local law: INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS
PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain
transactions, therefore, this statement may not apply to you. This information could include technical inaccuracies or
typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in
new editions of the publication. IBM may make improvements and
described in this publication at any time without notice.
Any references in this information to non-IBM Web sites are provided for convenience only and do not in any manner
serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this
IBM product and use of those Web sites is at your own risk.IBM may use or distribute any of the information you
supply in any way it believes appropriate without incurring any obligation to you. Information concerning non-IBM
products was obtained from the suppliers of those products, their published announcements or other publicly
available sources. IBM has not tested those products and cannot confirm the accuracy of performance, compatibility
or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be
addressed to the suppliers of those products. This information contains examples of data and reports used in daily
business operations. To illustrate them as completely as possible, the examples include the names of individuals,
companies, brands, and products. All of these names are fictitious and any similarity to the names and addresses
used by an actual business enterprise is entirely coincidental.
Any performance data contained herein was determined in a controlled environment. Therefore, the results obtained
in other operating environments may vary significantly. Some measurements may have been made on
development-level systems and there is no guarantee that these measurements will be the same on generally
available systems. Furthermore, some measurement may have been estimated through extrapolation. Actual results
may vary. Users of this document should verify the applicable data for their specific environment.
COPYRIGHT LICENSE:
This information contains sample application programs in source language, which illustrate programming techniques
on various operating platforms. You may copy, modify, and distribute these sample programs in any form without
payment to IBM, for the purposes of developing, using, marketing or distributing application programs conforming to
the application programming interface for the operating platform for which the sample programs are written. These
examples have not been thoroughly tested under all conditions. IBM, therefore, cannot guarantee or imply reliability,
serviceability, or function of these programs.
or changes in the product(s) and/or the program(s)
Copyright International Business Machines Corporation 2009. All rights reserved.
Note to U.S. Government Users Restricted Rights -- Use, duplication or disclosure restricted by
GSA ADP Schedule Contract with IBM Corp.
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 12
This document was created or updated on February 23, 2011.
Send us your comments in one of the following ways:
Use the online Contact us review form found at:
ibm.com/redbooks
Send your comments in an e-mail to:
redbook@us.ibm.com
Mail your comments to:
IBM Corporation, International Technical Support Organization
Dept. HYTD Mail Station P099
2455 South Road
Poughkeepsie, NY 12601-5400 U.S.A.
This document is available online at http://www.ibm.com/redbooks/abstracts/tips0731.html .
Trademarks
IBM, the IBM logo, and ibm.com are trademarks or registered trademarks of International Business
Machines Corporation in the United States, other countries, or both. These and other IBM trademarked
terms are US registered or common law trademarks owned by IBM at the time this information was
published. Such trademarks may also be registered or common law trademarks in other countries. A
current list of IBM trademarks is available on the Web at http://www.ibm.com/legal/copytrade.shtml
The following terms are trademarks of the International Business Machines Corporation in the United
States, other countries, or both:
BladeCenter®
IBM®
Redpaper™
Redbooks (logo)®
System x®
Other company, product, or service names may be trademarks or service marks of others.
IBM 1U 17-inch and 19-inch Flat Panel Console Kits 13
Loading...
