IBM A60 Type 6833, A60i Type 6832, NetVista A60, NetVista A60i User Manual

Download

IBM

NetVista™

User Guide A60 Type 6833 A60i Type 6832

IBM

NetVista™

User Guide A60 Type 6833 A60i Type 6832

Before using this information and the product it supports, be sure to read the “Safety Information” on page vii and “Appendix C. Notices and trademarks”on page 41.

Note

First Edition (February 2001)

US Government Use rs Rest ric t ed R igh ts – Use, duplication or disclosur e r e s tri ct ed b y GS A AD P Schedule Contract with IBM Corp.

Contents

Safety Information . . . . . . . . . . . . . . . . . . vii

Lithium battery notice . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Modem safety information . . . . . . . . . . . . . . . . . . . . . . viii

Laser compliance statement. . . . . . . . . . . . . . . . . . . . . . . . ix

About this book . . . . . . . . . . . . . . . . . . . . . xi

How this book is organized. . . . . . . . . . . . . . . . . . . . . . . . xi

Information resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Chapter 1. Overview . . . . . . . . . . . . . . . . . . 1

Identifying your computer. . . . . . . . . . . . . . . . . . . . . . . . . 1

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Available options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Handling static-sensitive devices . . . . . . . . . . . . . . . . . . . 6

Chapter 2. Installing external options . . . . 9

Locating the connectors on the front of your computer 9 Locating the connectors on the rear of your computer 10

High-performance video adapter . . . . . . . . . . . . . . . 11

High-performance audio adapter . . . . . . . . . . . . . . . 12

Modem. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Network adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Obtaining device drivers . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 3. Installing internal options . . . 15

Removing the cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Removing the power supply . . . . . . . . . . . . . . . . . . . . . . 15

Locating components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Installing options on the system board . . . . . . . . . . . . . 17

Accessing the system board . . . . . . . . . . . . . . . . . . . . 17

Identifying parts on the system board . . . . . . . . . . . 18

Installing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installing adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installing internal drives. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Power and signal cables for internal drives. . . . . . . 24

Installing internal drives in bays 1, and 2. . . . . . . . . 25

Installing internal drives in bay 4 . . . . . . . . . . . . . . . 27

Replacing the power supply . . . . . . . . . . . . . . . . . . . . . . 29

Replacing the cover and connecting the cables. . . . . . . 30

Chapter 4. Updating the computer

configuration . . . . . . . . . . . . . . . . . . . . . . 33

Verifying that an option is installed correctly . . . . . . . . 33

Configuring PCI adapters . . . . . . . . . . . . . . . . . . . . . . . . 34

Configuring startup devices . . . . . . . . . . . . . . . . . . . . . . 34

Erasing a lost or forgotten password (clearing CMOS) 34

Appendix A. Changing the battery. . . . . . 37

Appendix B. Updating System Programs 39

Appendix C. Notices and trademarks . . . 41

vi User Guide

Safety Information

DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard:

• Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm.

• Connect all power cords to a properly wired and grounded electrical outlet.

• Connect to properly wired outlets any equipment that will be attached to this

product.

• When possible, use one hand only to connect or disconnect signal cables.

• Never turn on any equipment when there is evidence of fire, water, or

structural damage.

• Disconnect the attached power cords, telecommunications systems, networks, and modems before you open the device covers, unless instructed otherwise in the installation and configuration procedures.

• Connect and disconnect cables as described in the following table when installing, moving, or opening covers on this product or attached devices.

DANGER

Le courant électrique provenant de l’alimentation, du téléphone et des câbles de transmission peut présenter un danger.

Pour éviter tout risque de choc électrique :

• Ne manipulez aucun câble et n’effectuez aucune opération d’installation, d’entretien ou de reconfiguration de ce produit au cours d’un orage.

• Branchez tous les cordons d’alimentation sur un socle de prise de courant correctement câblé et mis à la terre.

• Branchez sur des socles de prise de courant correctement câblés tout équipement connecté à ce produit.

• Lorsque cela est possible, n’utilisez qu’une seule main pour connecter ou déconnecter les câbles d’interface.;

• Ne mettez jamais un équipement sous tension en cas d’incendie ou d’inondation, ou en présence de dommages matériels.

• Avant de retirer les carters de l’unité, mettez celle-ci hors tension et déconnectez ses cordons d’alimentation, ainsi que les câbles qui la relient aux

To connect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Attach power cords to outlet.

5. Turn device ON.

To disconnect:

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

viii User Guide

réseaux, aux systèmes de té lécommunication et aux modems (sauf instruction contraire mentionnée dans les procédures d’installation et de configuration).

• Lorsque vous installez, que vous déplacez, ou que vous manipulez le présent produit ou des périphériques qui lui sont raccordés, reportez-vous aux instructions ci-dessous pour connecter et déconnecter les différents cordons.

Lithium battery notice

CAUTION: Danger of explosion if battery is incorrectly replaced.

When replacing the battery, use only IBM Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.

Do not:

• Throw or immerse into water

• Heat to more than 100°C (212°F)

• Repair or disassemble

Dispose of the battery as required by local ordinances or regulations. ATTENTION Danger d'explosion en cas de remplacement incorrect de la batterie. Remplacer uniquement par une batterie IBM de type ou d'un type équivalent

recommandé par le fabricant. La batterie contient du lithium et peut exploser en cas de mauvaise utilisation, de mauvaise manipulation ou de mise au rebut inappropriée.

Ne pas :

• Lancer ou plonger dans l'eau

• Chauffer à plus de 100°C (212°F)

• Réparer ou désassembler

Mettre au rebut les batteries usagées conformément aux règlements locaux.

Modem safety informatio n

To reduce the risk of fire, electrical shock, or injury when using telephone equipment, always follow basic safety precautions, such as:

• Never install telephone wiring during a lightning storm.

Connexion:

1. Mettez les unités hors tension.

2. Commencez par brancher tous les cordons sur les unités.

3. Branchez les câbles d’interface sur des connecteurs.

4. Branchez les cordons d’aliment ation sur des prises.

5. Mettez les unités sous tension.

Déconnexion:

1. Mettez les unités hors tension.

2. Débranchez les cordons d’alimentation des prises.

3. Débranchez les câbles d’interface des connecteurs.

4. Débranchez tous les câbles des unités.

• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

Consignes de sécurité relatives au modem

Lors de l’utilisation de votre matériel téléphonique, il est important de respecter les consignes ci-après afin de réduire les risques d’incendie, d’électrocution et d’autres blessures :

• N’installez jamais de cordons téléphoniq ues durant un orage.

• Les prises téléphoniques ne doivent pas être installées dans des endroits humides, excepté si le modèle a été conçu à cet effet.

• Ne touchez jamais un cordon téléphonique ou un terminal non isolé avant que la ligne ait été déconnectée du réseau téléphonique.

• Soyez toujours prudent lorsque vous procédez à l’installation ou à la modification de lignes téléphoniques.

• Si vous devez téléphoner pendant un orage, pour éviter tout risque de choc électrique, utilisez toujours un téléphone sans fil.

• En cas de fuite de gaz, n’utilisez jamais un téléphone situé à proximité de la fuite.

Laser compliance statement

Some IBM Personal Computer models are equipped fr om the facto ry with a CD -ROM drive, a DVD-ROM drive, or a CD-RW drive. CD-ROM drives, DVD-ROM drives, and CD-RW drives are also sold separately as options. CD-ROM drives, DVD-ROM drives, and CD-RW drives are laser products. These drives are certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, these drives are certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

When a CD-ROM drive, a DVD-ROM drive, or a CD-RW drive is installed, note the following handling in structions.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

Removing the covers of the CD-ROM drive, a DVD-ROM drive, or a CD-RW drive could result in exposure to hazardous laser radiation. There are no serviceable parts inside the CD-ROM drive, a DVD-ROM drive, or a CD-RW drive drive. Do not

remove the drive covers.

Some CD-ROM drive, a DVD-ROM drive, or a CD-RW drive drives contain an embedded Class 3A or Class 3B laser diode. Note the following statement.

x User Guide

DANGER

Certains modèles d'ordinateurs personnels sont équipés d'origine d'une unité de CDROM, DVD-ROM, ou de CD-RW. Mais ces unités sont également vendues séparément en tant qu'options. L'unité de CD-ROM/DVD-ROM/CD-RW est un appareil à laser. Aux État-Unis, l'unité de CD-ROM/DVD-ROM/CD-RW est certifiée conforme aux normes indiquées dans le sous-chapitre J du DHHS 21 CFR relatif aux produits à laser de classe 1. Dans les autres pays, elle est certifiée être un produit à laser de classe 1 conforme aux normes CEI 825 et CENELEC EN 60 825.

Lorsqu'une unité de CD-ROM/DVD-ROM/CD-RW est installée, tenez compte des remarques suivantes:

ATTENTION: Pour éviter tout risque d'exposition au rayon laser, respectez les consignes de réglage et d'utilisation des commandes, ainsi que les procédures décrites.

L'ouverture de l'unité de CD-ROM/DVD-ROM/CD-RW peut entraîner un risque d'exposition au rayon laser. Pour toute intervention, faites appel à du personnel qualifié.

Certaines unités de CD-ROM/DVD-ROM/CD-RW peuvent contenir une diode à laser de classe 3A ou 3B. Tenez compte de la consigne qui suit:

DANGER

Laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam .

DANGER

Rayonnement laser lorsque le carter est ouvert. Évitez toute exposition directe des yeux au rayon laser. Évite z de regarder fixeme nt le faisceau ou de l’ obse rver à l’ aide d’instrume nts optiques.

About this book

This publication provides instructions for installing most options into your NetV ista™ computer. This publication also includes an overview of computer features, locating connectors, and updating configuration settings.

How this book is organized

This book contains the following chapters and appendixes:

• “Chapter 1. Overview“ provides an introduction to the computer specifications and the options that are available for your computer.

• “Chapter 2. Installing external options“ provides information to orient you to the connectors on your computer and instructions for installing external options and peripheral devices.

• “Chapter 3. Installing internal options“ provides instructions for removing the cover and installing hard disk drives, memory, and adapters in your computer.

• “Chapter 4. Updating the computer configuration“ provides instructions for updating the computer configuration, installing device drivers, and erasing a lost or forgotten password.

• “Appendix A. Changing the battery“ provides instructions to help you change the battery if you need to.

• “Appendix B. Updating System Programs“ provides instructions to help you update your system programs.

• “Appendix C. Notices and trademarks“ contains notice and trademark information.

xii User Guide

Information resources

Access IBM, on your desktop, provides a link to more information about your computer.

If you have Internet access, the most up-to-date manuals for your computer are available from the World Wide Web. To access this information, point your browser to:

http://www.ibm.com/pc/support Type your machine type and model number in the Quick Path field, and click Go.

Chapter 1. Overview

Adding hardware options to your NetVista computer is an easy way to increase its capabilities. Instructions for installing external and internal options are included in this publication. When adding an option, use these instructions along with the instructions that come with the option.

This chapter provides a brief introduction to the options and features that are available for your computer. Also, important information about required tools, electrical safety, and static-sensitive devices is included.

See Access IBM for general information about the use, operation, and maintenance of your computer . Access IBM also contains information to help you solve problems and get repair service or other technical assistance.

Identifying your computer

To properly install options, you will need to know the model of your computer. The best way to identify your computer is by the machine type/model number. The machine type/model number indicates the various features of the computer, such as the type of microprocessor and the number of drive bays. You can find this number on the small label on the front of your computer. An example of the machine type/model number is 6833-xxx, or 6832-xxx.

Before you install any option, read “Safety Information” on page vii. These

precautions and guidelines will help you work safely.

Important

2 User Guide

Features

This section provides an overview of the computer features, preinstalled software, and specifications.

Not all models come with all features that are summarized here.

Microprocessor

Intel

Pentium™ 4 with Intel NetBurst Micro Architecture, 256 KB of Internal

Advanced Transfer L2 cache and MMX

™

technology

Memory

• Support for Rambus in-line memory modules (RIMMs) — 2.5 V, synchronous, 184-pin, unbuffered, nonparity, PC600 or PC800 Rambus

dynamic random access memory (RDRAM) — 64 MB, 128 MB, and 256 MB RIMMs — A maximum of 1.5 GB of memory — RIMM heights of 38.1 mm (1.5 inches)

• 512 KB flash memory for system programs Internal drives

• 3.5-inch, 1.44 MB diskette drive

• Internal hard disk drive

• EIDE CD drive, DVD drive (some models), CD-R W drive (some models), or DVDCDRW drive (some models)

Video controlle r

• High-performance accelerated graphics port (AGP) adapter

Audio subsystem

16-bit integrated Sound Blaster Pro compatible audio subsystem Connectivity

• 10/100 Mbps Ethernet adapter that supports the Wake on LAN

features (some

models)

• Modem (some models)

System management features

• Remote Program Load (RPL) and Dynamic Host Configuration Protocol (DHCP)

• Wake on LAN (requires Wake on LAN-supported network adapter)

• Wake on Ring (in the BIOS Setup Utility program, this feature is called Serial Port Ring Detect for an external modem and Modem Ring Detect for an internal modem)

• Wake on Alarm

• Remote Administration (the ability to update POST and BIOS over the network)

• Automatic power-on startup

• System Management (SM) BIOS and SM software

• Ability to store POST hardware test results

Input/output features

• 25-pin, Extended Capabilities Port (ECP)/Extended Parallel Port (EPP)

• 9-pin serial connector

• Four 4-pin, USB connectors (two in front of computer, two in rear of computer)

• Mouse connector

• Keyboard connector

• Ethernet connector (on Ethernet adapter)

• Monitor connec tor (on AGP adapter)

• Three audio connectors (line in, line out, and microphone)

• Game connector (15-pin D-shell MIDI)

• IEEE 1394 connector (on some models) Expansion

• Four drive bays

• Three PCI expansion slots

• One AGP expansion slot Power

• 200 W power supply with manual voltage selection switch

• Automatic 50/60 Hz input frequency switchi ng

• Advanced Configuration and Power Interface (ACPI) support Security features

• User and administrator passwords

• Support for the addition of a U-bolt and lockable cable

• Startup sequence control

• Startup without diskette drive, keyboard, or mouse

• Unattended start mode

• Diskette and hard disk I/O control

• Serial and parallel port I/O control

• Security profile by device

IBM preinstalled software

Your computer might come with preinstalled software. If it does, an operating system, device drivers to support built-in features, and other support programs are included.

Operating systems (supported)

• Microsoft

Windows® Millennium Edition (Me)

• Microsoft Windows 2000 Professional

Operating systems (tested for compatibility)

• Microsoft Windows 98 Second Edition

1.The operating systems listed here are being tested for compatibility at the time this publication was produced. Additional operating systems might be identified by IBM as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been tested for compatibility, check the Web site of the operating system vendor.

4 User Guide

• Microsoft Windows NT® Version 3.51

• Microsoft Windows NT Workstation Version 4.0

• DOS Version 7.0

Specifications

This section lists the physical specifications f or the NetVista computer. Your computer has three 32-bit PCI expansion slots, one AGP slot, and four drive bays.

Note: The computer is classified as a Class B digital device. See the Quick Reference

for further information about this classification.

Dimensions

Height: 381 mm (15 in.) Width: 194 mm (7.6 in.) Depth: 381 mm (15 in.)

Weight

Minimum configuration as shipped: 8.3 kg (18.25 lb) Maximum configuration: 10.23 kg (22.5 lb)

Environment

Air temperature:

System on: 10° to 35° C (50° to 95° F) System off: 10° to 43° C (50° to 110° F)

Maximum altitude: 2134 m (7000 ft) Note: The max i mum altitude, 2134 m (7000 ft),

is the maximum altitude at which the specified air temperatures apply. At higher altitudes, the maximum air temperatures are lower than those specified.

Humidity:

System on: 8% to 80% System off: 8% to 80%

Electrical input

Input voltage:

Low range:

Minimum: 90 V ac Maximum: 137 V ac

Input frequency rang e : 57–63 Hz Voltage switch setting: 115 V ac

High range:

Minimum: 180 V ac Maximum: 265 V ac Input frequency rang e: 47–53 Hz Voltage switch setting: 230 V ac

Input kilovolt-amperes (kVA) (approximate):

Minimum configuration as shipped: 0.08 kVA Maximum configuration: 0.3 kVA

Note: Power consumption and heat output vary

depending on the number and type of optional features installed and the powermanagement optional features in use.

Heat output (approximate) in British thermal units (Btu) per hour:

Minimum configuration: 240 Btu/hr (75 watts) Maximum configuration: 940 Btu/hr (275 watts)

Airflow

Approxim ately 0. 34 c ubic met ers p er minu te (12 cubic feet per minute) maximum

Acoustical noise-emission values

Average sound-pressure levels:

At operator position:

Idle: 38 dBA Operating: 40 dBA

At bystander position - 1 meter (3.3 ft):

Idle: 33 dBA Operating: 37 dBA

Declared (upper limit) sound-power levels:

Idle: 4.8 bels Operating: 5.1 bels

Note: These levels were measured in controlled

acoustical environments according to the procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

6 User Guide

Available options

The following are some available options:

• External options — Parallel port devices, such as printers and external drives — Serial port devices, such as external modems and digital cameras — Audio devices, such as external speakers for the sound system — USB devices, such as printers and scanners — Security U-bolt — Monitor

• Interna l op t i on s — System memory, called Rambus in-line memory modules (RIMMs) — Adapters

– Peripheral component interconnect (PCI) adapters – Accelerated graphics port (AGP) adapters

— Internal drives

– CD drive, DVD drive, CD-RW drive, or DVD-CDRW drive – Hard disk – Diskette drives and other removable media drives

For the latest information about available opt ions, see the following World Wide Web pages:

• http://www.ibm.com/pc/us/options/

• http://www.ibm.com/pc/support/

Tools required

To install some option s in your computer, you might need a flat-b lade screwdriver. Additional tools might be needed for certain options. See the instructions that come with the option.

Handling static-sensitive devices

Static electricity, although harmless to you, can seriously damage computer components and options.

When you add an option, do not open the static-protective package containing the option until you are instructed to do so.

When you handle options and other computer components, take these precautions to avoid static electricity damage:

• Limit your movement. Movement can cause static electricity to build up around you.

• Always handle components carefully. Handle adapters and memory modules by the edges. Never touch any exposed circuitry.

• Prevent others from touching components.

• When you install a new option, touch the static-protective package containing the option to a metal expansion-slot cover or other unpainted metal surface on the

computer for at least two seconds. This reduces static electricity in the package and your body.

• When possible, remove the option and install it directly in the computer without setting the option down. When this is not possible, place the static-protective package that the option came in on a smooth, level surface and place the option on it.

• Do not place the option on the computer cover or other metal surface.

8 User Guide

Chapter 2. Installing external options

This chapter shows the various external connectors on your computer to which you can attach external options, such as external speakers, a printer, or a scanner. For some external options, you must install additional software in addition to making the physical connection. When adding an external option, use the information in this chapter to identify the required connector, and then use the instructions that come with the option to help you make the connection and install any software or device drivers that are required for the option.

Locating the connectors on the front of your computer

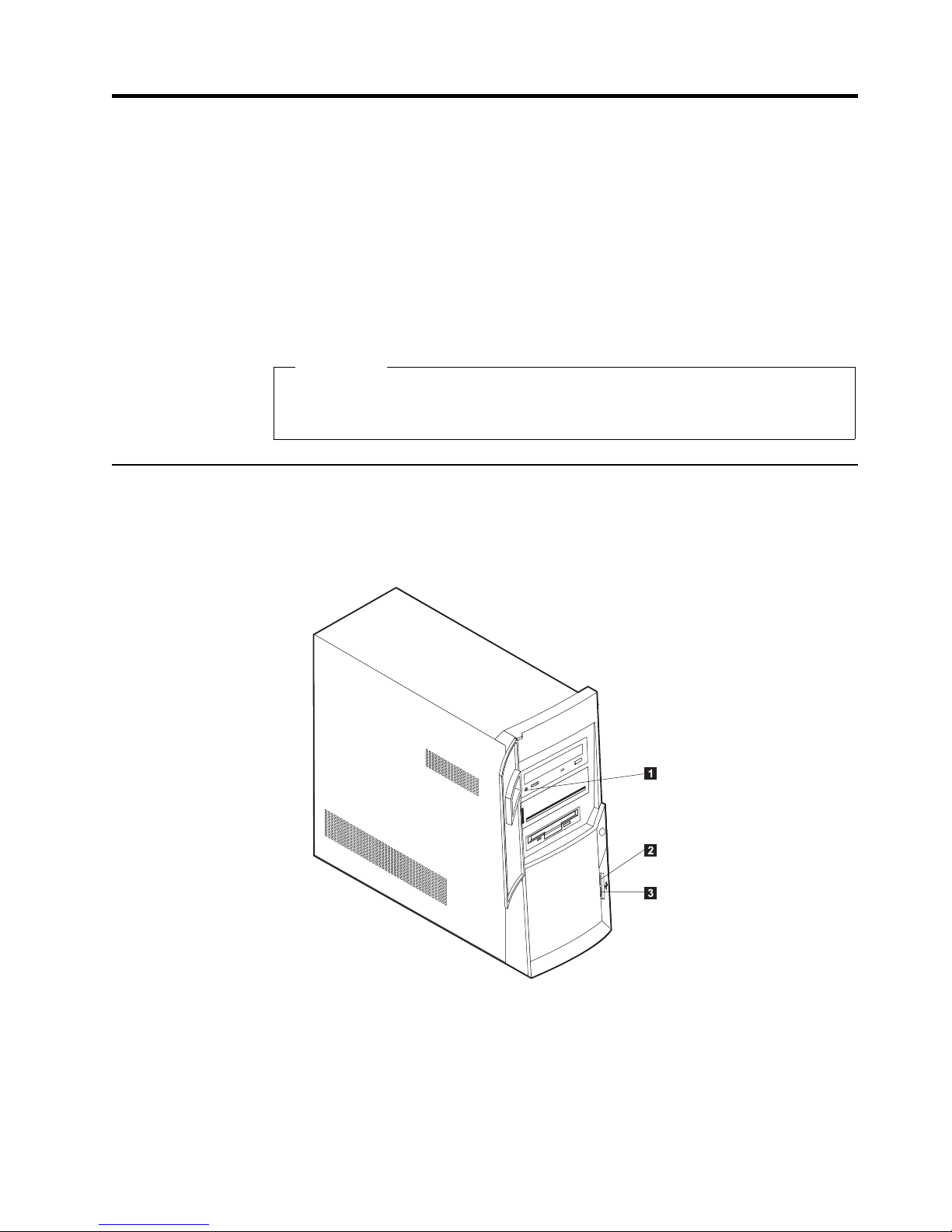

The following illustration shows the location of the connectors on the front of the computer.

1 CD-ROM headphone connector 2 Front USB connector 3 Front USB connector

Before you install or remove any option, read “Safety Information” on page vii. These precautions and guidelines will help you work safely.

Important

10 User Guide

Locating the connectors on the rear of your computer

The following illustration shows the location of the connectors on the rear of the computer. Your computer might not have all of the connectors shown here.

Note: The connectors on the r ear of the com puter have color -co ded icons to help you

to determine where to connect the cables on your computer.

1 Power connector 8 Audio line in connector 2 Mouse connector 9 Audio line out connector 3 Keyboard connector 10 Microphone connector 4 USB connector 11 Game/MIDI connector 5 USB connector 12 AGP slot 6 Serial connector 13 PCI slots 7 Parallel connector

Connector Description

Mouse connector Used to attach a mouse, trackball, or other pointing device that uses a standard mouse

connector.

Keyboard connector Used to attach a keyboard that uses a standard keyboard connector.

High-performance video adapter

Some models come with this high-performance AGP video adapter.

USB connectors Used to attach a device that requir es a Uni versa l Seria l Bus (USB ) connection, such as a USB

scanner or USB printer. If you have more than four USB devices, you can purchase a USB hub, which you c an use to connect addit ional USB devices.

Serial connector Used to attach an external modem, serial printer, or other device that uses a 9-pin serial

connector.

Parallel connector Used to attach a parallel printer, parallel scanner, or any other device that requires a 25-pin

parallel connection.

Audio line in connector Used to receive audio signals from an external audio device, such as a stereo system. When

you attach an external audio device, a cable is connected between the audio line out connector of the device and the audio line in connector of the computer.

Audio line out connector Used to send audio signals from the computer to external devices, such as powered stereo

speakers (speakers with built-in amplifiers), headphones, multimedia keyboards, or the audio line in connector on a stereo system or other external recording device.

Note: The internal speaker in your computer is disabled when external speakers are

connected to the audio line out connector on your computer.

Microphone connector Used to attach a microphone to your computer when you want to record voice or other

sounds on the hard disk if you use speech-recognition software.

Game/MIDI connector Used to attach a game controller or MIDI device.

Connector Description

12 User Guide

Other models come with this high-performance AGP video adapter.

High-performance audio adapter

If this adapter is installed, the MIDI/joystick, audio line out, microphone, and audio line in connectors on the system board are disabled. This disablement feature applies to this audio adapter only. The internal speaker of the computer is also disabled during normal operation. You must use external speakers or headphones for audio.

The following illustration shows the connectors on the high-performance audio adapter that comes with some models.

Connector Description

1 Digital video interface (DVI) connector Used to attach a digital monitor. This connector provides the signals that

are necessary to support the Display Power Management Signaling (DPMS) standard.

2 S-Video connector out Used to attach a television set that has an S-Video connector. The S-Video

cable (required to connect the television set to the adapter) is a separately purchased item.

3 CATV (TV in) Used to attach a television cable or antenna to the computer for transferring

TV signals to the computer.

4 S-Video connector in Used to attach a video device that has an S-Video connector for transferring

video signals to the computer. The S-Video cable (required to connect the video device to the adapter) is a separately purchased item.

5 Monitor converter Used to attach an analog SVGA monitor to the AGP DVI connector.

Connector Description

1 Analog monitor connector Used to attach an analog SVGA monitor.

2 S-Video connector out Used to attach a television set that has an S-Video connector. The S-Video

cable (required to connect the television set to the adapter) is a separately purchased item.

Modem

Some models have a V.90-compliant 56Kbps modem for high-speed communication.

Network adapter

Some models have a Ethernet adapter for connecting to networks. Please contact your network administrator for details.

Connector Description

1 MIDI/joystick connector Used to attach a joystick, gamepad, or a musical instrument digital interface (MIDI)

device such as a MIDI keyboard.

2 Audio line out connector (1) Used to send audio signals from the computer to external devices, such as powered

stereo speakers (speakers with built-in amplifiers), headphones, multimedia keyboards, or the audio line in connector on a stereo system or other external recording device.

3 Audio line out connector (2) Used to send audio signals from the computer to external devices, such as powered

stereo speakers (speakers with built-in amplifiers), headphones, multimedia keyboards, or the audio line in connector on a stereo system or other external recording device.

4 Microphone connector U sed to a ttach a micr ophone t o your computer when y ou want to r ecord voice or use

other speech-recognition software.

5 Audio line in connector Used to receive audio signals from an external audio device, such as a stereo system.

When you attach an external audio device, run the cable between the audio line out connector of the device and the audio line in connector of the computer.

6 Digital out connector Used to send digital audio signals from the computer to external devices, such as

multimedia keyboards, or the audio line in connector on a stereo system or other external digital recording device.

14 User Guide

Obtaining device drivers

You can obtain device drivers for operating systems that are not preinstalled at http://www.ibm.com/pc/support/ on the World Wide Web. Installation instructions are provided in README files with the device driver files.

Chapter 3. Installing internal options

You can expand the capabilities of your computer by adding memory, drives, or adapters. When adding an option, use these instructions along with the instructions that come with the option.

Removing the cover

To remove the cover:

1. Shut do wn your operating system, remove any media (diskettes, CDs, or tapes) from the drives, and turn off all attached devices and the computer.

2. Unplug all power cords from electrical outlets.

3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O) cables, and any other cables that are connected to the computer.

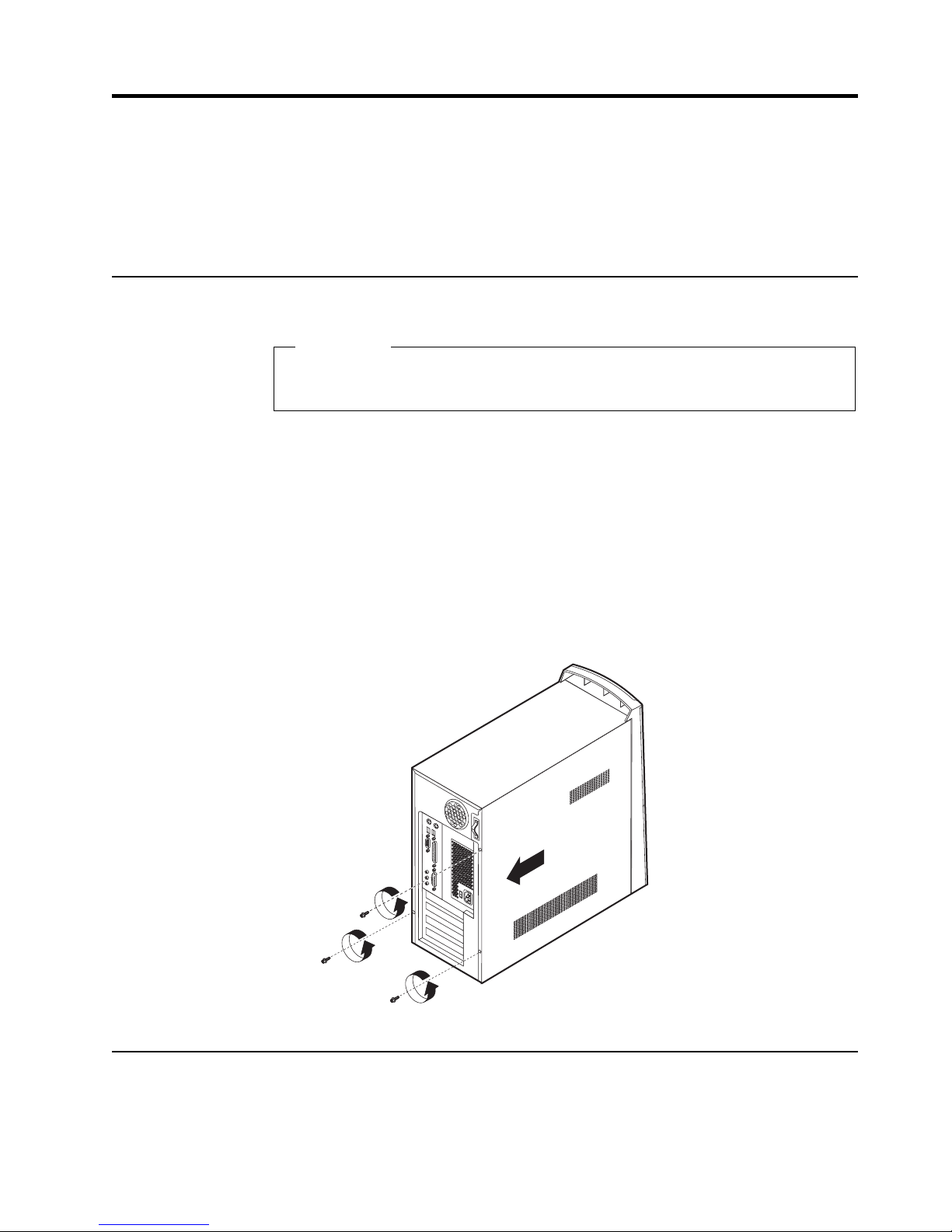

4. Remove three screws that secure the cover panel, and slide the cover panel toward the rear of the computer.

Removing the power supply

To access the system board, you need to remove the power supply. You can also remove the power supply for easier installation of internal drives and adapters.

Read “Safety Information” on page vii and “Chapter 1. Overview,” on page 1

before removing the cover.

Important:

16 User Guide

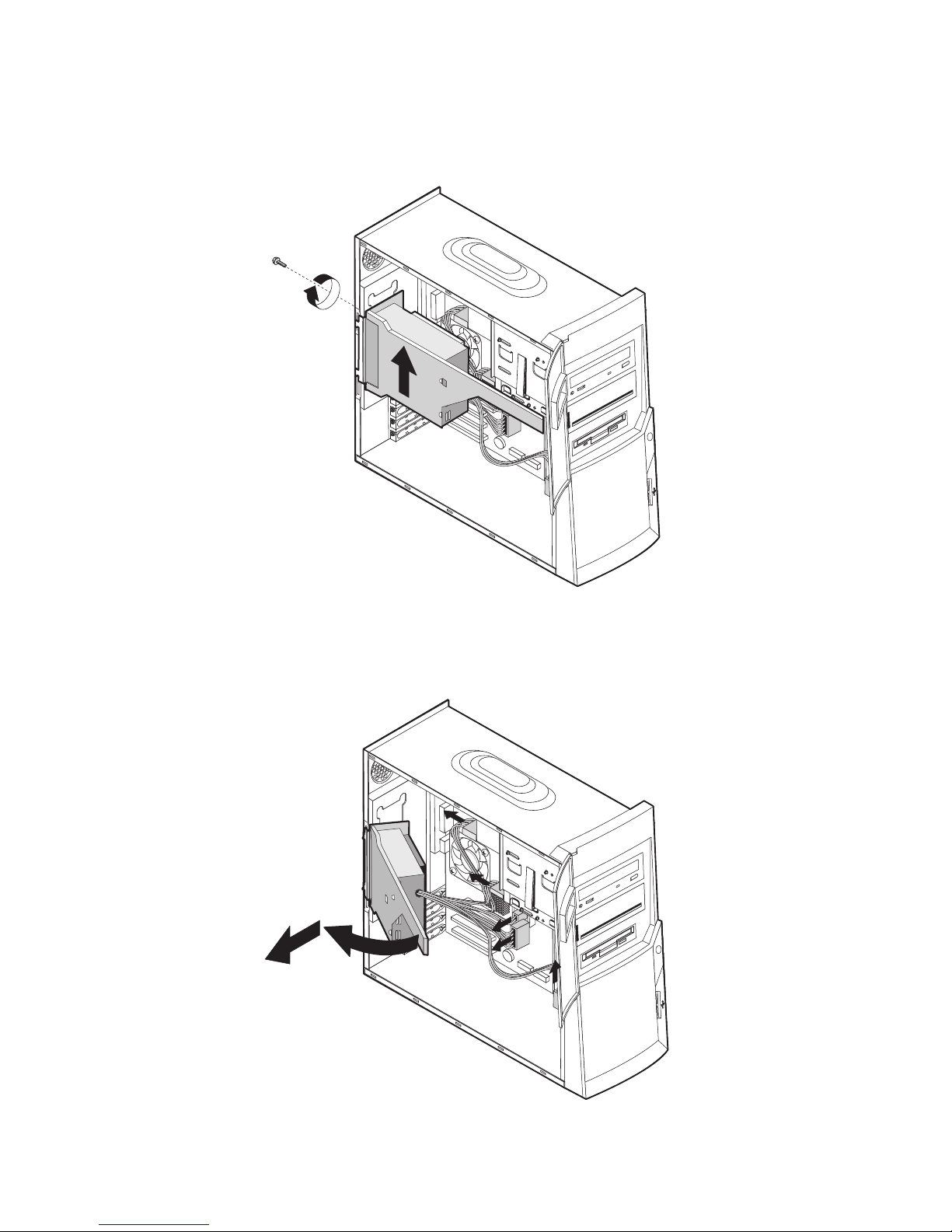

To remove the power supply.

1. Remove the screw that secures the power supply to the computer.

2. Pull up the power supply.

3. Gently swing the power supply outward, and remove the power cables. When disconnecting cables, be sure to n ote wher e they ar e a ttached, so you can corr ectly reattach them later. Then remove the power supply.

Locating components

The following illustration will help you locate the various components in your computer.

Installing options on the system board

This section provides instructions for installing options, such as system memory and adapters, on the system board.

Accessing the system board

To access the system board, you must remove the computer cover and the power supply. For information on removing the computer cover, see “Removing the cover”

on page 15. For information on removing the power supply, see “Removing the power supply” on page 15. You might need to remove adapters to access some components on the system board. For information about adapters, see “Installing adapters” on page 21. When disconnecting cables, be sure to note where they are attached, so you can correctly reattach them later.

1 CD drive, DVD drive, CD-RW drive, or DVD-CDRW drive 6 Accelerated graphics port (AGP) slot 2 Diskette drive 7 PCI slots 3 Power button 8 Fan and heat sink 4 Lower drive-bay cage 9 Power supply 5 System board

18 User Guide

Identifying parts on the system board

The system board, also called the planar or motherboard, is the main circuit board in your computer. It provides basic computer functions and supports a variety of devices that are IBM-installed or that you can install later.

See the following illustration for the location of parts on the system board.

Note: An illustration of the system board and additional information is provided on

a label located on the inside of the computer chassis.

1 Microprocessor 12 Front panel co nnector 2 Fan connector 13 Front USB connector 3 RIMM 1 (Memory Channel A) 14 Clear CMOS/Recovery jumper (JP20) 4 RIMM 2 (Memory Channel B) 15 Battery 5 RIMM 3 (Memory Channel A) 16 Wa k e on LAN connector 6 RIMM 4 (Memory Channel B) 17 CD-ROM audio connector 7 Fan connector 18 Modem wake on ring connector 8 Power connectors 19 PCI slot 9 Diskette connector 20 PCI slot 10 Primary IDE connector 21 PCI slot 11 Secondary IDE connector 22 AGP slot

Installing memory

Your computer has four connectors for Rambus in-line memory modules (RIMMs) that provide up to a maximum of 1.5 GB of system memory (dual channel RDRAM).

The IBM-installed RIMMs that come with your computer are non-ECC (error checking and correction) Rambus dynamic random access memory (RDRAM) modules.

When installing or replacing RIMMs, take the following information into consideration:

• Rambus memory is divided into two channels (channel A and B). RIMM connectors 1 and 3 are channel A, and RIMM connectors 2 and 4 are channel B.

• RIMMs must be installed in pairs.

• Each channel must contain the same amount of memory.

• Each RIMM co nnector supports a maximum of 256 MB of memory.

• Any connector that does not have a RIMM installed must have a continuity RIMM (C-RIMM), a module that lo oks like a RIMM but has no memory on it. A C-RIMM is used to continue the connection on a RIMM connector that does not have memory installed in it.

• Both ECC and non-ECC RIMMs are supported. However, if both ECC and nonECC (non-parity) memory is used, the memory will function as non-ECC memory.

• RIMM connectors do not support dual in-line memory modules (DIMMs).

• Use only PC600 or PC800 RIMMs. Note: If you use PC600 and PC800 RIMMs together, all memory will function at

the speed of the slowest RIMM.

Removing a RIMM or C-RIMM

To remove a RIMM or C-RIMM:

1. To locate the RIMM connectors inside your computer, see “Identifying parts on the system board” on page 18.

2. At both ends of the RIMM connector on the system board, push outward on the retaining clips until the module is loosened. Lift the RIMM or C-RIMM out of the connector .

20 User Guide

Note: Be careful not to push too hard on the retaining clips, because the RIMM or

C-RIMM might eject too quickly.

3. Store the RIMM or C-RIMM in a static-protective package. Do not discard or lose this part. It might be needed later if you change your memory configuration.

Installing a RIMM or C-RIMM

To install a RIMM or C-RIMM:

1. Touch the static-protective package containing the RIMM to any unpainted metal surface in the computer, and then remove the RIMM or C-RIMM.

2. If the retaining clips are not already open, open them.

3. Position the RIMM or C-RIMM above the connector so that the two notches on the bottom edge of the module align properly with the empty connector.

4. Firmly push the module straight down into the connector until the retaining clips pop up and fit snugly around both ends of the module.

• To work with another option, go to the appropriate section.

• To complete the installation, go to “Replacing the cover and connecting the cables” on page 30.

What to do next:

Installing adapters

This section provides information and instructions for installing and removing adapters.

Adapter slots

Your computer has three expansion slots for peripheral component inte rconnect (PCI) adapters and one slot for an accelerated graphics port (AGP) adapter. You can install an adapter up to 330 mm (13 inches) long.

Installing adapters

To install an adapter:

1. Remove the cover. See “Removing the cover” on page 15.

2. You can also remove the power supply for easier access. See “Removing the power supply” on page 15.

3. Remove the screw that secures the adapter slot, and remove the slot cover for the appropriate expansion slot.

4. Remove the adapter from its static-protective package.

5. Install the adapter into the appropriate slot on the system board.

6. Secure the adapter with the screw.

22 User Guide

Note: If you are installing a Wake on LAN-supported network adapter, attach

the Wake on LAN cable that comes with the adapter to the Wake on LAN connector on the system board. See “Identifying parts on the sy stem

board” on page 18.

Installing internal drives

This section provides information and instructions for installing and removing internal drives.

Internal drives are devices that your computer uses to read and store data. You can add drives to your computer to increase storage capacity and to enable your computer to read other types of media. Some of the dif ferent drives that are available for your computer are:

• Hard disk drives

• Tape drives

• CD drives or DVD drives Internal drives are installed in bays. Within this book, the bays are referred to as bay 1,

bay 2, and so on.

• To work with another option, go to the appropriate section.

• To complete the installation, go to “Replacing the cover and connecting the cables” on page 30.

What to do next

When you install an internal drive, it is important to note what type and size of drive that you can install in each bay. Also, it is important to correctly connect the internal drive cables to the installed drive.

Drive specifications

Your computer comes with the following IBM-installed drives:

• A CD drive, DVD drive, or DVD-CDRW drive in bay 1 (some models)

• A CD-RW drive in bay 2 (some models)

• A 3.5-inch diskette drive in bay 3

• A 3.5-inch hard disk drive in bay 4 Models that do not have drives instal led in bays 1 and 2 have a bay panel installed. The following illustration shows the locations of the drive bays.

The following table describes some of the drives you can install in each bay and their height requirements.

24 User Guide

Notes:

1. Drives that are greater than 41.3 mm (1.6 in.) high cannot be installed.

2. Install removable media (tape or CD) drives in the accessible bays: bay 1 or 2.

Power and signal cables for internal drives

Your computer uses cables to connect integrated drive electronics (IDE) drives to the power supply and to the system board. The following cables are provided:

• Four-wire power cab les connect most drives to the power supply. At the end of these cables are plastic connectors that attach to differ ent drives; the se conn ectors vary in size. Also, certain power cables attach to the system board.

• Flat signal cables, also called ribbon cable s , connect IDE and diskette drives to the system board. There are two sizes of ribbon signal cables that come with your computer:

— The wider signal cable has two or three connectors.

– If the cable has three connectors, one of the se connectors is attached to the

drive, one is a spare, and the third is attached to the primary or secondary IDE connector on the system board.

– If the cable has two connectors, one of these connectors is attached to the

hard disk drive, and the other is attached to the primary or secondary IDE connector on the system board.

Note: If you want to add another device and your computer does not

come with a CD drive or DVD drive preinstalled, you will need a second signal cable with three connectors. You will need an 80conductor ATA 100 signa l cable if you are replacing the existing signal cable or adding a second hard disk drive. ATA 100 sign al cables are color-coded. The blue connector is attached to the system board, the black connector is attached to the master device, and the gray middle connector is attached to the secondary (or slave) device.

If your computer comes with a CD drive or DVD drive, it has an ATA 100 signal cable. However, if you are installing a h ard disk drive, you must change the switch or jumper setting on the CD drive or DVD drive to secondary and change the connector that is used for the CD drive or DVD drive to the gray middle connector.

1 Bay 1 - Maximum Height: 41.3 mm (1.6 in.) CD-ROM drive (standard in some models)

DVD-ROM drive (standard in some models) CD-RW drive (standard in some models) DVD-CDRW drive (standard in some models)

5.25-inch hard disk drive

2 Bay 2 - Maximum Height: 41.3 mm (1.6 in.) CD-RW drive (standard in some models)

5.25-inch hard disk drive

3.5-inch hard disk drive (requires a mounting brac ket) CD-ROM drive DVD-ROM drive

3 Bay 3 - Maximum Height: 25.4 mm (1.0 i n.) 3. 5-in ch disket te drive (pr eins talled) 4 Bay 4 - Maximum Height: 25.4 mm (1.0 i n.) 3. 5-in ch hard disk drive (preinstalled)

— The narrower signal cable has two connectors for attaching the diskette drive

to the diskette-drive connector on the system board.

Note: To locate connectors on the system board, see “Identifying parts on the system

board” on page 18.

The following are some important points to remember when connecting power and signal cables to internal drives:

• The drives that are preinstalled in your computer come with power and signal cables attached. If you replace any drives, it is important to remember which cable is attached to which drive.

• When you install a drive, ensure that the drive connector at the end of the signal cable is always connected to a drive; also, ensure that the drive connector at the other end is connected to the system boar d. This r educes electro nic noise from the computer.

• If two IDE devices are used on a single cable, one must be designated as the primary, or master, device and the other as the secondary, or slave, device; otherwise, some of the IDE devices might not be r ecognized by the computer. The primary or secondary designation is determined by switch or jumper settings on each IDE device.

• If two IDE devices are on a single cable and only one is a hard disk drive, the hard disk drive must be set as the master device.

• If you have only one IDE device on a cable, it must be set as master.

For help in selecting drives, cables, and other options for your computer, see page 6.

Installing internal drives in bays 1, and 2

To install an internal drive in bay 1, or 2:

1. Remove the cover (see “Removing the cover” on page 15). Note: If your computer has a CD drive or DVD drive, you might need to remove

the signal and power cables from the drive.

2. You can also remove the power supply for easier access. See “Removing the power supply” on page 15.

26 User Guide

3. Insert a flat-blade screwdriver into the slot on the bay panel in the drive bay into which you are installing the drive. Gently pry the bay panel loose from the drive bay.

4. Remove the metal EMI (electro-magnetic interference) shield by carefully pushing it out from the inside with a screwdriver.

5. Install the drive into the bay. Align the screw holes, and insert the two screws.

6. If the drive that you installed is a removable-media drive, place the bezel frame that comes with your computer over the drive bay.

7. Connect the power and signal cables to the drive.

Installing internal drives in bay 4

To install an internal drive in bay 4:

1. Remove the cover (see “Removing the cover” on page 15).

Note: If your computer has a CD drive or DVD drive, you might need to remove

the signal and power cables from the drive.

2. You can also remove the power supply for easier access. See “Removing the power supply” on page 15.

3. Disconnect the cables from the drive being removed.

4. Remove the hard disk drive by 1 pressing the release, and 2 pulling the top end of the hard disk drive towards the rear of the co mputer. Then 3 pull up and remove the hard disk drive from the drive cage as shown.

• To work with another option, go to the appropriate section.

• To complete the installation, go to “Replacing the cover and connecting the cables” on page 30.

What to do next

28 User Guide

5. Rem ove th e four screws that secure the rails to the hard disk drive being removed.

6. Moun t the rails to the hard disk drive being installed and secure it with the screws.

7. Reinstall the hard disk drive into the drive cage until it snaps into place.

8. Connect the cables to the drive being installed.

• To work with another option, go to the appropriate section.

• To complete the installation, go to “Replacing the cover and connecting the cables” on page 30.

What to do next

Replacing the power supply

To replace the power supply:

1. Insert the power supply into the grooves at the rear of the computer and reconnect the cables.

2. Gen tly swing the power supply into the computer.

3. Press down on the power supply to lock it in place.

30 User Guide

4. Secure the power supply with the screw.

Replacing the cover and connecting the cables

After working with options, you need to install any removed parts, replace the cover, and reconnect any cables, including power cords and telephone lines. Also, depending on the option that is installed, you might need to confirm the updated information in the BIOS Setup Utility program.

To replace the cover and connect cables to your computer:

1. Ensure that all components have been reassembled correctly and that no tools or loose screws are left inside your computer.

2. Clear any cables that might impede the replacement of the cover.

3. Position the cover on the chassis and slide the cover toward the front bezel of the computer. Make sure to align the tabs on the co mputer with the cover.

4. Secure the cover with the three screws.

5. Reconnect the external cables and cords to the computer. See “Chapter 3.

Installing external options,” on page 9 and the Quick Reference.

6. To update the configuration, see “Chapter 4. Updating the computer configuration,” on page 33.

32 User Guide

Chapter 4. Updating the computer configuration

This chapter includes information a bout updating configuration settings, installing device drivers (if required, after a new option has been installed), and erasing a lost or forgotten password. For more information about using the BIOS Setup Utility program, see Access IBM.

After you add options, the configuration settings must be updated. In most cases, this configuration update is performed automatically.

In some cases, when you start your comp uter after installing an option, a message similar to the following might be displayed.

If this message is displayed, select Continue and press Enter. The BIOS Setup Utility program automatically starts. From the BIOS Setup Utility program menu, do the following:

1. Select Exit and press Enter.

2. Select Exit Saving Changes and press Enter.

The computer will restart. The Windows operating system will usually detect the new option, update the

configuration information, and prompt you for device drivers, if required. Before installing any device drivers, always check the documentation that is provided with your option for specific instructions. Not all device drivers are installed in the same way. Some options might also require you to install ot her software.

Verifying that an option is installed correctly

To verify if a new adapter or drive is correctly installed and configured, do the following:

1. From the Windows desktop, use the right mouse button to click My Computer; then, click Properties.

2. In the System Properties window, click the Device Manager tab. Note: If you are running Windows 2000, in the System Properties window, click

the Hardware tab first; then click the Device Manager tab.

3. Click View devices by type.

POST Startup Error(s)

The following error(s) were detected when the system was started:

162 Configuration Change Has Occurred

Select one of the following:

Continue Exit Setup

POST Startup Error(s)

The following error(s) were detected when the system was started:

162 Configuration Change Has Occurred

Select one of the following:

Continue Exit Setup

POST Startup Error(s)

The following error(s) were detected when the system was started:

162 Configuration Change Has Occurred

Select one of the following:

Continue Exit Setup

34 User Guide

4. Click the plus sign next to each of the device types to expand the list.

• If neither an X nor a circled exclamation point appears over any of the icons, all devices are working properly.

• An X over an icon indicates that the device is disabled. A circled exclamation point over an icon indicates a resource conflict. If an X or a circled exclamation point appears over an icon, click Properties to learn more about the source of the problem.

• If the device is not listed, it might not be physically install e d correctly. Make sure that the option is installed according to instructions, all cables and connections are secure, and any jumper or switch settings are correct.

• If the device is listed under "Other devices," a required device driver is either missing or installed incorrectly, or the operating system was not restarted after the device driver was installed. Restart the computer and check the device again. If it is still listed under "Other devices," refer to the documentation that comes with the option, and reinstall the device driver.

Note: For further information, refer to the operating system documentation.

Configuring PCI adapters

Along with the documentation that comes with your adapter, use the following information to help with adapter co nfiguration.

PCI adapters generally require no user configuration. The computer and operating system work together to automatically manage the resources that are required by each device that is installed in the computer and to assign resources to new devices in a manner that avoids system conflicts.

Configuring startup devices

When your computer is turned on, it searches for an operating system. The order in which it searches devices for the operating system is the startup sequence. After adding new devices to the computer , you might want to change the startup sequence. You can use the BIOS Setup Utility program to configure startup devices. For more information, see Access IBM.

Erasing a lost or forgotten password (clearing CMOS)

This section applies to lost or forgotten passwords. For more informa tion about lost or forgotten passwords, see Access IBM.

To erase a forgotten password:

1. Turn off the computer and all attached devices.

2. Unplug the power cord.

3. Remove the cover. See “Removing the cover” on page 15.

4. Locate the CMOS jumper on the system board. See “Identifying parts on the system board” on page 18.

5. Move the jumper from the standard position (pins 1 and 2) to the maintenance or configure position (pins 2 and 3).

6. Replace the cover and connect the power cord. See “Replacing the cover and connecting the cables” on page 30.

7. Once you restart the computer, the BIOS Setup Utility screen is displayed.

8. In the maintenance screen, you can clear CMOS settings.

9. Press Esc.

10. Select Exit from the menu.

11. Select Exit Saving Changes.

12. Follow the directions on the screen.

Note: You must remove the cover again to place the jumper to the normal

setting.

36 User Guide

Appendix A. Changing the battery

Your computer has a special type of memory that maintains the date, time, and settings for built-in features, such as parallel-port assignments (configuration). A battery keeps this information active when you turn off the computer.

The battery normally requires no charging or maintenance throughout its life; however , no battery lasts forever. If the battery fails, the date, time, and configuration information (including passwords) are lost. An error message is displayed when you turn on the computer.

Refer to “Lithium battery notice” on page viii for more information.

To change the battery:

1. Turn off the computer and all attached devices.

2. Unplug the power cord and remove the cover. See “Removing the cover” on page

15.

3. Locate the battery. See “Identifying parts on the system board” on page 18.

4. If necessary, remove any adapters that impede access to the battery. See “Installing adapters” on page 21 for more information.

5. Remove the old battery.

6. Install the new battery.

7. Replace any adapters that were removed to gain access to the battery. See “Installing adapters” on page 21 for instructions for replacing adapters.

8. Replace the cover, and plug in the power cord. See “Replacing the cover and connecting the cables” on page 30.

Note: When the computer is turned on for the first time after battery

replacement, an error message might be displayed. This is normal after replacing the battery.

9. Turn on the computer and all attached devices.

10. Use the BIOS Setup Utility program to set the date and time and any passwords.

38 User Guide

Appendix B. Updating System Programs

The following contains information about updating system programs (POST/BIOS) and how to recover from a POST/BIOS update failure.

System programs

System programs are the basic layer of software that is built into your computer. They include the power-on self-test (POST), the basic input/output system (BIOS) code, and the BIOS Setup Utility program. POST is a set of tests and procedures that is performed each time you turn on your computer. BIOS is a layer of software that translates instructions from other layers of software into electrical signals that the computer hardware can understand. You can use the BIOS Setup Utility program to view and change the configuration and setup of your computer.

Your computer system board has a module called electrically erasable programmable read-only memory (EEPROM, also referred to as flash memory ). You can easily update POST, BIOS, and the BIOS Setup Utility program by starting your computer using a flash update diskette.

IBM might make changes and enhancements to the system programs. When updates are released, they are available as downloadable files on the World Wide Web (see the Quick Reference). Instructions for using the system program updates are available in a README file that is included in the update files.

To update system programs (flash the EEPROM):

1. Insert a system program update (flash) diskette into the diskette drive (drive A) in your computer. System program updates are available at http://www.ibm.com/pc/support/ on the World Wide Web.

2. Turn on the computer. If it is on already, you must turn it off and back on again. The update begins.

Recovering from a POST/BIOS update failure

If power to your computer is interrupted while POST/BIOS is being updated (flash update), your computer might not restart correctly. If this happens, perform the following procedure to recover:

1. Using another computer and a text editor, open the config.sys file on the BIOS flash diskette.

2. Find line:

shell = phlash16.exe /S

3. Change this line to:

shell = phlash16.exe

4. Save this f ile to the diskette. Now you can use this BIOS flash diskette to update your computer.

5. Turn off the computer and any attached devices, such as printers, monitors, and external drives.

6. Unplug all power cords from electrical outlets, and remove the cover. See

“Removing the cover” on page 15.

40 User Guide

7. Locate the Clear CMOS/Recovery jumper on the system board, removing any adapters that impede access to the jumper. See “Identifying parts on the system

board” on page 18.

8. Remove the jumper from the system board.

9. Replace the cover. See “Replacing the cover and connecting the cables” on page

30.

10. Reconnect the power cords for the computer and monitor to electrical outlets.

11. Insert the BIOS update (flash) d iskette into drive A, and turn on the computer and the monitor.

12. After the update session is completed, remove the diskette from the diskette drive, and turn off the computer and monitor.

13. Unplug the power cords from electrical outlets.

14. Remove the cover. See “Removing the cover” on page 15.

15. Remove any adapters that impede access to the BIOS Configuration jumper.

16. Replace the Clear CMOS/Recovery jumper to its original position.

17. Replace any adapte rs that were removed.

18. Replace the cover and reconnect any cables that were disconnected.

19. Turn on the computer to restart the operating system.

20. Restore the config.sys file on the diskette back to:

shell = phlash16.exe /S

Appendix C. Notices and trademarks

This publication was developed for products and services offered in the U.S.A. IBM may not offer the products, services, or features discussed in this document in

other countries. Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be

used instead. However, it is the user’s responsibility to evaluate and verify the operation of any non-IBM product, program, or service.

IBM may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing IBM Corporation North Castle Drive Armonk, NY 10504-1785 U.S.A.

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law: INTERNATIONAL

BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any ob ligation to you.

Any references in this publication to non-IBM Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those W eb sites ar e not part of the materials for this IBM product, an d use of those Web sites is at your own risk.

Television output notice

The following applies to models that have the factor y- installed television-output feature.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual pr oper ty rights o wned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for

42 NetVista™: User Guide

home and other limited viewing uses only unless o therwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Trademarks

The following terms are trademarks of the IBM Corporation in the United States or other countries or both:

IBM NetVista OS/2 Wake on LAN

Pentium, Intel, MMX, and AnyPoint are trademarks of Intel Corporation in the United States, other countries, or both.

Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States, other countries, or both.

Other company, product, and service names may be trademarks or service marks of others.

Index A

adapter

audio 12 configuring 34 video 11

adapters

accelerated gra phics p ort (AGP)

installing 21 peripheral component intercon-

nect (PCI) 6

slots 21

audio

adapter 12 subsystem 2

C-RIMM

installing 20 removing 19

cables

connecting 10 power 24

power and signal 24 changing the batte ry 37 configuring startup devices 34 connectors

analog monitor 12

audio line in 11, 13

audio line out 11, 13

CATV 12

digital video interface (DVI) 12

front 9

USB 11 keyboard 10 microphone 11 MIDI/joystick 13 Monitor converter 12 mouse 10 parallel 11 rear 10

audio line in 11, 13

audio line out 11, 13

game/MIDI 11

keyboard 10

microphone 11

MIDI/joystick 13

mouse 10

parallel 11

serial 11

USB 11 S-Video 12 serial 11 USB 11

continuity RIMM (C-RIMM) 19 cover

removing 15 replacing 30

device

drivers 14 startup 34

drives

bays 3, 22 CD 6, 22 diskette 6 DVD 6, 22 hard disk 6, 22 installing 22, 25, 27 internal 2, 6, 22 removable media 6 specifications 23 tape 22

environment, operating 5

input/output (I/O)

features 3

installing

internal drives 25 memory 19 RIMMs 20

installing adapters 21 installing options

internal 15 system board 17

locating components 17

memory

installing 19 system 6, 19

modem 13

network 13 noise level 5

option

installing 33

options

available 6 external 6, 9

internal 6, 15

password

erasing 34 lost or forgotten 34

power

Advanced Configuration and

Power Interface (AC-

PI) support 3 cables 24 signal 24

power supply

installing 29 removing 15

recovering from a POST/BIOS up-

date failure 39 removing the cover 15 replacing the cover 30 RIMM

installing 20 removing 19

security

features 3

startup devices 34 subsystem

audio 2

system

board 17

accessing 17

identifying parts 18

memory 6, 19

system board

accessing 17 identifying parts 18 installing options 17

system programs, updating 39

updating system programs 39 updating the computer configura-

tion 33

video

adapter 11 controller 2

44 User Guide

IBM@

Part Number: 23P1213

23P1213

IBM A60 Type 6833, A60i Type 6832, NetVista A60, NetVista A60i User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
