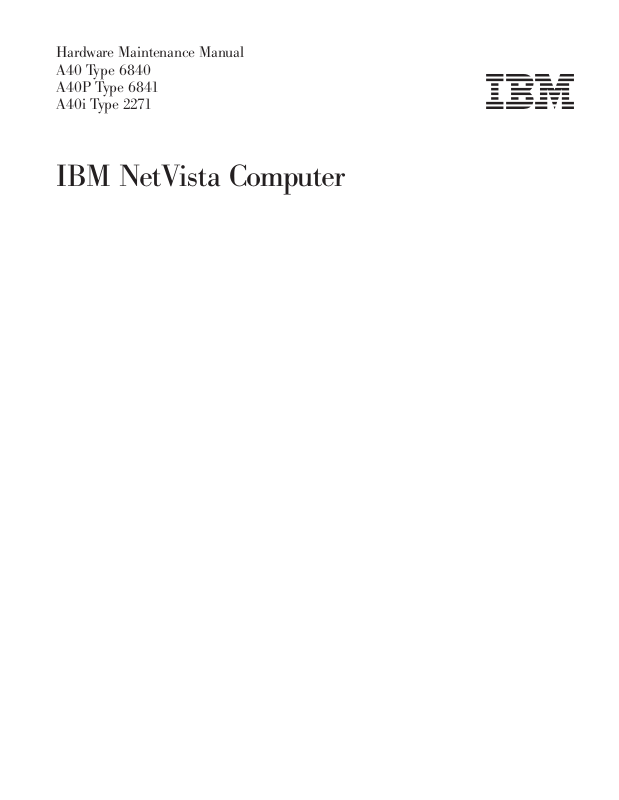

Hardware Maintenance Manual A40 Type 6840

A40P Type 6841

A40i Type 2271

IBM NetVista Computer

Hardware Maintenance Manual A40 Type 6840

A40P Type 6841

A40i Type 2271

IBM NetVista Computer

Note:

Before using this information and the product it supports, be sure to read the general information under “Notices” on page 138.

Second Edition (November 2000)

The following paragraph does not apply to the United Kingdom or any country where such provisions are inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION AS ISWITHOUT ANY WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE LIMITED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimers or express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. IBM may make improvements or changes in the products or the programs described in this publication at any time.

Requests for technical information about IBM products should be made to your IBM Authorized Dealer or your IBM Marketing Representative.

© Copyright International Business Machines Corporation 2000. All rights reserved.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.

Contents

Chapter 1. General Checkout. . . . .

.



1

PCI extender card removal . . . . . . . .

.

31









Replacing a system board . . . . . . . .

.

31

Chapter 2. General Information . . . .

.



3

Replacing a processor . . . . . . . . . .

.

32

Features . . . . . . . . . . . . . .

.

.

3

Replacing the speaker . . . . . . . . . .

.

32

Power supply . . . . . . . . . . . .

.

33

Specifications . . . . . . . . . . . .

.

.

5

20-pin main power supply connection . . .

. 33









Chapter 3. Diagnostics . . . . . . .

.



7

Power supply removal. . . . . . . . .

.

34









Setup Utility program . . . . . . . . .

.

.

7

Chapter 6. Symptom-to-FRU Index . .

. 37

Product Recovery Program menu . . . . .

.

. 8

SIMM/DIMM/RIMM memory errors. . . . .

. 37

Diagnostics . . . . . . . . . . . . .

.

.

8

Hard disk drive boot error . . . . . . . .

.

38

Diagnostics download . . . . . . . .

.

.

8

Diagnostic error codes . . . . . . . . . .

.

39

Navigating through the diagnostic programs

.

. 9

Beep symptoms . . . . . . . . . . . .

.

57

Running diagnostic tests . . . . . . .

.

.

9

No-beep symptoms . . . . . . . . . . .

.

58

Test selection . . . . . . . . . . .

.

.

9

POST error codes . . . . . . . . . . .

.

59

Module test menu/hardware configuration report



9



Miscellaneous error messages . . . . . . .

.

73

Memory Diagnostic tests . . . . . . . .

.



10



Undetermined problems . . . . . . . . .

.

75

Alert-On LANtest . . . . . . . . .

.



10

Asset IDtest . . . . . . . . . . .

.



10

Chapter 7. Parts . . . . . . . . . .

.

77

Test results . . . . . . . . . . . .

.



10



Parts listing . . . . . . . . . . . . .

.

78

Hard file Smart test. . . . . . . . . .

.



11

Fixed Disk Optimized Test . . . . . . .

.



11

Keyboards (PCNext Lite Pearl White). . . . .

. 81

Quick and Full erase - hard drive . . . . .

.



12

Computer Power Cords . . . . . . . . .

.

83

Iomega Zip drive test . . . . . . . . .

. 12

Recovery CDs - Machine Type 6840, 6841 . . .

. 83

Asset EEPROM backup . . . . . . . .

. 12

Recovery CDs Win 98 Machine - Type 6840, 6841 .

. 84

Viewing the test log . . . . . . . . .

. 13

Recovery CDs Win 2000 - Machine Type 6840, 6841

84

When to use the Low-Level Format program . .

.



13

Special tools . . . . . . . . . . . . .

.

84

Preparing the hard disk drive for use. . . . . .



13

Chapter 8. Additional Service

















Chapter 4. Installing Options . . . .

. 15

Information . . . . . . . . . . . . . 85

Input/Output connectors . . . . . . . . .

.



15

Security features. . . . . . . . . . . .

.

85

Removing the cover . . . . . . . . . .

.



15

Passwords . . . . . . . . . . . . .

.

85

Internal drive removal and replacement . . . .

. 16

Power-on password . . . . . . . .

.

85

Installing internal drives in bays 1, 2, 3 and 4 .

. 17

Removing a power-on password . . . .

. 85

CD-ROM drive jumper settings. . . . .

. 18

Administrator password . . . . . . .

. 86

Installing internal drives in bays 5, 6 and 7 . .

.



18

Administrator password control . . . .

.

86

Hard disk drive jumper settings . . . .

. 21

Operating system password . . . . . .

. 86

Installing a security U-bolt . . . . . . . .

.



21

Vital product data . . . . . . . . . .

.

86

Installing adapters . . . . . . . . . . .

.



22

Management Information Format (MIF) . . .

.

86

Adapter slots . . . . . . . . . . . .

.



22

Alert on LAN . . . . . . . . . . .

.

87

AGP adapter . . . . . . . . . . . .

.



24

BIOS levels . . . . . . . . . . . . .

.

87

Audio adapter . . . . . . . . . . .

.



25

Flash (BIOS/VPD) update procedure . . . . .

.

88

ADSL modem . . . . . . . . . . .

.



25

Flash recovery boot block jumper . . . . . .

.

88

Home PNA network adapter . . . . . .

. 25

Power management . . . . . . . . . .

. 89

Replacing the cover. . . . . . . . . . .

.



26

Automatic configuration and power interface













(ACPI) BIOS . . . . . . . . . . . .

.

89

Chapter 5. FRU Replacements. . . .

. 27

Advanced Power Management . . . . . .

. 89

Computer exploded view. . . . . . . . .

.



28

Automatic Hardware Power Management







features. . . . . . . . . . . . . .

.

89

A40/A40P/A40i system board layout . . . .

. 29

Setting Automatic Hardware Power Management



System board locations . . . . . . . .

.



29





features. . . . . . . . . . . . . .

.

90

System board jumper settings . . . . . .

.



29



Automatic Power-On features . . . . . .

. 90

Clear CMOS/Flash Boot Block Recovery. .

. 30

Network settings . . . . . . . . . . .

.

90

Processor Speed Settings . . . . . . .

.



30



Flash over LAN (update POST/BIOS over





System board memory. . . . . . . . .

.



30







network) . . . . . . . . . . . . .

.

91

Installing memory . . . . . . . . .

.



30



Wake on LAN . . . . . . . . . . .

.

91









© Copyright IBM Corp. 2000











iii

Chapter 9. About this manual . . . .

.

93

Problem determination tips. . . . . . .

.

.

129

Important Safety Information . . . . . . .

.

93

File updates . . . . . . . . . . .

.

.

129







Adding adapters to the system . . . .

.

. 130

Chapter 10. Related Service





Software considerations . . . . . . .

.

.

130

Information . . . . . . . . . . . . .

95

BIOS . . .

.

. . . . .

.

.

. . . 130

Drivers . . . . . . . . . . .

.

.

130

Safety notices (multi-lingual translations) . . .

.

95

Hardware considerations . . . . . .

.

.

131

Safety Information. . . . . . . . . . .

.

125

System resource conflicts . . . . . .

.

.

132

General Safety . . . . . . . . . . .

.

125

Miscellaneous Information . . . . . . .

.

.

134

Grounding requirements . . . . . . .

.

125

Acronyms, Abbreviations, and Terms . .

.

. 134

Electrical safety. . . . . . . . . . .

.

125

Send Us Your Comments! . . . . . . .

.

. 136

Handling electrostatic discharge-sensitive









Notices . . . . . . . . . . . . .

.

.

138

devices . . . . . . . . . . . . . .

127

Trademarks . . .

.

. . . . .

.

.

. . . 139

Safety inspection guide . . . . . . . .

.

127



















iv Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 1. General Checkout

This general checkout procedure is for type 2271/6840/6841 computers.

Attention:

The drives in the computer you are servicing might have been rearranged or the drive startup sequence changed. Be extremely careful during write operations such as copying, saving or formatting. Data or programs can be overwritten if you select an incorrect drive.

Diagnostic error messages appear when a test program finds a problem with a hardware option. For the test programs to properly determine if a test Passed, Failed or Aborted, the test programs check the error-return code at test completion. See “Diagnostics” on page 8.

General error messages appear if a problem or conflict is found by an application program, the operating system, or both. For an explanation of these messages, refer to the information supplied with that software package.

Notes:

vType 2271/6840/6841 computers default to come up quiet (no beep and no memory count and checkpoint code display) when no errors are detected by POST.

vTo enable beep and memory count and checkpoint code display when a successful POST occurs, do the following:

1.Select Start Options in the Configuration/Setup Utility program (see “Setup Utility program” on page 7).

2.Set Power-On Self-Test to Enhanced.

vBefore replacing any FRUs, ensure that the latest level of BIOS is installed on the system. A down-level BIOS might cause false errors and unnecessary replacement of the system board. For more information on how to determine and obtain the latest level BIOS, see “BIOS levels” on page 87.

vIf multiple error codes are displayed, diagnose the first error code displayed.

vIf the computer hangs with a POST error, go to Symptom-to-FRU Indexon page 37.

vIf the computer hangs and no error is displayed, go to “Undetermined problems” on page 75.

vIf an installed device is not recognized by diagnostics, that device might be defective.

001

1.Power-off the computer and all external devices.

2.Check all cables and power cords.

3.Make sure the system board is seated properly.

4.Set all display controls to the middle position.

5.Power-on all external devices.

6.Power-on the computer.

7.Check for the following response:

v Readable instructions or the Main Menu.

DID YOU RECEIVE THE CORRECT RESPONSE?

© Copyright IBM Corp. 2000

1

If NO, continue to 002 .

If YES, proceed to 003 .

002

If the Power Management feature is enabled, do the following:

1.Start the Configuration/Setup Utility program (see “Setup Utility program” on page 7)

2.Select Power Management from the Configuration/Setup Utility program menu.

3.Select APM.

4.Be sure APM BIOS Mode is set to Disabled. If it is not, press Left Arrow (}) or Right Arrow (Æ) to change the setting.

5.Select Automatic Hardware Power Management.

6.Set Automatic Hardware Power Management to Disabled.

7.If the problem persists, continue to 003 .

003

Run diagnostics. If necessary, refer to “Diagnostics” on page 8.

vIf you receive an error, replace the part that diagnostics calls out or go to Symptom-to-FRU Indexon page 37.

vIf the test stops and you cannot continue, replace the last device tested.

2 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 2. General Information

Features

The NetVista type 2271/6840/6841 computers are available in 5 x 7 (five I/O adapter slots, plus one AGP slot, and seven drive bays).

vType 2271 is the minitower with the A40 board and modem.

vType 6840 is the minitower with the A40 board.

vType 6841 is the minitower with the A40P board.

Not all models come with all features summarized here.

Microprocessor

Intel® PentiumIII microprocessor with 256 KB of internal L2 cache memory

Memory

vSupport for dual inline memory modules (DIMMs)

3.3 V, synchronous, 168-pin, unbuffered, 133 MHz nonparity synchronous dynamic random access memory (SDRAM)

64 MB, 128 MB and 256 MB unbuffered nonparity DIMMs for a maximum of 512 MB

DIMM heights of 38.1 mm (1.5 inches)

v512 KB flash memory for system programs

Internal drives

v3.5-inch, 1.44 MB diskette drive

vInternal hard disk drive

vEIDE CD or DVD drive (some models)

Video controller

vDynamic video memory technology

vAccelerated graphics port (AGP) adapter (some models)

Audio subsystem

16-bit integrated Sound Blaster Pro compatible audio subsystem

Connectivity

v10/100 Mbps Ethernet adapter that supports Wake on LAN (some models)

vModem (some models)

System management features

vRemote Program Load (RPL) and Dynamic Host Configuration Protocol (DHCP)

vWake on LAN® (requires Wake on LAN-supported network adapter)

vWake on Ring (in the Configuration/Setup Utility program, this feature is called Serial Port Ring Detect for an external modem and Modem Ring Detect for an internal modem)

vWake on Alarm

vRemote Administration (the ability to update POST and BIOS over the network)

vAutomatic power-on startup

vSystem Management (SM) BIOS and SM software

vAbility to store POST hardware test results

© Copyright IBM Corp. 2000

3

Input/output features

v25-pin, ECP/EPP parallel port

vOne or two 9-pin serial ports

vFour 4-pin, USB ports

vStandard mouse port

vStandard keyboard port

v15-pin monitor port

vThree audio connectors (line/headphone out, line in, and microphone)

vJoystick/MIDI connectors (some models)

Expansion

vDrive bays: 7

vPCI expansion slots: 5

vOne AGP expansion slot

Power

v200 W power supply with manual voltage selection switch

vAutomatic 50/60 Hz input frequency switching

vAdvanced Power Management support

vAdvance Configuration and Power Interface (ACPI) support

Security features

vPower-on and administrator passwords

vCover keylock

vSupport for the addition of a U-bolt and lockable cable

vStartup sequence control

vStartup without diskette drive, keyboard, or mouse

vUnattended start mode

vDiskette and hard disk I/O control

vSerial and parallel port I/O control

vSecurity profile by device

IBM preinstalled software

This computer might come with preinstalled software. If so, an operating system, device drivers to support built-in features, and other support programs are included.

Operating systems (supported)

vMicrosoft® Windows® 2000 Professional

vMicrosoft Windows NT® Workstation Version 4.0 with Service Pack 6

vMicrosoft Windows 98 SE

vMicrosoft Millennium

Operating systems (tested for compatibility)1

vMicrosoft Windows 95

vDOS 2000

vSCO OpenServer 5.0.2 and later

vIBM OS/2® Warp Connect 3.0

vIBM OS/2 Warp 4.0

vIBM OS/2 LAN Server 3.0 and 4.0

vLinux: Red hat, Caldera, SuSE., and Pacific High Tech

1.The operating systems listed here are being tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by IBM as compatible with your computer following the publication of this booklet. Corrections and additions to this list are subject to change. To determine if an operating system has been tested for compatibility, check the Web site of the operating system vendor.

4 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

vSun Solaris 2.5.1 or later

vNovell NetWare Versions 3.2, 4.11, 5.0

Specifications

Dimensions

Electrical input

Height: 445 mm (17.5 in.)

Input voltage:

Width: 165 mm (6.5 in.)

Low range:

Depth: 502 mm (20.5 in.)

Minimum: 90 V ac

Weight

Maximum: 137 V ac

Input frequency range: 57–63 Hz

Minimum configuration as shipped: 14.0 kg (30 lb)

Voltage switch setting: 115 V ac

Maximum configuration: 17.3 kg (38.0 lb)

High range:



Environment

Minimum: 180 V ac

Air temperature:

Maximum: 265 V ac

System on: 10° to 35°C (50° to 95° F)

Input frequency range: 47–53 Hz

System off: 10° to 43° C (50° to 110° F)

Voltage switch setting: 230 V ac

Maximum altitude: 2134 m (7000 ft)

Input kilovolt-amperes (kVA) (approximate):

Note: The maximum altitude, 2134 m (7000 ft.), is

Minimum configuration as shipped: 0.08 kVA

the maximum altitude at which the specified air

Maximum configuration: 0.3 kVA

temperatures apply. At higher altitudes, the

Note: Power consumption and heat output vary

maximum air temperatures are lower than those

depending on the number and type of optional

specified.

features installed and the power-management

Humidity:

optional features in use.

System on: 8% to 80%



System off: 8% to 80%

Acoustical noise-emission values

Heat output (approximate) in British thermal units (Btu)

Average sound-pressure levels:

At operator position:

per hour:

Idle: 38 dBA

Minimum configuration: 240 Btu/hr. (75 watts)

Operating: 43 dBA

Maximum configuration: 940 Btu/hr. (275 watts)

At bystander position - 1 meter (3.3 ft):



Airflow

Idle: 33 dBA

Approximately 0.34 cubic meters per minute (12 cubic

Operating: 37 dBA

feet per minute) maximum

Declared (upper limit) sound-power levels:



Idle: 4.8 bels



Operating: 5.1 bels





Note: The noise-emission levels were measured in controlled acoustical environments according to the procedures specified by the American National Standards Institute (ANSI) S12.10 and ISO 7779 and are reported in accordance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The declared sound-power levels indicate an upper limit, below which a large number of computers will operate.

For additional information, see the ISO Supplier’s Declaration, which is available from IBM.

Chapter 2. General Information 5

6 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 3. Diagnostics

Setup Utility program . . . . . . . . .

.

.

7

Asset IDtest . . . . . . . . . . .

.

10

Product Recovery Program menu . . . . .

.

.

8

Test results . . . . . . . . . . . .

.

10

Diagnostics . . . . . . . . . . . . . . . 8

Hard file Smart test. . . . . . . . . .

.

11

Diagnostics download . . . . . . . .

.

.

8

Fixed Disk Optimized Test . . . . . . .

.

11

Navigating through the diagnostic programs

.

. 9

Quick and Full erase - hard drive . . . . .

. 12

Running diagnostic tests . . . . . . .

.

.

9

Iomega Zip drive test . . . . . . . . .

.

12

Test selection . . . . . . . . . . .

.

.

9

Asset EEPROM backup . . . . . . . .

.

12

Module test menu/hardware configuration report

9

Viewing the test log . . . . . . . . .

. 13

Memory Diagnostic tests . . . . . . .

.

. 10

When to use the Low-Level Format program . .

. 13

Alert-On LANtest . . . . . . . .

.

.

10

Preparing the hard disk drive for use. . . . .

.

13

The following tools are available to help identify and resolve hardware-related problems.

vSetup Utility program

vPower-On Self-Test (POST)

POST Beep Codes

Error Code Format

vDiagnostics program

vRecovery utility

Full recovery

Partial recovery

vRepair utility

Setup Utility program

Attention:

A customized setup configuration (other than default settings) might exist on the computer you are servicing. Running the Setup Utility program might alter those settings. Note the current configuration settings and verify that the settings are in place when service is complete.

The Setup Utility (configuration) program is stored in the permanent memory of the computer. This program includes settings for the following:

vSystem Summary

vProduct Data

vDevices and I/O Ports

vStart Options

vDate and Time

vSystem Security

vAdvanced Setup

vPower Management

To run the Setup Utility program, use the following procedure.

1.Power-off the computer and wait for a few seconds until all in-use lights go off.

2.Power-on the computer.

© Copyright IBM Corp. 2000

7

3.When the Setup Utility prompt appears on the screen during start-up, press F1. The Setup Utility menu will appear.

4.Follow the instructions on the screen.

5.When finished, select System Summary to verify that any configuration changes have been accepted.

Product Recovery Program menu

Type 2271/6840/6841 machines have recovery and diagnostics programs on a separate hard drive partition. The Diagnostics diskette is not shipped with the machine or the HMM. To download the diagnostics program, see “Diagnostics download” on page 8.

At startup, after the machine tests the SIMM/DIMM memory (if Power-on Self

Test is set to Enhanced), the machine displays the following prompt:

To start the Product Recovery Program, press F11

After depressing F11, you are given the following options.

vFull recovery

This utility reformats the hard drive and restores all original files.

vPartial recovery

This utility reformats the hard drive and restores the Windows operating system and all device drivers

vRepair

This is the emergency repair utility, and should not be used to install Windows components.

vSystem utilities

1.Run diagnostics

2.System info

3.Create recovery/ repair diskette

Diagnostics

The diagnostic programs use a full range of diagnostic utilities to determine the operating condition of the computer’s hardware components.

For a complete list of error codes and messages, see Symptom-to-FRU Indexon page 37.

Diagnostics download

To download the diagnostic programs, do the following:

vGo to http://www.ibm.com/.

vSelect Support.

vSelect Desktop computing from the Search by Categorypull-down menu.

vSelect NetVista from the Product Familylist.

vSearch for the machine type in the Quick Pathbox on the left.

vSelect Diagnostics from the Downloadable files by Categorypull-down menu or go directly to the link PC Enhanced Diagnostics diskette from the

Downloadable files by datelist. This link will take you to the self-starting utility download and instructions.

8 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Navigating through the diagnostic programs

Use the cursor movement keys to navigate within the menus.

vThe Enter key is used to select a menu item.

vThe Esc key is used to back up to the previous menu.

vFor online help select F1.

Running diagnostic tests

There are four ways to run the diagnostic tests.

1.Using the cursor movement keys, highlight Run Normal Test or Run Quick Test from the Diagnostics menu and then press Enter.

This will automatically run a pre-defined group of tests from each test category. Run Normal Test runs a more extensive set of tests than does Run Quick Test and takes longer to execute.

2.Press F5 to automatically run all selected tests in all categories. See Test Selection.

3.From within a test category, press Ctrl-Enter to automatically run only the selected tests in that category. See Test Selection.

4.Using the cursor movement keys, highlight a single test within a test category, then press Enter. This will run only that test.

Press Esc at any time to stop the testing process.

Test results, (N/A, PASSED, FAILED, ABORTED), are displayed in the field beside the test description and in the test log. See “Viewing the test log” on page 13.

Test selection

To select one or more tests, use the following procedure.

1.Open the corresponding test category.

2.Using the cursor movement keys, highlight the desired test.

3.Press the space bar.

A selected test is marked by >>. Pressing the space bar again de-selects a test and removes the chevron.

4.Repeat steps 2 and 3 above to select all desired tests.

Module test menu/hardware configuration report

Depending on the diagnostic version level you are using, the installed devices in the computer are verified in one of two ways.

1.At the start of the diagnostic tests, the Module Test Menu is displayed. Normally, all installed devices in the computer are highlighted on the menu.

2.At the start of the diagnostic tests, the main menu appears. From this menu, select System Info, then select Hardware Configuration from the next menu. Normally, all installed devices in the computer are highlighted on this report.

If an installed device is not recognized by diagnostisc, then review the following:

vThe diagnostic code for the device is not in the siagnostic programs. Run the diagnostics provided with that device.

vThe missing device is defective or it requires an additional diskette or service manual.

vAn unrecognizable device is installed.

Chapter 3. Diagnostics 9

vA defective device is causing another device not to be recognized.

vThe SCSI controller failed (on the system board or SCSI adapter).

vUse the procedure in “Undetermined problems” on page 75 to find the problem.

If a device is missing from the list, replace it. If this does not correct the problem, use the procedure in “Undetermined problems” on page 75.

Memory Diagnostic tests

The Memory Diagnostics provide the capability to identify a particular memory module (SIMM or DIMM) which fails during testing. Use the System Board Layout section to reference the memory sockets, or select F1 twice to load the Diagnostics online manual and select SIMM/DIMM/RIMM Locator.

Follow the steps below to locate the Memory Diagnostic tests options.

1.Select the DIAGNOSTICS option on the toolbar and press Enter.

2.Highlight either the Memory Test-Full or Memory Test-Quick option and press

Enter.

3.

vMemory Test-Full

The full memory test will take about 80 seconds per MB of memory and will detect marginal, intermittent, and solid (stuck) memory failures.

vMemory Test-Quick

The quick memory test will take about 20 seconds per MB of memory and will detect solid (stuck) memory failures only.

Notes:

vEither level of memory testing can be performed on all memory or a single SIMM or DIMM socket.

vOnly sockets containing a SIMM or DIMM can be selected for testing. Unpopulated sockets are noted by ........ beside the test description.

Alert-On LANtest

The Alert On LAN test does the following:

vDetermines if Alert On LAN is supported on the system.

vChecks the revision ID register.

vVerifies the EEPROM checksum.

vValidates that a software alert can be sent.

Asset IDtest

The Asset ID test does the following:

vDetermines if Asset ID is supported on the system.

vVerifies the EEPROM areas.

vPerforms an antenna detection test.

Test results

Diagnostic test results will produce the following error code format:

Function

Failure Type DeviceID

Date

ChkDigits

Text

Code



















10 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

vFunction Code:

Represents the feature or function within the PC.

vFailure Type:

Represents the type of error encountered.

vDeviceID:

Contains the component’s unit-ID which corresponds to either a fixed disk drive, removable media drive, serial or parallel port, processor, specific SIMM or DIMM, or a device on the PCI bus.

vDate:

Contains the date on which the diagnostic test was run. The date is retrieved from CMOS and displayed using the YYYYMMDD format.

vChkDigits:

Contains a 2-digit check-digit value to ensure the following:

Diagnostics were run on the specified date.

Diagnostics were run on the specified IBM computer.

The diagnostic error code is recorded correctly.

vText:

Description of the error.

Note: See “Diagnostic error codes” on page 39 for error code listings.

Hard file Smart test

Use the Hard File Smart Test when the system management tool has detected a hard file SMART alert.

The Smart test does the following:

vInterrogates IDE devices for support of the SMART instruction set.

vIssues a ENABLE SMART command to make sure SMART functionality is active.

vChecks the SMART RETURN STATUS command to determine if any thresholds have been exceeded.

If thresholds have been exceeded, an error message is shown, and the test fails. If no SMART is supported by the drive, the test returns with N/A.

Fixed Disk Optimized Test

You can use the Fixed Disk Optimized Test to identify a particular area of a hard disk that fails during testing. You can also use this test to correct types of errors.

To run the Fixed Disk Optimized Test, do the following:

1.From the toolbar, select Diagnostics.

2.Select Fixed Disk Optimized Test.

3.Select one of the tests:

v Hard Disk Test - Full performs a complete test of the hard disk drive.

vHard Disk Test - Quick performs a subset of the full hard disk tests.

vStart SMART Hard Disk Test initiates an IDE extended offline self-test.

vSMART Hard Disk Test Results runs the IDE extended offline self-test and displays the results.

Chapter 3. Diagnostics 11

You can run the Start SMART Hard Disk Test and then continue with other diagnostic tests before running the Hard Drive Self-Test Results.

Quick and Full erase - hard drive

Diagnostics offer two hard drive format utilities:

vQuick Erase Hard Drive

vFull Erase Hard Drive

The Quick Erase Hard Drive provides a DOS utility that performs the following steps.

vDestroys the Master Boot Record (MBR) on the hard drive.

vDestroys all copies of the FAT Table on all partitions (both the master and backup).

vDestroys the partition table.

vProvides messages that warn the user that this is a non-recoverable process.

The Full Erase Hard Drive provides a DOS utility that performs the following steps.

vPerforms all the steps in Quick Erase.

vProvides a DOS utility that writes random data to all sectors of the hard drive.

vProvide an estimate of time to completion along with a visual representation of completion status.

vProvides messages that warn the user about non-recoverable process.

Important: Make sure that all data is backed up before using the Quick or Full Erase functions.

To select the Quick Erase or Full Erase Hard Drive utility, use the following procedure.

1.Select the UTILITY option on the toolbar and press Enter.

2.Select either the QUICK ERASE or FULL ERASE HARD DISK option and follow the instructions.

Iomega Zip drive test

Use the Iomega Zip Drive Test to test the Zip drive and the drive interface. The test takes about 20 seconds to run.

The default tests the following:

vController

vMax Seek (50 times)

vRandom Seek (300 sectors)

Asset EEPROM backup

When replacing a system board, this utility allows the backup of all Asset information from the EEPROM to diskette. This utility also restores data to the EEPROM from diskette after replacement of the system board.

To run this utility, use the following procedure.

vSelect Utility

vSelect Asset EEPROM Backup

12 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

v Follow instructions on screen.

Viewing the test log

Errors reported by the diagnostic test will be displayed by the program as a failed test.

To view details of a failure or to view a list of test results, use the following procedure from any test category screen.

vPress F3 to activate the log file.

vPress F3 again to save the file to diskette or F2 to print the file.

When to use the Low-Level Format program

Notes:

1.The low-level format is not available on all diagnostic diskettes.

2.Before formatting the hard disk drive, make a backup copy of the files on the drive to be formatted.

Use the Low-Level Format program in the following situations:

vWhen you are installing software that requires a low-level format.

vWhen you get recurring messages from the test programs directing you to run the Low-Level Format program on the hard disk.

vAs a last resort before replacing a hard disk drive.

Preparing the hard disk drive for use

When the Low-Level Format program is finished, restore to the hard disk all the files that you previously backed up.

1.Partition the remainder of the hard disk for the operating system. (The commands vary with the operating system. Refer to the operating system manual for instructions.)

2.Format the hard disk using the operating system. (The commands vary with the operating system. Refer to the operating system manual for instructions.)

3.Install the operating system.

You are now ready to restore the files.

Chapter 3. Diagnostics 13

14 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 4. Installing Options

Input/Output connectors . . . . . . . . .

.

15

Installing adapters . . . . .

. . . . . .

.

22

Removing the cover . . . . . . . . . .

.

15

Adapter slots . . . . . .

. . . . . .

.

22

Internal drive removal and replacement . . . .

.

16

AGP adapter . . . . . .

. . . . . .

.

24

Installing internal drives in bays 1, 2, 3 and 4 .

.

17

Audio adapter . . . . .

. . . . . .

.

25

CD-ROM drive jumper settings. . . . .

. 18

ADSL modem . . . . .

. . . . . .

. 25

Installing internal drives in bays 5, 6 and 7 . .

. 18

Home PNA network adapter

. . . . . .

. 25

Hard disk drive jumper settings . . . .

.

21

Replacing the cover. . . . .

. . . . . .

.

26

Installing a security U-bolt . . . . . . . .

.

21









Input/Output connectors

2 1

1

2

1 Power connector 2 Mouse connector 3 Keyboard connector 4 USB connector 1 5 USB connector 2 6 Serial connector 1 7 Parallel connector 8 Monitor connector

9 Microphone connector

10 Audio in connector 11 Audio out connector 12 Serial connector 2 13 AGP slot

14 PCI slot 1 14 PCI slot 2 14 PCI slot 3 14 PCI slot 4 14 PCI slot 5

Removing the cover

1.Remove the two back thumb screws.

2.Disengage the keylock (if any) on the side of the computer.

© Copyright IBM Corp. 2000

15

3.Push the side cover toward the rear, using the two embosses at the back of the cover.

4.Remove the cover.

Internal drive removal and replacement

16 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

1

Bay 1 - Max Height:

41.3 mm (1.6 in.)





CD-ROM drive (standard in some models)





5.25-inch hard disk drive

2

Bay 2 - Max Height:

41.3 mm (1.6 in.)





5.25-inch hard disk drive





3.5-inch hard disk drive (requires a mounting bracket)





CD-ROM drive





DVD-ROM drive

3

Bay 3 - Max Height:

25.4 mm (1.0 in.)





3.5-inch diskette drive

4

Bay 4 - Max Height:

25.4 mm (1.0 in.)





Hard disk drive





3.5-inch removable drive

5

Bay 5 - Max Height:

25.4 mm (1.0 in.)





Hard disk drive

6

Bay 6 - Max Height:

25.4 mm (1.0 in.)





Hard disk drive

7

Bay 7 - Max Height:

25.4 mm (1.0 in.)





Hard disk drive

Installing internal drives in bays 1, 2, 3 and 4

1.Remove the cover (see “Removing the cover” on page 15).

2.If the drive you are installing is a removable-media drive, remove the bay panel from the front bezel.

3.Insert a flat–bladed screwdriver into one of the slots on the static shield in the drive bay into which you are installing the drive and gently pry the static shield loose from the drive bay.

Chapter 4. Installing Options 17

4. Install the drive into the bay. Align the screw holes and insert the two screws.

5. Connect the power and signal cables to the drive.

CD-ROM drive jumper settings

CD-ROM and PC/CD-ROM drives use jumpers or tabs to set the drives as primary (master) or secondary (slave). Refer to the drive connector labels or the figures below for the drive settings.

AUDIO



IDE INTERFACE

DC INPUT

R G G L

39

1

5V G G 12V

40

2

See Jumper

Settings Below

CD-ROM

Primary (Master)

Secondary (Slave)







40X

: :

: :







48X

: :

: :







Installing internal drives in bays 5, 6 and 7

1. Remove the cover (see “Removing the cover” on page 15).

18 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

2. Remove the side support bar.

3.Remove the front EMC shield for the specific drive bay.

4.Pivot the lower drive bay cage outward from the computer, into the locked position.

Chapter 4. Installing Options 19

5.Mount DASD rails on the drive you wish to install and slide the drive along the rail guides into the unoccupied drive bay.

6.Press the tab that holds the cage in the open position and swing the cage back into operating position.

7.Connect the cables to the drive.

8.Connect the power and signal cables to the drive.

20 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Hard disk drive jumper settings

IDE hard disk drives for the NetVista series computers use jumpers to set the drives as primary (master) or secondary (slave).

Note: For drives not shown below, refer to the label on the hard disk drive for the hard disk drive settings.

1Primary (Master) Hard Disk Drive

2Secondary (Slave) Hard Disk Drive

Installing a security U-bolt

To install a U-bolt, do the following:

1. Remove the cover.

Chapter 4. Installing Options 21

2. Remove the two metal knockouts.











































1

U-bolt

2

Bolt holes

3

Nuts

3.Insert the U-bolt through the rear panel. Attach and tighten the nuts with an appropriately sized or adjustable wrench.

4.Replace the computer cover. See “Replacing the cover” on page 26.

5.Thread the cable through the U-bolt and around an object that is not a part of or permanently secured to the building structure or foundation, and from which it cannot be removed; then fasten the cable ends together with a lock.

Installing adapters

Adapter slots

To install an adapter in a PCI or AGP expansion slot, do the following:

1. Remove the cover (see “Removing the cover” on page 15).

22 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

2.Remove the blue adapter card retainer and slot cover for the appropriate expansion slot.

3.Remove the adapter from its static-protective package.

4.Install the adapter into the appropriate slot on the system board.

Note: If you are installing a Wake on LANsupported network adapter, attach the Wake on LAN cable that came with the adapter to the Wake on LAN connector on the system board. If you also want to take advantage of the Alert on LAN feature of the computer, you must install the network adapter in PCI slot 1. For the location of PCI slot 1 and the Wake on LAN connector, see the diagram of the system board on the inside of the computer.

Chapter 4. Installing Options 23

5. Install the adapter card retainer.

6. Replace the cover and connect the cables.

AGP adapter

Some models come with a high-performance AGP video adapter. In some AGP adapters, the DVI connector is replaced by a regular VGA connector.

24 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer



Connector

Description

1

Digital video interface

Used to attach a digital monitor. This connector provides



(DVI) connector

the signals necessary to support the Display Power





Management Signaling (DPMS) standard.

2

S-Video connector

Used to attach a television set that has a S-Video connector.





The S-Video cable (required to connect the television set to





the adapter) is a separately purchased item.

3

SVGA monitor

Used to attach an analog SVGA monitor to the AGP DVI



converter

connector. This SVGA converter is not used in this machine





type.

4

SVGA monitor

Used to attach an analog SVGA monitor to the AGP DVI



converter

connector.

Audio adapter























































































Connector

1

MIDI/joystick connector

2

Audio line-out connector

3

Microphone connector

4

Audio line-in connector

ADSL modem

Depending on how the user’s home or office is wired, the ADSL modem uses either wires 2 and 5 or wires 3 and 4 of the telephone-line wall connector. Refer to the label on the back of the ADSL modem and set the switch on the back of the ADSL modem to match the wiring scheme. If you do not know which wiring scheme to use, contact the user’s ADSL service provider.

Home PNA network adapter

Some models have a Home Phoneline Network Alliance network adapter with an integrated V.90 modem. In addition to its modem function, this adapter enables the user to use the telephone wiring in the user’s home for peer-to-peer networking. To use the Home PNA Network adapter, the Intel AnyPoint software must be installed from the Software Selections CD. Each computer on the home PNA network must have a PNA network adapter and the associated software installed. For information about using the PNA network adapter or the AnyPoint software, refer to the AnyPoint documentation (provided with models that come with PNA network adapters only).

Each computer on a home PNA network must be connected directly to a telephone-line wall connector. If the user has more computers than telephone-line wall connectors in a room, he/she must use a telephone splitter at the wall connector.

Chapter 4. Installing Options 25

Replacing the cover

1.Position the cover on the chassis, aligning the tabs on the cover with the slots on the chassis.

2.Slide the cover toward the front bezel of the computer until the cover is fully closed.

3.Replace the two thumb screws and engage the keylock (if any).

26 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 5. FRU Replacements

Computer exploded view. . . . . . . . .

.

28

PCI extender card removal . . . . .

. . .

.

31

A40/A40P/A40i system board layout . . . .

. 29

Replacing a system board . . . . .

. . .

. 31

System board locations . . . . . . . .

.

29

Replacing a processor . . . . . . .

. . .

.

32

System board jumper settings . . . . . .

.

29

Replacing the speaker . . . . . . .

. . .

.

32

Clear CMOS/Flash Boot Block Recovery. .

. 30

Power supply . . . . . . . . .

. . .

. 33

Processor Speed Settings . . . . . . .

. 30

20-pin main power supply connection

. . .

. 33

System board memory. . . . . . . . .

.

30

Power supply removal. . . . . .

. . .

.

34

Installing memory . . . . . . . . .

.

30









© Copyright IBM Corp. 2000

27

Computer exploded view

28 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

A40/A40P/A40i system board layout

34

33

32

31

System board locations

1CPU fan connector 2Microprocessor 3DIMM 0 4DIMM 1

5Power LED connector 6RFID connector 7Front USB connector 8Secondary IDE connector 9Diskette connector 10Primary IDE connector 11Power connector

12CMOS clear/recovery jumper 13Fan connector

14Battery

15SCSI adapter LED connector 16 Alert on LAN

17 Wake on LAN

18PCI slot 5 19 PCI slot 4 20 PCI slot 3 21 PCI slot 2 22 PCI slot 1 23 AGP slot

24 CD-ROM audio 25 Speaker connector 26 Audio output 27 Audio input

28 Serial port 2

29 Microphone input 30 Monitor port 31 Parallel port

32 Serial port 1 33 USB connectors

34 Mouse and keyboard connectors

System board jumper settings

The following table contains the jumper setting information. (D) indicates the default setting.

Chapter 5. FRU Replacements 29

Clear CMOS/Flash Boot Block Recovery

Use the recovery jumper setting to Clear CMOS or to Flash Boot Block Recover.

Jumper

Setting

Description







CMOS Reset

2-3

CMOS Reset/Flash Recovery





Mode









1-2 (D)

Normal Mode







Note: The A40/A40P/A40i CMOS clear/recovery jumper pins are numbered as follows:

vPin 1 is the farthest from the battery.

vPins 2 and 3 are below pin 1, as seen in the System Board layout.

Processor Speed Settings

Processor speed for type 2271/6840/6841 computers are fixed and are determined by the processor. There are no settings required.

System board memory

Installing memory

When installing DIMMs, the following rules apply:

vFill each system memory connector sequentially, starting at DIMM 0.

vUse 3.3 V, 133 MHz, unbuffered, SDRAM non-parity DIMMs.

vUse only 64, 128, or 256 MB DIMMs in any combination.

To install a memory module, do the following:

1.Remove the AGP adapter.

2.Locate the DIMM connectors.

3.If the retaining clips are not already open, open them.

30 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

4.Install the DIMM straight down into the connector until the retaining clips close. Make sure the notches in the DIMM align with the tabs on the connector.

Notches

PCI extender card removal

1.Remove the cover (see “Removing the cover” on page 15).

2.Remove the machine chassis foot that is in front of the extender card.

3.Remove the 2 screws that hold the PCI extender card in place.

4.Pull the card down (not out) firmly on both sides until it detaches from the system board.

Replacing a system board

Important:

Before replacing a system board, back up Asset information by using the “Asset EEPROM backup” on page 12.

Notes:

1.The BIOS and Vital Product Data (VPD) for the computer you are servicing must be installed on the new system board (FRU) after it is installed in the computer. To do this, you must run the Flash Update program using the Flash Update diskette. See “BIOS levels” on page 87, “Vital product data” on page 86, and “Flash (BIOS/VPD) update procedure” on page 88.

2.Always ensure the latest level of BIOS is installed on the computer. A down level BIOS may cause false errors and unnecessary replacement of the system board.

3.The processor is a separate FRU from the system board and is not included with the system board FRU.

4.If the new system board does not correct the problem, reinstall the options on the old system board, reinstall the old system board, then replace the processor.

To replace the system board, do the following:

1.Remove the cover (see “Removing the cover” on page 15).

2.Remove the video card.

3.Remove the machine chassis foot that is in front of the PCI extender card.

4.Remove the extender card (see “PCI extender card removal” on page 31).

5.Remove the 7 screws that attach the system board to the chassis.

Chapter 5. FRU Replacements 31

6. Remove the board from the chassis.

7.Remove the processor from the old system board and install it on the new system board.

8.Remove any of the following installed options on the old system board, and install them on the new system board.

v Memory modules

9.Ensure that the new system board jumper settings match the old system board jumper settings.

Replacing a processor

Make sure the processor is fully seated in its socket and that the goal post latches are engaged.

Important:

1.Make sure the fansink and air baffle (if any) are installed to prevent processor overheating.

2.If the processor is not installed correctly, the system board and the processor can be damaged.

Replacing the speaker

1. Remove the cover (see “Removing the cover” on page 15).

32 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

2.The speaker is secured by one tab on either side and two at the bottom. Firmly push the speaker up from the bottom until it comes out from the tabs.

Power supply

If the power-on indicator is not on, the power supply fan is not running, or the computer will not power-off, use the following procedures.

Check/Verify

FRU/Action





Check the following for proper installation.

Reseat

v

Power Cord



v

On/Off Switch connector



v

On/Off Switch Power Supply connector



v

System Board Power Supply connectors



v

Microprocessor(s) connection



Check the power-on switch for continuity.

Power Cord





Check the power-on switch for continuity.

Power-on Switch







20-pin main power supply connection

See “A40/A40P/A40i system board layout” on page 29 for connector locations.

Attention:

These voltages must be checked with the power supply cables connected to the system board

Chapter 5. FRU Replacements 33



















































Pin

Signal

Function









1



3.3 V

+3.3 V dc









2



3.3 V

+3.3 V dc









3



COM

Ground









4



5 V

+5 V dc









5



COM

Ground









6



5 V

+5 V dc









7



COM

Ground









8



POK

Power Good









9



5VSB

Standby Voltage







10

12 V

+12 V dc







11

3.3 V

+3.3 V dc







12

-12 V

-12 V dc







13

COM

Ground







14

PS-ON

DC Remote Enable







15

COM

Ground







16

COM

Ground







17

COM

Ground







18

No voltage

Not used







19

5 V

+5 V dc







20

5 V

+5 V dc











If the voltages are not correct, and the power cord is good, replace the power supply.

Power supply removal

1.Remove the power cable.

2.Remove the cover (see “Removing the cover” on page 15).

3.Remove the four screws that secure the power supply to the back of the chassis.

34 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

4.Remove the power supply.

Chapter 5. FRU Replacements 35

36 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Chapter 6. Symptom-to-FRU Index

SIMM/DIMM/RIMM memory errors. . .

.

.

. 37

No-beep symptoms . . . . .

.

. . . . .

. 58

Hard disk drive boot error . . . . . .

.

.

.

38

POST error codes . . . . .

.

. . . . .

.

59

Diagnostic error codes . . . . . . . .

.

.

.

39

Miscellaneous error messages .

.

. . . . .

.

73

Beep symptoms . . . . . . . . . .

.

.

.

57

Undetermined problems . . .

.

. . . . .

.

75

The Symptom-to-FRU index lists error symptoms and possible causes. The most likely cause is listed first. Always begin with Chapter 1, “General Checkout,” on page 1. This index can also be used to help you decide which FRUs to have available when servicing a computer. If you are unable to correct the problem using this index, go to “Undetermined problems” on page 75.

Notes:

vIf you have both an error message and an incorrect audio response, diagnose the error message first.

vIf you cannot run the diagnostic tests or you get a diagnostic error code when running a test, but did receive a POST error message, diagnose the POST error message first.

vIf you did not receive any error message, look for a description of your error symptoms in the first part of this index.

vCheck all power supply voltages before you replace the system board (see “Power supply” on page 33).

vCheck the hard disk drive jumper settings before you replace a hard disk drive (see “Hard disk drive jumper settings” on page 21).

Important:

Some errors are indicated with a series of beep codes (see “Beep symptoms” on page 57).

Type 2271/6840/6841 computers default to come up quiet (no beep and no memory count and checkpoint code display) when no errors are detected by POST. To enable beep and memory count and checkpoint code display when a successful POST occurs, do the following:

1.Select Start Options in the Configuration/Setup Utility program (see “Setup Utility program” on page 7).

2.Set Power-On Self-Test to Enhanced.

The processor is a separate FRU from the system board; the processor is not included with the system board FRU.

SIMM/DIMM/RIMM memory errors

The following SIMM/DIMM/RIMM error messages are issued by the diagnostic programs.



Error

FRU/Action









2xx-1y

Replace the SIMM in the socket identified by



A memory error was detected in SIMM

the last digit of the error code.







socket Y.

Re-run the test.





If the same error code occurs again, replace





the system board.







© Copyright IBM Corp. 2000

37

Error

FRU/Action





2xx-2y

Replace the DIMM/RIMM in the socket

A memory error was detected in

identified by the last digit of the error code.



DIMM/RIMM socket Y

Re-run the test.



If the same error code occurs again, replace



the system board or where memory is on



the processor card, replace the processor



card.





Corrupt BIOS

Reflash the BIOS.

Information in BIOS is not as expected.

Perform boot block recovery.

Not able to find expected DMI information

Replace the system board.

from BIOS.



Memory controller chipset vendor ID does



not match expected value.







Test aborted by user

Restart test.





Note: Y is the SIMM/DIMM/RIMM socket number. Use the System Board Layout section in the latest Hardware Maintenance Manual (HMM) to reference the memory sockets.

Hard disk drive boot error

A hard disk drive boot error (error codes 1962 and I999030X) can have the following causes.

Error

FRU/Action





The start-up drive is not in the boot

Check the configuration and ensure the

sequence in configuration.

start-up drive is in the boot sequence.





No operating system installed on the boot

Install an operating system on the boot

drive.

drive.





The boot sector on the start-up drive is

The drive must be formatted, do the

corrupted.

following:



1.

Attempt to access and recover (back-up)





the failing hard disk drive.



2.

Using the operating systems programs,





format the hard disk drive.



3.

Go to “Preparing the hard disk drive for





use” on page 13.





The drive is defective.

Replace the hard disk drive.







38 Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer

Diagnostic error codes

Refer to the following diagnostic error codes when using the diagnostic tests. See Diagnosticson page 7 for the specific type for information about the diagnostic programs.

In the following index, X can represent any number.

Diagnostic Error Code

FRU/Action







000-000-XXX

1.

No action

BIOS Test Passed











000-002-XXX

1.

Flash the system

BIOS Timeout

2.

System board









000-024-XXX

1.

Flash the system

BIOS Addressing test failure

2.

System board









000-025-XXX

1.

Flash the system

BIOS Checksum Value error

2.

Boot block





3.

System board







000-026-XXX

1.

Flash the system

FLASH data error

2.

Boot block





3.

System board







000-027-XXX

1.

Run Setup

BIOS Configuration/Setup error

2.

Flash the system





3.

Boot block



4.

System board







000-034-XXX

1.

Reboot the system

BIOS Buffer Allocation failure

2.

Flash the system





3.

Run memory test



4.

System board







000-035-XXX

1.

Flash the system

BIOS Reset Condition detected

2.

System board









000-036-XXX

1.

Flash the system

BIOS Register error

2.

Boot block





3.

System board







000-038-XXX

1.

Flash the system

BIOS Extension failure

2.

Adapter card





3.

System board







000-039-XXX

1.

Flash the system

BIOS DMI data error

2.

System board









000-195-XXX

1.

Information

BIOS Test aborted by user

2.

Re-start the test, if necessary









000-196-XXX

1.

Press F3 to review the log file

BIOS test halt, error threshold exceeded

2.

Re-start the test to reset the log file









Chapter 6. Symptom-to-FRU Index 39

+ 103 hidden pages
