Operating Instructions
Color Monitor
English
US
Edition 1
It is possible that this publi cation may contain reference to, or information about, IBM products (machines and programs), programmi ng, or services that are not announced in your country.
Requests for copies of this publica tio n and for tech ni cal in form a tio n abo ut IBM prod u cts shou ld be m ade to yo ur IBM Au tho riz ed Dealer or IBM Retailer.
No part of this publication may be reproduced or distributed in any form or by any means without prior permission in writing from the International Business Machines Corporation.
References in this publicatio n to IBM products, p rograms, or servic es do not imply that IBM intends to m ake these availa ble in all co untrie s in which IBM operates. Any reference to an IBM product, program or service is not intended to state or imply that only IBM’s product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any of IBM’s intellectual property rights or other legally protectable rights may be used instead of the IBM product, program, or service. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly de signated by IBM, are the user’s responsibility.
IBM may have patents or pending patent applications covering subject matter in this document . The furnishing of this document does not give you any license to these patents.
Trademarks
The following terms, used in this publication, are trademarks or service marks of the IBM Corporation in the United States or other countries:
IBM HelpCenter
•
E
NERGY STAR® is a U.S. registered mark.
• Trinitron
®
is a registered trademark of Sony Corporation.
• DDC™ is a trademark of the Video Electronics Standard Association.
• VESA is a trademark of Video Electronics Standard Association.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Furthermore, “™” and “®” are no t mentioned in each case in this manual.
© Copyright International Business Machines Corporation 2001. All rights reserved.
International Business Machines Corporation New Orchard Road, Armonk, NY 10504
Note to U.S. Government Users--Documentation related to restricted rights--Use, duplication, or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract with IBM Corp.
1
Table of Contents
US
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Step 1: Connect your monitor to your computer . . . . . . . . . . . . . . . 4
Step 2: Connect the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 3: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . . 5
Selecting the input signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . . .6
Navigating the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the brightness and contrast (CONTRAST/BRIGHT) . . . . 8
Adjusting the centering of the picture (SIZE/CENTER) . . . . . . . . . . 9
Adjusting the size of the picture (SIZE/CENTER) . . . . . . . . . . . . . . 9
Automatically sizing and centering the picture (AUTO) . . . . . . . . . . 9
Adjusting the shape of the picture (GEOMETRY) . . . . . . . . . . . . . 10
Adjusting the convergence (CONVERGENCE) . . . . . . . . . . . . . . . 10
Adjusting the picture quality (SCREEN). . . . . . . . . . . . . . . . . . . . . 11
Adjusting the color of the picture (COLOR) . . . . . . . . . . . . . . . . . . 12
Additional settings (OPTION). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Resetting the adjustments (RESET) . . . . . . . . . . . . . . . . . . . . . . . 14
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Preset and user modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power saving function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
If thin lines appear on your screen (damper wires) . . . . . . . . . . . . 15
On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Trouble symptoms and remedies. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2
US
Precautions
Installation
Do not install the monitor in the following places:
• on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
• on an unstable surface
• near equipment which generates magnetism, such as a
transformer or high voltage power lines
• near or on a magnetically charged metal surface.
• in a small space around the top, bottom and sides of the monitor
that may block the ventilation holes.
Maintenance
• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Clean the screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen’s coating.
Transportation
When you transport this monitor for repair or shipment, use the original carton and packing materials.
Use of the Tilt-Swivel
This monitor can be adjusted within the angles shown below. To find the center of the monitor’s turning radius, align the center of the monitor’s screen with the centering mark on the stand. Hold the monitor at the bottom with both hands when you turn it horizontally or vertically. Be careful not to pinch your fingers at the back of the monitor when you tilt the monitor up vertically.
Note
Do not remove the tilt-swivel base from the monitor.
Warning on power connection
• Use an appropriate power cord for your local power supply.
• Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the CRT display surface to discharge.
• After the power has been turned on, the CRT is demagnetized (degaussed) for a few seconds. This generates a strong magnetic field around the metal frame, which may affect the data stored on magnetic tapes and disks near the bezel. Place magnetic recording equipment, tapes, and disks away from this monitor.
The equipment should be installed near an easily accessible electrical outlet.
90°
5°
90°
15°
Centering mark
Example of plug types:
for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only
3
US
Identifying parts and controls
See the pages in parentheses for further details.
1 (input) switch (page 6)
This switch selects 1 (video input connector 1: 1 ) or 2 (video input connector 2: 2 ).
2 6m(contrast/down) and M (brightness/up)
buttons (pages 6 – 14)
These buttons are used to display the CONTRAST/BRIGHT menu and to highlight the desired menu item.
3 button (pages 6 – 14)
This button is used to display the menu and to select the menu item and to activated the adjustment.
4 </, buttons
(pages 6 – 14)
These buttons are used to make the adjustment.
5 ! (power) button and indicator (pages 5, 15, 17, 19)
This button turns the monitor on and off. The power indicator lights up in green when the monitor is turned on, and lights up in orange when the monitor is in power saving mode.
6 AC input connector (page 5)
This connector provides AC power to the monitor.
7 Video input connector 1 (HD15) (1 ) (page 4)
Inputs RGB video signals (0.700 Vp-p, positive) and sync signals.
* Display Data Channel (DDC) Standard of VESA
AC IN
Front
Rear
5 4 3 2
1
678910
1112131415
(continued)
Pin No. Signal
1Red 2Green
(Sync on
Green) 3Blue 4 ID (Ground) 5 DDC Ground* 6 Red Ground 7 Green Ground
Pin No. Signal
8 Blue Ground 9 DDC + 5V* 10 Ground 11 ID (Ground) 12 Bi-Directional
Data (SDA)* 13 H. Sync 14 V. Sync 15 Data Clock
(SCL)*
4
US
8 Video input connector 2 (DVI) (2 ) (page 4)
Inputs RGB video and sync signals (0.700 Vp-p, positive) through a DVI-A connector.
* Display Data Channel (DDC) Standard of VESA
Setup
This monitor works with platforms running at horizontal frequencies between 30 and 130 kHz.
Step 1:Connect your monitor to
your computer
Turn off the monitor and computer before connecting. Connect the appropriate end of the video signal cable to the video output of your computer. Connect the other end of the video signal cable to the appropriate input of the monitor. If you attach the video signal cable to the video input connector 1 on the back of the monitor, set the (input) switch on the front of the monitor to 1.
Notes
• Do not touch the pins of the video signal cable connector as this might bend the pins.
• When connecting the video signal cable, check the alignment of the video input connector. Do not force the video input connector in the wrong way or the pins might bend.
AC IN
Rear
87654321
C2 C1
C5
C4 C3
16 15 14 13 12 11 10 9
24 23 22 21 20 19 18 17
Pin No. Signal C1 Red C2 Green C3 Blue C4 H. Sync C5 Ground (R/G/B) 1 — 2 — 3 — 4 — 5 — 6Data
Clock(SCL)*
7 Bi-Directional
Data (SDA)* 8 V.Sync 9 —
Pin No. Signal 10 — 11 — 12 — 13 — 14 DDC + 5V* 15 Ground 16 Hot Plug Detect 17 — 18 — 19 — 20 — 21 — 22 — 23 — 24 —
AC IN
To a computer with a DVI video output
forward side
forward side
backward side
backward side
To a computer with an HD15 video output
(continued)
5
US
Step 2:Connect the power cord
With the monitor and computer turned off, first connect the proper power cord for your local supply to the monitor, then connect it to a properly grounded power outlet.
Step 3:Turn on the monitor and
computer
First turn on the monitor, then turn on the computer.
The installation of your monitor is complete. If necessary, use the monitor’s controls to adjust the picture.
If no picture appears on your screen
• Check that the monitor is correctly connected to the computer.
• If NO SIGNAL appears on the screen, try changing the input
signal (page 6), and confirm that your computer’s graphics board is completely seated in the correct bus slot.
• If you are replacing an old monitor with this model and OUT OF SCAN RANGE appears on the screen, reconnect the old monitor. Then adjust the computer’s graphics board so that the horizontal frequency is between 30 – 130 kHz and the vertical frequency is between 48 – 170 Hz.
For more information about the on-screen messages, see “Trouble symptoms and remedies” on page 17.
Workplace Preparation
Positioning the Monitor
Choose a suitable place to position the monitor where it is not near fluorescent desk lighting or any equipment that produces magnetic fields that could cause interference. Ensure that the furniture or equipment can support the weight of the monitor. Allow at least 2 inches (50mm) ventilation space around the monitor.
Height
The monitor should be positioned so that the top of the screen is slightly below your eye level when you sit at your workstation.
Orientation
Choose a position that gives the least reflection from lights and windows, usually at a right angle to any windows. The monitor should be positioned directly in front of you so that you do not have to twist your body. Tilt the monitor to a comfortable viewing angle.
Working Practices
Rest
Take regular breaks. Vary your posture, and stand up and stretch occasionally as prolonged use of computer workstations can be tiring.
Back
You should sit back in the chair and use the backrest.
Hands
Use a light touch on the keyboard, keeping your hands and fingers relaxed. Allow a space in front of the keyboard to rest your wrists when not typing. Consider using a wristpad.
Eyesight
Working with monitors, in common with any kind of prolonged close work, can be visually demanding. Look away from the screen periodically and have your eyesight checked regularly.
Screen settings
Set the screen brightness and contrast to a comfortable level. You may have to adjust this as the lighting changes during the day. Many application programs let you select color combinations which can help you to view in comfort.
to AC input
to a power outlet
power cord
6
US
Selecting the input signal
You can connect two computers to this monitor using the video input connectors. To select one of the two computers, use the
(input) switch.
Slide the (input) switch.
The selected video input connector appears on the screen for 3 seconds. “INPUT 1” or “INPUT 2” appears on the screen.
Note
If no signal is input to the selected video input connector, NO SIGNAL appears on the screen. After a minute, the monitor enters the power saving mode. If this happens, switch to the other video input connector.
Customizing Your Monitor
You can make numerous adjustments to your monitor using the on-screen menu.

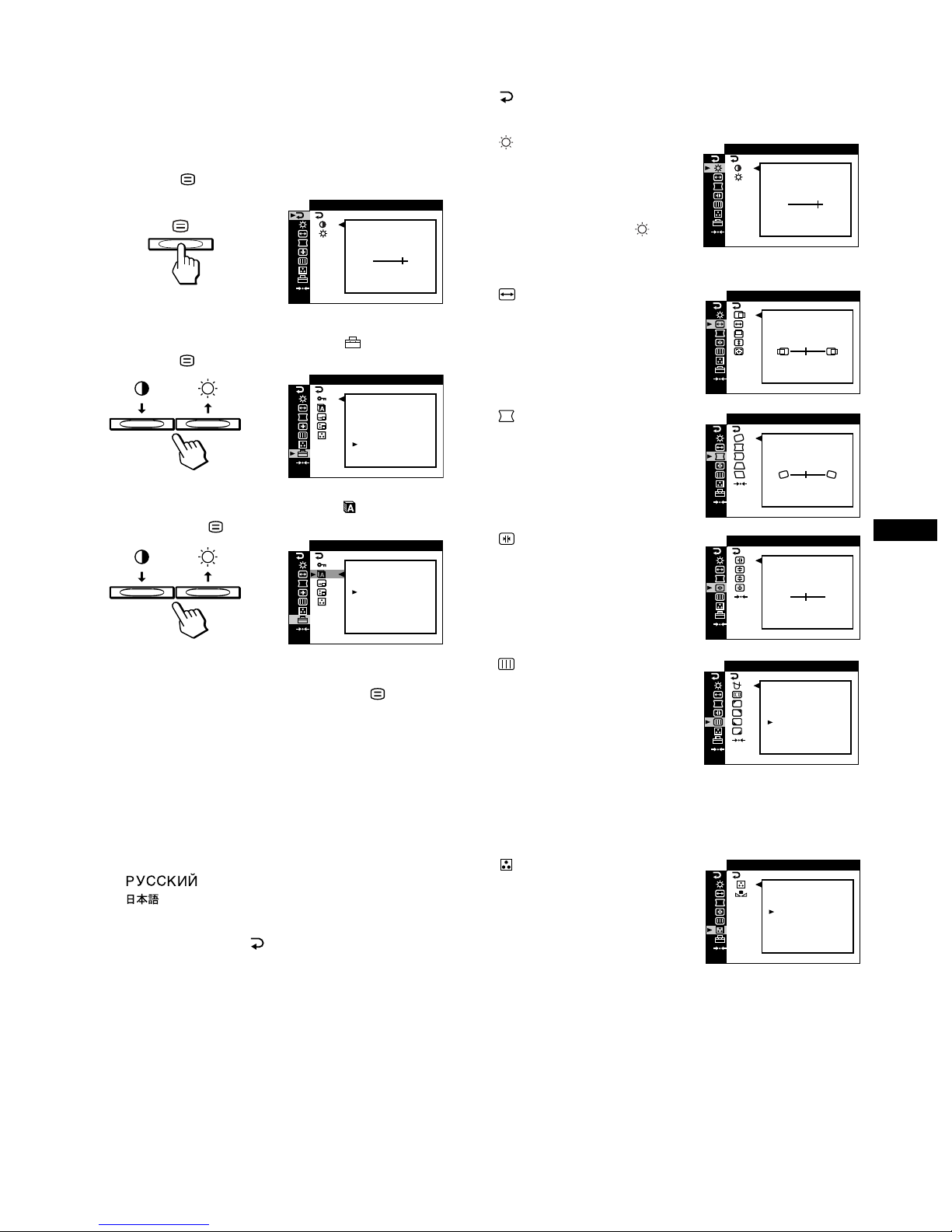

Navigating the menu
xxxx Using the , m/M, and </, buttons
1
Display the menu.
Press the button to display the menu on the screen.
2
Select the menu you want to adjust.
Highlight the desired menu by pressing the m/M buttons. Then press the button.
3
Adjust the menu.
Press the </, buttons to make the adjustment, then press the button to activate the adjustment.
If you want to select another menu:
Press the m/M buttons to select and press the button to exit the menu.
4
Close the menu.
Each time you select and press the button, the menu exits. If no buttons are pressed, the menu closes automatically after about 30 seconds.
EX
CONTRAST
IT
85
1600x1200 / 85Hz
b
b
b
(continued)
7
US
xxxx Selecting the on-screen menu language
(LANGUAGE)
English, French, German, Spanish, Italian, Dutch, Swedish, Russian, and Japanese versions of the on-screen menus are available.
1
Press the button.
2
Press the m/M buttons to highlight OPTION and press the button.
3
Press the m/M buttons to highlight (LANGUAGE) and press the button.
4
Press the m/M buttons until the desired language appears on the screen. Then press the button to select the language.
Each time you press the m/M buttons, the languages that can be selected appear cyclically.
• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
• NEDERLANDS: Dutch
• SVENSKA: Swedish
• : Russian
• : Japanese
To close the menu
Press the m/M buttons to select . If no buttons are pressed, the menu closes automatically after about 30 seconds.
xxxx Menu items
b
EX
CONTRAST
IT
85
1600x1200 / 85Hz
OPT ONI
CONTROL LOCK
OFF
ON
1600x1200 / 85Hz
b
OPT ONI
LANGUAGE
FRANÇASI DEUTSCH
1/3
ENGL SHI
1600x1200 / 85Hz
b
EXIT
Close the menu.
CONTRAST/BRIGHT
(page 8)
Adjusts the contrast and brightness. You can also call up this menu directly by pressing the 6 m or M buttons while there is no menu on the screen.
SIZE/CENTER (page 9)
Adjusts the size or centering.
GEOMETRY (page 10)
Adjusts the rotation and shape of the picture.
CONVERGENCE (page
10)
Adjusts the picture’s horizontal and vertical convergence.
SCREEN (page 11)
Adjusts the picture’s quality. The options include:
• degaussing the screen (DEGAUSS)
• adjusting the moire cancellation (CANCEL MOIRE)
• adjusting the landing (LANDING)
COLOR (page 12)
Adjusts the picture’s color temperature to match the monitor’s colors to a printed picture’s colors.
CONTRAST
CONTRAST
85
/IBR GHT
1600x1200 / 85Hz
SZE45/I CENTER
1600x1200 / 85Hz
GEOMETRY
45
1600x1200 / 85Hz
CONVERGENCE
T B
45
1600x1200 / 85Hz
SCREEN
DEGAUSS
CANCEL
OK
1600x1200 / 85Hz
COLOR:PRESET
5000K
6500K
9300K
1600x1200 / 85Hz
(continued)
8
US
xxxx Displaying the current input signal
When you press the button to display the menu, information on the current input signal is displayed. If the current input signal matches one of the monitor’s factory preset modes, the resolution and vertical frequencies are displayed. (See page 20 for a list of factory preset modes.) If the current input signal does not match one of the factory presets, the horizontal and vertical frequencies are displayed.
Adjusting the brightness and contrast (CONTRAST/BRIGHT)
These settings are stored in memory for the signals from the currently selected video input connector.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight CONTRAST/ BRIGHT. Then press the button.
The CONTRAST/BRIGHT menu appears on the screen.
3
Press the m/M buttons to highlight 6 (CONTRAST) or (BRIGHTNESS). Then press the button.
4
Press the </, buttons to adjust the contrast (6) or brightness ( ).
If you are using the sRGB mode
If you selected the sRGB mode in the COLOR MODE ( ) of the OPTION ( ) menu, the following CONTRAST/BRIGHT menu appears on the screen.
You cannot adjust the contrast (6) or brightness ( ) on this screen. If you want to adjust them, select a mode other than sRGB in the COLOR MODE ( ) of the OPTION ( ) menu.
For more information about using the sRGB mode, see “Adjusting the color of the picture (COLOR)” on page 12.
OPTION (page 14)
Adjusts the monitor’s options. The options include:
• locking the controls
• changing the on-screen menu’s language
• changing the on-screen
menu position
• changing the picture’s color temperature setting mode
0 RESET (page 14)
Resets the adjustments.
OPT ONI
CONTROL LOCK
OFF
ON
1600x1200 / 85Hz
RESET
CURRENT MODE
CANCEL
OK
1 2
1600x1200 / 85Hz
CONTRAST
85
1600x1200 / 85Hz
EX I T
the vertical frequencies of the current
input signal the resolution or horizontal frequencies of the current input signal
s
:/
RGB
1600x1200 / 85Hz
CONTRAST / IBR GHT
9
US
Adjusting the centering of the picture (SIZE/CENTER)
This setting is stored in memory for the current input signal.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight SIZE/CENTER and press the button.
The SIZE/CENTER menu appears on the screen.
3
Press the m/M buttons to select for horizontal adjustment, or for vertical adjustment. Then press the button.
4
Press the </, buttons to adjust the centering.
Adjusting the size of the picture (SIZE/CENTER)
This setting is stored in memory for the current input signal.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight SIZE/CENTER and press the button.
The SIZE/CENTER menu appears on the screen.
3
Press the m/M buttons to select for horizontal adjustment, or for vertical adjustment. Then press the button.
4
Press the </, buttons to adjust the size.
Automatically sizing and centering the picture (AUTO)
You can easily adjust the picture to fill the screen by using the SIZE/CENTER menu.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight SIZE/CENTER and press the button.
The SIZE/CENTER menu appears on the screen.
3
Press the m/M buttons to select (AUTO). Then press the button.
The adjustment window appears on the screen.
4
Press the m/M buttons to select OK.
The picture automatically fills the screen.
Notes
• If you do not want to use the AUTO function, select CANCEL in step 4.
• This function is intended to be used when the computer is displaying
what should be a full-screen picture. It may not work properly if the background color is dark or if the input picture does not fill the screen to the edges.
• The displayed image moves for a few seconds while this function is performed. This is not a malfunction.
10
US
Adjusting the shape of the picture (GEOMETRY)
The GEOMETRY settings allow you to adjust the rotation and shape of the picture. The (rotation) setting is stored in memory for all input signals. All other settings are stored in memory for the current input signal.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight GEOMETRY and press the button.
The GEOMETRY menu appears on the screen.
3
Press the m/M buttons to select the desired adjustment item. Then press the button.
The adjustment bar appears on the screen.
4
Press the </, buttons to make the adjustment.
For more information about using the RESET mode, see “Resetting the adjustments (RESET)” on page 14.
Adjusting the convergence (CONVERGENCE)
The CONVERGENCE settings allow you to adjust the quality of the picture by controlling the convergence. The convergence refers to the alignment of the red, green, and blue color signals. If you see red or blue shadows around letters or lines, adjust the convergence. These settings are stored in memory for all input signals.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight
CONVERGENCE and press the button.
The CONVERGENCE menu appears on the screen.
3
Press the m/M buttons to select the desired adjustment item. Then press the button.
The adjustment bar appears on the screen.
4
Press the </, buttons to make the adjustment.
For more information about using the RESET mode, see “Resetting the adjustments (RESET)” on page 14.
Select To
rotate the picture
expand or contract the picture sides
shift the picture sides to the left or right
adjust the picture width at the top of the screen
shift the picture to the left or right at the top of the screen
0
RESET
reset all the GEOMETRY adjustments to the factory setting levels. Select OK.
Select To
horizontally shift red or blue shadows
vertically shift red or blue shadows
T
TOP
vertically shift red or blue shadows at the top of the screen
B
BOTTOM
vertically shift red or blue shadows at the bottom of the screen
0
RESET
reset all the CONVERGENCE adjustments to the factory setting levels. Select OK.
11
US
Adjusting the picture quality (SCREEN)
The SCREEN settings allow you to degauss (demagnetize) the monitor manually and adjust the picture quality by controlling the moire and landing.
• If the color is not uniform or the picture is fuzzy, degauss the monitor (DEGAUSS).
• If elliptical or wavy patterns appear on the screen, cancel the moire (CANCEL MOIRE).
• If the color is irregular at the corners of the screen, adjust the landing (LANDING).
The monitor is automatically demagnetized (degaussed) when the power is turned on. The screen is degaussed for a few seconds. If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result.
The CANCEL MOIRE setting is stored in memory for the current input signal. All other settings are stored in memory for all input signals.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight SCREEN and press the button.
The SCREEN menu appears on the screen.
3
Press the m/M buttons to select the desired adjustment item. Then press the button.
The adjustment bar appears on the screen.
4
Press the m/M or </, buttons to make the adjustment.
* Moire is a type of natural interference which produces soft, wavy lines
on your screen. It may appear due to interference between the pattern of the picture on the screen and the phosphor pitch pattern of the monitor.
Note
The picture may become fuzzy when the CANCEL MOIRE function is activated.
Select To
DEGAUSS
degauss the monitor. To degauss the monitor manually, select OK.
CANCEL
MOIRE
adjust the degree of moire cancellation until the moire* is at a minimum
LANDING
reduce any color irregularities in the screen’s top left corner to a minimum
LANDING
reduce any color irregularities in the screen’s top right corner to a minimum
LANDING
reduce any color irregularities in the screen’s bottom left corner to a minimum
LANDING
reduce any color irregularities in the screen’s bottom right corner to a minimum
0
RESET
reset all the SCREEN adjustments to the factory setting levels. Select OK.
Example of moire
12
US
Adjusting the color of the picture (COLOR)
The COLOR settings allow you to adjust the picture’s color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor’s color to a printed picture’s colors. You can set the color temperature for each of the video input connectors.
xxxx Select the COLOR mode
There are 4 types of adjustment modes, PRESET, VARIABLE, EXPERT, and sRGB. The default setting is PRESET which can be adjusted to 9300K, 6500K, or 5000K. If you want to set another mode (other than PRESET), select the desired mode in the OPTION ( ) menu. Then adjust the
selected mode in each COLOR ( ) menu.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight OPTION and press the button.
The OPTION menu appears on the screen.
3
Press the m/M buttons to highlight (COLOR MODE). Then press the button.
4
Press the m/M buttons to select the COLOR mode.
5
Press the button three times to close the menu.
xxxx PRESET mode
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight COLOR and press the button.
The COLOR menu appears on the screen.
3
Press the m/M buttons to highlight . Then press the button.
4
Press the m/M buttons to select the desired temperature.
The preset color temperatures are 9300K, 6500K, and 5000K. Since the default setting is 9300K, the whites will change from a bluish hue to a reddish hue as the temperature is lowered to 6500K and 5000K.
xxxx VARIABLE mode
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight
COLOR and press the button.
The COLOR menu appears on the screen.
3
Press the m/M buttons to highlight . Then press the button.
4
Press the </, buttons to fine tune the color temperature.
The new color temperature setting you fine tuned between 5000K to 11000K is stored in memory.
OPT ONI
COLOR MODE
VARIABLE EXPERT s RGB
PRESET
1600x1200 / 85Hz
5000K
6500K
9300K
:
PRESETCOLOR
1600x1200 / 85Hz
COLOR
5000K
:
VARIABLE
1600x1200 / 85Hz
(continued)
13
US
xxxx EXPERT mode
You can make additional adjustments to the color in greater detail by selecting the EXPERT mode.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight COLOR and press the button.
3
Press the m/M buttons to select the R (red), G (green), or B (blue) and press the button. Then press the </, buttons to adjust the input signal for both GAIN (6) and BIAS ( ).
If you want to reset the EXPERT adjustments, select 0 (RESET) in COLOR menu. Then select OK in the RESET window.
xxxx sRGB mode
The sRGB color setting is an industry standard color space protocol designed to correlate the displayed and printed colors of sRGB compliant computer products. To adjust the colors to the sRGB profile, simply select the sRGB mode in the COLOR
MODE ( ) menu of the OPTION ( ) menu. However, in order to display the sRGB colors correctly (γ = 2.2,
6500K), you must set your computer to the sRGB profile. If you select this mode, you cannot operate the CONTRAST/BRIGHT menu adjustments.
Note
Your computer and other connected products (such as a printer), must be sRGB compliant.
Restoring the color from the PRESET, VARIABLE, or sRGB modes (COLOR RETURN)
The colors of most display monitors tend to gradually change brilliance over several years of service. The COLOR RETURN feature found in the PRESET, VARIABLE, and sRGB menus allows you to restore the color to the original factory quality levels. The explanation below explains how to restore the monitor’s color from the PRESET mode for example.
First, select the PRESET, VARIABLE, or sRGB mode in the OPTION menu (page 12).
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight COLOR and press the button.
The COLOR menu appears on the screen.
3
Press the m/M buttons to highlight (COLOR RETURN). Then press the button.
4
Press the m/M buttons to select OK.
The picture disappears while the color is being restored (for a few seconds). After the color is restored, the picture reappears on the screen.
Notes
• Before using this feature, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. If the monitor goes into power saving mode, you must return the monitor to normal operation mode and wait for 30 minutes for the monitor to be ready. You may need to adjust your computer’s power saving settings to keep the monitor in normal operation mode for the full 30 minutes. If the monitor is not ready, the following message will appear.
• The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.
45
COLOR
R G B R G B
1600x1200 / 85Hz
:
EXPERT
COLOR
s
:/
RGB
1600x1200 / 85Hz
:
sRGB
COLOR RETURN
OK CANCEL
COLOR:PRESET
1600x1200 / 85Hz
COLOR RETURN
COLOR:PRESET
1600x1200 / 85Hz
AVA AFTER WARM UP
LABLEI
14
US
Additional settings (OPTION)
You can lock the controls, change the on-screen language, change the menu position, and set the COLOR mode.
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight
OPTION and press the button.
The OPTION menu appears on the screen.
3
Press the m/M buttons to select the desired adjustment item.
Adjust the selected item according to the following instructions.
xxxx Locking the controls (CONTROL LOCK)
You can protect the adjustment data by locking the controls.
Press the m/M buttons to highlight (CONTROL LOCK) and press the button. Then press the m/M buttons to select ON and press the button.
Only the ! (power) button, button, (input) switch, , and (CONTROL LOCK) of the OPTION menu will operate. If any other items are selected, the mark appears on the screen.
To cancel the control lock
Repeat the procedure above and set (CONTROL LOCK) to OFF.
xxxx Changing the on-screen language
(LANGUAGE)
See page 7.
xxxx Changing the menu’s position
(OSD POSITION)
Change the menu’s position if it is blocking an image on the screen.
Press the m/M buttons to select (OSD POSITION) for horizontal adjustment, or (OSD POSITION) for vertical adjustment and press the button. Then press the </, buttons to shift the on-screen menu. Then press the button.
xxxx Setting the COLOR mode
See page 12.
Resetting the adjustments (RESET)
This monitor has the following 2 reset methods.
xxxx Resetting all the adjustment data for the
current input signal
1
Press the button.
The menu appears on the screen.
2
Press the m/M buttons to highlight 0 RESET and press the button.
3
Press the m/M buttons to select 01 (CURRENT MODE) and press the button.
4
Press the m/M buttons to select OK.
Note that the following items are not reset by this method:
• on-screen menu language (page 7)
• color mode setting in the OPTION menu (PRESET,
VARIABLE, EXPERT, sRGB) (page 12)
• color temperature setting in the PRESET mode (9300K, 6500K, 5000K) (page 12)
• on-screen menu position (page 14)
xxxx Resetting all of the adjustment data for all
input signals
Select 02 (ALL MODES) in step 3 above.
Note
The RESET function does not function when (CONTROL LOCK) is set to ON.
RESET
CURRENT MODE
CANCEL
OK
1 2
1600x1200 / 85Hz
15
US
Technical Features
Preset and user modes
When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor’s memory to provide a high quality picture at the center of the screen. (See page 20 for a list of the factory preset modes.) For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor’s frequency range (horizontal: 30 – 130 kHz, vertical: 48 – 170 Hz). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received.
Note for Windows users
For Windows users, check your graphics board manual or the utility program which comes with your graphics board and select the highest available refresh rate to maximize monitor performance.
Power saving function
This monitor meets the power-saving guidelines set by VESA and
E
NERGY STAR. If no signal is input to the monitor from your computer, the monitor will automatically reduce power consumption as shown below.
* When your computer enters power saving mode, the input signal is cut
and NO SIGNAL appears on the screen before the monitor enters active off mode. After a minute, the monitor enters power saving mode.
**“Deep sleep” is power saving mode defined by the Environmental
Protection Agency.
Troubleshooting
Before contacting technical support, refer to this section.
If thin lines appear on your screen (damper wires)
The visible lines on your screen especially when the background screen color is light (usually white), are normal for the Trinitron monitor. This is not a malfunction. These are shadows from the damper wires used to stabilize the aperture grille. The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.
On-screen messages
If there is something wrong with the input signal, one of the following messages appears on the screen.
If NO SIGNAL appears on section 1
This indicates that no signal is input from the selected video input connector.
Power mode Power consumption ! (power)
indicator
normal operation
≤ 135 W green
active off* (deep sleep)**
≤ 3 W orange
power off Approx. 0 W off
2 The selected video input connector
This message shows the currently selected video input connector (INPUT 1 or INPUT 2).
3 The remedies
The following messages appear on the screen.
• If ACTIVATE BY COMPUTER appears on the screen, try pressing any key on the computer or moving the mouse, and confirm that your computer’s graphics board is completely seated in the correct bus slot.
• If CHECK SIGNAL CABLE appears on the screen, check that the monitor is correctly connected to the computer (page 4).
• If CHECK INPUT SELECTOR appears on the screen, try changing the input signal (page 6).
Damper wires
IIONNFORMAT
MON I I I NGS WORKTOR
I
I VATE
2:NOBYS
COMPUTER
W
R
G
B
GNALI
S GNAL CABLEI
NPUT
I NPUT SELECTOR
ACT CHECK CHECK
(continued)
16
US
If OUT OF SCAN RANGE appears on line 1
This indicates that the input signal is not supported by the monitor’s specifications.
For more information, see “Trouble symptoms and remedies” on page 17.
Displaying this monitor’s name, serial number, and date of manufacture
While the monitor is receiving a video signal, press and hold the
button for more than 5 seconds to display this monitor’s
information box.
If the problem persists, call your authorized technical support and give the following information.
• Model name: IBM P275
• Serial number
• Name and specifications of your computer and graphics board.
2 The selected video input connector and the
frequencies of the current input signal
This message shows the currently selected video input connector (INPUT 1 or INPUT 2). If the monitor recognizes the frequencies of the current input signal, the horizontal and vertical frequencies are also displayed.
3 The remedies
CHANGE SIGNAL TIMING appears on the screen. If you are replacing an old monitor with this monitor, reconnect the old monitor. Then adjust the computer’s graphics board so that the horizontal frequency is between 30 – 130 kHz, and the vertical frequency is between 48 - 170 Hz.
W
R
G
B
IIONNFORMAT
MON I I I NGS WORKTOR
I 2 :200.0kHz/ 85Hz
RANGE
S GNAL TIIINGM
NPUT
OUT OF SCAN
CHANGE
W
R G B
SER NO : 12-34567
MODEL : IBM P275
MANUFACTURED
: 2001-05
INFORMATION
Example
b
17
US
Trouble symptoms and remedies
If the problem is caused by the connected computer or other equipment, please refer to the connected equipment’s instruction manual. Use the self-diagnosis function (page 19) if the following recommendations do not resolve the problem.
Symptom Check these items
No picture
If the ! (power) indicator is not lit • Check that the power cord is properly connected.
• Check that the ! (power) button is in the “on” position.
If the NO SIGNAL message appears on the screen, or if the ! (power) indicator is orange
• Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets (page 4).
• Check that the (input) switch setting is correct (page 6).
• Check that the video input connector’s pins are not bent or pushed in.
xProblems caused by the connected computer or other equipment
• The computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.
• Check that the computer’s power is “on.”
• Check that the graphic board is completely seated in the proper bus slot.
If the OUT OF SCAN RANGE message appears on the screen
xProblems caused by the connected computer or other equipment
• Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following. Horizontal: 30 – 130 kHz Vertical: 48
–
170 Hz
If no message is displayed and the ! (power) indicator is green or flashing orange
• Use the Self-diagnosis function (page 19).
Picture flickers, bounces, oscillates, or is scrambled
• Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, fluorescent lighting, televisions, or electric fans.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Try turning the monitor 90° to the left or right.
xProblems caused by the connected computer or other equipment
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode and the frequency of the input signal are supported by this
monitor (page 20). Even if the frequency is within the proper range, some graphics boards may have a sync pulse that is too narrow for the monitor to sync correctly.
• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy • Adjust the contrast and brightness (page 8).
• Degauss the monitor* (page 11).
• Adjust the degree of moire cancellation until the moire is minimal, or set CANCEL
MOIRE to OFF (page 11).
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
(continued)
18
US
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
Picture is ghosting • Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized properly
• Set the AUTO ( ) function to OK (on) in the SIZE/CENTER menu (page 9).
• Adjust the size or centering (page 9). Note that with some input signals and/or graphics
boards the periphery of the screen is not fully utilized.
Edges of the image are curved • Adjust the geometry (page 10).
Wavy or elliptical pattern (moire) is visible
• Adjust the degree of moire cancellation until the moire is minimal (page 11).
xProblems caused by the connected computer or other equipment
• Change your desktop pattern.
Color is not uniform • Degauss the monitor* (page 11). If you place equipment that generates a magnetic field,
such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity.
• Adjust the landing (page 11).
White does not look white • Adjust the color temperature (page 12).
Letters and lines show red or blue shadows at the edges
• Adjust the convergence (page 10).
Monitor buttons do not operate ( appears on the screen)
• If the control lock is set to ON, set it to OFF (page 14).
COLOR RETURN function does not operate
• Before using this function, the monitor must be in normal operation mode (green power indicator on) for at least 30 minutes. For more information on using the COLOR
RETURN ( ) function, see page 13.
• Adjust the computer’s power saving settings to keep the monitor in normal operation mode for more than 30 minutes.
• The monitor may gradually lose its ability to perform this function due to the natural aging of the picture tube.
A hum is heard right after the power is turned on
• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for a few seconds.
Symptom Check these items
COLOR RETURN
COLOR:PRESET
1600x1200 / 85Hz
AVA AFTER WARM UP
LABLEI
19
US
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer(s), the screen will go blank and the ! (power) indicator will either light up green or flash orange. If the ! (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.
xxxx If the ! (power) indicator is green
1
Disconnect any plugs from the video input connector 1 and 2, or turn off the connected computer(s).
2
Press the ! (power) button twice to turn the monitor off and then on.
3
Press the M button for 2 seconds before the monitor enters power saving mode.
If all four color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables and check the condition of your computer(s).
If the color bars do not appear, there is a potential monitor failure. Inform your authorized technical support of the monitor’s condition.
xxxx If the ! (power) indicator is flashing orange
Press the ! (power) button twice to turn the monitor off and then on.
If the ! (power) indicator lights up green, the monitor is working properly.
If the ! (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the ! (power) indicator and inform your authorized technical support of the monitor’s condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and graphic board.
Specifications
CRT 0.24 mm aperture grille pitch
21 inches measured diagonally 90-degree deflection Trinitron
Viewable image size Approx. 403.8 × 302.2 mm (w/h)
(16 × 12 inches)
19.8" viewing image
Resolution
Maximum Horizontal: 1920 dots
Vertical: 1440 lines
Recommended Horizontal: 1600 dots
Vertical: 1200 lines
Input signal levels Video signal
Analog RGB: 0.700 Vp-p (positive), 75 Ω
SYNC signal
H/V separate or composite sync: TTL 2 kΩ, Polarity free Sync on Green: 0.3 Vp-p (negative)
Standard image area 4:3
Approx. 388 × 291 mm (w/h) (15
3
/8 × 11 1/2 inches) or 5:4 Approx. 364 × 291 mm (w/h) (14
3
/8 × 11 1/2 inches)
Deflection frequency* Horizontal: 30 to 130 kHz
Vertical: 48 to 170 Hz
AC input voltage/current 100 to 240 V, 50 – 60 Hz, 2.0 – 1.0 A Power consumption Approx. 135 W Dimensions Approx. 504.2 × 511 × 495.4 mm (w/
h/d) (19
7
/8 × 20 1/8 × 19 5/8 inches) Mass Approx. 31 kg (68 lb 5 oz) Plug and Play DDC2B/DDC2Bi, GTF (page 20)
* Recommended horizontal and vertical timing condition
• Horizontal sync width duty should be more than 4.8% of total horizontal time or 0.8 µs, whichever is larger.
• Horizontal blanking width should be more than 2.3 µsec.
• Vertical blanking width should be more than 450 µsec.
Design and specifications are subject to change without notice.
! (power) indicator
20
US
xxxx Preset mode timing table
If the input signal does not match one of the factory preset modes above, the Generalized Timing Formula feature of this monitor will automatically provide an optimal image for the screen as long as the signal is GTF compliant.
No. Resolution
(dots × lines)
Horizontal Frequency
Ver tical Frequency
Graphics Mode
1640 × 480 31.5 kHz 60 Hz VGA-G 2640 × 480 43.3 kHz 85 Hz VESA 3720 × 400 31.5 kHz 70 Hz VGA-Text 4720 × 400 37.9 kHz 85 Hz VESA 5800 × 600 37.9 kHz 60 Hz VESA 6800 × 600 46.9 kHz 75 Hz VESA 7800 × 600 53.7 kHz 85 Hz VESA 8 1024 × 768 48.4 kHz 60 Hz VESA 9 1024 × 768 56.5 kHz 70 Hz VESA 10 1024 × 768 60.0 kHz 75 Hz VESA 11 1024 × 768 68.7 kHz 85 Hz VESA 12 1152 × 864 67.5 kHz 75 Hz VESA 13 1280 × 960 60.0 kHz 60 Hz VESA 14 1280 × 960 85.9 kHz 85 Hz VESA 15 1280 × 1024 64.0 kHz 60 Hz VESA 16 1280 × 1024 80.0 kHz 75 Hz VESA 17 1280 × 1024 91.1 kHz 85 Hz VESA 18 1600 × 1200 75.0 kHz 60 Hz VESA 19 1600 × 1200 81.3 kHz 65 Hz VESA 20 1600 × 1200 87.5 kHz 70 Hz VESA 21 1600 × 1200 93.8 kHz 75 Hz VESA 22 1600 × 1200 106.3 kHz 85 Hz VESA 23 1920 × 1440 112.5 kHz 75 Hz VESA
21
US
Service Information
The following parts are for use by IBM service, or IBM authorized dealers, to support customer warranty. Parts are for service use only.
Monitor Information
Cable Information
Part No. M/T-Model Description
22P6428 6652-T3N P275 Monitor - NH (Pearl White) 22P6429 6652-U3N P275 Monitor - NH (Stealth Black) 22P6430 6652-T3S P275 Monitor - SH (Pearl White) 22P6431 6652-U3S P275 Monitor - SH (Stealth Black)
Part No. Description
61H0227 Cable HD15 to HD15 (Black) 22P4543 Cable HD15 to DVI-A (Black) 04N7529 Cable DVI-A to DVI-A (Black)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
