Expan dabl e Storage Plus
2104 Models DU3 and TU3
Operator’s Guide
SA33-3310-03
Expan dabl e Storage Plus
2104 Models DU3 and TU3
Operator’s Guide
SA33-3310-03
Fourth Edition (June 2003)
This revision supersedes SA33-3310-02. Technical changes are shown by a vertical line to the left of each change.
The following paragraph does not apply to any country where such provisions are inconsistent with local law:
THIS PUBLICATION IS PRINTED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in
certain transactions; therefore, this statement may not apply to you.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to the
information herein; these changes will be incorporated in new editions of the publication.
It is possible that this publication may contain reference to, or information about, products (machines and
programs), programming, or services that are not announced in your country. Such references or information must
not be construed to mean that such products, programming, or services will be offered in your country. Any
reference to a licensed program in this publication is not intended to state or imply that you can use only the
licensed program indicated. You can use any functionally equivalent program instead.
© Copyright International Business Machines Corporation 2000, 2003. All rights reserved.
Note to U.S. Government Users – Documentation related to restricted rights – Use, duplication, or disclosure is
subject to restrictions set forth in the GSA ADP Schedule Contract.
Contents
Communications Statements......v
Federal Communications Commission (FCC)
Statement...............v
Japanese Voluntary Control Council for Interference
(VCCI) Statement.............v
Korean Government Ministry of Communication
(MOC)Statement.............v
NewZealandComplianceStatement......v
International Electrotechnical Commission (IEC)
Statement...............v
Avis de conformitéàla réglementation d’Industrie
Canada ................vi
Industry Canada Compliance Statement .....vi
United Kingdom Telecommunications Requirements vi
EuropeanUnion(EU)Statement.......vi
Radio Protection for Germany ........vi
TaiwanClassAComplianceStatement.....vii
Safety Notices............ix
Definitions of Safety Notices .........ix
Acoustic Noise Declaration .........ix
Electrostatic Discharge (ESD) .....xi
About This Book ..........xiii
IfYouNeedMoreInformation........xiii
Trademarks..............xiii
Numbering Convention ..........xiv
Chapter 1. Using the 2104 Model DU3 or
TU3 ................1
2104 Model DU3 .............2
2104 Model TU3 .............4
Controls and Lights ............6
Disk Drive Module Lights .........7
Fan-and-Power-Supply Assembly and Fan
Assembly Lights and Switch ........9
SCSI Interface Card Lights ........12
Switch Card .............14
Identifying 2104 Disk Enclosures .......18
Identifying Disk Drive Modules .......19
Security ...............20
Ordering Cover Lock Keys ........20
Chapter 2. Adding Disk Drive Modules 23
Before Adding a Disk Drive Module ......24
To Add a Disk Drive Module ........26
Chapter 3. Exchanging FRUs .....31
Exchanging Disk Drive Modules .......32
Before Exchanging a Disk Drive Module....33
To Exchange a Disk Drive Module......34
Exchanging a Fan-and-Power-Supply Assembly . . 41
Before Exchanging a Fan-and-Power-Supply
Assembly ..............41
To Exchange a Fan-and-Power-Supply Assembly 42
Exchanging a Fan Assembly .........51
Before Exchanging a Fan Assembly .....51
To Exchange a Fan Assembly .......52
Exchanging a SCSI Interface Card Assembly . . . 58
Before Exchanging the SCSI Interface Card
Assembly ..............59
To Exchange a SCSI Interface Card Assembly . . 60
Exchanging the Switch Card Assembly .....69
Before Exchanging the Switch Card Assembly . . 69
To Exchange the Switch Card Assembly ....70
Reporting Problems ...........76
Appendix A. Operating with RISC
Systems ..............77
SCSI Adapters and Cables .........77
SCSI Service Aids ............77
Identifying a 2104 and its Disk Drive Modules . . 78
Problem Determination ..........78
Checking the SCSI Error Log ........78
Configuring a 2104 to the Using System - AIX
|
Systems Only..............78
||
Unconfiguring a 2104 from the Using System - AIX
|
Systems Only..............78
||
Configuring a 2104 in a SuSE Linux Enterprise
|
Server for pSeries Environment........78
||
Web Support Page ............78
Related Publications ...........79
Appendix B. Translated Safety Notices 81
Index ...............115
iii
iv 2104 Models DU3 and TU3 Operator’s Guide
Communications Statements
The following statements apply to this product. The statements for other products
intended for use with this product appear in their accompanying manuals.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own expense.
Properly shielded and grounded cables and connectors must be used in order to
meet FCC emission limits. Neither the provider nor the manufacturer is
responsible for any radio or television interference caused by using other than
recommended cables and connectors or by unauthorized changes or modifications
to this equipment. Unauthorized changes or modifications could void the user’s
authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Japanese Voluntary Control Council for Interference (VCCI) Statement
This product is a Class A Information Technology Equipment and conforms to the
standards set by the Voluntary Control Council for Interference by Information
Technology Equipment (VCCI). In a domestic environment, this product might
cause radio interference, in which event the user might be required to take
adequate measures.
Korean Government Ministry of Communication (MOC) Statement
Please note that this device has been approved for business purposes with regard
to electromagnetic interference. If you find that this device is not suitable for your
use, you can exchange it for one that is approved for non-business purposes.
New Zealand Compliance Statement
This is a Class A product. In a domestic environment this product might cause
radio interference, in which event the user might be required to take adequate
measures
International Electrotechnical Commission (IEC) Statement
This product has been designed and built to comply with (IEC) Standard 60950.
v
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Industry Canada Compliance Statement
This Class A digital apparatus complies with IECS-003.
United Kingdom Telecommunications Requirements
This apparatus is manufactured to the International Safety Standard EN60950 and
as such is approved in the U.K. under approval number NS/G/1234/J/100003 for
indirect connection to public telecommunications systems in the United Kingdom.
European Union (EU) Statement
This product is in conformity with the protection requirements of EU council
directive 89/336/EEC on the approximation of the laws of the Member States
relating to electromagnetic compatibility. Neither the provider nor the
manufacturer can accept responsibility for any failure to satisfy the protection
requirements resulting from a non-recommended modification of the product,
including the fitting of option cards not supplied by the manufacturer.
This product is in conformity with the EU council directive 73/23/EEC on the
approximation of the laws of the Member States relating to electrical equipment
designed for use within certain voltage limits. This conformity is based on
compliance with the following harmonized standard: EN60950.
Radio Protection for Germany
Zulassungsbescheinigung laut dem Deutschen Gesetz über die
elektromagnetische Verträglichkeit von Geräten (EMVG) vom 30. August 1995
(bzw. der EMC EG Richtlinie 89/336):
Dieses Gerät ist berechtigt in Übereinstimmung mit dem Deutschen EMVG das
EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die
Konformitätserklärung nach Paragraph 5 des EMVG ist die:
IBM Deutschland Informationssysteme GmbH, 70548 Stuttgart.
Informationen in Hinsicht EMVG Paragraph 3 Abs. (2) :
Das Gerät erfüllt die Schutzanforderungen nach EN 50082-1 und EN 55022 Klasse A.
EN 55022 Klasse A Geräte müssen mit folgendem Warnhinweis versehen werden:
″Warnung: dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im
Wohnbereich Funkstörungen verursachen; in diesem Fall kann vom Betreiber
verlangt werden, angemessene Massnahmen durchzuführen und dafür
aufzukommen.″
EN 50082-1 Hinweis:
″Wird dieses Gerät in einer industriellen Umgebung betrieben (wie in EN 50082-2
festgelegt), dann kann es dabei eventuell gestört werden. In solch einem Fall ist
der Abstand bzw. die Abschirmung zu der industriellen Störquelle zu vergrössern.″
vi 2104 Models DU3 and TU3 Operator’s Guide
Anmerkung:
Um die Einhaltung des EMVG sicherzustellen sind die Geräte, wie in den
Handbüchern angegeben, zu installieren und zu betreiben.
Taiwan Class A Compliance Statement
Communications Statements vii
viii 2104 Models DU3 and TU3 Operator’s Guide
Safety Notices
For a translation of the danger and caution notices contained in this book, see
Appendix B, “Translated Safety Notices”, on page 81.
Definitions of Safety Notices
A danger notice indicates the presence of a hazard that has the potential of causing
death or serious injury.
A danger notice appears on page 46.
A caution notice indicates the presence of a hazard that has the potential of causing
moderate or minor personal injury.
Caution notices appear on pages 43, 45, 54, 63, 65, and 72.
An attention notice indicates an action that could cause damage to a program,
device, system, or data.
Acoustic Noise Declaration
The equivalent continuous A-weighted sound pressure level at the bystander’s
position measured for a 2104 Model DU3 or TU3 does not exceed 68 dB(A). This
level has been measured under the following conditions:
v Rack-mounted unit:
– The 2104 Model DU3 had fourteen disk drive modules installed.
– The 2104 Model DU3 was installed in a 7202 Rack with the bottom of the
2104 Model DU3 system at EIA position 17.
– The remainder of the rack was filled with units to which power was not
connected.
v Deskside unit:
– The 2104 Model TU3 had fourteen disk drive modules installed.
These levels were measured using a procedure in accordance with ISO standard
DIS7779, Measurement of Airborne Noise Emitted by Computer and Business Equipment.
The equipment was installed and operated as described in Appendix C.8 of that
standard.
ix
x 2104 Models DU3 and TU3 Operator’s Guide
Electrostatic Discharge (ESD)
Attention:
When you handle field-replaceable units (FRUs) and other computer parts, take
these precautions to avoid static damage:
v Limit your movement. Movement can cause static electricity to build up
around you.
v Always touch computer parts carefully. Hold adapters and memory-modules
by their edges. Never touch any exposed circuits.
v Prevent people who are not correctly grounded from touching computer parts.
v Before you install a new part, touch the static-protective package that contains
the part against an unpainted metal part of the 2104 or using system for at
least two seconds. This action reduces static electricity in the package and in
your body.
v Remove the part from its package and, if possible, install it directly into the
2104 without putting the part down. If you need to put the part down, first
place the static-protective package that contained the part onto a smooth, level
surface, then place the part onto the package. Do not place the part onto any
metal surface.
xi
xii 2104 Models DU3 and TU3 Operator’s Guide
About This Book
This book is for people who operate a system that has one or more 2104 Model
DU3 or TU3 connected to it.
Throughout this book, service representative means a person who has been
authorized by your organization to maintain your 2104 Model DU3 or TU3.
Chapter 1 describes the 2104 Models DU3 and TU3, their controls, and how to use
them.
Chapter 2 describes how to add disk drive modules to a 2104 Model DU3 or TU3
that is already installed as part of your system.
Chapter 3 describes what to do if you have a problem with your 2104 Model DU3
or TU3. It tells you how to replace particular failed components, such as disk drive
modules, and what to report if you need to call your service representative for
assistance.
Appendix A gives additional information about using a 2104 Model DU3 or TU3
that is attached to a RISC system.
Appendix B gives a translation of all danger and caution notices contained in this
book.
An index is provided at the back of this book.
If You Need More Information
Other books that you might need are:
v Expandable Storage Plus : 2104 Model DU3 Installation Guide, GA33-3311
v Expandable Storage Plus : 2104 Model TU3 Installation Guide, GA33-3312
v Expandable Storage Plus : 2104 Models DU3 and TU3 Service Guide, GY33-0198
v The Operator Guide for your system
v The User’s Guide for your using-system SCSI attachment (for example, your SCSI
adapter)
v The Site and Hardware Planning Information for your system
v The Problem Solving Guide and Reference for your system.
Trademarks
The following items are trademarks of International Business Machines
Corporation in the United States, or other countries, or both:
v AIX
v IBM
v RS/6000
v Eserver
xiii
Numbering Convention
In this book:
KB means 1 000 bytes.
MB means 1 000 000 bytes.
GB means 1 000 000 000 bytes.
xiv 2104 Models DU3 and TU3 Operator’s Guide
Chapter 1. Using the 2104 Model DU3 or TU3
Important: The installation of this product is a customer responsibility.
Attention: Before continuing with any of the actions described in this book,
please refer to “Safety Notices” on page ix.
This section describes the Expandable Storage Plus: 2104 Models DU3 and TU3,
their controls, and how to use them. A 2104 Model DU3 or TU3 can be attached to
any supported RS/6000
for any of the Small Computer System Interface (SCSI) adapters listed in “SCSI
Adapters and Cables” on page 77.
The 2104 Models DU3 and TU3 look like this:
™
or IBM ER s e r ve r pSeries computer that provides support
Figure 1. 2104 Model TU3 (Left) and 2104 Model DU3 (Right)
1
2104 Model DU3
The 2104 Model DU3 is a rack-mounted SCSI disk enclosure that can be installed
into a standard Electrical Industries Association (EIA) 19-inch rack.
A fully configured 2104 Model DU3 looks like this:
Figure 2. 2104 Model DU3 from the Front (Top) and Back (Bottom)
2 2104 Models DU3 and TU3 Operator’s Guide
At the front of a 2104 Model DU3 there are 14 device slots 1. Each slot must
contain either a SCSI disk drive module, or a dummy disk module. Each disk
drive module connects to a backplane which is mounted vertically about halfway
between the front and back of the 2104 Model DU3.
Note: To run I/O at least one SCSI disk drive module must be present in each
2104 Model DU3.
The 14 device slots are divided into two groups of seven slots. Between the two
groups of seven slots there is a SCSI bridge card2. The SCSI bridge card assigns
the disk drive modules to a SCSI bus, in accordance with the setting of the SCSI
bus split switch on the switch card 5.
On the back of the backplane are connectors for two fan-and-power-supply
assemblies3, two SCSI interface cards4, and a switch card5.
The 2104 Model DU3 has either two fan-and-power-supply assemblies or one
fan-and-power-supply assembly and one fan assembly. Either option provides all
the necessary power and cooling for the 2104 Model DU3.
It is better, however, to have two fan-and-power-supply assemblies, rather than
one fan-and-power-supply assembly and one fan assembly, because then the
amount of power required from each power supply is reduced, and, if one power
supply fails, power for the 2104 disk enclosure continues to be supplied by the
other power supply.
The SCSI interface cards4 are used to connect host machines to the 2104 Model
DU3. These cards contain logic that provides information about what is happening
in the 2104 Model DU3 and the status of components within it.
The switch card5 contains switches that control which SCSI bus mode is selected,
how the 2104 Model DU3 is supplied with power, and what enclosure services are
enabled. It also contains a rotary switch that sets the ID of the 2104 Model DU3.
Options for configuring a 2104 Model DU3 are described in the Expandable Storage
Plus: 2104 Model DU3 Installation Guide.
Chapter 1. Using the 2104 Model DU3 or TU3 3
2104 Model TU3
The 2104 Model TU3 is a deskside SCSI disk enclosure.
A fully configured 2104 Model TU3 looks like this:
Figure 3. 2104 Model TU3 from the Front (Left) and Back (Right)
4 2104 Models DU3 and TU3 Operator’s Guide
At the front of a 2104 Model TU3 are 14 device slots 1. Each slot must contain
either an SCSI disk drive module, or a dummy module. Each disk drive module
connects to a backplane that is mounted vertically about halfway between the front
and back of the 2104 Model TU3.
Note: To run I/O at least one SCSI disk drive module must be present in each
2104 Model TU3.
The 14 device slots are split into two groups of seven slots. Between the two
groups of slots, there is a SCSI bus bridge card 2. The SCSI bus bridge card
assigns the disk drive modules to a SCSI bus, in accordance with the setting of the
SCSI bus split switch on the switch card5.
On the back of the backplane are connectors for two fan-and-power-supply
assemblies3, two SCSI interface cards4, and a switch card5.
The 2104 Model TU3 can have either two fan-and-power-supply assemblies or one
fan-and-power-supply assembly and one fan assembly. Either option provides all
the necessary power and cooling for the 2104 Model TU3.
It is better, however, to have two fan-and-power-supply assemblies, rather than
one fan-and-power-supply assembly and one fan assembly, because then the
amount of power required from each power supply is reduced, and, if one power
supply fails, power for the 2104 disk enclosure continues to be supplied by the
other power supply.
The SCSI interface cards4 are used to connect host machines to the 2104 Model
TU3. These cards contain logic that provides information about what is happening
in the 2104 Model TU3, and controls the operation of the subsystem.
The switch card5 contains switches that control which SCSI bus mode is selected,
how the 2104 Model TU3 is supplied with power, and what enclosure services are
enabled. It also contains a rotary switch that is used to set the ID of the 2104
Model TU3.
Options for configuring a 2104 Model TU3 are described in the Expandable Storage
Plus: 2104 Model TU3 Installation Guide.
Chapter 1. Using the 2104 Model DU3 or TU3 5
Controls and Lights
This section describes the switches and lights on a 2104 Model DU3 or TU3.
The 2104 has no main power switch. However, each fan-and-power-supply
assembly has an On/Standby switch.
You can see the 2104 lights at the front of the 2104 Model DU3 or TU3.
Figure 4. Disk Enclosure Lights on a 2104 Model TU3 (Left) and a 2104 Model DU3 (Right)
Power light 1
The Power light, which is green, comes on and stays on continuously
when power is supplied to the 2104 by one or both of the
fan-and-power-supply assemblies within the 2104.
Check light 2
The Check light, which is amber, comes on if a failure occurs in the 2104.
Note: The 2104 might be able to continue operating correctly even when
the failure of a single part has been detected.
6 2104 Models DU3 and TU3 Operator’s Guide
Disk Drive Module Lights
The lights on the disk drive modules that are installed in a 2104 Model DU3 are
visible at the front of the 2104 Model DU3.
However, to see the lights on the disk drive modules that are installed in a 2104
Model TU3, open the front cover:
1. If necessary, unlock the cover by using the key provided.
2. Grip the right-hand side of the front cover, and pivot the cover to the left.
Figure 5. 2104 Model TU3 with Cover Opened
Chapter 1. Using the 2104 Model DU3 or TU3 7
Figure 6. Disk Drive Module Lights
Each disk drive module has two lights:
1Activity light
The Activity light, which is green, shows the following conditions:
Off The SCSI link to the disk drive is not active.
Flashing
This disk drive module is active and a command is in progress.
2Check light
The Check light, which is amber, shows the following conditions:
Off Normal operating condition
Permanently On
One of the following conditions:
v The service aid has set Remove for this disk drive module (See
Appendix A, “Operating with RISC Systems”, on page 77).
v The disk drive has reported a Predictive Failure Analysis (PFA)
error; this error indicates that the disk drive has had an
excessive number of internally recovered errors.
v The disk drive is faulty; this is a Conner/Intel SCSI-Accessed
Fault-Tolerant Enclosures (SAF-TE) function.
Flashing (2 seconds on, 2 seconds off)
The Check light has been set by a SCSI service aid to identify the
position of this disk drive module.
Flashing (0.25 seconds on, 0.25 seconds off)
Note: SAF-TE services are not used with RS/6000 or IBM Eserver pSeries
computers.
8 2104 Models DU3 and TU3 Operator’s Guide
The disk drive is part of an array that is being rebuilt (this is a
SAF-TE function).
Fan-and-Power-Supply Assembly and Fan Assembly Lights
and Switch
Either one or two fan-and-power-supply assemblies 1 are installed in the back of
a 2104 Model DU3 or TU3.
The power switch and lights are visible at the back of the 2104.
Figure 7. Fan-and-Power-Supply Assemblies in a 2104 Model TU3 (Left) and 2104 Model
DU3 (Right)
Chapter 1. Using the 2104 Model DU3 or TU3 9
Figure 8. Fan-and-Power-Supply Assembly Lights and Switch
A fan-and-power-supply assembly has the following lights and switch:
AC PWR light 1
The AC PWR light, which is green, comes on when the mainline power
supply is connected to the fan-and-power-supply assembly.
DC PWR light 2
The DC PWR light, which is green, comes on when this
fan-and-power-supply assembly is supplying power to the 2104.
CHK light 3
The CHK light, which is amber, indicates either that there is a failure in the
fan-and-power-supply assembly or that the DC On/Standby switch is set
to Standby.
Note: This light flashes when the failure in the fan-and-power-supply
assembly is a fan failure.
DC On/Standby switch 4
The DC On/Standby switch connects dc electrical power from the
fan-and-power-supply assembly to the disk drives and other components
in the 2104. This switch must be set to on for the fan-and-power-supply
unit to start.
If the DC On/Standby switch on either of the two fan-and-power-supply
assemblies is set to on, power in a 2104 Model DU3 or TU3 unit is
switched on automatically if all of the following conditions exist:
v Input power to the 2104 is present.
v The fan-and-power-supply assembly is fully home in its slot.
v Either the power control switch on the switch card is set to on, or
terminator power is active in an external SCSI connection.
10 2104 Models DU3 and TU3 Operator’s Guide
Figure 9. Fan Assembly
A fan assembly has one light:
CHK light 1
The CHK light, which is amber, flashes when the fan fails.
Chapter 1. Using the 2104 Model DU3 or TU3 11
SCSI Interface Card Lights
Up to two SCSI interface 1cards can be installed in the back of a 2104.
Figure 10. SCSI Interface Cards in a 2104 Model TU3 (Left) and 2104 Model DU3 (Right)
12 2104 Models DU3 and TU3 Operator’s Guide
An SCSI interface card has the following lights:
Figure 11. SCSI Interface Card Assembly Lights
TERM POWER light 1
The TERM POWER light, which is green, is lit when an active SCSI
connection is present.
LVD/SE light 2
The LVD/SE light indicates the type of host SCSI cable. It is green, and
when lit indicates an active Low Voltage Differential (LVD) SCSI
connection. If this light is off and the TERM POWER light is on, there is an
active single-ended (SE) SCSI connection.
ACTIVE light 3
The ACTIVE light, which is green, is lit when the using system is
communicating with the SCSI Enclosure Services (SES) processor or the
disk drives.
RESET light 4
The RESET light, which is green, comes on when a Power On Reset (POR)
or a SCSI Bus Reset occurs. This light is switched off by the SES processor.
FAULT light 5
The FAULT light, which is amber, comes on if the SCSI interface card fails.
Chapter 1. Using the 2104 Model DU3 or TU3 13
Switch Card
A Switch Card 1 is installed in the back of a 2104.
Figure 12. Switch Card in a 2104 Model TU3 (Left) and 2104 Model DU3 (Right)
14 2104 Models DU3 and TU3 Operator’s Guide
Refer to Figure 13 to identify the switches on the switch card.
Figure 13. Switch Card
The switch card contains the following switches that are accessible to the operator.
Note: The ″default logical setting″ of a switch is the setting that is used if the
switch card assembly is not present when the 2104 is switched on, or when
a reset operation occurs.
Power Control switch 1
When this switch is set to Off, the 2104 automatically switches off or on
when the using system is switched off or on.
When this switch is set to On, the 2104 is powered up or down by the DC
On/Standby switch on a fan-and-power-supply assembly.
The default logical setting for this switch is On.
Drive Autostart switch 2
The disk drive motors are controlled by the combination of this switch and
the Delay Motor Start Switch 5.
When this switch is set to On, and the Delay Motor Start Switch 5 is set
to Off, the disk drive motors do not start until a START MOTOR command
is issued. The timing sequence of disk motor startup is under the control of
the using system software.
When this switch is set to Off, and the Delay Motor Start Switch 5 is set
to On, the disk drives are set to Delay Motor Start mode. The disk motor
startup delay time is different for each disk drive and is usually computed
Chapter 1. Using the 2104 Model DU3 or TU3 15
by multiplying 12 seconds by its SCSI ID. For example, the disk drive
motor of a disk drive having a SCSI ID equal to two will start 24 (2 x 12)
seconds after power is applied to the 2104.
When this switch is set to Off, and the Delay Motor Start Switch 5 is set
to Off, the disk drives are set to Normal Start mode. The disk drive motors
will start when power is applied to the 2104.
The effect of both this switch and the Delay Motor Start Switch 5 being
set to On is undefined.
The default logical setting for this switch is On.
Enable Enclosure Services switch 3
When this switch is set to On, the enclosure services can operate.
When the switch is to Off, no response occurs to any request to use the
enclosure services.
The default logical setting for this switch is On.
Select Enclosure Services switch 4
This switch selects which enclosure services can be used — SAF-TE or SES.
When set to Off, it selects SAF-TE.
When set to On, it selects SES.
The default logical setting for this switch is On.
Note: SAF-TE services are not used with RS/6000 or IBM Eserver pSeries
computers.
Delay Motor Start switch 5
Refer to the explanation of the Drive Autostart Switch 2.
The default logical setting for this switch is Off.
Box ID switch 6
This 10-position rotary switch indicates the ID of the 2104. The operator
selects the required setting which can be used by the SES Inquiry
command and the SAF-TE buffer 1 command.
The default logical setting for this switch is 0.
Note: SAF-TE services are not used with RS/6000 or IBM Eserver pSeries
computers.
The switch card has other switches that are accessible only when the switch card is
removed from the 2104. They should only be changed when the 2104 is being
converted from a Model DU3 to a Model TU3, or from a Model TU3 to a Model
DU3.
SCSI Address switch 7
When this switch is set to Off, which is its default setting in a 2104 Model
DU3, the SCSI addresses of the disk drives are 0, 1, 2, 3, 4, 5, 6, 8, 9, 10, 11,
12, 13, 14, from left to right. When the switch is set to On, these addresses
are reversed.
Note: This setting, On, is not supported in a 2104 Model TU3 or 2104
16 2104 Models DU3 and TU3 Operator’s Guide
Model DU3.
Orientation switch 8
This switch should be set to Off in a 2104 Model DU3, and to On in a 2104
Model TU3. Its setting determines the position of the Power and Check
lights on the 2104.
SCSI Bus Split switch 9
This switch controls the SCSI bus configuration. When the switch is set to
Off, the 2104 is configured as a single SCSI bus. When the switch is set to
On, the 2104 is configured as a dual (or split) SCSI bus. In a 2104 Model
DU3, with this switch set to On and the SCSI address switch set to Off, the
SCSI addresses of the disk drives are 0, 1, 2, 3, 4, 5, 6, from left to center,
on one SCSI bus, and 8, 9, 10, 11, 12, 13, 14, from center to right, on the
other SCSI bus.
The default logical setting for this switch is Off.
Reserved 10
This switch should be set to Off.
Chapter 1. Using the 2104 Model DU3 or TU3 17
Identifying 2104 Disk Enclosures
The Box ID switch on the switch card is a 10-position rotary switch that indicates
the ID of the 2104. Its setting is used by the SES Inquiry command or the SAF-TE
buffer 1 command.
Labels are supplied with the 2104 to enable the operator to identify each 2104. It is
recommended that the label that represents the ID set by the Box ID switch is
attached to the front of the 2104.
18 2104 Models DU3 and TU3 Operator’s Guide
Identifying Disk Drive Modules
You can identify a disk drive module by the serial number that appears on a label
1 on the front of the module:
Figure 14. Disk Drive Module Label
This label also shows the size of the disk drive.
Each disk drive module also has a SCSI address that is related to its position in the
2104.
The addresses used are 0, 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13 and 14. These addresses
are usually assigned, in sequence, from left to right in the 2104 Model DU3 and
from top to bottom in the 2104 Model TU3.
Chapter 1. Using the 2104 Model DU3 or TU3 19
Security
On the 2104 Model TU3, a lock 1 on the front cover provides physical security
for the disk drives. You do not need to remove this cover during normal
operations. If you lock the cover, it cannot be opened for servicing without the use
of the key. You do not need to lock the cover for it to stay closed. The 2104 Model
DU3 has no cover or lock.
Figure 15. 2104 Model TU3 Lock
Ordering Cover Lock Keys
Figure 16. Cover Lock Keys
For protection against unauthorized key duplication, the cover lock is a
high-security lock. Keys (see Figure 16) for these locks are a factory-restricted series
and duplicate keys are not available through normal commercial channels. The
serial number of the lock is stamped on each key. Make a note of this number. The
additional key supplied, and your note of its number, should be stored in separate
secure areas.
20 2104 Models DU3 and TU3 Operator’s Guide
If you lose the key, or it becomes faulty, a replacement key can be purchased from
the Illinois Lock Company.
Their address is:
Illinois Lock Company,
301, W. Hintz Road,
Wheeling, Illinois 60090.
Phone: (800) 299-5880 (inside USA)
FAX: 001-847-537-1881
e-mail: illock@aol.com
website: www.illinoislock.com
001-847-537-1800 (from outside USA)
Chapter 1. Using the 2104 Model DU3 or TU3 21
22 2104 Models DU3 and TU3 Operator’s Guide
Chapter 2. Adding Disk Drive Modules
This chapter describes how to add disk drive modules to a 2104 that is already
installed as part of your system.
You can do this only if:
1. You are authorized by your organization.
2. You have the correct disk drive module. Refer to Figure 17. This disk drive
module has, at the front, a handle 1 that can be pulled upward to open. The
disk drive module should also be the correct size. The size of a disk drive
module is shown on a label 2 at the front of the disk drive module. The label
is shown in more detail in Figure 14 on page 19.
Figure 17. Disk Drive Module Handle and Label
Attention:
v Disk drive modules are fragile. Handle them with care. Keep them well away
from strong magnetic fields.
v Any slot that has no disk drive module installed must contain a dummy disk
drive module. The dummy module ensures that the correct airflow is
maintained around the disk drive modules in the other slots. If a slot remains
empty, overheating might occur.
You do not need to remove power from the 2104 when adding a disk drive
module.
After you have added a disk drive module to a 2104, you must add it into your
system software configuration by using the system programs. Refer to Appendix A,
“Operating with RISC Systems”, on page 77.
23
Before Adding a Disk Drive Module
1. Identify the slot for the new disk drive module by using the configuration
planning information for your system. A dummy disk drive module should be
in the slot. Refer to Figure 18.
Figure 18. Dummy Disk Drive Module
Use the SCSI Device Identification and Removal service aid to set the disk
drive slot to Insert. If you then remove the dummy disk drive module from the
identified slot, an amber light on the backplane should be visible. This verifies
that you have selected the correct slot into which to add the new disk drive
module. This light goes off when a disk drive module is added. If it does not, it
is visible as the amber Check light on the disk drive module that you have
added.
24 2104 Models DU3 and TU3 Operator’s Guide
2. If you are adding a disk drive module into a 2104 Model TU3, open the front
cover of the unit:
a. If necessary, unlock the cover using the key provided.
b. Grip the right-hand side of the cover and pivot the cover to the left.
Figure 19. Disk Drive Modules in a 2104 Model TU3
Chapter 2. Adding Disk Drive Modules 25
To Add a Disk Drive Module
The diagrams in the following instructions show a 2104 Model DU3. The steps for
adding a disk drive module into a 2104 Model TU3 are the same, but the parts are
turned through 90 degrees.
1. Pull the dummy module out of the 2104.
Figure 20. Removing a Dummy Module
Attention: Do not leave the slot empty for more than 30 minutes. If you do, the
2104 and its disk drive modules might overheat and be damaged.
26 2104 Models DU3 and TU3 Operator’s Guide
2. With one hand supporting the base of the disk drive module and the other
hand holding the handle 1, insert the module and push it into the slot.
When the handle touches the front surface of the enclosure, the module stops.
However, the module is not yet fully home.
Figure 21. Adding a Disk Drive Module
Chapter 2. Adding Disk Drive Modules 27
3. While continuing to push the disk drive module into the slot, slowly close the
handle 1 until it stops with a click. This action pushes the module fully
home.
Attention: The fans might decrease in speed.
Figure 22. Closing the Handle of a Disk Drive Module
4. Verify that the disk drive module that you have just installed is aligned with
the sides of the 2104, and that there is no gap between this module and the
modules that are next to it.
Verify also that the front edge of this disk drive module aligns with the front
edges of the modules next to it.
If the disk drive module is not correctly aligned, remove it (see step 2 on
page 35) and reinstall it (steps 2 through 3 above).
28 2104 Models DU3 and TU3 Operator’s Guide
5. If the amber check light 2 comes on, first verify that the new disk drive
module has been correctly installed, and then run diagnostics in Problem
Determination mode to check the error log. See Appendix A, “Operating with
RISC Systems”, on page 77.
Note: The green activity light 1 does not come on until disk activity begins.
Figure 23. Disk Drive Module Lights
Chapter 2. Adding Disk Drive Modules 29
6. If you have just added a disk drive module to a 2104 Model TU3, close the
cover and, if required, lock it with the key provided.
Figure 24. Closing the Cover of a 2104 Model TU3
7. Add the new disk drive module into your system software configuration, using
the system programs. Refer to Appendix A, “Operating with RISC Systems”,on
page 77.
30 2104 Models DU3 and TU3 Operator’s Guide
Chapter 3. Exchanging FRUs
This chapter describes what to do if you need to exchange a Field Replaceable Unit
(FRU) of your 2104 Model DU3 or TU3. A disk drive module, a
fan-and-power-supply assembly, a fan assembly, a SCSI interface card, a switch
card, and a SCSI bus bridge card are all FRUs in the 2104 Model DU3 or TU3.
If you need to exchange the SCSI bus bridge card, please refer to Expandable Storage
Plus: 2104 Models DU3 and TU3 Service Guide
31
Exchanging Disk Drive Modules
Sometimes, you can exchange a faulty disk drive module without the assistance of
a service representative. You can do this only if:
v You are authorized by your organization.
v You have the correct disk drive module. Refer to Figure 25. This disk drive
module has, at the front, a handle 1 that can be pulled upward to open. The
disk drive module should also be the correct size. The size of a disk drive
module is shown on a label 2 at the front of the disk drive module. The label
is shown in more detail in Figure 14 on page 19.
Figure 25. Disk Drive Module Handle and Capacity
Attention:
v Disk drive modules are fragile. Handle them with care. Keep them well away
from strong magnetic fields.
v Any slot that has no disk drive module installed must contain a dummy disk
drive module. The dummy module ensures that the correct airflow is
maintained around the disk drive modules in the other slots. If a slot remains
empty, overheating might occur.
You do not need to remove power from the 2104 when exchanging a disk drive
module.
After you have exchanged a disk drive module in a 2104, you must restore it into
your system by using the system programs.
32 2104 Models DU3 and TU3 Operator’s Guide
Before Exchanging a Disk Drive Module
1. Use the system error log to identify the faulty disk drive module. Appendix A,
“Operating with RISC Systems”, on page 77 describes how to do this if you
have a RISC-based system.
2. Find the failing disk drive module by using the location code supplied in the
error log.
3. Use the SCSI Device Identification and Removal service aid to set Remove on
the failing disk drive module. (Appendix A, “Operating with RISC Systems”,on
page 77 describes how to do this if you have a RISC-based system.)
4. Check the lights on this disk drive module. (“Disk Drive Module Lights” on
page 7 describes where these are, and how to see them.)
If the Check light is on, exchange the disk drive module for a new one using
the procedure described in the following section.
Chapter 3. Exchanging FRUs 33
To Exchange a Disk Drive Module
1. If the failing disk drive module is in a 2104 Model TU3, open the front cover of
the 2104:
a. If necessary, unlock the cover, using the key provided.
b. Grip the cover at the right and pivot it to the left.
Figure 26. Disk Drive Modules in a 2104 Model TU3
34 2104 Models DU3 and TU3 Operator’s Guide
The diagrams in the following instructions show a 2104 Model DU3. The steps
for exchanging a disk drive module in a 2104 Model TU3 are the same, but the
parts are turned through 90 degrees.
2. Pull upward on the trigger 1 and pull outward the handle 2 of the failing
disk drive module. This action moves the module partly out of the slot. Wait
for about 20 seconds to allow the disk drive motor time to spin down.
Figure 27. Opening the Disk Drive Module Handle
Chapter 3. Exchanging FRUs 35
3. Carefully pull the module out of the 2104. Support the module with your other
hand as you take it from the 2104.
Figure 28. Removing a Disk Drive Module
Attention:The fan speed might increase. Do not leave the slot empty for more
than 30 minutes. If you do, the 2104, and its disk drive modules, might
overheat and be damaged.
36 2104 Models DU3 and TU3 Operator’s Guide
4. With one hand supporting the base of the replacement module and the other
hand holding the handle 1, insert the module and push it into the slot.
When the handle touches the front surface of the enclosure, the module stops.
Note that the disk drive module is not yet fully home.
Figure 29. Inserting a Disk Drive Module
Chapter 3. Exchanging FRUs 37
5. While continuing to push the disk drive module into the slot, slowly close the
handle 1 until it stops with a click. This action pushes the module fully
home.
Attention:The fans might decrease their speed.
Figure 30. Closing the Handle
6. Verify that the disk drive module that you have just installed is aligned with
the sides of the 2104 and there is no gap between this module and the modules
that are next to it.
Verify also that the front edge of this disk drive module aligns with the front
edges of the modules next to it.
If the disk drive module is not correctly aligned, remove it (see step 2 on
page 35) and reinstall it (steps 4 through 6 above).
38 2104 Models DU3 and TU3 Operator’s Guide
7. If the amber check light 2 comes on, first verify that the new disk drive
module has been correctly installed, then run diagnostics in Problem
Determination mode to check the error log. See Appendix A, “Operating with
RISC Systems”, on page 77.
Note: The green activity light 1 comes on for about one second after the disk
drive module has been installed. The light then goes out and comes on
again only when disk I/O activity begins.
Figure 31. Disk Drive Module Lights
Chapter 3. Exchanging FRUs 39
8. If you have exchanged a disk drive module in a 2104 Model TU3, close the
cover and, if required, lock it with the key provided.
Figure 32. Closing the Cover of a 2104 Model TU3
9. Restore the disk drive module into your system, using the system programs.
Refer to Appendix A, “Operating with RISC Systems”, on page 77.
40 2104 Models DU3 and TU3 Operator’s Guide
Exchanging a Fan-and-Power-Supply Assembly
You can exchange a faulty fan-and-power-supply assembly if:
v You have a correct spare fan-and-power-supply assembly or fan assembly.
v Another fan-and-power-supply assembly is still present in the 2104.
Note: If your 2104 contains just one fan-and-power-supply assembly (and one fan
assembly), refer to Expandable Storage Plus: 2104 Models DU3 and TU3 Service
Guide for more guidance about replacing the fan-and-power-supply
assembly.
Figure 33. A Fan-and-Power-Supply Assembly
You do not need to remove power from the 2104 when exchanging a
fan-and-power-supply assembly.
Before Exchanging a Fan-and-Power-Supply Assembly
v Check the lights on this fan-and-power-supply assembly (“Fan-and-Power-
Supply Assembly and Fan Assembly Lights and Switch” on page 9 describes
these lights and how to see them). Ensure that the DC On/Standby switch is set
to On.
If the CHK light is on, exchange the fan-and-power-supply assembly by using
the procedure in the following section.
Chapter 3. Exchanging FRUs 41
To Exchange a Fan-and-Power-Supply Assembly
Note: The illustrations in the following instructions show a 2104 Model DU3. The
steps for exchanging a fan-and-power-supply assembly in a 2104 Model TU3
are the same, but the parts are turned through 90 degrees.
1. Set the DC On/Standby switch 1 on the fan-and-power-supply assembly to
Standby.
Figure 34. Fan-and-Power-Supply DC On/Standby Switch
Note: The DC PWR light might stay on for a short time. Wait until it is off
before you go to the next step.
42 2104 Models DU3 and TU3 Operator’s Guide
2. Unplug the mainline power cable from the failing fan-and-power-supply
assembly.
Figure 35. Unplugging the Mainline Power Cable
CAUTION:
Ensure that the mainline power cable has been removed from the failing
fan-and-power-supply before continuing.
Chapter 3. Exchanging FRUs 43
3. Unscrew the two thumbscrews on the fan-and-power-supply assembly.
Figure 36. Unscrewing the Thumbscrews on the Fan-and-Power-Supply Assembly
44 2104 Models DU3 and TU3 Operator’s Guide
4. Pull the fan-and-power-supply assembly from the 2104. The speed of the other
fan in the 2104 might increase.
Figure 37. Removing the Fan-and-Power-Supply Assembly
Attention: Do not leave the space empty for more than 30 minutes; if you do,
the 2104, and the disk drive modules, might overheat and be damaged.
CAUTION:
Do not insert hands or tools into the empty space where the
fan-and-power-supply assembly was.
Chapter 3. Exchanging FRUs 45
5. Push the replacement fan-and-power-supply assembly fully into the 2104.
Figure 38. Inserting a Replacement Fan-and-Power-Supply Assembly
DANGER
Do not plug a power cable into the fan-and-power-supply assembly until
the assembly is fully home and its thumbscrews are fully tightened.
46 2104 Models DU3 and TU3 Operator’s Guide

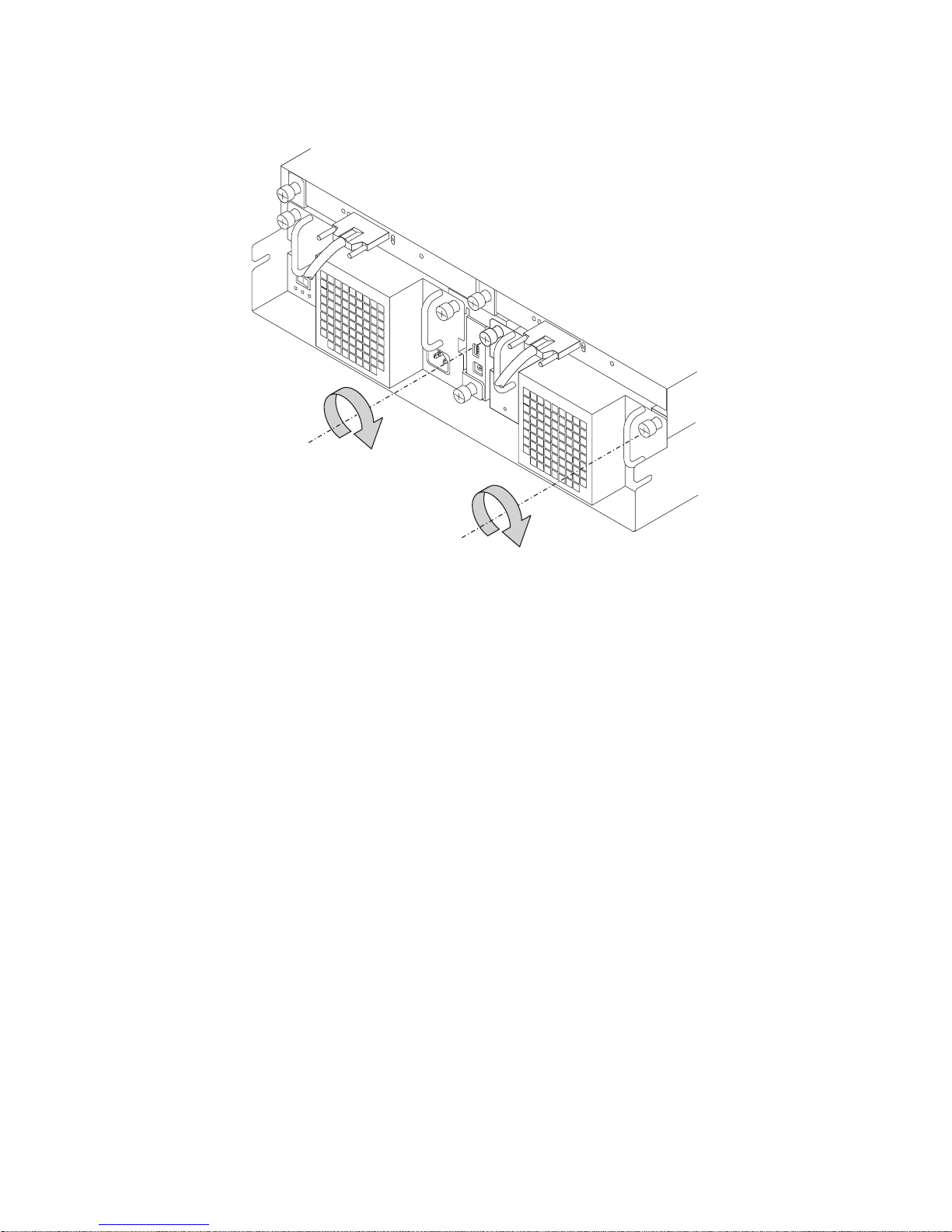

6. Tighten the two thumbscrews by turning them clockwise.
Figure 39. Tightening the Screws on a Fan-and-Power-Supply Assembly
Chapter 3. Exchanging FRUs 47
7. Plug the mainline power cable into the new fan-and-power-supply assembly.
Verify that the green AC PWR light 1 comes on immediately.
Figure 40. Plugging in the Mainline Power Cable
48 2104 Models DU3 and TU3 Operator’s Guide
8. Set the DC On/Standby switch 1 on the new fan-and-power-supply assembly
to On.
Note: The fan speeds might decrease.
Figure 41. Fan-and-Power-Supply DC On/Standby Switch
Chapter 3. Exchanging FRUs 49
9. Verify that the green DC PWR light 1 comes on within five seconds.
If it does not, or the amber CHK light 2 comes on, verify that the new
fan-and-power-supply assembly is correctly installed.
If it is, report the problem to your service representative.
Figure 42. Fan-and-Power-Supply Lights
50 2104 Models DU3 and TU3 Operator’s Guide
Exchanging a Fan Assembly
You can exchange a faulty fan assembly if:
v You have a correct spare fan assembly.
v Another fan-and-power-supply assembly is present in the 2104.
Figure 43. Fan Assembly
You do not need to remove power from the 2104 when exchanging a fan assembly.
Before Exchanging a Fan Assembly
v Look at the Check light on this fan assembly (see “Fan-and-Power-Supply
Assembly and Fan Assembly Lights and Switch” on page 9).
If the Check light is flashing, exchange the fan assembly by using the procedure
in the following section.
Chapter 3. Exchanging FRUs 51
To Exchange a Fan Assembly
The diagrams in the following instructions show a 2104 Model DU3. The steps for
exchanging a fan assembly in a 2104 Model TU3 are the same, but the parts are
turned through 90 degrees.
1. Verify that the amber CHK light 1 is flashing.
Figure 44. Fan Assembly Light
52 2104 Models DU3 and TU3 Operator’s Guide
2. Unscrew the two thumbscrews.
Figure 45. Unscrewing the Thumbscrews on a Fan Assembly
Chapter 3. Exchanging FRUs 53
3. Pull the fan assembly from the 2104.
Note: The speed of the other fan in the 2104 might increase.
Figure 46. Pulling out a Fan Assembly
Attention: Do not leave the space empty for more than 30 minutes; if you do,
the 2104, and its disk drive modules, might overheat and be damaged.
CAUTION:
Do not insert hands or tools into the empty fan assembly opening.
54 2104 Models DU3 and TU3 Operator’s Guide
4. Push the replacement fan assembly fully into the 2104.
Note: The speed of the other fan in the 2104 might decrease.
Figure 47. Inserting a Fan Assembly
Chapter 3. Exchanging FRUs 55
5. Tighten the two thumbscrews.
Figure 48. Tightening the Thumbscrews
56 2104 Models DU3 and TU3 Operator’s Guide
6. Verify that the amber CHK light 1 is off.
Figure 49. Fan Assembly Light
Chapter 3. Exchanging FRUs 57
Exchanging a SCSI Interface Card Assembly
Attention: The SCSI interface card is sensitive to electrostatic discharge (ESD). Use
the tools and procedures defined by your organization to protect such parts.
You can exchange a faulty SCSI interface card assembly if:
v You are authorized by your organization.
v You have a correct spare SCSI interface card assembly.
Figure 50. SCSI Interface Card Assembly
You do not need to remove power from the 2104 when exchanging an SCSI
interface card assembly.
58 2104 Models DU3 and TU3 Operator’s Guide
Before Exchanging the SCSI Interface Card Assembly
Check the lights on the SCSI interface card.
If the FAULT light is on, exchange the SCSI interface card assembly using the
procedure in the following section.
Figure 51. FAULT Light on an SCSI Interface Card Assembly
Chapter 3. Exchanging FRUs 59
To Exchange a SCSI Interface Card Assembly
The diagrams in the following instructions show a 2104 Model DU3. The steps for
exchanging a SCSI interface card assembly in a 2104 Model TU3 are the same, but
the parts are turned through 90 degrees.
1. Unscrew and unplug the SCSI cable.
Figure 52. Removing the SCSI Cable
60 2104 Models DU3 and TU3 Operator’s Guide
2. Unscrew the thumbscrew 1 on the failing SCSI interface card.
Figure 53. Unscrewing the SCSI Interface Card
Chapter 3. Exchanging FRUs 61
3. Open the lever fully by moving it to the right. This action unplugs the card
assembly from the backplane.
Figure 54. Opening the Lever
62 2104 Models DU3 and TU3 Operator’s Guide
4. Pull the SCSI interface card assembly out of the 2104.
Figure 55. Pulling the SCSI Interface Card Out
CAUTION:
Do not insert hands or tools into the empty space above the
fan-and-power-supply assembly.
Chapter 3. Exchanging FRUs 63
5. Push the replacement SCSI interface card assembly into the 2104.
Figure 56. Pushing the Replacement SCSI Interface Card In
64 2104 Models DU3 and TU3 Operator’s Guide
6. Move the lever to the left.
CAUTION:
As you push the assembly fully home, the lever automatically moves towards
its closed position. Ensure that your fingers do not become pinched between
the lever and the assembly.
Figure 57. Closing the Lever
Chapter 3. Exchanging FRUs 65
7. Tighten the thumbscrew.
Figure 58. Tightening the Thumbscrew
66 2104 Models DU3 and TU3 Operator’s Guide
8. Plug the SCSI connector into the SCSI interface card, and tighten the retaining
screws.
Figure 59. Plugging in the SCSI Cable
Chapter 3. Exchanging FRUs 67
9. Check that the green TERM POWER light 1 comes on within five seconds. It
indicates that the TERM POWER from a host bus adapter is activated. If it does
not, check that the new SCSI interface card has been correctly installed.
Figure 60. SCSI Interface Card Assembly TERM POWER Light
68 2104 Models DU3 and TU3 Operator’s Guide
Exchanging the Switch Card Assembly
Attention: The switch card is sensitive to electrostatic discharge (ESD). Use the
tools and procedures defined by your organization to protect such parts.
You can exchange a faulty switch card assembly if:
v You are authorized by your organization.
v You have a correct spare switch card assembly.
Figure 61. Switch Card
You do not need to remove power from the 2104 when exchanging the switch card.
Before Exchanging the Switch Card Assembly
Notes:
1. The settings of the switches on the replacement switch card must be the same
as those on the original card. See “Switch Card” on page 14 for details of the
switch settings.
2. If the switch card is removed while the 2104 is on, the 2104 might be powered
off.
Chapter 3. Exchanging FRUs 69
To Exchange the Switch Card Assembly
The diagrams in the following instructions show a 2104 Model DU3. The steps for
exchanging the switch card assembly in a 2104 Model TU3 are the same, but the
parts are turned through 90 degrees.
1. Unscrew the thumbscrew1 on the failing switch card assembly.
Figure 62. Unscrewing the Thumbscrew on the Switch Card Assembly
70 2104 Models DU3 and TU3 Operator’s Guide
2. Pull the lever up. This action unplugs the switch card assembly from the
backplane.
Figure 63. Opening the Lever
Note: If the 2104 is switched on, it might switch off when you unplug the
switch card assembly.
Chapter 3. Exchanging FRUs 71
3. Pull the switch card assembly out of the 2104.
Figure 64. Remove the Switch Card
CAUTION:
Do not insert hands or tools into the empty space between the power supply
assemblies.
72 2104 Models DU3 and TU3 Operator’s Guide
4. Push the replacement switch card assembly into the disk enclosure.
Figure 65. Pushing the Switch Card Assembly into the 2104
Chapter 3. Exchanging FRUs 73
5. Push the lever down.
Figure 66. Closing the Lever
74 2104 Models DU3 and TU3 Operator’s Guide
6. Tighten the thumbscrew.
Figure 67. Tightening the Thumbscrew
Chapter 3. Exchanging FRUs 75
Reporting Problems
When you report a problem that has occurred in a 2104, it is important that you
report the following information, in addition to the error information (the SRN)
given to you by your operating system:
The machine type number 2104
The machine model number DU3 or TU3
The machine serial number xx-xxxxx
The serial number can be read from the label at the bottom right of the front of the
2104, or from the label on the back of the 2104.
76 2104 Models DU3 and TU3 Operator’s Guide
Appendix A. Operating with RISC Systems
This appendix contains information that is specific to Expandable Storage Plus disk
enclosures that are attached to RISC systems.
SCSI Adapters and Cables
|
|
|
|
|
An RS/6000 or IBM Eserver pSeries computer running AIX uses one of the
following SCSI adapters to connect to the 2104 Model DU3 or 2104 Model TU3:
v PCI 3-Channel Ultra2 SCSI RAID Adapter (Feature Code 2494, Type Number
4-T)
v PCI Dual-Channel Ultra2 SCSI Adapter (Feature Code 6205, Type Number 4-R)
v PCI Dual-Channel Ultra3 SCSI Adapter (Feature Code 6203, Type Number 4-Y)
v PCI Single-Ended Ultra SCSI Adapter (Feature Code 6206, Type Number 4-K)
v PCI SCSI-2 Single-Ended Fast/Wide Adapter (Feature Code 6208, Type Number
4_A)
v PCI 4-Channel Ultra3 SCSI RAID Adapter/A (Feature Code 2498, Type Number
4-X)
An RS/6000 or IBM Eserver pSeries computer running SuSE Linux Enterprise
Server for pSeries uses the PCI Dual-Channel Ultra3 SCSI Adapter (Feature Code
6203, Type Number 4-Y) to connect to the 2104 Model DU3 or 2104 Model TU3.
SCSI cables supported by these adapters are:
Adapter (Feature
Code)
2494, 2498, 6203, or
6205
6206 or 6208 3 meters 5313 09L3309
Cable Length Feature Code Part Number
20 meters 5320 09L3307
10 meters 5310 09L3305
5 meters 5305 09L3303
3 meters 5303 09L3301
1 meter 5301 09L3299
SCSI Service Aids
Service aids are available on the using system to help you service the 2104. Service
aids described in the Expandable Storage Plus: 2104 Models DU3 and TU3 Service
Guide are:
v Format Media
v Certify Media
v SCSI Device Identification and Removal
v Download Microcode
77
Identifying a 2104 and its Disk Drive Modules
You can identify a 2104 and the disk drive modules installed in it either by the
location code contained in system messages that refer to that unit, or by using the
SCSI Device Identification and Removal service aid.
See “Location Codes” in the operator guide for your system for general
information about location codes.
Problem Determination
For some problems, your system diagnostics tell you to check the lights on the
system to determine which part, if any, has a fault. “Controls and Lights” on
page 6 of this book shows the position of the lights. The diagnostic programs tell
you what to report to your service representative. (“Reporting Problems” on
page 76 describes other information you should report.)
Checking the SCSI Error Log
You can check the error log by running diagnostics in Problem Determination
mode. They check the error log and present messages about any problems that
have been logged. Your system manuals describe how to run the diagnostic
programs.
Configuring a 2104 to the Using System - AIX Systems Only
|
|
Unconfiguring a 2104 from the Using System - AIX Systems Only
|
|
|
|
|
|
Configuring a 2104 in a SuSE Linux Enterprise Server for pSeries
|
Environment
|
|
|
|
Use the cfgmgr command to configure or reconfigure a 2104 to the using system.
To remove a 2104 from the using system, use the following command:
rmdev -l [enclosurenumber] -d
where [enclosurenumber] is the enclosure device that was generated by the cfgmgr
command (for example, [ses0], [ses1], [ses2]).
Remove the ses_healthcheck job from the system cron table.
In general, SuSE Linux Enterprise Server for pSeries systems are automatically
configured during initial boot up or reboot. For further details, refer to SuSE Linux
Enterprise Server for pSeries documentation.
Web Support Page
You can find the web support page at:
|
https://techsupport.services.ibm.com/server/support?view=pSeries
78 2104 Models DU3 and TU3 Operator’s Guide
Related Publications
v Diagnostic Information for Micro Channel Bus Systems, SA23-2765
v Diagnostic Information for Multiple Bus Systems, SA38-0509
v Site and Hardware Planning Information,SA38-0508
v Adapters, Devices and Cable Information for Micro Channel Bus Systems, SA23-2764
v Adapters, Devices and Cable Information for Multiple Bus Systems, SA38-0516
Appendix A. Operating with RISC Systems 79
80 2104 Models DU3 and TU3 Operator’s Guide
Appendix B. Translated Safety Notices
This appendix contains the danger and caution notices that are used in the various
books relating to the Expandable Storage Plus: 2104 Models DU3 and TU3.
The notices are shown in English and in various other languages.
Danger notice A danger notice calls attention to a situation that is potentially lethal or extremely
hazardous to people.
Caution notice A caution notice calls attention to a situation that is potentially hazardous to
people because of some existing condition.
Always use safe working procedures whenever you work on machines. Use your
own judgment to identify safety conditions that these notices do not describe.
Danger Notices
DANGER
In the following step you are going to remove the power cables.
These cables are live if the rack power distribution unit or
uninterruptible power supply (UPS) unit is still switched on.
DANGER
Do not try to open the covers of the fan-and-power-supply
assembly.
DANGER
Do not plug a power cable into the fan-and-power-supply
assembly until the assembly is fully home and its thumbscrews
are fully tightened.
DANGER
An electrical outlet that is not correctly wired could place
hazardous voltage on metal parts of the system or the devices that
attach to that system.
It is the customers’s responsibility to ensure that the outlet is
correctly wired and grounded to prevent an electrical shock.
During an electrical storm, do not disconnect cables for display
stations, printers, telephones, or station protectors for
communication lines.
81
Caution Notices
CAUTION:
This unit may have two linecords. To remove all power,
disconnect both linecords.
CAUTION:
This unit weighs 38.5 kg.
CAUTION:
Do not remove cover, do not service, no serviceable parts.
CAUTION:
Double pole/neutral fusing
CAUTION:
A ″Standby″ condition is indicated by the symbol to the right of
″DC″ directly above the switch, SW1. When SW1 is toggled to the
right position directly under the ″Standby″ symbol, the unit’s
AC-power is not shut off.
CAUTION:
The stabilizer must be correctly attached to the bottom front of
the rack to prevent the rack from tipping forward while the 2104
Model DU3 is being removed from the rack.
Do not pull out or install any unit if a stabilizer is not attached to
the rack.
CAUTION:
The stabilizer must be correctly attached to the bottom front of
the rack to prevent the rack from tipping forward while the 2104
Model DU3 is being installed into the rack.
Do not remove or install any unit if a stabilizer is not attached to
the rack.
CAUTION:
A 2104 Model DU3 weighs up to 38.5 kg (85 lb) with the
maximum number of disk drive modules installed. Do not
attempt to lift the 2104 into the rack unless all the disk drive
modules have been removed.
CAUTION:
A 2104 Model DU3 weighs up to 38.5 kg (85 lb) with the
maximum number of disk drive modules installed. Do not
attempt to remove the 2104 from the rack unless all the disk drive
modules have been removed.
CAUTION:
Do not attempt to lift the 2104 by yourself. Ask another person
for aid.
CAUTION:
Do not insert hands or tools into the empty space that contained
the fan assembly.
82 2104 Models DU3 and TU3 Operator’s Guide
CAUTION:
Do not insert hands or tools into the empty space that contained
the fan-and-power-supply assembly.
CAUTION:
Do not insert hands or tools into the empty space that contained
the switch card assembly.
CAUTION:
Do not insert hands or tools into the empty space that contained
the SCSI interface card assembly.
CAUTION:
This product is equipped with a 3-wire power cable and plug for
the user’s safety. Use this power cable in conjunction with a
correctly grounded electrical outlet to avoid an electrical shock.
CAUTION:
Do not touch the power outlet or the power outlet face plate with
anything other than test probes before you have completed this
safety check.
CAUTION:
If the reading is not infinity, do not proceed. Make the necessary
corrections to the wiring before you continue. Do not switch on
the branch circuit CB until all the above steps are satisfactorily
completed.
CAUTION:
A 2104 Model TU3 can weigh up to 54.5 kg (120 lb) with the
maximum number of disk drive modules installed. Do not
attempt to lift one without help from a second person.
CAUTION:
Do not use the handles of the fan or fan-and-power-supply
assemblies to carry the 2104. These handles are not intended to
support the weight of the unit.
CAUTION:
As you push the assembly fully home, the lever automatically
moves toward its closed position. Ensure that your fingers do not
become pinched between the lever and the assembly.
Appendix B. Translated Safety Notices 83
84 2104 Models DU3 and TU3 Operator’s Guide
