Hyundai Terracan 2007 Owner's Manual

A000A01A-GAT

This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.

OWNER'S I.D.

ORIGINAL ADDRESS:

DATE OF SALE:

SUBSEQUENT ADDRESS:

TRANSFER DATE:

NAME: STREET: TOWN: COUNTRY: P.CODE:

OWNER'S MANUAL

A030A01HP-GAT

Operation Maintenance Specifications

A030A01HP

All information in the Owner's Manual is current at the time of publication. Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.

This manual applies to current Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.

Please note that some models are equipped with Right-Hand Drive (RHD). The explanations and illustrations for some operations in RHD models are opposite of those written in this manual.

A020A01A-AAT

RESPONSIBILITY FOR MAINTENANCE

The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations. Maintenance requirements for severe operating conditions are also included in Section 5.

A040A01A-AAT

FOREWORD

Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundai. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud.

Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.

The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.

A050A02HP-GAT

HYUNDAI MOTOR COMPANY

Note: Because future owners will also need the information included in this manual, if you sell this

Hyundai, please leave the manual in the vehicle for their use. Thank you.

CAUTION: Severe engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual.

Copyright 2006 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor Company.

A070A01A-GAT

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

Modification of components may void the manufacturer's warranty

Your Hyundai should not be modified in any way. Modifications may adversely affect the safety, durability and performance of your Hyundai. Components which are subjected to modification or are added to the vehicle resulting in consequential damage are not covered by the vehicle manufacturer's warranty.

A080A01S-AAT

TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai dealer for precautionary measures or special instructions if you choose to install one of these devices.

TABLE OF CONTENTS

SECTION

FEATURES OF YOUR HYUNDAI

DRIVING YOUR HYUNDAI

WHAT TO DO IN AN EMERGENCY

CORROSION PREVENTION & APPEARANCE CARE

VEHICLE MAINTENANCE REQUIREMENTS

DO-IT-YOURSELF MAINTENANCE

EMISSION CONTROL SYSTEMS

CONSUMER INFORMATION

VEHICLE SPECIFICATIONS

INDEX

A090A01A-AAT

This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following:

WARNING:

This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.

CAUTION:

This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution.

NOTE:

This indicates that interesting or helpful information is being provided.

SAFETY AND VEHICLE DAMAGE WARNING

A100A01L-GAT

GUIDE TO HYUNDAI GENUINE PARTS

1. What are Hyundai Genuine Parts?

Hyundai Genuine Parts are the same parts used by Hyundai Motor Company to manufacture vehicles. They are designed and tested for the optimum safety, performance, and reliability to our customers.

facturing requirements. Using imitation, counterfeit or used salvage parts are not covered under the Hyundai New Vehicle Limited Warranty or any other Hyundai warranty. In addition, any damage to or failure of Genuine Hyundai Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by Hyundai Motor Company.

The export specifications are written in English only.

Hyundai Genuine Parts are only sold through authorized Hyundai Dealership and Service Center.

2. Why should you use genuine parts?

Hyundai Genuine Parts are engineered and built to meet rigid manu-

A100A01L

3. How can you tell if you purchasing Hyundai Genuine Parts?

Look for the Hyundai Genuine Parts Logo on the package (see below).

A100A03L

A100A02L A100A04L

B250A03HP-GAT

INSTRUMENTS AND CONTROLS

(LEFT-HAND DRIVE)

B250A01HP

1. Multi-Function Light Switch/ Front Fog Light Switch

2. Instrument Cluster

3. Horn and Driver's Airbag (If Installed)

4. Rear Fog Light Switch (If Installed)

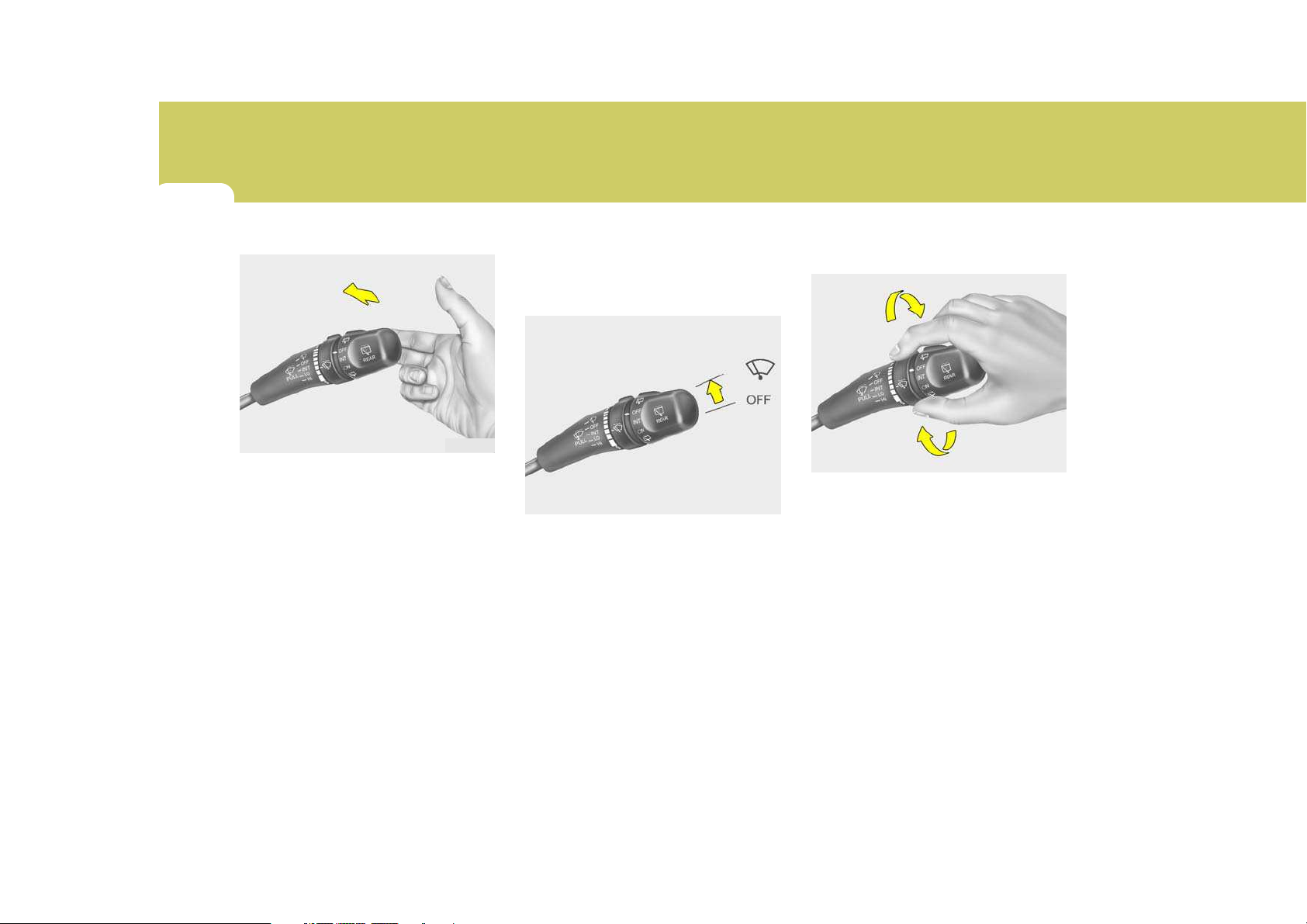

5. Windshield Wiper/Washer Switch

6. Panel Brightness Control Knob (Rheostat Switch) (If Installed)

7. Hazard Warning Switch

8. Cruise Control Main Switch (If Installed)

9. Headlight Leveling Switch (If Installed)

10. Audio System (If Installed)

11. Heating/Air Conditioning Control Panel

12. Glove Box

13. Passenger's Airbag (If Installed)

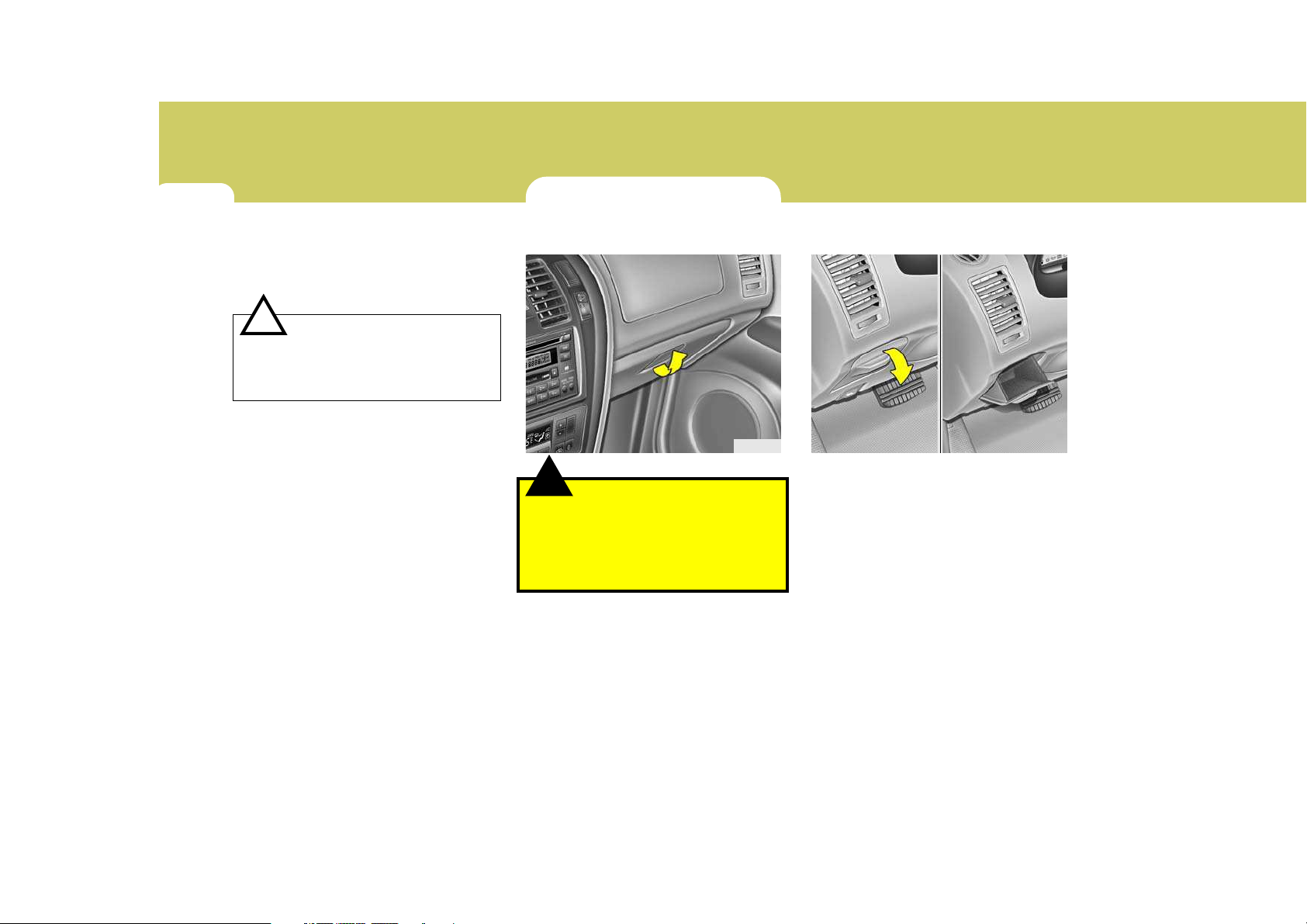

14. Hood Release Lever

CAUTION:

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.

15. Multi Box

16. Steering Wheel Tilt Lever (If Installed)

17. Remote Fuel-Filler Lid Release Lever

18. Cruise Control Switch (If Installed)

19. Cigarette Lighter/ Front Ashtray

20. Coin Holder

21. Shift Lever

22. Seat Warmer Switch (If Installed)

23. Front Power Outlet

24. Transfer Shift Knob

25. Parking Brake

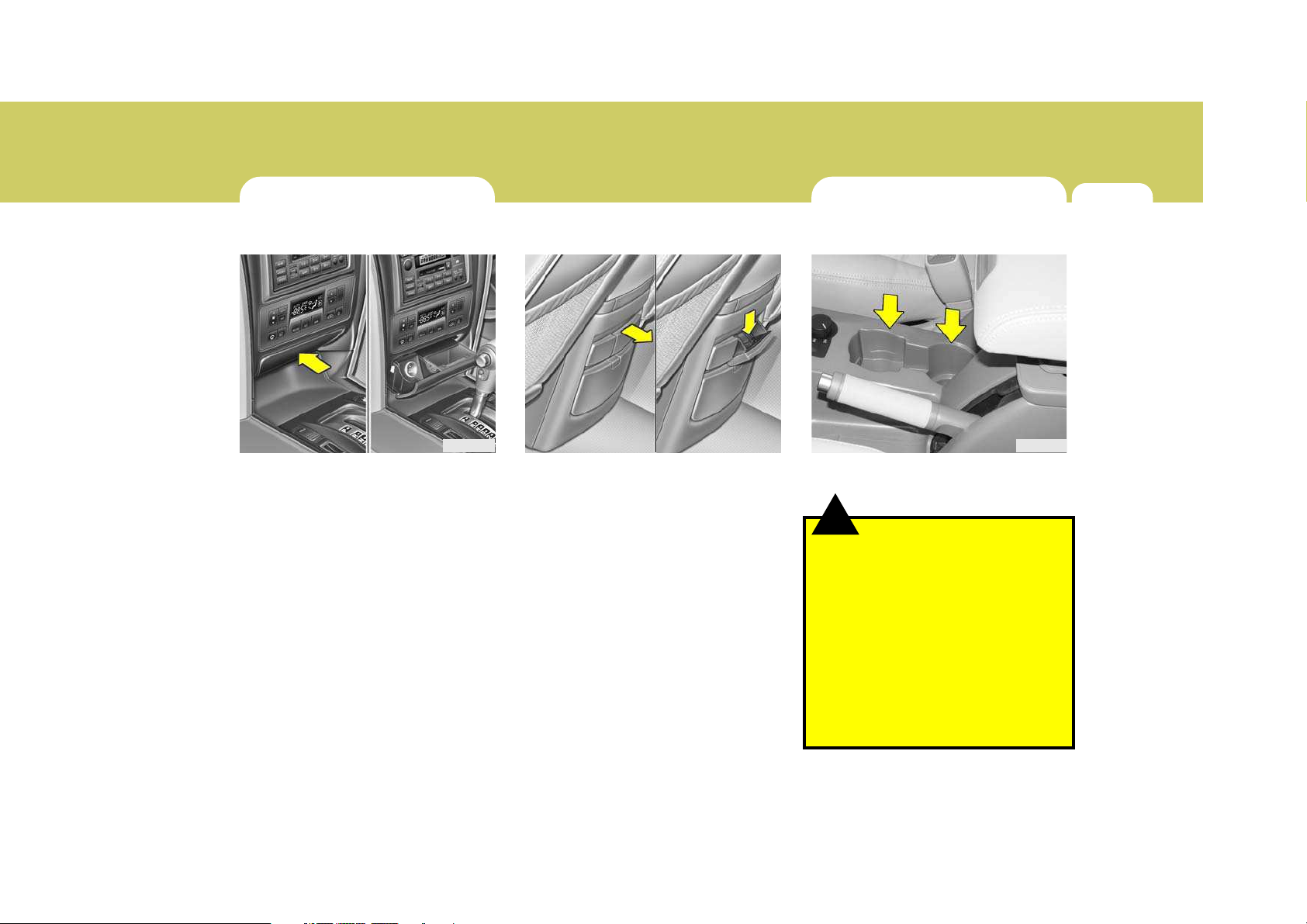

26. Front Drink Holder

27. Rear Power Outlet

28. Rear Drink Holder

29. Rear Ashtray

B250B03HP-GAT

INSTRUMENTS AND CONTROLS

(RIGHT-HAND DRIVE)

B250B01HP

1. Passenger's Airbag (If Installed)

2. Glove Box

3. Heating/Air Conditioning Control Panel

4. Audio System (If Installed)

5. Headlight Leveling Switch (If Installed)

6. Cruise Control Main Switch (If Installed)

7. Hazard Warning Switch

8. Panel Brightness Control Knob (Rheostat Switch) (If Installed)

9. Windshield Wiper/Washer Switch

10. Rear Fog Light Switch (If Installed)

11. Horn and Driver's Airbag (If Installed)

12. Instrument Cluster

13. Multi-Function Light Switch/ Front Fog Light Switch

14. Rear Ashtray

CAUTION:

15. Rear Drink Holder

16. Rear Power Outlet

17. Front Drink Holder

18. Parking Brake

19. Transfer Shift Knob

20. Front Power Outlet

21. Seat Warmer Switch (If Installed)

22. Shift Lever

23. Coin Holder

24. Cigarette Lighter/ Front Ashtray

25. Steering Wheel Tilt Lever (If Installed)

26. Cruise Control Switch (If Installed)

27. Remote Fuel-Filler Lid Release Lever

28. Multi Box

29. Hood Release Lever

YOUR VEHICLE AT A GLANCE

B255A01HP-GAT

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER

Turn Signal Indicator Lights

ABS Service Reminder Indicator (SRI) (If Installed)

High Beam Indicator Light

Low Oil Pressure Warning Light

Parking Brake/Low Brake Fluid Level Warning Light

Charging System Warning Light

Front Fog Indicator Light

Door Ajar Warning Light

Low Fuel Level Warning Light

Tail Gate Open Warning Light

SRS (Airbag) Service Reminder Indicator (SRI) (If Installed)

Seat Belt Warning Light

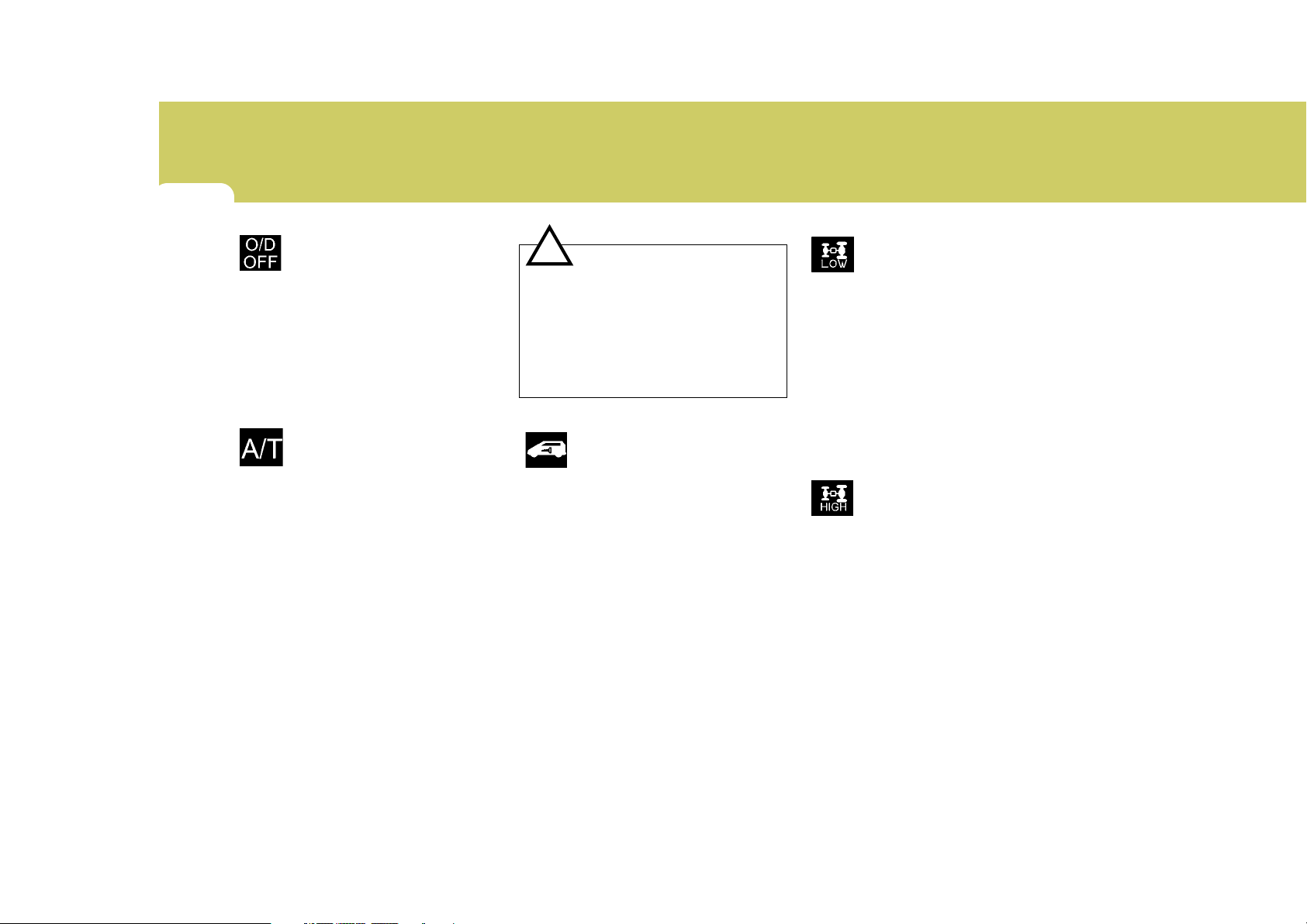

Cruise Indicator Light (If Installed)

O/D OFF Indicator Light (If Installed)

A/T(Automatic Transmission) Oil Temperature Warning Light (If Installed)

Immobilizer Warning Indicator Light (If Installed)

4WD LOW Indicator Light

4WD HIGH Indicator Light (Part-time 4WD only)

4WD System Warning Light (Full-time 4WD only)

Fuel Filter Warning Light (Diesel Engine)

Brake Vacuum Warning Light (Diesel Engine)

Diesel Preheat Indicator Light (Diesel Engine)

Malfunction Indicator Light (If Installed)

* More detailed explanations of these items will be found beginning on page 1-58.

FEATURES OF YOUR HYUNDAI

Fuel Recommendations ............................................... 1-2

Breaking In Your New Hyundai .................................... 1-3

Keys .............................................................................. 1-4

Immobilizer System ...................................................... 1-5

Door Locks ................................................................. 1-11

Theft-Alarm System.................................................... 1-13

Power Windows .......................................................... 1-17

Seats .......................................................................... 1-18

Seat Belts ................................................................... 1-31

Child Restraint System ............................................... 1-39

Supplemental Restraint (AIRBAG) System ............... 1-48

Instrument Cluster and Indicator Lights ..................... 1-54

Warning and Indicator Lights ..................................... 1-58

Multimeter ................................................................... 1-69

Multi-function Light Switch ......................................... 1-73

Windshield Wiper/Washer Switch................................1-75

Sunroof ........................................................................1-83

Mirror ........................................................................... 1-88

Hood Release ..............................................................1-97

Cruise Control............................................................1-101

Heating and Cooling Control ......................................1-104

Stereo Sound System ...............................................1-120

Audio System ............................................................1-122

Antenna ..................................................................... 1-141

FEATURES OF YOUR HYUNDAI

FUEL RECOMMENDATIONS

B010A02O-GAT

Use Unleaded Gasoline

B010A02HP

For Europe – For the optimal vehicle performance, we recommend you to use unleaded gasoline with an octane rating of RON (Research Octane Number) 95 /AKI (Anti Knock Index) 91 or higher. You may use unleaded gasoline with an octane rating of RON 91~94/AKI 87~90 but it may result in slight performance reduction of the vehicle.

Except Europe – Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or higher must be used in Hyundai vehicle.

If leaded gasoline is used, it will cause the catalytic converter to become ineffective and the emission control system to malfunction. This can also result in increased maintenance expense. To avoid accidental use of leaded fuel, the large nozzle used with leaded gasoline at service stations can not be inserted into fuel tank opening of your Hyundai.

NOTE:

o For some countries, Hyundai ve-

hicles are designed to use leaded gasoline. When you are going to use leaded gasoline, ask to Hyundai dealer whether leaded gasoline in your vehicle is available or not.

o Octane rating of leaded gasoline

is same with unleaded one.

Use Diesel

Diesel fuel of 52 to 54 cetane is the correct rating to use in your Hyundai. If two types of diesel fuel are available, use summer or winter fuel properly according to the following temperature conditions.

o Above -5°C (23°F) ... Summer type

diesel fuel.

o Below -5°C (23°F) ... Winter type

diesel fuel.

Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuits must be completely purged to permit restarting.

CAUTION:

o Do not let any gasoline or water

enter the tank. This would make it necessary to drain it out and to bleed the lines to avoid jamming the injection pump and damaging the engine.

o In winter, in order to cut down

incidents due to freezing, paraffin oil may be added to the fuel if the temperature drops to below

-10°C. Never use more than 20% paraffin oil.

B010B01A-AAT

What About Gasohol?

Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine develops drive ability problems, the use of 100% unleaded gasoline is recommended. Fuels with unspecified quantities of alcohol, or alcohols other than ethanol, should not be used.

B010D01S-AAT

Do not Use Methanol

Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system.

CAUTION:

Your Hyundai's New Vehicle Limited Warranty may not cover damage to the fuel system and performance problems that are caused by the use of methanol or fuels containing methanol.

B010E01A-AAT

Gasolines for Cleaner Air

To help contribute to cleaner air, Hyundai recommends that you use gasolines treated with detergent additives, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System.

B010F01A-AAT

Operation in Foreign Countries

If you are going to drive your Hyundai in another country, be sure to:

o Observe all regulations regarding

registration and insurance.

o Determine that acceptable fuel is

available.

FEATURES OF YOUR HYUNDAI

BREAKING IN YOUR NEW HYUNDAI

B020A01S-GAT

During the First 2,000 Km (1,200 Miles) (Gasoline Engine)

No formal "break-in" procedure is required with your new Hyundai. However, you can contribute to the economical operation and durability of your Hyundai by observing the following recommendations during the first 2,000 km (1,200 miles).

o Don't drive faster than 88 km/h (55

mph).

o While driving, keep your engine

speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.

o Use moderate acceleration. Don't

start, depress the accelerator pedal fully.

o For the first 300 km (200 miles), try

to avoid hard stops.

o Don't lug the engine (in other words,

don't drive so slowly in too high a gear that the engine "bucks":shift to a lower gear).

o Whether going fast or slow, vary

your speed from time to time.

FEATURES OF YOUR HYUNDAI

KEYS

o Don't let the engine idle longer than

3 minutes for a catalytic converter equipped engine.

o Don't tow a trailer during the first

2,000 km (1,200 miles) of operation.

B020B01FC-GAT

During the First 1,000 Km (600 Miles) (Diesel Engine)

o While driving, keep your engine

speed (rpm, or revolutions per minute) within 3,000 rpm.

o While driving, keep under three quar-

ters of maximum speed.

o Use moderate acceleration. Don't

start, depress the accelerator pedal fully.

o For the first 300 km (200 miles), try

to avoid hard stops.

o Don't lug the engine (in other words,

don't drive so slowly in too high a gear that the engine "bucks": shift to a lower gear).

o Whether going fast or slow, vary

your speed from time to time.

o Don't let the engine idle longer than

3 minutes at one time.

o Don't tow a trailer during the first

1,000 km (600 miles) of operation.

B030A01A-AAT

B030A01HR

For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in case you accidentally lock one key inside the car.

IMMOBILIZER SYSTEM

FEATURES OF YOUR HYUNDAI

B030B01A-AAT

Record Your Key Number

B030B01HR

A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number.

B880A01HP-GAT

- For Diesel Engine (2.5 TCI) or Gasoline Engine (If Installed)

The immobilizer system is an anti-theft device, designed to deter automobile theft.

B880B02HP-GAT

Keys

Type A

Light Purple

Black

ID key

Master key

B880B01HP

Type B

ID key

For greater convenience, your Hyundai has two types of keys as shown in the illustration.

Master key

B880B02HP

FEATURES OF YOUR HYUNDAI

(1) ID key

This key must be used first to register a unique ID code in the ICM. This ID code is then recorded onto the master keys. Both sides of the key have a Hyundai logo.

(2) Master key

This key is for general use. It will open all locks on your vehicle. One side of the key has the Hyundai logo and the other side has the "M" symbol. If your vehicle is equipped with Theft-alarm system, the master keys with the function of transmitter will be provided. (Type B)

CAUTION:

Don't lose your ID key or forget the password. Always keep your ID key in a place where you remember and record your password. If you don't have both the password and ID key, consult your authorized Hyundai dealer.

(3) If you need additional keys or if you

should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number and ID key.

NOTE:

If you make your own duplicate key, you will not be able to cancel the system or start the engine.

CAUTION:

When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soon after it starts. Keep each keys separately not to have any malfunction after you receive your new vehicle.

B880C01A-GAT

Key Numbers

B880C01HP

B880C02HP

The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you.

FEATURES OF YOUR HYUNDAI

The key number should be recorded and kept in a safe place in case the need to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant key number. In the interest of security, the metal tag attached to the keys which bears the key number should be removed from the key ring after you receive your new vehicle. In addition, key numbers cannot be provided by Hyundai for security reasons. If you need additional keys or if you should lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number and ID key.

B880D01HP-GAT

Limp Home Procedures

In case the immobilizer system is out of order, you cannot start the engine without the limp home procedures with ignition key. The following procedure is how to start the engine with the function of the limp home. (0, 1, 2, 3 as a sample password).

NOTE:

You can get the limp home password when the vehicle is first delivered to you. If you do not have the password, consult your authorized Hyundai dealer.

1. To set the password you may turn the ignition key "ON" and then turn it "OFF" according to the digit numbers. For example, turn the ignition key once for digit number "1", and twice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.

2. Wait for 3~10 seconds.

3. You may set the remaining number of digits by following the same procedures 1 and 2.

4. If all of four digits have been tried successfully, from this time, you have to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine will not start.

NOTE:

If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds without limp home procedure again.

After doing the limp home procedure, you have to consult with your authorized Hyundai dealer as soon as possible.

CAUTION:

If you cannot start your engine in spite of limp home procedure, have your vehicle towed by an authorized Hyundai dealer.

FEATURES OF YOUR HYUNDAI

B885A01HP-GAT

- For Diesel Engine (2.9 CRDi) (If Installed)

The immobilizer system is an anti-theft device, designed to deter automobile theft.

B885B02HP-GAT

Keys

Type A

Master keys

B885B01HP

Type B

Master keys

B885B02HP

All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the key does not become locked inside the vehicle by mistake. If your vehicle is equipped with Theft-alarm system, the master keys with the function of transmitter will be provided (Type B).

NOTE:

If you make your own duplicate key, you will not be able to cancel the system or start the engine.

CAUTION:

o The password should be re-

corded and kept in a safe place in case the need to order further keys arises.

o If you forget the password, con-

sult your authorized Hyundai dealer.

o When starting the engine, do not

use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soon after it starts. Keep each keys separately not to have any malfunction after you receive your new vehicle.

FEATURES OF YOUR HYUNDAI

B885C01O-GAT

Key Numbers

B885C01HP

B885C02HP

The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you.

B885D01O-GAT

Limp Home Procedures

B880D01HP-1

In case the immobilizer warning indicator blinks for five seconds when the ignition key is turned to "ON" position, this indicates that the immobilizer system is out of order. And you cannot start the engine without the limp home procedures with ignition key. The following procedure is how to start the engine with the function of the limp home. (0, 1, 2, 3 as a sample password).

FEATURES OF YOUR HYUNDAI

NOTE:

You can get the limp home password when the vehicle is first delivered to you. If you do not have the password, consult your authorized Hyundai dealer.

1. To set the password you may turn the ignition key "ON" and then turn it "OFF" according to the digit numbers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turn the ignition key once for digit number "1", and twice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.

2. Wait for 3~10 seconds.

3. You may set the remaining number of digits by following the same procedures 1 and 2.

4. If all of four digits have been tried successfully, turn the ignition key "ON" and check that the immobilizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine will not start.

NOTE:

If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds without limp home procedure again.

5. If the immobilizer indicator blinks for five seconds, you have to try the limp home procedure again from the beginning.

After doing the limp home procedure, you have to consult with your authorized Hyundai dealer as soon as possible.

CAUTION:

o If you fail to try the limp home

procedure with the sequence of three times, you have to wait for about one hour to do the limp home procedure again.

o If you cannot start your engine in

spite of limp home procedure, have your vehicle towed by an authorized Hyundai dealer.

B030C01Y-AAT

ILLUMINATED IGNITION SWITCH

B030C01E

Whenever a front door is opened, the ignition switch will be illuminated for your convenience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10 seconds after closing the door or when the ignition switch is turned on.

DOOR LOCKS

FEATURES OF YOUR HYUNDAI

B040A02Y-AAT

WARNING:

o Unlocked doors can be danger-

ous. Before you drive away (especially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be inadvertently opened from the inside. This helps ensure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.

o Before opening the door, always

look for and avoid oncoming traffic.

o In case of accident, the door is

unlocked automatically (If Installed).

B040B01A-AAT

Locking and Unlocking Front Doors with a Key

UNLOCK

LOCK

HHP2003

o The door can be locked or unlocked

with a key.

o Lock the door by turning the key

toward the front of the vehicle and unlock it by turning the key toward the rear.

B040C02Y-DAT

Locking from the Outside

B040C01HP

The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door. The door will not lock if the key is left in the ignition switch when the front doors are closed. This is normal.

NOTE:

o When locking the door this way,

be careful not to lock the door with the ignition key left in the vehicle.

o To reduce the chance of theft,

always remove the ignition key, close all windows and lock all doors when leaving your vehicle unattended.

FEATURES OF YOUR HYUNDAI

B040D01S-AAT

Locking from the Inside

LOCK

UNLOCK

HHP2004

To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the inside door handles can be used.

NOTE:

When the door is locked, the red mark on the switch is not visible.

B040E04A-AAT

Child-Protector Rear Door Lock

HHP2008

Your Hyundai is equipped with a "childprotector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat.

To engage the child-protector feature so that the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the " " position when normal door operation is desired.

If you wish to be able to open the door from the outside, the outside door handle will function normally.

B040G02HP-AAT

Central Door Locks

LOCK

UNLOCK

B040G01HP

The central door locking switch is located on the driver's armrest. It is operated by depressing the door lock switch.

THEFT-ALARM SYSTEM

FEATURES OF YOUR HYUNDAI

NOTE:

o When pushing the front portion

of the driver's door lock switch, all vehicle doors will lock. If any door is open when the switch is depressed, the door will remain locked when closed.

o When pushing the rear portion of

the switch, all vehicle doors will unlock.

o The central door locking is oper-

ated by turning the key toward the front or rear of the vehicle.

o If the door is locked/unlocked mul-

tiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily in order to protect the circuit and prevent damage to system components.

B070A01A-AAT

(If Installed)

This system is designed to provide protection from unauthorized entry into the car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turn signal lights.

B070B01O-AAT

Armed Stage

Type A

UNLOCK

LOCK

Type B

LOCK

UNLOCK

Park the car and stop the engine. Arm the system as described below.

HHP2002

B070B02HP

FEATURES OF YOUR HYUNDAI

1) Remove the ignition key from the ignition switch.

2) Make sure that the engine hood and tail gate are closed and latched.

3) Lock the doors using the transmitter of the keyless entry system.

After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed.

NOTE:

1) If any door, tail gate or engine hood remains open, the system will not be armed.

2) If this happens, rearm the system as previously described.

CAUTION:

Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.

B070C01HP-GAT

Alarm Stage

B070C01HP

The alarm will be activated if any of the following occurs while the car is parked and the system is armed.

1) A front or rear door is opened without using the transmitter.

2) The tail gate is opened without using the transmitter.

3) The engine hood is opened.

The siren will sound and the turn signal lights will blink continuouly for 27 seconds (Type B/ Type A : This will repeat 3 times). To turn off the system, unlock the door or tail gate with the transmitter.

CAUTION:

Avoid trying to start the engine while the system is armed.

B070D01HP-AAT

Disarmed Stage

Type A

The system will be disarmed when the driver's or passenger's door is unlocked by depressing the "UNLOCK" button on the transmitter.

Type B

B070D01HP

FEATURES OF YOUR HYUNDAI

After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed.

NOTE:

If any door, tail gate or engine hood is not opened within 30 seconds, the system will be rearmed.

CAUTION:

Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is necessary to take the following steps;

1. Unlock the door with the key, which will cause the alarm to be activated.

2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" position.

3. Wait for 30 seconds.

After completing the steps above, the system will be disarmed.

B070F02A-GAT

Keyless Entry System (If Installed)

Locking doors

1. Close all doors.

2. Push the "LOCK" button on the transmitter.

3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.

Unlocking doors

1. Push the "UNLOCK" button on the transmitter.

2. At the same time all doors unlock, the turn signal lights will blink twice to indicate that the system is disarmed.

NOTE:

The transmitter will not work if any of following occur:

- The ignition key is in ignition switch.

- You exceed the operating distance limit (10 m).

- The battery in the transmitter is weak.

- Other vehicles or objects may be blocking the signal.

- The weather is extremely cold.

- The transmitter is close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

When the transmitter does not work correctly, open and close the door with the ignition key. If you have a problem with the transmitter, contact an authorized Hyundai Dealer.

NOTE:

Keep the transmitter away from water or any liquid. If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer vehicle warranty.

FEATURES OF YOUR HYUNDAI

B070E02HP-GAT

Replacing the battery

When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Replace the battery as soon as possible.

Battery type : CR2032(Type A)

or CR1616 (Type B)

Replacement instructions:

Type A:

Screwdriver

MSO-0048-1

1. Carefully separate the case with a blade screwdriver as shown in the illustration.

Case

Battery

MSO-0048-2

2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter.

3. Installation is the reverse order of disassembly.

Type B:

Transmitter

Case

HMXOM033-2

1. Carefully separate the case with a phillips screwdriver.

Hole

POWER WINDOWS

B060A03L-AAT

Open

(1)

FEATURES OF YOUR HYUNDAI

Battery

Battery Cover

HMXOM033-3

2. Take off the battery cover after separating the transmitter.

3. Remove the old battery from the transmitter with a blade screwdriver inserted in the hole and note the polarity. Make sure the polarity of the new battery is the same(+side facing up), then insert it in the transmitter.

4. Installation is the reverse order of disassembly.

B060A01HP

The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side, press the switch(1) halfway down. The window moves as long as the switch is operated. To fully open the driver's window automatically, press the switch fully down. In automatic operation, the window will fully open even if you let go of the switch. To stop at the desired opening, pull up and release the switch.

(2)

B060A02HP

In order to prevent operation of the passanger front and rear windows, a window lock switch(2) is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch. To revert to normal operation, press the window lock switch a second time.

FEATURES OF YOUR HYUNDAI

SEATS

NOTE:

The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the ignition switch. If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position.

Open

HHP2013

WARNING:

1) Be careful that someone's head, hands and body are not trapped by a closing window.

2) Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.

3) Do not leave children alone in the car. Always remove the ignition key for their safety.

B080A01A-AAT

ADJUSTABLE FRONT SEATS

WARNING:

Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage.

B080B02A-AAT

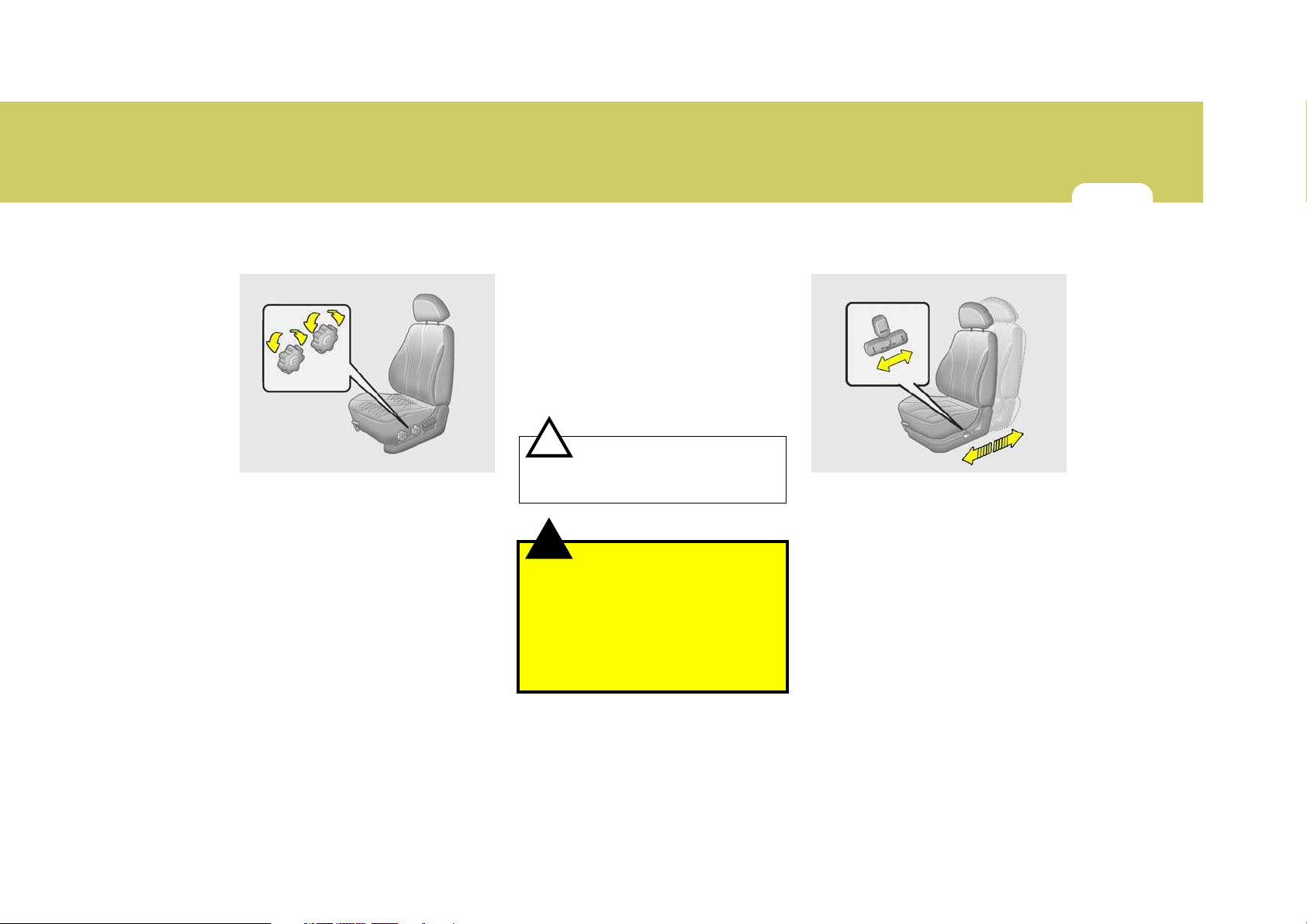

Adjusting Seat Forward and Rearward

HHP2026

To move the seat toward the front or rear, pull the lock release lever upward.

FEATURES OF YOUR HYUNDAI

This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.

WARNING:

To ensure the seat is locked securely, attempt to move the seat forward or rearward without using the lock release lever.

B080C01A-AAT

Adjusting Seatback Angle

To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.

WARNING:

To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection provided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seat back is reclined.

B080D02JM-GAT

Adjustable Headrests

Lock knob

B080D01HP

Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward.

HHP2027

FEATURES OF YOUR HYUNDAI

WARNING:

B080D01JM

o For maximum effectiveness in case

of an accident the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushion that holds the body away from the seatback should not be recommended.

o Do not operate vehicle with the

headrests removed as injury to the occupants may occur in the event of an accident. Headrests may provide protection against neck injuries when properly adjusted.

o Do not adjust the headrest hejght

while the vehicle is in motion.

B081D01LZ-AAT

Tilting Headrest Forward and Rearward (If Installed)

HHP2034

The headrest may be tilted forward to three different positions by pulling the headrest forward. To adjust the headrest rearward, pull it fully forward to the farthest position and release it. Adjust the headrest so that it properly supports the head and neck.

B080E02A-AAT

Lumbar Support Control (Driver's seat only) (If Installed)

HHP2032

To adjust the lumbar support, turn the handle on the inboard side of the seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear.

1. Minimum support

2. Maximum support

FEATURES OF YOUR HYUNDAI

B080F01S-AAT

Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)

HHP2028 HHP2029

To raise or lower the front part of the seat cushion, turn the front knob forward or rearward. To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward.

B090A02Y-AAT

POWER DRIVER'S SEAT (If Installed)

The driver's seat can be adjusted appropriately by using the control knob on the left side of the seat. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel.

CAUTION:

Do not operate two knobs at the same time.

WARNING:

o Never attempt to adjust the seat

while the vehicle is moving. This could result in loss of control or an accident causing death, serious injury, or property damage.

o Do not sit or lean unnecessarily

close to the airbag.

B090B01L-AAT

Adjusting Seat Forward and Rearward

Pull the control knob forward or backward to move the seat forward or backward to the desired position. Release the knob and the seat will lock at that position.

1. Reclining Control Knob

2. Sliding and Height Adjusting Control Knob

FEATURES OF YOUR HYUNDAI

B090C01Y-AAT

Seat Cushion Height Adjustment

HHP2031

Move the front portion of the control knob up or down to raise or lower the front part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part of the seat cushion.

B090D01Y-AAT

Adjusting Seatback Angle

HHP2030

Rotate the upper portion of the control knob forward or backward to recline the seatback to the desired position. Release the control knob and then the seatback will lock in that position.

WARNING:

To minimize the risk of personal injury in the event of a collision or a sudden stop, both the driver's and passenger's seatbacks should remain in an upright position while the car is in motion. The protection provided by the seat belts and airbags may be reduced significantly when the seatbacks are reclined. There is a greater risk that the seat occupants will slide under the belt resulting in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seatback is reclined.

FEATURES OF YOUR HYUNDAI

B080G01O-AAT

UNDER TRAY

HHP2037 B100A01HP

The tray is located under the front passenger seat. It is opend by pulling forward.

WARNING:

To avoid the possibility of injury in case of an accident or a sudden stop, the tray should be kept closed when the car is in motion.

B100A02HP-GAT

SEAT WARMER (If Installed)

The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" position, push either of the switches to warm the driver's seat or the passenger's seat. During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position.

CAUTION:

o The seat warmer will not operate

if ambient temperature is higher than 31.5°C (88.7°F).

o If the seat warmer doesn't work

when ambient temperature is lower than 24.5°C (76.1°F), it must be checked by authorized dealer.

FEATURES OF YOUR HYUNDAI

B090A03HP-GAT

SECOND SEAT Adjustable Headrests (If Installed)

Lock Knob

B090A01HP

WARNING:

o For maximum effectiveness in

case of an accident the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushion that holds the body away from the seatback should not be recommended.

o Do not operate vehicle with the

headrests removed as injury to the occupants may occur in the event of an accident. Headrests may provide protection against neck injuries when properly adjusted.

o Do not adjust the headrest hejght

while the vehicle is in motion.

B090C02HP-GAT

Adjusting Seatback Angle

Seatback folding lever

HHP2039

To recline the seatback, push the seatback folding lever toward the headrest, and release it after the desired seatback angle is achieved. When you recline the seatback to desired position, always be sure it has locked into position.

FEATURES OF YOUR HYUNDAI

WARNING:

B090B02HP-DAT

Folding Rear Seatback and Seat Cushion

For greater convenience, the entire seatback and seat cushion may be folded down and up.

HHP2057

NOTE:

Before folding the seat, fit the seat belt webbing in the clip and put the seat belt buckle between the seatback and the seat cushion.

1. Lower the headrest completely while pressing the lock knob. (If Installed)

(1)

HHP2040

2. To fold down the seatback , first push and hold the seatback folding lever(1) inward, and then push down the seatback.

HHP2041

FEATURES OF YOUR HYUNDAI

WARNING:

When folding down or returning the seatback, always hold the seatback. Otherwise, the seatback could move suddenly and result in unexpected injury.

(3)

(2)

HHP2042

3. Pull the seat cushion release lever(2) upward, and then fold up the seat cushion.

HHP2043

4. To secure the seat, hook the securing strap(3) under the seat cushion to the headrest stay of front driver and passenger seat.

5. To return the seatback and seat cushion to its normal position, reverse the above procedure.

HHP2043-1

NOTE:

o Before lowering the seat cush-

ion when you return the seat, roll the securing strap and put it in the pocket.

o When you return the seatback to

its upright position, always be sure it is locked into position by pulling and pushing on the top of seatback.

FEATURES OF YOUR HYUNDAI

WARNING:

o The purpose of the fold-down

rear seatback and the fold-up rear seat cushion is to allow you to carry more objects than could be accommodated. Never allow passengers to sit on the cargo area while the car is moving. This is not a proper seating position and no seat belts are available for use when the seatback is folded down. This could result in serious injury or death in case of an accident or a sudden stop. Objects should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

o When you return the rear

seatback to its upright position after being folded down, be careful not to damage the seat belt webbing or buckle. In addition, do not allow the seat belt webbing or buckle to get caught or pinched in the rear seat.

o Do not allow passengers to fold

down and up the seatback and seat cushion while the car is moving.

B095A03HP-GAT

THIRD SEAT(For 7 Passengers) Adjusting Seatback Angle

HHP2049

To recline the seatback, pull the seatback recliner control lever backwards, and release it after the desired seatback angle is achieved. When you recline the seatback to desired position, always be sure it has locked into position.

FEATURES OF YOUR HYUNDAI

WARNING:

B095B04HP-GAT

Folding Rear Seatback and Seat Cushion

1. Lower the headrest completely while pressing the lock knob (If Installed).

(1)

HHP2050

2. To fold down the seatback, pull the seatback recliner control lever(1), and then push down the seatback.

(2)

HHP2051

3. Pull the seat cushion release knob(2) beside the seat cushion, and fold the seat cushion sideways.

WARNING:

When folding down or returning the seatback, always hold the seatback. Otherwise, the seatback could move suddenly and result in unexpected injury.

FEATURES OF YOUR HYUNDAI

(3)

(4)

HHP2053

4. To secure the seat, hook the securing strap(3) under the seat cushion to the assist handle and fold the leg of the third seat(4).

HHP2054

5. Fix the seat belt buckle in the groove not to damage it.

6. To return the seatback and seat cushion to its normal position, reverse the above procedure.

NOTE:

When you return the seat cushion to its normal position, always lower the leg of the third seat to lock the seat into position.

WARNING:

o The purpose of the fold-down

This could result in serious injury or death in case of an accident or a sudden stop. Objects should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

o When you return the rear

o Do not allow passengers to fold

down and up the seatback and seat cushion while the car is moving.

FEATURES OF YOUR HYUNDAI

B095C01HP-GAT

To get in and out of the third seat

The second seat should be folded up to get in and out of the third seat.

1. Lower the headrest completely while pressing the lock knob.(If Installed)

(2)

(4)

(3)

(1)

HHP2045

2. To fold down the seatback , first push and hold the seatback folding lever (1) inward, and then push down the seatback.

B095C01HP

3. To get in the third seat, pull the handle for folding the seat cushion (2) beside the seat cushion, then fold up the seat cushion. To get out of the third seat, pull the seat cushion release lever (3) upward and fold up the seat cushion.

B095C02HP

4. To secure the seat, hook the securing strap (4) under the seat cushion to the headrest stay of front driver and passenger seat.

After doing above procedure, passengers can get in or get out of the third seat.

WARNING:

Do not allow passengers to fold down and up the seatback and seat cushion while the car is moving.

SEAT BELTS

FEATURES OF YOUR HYUNDAI

B140A01B-GAT

REAR SEAT WARNING

B140A01HP

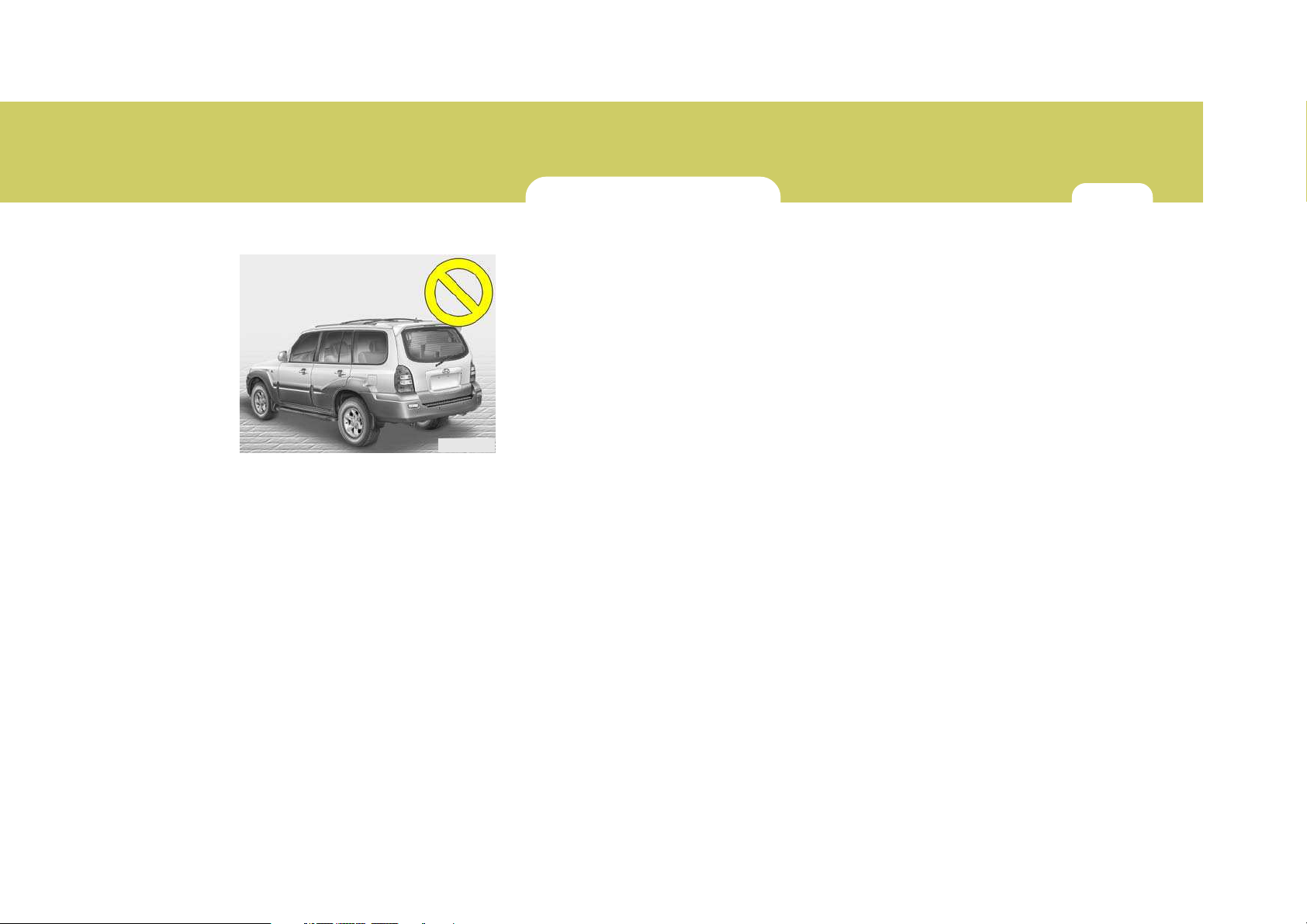

For the safety of all passengers, luggage or other cargo should not be piled higher than the top of the seatback.

B150A02A-GAT

SEAT BELT PRECAUTIONS

All occupants of the vehicle should wear their seat belts at all times. Indeed, your province's laws may require that some or all occupants of the vehicle use seat belts. The possibility of injury or the severity of injury in an accident will be decreased if this elementary safety precaution is observed. In addition, follow the other instructions provided in this section.

B150B01Y-GAT

Infant or Small Child

Some countries require the use of child restraint systems for infants and small children. Whether this is required by law or not, it is strongly recommended that a child restraint seat or infant restraint system be used for infants or small children weighing less than 18 kilograms (40 pounds).

NOTE:

Small children are best protected in an accident when properly restrained by a child restraint system.

B150C02A-AAT

Larger Children

Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13 should be restrained

FEATURES OF YOUR HYUNDAI

securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle.

B150D01A-AAT

Pregnant Women

The use of a seat belt is recommended for pregnant women to lessen the chance of injury in an accident. When a seat belt is used, the lap belt portion should be placed as low and snugly as possible on the hips, not across the abdomen. For specific recommendations, consult a physician.

B150E01A-AAT

Injured Person

A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommendations.

B150F01A-AAT

One Person Per Belt

Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.

B150G01A-AAT

Do Not Lie Down

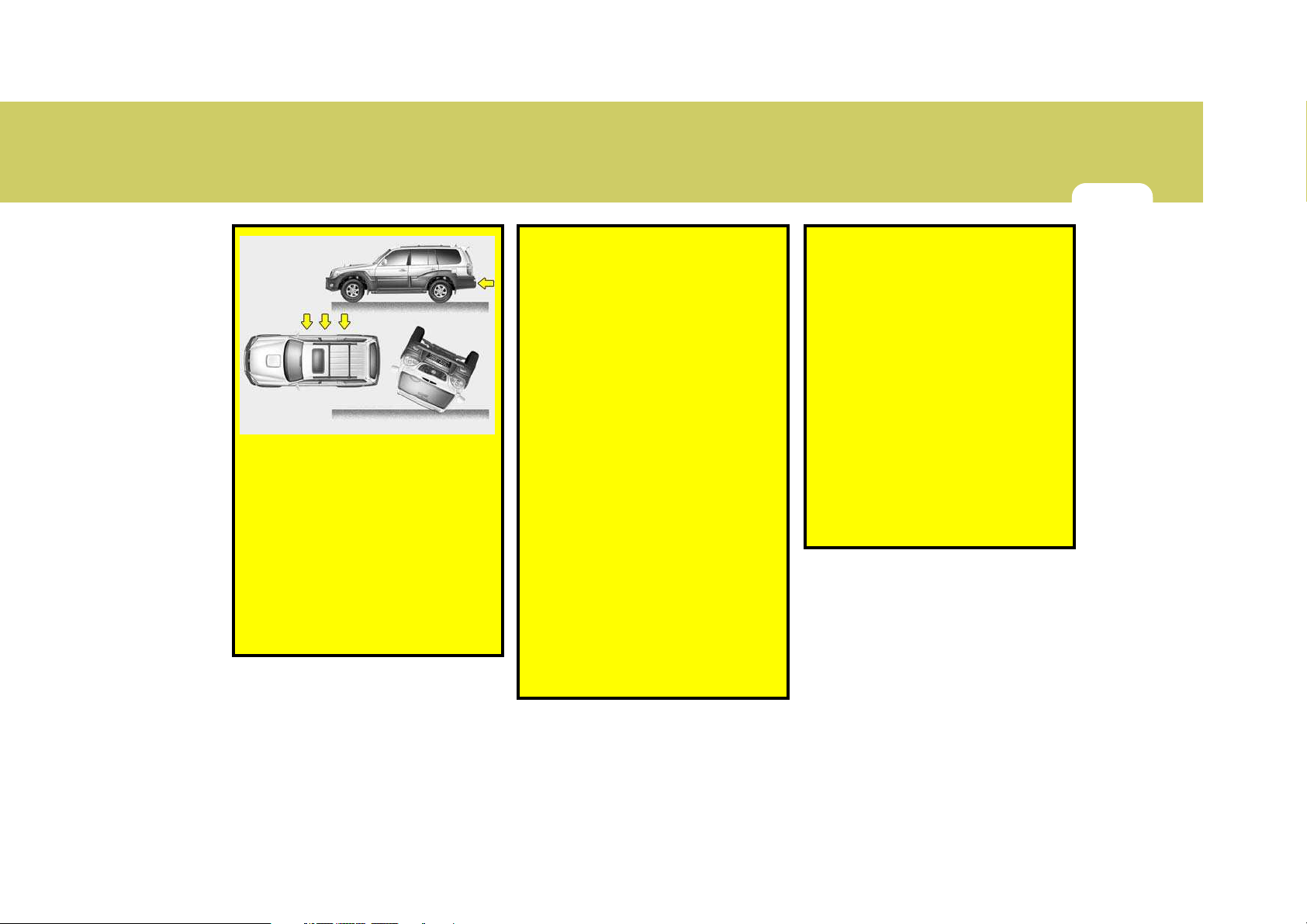

To reduce the chance of injuries in the event of an accident and to achieve maximum effectiveness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the car is moving. A seat belt cannot operate properly if the person is lying down in the rear seat or if the front seat is in a reclined position.

WARNING:

Sitting in a reclined position or lying down when your vehicle is in motion can be dangerous. Even if you buckle up, your seat belts can't do their job when you're reclined. The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front of you. In a crash you could go into it with great force, receiving serious neck or other injuries. The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forces would be applied there, not at your strong pelvic bones. This could cause serious internal injuries. For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear your seat belt properly. See page 1-34.

FEATURES OF YOUR HYUNDAI

B160A01A-AAT

CARE OF SEAT BELTS

Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.

WARNING:

When you return the rear seatback to its upright position after the rear seatback was folded down, be careful not to damage the seat belt webbing or buckle. Be sure that the webbing or buckle does not get caught or pinched in the rear seat.

B160B01A-AAT

Periodic Inspection

It is recommended that all seat belts be inspected periodically for wear or damage of any kind. Parts of the system that are damaged should be replaced as soon as possible.

B160C01A-AAT

Keep Belts Clean and Dry

Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.

B160D01A-AAT

When to Replace Seat Belts

Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional questions concerning seat belt operation should be directed to your Hyundai Dealer.

B170A04A-AAT

HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT (If Installed)

B170A01HP

You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection. The shoulder portion should be adjusted so that it lies across your chest and midway over your shoulder nearest the door and not your neck. To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position. To raise the height adjuster, pull it up. To

FEATURES OF YOUR HYUNDAI

lower it, push it down while pressing the height adjuster button. Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into the position.

WARNING:

o The height adjuster must be in

the locked position when the vehicle is moving.

o Misadjustment of shoulder belt

height could reduce the effectiveness of the seat belt in a crash.

B180A02A-GAT

SEAT BELTS-Driver's and Passenger's 3-Point System with Webbing Clamp Locking Retractor (If Installed) To Fasten Your Belt

B180A01L

will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.

B180A02Y-GAT

SEAT BELTS-3-Point System with Emergency Locking Retractor (If Installed) To Fasten Your Belt

B180A01L

FEATURES OF YOUR HYUNDAI

To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that the belt is not twisted.

B200A01S-GAT

Adjusting Your Seat Belt

B200A01L B210A01L

You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high on your body, you could slide under it in case of accident or a sudden stop. This could result of death, serious injury or property damage. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the arm nearest the door.

B210A01A-AAT

To Release the Seat Belt

The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

FEATURES OF YOUR HYUNDAI

B220A01A-AAT

SEAT BELTS (2-Point Static Type) (Rear Seat Center) (If Installed) To Fasten Your Seat Belt

HTB225

To fasten a 2-point static type belt, insert the metal tab into the locking buckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properly locked and that the belt is not twisted.

B220B01A-AAT

Adjusting Your Seat Belt

Too high

Shorten

With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fasten the belt and pull on the loose end to tighten. The belt should be placed as low as possible on your hips, not on your waist. If the belt is too high, it could increase the possibility of your being injured in an accident.

Correct

HTB226

B220C01A-AAT

To Release the Seat Belt

Center

When you want to release the seat belt, press the button in the locking buckle.

WARNING:

The center lap belt latching mechanism is different from those for the rear seat shoulder belts. When fastening the rear seat shoulder belts or the center lap belt, make sure they are inserted into the correct buckles to obtain maximum protection from the seat belt system and assure proper operation.

HHP2056

B220D02HP-GAT

SEAT BELTS - Center Rear Seat 3-Point System With Emergency Locking Retractor (If Installed)

(c)

(a)

(d)

1. Pull the seat belt out of the roof panel.

2. Before fastening the rear seat center belt, confirm the metal tab (a) and buckle (b) are latched together.

(b)

B220D01HP

(c)

(d)

B220D02HP

3. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor and insert the metal tab (c) into the buckle (d).

FEATURES OF YOUR HYUNDAI

B220A02Y-D

There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

FEATURES OF YOUR HYUNDAI

WARNING:

o When using the rear seat center

belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will increase the chance of injury in the event of collision.

o Never unlock the metal tab (a)

and the buckle (b) with the following exceptions. (1)In case of folding rear

seatbacks down.

(2) If transporting an object on

the rear seat may cause damage to the rear seat center belt.

o Lock the metal tab (a) and the

buckle (b) immediately after folding rear seatbacks up.

(a)

(b)

B220D03HP

o To disconnect the metal tab (a)

from the buckle (b), insert a sharpended tool into the groove located on the buckle (b).

B220D04HP

o In case of unlocking metal tab (a)

and the buckle (b), place metal (a) in the seat belt clip not to make noise while driving.

CHILD RESTRAINT SYSTEM

FEATURES OF YOUR HYUNDAI

B220C02A-GAT

To Release the Seat Belt

B220C01HP-E

When you want to release the seat belt, press the button in the locking buckle.

WARNING:

When fastening the outboard seat belts or the center seat belt, make sure they are inserted into the correct buckles to obtain maximum protection from the seat belt system and assure proper operation.

B230A03P-GAT

(If Installed)

Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided. You are required by law to use safety restraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat). Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing the child restraint system.

WARNING:

o A child restraint system must be

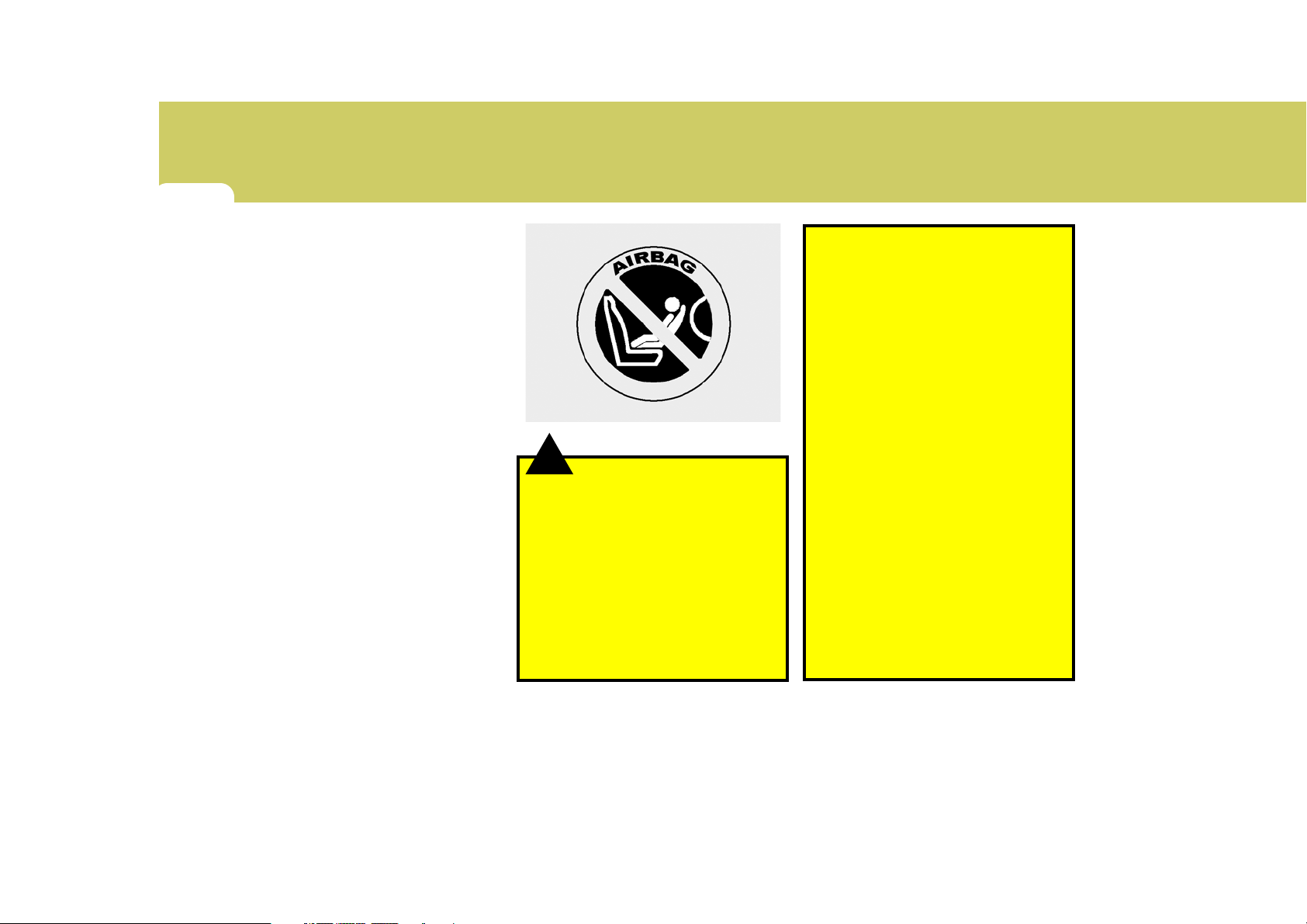

placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur and cause the passenger's side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rear seat of your vehicle.

o Since a safety belt or child re-

straint system can become very hot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing a child there.

o When the child restraint system

is not in use, fasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or an accident.

FEATURES OF YOUR HYUNDAI

o Children who are too large to be

in a child restraint should sit in the rear seat and be restrained with the available lap/shoulder belts. Never allow children to ride in the front passenger seat.

o Always make sure that the shoul-

der belt portion of the outboard lap/shoulder belt is positioned midway over the shoulder, never across the neck or behind the back. Moving the child closer to the center of the vehicle may help provide a good shoulder belt fit. The lap belt portion of the lap/ shoulder belt or the center seat lap belt must always be positioned as low as possible on the child's hips and as snug as possible.

o If the seat belt will not properly fit

the child, Hyundai recommends the use of an approved booster seat in the rear seat in order to raise the child's seating height so that the seat belt will properly fit the child.

o Never allow a child to stand up or

kneel on the seat.

o Never use an infant carrier or

child safety seat that "hooks" over a seatback; it may not provide adequate security in an accident.

o Never allow a child to be held in

a person's arms while they are in a moving vehicle, as this could result in serious injury to the child in the event of an accident or a sudden stop. Holding a child in a moving vehicle does not provide the child with any means of protection during an accident, even if the person holding the child is wearing a seat belt.

o If the child restraint seat is not

anchored properly, the risk of a child being seriously injured or killed in a collision greatly increases.

B230F01A-GAT

Installation on Center Rear Seat

2-Point static type

B230F01HP

3-Point type

B230F02HP

FEATURES OF YOUR HYUNDAI

Use the center seat belt for the rear to secure the child restraint system as illustrated. After installation of the child restraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured by the seat belt. If the child seat moves, readjust the length of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child restraint hook holder and tighten to secure the seat. Always refer to the child restraint system manufacturer's recommendation before installing the child restraint system in your vehicle.

B230G01A-GAT

Installation on the Outboard Rear Seats

B230G01HP

To install a child restraint system on the outboard rear seats, extend the shoulder/lap belt from its retractor. Buckle the seat belt and allow the seat belt to take up any slack. Make sure that the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is positioned so that it cannot interfere with the child's head or neck. After installation of the child restraint system, try to move it in all directions to be sure the child restraint system is securely installed.

If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normal seated passenger emergency locking usage condition.

NOTE:

o Before installing the child re-

straint system, read the instructions supplied by the child restraint system manufacturer.

o If the seat belt does not operate

as described, have the system checked immediately by your authorized Hyundai dealer.

WARNING:

Do not install any child restraint system in the front passenger seat. Should an accident occur and cause the passenger's side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.

FEATURES OF YOUR HYUNDAI

B230H03HP-GAT

Child Seat Restraint Suitability For Seat Position Using The Seat Belt

Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table.

Seating Position

Age Group

0 : Up to 10 kg

(0 ~ 9 months)

0+ : Up to 13 kg

(0 ~ 2 years)

I : 9kg to 18kg

(9 months ~ 4

years)

II & III : 15kg to

36kg (4 ~ 12

years)

Front

Passenger

X U, L1 U

XUFUF

Rear

Outboard

Rear

Center

U : Suitable for "universal" category

restraints approved for use in this mass group

UF : Suitable for forward-facing "uni-

versal" category restraints approved for use in this mass group

L1 : Suitable for "Römer ISOFIX GR1"

approved for use in this mass group (Approval No: E1 R44-03301133)

X : Seat position not suitable for chil-

dren in this mass group

B230B02A-AAT

Using a Child Restraint System With "Tether Anchorage" System

Holder Bolt (5/16"-30 mm)

Conical Spring Washer

Child Restraint Hook Holder

Retainer Washer

B230B01HP

For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided with three child restraint hook holders for installing the child seat or infant seat.

FEATURES OF YOUR HYUNDAI

B230C02HP-GAT

Securing a Child Restraint System with "Tether Anchorage" System

Three child restraint hook holders are located on the floor behind the second seat. Install the child restraint seat according to the instructions provided as following.

Tether Anchor Cover

Hole

1. Open the tether anchor cover on the floor behind the second seat with the key inserted in the hole.

2. Route the child restraint seat strap over the seatback. For vehicles with adjustable headrests, route the tether strap under

Child Restraint Hook Holder

B230C01HP

the headrest and between the headrest posts, otherwise route the tether strap over the top of the seatback.

Child Restraint Hook Holders

Tether Strap Hook

Front of Vehicle

B230C02HP

3. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.

B230D04E-GAT

Securing a Child Restraint System with "ISOFIX" System and "Tether Anchorage" System

B230D01HP

ISOFIX is a standardized method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle. This enables a much more secure and positive location with the added benefit of easier and quicker installation.

FEATURES OF YOUR HYUNDAI

An ISOFIX-seat can only be installed if it has vehicle-specific approval in accordance with the requirements of ECE-R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo / Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved according to the requirement ECE-R44. This seat has been tested extensively by Hyundai and is recommended for your Hyundai.

NOTE:

At present, this seat is the only one complying with that provision. In case that other manufacturers will furnish proof of a respective certification, Hyundai is going to evaluate this seat carefully and will give a recommendation provided that seat complies to the law. Please ask your Hyundai dealer in this respect.

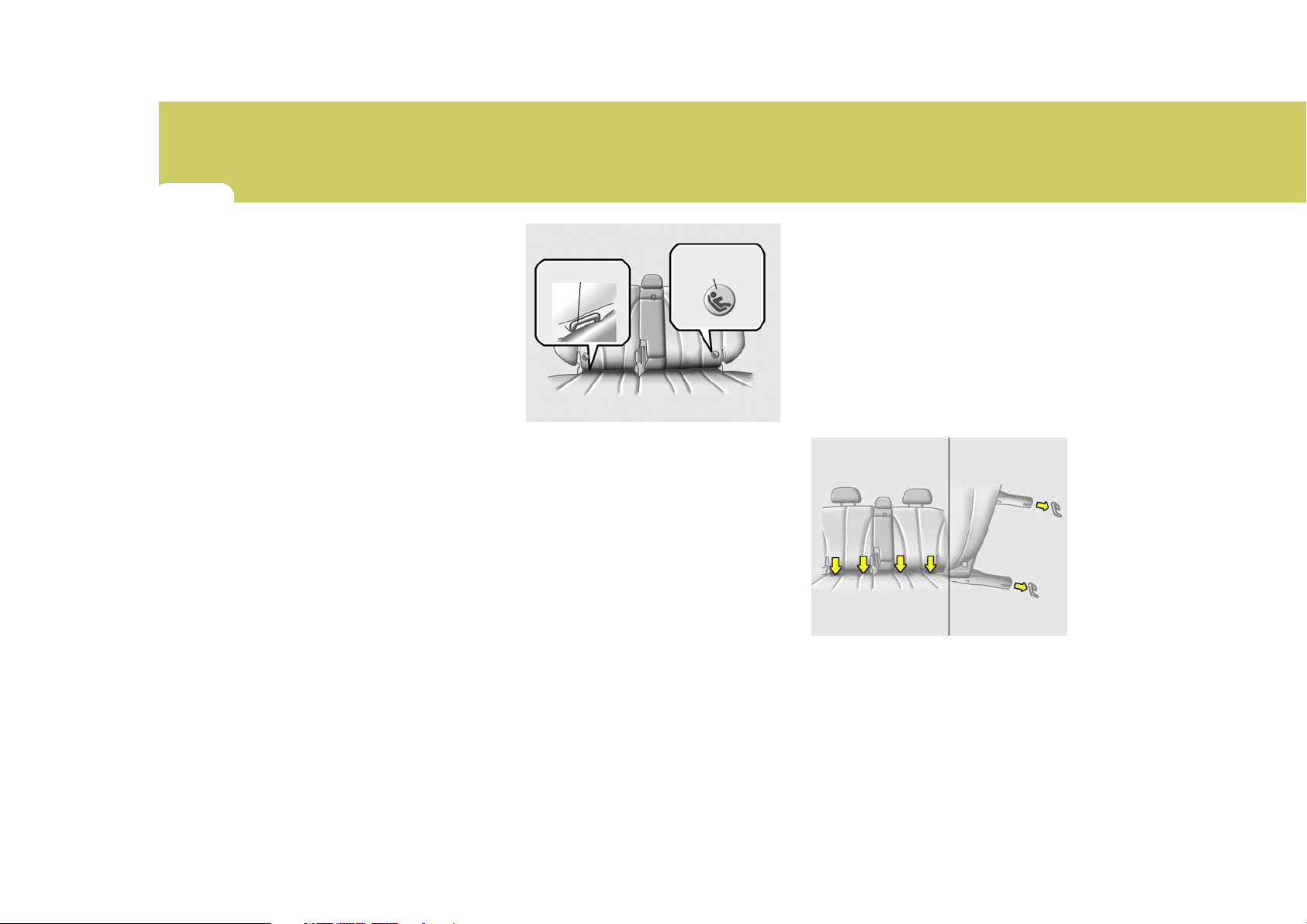

ISOFIX Anchor

Position Indicator

B230D02HP

On each side of the rear seat, between the cushion and backrest, are located a pair of ISOFIX anchorage points together with a top tether mounting on the luggage compartment. During the installing, the seat has to be engaged at the anchorage-points in a way you can hear it clicking (check by pulling!) and has to be fixed with the Top Tetherbelt on the belonging point in the luggage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual, which is added to the ISOFIX-seat.

NOTE:

An ISOFIX-child-seat can only be installed if the seat has a vehiclespecific approval according to ECER44. Before using the ISOFIX-childseat, which was bought for another car, ask your Hyundai-dealer whether this seat-type is approved and recommended for your Hyundai.

To secure the child restraint seat

B230D03HP

FEATURES OF YOUR HYUNDAI

1. To engage the child restraint seat to the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the audible "click" sound.

2. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat. Refer to "Securing a Child Restraint System with the Tether Anchorage System" on page 1-43.

WARNING:

o Do not install a child restraint

seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right outboard rear seating positions. Do not misuse the ISOFIX anchors by attempting to attach a child restraint seat in the middle of the rear seat to the ISOFIX anchors. In a crash, the child restraint seat ISOFIX attachments may not be strong enough to secure the child restraint seat

properly in the center of the rear seat and may break, causing serious injury or death.

o When using the vehicle’s “ISOFIX”

system to install a child restraint system in the rear seat, all unused vehicle rear seat belt metal latch plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must be retracted behind the child restraint to prevent the child from reaching and taking hold of unretracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the unretracted seat belts which may result in strangulation and a serious injury or death to the child in the child restraint.

o Do not mount more than one child

restraint to a child restraint lower anchorage point. The improper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death.

o Attach the ISOFIX or ISOFIX-com-

patible child restraint seat only to the appropriate locations shown in the illustration.

o Always follow the installation and

use instructions provided by the manufacturer of the child restraint.

B180B03HP-AAT

Pre-tensioner Seat Belt (If Installed)

HXG229

Your Hyundai vehicle is equipped with driver's and front passenger's pretensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions. The pre-tensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags.

FEATURES OF YOUR HYUNDAI

When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body.

Driver's airbag

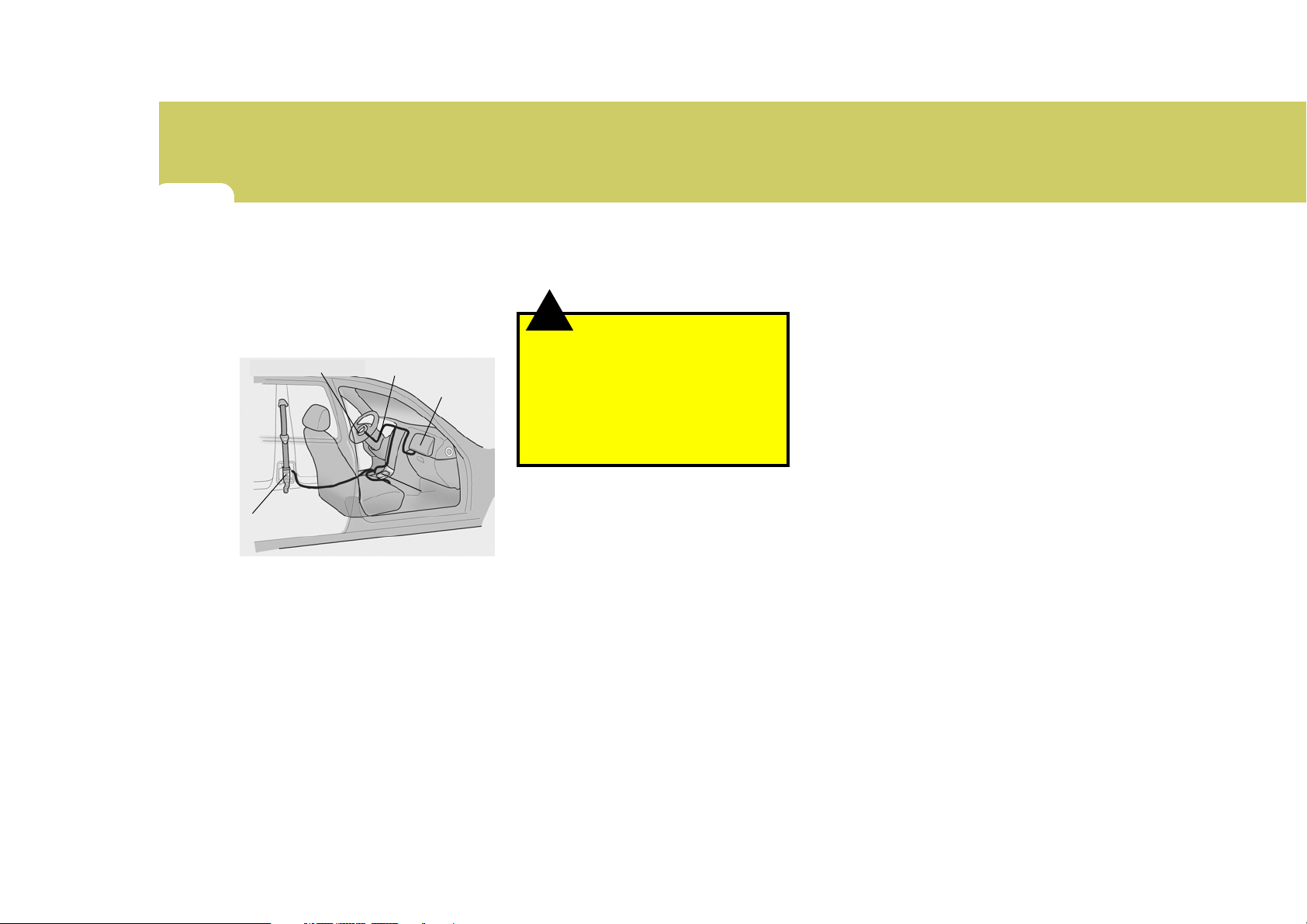

The seat belt pre-tensioner system consists mainly of the following components. Their locations are shown in the illustration.

Passenger's airbag

B180B01HP

1. SRS airbag warning light

2. Seat belt pre-tensioner assembly

3. SRS control module

WARNING:

To obtain maximum benefit from a pre-tensioner seat belt:

1. The seat belt must be worn correctly.

2. The seat belt must be adjusted to the correct position.

NOTE:

o Both the driver's and front

passenger's pre-tensioner seat belts will be activated in certain frontal collisions. The pretensioner seat belts can be activated alone or, where the frontal collision is severe enough, together with the airbags.

o When the pre-tensioner seat belts

are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating conditions and are not hazardous.

o Although it is harmless, the fine

dust may cause skin irritation and should not be breathed for prolonged periods. Wash your hands and face thoroughly after an accident in which the pretensioner seat belts were activated.

FEATURES OF YOUR HYUNDAI

CAUTION:

o Because the sensor that activates

the SRS airbag is connected with pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will blink for approximately 6 seconds after the ignition key has been turned to the "ON" position or after the engine is started, and then it should turn off.

o If pre-tensioner seat belt is not

working properly, this warning light will illuminate even if there is no malfunction of the SRS airbag. If the SRS airbag warning light does not blink for about 6 seconds when the ignition key is turned to "ON" or the engine is started, or if it remains illuminated after blinking for approximately 6 seconds, or if it illuminates while the vehicle is being driven, please have an authorized Hyundai dealer inspect the pretensioner seat belts and SRS airbag system as soon as possible.

BAG

AIR

WARNING:

o Pre-tensioners are designed to

operate only one time. After activation, pre-tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during a collision.

o The pre-tensioner seat belt as-

sembly mechanisms become hot during activation. Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated.

o Do not attempt to inspect or re-

place the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer.

o Do not strike the pre-tensioner

seat belt assemblies.

o Do not attempt to service or re-

pair the pre-tensioner seat belt system in any manner.

o Improper handling of the pre-

tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, replace, service or repair the pretensioner seat belt assemblies may lead to improper operation or inadvertent activation and serious injury.

o Always wear seat belts when driv-

ing or riding in a motor vehicle.

FEATURES OF YOUR HYUNDAI

SUPPLEMENTAL RESTRAINT

(AIRBAG) SYSTEM

B240A01HP-AAT

(If Installed)

Driver's Airbag

Your Hyundai is equipped with a Supplemental Restraint (Airbag) System. The indications of the system's presence are the letters "SRS AIR BAG" embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.

B240A01HP

The Hyundai SRS consists of airbags installed under the pad covers in the center of the steering wheel and the passenger's side front panel above the glove box. The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seatbelt system alone, in case of a frontal impact of sufficient severity.

NOTE:

Be sure to read information about the SRS on the labels provided on the front of the sun visor and in the glove box.

WARNING:

o As its name implies, the SRS is

designed to work with, and be supplemental to, the driver's and the passenger's three point seat belt systems and is not a substitute for them. Therefore, your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain frontal impact conditions severe enough to likely cause significant injury to the vehicle occupants.

o The SRS is designed to deploy

the airbags only when an impact is sufficiently severe and when the impact angle is less than 30° from the forward longitudinal axis of the vehicle and will not deploy in side, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat belts must be worn at all times.

o Front airbags are not intended to

deploy in light collisions in which protection can be provided by the seat belt alone.

FEATURES OF YOUR HYUNDAI

Rear impact

Side impact

Rollover

B240A02HP

o Front airbags are not intended to

deploy in side-impact, rear-impact or rollover crashes. In addition, airbags will not deploy in frontal crashes below the deployment threshold speed.

o The driver should sit back as far

as possible while still maintaining control of the vehicle. If you are sitting too close to the airbag, it can cause death or serious injury when it inflates.

o No objects should be placed over

or near the airbag modules on the steering wheel, instrument panel, and the front passenger's panel above the glove box, because any such object could cause harm if the vehicle is in a crash severe enough to cause the airbags to deploy.

o If the airbags deploy, they must

be replaced by an authorized Hyundai dealer.

o Do not tamper with or discon-

nect SRS wiring, or other components of the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by rendering the SRS inoperative.

o Do not install a child restraint

system in the front passenger seat position. A child restraint system must never be placed in the front seat. The infant or child could be severely injured or killed by an airbag deployment in case of an accident. Do not allow chil-

dren to ride in the front passenger seat. If older children (teenagers and older) must ride in the front seat, make sure they are always properly belted and that the seat is moved back as far as possible.

o For maximum safety protection

in all types of crashes, all occupants including the driver should always wear their seat belts whether or not an airbag is also provided at their seating position to minimize the risk of severe injury or death in the event of a crash. Do not sit or lean unnecessarily close to the airbag while the vehicle is in motion.

FEATURES OF YOUR HYUNDAI

B240B01HP-GAT

SRS Components and Functions

B240B01L

The SRS consists of the following components:

- Driver's Airbag Module

- Passenger's Airbag Module

- Knee Bolster

- SRS Service Reminder Indicator (SRI)

- SRS Control Module (SRSCM)

The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontal impact is severe enough to require airbag deployment.

The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 seconds after the ignition key is turned to the "ON" position or after the engine is started, after which the SRI should go out.

B240B02L

The airbag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects a considerable impact to the front of the vehicle, it will automatically deploy the airbags.

B240B03L

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the airbags. Further opening of the covers then allows full inflation of the airbags.

A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward motion, thus reducing the risk of head or chest injury.

After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility.

FEATURES OF YOUR HYUNDAI

Passenger's Airbag Passenger's Airbag

B240B01HP

CAUTION:

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.

WARNING:

o When the SRS is activated, there

may be a loud noise and fine dust will be released through the vehicle. These conditions are normal and are not hazardous. However, the fine dust generated during airbag deployment may cause skin irritation. Wash your hands and face thoroughly with lukewarm water and a mild soap after an accident in which the airbags were deployed.

B240B05L

o The SRS can function only when

the ignition key is in the "ON" position. If the SRS SRI does not flash, or continuously remains on after flashing for about 6 seconds when the ignition key is turned to the "ON" position or after the engine is started, comes on while driving, the SRS is not working properly. If this occurs, have your vehicle immediately inspected by your Hyundai dealer.

o Before you replace a fuse or dis-

connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" position. Failure to heed this warning will cause the SRS SRI to illuminate.

FEATURES OF YOUR HYUNDAI

B240C01HP-GAT

SRS Care

The SRS is virtually maintenance-free and so there are no parts you can safely service by yourself. The entire SRS system must be inspected by an authorized Hyundai dealer in 10 years after the date that the vehicle was manufactured.

Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must be performed by a qualified Hyundai technician. Improper handling of the SRS system may result in serious personal injury.

B240C01HP

WARNING:

o Extreme Hazard! Do not use a

rearward facing child restraint on a seat protected by an airbag in front of it.

o Modification to SRS components

or wiring, including the addition of any kind of badges to the pad covers or modifications to the body structure, can adversely affect SRS performance and lead to possible injury.

o For cleaning the airbag pad cov-

ers, use only a soft, dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the airbag covers and proper deployment of the system.

o No objects should be placed over

o If the airbags inflate, they must

be replaced by an authorized Hyundai dealer.

o Do not tamper with or discon-

nect SRS wiring, or other components of the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by rendering the SRS inoperative.

FEATURES OF YOUR HYUNDAI

o Do not install a child restraint

system in the front passenger seat position.

o A child restraint system must

never be placed in the front seat. The infant or child could be severely injured by an airbag deployment in case of an accident.

o If components of the airbag sys-

tem must be discarded, or if the vehicle must be scrapped, certain safety precautions must be observed. Your Hyundai dealer knows these precautions and can give you the necessary information. Failure to follow these precautions and procedures could increase the risk of personal injury.

o If you sell your vehicle, make

certain that this manual is transferred to the new owner.

o If your car was flooded and has

soaked carpeting or water on flooring, you shouldn't try to start engine; have the car towed to authorized Hyundai dealer.

o Do not replace the bumper or the

bumper guard with the one other than the Hyundai genuine parts. Otherwise, it can adversely affect SRS performance and lead to unexpected injury.

FEATURES OF YOUR HYUNDAI

INSTRUMENT CLUSTER AND INDICATOR LIGHTS

B260A03HP-GAT

Gasoline Engine

Part-time 4WD: Full-time 4WD:

B260A01HP

FEATURES OF YOUR HYUNDAI

1. Tachometer

2. Turn Signal Indicator Light

3. Coolant Temperature Gauge

4. Fuel Gauge

5. Speedometer

6. ABS Service Reminder Indicator (SRI) (If Installed)

7. Supplemental Restraint (AirBag) System

Service Reminder lndicator (SRI) (If Installed)

8. Low Oil Pressure Warning Light

9. Parking Brake/Low Brake Fluid Level Warning Light

10.Charging System Warning Light

11.A/T Oil Temperature Warning Light (If Installed)

12.Overdrive Off Indicator Light (If Installed)

13.High Beam Indicator Light

14.Front Fog Indicator Light

15.Automatic Transmission Position Indicator Light (If Installed)

16.Cruise Indicator Light (If Installed)

17.4WD LOW Indicator Light

18.4WD HIGH Indicator Light (Part-time 4WD) /4WD System Warning Light (Full-time 4WD)

19.Malfunction Indicator Light (MIL) (If Installed)

20.Trip Odometer

21.Odometer

22.Trip Odometer Reset Knob

23.Tail Gate Open Warning Light

24.Door Ajar Warning Light

25.Seat Belt Warning Light

26.Low Fuel Warning Light

FEATURES OF YOUR HYUNDAI

B260B03HP-GAT

Diesel Engine

Part-time 4WD: Full-time 4WD:

B260B01HP

FEATURES OF YOUR HYUNDAI

1. Tachometer

2. Turn Signal Indicator Light

3. Coolant Temperature Gauge

4. Fuel Gauge

5. Speedometer

6. Immobilizer Warning Light (2.9 CRDi only)(If Installed)

7. Diesel Preheat Indicator Light

8. ABS Service Reminder Indicator (SRI) (If Installed)

9. Supplemental Restraint (AirBag) System Service Reminder Indicator (SRI) (If Installed)

10.Fuel Filter Warning Light

11.Brake Vacuum Warning Light

12.Low Oil Pressure Warning Light

13.Parking Brake/Low Brake Fluid Level Warning Light

14.Charging System Warning Light

15.A/T Oil Temperature Warning Light (If Installed)

16.Overdrive Off Indicator Light (If Installed)

17.High Beam Indicator Light

18.Front Fog Indicator Light

19.Automatic Transmission Position Indicator Light (If Installed)

20.Cruise Indicator Light (If Installed)

21.4WD LOW Indicator Light

22.4WD HIGH Indicator Light (Part-time 4WD) / 4WD System Warning Light (Full-time 4WD)

23.Malfunction Indicator Light (MIL) (If Installed)

24.Trip Odometer

25.Odometer

26.Trip Odometer Reset Knob

27.Tail Gate Open Warning Light

28.Door Ajar Warning Light

29.Seat Belt Warning Light

30.Low Fuel Warning Light

FEATURES OF YOUR HYUNDAI

WARNING AND INDICATOR LIGHTS

B260D01A-AAT

Turn Signal Indicator Lights

The blinking green arrows on the instrument panel show the direction indicated by the turn signals. If the arrow comes on but does not blink, blinks more rapidly than normal, or does not blink at all, a malfunction in the turn signal system is indicated. Your dealer should be consulted for repairs.

B260P02Y-AAT

ABS Service Reminder Indicator (SRI) (If Installed)

When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in a few seconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key is turned to the "ON" position, this indicates that there may be a problem with the ABS. If this occurs, have your vehicle checked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, but without the assistance of the anti-lock brake system.

WARNING:

If the both ABS SRI and Parking Brake/ Low Brake fluid level warning lights remain "ON" or come on while driving, there may be a problem with E.B.D (Electronic Brake Force Distribution). If this occurs, avoid sudden stops and have your vehicle checked by your Hyundai dealer as soon as possible.

B260F01A-AAT

High Beam Indicator Light

The high beam indicator light comes on whenever the headlights are switched to the high beam or flash position.

FEATURES OF YOUR HYUNDAI

B260G01A-AAT

Low Oil Pressure Warning Light

CAUTION:

If the oil pressure warning light stays on while the engine is running, serious engine damage may result. The oil pressure warning light comes on whenever there is insufficient oil pressure. In normal operation, it should come on when the ignition switch is turned on, then go out when the engine is started. If the oil pressure warning light stays on while the engine is running, there may be a serious malfunction. If this happens, stop the car as soon as it is safe to do so, turn off the engine and check the oil level. If the oil level is low, fill engine oil to the proper level and start the engine again. If the light stays on with the engine running, turn the engine off immediately. In any instance where the oil light stays on when the engine is running, the engine

should be checked by an authorized Hyundai dealer before the car is driven again.

B260H02A-GAT

Parking Brake / Low Brake Fluid Level Warning Light

WARNING:

If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon as possible. Driving your car with a problem in either the brake electrical system or brake hydraulic system is dangerous, and could result in a serious injury or death.

Warning Light Operation

The parking brake/low brake fluid level warning light should come on when the parking brake is applied and the ignition switch is turned to "ON" or "START". After the engine is started, the light should go out when the parking brake is released. If the parking brake is not applied, the warning light should come on when the ignition switch is turned to "ON" or "START", then go out when the engine starts. If the light comes on at any other time, you should slow the vehicle and bring it to a complete stop in a safe location off the roadway. The brake fluid level warning light indicates that the brake fluid level in the brake master cylinder is low and hydraulic brake fluid conforming to DOT 3 or DOT 4 specifications should be added. After adding fluid, if no other trouble is found, the car should be immediately and carefully driven to a Hyundai dealer for inspection. If further trouble is experienced, the vehicle should not be driven at all but taken to a dealer by a professional towing service or some other safe method.

FEATURES OF YOUR HYUNDAI

Your Hyundai is equipped with dualdiagonal braking systems. This means you still have braking on two wheels even if one of the dual systems should fail. With only one of the dual systems working, more than normal pedal travel and greater pedal pressure are required to stop the car. Also, the car will not stop in as short a distance with only half of the brake system working. If the brakes fail while you are driving, shift to a lower gear for additional engine braking and stop the car as soon as it is safe to do so.

B260J01S-GAT

Charging System Warning Light

The charging system warning light should come on when the ignition is turned on, then go out when the engine is running. If the light stays on while the engine is running, there is a malfunction in the electrical charging system. If the light comes on while you are driving, stop, turn off the engine and check under the hood. First, make certain the generator drive belt is in place. If it is, check the tension of the belt. And then, have the system checked by your Hyundai dealer.

CAUTION:

If the drive belt (generator belt) is loosen, broken, or mission while the vehicle is driving, there may be a serious malfunction, engine could overheat because this belt also drives the water pump.

B260A01B-GAT

Front Fog Indicator Light

This front fog indicator light comes on whenever the front fog lamp switches are on.

B260L01A-GAT

Door Ajar Warning Light

The door ajar warning light warns you that a door is not completely closed.

B260M01A-AAT

Low Fuel Level Warning Light

The low fuel level warning light comes on when the fuel tank is approaching empty. When it comes on, you should add fuel as soon as possible. Driving with the fuel level warning light on or with the fuel level below "E" can cause the engine to misfire and damage the catalytic converter.

FEATURES OF YOUR HYUNDAI

B260B01B-GAT

Tail Gate Open Warning Light

This light remains on unless the tail gate is completely closed and latched.

B260B01HP-GAT

SRS (Airbag) Service Reminder Indicator (SRI) (If Installed)

The SRS service reminder indicator (SRI) comes on and flashes for about 6 seconds after the ignition key is turned to the "ON" position or after the engine is started, after which it will go out.

This light also comes on when the SRS is not working properly. If the SRI does not flash, or continuously remains on after flashing for about 6 seconds when you turned the ignition key to the "ON" position or started the engine, or if it comes on while driving, have the SRS inspected by an authorized Hyundai Dealer.

B260N02A-AAT

Malfunction Indicator Light (If Installed)

This light illuminates when there is a malfunction of an exhaust gas related component, and the system is not functioning properly so that the exhaust gas regulation values are not satisfied. This light will also illuminate when the ignition key is turned to the "ON" position, and then it will go out in a few seconds after the engine is started. If it illuminates while driving, or does not illuminate when the ignition key is turned to the "ON" position, take your car to your nearest authorized Hyundai dealer and have the system checked.

B260E01HP-GAT

Seat Belt Warning Light

The seat belt warning light blinks for about 6 seconds when the ignition key is turned from the "OFF" position to "ON" or "START".

B260Q01HP-DAT

Cruise Indicator Light (For Gasoline Engine) (If Installed)

The cruise indicator light in the instrument cluster is illuminated only when the vehicle cruising speed has been set using the control switch on the steering wheel. The indicator light does not illuminate when the main cruise control switch is activated. Information about the use of cruise control may be found on page 1-

100.

B265Q01HP-GAT

Cruise Indicator Light (For Diesel Engine) (If Installed)

The cruise indicator light in the instrument cluster is illuminated when the cruise control main switch is activated. Information about the use of cruise control may be found on page 1-100.

FEATURES OF YOUR HYUNDAI

B260C01A-AAT

O/D OFF Indicator (Automatic Transmission only)

When the overdrive switch is turned on, the overdrive off indicator will go out. This amber indicator will be illuminated when the overdrive switch is turned off.

B260U01HP-DAT

A/T(Automatic Transmission) Oil Temperature Warning Light (If Installed)

The A/T oil temperature warning light comes on when the automatic transmission oil temperature goes up to the temperature that may result in serious damage of automatic transmission. If the A/T oil temperature warning light comes on while driving, park your vehicle in at a safe place as soon as possible. With the selector lever shifted into "P" position, allow the engine to idle until the warning light goes off. When the warning light goes off, the vehicle can be driven normally.

CAUTION:

If the warning light doesn't go off or blinks, this indicates that there is a malfunction in the automatic transmission or T.C.U (Transmission Control Unit). If this occurs, have your vehicle checked by an authorized Hyundai dealer.

B260U01TB-GAT

Immobilizer Warning Light (Diesel Engine (2.9 CRDi)) (If Installed)

This indicator light comes on for some seconds after the ignition key is turned to the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case this light goes out before you start the engine, you must turn to the "LOCK" position and restart the engine. In case this light blinks for five seconds when the ignition key is turned to "ON" position, this indicates that the immobilizer system is out of order. At this time, refer to the explanation of the Limp home procedure(See page 1-9) or consult to the Hyundai dealer.

B260R01HP-GAT

4WD LOW Indicator Light

When the key is turned to the "ON" position, the 4WD(Four Wheel Drive) LOW indicator light will come on and then go off in a few seconds. The 4WD low indicator light comes on when the transfer shift knob is set to LOW position (Part-time 4WD type : 4L position, Full-time 4WD type : Low position).

B260T02HP-GAT

4WD HIGH Indicator Light (Part-time 4WD only)

When the key is turned to the "ON" position, the 4WD(Four Wheel Drive) HIGH indicator light will come on and then go off in a few seconds. The 4WD HIGH indicator light will illuminate when the transfer shift knob is set to 4H position.

FEATURES OF YOUR HYUNDAI

CAUTION:

If the 4WD HIGH indicator light ( ) illuminates with the 4WD LOW indicator light ( ) while driving, this indicates that there is a malfunction in the 4WD system. If this occurs, have your vehicle checked by an authorized Hyundai dealer as soon as possible.

B265T01HP-GAT

4WD System Warning Light (Full-time 4WD only)

When the key is turned to the "ON" position, the 4WD (Four wheel drive) system warning light will come on and then go off in a few seconds.

CAUTION:

If the 4WD system warning light ( ) blinks while driving, this indicates that there is a malfunction in the 4WD system. If this occurs, have your vehicle checked by an authorized Hyundai dealer as soon as possible.

B265A01HP-GAT

Fuel Filter Warning Light (Diesel Engine)

This light illuminates when the ignition switch is set to the "ON" position and goes off after the engine has started. If it lights up while the engine is running, it indicates that water has accumulated inside the fuel filter. If this happens, remove the water from the fuel filter. (Refer to "Do-lt-Yourself Maintenance")

CAUTION(2.9 CRDi only):

When the fuel filter warning light is illuminated, the engine power decreases. If the fuel filter warning light comes on while driving, park your vehicle in at a safe place and remove the water as soon as possible. If the light remains on after removing the water, have the system checked by an authorized Hyundai dealer.

FEATURES OF YOUR HYUNDAI

B265B01HP-GAT

Brake Vacuum Warning Light (Diesel Engine)

WARNING:

The brake vacuum warning light should come on when the vacuum level in brake booster descends to about 275 mmHg or below. The brake system is designed to stop the vehicle with reserve assist if brake pedal is held down. This reserve is greatly reduced each time you release the brake. Without vacuum assist your vehicle can still be stopped by pushing much harder on brake pedal, however the stopping distance may be much longer. If the light comes on at any other time, you

should slow the vehicle and bring it to a complete stop in a safe location off the roadway. After starting the engine, do not drive the vehicle until the vacuum level is above 275 mmHg below atmosphere and warning light has turned off. If further trouble is experienced, the vehicle should not be driven at all but taken to a dealer by a professional towing service.

B265C02HP-GAT

Diesel Preheat Indicator Light

The indicator light illuminates amber when the ignition switch is placed at the "ON" position. The engine can be started after the preheat indicator light goes off. The illuminating time varies with the water temperature.

Water temperature

(°C)

Below -30

-20

-15 60 80

Water temperature

(°C)

Below -30

-25

-20

-15

-10

-5 0

Illuminating time

(2.5 TCI) (sec)

22.5 8 6

0.5 0

Illuminating time

(2.9 CRDi) (sec)

26 20 15 10

5.5

3.5 2 1

NOTE:

If the engine were not started within 2 seconds after the preheating is completed, turn the ignition key once more to the "LOCK" position during 10 seconds, and then to the "ON" position, in order to preheat again.

INSTRUMENT CLUSTER

FEATURES OF YOUR HYUNDAI

B270A01A-GAT

BRAKE PAD WEAR WARNING SOUND (If Installed)

The front disc brake pads have wear indicators that should make a highpitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all the time when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Excessive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately.

B280A01A-AAT

FUEL GAUGE

HHP2080

The needle on the gauge indicates the approximate fuel level in the fuel tank. The fuel capacity is given in Section 9.

B290A02A-AAT

ENGINE COOLANT TEMPERATURE GAUGE

HHP2081

WARNING:

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could erupt and cause severe burns. Wait until the engine is cool before removing the radiator cap.

FEATURES OF YOUR HYUNDAI

The needle on the engine coolant temperature gauge should stay in the normal range. If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turn off the engine. Then open the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. If you suspect cooling system trouble, have your cooling system checked by Hyundai dealer as soon as possible.

B330A01L-AAT

TACHOMETER

Gasoline Engine

B330A01HP

Diesel Engine

HHP2078

The tachometer registers the speed of your engine in revolutions per minute (rpm).

CAUTION:

The engine should not be raced to such a speed that the needle enters the red zone on the tachometer face. This can cause severe engine damage and may void your warranty.

FEATURES OF YOUR HYUNDAI

B300A01Y-GAT

SPEEDOMETER

Gasoline Engine

Diesel Engine (2.5 TCI)

B300A01HP

B300A02HP

Diesel Engine (2.9 CRDi)

B300A03HP

Your Hyundai's speedometer is calibrated in kilometers per hour or miles per hour.

B310A02HP-GAT

ODOMETER/TRIP ODOMETER Odometer

Trip Odometer

Odometer

B310A01HP

The digital odometer records the total driving distance in kilometers or miles, and is useful for keeping a record for maintenance intervals. It is normal for a new vehicle to have the odometer indicating less than 50km.

NOTE:

Any alteration of the odometer may void your warranty coverage.

FEATURES OF YOUR HYUNDAI

Trip Odometer

Reset Knob

Pushing in the reset knob under the right side of the speedometer for less than 1 second when the ignition switch is turned "ON" displays the following sequence:

B310A02HP

B310A03HP

Trip odometer records the distance of 2 trips in kilometers or miles.

TRIP A: First distance you have traveled from your origination point to a first destination.

TRIP B: Second distance from the first destination to the final destination.

When the reset knob is pressed for more than 1 second, trip odometer will reset to 0.

MULTIMETER

FEATURES OF YOUR HYUNDAI

B990A01HP-GAT

(If Installed)

1. Digital Clock

2. Azimuth Compass

3. Altimeter/Relative altimeter/Barometer

4. Azimuth adjustment switch

5. Up switch

HHP2189

6. Down switch

7. Road display responsive to vehicle speed

8. Mode conversion switch

9. Light switch

B990B02HP-GAT

HOW TO ADJUST MULTIMETER Switch function

Switch

Mode

(Up),

(Down)

Light

Adjust

Altimeter Relative Altimeter

(Press it for less than 2 sec.) Selecting of time adjustment mode (Press it for more than 2 sec.) Altimeter correction Setting altitude to "0" Time adjustment Illumination on/off Selecting correction mode of azimuth indicator

Function

Barometer

FEATURES OF YOUR HYUNDAI

B990C01HP-GAT

ELECTRICAL AZIMUTH COMPASS

Azimuth Compass

HHP2190

It displays 16 azimuths according to the vehicle driving direction and the angle of one graduation is 22.5°.

NOTE:

If new vehicle is first driven or if the battery has been disconnected, correct the azimuth indicator before driving.

Correcting azimuth indicator

This is need to correct the error between a current azimuth of terrestrial magnetism sensor and the displayed azimuth in the vehicle position.

How to correct azimuth indicator

1. If you push and hold the "ADJ" switch for less than 3 seconds, the azimuth indicator will start to blink.

HHP2191

2. Slowly rotate the vehicle one turn within 128 seconds.

3. After the rotation is finished, the azimuth compass indicator will stop blinking and now correcting error is made.

NOTE:

It is normal if the azimuth is displayed abnormally in specific places(tunnel, parking lot in building, basement garage, area in the

vicinity of a transformer station, etc.). The azimuth is displayed normally after escaping those places.

B990D01HP-GAT

ALTIMETER

HHP2194

Altimeter is operated by atmospheric pressure. The air pressure variation is converted to the altitude on the basis of the sea level(0m, it is equal to

1013.25hpa) by the 50m. The measurement range is 0~2,800m. And when the altitude is under 50m, it is displayed to 0m.

FEATURES OF YOUR HYUNDAI

Altitude Correction

Displayed altitude could vary even at same place because of air pressure variation at sea level(0m point). So you can correct this display error in ±300m range by pushing " (up)", " (down)" as listed in following table.

Switch

Less than 0.5 sec.

(Up)

More than 0.5 sec.

Less than 0.5 sec.

(Down)

More than 0.5 sec.

Pushing time

Altitude

Increasing by 50m

gradually

Decreasing by 50m

gradually

B990E01HP-GAT

RELATIVE ALTIMETER

HHP2195

Relative altimeter is used when you want to know the altitude of the specific location. And it displays by comparing the altitude of the specific location with the current altitude which the vehicle is located in. When the "MODE" switch is pressed for less than 2 seconds, the relative altimeter mode is selected.

When you want to know the difference of altitude between the destination and the starting point:

Destination

The difference of altitude between the destination and the starting point : 1000 m

Starting point

HHP2196

1. Press the " (Up)" and " (Down)" switch simultaneously for more than 1 second to reset the current altitude to 0m.

2. After arriving, the displayed altitude is the difference of altitude between the destination and the starting point.

FEATURES OF YOUR HYUNDAI

B990F01HP-GAT

BAROMETER

HHP2193 HHP2198

The current air pressure is displayed in hpa units where the measurement range is from 720hpa to 1,045hpa.(The minimum is 1hpa) If the "MODE" switch is pressed for less than 2 seconds from "Relative Altimeter" mode, the atmospheric pressure will be displayed on the display window.

B990G01HP-GAT

DIGITAL CLOCK

If you press "MODE" switch for more than 2 seconds, the mode that you can adjust the time is displayed.

How to adjust the time

1. In time adjustment mode, push the "MODE" switch briefly, and you can adjust "minute". And if you push "MODE" switch once more briefly, you can adjust "hour".

2. Adjust the time by pushing " (UP)", " (DOWN)" switch when the time blinks.

3. After adjusting the time, push "MODE" switch for more 2 seconds, and the mode for adjusting the time is cancelled.

B990H01HP-GAT

ROAD DISPLAY RESPONSIVE TO VEHICLE SPEED

HHP2199

The road display indicator blinks according to the vehicle speed.

Vehicle speed

Below 2.8 km/h

2.8 ~ 40 km/h 41 ~ 60 km/h 61 ~ 80 km/h

81 ~ 100 km/h

Above 100 km/h

Blinking cycle

Total Lightening

1 second

0.8 second

0.5 second

0.3 second

0.2 second

MULTI-FUNCTION LIGHT SWITCH

B340A01A-AAT

COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAM SWITCH Turn Signal Operation

Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the lever causes the turn signals on the right side of the car to blink. As the turn is completed, the lever will automatically return to the center position and turn off the turn signals at the same time. If either turn signal indicator light blinks more rapidly than usual, goes on but does not blink, or does not go on at all, there is a malfunction in the system. Check for a burned-out fuse or bulb or see your Hyundai dealer.

B340B01A-AAT

Lane Change Signal

HHP2099

To indicate a lane change, move the lever up or down to a point where it begins flashing. The lever will automatically return to the center position when released.

FEATURES OF YOUR HYUNDAI

B340C04L-AAT

Headlight Switch

HHP2094

To operate the headlights, turn the barrel on the end of the multi-function switch. The first position turns on the parking lights, side lights, tail lights and instrument panel lights. The second position turns on the headlights.

NOTE:

The ignition must be in the "ON" position to turn on the headlights.

Parking Light Auto Cut

o The purpose of this feature is to

prevent the battery from being discharged. The system automatically turns off the small light when the driver removes the ignition key and opens the driver- side door.

FEATURES OF YOUR HYUNDAI

o With this feature, the parking lights

will be turned off automatically if the driver parks on the side of road at night. If necessary, to keep the lights on when the ignition key is removed, perform the following :

1) Open the driver-side door.

2) Turn the parking lights OFF and ON again using the light switch on the steering column.

B340F01A-GAT

Daytime Running Lights (If Installed)

Your Hyundai is equipped with daytime running lights. The daytime running lights are used to improve visibility for oncoming traffic. Your vehicle daytime running lights are designed to remain on continuously when the engine is operating even though the headlight switch is in the "OFF" position. However, the daytime running lights will be off while the parking brake is applied.

B340D01A-AAT

High-beam Switch

HHP2097

To turn on the headlight high beams, push the lever forward (away from you). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you.

B340E01A-AAT

Headlight Flasher

HHP2098

To flash the headlights, pull the switch lever toward you, then release it. The headlights can be flashed even though the headlight switch is in the "OFF" position.

FOG LIGHT SWITCH

B360B01Y-AAT

Front Fog Light Switch

HHP2100

To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in the first or second position.

B360A01HP-GAT

Rear Fog Light Switch (If Installed)

B360A01HP

To turn on the rear fog lights, push the switch. They will light when the headlight switch is in the second position or the front fog light is turned on and the key is in the "ON" position.

FEATURES OF YOUR HYUNDAI

WINDSHIELD WIPER AND WASHER SWITCH

B350A01A-AAT

HHP2101

The windshield wiper switch has three positions:

1. Intermittent wiper operation

2. Low-speed operation

3. High-speed operation

NOTE:

To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow or ice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.

FEATURES OF YOUR HYUNDAI

B350B01O-GAT

Windshield Washer Operation

HHP2103

To use the windshield washer, pull the wiper/washer lever toward the steering wheel. When the washer lever is operated, the wipers automatically make two passes across the windshield. The washer continues to operate until the lever is released.

NOTE:

o Do not operate the washer more

than 15 seconds at a time or when the fluid reservoir is empty.

o In icy or freezing weather, be

sure the wiper blades are not frozen to the glass prior to operating the wipers.

o In areas where water freezes in

winter, use windshield washer antifreeze.

Mist Wiper Operation

HHP2104

If a single wipe is desired in mist, push the windshield wiper and washer control lever upwards.

B350C01O-AAT

Adjustable Intermittent Wiper Operation

HHP2102

To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this position, the interval between wipes can be varied from approximately 1 to 18 seconds by turning the interval adjuster barrel. This is also varied automatically depending on your road speed.

B390A01E-AAT

Rear Window Wiper and Washer Switch

HHP2108

1. : The rear window wiper starts to operate three times after the washer fluid sprays onto the rear window.

2.OFF

3.INT: The interval between wipes operates every 5 seconds intermittently.

4.ON : The rear window wiper starts to operate continuously.

5. : The washer fluid will be sprayed onto the rear window and the wiper operates while the rear window wiper barrel is placed in this position.

NOTE:

Do not operate the washer continuously for more than 15 seconds or when the fluid reservoir is empty; this could damage the system. Do not operate the wiper when the window is dry; this can result in scratching as well as premature wiper blade wear. For the same reason, do not operate the washer when the washer fluid reservoir is empty.

FEATURES OF YOUR HYUNDAI

HAZARD WARNING SYSTEM

B370A01A-AAT

B370A01HP

The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emergency stop, always pull off the road as far as possible. The hazard warning lights are turned on by pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not in the ignition. To turn the hazard warning lights off, push the switch a second time.

FEATURES OF YOUR HYUNDAI

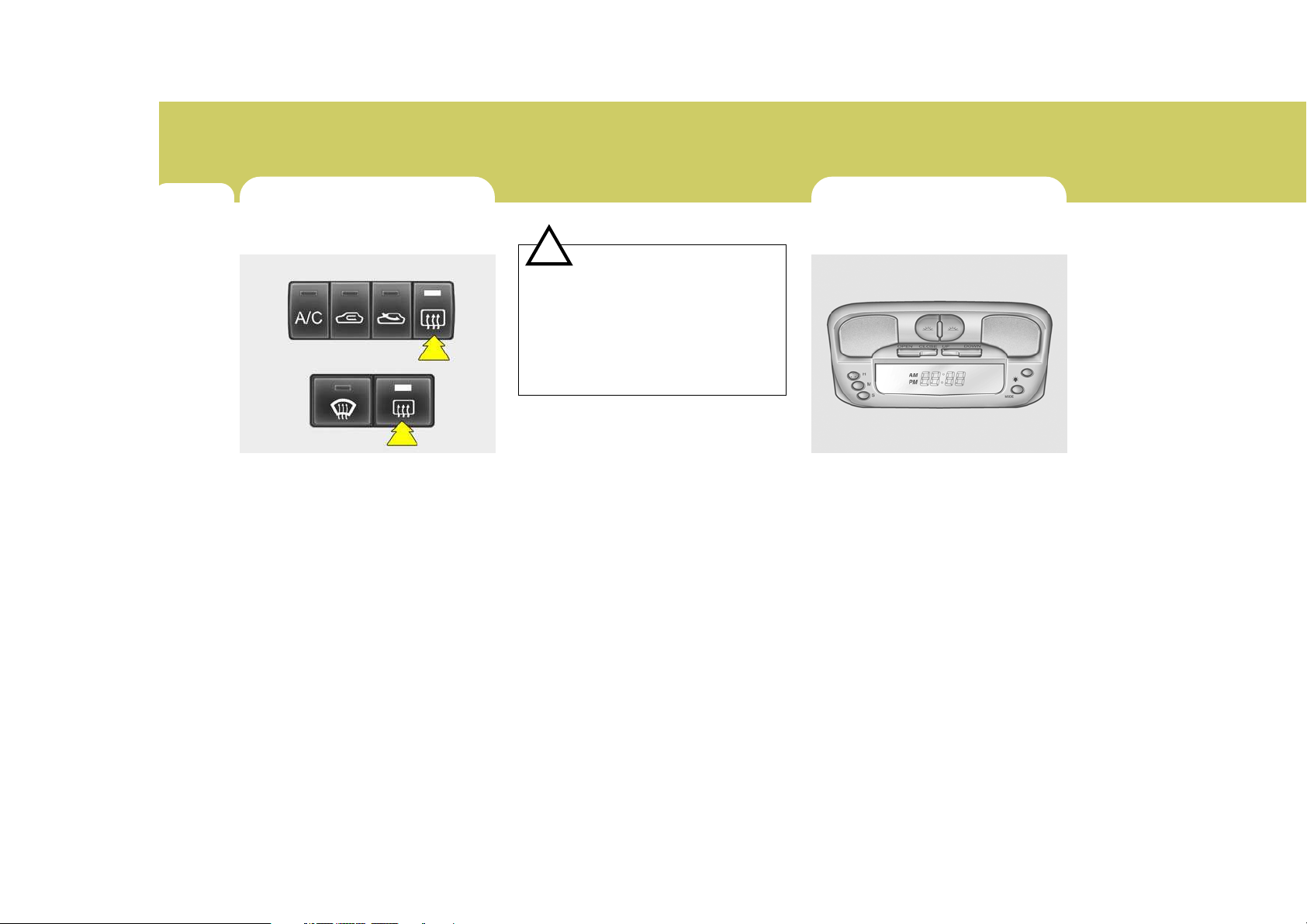

FRONT/REAR WINDOW DE-

FROSTER SWITCH

B380A03HP-AAT

(If Installed)

Type A

Type B

CAUTION:

Do not clean the inner side of the front/rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from the inner surface of the glass as this may cause damage to the defroster elements.

DIGITAL CLOCK

B400A01HP-GAT

(Without Multimeter)

HHP2119

The front/rear window defroster and heated outside rear view mirrors are turned on by pushing in the switch. At the same time, the front/rear window defroster indicator light on the switch is turned on. To turn the defroster off, push the switch a second time. The front/rear window defroster automatically turns itself off after about 20 minutes. To restart the defroster cycle, push in the switch again after it has turned itself off.

NOTE:

The engine must be running for the front/rear window defroster to operate.

B400A01HP

There are five control buttons for the digital clock. Their functions are:

1. HOUR - Push "H" to advance the hour indicated.

2. MIN - Push "M" to advance the minute indicated.

3. RESET - Push "S" to reset minutes to ":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "S" between 11 : 01 and 11 : 29 changes the readout to 11 : 00. Pressing "S" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.

4. MODE - Push "MODE" button to display a 12- or 24-hour clock. When the 12-hour clock is in use, the letters AM or PM appear with the time.

5. - The time is displayed on the LCD by pushing in on the switch and is turned off by pushing in on the switch again.

If your vehicle is equipped with the multimeter, see the page 1-72.

INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)

B410A01A-AAT

(If Installed)

B410A01HP

The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.

FEATURES OF YOUR HYUNDAI

CIGARETTE LIGHTER

B420A02A-AAT

HHP2160

For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it all the way into its socket. When the element has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent.

FEATURES OF YOUR HYUNDAI

POWER OUTLET

CAUTION:

Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.

B500D08HP-AAT

(If Installed)

HHP2161

HHP2162

The power outlet is located in front of the center console and in the quarter trim. It is also located behind the center console.

These supply 12V electric power to operate electric accessories or equipment only when the key is in the "ON" or "ACC" position.

CAUTION:

o Use when the engine is running

and remove a plug from the power outlet after using the electric appliance. Using when the engine stops or remaining the electric appliance with plugged in for many hours may cause the battery to be discharged.

o Do not use the power outlet to

connect electric accessories or equipment other than those designed to operate on 12 volts.

o Some electronic devices can

cause electronic interference when plugged into the power outlet. These devices may cause excessive audio noise and malfunctions in other electronic systems or devices used in your vehicle.

ASHTRAY

FEATURES OF YOUR HYUNDAI

DRINK HOLDER

B430A01HP-GAT

Front Ashtray

HHP2167

The front ashtray may be opened by pushing and releasing the ashtray/cigarette lighter door at its top edge. To remove the ashtray in order to clean it, the metal ash receptacle should be removed from the ashtray door. Do not attempt to remove the entire ashtray door assembly, or damage will result. Instead, lift the metal ash receptacle upward and pull it out. To reinstall it, place it in the proper position and press it down and forward to reengage the ash receptacle rear lip in the ashtray door. The ashtray light will only illuminate when the exterior body lights are switched on.

B440A01E-AAT

Rear Ashtray

HHP2168

The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, press down on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out.

B450A02O-GAT

Front Drink Holder

HHP2177

The front drink holder is located on the main console for holding cups or cans.

WARNING:

o Use caution when using the drink

holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electrical components.

o Do not place objects other than

cups or cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.

FEATURES OF YOUR HYUNDAI

B450C01HP-GAT

Rear Drink Holder (Type A)

HHP2178

The rear drink holder is located behind the center console for holding cups or cans. The rear drink holder can be used by pressing the locking release button.

CAUTION:

When not in use or before folding the second seat, place the rear drink holder in closed position to prevent it from being broken.

WARNING:

o Use caution when using the drink

holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electrical components.

o Do not place objects other than

cups or cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.

B450B01HP-GAT

Rear Drink Holder (Type B) (If Installed)

B450B01HP

The rear drink holder is located in the rear seat arm rest for holding cups or cans. The rear drink holder can be used by opening the lid of arm rest.

WARNING:

Do not place objects other than cups or cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.

COIN HOLDER SUNSHADE

FEATURES OF YOUR HYUNDAI

SUNROOF

B505D01HR-GAT

HHP2173

The coin holder is used to store coins.

B470A01HP-AAT

(If Installed)

HHP2023

The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sunshade will open automatically when the sunroof is opened, but it must be closed manually.

WARNING:

Never adjust the sunshade while driving.

B460A01S-AAT

(If Installed)

The sunroof can be operated with the ignition key in the "ON" position.

B460B01HP-GAT

Opening or Closing the Sunroof

B460B01HP

The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "Open" button, and to stop at the desired position, push in any buttons (OPEN, CLOSE, UP, DOWN).

FEATURES OF YOUR HYUNDAI

To close, press and hold the "CLOSE" button. Release the button when the sunroof reaches the desired position.

WARNING:

o Do not close a sunroof if anyone's

hands, arms or body are between the sliding glass and the sunroof sash, as this could result in an injury.

o Do not place your head or arms

out of the sunroof opening at any time.

CAUTION:

o Do not open the sunroof in se-

verely cold temperature or when it is covered with ice or snow.

o Periodically remove any dirt that

may have accumulated on the guide rails.

B460C01S-AAT

Tilting the Sunroof

B460C01HP

The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release the button when the sunroof reaches the desired position. To close the sunroof, press the "DOWN" button.

NOTE:

After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operating it.

B460D01HP-GAT

Manual Operation of Sunroof

HHP2021

If the sunroof does not electrically operate:

1. Remove the round plug in the front of the roof panel with a flat-bladed screwdriver or coin.

CAUTION:

Remove the round plug with the groove pointing to the front and the rear. Otherwise, the projections of the plug may break if it is not positioned properly.

INTERIOR LIGHT

FEATURES OF YOUR HYUNDAI

HHP2022

2. Insert the hexagonal head wrench provided with the vehicle into the socket. This wrench can be found in the glove box.

3. Turn the wrench clockwise to open or counterclockwise to close.

B480B01Y-AAT

Map Light

B480B01HP

Push in the map light switch to turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as a personal light for the driver and the passenger.

B490A03Y-AAT

Interior Light

HHP2115

The interior courtesy light has three buttons. The three buttons are:

o DOOR

In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the ignition key position. The light goes out gradually 6 seconds after the door is closed.

FEATURES OF YOUR HYUNDAI

STORAGE BOX

o ON

In the "ON" position, the light stays on at all times.

CAUTION:

Do not leave this button pressed for an extended period of time when the vehicle is not running.

o OFF

In the "OFF" position, the light stays off at all times even though a door is open.

B500A01A-AAT

GLOVE BOX

HHP2169

WARNING:

To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in motion.

o To open the glove box, pull on the

glove box release lever.

B500B01HP-DAT

MULTI BOX

HHP2174

The multi box may be opened by pulling it out by its grip. It is used for storing small articles.

Hyundai Terracan 2007 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
