Hyundai Palisade 2020 Owner's Manual

OOWWNNEERR''SS MMAANNUUAALL

OOppeerraattiioonn MMaaiinntteennaannccee SSppeecciiffiiccaattiioonnss

All information in this Owner's Manual is current at the time of publication. However, HYUNDAI reserves the right to make changes at any time so that our policy of continual product impr ovement ma y be carried out.

This manual applies to all HYUNDAI models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.

Your HYUNDAI should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your HYUNDAI and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.

Your vehicle is equipped with electronic fuel injection and other electronic components.It is possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your HYUNDAI dealer for precautionary measures or special instructions if you choose to install one of these devices.

CAUTION: MODIFICA TIONS TO

YOUR HYUNDAI

TWO-WAY RADIO OR CELLULAR

TELEPHONE INSTALLATION

This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.

These titles indicate the following:

SAFETY AND VEHICLE DAMAGE

WARNING

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

DANGER

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not av oided,could result in minor or moderate injury.

CAUTION

NOTICE indicates a situation which, if not avoided, could result in vehicle damage.

NOTICE

WARNING

Your Hyundai vehicle may be equipped with technologies and services that use information collected, generated, recorded or stored by the vehicle. Hyundai has created a Vehicle Owner Privacy Policy to explain how these technologies and services collect use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at: https://www.hyundaiusa.com/owner-privacy-policy.aspx

If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please contact our Customer Connect Center at:

Hyundai Customer Care P.O.Box 20850 Fountain Valley, CA 92728 800-633-5151 consumeraffairs@hmausa.com

Hyundai's Customer Connect Center representatives are available Monday through Friday, between the hours of 5:00 AM and 7:00 PM PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST (English).

For Customer Connect Center assistance in Spanish or Korean, representatives are available Monday through Friday between 6:30 AM and 3:00 PM PST.

HYUNDAI VEHICLE OWNER PRIVACY POLICY

INTRODUCTION

Congratulations, and thank you for choosing HYUNDAI.We are pleased to welcome you to the growing number of discerning people who drive HYUNDAIs.We are very proud of the advanced engineering and high-quality construction of each HYUNDAI we build.

Your Owner's Manual will introduce you to the features and operation of your new HYUNDAI.To become familiar with your new HYUNDAI, so that you can fully enjoy it, read this Owner's Manual carefully before driving your new vehicle.

This manual contains important safety information and instructions intended to familiarize you with your vehicle's controls and safety features so you can safely operate your vehicle.

This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recommended that all service and maintenance on your car be performed by an authorized HYUNDAI dealer .HYUNDAI dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.

This Owner's Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so y ou can refer to it at any time.The manual should stay with the vehicle if you sell it to provide the next owner with important operating, safety and maintenance information.

HYUNDAI MOTOR AMERICA

Copyright 2019 HYUNDAI Motor America. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of HYUNDAI Motor America.

Severe engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet HYUNDAI specifications.You must always use high quality fuels and lubricants that meet the specifications listed on Page 8-7 in the Vehicle Specifications section of the Owner's Manual.

CAUTION

1. What are HYUNDAI Genuine Parts?

HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to manufacture vehicles. They are designed and tested for the optimum safety, performance, and reliability for our customers.

2. Why should you use genuine parts?

HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing requirements. Damage caused by using imitation, counterfeit or used salvage parts is not covered under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI warranty.

In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the installation or failure of an imitation, counterfeit or used salvage part is not covered by any HYUNDAI Warranty.

3. How can you tell if you are purchasing HYUNDAI Genuine Parts?

Look for the HYUNDAI Genuine Parts Logo on the package (see below).

HYUNDAI Genuine Parts exported to the U.S. are packaged with labels written only in English.

HYUNDAI Genuine Parts are only sold through authorized HYUNDAI Dealerships.

GUIDE TO HYUNDAI GENUINE PARTS

Introduction

We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner's Manual can assist you in many ways. To gain an overview of the contents of your Owner's Manual, use the Table of Contents in the front of the manual. The first page of each Chapter includes a detailed Table of Contents of the topics in that Chapter.

To quickly locate information about your vehicle, use the Index in the back of the manual.It is an alphabetical list of what is in this manual and the page number where it can be found.

For your convenience, we have incorporated tabs on the right-hand page edges. These tabs are coded with the Chapter titles to assist you with navigating through the manual.

Your safety, and the safety of others, is very important. This Owner's Manual provides you with many saf ety precautions and operating procedures. This information alerts you to potential hazards that may hurt you or others, as well as damage to your vehicle.

Safety messages found on vehicle labels and in this manual describe these hazards and what to do to avoid or reduce the risks.

Warnings and instructions contained in this manual are for your safety. Failure to follow safety warnings and instructions can lead to serious injury or death.

Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT SYMBOL will be used.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol precedes the signal words DANGER, WARNING and CAUTION.

HHOOWW TTOO UUSSEE TTHHIISS MMAANNUUAALL

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury .

DANGER

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury .

WARNING

SSAAFFEETTYY MMEESSSSAAGGEESS

Introduction

FFUUEELL RREEQQUUIIRREEMMEENNTTSS

NOTICE indicates a situation which, if not avoided, could result in vehicle damage.

Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.

Your new vehicle is designed to use only unleaded fuel having an octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher.(Do not use methanol blended fuels)

To prevent damage to the engine and engine components, never add any fuel system cleaning agents to the fuel tank other than what has been specified.

Consult an authorized HYUNDAI dealer for additional information.

Gasoline containing alcohol or methanol

Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being marketed along with or instead of leaded or unleaded gasoline. For example, "E15" is a gasohol comprised of 15% ethanol and 85% gasoline.

Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Either of these fuels may cause drivability problems and damage to the fuel system, engine control system and emission control system.

Discontinue using gasohol of any kind if drivability problems occur.

NOTICE

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION

• Do not "top off" after the noz-

zle automatically shuts off when refueling.

• Always check that the fuel cap

is installed securely to prevent fuel spillage in the event of an accident.

WARNING

Introduction

"E85" fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. "E85" is not compatible with your vehicle. Use of "E85" may result in poor engine performance and damage to your vehicle's engine and fuel system. HYUNDAI recommends that customers do not use fuel with an ethanol content exceeding 15 percent.

T o prevent damage to y our vehicle’ s engine and fuel system:

• Never use gasohol which contains methanol.

• Never use gasohol containing more than 15% ethanol.

• Never use leaded fuel or leaded gasohol.

• Never use "E85" fuel.

Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance problems caused by the use of "E85" fuel.

Using Fuel Additives (except Detergent Fuel Additives)

Using fuel additives such as:

- Silicone fuel additive

- Ferrocene (iron-based) fuel additive

- Other metallic-based fuel additives may result in cylinder misfire, poor

acceleration, engine stalling, damage to the catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a reduction in the overall life of the powertrain.

- The Malfunction Indicator Lamp (MIL) may illuminate.

Damage to the fuel system or performance problem caused by the use of these fuels or fuel additives may not be covered by your New Vehicle Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful manganese-based fuel additives such as

MMT (

Methylcyclopentadienyl

Manganese Tricarbonyl). HYUNDAI does not recommend the

use of gasoline containing MMT. This type of fuel can reduce vehicle

performance and affect your emission control system.

The malfunction indicator lamp on the cluster may come on.

Detergent Fuel Additives

HYUNDAI recommends that you use good quality gasolines treated with detergent additives such as T OP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER Detergent Gasoline, please go to the website (www.toptiergas.com).

NOTICE

Introduction

For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, detergent-based fuel additives that you can purchase separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive added to the fuel tank according to the maintenance schedule is recommended (refer to the Maintenance Schedule in chapter 7).

Additives are available from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle in another country, be sure to:

• Observe all regulations regarding registration and insurance.

• Determine that acceptable fuel is available.

• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and emissions regulations.

In addition, damage or performance problems resulting from any modification may not be covered under warranty.

• If you use unauthorized electronic devices, it ma y cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For y our safety, do not use unauthorized electronic devices.

By following a f e w simple precautions for the first 600 miles (1,000 km) you may add to the performance, economy and life of your vehicle.

• Do not race the engine.

• While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.

• Do not maintain a single speed for long periods of time, either fast or slow .V arying engine speed is needed to properly break-in the engine.

• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.

VVEEHHIICCLLEE BBRREEAAKK--IINN PPRROOCCEESSSS

VVEEHHIICCLLEE MMOODDIIFFIICCAATTIIOONNSS

F10

Introduction

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, g ender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

VVEEHHIICCLLEE DDAATTAA CCOOLLLLEECCTTIIOONN AANNDD EEVVEENNTT DDAATTAA RREECCOORRDDEERRSS

CALIFORNIA PROPOSITION 65 WARNING

Items contained in motor vehicles or emitted from them are known to the State of California to cause cancer and birth defects or reproductive harm. These include:

• Gasoline and its vapors

• Engine exhaust

• Used engine oil

• Interior passenger compart-

ment components and materials

• Component parts which are

subject to heat and wear

In addition, battery posts, terminals and related accessories contain lead, lead compounds and other chemicals known to the State of California to cause cancer and reproductive harm.

For more information go to https://www.p65warnings.ca.go

v/passenger-vehicle

WARNING

Your Vehicle at a Glance

Safety System of Your Vehicle

Convenient Features of Your Vehicle

Multimedia System

Driving Your Vehicle

What to Do in an Emergency

Maintenance

Specifications, Consumer Information and Reporting Safety Defects

Index

TABLE OF CONTENTS

Your vehicle at a glance

Exterior Overview..................................................1-2

Interior Overview ...................................................1-4

Instrument Panel Overview ..................................1-5

Engine Compartment .............................................1-6

1-2

EEXXTTEERRIIOORR OOVVEERRVVIIEEWW

Your vehicle at a glance

1. Hood......................................................3-53

2. Front lamps................................3-132, 7-61

3.Tires and wheels............................7-33, 8-5

4. Side view mirror ....................................3-39

5. Sunroof..................................................3-46

6.Wiper blade ..........................................7-27

7.Windows................................................3-42

8. Parking Distance Warning system

(Reverse/Forward) ..............................3-155

OLX2019001N

■■

Front view

The actual shape may differ from the illustration.

1-3

Your vehicle at a glance

1. Door ......................................................3-15

2. Fuel filler door ......................................3-66

3. Rear lamps............................................7-64

4. Liftgate ..................................................3-54

5. High mounted stop lamp ......................7-66

6.Wiper blade ..........................................7-28

7. Parking Distance Warning

system (Reverse) ..............................3-152

8. Antenna ..................................................4-2

9. Rearview monitor ................................3-148

OLX2018002L

■■

Rear view

The actual shape may differ from the illustration.

1-4

Your vehicle at a glance

IINNTTEERRIIOORR OOVVEERRVVIIEEWW

1. Inside door handle ................................3-16

2. Central door lock/unlock switch ............3-17

3. Power window switches ........................3-43

4. Power window lock button/ ....................3-45

Electronic child safety lock button..........3-20

5. Side view mirror control switch..............3-40

6. Instrument panel illumination

control switch ........................................3-71

7. Blind-spot Collision Warning (BCW)

system ..................................................5-78

8. Lane Keeping assist (LKA)

system..................................................5-109

9. ESC OFF button ....................................5-35

10. Power liftgate button............................3-56

11. EPB(Electronic Parking Brake)............5-24

12. Hood release lever ..............................3-53

13. Steering wheel tilt/telescopic lever ......3-31

14. Steering wheel ....................................3-31

15. Seat........................................................2-4

16. Fuse box..............................................7-51

OLX2019003N

The actual shape may differ from the illustration.

IINNSSTTRRUUMMEENNTT PPAANNEELL OOVVEERRVVIIEEWW ((II))

The actual shape may differ from the illustration.

1-5

Your vehicle at a glance

OLX2019004N

1. Instrument cluster......................................3-69

2. Driver's front air bag ..................................2-59

3. Key ignition switch/......................................5-7

Engine Start/Stop button ..........................5-10

4. Hazard warning flasher switch....................6-2

5. Audio/Video/Navigation System ..................4-4

6. Manual climate control system/ ..............3-159

Automatic climate control system............3-171

7. Automatic transmission shift button ..........5-15

8. Auto Hold ..................................................5-29

9. Drive mode knob ......................................5-55

10. DBC button..............................................5-39

11. Parking Distance Warning

(Reverse/Forward) button......................3-156

12. Idle stop and go (ISG) OFF button ........5-51

13. Surround view monitor..........................3-149

14. Air ventilation seat ..................................2-27

15. Seat warmer............................................2-26

16. Heated steering wheel ............................3-32

17. Air ventilation seat (2

row)....................2-27

18. Seat warmer (2

row) ............................2-26

19. Climate control system (rear)................3-164

20. Power outlet ..........................................3-197

21. AC inverter ............................................3-198

22. Passenger's front air bag........................2-59

23. Glove box..............................................3-192

24. Light control/Turn signals ......................3-132

25.Wiper/Washer........................................3-144

26. Steering wheel audio controls ..................4-3

27. Smart cruise controls ............................5-128

28.Wireless cellular phone charging

system ..................................................3-201

1-6

Your vehicle at a glance

EENNGGIINNEE CCOOMMPPAARRTTMMEENNTT

1. Engine coolant reservoir...................7-18

2. Radiator cap .....................................7-19

3. Brake fluid reservoir ..........................7-21

4. Air cleaner.........................................7-22

5. Engine oil filler cap ...........................7-16

6. Engine oil dipstick.............................7-16

7.Windshield washer fluid reser voir.....7-22

8. Fuse box...........................................7-55

9. Battery terminal [+] ...........................7-29

10. Battery terminal [-] .........................7-29

OLX2078002L

The actual engine compartment in the vehicle may differ from the illustration.

■■

Gasoline 3.8 GDI

Safety system of your vehicle

Important Safety Precautions..............................2-2

Always Wear Your Seat Belt ..........................................2-2

Restrain All Children.........................................................2-2

Air Bag Hazards.................................................................2-2

Driver Distraction ..............................................................2-2

Control Your Speed ...........................................................2-3

Keep Your Vehicle in Safe Condition............................2-3

Seats ........................................................................2-4

Safety Precautions ...........................................................2-5

Front Seats .........................................................................2-6

Rear Seats.........................................................................2-13

Head Restraints ...............................................................2-21

Seat Warmers and Air Ventilation Seats ...................2-26

Seat Belts..............................................................2-29

Seat Belt Safety Precautions.......................................2-29

Seat Belt Warning Light ................................................2-30

Seat Belt Restraint System...........................................2-33

Additional Seat Belt Safety Precautions...................2-41

Care of Seat Belt.............................................................2-44

Child Restraint System (CRS).............................2-45

Children Always in the Rear.........................................2-45

Selecting a Child Restraint System (CRS) .................2-47

Installing a Child Restraint System (CRS)..................2-49

Air Bag - Advanced Supplemental Restraint

System ...................................................................2-57

Where Are the Air Bags?..............................................2-59

How Does the Air Bag System Operate?..................2-63

What to Expect After an Air Bag Inflates................2-67

Occupant Classification System (OCS).......................2-68

Why Didn't My Air Bag Go Off in a Collision?........2-73

SRS Care............................................................................2-78

Additional Safety Precautions.....................................2-79

Air Bag Warning Label...................................................2-79

This chapter provides you with important information about how to protect yourself and your passengers. It explains how to properly use your seats and seat belts, and how your air bags work. Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

2-2

You will find many safety precautions and recommendations throughout this section, and throughout this manual. The safety precautions in this section are among the most important.

Always Wear Your Seat Belt

A seat belt is your best protection in all types of accidents. Air bags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with air bags, ALWAYS make sure you and your passengers wear your seat belts, and wear them properly.

Restrain All Children

All children under age 13 should ride in your vehicle properly restrained in a rear seat, not the front seat.Infants and small children should be restrained in an appropriate child restraint. Larger children should use a booster seat with the lap/shoulder belt until they can use the seat belt properly without a booster seat.

Air Bag Hazards

While air bags can save lives, they can also cause serious or fatal injuries to occupants who sit too close to them, or who are not properly restrained. Infants, young children, and shorter adults are at the greatest risk of being injured by an inflating air bag. Follow all instructions and warnings in this manual.

Driver Distraction

Driver distraction presents a serious and potentially deadly danger, especially for inexperienced drivers. Safety should be the first concern when behind the wheel and drivers need to be aware of the wide arra y of potential distractions, such as drowsiness, reaching for objects, eating, personal grooming, other passengers, and using cellular phones.

Drivers can become distracted when they take their eyes and attention off the road or their hands off the wheel to focus on activities other than driving.To reduce your risk of distraction or getting into an accident:

• ALWAYS set up your mobile devices (i.e., MP3 players, phones, navigation units, etc.) when your vehicle is parked or safely stopped.

IIMMPPOORRTTAANNTT SSAAFFEETTYY PPRREECCAAUUTTIIOONNSS

Safety system of your vehicle

2-3

Safety system of your vehicle

• ONLY use your mobile device when allowed by laws and when conditions permit safe use. NEVER text or email while driving. Most states have laws prohibiting drivers from texting. Some states and cities also prohibit drivers from using handheld phones.

• NEVER let the use of a mobile device distract you from driving. You have a responsibility to your passengers and others on the road to always drive safely, with your hands on the wheel as well as your eyes and attention on the road.

Control Y our Speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

Keep Your Vehicle in Safe Condition

Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance.

2-4

Safety system of your vehicle

SSEEAATTSS

Front seats

(1) Seat sliding forward or rearward (2) Seatback angle adjustment (3) Seat cushion angle adjustment (4) Seat height adjustment (5) Lumbar support adjustment

(Driver’s seat)* (6) Seat cushion length adjustment* (7) Seat warmer* (8) Air ventilation seat* (9) Head restraint

2nd row seat

(10) Seat sliding forward or rearward (11) Seatback angle adjustment /

seat folding (12) Walk-in switch (13) Head restraint (14) Head restraint (8 passengers) (15) Seat warmer* (16) Air ventilation seat* (17) Seat folding strap

3rd row seat

(18) Head restraints (19) 2nd row seat remote folding switch (20) 3rd row seat remote folding/

unfolding switch* (21) Seatback angle adjustment

(for 3rd row seat)*

* : if equipped

OLX2039001N

Safety system of your vehicle

Safety Precautions

Adjusting the seats so that you are sitting in a safe, comfortable position plays an important role in driver and passenger safety together with the seat belts and air bags in an accident.

Air bags

You can take steps to reduce the risk of being injured by an inflating air bag. Sitting too close to an air bag greatly increases the risk of injury in the event the air bag inflates.

The National Highway Traffic Safety Administration (NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and their chest.

Seat belts

Always fasten your seat belt before starting any trip.

At all times, passengers should sit upright and be properly restrained. Infants and small children must be restrained in appropriate child restraint systems. Adults and children who have outgrown a booster seat must be restrained using the seat belts.

Do not use a cushion that reduces friction between the seat and the passenger. The passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop. Serious or fatal internal injuries could result because the seat belt cannot operate properly.

WARNING

To reduce the risk of serious injury or death from an inflating air bag, take the following precautions:

• Adjust the driver's seat as far

to the rear as possible while maintaining the ability to maintain full control of the vehicle.

• Adjust the front passenger

seat as far to the rear as possible.

• Hold the steering wheel by the

rim with hands at the 9 o'clock and 3 o'clock positions to minimize the risk of injuries to your hands and arms.

• NEVER place anything or any-

one between the steering wheel and the air bag.

• Do not allow the front passen-

ger to place feet or legs on the dashboard to minimize the risk of leg injuries.

WARNING

2-5

2-6

Safety system of your vehicle

Front Seats

Take the following precautions when adjusting your seat:

• NEVER attempt to adjust the

seat while the vehicle is moving. The seat could respond with unexpected movement and may cause loss of vehicle control resulting in an accident.

• Do not place anything under

the front seats. Loose objects in the driver's foot area could interfere with the operation of the foot pedals, causing an accident.

• Do not allow anything to inter-

fere with the normal position and proper locking of the seatback.

• Do not place a cigarette lighter

on the floor or seat. When you operate the seat, gas may exit out of the lighter causing a fire.

WARNING

To prevent injury:

• Do not adjust your seat while

wearing your seat belt. Moving the seat cushion forward may cause strong pressure on your abdomen.

• Do not allow your hands or

fingers to get caught in the seat mechanisms while the seat is moving.

CAUTION

• Use extreme caution when

picking up small objects trapped under the seats or between the seat and the center console.Your hands might be cut or injured by the sharp edges of the seat mechanism.

Take the following precautions when adjusting your seat belt:

• NEVER use one seat belt for

more than one occupant.

• Always position the seatback

upright with the lap portion of the seat belt snug and low across the hips.

• NEVER allow children or

small infants to ride on a passenger's lap.

• Do not route the seat belt

across your neck, across sharp edges, or reroute the shoulder strap away from your body.

• Do not allow the seat belt to

become caught or jammed.

WARNING

2-7

Safety system of your vehicle

Manual adjustment (if equipped)

The front seat can be adjusted by using the levers located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

Forward and rearward adjustment

To move the seat forward or rearward:

1. Pull up the seat slide adjustment lever and hold it.

2. Slide the seat to the position you desire.

3. Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.

Seatback angle

To recline the seatback:

1. Lean forward slightly and lift up the seatback lever.

2. Carefully lean back on the seat and adjust the seatback to the position you desire.

3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

OLX2038070 OLX2038072

2-8

Safety system of your vehicle

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protection of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you.During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger's hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Seat cushion height

To change the height of the seat cushion:

• Push down on the lever several times, to lower the seat cushion.

• Pull up on the lever several times, to raise the seat cushion.

OLX2038071

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Drivers and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

WARNING

2-9

Safety system of your vehicle

Power adjustment (if equipped)

The front seat can be adjusted by using the control switches located on the outside of the seat cushion.Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

To prevent damage to the seats:

• Always stop adjusting the seats when the seat has moved as far forward or rearward as possible.

• Do not adjust the seats for longer than necessary when the vehicle is turned off. This may result in unnecessary battery drain.

• Do not operate two or more seats at the same time.This may result in an electrical malfunction.

Forward and rearward adjustment

To move the seat forward or rearward:

1. Push the control switch forward or rearward.

2. Release the switch once the seat reaches the desired position.

NOTICE

NEVER allow children in the vehicle unattended. The power seats are operable when the vehicle is turned off.

WARNING

OLX2038003

2-10

Safety system of your vehicle

Cushion extension (for driver's seat, if equipped)

To move the front part of cushion forward:

1. Push the front part of control switch to mov e the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

To move the front part of cushion rearward:

1. Push the rear part of control switch to mov e the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

Seatback angle

To adjust the seatback:

1. Rotate the top of control switch forward or rearward.

2. Release the switch once the seatback reaches the desired position.

Reclining seatback

OLX2038004 OLX2038005

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

WARNING

2-11

Safety system of your vehicle

The more the seatback is reclined, the greater chance the passenger’s hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Seat cushion tilt (1)

To change the angle of the front par t of the seat cushion:

Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion.

Release the switch once the seat reaches the desired position.

Seat cushion height (2)

To change the height of the seat cushion:

Push the rear portion of the control switch up to raise or down to lower the height of the seat cushion.

Release the switch once the seat reaches the desired position.

Lumbar support (2way) (for driver’s seat)

The lumbar support can be adjusted by pressing the lumbar support switch.

• The lumbar support can be adjusted by pressing the lumbar support switch.

• Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

OLX2038006 OLX2038007

2-12

Safety system of your vehicle

Lumbar support (4way) (for driver’s seat) (if equipped)

The lumbar support can be adjusted by pressing the lumbar support switch.

• Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

• To move the support position up or down, press switch (3) or (4).

Seatback pocket

The seatback pocket is provided on the back of the front passenger's seatback.

To prevent the Occupant Classification System from malfunctioning:

Do not hang onto the front passenger's seatback.

WARNING

OLX2038013

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure occupants.

CAUTION

2-13

Safety system of your vehicle

Rear Seats

Rear seat adjustment

❈ Above picture shows a 7-seater vehicle.

Forward and rearward (2nd row seat)

To move the seat forward or rearward:

1. Pull the seat slide adjustment

lever up and hold it.

2. Slide the seat to the position you

desire.

3. Release the lever and make sure

the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forw ard and rearward without using the lever. If the seat moves, it is not locked properly.

Seatback angle (2nd row seat)

To recline the seatback:

1. Pull up the seatback recline lever.

2. Hold the lever and adjust the seatback of the seat to the position you desire.

3. Release the lever and make sure the seatback is locked in place.

(The lever MUST return to its original position for the seatback to lock.)

Seatback angle (3rd row seat) (Type A)

To recline the seatback:

1. Pull up the seatback recline strap.

2. Hold the strap and adjust the seatback of the seat to the position you desire.

3. Release the strap and make sure the seatback is locked in place. (The strap MUST return to its original position for the seatback to lock.)

OLX2038074

OLX2038075 OLX2039078N

2-14

Seatback angle (3rd row seat) (Type B)

To recline the seatback:

1. Push the control switch to recline the seat back.

2. Release the switch once the seatback reaches the desired position.

To get in or out of the 3rd row seat,

1.Routing the seat belt webbing through the rear seat belt guide clip. After inserting the seat belt, tighten the belt webbing by pulling it up.

2. Push the walk-in switch located on top (1) of the 2nd row seat or the side (2) of the seat bottom cushion.

3.The 2nd row seatback will be folded and push the seat to the farthest forward position.

After getting in or out, slide the 2nd row seat to the farthest rearward position and pull the seatback firmly backward until it clicks into place.

Make sure that the seat is locked in place.

Safety system of your vehicle

OLX2039015N

OLX2038018

OLX2038019

OLX2038020

Walk-in seat (2nd row seat)

2-15

Safety system of your vehicle

Folding the rear seat

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

• Never allow passengers to sit

on top of the folded down seatback while the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop.

• Objects carried on the folded

down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

WARNING

Never attempt to adjust while the vehicle is moving or the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured.

WARNING

• If the walk-in switch does not

work, pull the strap (1) located on the lower left side of the seat. Then you can move the 2nd row seat forward.

(7 passenger vehicle

- Left seat : lower right side

- Right seat : lower left side

8 passenger vehicle

- Right seat : lower left side)

• Never attempt to pull the strap

(1) while the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured. Use only the strap when the walk-in switch does not work.

WARNING

OLX2038021

2-16

Safety system of your vehicle

To fold down the rear seatback:

1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

2. Lower the rear head restraints to the lowest position.

3. Locate the seatbelt webbing in the guide before folding down the seatback to avoid the seatbelt system interfering with the seatback.

4. Pull up the seatback recline lever, then fold the seat toward the front of the vehicle.

OLX2038018 OLX2038022N

■ 2nd row seat

OLX2039079N

■ 3rd row seat

2-17

Safety system of your vehicle

5. T o use the rear seat, lift and unf old the seatback to the upright position by pulling up the recline lever.

Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

6. Return the rear seat belt to the proper position.

Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

WARNING

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

WARNING

OLX2039024N

■ 2nd row seat

OLX2039096N

■ 3rd row seat

Make sure the vehicle is off, the shift button is in P (Park),and the parking brake is securely applied whenever loading or unloading cargo.Failure to take these steps may allow the vehicle to move if the shift button is inadvertently shifted to another position.

WARNING

• Be careful when loading

cargo through the rear passenger seats to prevent damage to the vehicle interior.

• When cargo is loaded through

the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.

• Unsecured cargo in the pas-

senger compartment can cause damage to the vehicle or injury to it's occupants.

CAUTION

2-18

Safety system of your vehicle

2nd row seat folding (from outside)

Push the 2nd row seat back folding switch (1) located on the left side of the cargo area. (L : Left seatback folding, R : Right seatback folding)

3rd row seat remote folding/unfolding (if equipped)

Push the 3rd row seat back folding switch (1) located on the left side of the cargo area. (L : Left seatback folding/unfolding, R : Right seatback folding/unfolding)

You can also fold or unfold the left or right seatback of the 3rd row seat by touching the menu (All menus → Setup → Vehicle in the Infotainment system).

For more details, refer to the separately supplied Multimedia manual with your vehicle.

The 3rd row seat that is remotely folded or unfolded, is controlled only when the shift button is in “P” with Start ON, or the shift button is in “N” and the parking brake is in “ON.”

However, the seat is controlled at any condition in Start OFF state. When the vehicle moves or shifts while the seat is being controlled, the seat may stop operation.

When you press the switch once more while folding and unfolding the seat, operation stops. When you press the switch again, the operation resumes.

With the seat folded, when you press the angle adjusting switch, the seat is unfolded.

OLX2039026N OLX2039030N

Rear seat folding Do not fold the rear seats(2nd &

3rd row seats), if passengers, pets or luggage are on the rear seats.

It may cause injury or damage to passengers, pets, luggage.

WARNING

2-19

Safety system of your vehicle

Detection of object caught

While folding or unfolding the 3rd ro w seat, when a consistent force is detected, the seat returns to its original position or stops operation.

However, this function may not work when the detected resistance is below a specific level or the seat is almost folded or unfolded. When a strong impact is applied to the seat, the object detection function may be activated even if no obstacle is present.

When any object caught is detected multiple times while operating the seat once, folding and unfolding are repeated consecutively and then the operation may stop. In this case, check that any object is caught and then operate the switch again to check for abnormality.

When the object detection is enabled, the angle of the seat back may be changed.When you operate the seat once by pressing the folding button, the angle of the seat back is reset.

Do not place any part of your body or anything in the operating area to intentionally check the detection of any object caught.

For safety, when folding or unfolding the 3rd row seat, make sure that there is no part of body or object. To prevent damage to the seatbelt, insert it into its holder and store it in the retractor inside a seat.

When the child restraint system (CRS) is installed on the 3rd row seat, remove the CRS and then operate the seat.

When there is any object on the cushion of the 3rd row seat, remove it and then operate the seat.

To avoid interference with a front seat, keep the backrest of the front seat straight and move it forward for smooth operation.

WARNING

Without starting the engine, the 3rd row seat can be folded or unfolded. When this is attempted more than 10 times, the battery may discharge prematurely.

Do not apply excessive force to the 3rd row seat while in operation. It may damage the seat.

When you operate the seat over 5 times with no rest, the electric motor may be overloaded. In this case, the seat changes to overheat prevention mode. Then you cannot operate the seat by pressing the switch. Leave the seat for over 1 minute for later operation.

CAUTION

2-20

Armrest (2nd row, 8 passengers vehicle)

The armrest is located in the center of the rear seat. Use the strap in the center of the armrest to pull it down.

Armrest (2nd row, 7 passengers vehicle)

Pull the armrest down from the seatback to use it.

Rear occupant alert system (if equipped)

This function alerts the driver when exiting the vehicle to check the 2nd row seat.

If the rear doors are open prior to driving the vehicle, after driving when the vehicle is turned off, a warning message appears in the cluster to give a first warning. If the movement is detected in the 2nd row seat after you lock all doors, a second warning alerts you.

Make sure to check for passengers in the 2nd row seat before you get out.

For more details, refer to the “Rear Occupant Alert System” in chapter 3.

Safety system of your vehicle

OLX2039077N OLX2038017

2-21

Safety system of your vehicle

Head Restraints

The vehicle's front and rear seats have adjustable head restraints. The head restraints provide comfort for passengers, but more importantly they are designed to help protect passengers from whiplash and other neck and spinal injuries during an accident, especially in a rear impact collision.

To prevent damage, NEVER hit or pull on the head restraints.

NOTICE

To reduce the risk of serious injury or death in an accident, take the following precautions when adjusting your head restraints:

• Always properly adjust the

head restraints for all passengers BEFORE starting the vehicle.

• NEVER let anyone ride in a

seat with the head restraints removed or reversed.

•

Adjust the head restraints so the middle of the head restraint is at the same height as the height of the top of the eyes.

• NEVER adjust the head

restraint position of the driver's seat when the vehicle is in motion.

• Adjust the head restraint as

close to the passenger's head as possible. Do not use a seat cushion that holds the body away from the seatback.

• Make sure the head restraint

locks into position after adjusting it.

WARNING

OLF034072N

When there is no occupant in the rear seats, adjust the height of the head restraint to the lowest position.The rear seat head restraint can reduce the visibility of the rear area.

CAUTION

2-22

Safety system of your vehicle

Front seat head restraints

The vehicle's front and passenger's seats are equipped with adjustable head restraints for the passengers safety and comfort.

Adjusting the height up and down

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

If you recline the seatback to war ds the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

NOTICE

OLX2038097L

OLX2038010

OLF034015

2-23

Safety system of your vehicle

Removal/Reinstallation

To remove the head restraint:

1. Recline the seatback (2) rearward using the seatback angle lever/ switch (1).

2. Raise the head restraint as far as it can go.

3. Press the head restraint release button (3) while pulling the head restraint up (4).

To reinstall the head restraint:

1. Put the head restraint poles (2) into the holes while pressing the release button (1).

OLX2038073

OLX2038011L

■ Type A

■ Type B

OLX2038095

OLX2038012L

■ Type A

■ Type B

2-24

Safety system of your vehicle

2. Adjust the head restraint to the appropriate height.

3. Adjust the seatback (4) forward using the seatback angle lever/ switch (3).

Rear seat head restraints

* : For 8 passengers vehicle

The rear seats are equipped with head restraints in all the seating positions for the passenger's safety and comfort.

OLX2038098L

• Adjust the head restraint so

the middle of the head restraint is at the same height as the height of the top of the eyes.

• When seated on the rear seat,

do not adjust the height of the head restraint to the lowest position.

CAUTION

2-25

Safety system of your vehicle

Adjusting the height up and down

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

Removal/Reinstallation

To remove the head restraint:

1. Raise the head restraint as far as it can go.

2. Press the head restraint release button (1) while pulling the head restraint up (2).

To reinstall the head restraint:

1. Put the head restraint poles into the holes (3) while pressing the release button (1).

2. Adjust the head restraint to the appropriate height.

Folding 3rd row headrest (except for center)

The headrest will fold down automatically when folding the seatback.

To fold the headrest manually:

- Pull the strap. To unfold the headrest manually:

- Raise the headrest manually. Always be sure the headrest has

locked into position after you return the seatback.

OLX2039016NOLX2039014N

OLX2039103N

2-26

Safety system of your vehicle

Seat Warmers and Air Ventilation Seats

Seat warmers (if equipped)

Seat warmers are provided to warm the seats during cold weather.

To prevent damage to the seat warmers and seats:

• Never use a solvent such as paint thinner, benzene, alcohol or gasoline to clean the seats.

• Do not place heavy or sharp objects on seats equipped with seat warmers.

• Do not change the seat cover. It may damage the seat warmer.

While the engine is running, push either of the switches to warm the driver's seat or front passenger's seat.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the OFF position.

NOTICE

OLX2038031

■ Front seat

OLX2038076

■ Rear seat (2nd row)

• People taking medication that

can cause drowsiness or sleepiness.

NEVER place anything on the seat that insulates against heat when the seat warmer is in operation, such as a blanket or seat cushion. This may cause the seat warmer to overheat, causing a burn or damage to the seat.

WARNING

The seat warmers can cause a SERIOUS BURN, even at low temperatures and especially if used for long periods of time.

Passengers must be able to feel if the seat is becoming too warm so they can turn it off, if needed.

People who cannot detect temperature change or pain to the skin should use extreme caution, especially the following types of passengers:

• Infants, children, elderly or

disabled persons, or hospital outpatients.

• People with sensitive skin or

who burn easily.

• Fatigued individuals.

• Intoxicated individuals.

WARNING

2-27

Safety system of your vehicle

• Each time you push the switch, the temperature setting of the seat changed as shown below:

• When pressing the switch for more than 1.5 seconds with the seat warmer operating, the seat warmer will turn OFF.

• The seat warmer defaults to the OFF position whenever the vehicle is turned on.

Information

With the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature.

Front air ventilation seat (if equipped)

The air ventilation seats are provided to cool the front seats by blowing air through small vent holes on the surface of the seat cushions and seatbacks.

When the operation of the air ventilation seat is not needed, keep the switches in the OFF position.

While the engine is running, push the switch to cool the driver's seat or the front passenger's seat.

• Each time you push the switch, the airflow changes as follows:

• When pressing the switch for more than 1.5 seconds with the air ventilation seat operating, the operation will turn OFF.

OFF HIGH ( )

LOW ( ) MIDDLE ( )

→

OFF HIGH ( )

LOW ( ) MIDDLE ( )

→

OLX2038028

■ Front seat

OLX2038029

■ Rear seat (2nd row)

2-28

Safety system of your vehicle

• The air ventilation seat defaults to the OFF position whenever the vehicle is turned on.

Information

• If the outside temperature is under approximately 33°F (2°C), the air ventilation seat may not operate.

• Use the air ventilation seat when the climate control system is on. Using the air ventilation seat for prolonged periods of time with the climate control system off could cause the climate control seat performance to be reduced.

To prevent damage to the air ventilation seat:

• Use the air ventilation seat ONL Y when the climate control system is on. Using the air ventilation seat for prolonged periods of time with the climate control system off could cause the air ventilation seat to malfunction.

• Never use a solvent such as paint thinner, benzene, alcohol or gasoline to clean the seats.

• Avoid spilling liquids on the surface of the front seats and seatbacks; this may cause the air vent holes to become blocked and not work properly.

• Do not place materials such as plastic bags or newspapers under the seats.They may block the air intake causing the air vents to not work properly.

• Do not change the seat covers. It may damage the air ventilation seat.

• If the air vents do not operate, restart the vehicle. If there is no change, have the vehicle inspected by an authorized HYUNDAI dealer.

NOTICE

2-29

Safety system of your vehicle

This section describes how to use the seat belts properly. It also describes some of the things to avoid when using seat belts.

Seat Belt Safety Precautions

Always fasten your seat belt and make sure all passengers have fastened their seat belts before starting any trip. Air bags are designed to supplement the seat belt as an additional safety device , but the y are not a substitute. Most states require all occupants of a vehicle to wear seat belts.

SSEEAATT BBEELLTTSS

Seat belts must be used by ALL passengers whenever the vehicle is moving.Take the following precautions when adjusting and wearing seat belts:

• ALWAYS properly restrain

children under age 13 in the rear seats.

WARNING

• NEVER allow children to ride

in the front passenger seat. If a child age 13 or older must be seated in the front seat, move the seat as far back as possible and properly restrain them in the seat.

• NEVER allow an infant or child

to be carried on an occupant’s lap.

• NEVER ride with the seatback

reclined when the vehicle is moving.

• Do not allow children to share

a seat or seat belt.

• Do not wear the shoulder belt

under your arm or behind your back.

• Always wear both the shoul-

der portion and lap portion of the lap/shoulder belt.

• Do not use the seat belt if it is

twisted. A twisted seat belt will not protect you properly in an accident.

• Do not use a seat belt if the

webbing or hardware is damaged.

• Do not latch the seat belt into

the buckles of other seats.

• NEVER unfasten the seat belt

while driving. This may cause loss of vehicle control resulting in an accident.

• Make sure there is nothing in

the buckle interfering with the seat belt latch mechanism. This may prevent the seat belt from fastening securely.

• No modifications or additions

should be made by the user which will either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

2-30

Safety system of your vehicle

Seat Belt Warning Light

Seat belt warning light

Driver's seat belt warning

As a reminder to the driver, the seat belt warning light will illuminate for approximately 6 seconds each time you place the ignition switch to the ON position regardless of belt fastening. At this time, if the seat belt is not fastened a warning chime will sound for 6 seconds.

If you continue not to fasten the seat belt and you drive over 6 mph (9 km/h), the warning light will stay illuminated.

If you continue not to fasten the seat belt and you drive over 12 mph (20 km/h) the seat belt warning chime will sound for approximately 100 seconds and the corresponding warning light will blink.

If you unfasten the seat belt while driving under 12 mph (20 km/h), the seat belt warning light will illuminate until the seat belt is fastened.

If you unfasten the seat belt while driving over 12 mph (20 km/h), the seat belt warning chime will sound for approximately 100 seconds and the corresponding warning light will blink.

Damaged seat belts and seat belt assemblies will not operate properly. Always replace:

• Frayed, contaminated, or dam-

aged webbing

• Damaged hardware

• The entire seat belt assembly

after it has been worn in an accident, even if damage to webbing or assembly is not apparent

WARNING

OLX2039032L

2-31

Safety system of your vehicle

Front passenger's seat belt warning

As a reminder to the front passenger, the front passenger's seat belt warning lights will illuminate for approximately 6 seconds each time you place the ignition switch to the ON position regardless of belt fastening.

If you continue not to fasten the seat belt and you drive over 6 mph (9 km/h), the warning light will stay illuminated.

If you continue not to fasten the seat belt and you drive over 12 mph (20 km/h) the seat belt warning chime will sound for approximately 100 seconds and the corresponding warning light will blink.

If you unfasten the seat belt while driving under 12 mph (20 km/h) the seat belt warning light will illuminate until the seat belt is fastened.

If you unfasten the seat belt while driving over 12 mph (20 km/h), the seat belt warning chime will sound for approximately 100 seconds and the corresponding warning light will blink.

Information

• Although the front passenger seat is not occupied, the seat belt warning light will blink or illuminate for 6 seconds.

Also, when the front passenger gets off the vehicle while the warning is activating, the warning may continue for 6 seconds even after the passenger gets off.

• The front passenger's seat belt warning light may not properly operate if the front passenger does not sit properly in the seat.

• The front passenger's seat belt warning may operate when luggage, electronic device, etc. are placed on the front passenger seat.

OLX2039033L

2-32

Rear passenger's seat belt warning

❈ 7 passengers (A)

- 2nd row : 1, 3

- 3rd row : 4, 5, 6

❈ 8 passengers (B)

- 2nd row : 1, 2, 3

- 3rd row : 4, 5, 6

As a reminder to the rear passenger, the rear passenger's seat belt warning lights will illuminate for approximately 6 seconds each time you turn the ignition switch ON regardless of belt fastening.

If the seat belt is not fastened when the ignition switch is turned ON or if it is disconnected after the ignition switch is turned ON, the seat belt warning light will illuminate until the belt is fastened.

If you start to drive without the seat belt fastened or you unfasten the seat belt when you drive under 12 mph (20 km/h), the corresponding warning light will continue to illuminate until you fasten the seat belt.

If you continue to drive without the seat belt fastened or you unfasten the seat belt when you drive over 12 mph (20 km/h), the seat belt warning chime will sound for approximately 35 seconds and the corresponding warning light will blink.

Information

• Although the rear passenger's seat is not occupied, the seat belt warning light will blink or illuminate for 6 seconds.

• The rear passenger's seat belt warning may operate when luggage, laptop or other electronic device is placed on the rear passenger seat.

Safety system of your vehicle

OLX2038034

Riding in an improper position adversely affects the rear passenger's seat belt warning system.

It is important for the driver to instruct the passenger to properly be seated as instructed in this manual.

WARNING

2-33

Safety system of your vehicle

Seat Belt Restraint System

Seat Belt-Driver's 3-point system with emergency locking retractor

To fasten your seat belt:

Pull the seat belt out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.

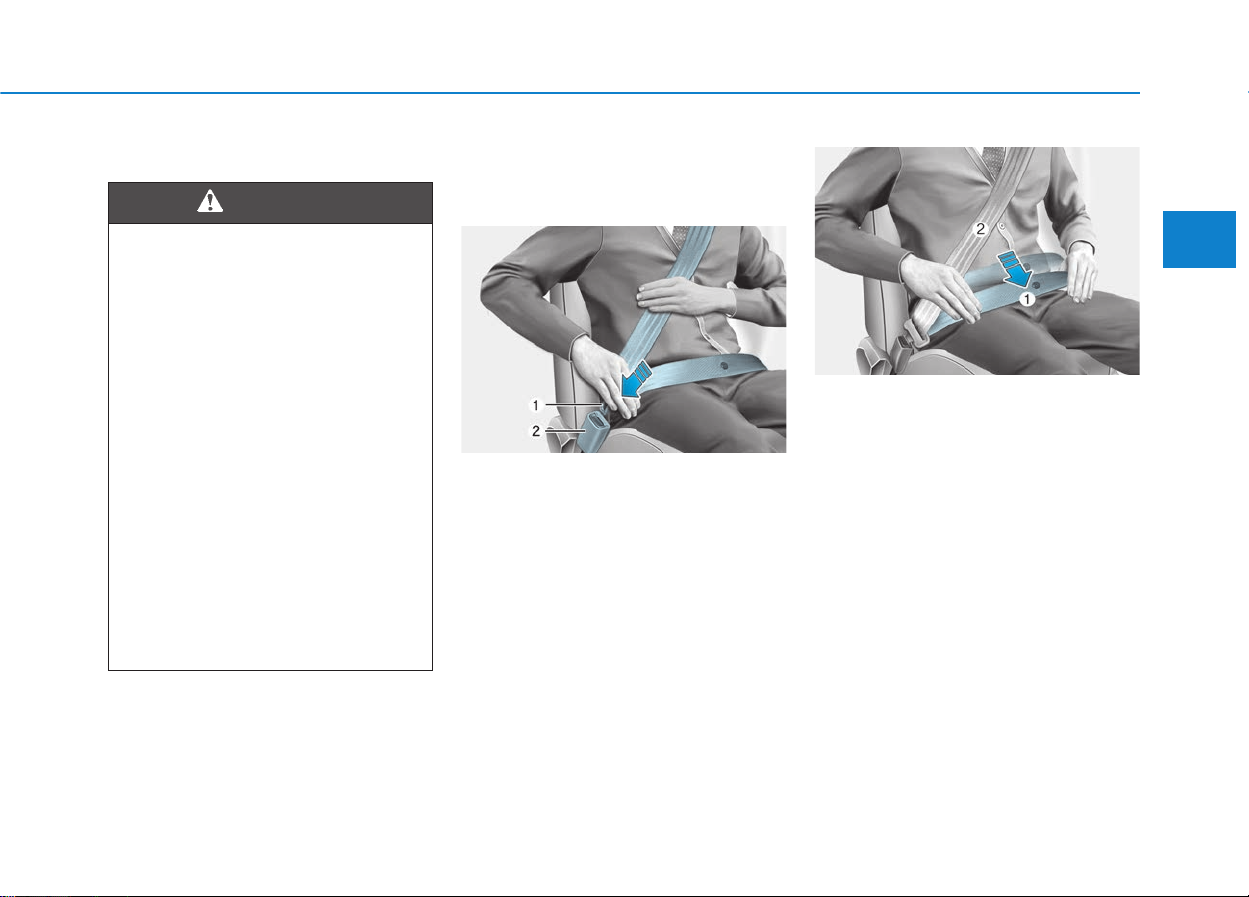

You should place the lap belt (1) portion across your hips and the shoulder belt (2) portion across your chest.

The seat belt automatically adjusts to the proper length after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and move with you.

If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

OHSS038101

Improperly positioned seat belts may increase the risk of serious injury in an accident.Take the following precautions when adjusting the seat belt:

• Position the lap portion of the

seat belt as low as possible across your hips, not on your waist, so that it fits snugly.

• Position one arm under the

shoulder belt and the other over the belt, as shown in the illustration.

• Always position the shoulder

belt anchor into the locked position at the appropriate height.

• Never position the shoulder

belt across your neck or face.

WARNING

OHSS038102L

2-34

Safety system of your vehicle

If you are not able to smoothly pull enough of the seat belt out from the retractor, firmly pull the seat belt out and release it. After release, you will be able to pull the belt out smoothly.

Height adjustment

You can adjust the height of the shoulder belt anchor to one of the three different positions for maxim um comfort and safety.

The shoulder portion should be adjusted so it lies across your chest and midway ov er y our shoulder nearest the door, not over your neck.

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.

To raise the height adjuster, pull it up (1).T o lo w er it, push it do wn (3) while pressing the height adjuster button (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

To release your seat belt:

Press the release button (1) in the locking buckle.

When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

NOTICE

OLX2038102L

OHSS038103

2-35

Safety system of your vehicle

Rear Seat Belt – Passenger's 3point system with convertible locking retractor

This type of seat belt combines the features of both an emergency locking retractor seat belt and an automatic locking retractor seat belt. Convertible retractor type seat belts are installed in the rear seat positions to help accommodate the installation of child restraint systems. Although a convertible retractor is also installed in the front passenger seat position, NEVER place any infant/child restraint system in the front seat of the vehicle.

To fasten your seat belt:

Pull the seat belt out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retractor Type). It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly across your hips.

When the seat belt is fully extended from the retractor to allow the installation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). Refer to the "Using a Child Restraint System" section in this chapter.

Although the seat belt retractor provides the same level of protection for seated passengers in either emergency or automatic locking modes, the emergency locking mode allows seated passengers to move freely in their seat while keeping some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

To deactivate the automatic locking mode, unbuckle the seat belt and allow the belt to fully retract.

NOTICE

2-36

Safety system of your vehicle

To release your seat belt:

Press the release button (1) in the locking buckle.

When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

Rear center seatbelt (3rd row)

To fasten your seatbelt:

1.Extract the tongue plate (A) from the hole on the belt assembly cover.

2.Insert the tongue plate (A) into the buckle (A’) until an audible “click" is heard, indicating the latch is locked. Make sure the belt is not twisted.

OHSS038103

OLX2038081

OLX2038082

2-37

Safety system of your vehicle

3. Pull out the tongue plate (B) from the pocket. Pull the tongue plate (B) and insert it into the buckle (B’) until an audible “click” is heard, indicating the latch is locked.Make sure the belt is not twisted.

When using the rear center seat belt, the buckle with the “CENTER” mark must be used.

Information

If you are not able to pull out the safety belt from the retractor, firmly pull the belt out and release it. After release, you will be able to pull the belt out smoothly.

To release your seatbelt:

1.Press the release button on the buckle (B’) and remove the tongue plate (B).

2. To retract the rear center seatbelt, insert the tongue plate into the web release hole (A' ). Pull up on the seat belt web and allow the webbing to retract automatically. Insert the tongue plate (A) into the hole on the belt assembly cover.

OLX2038083 OLX2038084 OLX2038085

2-38

Stowing the rear seat belt

• The rear seat belt buckles can be stowed in the pocket between the rear seatback and cushion when not in use.

• Routing the seat belt webbing through the rear seat belt guides will help keep the belts from being trapped behind or under the seats.

After inserting the seat belt, tighten the belt webbing by pulling it up.

Safety system of your vehicle

OLX2038018

OLX2038069L

■ 2ndrow seat

■ 3ndrow seat (if equipped)

OTM038042

OLX2038035

■ 2ndrow seat (8 passenger vehicle)

■ 3ndrow seat

When using the seat belt, use it after taking it out of the guides.

If you pull the seat belt when it is stored in the guides, it may damage the guides and/or belt webbing.

CAUTION

2-39

Safety system of your vehicle

Pre-tensioner seat belt (Driver and front passenger)

Your vehicle is equipped with driver's and front passenger's Pre-tensioner Seat Belts (Retractor Pretensioner).

The purpose of the pre-tensioner is to make sure the seat belts fit tightly against the occupant's body in certain frontal or side collision(s).

When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position.In certain frontal or side collision(s), the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body.

(1)Retractor Pretensioner

The purpose of the retractor pretensioner is to make sure that the shoulder belts fit in tightly against the occupant's upper body in certain frontal or side collision(s).

If the system senses excessive tension on the driver or passenger's seat belt when the pre-tensioner system activates, the load limiter inside the retractor pre-tensioner will release some of the pressure on the affected seat belt.

• Always wear your seat belt and

sit properly in your seat.

• Do not use the seat belt if it is

loose or twisted. A loose or twisted seat belt will not protect you properly in an accident.

• Do not place anything near the

buckle. This may adversely affect the buckle and cause it to function improperly.

• Always replace your pre-ten-

sioners after activation or an accident.

• NEVER inspect, service, repair

or replace the pre-tensioners yourself.This must be done by an authorized HYUNDAI dealer.

• Do not hit the seat belt assem-

blies.

WARNING

OTL035053

2-40

Safety system of your vehicle

The Pre-Tensioner Seat Belt System consists mainly of the following components.Their locations are shown in the illustration above:

1. SRS air bag warning light

2. Retractor pre-tensioner

3. SRS control module

The sensor that activates the SRS air bag is connected with the pre–tensioner seat belts.The SRS air bag warning light on the instrument panel will illuminate for approximately 6 seconds after the ignition switch is in the ON position, and then it should turn off.

If the pre-tensioner is not working properly, the warning light will illuminate even if the SRS air bag is not malfunctioning. If the warning light does not illuminate, stays illuminated or illuminates when the vehicle is being driven, have an authorized HYUNDAI dealer inspect the pre-tensioner seat belts and SRS air bags as soon as possible.

NOTICE

OLMB033040/Q

Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated. When the pre-tensioner seat belt mechanism deploys during a collision, the pre-tensioners become hot and can burn you.

WARNING

2-41

Safety system of your vehicle

• Both the driver's and front passenger's pre-tensioner seat belts may be activated in certain frontal or side collisions or rollovers.

• When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating conditions and are not hazardous.

• Although it is non-toxic, the fine dust may cause skin irritation and should not be inhaled for prolonged periods. Wash all exposed skin areas thoroughly after an accident in which the pre-tensioner seat belts were activated.

Additional Seat Belt Safety Precautions

Seat belt use during pregnancy

The seat belt should always be used during pregnancy. The best way to protect your unborn child is to protect yourself by always wearing the seat belt.

Pregnant women should always wear a lap-shoulder seat belt. Place the shoulder belt across your chest, routed between your breasts and away from your neck.Place the lap belt line so that it fits snugly and as low as possible across the hips, not across the abdomen.

NOTICE

• A pregnant woman or a

patient is more vulnerable to any imapcts on the abdomen during an abrupt stop or accident. If you are in an accident while pregnant, we recommend you consult your doctor.

• To reduce the risk of serious

injury or death to an unborn child during an accident, pregnant women should NEVER place the lap portion of the seat belt above or over the area of the abdomen where the unborn child is located.

WARNING

2-42

Safety system of your vehicle

Seat belt use and children

Infant and small children

All 50 states have child restraint la ws which require children to travel in approved child restraint devices, including booster seats. The age at which seat belts can be used instead of child restraints differs among states, so you should be aw are of the specific requirements in your state, and where you are travelling. Infant and child restraints must be properly placed and installed in a rear seat. For more information refer to the "Child Restraint Systems" section in this chapter.

Small children are best protected from injury in an accident when properly restrained in the rear seat by a child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards. Before buying any child restraint system, make sure that it has a label certifying that it meets Federal Motor V ehicle Saf ety Standard FMVSS 213. The restraint must be appropriate for your child’s height and weight. Check the label on the child restraint for this information. Refer to the "Child Restraint Systems" section in this chapter.

AL WA YS pr operly restrain infants and small children in a child restraint appropriate for the child's height and weight.

To reduce the risk of serious injury or death to a child and other passengers, NEVER hold a child in your lap or arms when the vehicle is moving.The violent forces created during an accident will tear the child from your arms and throw the child against the interior of the vehicle.

WARNING

2-43

Safety system of your vehicle

Larger children

Children under age 13 and who are too large for a booster seat must always occupy the rear seat and use the available lap/shoulder belts. A seat belt should lie across the upper thighs and be snug across the shoulder and chest to restrain the child safely. Check belt fit periodically. Children are afforded the most safety in the event of an accident when they are restrained by a proper restraint system and/or seat belts in the rear seat. Always have the LATCH system inspected by your authorized HYUNDAI dealer after an accident. An accident can damage the LATCH system and may not properly secure the child restraint.

If a larger child over age 13 must be seated in the front seat, the child must be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position.

If the shoulder belt portion slightly touches the child's neck or face, try placing the child closer to the center of the vehicle.If the shoulder belt still touches their face or neck they need to be returned to an appropriate booster seat in the rear seat.

Transporting an injured person

A seat belt should be used when an injured person is being transported. Consult a physician for specific recommendations.

One person per belt

Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.

Do not lie down

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

To reduce the chance of injuries in the event of an accident and to achieve the maximum effectiveness of the restraint system, all passengers should be sitting up and the front and rear seats should be in an upright position when the car is moving.

A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front or rear seats are in a reclined position.

• Always make sure children

are wearing their seat belts and that they are properly adjusted before driving.

• NEVER allow the shoulder

belt to contact the child’s neck or face.

• Do not allow more than one

child to use a single seat belt.

WARNING

2-44

Safety system of your vehicle

Care of Seat Belts

Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.

Periodic inspection

All seat belts should be inspected periodically for wear or damage of any kind. Any damaged par ts should be replaced as soon as possible by an authorized HYUNDAI dealer.

Keep belts clean and dry

Seat belts should be kept clean and dry .If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.

When to replace seat belts

The entire seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident.This should be done even if no damage is visible. Additional questions concerning seat belt operation should be directed to an authorized HYUNDAI dealer.

• NEVER ride with a reclined

seatback when the vehicle is moving.

• Riding with a reclined seatback

increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

• Drivers and passengers should

always sit well back in their seats, properly belted, and with the seatbacks upright.

WARNING

2-45

Safety system of your vehicle

Children Always in the Rear

Children under age 13 must always ride in the rear seats and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Even with air bags,

children can be seriously injured or killed. Children too large for a

child restraint must use the seat belts provided.

All 50 states have child restraint la ws which require children to travel in approved child restraint devices.The laws governing the age or height/ weight restrictions at which seat belts can be used instead of child restraints differs among states, so you should be aware of the specific requirements in your state, and where you are travelling.

Child restraint systems must be properly placed and installed in the rear seat. You must use a commercially available child restraint system that meets the requirements of the Federal Motor Vehicle Safety Standards (FMVSS 213).

Child restraint systems are generally designed to be secured in a vehicle seat by lap belt portion of a lap/shoulder belt, or by a LATCH system in the rear seats of the vehicle.

CCHHIILLDD RREESSTTRRAAIINNTT SSYYSSTTEEMM ((CCRRSS))

Always properly restrain children in the rear seats of the vehicle.

Children of all ages are safer when restrained in the rear seat. A child riding in the front passenger seat can be forcefully struck by an inflating air bag resulting in SERIOUS INJURY or DEATH.

WARNING

2-46

Safety system of your vehicle

Child restraint system (CRS)

Infants and younger children must be restrained in an appropriate rear-facing or forward-facing CRS that has first been properly secured to the rear seat of the vehicle. Read and comply with the instructions for installation and use provided by the manufacturer of the child restraint.

• Always properly restrain your

child in the child restraint.

• If the vehicle head restraint

prevents proper installation of a child seat (as described in the child restraint system manual), the head restraint of the respective seating position shall be readjusted or entirely removed.

• Do not use an infant carrier or

a child safety seat that "hooks" over a seatback, it may not provide adequate protection in an accident.

• After an accident, have a

HYUNDAI dealer check the child restraint system, seat belts, lower anchors and upper tether anchors.

An improperly secured child restraint can increase the risk of SERIOUS INJURY or DEATH in an accident. Always take the following precautions when using a child restraint system:

• NEVER install a child or infant

restraint in the front passenger's seat.

• Always properly secure the

child restraint to a rear seat of the vehicle.

• Always follow the child

restraint system manufacturer's instructions for installation and use.

WARNING

• Be especially careful when

installing a child restraint on the center seating position in the second row as it is narrower than the outboard positions. A wide child restraint installed on the center seat may cover the safety belt buckles for the other seating positions. Do not allow someone to ride in a seating position where the safety belt buckle is co vered by a child restraint.

• A child restraint in the center

seating position may also contact or push up against the safety belt buckles, which can damage the buckles and make them unusable or unsafe. Always check that the child restraint does not contact any of the safety belt buckles. Check the placement of the child restraint regularly to make sure that it has not shifted and come into contact with any of the safety belt buckles.

WARNING

2-47

Safety system of your vehicle

Selecting a Child Restraint System (CRS)

When selecting a CRS for your child, always:

• Make sure the CRS has a label certifying that it meets applicable Federal Motor Vehicle Safety Standards (FMVSS 213).

• Select a child restraint based on your child's height and weight.The required label or the instructions for use typically provide this information.

• Select a child restraint that fits the vehicle seating position where it will be used.

• Read and comply with the warnings and instructions for installation and use provided with the child restraint system.

Child restraint system types

There are three main types of child restraint systems: rearward-facing seats, forward-facing seats, and booster seats. They are classified according to the child's age, height and weight.

Rearward-facing child seats

A rearward-facing child seat provides restraint with the seating surface against the back of the child.The harness system holds the child in place, and in an accident, acts to keep the child positioned in the seat and reduce the stress to the neck and spinal cord.

All children under age one must always ride in a rearward-f acing inf ant child restraint.

Convertible and 3-in-1 child seats typically have higher height and weight limits for the rearward-facing position, allowing you to keep your child rearward-facing for a longer period of time.

NEVER install a child or infant restraint in the front passenger's seat.

Placing a rearward-facing child restraint in the front seat can result in SERIOUS INJURY or DEATH if the child restraint is struck by an inflating air bag.

WARNING

OLX2039036N

2-48

Safety system of your vehicle

Continue to use a rearward-facing child seat for as long as your child will fit within the height and weight limits allowed by the child seat manufacturer. It's the best way to keep them safe. Once your child has outgrown the rearward-facing child restraint, your child is ready for a forward-facing child restraint with a harness.

Forward-facing child restraints

A forward-facing child seat provides restraint for the child's body with a harness. Keep children in a forwardfacing child seat with a harness until they reach the top height or weight limit allowed by your child restraint’s manufacturer.

Once your child outgrows the f orwardfacing child restraint, your child is ready for a booster seat.

Booster seats

A booster seat is a restraint designed to improve the fit of the vehicle's seat belt system. A booster seat positions the seat belt so that it fits properly over the lap of your child.

Keep your child in a booster seat until they are big enough to sit in the seat without a booster and still have the seat belt fit properly. For a seat belt to fit properly, the lap belt must lie snugly across the upper thighs, not the stomach.The shoulder belt should lie snug across the shoulder and chest and not across the neck or face. Children under age 13 must always ride in the rear seats and must always be properly restrained to minimize the risk of injury.

OLX2039002N

Do NOT adjust the seat when child seat is fitted.Adjusting the seat during driving can result in SERIOUS INJURY or DEATH.

WARNING

2-49

Safety system of your vehicle

Installing a Child Restraint System (CRS)

After selecting a proper child seat for your child, check to make sure it fits properly in your vehicle. Follow the instructions provided by the manufacturer when installing the child seat. Note these general steps when installing the seat to your vehicle:

• Properly secure the child restraint to the vehicle. All child restraints must be secured to the vehicle with the lap part of a lap/shoulder belt or with the LATCH system. If using the lap/shoulder belt for your child restraint, the convertible locking retractor should be pulled all the way out to engage the "automatic locking" mode.(See page 2-54.)

• Make sure the child restraint is firmly secured. After installing a child restraint to the vehicle, push and pull the seat forward-andback and side-to-side to verify that it is securely attached to the seat. A child restraint secured with a seat belt should be installed as firmly as possible. However, some side-to-side movement can be expected.

• Secure the child in the child restraint. Make sure the child is properly strapped in the child restraint according to the manufacturer instructions.

Before installing your child restraint system always:

• Read and follow the instruc-

tions provided by the manufacturer of the child restraint.

• Read and follow the instruc-

tions regarding child restraint systems in this manual.

Failure to follow all warnings and instructions could increase the risk of the SERIOUS INJURY or DEATH if an accident occurs.

WARNING

If the vehicle head restraint prevents proper installation of a child seat (as described in the child seat system manual, the head restraint of the respective seating position shall be readjusted or entirely removed.

WARNING

A child restraint in a closed vehicle can become very hot.To prevent burns, check the seating surface and buckles before placing your child in the child restraint.

CAUTION

2-50

Safety system of your vehicle

Lower Anchors and Tether for Children (LATCH System)

The LATCH system holds a child restraint during driving and in an accident. This system is designed to make installation of the child restraint easier and reduce the possibility of improperly installing your child restraint. The LATCH system uses anchors in the vehicle and attachments on the child restraint. The LATCH system eliminates the need to use seat belts to secure the child restraint to the rear seats.

Lower anchors are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments.

To use the LATCH system in your vehicle, you must have a child restraint with LATCH attachments.

The child seat manufacturer will provide you with instructions on how to use the child seat with its attachments for the LATCH lower anchors.

LATCH anchors have been provided in the left and right outboard rear seating positions. Their locations are shown in the illustration.There are no LATCH anchors provided for the center rear seating position.

OLX2038039

Do not attempt to install a child restraint system using LATCH anchors in the rear center seating position.There are no LA TCH anchors provided for this seat. Using the outboard seat anchors can damage the anchors which may break or fail in a collision resulting in serious injury or death.

WARNING

2-51

Safety system of your vehicle

[1] : Lower Anchor Position Indicator, [2] : Lower Anchor

The lower anchor position indicator symbols are located on the left and right rear seat backs to identify the position of the lower anchors in your vehicle (see arrows in illustration).

The LATCH anchors are located between the seatback and the seat cushion of the rear seat left and right outboard seating positions.

Securing a child restraint with the LATCH anchors system

To install a LATCH-compatible child restraint in either of the rear outboard seating positions:

1. Move the seat belt buckle away from the lower anchors.

2. Move any other objects away from the anchors that could prevent a secure connection between the child restraint and the lower anchors.

3. Place the child restraint on the vehicle seat, then attach the seat to the lower anchors according to the instructions provided by the child restraint manufacturer.

4. Follow the child restraint instructions for properly adjusting and tightening the lower attachments on the child restraint to the lower anchors.

OLX2038040L

Take the following precautions when using the LATCH system:

• Read and follow all installation

instructions provided with your child restraint system.

• To prevent the child from

reaching and taking hold of unretracted seat belts, buckle all unused rear seat belts and retract the seat belt webbing behind the child. Children can be strangled if a shoulder belt becomes wrapped around their neck and the seat belt tightens.

• NEVER attach more than one

child restraint to a single anchor. This could cause the anchor or attachment to come loose or break.

• Always have the LATCH sys-

tem inspected by your authorized HYUNDAI dealer after an accident. An accident can damage the LATCH system and may not properly secure the child restraint.

WARNING

2-52

Safety system of your vehicle

The recommended weight for the LATCH system is under 65 lb (30 kg).

How to determine an appropriate child restraint weight:

Child weight + Child restraint weight < 65 lb (30kg)

Securing a child restraint seat with "Tether Anchor" system

First secure the child restraint with the LATCH lower anchors or the seat belt. If the child restraint manufacturer recommends that the top tether strap be attached, attach and tighten the top tether strap to the top tether strap anchor.

Child restraint hook holders are located on the rear of the seatbacks.

NOTICE

OLX2039087N

■ 2nd row passenger seat

OLX2039101N

■ 3rd row passenger seat

Take the following precautions when installing the tether strap:

• Read and follow all installation

instructions provided with your child restraint system.

• NEVER attach more than one

child restraint to a single tether anchor. This could cause the anchor or attachment to come loose or break.

• Do not attach the tether strap

to anything other than the correct tether anchor. It may not work properly if attached to something else.

• Do not use the tether anchors

for adult seat belts or harnesses, or for attaching other items or equipment to the vehicle.

WARNING

2-53

Safety system of your vehicle

To install the tether anchor :

1. Route the child restraint tether strap over the child restraint seatback.Route the tether strap under the head restraint and between the head restraint posts, or route the tether strap over the top of the vehicle seatback. Make sure the strap is not twisted.

2. Connect the tether strap hook to the tether anchor, then tighten the tether strap according to the child seat manufacturer's instructions to firmly secure the child restraint to the seat.

3. Check that the child restraint is securely attached to the seat by pushing and pulling the seat forward-and-back and side-to-side.

Securing a child restraint with lap/shoulder belt

When not using the LATCH system, all child restraints must be secured to a vehicle rear seat with the lap part of a lap/shoulder belt.

Automatic locking mode

Since all passenger seat belts move freely under normal conditions and only lock under extreme or emergency conditions (emergency locking mode), you must manually pull the seat belt all the way out to shift the retractor to the "Automatic Locking" mode to secure a child restraint.

The "Automatic Locking" mode will help prevent the normal movement of the child in the vehicle from causing the seat belt to loosen and compromise the child restraint system.To secure a child restraint system, use the following procedure.

ALWAYS place a rear-facing child restraint in the rear seat of the vehicle.

Placing a rear-facing child restraint in the front seat can result in serious injury or death if the child restraint is struck by an inflating air bag.

WARNING

OLX2039038N

OLMB033044

2-54

Safety system of your vehicle

To install a child restraint system on the rear seats, do the following:

1. Place the child restraint system on a rear seat and route the lap/ shoulder belt around or through the child restraint, following the restraint manufacturer's instructions. Be sure the seat belt webbing is not twisted.

When using the rear center seat belt, you should also refer to the "Rear Seat Belt – Passenger's 3point system" section in this chapter.

2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct "click" sound.

Information

Position the release button so that it is easy to access in case of an emergency.

3. Pull the shoulder portion of the seat belt all the way out. When the shoulder portion of the seat belt is fully extended, it will shift the retractor to the "Automatic Locking" (child restraint) mode.

NOTICE

OLMB033045

OLMB033097

2-55

Safety system of your vehicle

4. Slowly allow the shoulder portion of the seat belt to retract and listen for an audible "clicking" or "ratcheting" sound. This indicates that the retractor is in the "Automatic Locking" mode. If no distinct sound is heard, repeat steps 3 and 4.

5. Remove as much slack from the belt as possible by pushing down on the child restraint system while feeding the shoulder belt back into the retractor.

6. Push and pull on the child restraint system to confirm that the seat belt is holding it firmly in place. If it is not, release the seat belt and repeat steps 2 through 6.

7. Double check that the retractor is in the "Automatic Locking" mode by attempting to pull more of the seat belt out of the retractor.If you cannot, the retractor is in the "Automatic Locking" mode.

If your CRS manufacturer instructs or recommends you to use a tether anchor with the lap/shoulder belt, refer to the previous pages for more information.

When the seat belt is allowed to retract to its fully stowed position, the retractor will automatically switch from the "Automatic Locking" mode to the emergency lock mode for normal adult usage.

NOTICE

OLMB033098

If the retractor is not in the "Automatic Locking" mode, the child restraint can move when your vehicle turns or stops suddenly. A child can be seriously injured or killed if the child restraint is not properly anchored in the car, including manually pulling the seat belt all the way out to shift the rectractor to the "Automatic Locking" mode.

WARNING

2-56

To remove the child restraint, press the release button on the buckle and then pull the lap/shoulder belt out of the restraint and allow the seat belt to retract fully.

Safety system of your vehicle

2-57

Safety system of your vehicle

AAIIRR BBAAGG -- AADDVVAANNCCEEDD SSUUPPPPLLEEMMEENNTTAALL RREESSTTRRAAIINNTT SSYYSSTTEEMM

OLX2039041N

The actual air bags in the vehicle may differ from the illustration.

1. Driver's front air bag

2. Passenger's front air bag

3. Side air bag

4. Cur tain air bag

5. Driver’s knee airbag

2-58

Safety system of your vehicle

This vehicle is equipped with an Advanced Supplemental Air Bag System for the driver's seat and front passenger's seats.

The front air bags are designed to supplement the three-point seat belts. For these air bags to provide protection, the seat belts must be worn at all times when driving.

You can be severely injured or killed in an accident if you are not wearing a seat belt. Air bags are designed to supplement seat belts, but do not replace them. Also, air bags are not designed to deploy in every collision. In some accidents, the seat belts are the only restraint protecting you.

AIR BAG SAFETY PRECAUTIONS ALWAYS use seat belts and child restraints - every trip, every time,

everyone! Even with air bags,you can be seriously injured or killed in a collision if you are improperly belted or not wearing your seat belt when the air bag inflates.

NEVER place a child in any child restraint or booster seat in the front passenger seat. An inflating air bag could forcefully strike the infant or child causing serious or fatal injuries.

ABC - Always Buckle Children under age 13 in the back seat. It is the safest place for children of any age to ride. If a child age 13 or older must be seated in the front seat, he or she must be properly belted and the seat should be moved as far back as possible.

All occupants should sit upright with the seatback in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor until the vehic le is parked and is turned off. If an occupant is out of position during an accident, the rapidly deploying air bag may forcefully contact the occupant causing serious or fatal injuries.

You and your passengers should never sit or lean unnecessarily close to the air bags or lean against the door or center console.

Move your seat as far back as possible from front air bags, while still maintaining control of the vehicle. The U.S. National Highway Traffic Safety Administration (NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest.

WARNING

2-59

Safety system of your vehicle

Where Are the Air Bags?

Driver's and passenger's front air bags

Your vehicle is equipped with a Advanced Supplemental Restraint System (SRS) and lap/shoulder belts at both the driver and passenger seating positions.

The SRS consists of air bags which are located in the center of the steering wheel, and the passenger's side front panel pad above the glove box.

The air bags are labeled with the letters "AIR BAG" embossed on the pad covers.

The purpose of the SRS is to provide the vehicle's driver and front passengers with additional protection than that offered by the seat belt system alone.

The advanced SRS offers the ability to control the air bag inflation within two levels. A first stage level is provided for moderate-severity impacts. A second stage level is provided for more severe impacts.

According to the impact severity, the SRS Control Module (SRSCM) controls the air bag inflation. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

OLX2038045OLX2038044

■ Passenger’s front air bag

■ Driver’s front air bag

OLX2039043N

■ Driver’s knee air bag

2-60

Safety system of your vehicle

Side air bags

Your vehicle is equipped with a side air bag in each front seat. The purpose of the air bag is to provide the vehicle's driver and the front passenger with additional protection than that offered by the seat belt alone.

OLX2038048

OLX2038049L

• No objects (such as crash pad

cover, cellular phone holder, cup holder, perfume or stickers) should be placed over or near the air bag modules on the steering wheel, instrument panel, windshield glass, and the front passenger's panel above the glove box. Such objects could cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy.

To reduce the risk of serious injury or death from an inflating front air bags,take the following precautions:

• Seat belts must be worn at all

times to help keep occupants positioned properly.

• Move your seat as far back as

possible from front air bags, while still maintaining control of the vehicle.

• Never lean against the door or

center console.

• Do not allow the front passen-

ger to place their feet or legs on the dashboard.

WARNING

2-61

Safety system of your vehicle

The side air bags are designed to deploy during certain side impact collisions, depending on the crash severity.

The side and curtain air bags on both sides of the vehicle may deploy if a rollover or possible rollover is detected.

The side air bags are not designed to deploy in all side impact or rollover situations.

• Do not allow passengers to

lean their heads or bodies onto doors, put their arms on the doors, stretch their arms out of the window, or place objects between the doors and seats.

• Hold the steering wheel at the

9 o'clock and 3 o'clock positions, to minimize the risk of injuries to your hands and arms.

• Do not use any accessory

seat covers.This could reduce or prevent the effectiveness of the system.

• Do not place any objects over

the air bag or between the air bag and yourself. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar.

• Do not place any objects

between the door and the seat. They may become dangerous projectiles if the side air bag inflates.

• Do not install any accessories

on the side or near the side air bags.

• Do not put any objects

between the side airbag label and seat cushion. It could cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy.

• Do not cause impact to the

doors when the ignition switch button is in the ON position as this may cause the side air bags to inflate.

• If the seat or seat cover is

damaged, have the vehicle checked and repaired by an authorized HYUNDAI dealer.

To reduce the risk of serious injury or death from an inflating side air bag, take the following precautions:

• Seat belts must be worn at all

times to help keep occupants positioned properly.

WARNING

2-62

Safety system of your vehicle

Curtain air bags

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.

The curtain air bags are designed to deploy during certain side impact collisions, depending on the crash severity.

The side and curtain air bags on both sides of the vehicle may deploy if a rollover or possible rollover is detected.

The curtain air bags are not designed to deploy in all side impact or rollover situations.

To reduce the risk of serious injury or death from an inflating curtain air bag, take the following precautions:

• All seat occupants must wear

seat belts at all times to help keep occupants positioned properly.

• Properly secure child

restraints as far away from the door as possible.

• Do not place any objects over

the air bag. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar, roof side rail.

• Do not hang other objects

except clothes, especially hard or breakable objects. In an accident, it may cause vehicle damage or personal injury.

• Do not allow passengers to

lean their heads or bodies onto doors, put their arms on the doors,stretch their arms out of the window, or place objects between the doors and seats.

• Do not open or repair the side

curtain air bags.

WARNING

OLX2038050

OLX2038051

2-63

Safety system of your vehicle

How Does the Air Bag System Operate?

The SRS consists of the following components:

1. Dr iver's front air bag module

2. Passenger's front air bag module

3. Side air bag modules

4. Cur tain air bag modules

5. Retractor pre-tensioner

6. Air bag warning light

7. SRS control module (SRSCM)/ Rollover sensor

8. Front impact sensors

9. Side impact sensors

10.Side pressure sensors

11. Occupant classification system

12. Dr iver’s knee airbag module

The SRSCM (Supplemental Restraint System Control Module) continually monitors all SRS components while the ignition switch is in the ON position to determine if a crash impact is severe enough to require air bag deployment or pre-tensioner seat belt deployment.

SRS warning light

The SRS (Supplement Restraint System) air bag warning light on the instrument panel displays the air bag symbol depicted in the illustration. The system checks the air bag electrical system for malfunctions. The light indicates that there is a potential malfunction with your air bag system, which could include your side and curtain air bags used for rollover protection.

OLX2039042N

2-64

Safety system of your vehicle

During a frontal collision, sensors will detect the vehicle's deceleration. If the rate of deceleration is high enough, the control unit will inflate the front air bags.

The front air bags help protect the driver and front passenger by responding to frontal impacts in which seat belts alone cannot provide adequate restraint. When needed, the side air bags help provide protection in the event of a side impact or rollover.

• Air bags are activated (able to inflate if necessary) only when the ignition switch is in the ON position.

• Air bags inflate in the event of certain frontal or side collisions to help protect the occupants from serious physical injury.

• Generally, air bags are designed to inflate based upon the severity of a collision, its direction, etc. These two factors determine whether the sensors produce an electronic deployment/inflation signal.

• The front air bags will completely inflate and deflate in an instant.It is virtually impossible for you to see the air bags inflate during an accident.It is much more likely that you will simply see the deflated air bags hanging out of their storage compartments after the collision.

• In addition to inflating in certain side collisions, vehicles equipped with a rollover sensor, side and curtain air bags will inflate if the sensing system detects a rollover.

When a rollover is detected, side and curtain air bags will remain inflated longer to help provide protection from ejection, especially when used in conjunction with the seat belts.

• To help provide protection, the air bags must inflate rapidly. The speed of air bag inflation is a consequence of extremely short time in which to inflate the air bag between the occupant and the vehicle structures before the occupant impacts those structures.This speed of inflation reduces the risk of serious or life-threatening injuries and is thus a necessary part of air bag design.

If your SRS malfunctions, the air bag may not inflate properly during an accident increasing the risk of serious injury or death.

If any of the following conditions occur, your SRS is malfunctioning:

• The light does not turn on for

approximately six seconds when the Engine Start/Stop button is in the ON position.

• The light stays on after illumi-

nating for approximately six seconds.

• The light comes on while the

vehicle is in motion.

• The light blinks when the

engine is running.

Have an authorized HYUNDAI dealer inspect the SRS as soon as possible if any of these conditions occur.

WARNING

2-65

Safety system of your vehicle

Howev er , the rapid air bag inflation can also cause injuries which can include facial abrasions, bruises and broken bones because the inflation speed also causes the air bags to expand with a great deal of force.

• There are even circumstances under which contact with the air bag can cause fatal injuries, especially if the occupant is positioned excessively close to the air bag.

You can take steps to help reduce the risk of being injured by an inflating air bag.The greatest risk is sitting too close to the air bag. An air bag needs about 10 inches (25 cm) of space to inflate. NHTSA recommends that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest.

When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

To reduce the risk of serious injury or death from an inflating air bag, take the following precautions:

• NEVER place a child restraint

in the front passenger seat. Always properly restrain chil-

dren under age 13 in the rear seats of the vehicle.

• Adjust the front passenger’s

and driver's seats as far to the rear as possible while allowing you to maintain full control of the vehicle.

• Hold the steering wheel with

hands at the 9 o'clock and 3 o'clock positions.

• Never place anything or any-

one between the air bag and the seat occupant.

• Do not allow the front passen-

ger to place their feet or legs on the dashboard.

WARNING

OHM039102N

■ Driver's front air bag (1)

2-66

Safety system of your vehicle

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers allows full inflation of the air bags.

A fully inflated air bag, in combination with a properly worn seat belt, slows the driver or the front passenger forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer or operate other controls.

OHM039103N

■ Driver's front air bag (2)

To prevent objects from becoming dangerous projectiles when the passenger's air bag inflates:

• Do not install or place any

objects (drink holder, CD holder, stickers, etc.) on the front passenger's panel above the glove box where the passenger's air bag is located.

• Do not install a container of

liquid air freshener near the instrument cluster or on the instrument panel surface.

WARNING

OHM039104N

■ Driver's front air bag (3)

OLMB033057

■ Passenger's front air bag

2-67

Safety system of your vehicle

What to Expect After an Air Bag Inflates

After a frontal or side air bag inflates, it will deflate very quickly. Air bag inflation will not prevent the driver from seeing out of the windshield or being able to steer. Curtain air bags may remain partially inflated for some time after they deploy.

Noise and smoke from inflating air bag

When the air bags inflate, they make a loud noise and may produce smoke and powder in the air inside of the vehicle. This is normal and is a result of the ignition of the air bag inflator.After the air bag inflates, you may feel substantial discomfort in breathing because of the contact of your chest with both the seat belt and the air bag, as well as from breathing the smoke and powder. The powder may aggravate asthma for some people. If you experience breathing problems after an air bag deployment, seek medical attention immediately.

Though the smoke and powder are nontoxic, they may cause irr itation to the skin, eyes, nose, throat, etc. If this is the case, wash and rinse with cold water immediately and seek medical attention if the symptoms persist.

• Always wash exposed skin

areas thoroughly with cold water and mild soap.

• Always have an authorized

HYUNDAI dealer replace the air bag immediately after deployment. Air bags are designed to be used only once.

After an air bag inflates, take the following precautions:

• Open your windows and doors

as soon as possible after impact to reduce prolonged exposure to the smoke and powder released by the inflating air bag.

• Do not touch the air bag stor-

age area's internal components immediately after an air bag has inflated. The parts that come into contact with an inflating air bag may be very hot.

WARNING

2-68

Safety system of your vehicle

Occupant Classification System (OCS)

Your vehicle is equipped with an Occupant Classification System (OCS) in the front passenger's seat.

Main components of the Occupant Classification System

• A detection device located within the front passenger seat cushion.

• Electronic system to determine whether the passenger air bag systems should be activated or deactivated.

• An indicator light located on the instrument panel which illuminates the words “OFF” and symbol indicating the front passenger air bag system is deactivated.

• The instr ument panel air bag indicator light is interconnected with the OCS.

The OCS is designed to help detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not.

The purpose is to help reduce the risk of injury or death from an inflating air bag to certain front passenger seat occupants, such as children, by requiring the air bag to be automatically turned OFF.

For example , if a child restr aint of the type specified in the regulations is on the seat, sensor can help detect it and cause the air bag to turn OFF.

Front passenger seat adult occupants who are properly seated and wearing the seat belt properly, should not cause the passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however, if the occupant does not sit in the seat properly (for example, by not sitting upright, by sitting on the edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF.

You will find the "PASSENGER AIR BAG OFF" indicator on the center fascia panel.This system detects the conditions 1-4 in the following table and activates or deactivates the front passenger air bag based on these conditions.

OLX2039047N

2-69

Safety system of your vehicle

Always be sure that you and all vehicle occupants are seated properly and wearing the seat belt properly for the most effective protection by the air bag and the seat belt.

The OCS may not function properly if the passenger takes actions which can affect the classification system. These include:

• Failing to sit in an upright position.

• Leaning against the door or center console.

• Sitting towards the sides of the front of the seat.

• Putting their legs on the dashboard or resting them on other locations which reduce the passenger weight on the front seat.

• Wearing the seat belt improperly.

• Reclining the seatback.

• Wearing a thick cloth like ski wear or hip protection wear.

• Putting an additional thick cushion on the seat.

• Putting electrical devices (e.g. notebook, satellite radio) on the seat with inverter charging.

Condition and operation in the front passenger Occupant Classification System

Condition detected by the

occupant classification system

Indicator/Warning light Devices

"PASSENGER

AIR BAG OFF"

indicator light

SRS

warning light

Front passenger

air bag

1. Adult *

Off Off Activated

2. Infant *2or child restraint system with 12 months old *

3*4

On Off Deactivated

3. Unoccupied On Off Deactivated

4. Malfunction in the system Off On Activated

*1The system judges a person of adult size as an adult. When a smaller adult sits in the front

passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.

Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending upon his/her physique or sitting position.

Never install a child restraint system on the front passenger seat.

The PASSENGER AIR BAG "OFF" indicator may turn on or off when a child above 12 months to 12 years old (with or without child restraint system) sits in the front passenger seat.This is a normal condition.

2-70

Safety system of your vehicle

Riding in an improper position or placing weight on the front passenger’s seat when it is unoccupied by a passenger adversely affects the OCS.To reduce the risk of serious injury or death:

WARNING

OLX2039104N

OLMB033100

OLMB033101

OLMB033103

OLMB033102

OLMB033104

• NEVER put a heavy load in

the front seat or seatback pocket.

• NEVER place your feet on

the front passenger seatback.

• NEVER sit with your hips

shifted towards the front of the seat.

• NEVER ride with the seat-

back reclined when the vehicle is moving.

• NEVER place your feet or

legs on the dashboard.

• NEVER lean on the door or

center console or sit on one side of the front passenger seat.

2-71

Safety system of your vehicle

ODH035900K

ODH035901K

OTM038054

OTM038055

• Do not sit on the passen-

ger seat wearing heavily padded clothes such as ski wear and hip protector .

• Do not use car seat

accessories such as thick blankets and cushions which cover up the car seat surface.

• Do not place electronic

devices such as laptops, DVD player, or conductive materials such as water bottles on the passenger seat.

• Do not use electronic

devices such as laptops and satellite radios which use inverter chargers.

• If large quantity of liquid

has been spilled on the passenger seat, the air bag warning light may illuminate or malfunction.

Therefore, make sure the seat has been completely dried before driving the vehicle.

• Do not place sharp objects on the front passenger seat.These may damage the occupant detection sys-

tem, if they puncture the seat cushion.

• Do not place any items under the front passenger seat.

• When changing or replacing the seat or seat cover, use original items only. The OCS has been devel-

oped based on using original HYUNDAI car seats only. Altering or changing the authentic parts may result in system malfunction and increase risk of injury when in collision. Any of the above could interfere with the proper operation of the OCS sensor thereby increasing the risk of an injury in an accident.

2-72

Safety system of your vehicle

Proper seated position for OCS

If the "PASSENGER AIR BAG OFF" indicator is on when an adult is seated in the front passenger seat, place the Engine Start/Stop button in the OFF position and ask the passenger to sit properly (sitting upright with the seat back in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor). Restart the engine and have the person remain in that position. This will allow the system to detect the person and to enable the passenger air bag. If the "PASSENGER AIR BAG OFF" indicator is still on, ask the passenger to move to the rear seat.

The "PASSENGER AIR BAG OFF" indicator illuminates for approximately 4 seconds after the Engine Start/Stop button is in the ON position or after the engine is started. If the front passenger seat is occupied, the OCS will then classify the front passenger after several more seconds.

Do Not Install a Child Restraint in the Front Passenger's Seat

Even though your vehicle is equipped with the OCS, never install a child restraint in the front passenger's seat. An inflating air bag can forcefully strike a child or child restraint resulting in serious or fatal injury.

NOTICE

B990A01O

Never allow an adult passenger to ride in the front passenger seat when the "P ASSENGER AIR BAG OFF" indicator is illuminated. During a collision, the air bag will not inflate if the indicator is illuminated. Have your passenger reposition themself in the seat. If the "PASSENGER AIR BA G OFF" indicator remains illuminated after the passenger repositions themself properly and the vehicle is restarted,have the passenger move to the rear seat because the air bag will not inflate.

WARNING

1JBH3051

2-73

Safety system of your vehicle

Why Didn't My Air Bag Go Off in a Collision?

Air bags are not designed to inflate in every collision. There are certain types of accidents in which the air bag would not be expected to provide additional protection. These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed impacts. Damage to the vehicle indicates a collision energy absorption, and is not an indicator of whether or not an air bag should have inflated.

Air bag collision sensors

• NEVER place a rear-facing or

front-facing child restraint in the front passenger's seat of the vehicle.

• An inflating frontal air bag

could forcefully strike a child resulting in serious injury or death.

• Always properly restrain chil-

dren in an appropriate child restraint in the rear seat of the vehicle.

WARNING

To reduce the risk of an air bag deploying unexpectedly and causing serious injury or death:

• Do not hit or allow any objects

to impact the locations where air bags or sensors are installed.

WARNING

• Do not perform maintenance

on or around the air bag sensors.If the location or angle of the sensors is altered, the air bags may deploy when they should not or may not deploy when they should.

• Do not install bumper guards

or replace the bumper with a non-genuine HYUNDAI parts. This may adversely affect the collision and air bag deployment performance.

• Place the ignition switch in

the LOCK/OFF or ACC position when the vehicle is being towed to prevent inadvertent air bag deployment.

• Have all air bag repairs conduct-

ed by an authorized HYUNDAI dealer.

2-74

Safety system of your vehicle

1. SRS control module/Rollover sensor

2. Front impact sensor

3. Side pressure sensor

4. Side impact sensor

5. Side impact sensor

OLX2039052N/OLX2038053N/OLX2039054N/OLX2038055N/OLX2038056/OLX2038057

2-75

Safety system of your vehicle

Air bag inflation conditions

Front air bags

Front air bags and the driver's knee air bag are designed to inflate in a frontal collision depending on the the severity of impact of the front collision.

Side and curtain air bags

Side and curtain air bags are designed to inflate when an impact is detected by side collision sensors depending on the severity of impact resulting from a side impact collision.

Although the driver's and front passenger's air bags are designed to inflate only in frontal collisions, they also may inflate in other types of collisions if the front impact sensors detect a sufficient impact. Side and curtain air bags are designed to inflate only in side impact collisions or rollover situations, but they may inflate in other collisions if the side impact sensors detect a sufficient impact.

If the vehicle chassis is impacted by bumps or objects on unimproved roads, the air bags may deplo y. Drive carefully on unimproved roads or on surfaces not designed for vehicle traffic to prevent unintended air bag deployment.

OLX2038058

OLX2038060

OLX2038059L

2-76

Safety system of your vehicle

Air bag non-inflation conditions

In certain low-speed collisions the air bags may not deploy. The air bags are designed not to deploy in such cases because they may not provide benefits beyond the protection of the seat belts.

Front air bags are not designed to inflate in rear collisions, because occupants are moved backward by the force of the impact. In this case, inflated air bags would not provide any additional benefit.

Front air bags may not inflate in side impact collisions, because occupants move in the direction of the collision, and thus in side impacts, front air bag deployment would not provide additional occupant protection.

However, side and curtain air bags may inflate depending on the severity of impact.

OLX2038061

OLX2038062 OLX2038063

2-77

Safety system of your vehicle

In an angled collision, the force of impact may direct the occupants in a direction where the air bags would not be able to provide any additional benefit, and thus the sensors may not deploy any air bags.

Just before impact, drivers often brake heavily. Such heavy braking lowers the front portion of the vehicle causing it to "ride" under a vehicle with a higher ground clearance. Air bags may not inflate in this "underride" situation because deceleration forces that are detected by sensors may be significantly reduced by such "underride" collisions.

Front air bags may not inflate in rollover accidents because air bag deployment could not provide protection to the occupants.

However, side and curtain air bags may inflate when the vehicle is rolled over by a side impact collision.

OTM038090

OLX2038064

OTL035068

2-78

Safety system of your vehicle

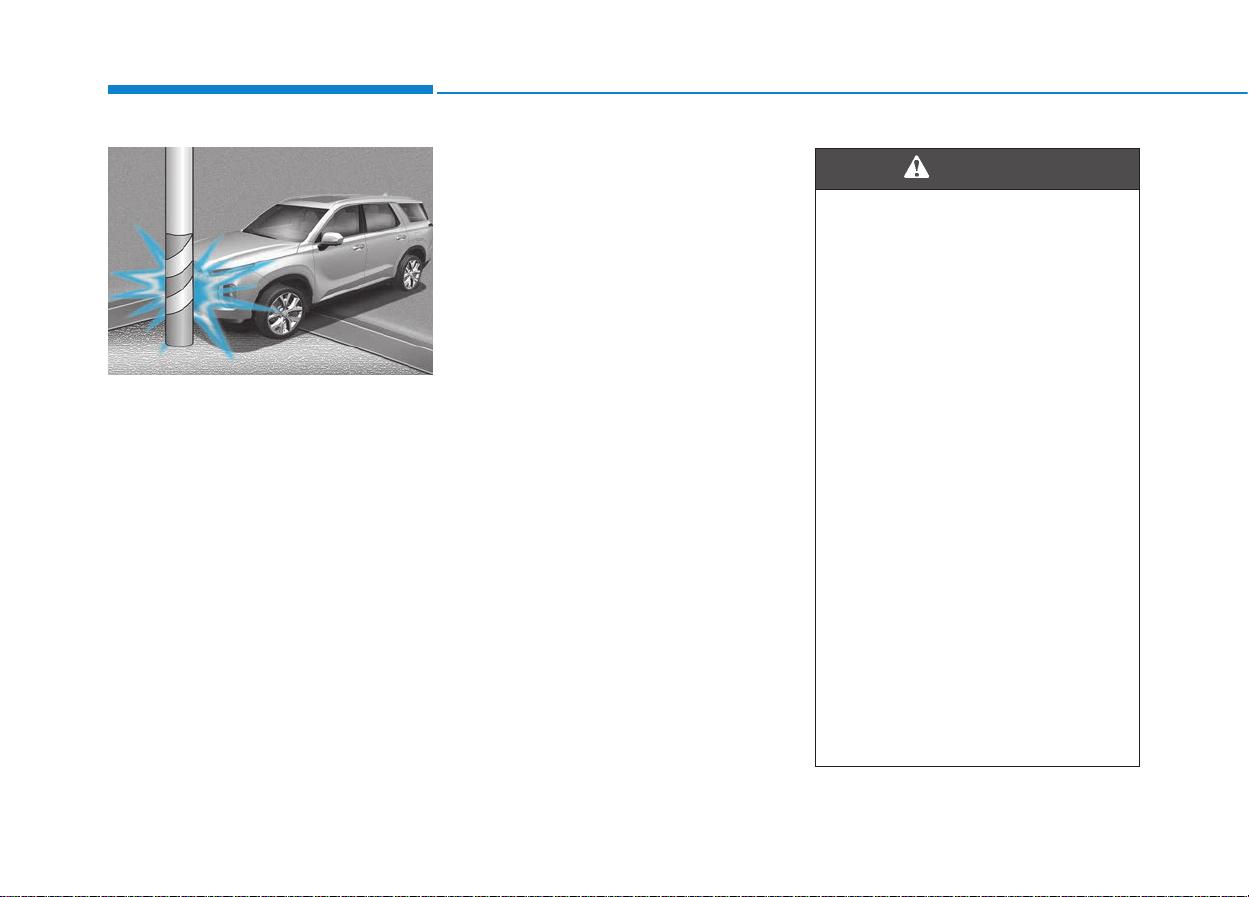

Air bags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated and the collision energy is absorbed by the vehicle structure.

SRS Care

The SRS is virtually maintenancefree and there are no parts you can safely service by yourself. If the SRS air bag warning light does not illuminate when the ignition switch is in the ON position, or continuously remains on, have your vehicle immediately inspected by an authorized HYUNDAI dealer.

Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel, the front passenger's panel, front seats and roof rails must be performed by an authorized HYUNDAI dealer. Improper handling of the SRS system may result in serious personal injury.

To reduce the risk of serious injury or death, take the following precautions:

• Do not attempt to modify or

disconnect the SRS components or wiring, including the addition of any kind of badges to the pad covers or modifications to the body structure.

• Do not place objects over or

near the air bag modules on the steering wheel, instrument panel, or the front passenger’s panel above the glove box.

• Clean the air bag pad covers

with a soft cloth moistened with plain water. Solvents or cleaners could adversely affect the air bag covers and proper deployment of the system.

• Always have inflated air bags

replaced by an authorized HYUNDAI dealer.

WARNING

OLX2038065

2-79

Safety system of your vehicle

Additional Safety Precautions

Passengers should not move out of or change seats while the vehicle is moving. A passenger who is

not wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or be ejected from the vehicle.

Do not use any accessories on seat belts. Devices claiming to

improve occupant comfort or reposition the seat belt can reduce the protection provided by the seat belt and increase the chance of serious injury in a crash.

Do not modify the front seats.

Modification of the front seats could interfere with the operation of the supplemental restraint system sensing components or side air bags.

Do not place items under the front seats. Placing items under the front

seats could interfere with the operation of the supplemental restraint system sensing components and wiring harnesses.

Do not cause impact to the doors.

Impact to the doors when the Engine Start/Stop button is in the ON position may cause the air bags to inflate.

Modifications to accommodate disabilities. If you require modifica-

tion to your vehicle to accommodate a disability, contact the HYUNDAI Customer Connect Center at 800633-5151.

Adding equipment to or modifying your air bag equipped vehicle

If you modify your vehicle by changing your vehicle's frame , bumper system, front end or side sheet metal or ride height, this may affect the operation of your vehicle's air bag system.

Air Bag Warning Labels

Air bag warning labels, required by the U.S. National Highway Traffic Safety Administration (NHTSA), are attached to alert the driver and passengers of potential risks of the air bag system.Be sure to read all of the information about the air bags that are installed on your vehicle in this Owners Manual.

• If components of the air bag

system must be discarded,or if the vehicle must be scrapped, certain safety precautions must be observed. Consult an authorized HYUNDAI dealer for the necessary information. Failure to follow these precautions could increase the risk of personal injury.

OLX2038068L

Convenient features of your vehicle

Accessing your vehicle .........................................3-4

Remote Key.........................................................................3-4

Smart Key............................................................................3-8

Immobilizer System.........................................................3-14

Door locks.............................................................3-15

Operating Door Locks from Outside the Vehicle....3-15

Operating Door Locks from Inside the Vehicle .......3-16

Automatic Door Lock and Unlock Features .............3-19

Child-Protector Rear Door Locks...............................3-20

Electronic Child Safety Lock System.........................3-20

Safe Exit Assist (SEA) System.....................................3-21

Rear Occupant Alert (ROA) System ...........................3-23

Theft-alarm system.............................................3-26

Driver position memory system.........................3-27

Storing Positions into Memory....................................3-27

Recalling Positions from Memory...............................3-28

Resetting the Driver's Seat Memory System...........3-28

Easy Access Function ....................................................3-29

Steering wheel......................................................3-30

Electric Power Steering (EPS) .....................................3-30

Tilt Steering / Telescopic Steering.............................3-31

Horn....................................................................................3-31

Heated Steering Wheel..................................................3-32

Mirrors...................................................................3-33

Inside Rearview Mirror ..................................................3-33

Side View Mirrors ...........................................................3-39

Reverse Parking Aid Function......................................3-41

Windows ................................................................3-42

Power Windows...............................................................3-43

Sunroof..................................................................3-46

Sunroof..............................................................................3-46

Dual wide sunroof...........................................................3-46

Sunshade...........................................................................3-47

Sunroof Opening and Closing......................................3-48

Sliding the Sunroof.........................................................3-48

Tilting the Sunroof (Front)...........................................3-49

Resetting the Sunroof ...................................................3-50

Resetting the rear sunshade........................................3-51

Sunroof Open Warning..................................................3-52

Exterior features .................................................3-53

Hood ...................................................................................3-53

Non-Powered Liftgate...................................................3-54

Power Liftgate.................................................................3-56

Smart Liftgate..................................................................3-62

Fuel Filler Door................................................................3-66

Instrument cluster................................................3-69

Instrument Cluster Control............................................3-71

Gauges and Meters ........................................................3-71

Transmission Shift Indicator.........................................3-76

Warning and Indicator Lights.......................................3-76

LCD Display Messages...................................................3-90

LCD Display (Cluster type A and type B).........3-96

LCD Display Control........................................................3-96

LCD Display Modes.........................................................3-97

TRIP Computer (Cluster type A and type B) ..3-110

LCD Display (Cluster type C)............................3-114

LCD Display Control......................................................3-114

View Modes....................................................................3-115

Option Menu (Cluster type C)..........................3-119

Head up display (HUD)......................................3-130

Lighting................................................................3-132

Exterior Lights ...............................................................3-132

Interior Lights ................................................................3-139

Welcome System...........................................................3-142

Wipers and washers ..........................................3-144

Front Windshield Wipers.............................................3-144

Front Windshield Washers..........................................3-146

Rear Window Wiper and Washer..............................3-147

Driver Assist System .........................................3-148

Rear View Monitor .......................................................3-148

Surround View Monitoring .........................................3-149

Blind-spot View Monitor system..............................3-150

Parking Distance Warning (Reverse) System ........3-152

Parking Distance Warning(Reverse/Forward)

System .............................................................................3-155

Manual climate control system........................3-159

Heating and Air Conditioning.....................................3-160

Rear climate control.....................................................3-164

System Operation .........................................................3-167

System Maintenance....................................................3-169

Automatic climate control system...................3-171

Automatic Temperature Control Mode....................3-172

Manual Temperature Control Mode.........................3-173

Rear climate control.....................................................3-179

System Operation .........................................................3-182

System Maintenance....................................................3-184

Convenient features of your vehicle

Windshield defrosting and defogging ............3-186

Auto Defogging System (Additional Feature with

Automatic Temperature Control System)................3-188

Rear Window Defroster ..............................................3-190

Climate control additional features.................3-191

Cluster ionizer................................................................3-191

Automatic Ventilation...................................................3-191

Sunroof Inside Air Recirculation...............................3-191

Storage compartment........................................3-192

Center Console Storage ..............................................3-192

Glove Box........................................................................3-192

Luggage Tray .................................................................3-193

Interior features.................................................3-194

Cup Holder ......................................................................3-194

Conversation mirror......................................................3-196

Sunvisor...........................................................................3-196

Power Outlet ..................................................................3-197

AC Inverter......................................................................3-198

USB Charger...................................................................3-200

Wireless Cellular Phone Charging System..............3-201

Clock.................................................................................3-203

Coat Hook .......................................................................3-203

Floor Mat Anchor(s).....................................................3-204

Luggage Net Holder .....................................................3-205

Cargo Security Screen.................................................3-205

Side Curtain ....................................................................3-207

Exterior features ...............................................3-209

Roof Side Rails .............................................................3-209

3-4

Convenient features of your vehicle

Remote Key (if equipped)

Your HYUNDAI uses a remote key, which you can use to lock or unlock the driver and passenger doors or the rear liftgate.

1. Door Lock

2. Door Unlock

3. Liftgate Unlock (if equipped)

4. Panic

Locking your vehicle

To lock your vehicle:

1. Make sure all doors, the engine, hood and the liftgate are closed.

2. Press the Door Lock button (1) on the remote key to lock all doors.

3. If the Door Lock button (1) is pressed once more within four seconds, the horn will beep once and the hazard warning lights will blink.

4. Make sure the doors are loc k ed by checking the position of the door lock button inside the vehicle.

AACCCCEESSSSIINNGG YYOOUURR VVEEHHIICCLLEE

Do not leave the keys in your vehicle with unsupervised children. Unattended children could place the key in the ignition switch and may operate power windows or other controls, or even make the vehicle move, which could result in serious injury or death.

WARNING

OLX2049414N

■ Type A

■ Type B

OPD046001

Hyundai Palisade 2020 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
