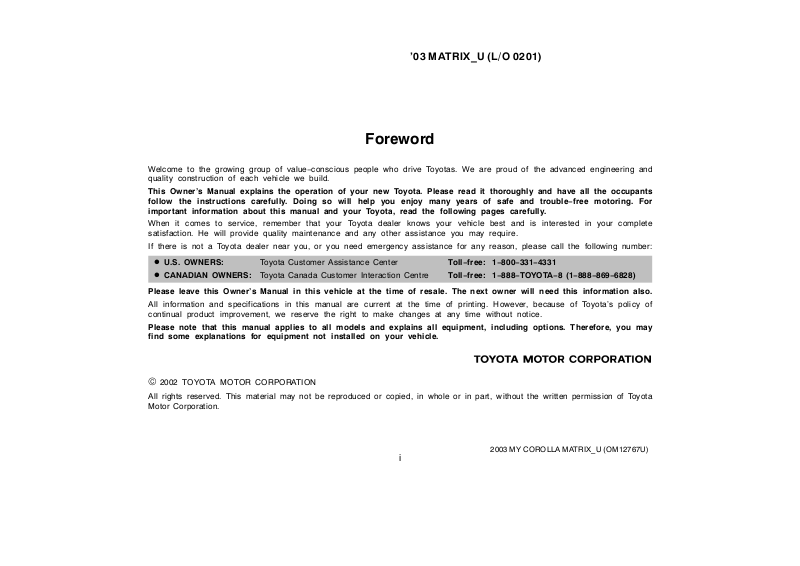

Foreword

Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build.

This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For important information about this manual and your Toyota, read the following pages carefully.

When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require.

If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:

D U.S. OWNERS: Toyota Customer Assistance Center Tol l −free: 1−800−331−4331 D CANADIAN OWNERS: Toyota Canada Customer Interaction Centre Toll −free: 1−888−TOYOTA−8 (1−888−869−6828)

Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.

All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of continual product improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

Important information about this manual

Safety and vehicle damage warnings

Throughout this manual, you will see safety and vehicle damage warnings. You must follow these warnings carefully to avoid possible injury or damage.

The types of warnings, what they look like, and how they are used in this manual are explained as follows:

CAUTION

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. Yu are informed about what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.

Safety symbol

When you see the safety symbol shown above, it means: “Do not...”; “Do not do this”; or “Do not let this happen”.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

Important information about your Toyota

New vehicle warranty

Your new vehicle is covered by the following Toyota limited warranties:

D New vehicle warranty

D Emission control systems warranty

D Others

For further information, please refer to the “Owner’s Warranty Information Booklet” or “Owner ’s Manual Supplement”.

Your responsibility for

maintenance

It is the owner’s responsibility to make sure that the specified maintenance is performed. Section 6 gives details of these maintenance requirements. Also included in Section 6 is general maintenance. For scheduled maintenance information, please refer to the “Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.

Accessories, spare parts and

modification of your Toyota

A wide variety of non−genuine spare parts and accessories for Toyota vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.

This vehicle should not be modified with non−genuine Toyota products. Modification with non−genuine Toyota products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

iii

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

Spark ignition system of your

Toyota

The spark ignition system in your Toyota meets all requirements of the Canadian Interference−Causing Equipment Standard.

Installation of a mobile

two−way radio system

As the installation of a mobile two−way radio system in your vehicle could affect electronic systems such as multiport fuel injection system/sequential multiport fuel injection system, cruise control system, anti−lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Scrapping of your Toyota

The SRS airbag and seat belt pretensioner devices in your Toyota contain explosive chemicals. If the vehicle is scrapped with the airbags and pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by the qualified service shop or by your Toyota dealer before you dispose of your vehicle.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

SECTION 1− 1

OPERATION OF INSTRUMENTS AND CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

2003 MY COROLLA MATRIX_U (OM12767U)

Instrument panel overview

’03 MATRIX_U (L/O 0201)

1. Rear view mirror remote control levers

2. Side defroster outlets

3. Side vents

4. Instrument cluster

5. Center vents

6. Personal lights

7. Electric moon roof switches and personal light

8. Power door lock switches

9. Power window switches

10. Glove box

11. Portable ashtray

12. Cup holders

13. Power outlet (12 VDC)

14. Parking brake lever

15. Auxiliary boxes

16. Automatic transmission selector lever or manual transmission gear shift lever

17. Hood lock release lever

18. Window lock switch

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

1. Power rear view mirror control switches

2. Interior/instrument panel light control dial

3. Headlight, turn signal and front fog light switches

4. Wiper and washer switches

5. Air conditioning controls

6. Emergency flasher switch

7. Rear window defogger switch

8. Front passenger’s seat belt reminder light

9. Car audio

10. Auxiliary box or power outlet (115 VAC)

11. Power outlet (12 VDC) or cigarette lighter

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Toyota vehicle intrusion protection system indicator light

16. Glass hatch opener switch

2003 MY COROLLA MATRIX_U (OM12767U)

Instrument cluster overview

’03 MATRIX_U (L/O 0201)

1. Tachometer

2. Service reminder indicators and indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

2003 MY COROLLA MATRIX_U (OM12767U)

7. Trip meter reset knob

8. Odometer, two trip meters and outside temperature gauge

Indicator symbols on the instrument panel

’03 MATRIX_U (L/O 0201)

∗

Brake system warning light

Driver ’s seat belt reminder light

Front passenger’s seat belt reminder light

Discharge warning light

Low engine oil pressure warning light

∗

Anti−lock brake system warning light

∗

Open door warning light

SRS warning light

∗

Low windshield washer fluid level warning light

∗

Headlight low beam indicator light

∗

Tail light indicator light

∗

Malfunction indicator lamp

Headlight high beam indicator light

2003 MY COROLLA MATRIX_U (OM12767U)

Turn signal indicator lights

Overdrive−off indicator light

∗

Cruise control indicator light

∗

: For details, see “Service reminder indicators and warning

buzzers” on page 86 in Section 1−5.

∗

: If this light flashes, see “Cruise control” on page 101 in

Section 1−6.

∗

: This symbol equipped only on vehicles sold in Canada.

’03 MATRIX_U (L/O 0201)

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

SECTION 1− 2

OPERATION OF INSTRUMENTS AND CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glass hatch 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota vehicle intrusion protection system (TVIP) 19. . . . . . . . . . . . . . .

Hood 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

Keys Side doors—

This key works in every lock.

Since the side doors can be locked without a key, you should always carry a spare key in case you accidentally lock your keys inside the vehicle.

KEY NUMBER PLATE

Your key number is shown on the plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number.

We recommend writing down the key number and storing it in a safe place.

2003 MY COROLLA MATRIX_U (OM12767U)

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn it.

To lock: Turn the key forward. To unlock: Turn the key backward.

Vehicles with power door lock system—

All the side doors and back door lock and unlock simultaneously with either front door. In the driver’s door lock, turning the key once will unlock the driver’s door and twice in succession will unlock all the side doors and back door simultaneously.

’03 MATRIX_U (L/O 0201)

When the interior light dial is in the DOOR position, and all the side doors and back door are unlocked simultaneously with a key or wireless remote control transmitter, the interior lights come on for about 15 seconds and then fade out, even if the door is not opened. (For further information, see “Interior/instrument panel light control” on page 79 in Section 1−4.)

LOCKING AND UNLOCKING WITH INSIDE LOCK KNOB

Move the lock knob.

To lock: Push the knob forward. To unlock: Pull the knob backward.

The front doors can be opened by pulling the inside handle even if the lock knobs are in the locked position.

CAUTION

Do not pull the inside handle of the front doors while driving. The doors will open and an accident may occur. Toyota strongly recommends that all children be placed in the rear seat of the vehicle.

Closing the door with the lock knob in the lock position will also lock the door. Be careful not to lock your keys in the vehicle.

Vehicles with power door lock system— Doors cannot be locked when either front door is open and the key is in the ignition.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

Driver’s side

Passenger’s side

LOCKING AND UNLOCKING WITH POWER DOOR LOCK SWITCH

Push the switch.

To lock: Push the switch down on the front side. To unlock: Push the switch down on the rear side.

Operating the switch simultaneously locks or unlocks all the side doors and back door.

If you do either of the followings, no side door or back door can be unlocked with the power door lock switch.

D Lock all the side doors and back door

with the key or wireless remote control transmitter when the front doors are closed.

D Open the driver’s door or front passen-

ger’s door and move the inside lock knobs of both front doors to the lock position, then close the front doors.

The power door lock switch can be reset in the following ways.

D Turn the ignition key to “ON”. D Unlock all the side doors and back

door with the key or wireless remote control transmitter.

D Unlock the driver’s door or front pas-

senger’s door with the inside lock knob, and then unlock all the side doors and back door with the power door lock switch.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

CAUTION

Before driving, be sure that the doors are closed and locked, especially when small children are in the vehicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the vehicle during an accident. It also helps prevent the doors from being opened unintentionally.

—Wireless remote control

REAR DOOR CHILD−PROTECTORS

Move the lock lever to the “LOCK” position as shown on the label.

This feature allows you to lock a rear door so it can be opened from the outside only, not from inside. We recommend using this feature whenever small children are in the vehicle.

2003 MY COROLLA MATRIX_U (OM12767U)

Locking operation

Unlocking operation

’03 MATRIX_U (L/O 0201)

The wireless remote control system is designed to lock or unlock all the side doors and back door, open the glass hatch or activate the “PANIC” mode from a distance within approximately 1 m (3 ft.) of the vehicle.

LOCKING AND UNLOCKING THE SIDE DOORS AND BACK DOOR

To lock and unlock all the side doors and back door, push the switches of the transmitter slowly and securely.

To lock: Push the “LOCK” switch. All the side doors and back door are locked simultaneously. At this time, turn signal lights flash once.

Check to see that all the side doors and back door are securely locked.

If any of side doors or back door is not securely closed, or if the key is in the ignition switch, locking cannot be performed by the “LOCK” switch.

To unlock: Push the “UNLOCK” switch once to unlock the driver’s door alone. Pushing the switch twice within 3 seconds unlocks all the side doors and back door simultaneously. At this time, turn signal lights flash twice.

When the interior light dial is in the DOOR position, and all the side doors and back door are unlocked simultaneously with a wireless remote control transmitter, the interior lights come on for about 15 seconds and then fade out, even if the door is not opened. (For further information, see “Interior/instrument panel light control” on page 79 in Section 1−4.)

You have 30 seconds to open a door after using the wireless remote unlock feature. If a door is not opened by then, all the side doors and back door will be automatically locked again.

If the “LOCK” or “UNLOCK” switch is kept pressed in, the locking or unlocking operation is not repeated. Release the button and then push again.

OPENING THE GLASS HATCH

To open the glass hatch, push the “HATCH” switch of the transmitter for 1 second.

If the key is in the ignition switch, the glass hatch cannot be opened by the “HATCH” switch.

See “Glass hatch” on page 18 in this section.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

“PANIC” SWITCH

Pushing the “PANIC” switch blows the horn intermittently and flashes the headlights, turn signal lights and interior lights.

The “PANIC” switch is used to deter vehicle theft when you witness anyone attempting to break into or damage your vehicle.

The alarm will last for one minute. To stop alarm midway, do the following:

D Push the “PANIC” switch once again. D Unlock any of side doors, back door or

glass hatch with the key or wireless remote control transmitter.

D Turn the ignition key from the “LOCK”

to “ON” position.

The “PANIC” mode does not work when the ignition key is in the “ON” position.

WIRELESS REMOTE CONTROL TRANSMITTER

The wireless remote control transmitter is an electronic component. Observe the following instructions in order not to cause damage to the transmitter.

D Do not leave the transmitter on places

where the temperature becomes high such as on the dashboard.

D Do not disassemble it. D Avoid knocking it hard against other

objects or dropping it.

D Avoid putting it in water.

You can use up to 4 wireless remote control transmitters for the same vehicle. Contact your Toyota dealer for detailed information.

If the wireless remote control transmitter does not actuate the doors or alarm, or operate from a normal distance:

D Check for closeness to a radio trans-

mitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

D The battery may have been consumed.

Check the battery in the transmitter. To replace the battery, see “REPLACING TRANSMITTER BATTERY”.

If you lose your transmitter, contact your Toyota dealer as soon as possible to avoid the possibility of theft, or an accident. (See “If you lose your wireless remote control transmitter” on page 217 in Section 4.)

MODEL/FCC ID: GQ43VT27R CAN: 1470 104 105A MADE IN U.S.A.

This complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2003 MY COROLLA MATRIX_U (OM12767U)

REPLACING TRANSMITTER BATTERY

For replacement, use a CR2016 lithium battery or equivalent.

CAUTION

Special care should be taken that small children do not swallow the removed transmitter battery or components.

NOTICE

z During replacing the transmitter

battery, do not push the “LOCK”, “UNLOCK” and “HATCH” switches many times.

z When replacing the transmitter bat-

tery, be careful not to lose the components.

z Replace only with the same or

equivalent type recommended by a Toyota dealer.

z Dispose of used batteries according

to the local laws.

’03 MATRIX_U (L/O 0201)

1. Using a coin or equivalent, open the transmitter case.

2. Remove the discharged transmitter battery.

NOTICE

Do not bend the terminals.

Replace the transmitter battery by the following procedures:

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

z Be careful not to bend the electrode

of the transmitter battery insertion and that dust or oils do not adhere to the transmitter case.

z Close the transmitter case securely.

After replacing battery, check that the transmitter operates properly. If the transmitter still does not operate properly, contact your Toyota dealer.

Power windows

3. Put a new transmitter battery with positive (+) side up.

Close the transmitter case securely.

NOTICE

z Make sure the positive side and

negative side of the transmitter battery should be faced correctly.

z Do not replace the battery with wet

hands. Water may cause unexpected rust.

z Do not touch or move any compo-

nents inside of the transmitter, or it may interfere with proper operation.

2003 MY COROLLA MATRIX_U (OM12767U)

The windows can be operated with the switch on each side door.

The power windows work when the ignition switch is in the “ON” position.

OPERATING THE DRIVER’S WINDOW

Use the switch on the driver’s door.

Normal operation: The window moves as

long as you hold the switch.

To open: Lightly push down the switch. To close: Pull up the switch.

Window lock switch

’03 MATRIX_U (L/O 0201)

Automatic operation (to open only):

Push the switch completely down and then release it. The window will fully open. To stop the window partway, lightly pull the switch up and then release it.

OPERATING THE PASSENGERS’ WINDOWS

Use the switch on each passenger’s door or the switches on the driver’s door that control each passenger’s window.

The window moves as long as you hold the switch.

To open: Push down the switch. To close: Pull up the switch.

If you push in the window lock switch on the driver’s door, the passengers’ windows cannot be operated.

2003 MY COROLLA MATRIX_U (OM12767U)

CAUTION

To avoid serious personal injury, you must do the following.

D Always make sure the heads, hands

and other parts of the bodies of all occupants are kept completely inside the vehicle before you close the power windows. If someone’s neck, head or hands get caught in a closing window, it could result in a serious injury. When anyone closes the power windows, make sure that he/she operates the windows safely.

D When small children are in the ve-

hicle, never let them use the power window switches without supervision. Use the window lock switch to prevent them from making unexpected use of the switches.

D Never leave small children alone in

the vehicle, especially with the ignition key still inserted. They could use the power window switches and get trapped in a window. Unattended children can be involved in serious accidents.

’03 MATRIX_U (L/O 0201)

Back door

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn it.

To lock: Turn the key clockwise.

If you turn the key fully clockwise, the glass hatch will open. (See “Glass hatch” on page 18 in this section.)

To unlock: Turn the key counterclockwise.

To open the back door, pull the lock release lever.

Operating the power door lock switch or wireless remote control transmitter simultaneously locks or unlocks the back door. (See “Side doors” on page 8 in this section.)

When closing the back door, use the inside handle for easier reach to the back door.

To close the back door, lower it and press down on it. After closing the back door, try pulling it up to make sure it is securely closed.

See “Luggage stowage precautions” on page 178 in Section 2 for precautions to observe in loading luggage.

2003 MY COROLLA MATRIX_U (OM12767U)

CAUTION

Keep the back door and glass hatch closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.

NOTICE

To prevent damage to the back door and glass hatch dampers, do not apply any force, paint or let any other foreign matter on them.

’03 MATRIX_U (L/O 0201)

Glass hatch

OPENING THE GLASS HATCH WITH THE KEY

Insert the key into the keyhole and turn it fully clockwise (one step further than the back door locking position).

The glass hatch can be opened with the wireless remote control transmitter. See “—Wireless remote control” on page 11 in this section.

OPENING THE GLASS HATCH WITH THE GLASS HATCH OPENER SWITCH

Push the glass hatch opener switch when the vehicle is stopped.

CAUTION

Do not open the glass hatch while the vehicle is moving.

2003 MY COROLLA MATRIX_U (OM12767U)

If you do either of the followings, the glass hatch cannot be opened with the glass hatch opener switch.

D Lock all the side doors and back door

with the key or wireless remote control transmitter when the front doors are closed.

D Open the driver’s door or front passen-

ger’s door and move the inside lock knobs of both front doors to the lock position, then close the front doors.

The glass hatch opener switch can be reset in the following ways.

D Turn the ignition key to “ON”. D Unlock all the doors with the key or

wireless remote control transmitter.

D Unlock the driver’s door or front pas-

senger’s door with the inside lock knob, and then unlock all the doors with the power door lock switch.

’03 MATRIX_U (L/O 0201)

CLOSING THE GLASS HATCH

Lower the glass hatch and push the lower center of it until it is locked.

When you open the back door with the glass hatch opened, the glass hatch will be closed. After closing the back door, you should check the glass hatch fully closed.

See “Luggage stowage precautions” on page 178 in Section 2 for precautions to observe in loading luggage.

CAUTION

Keep the back door and glass hatch closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.

NOTICE

To prevent damage to the back door and glass hatch dampers, do not apply any force, paint or let any other foreign matter on them.

Toyota vehicle intrusion protection system (TVIP)

TVIP is a theft deterrent system. If someone attempts to damage or break into your vehicle, the system sounds the alarm while flashing the lights.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

SETTING THE SYSTEM

You can set the system as follows.

1. Remove the key from the ignition switch.

2. Have all passengers get out of the vehicle.

3. Close all the side doors, back door and glass hatch securely.

4. Lock all the side doors and back door with the key or wireless remote control transmitter. At this time, the TVIP indicator light comes on.

The system will be set in 30 seconds. When the system is set, the indicator light will start to flash.

5. Make sure that the indicator light flashes. Then you may leave the vehicle.

Never leave anyone in the vehicle when you set the system because unlocking from the inside activates the alarm.

Activating the alarm

If the system detects a threat to the vehicle, it sounds the alarm for one minute while flashing headlights and turn signal lights. Also, the interior lights turn on when the interior light dial is in the DOOR position.

The system detects a threat under any of the following conditions:

D Either of the front doors is unlocked by

means other than the key or wireless remote control transmitter.

If the key is not in the ignition switch, all the side doors and back door will be automatically locked again.

D Any of the side doors, back door or

glass hatch are forcibly opened.

The alarm will activate when the back door is unlocked with a key. Cancel the system before unlocking the back door.

D The side windows are tapped or bro-

ken.

D The battery terminal is disconnected

and then reconnected.

D The ignition is hotwired.

After one minute, the alarm automatically stops and the indicator light starts flashing again.

Reactivating the alarm

Once set, until you cancel the system, the system automatically resets the alarm after the alarm has stopped.

The alarm will activate again under the same circumstances described in “Activating the alarm”.

Stopping the alarm

You can stop the alarm in either of the following ways:

D Unlock any of the side doors with the

key or wireless remote control transmitter.

D Place the ignition switch in the “ON”

position.

2003 MY COROLLA MATRIX_U (OM12767U)

CANCELLING THE SYSTEM

You can cancel the system as described in “Stopping the alarm”.

If you cancel the system by unlocking any of the side doors but no door is opened within 30 seconds, all the side doors and back door lock automatically and the system will be set again.

TESTING THE SYSTEM

You can check the system operation as follows.

1. Open all the windows.

2. Set the system as described in “SETTING THE SYSTEM”.

3. Unlock the driver’s door with the inside lock knob. The system should activate and the alarm should sound.

4. Stop the alarm as described in “Stopping the alarm”.

5. Repeat steps 2 to 4 for the other doors. (For rear side doors, unlock and then open the doors in step 3.)

If the system does not work properly, have it checked by your Toyota dealer.

’03 MATRIX_U (L/O 0201)

Hood

To open the hood:

1. Pull the hood lock release lever. The hood will spring up slightly.

CAUTION

Before driving, be sure that the hood is closed and securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may occur.

2. In front of the vehicle, pull up the auxiliary catch lever and lift the hood.

2003 MY COROLLA MATRIX_U (OM12767U)

3. Hold the hood open by inserting the support rod into the slot.

To insert the support rod into the slot, move it straight up. If it is moved to the side or toward the inside of the vehicle, it may become detached.

Before closing the hood, check to see that you have not forgotten any tools, rags, etc. and return the support rod to its clip—this prevents rattles. Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it.

’03 MATRIX_U (L/O 0201)

CAUTION

After inserting the support rod into the slot, make sure the rod supports the hood securely from falling down on to your head or body.

NOTICE

Be sure to return the support rod to its clip before closing the hood. Closing the hood with the support rod up could cause the hood to bend.

Fuel tank cap

This indicates that the fuel filler door is on the left side of your vehicle.

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

D Make sure the cap is tightened se-

curely to prevent fuel spillage in case of an accident.

D Use only a genuine Toyota fuel tank

cap for replacement. It is designed to regulate fuel tank pressure.

CAUTION

1. To open the fuel filler door, pull the lever up.

When refueling, turn off the engine.

CAUTION

D Do not smoke, cause sparks or al-

low open flames when refueling. The fumes are flammable.

D When opening the cap, do not re-

move the cap quickly. In hot weather, fuel under pressure could cause injury by spraying out of the filler neck if the cap is suddenly removed.

2. To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it. After removing the cap, hang it on the cap hanger.

It is not unusual to hear a slight swoosh when the cap is opened. When installing, turn the cap clockwise till you hear a click.

If the cap is not tightened securely, the malfunction indicator lamp comes on. Make sure the cap is tightened securely.

The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible.

2003 MY COROLLA MATRIX_U (OM12767U)

Electric moon roof

Sliding operation

’03 MATRIX_U (L/O 0201)

To operate the moon roof, use the switch beside the personal light.

The key must be in the “ON” position.

Sun shade operation—

The sun shade can be opened or closed by hand.

Sliding operation—

To open: Push the switch on the rear side.

The sun shade will be opened together with the roof.

To close: Push the switch on the front side.

As a precaution when closing, the roof stops at the half closed position before fully closing. Therefore, release the switch and then push it again to close it completely.

Tilting operation—

To tilt up: Push the switch on the “UP” side. To lower: Push the switch on the opposite side of the “UP” side.

You may stop the moon roof at any desired position. The roof will move while the switch is being pushed and stop when released except to slide open.

CAUTION

To avoid serious personal injury, you must do the following.

D While the vehicle is moving, always

keep the heads, hands and other parts of the bodies of all occupants away from the roof opening. Otherwise, they could be seriously injured if the vehicle stops suddenly or if the vehicle is involved in an accident.

D Always make sure nobody places

his/her head, hands and other parts of the body in the roof opening before you close the roof. If someone’s neck, head or hand get caught in the closing roof, it could result in a serious injury. When anyone close the roof, first make sure it is safe to do so.

Tilting operation

2003 MY COROLLA MATRIX_U (OM12767U)

D Never leave small children alone in

the vehicle, especially with the ignition key still inserted. They could use the moon roof switches and get trapped in the roof opening. Unattended children can be involved in serious accidents.

D Never sit on top of the vehicle

around the roof opening.

’03 MATRIX_U (L/O 0201)

2003 MY COROLLA MATRIX_U (OM12767U)

’03 MATRIX_U (L/O 0201)

2003 MY COROLLA MATRIX_U (OM12767U)

+ 291 hidden pages
