32″ LCD TV Hyundai HLCD-32XT

Service

Service

Service

Horizontal Frequency

31.5KHz-49KHz

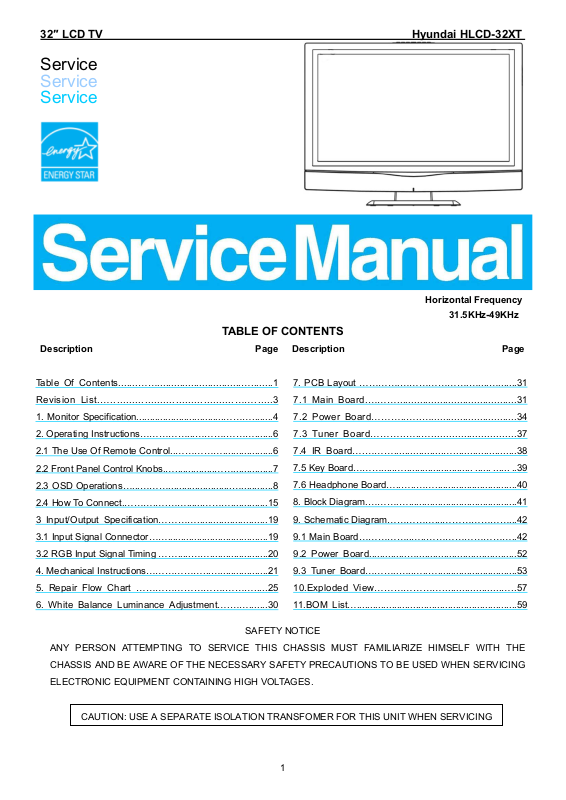

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......……..............................…........1

Revision List.…........................................……......3

1. Monitor Specification.................................………........4

2. Operating Instructions……………...……….……….......6

2.1 The Use Of Remote Control..……………...................6

2.2 Front Panel Control Knobs.…...............……...............7

2.3 OSD Operations…...………........................…............8

2.4 How To Connect.……….….……......………..............15

3 Input/Output Specification…………..........................19

3.1 Input Signal Connector……......................................19

7. PCB Layout ………….………………….…....….......31

7.1 Main Board.………..........................................31

7.2 Power Board………..…..…..............................34

7.3 Tuner Board………..…..….............................37

7.4 IR Board….………..................….......................38

7.5 Key Board……….....….......................... ...... ...... ..39

7.6 Headphone Board…..…..……...............................40

8. Block Diagram.……….….........................................41

9. Schematic Diagram……………...…………………...42

9.1 Main Board……………..…..………………………..42

3.2 RGB Input Signal Timing …….....……......................20

4. Mechanical Instructions………………...…..................21

5. Repair Flow Chart ……………………….……….....25

6. White Balance Luminance Adjustment….…….......30

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE

CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

9.2 Power Board..............….....................................52

9.3 Tuner Board………..…..…..…..............................53

10.Exploded View………………….....................…..57

11.BOM List…............................................................59

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

32″ LCD TV Hyundai HLCD-32XT

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service

procedures recommended by AOC and described in this service manual are effective methods of performing service

operations. Some of these service operations require the use of tools specially designed for the purpose. The

special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.

AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may

damage the panel.)

2

32″ LCD TV Hyundai HLCD-32XT

Revision List

Version Release Date Revision Instructions TPV Model

A00 Dec-30-2007 Initial Release E326MTNSW2H4N

3

32″ LCD TV Hyundai HLCD-32XT

1. Monitor Specification

4

32″ LCD TV Hyundai HLCD-32XT

5

32″ LCD TV Hyundai HLCD-32XT

2. Operations Instructions

2.1 The Use of Remote Control

6

32″ LCD TV Hyundai HLCD-32XT

2.2 Front Panel Control Knobs

7

32″ LCD TV Hyundai HLCD-32XT

2.3 OSD Operations

8

32″ LCD TV Hyundai HLCD-32XT

9

32″ LCD TV Hyundai HLCD-32XT

10

32″ LCD TV Hyundai HLCD-32XT

11

32″ LCD TV Hyundai HLCD-32XT

12

32″ LCD TV Hyundai HLCD-32XT

13

32″ LCD TV Hyundai HLCD-32XT

14

32″ LCD TV Hyundai HLCD-32XT

2.4 How to Connect

15

32″ LCD TV Hyundai HLCD-32XT

16

32″ LCD TV Hyundai HLCD-32XT

17

32″ LCD TV Hyundai HLCD-32XT

18

32″ LCD TV Hyundai HLCD-32XT

3. Input/ Output Specification

3.1 Input Signal connector

This procedure gives you instructions for installing and using the LCD TV display.

Lay the display on the desired operation and plug the power cord into a convenient AC outlet. Three-wire power cord

must be shielded and is provided as a safety precaution as it connects the chassis and cabinet to the electrical

conduct ground. If the AC outlet in your location does not have provisions for the grounded type plug, the installer

should attach the proper adapter to ensure a safe ground potential.

Connect the 15-pin D-SUB color display shielded signal cable to your signal system device and lock both screws on

the connector to ensure firm grounding. The connector information is as follow:

1

6

11 15

5

10

15 - Pin Color Display

Pin No. Description

1 Red Video

2 Green Video

3 Blue Video

4 TXD

5 Ground

6 Red Ground

7 Green Ground

8 Blue Ground

9 +5V

10 Ground

11 RXD

12 Serial Data for DDC

13 H-Sync.

14 V-Sync.

15 Serial Clock for DDC

Apply power to the display by turning the power switch to the "ON" position and allow about ten seconds for Panel

warm-up. The Power-On indicator lights "GREEN" when the display is on.

With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness and

contrast to the most pleasing display, or press auto-adjust to get the best picture-quality.

This TV (with PC function) has power saving function following the VESA DPMS. Be sure to connect the signal

cable to the PC.

If your TV requires service, it must be returned with the power cord.

19

32″ LCD TV Hyundai HLCD-32XT

3.2 RGB Input Signal Timing

Vertical Horizontal Sync Polarity Presence Screen Mode

Dots × Lines

720 × 400 70.1 31.5 NEG POS YES YES YES NO

640 × 480

800 x 600

1024 x 768 60.0 48.36 NEG NEG YES YES YES NO

1360 x 768 60.0 47.36 POS NEG YES YES NO YES

Frequency Frequency Normal FULL

(Hz) (kHz)

59.9 31.5 NEG NEG YES YES YES NO

75.0 37.5 NEG NEG YES YES YES NO

60.0 37.9 POS POS YES YES YES NO

75.0 46.87 POS POS YES YES YES NO

Horizontal Vertical Horizontal Vertical

(4:3) (16:9)

20

32″ LCD TV Hyundai HLCD-32XT

A

4. Mechanical Instructions

Step Figure Description

Lay the

LCD-TV on a

Preparation

Remove

the stand.

flat, soft and

clean

surface.

Remove the

screws A, B,

C

D F

C, D, E, F to

remove the

stand.

B

E

21

32″ LCD TV Hyundai HLCD-32XT

Remove the

screws

Remove

rear cover.

Remove

the cover

card

reader.

marked in

red to

remove the

rear cover.

Remove the

screws

marked in

red to

remove the

cover card

22

reader.

32″ LCD TV Hyundai HLCD-32XT

Remove

the shield.

Remove the

screws

marked in

red to

remove the

shield.

23

32″ LCD TV Hyundai HLCD-32XT

K

Remove the

bezel.

J

I

L M

N

O

Remove the

screws E, F,

G, H, I, J, K,

L, M, N, O to

remove the

bezel.

H

E

F

G

Remove the

Remove

the main

board,

power

board and

tuner

board.

Remove

the BKT

HOLD

PANEL.

screws

marked in

red to

remove the

main board,

power board

and tuner

board.

Remove the

screws

marked in

red to

remove the

BKT HOLD

PANEL.

24

32″ LCD TV Hyundai HLCD-32XT

5. Repair Flow Chart

5.1 Can not start

Check LED indicate

OK

NG

Check power supply of the power board

Check key board

Repair the key board

Check PWR-ON signal

OK

Check 5V_SB

OK

Check 3.3V SB

OK

NG

NG

Check power supply of the power board

Check U702

Check Q704, Q705, Q706, Q709

NG

Check U402, U401

OK

Check I2C communication

Check main board power supply part

OK

Check power supply of the main board

25

32″ LCD TV Hyundai HLCD-32XT

5.2 No display

Check the source

OK

Check LVDS

OK

Check 24V inverter power supply

OK

Check main board power supply

OK

Check U302

OK

Check I2C communication

NG

NG

NG

Reset source

Reset LVDS

NG

Check power board power supply

Replace U302

OK

Check Panel

NG

Replace Panel

26

32″ LCD TV Hyundai HLCD-32XT

5.3 Abnormal display

Check the source

OK

Check signal filter circuit

OK

OK

Check U301

NG

Reset source

NG

TV signal Check TV system setup

AV signal

PC signal

HDMI, DVI signal

NG

Replace the filter or inductance

OK

Check TU100

Check U104

Check U201

Check U407

Replace U301

NG

NG

Replace TU100

Replace U104

Replace U201

NG

Replace U407

OK

Check U302

OK

Check Panel

NG

NG

Replace U302

Replace Panel

27

32″ LCD TV Hyundai HLCD-32XT

A

5.4 No sound

Check the source

OK

Check signal filter circuit

OK

Check Earphone jack

OK

Check U601

OK

Check U502

OK

Check U503

OK

Check speaker

NG

NG

NG

NG

NG

Reset source

NG

SIF signal Check TV system setup

V, Component signal

HDMI signal

Replace the filter or inductance

Replace the Earphone jack

OK

Check TU100

Check CS4344-CZZ

Replace U601

Replace U502

Replace U503

Replace speaker

NG

Check U100

Replace TU100

NG

Replace U100

NG

Replace CS4344-CZZ

28

32″ LCD TV Hyundai HLCD-32XT

5.5 Key Board

OSD is unstable or not working

Is Key Pad Board connecting normally?

OK

Is Button Switch normally?

OK

NG

Connect Key Pad Board

NG

Replace Button Switch

Is Key Pad Board Normally?

OK

Check Main Board

NG

Replace Key Pad Board

29

32”LCD TV Hyundai HLCD-32XT

6. White Balance, Luminance Adjustment

It is not necessary to adjust the white balance of the TV.

25

32″ LCD TV Hyundai HLCD-32XT

7. PCB Layout

7.1 Main Board

715T1768-1

31

32″ LCD TV Hyundai HLCD-32XT

32

32″ LCD TV Hyundai HLCD-32XT

33

32″ LCD TV Hyundai HLCD-32XT

7.2 Power Board

715T1180-3

34

32″ LCD TV Hyundai HLCD-32XT

35

32″ LCD TV Hyundai HLCD-32XT

36

32″ LCD TV Hyundai HLCD-32XT

7.3 Tuner Board

715T2275-2

37

32″ LCD TV Hyundai HLCD-32XT

7.4 IR Board

715T1975-1-SM

38

32″ LCD TV Hyundai HLCD-32XT

7.5 Key Board

715T1623-1

39

32″ LCD TV Hyundai HLCD-32XT

7.6 Headphone Board

715T1290-1-5

40

27’’ LCD TV Hyundai HLCD-27XT

8. Block Diagram

LVDS

COMP
S-Video

D-SUB

Panel

HS/VS

74LVC14

RGB

ISP Select

74HC4052D

Speaker

Ear phone

SUBWOOFER-OUT

ISP-SW

TX/RX

SD1/SC1

Amplifier
MAX9704

Flash

M30300SAGP

PT2308S

SRAM

MCU

4MX32

DDRNG

Select control
PCA9554PW

NJW1147M-PF

Scalar

ADC

Decoder

SVP-EX52-LF

CH3/CH4

Mode1/Mode2

Audio Decoder
MSP3450G

PC

DIN

S-Video

AV1
AV2
SDA/SCL

CVBS1

CVBS2

SIF

Digital decoder

Video Select
NJM-2244M-TE1/JRC

CH1/CH2

SiI9023CTU

TUNER

Audio

Select
74HC4052D

HDMI

AV1

AV2

SD1/SC1

AV1

AV2

COMP

NDC7002N

41

32’’ LCD TV Hyundai HLCD-32XT

9. Schematic Diagram

9.1 Main Board

715T1768-1

C201 100pF

SC13,6,9
SD13,6,9

C203 100pF

AV_18
AV_28

EX_C4

TUNER_OUT4,8

CVBS_SEL4

EX_Y4

0.1uF/16V

VIDEO_OU T_1 4

REMOTE6

5V_SB

R227

R200

T1768-1-X-X-4-071116

02 I/O

C202 100pF

INV_PRO6

BL_ADJ3,6

5V

NC

0

+20V

+12VP

+5VP

5V

LP200

8
7
6

300 OHM(8P4R)

2
4
6

8
10
12
14
16
18
20
22
24
26
28

CN201

L204 600 OHM
L205 600 OHM

L200

VIDEO_OU T

1
3
5

PC_L

7

PC_R

9
11
13
15
17
19
21
23
25
27
2930
3132
3334
3536

C206

I/O

0.1uF
C210

R223 1K

150 OHM

1
2
3
45

C2210.1uF

C220100pF

OEM MO DEL Size

TPV MODEL

PCB NAME

Sheet

HDMI_L 7
HDMI_R 7

R_OUT 9
L_OUT 9

5V_A

12VSW

C207

0.1uF/ 16V

0.1uF/ 16V

Power Connect

0.1uF
C211

1
2
3
4
5
6
7
8

9
10
11
12

CN200
CONN

C216 100pF

1
2
3
4
5
6
7
8

C2220.1uF

C2230.1uF

CN203

CONN

HLCD-32XT

E326MTNSW2H4N 1.0

715T1768 1

of

111Friday , Nov ember 16, 2007

Custom

Rev

称爹

>

<

称爹

VGAVS

VGAHS

C217

0.047uF

C225

0.047uF

ZD201
MLL75 2A

VGAHS6

VGAVS6

R217

R218

4.7K 1/16W

VGA_SDA

VGA_SCL

3

D206
BAT54S

3.3V_SB

R201
NC

R21022

C208
100pF

4.7K 1/16W

3.3V_SB

3

D205
BAT54S

3.3V_SB

2

1

R202
NC

VGA_HS

VGA_VS

R21122

VGAHS

VGAVS

C209
47pF

2

1

R231
100K

RxD

P200
DB15

11

12

13

14

15

ZD200

MLL75 2A

U200 24LC 02

8

VCC

5

SDA

6

SCL

4

GND

R224 180K 1/16W

R228
1M

0.47uF/ 50V

R229 180K 1/16W

C226

0.47uF/50V

VCLK

C219

11

12

13

14

15

NC2
NC1
NC0

1617

5V

GG

6
1
7
2
8
3
9
4

10

5

BAT54C

7
3
2
1

Q203
PMBS3906

Q205
PMBS3906

D204

R203

22 1/16W

R209

150 1/16W

VIDEO_OU T

R220

22 1/ 16W

R226

150 1/16W

PC_R

PC_L

5V_A

5V_A

PMBS3904

R221

R225

R204

R208

12K 1/16W

22K 1/16W

12K 1/16W

22K 1/ 16W

Q206

C205

+

22uF/16V

C215

+

22uF/16V

R245

R246

C214

C204

22 1/ 16W

120 1/ 16W

0.1uF/ 16V

0.1uF/16V

COMP_R4
COMP_B4
COMP_Y4

EX_Y 4

5V_A

C232

R243

12K 1/ 16W

C231

+

22uF/16V

R244

22K 1/16W

EX_C 4

3.3V_SB

5V_SB

KEY_AD6

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

5V_SB

D202

3

D203

12
14
15
11

1
5
2
4

10
9

6

7
16

BAV99

R207

+

75 1/ 16W

3

1 2

R213 NC
R214 22
R215 NC
R216 22

TX 6
SC1 3,6,9

RX 6
SD1 3,6,9

ISP_SW 6

5V_SB

C224

0.001uF

C200

0.001uF

VGA_RIN 4

VGA_GIN 4

VGA_BIN 4

L206 150 OH M

L207

150 OHM

PMBS3904

SAA_Y8

VGA_HSIN 4

VGA_VSIN 4

Q201

PMBS3904

SAA_C8

47K 1/16W

47K 1/16W

Q200

R230

R232

D201

3

BAV99

BAV99

L201

1

2

3

C213 0. 1uF

R219

0 1/ 16W

Q202
PMBS3904

To mcu

Q204
PMBS3904

To mcu

60 OHM

L202 60 OH M

TxD

3.3V_SB

Detec t_VGAVS 6

Detect_VGAHS 6

L203 60 OH M

1 2
3 4
5 6

9 8
11 10
13 12

C212

0.1uF

TxD

RxD

1 2

R205

75 1/16W

1A 1Y
2A 2Y
3A 3Y
4A 4Y

74LVC14

5A 5Y
6A 6Y

GNDVCC

74LVC14

U201

U202 74HC4052D

13

X

3

Y

GND

8

P201

PC_AUDIO

R206

75 1/ 16W

X0
X1
X2
X3

Y0
Y1
Y2
Y3

A
B

EN

VEE

VDD

10uF/16V

2
3
4
5
1

1 2

714

C218

6
1
7
2
8
3
9
4
10
5

42

32’’ LCD TV Hyundai HLCD-32XT

U300

Extra SRAM

C3001

68pF

INPUT

MPU GP IO1

0

0

1

1

0.1uF

10

25
24
21
23

26

20
22
27

C398

9
8
7
6
5
4
3

2

1

AS7C256A

11

A0

D0

12

A1

D1

13

A2

D2

15

A3

D3

16

A4

D4

17

A5

D5

18

A6

D6

19

A7

D7
A8
A9
A10
A11
A12
A13

28

A14

VCC

14

GND
/CE
/OE
/WE

BL_ADJ 2, 6

C397

+

22uF/16V

68 1/ 16W

R337

R338

MPU GP IO0

3V_SDAMD7
3V_SCL

68 1/ 16W

*CS1N is not a input or output pin
CS1N=0: SVP-EX C PU access enabled
CS1N=1:SVP-EX CPU access disabled

Connector for Amtel AT76C112 Vide o Output

MPUCS0N

0

1

0

1

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

0

1

1

1

T1768-1-X-X-4-071116

03 SVP-EX256_1

U303

G2D2
S2
G1

191

190

189

MPUGPIO1

MPUGPIO2

P_17

FLD/IO

A_D7
A_D6
A_D5
A_D4
A_D3
A_D2
A_D1
A_D0

WR#

MPU CS0N

V5SF

RESET

CLKE

3V3S

34
2
1

R332 10K

MPUG PIO 1

MPUG PIO 4

188

MPUGPIO3

MPUGPIO4

17
18

16

SDA

14

SCL

203
202
201
200
197
196
195
194

216

RD#

217
218

ALE

219
220

INT#

15

12

13

147

BA1

145

BA0

144
142

WE#

MVRE F 5
CAS# 5
RAS# 5

CS0# 5
MCLK 0# 5
MCLK 0 5

R331

4.7K

3V_SDA

5V

CS 6

EX-PWM

SDA_EX

SCL_EX

RD_EMU 6
WR_EMU 6
ALE_EMU 6

INT# 6

R339 470 1/16W

BA1 5
BA0 5
CLKE 5
WE# 5

3V_SDA 7,8

R335

10 1/ 16W

RN311 100

1 8
2 7
3 6
4 5
1 8
2 7
3 6
4 5

RN312

MPUCS0N

100

VDDM

R333

MPUCS0N

R341

10K

VD3_3

MCU_A[0..7]6

A[8.. 14]6

1.2K 1/ 16W

R336

10K 1/16W

AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

RST_H 6

R340

1K 1/ 16W

A[0..7]

A[8..14]

C3002

MPUG PIO 4

HI
MPU has
Data/Address
multiplex

I2C Address:
7E/7F

R334

0.1uF

5V

4.7K 1/ 16W

Q300

PMBS3904

5V_SB

R346

1K 1/16W

AD[0..7] 6

R300

0

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14

CS16
RD#6
WR#6

C399

68pF

LO
MPU has
separated
Address/Data

I2C Address:
7C/7D
Not
Populated

VDDMQ

155

213

4 5

MCU_A7

158

VSSM

ADDR7

212

3 6

MCU_A6

151

VSSM

ADDR6

211

2 7

MCU_A5

132

VSSM

ADDR5

210

1 8

MCU_A4

3V_SCL

129

VSSM

ADDR4

209

4 5

MCU_A3

121

VSSM

ADDR3

208

3 6

MCU_A2

116

VSSM

ADDR2

207

2 7

MCU_A1

R330

4.7K

105

VSSM

ADDR1

206

RN313

1 8

MCU_A0

98

VSSM

ADDR0

100

10187838180

VSSM

SD12,6,9

5

S1

6

SC12,6,9

VSSM

VSSM

MCK0

130

131

D1

NDC7002N

VDDMQ

C396

0.1uF

MPUGPIO1

193

139

141

192

NC

VSSR

VSSM

VSSM

VDDR

MPUGPIO0

TESTMODE

MCK0#

CS0#

CS1#

RAS#

CAS#

MVREF

133

135

137

138

140

C386

C385

0.1uF

VDDM

157

VDDM

153

136

VDDM

C393

0.1uF

VDDM

134

124

VDDM

VDDM

0.1uF

C394

0.1uF

119

103958577173

99

VDDM

VDDM

VDDM

VDDM

VDDM

VDDM

VDDM

3V_SCL7,8

169

176

VSSM

VSSM

SVP-EX [256]

(1 of 2)

DQS2

DQS3

MA11

MA10

MA9

MA8

MA7

MA6

MA5

MA4

MA3

MA2

MA1

174

109

111

112

114

115

DQS3

MA10

MA9

MA7

MA11

MA8

MA0

117

118

120

122

123

125

126

RN300
100

MA5

MA3

MA0

MA1

MA2

MA4

MA6

VSSM

C388

0.1uF

C380

0.1uF

C389

0.1uF

0.1uF

C381

MD0
MD1
MD2
MD3
MD4
MD5
MD6

MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQM0
DQM1
DQM2
DQM3

SVP-EX52_256

DQS[0..3]5

MA[0..11]5

MCU_A[0..7]6

C390

0.1uF

U302A

73
75
76
78
84
86
88
90
91
93
94

96
102
104
106
108
148
150
152
154
160
162
163
165
166
168
170
172
178
180
181
183

79

97
159
177

C382

0.1uF

MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
MD16
MD17
MD18
MD19
MD20
MD21
MD22
MD23
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
DQM0
DQM1
DQM2
DQM3

C391

0.1uF

C383

0.1uF

VDDMQ

C384

0.1uF

C392

0.1uF

179

171

161

175

VDDM

VDDM

VDDM

DQS0

DQS1

82

100

156

DQS2

DQS1

DQS0

C379

0.1uF

VDDMQ

C387

0.1uF

MD[0..31]5

DQM[0..3]5

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7

0.1uF

C395

OUTPUT

*CS1N

AD[0..7]

5V-1_CPU

3V_SDA 7, 8
3V_SCL 7,8

MPU GP IO2

1

1

0

1

0

1

1

1

AD[0.. 7] 6

MPU GPIO 3

1

1

1

0

OEM MOD EL Size

HLCD-32XT

TPV MO DEL

E326MTNSW2H4N 1.0

715T1768 1

PCB NAME

Sheet

111Friday , Nov ember 16, 2007

of

Custom

Rev

<

称爹

称爹

>

43

32’’ LCD TV Hyundai HLCD-32XT

P_37

VL1_8

DIN[0..23]7, 8

FB300

1 2

150 OHM

FB302

1 2

150 OHM

VD1_8

C370

0.1uF

VD1_8

C338

10uF/16V

C347

10uF/16V

C360

0.1uF

C371

0.1uF

CLK_2EX1

56T126-10

SVP-EX52_256

DIN23
DIN22
DIN21
DIN20

MLF1
PLF2

14.318MHz

C323

33pF

+

+

C361

0.1uF

C372

0.1uF

U302B

69
70
71
72

3
6

9
67
89

107
113
143
149
167
184
198
214
251

8
68
74
92

110
146
164
182
185
199
215
250

X30 0

C339

0.1uF

C348

0.1uF

C362

0.1uF

C373

0.1uF

DIN23
DIN22
DIN21
DIN20

MLF 1
PLF2

VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC
VDDC

VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC
VSSC

C374

0.1uF

C363

C324

33pF

0.1uF

1

C375

XTALO

C337

C364

0.1uF

DIN0

256

0.1uF

DIN1

P_64

XTALI

CLK_2EX

DIN3

DIN2

P_62

P_63

754

PAVSS2

0.0027uF

C300

0.0027uF

C365

0.1uF

Pin 56

DIN6

DIN7

DIN4

DIN9

DIN5

DIN8

CLK_2EX

P_54

P_55

P_56

P_57

P_58

P_59

P_60

P_61

DIN15

DIN12

DIN16

DIN14

DIN11

DIN13

DIN10

P_51

P_50

P_46

P_47

P_48

P_49

P_50

P_51

P_52

P_53

SVP-EX [256]

(2 of 2)

PAVSS

PDVSS

AVSS_ADC1

AVSS3_BG_ASS

AVSS_ADC2

AVSS_ADC3

VSSH

VSSL

PAVSS2

PAVSS1

PAVSS1

PAVSS1

PAVDD2

PAVSS2

255

253

PAVSS

PDVSS

PAVDD1

MLF 1

PLF2

239

228

AVSS_ADC1

AVSS_ADC2

VSSH

VSSH

VSSH

235

222

205

127

20

66

187

VSSL

AVSS_ADC3

AVSS3_BG_ASS

VSSH

VDDL

C340

0.1uF

VSSL

PDVDD

C349

0.1uF

PDVSS

PAVDD

C358

0.1uF

PAVSS

VDDH

C368

0.1uF

VSSH

PAVDD2

R329 NC

TXOUT0-

P_36

TXOUT0+

P_35

TXOUT1-

P_34

VD3_3

1K
R309

DIN18

DIN19

DIN17

P_41

P_40

40

41

4243444546474849505152535455565758596061626364

P_40

P_41

P_42

P_43

P_44

P_45

PAVDD

PDVDD

AVDD_AD C1

AVDD_AD C2

PAVDD2

PAVDD1

254

252

238

227

2

AVDD_ADC1

AVDD_ADC2

PAVDD

PDVDD

PAVDD1

+

+

+

+

P_38

P_39

38

39

P_38

P_39

AVDD3_AVSP2

AVDD_AD C3

234

221

AVDD_ADC3

AVDD3_AVSP2

FB301

1 2

C341
10uF/16V

FB303

1 2

C350

10uF/16V

FB304

1 2

C359
10uF/16V

FB306

1 2

C369
10uF/16V

P_33

P_37

P_34

P_35

P_32

P_31

P_36

37

P_32

P_33

P_34

P_35

P_36

P_37

VDDH

VDDL

VDDH

VDDH

VDDH

204

128

19

65

186

VDDL

VDDH
EX3V3_SB

VD1_8

150 OHM

VL1_8

150 OHM

VL1_8

150 OHM

VD3_3

150 OHM

P_24

P_30

P_26

P_27

P_29

P_28

P_25

24252627282930313233343536

P_24

P_25

P_26

P_27

P_28

P_29

P_30

P_31

VREFP_1

VREFN _1

VREFP_2

VREFN _2

241

240

230

229

23

DE

22

V

21

H

10

AIN_HS

11

AIN_VS

225

PR_R1

246

Y_G1

232

PB_B1

226

PR_R2

248

Y_G2

233

PB_B2

ANALOG_OUT

236

CVBS_OUTP

237

CVBS_OUTN

242

CVBS1

243

CVBS2

244

CVBS3

231

C

245

C354

0.1uF

C342

0.1uF

C366

247
249

C330

0.1uF

AIN_N1
AIN_N2
AIN_N3

C326 NC

AVSS_ADC1

+

10uF/16V

C378

0.1uF

AIN_N1
AIN_N2
AIN_N3

VREFP_3

VREFN _3

224

223

VREFN_3
VREFP_3
VREFN_2
VREFP_2
VREFN_1

VREFP_1

AVDD_ADC2

AVSS_ADC2

AVDD_ADC3 C352 0.1uF

0.1uF

AVSS_ADC3

AVDD3_AVSP2

AVSS3_BG_ASS

VSSH

EX3V3_SB

P_31
P_30
P_29
P_28
P_27
P_26

R311 0 1/16W

DVS_2EX 1
DHS_2EX 1

VGA_HSIN 2
VGA_VSIN 2

PR_R1
Y_G1
PB_B1

PR_R2
Y_G2
PB_B2

CVBS1
CVBS2

Y
C

C332

C331

0.1uF

0.1uF

L301

2.2uH

C343

10uF/16V

L302

2.2uH

C355

FB305

1 2

150 OHM

C367

+

10uF/16V

Power saving ?

L303 600 OHM

TXOUT1+
TXOUT2­TXOUT2+
TXCLK­TXCLK+
TXOUT3­TXOUT3+

C3006

NC

C327

AVSS_ADC2

VA1_8

VA1_8

VD3_3

3.3V_SB

VA1_8

0.1uF/ 16V

ANALOG_OUT

R343 NC

C3005 33pF

C333

0.1uF

DE_2EX 7

R342

1.2K 1/16W

R314

1.5K 1/16W

C334

0.1uF

C3004

4.7uF/16V 0805

C328

NC

AVSS_ADC3

AVDD_ADC1

AVSS_ADC1

C335

0.1uF

C319

+

10uF/16V

C344

0.1uF

P_50

C356

0.1uF

P_51

P_38
P_33
P_24

P_32
P_25

VD3_3

Low color shift on = Vcc

LCS6

TXOUT3 +
TXOUT3 ­TXCLK +
TXCLK -

TXOUT2 +
TXOUT2 ­TXOUT1 +
TXOUT1 -

TXOUT0 +
TXOUT0 -

5V_A

C318

R316470 1/16W

R31522K 1/16W

R320

R321

22K 1/ 16W

L300

2.2uH

C345

+

10uF/16V

P_40

C357

0.1uF

P_41

VD3_3

C376

0.1uF

0.1uF/ 16V

Q301

PMBS3904

R344

470 1/16W

470 1/ 16W

VA1_8

VD1_8

C377

T P V ( Top Victory Electronics Co . , Ltd. )

0.1uF

絬 隔 瓜 絪 腹

Key Component

Date

R310 NC

Q302

PMBS3906

VIDEO_OU T_1 2

R345

2.2K 1/16W

CVBS1

CVBS2

Y

C

T1768-1-X-X-4-071116

04 SVP-EX256_2

CN300

CONNECTOR for PANEL

24

OD_SEL6

PVDD10

OD_SEL for CMO 32"
50 Hz = High
60 Hz = Low

Y_G1

C320 0.1uF

PB_B1

C321 0.1uF

PR_R1

C322 0.1uF

Y_G2

C325 0.1uF

C329 0.1uF

PB_B2

PR_R2

C336 0.1uF

C346 0.1uF

C351 0.1uF

C353 0.1uF

1234567891011121314151617181920212223

+

C317

C316

0.1uF

May.05

R318

R317

75 1/ 16W

75 1/ 16W

R323

R324

R322

NC

NC

NC

R326

R327

R325

R328

NC

NC

NC

NC

OEM MO DEL Size

TPV MOD EL

PCB NAME

Sheet

22uF/16V

R319

75 1/ 16W

COMP_Y 2

COMP_B 2

COMP_R 2

VGA_GIN 2

VGA_BIN 2

VGA_RIN 2

TUN ER _OU T 2,8

CVBS_SEL 2

EX_Y 2

EX_C 2

HLCD-32XT

E326MTNSW2H4N 1.0

715T1768 1

of

111Friday , Nove mber 16, 2007

Custom

Rev

<

称爹

称爹

>

44

32’’ LCD TV Hyundai HLCD-32XT

Test pads for DDR

MCLK 0_1

TP301
TP_T_C30

DDQS0

TP302
TP_T_C30

DQM0

TP303
TP_T_C30

TP304

DQ23

TP_T_C30

TP305

CAS#

TP_T_C30

TP306

RAS#

TP_T_C30

CS0#

TP307
TP_T_C30

WE#

TP308
TP_T_C30

TP30 9
TP_T_C30

TP31 0
TP_T_C30

TP30 0
TP_T_C30

VDDMQ

Each MD trace must be equal length.
Each DQS trace must be equal
length.

MA[0..11]3

DQ0

A6
B5

DQ1

A5

DQ2

A4

DQ3

B1

DQ4

C2

DQ5

C1

DQ6

D1

DQ7

E2

DQ16
DQ17

E1
F2

DQ18

F1

DQ19
DQ20

H2
H1

DQ21

J1

DQ22

J2

DQ23

DQM1

A2
G2

DQM0

A1

DDQS1
DDQS0

A3

A10

C3
C4
C5
C8
C9

C10

D5
D8
E4
E9
F4
F9
G4
G9
H4
J4
H9
J9

L304

0Ω 1/8W

VDDMQ_1

C304

0.1uF

MA10

MA11

MA9

MA4

MA8

MA7

MA6

MA5

MA0

MA3

MA2

MA1

L4

M3

K5L7M10M9M8L8M7M6L5M5M4

A9

A7A6A5A4A3A2A1

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23

DM0
DM2

DQS0

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

A0

K4K9J5

VSS

VSS

A10

A8_AP

4M x 32 DDR

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

J6

J7J8D4D6D7

D9

A11

BA1

BA0

FBGA 1 44

VSS

VSS

VSS

E5

DDR VDDMQ / VDDM de -caps

C308

C305

0.1uF

C306

0.01uF

C307

0.01uF

0.01uF

C309

0.01uF

M1L1K1

CS#

VSS

MVRE F 3

MCLK0_1

MCLK0#_1

DDQS0

DDQS1

DDQS2

DDQS3

DQ23
DQ22
DQ20
DQ21

DQ19
DQ18
DQ17
DQ16

DQ7
DQ6
DQ5
DQ4

DQ3
DQ2
DQ1
DQ0

DQ31
DQ29
DQ30
DQ28

DQ27
DQ26
DQ25
DQ24

DQ15
DQ14
DQ13
DQ12

DQ10
DQ11
DQ8
DQ9

R347

0 1/16W

51 1/16W

51 1/16W

R348

0 1/16W

R303 15

R304 15

R305 15

R306 15

RN301 22 1/16W

5
6
7
8

RN302 22 1/16W

5
6
7
8

RN303 22 1/16W

5
6
7
8

RN304 22 1/16W

5
6
7
8

RN305 22 1/16W

5
6
7
8

RN306 22 1/16W

5
6
7
8

RN307 22 1/16W

5
6
7
8

RN308 22 1/16W

5
6
7
8

R301

R302

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

4
3
2
1

MEMORY DECOUPLING SCHEME

T P V ( Top Victory Elect ronics Co . , Lt d. )

T1768-1-X-X-4-071116

絬 隔 瓜 絪 腹

Key Component

05 SVP-EX_DDR

Date

DQM[0..3] 3

BA1 3
BA0 3
CS0# 3
RAS# 3
CAS# 3
WE# 3
CLKE 3

MCLK0_1
MCLK0#_1

L10

L11

M11

K2

L9

K8L6B3G3L2M2L3

K11

K12

G10

B10

CK

CK#

CKE

WE#

RAS#

CAS#

VSS

VSS

C310

0.01uF

RFU2

RFU3

NC_L2

NC_L3

NC_B3

NC_G3

NC_M2

NC_K11

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

VSS

C311

0.0047uF

H8H7H6H5G8G7G6G5F8F7F6F5E8E7E6

C312

0.0047uF

VDD

K3K6K7

VDD

VDD

DQ31

NC_K12

NC_B10

NC_G10

DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24

DQ15
DQ14
DQ13
DQ12
DQ11
DQ10

DQS3
DQS1DQS2

VREFMCL

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDD

VDD

VDD

K10D3D10C6C7

DQ9
DQ8

DM3
DM1

VDD

VDD

VDDM

A7
B8
A8
A9
B12
C11
C12
D12

E11
E12
F11
F12
H11
H12
J11
J12

A11
G11

A12
G12G1

M12L12

B2
B4
B6
B7
B9
B11
D2
D11
E3
F3
H3
J3
E10
F10
H10
J10

U301

EM6A9320BI

VDDM_1

DQ31
DQ30
DQ29
DQ28
DQ27
DQ26
DQ25
DQ24

DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8

DQM2
DQM3

DDQS2
DDQS3

L305

0 OHM 1/8W

C313

0.1uF

VDDMQ_1

VDDM_1

C314

0.1uF

C302

0.1uF

C303

0.1uF

VDDMQ_1

R307

1K 1/ 16W

R308

1K 1/ 16W

C315

0.01uF

DQS0

DQS1

DQS2

DQS3

MD0
MD1
MD2
MD3

MD4
MD5
MD6
MD7

MD8
MD9
MD10
MD11

MD12
MD13
MD14
MD15

MD16
MD17
MD18
MD19

MD20
MD21
MD22
MD23

MD24
MD25
MD26
MD27

MD28
MD29
MD30
MD31

MCLK 0 3

C301

0.01uF

MCLK 0# 3

DQS[0..3] 3

MD[0..31] 3

OEM MODEL Size

HLCD-32XT

TPV MOD EL

E326MTNSW2H4N 1.0

715T1768 1

PCB NAME

Sheet

of

111Friday , Novem ber 16, 2007

Custom

Rev

称爹

>

<

称爹

45

32’’ LCD TV Hyundai HLCD-32XT

W27E040

1

Q404

3.3V_SB

2 3

3.3V_SB

1

When use W27E040,use R416 and
R411 ; R419 is Option.

When use W29C040,use R419 ;
R416 and R411 are Option.

13

Q0

14

Q1

15

Q2

17

Q3

18

Q4

19

Q5

20

Q6

21

Q7

PS

22

CE#

24

OE#

32

VCC

1

R411 NC

VPP

W27E040 USED

WR# 3

TP409
WR

R428

22 1/16W

R432 47K

R437

4.7K

5V-1_CPU

CPU_RST

Option

R465

NC

R482

4.7K

RST_7117

Q403
PMBS3904

R490

4.7K

RST#

2 3

RN402 33

1 8
2 7
3 6
4 5
1 8
2 7
3 6
4 5A7

RN404 33

5V-1_CPU

C402

0.01uF

WR_EMU 3

5V-1_CPU

R438

4.7K

R440 100 1/16W

R442

1

R446 0

2

3

4

5

6

7

8

9

10

RST_7117 8

AD0
AD1
AD2
AD3
AD4

AD5
AD6
AD7

+

C403

10uF/16V

R426

R431 100

100 1/16W

CN403
CONN

2.54mm

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

Detect_VGAHS2

ISP_SW2

CLOCK_SW1

Detect_VGAVS2

VGAVS2

VGAHS2

RX_INT#7

BL_ADJ2,3

PWR_ON10

SCDT7

CE_REMOTE7

OD_SEL4

LCS4

CN404 CONN

10uF/16V

KEY_AD2

5V-1_CPU

+

C416

R460

R463

R464

R467

3.6V

1
2

5V-1_CPU

100

NC

100

R466

100

ZD400

1 2

MLL5227B

Reset MCU

R409 NC

100

R410

5V-1_CPU

100

R421

100

R422

AD7

AD6

AD5

AD4

AD3

AD2

AD1

AD0

R4028 4.7K

R433 4. 7K

R435 4. 7K

R4029 4.7K

R4030 4.7K

R439 4. 7K

R441 100 1/16W

R443 100

R444 4. 7K

E_PAGE

R4514.7K

100

R473 220 1/16W

R478

R484 1K 1/16W

C400

C414

10uF/16V

CPU_RST

A6

C412
15pF

P2_6/A6/D6

Vss

C415

NC

TP407
A7

A7

63

U402

CPU_RST

62

P2_7/A7/D7

Xin

14

5V-1_CPU

Vss

Vcc1

5V-1_CPU

61

P3_0/A8

P8_5/NIM

15

A[0..7]

60

595857565554535251

Vcc2

P3_1/A9

P3_2/A10

P3_3/A11

P3_4/A12

P3_5/A13

P8_3/INT1

P8_2/INT0

P8_0/TA4out

171820

19

100pF

P7_7/TA3in

P8_1/TA4in

21

C409

Top View

1

2

3

P8_4/INT2

16

R469

4.7K

P3_6/A14

P7_6/TA3out

22

P3_7/A15

P4_0/A16

P6_0/CTS0/RTS0

P6_4/CTS1/RTS1

P7_5/TA2in

P7_4/TA2out

23

24

R4794.7K

4.7K 1/16W

3
2
1

CN400
CONN

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

P4_1/A17

P5_3/BCLK

P5_4/HLDA

P5_5/HOLD

P5_7/RDY

P6_1/CLK0

P6_2/SCL0

P6_3/SDA0

P6_5/CLK1

P6_6/RXD1

P6_7/TXD1

P7_0/SDA2

P7_1/SCL2

P7_2/TA1out

P7_3/TA1in

25

R4804.7K

5V-1_CPU

R487

SC1
SD1

P4_2/A18

P4_3/A19

P4_4/CS0

P4_5/CS1

P4_6/CS2

P4_7/CS3

P5_0/WR

P5_1/BHE

P5_2/RD

P5_6/ALE

R459

R4814.7K

NC

5V_SB

R488

4.7K 1/16W

A[8..14] 3

50

A18

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

R450 4.7K

R470 100 1/16W

R471 100 1/16W

R472 100 1/16W

R475 100 1/16W

SC1 2,3,9
SD1 2,3,9

A[8..18]

SDAE

SCLE

INV_PRO 2

R455

R454

4.7K

4.7K

5V-1_CPU

R405 100

R406 NC

R407 NC

R408 100

R412

R413

NC

4.7K

R4174.7K

R418

RST

4.7K

R4534.7K

R452NC

R4574.7K

R4584. 7K

100uF/16V

C413

8.2K

0.001uF

+

P1_3

76

P1_2

77

P1_1

78

P1_0

79

P0_7/AN0_7

80

P0_6/AN0_6

81

P0_5/AN0_5

82

P0_4/AN0_4

83

P0_3/AN0_3

84

P0_2/AN0_2

85

P0_1/AN0_1

86

P0_0/AN0_0

87

P10_7/AN7

88

P10_6/AN6

89

P10_5/AN5

90

P10_4/AN4

91

P10_3/AN3

92

P10_2/AN2

93

P10_1/AN1

94

Avs s

95

P10_0/AN0

96

Vref

97

Avc c

98

P9_7/ADTRG

99

P9_6

100

P9_5

P9_4/DA1

2

134679101213

5V-1_CPU

+

Q402
PMBS3906

CPU_RST

R489
NC

RST_H3

P1_4

P9_3/DA0

R4024.7K

VD3_3

R403

4.7K

P1_5/INT3

P9_2/TB2in

TP401

TP400

A1

A0

R404

4.7K

A1

A0

7172737475

70696867666564

P1_7/INT5

P1_6/INT4

P2_0/A0/D0

P9_1/TB1in

BYTE

P9_0/TB0in

5

R468

4.7K

5V-1_CPU

1

GND

2

RESET

U404

ASM810SEUR-T

TP406

TP403

TP404

TP405

TP402

A6

A3

A4

A5

A2

A2

A5

A4

A3

P2_1/A1/D1

P2_2/A2/D2

P2_3/A3/D3

P2_4/A4/D4

P2_5/A5/D5

M30620SPGP

P8_7/Xcin

CNVss

P8_6/Xcout

Reset

Xout

8

11

X400

10.000MHZ

C411
15pF

VD3_3

3

VCC

NC

RN401 33

A0
A1
A2
A3
A4

RN403 33

A5
A6

A8

RN405 33

A9
A10
A11
A12

RN400 33

A13
A14
A15

R414 33

A16
A17

R415 33

A18

R423 0 1/16W

R424 22 1/ 16W

R425 22 1/ 16W

R427 4.7K 1/ 16W

R429 22 1/ 16W

R434 22 1/ 16W

R436 4.7K 1/ 16W

R445

100

R447 100

R448

4.7K

R456NC

R461

NC

R462 100

MUTE 9

REMOTE 2

INT# 3

INT_A 8

MCU_ A[0 .. 7] 3

4 5
3 6
2 7
1 8
4 5
3 6
2 7
1 8
4 5
3 6
2 7
1 8
1 8
2 7
3 6
4 5

W27E040 USED

RST_HDMI

RST_EX52

RX

TX

R416

NC

TP408

RD

RX 2

R449

4.7K

5V-1_CPU

PANPWR_ON 10

RST_HDMI

Socket = 87L 202-32

U401

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

31 16

A18 GN D

33

R419

R420 33

CS1 3

CS 3

5V-1_CPU

TP410

TP411ALE

ALE_EMU 3

5V-1_CPU

TX2

RST

R486 4.7K

5V-1_CPU

R491

4.7K

PMBS3904

2K

R492

A29040BL-70F

22 1/16W

1

C405

100pF

1

2

3

4 5

4

2
1

T1768-1-X-X-4-071116

06 MCU

VD3_3

R430

10K 1/16W

Q401

NC

2 3

C406
100pF

A0

A1

A2

GND SDA

U400 24C64

U403

GND

NC1
NC0

AD[0.. 7] 3

RD# 3

RD_EMU 3

C410 0.01uF

8

VCC

7

PAGE

6

SCL

24LC64

VCC

VCLKNC2

SCL
SDA

CN401
CONN

C401 10uF/16V

CONN
CN402

RST_H 3

SC1 2,3,9

SD1 2,3,9

5V_SB

L401

5V-1_CPU

R47410K 1/ 16W

8
73
6
5

1

R401 0

2

Reset SIL9011..

3.3V_SB

1

R400

2

C404
10uF/16V

600 OHM

C407

0.1uF

R47710K 1/ 16W

R47610K 1/ 16W

R483

R485

OEM MODEL Size

TPV MOD EL

PCB NAME

Sheet

RST# 7

0

RST_H 3

Reset EX52

5V-1_CPU

+

C408
100uF/16V

E_PAGE

SCLE

100 1/16W

SDAE

100 1/16W

HLCD-32XT

E326MTNSW2H4N 1.0

715T1768 1

of

111Friday, November 16, 2007

Custom

Rev

<

称爹

>

称爹

46

32’’ LCD TV Hyundai HLCD-32XT

DVI_DSDA

DVI_DSCL

HDMI_DSDA

HDMI_DSCLHDMI_RX0+

HDMI_RXC-_1
HDMI_RXC+_1

HDMI_RX0-_1
HDMI_RX0+_1

HDMI_RX1-_1
HDMI_RX1+_1

HDMI_RX2-_1
HDMI_RX2+_1

DVI_RXC-HDMI_R X1+_1
DVI_RXC+

DVI_RX0­DVI_RX0+

DVI_RX1­DVI_RX1+

DVI_RX2­DVI_RX2+

AVCC

C448

C447

0.01uF

0.01uF

C454

C455

0.01uF

0.01uF

C461

0.01uF

0.01uF

VR1_8

C475

C476

0.01uF

0.1uF

CLOSED TO REGVCC

R4019

1M 1/ 16W

2

Q400

BSN20

3

2

Q405

BSN20

3

3V3S

R493

NC

R4000 NC

R4002 NC

R4007 100 1/16W

R4008 100 1/16W

C449

C462

XTALVCC

C477

0.01uF

R4016 33 1/16W

X401

28.322MHz

P400

HDMI_V_SMT

21

SHELL2

HP DET

23

SHELL4

DDC DATA

DDC CLK

CE Remote

CK Shield

D0 Shield

D1 Shield

22

SHELL3

D2 Shield

20

SHELL1

3V3S

R4012

R4013 4.7K 1/16W

LOW:0x60/0x68
High:0x62

I2C Device Address Select

HDMI_SDA

HDMI_DSCL

HDMI_SCL

IIS_DATA
IIS_SCK
IIS_WS
MCLK

+

C4000

C4001

0.1uF

10uF/16V

19
18

+5V

17

GND

16
15
14

NC

13
12

CK-

11
10

CK+

9

D0-

8
7

D0+

6

D1-

5
4

D1+

3

D2-

2
1

D2+

NC

RCLK48B

R4014

470K 1/16W

5
6

U408

1

SDIN

2

DEM/SCLK

3

LRCK

4

MCLK

5 6

VQ FILT+

5V

P0_+5V

U409

S1
D1

FDC6301N

CS4344

R498

1K 1/16W

HDMI_RXC-

HDMI_RXC+
HDMI_RX0-

HDMI_RX1-

HDMI_RX1+

HDMI_RX2-

HDMI_RX2+

G2D2
S2
G1

AOUTR

GND

AOUTL

VA

HDMI_SDA

HDMI_SCL

34
2
1

10
9
8
7

CE_REMOTE 6

1

4

2

3

3V3S

+

C482

C496 10uF/16V

+

C499

10uF/16V

D400

BAT54C

1

3

2

R495

1

4

L404

L

L405

L

2

3

5V_SB

HDMI_RX1-_1 RP403
HDMI_RX1+_1

HDMI_RX2-_1
HDMI_RX2+_1

R4015

470K 1/16W

HDMI_DSDA

R4023 10K 1/ 16W

10uF/16V

+

HDMI_L 2

R402510K 1/16W

R496

4.7K 1/16W

1

4

L403

2

3

3V3S

C436

0.1uF

HDMI_R 2

0.1uF

C417 0.1uF

U405 M24C02

8
7

47K 1/16W

6

R4004 0 1/16W

L

5V_SB

U406

1

3
4
5 6

RCLAMP0514M

L406 220 OHM

C498

10uF/16V

VCC
VCLK
SCL

4

3

10uF/16V

+

C497

NC
NC
NC

VSSSDA

1

L402

2

10
92
8
7

C437

1
2
3
45

L

HDMI_R X1-_1

HDMI_R X2-_1
HDMI_R X2+_1

+

3V3S

L410

300 OHM

HDMI_RXC-_1

HDMI_RXC+_1

HDMI_RX0-_1
HDMI_R X0+_1

C438

0.1uF

L409

L400

C439

0.1uF

220 OHM

5V_A

1

3
4
5 6

RCLAMP0514M

C440

0.1uF

3V3S

C451

0.1uF

220 OHM

C470

10uF/16V

U410

C441

0.1uF

L407

220 OHM

+

10
92
8
7

C442

0.01uF

VR1_8

CLOSED TO AVCC

DVI_DSDA1

DVI_DSCL1

HDMI_RXC-_1
HDMI_RXC+_1

HDMI_RX0-_1
HDMI_RX0+_1

DVI_RXC-1
DVI_RXC+1

DVI_RX0-1
DVI_RX0+1

DVI_RX1-1
DVI_RX1+1

DVI_RX2-1
DVI_RX2+1

C444

C445

C443

0.01uF

0.01uF

0.01uF

CLOSED TO PVCC

+

C450

C452

10uF/16V

0.1uF

CLOSED TO DVCC

C459

0.1uF

CLOSED TO XTALVCC

C472

C471

LAYOUT: Place XTAL
circuit as compact
and close to chip
as possible

0.1uF

0.01uF

P1_+5V

10uF/16V

P0_+5V

+

C473

0.01uF

C453

0.1uF

3V3S

C446

RX_INT#6

C474

0.1uF

3V3S

1

SCDT6

RST#6

PVCC

C460

0.1uF

C480 18pF

C481 18pF

1

0.01uF

R494 100 1/16W

R497 100 1/16W

56

ANTSTO

39

R0XC-

40

R0XC+

43

R0X0-

44

R0X0+

47

R0X1-

48

R0X1+

51

R0X2-

52

R0X2+

58

R1XC-

59

R1XC+

62

R1X0-

63

R1X0+

66

R1X1-

67

R1X1+

70

R1X2-

71

R1X2+

38

AVCC

42

AVCC

46

AVCC

50

AVCC

57

AVCC

61

AVCC

65

AVCC

69

AVCC

41

AGND

45

AGND

49

AGND

53

AGND

60

AGND

64

AGND

68

AGND

72

AGND

37

PVCC0

55

PVCC1

54

PGND

74

DVCC

35

DVCC

73

DGND

36

DGND

98

XTAL VC C

99

REGVCC

94

DVCC2

95

DGND2

R4022

10K 1/16W

R4024

10K 1/16W

R4026

10K 1/16W

R4027

10K 1/16W

3V3S

96

32

DSCL0

XTALOUT

XTALIN

97

31

DSDA0

R0PWR5V

3433237992

L411 220 OHM

103

1023029

SCDT

DSCL1

DSDA1

RESET#

SiI 9021/9031

R1PWR5V

VCC

VCC

VCC

VCC

105

114

+

C483

10uF/16V

C419

C418

+

10uF/16V

10uF/16V

104

5267689109

122

1344257590

INT

OVCC

OVCC

OVCC

OVCC

OVCC

OVCC

OVCC

OGND

OGND

144-Pin TQFP

VCC

VCC

VCC

GND

GND

GND

GND

GND

GND

GNDNCNC

128

139248091106

115

127

138

1009328

VR1_8

C484

C485

C486

0.1uF

0.1uF

0.1uF

T P V ( Top Victory Electronics Co . , Ltd. )

T1768-1-X-X-4-071116

絬 隔 瓜 絪 腹

Key Component

07 HDMI_SIL9021

Date

CLOSED TO OVCC

C420

+

0.1uF

108

120

135

OGND

OGND

OGND

OGND

OGND

TEST

CSCL

101

27

R4018

4.7K 1/16W

C487

0.1uF

C423

C421

C422

0.1uF

0.1uF

0.1uF

R499 47 1/ 16W

R4001 47 1/16W

R4005 47 1/16W

R4006 47 1/16W

132

121

U407

CSDA

0.1uF

DE

C488

VSYNC

HSYNC

CLK48B

MCLKI N

MCLK OUT

NC/SD1
NC/SD2
NC/SD3

MUTEO UT

DACAVCC
DACVCCR
DACVCCG
DACVCCB
DACAGND
DACGNDR
DACGNDG
DACGNDB

DACOVCC

DACDVCC
DACDGND

RSET

SiI 9021

10

0.01uF

ODCK

SPDIF

AnBPb
AnRPr

COMP

C489

BOUT0

144

Q0

BOUT1

143

Q1

142

BOUT2

Q2

141

BOUT3

Q3

140

BOUT4

Q4

137

BOUT5

Q5

BOUT6

136

Q6

BOUT7

133

Q7

GOUT0

132

Q8

GOUT1

131

Q9

GOUT2

130

Q10

129

GOUT3

Q11

126

GOUT4

Q12

GOUT5

125

Q13

GOUT6

124

Q14

GOUT7

123

Q15

ROUT0

119

Q16

ROUT1

118

Q17

ROUT2

117

Q18

ROUT3

116

Q19

ROUT4

113

Q20

ROUT5

112

Q21

111

ROUT6

Q22

ROUT7

110

Q23

107

RCLK48B

87

R4009 33 1/16W

88

86

SCK

85

WS

84

SD0

83
82
81

78

77

17

AnGY

20
14

9

VREF

11

7
13
16
19
8
12
15
18

6

22
21

Place resistor as close as possi ble to chip

R4017 182 1/ 16W 1%

R4020 100 1/ 16W

R4021

100 1/16W

C490

C491

0.01uF

0.01uF

OEM MOD EL Size

TPV MODEL

PCB NAME

Sheet

C456

0.01uF

C467

0.01uF

1
2
3
4

0.01uF

C495

0.01uF

C428

C429

0.01uF

DE_2EX 4

DIN8
DIN9
DIN10
DIN11
DIN12
DIN13
DIN14
DIN15

DIN0
DIN1
DIN2
DIN3
DIN4
DIN5
DIN6
DIN7

DIN16
DIN17
DIN18
DIN19
DIN20
DIN21
DIN22
DIN23

IIS_SCK
IIS_WS
IIS_DATA

C4002

NC

C468

0.1uF

C430

0.01uF

HDMI_VS 1
HDMI_HS 1
HDMI_CLK 1

C469

0.1uF

C427

C426

C424

C425

0.01uF

0.01uF

0.01uF

0.01uF

R4010NC

R4011NC

C464

0.01uF

C478

0.1uF

0.01uF

C492

HDMI_VS
HDMI_HS
HDMI_CLK

C432

C434

C433

NC

NC

NC

RP401

1

8

100

2

7

3

6

4

5

RP400

1

8

100

2

7

3

6

4

5

RP402

1

8

100

2

7

3

6

4

5

1

8

100

2

7

3

6

4

5

RP404

1

8

100

2

7

3

6

4

5

RP405

1

8

100

2

7

3

6

4

5

RP406 47

8
7
6
5

C458

C457

0.01uF

+

10uF/16V

C466

C465

0.01uF

0.01uF

3V3S

VR1_8

C479

0.1uF

3V_SDA

3V_SDA 3,8

3V_SCL

3V_SCL 3,8

C494

C493

0.01uF

0.01uF

HLCD-32XT

E326MTNSW2H4N 1.0

715T1768 1

of

111Friday, November 16, 2007

C431

0.01uF

DIN[0..23] 4,8

MCLK

C4003

NC

3V3S

L408

220 OHM

C463

+

10uF/16V

Rev

称爹

C

<

称爹

>

47

32’’ LCD TV Hyundai HLCD-32XT

VDDA1.8

C510 0.022uF

C511 0.022uF

R506 75

R509 75

R510 75

R514 75

VDD3.3

Logic 0 for slave address 42h/43h and 4Ah/4Bh
Logic 1 for slave address 40h/41h and 48h/49h

C512 0.022uF

C514 0.022uF

C515 0.022uF

C517 0.022uF

C521 0.022uF

C524 0.022uF

C526 0.022uF

0.022uF

C527

RST_71176

3V_SCL3, 7
3V_SDA3,7

24.576MHz

C528

L501

NC

33pF

C530 NC

R520

R521

Logic 0 for 24.576MHz
Logic 1 for 32.11MHz

C520 0.022uF

R516

R517 68 1/16W

X500

Option

NC

1K 1/ 16W

C516 0.022uF

C522 0.022uF

C525 0.022uF

C529

33pF

R503

AI11
AI12

AI14

AI22

AI24

C518 0.022uF

R515 NC

R500 0

68 1/ 16W

4.7K 1/16W

VDDA3.3

VDD1.8

0

C508

0.1uF

R518

C501 0.022uF

33

XCL K
HS_VPC

VS_VPC

8
7
6
5

8
7
6
5

ICLK

LLC
IGPH

IGPV

VDD1.8

AI11

AI14

DIN0
DIN1
DIN2
DIN3

DIN4
DIN5
DIN6
DIN7

C538

270pF

AI12

AI22

C502 0.022uF

C503 0.022uF

C509 0.022uF

AI24

C539

680pF

C523 0.022uF

RN503 33

1
2
3
4

R519 N C

RN500 NC

8
7
6
5

C540

0.0027uF

VDD3.3

C504

C505

C506

C8

C10

F12

H12M5M9N2P2M3K4H4F4D4L1J1G2

VXDD

VDD18_0

VDD18_1
AI11
AI12
AI13
AI14
AI1D
AI21
AI22
AI23
AI24
AI2D
AI31
AI32
AI33
AI34
AI3D
AI41
AI42
AI43
AI44
AI4D
FSW
CE
ITRI
XTR I

SCL
SDA

XTAL I
XTAL
XTOU T

RES1
RES2
RES3
RES4
RES5
RES6
RES7
RES8
RES10
RES11
RES12

TEST0
TEST1
TEST2
TEST3
TEST4
TEST5

TRST
TCK
TMS
TDO
TDI
EXMCLR
AMXCLK
ALRCLK
ASCLK
AMCLK
CLKEXT

VDD18_2

AGND

L2

C2

J2
K1
K2
L3
K3
G4
G3
H2
J3
H1
E3
F2
F3
G1
F1
B1
D2
D1
E1
D3

M13

N4

L12

B11

N9

P10

B4
A3
A2

B2
B13
B14

C3

C4
C12
C13

N1

N3
N13
N14

P13
D13
C14
A13
B12
A12

C6

B6

D6

A5

B5

P3
M12
P12
N11
P11

N6

VDD18_3

VDD18_4

VDD18_5

VSSA0

VSSA1

VSSA2

AGNDA

M2J4H3E4A4

VDDA0

VDDA18_0

VDDA18_1

U50 1

SAA7117A E

VSSA3

VXSS

VSSA4

C1

VDDA1

VSSD1

D5D9D11

E2B3C5C9D12

J12M4M8

M11

270pF

VDDA2

VDDA3

VDDA4

VDDD0

VDDD1

VDDD2

VDDD3

VDDD4

VDDD5

VDDA1A

VDDA2A

VDDA3A

VDDA4A

VSSD2

VSSD3

VSSD4

VSSD5

VSSD6

VSSD7

VSSD8

G11L4L8

L11D7D10

VDDD6

M1

AOUT

L14

IGP0

K13

IGP1

N12

ITRDY

ICLK

IDQ

IGPV

IGPH

IPD0
IPD1
IPD2
IPD3
IPD4
IPD5
IPD6
IPD7

HPD0
HPD1
HPD2
HPD3
HPD4
HPD5
HPD6
HPD7

XRDY

XDQ

XCL K

XRV

XRH

XPD 0
XPD 1
XPD 2
XPD 3
XPD 4
XPD 5
XPD 6
XPD 7

ADP0
ADP1
ADP2
ADP3
ADP4
ADP5
ADP6
ADP7
ADP8

LLC

LLC2
RTS0
RTS1

RTCO
INT_A
RESO

VSSD9

VSSD10

VSSD11

VSSD12

VSSD13

F11

J11L5L9

ICLK

M14
L13

IGPV

K14
K12

IGPH

G14
G12
H11
H14
H13
J14
J13
K11

D14
E11
E13
E12
E14
F13
F14
G13

A6
B7

XCL K

A7

VS_VPC

D8

HS_VPC

C7

X0

A8

X1

B8

X2

A9

X3

B9

X4

A10

X5

B10

X6

A11

X7

C11

N8
P8
M7
L7
P7
N7
L6
M6
P6

P4
N5
M10
N10
L10
P9
P5

NC

Option

680pF

0.1uF

LLC

R522

4.7K 1/ 16W

R523

C507

0.0027uF

X0
X1
X2
X3

X4
X5
X6
X7

INT_A 6

VDD3.3

RN501

1
2
3
4

RN502 33

1
2
3
4

8
7
6
5

DIN[ 0..23] 4,7

1
2
3
4

C541

0.1uF

R501 0 1/16W

R502 0 1/16W

R504 0 1/16W

R505 0 1/16W

Q500

PMBS3904

R511 0 1/ 16W

VIDEO_CLK 1
VIDEO_HS 1

VIDEO_VS 1

VIDEO_CLK 1
VIDEO_HS 1

VIDEO_VS 1

Option

SAA_Y 2

SAA_C 2

AV_1 2

AV_2 2

5V_A

R507

22 1/ 16W

R512

150 1/ 16W

T P V ( Top Victory Electronics Co . , Ltd. )

T1768-1-X-X-4-071116

絬 隔 瓜 絪 腹

Key Component

08 SAA7117A

Date

R508

R513

C513

0.1uF/ 16V

12K 1/ 16W

C519

+

22uF/16V

22K 1/ 16W

VDDA3.3

C531

270pF

VDDA1.8

C535

270pF

TUNER_OUT 2,4

C533

C532

680pF

C534

0.1uF

0.0027uF

C537

C536

680pF

0.0027uF

OEM MOD EL Size

HLCD-32XT

TPV MO DEL

E326MTNSW2H4N 1. 0

PCB NAME

715T1768 1

of

Sheet

111Friday , Nov ember 16, 2007

Custom

Rev

称爹

>

<

称爹

48

32’’ LCD TV Hyundai HLCD-32XT

1 3W

C591
10uF

R527
10K 1/16W

4.7K 1/16W

0.47uF/ 16V

C579

R543

100 1/ 16W

LP500

600 OHM(8P4R)

6
7
8

R532

C562

CP500
470pF

R524

R525

C566

0.47uF/16V

0 1/16W

C580 0.47uF/16V

0.47uF/16V

45
3
2
1

678

4 5

R536

R530

123

NC

C587

C5890.47uF /16V

1 3W

10

9

19
20

16

15

11
17
18

12

14

13

Earphone Jack

INL+

INL-

FS1
FS2

INR+

INR-

/SHDN
G1
G2

SS

REG

AGND

CN502
CONN

5
4
3
2
1

C5490.1uF

123

PGND

PGND

U503MAX9704

VDD

R531

R535

Q501

1

3

EAR_DET

R558 10K 1/16W

V20SW

4.3K 1/16W

C565

100pF

C576

100pF

4.3K 1/16W

3 2

EAR_R

EAR_L

0.47uF/16V

32

1

Q502

PMBS3904

R548

100K 1/16W

U502

1

INa

2

BBE1a

3

BBE2a

4

BBEOUTa

5

TONE INa

6

TONE -Ha

7

TONE -La

8

OUTa

9

AGC

10

SS-FIL

11

CVB

12

CVA

13

SDA

14

SCL

15 16

GND VC C

L507

600 OHM

R547

100 1/ 16W

R549

620 1/8W

C596

R550

3.9K 1/16W

+

C5003

10uF/16V

BBE1b

BBE2b

BBEOUTb

TONE INb

TONE -H b

TONE -Lb

OUTb

SR-FI L

VREF

AUX0

AUX1

NJW1147

9V

+

C592

C594

10uF/16V

0.1uF

U504 PT2308S

1 8

OUT1 VDD

2 7

IN1- OUT2

3 6

IN1+ IN2-

4 5

GND IN2+

R556

3.9K 1/ 16W

SD12,3,6

SC12, 3,6

BBE_R

3

2

3 2

VI VO

C593

0.1uF

C5004

4.7uF/16V 0805

C5005

4.7uF/16V 0805

C542 4.7uF/16V 0805

C544 0.0033uF

C546 0.033uF

C553 4.7uF/16V 0805

C555 0.0047uF

C557 0.1uF

C560 4.7uF/16V 0805

C563 2.2uF/16V 0805

C569 0.1uF

C573 4.7uF/16V 0805

C577 4.7uF/16V 0805

R539 100

R541 100

1

U500

4

4

GND

1

R551

3.9K 1/ 16W

R553

3.9K 1/16W

3.9K 1/16W

0.001uF

R557

R_OUT2

R560
330

D502
BAV99

12V

+

BBE_R

BBE_L

INb

CTH

CTL

30

29

28

27

26

25

24

23

22

21

20

19

18

17

C585

0.1uF

C5002

C543 4.7uF/16V 0805

C545 0.0033uF

C547 0.033uF

C554 4.7uF/16V 0805

C556 0.0047uF

C558 0.1uF

C561 4.7uF/16V 0805

C564 0.1uF

C570 4.7uF/16V 0805

C574 4.7uF/16V 0805

C578 4.7uF/16V 0805

9V

C586
10uF/16V

+

MUTE6

5V_A

C595 47uF/ 16V

+

C597

R552

3.9K

47uF/16V

+

C5000. 001uF

+

D501
BAV99

EAR_DET

47uF/16V

R554

L_OUT 2

2

10K 1/16W

EAR_R

EAR_L

10K 1/ 16W

10K 1/ 16W

3

R546

R555

R559
330

BBE_L

R533

1K

BBE_R

R538
1K

9V

R542

5.1K 1/16W

1

PMBS3906

R545

8.2K 1/16W

D500

1

2

BAV70

5V_A

L502 300 OHM

L503 300 OHM

C551

C550

0.1uF

0.1uF

4

212223

24

VDD

VDD

VDD

Heatsink

AGND

34

35

Audio_L+

Audio_L-

Audio_R+

Audio_R-

絬 隔 瓜 絪 腹

Key Component

78

PGND

PGND

CHOLDNC

32

OUTL+

31

OUTL+

30

OUTL-

29

OUTL-

26

OUTR-

25

OUTR-

28

OUTR+

27

OUTR+

6

C1P

5

C1N

Heatsink

33

AUDIO _GND

L508 300 OHM

L509 300 OHM

L510 300 OHM

L511 300 OHM

T P V ( Top Victory Electronics Co . , Ltd. )

T1768-1-X-X-4-071116

09 Amplifier / BBE

Date

+

C552

0.1uF

C559 1uF/25V

L504 15uH

L500 15uH

L505 15uH

L506 15uH

0.1uF/ 25V

C548
1000uF25V

C590

C598

470pF

0 1/ 10W

R526

0 1/ 10W

R528

0 1/ 10W

R529

AUDIO_GND

Audio_L+

C567

0.01uF/25V

0.01uF/25V
C575

C581

0.01uF/25V

0.01uF/25V
C584

C599

470pF

C5000

470pF

C571

0.1uF/ 25V

Audio_R-

C583

0.1uF/ 25V

Audio_R+

C588

0.01uF

C5001
470pF

0.01uF
C568

Audio_L-

0.01uF
C582

0.01uF
C572

100 1/ 16W

3
2
1

2
1

AUDIO_GND

OEM MODEL Size

HLCD-32XT

TPV MO DEL

E326MTNSW2H4N 1.0

715T1768 1

PCB NAME

111Friday, November 16, 2007

of

Sheet

R534

100 1/ 16W

R540

100 1/ 16W

R544

CONN

CN500

CONN

100 1/ 16W

R537

CN501

Custom

Rev

<

称爹

称爹

>

49

32’’ LCD TV Hyundai HLCD-32XT

13

STANDBY: 0
POWER ON:
1

PWR_ON6

+5VP

45

R707

22K 1/ 16W

+12VP

+

C713

10uF/16V

R715

22K 1/16W

L701

L

5V_SB

47K 1/16W

PMBS3904

Q705

45

R703

3

1

2

L705

L

47K 1/16W

Q709

PMBS3904

GND

R704

7.5K

C709

1uF/16V

13

R713

3

1

2

C701

Q702 AO4403

1
2
3
4

0.1uF

S1
S1
S1
G1

C703

47uF/16V

12VP

D1
D1
D1
D1

0.1uF

C706

5V

8
7
6
5

+

C712

0.1uF

Q700 AO4403

1

S1

2

S1

3

S1

4

G1

C718 0.1uF

R708
3K 1/10W

8

D1

7

D1

6

D1

5

D1

12V

R709
22K 1/16W

C714

10uF/16V

47K 1/ 16W

Q706

PMBS3904

L700

+

R701

3

1

2

300 OHM

3 2

C716

0.1uF

5V_SB

1
2
3
4

R705

7.5K

C710

1uF/16V

12VSW

AP1117E50A
56T 585 9

U701

VI VO

GND

1

Q703 AO4403

S1

D1

S1

D1

S1

D1

G1

D1

C704 0.1uF

C707

47uF/16V

12VP

4

4

8
7
6
5

C717

0.1uF

+

5V_SB

EX_5V

L704

5V_A

R710
3K 1/ 10W

L706

+

C715

10uF/16V

NC

300 OHM

+20V

47K 1/16W

R706

22K 1/ 16W

Q704

PMBS3904

C711 0. 068uF/16V

1
2
3
4

R711
10K

Q708

PMBS3904

2

R702

1

Q707

R712

1

3

0 1/ 16W

2

S1
S1
S1
G1

AO4403

100K 1/16W

10K 1/ 16W

R700

D1
D1
D1
D1

R714

C708

NC

8
7
6
5

Q701 AO4403

1

S1

2

S1

3

S1

4

G1

C702 0.1uF

L702

V20SW

8

D1

7

D1

6

D1

5

D1

C705

10uF/35V

300 OHM

PVDD 4

PANPWR _ON 6

+

5V_SB

C719

22uF/16V

AP1117E3.3A

U702

3 2

VI VO

+

C720

0.1uF

4

4

C721

22uF/16V

+

GND

1

L707 600 OH M

C722

0.1uF

50

3.3V_SB

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

T1768-1-X-X-4-071116

10 POWER_1

Date

OEM MO DE L Size

TPV MODEL

PCB NAME

HLCD-32XT

E326MTNSW2H4N 1.0

715T1768 1

111Friday , Novem ber 16, 2007

Sheet

of

Rev

称爹

<

称爹

Custom

>

32’’ LCD TV Hyundai HLCD-32XT

U703
AIC1084-33CE

C723

+

10uF/16V

C732

0.1uF

+

C739
10uF/16V

AZ1117H-1.8

3 2

300 OHM

C759

22uF/16V

TO-252

OUTIN

GND

1

AP1117E33LA

U709

VI VO

GND

1

+

23

U705

OUTIN

GND

1

U707

AP1117E33LA

OUTIN

GND

1

4

4

VR1_8

C760

0.1uF

L708 300 OHM

23
4

4

C733

22uF/16V

23
4

4

L717

600 OHM

Sil9021

1.8V
Power

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C724

22uF/16V

+

L718

600 OHM

22uF/16V

+

3V3S

C734

Sil9021

0.1uF

3.3V
Power

L713

600 OHM

L715

600 OHM

C748

+

C754

22uF/16V

T1768-1-X-X-4-071116

11 POWER_2

VD3_3

C725

0.1uF

C737

22uF/16V

C746

22uF/16V

VDDA1.8

VDD1.8

0.1uF

0.1uF

+

C752

C755

SVP-EX 3.3V
Standby
Power

VDDA3.3

3.3V Power for

C738

SAA7117A

0.1uF

ANALOG

VDD3.3

3.3V Power

C747

for

0.1uF

SAA7117A

1.8V Power for
SAA7117A
ANALOG

1.8V Power
for
SAA7117A

HLCD-32XT

OEM MO DEL Size

TPV MOD EL

E326MTNSW2H4N 1.0

715T1768 1

PCB NAME

111Friday , November 16, 2007

Sheet

of

Custom

Rev

<

称爹

称爹

>

C740

0.1uF

5V

EX_5V

+

C743

22uF/16V

C729
22uF/16V

R717 4.7 2W

C726

10uF/16V

+

R730 NC

R719 4.7 2W

C730

0.1uF

U712

AIC1084- 33PM

OUTIN

GND

1

56T 563 44

U704

AME8815BE-250Z

3 2

VI VO

GND

1

56T 563 44

U706

AME8815BE-250Z

3 2

VI VO

4

GND

1

R731 NC

23

4

4

C727

47uF/16V

4

C735

47uF/16V

+

C762

10uF/16V

TO-252

U708
AIC1084-18CE

OUTIN

GND

1

TO-252

U710
AIC1084-18CE

OUTIN

GND

1

+

+

AIC1084-18CE

23

VL1_8a

23

10uF/16V

2.5V

VDDMQ

L709

0 OHM 1/8W

C728

0.1uF

Power for DDR
IO PADS

2.5V

VDDM

L711
0 OHM +-5% 1/8W

C736

0.1uF

Power for DDR
Core Logic

U700

23

OUTIN

GND

1

VA1_8a

L716 300 OH M

C749

10uF/16V

L719 300 OH M

C756

10uF/16V

C757

10uF/16V

L714 30 0 OHM

+

C744

10uF/16V

VA1_8

C750

VL1_8

C758

0.1uF

C742

47uF/16V

C751

0.1uF

EX_5V

R716 2.2 2W

5V_SB

L710 300 OH M

+

C731

10uF/16V

5V

VD1_8

+

C745

0.1uF

5V_SB

R718

10 2W

+

C761

10uF/16V

L721

NC

U711

3 2

VI VO

4

GND

1

L712 300 OH M

4

L720

C753

0.1uF

51

32’’ LCD TV Hyundai HLCD-32XT

9.2 Power Board

715T1180-3

!

1

!

+

BD901
D10XB60

2

-

4

RV901

!

NC

1 2

2 3

L904

20.0MH

!

1 4

!

!

C903

C904

470PF/250V

470PF/250V

C902

0.47uF/275 V

!

R901

R902

680KΩ 1/4W

680KΩ 1/4W

!

!

124

L903
L

!

3

!

!

C919

C918

NC

NC

2 3

L905

2.0MH

!

1 4

!

C901

0.22uF/275 V

L902

!

200uH

F901

!

FUSE

CN903

!

CONN

L

N

1
2

1 2

2
1

CN901
NC

3

!

C915

L951
BEAD

C908

0.01uF/50 0V

876

VCC

INV

123

R934
1KΩ 1/8W

C937

0.1uF

D908
LL4148

GD

COMP

C946
33NF 50V

R953
56KΩ 1/8W

C938

0.1uF

D927
SP10150

1

3

D928
FME-220A

1

3

R935

4.7KΩ 1/8W

R973
47Ω 1/4W

C942

0.0022uF/ 1KV

R948
33Ω 1/8W

D944
LL4148

5

GND

VFF

4

R931
1KΩ 1/8W

ZCD

CS

0.001uF/ 250V

R947
0Ω 1/8W

+

C944
47uF/50V

Q922
PMBS3904

2

2

C943
NC

D901
ML35PT

D902

L906

FMX-G26S

COIL

6

C920

0.1uF

R974
33Ω 1/4W

+

C909
10uF/50V

C913

0.01uF

12 5

R903
68KΩ 1/8W

R946
33Ω 1/4W

7

10 8

VCC

VSENSE

123

R910
10KΩ 1/8W

R936

22Ω 1/8W

47Ω 1/8W

678

GND

GTDRV

VAOUT

MULTIN

ISENSE DET IN

4 5

C911 0.001uF

R929
33Ω 1/4W

R904

TDA4863-2G

C912

0.47uF/25 V

R906

C905

620KΩ 1/4W

1uF/450V

R907
620KΩ 1/4W

R908
0Ω 1/4W

3

R909
10KΩ 1/8W

L901
200uH

!

CN904

!

N
L

CONN

!

IC901

D923
LL4148

RJ901
0Ω 1/4W

D904
LL4148

!

NR901
NTCR

C926

0.047uF/4 00V

R933
470Ω 1/8W

C927

0.001uF

10KΩ 1% 1/8W

R956
NC

C928
NC

C921

0.01uF/1KV

NR902
NTCR

R940

C929
NC

!

!

!

Q901
2SK3523-01R

R905

0.27Ω 3W

D906
LL4148

D905
LL4148

R926
2MΩ 1/4W

R927
2MΩ 1/4W

IC981

TOP246 Y N

R928

5.6KΩ 1/4W

+

C907
180uF/420V

R914

19.1KΩ 1% 1/8W

L921
BEAD

1 2

3

X

S

4

R919

0.27Ω 3W

R923
1MΩ 1% 1/4W

R924
1MΩ 1% 1/4W

2

L

1 11

D920
BA159GPT

3

5

4

R968
100Ω 1/4W

+

IC941

E-L6565D

R964

100KΩ 1/8W

!

T921
XFMR

IC922
PC123Y22F ZOF

43

!

!

43

C953

0.1uF

1 2

C945
47uF/50V

12
7

8
9
10

12

IC923
AZ431AZ-AE1

12

IC925
PC123Y22F ZOF

R911

C964

330KΩ 1% 1/4W

0.01uF

R912
330KΩ 1% 1/4W

R913
330KΩ 1% 1/4W

C920

0.1uF

7

D

1

C

F

5

R925

6.8Ω 1/8W

C924

0.1uF

+

C925
47uF/50V

C922

0.0022uF/ 1KV

+

C923
10uF/50V

D922
UF4003PT

R921
100KΩ 2W

BA159GPT

D924
LL4148

Q926
2N5060RLRAG

R982
NC

R981
NC

C952
NC

D921

R922
0Ω 1/8W

ZD921
RLZ6.8B

1 2

R967

2.2KΩ 1/8W

R945

47KΩ 3W

D941
BA159GPT

D942
BA159GPT

Q941
STP10NK70ZFP

R950

0.39 OHM +-10% 2W

R952

6.8KΩ 1/8W

12

J932

NC

+

C932
1000uF/10V

R938
470Ω 1/4W

C936

0.01uF

D943

UF4003PT

R949

27KΩ 1/8W

!

C970

0.001uF/25 0V

C941

0.01uF/1KV

L922

3.3uH

C930
1000uF/35V

+

L923

3.3uH

+

C933
1000uF/10V

ZD941
NC

R951

2.4KΩ 1/8W

6

5

4

1

2

+

+

!

T951

POWER X'FMR

IC942
PC123Y22FZOF

43

!

43

!

C931
220uF/35V

C934
220uF/25V

7

10
8

11
9

12

R962
1KΩ 1/4W

12

R965

10KΩ 1/8W

IC943
AZ431AZ-AE1

12

IC924
PC123Y22F ZOF

Q924
DTC144WKA

R932
51KΩ 1% 1/8W

R920
10KΩ 1% 1/8W

213

213

R963
NC

14

Q942
IRFB38N20DPbF

Q943

IRFB38N20DPbF

C959

0.33uF/25 V

R937
680Ω

R966
1KΩ

C939

0.1uF

R930
280KΩ 1% 1/8W

23

L952
L

R915

4.7KΩ 1/4W

C914

0.1uF

+

D946
LL4148

10 1/10W

D947
LL4148

R955
10Ω 1/8W

P1-1

P2-1

C948

1000uF/35V

R954

RJ905
8m

L953

1 2

+

+

+

C949

C950

1000uF/35V

1000uF/35V

Q947
KTC945P

Q948
KTA733P

C958

470pF/50V

ZD931
PTZ9.1B

1 2

ZD944

ZD945

RLZ15B

D926
LL4148

RLZ24B

1 2

D925
LL4148

1 2

ZD942

C951

1000uF/35V

PTZ13B

1 2

+

C957
10uF/50V

Q945

D949

KTC945P

LL4148

R958
2KΩ 1/8W

P1-1

P2-1

R960
13KΩ 1/8W

R961

1.5KΩ 1/8W

R957
20Ω 1% 1/8W

D951
LL4148

Q946
KTA733P

R959

11.5KΩ 1% 1/8W

ZD946
RLZ27B

1 2

D945
LL4148

FOR BACKLIGHT 24V/5A

112uH

+

C955

C956

470uF/35V

0.1uF

R976

R975

NC

NC

3

4

IC927
NC

Vip

Vin

15

outVcc

Vss

2

R916

3.3KΩ 1/4W

1
2
3
4
5
6
7
8

9
10
11
12
13

R978
NC

CN931

R979
NC

NC

R917

3.3KΩ 1/4W

20V/1.2A
12V/1.5A
5V/3.2A

R977
NC

Q923
NC

CN951

1
2
3
4
5
6
7

R918

8
9

NC

10

NC

CN952

1
2
3
4
5
6
7
8

9
10
11
12

CONN

CN921

1

2

3

4

5

6

7

8

9
10
11
12

CONN

52

T P V ( Top Victory Electronics Co . , Ltd. )

T1180-3-X-X-3-051707

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

OEM MODEL Size

Gradiente 32

TPV MODEL

E326MTNSW2H4N 3.0

PCB NAME

715T1180-3

of

22Friday , May 18, 200 7

Sheet

Custom

Rev

<

称爹

>

称爹

32’’ LCD TV Hyundai HLCD-32XT

9.3 Tuner Board

715T2275-2

COMP_R1

COMP_Y1

COMP_PB1

COMP_PR1

ZD102
UDZS5.6B

1 2

AGND

AV_22

AV_2

C150

22pF

AGND

CH_SEL2

0

0

1

1

1 2

C151

22pF

L118

1 2

ZD100
UDZS5.6B

1 2

C153

C152

22pF

22pF

U100

CH_SEL1

0

1

0

1

L100

1 2

120 OHM

C140

ZD101
UDZ S5.6B

L119

1 2

R156
75Ω 1/10W

68pF

120 OHM

L121600 OHM

L122600 OHM

L123600 OHM

L124600 OHM

COMP

SVIDEO_C

SVIDEO_Y

75Ω 1/10W

L116

120 OHM

AGND

COMP_R1

COMP_L1

A_I

AV1

AV2

DVD

COMP_L1

R137

1 2

1 2

120 OHM

C141
68pF

AGND

AV2_L

AV2_R

AV1_R

AV1_L

L114

C142
68pF

600 OHM

L113

1 2

120 OHM

R138
75Ω 1/10W

AGND

5

2 4

7 9

1

6

AGND

C144 10uF /16V

+

C145 10uF /16V

+

C146 10uF /16V

C147 10uF /16V

AGND

L111

1 2

600 OHM

L112

1 2

120 OHM

C132
68pF

10

15

12 1438

13

11

AV2_R_S
AV2_L_S
AV_2_S

R154

0Ω 1/8W

+

+

C148 10uF /16V

C149 10uF /16V

C137

68pF

AGND

J103

JACK

AGND

5
6
7
8

47K 1/16W

+

+

5
6
7
8

RN102

47K 1/16W

R153

0Ω 1/8W

RN101

4
3
2
1

AGND

C131
470pF

C133
68pF

AGND

4
3
2
1

J101JACK

7 8

2 3

1 4

5 6

C135
470pF

AGND

J102

2 3

5 6

C143
68pF

switch

8 914

7

JACK

9

L120

1 2

RN100

5
6
7
8

47K 1/16W

8V

LL4148-GS08

5
6
7
8

47K 1/16W

120 OHM

RN103

4
3
2
1

D100

470pF

AGND

75 1/ 16W

4
3
2
1

100 1/16W

C165

68pF

AGND

C167
330pF

AGND

5V_A

R134

1K 1/ 16W

SD1 3,4

SC1 3,4

CH_SEL2

CH_SEL1

C166
330pF

12V_T

L_OUT 4
R_OUT 4

HDMI_R 4
HDMI_L 4

PC_R 4
PC_L 4

VIDEO_OU T 2

11Thursday , May 31, 2007

CH_SEL4 2

CH_SEL3 2

CN104

1
2
3
4
5
6

CONN

5V_A

of

A

R131 10K 1/ 16W

R133 10K 1/ 16W

R132
0Ω 1/8W

R139 10K 1/16W

100 1/16W

R140

R145

100 1/16W

C134

L115

1 2

600 OHM

L117

1 2

C139

470pF

CH_SEL1
CH_SEL2

C162

+

10uF/16V

AV_1 2

AV1_R1
AV2_R1

COMP_AR1

I_DVD_AR1

AV1_L1
AV2_L1

COMP_AL1

I_DVD_AL1

C163

0.1uF

AGND

600 OHM

U100 74HC4052D

12

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

10

A

9

B

6

EN

7

VEE

16

VDD

C138

AGND

R155

AGND

10uF/16V

+

+

C136

10uF/16V

13

A_1_R 4

X

3

A_1_L 4

Y

GND

8

AGND

LINE_O_L 4

LINE_O_R 4

CVBS_SEL_12

TUN ER _OU T3

COMP_Y1
COMP_PB1
COMP_PR1

AV_22
AV_12

SD13,4

SC13,4

U105 PC A9554PW

1

A0

2

A1

3

A2

4

I/O0

5

I/O1

6

I/O2

7

I/O3

8 9

VSS I/O4

OPTION

AV2_L_S

AV2_R_S

SVIDEO_Y

SVIDEO_C

AV_2
AV_1

AGND

TPV(Top victory) Electronics Co.,ltd.

Tit le

01 I/O Connect

Size Document Number Rev

A3

T2275-2-X-X-1-070531

Date: Sheet

AV_2_S

L126

L127

36
34
32
30
28
26
24
22
20
18
16
14
12
10

VDD

SDA

SCL

INT

I/O7

I/O6

I/O5

L125

300 OHM

300 OHM

J100

8
6
4
2

CONN

16

15

14

13

12

11

10

80 OHM

R142 100 1/ 16W

R144 100 1/ 16W

R146

R147 100 1 /16W

AGND

35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1

53

32’’ LCD TV Hyundai HLCD-32XT

AV_11

AV_21

CH_SEL31
CH_SEL41

5V_A

L107

600 OHM

SUBW OOFER_OUT4

C121

+

10uF/ 16V

+

C101

C123

+

10uF/ 16V

0.1uF

10uF/16V

C120

AGND

1
3
5

2
4

6

C124

0.1uF

U104

VIN1
VIN2
VIN3

SW1
SW2

V+

VOUT

GND

NJM-2244M-PF

8

7

CVBS_SEL_1

CVBS_SEL_1 1

SW1 SW2

0

1

U104

0

0

CVBS_SEL_I

AV1

AV2

JACK

470pF

AGND

R157

0 1/10W

AGND

CN 101

C125

R160

1

2

3

L108
120 OHM

R126

NC

C128
68pF

AGND

100K 1/16W

AGND

0Ω 1/10W

NC

C126

+

470uF/ 16V

AGND

C168
100pF

R124
75Ω 1/8W

VID EO_OUT 1

TPV(Top victory) Electronics Co.,ltd.

Tit le

02 Vi d e o & Aud i o s el

Size Document Number Rev

A4

T2275-2-X-X-1-070531

Dat e: Sheet

11Thursday , May 31, 2 007

A

of

54

32’’ LCD TV Hyundai HLCD-32XT

TU10 0

12V_T

R103
10Ω 3W

R104
10Ω 3W

+

1 2

1 2

AGND

C154
10uF/16V

L130

600OHM

L131

600OHM

1

ADJ/GN D

AZ1117D-5. 0-E1

AGND

ANT IN

+5V

SCL

3

C158

470uF/16V

SDA

4

5

AGND

C159

+

0.1uF/16V

N.C.

N.C.

2131

SC11,4

SD11,4

U101

23

OUTPUTINPUT

C155

100uF/16V

AGND

+

L132

1 2

600OHM

R120 0Ω 1/10W

R121 0Ω 1/10W

5VT

C156

0.1uF/ 16V

AGND

AGND

L128

1 2

600 OHM

L129

200uH

C157

0.1uF/ 16V

NC

C130
100pF

C129

NC

100pF

AS_TU

R122
1KΩ 1/10W

9126

NC

+

AS_IF

10

C161

47pF

C160

100uF/16V

AGND

2ND IF SOUND

11

R115
75Ω 1/10W

CVBS

+5V,IF

TH1

TH2

TH3

TH4

AF/MPX

14

R119

75Ω 1/10W

AGND

SIF_IN 4

TUNER_OUT 1

55

TPV(Top victory) Electronics Co.,ltd.

Tit le

03 Phi lips _tu ner

Size Docu ment Number Rev

A3

T2275-2-X-X-1-070531

Date: Sheet

11Thursday , May 31, 2007

A

of

32’’ LCD TV Hyundai HLCD-32XT

12V_T

R606 NC

R607 NC

C601 100pF

5VT

L602

600 OHM

1K 1/ 16W

AGND

R603

AGND

C606

5pF

C607
5pF

X600

18.432MHz

56pF

56pF

C646

C608

C609
56pF

C610

100uF/16V

+

C604

C602

5VT

L601

600 OHM

+

C611

470pF

C600

0.0015uF

10uF

0.1uF

AGND

SIF_I N3

AZ1117H-AD J-E1
U600

3

VIN

1

ADJ

VOUT

2

AGND

L600

600 OHM

R602

120 1/ 16W

R604

620 1/ 8W

C605

0.1uF

8V

AGND

+

C603

10uF/16V

5VT

R614

4.7K 1/16W

+

SUBWOOF ER_OUT2

SC11, 3

SD11,3

C618

10uF/16V

C629
22uF/16V

AGND

R_OUT1

L_OUT1

+

C620

0.0015uF

R609

100 1/ 16W

R611

100 1/ 16W

C621

220pF

AGND

C622

470pF

R622

100 1/ 16W

R623

100 1/ 16W

R621
100Ω 1/10W

U601

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

C640

0.001uF

+

64

NC

SCL
SDA
I2S_CL
I2S_WS
I2S_DA_OUT
I2S_DA_IN1
ADR_DA
ADR_WS
ADR_CL
DVSUP
DVSS
I2S_DA_IN2
NC
NC
NC
RESETQ

ADR_SEL

STAND BYQ

D_CTR_I/OUT1

D_CTR_I/OUT0

MSP3425G-QI-B8-V3

NCNCVREF2

DACM_R

DACM_LNCNCNCNCNCVREF1

171819202122232425262728293031

C642

C641

0.001uF

AGND

C643
47uF/16V

TP

NCNCNC

AGND

0.001uF

C644

0.001uF

470 1/ 16W

470 1/ 16W

C627

330pF

R608

470 1/ 16W

R610

470 1/ 16W

R612

R613

R615

470 1/ 16W

R617 470 1/16W

A_1_R 1

A_1_L 1

PC_R 1

PC_L 1

HDMI_R 1
HDMI_L 1

11Thursday , May 31, 2007

A

of

495051525354555657585960616263

AVSUP

AVSS

MON _IN

ASG

ASG

AGNDC

AHVSS

CAPL_M

32

C633

10uF/16V

+

100 1/ 16W

100 1/ 16W

C645

0.001uF

NC
NC
NC
NC
NC

+

R619

R620

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

C635

0.0015uF

C619 1uF /16V

ANA_IN -NCTESTEN

XTAL_IN

ANA_IN 1+

XTAL_OUT

VREFTOP

SC1_IN _R

SC1_IN _L

SC2_IN _R

SC2_IN _L

SC1_OUT _R

SC1_OUT _LNCAHVSUP

C639

10uF/16V

AGND

C612

0.1uF

+

C623

C613

+

10uF/16V

+

1uF/16V

C628

0.1uF

+

C630

3.3uF/ 16V

+

C636
470pF

LINE_O_L 1

LINE_O_R 1

AGND

AGND

C634

10uF/16V

L603

600 OHM

+

C614

1uF/16V

+

C615

1uF/16V

+

C616

1uF/16V

+

C617

1uF/16V

330pF

C631

330pF

C625

C626

330pF

C632

330pF

AGND

C624

330pF

AGND

8V

TPV(Top victory) Electronics Co.,ltd.

Tit le

04 AUDIO Processor __MSP3455G

Size Doc ument Number Rev

A4

T2275-2-X-X-1-070531

Date: Sheet

56

32’’ LCD TV Hyundai HLCD-32XT

10. Exploded View

57

32’’ LCD TV Hyundai HLCD-32XT

Item Part No. Description Quantity

1 Q34T1833 RGK2LA000 BEZEL 1

2 Q33T5022 1 1CA000 LENS_POWER 1

3 Q33T5021 ED 1CB000 IR LENS 1

4 IRPFJA6P IR BOARD 1

5 078T 451 2 Y SPEAKER 2

6 015T8221 2 BKT HOLD PANEL 4

7 750TVMN0B1421N PANEL V320B1-L04 C2 TW CMO 1

8 Q15T0063 2 BKT HOLD PANEL 2

9 Q15T0064 1 BKT HOLD PANEL 1

10 015T8216 1 BKT R SIDE 1

11 015T8214 1 BKT MAIN 1

12 015T8215 1 BKT LSIDE 1

13 015T8270 2 BKT-PCB-SUPPORT-1 1

14 W33T6381CGM 1A COVER CARD READER 1

15 ADPF24180A4P POWER BOARD 1

16 033T6301A14 2C PC PLATE ON TOP 1

17 033T4823 RG L ID1 FUN KEY 1

18 Q34T1660 GM 2A 30 REAR COVER 1

19 Q34T6410 GM 1A COVER HINGE 1

20 Q34T1661 GM 1A COVER CABLE 1

21 085T 717 4 SHIELD 1

22 015T8223 6 BKT CONNECTOR 1

23 CBPF6T1SQ3 MAIN BOARD 1

24 085T 717 4 SHIELD 1

25 Q34T1666 GM 1A COVER HINGE BUTTOM 1

26 012T 394 3 RUBBER FOOT 4

27 Q15T8304 1 BASE BKT 1

28 Q34T1835 RG 1L 33 BASE 1

29 034T1860 RG L STAND 1

30 Q15T6353 1 BKT STAND 1

31 KEPFF60KA2P KEY BOARD 1

32 015T8225 1 BKT KEY PAD 1

33 0Q1T1030 8120 SCREW 8

34 0Q1T1030 6120 SCREW 2

35 0M1T 940 6120 SCREW 26

36 0Q1T 340 10120 SCREW T3X6 17

37 0M1T 330 4120 SCREW 16

38 001T6017 2 GP SCREW 3

39 0Q1T 140 8120 SCREW 4

40 0M1T 330 6120 SCREW 2

41 0Q1T 930 6120 SCREW 6

42 0Q1T 340 10 47 CR3 SCREW 8

43 0M1T1730 6120 SCREW 3*6MM 12

44 0M1T1140 6120 SCREW 4*6MM 1

45 0M1T 340 8 47 CR3 SCREW 6

46 0Q1T 330 6120 SCREW 5

58

32’’ LCD TV Hyundai HLCD-32XT

11. BOM List

E326MTNSW2H4N

Location Part No. Description

007T 5 L 9 COMPOUND PALLET

007T 6 L 38 COMPOUND PALLET

011TP004 1 CLIP WIRE DIA 10.9

015T5908 2 BRACKET

015T8214 1 BKT MAIN

015T8215 1 BKT LSIDE

015T8216 1 BKT R SIDE

015T8217 1 BKT LONG

015T8221 2 BKT HOLD PANEL

015T8223 6 BKT CONNECTOR

015T8270 2 BKT-PCB-SUPPORT-1

026T 800504 3 BARCODE LABEL

040T 581 26704 SHIPPING LABEL

041T 68508 A CONTROL CARD

044T3A08 1 EPS

044T3A08 2 EPS

044T3A08 3 EPS

044T3A08 4 EPS

044T6000 4 6B SPACE PAPER

044T6002 1A PAPER BOARD

044T6002861 2A PAPER BOARD

044T9003 1 CORNER PAPER

044TZ001200 4B PIZZA BOX

045T 77 3 PE PACKING

049T 51 1A ERADICATOR

050T 500 1 CABLE TIE

050T 500 1 CABLE TIE

050T 600 1 W WHITE STRAPE

052T 1150 C BLACK TAPE

052T 1185 MIDDLE TAPE FOR CARTON

052T 1211 A ADHESIVE TYPE

052T 1211 B ADHESIVE TYPE

052T 2191 A TAPE

078T 451 2 Y SPK 8OHM 15W SU

085T 717 4 SHIELD

E08904 089T 17356C554 AUDIO CABLE

089T 725GAA DB D-SUB

052T 1186 SMALL TAPE

59

32’’ LCD TV Hyundai HLCD-32XT

089T408A18N IS POWER CORD WALL-OUT FOR ITALY

095T8014 5 47 HARNESS

095T8014 14664 WIRE HARNESS

095T8014 2D533 WIRE HARNESS

095T8014 3D551 WIRE HARNESS

095T8014 8D651 WIRE HARNESS

095T8018 3506 LVDS CABLE

098TRABD1NE F REMOTE CONTROL FUHUA

0M1T 330 4120 SCREW

0M1T 330 4120 SCREW

0M1T 330 4120 SCREW

0M1T 340 8 47 CR3 SCREW

0M1T 940 6120 SCREW

0M1T 940 6120 SCREW

0M1T 940 6120 SCREW

0M1T 940 6120 SCREW

0M1T 940 8120 SCREW

0M1T1140 6120 SCREW 4*6MM

0M1T1730 6120 SCREW 3*6MM

0Q1T 330 6120 SCREW

0Q1T 340 10 47 CR3 SCREW

0Q1T 340 10120 SCREW T3X6

0Q1T 340 10120 SCREW T3X6

0Q1T 340 10120 SCREW T3X6

0Q1T 340 10120 SCREW T3X6

0Q1T 930 6120 SCREW

0Q1T1030 6120 SCREW

0Q1T1030 8120 SCREW

705TQ734081 BEZEL ASS'Y

Q33T5021 ED 1CB000 IR LENS

Q33T5022 1 1CA000 LENS POWER

Q34T1833 RGK2LA000 BEZEL

705TQ734082 STAND ASS'Y

012T 394 3 RUBBER FOOT

034T1860 RG L STAND

0M1T 330 6120 SCREW

0Q1T 140 8120 SCREW

Q15T6353 1 BKT STAND

Q15T8304 1 BASE BKT

Q34T1835 RG 1L 33 BASE

Q34T6410 GM 1A COVER HINGE

60

32’’ LCD TV Hyundai HLCD-32XT

705TQJK0B34050 BACK COVER ASS'Y

011T 176 1 RL WIRE HOLDER

015T8225 1 BKT KEY PAD

033T4823 RG L ID1 FUN KEY

033T6301A14 2C PC PLATE ON TOP

044T3121510506 SPONGE

044T3121510514 SPONGE

0M1T 330 4120 SCREW

0Q1T 330 6120 SCREW

0Q1T 330 6120 SCREW

KEPFF60KA2P KEY BOARD

CN1 033T8032 4C WAFER 1.25MM SMT 4P

R5 061T0603000 CHIP 0OHM 1/16W

R4 061T0603100 1F RST CHIPR 1 KOHM +-1% 1/10W

R2 061T0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W

R1 061T0603220 1F RST CHIPR 2.2 KOHM +-1% 1/10W

R8 061T0603220 2F RST CHIPR 22 KOHM +-1% 1/10W

R6 061T0603330 1F RST CHIPR 3.3 KOHM +-1% 1/10W

R3 061T0603390 0F RST CHIPR 390 OHM +-1% 1/10W

R7 061T0603680 1F RST CHIPR 6.8 KOHM +-1% 1/10W

C1 065T0603101 32 CHIP 100PF 50V X7R

C2 065T0603101 32 CHIP 100PF 50V X7R

L2 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA

L1 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA

S5 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S6 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S7 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S3 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S4 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S2 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

S1 077T 604 2 TO CHIP TACT SW TS-9-TMG-533

D1 093T 6433P BAV99

715T1623 1 KEY BOARD PCB

Q34T1660 GM 2A 30 REAR COVER

W33T6381CGM 1A COVER CARD READER

705TQJK0M34026 A4 ASS'Y

HJPFA60A7P HEADPHONE JACK BOARD

CN1 033T3802 5H WAFER 5P RIGHT ANELE PI

J1 088T 30230C PHONE JACK

GND 095T 900 53 HARNESS 95MM

C2 065T0603471 31 CHIP 470PF 50V NPO

61

32’’ LCD TV Hyundai HLCD-32XT

C1 065T0603471 31 CHIP 470PF 50V NPO

C3 065T0603472 32 CHIP 4700PF 50V X7R

FB1 071T 56U601 BEAD 600 OHM

FB3 071T 56U601 BEAD 600 OHM

FB2 071T 56U601 BEAD 600 OHM

715T1290 1 5 PCB FOR HJPF

E750 750TVMN0B1421N PANEL V320B1-L04 C2 TW CMO

ADPF24180A4P ADAPTER ASS`Y

CN951 033T3802 10 PLUG

CN952 033T3802 12 WAFER PH-12

040T 45762420A S/N LABEL

IC942 056T 139 3A IC PC123Y22FZ0F

IC925 056T 139 3A IC PC123Y22FZ0F

IC924 056T 139 3A IC PC123Y22FZ0F

IC922 056T 139 3A IC PC123Y22FZ0F

NR901 061T 58030 W RST NTCR 3 OHM 5A THINKING

NR902 061T 58030 W RST NTCR 3 OHM 5A THINKING

R950 061T 20K398GB1 CEMENTR 0.39 OHM +-10% 2W

R921 061T152M10458G6267 100K OHM 5% 2W

R905 061T153M27858G6267 0.27 OHM 5% 3W

R945 061T153M47358G6267 47K OHM 5% 3W

C901 063T 10722410S 0.22UF 275VAC X2

C905 063T213J105GFA MPF CAP

C926 064T400K473 57 MPF CAP

C922 065T 1K222 2A6213 0.0022UF/1KV

C942 065T 1K222 2A6213 0.0022UF/1KV

C921 065T 1M103 3T6921 0.01UF 20% 1000V Y5V

C903 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C904 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C915 065T306M1022BM Y1.CAP.001UF 250VAC MURATA

C970 065T306M2222BP Y1.CAP.0022UF 250V AC

C907 067T 40K18116K 105C EC SHAP-IN

C930 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM

C948 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM

C949 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM

C950 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM

C951 067T215L102 6N EC 1000UF 35V KY35VB1000M-L 12.5*25MM

C932 067T215L1024NL KY25VB1000M-L 10*25MM

C933 067T215L1024NL KY25VB1000M-L 10*25MM

C934 067T215L221 4R LOWE.S.R 220UFM 25V

C931 067T215L221 6N KY35VB220M-L 8*15MM

62

32’’ LCD TV Hyundai HLCD-32XT

C955 067T215L471 6N KY35VB470M-L 10*20MM

L906 073L 174 44 TG CHOKE COIL

L953 073L 174 46LSG FILTER

L952 073L 174 47LSG LINE FILTER

L903 073L 174 48 LG LINE FILTER

L904 073L 174 49LSG LINE FILTER

L905 073L 174 52LSG CHOKE COIL

L902 073L 253156 LH CHOKE COIL

L901 073L 253156 LH CHOKE COIL

L923 073T 253155 L CHOKE

L922 073T 253155 L CHOKE

T951 080LL26T 2 TG X'FMR

T921 080LL26T 3 TG XFMR

D922 093T 6038P52T PS102R

D943 093T 6038P52T PS102R

D920 093T1100 1052T BA159GPT

D921 093T1100 1052T BA159GPT

D941 093T1100 1052T BA159GPT

D942 093T1100 1052T BA159GPT

RJ905 095T 90 26 WIRE HARNESS

CN921 095T8013 12633 HARNESS

705L F94 56 01 IC981 ASS'Y

IC981 056T 379 40 TOP246YN T0-220-7C

090T 427 1 HEAT SINL

0M1T1730 8120 SCREW

705L F94 57 02 Q942/Q943/D927/D928 ASS'Y

005T 42 1 CUSHION

012T 372 1 SILICON

Q943 057T 600 42 IRFB38N20D TO-220AB

Q942 057T 600 42 IRFB38N20D TO-220AB

090T 428 1 HEAT SINK

D927 093T 60245 SP10150

D928 093T 60247 DIODE FME-220A TO-220 SANKEN

0M1T1730 10120 SCREW

705L F94 57 04 Q901/Q941/D902 ASS'Y

012T 372 2 SILICON

Q901 057T 667 19 2SK3523-01R

Q941 057T 667 21 STP10NK70ZFP

090T 426 5 HEAT SINK

D902 093T 220 22 DIODE YG972S6R TO-220F FUJI

0M1T1730 8120 SCREW

63

32’’ LCD TV Hyundai HLCD-32XT

0M1T1730 10120 SCREW

705L F94 61 01 R919 ASS'Y

R919 061T153M27858G6267 0.27 OHM 5% 3W

096T 29 8 TUBE

705L F94 87 02 CN901 ASS'Y

CN901 087T 501 22 RF AC SOCKET

095T 900619 WIRE HARNESS

096T 29 4 SHRINK TUBE UL/CSA

705L F94 93 01 BD901 ASS'Y

090T 425 1 HEAT SINK

BD901 093T 50460 18 D10XB60

0M1T1730 10120 SCREW

IC941 056T 379 38 IC IC E-L6565DTR SO-8 BY ST

IC901 056T 538 8 TDA4863-2G SO-8

Q922 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q924 057T 760 5 DTC144WKA BY FOHM SMT

R922 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R944 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R947 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R954 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R955 061T0805100 RST CHIPR 10 OHM +-5% 1/8W

R920 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W

R940 061T0805100 2F RST CHIPR 10 KOHM +-1% 1/8W

R931 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R934 061T0805102 RST CHIPR 1KOHM +-5% 1/4W

R909 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R910 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R965 061T0805103 RST CHIPR 10 KOHM +-5% 1/8W

R964 061T0805104 RST CHIPR 100 KOHM +-5% 1/8W

R959 061T0805115 2F RST CHIPR 11.5 KOHM +-1% 1/8W

R960 061T0805133 RST CHIPR 13 KOHM +-5% 1/8W

R961 061T0805152 RST CHIPR 1.5 KOHM +-5% 1/8W

R914 061T0805191 2F RST CHIPR 19.1 KOHM +-1% 1/8W

R957 061T0805200 9F RST CHIPR 20 OHM +-1% 1/8W

R958 061T0805202 RST CHIPR 2 KOHM +-5% 1/8W

R936 061T0805220 RST CHIPR 22 OHM +-5% 1/8W

R967 061T0805222 RST CHIPR 2.2 KOHM +-5% 1/8W

R951 061T0805242 RST CHIPR 2.4 KOHM +-5% 1/8W

R949 061T0805273 RST CHIPR 27 KOHM +-5% 1/8W

R930 061T0805280 3F RST CHIPR 280 KOHM +-1% 1/8W

R948 061T0805330 RST CHIPR 33 OHM +-5% 1/8W

64

32’’ LCD TV Hyundai HLCD-32XT

R904 061T0805470 RST CHIPR 47 OHM +-5% 1/8W

R933 061T0805471 RST CHIPR 470 OHM +-5% 1/8W

R935 061T0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R932 061T0805510 2F RST CHIPR 51 KOHM +-1% 1/8W

R953 061T0805563 RST CHIPR 56 KOHM +-5% 1/8W

R952 061T0805682 RST CHIPR 6.8 KOHM +-5% 1/8W

R903 061T0805683 RST CHIPR 68 KOHM +-5% 1/8W

R925 061T0805689 RST CHIPR 6.8 OHM +-5% 1/8W

R908 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ901 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

RJ903 061T1206000 RST CHIPR 0 OHM +-5% 1/4W

R983 061T1206100 3F RST CHIPR 100 KOHM +-1% 1/4W

R923 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R924 061T1206100 4F RST CHIPR 1 MOHM +-1% 1/4W

R968 061T1206101 RST CHIPR 100 OHM +-5% 1/4W

R962 061T1206102 RST CHIPR 1 KOHM +-5% 1/4W

R926 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R927 061T1206205 RST CHIPR 2 MOHM +-5% 1/4W

R946 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R974 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R929 061T1206330 RST CHIPR 33 OHM +-5% 1/4W

R913 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R912 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R911 061T1206330 3F RST CHIPR 330 KOHM +-1% 1/4W

R916 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W

R917 061T1206332 RST CHIPR 3.3 KOHM +-5% 1/4W

R973 061T1206470 RST CHIPR 47 OHM +-5% 1/4W

R915 061T1206472 RST CHIPR 4.7 KOHM +-5% 1/4W

R928 061T1206562 RST CHIPR 5.6 KOHM +-5% 1/4W

R906 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R907 061T1206624 RST CHIPR 620 KOHM +-5% 1/4W

R901 061T1206684 RST CHIPR 680KOHM +-5% 1/4W

R902 061T1206684 RST CHIPR 680KOHM +-5% 1/4W

C911 065T0805102 32 CHIP 1000PF 50V X7R 0805

C927 065T0805102 32 CHIP 1000PF 50V X7R 0805

C913 065T0805103 32 10NF/50V/0805/X7R

C936 065T0805103 32 10NF/50V/0805/X7R

C965 065T0805104 32 CHIP 0.1UF 50V X7R

C956 065T0805104 32 CHIP 0.1UF 50V X7R

C953 065T0805104 32 CHIP 0.1UF 50V X7R

C939 065T0805104 32 CHIP 0.1UF 50V X7R

65

32’’ LCD TV Hyundai HLCD-32XT

C938 065T0805104 32 CHIP 0.1UF 50V X7R

C937 065T0805104 32 CHIP 0.1UF 50V X7R

C935 065T0805104 32 CHIP 0.1UF 50V X7R

C924 065T0805104 32 CHIP 0.1UF 50V X7R

C920 065T0805104 32 CHIP 0.1UF 50V X7R

C914 065T0805104 32 CHIP 0.1UF 50V X7R

C910 065T0805104 32 CHIP 0.1UF 50V X7R

C946 065T0805333 32 MLCC 0805 CAP 3300PF K 50V X7R

C959 065T0805334 22 CHIP 0.33UF +-10% 25V X7R 0805

C958 065T0805471 31 CHIP 470PF 50V NPO

C912 065T0805474 22 CHIP 0.47UF 25V X7R

C964 065T1206103B2M6213 CHIP 0.01UF 630V X7R

D904 093T 6432P LL4148 BY PANJIT

D905 093T 6432P LL4148 BY PANJIT

D906 093T 6432P LL4148 BY PANJIT

D907 093T 6432P LL4148 BY PANJIT

D923 093T 6432P LL4148 BY PANJIT

D924 093T 6432P LL4148 BY PANJIT

D925 093T 6432P LL4148 BY PANJIT

D926 093T 6432P LL4148 BY PANJIT

D929 093T 6432P LL4148 BY PANJIT

D944 093T 6432P LL4148 BY PANJIT

D945 093T 6432P LL4148 BY PANJIT

D946 093T 6432P LL4148 BY PANJIT

D947 093T 6432P LL4148 BY PANJIT

D949 093T 6432P LL4148 BY PANJIT

D950 093T 6432P LL4148 BY PANJIT

ZD921 093T 39S 10 T RLZ6.8B LLDS

ZD944 093T 39S 15 T RLZ15B

ZD943 093T 39S 24 T RLZ 5.6B LLDS

ZD942 093T 39S 33 T PTZ 13B

ZD931 093T 39S 38 T PTZ 9.1B

ZD945 093T 39S 41 T RLZ24B LLDS

ZD946 093T 39S 42 T RLZ27B LLDS

D901 093T3060 10 ML35PT

CN901 006T 31500 EYELET

T951 006T 31502 1.5MM RIVET

T921 006T 31502 1.5MM RIVET

NR902 006T 31502 1.5MM RIVET

NR901 006T 31502 1.5MM RIVET

L906 006T 31502 1.5MM RIVET

66

32’’ LCD TV Hyundai HLCD-32XT

L904 006T 31502 1.5MM RIVET

IC923 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC

IC943 056T 158 10 T IC AZ431AZ-AE1 TO-92 AAC

Q945 057T 419501 T KTC945P

Q947 057T 419501 T KTC945P

Q946 057T 420501 T KTA733P

Q948 057T 420501 T KTA733P

Q926 057T 566 1 2N5060RLRAG TO-92 BY ON

R938 061T 17247152T 470OHM 5% 1/4W

R966 061T 60110252T 1K OHM +-2% 1/6W

R937 061T 60168152T 680 OHM +-2% 1/6W

C941 065T 1M103 3T6921 0.01UF 20% 1000V Y5V

C908 065T517M103 3T 0.01UF 20% 500V Y5P

C909 067T 2151007NT 10UF 50V NCC 5*11MM

C923 067T 2151007NT 10UF 50V NCC 5*11MM

C957 067T 2151007NT 10UF 50V NCC 5*11MM

C925 067T 2154707NT 47UF 50V NCC 5*11MM

C944 067T 2154707NT 47UF 50V NCC 5*11MM

C945 067T 2154707NT 47UF 50V NCC 5*11MM

L951 071T 55 23 S FERRITE BEAD K-TYPE

L921 071T 55 23 S FERRITE BEAD K-TYPE

F901 084T 55 4 FUSE 382-5A 250V WICKMANN

J915 095T 90 23 JUMP WIRE

J914 095T 90 23 JUMP WIRE

J913 095T 90 23 JUMP WIRE

J912 095T 90 23 JUMP WIRE

J911 095T 90 23 JUMP WIRE

J910 095T 90 23 JUMP WIRE

J909 095T 90 23 JUMP WIRE

J908 095T 90 23 JUMP WIRE

J907 095T 90 23 JUMP WIRE

J906 095T 90 23 JUMP WIRE

J905 095T 90 23 JUMP WIRE

J916 095T 90 23 JUMP WIRE

J935 095T 90 23 JUMP WIRE

J934 095T 90 23 JUMP WIRE

J933 095T 90 23 JUMP WIRE

J931 095T 90 23 JUMP WIRE

J928 095T 90 23 JUMP WIRE

J927 095T 90 23 JUMP WIRE

J926 095T 90 23 JUMP WIRE

67

32’’ LCD TV Hyundai HLCD-32XT

J925 095T 90 23 JUMP WIRE

J924 095T 90 23 JUMP WIRE

J922 095T 90 23 JUMP WIRE

J921 095T 90 23 JUMP WIRE

J920 095T 90 23 JUMP WIRE

J919 095T 90 23 JUMP WIRE

J918 095T 90 23 JUMP WIRE

J917 095T 90 23 JUMP WIRE

J904 095T 90 23 JUMP WIRE

J902 095T 90 23 JUMP WIRE

J901 095T 90 23 JUMP WIRE

715T1180 3 POWER BOARD PCB

DCPF1205A3P DC TO DC BOARD

CN801 033T800913Z H PIN HEADER 1*13 R/A

C807 067T215B471 3R LOW E.S.R 470UF +/-20% 16V

C806 067T215B471 3R LOW E.S.R 470UF +/-20% 16V

C801 067T405V221 4P

IC801 056T 133 32 NS LM3485

Q801 057T 763 3 AO4411L SO-8 BY AOS SMT

R803 061T0603200 2F RST CHIPR 20 KOHM +-1% 1/10W

R801 061T0603360 2F RST CHIPR 36 KOHM +-1% 1/10W

R802 061T0603620 2F RST CHIPR 62 KOHM +-1% 1/10W

R804 061T1206220 RST CHIPR 22 OHM +-5% 1/4W

C804 065T0603102 32 CHIP 1000PF 50V X7R

C803 065T0603102 32 CHIP 1000PF 50V X7R

C809 065T0603104 32 CHIP 0.1UF 50V X7R

C805 065T0603471 31 CHIP 470PF 50V NPO

C808 065T0805102 32 CHIP 1000PF 50V X7R 0805

C810 065T0805102 32 CHIP 1000PF 50V X7R 0805

C802 065T0805105 22 CHIP 1UF 25V X7R 0805

L801 073T M5822020T 22UH +-20%

D801 093T8004 2 SBM84PT

715T1278 4 PCB

105℃ 220UF M 25V

CBPF6T1SQ3 MAIN BOARD

CN200 033T3278 12 12P PLUG B12B-XHA/JS B12B-XHA/

CN500 033T3802 2H WAFER 2P RIGHT ANGLE

CN501 033T3802 3H WAFER 3P RIGHT ANGLE

CN502 033T3802 5H WAFER 5P RIGHT ANELE PI

CN203 033T3802 8H WAFER 8P RIGHT ANGLE PITCH 2.0

CN404 033T8017 2 PIN HEADER 2P 2.0MM

CN201 033T801736A CH W CONNECTOR

68

32’’ LCD TV Hyundai HLCD-32XT

CN300 033T802724D H 24PIN

040T 45762412B CBPC LABEL

044T3231508512 CHIELD D-SUB

R718 061T152M100 64 10OHM 5% 2W

R716 061T152M229 64 2.2 OHM 2W 5% MOF

R719 061T152M479 64 4.7 OHM +-5% 2W

R717 061T152M479 64 4.7 OHM +-5% 2W

R525 061T153M109 59 MOFR 1 OHM +-5% 3W

R524 061T153M109 59 MOFR 1 OHM +-5% 3W

C548 067T215C1024KV

L701 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L705 073T 253137 ER CHOKE COIL BY EROCORE SCB-03

L500 073T 253158 H CHOKE COIL 22UH+/-25%

L504 073T 253158 H CHOKE COIL 22UH+/-25%

L505 073T 253158 H CHOKE COIL 22UH+/-25%

L506 073T 253158 H CHOKE COIL 22UH+/-25%

P201 088T 30214K PHONE JACK

P200 088T 35315F HA D-SU13 15PIN

U302 090T 372 2 HEAT SINK

U503 090T6068 2 HEAT SINK

X300 093T 2253B J 14.31818MHZ/85C

X401 093T 2279B CRYSTAL 28.322MHZ 49U/S

X400 093T 2281B 10.000MHZ/30PF/49US

Q90T0054 1 HEAT SINK

Q90T0054 1 HEAT SINK

040T 457624 1B CPU LABEL

EC 105℃ CAP 1000UF M 25V

U500 056T 133 30AAC IC AZ1117H-ADJ-E1

U711 056T 133 33AAC IC AZ1117-1.8-E1

U503 056T 535 8 MAX9704

U302 056T 562600 IC SVP-EX52-LF TRIDENT

U712 056T 563 7 AIC1084-33PM TO-263 AIC

U703 056T 563 25 AIC1084-33PE

U710 056T 563 31 AZ1117D-1.8E1 TO-252

U708 056T 563 31 AZ1117D-1.8E1 TO-252

U700 056T 563 34 A1C1084-18PM

U704 056T 563 44 AME8815BEGT 250Z SOP-223

U706 056T 563 44 AME8815BEGT 250Z SOP-223

U701 056T 585 9 IC AP1117E50LA ANACHIP

U702 056T 585 4A AP1117E33LA

U705 056T 585 4A AP1117E33LA

U407 056T 586 6 IC SII9023CTU TQFP-144 SILICON IMAGE

69

32’’ LCD TV Hyundai HLCD-32XT

U202 056T 614 1 IC 74HC4052D PHILIPS

U301 056T 615 9 1 IC EM6A9320BI-5MG 0.11UM"M" FBGA-144

U300 056T 615104 LY61256RL-12E TSOP-1

U504 056T 616 3 PT2308S SO-8 PTC

U502 056T 628 4 NJW1147M-PF

U206 056T 634 2 1 PI5V330SSQE PERICOMQSOP-16

U408 056T 638601 CS4344-CZZ

U406 056T 662 4 RCLAMP0514M.TBT

U410 056T 662 4 RCLAMP0514M.TBT

U402 056T1125182 IC M30300SAGP RENESAS

U405 056T1133 34 M24C02-WMN6TP

U200 056T1133 34 M24C02-WMN6TP

U401 056T1133 77ET2 EN29F040A-70JCP

U403 056T1133 78 24LC64 ISNG SOIC(150MIL)

U201 056T4LVC 14 P 74LVC14ADT

U303 056T566N600 NDC7002N SOT-6 FAIRCHILD

Q200 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q201 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q709 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q708 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q706 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q705 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q704 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q502 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q404 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q403 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q301 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q300 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q206 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q204 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q202 057T 417 4 CHIP PMBS3904 BY PHILIPS

Q501 057T 417 6 PMBS3906/PHILIPS-SMT

Q402 057T 417 6 PMBS3906/PHILIPS-SMT

Q302 057T 417 6 PMBS3906/PHILIPS-SMT

Q205 057T 417 6 PMBS3906/PHILIPS-SMT

Q203 057T 417 6 PMBS3906/PHILIPS-SMT

Q400 057T 600 54 FET BSN20 SOT-23 PHILIPS

Q405 057T 600 54 FET BSN20 SOT-23 PHILIPS

U409 057T 763 15 FDC6301N SSOT-6

Q700 057T 763 3B AM9435P.T1-PF SO-8

Q701 057T 763 3B AM9435P.T1-PF SO-8

70

32’’ LCD TV Hyundai HLCD-32XT

Q702 057T 763 3B AM9435P.T1-PF SO-8

Q703 057T 763 3B AM9435P.T1-PF SO-8

Q707 057T 763 3B AM9435P.T1-PF SO-8

RP405 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RP404 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RP403 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RP402 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RP401 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RP400 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RN313 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RN312 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RN311 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RN300 061T 125101 8 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

RN308 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN307 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN306 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN305 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN304 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN303 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN302 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN301 061T 125220 8 CHIP ARRAY 220HM 1/16W 8P4R

RN405 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RN404 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RN403 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RN402 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RN401 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RN400 061T 125330 8 RST CHIP AR 8P4R 33 OHM +-5% 1/16W

RP406 061T 125470 8 RST CHIP AR 8P4R 47 OHM +-5% 1/16W

R200 061T0603000 CHIP 0OHM 1/16W

R219 061T0603000 CHIP 0OHM 1/16W

R242 061T0603000 CHIP 0OHM 1/16W

R300 061T0603000 CHIP 0OHM 1/16W

R311 061T0603000 CHIP 0OHM 1/16W

R347 061T0603000 CHIP 0OHM 1/16W

R348 061T0603000 CHIP 0OHM 1/16W

R4004 061T0603000 CHIP 0OHM 1/16W

R423 061T0603000 CHIP 0OHM 1/16W

R536 061T0603000 CHIP 0OHM 1/16W

R700 061T0603000 CHIP 0OHM 1/16W

R335 061T0603100 CHIP 10OHM 1/16W

R547 061T0603100 0F RST CHIPR 100 OHM +-1% 1/10W

71

32’’ LCD TV Hyundai HLCD-32XT

R443 061T0603101 CHIP 100OHM 1/16W

R442 061T0603101 CHIP 100OHM 1/16W

R441 061T0603101 CHIP 100OHM 1/16W

R440 061T0603101 CHIP 100OHM 1/16W

R431 061T0603101 CHIP 100OHM 1/16W

R422 061T0603101 CHIP 100OHM 1/16W

R421 061T0603101 CHIP 100OHM 1/16W

R445 061T0603101 CHIP 100OHM 1/16W

R467 061T0603101 CHIP 100OHM 1/16W

R470 061T0603101 CHIP 100OHM 1/16W

R471 061T0603101 CHIP 100OHM 1/16W

R472 061T0603101 CHIP 100OHM 1/16W

R475 061T0603101 CHIP 100OHM 1/16W

R483 061T0603101 CHIP 100OHM 1/16W

R485 061T0603101 CHIP 100OHM 1/16W

R494 061T0603101 CHIP 100OHM 1/16W

R497 061T0603101 CHIP 100OHM 1/16W

R534 061T0603101 CHIP 100OHM 1/16W

R537 061T0603101 CHIP 100OHM 1/16W

R539 061T0603101 CHIP 100OHM 1/16W

R540 061T0603101 CHIP 100OHM 1/16W

R541 061T0603101 CHIP 100OHM 1/16W

R543 061T0603101 CHIP 100OHM 1/16W

R544 061T0603101 CHIP 100OHM 1/16W

R466 061T0603101 CHIP 100OHM 1/16W

R464 061T0603101 CHIP 100OHM 1/16W

R462 061T0603101 CHIP 100OHM 1/16W

R460 061T0603101 CHIP 100OHM 1/16W

R447 061T0603101 CHIP 100OHM 1/16W

R4007 061T0603101 CHIP 100OHM 1/16W

R4008 061T0603101 CHIP 100OHM 1/16W

R4020 061T0603101 CHIP 100OHM 1/16W

R4021 061T0603101 CHIP 100OHM 1/16W

R405 061T0603101 CHIP 100OHM 1/16W

R408 061T0603101 CHIP 100OHM 1/16W

R410 061T0603101 CHIP 100OHM 1/16W

R533 061T0603102 CHIP 1K OHM 1/16W

R538 061T0603102 CHIP 1K OHM 1/16W

R223 061T0603102 CHIP 1K OHM 1/16W

R307 061T0603102 CHIP 1K OHM 1/16W

R308 061T0603102 CHIP 1K OHM 1/16W

72

32’’ LCD TV Hyundai HLCD-32XT

R309 061T0603102 CHIP 1K OHM 1/16W

R340 061T0603102 CHIP 1K OHM 1/16W

R346 061T0603102 CHIP 1K OHM 1/16W

R484 061T0603102 CHIP 1K OHM 1/16W

R498 061T0603102 CHIP 1K OHM 1/16W

R4022 061T0603103 CHIP 10KOHM 1/16W

R4023 061T0603103 CHIP 10KOHM 1/16W

R4024 061T0603103 CHIP 10KOHM 1/16W

R4025 061T0603103 CHIP 10KOHM 1/16W

R4026 061T0603103 CHIP 10KOHM 1/16W

R4027 061T0603103 CHIP 10KOHM 1/16W

R430 061T0603103 CHIP 10KOHM 1/16W

R474 061T0603103 CHIP 10KOHM 1/16W

R476 061T0603103 CHIP 10KOHM 1/16W

R477 061T0603103 CHIP 10KOHM 1/16W

R527 061T0603103 CHIP 10KOHM 1/16W

R546 061T0603103 CHIP 10KOHM 1/16W

R554 061T0603103 CHIP 10KOHM 1/16W

R555 061T0603103 CHIP 10KOHM 1/16W

R558 061T0603103 CHIP 10KOHM 1/16W

R711 061T0603103 CHIP 10KOHM 1/16W

R714 061T0603103 CHIP 10KOHM 1/16W

R341 061T0603103 CHIP 10KOHM 1/16W

R336 061T0603103 CHIP 10KOHM 1/16W

R332 061T0603103 CHIP 10KOHM 1/16W

R712 061T0603104 CHIP 100K OHM 1/16W

R548 061T0603104 CHIP 100K OHM 1/16W

R231 061T0603104 CHIP 100K OHM 1/16W

R4019 061T0603105 CHIP 1MOHM 1/16W

R228 061T0603105 CHIP 1MOHM 1/16W

R246 061T0603121 RST CHIPR 120 OHM +-5% 1/10W

R342 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R333 061T0603122 RST CHIPR 1.2 KOHM +-5% 1/10W

R243 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R221 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R204 061T0603123 RST CHIPR 12 KOHM +-5% 1/10W

R303 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R304 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R305 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R306 061T0603150 RST CHIPR 15 OHM +-5% 1/10W

R209 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

73

32’’ LCD TV Hyundai HLCD-32XT

R226 061T0603151 RST CHIPR 150 OHM +-5% 1/10W

R314 061T0603152 CHIP 1.5KOHM 1/16W

R224 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R229 061T0603184 RST CHIPR 180 KOHM +-5% 1/10W

R492 061T0603202 RST CHIPR 2 KOHM +-5% 1/10W

R203 061T0603220 CHIP 22OHM 1/16W

R210 061T0603220 CHIP 22OHM 1/16W

R211 061T0603220 CHIP 22OHM 1/16W

R214 061T0603220 CHIP 22OHM 1/16W

R216 061T0603220 CHIP 22OHM 1/16W

R220 061T0603220 CHIP 22OHM 1/16W

R245 061T0603220 CHIP 22OHM 1/16W

R424 061T0603220 CHIP 22OHM 1/16W

R425 061T0603220 CHIP 22OHM 1/16W

R426 061T0603220 CHIP 22OHM 1/16W

R428 061T0603220 CHIP 22OHM 1/16W

R429 061T0603220 CHIP 22OHM 1/16W

R434 061T0603220 CHIP 22OHM 1/16W

R473 061T0603221 CHIP 220OHM 1/16W

R345 061T0603222 CHIP 2.2K OHM 1/16W

R715 061T0603223 CHIP 22KOHM 1/16W

R709 061T0603223 CHIP 22KOHM 1/16W

R707 061T0603223 CHIP 22KOHM 1/16W

R706 061T0603223 CHIP 22KOHM 1/16W

R320 061T0603223 CHIP 22KOHM 1/16W

R315 061T0603223 CHIP 22KOHM 1/16W

R244 061T0603223 CHIP 22KOHM 1/16W

R225 061T0603223 CHIP 22KOHM 1/16W

R208 061T0603223 CHIP 22KOHM 1/16W

R420 061T0603330 CHIP 33OHM 1/16W

R419 061T0603330 CHIP 33OHM 1/16W

R415 061T0603330 CHIP 33OHM 1/16W

R414 061T0603330 CHIP 33OHM 1/16W

R4016 061T0603330 CHIP 33OHM 1/16W

R560 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R559 061T0603331 RST CHIPR 330 OHM +-5% 1/10W

R557 061T0603392 CHIP 3.9KOHM 1/16W

R556 061T0603392 CHIP 3.9KOHM 1/16W

R553 061T0603392 CHIP 3.9KOHM 1/16W

R551 061T0603392 CHIP 3.9KOHM 1/16W

R531 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W

74

32’’ LCD TV Hyundai HLCD-32XT

R535 061T0603432 RST CHIPR 4.3 KOHM +-5% 1/10W

R4001 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R4005 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R4006 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R499 061T0603470 RST CHIPR 47 OHM +-5% 1/10W

R316 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R321 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R339 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R344 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R438 061T0603472 CHIP 4.7KOHM 1/16W

R437 061T0603472 CHIP 4.7KOHM 1/16W

R436 061T0603472 CHIP 4.7KOHM 1/16W

R435 061T0603472 CHIP 4.7KOHM 1/16W

R433 061T0603472 CHIP 4.7KOHM 1/16W

R427 061T0603472 CHIP 4.7KOHM 1/16W

R418 061T0603472 CHIP 4.7KOHM 1/16W

R417 061T0603472 CHIP 4.7KOHM 1/16W

R412 061T0603472 CHIP 4.7KOHM 1/16W

R404 061T0603472 CHIP 4.7KOHM 1/16W

R4030 061T0603472 CHIP 4.7KOHM 1/16W

R451 061T0603472 CHIP 4.7KOHM 1/16W

R468 061T0603472 CHIP 4.7KOHM 1/16W

R469 061T0603472 CHIP 4.7KOHM 1/16W

R479 061T0603472 CHIP 4.7KOHM 1/16W

R480 061T0603472 CHIP 4.7KOHM 1/16W

R481 061T0603472 CHIP 4.7KOHM 1/16W

R482 061T0603472 CHIP 4.7KOHM 1/16W

R486 061T0603472 CHIP 4.7KOHM 1/16W

R490 061T0603472 CHIP 4.7KOHM 1/16W

R491 061T0603472 CHIP 4.7KOHM 1/16W

R495 061T0603472 CHIP 4.7KOHM 1/16W

R532 061T0603472 CHIP 4.7KOHM 1/16W

R453 061T0603472 CHIP 4.7KOHM 1/16W

R454 061T0603472 CHIP 4.7KOHM 1/16W

R455 061T0603472 CHIP 4.7KOHM 1/16W

R457 061T0603472 CHIP 4.7KOHM 1/16W

R458 061T0603472 CHIP 4.7KOHM 1/16W

R439 061T0603472 CHIP 4.7KOHM 1/16W

R444 061T0603472 CHIP 4.7KOHM 1/16W

R448 061T0603472 CHIP 4.7KOHM 1/16W

R449 061T0603472 CHIP 4.7KOHM 1/16W

75

32’’ LCD TV Hyundai HLCD-32XT

R450 061T0603472 CHIP 4.7KOHM 1/16W

R217 061T0603472 CHIP 4.7KOHM 1/16W

R218 061T0603472 CHIP 4.7KOHM 1/16W

R330 061T0603472 CHIP 4.7KOHM 1/16W

R331 061T0603472 CHIP 4.7KOHM 1/16W

R334 061T0603472 CHIP 4.7KOHM 1/16W

R4013 061T0603472 CHIP 4.7KOHM 1/16W

R4018 061T0603472 CHIP 4.7KOHM 1/16W

R402 061T0603472 CHIP 4.7KOHM 1/16W

R4028 061T0603472 CHIP 4.7KOHM 1/16W

R4029 061T0603472 CHIP 4.7KOHM 1/16W

R403 061T0603472 CHIP 4.7KOHM 1/16W

R702 061T0603473 CHIP 47KOHM 1/16W

R703 061T0603473 CHIP 47KOHM 1/16W

R713 061T0603473 CHIP 47KOHM 1/16W

R701 061T0603473 CHIP 47KOHM 1/16W

R496 061T0603473 CHIP 47KOHM 1/16W

R432 061T0603473 CHIP 47KOHM 1/16W

R232 061T0603473 CHIP 47KOHM 1/16W

R230 061T0603473 CHIP 47KOHM 1/16W

R4014 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R4015 061T0603474 RST CHIPR 470 KOHM +-5% 1/10W

R301 061T0603510 RST CHIPR 51 OHM +-5% 1/10W

R302 061T0603510 RST CHIPR 51 OHM +-5% 1/10W

R542 061T0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R337 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R338 061T0603680 RST CHIPR 68 OHM +-5% 1/10W

R550 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W

R552 061T0603682 RST CHIPR 6.8KOHM +-5% 1/10W

R205 061T0603750 75OHM

R206 061T0603750 75OHM

R207 061T0603750 75OHM

R328 061T0603750 75OHM

R317 061T0603750 9F CHIP 75OHM 1/16W 1%

R318 061T0603750 9F CHIP 75OHM 1/16W 1%

R319 061T0603750 9F CHIP 75OHM 1/16W 1%

R704 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W

R705 061T0603752 RST CHIPR 7.5 KOHM +-5% 1/10W

R545 061T0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

R478 061T0603822 RST CHIPR 8.2 KOHM +-5% 1/10W

R526 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

76

32’’ LCD TV Hyundai HLCD-32XT

R528 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R529 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L304 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L711 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L305 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

L709 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R708 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W

R710 061T0805302 RST CHIPR 3 KOHM +-5% 1/8W

R549 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W

C405 065T0603101 31 CHIP 100PF 50V NPO

C406 065T0603101 31 CHIP 100PF 50V NPO

C409 065T0603101 31 CHIP 100PF 50V NPO

C565 065T0603101 31 CHIP 100PF 50V NPO

C576 065T0603101 31 CHIP 100PF 50V NPO

C201 065T0603101 32 CHIP 100PF 50V X7R

C202 065T0603101 32 CHIP 100PF 50V X7R

C208 065T0603101 32 CHIP 100PF 50V X7R

C216 065T0603101 32 CHIP 100PF 50V X7R

C220 065T0603101 32 CHIP 100PF 50V X7R

C200 065T0603102 32 CHIP 1000PF 50V X7R

C224 065T0603102 32 CHIP 1000PF 50V X7R

C400 065T0603102 32 CHIP 1000PF 50V X7R

C500 065T0603102 32 CHIP 1000PF 50V X7R

C596 065T0603102 32 CHIP 1000PF 50V X7R

C448 065T0603103 32 CHIP 0.01UF 50V X7R

C447 065T0603103 32 CHIP 0.01UF 50V X7R

C446 065T0603103 32 CHIP 0.01UF 50V X7R

C445 065T0603103 32 CHIP 0.01UF 50V X7R

C444 065T0603103 32 CHIP 0.01UF 50V X7R

C443 065T0603103 32 CHIP 0.01UF 50V X7R

C442 065T0603103 32 CHIP 0.01UF 50V X7R

C431 065T0603103 32 CHIP 0.01UF 50V X7R

C430 065T0603103 32 CHIP 0.01UF 50V X7R

C429 065T0603103 32 CHIP 0.01UF 50V X7R

C428 065T0603103 32 CHIP 0.01UF 50V X7R

C427 065T0603103 32 CHIP 0.01UF 50V X7R

C426 065T0603103 32 CHIP 0.01UF 50V X7R

C425 065T0603103 32 CHIP 0.01UF 50V X7R

C424 065T0603103 32 CHIP 0.01UF 50V X7R

C449 065T0603103 32 CHIP 0.01UF 50V X7R

C492 065T0603103 32 CHIP 0.01UF 50V X7R

77

32’’ LCD TV Hyundai HLCD-32XT

C491 065T0603103 32 CHIP 0.01UF 50V X7R

C490 065T0603103 32 CHIP 0.01UF 50V X7R

C489 065T0603103 32 CHIP 0.01UF 50V X7R

C477 065T0603103 32 CHIP 0.01UF 50V X7R

C475 065T0603103 32 CHIP 0.01UF 50V X7R

C472 065T0603103 32 CHIP 0.01UF 50V X7R

C467 065T0603103 32 CHIP 0.01UF 50V X7R

C466 065T0603103 32 CHIP 0.01UF 50V X7R

C465 065T0603103 32 CHIP 0.01UF 50V X7R

C464 065T0603103 32 CHIP 0.01UF 50V X7R

C462 065T0603103 32 CHIP 0.01UF 50V X7R

C461 065T0603103 32 CHIP 0.01UF 50V X7R

C455 065T0603103 32 CHIP 0.01UF 50V X7R

C454 065T0603103 32 CHIP 0.01UF 50V X7R

C588 065T0603103 32 CHIP 0.01UF 50V X7R

C582 065T0603103 32 CHIP 0.01UF 50V X7R

C572 065T0603103 32 CHIP 0.01UF 50V X7R

C493 065T0603103 32 CHIP 0.01UF 50V X7R

C494 065T0603103 32 CHIP 0.01UF 50V X7R

C495 065T0603103 32 CHIP 0.01UF 50V X7R

C568 065T0603103 32 CHIP 0.01UF 50V X7R

C301 065T0603103 32 CHIP 0.01UF 50V X7R

C410 065T0603103 32 CHIP 0.01UF 50V X7R

C402 065T0603103 32 CHIP 0.01UF 50V X7R

C315 065T0603103 32 CHIP 0.01UF 50V X7R

C310 065T0603103 32 CHIP 0.01UF 50V X7R

C309 065T0603103 32 CHIP 0.01UF 50V X7R

C308 065T0603103 32 CHIP 0.01UF 50V X7R

C307 065T0603103 32 CHIP 0.01UF 50V X7R

C306 065T0603103 32 CHIP 0.01UF 50V X7R

C204 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C206 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C207 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C210 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C211 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C213 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C214 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C221 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C222 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C223 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C232 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

78

32’’ LCD TV Hyundai HLCD-32XT

C318 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C339 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C342 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C722 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C590 065T0603104 22 CHIP 0.1UF 25V

C395 065T0603104 32 CHIP 0.1UF 50V X7R

C396 065T0603104 32 CHIP 0.1UF 50V X7R

C398 065T0603104 32 CHIP 0.1UF 50V X7R

C4001 065T0603104 32 CHIP 0.1UF 50V X7R

C407 065T0603104 32 CHIP 0.1UF 50V X7R

C417 065T0603104 32 CHIP 0.1UF 50V X7R

C420 065T0603104 32 CHIP 0.1UF 50V X7R

C421 065T0603104 32 CHIP 0.1UF 50V X7R

C422 065T0603104 32 CHIP 0.1UF 50V X7R

C423 065T0603104 32 CHIP 0.1UF 50V X7R

C436 065T0603104 32 CHIP 0.1UF 50V X7R

C438 065T0603104 32 CHIP 0.1UF 50V X7R

C439 065T0603104 32 CHIP 0.1UF 50V X7R

C440 065T0603104 32 CHIP 0.1UF 50V X7R

C441 065T0603104 32 CHIP 0.1UF 50V X7R

C451 065T0603104 32 CHIP 0.1UF 50V X7R

C452 065T0603104 32 CHIP 0.1UF 50V X7R

C394 065T0603104 32 CHIP 0.1UF 50V X7R

C376 065T0603104 32 CHIP 0.1UF 50V X7R

C377 065T0603104 32 CHIP 0.1UF 50V X7R

C378 065T0603104 32 CHIP 0.1UF 50V X7R

C379 065T0603104 32 CHIP 0.1UF 50V X7R

C380 065T0603104 32 CHIP 0.1UF 50V X7R

C381 065T0603104 32 CHIP 0.1UF 50V X7R

C382 065T0603104 32 CHIP 0.1UF 50V X7R

C383 065T0603104 32 CHIP 0.1UF 50V X7R

C384 065T0603104 32 CHIP 0.1UF 50V X7R

C385 065T0603104 32 CHIP 0.1UF 50V X7R

C386 065T0603104 32 CHIP 0.1UF 50V X7R

C387 065T0603104 32 CHIP 0.1UF 50V X7R

C388 065T0603104 32 CHIP 0.1UF 50V X7R

C389 065T0603104 32 CHIP 0.1UF 50V X7R

C390 065T0603104 32 CHIP 0.1UF 50V X7R

C391 065T0603104 32 CHIP 0.1UF 50V X7R

C392 065T0603104 32 CHIP 0.1UF 50V X7R

C393 065T0603104 32 CHIP 0.1UF 50V X7R

79

32’’ LCD TV Hyundai HLCD-32XT

C551 065T0603104 32 CHIP 0.1UF 50V X7R

C552 065T0603104 32 CHIP 0.1UF 50V X7R

C557 065T0603104 32 CHIP 0.1UF 50V X7R

C558 065T0603104 32 CHIP 0.1UF 50V X7R

C564 065T0603104 32 CHIP 0.1UF 50V X7R

C569 065T0603104 32 CHIP 0.1UF 50V X7R

C585 065T0603104 32 CHIP 0.1UF 50V X7R

C593 065T0603104 32 CHIP 0.1UF 50V X7R

C594 065T0603104 32 CHIP 0.1UF 50V X7R

C701 065T0603104 32 CHIP 0.1UF 50V X7R

C702 065T0603104 32 CHIP 0.1UF 50V X7R

C703 065T0603104 32 CHIP 0.1UF 50V X7R

C704 065T0603104 32 CHIP 0.1UF 50V X7R

C712 065T0603104 32 CHIP 0.1UF 50V X7R

C716 065T0603104 32 CHIP 0.1UF 50V X7R

C717 065T0603104 32 CHIP 0.1UF 50V X7R

C718 065T0603104 32 CHIP 0.1UF 50V X7R

C720 065T0603104 32 CHIP 0.1UF 50V X7R

C453 065T0603104 32 CHIP 0.1UF 50V X7R

C459 065T0603104 32 CHIP 0.1UF 50V X7R

C460 065T0603104 32 CHIP 0.1UF 50V X7R

C468 065T0603104 32 CHIP 0.1UF 50V X7R

C469 065T0603104 32 CHIP 0.1UF 50V X7R

C471 065T0603104 32 CHIP 0.1UF 50V X7R

C474 065T0603104 32 CHIP 0.1UF 50V X7R

C476 065T0603104 32 CHIP 0.1UF 50V X7R

C478 065T0603104 32 CHIP 0.1UF 50V X7R

C479 065T0603104 32 CHIP 0.1UF 50V X7R

C484 065T0603104 32 CHIP 0.1UF 50V X7R

C485 065T0603104 32 CHIP 0.1UF 50V X7R

C486 065T0603104 32 CHIP 0.1UF 50V X7R

C487 065T0603104 32 CHIP 0.1UF 50V X7R

C488 065T0603104 32 CHIP 0.1UF 50V X7R

C498 065T0603104 32 CHIP 0.1UF 50V X7R

C549 065T0603104 32 CHIP 0.1UF 50V X7R

C550 065T0603104 32 CHIP 0.1UF 50V X7R

C3006 065T0603104 32 CHIP 0.1UF 50V X7R

C302 065T0603104 32 CHIP 0.1UF 50V X7R

C303 065T0603104 32 CHIP 0.1UF 50V X7R

C304 065T0603104 32 CHIP 0.1UF 50V X7R

C305 065T0603104 32 CHIP 0.1UF 50V X7R

80

32’’ LCD TV Hyundai HLCD-32XT

C313 065T0603104 32 CHIP 0.1UF 50V X7R

C314 065T0603104 32 CHIP 0.1UF 50V X7R

C317 065T0603104 32 CHIP 0.1UF 50V X7R

C320 065T0603104 32 CHIP 0.1UF 50V X7R

C321 065T0603104 32 CHIP 0.1UF 50V X7R

C322 065T0603104 32 CHIP 0.1UF 50V X7R

C325 065T0603104 32 CHIP 0.1UF 50V X7R

C329 065T0603104 32 CHIP 0.1UF 50V X7R

C330 065T0603104 32 CHIP 0.1UF 50V X7R

C331 065T0603104 32 CHIP 0.1UF 50V X7R

C725 065T0603104 32 CHIP 0.1UF 50V X7R

C728 065T0603104 32 CHIP 0.1UF 50V X7R

C730 065T0603104 32 CHIP 0.1UF 50V X7R

C732 065T0603104 32 CHIP 0.1UF 50V X7R

C734 065T0603104 32 CHIP 0.1UF 50V X7R

C736 065T0603104 32 CHIP 0.1UF 50V X7R

C740 065T0603104 32 CHIP 0.1UF 50V X7R

C745 065T0603104 32 CHIP 0.1UF 50V X7R

C751 065T0603104 32 CHIP 0.1UF 50V X7R

C758 065T0603104 32 CHIP 0.1UF 50V X7R

C760 065T0603104 32 CHIP 0.1UF 50V X7R

C212 065T0603104 32 CHIP 0.1UF 50V X7R

C229 065T0603104 32 CHIP 0.1UF 50V X7R

C230 065T0603104 32 CHIP 0.1UF 50V X7R

C3002 065T0603104 32 CHIP 0.1UF 50V X7R

C332 065T0603104 32 CHIP 0.1UF 50V X7R

C358 065T0603104 32 CHIP 0.1UF 50V X7R

C360 065T0603104 32 CHIP 0.1UF 50V X7R

C361 065T0603104 32 CHIP 0.1UF 50V X7R

C362 065T0603104 32 CHIP 0.1UF 50V X7R

C375 065T0603104 32 CHIP 0.1UF 50V X7R

C374 065T0603104 32 CHIP 0.1UF 50V X7R

C363 065T0603104 32 CHIP 0.1UF 50V X7R

C364 065T0603104 32 CHIP 0.1UF 50V X7R

C365 065T0603104 32 CHIP 0.1UF 50V X7R

C366 065T0603104 32 CHIP 0.1UF 50V X7R

C368 065T0603104 32 CHIP 0.1UF 50V X7R

C370 065T0603104 32 CHIP 0.1UF 50V X7R

C371 065T0603104 32 CHIP 0.1UF 50V X7R

C372 065T0603104 32 CHIP 0.1UF 50V X7R

C373 065T0603104 32 CHIP 0.1UF 50V X7R

81

32’’ LCD TV Hyundai HLCD-32XT

C348 065T0603104 32 CHIP 0.1UF 50V X7R

C349 065T0603104 32 CHIP 0.1UF 50V X7R

C346 065T0603104 32 CHIP 0.1UF 50V X7R

C344 065T0603104 32 CHIP 0.1UF 50V X7R

C340 065T0603104 32 CHIP 0.1UF 50V X7R

C336 065T0603104 32 CHIP 0.1UF 50V X7R

C335 065T0603104 32 CHIP 0.1UF 50V X7R

C334 065T0603104 32 CHIP 0.1UF 50V X7R

C333 065T0603104 32 CHIP 0.1UF 50V X7R

C351 065T0603104 32 CHIP 0.1UF 50V X7R

C352 065T0603104 32 CHIP 0.1UF 50V X7R

C353 065T0603104 32 CHIP 0.1UF 50V X7R

C354 065T0603104 32 CHIP 0.1UF 50V X7R

C356 065T0603104 32 CHIP 0.1UF 50V X7R

C357 065T0603104 32 CHIP 0.1UF 50V X7R

C481 065T0603150 31 CHIP 15PF 50V NPO

C480 065T0603150 31 CHIP 15PF 50V NPO

C300 065T0603272 32 CHIP 2700PF 50V X7R

C337 065T0603272 32 CHIP 2700PF 50V X7R

C3005 065T0603330 31 CHIP 33PF 50V NPO

C323 065T0603330 31 CHIP 33PF 50V NPO

C324 065T0603330 31 CHIP 33PF 50V NPO

C411 065T0603330 31 CHIP 33PF 50V NPO

C412 065T0603330 31 CHIP 33PF 50V NPO

C544 065T0603332 32 CHIP 3300PF 50V X7R

C545 065T0603332 32 CHIP 3300PF 50V X7R

C546 065T0603333 32 CHIP 0.033UF 50V X7R

C547 065T0603333 32 CHIP 0.033UF 50V X7R

C209 065T0603470 32 CHIP 47PF 50V X7R

C5000 065T0603471 31 CHIP 470PF 50V NPO

C5001 065T0603471 31 CHIP 470PF 50V NPO

C598 065T0603471 31 CHIP 470PF 50V NPO

C599 065T0603471 31 CHIP 470PF 50V NPO

C311 065T0603472 32 CHIP 4700PF 50V X7R

C312 065T0603472 32 CHIP 4700PF 50V X7R

C555 065T0603472 32 CHIP 4700PF 50V X7R

C556 065T0603472 32 CHIP 4700PF 50V X7R

C217 065T0603473 32 CHIP 0.047UF 50V X7R

C225 065T0603473 32 CHIP 0.047UF 50V X7R

C219 065T0603474 17 CHIP 0.47UF 16V Y5V

C226 065T0603474 17 CHIP 0.47UF 16V Y5V

82

32’’ LCD TV Hyundai HLCD-32XT

C562 065T0603474 17 CHIP 0.47UF 16V Y5V

C566 065T0603474 17 CHIP 0.47UF 16V Y5V

C579 065T0603474 17 CHIP 0.47UF 16V Y5V

C580 065T0603474 17 CHIP 0.47UF 16V Y5V

C587 065T0603474 17 CHIP 0.47UF 16V Y5V

C589 065T0603474 17 CHIP 0.47UF 16V Y5V

C399 065T0603680 31 CHIP 68PF 50V NPO

C3001 065T0603680 31 CHIP 68PF 50V NPO

C711 065T0603683 12 CHIP 0.68UF 16V X7R

C584 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C581 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C575 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C567 065T0805103 22 CHIP 0.01UF 25V X7R 0805

C583 065T0805104 22 0.1UF +-10% 25V X7R 0805

C571 065T0805104 22 0.1UF +-10% 25V X7R 0805

C709 065T0805105 12 1UF +-10% 16V X7R

C710 065T0805105 12 1UF +-10% 16V X7R

C559 065T0805105 22 CHIP 1UF 25V X7R 0805

C563 065T0805225 12 CHIP 2.2UF 16V X7R 0805

C3004 065T0805475 A5 CHIP 4.7UF 10V X5R

C5004 065T0805475 A5 CHIP 4.7UF 10V X5R

C5005 065T0805475 A5 CHIP 4.7UF 10V X5R

C542 065T0805475 A5 CHIP 4.7UF 10V X5R

C543 065T0805475 A5 CHIP 4.7UF 10V X5R

C553 065T0805475 A5 CHIP 4.7UF 10V X5R

C554 065T0805475 A5 CHIP 4.7UF 10V X5R

C560 065T0805475 A5 CHIP 4.7UF 10V X5R

C561 065T0805475 A5 CHIP 4.7UF 10V X5R

C570 065T0805475 A5 CHIP 4.7UF 10V X5R

C573 065T0805475 A5 CHIP 4.7UF 10V X5R

C574 065T0805475 A5 CHIP 4.7UF 10V X5R

C577 065T0805475 A5 CHIP 4.7UF 10V X5R

C578 065T0805475 A5 CHIP 4.7UF 10V X5R

CP500 065T600M471 8T CHIP ARRAY 470PF 8P

C723 067T 4121003XT

C715 067T 4121003XT

C714 067T 4121003XT

C713 067T 4121003XT

C473 067T 4121003XT

C470 067T 4121003XT

C463 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

83

32’’ LCD TV Hyundai HLCD-32XT

C450 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

C437 067T 4121003XT

C419 067T 4121003XT

C418 067T 4121003XT

C416 067T 4121003XT

C414 067T 4121003XT

C403 067T 4121003XT

C4000 067T 4121003XT

C369 067T 4121003XT

C726 067T 4121003XT

C497 067T 4121003XT

C496 067T 4121003XT

C483 067T 4121003XT

C482 067T 4121003XT

C499 067T 4121003XT

C5003 067T 4121003XT

C586 067T 4121003XT

C591 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

C592 067T 4121003XT

C762 067T 4121003XT

C761 067T 4121003XT

C757 067T 4121003XT

C756 067T 4121003XT

C750 067T 4121003XT

C749 067T 4121003XT

C744 067T 4121003XT

C731 067T 4121003XT

C218 067T 4121003XT

C228 067T 4121003XT

C319 067T 4121003XT

C338 067T 4121003XT

C341 067T 4121003XT

C343 067T 4121003XT

C345 067T 4121003XT

C347 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

C350 067T 4121003XT

C355 067T 4121003XT

C359 067T 4121003XT

C367 067T 4121003XT

C705 067T 4121006XT

C408 067T 4121013XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

CAP S85℃ 10UF M 35V XINDECO

EC 85℃ SMD CAP 100UF M 16V

84

32’’ LCD TV Hyundai HLCD-32XT

C413 067T 4121013XT

EC 85℃ SMD CAP 100UF M 16V

C721 067T 4122203XT

C724 067T 4122203XT

C729 067T 4122203XT

C733 067T 4122203XT

C743 067T 4122203XT

C759 067T 4122203XT

C719 067T 4122203XT

C205 067T 4122203XT

C215 067T 4122203XT

C231 067T 4122203XT

C316 067T 4122203XT

C397 067T 4122203XT

C742 067T 4124703XT

C735 067T 4124703XT

C727 067T 4124703XT

C707 067T 4124703XT

C706 067T 4124703XT

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

C597 067T 4124703XT

C595 067T 4124703XT

C5002 067T 4124703XT

LP200 071T 56A301 8M CHIP BEAD

L400 071T 56B221 CHIP BEAD 220 OHM

L406 071T 56B221 CHIP BEAD 220 OHM

L407 071T 56B221 CHIP BEAD 220 OHM

L408 071T 56B221 CHIP BEAD 220 OHM

L409 071T 56B221 CHIP BEAD 220 OHM

L411 071T 56B221 CHIP BEAD 220 OHM

FB304 071T 56G151 A CHIOP BEAD 150 OHM

FB303 071T 56G151 A CHIOP BEAD 150 OHM

FB302 071T 56G151 A CHIOP BEAD 150 OHM

FB300 071T 56G151 A CHIOP BEAD 150 OHM

FB305 071T 56G151 A CHIOP BEAD 150 OHM

FB306 071T 56G151 A CHIOP BEAD 150 OHM

L207 071T 56G151 B BEAD 0805 150 OHM

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

EC 85℃ SMD CAP 47UF M 16V

L206 071T 56G151 B BEAD 0805 150 OHM

L200 071T 56G151 B BEAD 0805 150 OHM

FB301 071T 56G151 MD 0603 150 OHM

L410 071T 56G301 EA CHIP BEAD 300 OHM 0805

L502 071T 56G301 EA CHIP BEAD 300 OHM 0805

L503 071T 56G301 EA CHIP BEAD 300 OHM 0805

85

32’’ LCD TV Hyundai HLCD-32XT

L720 071T 56G301 EA CHIP BEAD 300 OHM 0805

L719 071T 56G301 EA CHIP BEAD 300 OHM 0805

L716 071T 56G301 EA CHIP BEAD 300 OHM 0805

L714 071T 56G301 EA CHIP BEAD 300 OHM 0805

L710 071T 56G301 EA CHIP BEAD 300 OHM 0805

L708 071T 56G301 EA CHIP BEAD 300 OHM 0805

L706 071T 56G301 EA CHIP BEAD 300 OHM 0805

L702 071T 56G301 EA CHIP BEAD 300 OHM 0805

L700 071T 56G301 EA CHIP BEAD 300 OHM 0805

L511 071T 56G301 EA CHIP BEAD 300 OHM 0805

L510 071T 56G301 EA CHIP BEAD 300 OHM 0805

L509 071T 56G301 EA CHIP BEAD 300 OHM 0805

L508 071T 56G301 EA CHIP BEAD 300 OHM 0805

L203 071T 56U600 CHIP BEAD 60 OHM 0805

L202 071T 56U600 CHIP BEAD 60 OHM 0805

L201 071T 56U600 CHIP BEAD 60 OHM 0805

L707 071T 56U601 MA CHIP BEAD 0805 600 OHM 1000MA

L507 071T 56Z601 CHIP BEAD 600 OHM

L401 071T 56Z601 CHIP BEAD 600 OHM

L303 071T 56Z601 CHIP BEAD 600 OHM

L208 071T 56Z601 CHIP BEAD 600 OHM

L205 071T 56Z601 CHIP BEAD 600 OHM

L204 071T 56Z601 CHIP BEAD 600 OHM

LP500 071T 57G601TSB IND CHIP BEAD 1206 600OHM TECSTAR

L302 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L301 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L300 073T 12622910K CHIP INDUCTOR 2.2UH 10% 1206

L402 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L403 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L404 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

L405 073T253S 6 K SMD CHOKE 90 OHM WCM2012D-900T

P400 088T 340 19 H HDMI HEADER

ZD200 093T 39147SEM ZMM5V6

ZD201 093T 39147SEM ZMM5V6

D205 093T 60231 NO APP BAT54S SOT-23

D206 093T 60231 NO APP BAT54S SOT-23

D204 093T 60505 BAT54C PHILIPS

D400 093T 60505 BAT54C PHILIPS

D500 093T 64 42 P BAV70 SOT23

D502 093T 6433P BAV99

D501 093T 6433P BAV99

86

32’’ LCD TV Hyundai HLCD-32XT

D203 093T 6433P BAV99

D202 093T 6433P BAV99

D201 093T 6433P BAV99

ZD400 093T 39S 60 T MLL5227B

715T1768 1 MAIN BOARD PCB

IRPFJA6P IR BOARD

CN1 033T3802 4 WAFER PH-4

U1 056T 627 7 FM-6038TM2-5AN

Q1 057T 417 6 PMBS3906/PHILIPS-SMT

R1 061T0603101 CHIP 100OHM 1/16W

R3 061T0603103 CHIP 10KOHM 1/16W

R2 061T1206301 RST CHIPR 300 OHM +-5% 1/4W

R4 061T1206331 RST CHIPR 330 OHM +-5% 1/4W

C3 065T0603101 31 CHIP 100PF 50V NPO

C4 065T0603104 32 CHIP 0.1UF 50V X7R

C2 065T0603104 32 CHIP 0.1UF 50V X7R

C5 065T0603104 32 CHIP 0.1UF 50V X7R

C1 065T0805475 A5 CHIP 4.7UF 10V X5R

FB2 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

FB3 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

FB1 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

D1 081T 14 15 KB KAA-3528CGKSYKC-01-AOC SMA

715T1975 1 SM IR BOARD PCB

Q15T0063 2 BKT HOLD PANEL

Q15T0064 1 BKT HOLD PANEL

Q34T1661 GM 1A COVER CABLE

Q34T1666 GM 1A COVER HINGE BUTTOM

Q40T 320970 4C RATING LABEL

Q40T 58161557B IO LABEL

Q44T3A08 5 1C U TYPE SHEET FOR BASE

Q44T3A08970 3B CARTON

Q45T 99609 2 R EPE COVER FOR MONITOR

Q45T 99609 5 R EPE COVER

TUPF6YA3 TUNER BOARD

J100 033T802436C H HEADER FEMALE 36P 2.0MM

040T 45762412B CBPC LABEL

R104 061T153M100 59 10 OHM 5% 3W

R103 061T153M100 59 10 OHM 5% 3W

L129 073T 259 4 CHOKE COIL

085T 583510 GASKET

J102 088T 78 13 1C RCA JACK

87

32’’ LCD TV Hyundai HLCD-32XT

J101 088T 78 13 3C AV-S-01-W

CN101 088T 78 1315C RCA JACK

J103 088T 78 1316C RCA JACK2*3 R/BLU/G+Y/W/R

X600 093T 22D60 BH CRYSTAL 18.432MHZ/12PF/49U

TU100 094TNTSC MA 1P MICROTUNER FQ1236/FH-5

U600 056T 133 30AAC IC AZ1117H-ADJ-E1

U101 056T 585 11 AZ1117D-5.0-E1

U601 056T 593504 MSP3450G-QI-B8-V3

U100 056T 614 1 IC 74HC4052D PHILIPS

U104 056T 625 1 NJM-2244M-TE1/JRC

U105 056T 652 1 PCA9554PW TSSOP-16 PHILIPS 8BI

RN103 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W

RN102 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W

RN101 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W

RN100 061T 125473 8 RST CHIP AR 8P4R 47 KOHM +-5% 1/16W

R120 061T0603000 CHIP 0OHM 1/16W

R121 061T0603000 CHIP 0OHM 1/16W

R160 061T0603000 CHIP 0OHM 1/16W

R620 061T0603101 CHIP 100OHM 1/16W

R619 061T0603101 CHIP 100OHM 1/16W

R611 061T0603101 CHIP 100OHM 1/16W

R609 061T0603101 CHIP 100OHM 1/16W

R147 061T0603101 CHIP 100OHM 1/16W

R146 061T0603101 CHIP 100OHM 1/16W

R145 061T0603101 CHIP 100OHM 1/16W

R144 061T0603101 CHIP 100OHM 1/16W

R142 061T0603101 CHIP 100OHM 1/16W

R140 061T0603101 CHIP 100OHM 1/16W

R621 061T0603101 CHIP 100OHM 1/16W

R622 061T0603101 CHIP 100OHM 1/16W

R623 061T0603101 CHIP 100OHM 1/16W

R122 061T0603102 CHIP 1K OHM 1/16W

R603 061T0603102 CHIP 1K OHM 1/16W

R134 061T0603102 CHIP 1K OHM 1/16W

R139 061T0603103 CHIP 10KOHM 1/16W

R133 061T0603103 CHIP 10KOHM 1/16W

R131 061T0603103 CHIP 10KOHM 1/16W

R602 061T0603120 0F RST CHIPR 120 OHM +-1% 1/10W

R617 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R615 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R613 061T0603471 RST CHIPR 470OHM +-5% 1/10W

88

32’’ LCD TV Hyundai HLCD-32XT

R612 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R610 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R608 061T0603471 RST CHIPR 470OHM +-5% 1/10W

R614 061T0603472 CHIP 4.7KOHM 1/16W

R137 061T0603750 9F CHIP 75OHM 1/16W 1%

R138 061T0603750 9F CHIP 75OHM 1/16W 1%

R155 061T0603750 9F CHIP 75OHM 1/16W 1%

R156 061T0603750 9F CHIP 75OHM 1/16W 1%

R115 061T0603750 9F CHIP 75OHM 1/16W 1%

R119 061T0603750 9F CHIP 75OHM 1/16W 1%

R132 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R153 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R154 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R157 061T0805000 RST CHIPR 0 OHM +-5% 1/8W

R124 061T0805750 RST CHIPR 75 OHM +-5% 1/8W

R604 061T1206620 0F RST CHIPR 620 OHM +-1% 1/4W

C601 065T0603101 31 CHIP 100PF 50V NPO

C168 065T0603101 31 CHIP 100PF 50V NPO

C645 065T0603102 32 CHIP 1000PF 50V X7R

C644 065T0603102 32 CHIP 1000PF 50V X7R

C642 065T0603102 32 CHIP 1000PF 50V X7R

C641 065T0603102 32 CHIP 1000PF 50V X7R

C640 065T0603102 32 CHIP 1000PF 50V X7R

C157 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C156 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C159 065T0603104 12 MLCC 0603 0.1UF K 16V X7R

C628 065T0603104 32 CHIP 0.1UF 50V X7R

C612 065T0603104 32 CHIP 0.1UF 50V X7R

C605 065T0603104 32 CHIP 0.1UF 50V X7R

C604 065T0603104 32 CHIP 0.1UF 50V X7R

C163 065T0603104 32 CHIP 0.1UF 50V X7R

C124 065T0603104 32 CHIP 0.1UF 50V X7R

C101 065T0603104 32 CHIP 0.1UF 50V X7R

C635 065T0603152 31 CHIP 1500PF 50V NPO

C620 065T0603152 31 CHIP 1500PF 50V NPO

C600 065T0603152 31 CHIP 1500PF 50V NPO

C153 065T0603220 31 CHIP 22PF 50V NPO

C152 065T0603220 31 CHIP 22PF 50V NPO

C151 065T0603220 31 CHIP 22PF 50V NPO

C150 065T0603220 31 CHIP 22PF 50V NPO

C621 065T0603221 31 GP CHIP 220PF 50V NPO

89

32’’ LCD TV Hyundai HLCD-32XT

C624 065T0603331 31 CHIP 330PF 50V NPO

C625 065T0603331 31 CHIP 330PF 50V NPO

C626 065T0603331 31 CHIP 330PF 50V NPO

C627 065T0603331 31 CHIP 330PF 50V NPO

C631 065T0603331 31 CHIP 330PF 50V NPO

C632 065T0603331 31 CHIP 330PF 50V NPO

C161 065T0603470 31 CHIP 47PF 50V NPO

C636 065T0603471 32 CHIP 470PF 50V NPO

C622 065T0603471 32 CHIP 470PF 50V NPO

C611 065T0603471 32 CHIP 470PF 50V NPO

C139 065T0603471 32 CHIP 470PF 50V NPO

C138 065T0603471 32 CHIP 470PF 50V NPO

C135 065T0603471 32 CHIP 470PF 50V NPO

C131 065T0603471 32 CHIP 470PF 50V NPO

C125 065T0603471 32 CHIP 470PF 50V NPO

C607 065T0603509 31 CHIP 5PF 50V NPO

C606 065T0603509 31 CHIP 5PF 50V NPO

C646 065T0603560 31 CHIP 56PF 50V NPO

C608 065T0603560 31 CHIP 56PF 50V NPO

C609 065T0603560 31 CHIP 56PF 50V NPO

C143 065T0603680 31 CHIP 68PF 50V NPO

C142 065T0603680 31 CHIP 68PF 50V NPO

C141 065T0603680 31 CHIP 68PF 50V NPO

C140 065T0603680 31 CHIP 68PF 50V NPO

C137 065T0603680 31 CHIP 68PF 50V NPO

C133 065T0603680 31 CHIP 68PF 50V NPO

C132 065T0603680 31 CHIP 68PF 50V NPO

C128 065T0603680 31 CHIP 68PF 50V NPO

C158 067T 312471 3 SMD EC 470UF 16V 85C

C145 067T 4121003XT

C146 067T 4121003XT

C147 067T 4121003XT

C148 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

C149 067T 4121003XT

C162 067T 4121003XT

C602 067T 4121003XT

C603 067T 4121003XT

C613 067T 4121003XT

C618 067T 4121003XT

C633 067T 4121003XT

C634 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

90

32’’ LCD TV Hyundai HLCD-32XT

C639 067T 4121003XT

EC 85℃ CHIP 10UF M 16V

C154 067T 4121003XT

C144 067T 4121003XT

C136 067T 4121003XT

C134 067T 4121003XT

C123 067T 4121003XT

C121 067T 4121003XT

C120 067T 4121003XT

C610 067T 4121013XT

C160 067T 4121013XT

C155 067T 4121013XT

C614 067T 4121093XT

C623 067T 4121093XT

C619 067T 4121093XT

C617 067T 4121093XT

C616 067T 4121093XT

C615 067T 4121093XT

C629 067T 4122203XT

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ CHIP 10UF M 16V

EC 85℃ SMD CAP 100UF M 16V

EC 85℃ SMD CAP 100UF M 16V

EC 85℃ SMD CAP 100UF M 16V

CAP S85℃ 1UF M 16V XINDECO

CAP S85℃ 1UF M 16V XINDECO

CAP S85℃ 1UF M 16V XINDECO

CAP S85℃ 1UF M 16V XINDECO

CAP S85℃ 1UF M 16V XINDECO

CAP S85℃ 1UF M 16V XINDECO

CAP 85℃ 22UF M 16V XINDECO

C630 067T 4123393XT

C643 067T 4124703XT

L128 071T 56U601 BEAD 600 OHM

L107 071T 56Z601 CHIP BEAD 600 OHM

L600 071T 56Z601 CHIP BEAD 600 OHM

L117 071T 56Z601 CHIP BEAD 600 OHM

L115 071T 56Z601 CHIP BEAD 600 OHM

L111 071T 56Z601 CHIP BEAD 600 OHM

L131 071T 57G601 BEAD 1206 600 OHM

L130 071T 57G601 BEAD 1206 600 OHM

L132 071T 57G601 BEAD 1206 600 OHM

L108 071T 59B121 BEAD 0603 120 OHM

L120 071T 59B121 K CHIP BEAD

L119 071T 59B121 K CHIP BEAD

L118 071T 59B121 K CHIP BEAD

L116 071T 59B121 K CHIP BEAD

L113 071T 59B121 K CHIP BEAD

CAP S85℃ 3.3UF M 16V

EC 85℃ SMD CAP 47UF M 16V

L112 071T 59B121 K CHIP BEAD

L100 071T 59B121 K CHIP BEAD

L603 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L602 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L601 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L124 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

91

32’’ LCD TV Hyundai HLCD-32XT

L123 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L122 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L121 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

L114 071T 59B601 EA CHIP BEAD 600OHM 0603 TB1608

D100 093T 6432V LL4148-GSO8 SMD BY VISHA

715T2275 2 TUNER BOARD PCB

001T6017 2 GP SCREW

040T 58162435A LABEL

045T 76 28 C PE BAG FOR MANUAL

092TB1JX1A21GM BATTERY LR06 XINLI

Q41T3201970 4A MANUAL

Q41T7800970 1A WARRANTY BOOKLET

Q45T 76 28NV2 R PE BAG FOR CLAMP

Q40T0001624 4A PALLET LABEL

92
