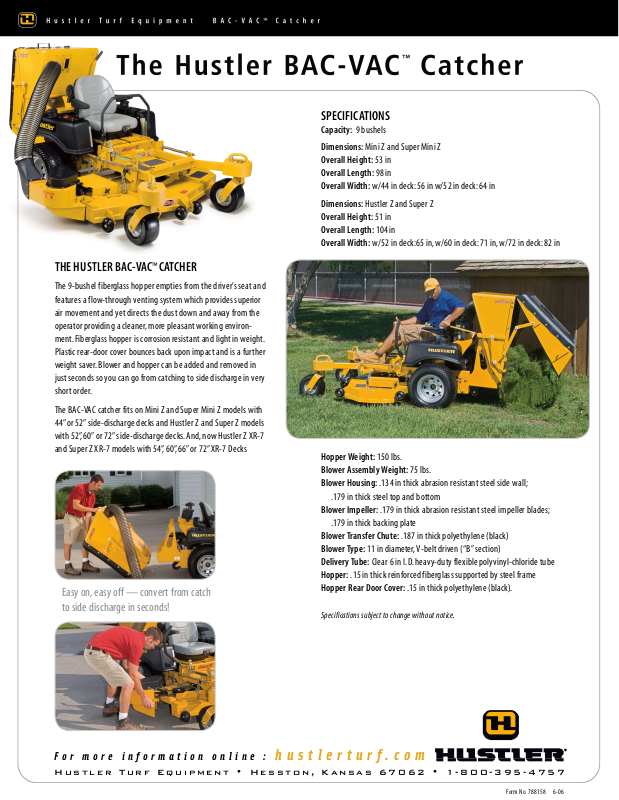

THE HUSTLER BAC-VAC™ CATCHER

The 9-bushel fiberglass hopper empties from the driver’s seat and
features a flow-through venting system which provides superior
air movement and yet directs the dust down and away from the
operator providing a cleaner, more pleasant working environ­ment. Fiberglass hopper is corrosion resistant and light in weight.
Plastic rear-door cover bounces back upon impact and is a further
weight saver. Blower and hopper can be added and removed in
just seconds so you can go from catching to side discharge in very
short order.

The BAC-VAC catcher fits on Mini Z and Super Mini Z models with
44” or 52” side-discharge decks and Hustler Z and Super Z models
with 52”, 60” or 72” side-discharge decks. And, now Hustler Z XR-7
and Super Z XR-7 models with 54”, 60”, 66” or 72” XR-7 Decks

Easy on, easy off — convert from catch
to side discharge in seconds!

SPECIFICATIONS

Capacity: 9 bushels

Dimensions: Mini Z and Super Mini Z
Overall Height: 53 in
Overall Length: 98 in
Overall Width: w/44 in deck: 56 in w/52 in deck: 64 in

Dimensions: Hustler Z and Super Z
Overall Height: 51 in
Overall Length: 104 in
Overall Width: w/52 in deck:65 in, w/60 in deck: 71 in, w/72 in deck: 82 in

Hopper Weight: 150 lbs.
Blower Assembly Weight: 75 lbs.
Blower Housing: .134 in thick abrasion resistant steel side wall;

.179 in thick steel top and bottom
Blower Impeller: .179 in thick abrasion resistant steel impeller blades;
.179 in thick backing plate

Blower Transfer Chute: .187 in thick polyethylene (black)
Blower Type: 11 in diameter, V-belt driven (“B” section)
Delivery Tube: Clear 6 in I.D. heavy-duty flexible polyvinyl-chloride tube
Hopper: .15 in thick reinforced fiberglass suppor ted by steel frame
Hopper Rear Door Cover: .15 in thick polyethylene (black).

Speci fications s ubject to change wit hout noti ce.
