Husqvarna Z254F-967844901-00, 967844901-00 Owner’s Manual

Lea el manual de instrucciones detenidamente y asegúrese de comprender las instrucciones antes de utilizar la máquina.

La gasolina que contiene hasta 10 % de etanol (E10) se puede usar en esta máquina. El uso de gasolina que tenga más de 10 % de etanol (E10) anulará la garantía del producto.

115 97 28-49 Rev. A

English / Spanish

Operator Manual

Manual del operador

Z 254F / 967 844901-00

Please read the operator manual carefully and make

sure you understand the instructions before using the

machine.

Gasoline containing a maximum of 10% ethanol

(E10) is permitted for use in this machine. The use of

gasoline with more than 10% ethanol (E10) will void

the product warranty.

CONFORMITY CERTIFICATES

USA requirements

Labels are placed on the engine and/or in the engine compartment stating that the machine

will fulll the requirements. This is also applicable to special requirements for any of the states, (California emission rules etc.). Do not remove these labels. Certicates can also be supplied with the machine at delivery or written in the Engine manual. Take care of them as they are

valuable documents.

WARNING! Failure to follow cautious

operating practices can result in dangerous

injury to the operator or other persons. The

owner must understand these instructions,

and must let only approved persons who

understand these instructions to operate the mower.

Each person operating the mower must be of sound mind and body and must not be under the inuence of mind altering substances.

WARNING! Engine exhaust, some of its

constituents, and certain vehicle components

contain or emit chemicals known to the State of

California to cause cancer and birth defects or other reproductive harm.

WARNING! Battery posts, terminals

and related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and birth defects

or other reproductive harm. Clean your hands

after handling.

WARNING! Engine exhaust and certain

vehicle components contain or emit chemicals considered to cause cancer, birth defects,

or other reproductive system damage. The engine exhaust contains carbon monoxide,

which is an odorless, colorless, poisonous gas. Do not use the machine in enclosed spaces.

When this product is worn out and no longer

used, return it to the reseller or other party for recycling.

To implement improvements, specications

and designs can be altered without prior

notication.

Note that no legal demands can be placed based on the information contained in these instructions.

Use only original parts for repairs. The use of other parts voids the warranty.

Do not modify or install non-standard equipment to the unit without consent from the manufacturer. Modications to the unit may

cause unsafe operations or damage the unit.

Orangeburg, SC Printed in U.S.A.

CONTENTS

INTRODUCTION............................................... 4

Driving and Transport on Public Roads ....... 4

Towing ......................................................... 4

Operating ..................................................... 4

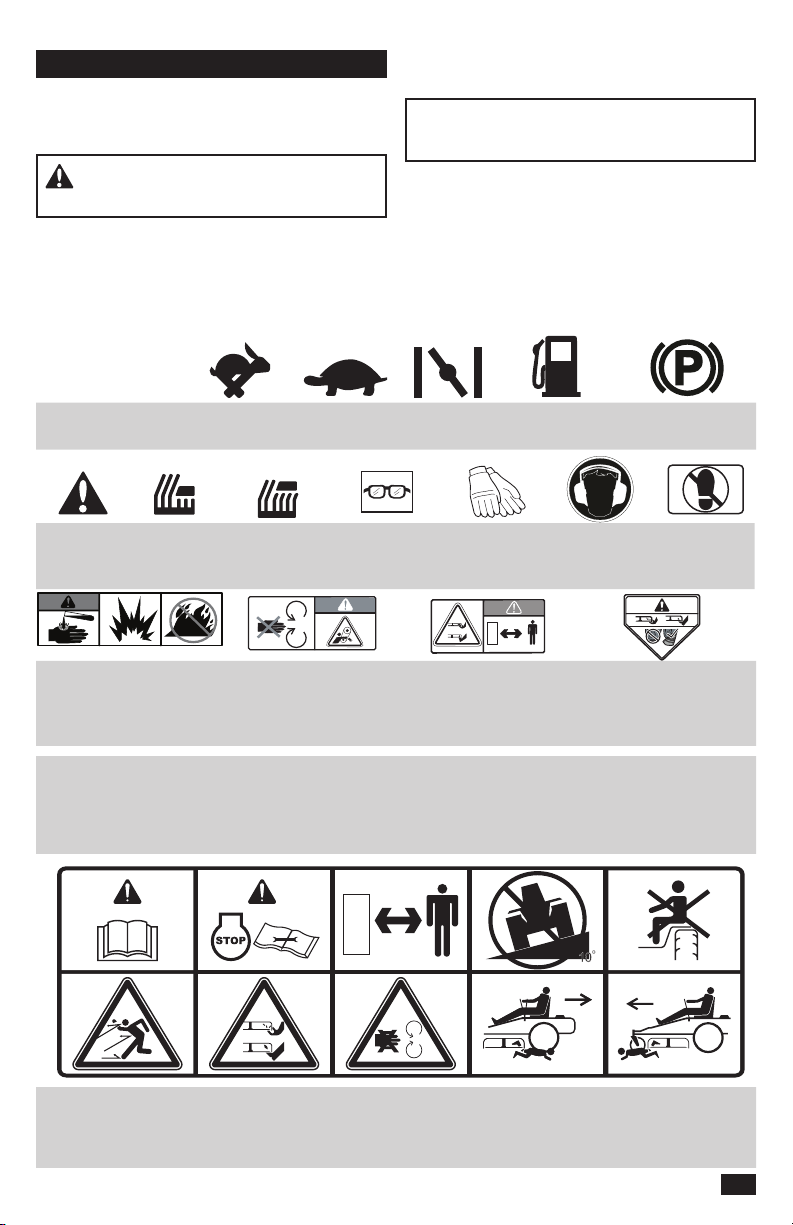

SYMBOLS AND DECALS ................................. 6

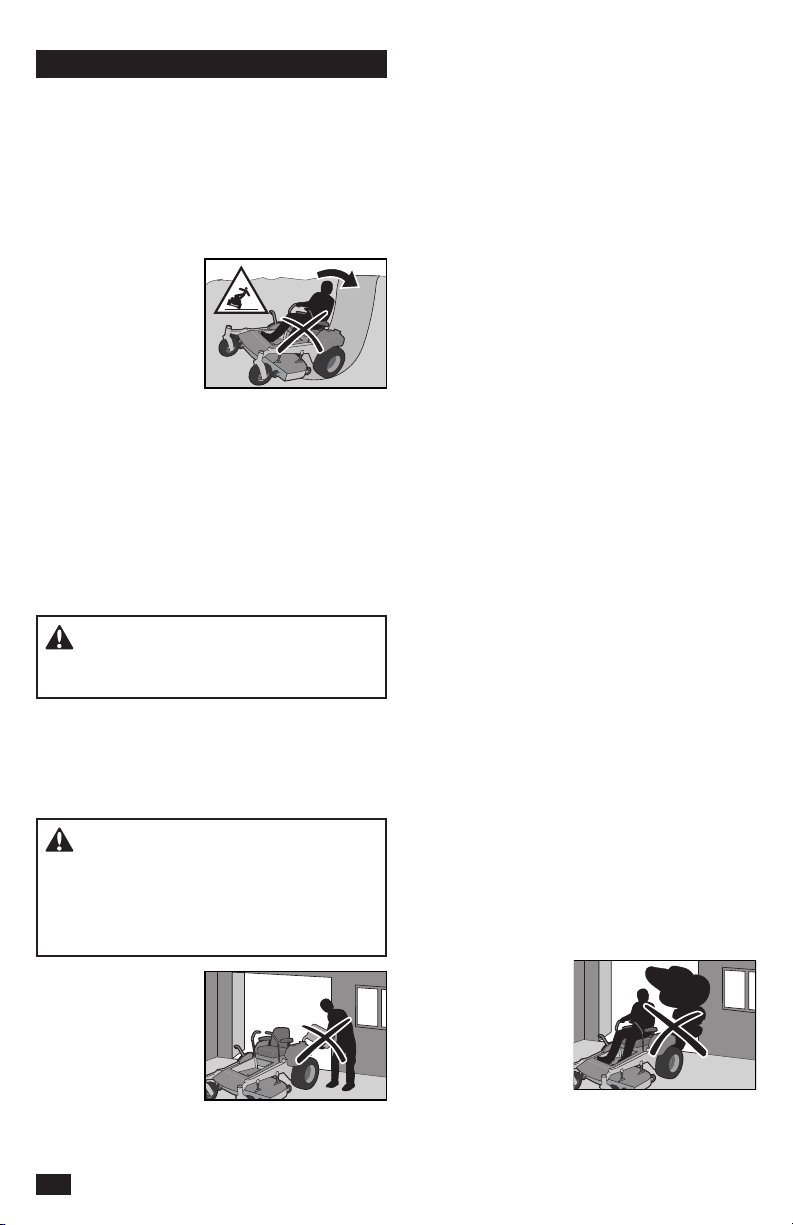

SAFETY ............................................................ 7

Protecting Children ...................................... 7

Personal Safety Equipment ......................... 8

Slope Operation ........................................... 8

Safe Handling of Gasoline ........................... 9

Transport ................................................... 10

Spark Arrestor ............................................ 10

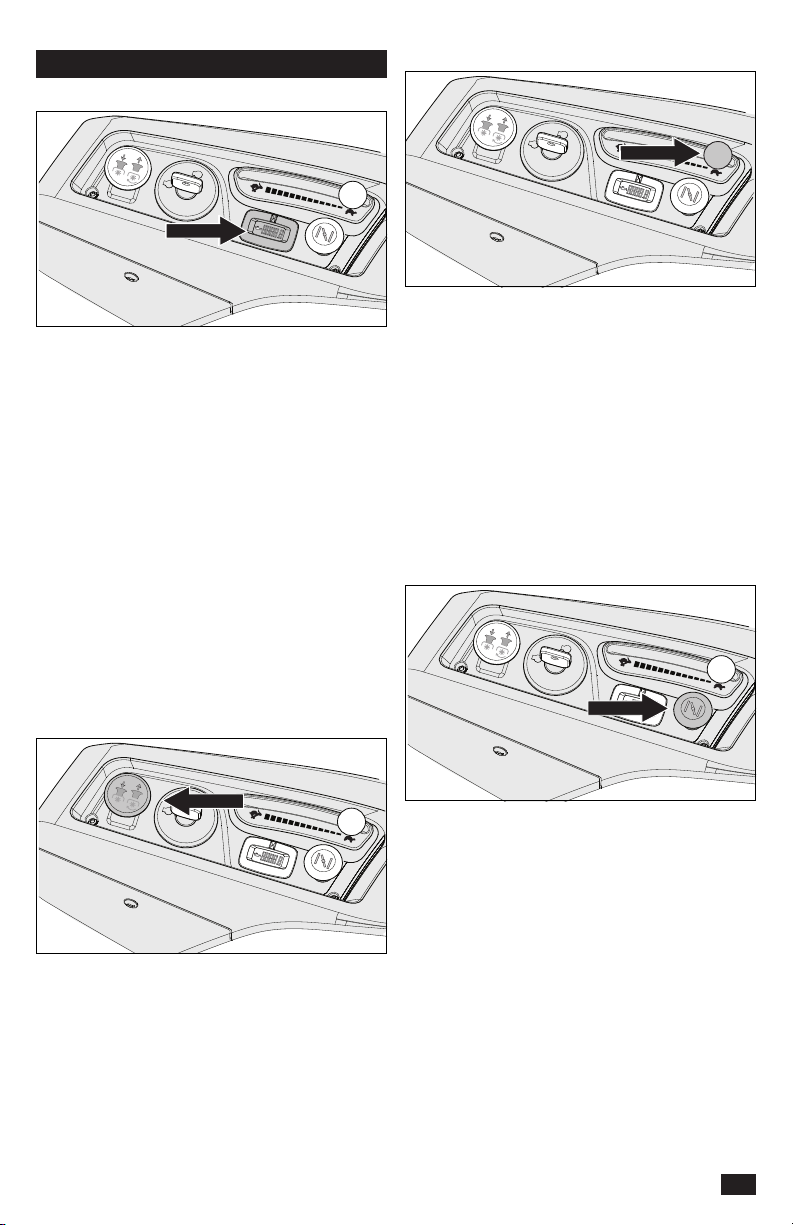

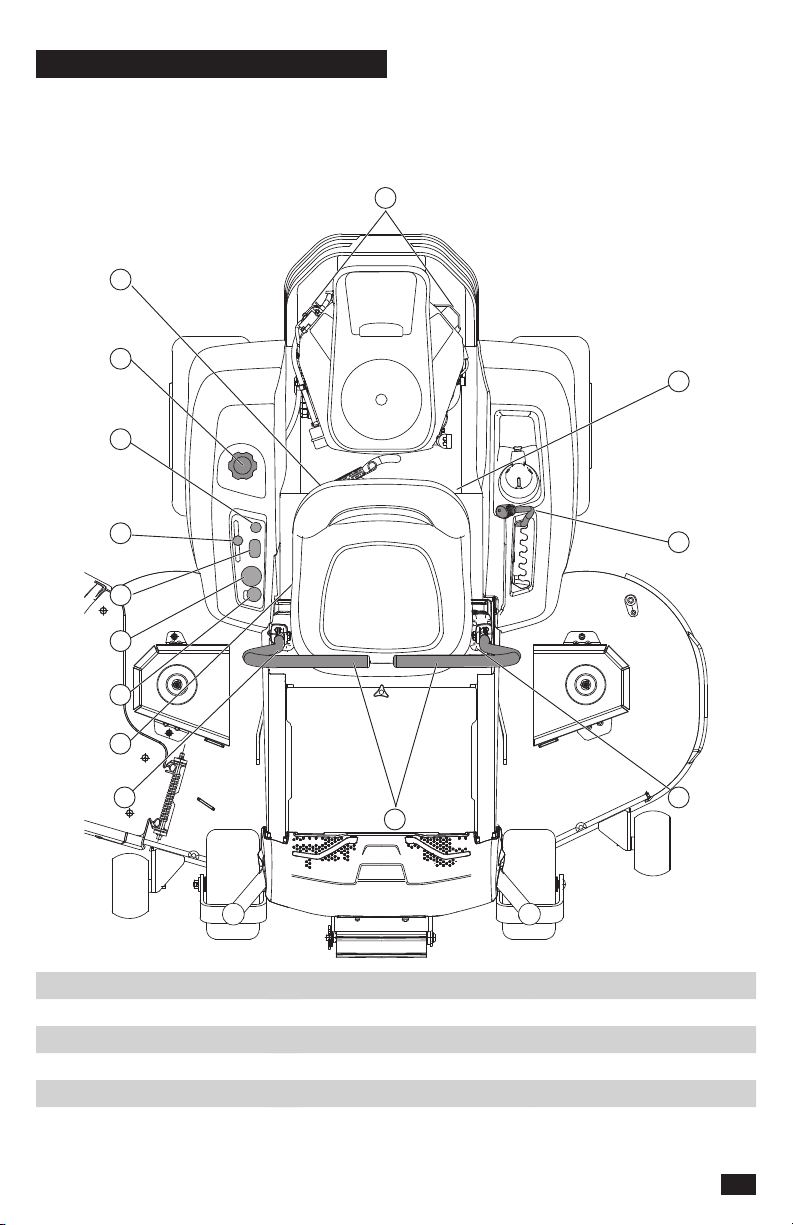

CONTROLS .....................................................11

Steering Control Levers ............................. 12

Park Brake ................................................. 12

Throttle Control .......................................... 12

Ignition Switch ........................................... 13

Service Meter ............................................ 13

Blade Switch .............................................. 13

Choke Control ............................................ 13

Fuse ........................................................... 13

Cutting Height Lever .................................. 14

Bypass Linkages ....................................... 14

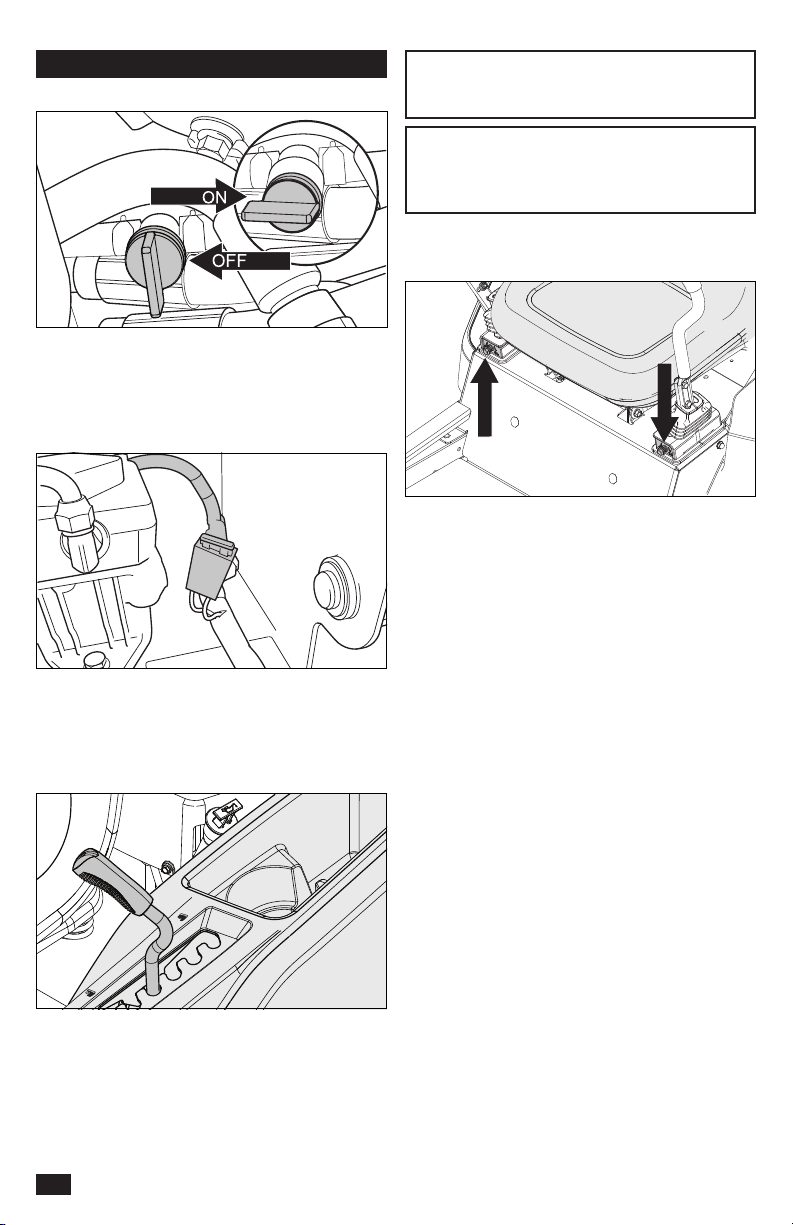

Fuel Shut Off Valve .................................... 14

Tracking ..................................................... 14

Fuel Tank ................................................... 15

OPERATION ................................................... 16

Training ...................................................... 16

Operating on Hills ...................................... 17

Moving Machine By Hand .......................... 18

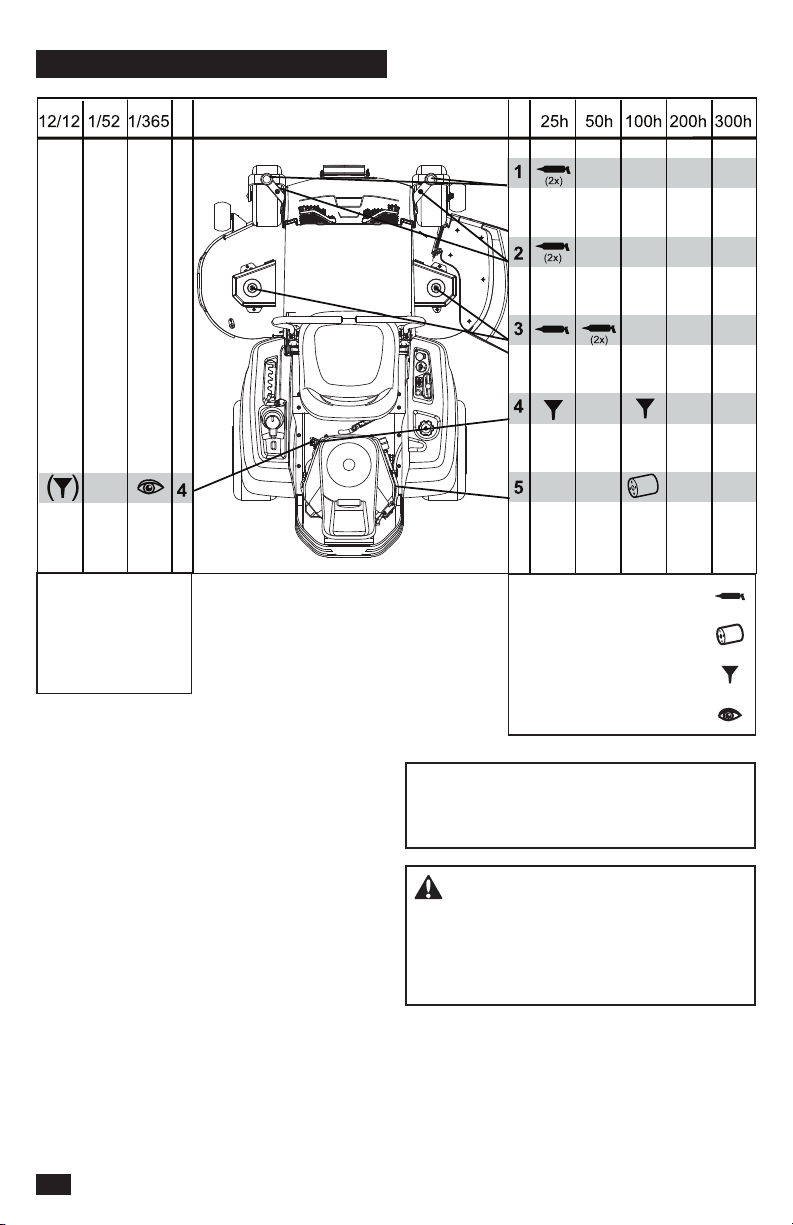

MAINTENANCE .............................................. 19

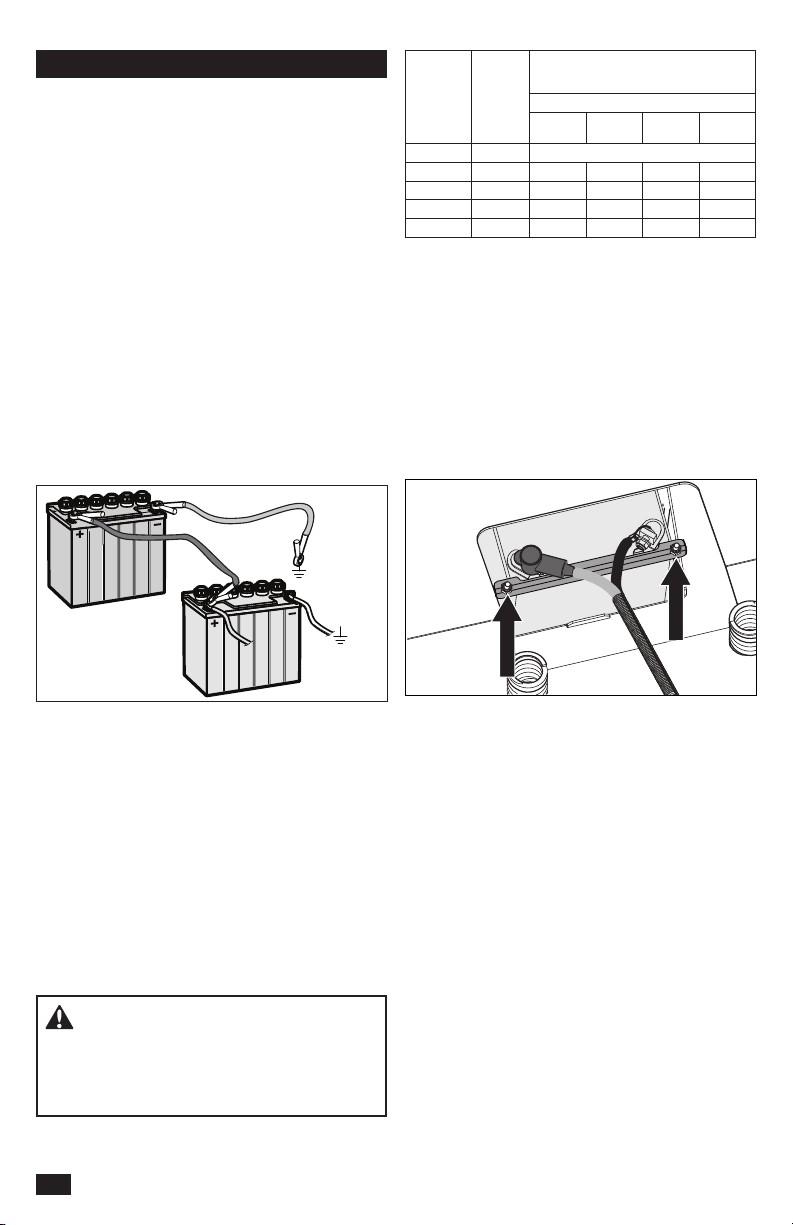

Battery ....................................................... 21

Safety System ........................................... 22

Park Brake ................................................. 22

Tire Pressures ........................................... 22

Caster Wheels ........................................... 23

V-belts ........................................................ 23

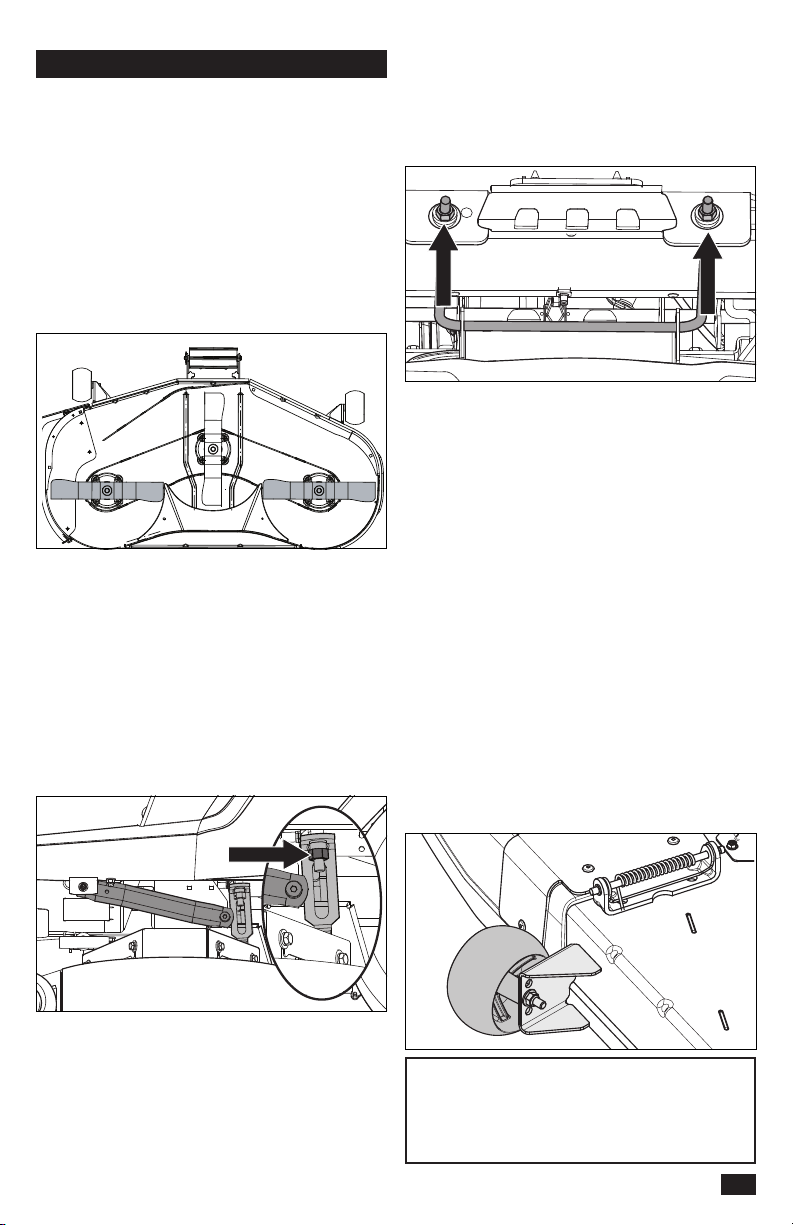

Adjusting the Mower Deck ......................... 23

Cutting Blades ........................................... 24

Anti-scalp Rollers ....................................... 24

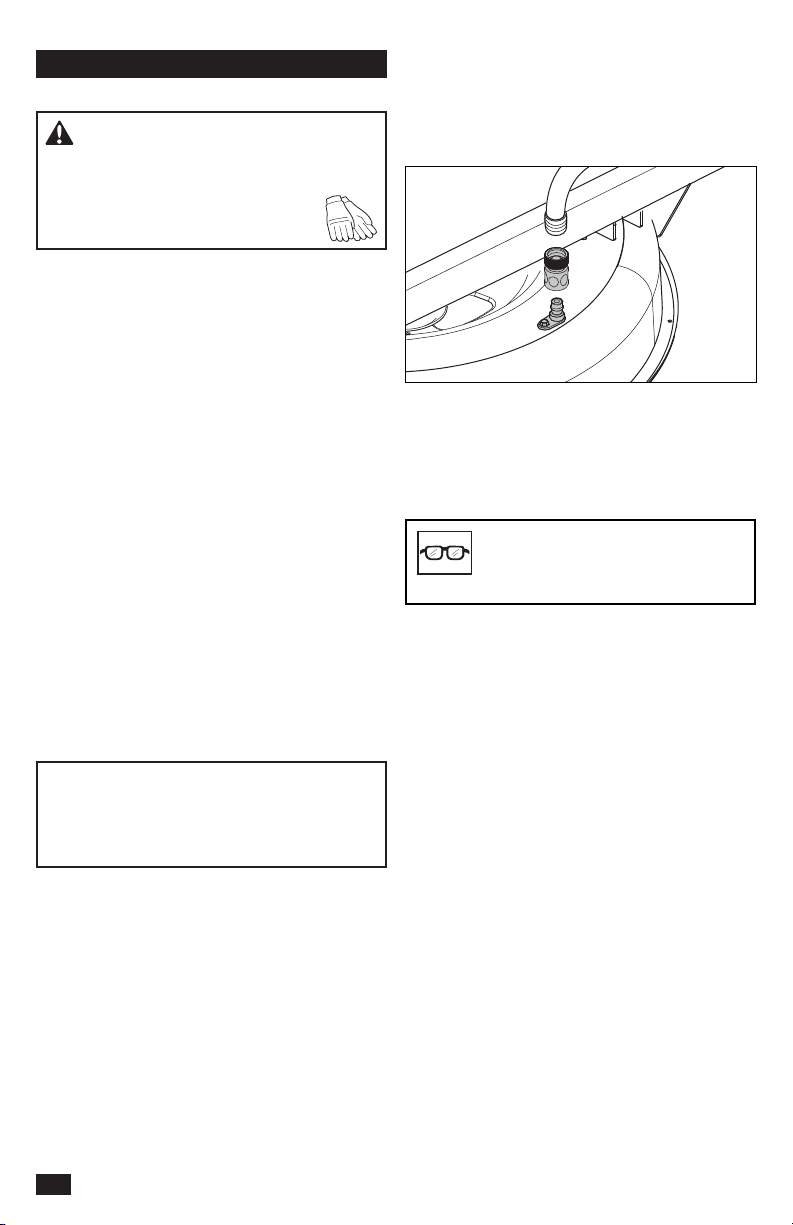

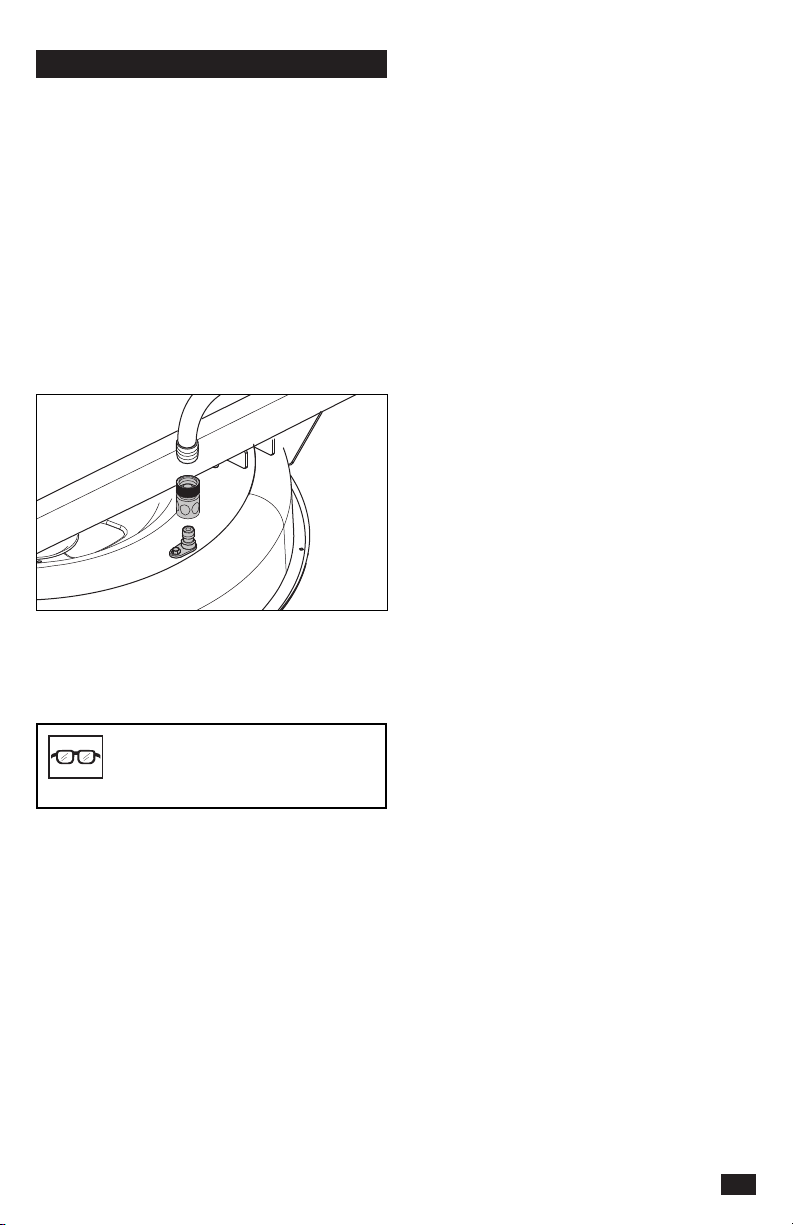

Cleaning .................................................... 25

LUBRICATION ................................................ 26

Engine Oil .................................................. 27

Wheel and Deck Zerks .............................. 27

Transmission ............................................. 27

TROUBLESHOOTING .................................... 28

STORAGE ....................................................... 29

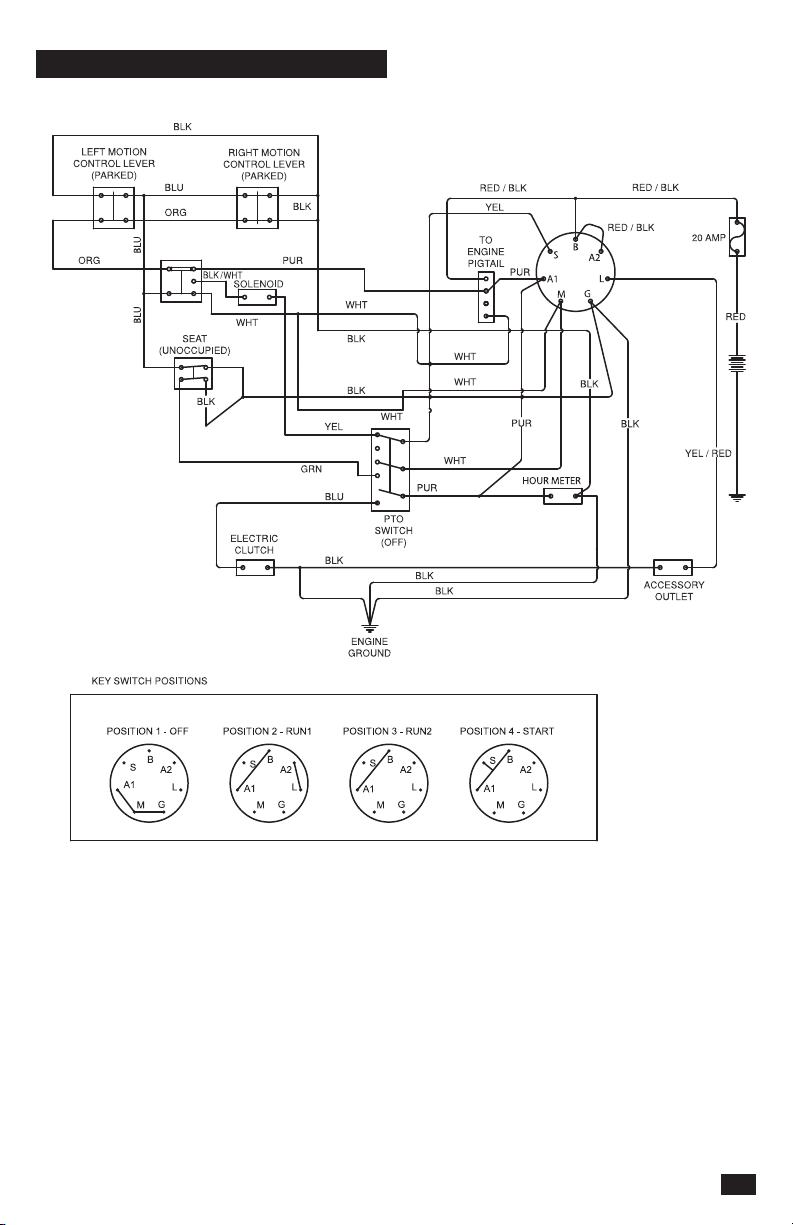

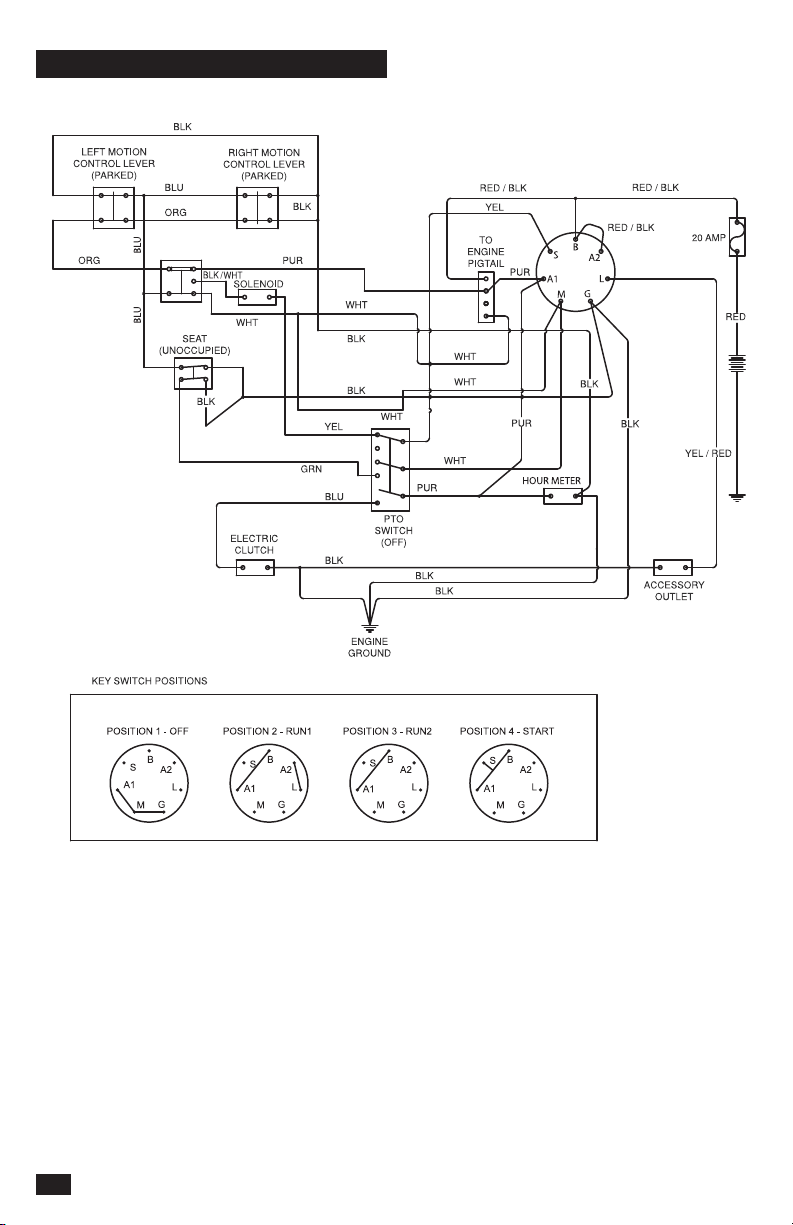

SCHEMATIC ................................................... 30

TECHNICAL DATA .......................................... 31

SERVICE JOURNAL ....................................... 33

INTRODUCCIÓN ............................................ 37

Conducción y transporte en vías públicas . 37

Remolque .................................................. 37

Funcionamiento ......................................... 37

SÍMBOLOS Y RÓTULOS ................................ 39

SEGURIDAD ................................................... 40

Seguridad infantil ....................................... 40

Equipo de seguridad personal ................... 41

Funcionamiento en pendientes ................. 41

Manipulación segura de la gasolina .......... 42

Transporte ................................................. 44

Parachispas ............................................... 44

CONTROLES .................................................. 45

Palancas de control de la dirección ........... 46

Freno de estacionamiento ......................... 46

Interruptor de encendido ........................... 46

Medidor de servicio ................................... 47

Interruptor de cuchilla ................................ 47

Control del acelerador ............................... 47

Estrangulador ............................................ 47

Válvula de corte de combustible ................ 48

Fusible ....................................................... 48

Palanca de altura de corte ......................... 48

Desplazamiento ......................................... 48

Varillajes de derivación .............................. 49

Depósito de combustible ........................... 49

OPERACIÓN .................................................. 50

Capacitación .............................................. 50

Trabajo en pendientes ............................... 52

Mover la máquina manualmente ............... 53

MANTENIMIENTO .......................................... 54

Batería ....................................................... 56

Sistema de seguridad ................................ 57

Freno de estacionamiento ......................... 57

Ruedecillas ................................................ 58

Presión de los neumáticos ........................ 58

Correas en V ............................................. 58

Ajuste del equipo de corte ......................... 58

Ruedas de apoyo ...................................... 59

Discos de corte .......................................... 60

Limpieza .................................................... 60

LUBRICACIÓN ............................................... 61

Cambio de aceite del motor ....................... 62

Engrasadores de rueda y equipo .............. 62

Transmisión ............................................... 62

SOLUCIÓN DE PROBLEMAS ........................ 63

ALMACENAMIENTO ...................................... 64

ESQUEMA ...................................................... 65

DATOS TÉCNICOS ........................................ 66

REGISTRO DE SERVICIO ............................. 68

INTRODUCTION

Congratulations

Thank you for purchasing a Husqvarna rideon mower. This machine is built for superior efciency to rapidly mow primarily large areas. A control panel that the operator can easily access and a hydrostatic transmission regulated by

steering controls each contribute to the machine’s performance.

This manual is a valuable document. Read the contents carefully before using or servicing the machine. The following of instructions (use, service, maintenance) by all who operate this machine is important for the safety of the operator and others. It can also largely increase the life

span of the machine and increase its resale value.

If you sell your machine, be sure to give the

operator manual to the new owner.

The last chapter of this operator manual supplies a Service Journal. Make sure that service and repair work are documented. A correctly kept

service journal reduces service costs for the maintenance and affects the machine’s resale

value. Please contact your dealer for more information. Take the operator manual along when the machine is taken to your dealer for

service.

General

In this operator manual, left and right, rearward and forward are used in relation to the machine’s usual driving direction.

Continuous dedication to make our products better requires that specications and design are

subject to change without notice.

Driving and Transport on Public Roads

Check applicable road trafc regulations before

transporting on public roads. If the machine is

transported, you must always use approved fastening equipment and make sure that the machine is correctly attached. DO NOT operate this machine on public roadways.

Towing

If machine is equipped with a tow hitch, use much

more care when towing. Do not let children or

others in or on the towed equipment. Make wide turns to avoid jack-kning. Travel slowly and leave

more distance to stop.

Do not tow on sloped ground. The weight of the towed equipment can cause loss of traction and

loss of control.

Obey the manufacturer's recommendation for weight limits for towed equipment. Do not tow

near ditches, canals, and other dangerous areas.

Operating

This machine is constructed only for mowing

grass on lawns and even ground without

obstacles such as stones, tree stumps, etc. The machine can also be used for other tasks when equipped with special accessories supplied by

the manufacturer. Operating instructions for the

accessories are supplied with delivery. All other types of uses are incorrect. The manufacturer’s

directions concerning operation, maintenance,

and repairs must be carefully followed. Lawn mowers and all power equipment, can

be potentially dangerous if used incorrectly. Safety requires good judgment, careful use in

accordance with these instructions and common sense.

The machine must only be operated, maintained, and repaired by persons who know the machine’s special qualities and who are also knowledgeable about the safety instructions. Use only approved

repair parts to maintain this machine. Accident prevention regulations, other general

safety regulations, occupational safety rules, and trafc regulations must be followed without fail.

Unauthorized modications to the design of the

machine can absolve the manufacturer from

liability for resulting personal injury or damage to property.

INTRODUCTION

Good Service

Husqvarna's products are sold throughout the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and

service. Before the product is delivered, the

machine has, for example, been inspected and adjusted by the retailer. See the certicate in the Service Journal in this operator manual.

When you need spare parts or support in service questions, warranty issues, etc., please consult

the following professional:

This manual belongs to the machine with the

manufacturing number:

Manufacturing Number

The machine’s manufacturing number can be found on the printed plate afxed to the engine

compartment. Stated on the plate, from the top are:

• The machine’s type designation (I.D.).

• The manufacturer’s type number (Model).

• The machine’s serial number (Serial no.)

Please have the type designation and serial number available when ordering spare parts.

Engine Transmission

The engine’s manufacturing number is stamped

on one of the valve covers.

The plate states:

• The engine’s model.

• The engine’s type.

• Code

Please have these available when ordering spare parts.

The wheel motors and hydrostatic pumps have a barcode decal afxed at the rear.

SYMBOLS AND DECALS

These symbols are found on the machine and in the operator manual. Study them carefully so that you know what they mean.

WARNING! Xxxx xxxxxx xxxxx xxxx

xxxxxxxxx xxxxxx xxxxxxxxx.

Used in this publication to tell the reader of a

risk of personal injury or death, particularly if the

reader neglects to follow the instructions in the manual.

IMPORTANT INFORMATION Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx xxxxxxxxx.

Used in this publication to tell the reader of a

risk of material damage, particularly if the reader

neglects to follow the instructions in the manual.

Used also when there is a possibility for misuse or misassembly.

R N

Reverse Neutral Fast Slow Choke Fuel Park Brake

Danger Cut Height

Low

Warning!

Battery acid is

corrosive, explosive

and ammable

Read Operator

Manual

Full body

exposure to

thrown objects

before maintenance

Cut Height

High

Warning!

Do not touch parts

Shut off engine

or repair

Severing of ngers

and toes

Use protective

glasses

Keep away from the

Keep a safe

distance from

the machine

Do not open or

remove safety

shields with engine

running

Use protective

gloves

Warning!

discharge deck

Use on slopes no

greater than 10° No passengers

Careful backing up,

Wear hearing

protection

Do not use without

or grass catcher

watch for

other persons

Do not

stand here

Warning!

deector

Careful going

forward, watch for

other persons

SAFETY

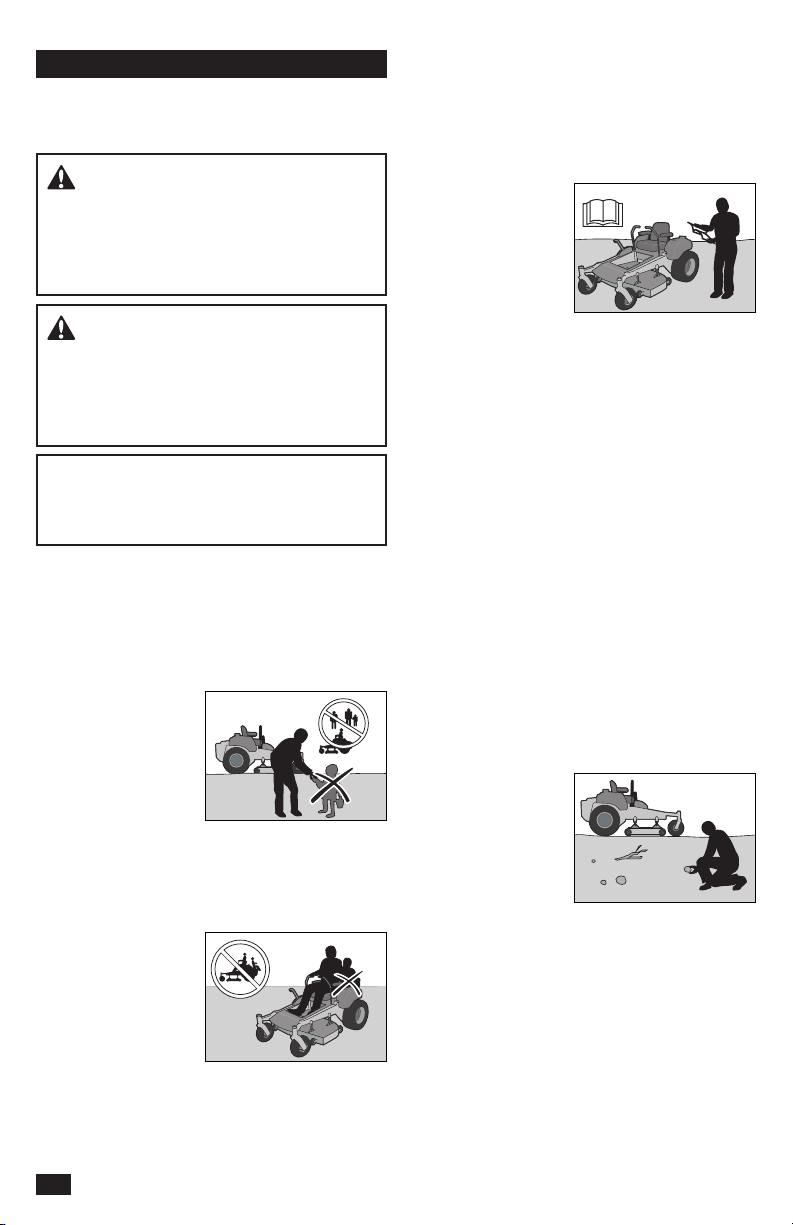

Safety Instructions

These instructions are for your safety. Read them carefully.

WARNING! THIS CUTTING MACHINE

CAN AMPUTATE HANDS AND FEET AND THROW OBJECTS. FAILURE TO OBEY THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING! CHILDREN CAN BE

SERIOUSLY INJURED OR KILLED BY THIS EQUIPMENT. Carefully read and obey all the safety instruction that follow.

IMPORTANT INFORMATION The American Academy of Pediatrics recommends that children be a minimum of 16 years of age

before operating a riding lawn mower.

Protecting Children

Tragic accidents can occur if the operator is not

alert to the presence of children. Children are

frequently attracted to the machine and the mowing activity. Do not think that children will stay where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Do not carry children, even with the blades shut off.

They can fall off and be seriously injured

or interfere with safe machine operation. Children who have

been given rides in the past can suddenly come

into the mowing area to ride again and be run

over or backed over by the machine.

• Do not let children to operate the machine.

• Use extreme care when going near blind corners, shrubs, trees, or other objects that can

block your view of a child.

General Operation

• Read, understand, and obey all

instructions on the machine and in the manual before starting.

• It is recommended

that someone knows that you are mowing and can give aid if there is an injury or accident.

• Those who operate, maintain, and/or service this machine must rst read and understand this

Operator Manual. Local laws can regulate the

age of the user. The owner is responsible for training the users of this equipment.

• The owner and operator of this equipment can prevent accidents and is responsible for accidents or injuries occurring to themselves,

other persons and/or property.

• Do not put hands or feet near rotating parts

or under the machine. Keep away from the

discharge opening at all times.

• Only let responsible adults, who are familiar with the instructions, to operate the machine.

• Clean the area of objects such as

rocks, toys, wire,

etc., which could

be picked up and thrown by the

blades.

• Be sure the area

is has no bystanders before operating. Stop

machine if someone enters the area.

• Do not mow in reverse unless fully necessary.

Always look down and behind before and while backing.

• Do not point discharged material toward someone. Avoid discharging material against a

wall or obstruction. Material can ricochet back

toward the operator. Stop the blades when going across gravel surfaces.

• Do not operate machine without the full grass

catcher, discharge guard, or other safety devices in place and working.

• Slow down before turning.

• Always turn off blades, move the steering

control lever out to the park brake position, stop engine and remove keys before dismounting.

• Do not carry passengers. The machine is only intended for use by one person.

• Operate the machine only in daylight or good articial light.

SAFETY

• Disengage blades when not mowing. Shut off engine and wait for all parts to come to a full stop before cleaning the machine, removing the grass catcher or unclogging the discharge guard.

• Do not operate the machine while under the

inuence of alcohol or drugs.

• Look for trafc when operating near or going across roadways.

• Use more care when loading or removing the

machine into a trailer or truck.

• Always wear eye protection when operating machine.

WARNING! When using the machine,

approved personal protective equipment must be used. Personal protective equipment cannot remove the risk of injury but it will reduce the degree of injury if an accident does occur. Speak to your retailer for aid in choosing the right equipment.

• Wear correct Personal Protective Equipment (PPE) while operating this machine, including (at a minimum) sturdy footwear, eye protection,

and hearing protection. Do not mow in shorts and/or footwear with open toes.

• Data shows that operators age 60 years and above are involved in a large percentage of

riding mower-related injuries. These operators must evaluate if they can safely operate the riding mower sufciently to protect themselves and others from serious injury.

• Obey the manufacturer’s recommendation for wheel weights or counterweights.

• Keep machine free of grass, leaves or other

debris buildup which can touch hot exhaust or

engine parts and burn. Do not let the mower

deck plow leaves or other debris that can cause

a buildup to occur. Clean oil or fuel spillage before operating or storing the machine.

• Let machine cool before storage.

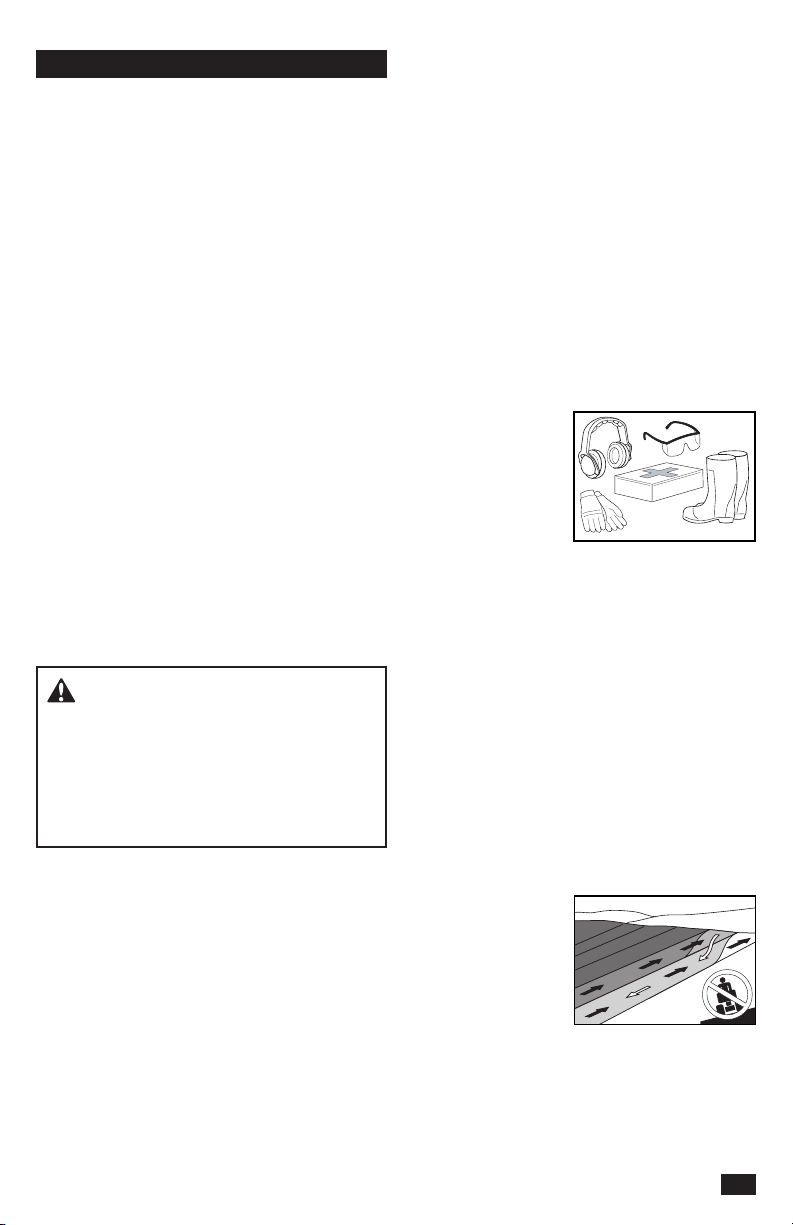

Personal Safety Equipment

• Make sure that rst aid equipment is

near at hand when using the machine.

• Do not use the machine when barefoot.

• Always wear protective shoes or boots. Steel toe caps are recommended.

• Always wear approved protective glasses or a full visor when assembling or driving.

• Always wear gloves when handling the blades.

• Do not wear loose clothing that can become caught in moving parts.

• Use ear protectors to avoid damage to hearing.

Slope Operation

Slopes are a major cause related to loss of

control and tip-over accidents, which can result in severe injury or death. Operation on slopes requires more care. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes (10 degrees

maximum), not

across.

• Look for holes, ruts,

bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass can hide

obstacles.

• Select a low ground speed so it will not be

necessary to stop while on the slope.

• Do not mow on wet grass. Tires can lose traction.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and

continue slowly straight down the slope.

• Move slowly and gradually on slopes. Do not make

sudden changes in speed or direction, which could cause machine to roll over.

• Use more care while operating machine with grass catchers or other

attachments; the stability of the machine can be

effected.

• Do not use on steep slopes.

• Do not try to stabilize the machine by putting a foot on the ground.

• Do not mow near drop-offs, ditches, or

embankments. The machine could suddenly

roll over if a wheel is over the edge or the edge caves in.

WARNING! Do not drive up or down hills

with slopes greater than 10 degrees. Do not drive across slopes.

SAFETY

Safe Handling of Gasoline

To avoid personal injury or damage to property, use care in handling gasoline. Gasoline is very ammable and the vapors are explosive.

WARNING! The engine and the exhaust

system become very hot during operation. There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

• Do not fuel the machine indoors.

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only approved gasoline containers.

• Do not remove gas cap or add fuel with the engine running. Let engine cool before refueling.

• Do not keep the machine or fuel container

where there is an open ame, spark or pilot light

such as on a water heater or other appliance.

• Before you start refueling, keep the risk of static

electricity to a minimum by touching a metal

surface.

• Do not ll containers in a vehicle or on a truck

or trailer bed with plastic liner. Always put containers on the ground away from the vehicle when lling.

• Do not put too much fuel in the tank. Replace gas cap and tighten securely.

• Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not

possible, refuel such equipment with a portable

container, rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the

fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-

open device.

• If fuel is spilled on clothing, change clothing

immediately.

• Do not start the engine near spilled fuel.

• Do not use gasoline as a cleaning agent.

• If leaks occur in fuel system, the engine must not be started until problem has been resolved.

• Check the fuel level before each use and leave

space for the fuel to expand, because the heat

from the engine and the sun can otherwise

cause the fuel to expand and overow.

General Maintenance

• Do not use the machine indoors or

in spaces lacking

correct ventilation.

The exhaust

fumes contain

carbon monoxide,

an odorless and poisonous lethal gas.

• Make sure that the equipment is in good

condition and that all nuts and bolts, especially

those fastening the blade attachments, are

correctly tightened and torqued.

CAUTION! Use protective glasses

for maintenance work.

• Maintain or replace safety and instruction labels as necessary.

• Do not interfere with the intended operation

of or reduce the protection given by a safety device. Check their operation regularly. DO NOT operate a machine with a safety device that does not operate correctly.

• Check grass catcher components and the discharge guard frequently and replace with

manufacturer’s recommended parts when

necessary.

WARNING! The engine must not

be started when the driver’s oor plate or protective plates for the mower deck’s drive

belt is removed.

• Do not change the settings of engine controllers

and avoid running the engine at overly high engine speeds. If you run the engine too fast,

machine components could be damaged.

• To reduce the risk of re, keep machine free of grass, leaves or other debris buildup. Clean oil

or fuel spills and remove fuel-soaked debris. Let

machine cool before storing.

• Stop to do an inspection of the equipment if you

run over or into anything. If necessary, make

repairs before starting.

• Do not make adjustments or repairs with the engine running.

• The blades are sharp and can cause cuts and gashes. Wrap blades or use protective gloves when handling them.

• Check the park brake’s operation regularly.

Adjust and service as necessary.

• Do not work with the starter circuit if there is spilled fuel.

SAFETY

• Make sure that the fuel ller cap is mounted tightly and no ammable substances are kept in

an open vessel.

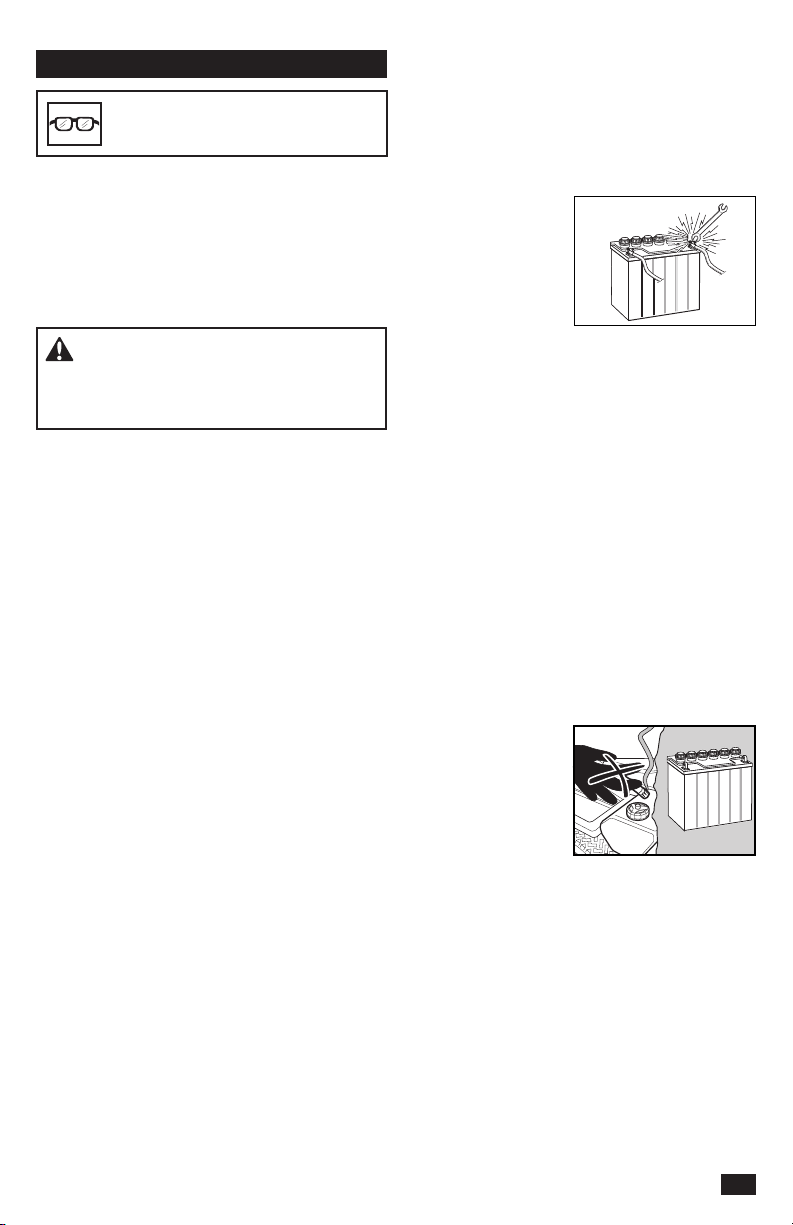

• Sparking can occur

when working with the battery and the heavy cables of the starter circuit. This can cause battery explosion, re or eye injury. Sparking will not occur after the grounding cable (normally negative, black) is removed from the battery.

• Disconnect the grounding cable from the battery rst and reconnect it last.

• Do not make a bridge short circuit across the starter relay to run the starter.

• Be very careful when handling battery acid. Acid on skin can cause serious corrosive burns. If you spill battery acid on your skin, rinse immediately with water.

• Acid in the eyes can cause blindness, contact a doctor immediately.

• Be careful when

servicing the battery. Explosive gases form in the battery. Do

not do maintenance

on the battery when smoking or near open ames or sparks. The battery can explode and cause serious injury or damage.

• The machine is tested and approved only with the equipment originally supplied or recommended by the manufacturer. Only use

approved repair parts for the machine.

• The mulch blades must only be used in familiar

areas when higher quality mowing is necessary.

• Regularly clean the deck and the underside of the deck. Avoid spraying engine and electrical

components with water.

Transport

• The machine is heavy and can cause serious crushing injuries. Be more careful when it is loaded on or removed from a vehicle or trailer.

• Use full width ramps for loading machine into a

trailer or truck.

• The two front and rear tie down straps must be used and directed down and out from the machine.

• Check and abide by local trafc regulations before transporting the machine on roads.

• Use an approved trailer to transport the

machine. Turn off the fuel supply. Fasten the

machine down with approved devices such as bands, chains or straps.

• Do not tow this machine, it can cause damage

to the drive system.

• Do not tow trailers, etc. with this mower. They can jackknife or overturn, causing damage to the mower and possible serious injury to the

operator.

• Load the unit onto truck or trailer by driving up

ramps of sufcient strength using a slow speed. Do not lift! The machine is not intended to be lifted by hand.

• When loading or removing this machine, do not

use more than the maximum recommended

operation angle of 10 degrees.

WARNING! Use extreme care when

loading the machine into a truck or trailer using ramps. There is the possibility of serious injury

or death if the machine falls off the ramps.

IMPORTANT INFORMATION The park brake is not sufcient to lock the machine in place during transport. Make sure the machine is correctly fastened to the transport vehicle. Always reverse the machine onto the transport

vehicle to avoid tipping it over.

Spark Arrestor

This mower is equipped with an internal

combustion engine and must not be used on or near unimproved forested, bush covered

or grassy lands unless the engine’s system is equipped with a spark arrestor meeting applicable local or state laws. Federal laws apply on federal lands. If a spark arrestor is used, it must be maintained in good working order by the operator.

A spark arrestor for the mufer is available through your authorized Husqvarna dealer.

CONTROLS

This operator manual describes the Husqvarna Zero Turn Rider. The rider is tted with a fourstroke overhead valve engine.

Transmission from the engine is made via belt-driven hydraulic pumps. Using the left and right steering controls, the ow is regulated and thereby the direction and speed.

1. Steering / park brake controls

2. Tracking bolts

3. Deck lift

4. Fuses

5. Bypass Linkages

6. Fuel shut off valve

7. Fuel tank

8. Choke control

9. Throttle Control

10. Service meter

11. Ignition switch

12. Blade switch

13. Seat Adjustment

CONTROLS

Steering Control Levers

The machine’s speed and direction are continuously variable using the two steering controls. The steering controls can be moved forward or backward about a neutral position. There is a neutral position, which is locked if the

steering controls are moved out. When both controls are in the neutral position (N),

the machine stands still.

Forward

Neutral

Reverse

Park

Brake

WARNING! The machine can turn very

rapidly if one steering control is moved much

further forward than the other.

Park Brake

The park brake is integrated with the steering

control levers. Move both levers out from the

neutral position to engage the park brake. To release the park brake, pull both steering

control levers inwards to the neutral position at

the same time. Do not try to operate the unit

without both levers being inwards out of the engaged position or machine components could be damaged.

IMPORTANT INFORMATION Failure to bring

the steering / park brake controls inward at the same time will cause the unit's safety system to

shut the unit down.

Throttle Control

By equally moving both controls forward or backward, the machine moves in a straight line forward or backward. For example, to turn right

while moving forward, move the right control

towards the neutral position. The rotation of the

right wheel is reduced and the machine turns to the right.

Zero turn can be achieved by moving one control backward (behind the neutral position) and carefully moving the other steering control forward from its neutral position. The rotation direction when zero turning is determined by which steering control is moved backward behind the

neutral position. If the left steering control is pulled

backward, the machine turns to the left. Use more

care when using this maneuver. If the steering controls are in uneven positions

when standing still or do not t in the slots for moving the controls out, they can be adjusted.

The throttle control regulates the engine speed and thereby the rate of rotation of the blades,

assuming the blade switch is pulled out.

To increase or decrease the engine speed, the control is moved forward or back respectively.

Avoid idling the engine for long periods, as there

is a risk of fouling the spark plugs. USE FULL THROTTLE WHEN MOWING, for best mower performance and battery charging.

CONTROLS

Ignition Switch

The ignition switch is placed on the control panel

and is used to start and stop the engine.

Service Meter

The service meter displays the total operating

time with the blade activated. At 50 hour intervals of operation, an oil can

icon shows and stays on for two hours before an automatic reset occurs. To manually reset the meter, turn the key off and on ve times at one second intervals. To service the engine and mower, see the Service Journal of this manual.

Choke Control

The choke control is used for cold starts to provide the engine with a richer fuel mixture. For

cold starts, pull the control up.

Fuse

The 20 amp primary fuse is located on the left hand side of the machine. It is accessed by tilting the seat forward. The fuse is a at pin type used

in automobiles.

Blade Switch

To engage the mower deck, pull the knob out; mower blades are disengaged when the knob is

pressed down.

CONTROLS

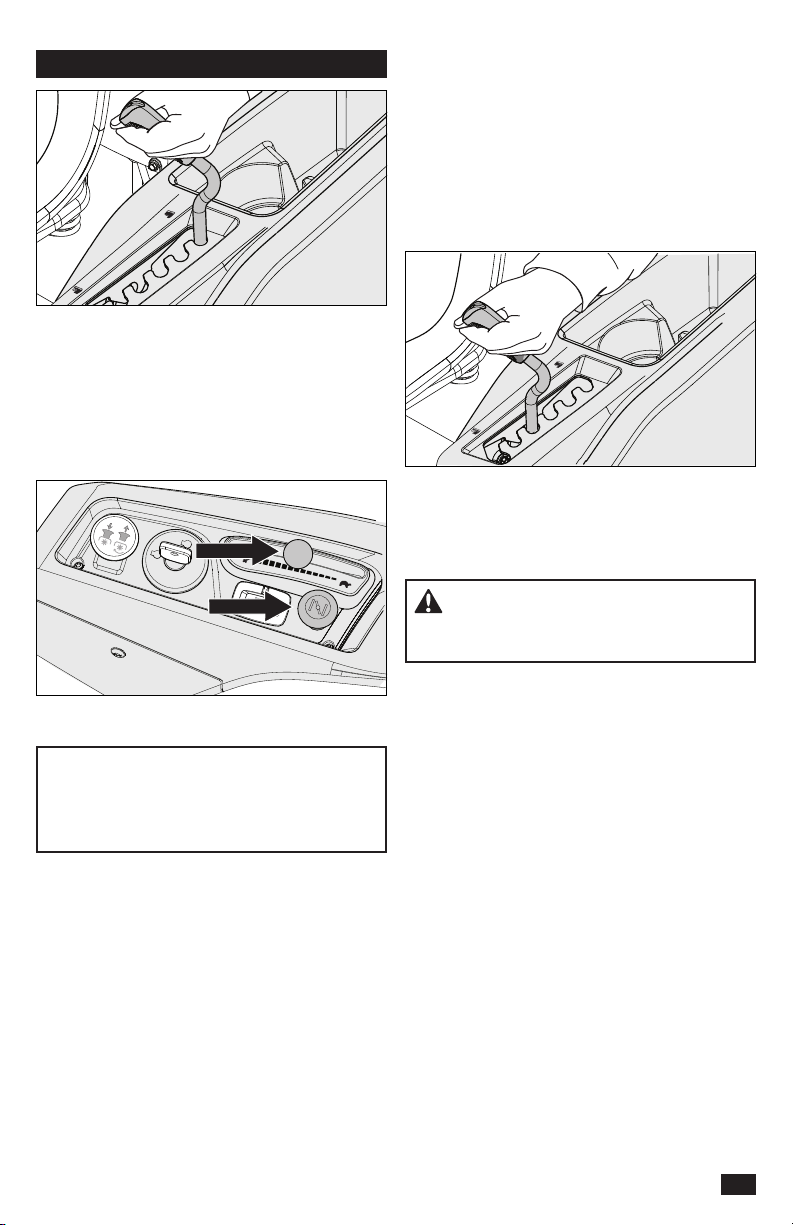

Cutting Height Lever

To set the deck cutting height, pull the cutting

height lever inwards and move it to the desired height notch.

IMPORTANT INFORMATION Always raise the deck to the highest position for transport.

IMPORTANT INFORMATION To obtain an

even cutting height, it is important that the air

pressure in all tires is 15 psi / 103 kPa / 1 bar.

Bypass Linkages

Transaxle bypass linkages must be engaged when pushing or pulling the mower. The release

levers are located on each side of the rear of the unit below the rear engine guard. See Moving Machine By Hand in the Operation section.

WARNING! Bypass linkages are

located close to the mufer. To prevent burns,

the engine should be shut off and allowed

to cool before the bypass linkage levers are

handled.

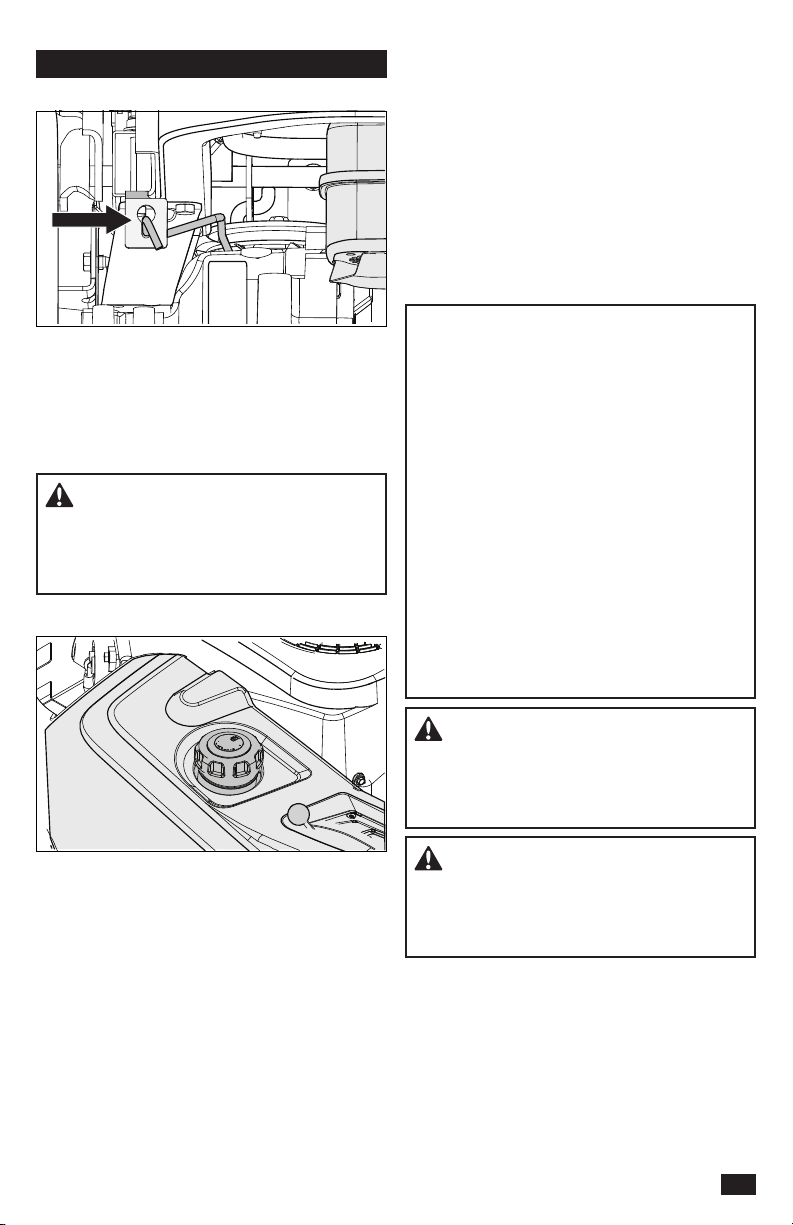

Fuel Shut Off Valve

The fuel shut off valve is located at the right rear of the seat. The valve is off when the handle tab is

turned perpendicular to the fuel line.

Tracking

If the mower is not tracking straight, check the air pressure in both rear tires. Recommended air

pressure for the rear tires is 15 psi (1 bar).

1. Tracking adjustments are made using the

tracking bolts. The tracking bolts limit the motion control levers when in the full-forward

position.

2. For preliminary tracking adjustment, move unit to an open, unobstructed area such as an

empty parking lot or open eld.

3. Using a 1/2" wrench, back the tracking bolts out until ush with nut.

4. Test operate unit by driving it at full throttle and the full forward position on both motion

control levers. Gradually turn in the tracking

bolt on the right hand side until the unit

noticeably starts drifting right.

5. Drive forward at full throttle with both motion control levers in the full forward position.

Gradually turn in the left tracking bolt until unit tracks straight.

CONTROLS

WARNING! The engine and the exhaust

system become very hot during operation. There is a risk for burns if touched. Let engine and exhaust system to cool before refueling.

WARNING! Fill to bottom of ller neck.

Do not overll. Clean off spilled oil or fuel. Do

not store, spill or use gasoline near an open

ame.

Fuel Tank

Read the safety instructions before refueling. The capacity for the tank is 3-1/2 gallons.

Regularly check the gas cap gasket for damage and keep the cap correctly tightened.

The engine will operate on a minimum of 87-octane unleaded gasoline (no oil mix). Environmentally adapted alkylate gasoline can be used. See Technical Data concerning ethanol fuel. Methanol fuel is not allowed. Do not use E85

alcohol based fuel. Damage to the engine and

components may occur.

When operating in temperatures below 32° F, use fresh, clean winter grade gasoline to help insure good cold weather starting.

WARNING! Gasoline is highly ammable.

Observe caution and ll the tank outdoors

(see Safe Handling of Gasoline in the Safety section).

IMPORTANT INFORMATION Experience

indicates that alcohol blended fuels (called gasohol, ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas

can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start

the engine and let it operate until the fuel

lines and carburetor are empty. Use fresh fuel the next season. See Storage for additional

information. Do not use engine or carburetor

cleaners in the fuel tank or permanent damage may occur.

OPERATION

Read the Safety section and following pages if you are unfamiliar with the machine.

Training

Due to unique steering capabilities, zero turn mowers are far more maneuverable than typical

riding mowers.

Review this section fully prior to trying to move the mower under its own power. When rst operating

the mower or until becoming comfortable with controls, use a reduced throttle speed and

reduced ground speed. DO NOT move control

levers to the furthest forward or reverse positions during initial operation.

First time users must become familiar with the mower’s movement on a hard surface, such as

concrete or blacktop PRIOR to trying to operate

on turf. Until the operator becomes comfortable with the mower controls and zero turning

capability, overly aggressive maneuvers may

damage turf.

Steering

To move forward and backward

The direction and speed of the mower’s movements are effected by the movement of the control lever(s) on each side of mower. The left control lever controls the left wheel. The right

control lever controls the right wheel. First time users must push the mower (see

Moving Machine By Hand in the Operation

section) to an open, at area without other persons, vehicles or obstacles nearby. To move

the unit under its own power, the operator must sit in the seat and start the engine (see Before Starting in the Operation section). Adjust the

engine speed to idle, disengage the park brake

but do not engage the blades at this time. Pull control levers inward. As long as the control levers

have not been moved forward or backwards, the

mower will not move.

Slowly move both control levers forward slightly. This will let the mower start moving forward in a straight line. Pull the control levers back to the

neutral position and stop the mower from moving.

Pull back slightly on control levers, allowing the mower to move backwards. Push the control

levers forward to the neutral position to stop the mower from moving.

To turn to the right

While moving in a forward direction, pull the right

lever back towards the neutral position while

maintaining the position of the left lever, this will slow the rotation of the right wheel and cause the machine to turn in that direction.

To turn to the left

While moving in a forward direction pull the left

lever back towards the neutral position while

maintaining the position of the right lever, this will slow the rotation of the left wheel and cause the machine to turn in that direction.

To zero turn

While moving in a forward direction, rst pull both control levers back until the mower stops or slows dramatically.

Then by alternating one lever slightly to the

forward position and the other in the reverse position, complete the turn.

Before Starting

WARNING! Make sure the work area is

free from of stones and other objects that could

be thrown by the rotating blades.

1. Read the sections on Safety and Controls before starting the machine.

2. Do the daily maintenance before starting (see Maintenance Schedule in the Maintenance section).

3. Check that there is sufcient fuel in the fuel

tank.

4. Adjust the seat to the desired position.

WARNING! The engine exhaust contains

carbon monoxide, which is a odorless,

colorless, poisonous gas. Do not use the machine in enclosed spaces.

Starting the Engine

1. Sit on the seat.

2. Raise the mower deck to the highest position.

3. Disengage the mower blades by pressing the blade switch down.

4. Move the steering / park brake controls rmly

out to the locked position.

5. Move the throttle lever to the middle throttle

position. If the engine is cold, the choke

control should be pulled up.

OPERATION

6. Push in and turn the ignition key to the start position.

IMPORTANT INFORMATION Do not

operate the starter for more than ve seconds

each time. If the engine does not start, wait

approximately ten seconds before retrying.

7. When the engine starts, immediately release the ignition key back to the run position. Slowly push the choke control in, if it was

used to start a cold engine.

8. Set the engine speed with the throttle. Let the engine to operate at a moderate speed,

approximately mid throttle, for a short time

before use. USE FULL THROTTLE WHEN MOWING (no choke).

Running

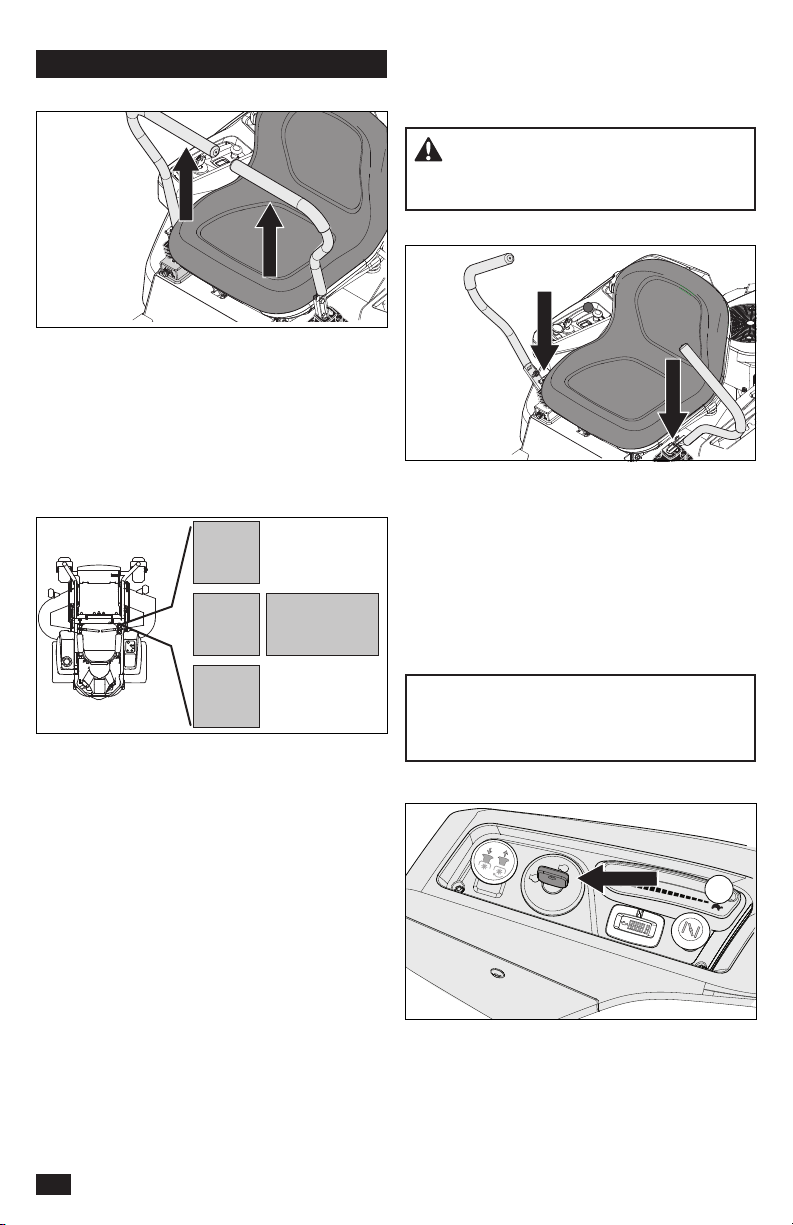

1. Release the park brake by pulling the steering / park brake controls inwards to the neutral

position at the same time.

NOTE: The mower is equipped with an operator presence system. If the operator tries to leave the seat with the engine running,

without rst setting the park brake, the engine

will shut off.

2. Lower the mower deck to the desired cutting height.

WARNING! Make sure that no one is

near mower when engaging blade switch.

5. Pull control levers inward and slowly move

both control levers slightly forward to move

forward in a straight line.

Stopping the Engine

1. Move the throttle to the minimum position

(tortoise symbol).

2. Move the steering controls at the same time

out to the park brake position.

3. Disengage the mower deck by pressing the blade switch down.

4. Raise the mower deck to the highest position.

If the engine has been worked hard, let it idle

at least 60 seconds to attain a usual operating

temperature before stopping. To prevent fouling the spark plugs, avoid idling the engine

for longer periods.

5. Turn the ignition key to the stop position.

Remove key. Always remove key when

leaving the mower to prevent unauthorized use.

IMPORTANT INFORMATION When stopping

and leaving the machine, both steering / park brake controls must be moved out to the locked

position at the same time.

IMPORTANT INFORMATION Leaving the ignition switch in a position than OFF will cause

the battery to be discharged.

Operating on Hills

Read the Safety Instructions Driving on Slopes in the Safety section.

• Use the slowest speed possible before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If stopping is fully necessary, pull steering / park

brake controls into the neutral position and push outward to engage the park brake.

• Pull the steering / park brake controls back to the center of the mower and push forward to regain forward movement.

• Make all turns slowly.

3. Move throttle control to full throttle (rabbit

symbol).

4. Engage the mower deck by pulling the blade switch up.

WARNING! Do not drive the rider on

terrain that slopes more than 10 degrees. Mow slopes up and down, never side to side. Avoid sudden directional changes. Do not drive across slopes.

OPERATION

Mowing Tips

• Observe and ag rocks and other xed objects to avoid collisions.

• Begin with a high cutting height and reduce it

until the desired mowing result is attained. The average lawn must be cut to 2-1/2" during the

cool season and over 3" during the hot months.

For healthier and better looking lawns, mow

often after moderate growth.

• For best cutting performance, grass over 6" in

height must be mowed twice. Make the rst cut relatively high; the second to the desired height.

• The mowing result will be best with a high engine speed (the blades rotate rapidly) and low speed (the rider moves slowly). If the grass

is not too long and dense, the driving speed can

be increased without negatively affecting the

mowing result.

• The nest lawns are obtained by mowing

often. The lawn becomes more even and the grass clippings more equally distributed over the mown area. The total time taken is not

increased as a higher operating speed can be used without poor mowing results.

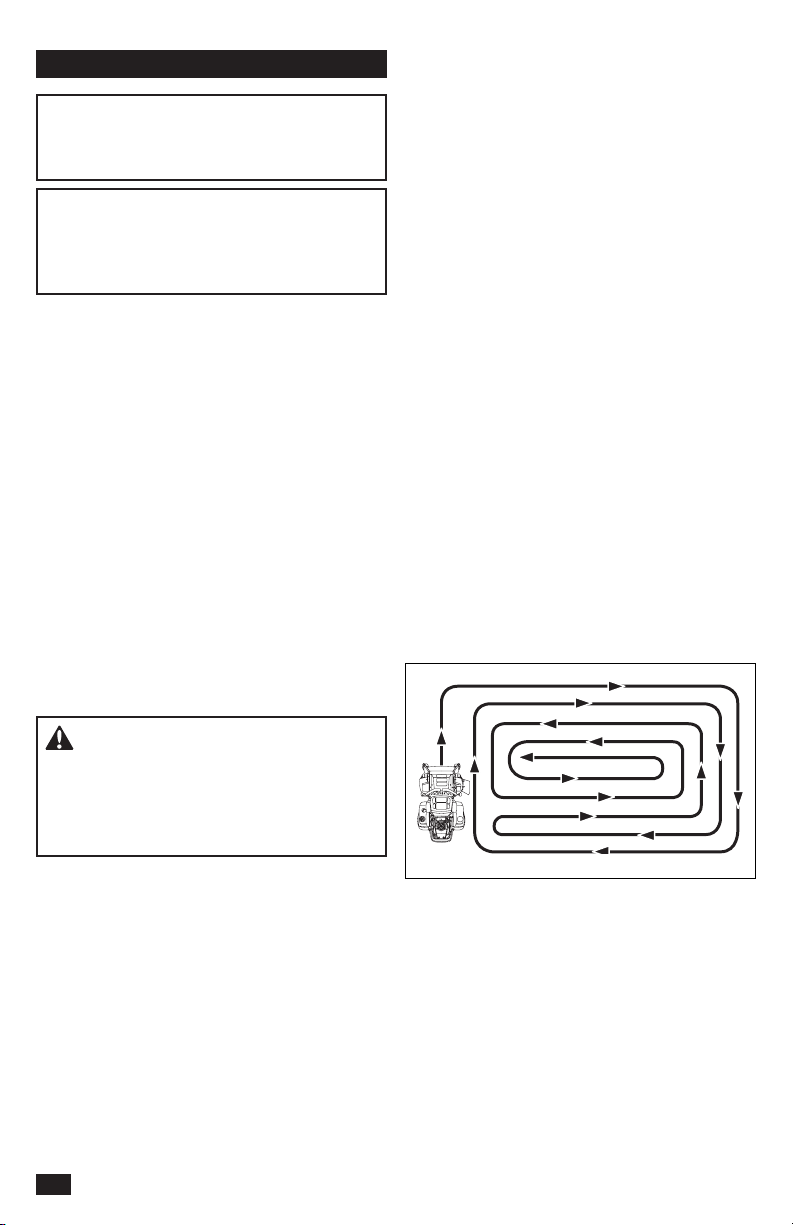

• When mowing large areas, start by turning to

the right so that clippings will discharge away from shrubs, fences, driveways, etc. After one

or two rounds, mow in the opposite direction

making left hand turns until nished.

• When the mulching kit is used, it is important that the mowing interval is frequent.

WARNING! Make no adjustments

without:

• the engine stopped,

• the ignition key removed,

• the park brake activated

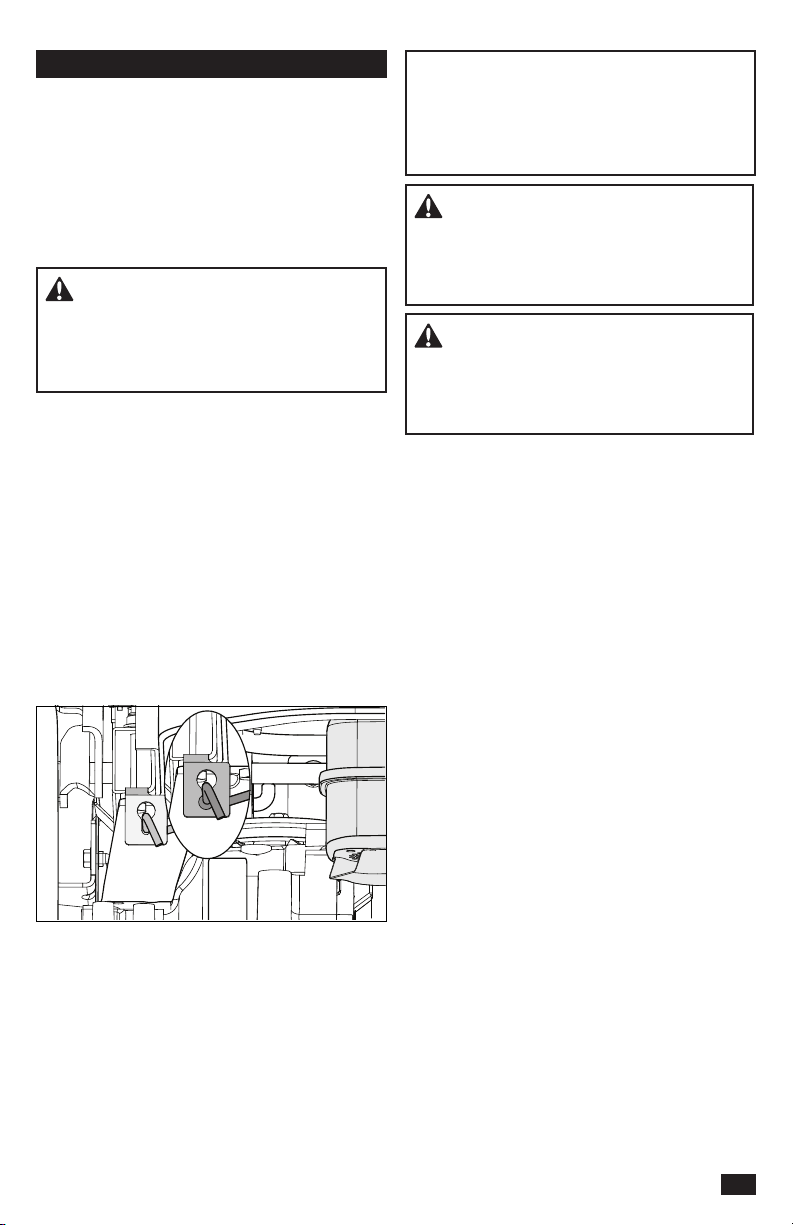

Moving Machine By Hand

When pushing or pulling the mower, engage the

EZT bypass linkages. The EZT bypass linkages

are located on the rear of the frame, below the rear engine guard.

1. Raise the deck into the highest cutting position.

2. Move the steering / park brake controls inwards to the neutral position.

3. Pull the EZT bypass linkages up and out of

the keyhole slots. Release the levers with the head outside the frame and held in the bypass

position.

• Avoid mowing wet lawns. The mowing result

is poorer because the wheels sink into the soft

lawn, clumps build, and grass clippings fasten under the cowling.

• Hose the mower deck underside with water

after each use. When cleaning, the mower deck shall be raised into the transport position. Make

sure the mower is cooled and the engine is off.

• Use compressed air to clean top surface of

the deck. Avoid ooding water on top surface,

engine and electrical components.

4. To reengage the EZT’s to drive, reverse the above procedure.

Load the machine into truck or trailer by driving slowly up the ramps. DO NOT LIFT! The machine is not intended to be lifted by hand.

IMPORTANT INFORMATION To manually

push the mower, engage the hydro bypass levers on both sides, pull both steering / park brake controls inwards and push machine.

WARNING! Bypass linkages are located

close to the mufer. To prevent burns, the

engine should be shut off and allowed to cool

before the bypass linkage levers are handled.

WARNING! Use more caution when

loading the machine into a truck or trailer using ramps. There is the possibility of dangerous injury or death if the machine falls off the

ramps.

MAINTENANCE

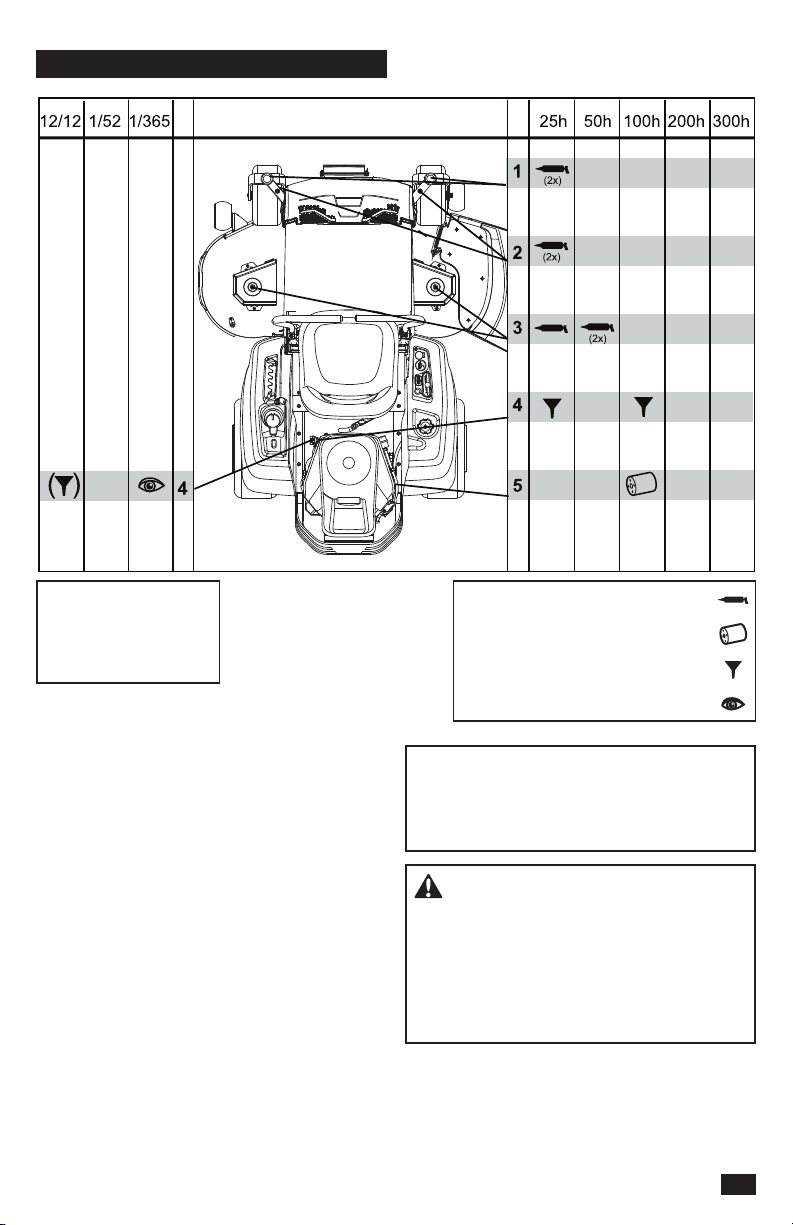

Maintenance Schedule

Following is a list of maintenance procedures that must be performed on the machine. For those points not described in this manual, visit an

authorized service workshop. An annual service

DAILY

MAINTENANCE

CHECK

Park brake for adjustment Engine’s oil level (each refueling) Safety system For fuel and oil leakages

For damage For loose hardware (screws, nuts)

For mower deck damage Tire pressures Battery connections

CLEAN

Engine’s cooling air intake Below the mower deck

Around the engine

Around belts, belt pulleys Engine’s cooling air intake Air cleaner foam pre-lter Air cleaner paper lter cartridge

ALSO

Inspect mufer/spark arrestor

Start the engine & blades, listen for unusual sounds

Sharpen3)/ Replace mower blades

BEFORE AFTER 25 50 100 300

●

■

● ♦

carried out by an authorized service workshop

is recommended to maintain the machine in the

best possible condition and to make sure of safe

operation. Read General Maintenance in the Safety

section.

AT LEAST

ONCE EACH YEAR

MAINTENANCE INTERVAL

IN HOURS

♦ ♦ ♦

● ● ● ●

● ● ● ● ●

■ ■

● ♦ ♦ ♦ ♦ ♦

■ ■

♦ ♦ ♦ ♦

♦

● ●

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer’s manual

First change after 8-10 hours. When

operating with a heavy load or at high ambient

temperatures, replace at 50 hour intervals.

In dusty conditions, cleaning and replacement

are required more frequently.

Performed by authorized service workshop.

WARNING! Before performing service or

adjustment:

• Engage the park brake.

• Disengage the blade switch.

• Turn the ignition switch to OFF position and

remove the key.

• Make sure the blades and all moving parts have completely stopped.

MAINTENANCE

CHECK

Throttle cable for adjustment Mower deck for adjustment Condition of belts, belt pulleys

Caster wheels (at 200 hour intervals)

Engine valve clearance

CHANGE

Spark plugs Engine oil

Engine oil lter Fuel lter Paper air lter Air cleaner foam pre-lter Air cleaner paper lter cartridge

ALSO

Do the 300-hour service

2) 4)

BEFORE AFTER 25 50 100 300

2) 4)

● = Described in this manual

♦ = Not described in this manual

■ = Refer to the engine manufacturer’s manual

First change after 8-10 hours. When

operating with a heavy load or at high ambient

temperatures, replace at 50 hour intervals.

In dusty conditions, cleaning and replacement

are required more frequently.

Performed by authorized service workshop.

If equipped.

DAILY

AT LEAST

ONCE

EACH YEAR

MAINTENANCE INTERVAL

IN HOURS

● ●

● ● ♦ ♦

■ ■

■

♦ ♦

IMPORTANT INFORMATION The mower is equipped with a 12-volt negative grounded system. The other vehicle must also be a 12volt negative grounded system. Do not use the

mower to start other vehicles.

CAUTION! Always wear eye

protection when around batteries.

WARNING! Do not short battery

terminals by allowing a wrench or other objects

to contact both terminals at the same time.

Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected rst to prevent sparks from accidental grounding.

■

MAINTENANCE

Battery

If the battery is too weak to start the engine, it

must be recharged.

Jumper Cable Use

1. Connect each end of the RED cable to the POSITIVE (+) terminal on each battery, taking

care not to short against chassis.

2. Connect one end of the BLACK cable to the

NEGATIVE (-) terminal of the fully charged battery.

3. Connect the other end of the BLACK cable

to a good CHASSIS GROUND on the mower with the discharged battery, away from the fuel tank and battery.

To remove cables, reverse order

1. Remove BLACK cable rst from chassis and then from the fully charged battery.

2. Remove RED cable last from both batteries.

The mower is equipped with a maintenance free battery and does not need servicing. However, periodic charging of the battery with an automotive type battery charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• See chart for charging times.

STD

STAT E

BATTERY

12.6V 100%

12.4V 75% 20 min. 35 min. 48 min. 90 min.

12.2V 50% 45 min. 75 min. 95 min. 180 min.

12.0V 25% 65 min. 115 min. 145 min. 280 min.

11.8V 0% 85 min. 150 min. 195 min. 370 min.

CHARGE

*Charging time depends on battery capacity,

condition, age, temperature and efciency of charger

APPROXIMATE CHARGING TIME*

TO FULL CHARGE AT 80O F

Maximum Rate at:

50 Amps 30 Amps 20 Amps 10 Amps

- FULL CHARGE -

Cleaning battery and terminals

Corrosion and dirt on the battery and terminals can cause the battery to lose power.

1. Loosen the two nuts attached to the side

J bolts just enough that the battery mount bracket slides down off the battery.

2. Using two 1/2" wrenches disconnect BLACK

battery cable then RED battery cable.

3. Carefully remove the battery from the mower

4. Rinse the battery with plain water and dry.

5. Clean terminals and battery cable ends with a

wire brush until shiny.

6. Coat the terminals with grease or petroleum

jelly.

Replacing battery

1. Install the new battery with terminals in the same position as the old battery.

2. Connect RED battery cable rst to positive (+) battery terminal.

3. Connect BLACK grounding cable to negative

(-) battery terminal.

4. Slide mount bracket back up over battery and tighten nuts.

5. Replace terminal boot cover.

IMPORTANT INFORMATION Do not open

or remove battery caps or covers. Adding or checking level of electrolyte is not necessary.

Always use two wrenches for the terminal

screws.

CAUTION! Lead-acid batteries generate

explosive gases. Keep sparks, ame and smoking materials away from batteries. Always wear eye protection when around batteries.

MAINTENANCE

Safety System

The machine is equipped with a safety system

that prevents starting or driving under the following conditions.

The engine can only be started when:

• the mower deck is disengaged.

• the steering / park brake controls are in the

outer, locked neutral position, making sure of full parking brake engagement for a safe

startup.

NOTE: If the steering / park brake controls are not holding in the full outboard position, the tension can be adjusted by tightening the nut on

the backside of the pivot. (See Park Brake in this

section).

Make daily inspections to make sure that the safety system works by trying to start the engine

when one of the conditions is not met. Change

the conditions and try again.

If the machine starts when one of these conditions is not met, turn the machine off and

repair the safety system before using the machine

again.

Make sure the engine stops when the park brake

is not engaged and the operator leaves the seated position.

Check that the engine stops if the mower blades are engaged and the driver temporarily moves off

the drivers seat.

IMPORTANT INFORMATION To be able to

drive, the driver must sit in the seat and the

steering / park brake controls must be moved

into the engaged (outer) position. Otherwise the engine will stop.

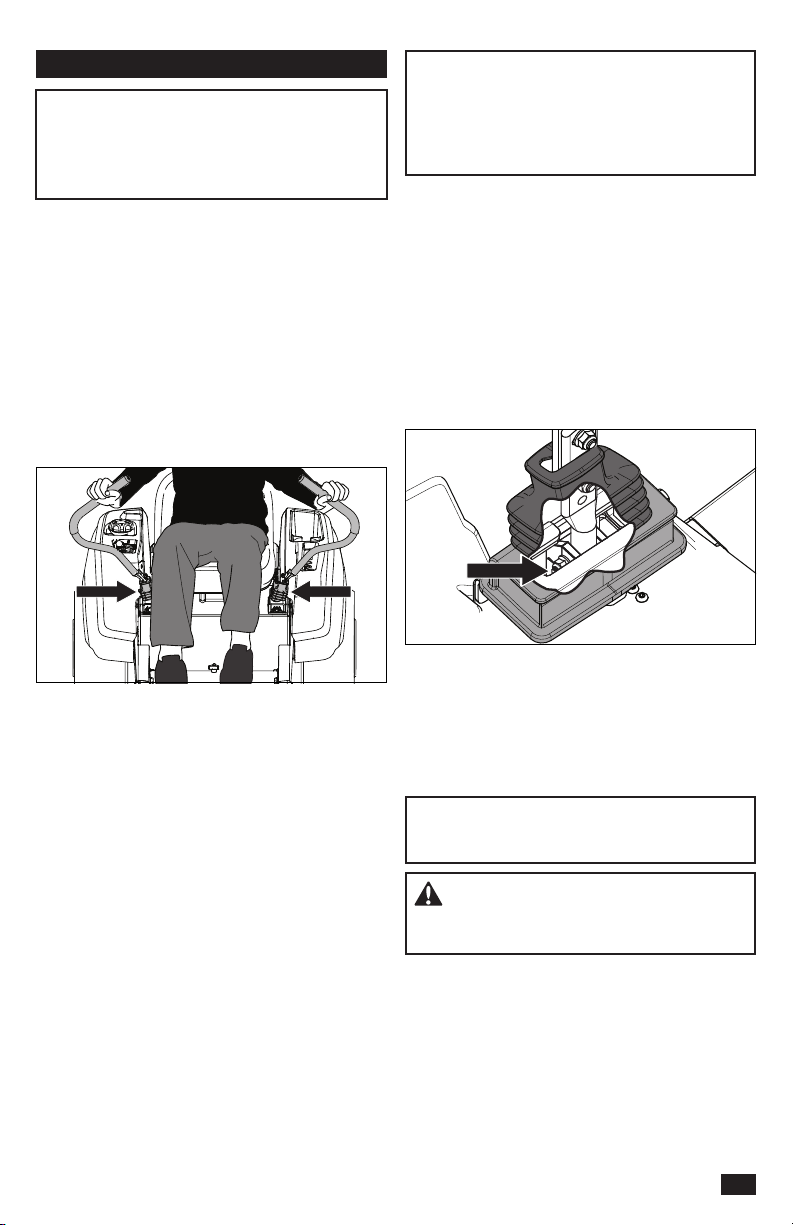

Park Brake

Visually check that no damage is found on the steering control levers, links or switches belonging to the park brake. Do a standstill test and check that there is sufcient braking action.

To adjust the park brake tension, move the boot covering the steering control base. Tighten the 1/2" pivot nut until the braking action is correct.

Replace the steering boot, making sure the boot

top sits between the two adjustment bolts on the steering control.

For any further adjust to the park brake, contact the Husqvarna service workshop.

IMPORTANT INFORMATION The machine must be standing still when applying the park brake.

WARNING! Faulty adjustment will result

in reduced braking ability and can cause an

accident.

Tire Pressures

All tires must be at 15 psi / 103 kPa / 1 bar.

IMPORTANT INFORMATION DO NOT add a tire liner or foam ll material to the tires. Excessive loads created by foam lled tires will

cause premature failures.

Only use O.E.M. specied tires.
