Operator Manual
Z 242F
Zero Turn Mower / 967324401-00
Please read the operator manual carefully and make sure
you understand the instructions before using the machine.
Gasoline containing up to 10% ethanol (E10) is acceptable for use
in this machine. The use of any gasoline exceeding 10% ethanol
(E10) will void the product warranty.
EN
Original
Instructions
CONFORMITY CERTIFICATES
USA requirements
Labels are placed on the engine and/or in the
engine compartment stating that the machine will
fulfill the requirements. This is also applicable to
special requirements for any of the states, (California
emission rules etc.). Do not remove any of these
labels. Certificates can also be supplied with the
machine at delivery or written in the Engine manual.
Take care of them as they are valuable documents.
WARNING! Failure to follow cautious operating
practices can result in serious injury to the operator or other
persons. The owner must understand these instructions,
and must allow only trained persons who understand these
instructions to operate the mower.
Each person operating the mower must be of sound mind
and body and must not be under the influence of any mind
altering substance.
WARNING! Engine exhaust, some of its
constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
WARNING! Battery posts, terminals and related
accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after
handling.
When this product is worn out and no longer used, it should
be returned to the reseller or other party for recycling.
To implement improvements, specifications and designs
can be altered without prior notification.
Note that no legal demands can be placed based on the
information contained in these instructions.
Use only original parts for repairs. The use of other parts
voids the warranty.
Do not modify or install non-standard equipment to the unit
without consent from the manufacturer. Modifications to the
unit may cause unsafe operations or damage the unit.
©2014 All rights reserved.
Orangeburg, SC Printed in U.S.A.
CONTENTS
INTRODUCTION ............................................................... 4
Driving and Transport on Public Roads ...................... 4
Towing ......................................................................... 4
Operating ....................................................................4
Good Service .............................................................. 5
Manufacturing Number ......................................... 5
SYMBOLS AND DECALS .................................................. 6
SAFETY ............................................................................. 7
Protecting Children ..................................................... 7
General Operation ...................................................... 7
Personal Safety Equipment ........................................8
Slope Operation ..........................................................8
Safe Handling of Gasoline .......................................... 8
General Maintenance ................................................. 9
Transport ................................................................... 10
Towing ....................................................................... 10
Spark Arrestor ...........................................................10

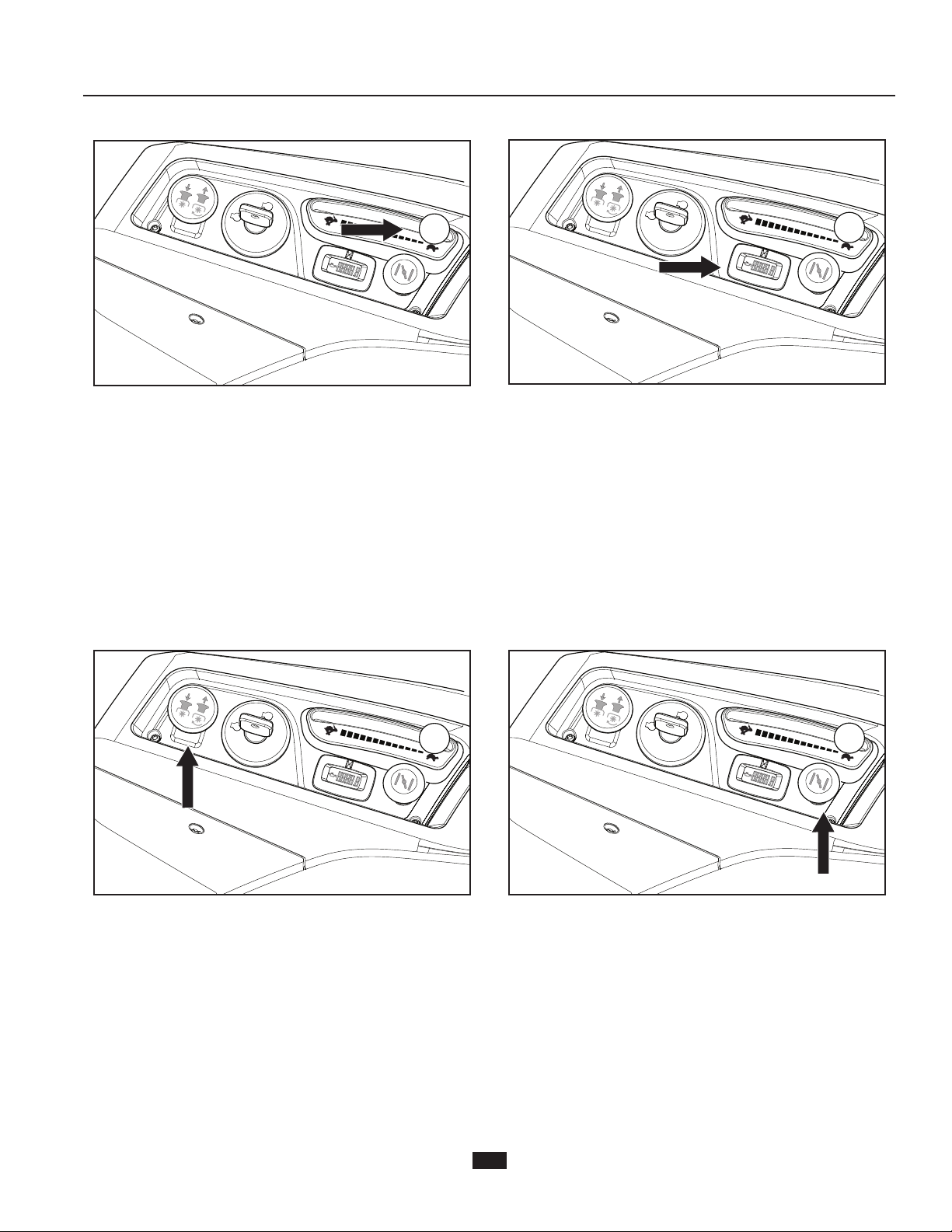

CONTROLS ..................................................................... 11

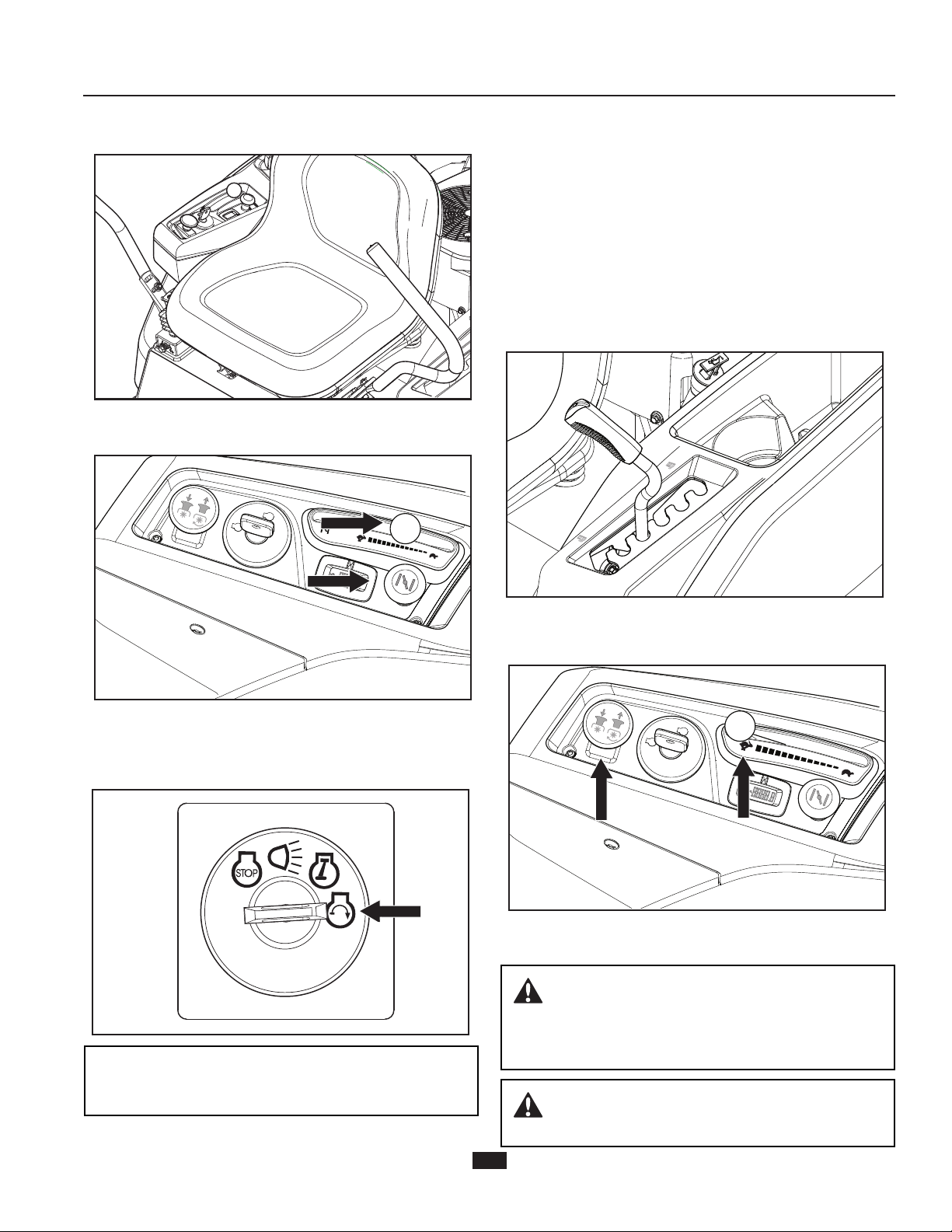

Control Locations ......................................................11
Steering Control Levers ............................................ 12
Park Brake ................................................................ 12
Ignition Switch ..........................................................12
Throttle Control ......................................................... 13
Blade Switch ............................................................. 13
Service Meter ............................................................13
Choke Control ........................................................... 13
Fuse .......................................................................... 14
Seat Adjustment Lever .............................................14
Fuel Shut Off Valve ................................................... 14
Cutting Height Lever .................................................14
Bypass Linkages ...................................................... 14
Fuel Tank ................................................................... 15
Tracking ....................................................................15
OPERATION ....................................................................16
Training .....................................................................16
Steering ....................................................................16
Before Starting .......................................................... 16
Starting the Engine ................................................... 16
Running ....................................................................17
Stopping the Engine ................................................. 18

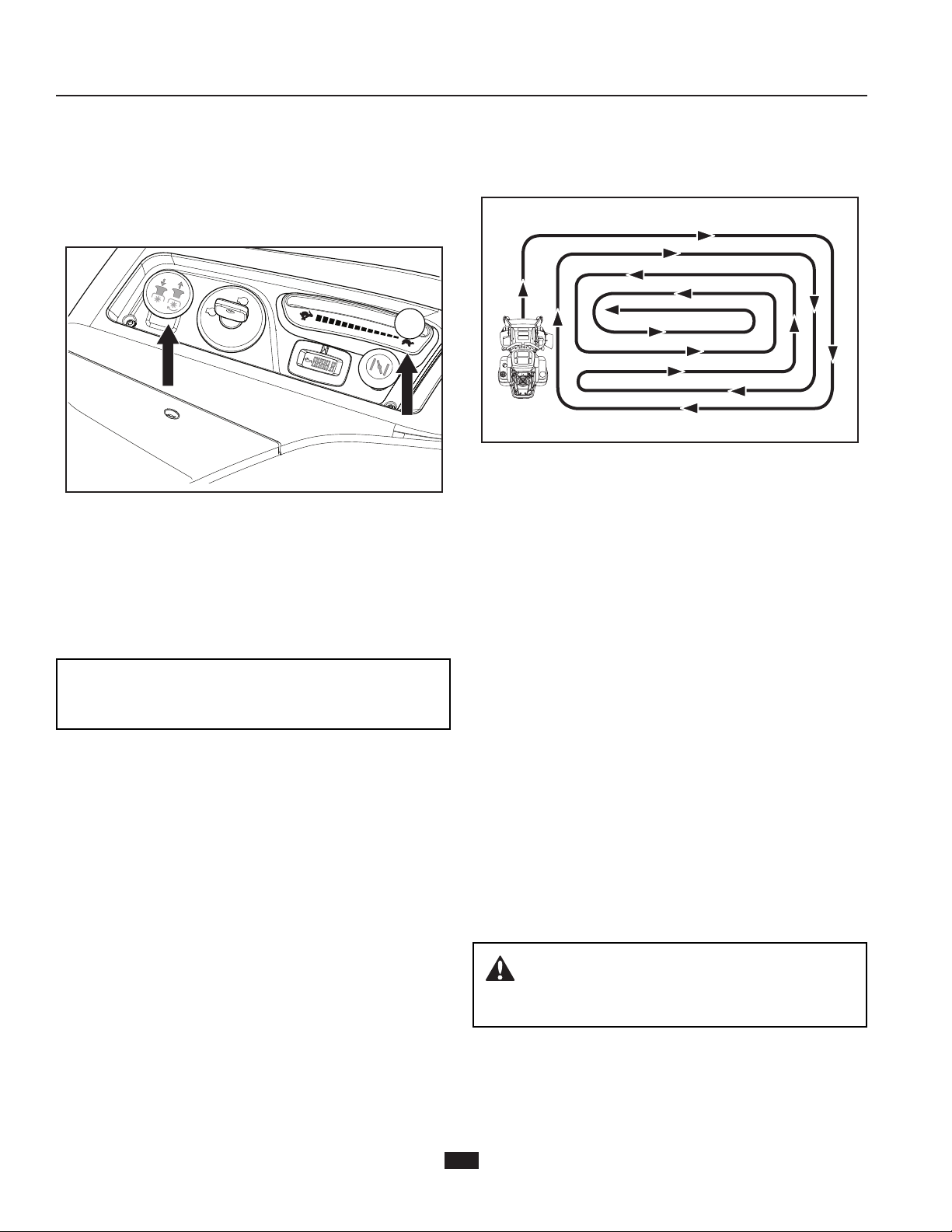

Mowing Tips .............................................................18
Operating On Hills .................................................... 18
Jumper Cable Use .............................................. 19
Moving Machine By Hand ........................................ 19
MAINTENANCE ...............................................................20
Maintenance Schedule ............................................. 20

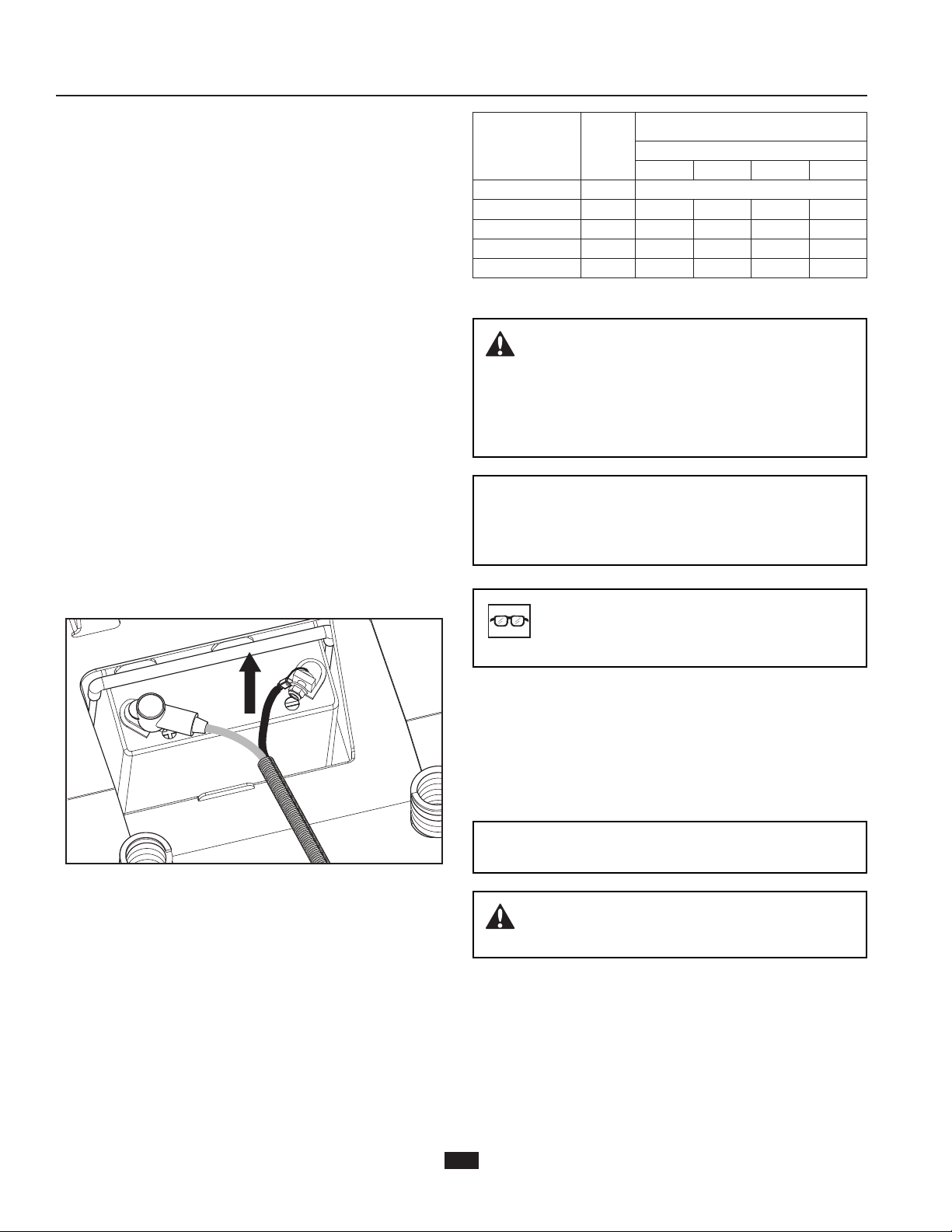

Battery ......................................................................22
Park Brake ................................................................ 22
Safety System ........................................................... 23
Tire Pressures ........................................................... 23
Caster Wheels ..........................................................23
Cutting Blades .......................................................... 24
Blade replacement .............................................24
V-belts .......................................................................24
Deck Belt Removal .............................................24
Adjusting the Mower Deck .......................................25
Leveling deck .....................................................25
Cleaning ...................................................................25
LUBRICATION ................................................................. 26
Transmission ............................................................. 26
Wheel and Deck Zerks ............................................. 26
Front Wheel Mount .............................................. 26
Front Wheel Bearings .........................................26
Deck Spindles .....................................................26
TROUBLESHOOTING ..................................................... 27
STORAGE .......................................................................28
Winter Storage .......................................................... 28
Service ...................................................................... 28

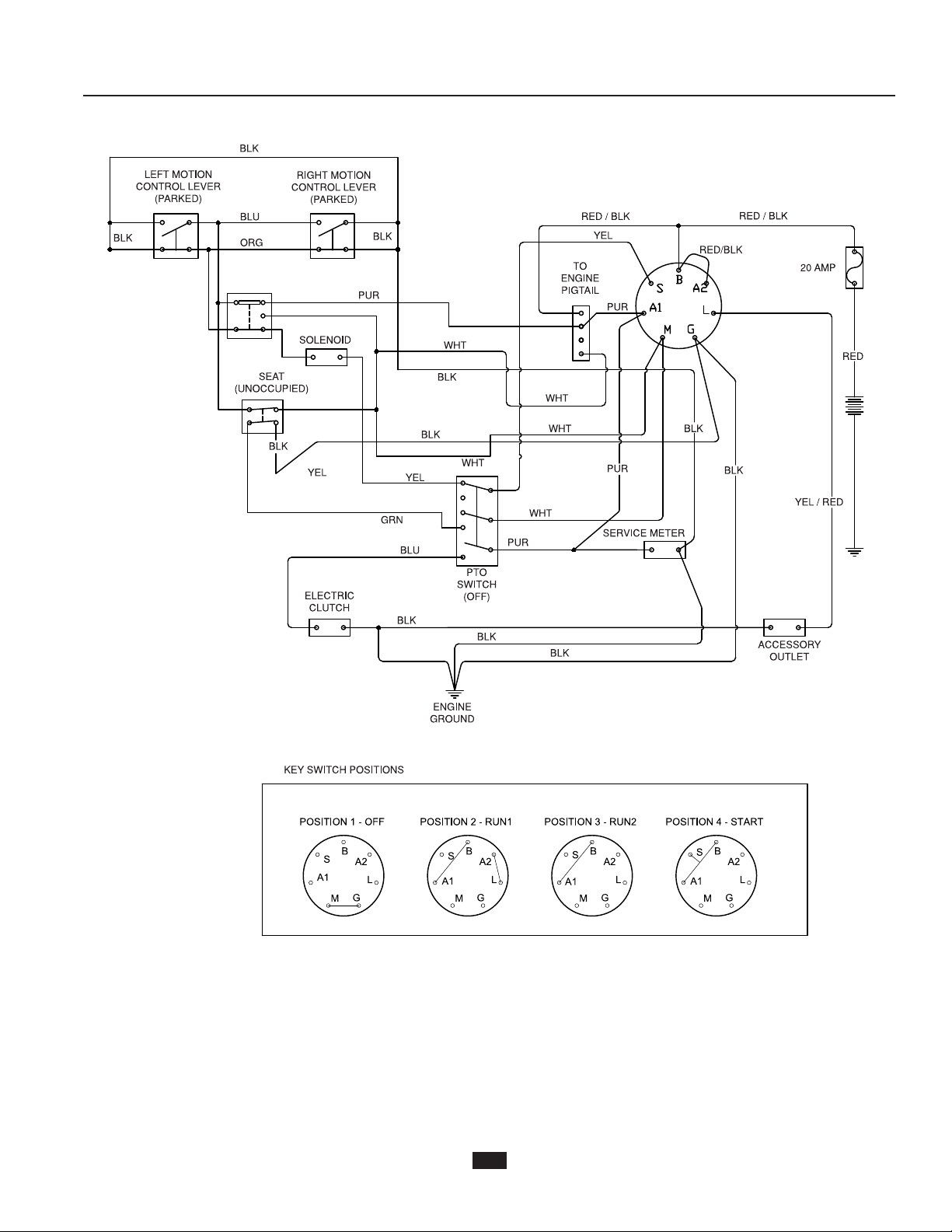

SCHEMATIC .................................................................... 29
TECHNICAL DATA ..........................................................30
Torque Specifications ...............................................31
Accessories .............................................................. 31
SERVICE JOURNAL ........................................................ 32
INTRODUCTION
Congratulations
Thank you for purchasing a Husqvarna ride-on mower. This
machine is built for superior efficiency to rapidly mow primarily
large areas. A control panel easily accessible to the operator
and a hydrostatic transmission regulated by steering controls
both contribute to the machine’s performance.
This manual is a valuable document. Read the contents
carefully before using or servicing the machine. The following
of instructions (use, service, maintenance) by all who operate
this machine is important for the safety of the operator and
others. It can also considerably increase the life span of the
machine and increase its resale value.
If you sell your machine, be sure to give the operator manual to
the new owner.
The final chapter of this operator manual provides a Service
Journal. Ensure that service and repair work are documented.
A well-kept service journal reduces service costs for the
maintenance and affects the machine’s resale value. Please
contact your dealer for more information. Take the operator
manual along when the machine is taken to your dealer for
service.
General
In this operator manual, left and right, backward and forward
are used in relation to the machine’s normal driving direction.
Continuous dedication to improve our products require that
specifications and design are subject to change without
notice.
Operating
This machine is constructed only for mowing grass on lawns
and even ground without obstacles such as stones, tree
stumps, etc. The machine can also be used for other tasks
when equipped with special accessories provided by the
manufacturer. Operating instructions for the accessories are
provided with delivery. All other types of uses are incorrect.
The manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.
Lawn mowers and all power equipment, can be potentially
dangerous if used improperly. Safety requires good
judgement, careful use in accordance with these instructions
and common sense.
The machine must only be operated, maintained, and repaired
by persons familiar with the machine’s special characteristics
and who are also knowledgeable about the safety instructions.
Use only approved repair parts to maintain this machine.
Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic regulations
must be followed without fail.
Unauthorized modifications to the design of the machine
may absolve the manufacturer from liability for any resulting
personal injury or property damage.
Driving and Transport on Public Roads
Check applicable road traffic regulations before transporting
on public roads. If the machine is transported, you must
always use approved fastening equipment and ensure that the
machine is well anchored. DO NOT operate this machine on
public roadways.
Towing
If machine is equipped with a tow hitch, use extreme caution
when towing. Never allow children or others in or on the towed
equipment. Make wide turns to avoid jack-knifing. Travel slowly
and allow extra distance to stop.
Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of control.
Follow the manufacturer's recommendation for weight limits for
towed equipment. Do not tow near ditches, canals, and other
hazards.
4
INTRODUCTION
Good Service
Husqvarna's products are sold throughout the world and only
in specialized retail stores with complete service. This ensures
that you as a customer receive only the best support and
service. Before the product is delivered, the machine has, for
example, been inspected and adjusted by your retailer. See
the certificate in the Service Journal in this operator manual.
When you need spare parts or support in service questions,
warranty issues, etc., please consult the following professional:
This Manual belongs to the machine with
the manufacturing number:
Manufacturing Number
The machine’s manufacturing number can be found on the
printed plate affixed to the engine compartment.
Stated on the plate, from the top are:
• The machine’s type designation (I.D.).
• The manufacturer’s type number (Model).
• The machine’s serial number (Serial no.)
Please have the type designation and serial number available
when ordering spare parts.
The engine’s manufacturing number is stamped on one of the
valve covers.
The plate states:
• The engine’s model.
• The engine’s type.
• Code
Please have these available when ordering spare parts.
The wheel motors and hydrostatic pumps have a barcode
decal affixed at the rear.
Engine
5
SYMBOLS AND DECALS
These symbols are found on the machine and in the operator
manual.
Study them carefully so that you know what they mean.
WARNING! Xxxx xxxxxx xxxxx xxxx xxxxxxxxx
xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.
Used in this publication to notify the reader of a risk of
personal injury or death, particularly if the reader should
neglect to follow instructions given in the manual.
R
Reverse Neutral Fast Slow Choke Fuel Warning! Park Brake
Cut Height Low Cut Height High Use protective
N
glasses
IMPORTANT INFORMATION Xxxx xxxxxx xxxxx xxxx
xxxxxxxxx xxxxxx xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.
Used in this publication to notify the reader of a risk of material
damage, particularly if the reader should neglect to follow
instructions given in the manual. Used also when there is a
potential for misuse or misassembly.
Use protective
gloves
Do not
stand here
Battery acid is corrosive,
explosive and flammable
Read Operator Manual
Whole body
exposure to
thrown objects
Warning!
Keep away from the
discharge deck, do not use
without deflector
or grass catcher
Shut off engine, remove
key before performing
maintenance or repair
Severing of fingers
and toes
Keep a safe
distance from
the machine
Do not open or
remove safety shields
with engine running
6
Do not touch parts Wear hearing
protection
Use on slopes no
greater than 10° No passengers
Careful backing up,
watch for
other people
Careful going
forward, watch for
other people
SAFETY
Safety Instructions
These instructions are for your safety. Read them carefully.
WARNING! THIS CUTTING MACHINE IS CAPABLE
OF AMPUTATING HANDS AND FEET AND THROWING
OBJECTS. FAILURE TO OBSERVE THE FOLLOWING
SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS
INJURY OR DEATH.
WARNING! CHILDREN CAN BE SERIOUSLY
INJURED OR KILLED BY THIS EQUIPMENT. Carefully
read and follow all the safety instruction that follow.
IMPORTANT INFORMATION The American Academy of
Pediatrics recommends that children be a minimum of 16
years of age before operating a riding lawn mower.
Protecting Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
machine and the mowing activity. Never assume that children
will remain where you last saw them.
• Keep children out of
the mowing area and in
the watchful care of a
responsible adult other
than the operator.
• Be alert and turn machine
off if a child enters the area.
• Before and while backing,
look behind and down for
small children.
• Never carry children,
even with the blades shut
off. They may fall off and
be seriously injured or
interfere with safe machine
operation. Children who
have been given rides in
the past may suddenly
appear in the mowing area
for another ride and be run
over or backed over by the machine.
• Never allow children to
operate the machine.
• Use extreme care when
approaching blind corners,
shrubs, trees, or other
objects that may block your
view of a child.
General Operation
• Read, understand, and
follow all instructions on the
machine and in the manual
before starting.
• It is recommended that
someone be aware that
you are mowing and can
provide help in case of
injury or accident.
• Anyone who operates, maintains, and/or services this
machine must first read and understand this Operator
Manual. Local laws may regulate the age of the user.
The owner is responsible for training the users of this
equipment.
• The owner and operator of this equipment can prevent
accidents and is responsible for accidents or injuries
occurring to themselves, other people and/or property.
• Do not put hands or feet near rotating parts or under the
machine. Keep clear of the discharge opening at all times.
• Only allow responsible adults, who are familiar with the
instructions, to operate the machine.
• Clear the area of objects
such as rocks, toys, wire,
etc., which could be picked
up and thrown by the
blades.
• Be sure the area is clear
of bystanders before
operating. Stop machine if
anyone enters the area.
• Do not mow in reverse
unless absolutely necessary. Always look down and behind
before and while backing.
• Never direct discharged material toward anyone. Avoid
discharging material against a wall or obstruction. Material
may ricochet back toward the operator. Stop the blades
when crossing gravel surfaces.
• Do not operate machine without the entire grass catcher,
discharge guard, or other safety devices in place and
working.
• Slow down before turning.
• Never leave a running machine unattended. Always turn
off blades, move the steering control lever outward to the
park brake position, stop engine and remove keys before
dismounting.
• Never carry passengers. The machine is only intended for
use by one person.
• Disengage blades when not mowing. Shut off engine and
wait for all parts to come to a complete stop before cleaning
the machine, removing the grass catcher or unclogging the
discharge guard.
• Operate the machine only in daylight or good artificial light.
• Do not operate the machine while under the influence of
alcohol or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the machine into
a trailer or truck.
7
SAFETY
• Always wear eye protection when operating machine.
• Wear proper Personal Protective Equipment (PPE) while
operating this machine, including (at a minimum) sturdy
footwear, eye protection, and hearing protection. Do not
mow in shorts and/or footwear with open toes.
WARNING! When using the machine, approved
personal protective equipment should be used. Personal
protective equipment cannot eliminate the risk of injury
but it will reduce the degree of injury if an accident does
happen. Ask your retailer for help in choosing the right
equipment.
• Data indicates that operators age 60 years and above are
involved in a large percentage of riding mower-related
injuries. These operators should evaluate their ability
to operate the riding mower safely enough to protect
themselves and others from serious injury.
• Follow the manufacturer’s recommendation for wheel
weights or counterweights.
• Keep machine free of grass, leaves or other debris buildup
which can touch hot exhaust or engine parts and burn. Do
not allow the mower deck to plow leaves or other debris
which can cause buildup to occur. Clean any oil or fuel
spillage before operating or storing the machine.
• Allow machine to cool before storage.
WARNING! Do not drive up or down hills with slopes
greater than 10 degrees. Do not drive across any slopes.
• Choose a low ground speed so that you will not have to
stop while on the slope.
• Do not mow on wet grass. Tires may lose traction.
• Avoid starting, stopping, or turning on a slope. If the tires
lose traction, disengage the blades and proceed slowly
straight down the slope.
• Keep movement on the slopes slow and gradual. Do not
make sudden changes in speed or direction, which could
cause machine to roll over.
• Use extra care while operating machine with grass catchers
or other attachments; they can affect the stability of the
machine.
• Do not use on steep slopes.
• Do not try to stabilize the
machine by putting a foot
on the ground.
• Do not mow near drop-offs,
ditches, or embankments.
The machine could
suddenly roll over if a wheel
is over the edge or the edge
caves in.
Personal Safety Equipment
• Make sure that first aid
equipment is close at hand
when using the machine.
• Never use the machine
when barefoot.
• Always wear protective
shoes or boots, preferably
with steel toe caps.
• Always wear approved
protective glasses or a full
visor when assembling or driving.
• Always wear gloves when handling the blades.
• Never wear loose clothing that can get caught in moving
parts.
• Use ear protectors to avoid damage to hearing.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents, which can result in severe injury or death. Operation
on all slopes requires extra
caution. If you cannot back up
the slope or if you feel uneasy
on it, do not mow it.
• Mow up and down slopes
(10 degrees maximum), not
across.
• Watch for holes, ruts,
bumps, rocks, or other
hidden objects. Uneven terrain could overturn the machine.
Tall grass can hide obstacles.
Safe Handling of Gasoline
WARNING! The engine and the exhaust system
become very hot during operation. There is a risk for burns
if touched. Allow engine and exhaust system to cool before
refueling.
To avoid personal injury or property damage, use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive.
• Extinguish all cigarettes, cigars, pipes, and other sources of
ignition.
• Use only approved gasoline
containers.
• Never remove gas cap or
add fuel with the engine
running. Allow engine to
cool before refueling.
• Never fuel the machine
indoors.
• Never store the machine or fuel container where there is an
open flame, spark or pilot light such as on a water heater or
other appliance.
• Before you begin refueling, minimize the risk of static
electricity by touching a metal surface.
• Never fill containers inside a vehicle or on a truck or trailer
bed with plastic liner. Always place containers on the
ground away from the vehicle when filling.
• Never overfill fuel tank. Replace gas cap and tighten
securely.
8
SAFETY
• Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, refuel
such equipment with a portable container, rather than from
a gasoline dispenser nozzle.
• Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
• If fuel is spilled on clothing, change clothing immediately.
• Do not start the engine near spilled fuel.
• Never use gasoline as a cleaning agent.
• If leaks arise in fuel system, the engine must not be started
until problem has been resolved.
• Check the fuel level before each use and leave space for
the fuel to expand, as the heat from the engine and the sun
may otherwise cause the fuel to expand and overflow.
CAUTION! Use protective glasses for
maintenance work.
General Maintenance
• Never use the machine
indoors or in spaces lacking
proper ventilation. The
exhaust fumes contain
carbon monoxide, an
odorless and poisonous
lethal gas.
• Make sure that the
equipment is in good condition and that all nuts and bolts,
especially those fastening the blade attachments, are
properly tightened and torqued.
• Maintain or replace safety and instruction labels as
necessary.
• Never interfere with the intended function of a safety device
or reduce the protection provided by a safety device.
Check their proper operation regularly. NEVER operate
a machine with a safety device that does not function
properly.
WARNING! The engine must not be started when
the driver’s floor plate or any protective plate for the mower
deck’s drive belt is removed.
• The blades are sharp and can cause cuts and gashes.
Wrap the blades or use protective gloves when handling
them.
• Never work with the starter circuit if there is spilled fuel.
• Ensure that the fuel filler cap is mounted tightly and no
flammable substances are stored in an open vessel.
• Sparking can occur when working with the battery and the
heavy cables of the starter circuit. This can cause battery
explosion, fire or eye injury. Sparking will not occur after the
grounding cable (normally negative, black) is removed from
the battery.
• Disconnect the grounding
cable from the battery first
and reconnect it last.
• Do not make a bridge short
circuit across the starter
relay to run the starter.
• Be very careful when
handling battery acid. Acid
on skin can cause serious
corrosive burns. If you spill battery acid on your skin, rinse
immediately with water.
• Acid in the eyes can cause blindness, contact a doctor
immediately.
• Be careful when servicing the battery. Explosive gases
form in the battery. Never perform maintenance on the
battery when smoking or
near open flames or sparks.
The battery can explode
and cause serious injury or
damage.
• The machine is tested
and approved only with
the equipment originally
provided or recommended
by the manufacturer. Only use approved repair parts for the
machine.
• Check the park brake’s functionality regularly. Adjust and
service as necessary.
• The mulch blades should only be used in familiar areas
when higher quality mowing is desired.
• Regularly clean deck and underside of deck, avoid
spraying engine and electrical components with water.
• Check grass catcher components and the discharge guard
frequently and replace with manufacturer’s recommended
parts when necessary.
• Do not change the settings of governors and avoid running
the engine with overly high engine speeds. If you run the
engine too fast, machine components could be damaged.
• To reduce the risk of fire, keep machine free of grass,
leaves or other debris buildup. Clean oil or fuel spills and
remove any fuel-soaked debris. Allow machine to cool
before storing.
• Stop to inspect the equipment if you run over or into
anything. If necessary, make repairs before starting.
• Never make adjustments or repairs with the engine running.
WARNING! The battery contains lead and lead
compounds, chemicals that are considered to cause
cancer, birth defects, and other reproductive system
damage. Wash your hands after handling the battery.
9
SAFETY
Transport Towing
If machine is equipped with a tow hitch, use extreme caution
WARNING! Use extreme caution when loading the
machine into a truck or trailer using ramps. There is the
possibility of serious injury or death if the machine falls off
the ramps.
IMPORTANT INFORMATION The park brake is not
sufficient to lock the machine in place during transport.
Ensure that the machine is well fastened to the transport
vehicle. Always reverse the machine onto the transport
vehicle to avoid tipping it over.
• The machine is heavy and can cause serious crushing
injuries. Be extra cautious when it is loaded on or unloaded
from a vehicle or trailer.
• Use full width ramps for loading machine into a trailer or
truck.
• Use an approved trailer to transport the machine. Activate
the park brake by securing the steering controls in the
outward position with elastic or ratcheting straps. Turn off
the fuel supply. Fasten the machine down with approved
devices such as bands, chains or straps.
• Both front and rear tie down straps should be used and
directed down and outward from the machine.
• Do not operate this machine on public roadways.
• Check and abide by local traffic regulations before
transporting the machine on any road.
• Do not tow this machine, it may cause damage to the drive
system.
• Do not tow any trailers, etc. with this mower. They may
jackknife or overturn, causing damage to the mower and
possible serious injury to the operator.
• Load the unit onto truck or trailer by driving up ramps
of suitable strength using a slow speed. Do not lift! The
machine is not intended to be lifted by hand.
• When loading or unloading this machine, do not exceed the
maximum recommended operation angle of 10O.
when towing. Never allow children or others in or on towed
equipment..
Make wide turns to avoid jack-knifing. Travel slowly and allow
extra distance to stop. Do not tow on sloped ground. The
weight of the towed equipment may cause loss of traction and
loss of control.
Follow the manufacturer’s recommendation for weight limits for
towed equipment. Do not tow near ditches, canals, and other
hazards.
Spark Arrestor
This mower is equipped with an internal combustion engine
and should not be used on or near any unimproved forested,
bush covered or grassy lands unless the engine’s system is
equipped with a spark arrestor meeting applicable local or
state laws (if any).
Federal laws apply on federal lands.
If a spark arrestor is used, it should be maintained in effective
working order by the operator.
A spark arrestor for the muffler is available through your
authorized Husqvarna dealer.
WARNING! Engine exhaust and certain vehicle
components contain or emit chemicals considered to cause
cancer, birth defects, or other reproductive system damage.
The engine exhaust contains carbon monoxide, which is an
odorless, colorless, poisonous gas. Do not use the machine
in enclosed spaces.
10
CONTROLS
This operator manual describes the Husqvarna Zero Turn
Rider. The rider is fitted with a Kawasaki four-stroke overhead
valve engine.
Transmission from the engine is made via a belt-driven
hydraulic pumps. Using the left and right steering controls, the
flow is regulates the direction and speed.
Control Locations
3
4
5
2
1
5
6
7
8
1. Steering/Brake levers 8. Choke control
2. Tracking adjustment, left side 9. Throttle control
3. Deck lift 10. Service meter
4. Fuses 11. Ignition switch
5. Bypass linkages 12. Blade switch
6. Fuel shut off valve 13. Seat adjustment lever
7. Fuel tank
109
11
11
12
13
CONTROLS
Steering Control Levers
The machine’s speed and direction are continuously variable
using the two steering controls. The steering controls can
be moved forward or backward about a neutral position.
Furthermore, there is a neutral position, which is locked if the
steering controls are moved outward.
When both controls are in the neutral position (N), the machine
stands still.
By moving both controls an equal amount forward or
backward, the machine moves in a straight line forward or
backward respectively.
In order, for example, to turn right while moving forward, move
the right control towards the neutral position. The rotation of the
right wheel is reduced and the machine turns to the right.
Zero turn can be achieved by moving one control backward
(behind the neutral position) and carefully moving the other
steering control forward from its neutral position. The rotation
direction when zero turning is determined by which steering
control is moved backward behind the neutral position. If the
left steering control is pulled backward, the machine turns to
the left. Use extra care when using this maneuver.
If the steering controls are in uneven positions when standing
still or do not fit in the slots for moving the controls outward,
they can be adjusted.
WARNING! The machine can turn very rapidly if one
steering control is moved much further forward than the
other.
Park Brake
The park brake is integrated with the steering control levers.
Move the levers outward from the neutral position to engage
the park brake.
To release the park brake, rotate both steering control levers
inwards to the neutral position. Do not attempt to operate the
unit without both levers being inwards out of the engaged
position or machine components could be damaged.
IMPORTANT INFORMATION The machine must stand
absolutely still when applying the park brake. Always set
the park brake before dismounting. Release the park brake
before moving the mower.
Forward
Neutral
Reverse
Ignition Switch
Park
Brake
The ignition switch is placed on the control panel and is used
to start and stop the engine.
12
CONTROLS
Throttle Control
The throttle control regulates the engine speed and the rate of
rotation of the blades, assuming the blade switch is pulled out.
See Blade Switch.
To increase or decrease the engine speed, the control is
moved forward or back respectively.
Avoid idling the engine for long periods, as there is a risk
of fouling the spark plugs. USE FULL THROTTLE WHEN
MOWING, for best mower performance and battery charging.
Service Meter
The service meter displays the total number of hours the
engine has run and indicates when the engine and mower
need servicing.
After every 50 hours of operation, an oil can icon will appear
and stay on for two hours, before an automatic reset occurs.
To manually reset the meter, turn the key off and on five times
at one second intervals. To service the engine and mower, see
the Service Journal of this manual.
Note: The service meter operates (clocks hours) only when the
engine is running. Be sure to turn the key off when the unit is
not in use, to prevent meter hours from accumulating.
Blade Switch
To engage the mower deck, pull the knob out; mower blades
are disengaged when the knob is pressed down.
Choke Control
The choke control is used for cold starts to provide the engine
with a richer fuel mixture.
For cold starts the control should be pulled up.
13
CONTROLS
Fuse
The 20 amp primary fuse is located on the left hand side of the
machine. It is accessed by tilting the seat forward. The fuse is
a flat pin type used in automobiles.

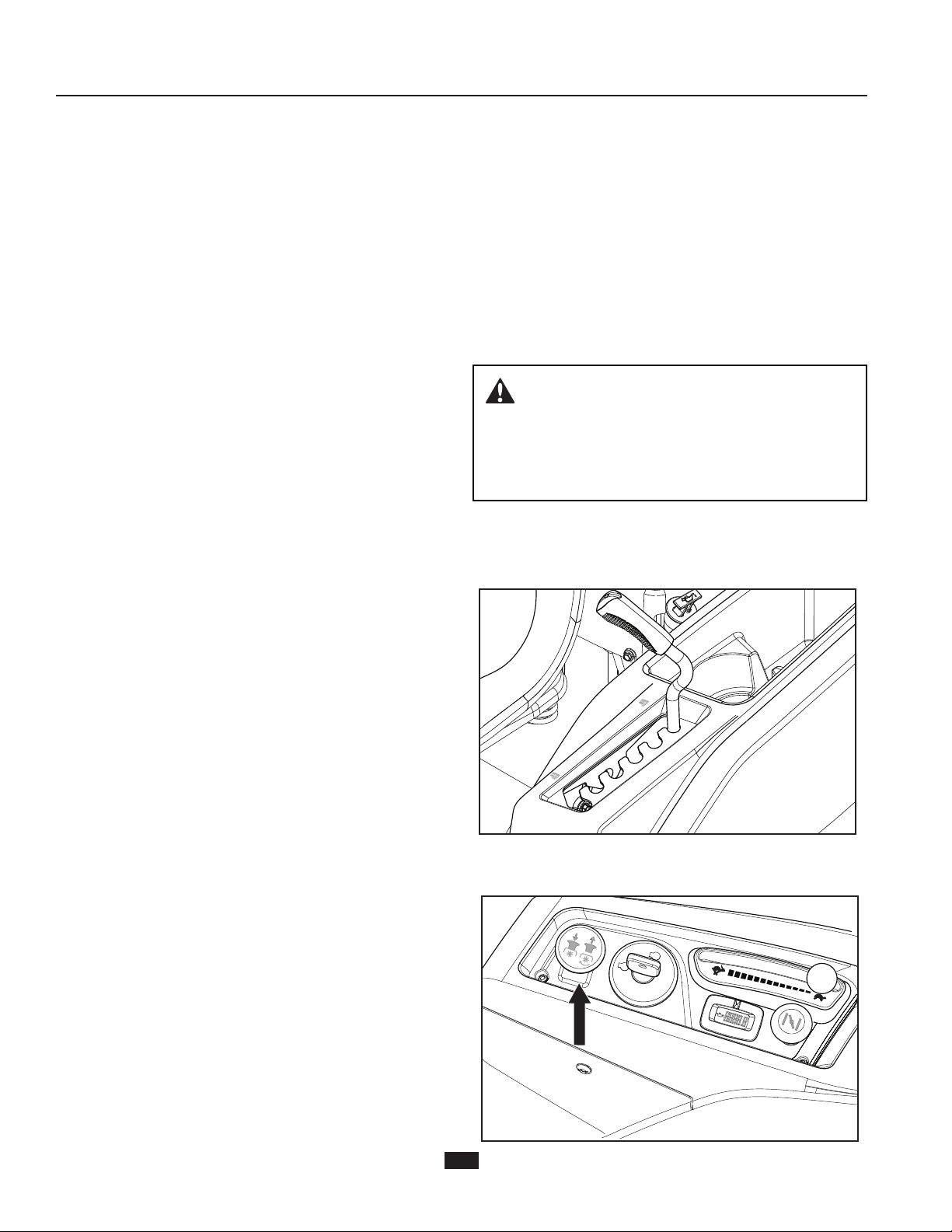

Seat Adjustment Lever
Cutting Height Lever
To set the deck cutting height, pull the cutting height lever
inwards and move it to the desired height notch.
IMPORTANT INFORMATION Always raise the deck to the
highest position for transport.
IMPORTANT INFORMATION To obtain an even cutting
height, it is important that the air pressure in all tires is 15
psi / 103 kPa / 1 bar.
The seat can be adjusted lengthways. When making
adjustments, the lever under the right side of the seat is pulled
up, after which the seat can be moved backward or forward.

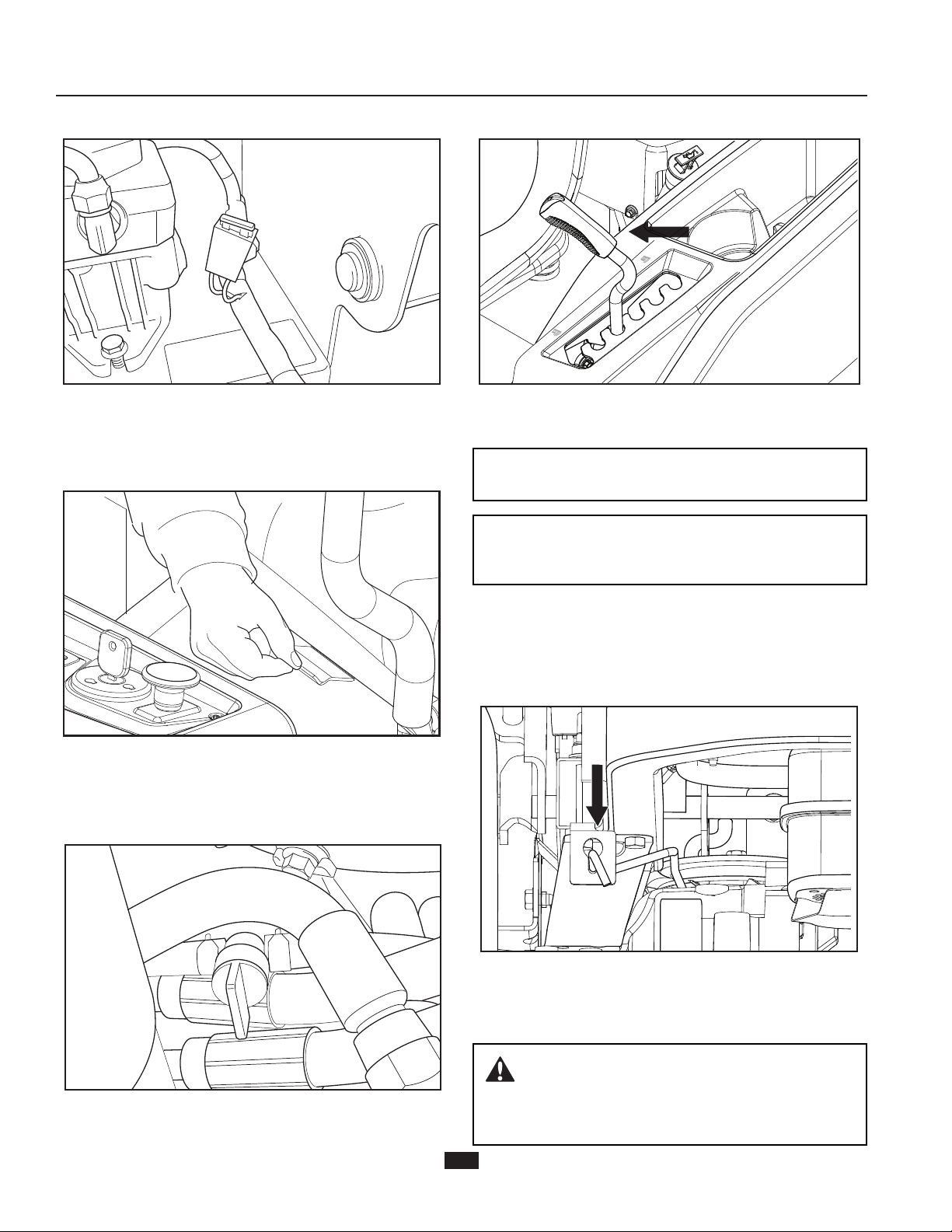

Fuel Shut Off Valve
The fuel shut off valve is located at the right rear of the seat.
The valve is off when the handle tab is turned perpendicular to
the fuel line.
Bypass Linkages
Transaxle bypass linkages must be engaged when pushing or
pulling the mower. The release levers are located on each side
of the rear of the unit below the rear engine guard. See Moving
Machine By Hand in the Operation section.
WARNING! Bypass linkages are located close to
the muffler. To prevent burns, the engine should be shut off
and allowed to cool before the bypass linkage levers are
handled.
14
CONTROLS

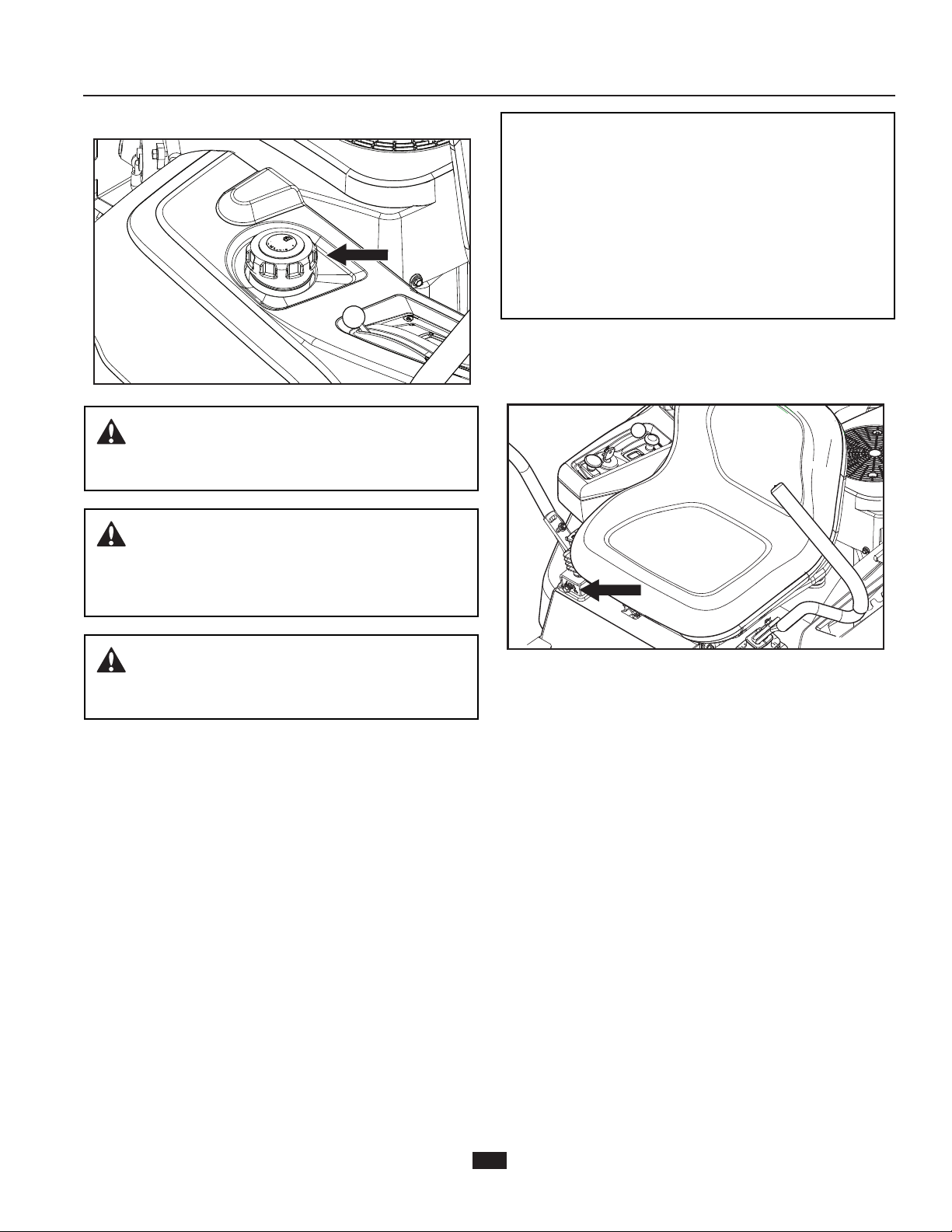

Fuel Tank
WARNING! Gasoline is highly flammable.
Observe caution and fill the tank outdoors (see the safety
instruction).
WARNING! The engine and the exhaust system,
become very hot during operation. There is a risk for burns
if touched. Allow engine and exhaust system to cool before
refueling.
IMPORTANT INFORMATION Experience indicates that
alcohol blended fuels (called gasohol, ethanol or methanol)
can attract moisture which leads to separation and
formation of acids during storage. Acidic gas can damage
the fuel system of an engine while in storage. To avoid
engine problems, the fuel system should be emptied before
storage of 30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and carburetor are
empty. Use fresh fuel the next season. See Storage for
additional information. Never use engine or carburetor
cleaners in the fuel tank or permanent damage may occur.
Tracking
WARNING! Fill to bottom of filler neck. Do not
overfill. Wipe off any spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Read the safety instructions before refueling. The machine has
one fuel tank, just behind the console. The tank capacity is 3½
gallons (13.25 litres).
Regularly check the gas cap gasket for damage and keep the
cap properly tightened.
The engine will run on a minimum of 87-octane unleaded
gasoline (no oil mix). Environmentally adapted alkylate
gasoline can be used. See also Technical Data concerning
ethanol fuel. Methanol fuel is not allowed. Do not use E85
alcohol based fuel. Damage to engine and components may
occur.
When operating in temperatures below 32° F. (0° C.), use
fresh, clean winter grade gasoline to insure good cold weather
starting.
If the mower is not tracking straight, check the air pressure in
both rear tires. Recommended air pressure for the rear tires is
15 psi (1 bar).
1. Tracking adjustments are made using the tracking bolts.
The tracking bolts act as limiting devices for the motion
control levers when in the full-forward position.
2. For preliminary tracking adjustment, move unit to an open,
unobstructed area such as an empty parking lot or open
field.
3. Using a ½" wrench, back the tracking bolts out until flush
with nut.
4. Test operate unit by driving it at full throttle and the full
forward position on both motion control levers. Gradually
turn in the tracking bolt on the right hand side until the unit
noticeably starts drifting right.
5. Drive forward at full throttle with both motion control
levers in the full forward position. Gradually turn in the left
tracking bolt until unit tracks straight.
15
OPERATION
Read the Safety section and following pages, if you are
unfamiliar with the machine.
Training
Due to unique steering capabilities, zero turn mowers are far
more maneuverable than typical riding mowers.
This section should be reviewed in its entirety prior to
attempting to move the mower under its own power. When
first operating the mower or until becoming comfortable with
controls, use a reduced throttle speed and reduced ground
speed. DO NOT move control levers to the furthest forward or
reverse positions during initial operation.
First time users should become familiar with the mower’s
movement on a hard surface, such as concrete or blacktop
PRIOR to attempting to operate on turf. Until the operator
becomes comfortable with the mower controls and zero turning
capability, overly aggressive maneuvers may damage turf.
Steering
To move forward and backward
The direction and speed of the mower’s movements are
effected by the movement of the control lever(s) on each side
of mower. The left control lever controls the left wheel. The right
control lever controls the right wheel.
First time users should push the mower (see Moving the
Machine By Hand in the Operation section) to an open, flat
area without other people, vehicles or obstacles nearby. To
move the unit under its own power, the operator must sit in the
seat and start the engine (see Before Starting in the Operation
section). Adjust the engine speed to idle and disengage the
park brake by moving the steering control levers inward. Do
not engage the blades. As long as the control levers have not
been moved forward or backwards, the mower will not move.
Slowly move both control levers slightly forward. This will allow
the mower to move forward in a straight line. Pull the control
levers back to the neutral position and the mower should stop
moving.
Pull back slightly on control levers, allowing the mower to
move backwards. Push the control levers forward to the neutral
position and mower should stop moving.
To turn to the right
While moving in a forward direction, pull the right lever back
towards the neutral position while maintaining the position of
the left lever, this will slow the rotation of the right wheel and
cause the machine to turn in that direction.
To turn to the left
While moving in a forward direction pull the left lever back
towards the neutral position while maintaining the position of
the right lever, this will slow the rotation of the left wheel and
cause the machine to turn in that direction.
To zero turn
While moving in a forward direction, first pull both control
levers back until the mower stops or slows dramatically.
Then by alternating one lever slightly to the forward position
and the other in the reverse position, complete the turn.
Before Starting
1. Read the sections on Safety and Controls before starting
the machine.
2. Perform the daily maintenance before starting (see
Maintenance Schedule in the Maintenance section).
3. Check that there is sufficient fuel in the fuel tank.
4. Adjust the seat to the desired position.
The following conditions must be fulfilled before the engine
can be started:
• The blade switch must be pressed down into the
disengaged position.
• Both steering / park brake controls must be in the locked
(outer) position.
WARNING! Engine exhaust and certain vehicle
components contain or emit chemicals considered to cause
cancer, birth defects or other reproductive system damage.
The engine exhaust contains carbon monoxide, which is a
odorless, colorless, poisonous gas. Do not use the machine
in enclosed spaces.
Starting the Engine
1. Sit on the seat.
2. Raise the mower deck to the highest position.
3. Disengage the mower blades by pressing the blade
switch downwards.
16
OPERATION
4. Move the steering / park brake controls out to the locked
position.
5. Move the throttle to the middle position. If the engine is
cold, the choke control should be pulled up.
8. Set the engine speed with the throttle. Allow the engine to
run at a moderate speed, approximately mid throttle, for a
short time before use.
9. USE FULL THROTTLE WHEN MOWING.
Running
1. Release the park brake by pulling the steering / park
brake controls inwards to the neutral position.
NOTE: The mower is equipped with an operator presence
system. When the engine is running, any attempt by the
operator to leave the seat without first setting the park
brake will shut off the engine.
2. Lower the mower deck to the desired cutting height.
6. Press in and turn the ignition key to the start position.
7. When the engine starts, immediately release the ignition
key back to the run position. Push the choke control in
gradually when the engine has started.
IMPORTANT INFORMATION Do not run the starter for
more than 5 seconds each time. If the engine does not
start, wait approximately 10 seconds before retrying.
3. Move throttle control to full throttle (rabbit symbol).
4. Engage the mower deck by pulling the blade switch up.
5. Rotate control levers inward and slowly move both control
levers slightly forward to move forward in a straight line.
WARNING! Make sure that no one is near mower
when engaging blade switch.
Make sure the work area is free from objects that could be
thrown by the rotating blades.
WARNING! Do not drive up or down hills with slopes
greater than 10 degrees. Do not drive across slopes.
17
OPERATION
Stopping the Engine
1. Move the throttle to the minimum position (tortoise
symbol).
2. Move the steering / park brake controls outward from the
neutral position.
3. Disengage the mower deck by pressing the blade switch
down.
4. Raise the mower deck to the highest position.
If the engine has been worked hard, allow it to idle at
least 60 seconds to attain a normal operating temperature
before stopping. To prevent fouling the spark plugs, avoid
idling the engine for longer periods.
5. Turn the ignition key to the stop position. Remove key.
Always remove key when leaving the mower to prevent
unauthorized use.
IMPORTANT INFORMATION Leaving the ignition switch
in any other position than OFF will cause the battery to be
discharged.
Mowing Tips
• Observe and flag rocks and other fixed objects to avoid
collisions.
• Begin with a high cutting height and reduce it until the
desired mowing result is attained. The average lawn should
be cut to 2½" during the cool season and over 3" during the
hot months. For healthier and better looking lawns, mow
often after moderate growth. For best cutting performance,
grass over 6" in height should be mowed twice. Make the
first cut relatively high, the second to the desired height.
• The mowing result will be best with a high engine speed
(blades rotate rapidly) and low speed (rider moves slowly).
If the grass is not too long and dense, the driving speed
can be increased without negatively affecting the mowing
result.
• The finest lawns are obtained by mowing often. The lawn
becomes more even and the grass clippings more evenly
distributed over the mown area. The total time taken is not
increased as a higher operating speed can be used without
poor mowing results.
• When mowing large areas, start by turning to the right so
that clippings will discharge away from shrubs, fences,
driveways, etc. After one or two rounds, mow in the
opposite direction making left hand turns until finished.
• Avoid mowing wet lawns. The mowing result is poorer
because the wheels sink into the soft lawn, clumps build,
and grass clippings fasten under the cowling.
• Hose the mower deck underside with water after each use.
When cleaning, the mower deck shall be raised into the
transport position. Make sure the mower is cooled and the
engine is off.
• Use compressed air to clean top surface of the deck.
Avoid flooding water on top surface, engine and electrical
components.
• When the mulching kit is used, it is important that the
mowing interval is frequent.
Operating On Hills
Read the Safety Instructions Driving on Slopes in the Safety
section.
• The slowest speed possible should be used before starting
up or down hills.
• Avoid stopping or changing speed on hills.
• If stopping is absolutely necessary, pull steering controls
into the neutral position and the push to the outside of the
unit to engage the park brake.
• To restart movement, move the steering controls back to the
neutral position.
• Press forward to regain forward motion.
• Make all turns slowly.
WARNING! Never drive the rider on terrain that
slopes more than 10 degrees. Mow slopes up and down,
never side to side. Avoid sudden directional changes.
18
OPERATION

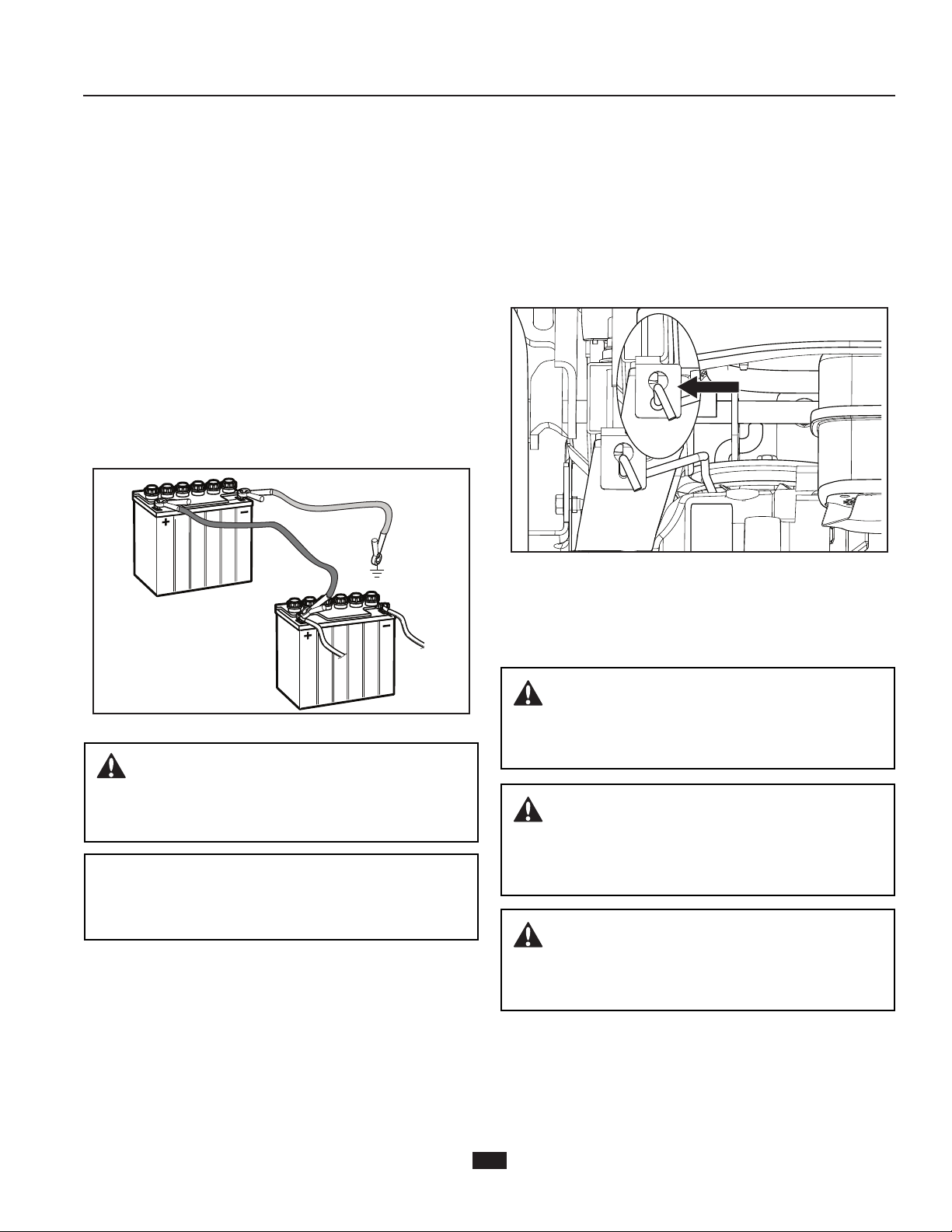

Weak Battery
If the battery is too weak to start the engine, it should be
recharged. (See Battery in the Maintenance section.)
If jumper cables are used for emergency starting, follow this
procedure:
Jumper Cable Use
1. Connect each end of the RED cable to the POSITIVE (+)
terminal on each battery, taking care not to short against
chassis.
2. Connect one end of the BLACK cable to the NEGATIVE (-)
terminal of the fully charged battery.
3. Connect the other end of the BLACK cable to a good
CHASSIS GROUND on the mower with the discharged
battery, away from the fuel tank and battery.
To remove cables, reverse order
1. Remove BLACK cable first from chassis and then from the
fully charged battery.
2. Remove RED cable last from both batteries.
Moving Machine By Hand
When pushing or pulling the mower, engage the EZT bypass
linkages. The EZT bypass linkages are located on the rear of
the frame, below the rear engine guard.
1. Raise the deck into the highest cutting position.
2. Move the steering / park brake controls inwards to the
neutral position.
3. Pull the EZT bypass linkages up and out of the keyhole
slots. Release the levers with the head outside the frame
and held in the bypass position.
2
1
CAUTION! Lead-acid batteries generate explosive
gases. Keep sparks, flame and smoking materials away
from batteries. Always wear eye protection when around
batteries.
IMPORTANT INFORMATION The mower is equipped
with a 12-volt negative grounded system. The other vehicle
must also be a 12-volt negative grounded system. Do not
use your mower to start other vehicles.
4. To reengage the EZT’s to drive, reverse the above
procedure.
Load the machine into truck or trailer by driving slowly up the
ramps. DO NOT LIFT! The machine is not intended to be lifted
by hand.
WARNING! Bypass linkages are located close to
the muffler. To prevent burns, the engine should be shut off
and allowed to cool before the bypass linkage levers are
handled.
WARNING! Make no adjustments without:
• the engine stopped,
• the ignition key removed,
• the park brake activated
WARNING! Use extreme caution when loading the
machine into a truck or trailer using ramps. There is the
possibility of serious injury or death if the machine falls off
the ramps.
19
MAINTENANCE
Maintenance Schedule
The following is a list of maintenance procedures that must be
performed on the machine. For those points not described in
this manual, visit an authorized service workshop. An annual
service carried out by an authorized service workshop is
recommended to maintain your machine in the best possible
condition and to ensure safe operation.
Read General Maintenance in the Safety section.
MAINTENANCE
Check the park brake
Check the engine’s oil level (every refueling)
Check the safety system
Check for fuel and oil leakages
Check/clean the engine’s cooling air intake
Check the mower deck
Check for loose hardware (screws, nuts)
Clean under the mower deck
Start the engine and blades, listen for unusual sounds
Check for damage
Thoroughly clean around the engine
Clean around belts, belt pulleys
Check the tire pressures
Check battery connections
Sharpen3)/ Replace mower blades
Clean the engine’s cooling air intake
Clean the foam air cleaner prefilter 2)
Clean the paper air cleaner filter cartridge
Check/adjust the park brake
Inspect muffler/spark arrestor
2)
2)
At least
Daily
Before After 25 50 100 300
once
each
year
Maintenance interval
in hours
●
■
●
♦
■
●
●
●
♦
♦
♦
♦
●
●
●
■ ■
■ ■
■
♦ ♦
♦ ♦
1)
First change after 8-10 hours. When operating with a heavy load
or at high ambient temperatures, replace every 50 hours.
2)
In dusty conditions, cleaning and replacement are required more
often.
3)
Performed by authorized service workshop.
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
20
MAINTENANCE
MAINTENANCE
Check/adjust throttle cable
Check the condition of belts, belt pulleys
Change the engine oil
Replace the engine oil filter
Clean/replace the spark plugs
Replace the fuel filter
Replace paper air filter
Check the caster wheels (every 200 hours)
Replace the air cleaner’s foam pre-filter
Check/adjust the mower deck
Check the engine valve clearance
Perform the 300-hour service
1)
First change after 8-10 hours. When operating with a heavy load
or at high ambient temperatures, replace every 50 hours.
2)
In dusty conditions, cleaning and replacement are required more
often.
3)
Performed by authorized service workshop.
1)
2)
2)
3)
3)
● = Described in this manual
♦ = Not described in this manual
■ = Refer to the engine manufacturer's manual
At least
Daily
Before After 25 50 100 300
once
each
year
Maintenance interval
in hours
■
● ●
■ ■
■ ■
■ ■
■ ■
■ ■
● ●
■
● ●
♦ ♦
♦ ♦
WARNING! Before performing any service or
adjustment checklist
• Engage the park brake.
• Place the Blade-switch in the disengaged position.
• Turn the ignition switch to OFF position and remove
the key.
• Make sure the blades and all moving parts have
completely stopped.
WARNING! Escaping hydraulic oil under pressure
can have sufficient force to penetrate the skin, causing
serious injury. If injured by escaping fluid, see a doctor at
once. Serious infection or reaction can develop if proper
medical treatment is not administered immediately.
21
MAINTENANCE
Battery
Your mower is equipped with a maintenance free battery that
does not need servicing. However, periodic charging of the
battery with an automotive type battery charger will extend its
life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• See chart for charging times.
Cleaning battery and terminals
Corrosion and dirt on the battery and terminals can cause the
battery to lose power.
1. Disconnect BLACK battery cable first, then the RED
battery cable and remove the battery from the machine.
2. Rinse the battery with plain water and dry.
3. Clean terminals and battery cable ends with wire brush
until shiny.
4. Coat terminals with grease or petroleum jelly.
5. Reinstall battery.
Replacing battery
1. Lift seat and rotate forward.
2. Using two ½" wrenches disconnect BLACK battery cable
then RED battery cable.
3. Position deck to lowest setting.
4. From underside of frame, remove the nuts that secure the
battery hold-down.
STANDARD
BATTERY
12.6V 100%
12.4V 75% 20 min. 35 min. 48 min. 90 min.
12.2V 50% 45 min. 75 min. 95 min. 180 min.
12.0V 25% 65 min. 115 min. 145 min. 280 min.
11.8V 0% 85 min. 150 min. 195 min. 370 min.
STAT E
OF
CHARGE
*Charging time depends on battery capacity,
condition, age, temperature and efficiency of charger
APPROXIMATE BATTERY CHARGING TIME*
TO FULL CHARGE AT 80OF / 27OC
Maximum Rate at:
50 Amps 30 Amps 20 Amps 10 Amps
- FULL CHARGE -
WARNING! Do not short battery terminals by
allowing a wrench or any other object to contact both
terminals at the same time. Before connecting battery,
remove metal bracelets, wristwatch bands, rings, etc.
Positive terminal must be connected first to prevent sparks
from accidental grounding.
IMPORTANT INFORMATION Do not attempt to open
or remove caps or covers. Adding or checking level of
electrolyte is not necessary.
Always use two wrenches for the terminal screws.
5. Carefully remove the battery from the mower.
6. Install new battery with cable terminals routed toward the
center of the battery.
7. Reinstall battery hold-down and secure with nuts removed
in Step 4.
8. Reconnect RED battery cable to positive (+) battery
terminal with bolt and hex nut.
9. Connect BLACK grounding cable to negative (-) battery
terminal with remaining hex bolt and hex nut
10. Replace terminal boot cover.
11. Lower seat
CAUTION! Always wear eye protection when
around batteries.
Park Brake
Visually check that no damage is found on the steering control
levers, links or switches belonging to the park brake. Perform a
standstill test and check that there is sufficient braking action.
To adjust the park brake, contact the Husqvarna service
workshop.
IMPORTANT INFORMATION The machine must be
absolutely standing still when applying the park brake.
WARNING! Faulty adjustment will result in reduced
braking ability and can cause an accident.
22
MAINTENANCE
Safety System
The machine is equipped with a safety system that prevents
starting or driving under the following conditions.
The engine can only be started when:
• the mower deck is disengaged.
• the steering / park brake controls are in the outer, locked
neutral position.
Make daily inspections to ensure that the safety system works
by attempting to start the engine when one of the conditions is
not met. Change the conditions and try again.
If the machine starts when one of these conditions is not met,
turn the machine off and repair the safety system before using
the machine again.
Make sure the engine stops when the park brake is not
engaged and the operator leaves the seated position.
Check that the engine stops if the mower blades are engaged
and the driver temporarily moves off the drivers seat.

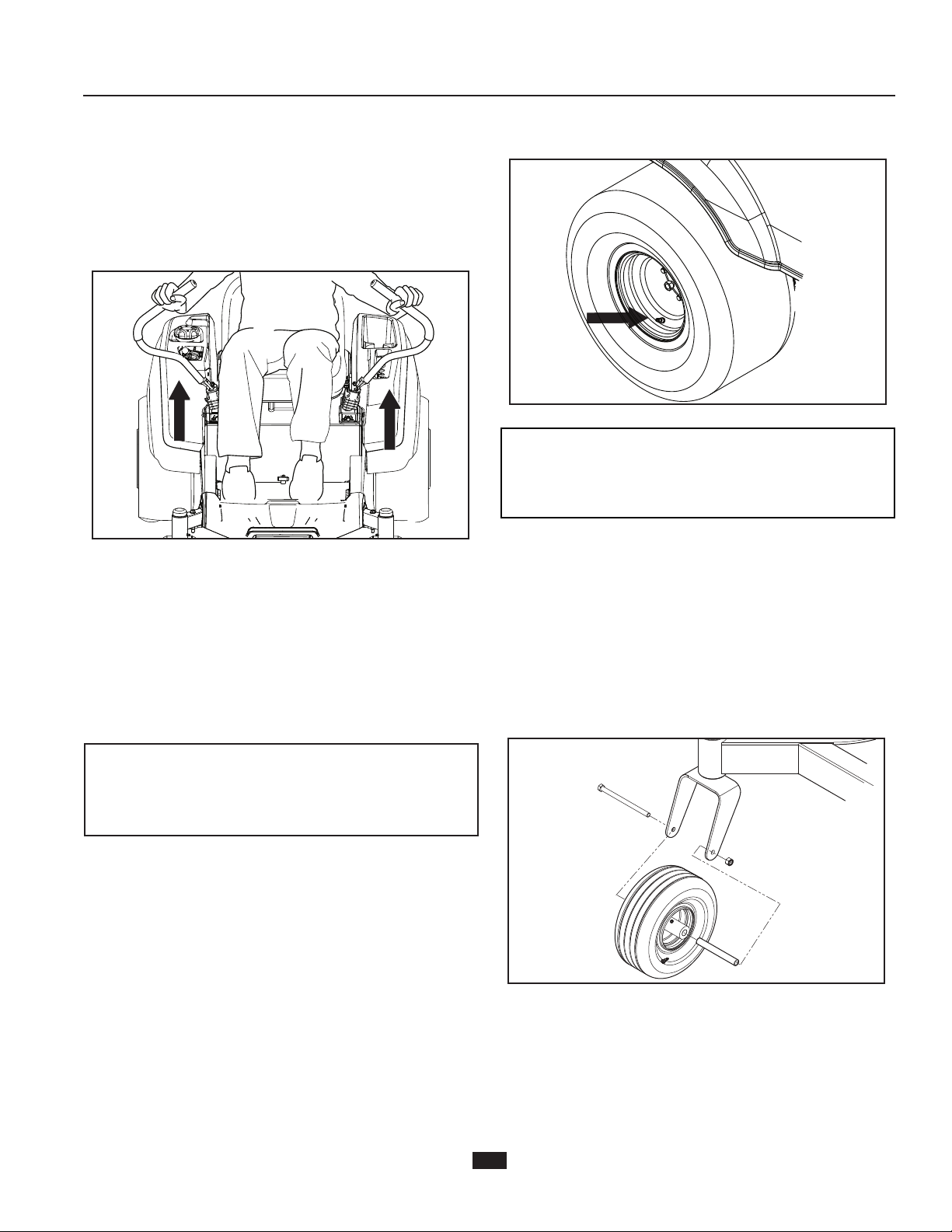

Tire Pressures
All tires should be at 15 psi / 103 kPa / 1 bar.
IMPORTANT INFORMATION DO NOT add any type of
tire liner or foam fill material to the tires. Excessive loads
created by foam filled tires will cause premature failures.
Only use O.E.M. specified tires.

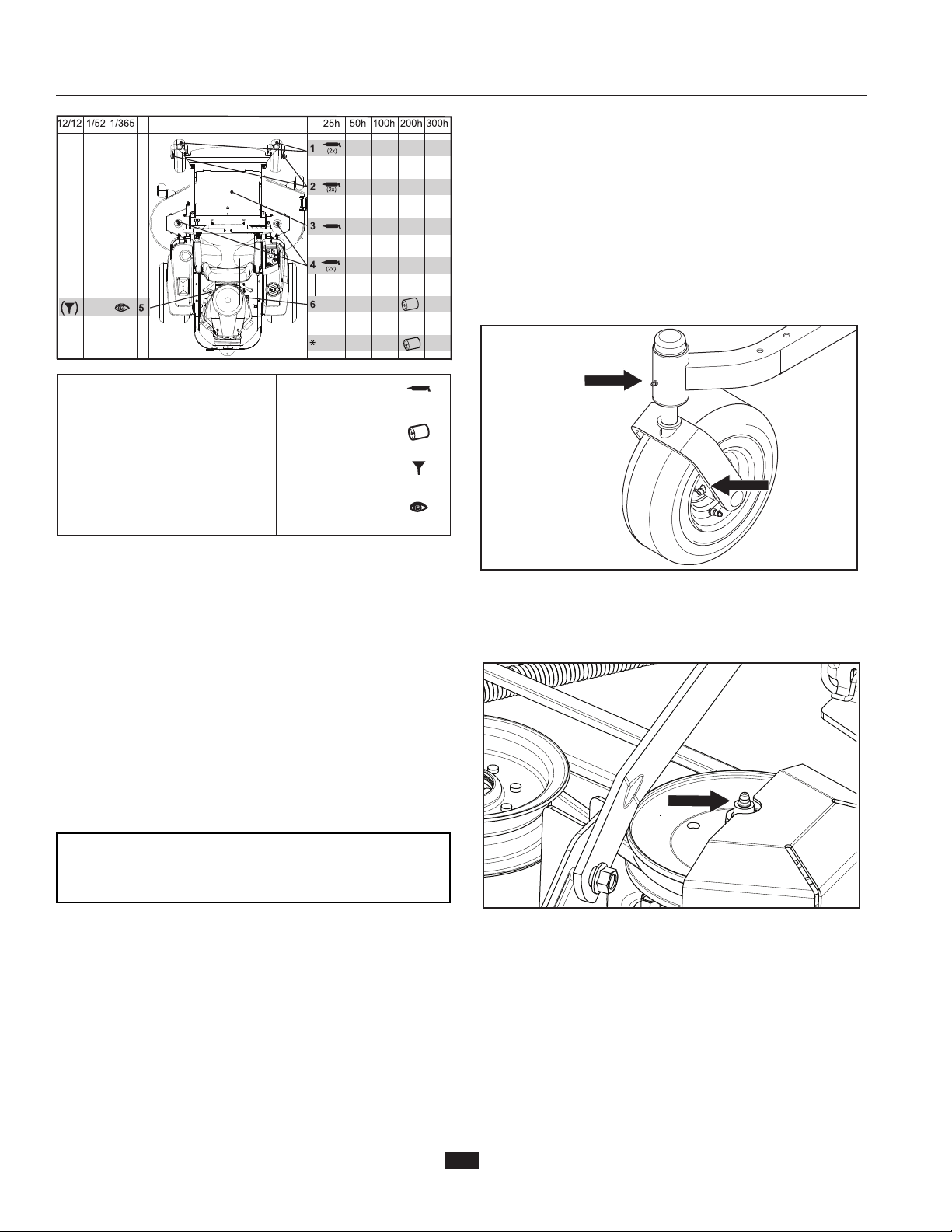

Caster Wheels
Check every 200 hours. Check that wheels rotate freely. If
wheels do not rotate freely take the unit to your dealer for
service.
Foam filled tires or solid tires will void the warranty.
Removal and installation
Remove nut and caster bolt. Pull the wheel out of the yoke and
take care of the spacers. Install in reverse order. Tighten caster
bolt.
IMPORTANT INFORMATION To be able to drive, the
driver must sit in the seat and the steering / park brake
controls must be moved into the engaged (outer) position.
Otherwise the engine will stop.
Hardware
Check daily. Inspect the entire machine for loose or missing
hardware.
23
MAINTENANCE
Cutting Blades
For the best mowing results, it is important that blades are well
sharpened and not damaged.
Replace blades that have been bent or cracked when hitting
obstacles.
Let the service workshop decide whether a blade with large
nicks can be repaired/ground or must be replaced. Balance
the blades after sharpening.
Check the blade mounts.
CAUTION! Blades are sharp. Protect your hands
with gloves and/or wrap blades with a heavy cloth
when handling.
The sharpening of blades should be carried out by
an authorized service workshop.
Blade replacement
1. Remove blade bolt by turning counter clockwise.
2. Install new or resharpened blade with stamped GRASS
SIDE facing towards ground/grass (down) or THIS SIDE
UP facing deck and cutter housing.
3. Seat the blade's opening firmly onto the cutter housing.
4. Tighten blade bolt securely.
5. Torque blade bolt to 45-60 ft/lbs (60-81 Nm).
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks.
NOTE: The belt will show some small cracks in normal
operation.
The belts are not adjustable. Replace belts if they begin to slip
from wear.
Deck Belt Removal
1. Park on a level surface. Apply park brake.
2. Lower the deck into the lowest cutting position.
3. Remove bolts from belt shields and remove shields.
4. Remove any dirt or grass that may have accumulated
around the cutter housings and entire deck surface.
5. Loosen the nut securing the belt guide. Pull the belt guide
up out of the idler arm.
6. Push inward on the idler arm to release the tension on the
belt.
IMPORTANT INFORMATION Special blade bolt is heat
treated. Replace with a Husqvarna bolt if required. Do not
use lower grade hardware than specified.
7. Carefully lift the belt over the top of the cutter housing
pulleys and remove belt from the deck.
Deck Belt Installation
NOTE: For ease in installing the deck belt, refer to the
routing decal on the top of the deck.
1. Wrap the deck belt around the electric clutch pulley
located on the engine shaft.
2. Route the belt forward and up onto the deck.
3. Place belt around spring loaded idler pulley.
4. Wrap the belt around the stationary idler pulley and
around the mandrel housings.
5. Push inward on the idler arm and carefully route belt over
stationary idler pulley. Once the belt is properly routed,
slowly release the idler arm to tension belt.
6. Double check belt routing to make sure it matches the
decal affixed to the deck, and the belt does not have any
twist. Correct if needed.
7. Set the loosened belt guide into the idler arm hole and
tighten the pulley bolt. Replace belt shields on both
mandrel housings and secure with fasteners.
24
MAINTENANCE

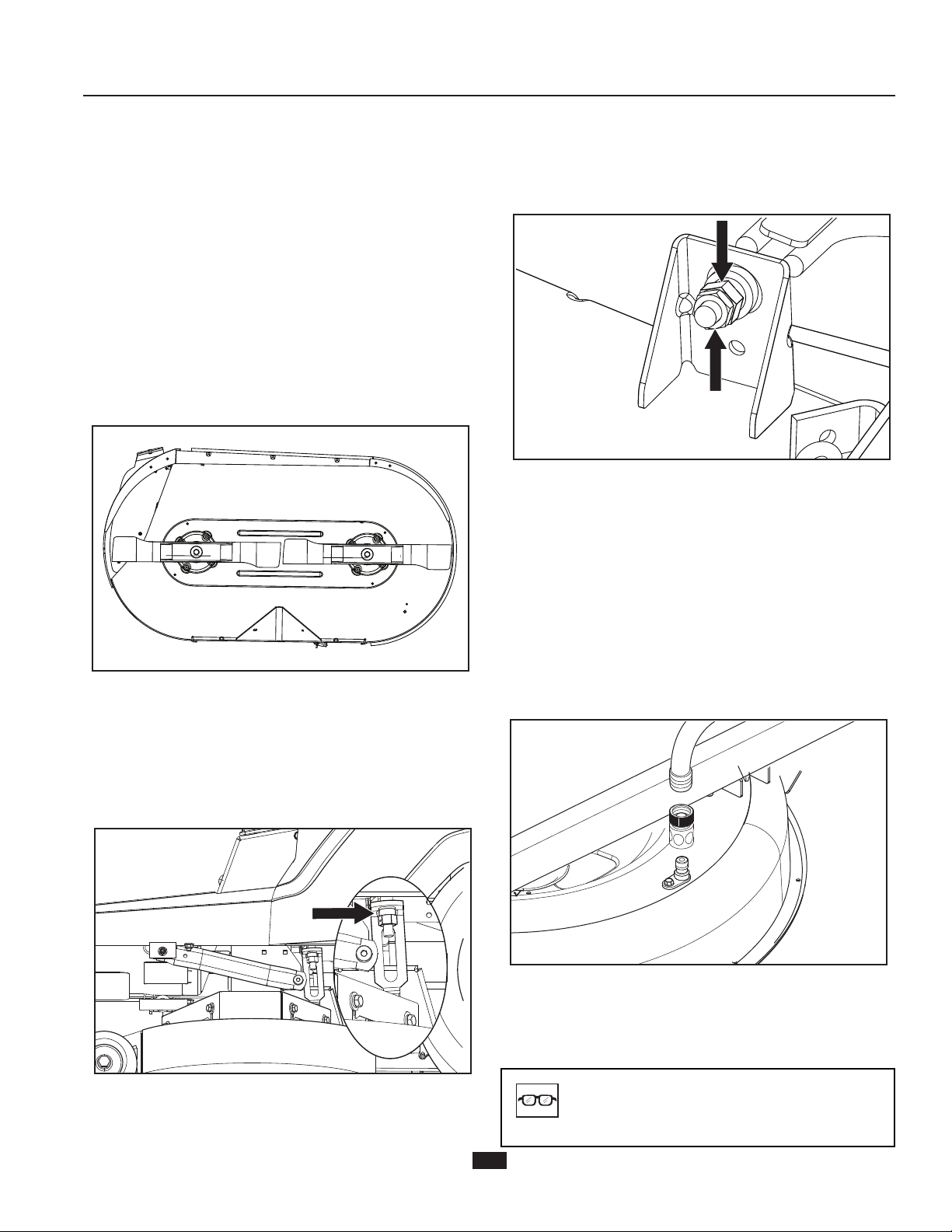

Adjusting the Mower Deck
NOTE: This will place the mower deck in a standard
measurement position. Depending on the type of grass being
mowed or environmental conditions, additional adjustments
may be required to achieve the desired cut.
Leveling deck
Adjust the deck while the mower is on a level surface.
Make sure the tires are inflated to the correct pressure. See
Technical Data / Transmission. If tires are under or over
inflated, the deck cannot be properly adjusted. Raise the deck
to the highest (transport) position.
The deck should be adjusted slightly higher in the rear.
NOTE: To insure accuracy of leveling procedure, mower deck
drive belt must be installed prior to leveling deck.
1. Wear heavy gloves. Turn each blade tip to align front to
rear with the deck side-to-side.
2. Measure from the floor surface up to the bottom of the
blade tip on the discharge side of the mower deck.
Record the measurement.
3. Move to the opposite side, check that measurement is the
same. If adjustment is required—with a ¾" or adjustable
wrench, turn the lift link adjustment nuts on either side
counter clockwise to lower or clockwise to raise. Adjust
until both measurements are equal.
adjustment. With an adjustable wrench, loosen the rear
jam nut on the front suspension linkage. Make adjustment
to level with the front lift link nut. Clockwise raises the front
of the mower, counter clockwise will lower the front. Adjust
the nut until rear blade tip is ¼" to 3/8" higher than the front
blade tip.
Cleaning
Regular cleaning, especially under the mower deck, will
increase the machine’s life-span. Make it a habit to clean the
machine directly after use (after it is cooled), before the debris
sticks.
Do not spray water on the top of the mower deck. Use
compressed air to clean the top side of mower deck. Regularly
clean the underside of the deck with normal water pressure.
Do not use a high pressure washer or steam cleaner. Avoid
spraying engine and electrical components with water.
For models fitted with a cleanout port, attach the quick connect
(from the accessory packet) to any garden hose. After mowing,
snap the hose to the cleanout port and turn on water supply.
4. Turn either blade to align with the deck front-to-rear. If
the front blade tip does not measure ¼" to 3/8" higher
in the rear, remove the foot plate access the front deck
Restart the mower and engage the blades to use the spinning
action to wash away debris. Make sure the hose is away from
the mower blades.
Do not rinse hot surfaces with cold water. Let unit cool before
washing.
CAUTION! Use protective glasses when cleaning
and washing.
25
12/12 Every year Lubricate with
grease gun
1/52 Every Week Filter change
1/365 Every day Oil change
Level check
LUBRICATION
Wheel and Deck Zerks
Use only good quality bearing grease.
Grease from well-known brand names (petrochemical
companies, etc.) usually maintains a good quality.
Front Wheel Mount
Lubricate 3-4 strokes with a grease gun on each set of wheel
bearings.
Front Wheel Bearings
Lubricate 3-4 strokes with a grease gun on each set of wheel
bearings.
General
Remove the ignition key to prevent unintentional movements
during lubrication.
When lubricating with an oil can, it must be filled with engine
oil.
When lubricating with grease, unless otherwise stated, use a
high grade molybdenum disulphide grease.
For daily use, the machine should be lubricated twice weekly.
Wipe away excess grease after lubrication.
It is important to avoid getting lubricant on the belts or
the drive surfaces of the belt pulleys. Should this happen,
attempt to clean them with spirits. If the belt continues to slip
after cleaning, the belt must be replaced. Gasoline or other
petroleum products must not be used to clean belts.
IMPORTANT INFORMATION Use minimal lubrication
and remove excess lubricant so that is does not come into
contact with belts or belt pulley drive surfaces.
Transmission
The transmission is maintenance free with no need for level
checks or oil changes. If a leak occurs, replace the unit or
contact your Husqvarna dealer.
Deck Spindles
Lower the cutting deck completely.
Lubricate with a grease gun, 2-3 strokes per spindle.
26
Problem / Cause
TROUBLESHOOTING
Engine will not start
Blade switch is engaged
Steering controls are not locked in the outer position
Battery is dead
Contamination in the carburetor or fuel line
Fuel supply shutoff valve is closed
Clogged fuel filter or fuel line
Ignition system faulty
Starter does not turn the engine over
Battery is dead
Poor contact of the battery terminal cable connections
Blown fuse
Fault in the starter safety circuit. See Safety System in the
Maintenance Section
Safety switches are not fully inserted
Engine runs rough
Faulty carburetor
Clogged fuel filter or jet
Choke control is pulled out with a warm engine
Clogged ventilation valve on the fuel cap
Fuel tank nearly empty
Fouled spark plugs
Rich fuel mixture or fuel-air mixture.
Wrong fuel type
Water in fuel
Clogged air filter
Engine seems weak
Clogged air filter
Fouled spark plugs
Carburetor incorrectly adjusted
Air trapped in hydraulic system
Machine vibrates
Blades are loose
Blades are incorrectly balanced
Engine is loose
Engine overheats
Clogged air intake or cooling fins
Engine overloaded
Poor ventilation around engine
Defective engine speed regulator
Too little or no oil in the engine
Contamination in the carburetor or fuel line
Fouled spark plugs
Battery not charging
Poor contact of the battery terminal cable connections
Charging lead is disconnected
Machine moves slowly, unevenly, or not at all
Park brake on
Bypass linkages engaged
Drive belt for the transmission is slack or has come off
Air trapped in hydraulic system
Mower deck not engaging
Drive belt for the mower deck has come loose
Contact for the electromagnetic coupling has loosened
Blade switch is faulty or has come loose from cable
contact
Blown fuse
Transaxle leaks oil
Damaged seals, housing, or gaskets
Air trapped in hydraulic system
Uneven mowing results
Different air pressure in tires on the left and right sides.
Bent blades
Suspending for the mower deck is uneven
Blades are dull
Driving speed too high
Grass is too long
Grass collected under the mower deck
27
STORAGE
Winter Storage
The machine should be readied for storage at the end of the
mowing season or if it will not be in use for more than 30 days.
Fuel allowed to stand for long periods of time (30 days or
more) can leave sticky residues that can plug the carburetor
and disrupt engine function.
Fuel stabilizers are an acceptable option to prevent the sticky
residues that can occur during storage.
Add stabilizer to the fuel in the tank or in the storage container.
Always use the mixing ratios specified by the manufacturer
of the stabilizer. Run the engine for at least ten minutes after
adding the stabilizer so that it reaches the carburetor. Do not
empty the fuel tank and the carburetor if stabilizer has been
added.
WARNING! Never store an engine with fuel in the
tank indoors or in poorly ventilated spaces where fuel vapor
can come in contact with open flames, sparks, or a pilot
light such as in a boiler, hot water tank, clothes dryer, etc.
Handle the fuel with care. It is very flammable and can
cause serious personal injury and property damage. Drain
the fuel into an approved container outdoors and store far
away from open flame or sources of ignition. Never use
gasoline for cleaning. Use a degreaser and warm water.
To ready the machine for storage:
1. Thoroughly clean the machine, especially under the
mower deck. Touch up damage to the paint and spray
a thin layer of oil on the underside of the mower deck to
avoid corrosion.
2. Inspect the machine for worn or damaged parts and
tighten any nuts or screws that may have become loose.
3. Change the engine oil; dispose of properly.
4. Empty the fuel tanks or add a fuel stabilizer. Start the
engine and allow it to run until the carburetor is drained of
fuel or the stabilizer has reached the carburetor.
5. Remove the spark plug and pour about a tablespoon of
engine oil into the cylinder. Turn over the engine so that
the oil is evenly distributed and then refit the spark plug.
6. Lubricate all grease zerks, joints and axles.
7. Remove the battery. Clean, charge and store the battery in
a cool place, but protect it from direct cold.
8. Store the machine in a clean, dry place and cover it for
extra protection.
Service
When ordering spare parts, please specify the purchase year,
model, type, and serial number.
Always use genuine Husqvarna spare parts.
An annual check-up at an authorized service workshop is a
good way to ensure that your machine performs its best the
following season.
28
28
SCHEMATIC
29
TECHNICAL DATA
Engine Frame
Manufacturer Briggs & Stratton Cutting Width 42" / 107cm
Type Endurance Commercial Cutting Height 1.5" - 4" / 3.8 - 10.2 cm
Power 22
Lubrication Pressure with oil filter Number of Blades 2
Fuel Min 87 octane unleaded (Max
Fuel tank capacity 3½ gallons / 13.25 litres Nose Roller Yes
Cooling Air cooled Sprung Seat Standard
Air filter Standard Hinged Arm Rests Optional
Alternator 12V Service Meter Digital
Starter Electric Blade Engagement Electromagnetic Clutch
Transmission
Transmission Hydrostatic transaxles Productivity 2.2 acres/h / 8,093 m2/h
Steering control Dual levers, foam gripped
Speed forward 0-6.5 mph / 0-10.5 km/h Weight 580 lbs / 263 kg
Speed reverse 0-3.5 mph / 0-5.6 km/h Base Machine Length 75" / 191 cm
Brakes Mechanical park brake Base Machine Height 40" / 102 cm
Front caster tires 11 x 6-5 Base Machine Width 41.5" / 106 cm
Rear tires, turf pneumatic 18 x 8.5-8 Overall Width, Chute Up 48" / 122 cm
Tire pressure 15 PSI / 103 kPa / 1 bar Overall Width, Chute Down 56" / 142 cm
1)
ethanol 10%, Max MTBE 15%)
Uncut Circle 0
Blade Length 21" / 53.3 cm
Deck Construction Fabricated
Dimensions
1)
The power rating as declared by the engine
manufacturer is the average gross power output at
the specified RPM of a typical production engine for
the engine model measured using SAE Standards for
engine gross power. Refer to the engine manufacturer
engine specifications.
30
TECHNICAL DATA
Torque Specifications
Engine crankshaft bolt 75 ft/lb (102 Nm)
Deck pulley bolts 75 ft/lb (102 Nm)
Lug nuts 75 ft/lb (102 Nm)
Blade bolt 60 ft/lb (81 Nm)
Standard ¼" fasteners 9 ft/lb (12 Nm)
Standard 5/16" fasteners 18 ft/lb (25 Nm)
Standard 3/8" fasteners 33 ft/lb (44 Nm)
Standard 7/16" fasteners 52 ft/lb (70 Nm)
Standard ½” fasteners 80 ft/lb (110 Nm)
Accessories
Collection system
HEX HEAD CAP SCREWS
The torque values shown should be used as a general guideline when specific torque values are not given.
U.S. Standard Hardware
Grade SAE Grade 5 SAE Grade 8 Flangelock Screw
w/Flangelock Nut
Size ft./lbs Nm ft./lbs Nm ft./lbs Nm
¼ 9 12 13 18
5
/16 18 24 28 38 24 33
3
/8 31 42 46 62 40 54
7
/16 50 68 75 102
½ 75 102 115 156
9
/16 110 149 165 224
5
/8 150 203 225 305
¾ 250 339 370 502
7
/8 378 512 591 801
Shank Size (Diameter in inches, fine
or coarse thread)
** Grade 5 - Minimum commercial quality (lower quality not recommended)
11/8 782 1060 1410 1912
Metric Standard Hardware
Grade Grade 8.8 Grade 10.9 Grade 12.9
Size ft./lbs Nm ft./lbs Nm ft./lbs Nm
M4 1.5 2 2.2 3 2.7 3.7
M5 3 4 4.5 6 5.2 7
M6 5.2 7 7.5 10 8.2 11
M7 8.2 11 12 16 15 20
M8 13.5 18 18.8 25 21.8 30
M10 24 33 35.2 48 43.5 59
M12 43.5 59 62.2 84 75 102
M14 70.5 96 100 136 119 161
M16 108 146 147 199 176 239
M18 142 193 202 274 242 328
M20 195 264 275 373 330 447
M22 276 374 390 529 471 639
M24 353 478 498 675 596 808
Shank Size (Diameter in inches, fine or coarse thread)
M27 530 719 735 996 904 1226
31
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
Delivery Service
Charge the battery
Adjust the tire pressure of all wheels to 15 PSI (1 bar)
Mount the steering controls in the normal position
Connect the contact box to the cable for the seat’s safety switch
Check that the right amount of oil is in the engine
Adjust the position of the steering controls
Fill with fuel and open the fuel shut off valve
Start the engine
Check that there is drive to both wheels
Check the mower deck adjustment
Check:
q
q
q
q
q
q
q
q
q
q
Safety switch for the park brake
Safety switch for the mower deck
Safety switch in the seat
Safety switch in the steering controls
Park brake functionality
Driving forward
Driving backward
Engaging the blades
Check the idle speed
Check the engine high idle speed
Inform the customer about:
Need and advantages of following the service schedule
Need and advantages of leaving machine for service every 300 hours
Effects of service and maintaining a service journal on machine’s resale value
Application areas for mulching
Fill in the sales papers, etc.
q
q
q
q
q
q
q
q
q
q
q
q
q
q
Delivery service has
been carried out
No remaining notes
32
Certified:
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
After the First 10 Hours
Change engine oil
Date, mtr reading, stamp, sign
25-Hour Service
Check the fuel pump’s air filter
Sharpen/Replace mower blades if required
Check the tire pressures
Check battery cables
Lubricate according to lubrication chart
Check / clean the engine’s cooling air intake
Clean the air cleaner’s foam pre-filter
q
q
q
q
q
q
q
q
50-Hour Service
Perform the 25-hour service
Clean / replace the air cleaner’s paper filter cartridge
(shorter intervals for dusty operating conditions)
Change engine oil
Lubricate according to lubrication chart
Check/adjust the park brake
Date, mtr reading, stamp, sign
q
q
q
q
q
33
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
100-Hour Service
Perform the 25-hour service
Perform the 50-hour service
Change the engine oil filter
Clean/replace the spark plugs
Replace the fuel filter
Check V-belts
Check / tighten caster wheel axle bolts (every 200 hours)
Change the air filter’s paper cartridge
Change hydraulic pump oil and filter. (200 hours)
q
q
q
q
q
q
q
q
q
Action
300-Hour Service
Perform the 25-hour service
Perform the 50-hour service
Perform the 100-hour service
Check / adjust the mower deck
Clean the combustion chamber and grind the valve seats
Check the engine valve clearance
Replace the air cleaner’s foam pre-filter
Date, mtr reading, stamp, sign
q
q
q
q
q
q
q
34
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
At Least Once Each Year
Clean the engine’s cooling air intake (25 hours)
Replace the air cleaner’s foam pre-filter (300 hours)
Replace the air filter’s paper cartridge
Change the engine oil (50 hours)
Replace the engine oil filter (100 hours)
Check / adjust the cutting height
Check / adjust the park brake (50 hours)
Clean / change the spark plugs (100 hours)
Change the fuel filter (100 hours)
Check the engine valve clearance
q
q
q
q
q
q
q
q
q
q
35
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
36
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
37
www.husqvarna.com
