115 67 98-27

Operator’s Manual

ST 327P

Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.

Please read the owner's manual carefully and make sure you

understand the instructions before using the machine.

English

IMPORTANT

Safe Operation Practices for Walk-Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

Look for this symbol to point out im por tant safety precautions. It means CAUTION!!! BE COME ALERT!!! YOUR SAFE TY IS IN VOLVED.

WARNING: Always disconnect spark plug wire and place it where it can not con tact plug in order to pre vent ac ci den tal start ing when setting up, trans port ing, ad just ing or making re pairs.

WARNING: This snow thrower is for use on sidewalks, driveways and other ground level surfaces. Caution should be exercised while using on sloping surfaces. Do not use snow thrower on surfaces above ground level such as roofs of residences, garages, porch es or other such structures or buildings.

Training

1. Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.

3. Keep the area of operation clear of all persons, particularly small children.

4. Exercise caution to avoid slipping or falling, especially when operating the snow thrower in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before starting the engine (motor).

3. Do not operate the equipment without wearing adequate winter garments. Avoid loose fitting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.

4. Handle fuel with care; it is highly flammable (a) Use an approved fuel container. (b) Never add fuel to a running engine or hot engine. (c) Fill fuel tank outdoors with extreme care. Never fill

fuel tank indoors.

(d) Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle, before filling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

WARNING: Snow throwers have ex posed rotating parts, which can cause severe injury from contact, or from material thrown from the discharge chute. Keep the area of operation clear of all persons, small children and pets at all times including startup.

CAUTION: Muffler and other engine parts become extremely hot during operation and remain hot after engine has stopped. To avoid severe burns on contact, stay away from these areas.

WARNING: Engine exhaust, some of its con stit u ents, and certain vehicle com po nents contain or emit chem icals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro duc tive harm.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refueling is complete. Do not use a nozzle lock-open device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

5. Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.

6. Adjust the collector housing height to clear gravel or crushed rock surface.

7. Never attempt to make any adjustments while the engine (motor) is running (except when specifically recommended by manufacturer).

8. Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.

9. Use ear protectors to avoid damage to hearing.

Operation

1. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.

3. After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, disconnect the cord on electric motors, thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

5. Stop the engine (motor) whenever you leave the operating position, before unclogging the collector/impeller housing or discharge chute, and when making any repairs, adjustments or inspections.

6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/ impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.

7. Do not run the engine indoors, except when starting the engine and for transporting the snow thrower in or out of the building. Open the outside doors; exhaust fumes are dangerous.

8. Exercise extreme caution when operating on slopes.

9. Never operate the snow thrower without proper guards, and other safety protective devices in place and working.

10. Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.

11. Do not overload the machine capacity by attempting to clear snow at too fast a rate.

12. Never operate the machine at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.

13. Disengage power to the collector/impeller when snow thrower is transported or not in use.

14. Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counterweights, or cabs).

15. Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.

16. Never touch a hot engine or muffler.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snow throwers. Never use your hand to clean out the discharge chute. To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

2. Never store the machine with fuel in the fuel tank inside a building where ignition sources are present such as hot water heaters, space heaters, or clothes dryers. Allow the engine to cool before storing in any enclosure.

3. Always refer to operator’s manual for important details if the snow thrower is to be stored for an extended period.

4. Maintain or replace safety and instruction labels, as necessary.

5. Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.

CONGRATULATIONS on your purchase of a new snow thrower. It has been designed, engineered and man u fac tured to give best possible dependability and per for mance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trained tech ni cians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will enable you to assemble and maintain your snow thrower prop er ly. Always observe the “SAFETY RULES”.

SERIAL NUMBER: ___________________________

DATE OF PURCHASE: _______________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND ON A DECAL ATTACHED TO THE REAR OF THE SNOW THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 0.95 Gallons (3,6 Liters) and Type: Unleaded Regular only

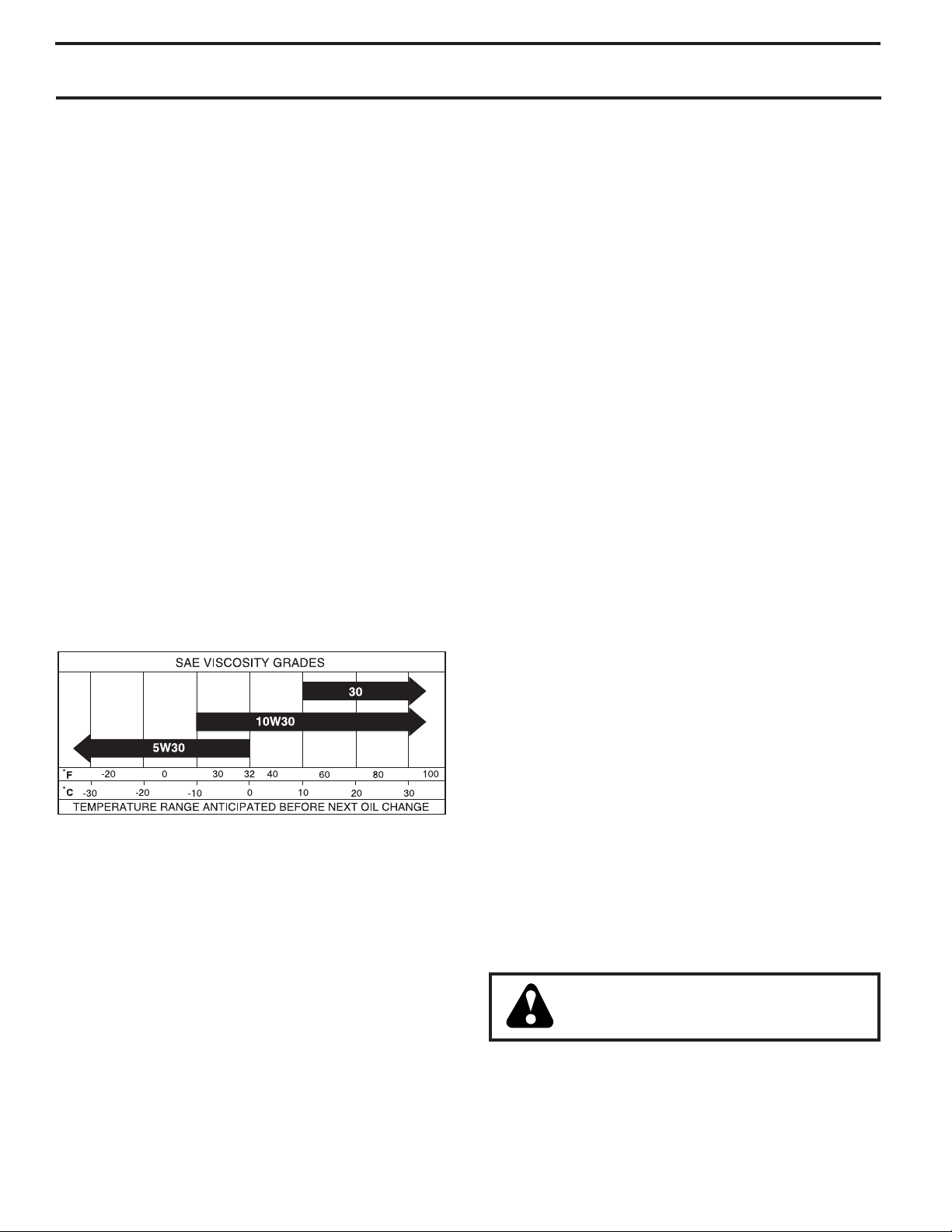

Oil Type SAE 30 (above 50°F) (API SG–SL): SAE 5W-30 or 10W-30 (32° to 50°F)

SAE 5W-30 (below 32°F)

Oil Capacity: 20 Ounces (0,57 Liters)

Spark Plug: F6RTC Gap: 0.030" (0,762 mm)

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your snow thrower.

• Follow the instructions under “Maintenance” and “Stor age” sec tions of this own er’s manual.

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ................................ 3

ASSEMBLY / PRE-OPERATION ............................... 5-7

OPERATION ............................................................ 8-14

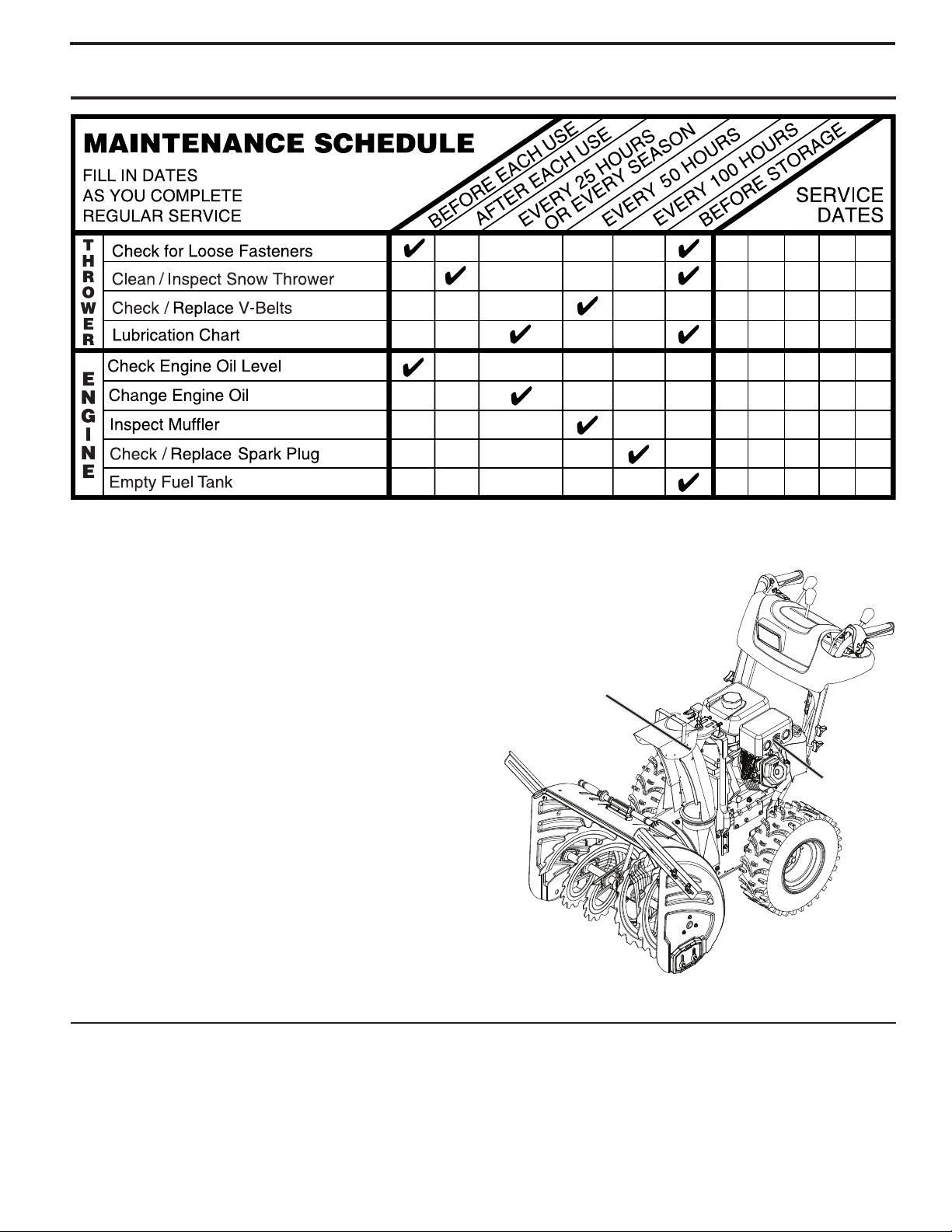

MAINTENANCE SCHEDULE ..................................... 15

MAINTENANCE ..................................................... 15-16

SERVICE AND AD JUST MENTS ........................... 17-19

STORAGE ................................................................... 20

TROU BLE SHOOT ING ................................................ 21

WARRANTY ........................................................... 22-25

PARTS PACKED SEPARATELY IN CARTON

(1) RETAINER

SPRINGS

(169675)

SAFTEY

IGNITION KEY (S)

(443059)

(6) SHEAR BOLTS 1/4-20 x 1-3/4

(585511801)

UHMW SKID PLATES

(4) LARGE FLANGE

(2) SKID PLATE

(583838801)

NUT 5/16-18 (585802801)

(1) MULTI-

WRENCH

(180684)

(1) WASHER 3/8

(19131316)

(6) LOCKNUTS

1/4-20

(73800400)

(4) CARRIAGE BOLT

5/16-18 x 1.00

(437318)

(1) LOCKNUT 3/8

(73800600)

(2) FLAT WASHERS

(2) CARRIAGE BOLTS

3/8-16 x 2.25

(2) HANDLE KNOBS

(1) LOCKNUT

5/16-18

(751153)

(1) LOCKNUT

1/4-20

(191730)

(1) CARRIAGE BOLT

5/16-18 x 5/8

(72250505)

(1) SHOULDER

BOLT 1/4-20

(179829)

(1) SPRING

(184505)

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Reading the entire manual will familiarize you with the unit, which will assist you in assembly, operation and maintenance of the product.

Your new snow thrower has been as sem bled at the factory with the ex cep tion of those parts left unassembled for shipping purposes. All parts such as nuts, washers, bolts, etc., necessary to com plete the as sem bly have been placed in the parts bag. To ensure safe and proper operation of your snow thrower, all parts and hard ware you assemble must be tightened se cure ly. Use the correct tools as nec es sary to ensure proper tightness.

REMOVE SNOW THROWER FROM CAR TON

1. Remove all accessible loose parts and parts boxes from carton.

2. Cut down all four corners of carton and lay panels flat.

3. Remove the two (2) screws securing the auger housing to the pallet and remove additional steel brackets from skid plate if equipped.

4. Remove all packing materials ex cept plastic tie holding speed control rod to lower handle.

5. Remove the two (2) plastic ties securing the upper handle to the pallet.

6. Remove snow thrower from carton and check carton thor ough ly for ad di tion al loose parts.

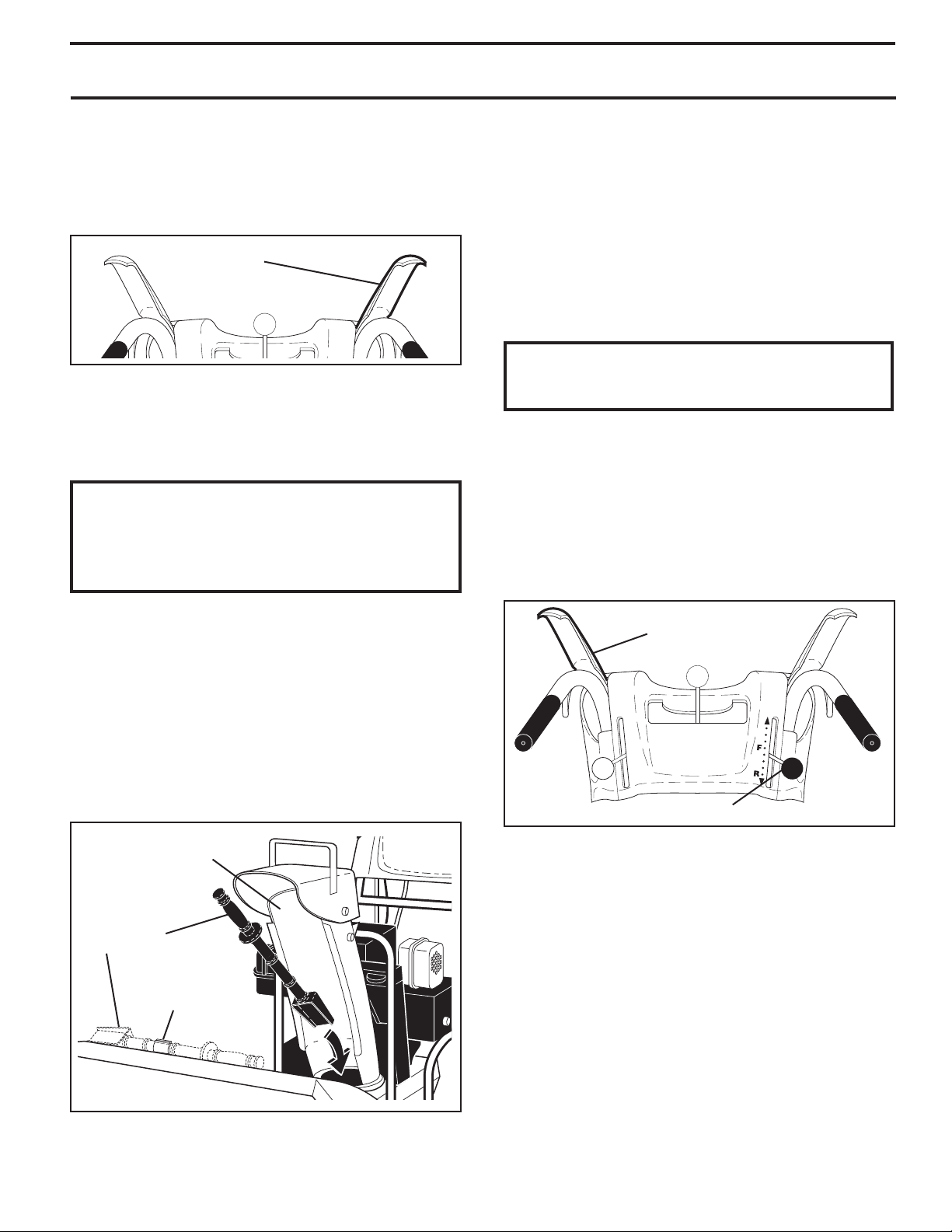

INSTALL SPEED CONTROL ROD (See Figs. 1 and 2)

1. Remove plastic tie securing rod to lower handle.

2. Insert rod into speed control bracket and secure with retainer spring.

SPEED

CONTROL

ROD

PLASTIC TIE

UPPER HANDLE

HANDLE KNOB

LOWER HANDLE

HOW TO SET UP YOUR SNOW THROWER

TOOL BOX (See Fig. 10)

A toolbox is provided on your snow thrower. The toolbox is located on top of the belt cover. Store the extra shear bolts, nuts and multi-wrench provided in parts bag in the toolbox.

NOTE: The multi-wrench may be used for assembly of the chute rotator head to snow thrower and making ad just ments to the skid plates.

UNFOLD UPPER HANDLE

1. Raise upper handle to the operating position and tight en handle knobs securely. Additional carriage bolts, washers and handle knobs are in bag of parts. Use to secure upper handle to lower handle. Install in lower holes in handles.

FIG. 1

SPEED CON TROL ROD

SPEED CONTROL BRACKET

FIG. 2

RETAINER SPRING

SPEED

CONTROL

LEVER

ASSEMBLY / PRE-OPERATION

INSTALL TRACTION DRIVE CONTROL ROD (See Figs. 3 and 4)

The traction drive control rod is installed on the snow thrower.

1. Remove plastic tie securing traction drive control rod to rotator bracket.

2. With top end of rod positioned under left side of control panel, push rod down and insert top end of rod into hole in traction drive control lever. Snap rod into place by pushing down.

NOTE: Engage lever once and rod should snap into place.

PLASTIC TIE

TRACTION DRIVE

CONTROL ROD

INSTALL AUGER CONTROL ROD (See Figs. 5 and 6)

The auger control rod is installed on the snow thrower.

1. Remove plastic tie securing auger control rod to lower handle. (See Fig. 5).

2. Push down on the auger control rod and bring top end of rod up between the metal console and plastic console cover at right control lever.

3. With control lever in the raised position, insert end of control rod in slot of control lever.

NOTE: Engage lever once and rod should snap into place.

PLASTIC TIE

AUGER

CONTROL

ROD

FIG. 3

TRACTION DRIVE CON TROL LEVER

TRACTION DRIVE CON TROL ROD

FIG. 4

FIG. 5

AUGER CON TROL LEVER

AUGER CON TROL ROD

FIG. 6

ASSEMBLY / PRE-OPERATION

INSTALL DISCHARGE CHUTE / CHUTE ROTATOR HEAD (See Fig. 7)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotator head.

1. Place discharge chute assembly on top of chute base with discharge opening toward front of snow thrower.

2. Position chute rotator head over chute bracket. If nec es sary, rotate chute assembly to align square and pin on un der side of chute rotator head with holes in chute brack et.

3. With chute rotator head and chute bracket aligned, po si tion chute rotator head on pin and threaded stud of mounting bracket.

4. Install 3/8 washer and locknut on threaded stud and tighten securely.

CHUTE ROTATOR HEAD

3/8 LOCKNUT

3/8 WASHER

INSTALL CHUTE DEFLECTOR REMOTE CONTROL (See Figs. 8 and 9)

1. Install remote cable bracket to discharge chute with 5/16-18 carriage bolt and 5/16-18 locknut as shown. Tighten securely.

2. Install remote cable eyelet to chute deflector with 1/4-20 shoulder bolt and 1/4-20 locknut as shown. Tighten nut securely. Cable eyelet will be loose on shoulder bolt.

3. Install spring hooks between hex nuts on chute rotater head and into hole in chute deflector as shown.

1/4-20 SHOULDER BOLT

1/4-20 LOCK NUT

CABLE EYELET

SPRING

CHUTE

DE FLEC TOR

HOOK BE TWEEN HEX NUTS ON CHUTE ROTATER HEAD

5/16-18

CARRIAGE

BOLT

CHUTE BRACKET

ALIGN BEFORE

TIGHTENING LOCKNUT

FIG. 7

THREADED

STUD

ROTATOR HEAD

MOUNT ING

BRACKET

REMOTE

CABLE

BRACKET

5/16-18 LOCKNUT

FIG. 8

CHUTE DEFLECTOR CONTROL LEVER

FIG. 9

CHECK TIRE PRESSURE

The tires on your snow thrower were overinflated at the factory for shipping purposes. Correct and equal tire pres sure is important for best snow throwing performance.

• Reduce tire pressure to 14-17 PSI.

OPERATION

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand their meaning.

DANGER

OR WARNING

FORWARD

DANGER

DO NOT PLACE HANDS NEAR BLADES

REMOVE SPARK PLUG WIRE BEFORE PERFORMING MAINTENANCE

REVERSE

OPERATE AT A SAFE DISTANCE FROM OTHER PEOPLE

EAR PROTECTION

RECOMMENDED

DANGER

READ OPERATORS MANUAL

WATCH FOR THROWN OBJECTS

READ AND FOLLOW ALL SAFETY INFORMATION

AND INSTRUCTIONS BEFORE USE OF THIS PRODUCT.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

PRIMER

DANGER, KEEP FEET AWAY

DANGER, KEEP HANDS AWAY

SNOW

DISCHARGE

DISENGAGED

ENGAGED

TRACTION

DRIVE CONTROL

IGNITION KEY.

INSERT TO START

AND RUN,

PULL OUT TO STOP.

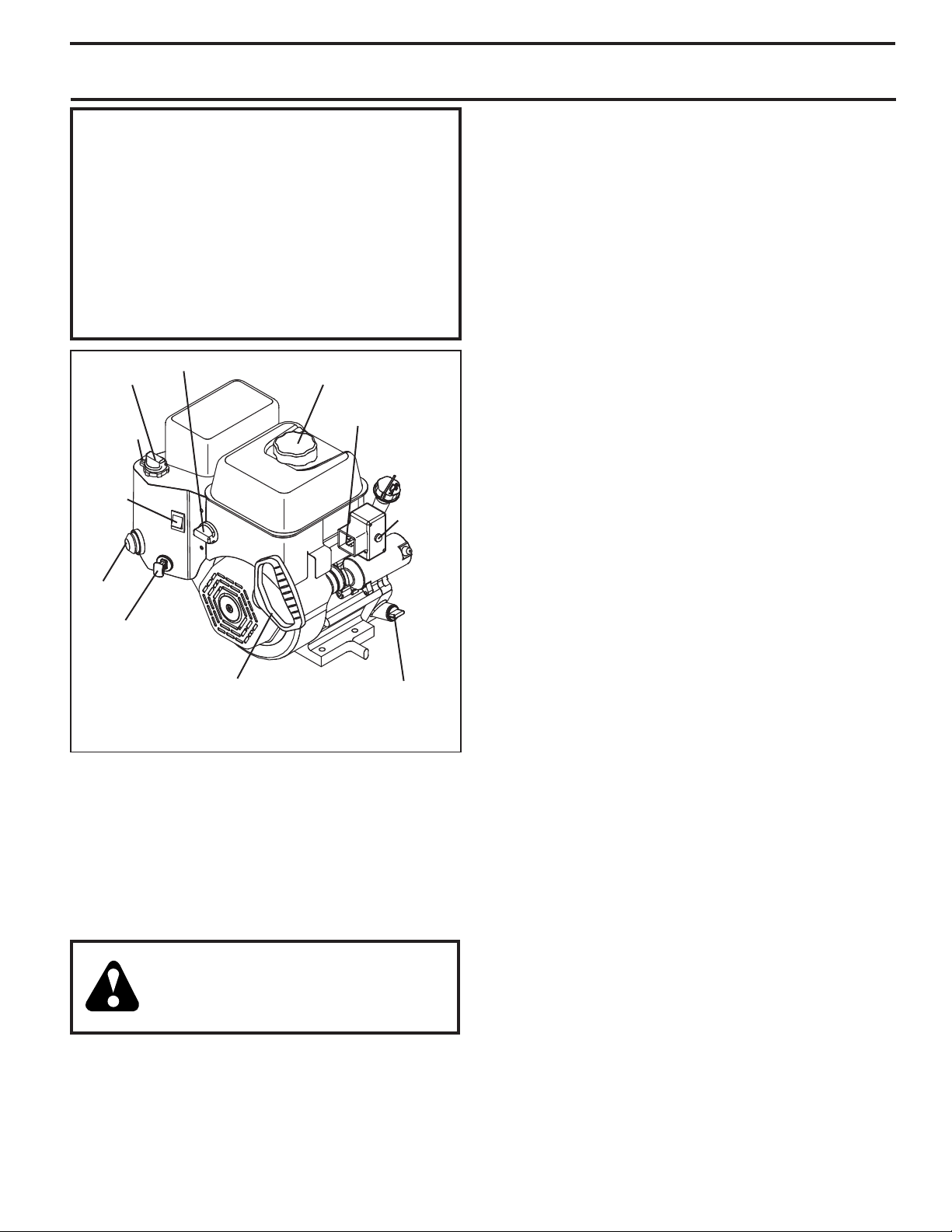

OPERATION

MUF FLER

CHOKE CON TROL

THROTTLE CON TROL

ON/OFF SWITCH

PRIM ER

SAFETY IGNITION KEY

FUEL SHUT-OFF VALVE

RECOIL STARTER HANDLE

NOTE: ITEMS ABOVE

ARE SHOWN IN THEIR TYPICAL

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY VARY

WITH THE ENGINE

ON YOUR UNIT.

GAS O LINE

POWER CORD

FILLER CAP

CHUTE DE FLEC TOR

DISCHARGE CHUTE

CLEAN-OUT TOOL

PLUG

ELECTRIC

START

BUTTON

TOOLBOX

AUGER CONTROL LEVER

DISCHARGE CHUTE CONTROL LEVER

LIGHT

DRIVE SPEED CON TROL LEVER

MUF FLER

DEFLECTOR

REMOTE

CONTROL LEVER

LH TURN

TRIGGER

TRACTION DRIVE CONTROL LEVER

HANDLE

KNOB

DRIFT

CUTTER

AU GERS

SKID PLATE

FIG. 10

MEETS A.N.S.I. SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute.

Toolbox - used to store spare shear bolts, locknuts and wrench.

Safety ignition key - must be inserted for the engine to start and run. Remove when snow thrower is not in use.

Electric start button – used for starting the engine.

Recoil (auxiliary) starter handle – used for start ing the

en gine.

Primer - pumps additional fuel from the carburetor to the cylinder for use when starting a cold engine.

Choke control - used for starting a cold engine.

ON / OFF switch - used to STOP the engine.

Drive speed control lever - used to select forward or

reverse motion and speed of snow thrower.

Traction drive control lever - used to engage powerpro pelled for ward or reverse motion of snow thrower.

LH and RH turn triggers - used to steer the snow thrower.

Auger control lever - used to engage auger motion (throw

snow).

Discharge chute control lever - used to change the di rec tion the snow is thrown.

Skid plate - used to adjust height of scraper bar from the ground.

Drift cutter - used to cut through deep snowdrifts.

Throttle- used to se lect FAST or SLOW engine speeds.

OPERATION

The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating

your snow thrower or performing any ad just ments or repairs. We recommend standard safe ty glasses or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow.

ENGINE

1. Move ON / OFF switch to “OFF” position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine.

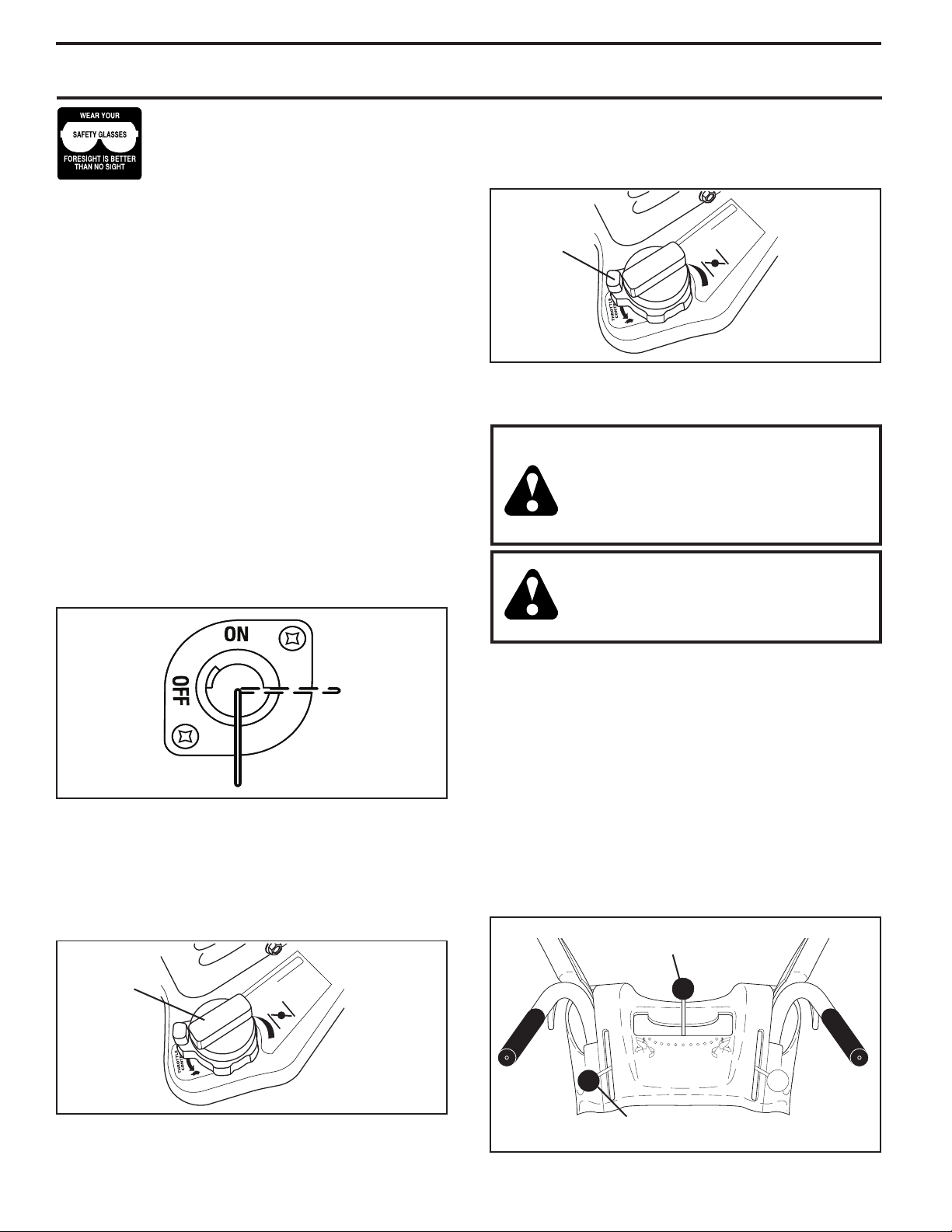

TO USE FUEL SHUT-OFF VALVE (See Fig. 11)

The fuel shut-off valve is located beneath the fuel tank on the engine. Always op er ate the snow thrower with the fuel shut-off valve in the OPEN position.

TO USE THROTTLE CONTROL (See Fig. 13)

The throttle control is located on the engine. Always op er ate the snow thrower with the engine at full throttle. Full throttle offers the best snow thrower performance.

THROTTLE CONTROL

CHOKE

TRUCTIONS

FIG. 13

CONTROL

TO CONTROL SNOW DISCHARGE (See Fig. 14)

WARNING: If the discharge chute or au ger become clogged, shut-off en gine and wait for all moving parts to stop. Use the clean-out tool, NOT YOUR HANDS, to un clog the chute and/or auger.

OFF

OPEN

FIG. 11

TO USE CHOKE CON TROL (See Fig. 12)

The choke con trol is located on the en gine. Use the choke control when ev er you are starting a cold en gine. Do not use to start a warm en gine.

• To engage choke, rotate lever clockwise to “FULL” position.

CHOKE CONTROL

CHOKE

TRUCTIONS

CONTROL

The DIRECTION in which snow is to be thrown is controlled by the discharge chute control lever.

• To change the discharge chute position, press down ward on discharge chute control lever and move lever left or right until chute is in desired position. Be sure lever springs back and locks into desired position.

The DISTANCE that snow is thrown is controlled by the position of the chute deflector. Set the deflector low to throw snow a short distance; set the deflector higher to throw snow farther.

• Press downward on chute deflector control lever and move lever forward to raise the deflector and increase the distance. Move lever back to lower the deflector and decrease the distance. Be sure lever springs back and locks into desired position.

DISCHARGE CHUTE

CONTROL LEVER

FIG. 12

CHUTE DEFLECTOR

REMOTE CONTROL LEVER

FIG. 14

OPERATION

TO THROW SNOW (See Fig. 15)

The auger rotation is controlled by the auger control lever located on the right side handle.

• Squeeze auger control lever to handle to engage the auger and throw snow.

• Release the auger control lever to stop throwing snow.

AUGER CONTROL LEVER

FIG. 15

USING THE CLEAN-OUT TOOL (See Fig. 16)

In certain snow conditions, the discharge chute may become clogged with ice and snow. Use the clean-out tool to dislodge this blockage.

When cleaning, repairing, or in spect ing, make certain all controls are disengaged and the auger/impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the spark plug to prevent accidental starting.

TO MOVE FORWARD AND BACKWARD (See Fig. 17)

SELF-PROPELLING, forward and reverse movement of the snow thrower, is controlled by the traction drive control lever located on the left side handle.

• Squeeze traction drive control lever to handle to en gage the drive system.

• Release traction drive control lever to stop the forward or reverse movement of the snow thrower.

SPEED and DIRECTION are controlled by the drive speed control lever.

• Move speed control lever to de sired po si tion AFTER engaging the trac tion drive control lever.

CAUTION: Do not move speed con trol le ver unless engine is running. Damage to the snow thrower can result.

• Slower speeds are for heavier snow and faster speeds are for light snow and transporting the snow thrower. It is recommended that you use a slower speed until you are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers are engaged, the traction drive control lever will lock the auger control lever in the engaged position. This will allow you to release your right hand from the handle and adjust the discharge chute direction without interrupting the snow throwing process.

• Release the auger control lever and shut off the engine.

• Remove the clean-out tool from it's mounting clip. Grasp the tool firmly by the handle and push and twist the tool into the discharge chute to dislodge the blockage.

After the packed snow has been dislodged, return the cleanout tool to it's mounting clip by pushing it into the clip.

• Make sure the discharge chute is pointed in a safe direction (no vehicles, buildings, people, or other objects are in the direction of discharge) before restarting engine.

• Restart the engine, then squeeze the auger control lever to the handle to clear snow from the auger housing and the discharge chute.

DISCHARGE CHUTE

CLEAN-OUT TOOL

MOUNTING CLIP

TRACTION DRIVE CONTROL LEVER

DRIVE SPEED CONTROL LEVER

FIG. 17

FIG. 16

OPERATION

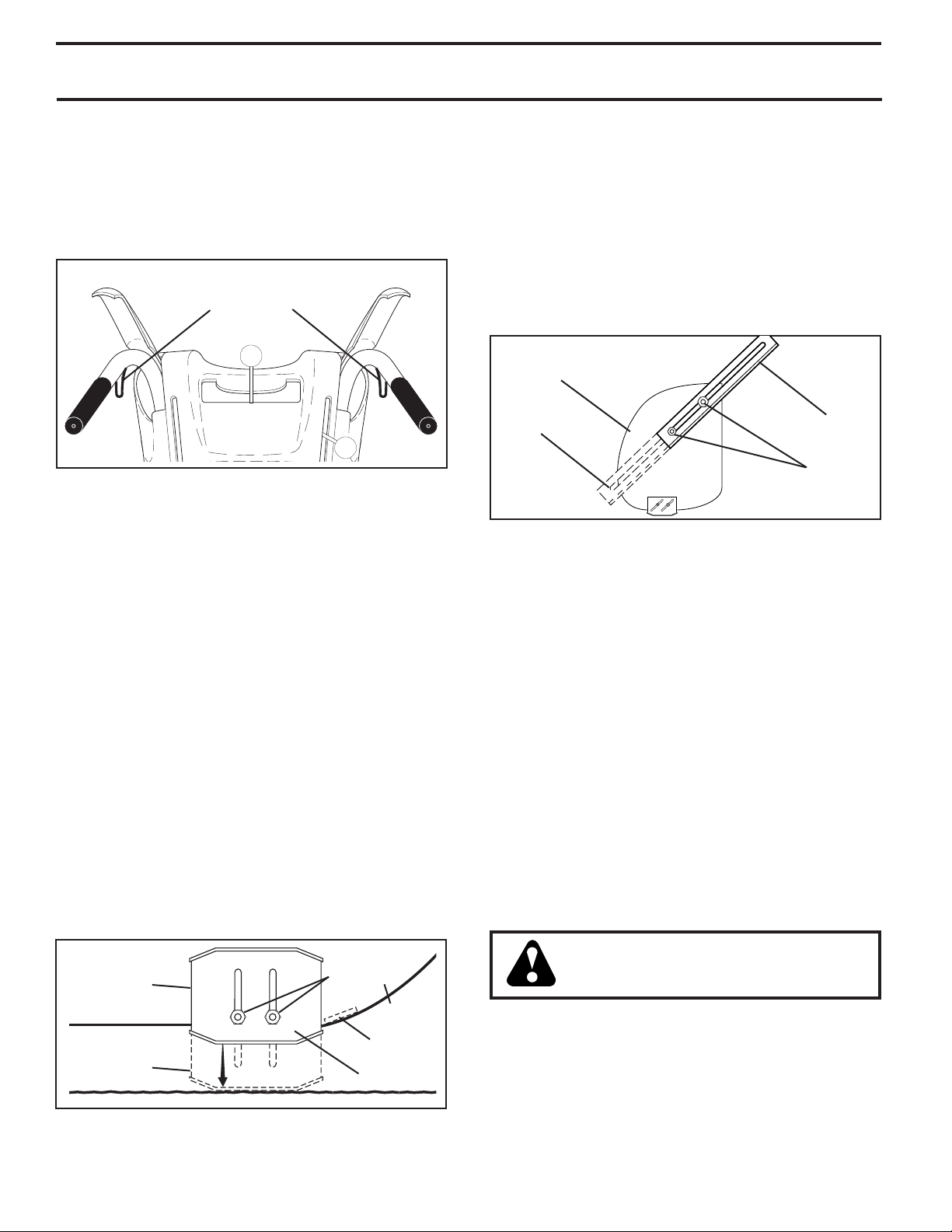

POWER STEERING OPERATION (See Fig. 18)

Steering triggers are used to assist in steering your snow thrower. The triggers are located on the underside of each handle. When a trigger is squeezed, it disengages the drive wheel on that side of snow thrower and allows it to turn in that direction.

• To turn left – squeeze left side trigger.

• To turn right – squeeze right side trigger.

LH TURN TRIGGER

RH TURN TRIGGER

FIG. 18

TO ADJUST SKID PLATES (See Fig. 19) NOTE: The wrench provided in your parts bag may be

used to adjust the skid plates.

Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface. Adjust skid plates evenly to proper height for current surface conditions. For removal of snow in normal con di tions, such as a paved driveway or side walk, place skid plates in the highest position (lowest scraper clear ance) to give a 1/8" clearance between the scraper bar and the ground. Use a middle position if the surface to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower over gravel or rocky surfaces. Objects such as gravel, rocks or other debris, can easily be picked up and thrown by the impeller, which can cause serious personal injury, property dam age or damage to the snow thrower.

• If snow thrower must be operated over gravel surface, use extra caution and be sure skid plates are adjusted to lowest (highest scraper clear ance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the hex nuts, then moving skid plate to desired position. Be sure both plates are adjusted evenly. Tighten securely.

SCRAPER BAR (See Fig. 19)

After con sid er able use it may become worn. Replace a dam aged or worn scrap er bar.

TO USE DRIFT CUTTERS (See Fig. 20)

Use the drift cutters to cut through deep snowdrifts that are higher than the front of the snow thrower.

• Loosen adjustment nuts enough to allow drift cutter to be raised to highest position and tighten nuts securely. Repeat for opposite side of snow thrower.

• When not using drift cutters, loosen adjustment nuts, lower to storage position and tighten nuts securely.

AUGER HOUSING

STORAGE POSITION

FIG. 20

DRIFT

CUTTER

ADJUST-

MENT NUTS

TO TRANSPORT

NOTE: Use steer levers to freewheel for pushing or towing.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 20)

The engine on your snow thrower has been shipped from the factory already filled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil fill cap/dipstick and wipe clean, reinsert the dipstick and screw tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overfill.

• To change engine oil, see “TO CHANGE ENGINE OIL” in the Main te nance sec tion of this manual.

ADD GASOLINE (See Fig. 21)

• Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

HIGH POSITION (LOW GROUND CLEARANCE)

LOW POSITION (HIGH GROUND CLEAR ANCE)

FIG. 19

HEX NUTS

SKID PLATE

WARNING: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

AUGER

HOUSING

SCRAPER

BAR

OPERATION

CAUTION: Alcohol blended fuels (called gas o hol or using ethanol or methanol) can attract moisture which leads to separation and for ma tion of acids dur ing storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied be fore stor age of 30 days or longer. Empty the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage In struc tions for ad di tion al information. Never use engine or car bu re tor cleaner products in the fuel tank or per ma nent damage may occur.

CHOKE CONTROL

THROTTLE CONTROL

ON / OFF SWITCH

PRIM ER

SAFETY IG NI TION KEY

NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FUEL SHUT-OFF VALVE

RECOIL STARTER HANDLE

FIG. 21

GAS O LINE FILLER CAP

POWER CORD PLUG

STARTER

BUTTON

ENGINE OIL FILL

CAP / DIPSTICK

TO START ENGINE

Your snow thrower engine is equipped with both a 120 Volt A.C. electric starter and a recoil starter. The electric starter is equipped with a three-wire power cord and plug and is designed to operate on 120 Volt A.C. household current.

• Be sure your house is a 120 Volt A.C. three-wire ground ed system. If you are uncertain, consult a li censed electrician.

WARNING: Do not use the electric start er if your house is not a 120 Volt A.C. three-wire grounded system. Se ri ous per son al injury or damage to your snow thrower could result.

COLD START - ELECTRIC STARTER

1. Insert safety ignition key (tied to recoil start cord) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place throttle control in “FAST” position.

3. Place ON / OFF switch in “ON” position.

4. Rotate choke control to “FULL” position.

5. Connect the power cord to the engine.

6. Plug the other end of the power cord into a three-hole grounded 120 Volt A.C. receptacle.

NOTE: Do not use primer when start ing en gine with the electric starter.

7. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than five con tin u ous seconds between each time you try to start. Wait 5 to 10 seconds between each attempt.

8. When the engine starts, release the starter button and slowly move the choke control to the “OFF” position.

9. Disconnect the power cord from the receptacle first, then from the engine.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - ELECTRIC STARTER

Follow the steps above, keeping the choke control in the “OFF” position.

COLD START - RECOIL STARTER

1. Insert safety ignition key (tied to recoil start cord) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place throttle control in “FAST” position.

3. Place ON / OFF switch in “ON” position.

4. Rotate choke control to “FULL” position.

5. Push the primer four (4) times if the temperature is below 15°F, or two (2) times if temperature is between 15° and 50°F. If temperature is above 50°F, priming is not nec es sary.

NOTE: Over priming may cause flooding, preventing the engine from starting. If you do flood the engine, wait a few minutes be fore at tempt ing to start and DO NOT push the primer.

6. Pull recoil starter handle quickly. Do not allow starter rope to snap back.

7. When the engine starts, release the recoil starter han dle and slowly move the choke control to the “OFF” position.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - RECOIL STARTER

Follow the steps above, keeping the choke in the “OFF” position and throttle in "FAST" position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any moisture on the engine.

OPERATION

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine, proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back against the starter.

If the engine still fails to start, repeat the above steps or use the electric starter.

SNOW THROWING TIPS

• Always operate the snow thrower with the engine at full throttle. Full throttle offers the best performance.

• Go slower in deep, freezing or heavy wet snow. Use the drive speed control, NOT the throttle, to adjust speed.

• It is easier and more efficient to remove snow im me di ate ly after it falls.

• The best time to remove snow is the early morning. At this time the snow is usually dry and has not been exposed to the direct sun and warming tem per a tures.

• Slightly overlap each successive path to ensure all snow will be removed.

• Throw snow downwind whenever possible.

• Ad just the skid plates to proper height for current snow con di tions. See “TO ADJUST SKID PLATES” in this section of this manual.

• For extremely heavy snow, re duce the width of snow removal by over lap ping previous path and moving slowly.

• Keep engine clean and clear of snow during use. This will help air flow and extend engine life.

• After snow-throwing is completed, allow engine to run for a few minutes to melt snow and ice off the engine.

• Clean the entire snow thrower thoroughly after each use and wipe dry so it is ready for next use.

WARNING: Do not operate snow thrower if weather conditions im pair visibility. Throwing snow dur ing a heavy, windy snowstorm can blind you and be hazardous to the safe operation of the snow thrower.

MAINTENANCE

The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in struct ed in this manual. Some ad just ments will need to be made periodically to properly maintain your snow thrower.

At least once a season, check to see if you should make any of the adjustments described in the Service and Ad just ments section of this manual.

• At least once a year, you should replace the spark plug and check belts for wear. A new spark plug will help your engine run better and last longer.

• Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM) parts to service this unit. Failure to do so can cause the unit to malfunction and pose a risk of injury to the operator.

LUBRICATION CHARTGENERAL REC OM MEN DA TIONS

➀ SAE 30 Motor Oil

See “ENGINE” in

➁

Maintenance section

➀ Pivot points

➁ Engine

oil

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3. Check controls to be sure they are functioning properly.

LUBRICATION

Keep your snow thrower well lubricated (See “LU BRI CA TION CHART”).

SNOW THROWER

Always observe the safety rules when performing any main te nance.

TIRES

• Maintain proper air pressure in both tires (14–17 P.S.I.).

• Keep tires free of gasoline and oil, which can harm rubber.

NOTE: To seal tire punctures and prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and cor ro sion.

MAINTENANCE

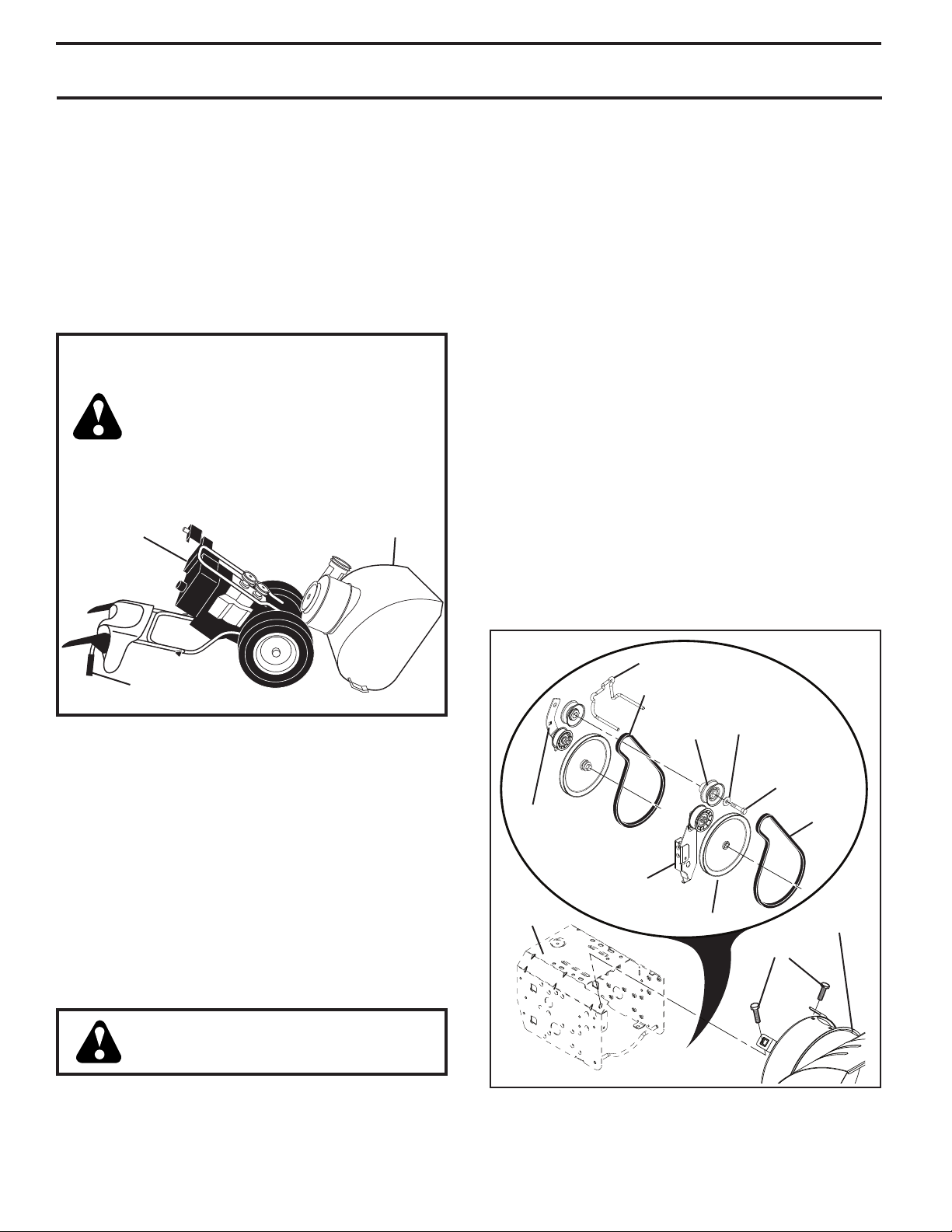

BELTS

Check belts for deterioration and wear after every 50 hours of operation and replace if necessary. The belts are not ad just able. Replace belts if they begin to slip from wear. (See “TO REMOVE BELT COVER” in the Service and Adjustments section of this manual).

The belts on your snow thrower are of special con struc tion and should be replaced by original equipment man u fac tur er (OEM) belts avail able from your nearest dealer. Using other than OEM belts can cause personal injury or damage to the snow thrower.

AUGER GEAR CASE

• The gear case was filled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate or add oil to the hydrostatic transmission inside your snow thrower. This is a closed system and does not require maintenance.

ENGINE

See engine manual.

LUBRICATION

Use only high quality detergent oil rated with API service classification SG–SL. Select the oil's SAE viscosity grade according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the snow thrower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each five (5) hours of continuous use. Tighten oil fill cap / dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range anticipated before next oil change. All oil must meet API service classification SG–SL.

• Be sure snow thrower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

NOTE: The left side wheel may be removed from snow thrower for easier access to the oil drain plug and place ment of a suitable container. The unit tilted, resting on the frame with the left wheel removed, will help drain any oil trapped inside the engine. (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

1. Remove safety ignition key and disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

6. Install left wheel (if removed for draining oil). Be sure to install wheel pin and retainer pin into proper hole in wheel axle (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

7. Remove oil fill cap/dipstick. Be careful not to allow dirt to enter the engine.

8. Refill engine with oil through oil dipstick tube. Pour slowly. Do not overfill. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man u al.

9. Use gauge on oil fill cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at “FULL” line on dipstick.

10. Wipe off any spilled oil.

MUFFLER

Inspect and replace corroded muffler as it could cre ate a fire haz ard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of each season or after every 100 hours of operation, whichever occurs first. Spark plug type and gap setting are shown in the “PROD UCT SPEC I FI CA TIONS” section of this manual.

CLEANING

IMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash. Clean the outside of your snow thrower after each use.

WARNING: Disconnect spark plug wire from spark plug and place wire where it can not come in contact with plug.

• Keep finished surfaces/wheels free of gasoline, oil, etc.

• We do not recommend using a garden hose to clean your snow thrower unless the electrical system, muffler and carburetor are covered to keep water out. Water in engine can result in shortened engine life.

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury, before performing any service or ad just ments:

1. Be sure the on/off switch is in the OFF position.

2. Remove safety ignition key.

3. Make sure the augers and all mov ing parts have completely stopped.

4. Disconnect spark plug wire from spark plug and place wire where it can not come in contact with plug.

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See “TO ADJUST SKID PLATES” and “SCRAPER BAR” in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deflector, attached to the top of the discharge chute, is provided to direct discharging snow away from the operator. If the deflector becomes damaged, it should be re placed.

WARNING: To avoid serious injury, nev er operate your snow thrower with the deflector removed or damaged.

IMPELLER SHEAR BOLTS

The impeller is secured to the impeller shaft with two (2) capscrew/shear bolts and hex nuts. Should a foreign object or ice become lodged in the impeller, the capscrews are de signed to break, preventing damage to any other com po nents. If impeller does not turn when auger control lever is engaged, check to see if the capscrews have sheared. To replace the capscrew/shear bolts:

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug wire from spark plug. Place wire where it cannot come in contact with spark plug.

3. Align holes in impeller hub with holes in impeller shaft and install two (2) new 1/4-20 x 1-5/8" capscrew/shear bolts. Install 1/4-20 locknuts and tighten securely.

CAUTION: Do not substitute. Use only original equip ment capscrew/shear bolts as sup plied with your snow thrower.

4. Insert safety ignition key and reconnect spark plug wire to spark plug.

SHOULDER /

SHEAR BOLT

IMPELLER

SHAFT

SHOULDER /

SHEAR BOLT

• To change direction and/or distance snow is dis charged, see “TO CONTROL SNOW DISCHARGE” in the Op er a tion section of this manual.

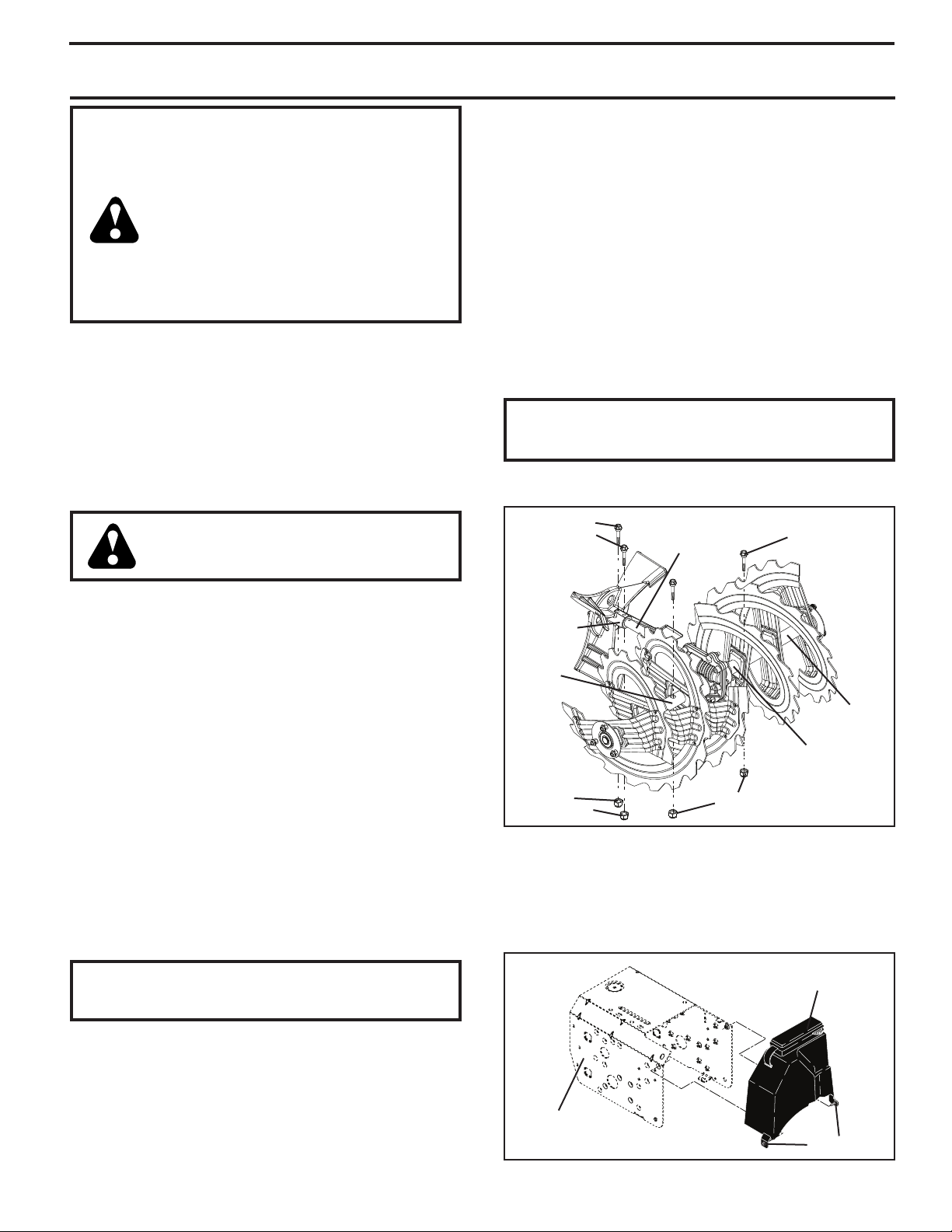

SHEAR BOLTS (See Fig. 22)

AUGER SHEAR BOLTS

Both right and left-hand augers are secured to the auger shaft with a shear bolt and hex nut. Should a foreign object or ice become lodged in the augers, the shear bolts are designed to break, preventing damage to any other com po nents. If one or both augers do not turn when auger control lever is engaged, check to see if one or both of the bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug wire from spark plug. Place wire where it cannot come in contact with spark plug.

3. Align hole in auger hub with hole in auger shaft and install a new 1/4-20 x 2" shear bolt. Install 1/4-20 lock nut and tighten securely.

CAUTION: Do not sub sti tute. Use only original equip ment shear bolts as sup plied with your snow thrower.

4. Insert safety ignition key and reconnect spark plug wire to spark plug.

IMPELLER

HUB

AUGER

HUB

AUGER

HUB

AUGER SHAFT

1/4-20 LOCK NUT

FIG. 22

TO REMOVE BELT COVER (See Fig. 23)

1. Loosen the two (2) screws securing belt cover to frame.

2. Remove belt cover.

• Replace belt cover by installing cover and tightening screws.

BELT

COVER

FRAME

SCREWS

FIG. 23

SERVICE AND ADJUSTMENTS

TO REPLACE BELTS (See Fig. 24)

The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a service center/department.

NOTE: It is recommended that both the auger and traction drive belt be replaced at the same time.

The V-belts on your snow thrower are of special con struc tion and should be replaced by original equipment man u fac tur er (OEM) belts avail able from your nearest service center/department. Using other than OEM belts can cause personal injury or damage to the snow thrower.

WARNING: Belt replacement requires separation of the snow thrower. While separating the auger housing from the frame assembly, it is important that an assistant stand in the operating po si tion and hold the snow thrower han dles. Serious personal injury and/ or damage to the unit could occur if the snow thrower should fall during the belt chang ing process.

FRAME ASSEMBLY

AUGER

HOUS ING

HINT: Insert a 3/8" drive ratchet (in the “ON” position) into

the square hole in idler arm and rotate ratchet clockwise to relieve tension.

8. With tension relieved on idler, install new traction drive belt around pulleys and inside belt keepers.

9. Place auger belt around and inside the groove of auger pulley only.

10. While your assistant slowly raises handles to rejoin the auger hous ing and frame assembly, pull up on the auger belt and squeeze sides together above pulley so belt is fully seated in groove of pulley.

11. Move idler arm so it does not hit impeller pulley as you bring snow thrower completely together and check carefully for proper routing of belts. If auger belt has become dislodged from the pulley (by catching the idler arm bracket while bringing snow thrower together), separate the snow thrower and re peat step 12. Belt must be fully seated in pulley groove when bring ing the snow thrower together.

12. Install the two (2) hex bolts and tighten securely.

13. INSTALL ENGINE PULLEY - Place belt in pulley groove and slide pulley on crankshaft. Install flat washer, bolt and tighten securely (41-47 N-m torque). Make sure belt is inside belt keeper.

14. INSTALL BELT COVER and two (2) screws. Tighten securely.

15. INSTALL DISCHARGE CHUTE – See “INSTALL DIS CHARGE CHUTE / CHUTE ROTATER HEAD” in the As sem bly / Pre-Operation section of this manual.

HANDLES

1. REMOVE GASOLINE FROM FUEL TANK - Drain gasoline from fuel tank into a suitable container, out doors, away from fire or flame. Wipe up any spilled gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen locknut se cur ing chute rotator head to mounting bracket only enough to allow chute rotator head to be raised and dis charge chute to be removed from snow thrower.

3. REMOVE BELT COVER - See “TO REMOVE BELT COVER” in this section of this manual.

4. REMOVE ENGINE PULLEY - Remove bolt, flat washer securing pulley to engine crankshaft. Remove outside (auger) pulley only from crank shaft.

5. SEPARATE SNOW THROWER - With your assistant standing in the operating position holding the handles, re move the two (2) bolts holding auger housing and frame together.

WARNING: As the last bolt is removed, have your assistant carefully lower the han dles down to the ground.

6. REMOVE AUGER BELT from around pulley.

7. RELIEVE TENSION ON TRACTION DRIVE BELT IDLER and remove traction drive belt from around pulleys.

IDLER ARM

SQUARE

HOLE

FRAME

TRACTION DRIVE BELT

CLUTCHING IDLER ARM BRACKET

AUGER PULLEY

BELT KEEPER

ENGINE PULLEY

FIG. 24

FLAT WASHER

BOLT

AUGER

BELT

AUGER

HOUSING

BOLTS

SERVICE AND ADJUSTMENTS

TO REMOVE WHEELS (See Fig. 25)

• Remove the wheel pin and retainer pin and remove wheel from axle.

NOTE: To seal punctures or prevent flat tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and cor ro sion.

WHEEL PIN (INSTALL IN OUTER HOLE OF AXLE ONLY)

RETAINER PIN

WHEEL

FIG. 25

OUTER HOLE

AXLE

WHEEL HUB

ENGINE

SEE ENGINE MANUAL.

CARBURETOR

Your carburetor is not adjustable. Engine performance should not be affected at altitudes up to 2,134 meters. If your engine does not operate properly due to suspected carburetor problems, take your snow thrower to a service center/department.

ENGINE SPEED

Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous and will void the warranty. If you think the engine-governed high speed needs adjusting, contact a service center/department, which has the proper equipment and experience to make any necessary ad just ments.

TO ADJUST CABLE TENSION (See Fig. 26)

Adjust cable tension by turning the adjuster turn buckle, located on the right hand cable. Grasp the long section tightly and turn the short section to lengthen the adjuster. Adjust until cable is snug.

ADJUSTER TURN

BUCKLE

FIG. 26

TO ADJUST TRACTION BELT AND AUGER BELT TENSION

If the traction or auger belt is slipping because it is not tight enough when engaged, the tension can be increased by adjusting the spring location in the control rod. Unhook the rod from the control lever and move the spring at the bottom of the rod one or two holes closer to the top of the rod. This effectively shortens the rod and increases the belt tension. (See "INSTALL AUGER CONTROL ROD" in the Assembly section of this manual.)

STORAGE

Immediately prepare your snow thrower for storage at the end of the season or if the unit will not be used for 30 days or more.

WARNING: Never store the snow thrower with gaso line in the tank in side a build ing where fumes may reach an open flame, spark or pilot light as on a fur nace, water heater, clothes dryer or gas ap pli ance. Allow the engine to cool be fore storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time, clean it thor oughly, re move all dirt, grease, leaves, etc. Store in a clean, dry area.

1. Clean entire snow thrower (See “CLEANING” in the Main te nance section of this manual).

2. Inspect and replace belts, if necessary (See “TO RE PL ACE BELTS” in the Service and Adjustments sec tion of this manual).

3. Lubricate as shown in the Main te nance sec tion of this man u al.

4. Be sure that all nuts, bolts, screws, and pins are securely fas tened. Inspect moving parts for damage, breakage and wear. Replace if nec es sary.

5. Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through spark plug hole into cylinder.

3. Pull recoil starter handle slowly a few times to dis trib ute oil.

4. Replace with new spark plug.

OTHER

• Remove safety ignition key; store it in a safe place.

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your snow thrower indoors and cover it to protect it from dust and dirt.

• Cover your snow thrower with a suitable pro tec tive cover that does not retain moisture. Do not use plastic. Plastic cannot breathe, which allows con den sa tion to form and will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/exhaust area is still warm.

ENGINE

See engine manual.

FUEL SYS TEM IMPORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor, fuel hose, or tank during storage. Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

• Empty the fuel tank by starting the engine and letting it run until the fuel lines and car bu re tor are empty.

• Never use engine or carburetor cleaner prod ucts in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min i miz ing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 min utes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not empty the gas tank and carburetor if using fuel stabilizer.

TROUBLESHOOTING

See appropriate section in manual unless directed to a service center/department.

PROBLEM CAUSE CORRECTION

Does not start 1. Fuel shut-off valve (if so equipped)

Loss of power 1. Spark plug wire loose. 1. Reconnect spark plug wire.

Engine idles or runs roughly

Excessive vibration

Recoil starter is hard to pull

Loss of traction drive / slowing of drive speed

Loss of snow discharge or slowing of snow discharge

Lights not On 1. Motor not running. 1. Start engine.

in OFF position.

2. Safety ignition key is not inserted. 2. Insert safety ignition key.

3. Out of fuel. 3. Fill fuel tank with fresh, clean gasoline.

4. Throttle in STOP position (or ON/ OFF switch is OFF).

5. Choke in OFF position. 5. Move to FULL position.

6. Primer not depressed. 6. Prime as instructed in the Operation section of this manual.

7. Engine is flooded. 7. Wait a few minutes before restarting, DO NOT prime.

8. Spark plug wire is disconnected. 8. Connect wire to spark plug.

9. Bad spark plug. 9. Replace spark plug.

10. Stale fuel. 10. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

11. Water in fuel. 11. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

2. Throwing too much snow. 2. Reduce speed and width of swath.

3. Fuel tank cap is covered with ice or snow.

4. Dirty or clogged muffler. 4. Clean or replace muffler.

1. Choke is in FULL position. 1. Move choke to OFF position.

2. Blockage in fuel line. 2. Clean fuel line.

3. Stale fuel. 3. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

4. Water in fuel. 4. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

5. Carburetor is in need of adjustment or overhaul.

1. Loose parts or damaged augers or impeller.

1. Frozen recoil starter. 1. See “IF RECOIL STARTER HAS FROZEN” in the Operation

1. Drive belt is worn. 1. Check / replace drive belt.

2. Drive belt is off of pulley. 2. Check / reinstall drive belt.

3. Friction drive wheel is worn. 3. Contact an authorized service center/department.

1. Auger belt is off of pulley. 1. Check / reinstall auger belt.

2. Auger belt is worn. 2. Check / replace auger belt.

3. Clogged discharge chute. 3. Clean snow chute.

4. Augers / impeller jammed. 4. Remove debris or foreign object from augers / impeller.

2. Loose wire connection. 2. Check wire connections at engine and light.

3. LED burnt out. 3. Replace LED light module. (Individual LEDs are not replaceable)

1. Turn fuel shut-off valve to OPEN position.

4. Move throttle to FAST position (or ON/OFF switch to ON position).

3. Remove ice and snow on and around fuel tank cap.

5. Contact an authorized service center/department.

1. Tighten all fasteners. Replace damaged parts. If vibration remains, contact an authorized service center/department.

section of this manual.

Consumer Wheeled Products - Limited Warranty

Husqvarna warrants to the original retail purchaser that this Husqvarna® product is free from defects in material or workmanship and maintenance from the date of retail purchase for the applicable Warranty Period shown on Exhibit A.

This Limited Warranty may not be transferred

under normal use

to any subsequent purchaser of this Husqvarna® product. Certain components (e.g., engines and transmissions) are excluded from coverage, and other limitations apply, as described in this document. Husqvarna will repair or replace at its discretion, any defective product or part covered by the Limited Warranty, free of charge at any authorized Husqvarna Servicing Dealer/Center using original OEM Husqvarna replacement parts, subject to the limitations and exclusions described below. Husqvarna does not offer an over-the-counter exchange program.

DISCLAIMERS, LIMITATIONS AND EXCLUSIONS

1. WARRANTY DISCLAIMER. THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY PROVIDED BY HUSQVARNA AND THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF, EXCEPT AS MAY BE PROVIDED BY LAW. THIS WARRANTY IS GIVEN ONLY AGREEMENT, AND IS A COMPLETE AND EXCLUSIVE STATEMENT OF THE TERMS OF THAT AGREEMENT. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY BASED ON LOCALITY

2. LIMITED DURATION. ANY WARRANTY THAT MAY BE IMPLIED BY LAW (INCLUDING ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR USE AND IMPLIED WARRANTY OF MERCHANTABILITY) IS LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD UNDER THIS LIMITED WARRANTY. SOME LOCALITIES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

3. EXCLUSIVE REMEDIES. SOME LOCALITIES, INCLUDING THE PROVINCE OF QUEBEC, DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR INJURY TO PERSON OR FOR DAMAGES RESULTING FROM THE FAULT OF THE MANUFACTURER AND/OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. AS SUCH, SOME OF THE FOLLOWING LIMITATIONS MAY NOT APPLY TO YOU. THE

BOVE REMEDIES ARE THE EXCLUSIVE REMEDIES FOR ANY BREACH OF THIS LIMITED WARRANTY. NO OTHER REMEDY, INCLUDING, BUT NOT LIMITED TO ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, FOR LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS SHALL BE AVAILABLE, AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED.

4. Engines, Transmissions and certain other components are NOT covered. This Limited Warranty does not cover

(a) Engines and Attachments.Except where otherwise indicated on Exhibit A items are NOT manufactured by Husqvarna in which case they may be covered separately by their respective manufacturer's warranties if one is provided and included with the product at the time of purchase. All such claims must be submitted and sent to the appropriate manufacturer or as otherwise directed in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on engines manufactured by Briggs & Stratton, Honda, Kawasaki, or Kohler (Husqvarna does handle warranty issues on engines manufactured by Liquid Combustion Technologies (LCT). Husqvarna does not assume any warranty obligation of the other manufacturers' engines under this Limited Warranty.

(b) Transmissions. Except where otherwise indicated on ExhibitA cases, these items are NOT manufactured by Husqvarna in which case they may be covered separately by their respective manufacturer's warranties if one is provided and included with the product at the time of purchase. The following transmission / transaxle manufacturers, Dana, Hydro-Gear, Tuff-Torq provide a warranty for the transmission / transaxle to the ultimate purchaser or to Husqvarna. Husqvarna will assign the transmission / transaxle manufacturer's warranty or any rights thereof to the original purchaser of the unit. To obtain transmission / transaxle warranty service, first contact the retailer who you purchased the unit from. Should you require assistance or have any questions concerning transmission / transaxle warranty coverage, contact Husqvarna directly at our website www.husqvarna.com or call 800-487-5951 (US) or 800-805-5523 (Canada) for an authorized Husqvarna service provider. All such claims must be submitted and sent to the appropriate manufacturer or as otherwise directed in those separate warranties. Husqvarna is not authorized to handle warranty adjustments or repairs on transmissions or transaxles. Husqvarna does not assume any obligations under this Limited Warranty for the above listed manufacturers (for exceptions - see Exhibit

(c) Expendable Parts. This Limited Warranty does not cover general maintenance parts and items ("Expendable Parts filters, lubricants, starter cords, belts, blades, and blade adapters.

(d) Emissions Control Components. This Limited Warranty does not cover Emissions control Protection Agency or similar state, provincial or federal agencies. Such equipment and components are covered by a separate emission control warranty statement supplied with your new product. Please consult this separate warranty statement for details.

BY HUSQVARNA, AND MAY BE MODIFIED ONLY BY HUSQVARNA. THIS LIMITED WARRANTY IS THE FINAL EXPRESSION OF OUR

any of the following:

, all Engines and Attachments are not covered by this Limited Warranty. In most cases, these

, Transmission / Transaxle (including Drive Systems) are not covered by this Limited Warranty. In most

A).

"), including without limitation spark plugs, bulbs,

equipment and components to the extent regulated by the U.S. Environmental

5. Any COMMERCIAL, INSTITUTIONAL, AGRICULTURAL, INDUSTRIAL, INCOME PRODUCING, or RENTAL use will result in either No Warranty or a Shortened Warranty Period. Depending on the product, there is either NO WARRANTY (whether statutory, contractual or

otherwise) or a reduced warranty if the product is used for commercial, institutional, agricultural, industrial, income producing, or rental purposes and, in such circumstances, this Limited Warranty is offered instead of and replaces any warranty regime provided for by law. Please refer to Exhibit A.

6. Reconditioned or Refurbished Products have a 30 Day Limited Warranty. Under this Limited Warranty, Certified Factory Reconditioned or Refurbished products have a 30 Day Limited Warranty for parts and labor for Non-Commercial Use. Products are only reconditioned at the Husqvarna Factory.

7. Owner's (Your) Responsibilities. To preserve your rights under this Limited Warranty, you must exercise reasonable care and use of the product, including, following the preventative maintenance, storage, fuel and oil usages as prescribed in the enclosed operator's manual. For example, the following items are the Owner's responsibility and are not

covered by this Limited Warranty:

a. Set-up and pre-delivery service, and engine tune-ups; b. Adjustments after the first (30) thirty days of purchase and beyond, such as throttle cable, belt guides adjustments; and c. Preventative maintenance as outlined in the operator's manual.

In addition, you must cease using the product immediately upon any failure or damage. The product should be taken to an authorized Husqvarna servicing dealer prior to any further use.

8. Damages resulting from normal aging, wear and tear or neglect are NOT covered. The Limited Warranty does not cover damage other than that resulting from defects in material or workmanship. The following are NOT considered defects in material or workmanship, and therefore are NOT covered.

(a) Abrasion to mower decks;

(b) Tires damaged by external punctures;

(d) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

In addition, this Limited Warranty does not cover damages, malfunctions or failures resulting from abuse or neglect of the product related to or including any of the following:

(e) Failure to provide or perform required maintenance services as prescribed in the operator's manual;

(f) Abuse, misuse, neglect, modifications, alterations, normal wear, improper servicing, use of unauthorized attachments, Lack of lubrication or

engine failure, due to the use of oils that do not meet Engine manufacturer's specifications;

(g) Use of gasohol (fuel containing ethanol), containing methanol (fuel containing wood alcohol). Ethanol fuel E15 or E85 is NOT

use in Husqvarna products. Using E15 or E85 fuel will cause major engine damage which is NOT

covered by this Husqvarna warranty.

approved for

NOTE: Gasohol (fuel containing ethanol), which contains a maximum 10% ethanol (grain alcohol) is approved. The prescribed mixing ratio of gasoline to oil is 50:1 and is listed in the Husqvarna oil label and covered in your operator’s manual.

(h) Use of ether or any starting fluids;

(i) Pressure cleaning or steam cleaning the product;

(j) Use of spark plugs other than those meeting emission performance requirements listed in the operator's manual;

(k) Tampering with engine speed governor or emission components, or running engines above specified and recommended engine speeds as

listed in your operator's manual;

(l) Operation of the unit with improperly installed/removed or modified cutting shields, guards, or safety devices;

(m) Any removed/damaged air filter, excessive dirt, abrasives, salt water, moisture, corrosion, rust, varnish, stale fuel, or any adverse reaction due

to incorrect storage procedures;

(n) Failures due to improper set up, pre-delivery service or repair service by anyone other than an authorized Husqvarna servicing dealer during

the warranty period;

(o) Dirt contaminated grease or oil, use of incorrect type of greases or oils, failure to comply with recommended greasing intervals, water or

moisture damage, and/or improper storage;

(p) Sprayers pumping or spraying caustic or flammable materials, lack of or broken strainers; or

(q) Continued use of product, after initial operational problem or failure occurs.

9. Reinforced Stamped (Armor Protected) 10 Year Limited & Fabricated Limited Lifetime, Deck Warranties. These Limited Warranties are for the deck shell only – mechanical components/parts such as belts, pulleys, spindle housings, bearings, blades, rods, height adjusters, caster/anti scalp wheels etc… are NOT covered. The Limited Lifetime Warranty does not cover damage other than that resulting from defects in material or workmanship. The following are NOT considered defects in material or workmanship, and therefore are NOT covered:

(a) Abrasion to mower decks, including sand wear;

(b) Damage to cutting equipment by way of contact with, rocks, or other non-approved materials and/or structures;

(d) Natural discoloration of paint or other materials due to ultraviolet light.

HOW TO OBTAIN SERVICE

10. Authorized Husqvarna Servicing Dealer/Center. In order to obtain warranty coverage it is your responsibility (at your expense) to deliver or ship your Husqvarna unit to an authorized Husqvarna Servicing Dealer/Center and arrange for pick-up or return of your unit after the repairs have been made. If you do not know the location of your nearest authorized Husqvarna Servicing Dealer, call Husqvarna, at 1-800-487-5951 during the hours of 8:00 AM to 8:00 PM Eastern Standard Time, or visit www.husqvarna.com.

Should you require assistance or have questions concerning this Limited Warranty, you may contact us at 800-487-5951 (US) or 800-805-5523 (Canada) during the hours of 8:00 AM to 8:00 PM Eastern Standard Time or contact us through the web at www.husqvarna.com.

11. Documentation Required. You must maintain and present Proof of purchase (including date, product model and, if applicable, engine serial number) to an authorized Husqvarna Servicing Dealer for warranty service under this Limited Warranty. Proof of purchase rests solely with you. Husqvarna encourages you to register your product online at www.usa.husqvarna.com

(US & Canada) to help ensure, among other things, that you can

be notified of important product information. However, registering your product is not a condition of warranty service.

Husqvarna Professional Products, NA, Inc.

9335 Harris Corners Parkway, Suite 500, Charlotte, NC28269

575 49 43-01 W 2013 IR

)

Consumer Wheeled Limited Warranty Chart 2013

Battery

1 Year Pro rated

No Warranty

Consumer (personal,

household use only)

Product/Component

Riding Lawn Tractors:

Frame, Chassis, Front Axle 5 Years No Warranty No Warranty Engine*

Transmission (if made by Husqvarna/Peerless)

XLS Models only - stamped deck shell. Armor Protected Limited Warranty

Fabricated Deck shell. Limited Lifetime Warranty Battery

Residential Zero Turn Mowers ( RZ Only )

Engine*

RZ4623 (967009801 & 967009802)

5426 (967003601 & 967003602) - stamped

RZ deck shell. Armor Protected Limited Warranty

Fabricated Deck shell. Limited Lifetime Warranty Battery

Residential Zero Turn Mowers ( EZ, MZ, M-ZT )

Engine* Transmission** (EZ & MZ Zero Turn) 2 Years ** 1 Year ** 90 days Transmission** (M-ZT Zero Turn) 2 Years ** 2 Years ** 90 days

MZ5424S, MZ5425S, MZ5424SR, stamped deck shell. Armor Protected Limited Warranty. Product # 967003902, 967003903, & 25021.

Fabricated Deck shell. Limited Lifetime Warranty

Snow Throwers, Tillers, LE475 Edger

Engine* Auger Gearbox

elbadnepxE-noN rehtO

Tiller Tines

Walk Behind Mowers, High Wheel Trimmer

Engine* Battery

Hovering Trimmers

Engine*

Front Mounted Deck Riders (120S, 220T, 322T)

Frame, Chassis, Front Axle 3 Years No Warranty No Warranty Engine*

arT

Battery

Cultivators

rettaB

Spreaders

Robotic Mowers

3 Years No Warranty No Warranty

10 Years No Warranty No Warranty

1 Year Pro-rated No Warranty No Warranty

10 Years No Warranty No Warranty

1 Year Pro-rated No Warranty No Warranty

10 Years No Warranty No Warranty

5 Years

***

1 Year Pro-rated No Warranty No Warranty

Consumer Commercial Rental

Commercial (any commercial,

professional, institutional,

agricultural, or income producing use,

other than Rental Use

arraW oN sraeY 3stnenopmoC elbadnepxE-noN rehtO

90 days 90 days

No Warranty No Warranty

ad 09sraeY 2rewoM citoboR

Exhibit A

Rental (any

rental usage)

* * *

** ** ** **)ytrap driht fi( noissimsnarT

ytnarraW oNytnarraW oN***

ytnarraW oNytn

* * *

ytnarraW oNytnarraW oN** ** noissimsnarT

ytnarraW oNytnarraW oN***

ytnarraW oNytnarraW oN sraeY 3stnenopmoC elbadnepxE-noN rehtO

* * *

ytnarraW oNytnarraW oN***

ytnarraW oNraeY 1 sraeY 3stnenopmoC elbadnepxE-noN rehtO

* * *

syad 09syad 09sraeY 3stnenopmoC

* * *

ytnarraW oNytnarraW oNsraeY 3stnenopmoC elbadnepxE-noN rehtO

* * *

syad 09raeY 1sraeY 2stnenopmoC elbadnepxE-noN rehtO

* * *

ytnarraW oNytnarraW oN** noissimsn

ytnarraW oNytnarraW oNsraeY 3stnenopmoC elbadnepxE-noN rehtO

ytnarraW oNytnarraW oNdetar-orP raeY 1y ytnarraW oNytnarraW oNsraeY 2stnenopmoC elbadnepxE-noN rehtO

raeY 1raeY 1raeY 1redaerpS

syad 09sy

raeY 1raeY 1raeY 1yrettaB

)

Consumer Wheeled Limited Warranty Chart 2013

Consumer (personal,

household use only)

Product/Component

Parts & Accessories (if purchased)

Accessories (e.g., grass catcher, bumper guard accessories, etc.

Parts & Accessories (if replaced in Warranty Service)

Replacement parts and/or accessories provided under this Limited Warranty are warranted only for the BALANCE of the warranty period applicable to the part or accessory that was replaced.

* See Separate Engine Manufacturer's or Manufacturer's Husqvarna. ** See reference 4 (b) of the warranty statement. RZ - Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network.

EZ - One (1) Year Commercial warranty, parts & labor, with Husqvarna.

Two (2) Year Consumer warranty, parts & labor, with Hydro-Gear Distributor network. MZ - (ZT3100 Transmission) One (1) Year Commercial warranty, parts & labor, with Hydro-Gear Distributor network. (ZT3100 Transmission) Two (2) Years Consumer warranty, parts & labor, with Hydro-Gear Distributor network. M-ZT - (ZT3400 transmission) Two (2) Year warranty, parts & labor, with Hydro-Gear Distributor network.

*** "Limited Lifetime Warranty" on Tiller tines and Fabricated Deck shell is for the life of the product or 7 (seven) years after the last date of the complete unit's final production, whichever comes first. decks within the Limited Lifetime Warranty.

1 Year No Warranty No Warranty

See to left See to left See to left

Consumer Commercial Rental

warranty. LCT Engines on specific Snow Throwers & Tillers, warranty through

Deck Shell replacement will be limited to a maximum of two (2)

Commercial (any commercial,

professional, institutional,

agricultural, or income producing use,

other than Rental Use

Exhibit A

Rental (any

rental usage)

ytnarraW oNytnarraW oNsyad 09).cte ,sedalb ,stleb ,.g.e( straP

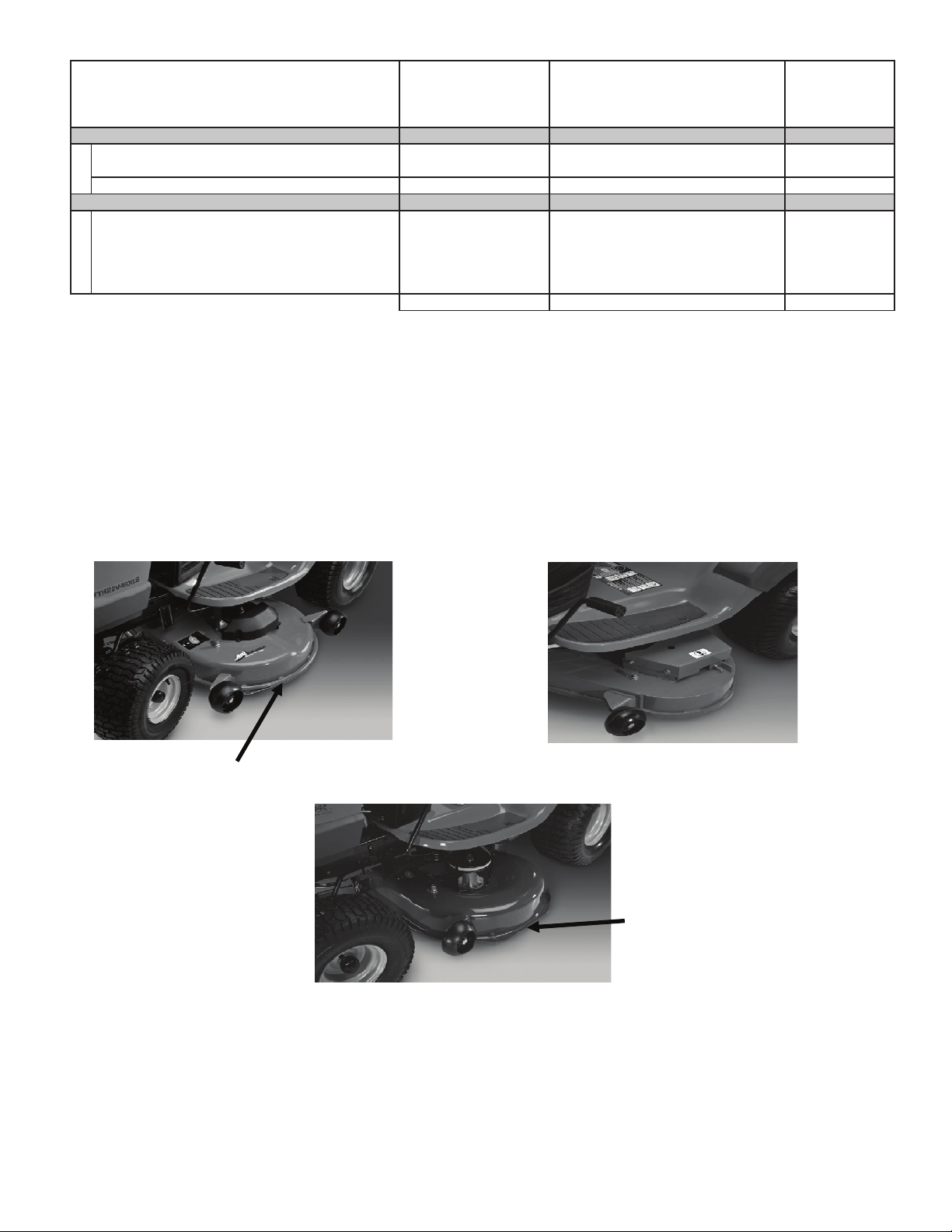

Armor Protected Stamped Deck Shell Example Below Fabricated Deck Shell Example Below

Armor Protected

Stamped Deck Shell

Reinforced area

Stamped Deck Shell below, NOT reinforced

No reinforced area

SERVICE NOTES

05/28/2014 TH

Husqvarna ST 327P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
