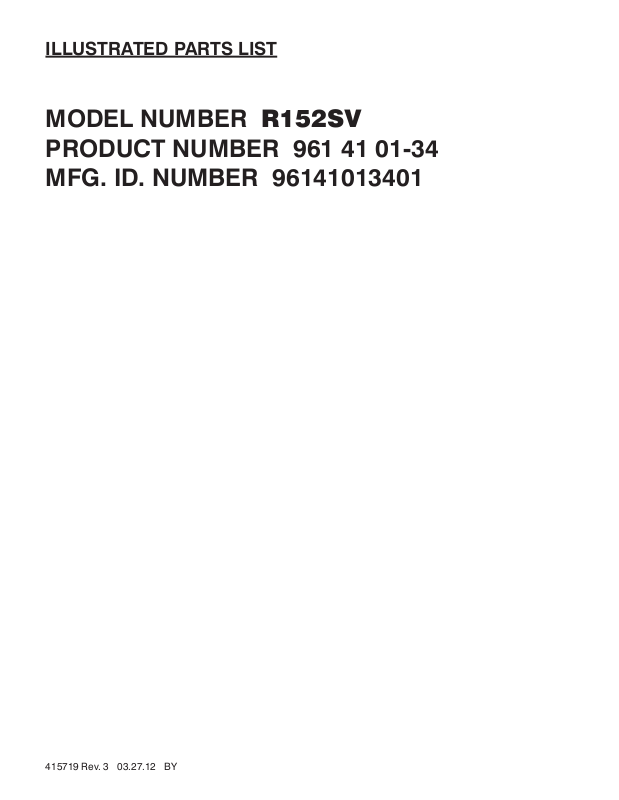

ILLUSTRATED PARTS LIST
MODEL NUMBER R152SV PRODUCT NUMBER 961 41 01-34 MFG. ID. NUMBER 96141013401
415719 Rev. 3 03.27.12 BY
Page 2
40
35
39
43
28
36
29
27
9
42
51
34
10
36
11
35
86
26
56
25
85
55
24
23
20
52
13
84
14
21
15
22
16
17 18 19
2
2
8
5
6
7
53
37
1
45
3 4
44
50
54
48
35
31
30
32
47
46
49
39
33
38
35
56 55
Page 3
KEY PART NO. NO. DESCRIPTION
1 532 19 05-82 Handle, Grassbag, Rear 2 532 06 53-22 Hairpin Cotter 3 532 18 34-83 Rod, Rear Handle, Grassbag 4 532 40 18-98 Grassbag 5 532 18 85-06 Frame, Grassbag 6 812 00 00-14 E-Ring 7 532 19 05-81 Door, Grassbag 8 532 18 34-79 Rod, Pivot 9 872 14 04-05 Bolt 10 873 80 04-00 Nut, Hex, Nylock 1/4-20 11 532 19 06-92 Tube, Rear Skirt 13 532 19 05-19 Cover, Front
3
14 532 19 41-89 Screw, Hex Washer Head 15 532 15 04-06 Bolt, Engine Mounting 16 532 41 50-76 Blade, 21" 17 532 85 10-74 Washer, Hardened 18 532 85 02-63 Washer, Lock 19 532 19 17-60 Bolt, Hex Head, Grade 8 3/8-24 20 532 18 67-66 Adapter, Blade 21 532 19 05-16 Debris Shield 22 817 60 04-06 Screw, Hex Head, Serrated 23 532 18 36-09 Mounting Bracket, Mulcher Door 24 532 19 17-30 Nut, Hex 25 532 18 34-45 Rod, Hinge 26 532 18 34-46 Spring, Mulcher Door 27 532 18 21-66 Decal, Danger 28 532 19 05-15 Mulcher Door 29 532 18 34-47 Knob 30 532 19 05-80 Door, Discharge Chute
KEY PART NO. NO. DESCRIPTION
31 532 18 34-78 Spring, Door, Discharge Chute 32 532 18 34-45 Rod, Door, Discharge Chute 33 532 19 05-78 Discharge Chute, Plastic 34 532 19 06-19 Adjustment Bracket, Lower Handle, LH 35 532 18 55-88 Knob, Star 36 532 19 41-87 Bolt, Shoulder 37 532 18 59-96 Deflector, Discharge 38 532 19 06-21 Adjustment Bracket, Lower Handle, RH 39 532 19 15-74 Bolt, Handle 40 532 06 64-26 Wire Tie 42 532 18 70-96 Handle Assembly, Lower 43 532 18 62-98 Bail, Control 44 532 18 27-48 Grip, Foam 45 532 18 62-96 Handle Assembly, Upper (Includes Foam Grip) 46 532 40 88-85 Cable, Engine Zone Control 47 532 75 06-34 Screw 48 532 12 52-03 Bracket, Upstop 49 532 13 20-04 Nut, Hex 50 532 18 85-01 Rope Guide 51 532 40 07-21 Kit, Housing 52 - - - Engine, Briggs & Stratton, Model Number 100602 (Order parts from Engine Manufacturer) 53 532 40 18-96 Grassbag Assembly, Complete 54 532 18 90-14 Discharge Chute Assembly, Complete 55 532 19 41-92 Stud, Shoulder, T45 56 812 00 00-58 E-Ring, T45
- - 532 41 11-47 Opeator's Manual, European
- - 532 41 11-48 Opeator's Manual, Scandinavian
- - 532 41 11-52 Opeator's Manual, East Bloc
- - 532 41 11-49 Opeator's Manual, Baltic
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
Page 4

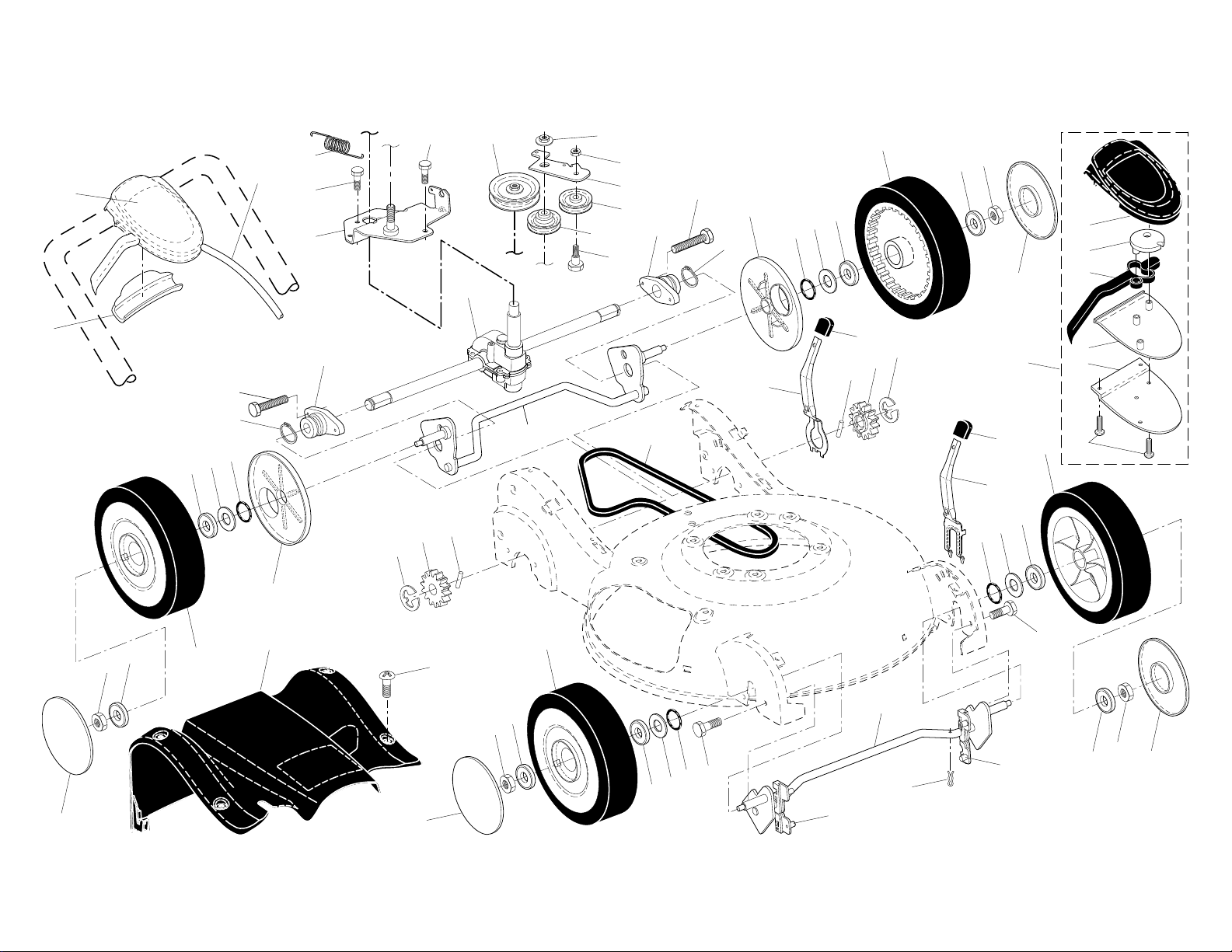

22
24
28
25 26
27
14
50
13
12
30
43
23
31
69
37
35
39
32
38
69
23
33
44
31
35
34
69
2 3
4
46
5 7
6
1
29
16
9
1
8
13
12 23
4
69
31
18
17
14
39
38
19
15
53
37
34
33
69
32
30
10
34
11
33
69
46
69
31
23
18
47
49
48
47
18
69
33
34
Page 5
KEY PART NO. NO. DESCRIPTION
1 532 19 70-12 Drive Control Assembly (Includes Cable) 2 532 41 16-73 Cover, Drive Control, Top 3 532 18 73-53 Pulley, Drive Control 4 532 19 00-37 Lever, Drive Control (blue) 5 532 41 16-64 Cover, Drive Control, Bottom 6 532 18 16-98 Screw, Torx Head #8 x 5/8 7 532 40 07-23 Bracket, Mounting, Drive Control 8 532 18 62-97 Cap, Drive Control, Bottom 9 532 19 70-11 Cable, Drive Control 10 532 41 69-63 Cover Assembly, Drive
5
11 532 19 41-88 Screw 12 812 00 00-12 Ring, Retaining 13 532 19 41-86 Screw 14 532 40 80-27 Bearing / Axle Support 15 532 40 80-29 Gear Case Assembly (See Breakdown) 16 532 40 65-58 Spring, Return 17 532 40 80-05 Bracket, Gear Case / Drive Pulley 18 532 16 34-09 Screw 19 532 19 40-18 Pulley, Drive 22 532 19 37-91 Pulley Assembly, V-Groove 23 532 19 74-80 O-Ring 24 532 40 91-49 Nut, Hex, Flangelock
KEY PART NO. NO. DESCRIPTION
25 873 93 05-00 Nut, Hex, Lock 26 532 41 67-36 Idler Arm 27 532 16 60-43 Pulley 28 532 16 08-29 Bolt, Hex Head, Shoulder 29 817 06 04-10 Screw 1/4-20 x 1/16 30 532 18 34-57 Cover, Dust, Wheel 31 532 08 83-48 Washer, Flat 3/8 32 532 19 26-22 Wheel Assembly, Rear 9 x 2-1/4 33 532 40 91-48 Nut, Hex 34 532 18 34-42 Hubcap 35 532 18 59-94 Knob 37 532 40 48-45 Pawl 38 812 00 00-58 E-Ring 39 532 40 38-49 Pinion 43 532 19 05-20 Lever, Selector, Wheel Height, Rear 44 532 19 05-18 Lever, Selector, Wheel Height, Front 46 532 19 22-32 Wheel Assembly, Front 9 x 2-1/4 47 532 18 34-38 Bushing, Front Axle 48 532 16 96-75 Retainer, Hairpin Cotter 49 532 19 64-69 Torque Shaft Assembly, Front 50 532 40 80-31 Belt, Drive 53 532 41 67-40 Rear Axle Assembly 69 532 75 10-68 Bearing, Ball (Wheel)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
Page 6
ROTARY LAWN MOWER - - MODEL NUMBER R152SV (96141013401)
PRODUCT NUMBER 961 41 01-34

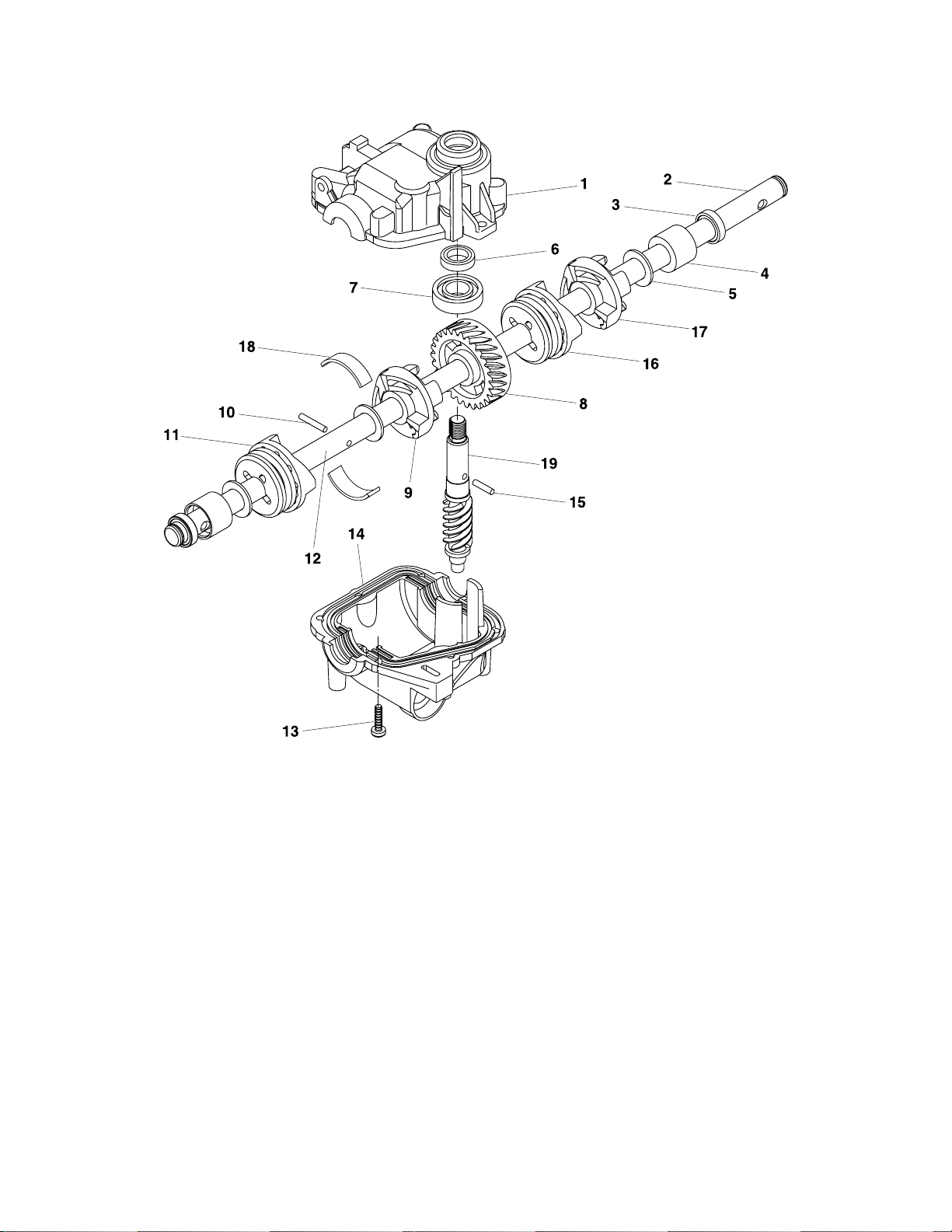

GEARCASE ASSEMBLY - PART NUMBER 532 40 80-29
KEY PART NO. NO. DESCRIPTION
1 532 41 27-36 Case, Upper 2 532 41 32-69 Shaft, Output, Long 3 532 18 35-08 Seal, Output Shaft 4 532 18 35-11 Bushing 5 532 18 35-09 Washer 6 532 18 35-14 Seal, Worm Shaft 7 532 18 35-06 Bearing, Ball 8 532 41 27-42 Gear, 28 Teeth 9 532 41 27-40 Movable Dog Clutch, LH 10 532 41 27-46 Pin, Output Shaft 11 532 41 27-39 Fixed Dog Clutch, LH 12 532 41 32-68 Shaft, Output, Short 13 532 18 35-13 Screw, Case 14 532 41 27-47 Case, Lower 15 532 41 27-41 Pin, Worm Shaft 16 532 41 27-43 Movable Dog Clutch, RH 17 532 41 27-44 Fixed Dog Clutch, RH 18 532 41 07-31 Spring, Leaf 19 532 41 32-67 Shaft, Worm
6
