Page 1

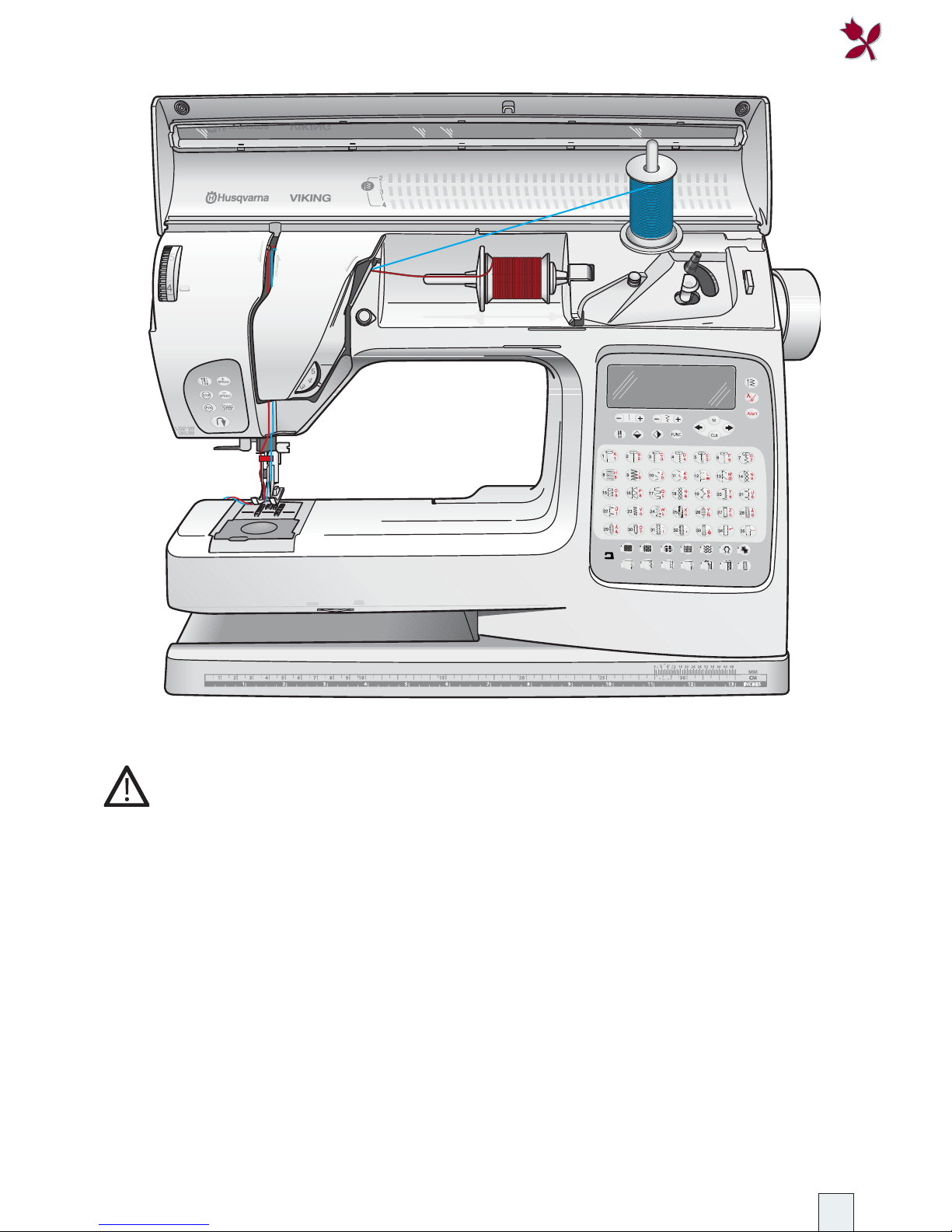

User’s Guide

P latinum

770

KEEPING THE WORLD SEWING

Page 2

v. 1 . 0

This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using this household sewing machine.

DANGER - To reduce the risk of electric shock:

• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after using and before cleaning.

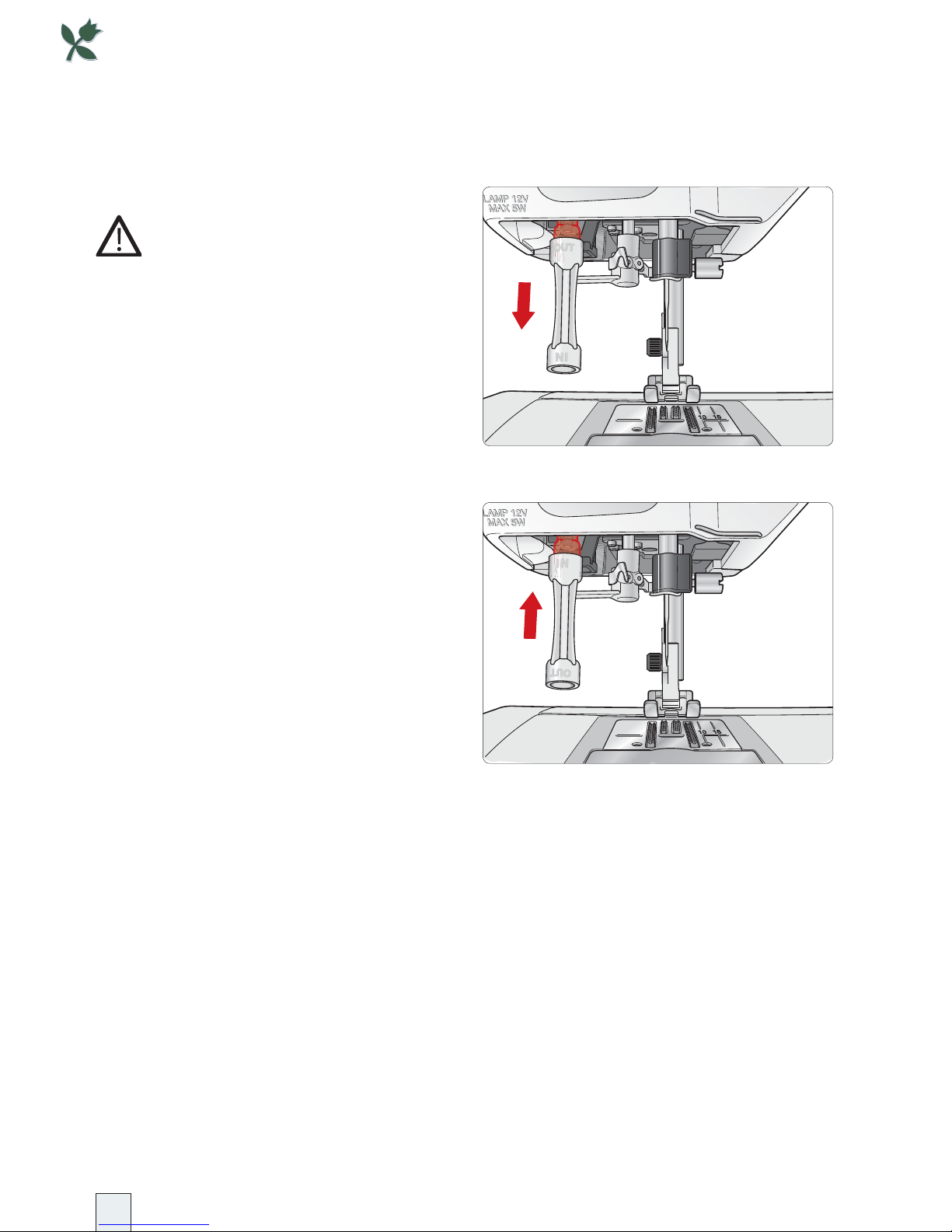

• Always unplug before relamping. Replace bulb with same type rated 5 Watt.

WARNING - To reduce the risk of burns, ﬁ re,

electric shock, or injury to persons:

• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or near children and inﬁ rm persons.

• Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual.

• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.

• Keep ﬁ ngers away from all moving parts. Special care is required around the sewing machine needle.

• Always use the proper needle plate. The wrong plate can cause the needle to break.

• Do not use bent needles.

• Do not pull or push fabric while stitching. It may deﬂ ect the needle causing it to break.

• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc.

• Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.

• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

SAVE THESE INSTRUCTIONS

Page 3

Table of Contents

Learn your Platinum 770 2-16

Overview - Front 2 Overview - Rear 3 Accessory tray 3 Accessories 3 Unpack Platinum 770 4 Connecting the foot control 4 Connect to the power supply 4 Pack away after sewing 5 Accessory tray 5 Spool pins 6-7 Threading the upper thread 7 Needle threader 8 Threading for twin needle 9 Bobbin winding 10

Winding from the needle 10 Placing the bobbin in the machine 11

Needles 12 Changing the needle 12 Presser feet 13-14 Changing the presser foot 14 Presser foot pressure 14 Presser foot lever 14 Thread tension 15 Lowering the feed teeth 16

Functions and GraphicDisplay 17-30

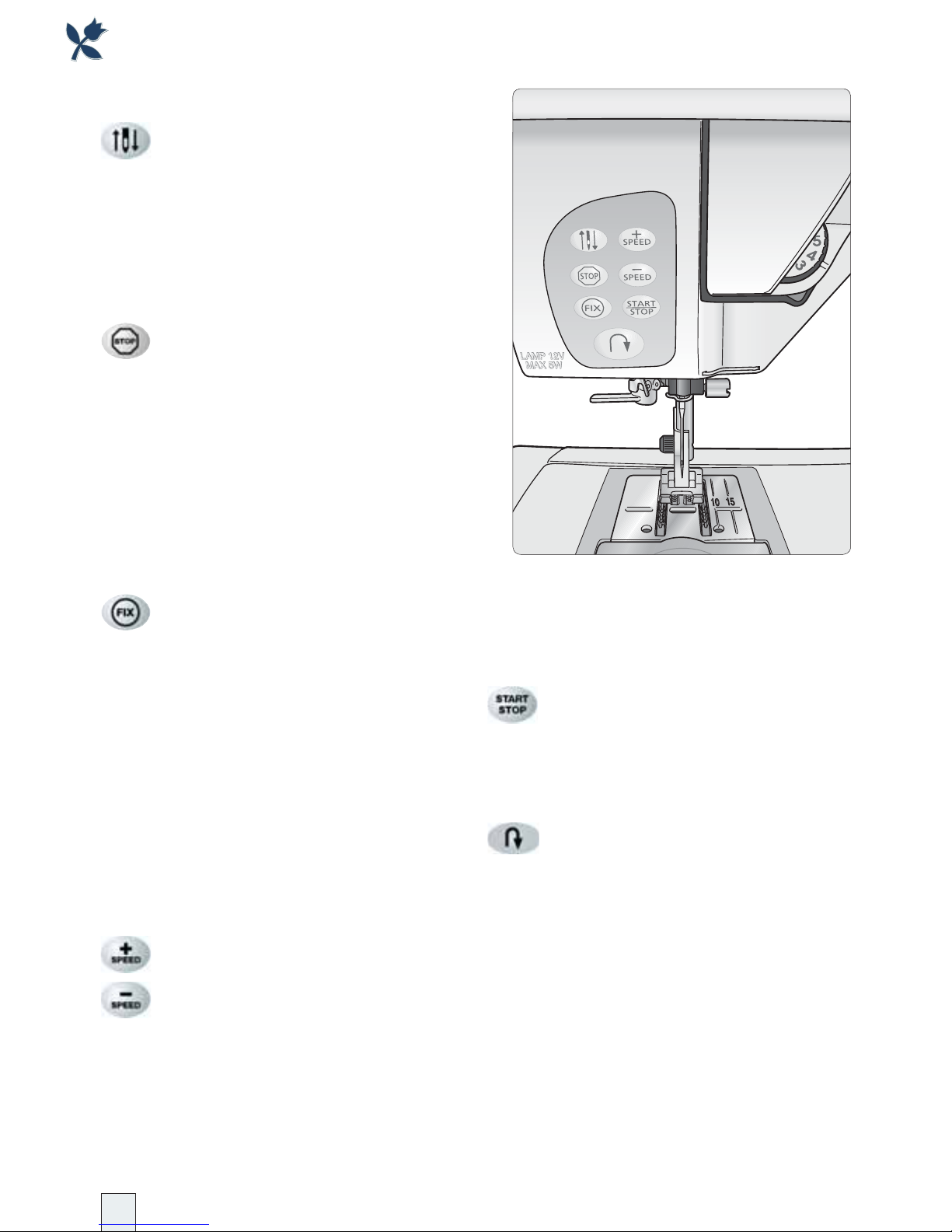

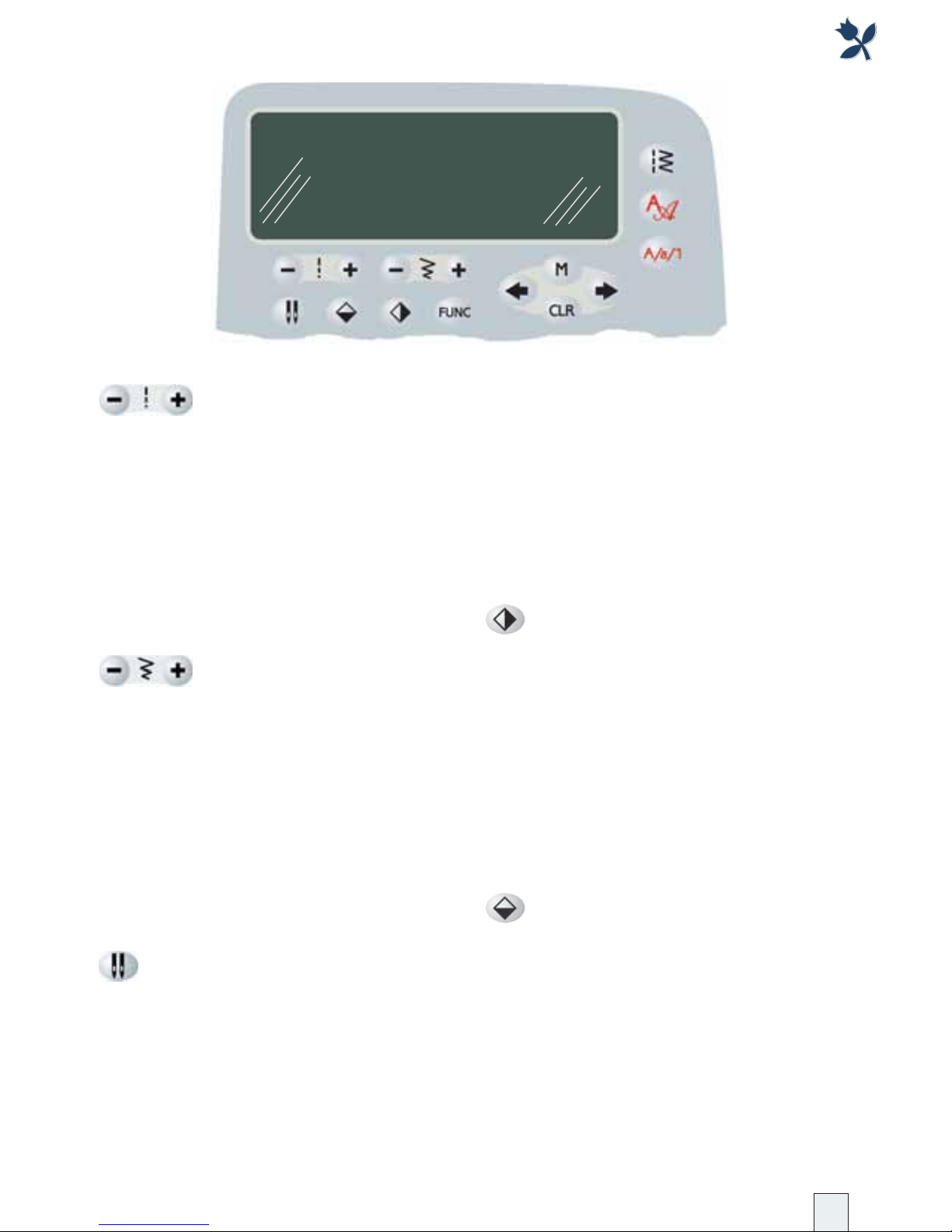

Function buttons 18 The Functions Panel 19-20

Stitch length 19 Stitch width 19 Twin needle 19 Mirror side to side 19 Mirror end to end 19 FUNC 20 Selection buttons 20 Memory 20 Clr 20

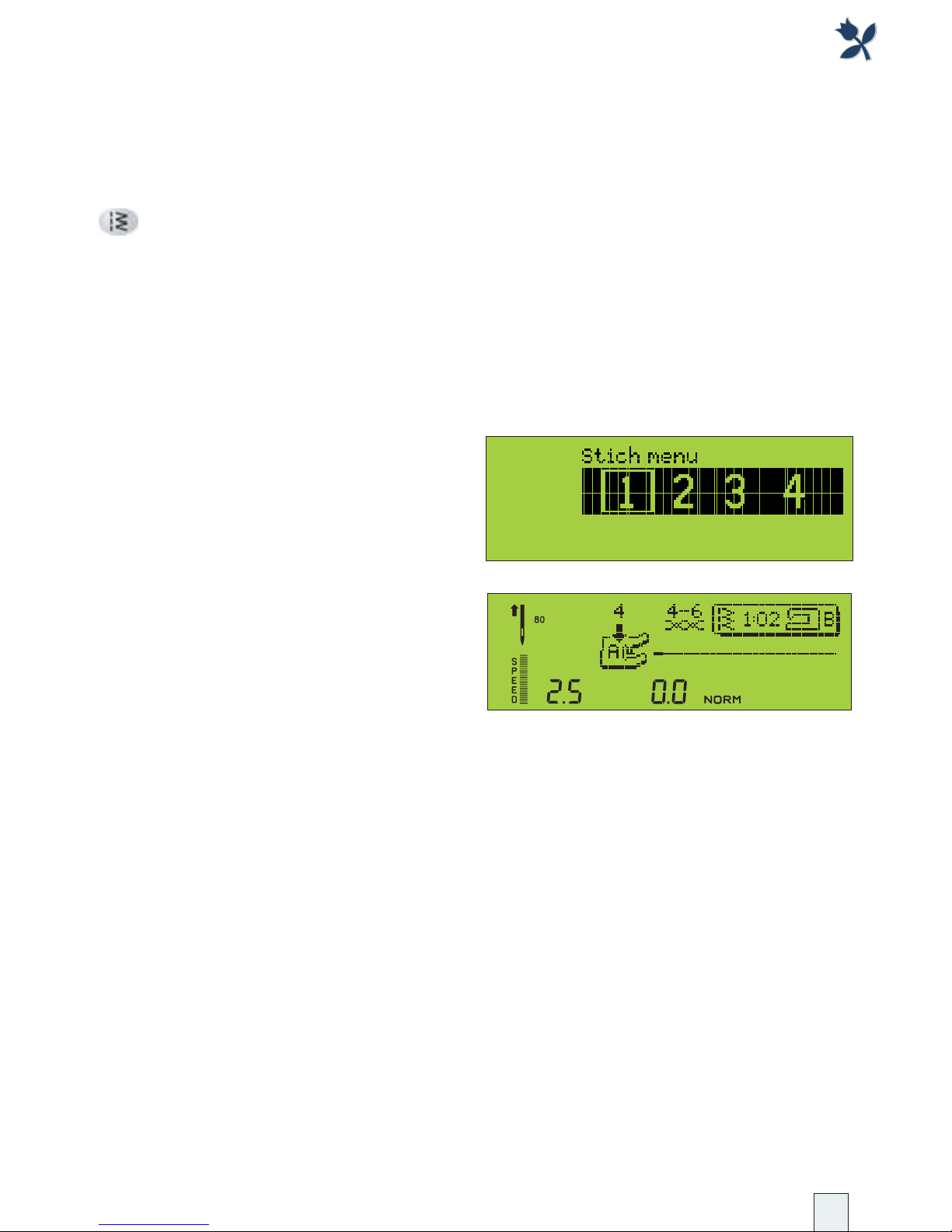

Stitch selection menus 20

Stitch selection 21

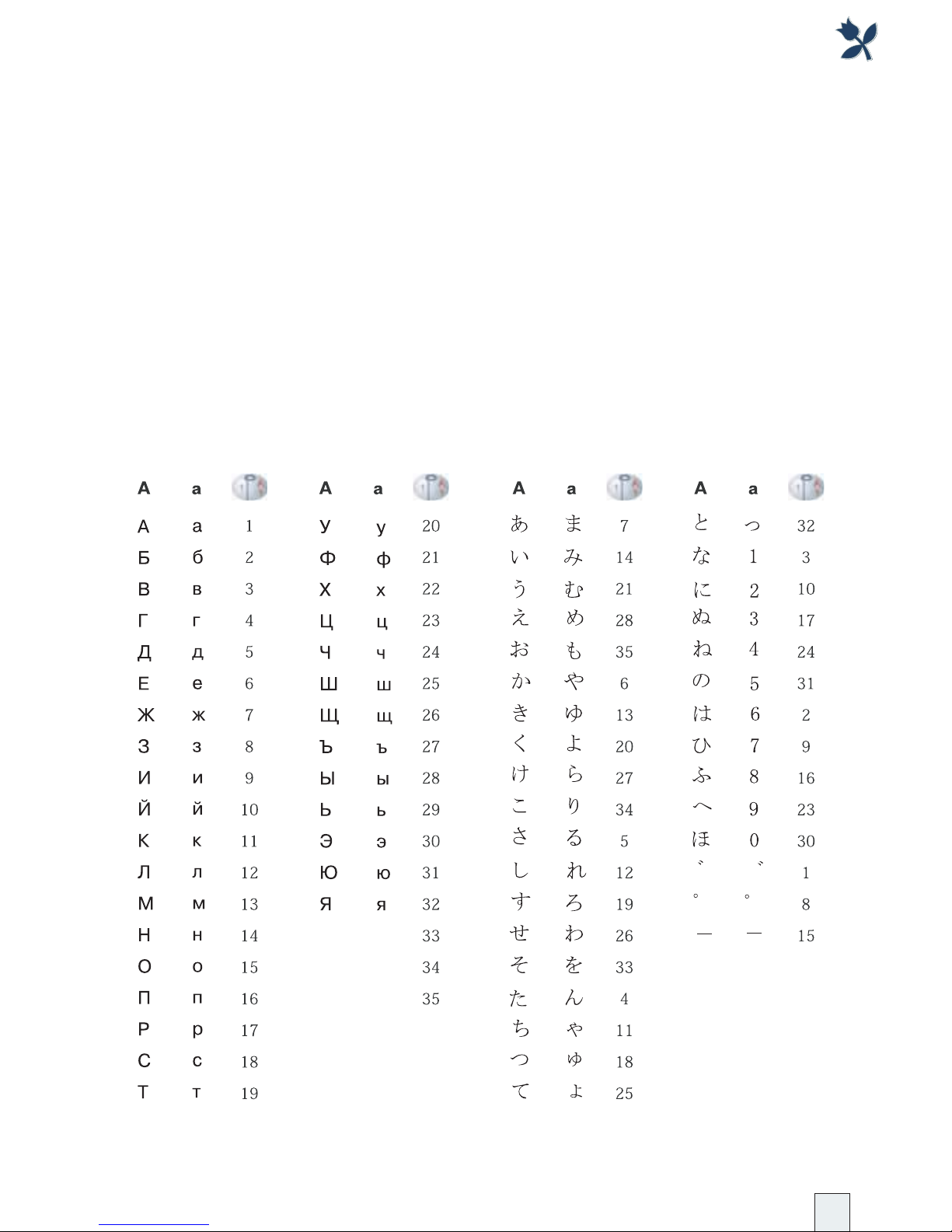

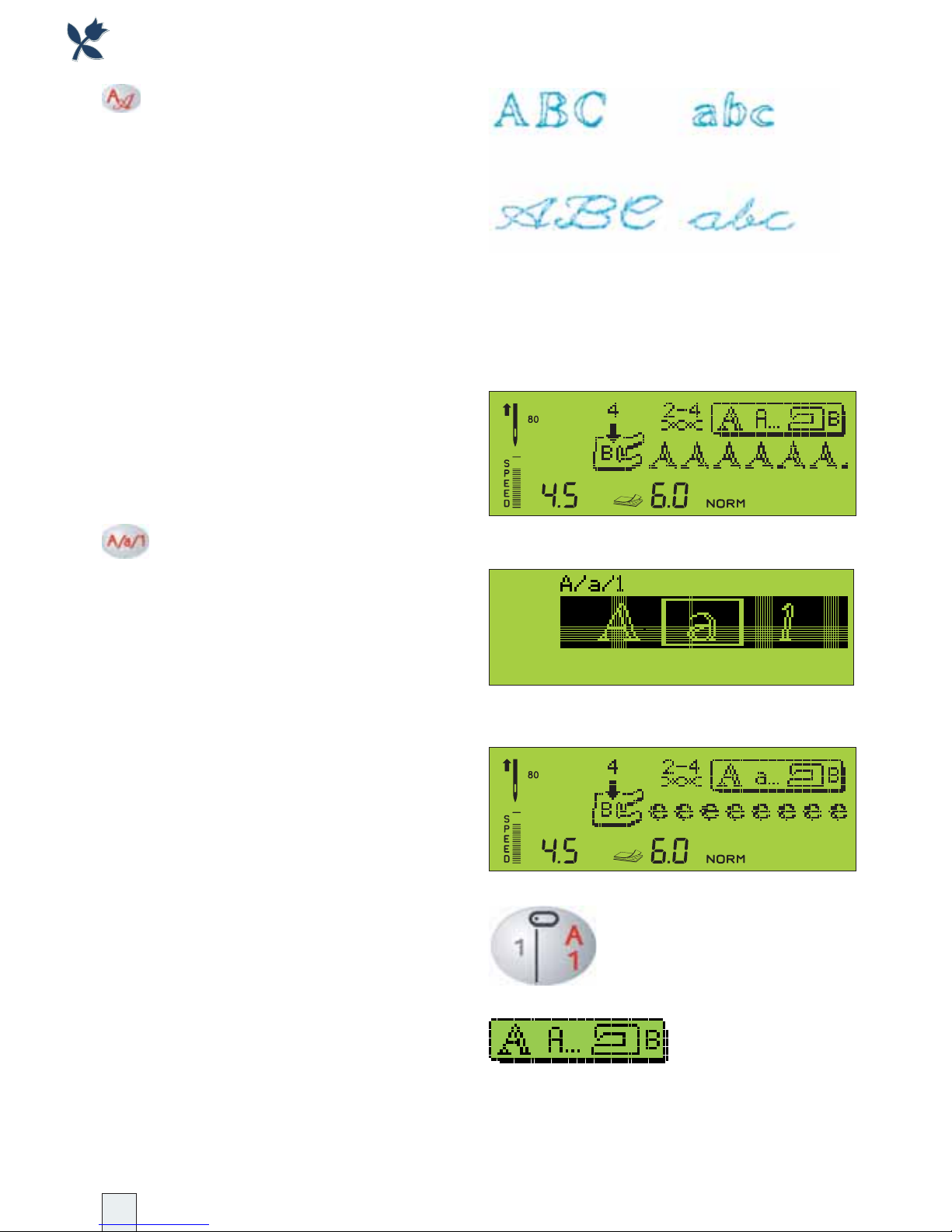

Utility and decorative stitches 21 Alphabets 22 Alphabet sub menu 22 Russian and Japanese alphabets

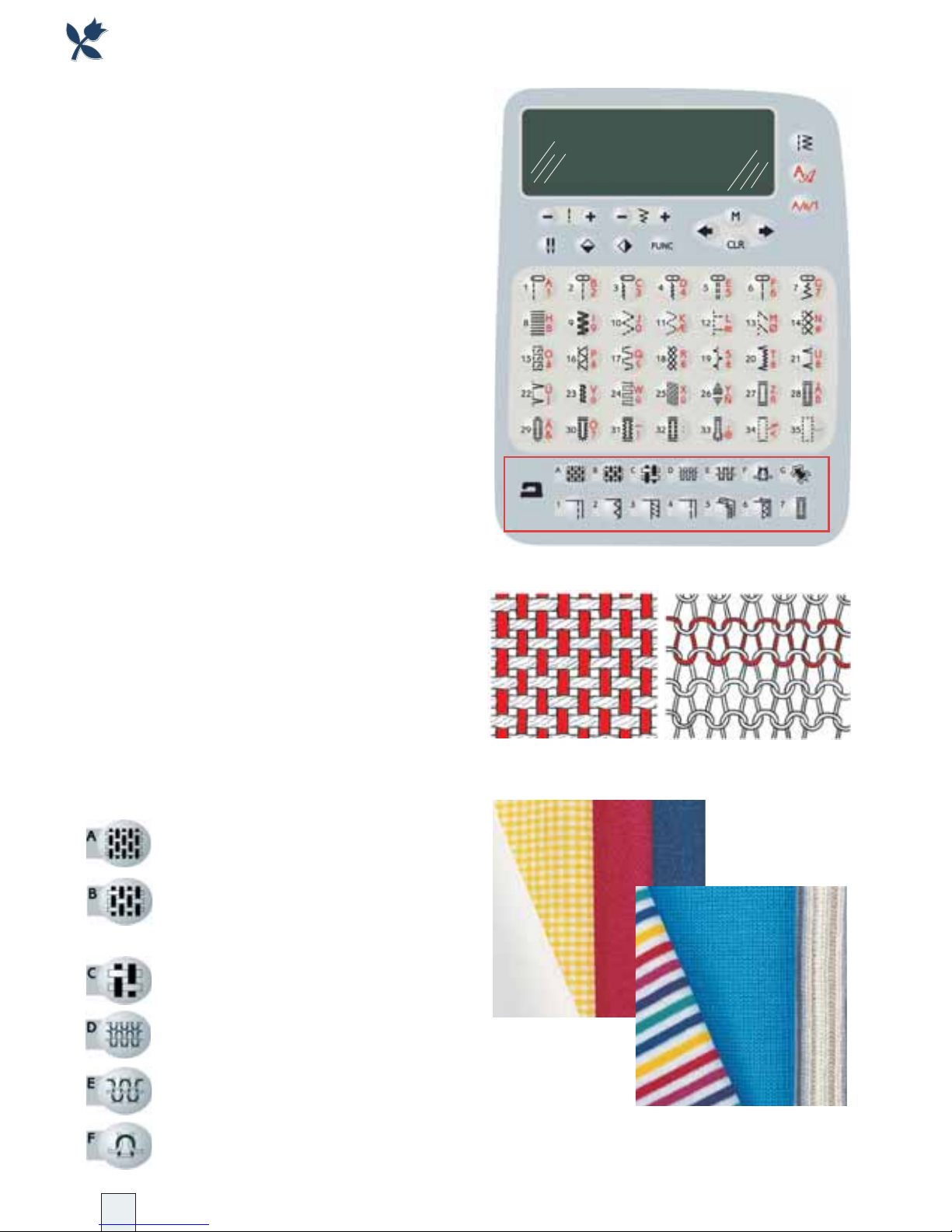

Sewing Advisor 24-26

Fabric selection 24 Techniques 25 How to Use the Sewing Advisor 26

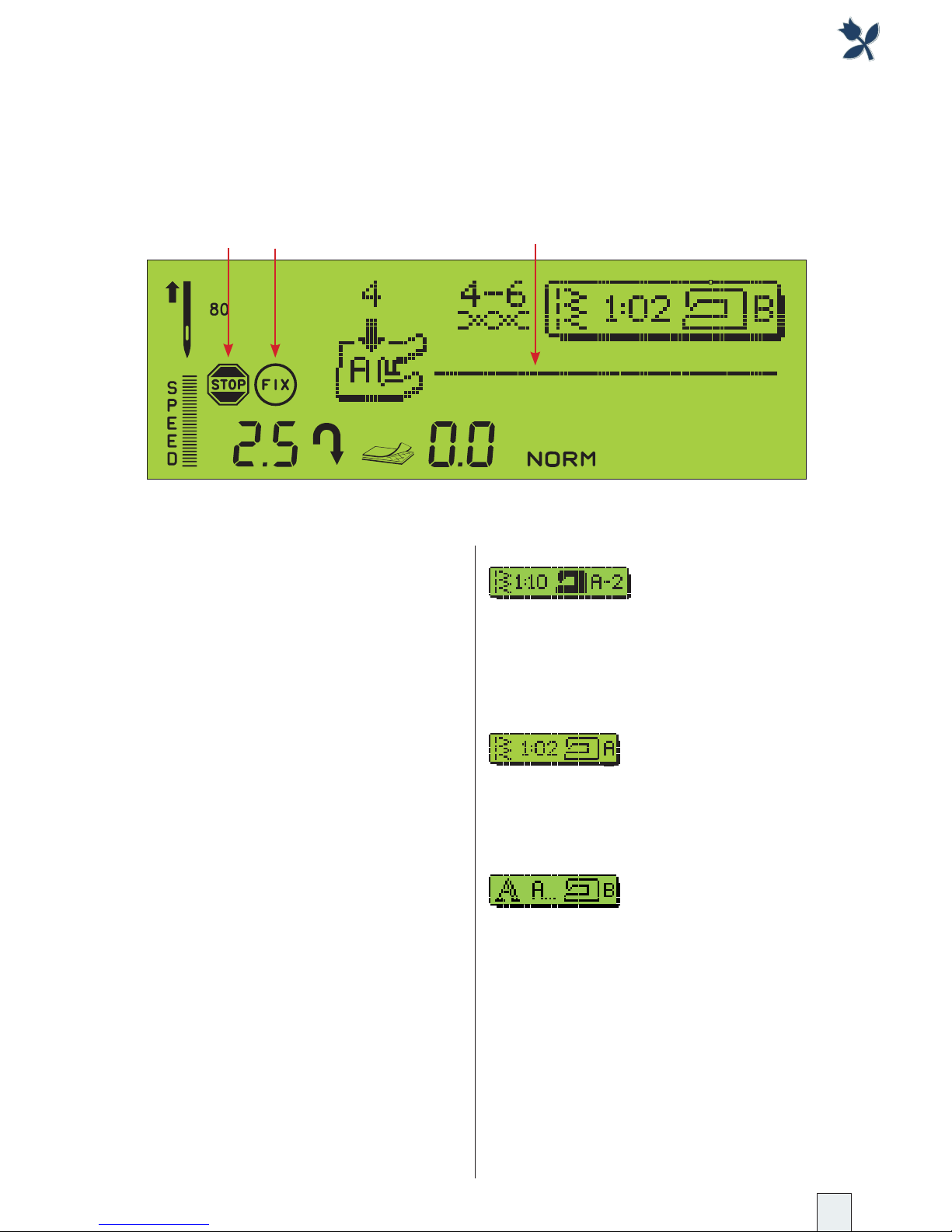

Icons on the GraphicDisplay 27-28 Programming 29-31

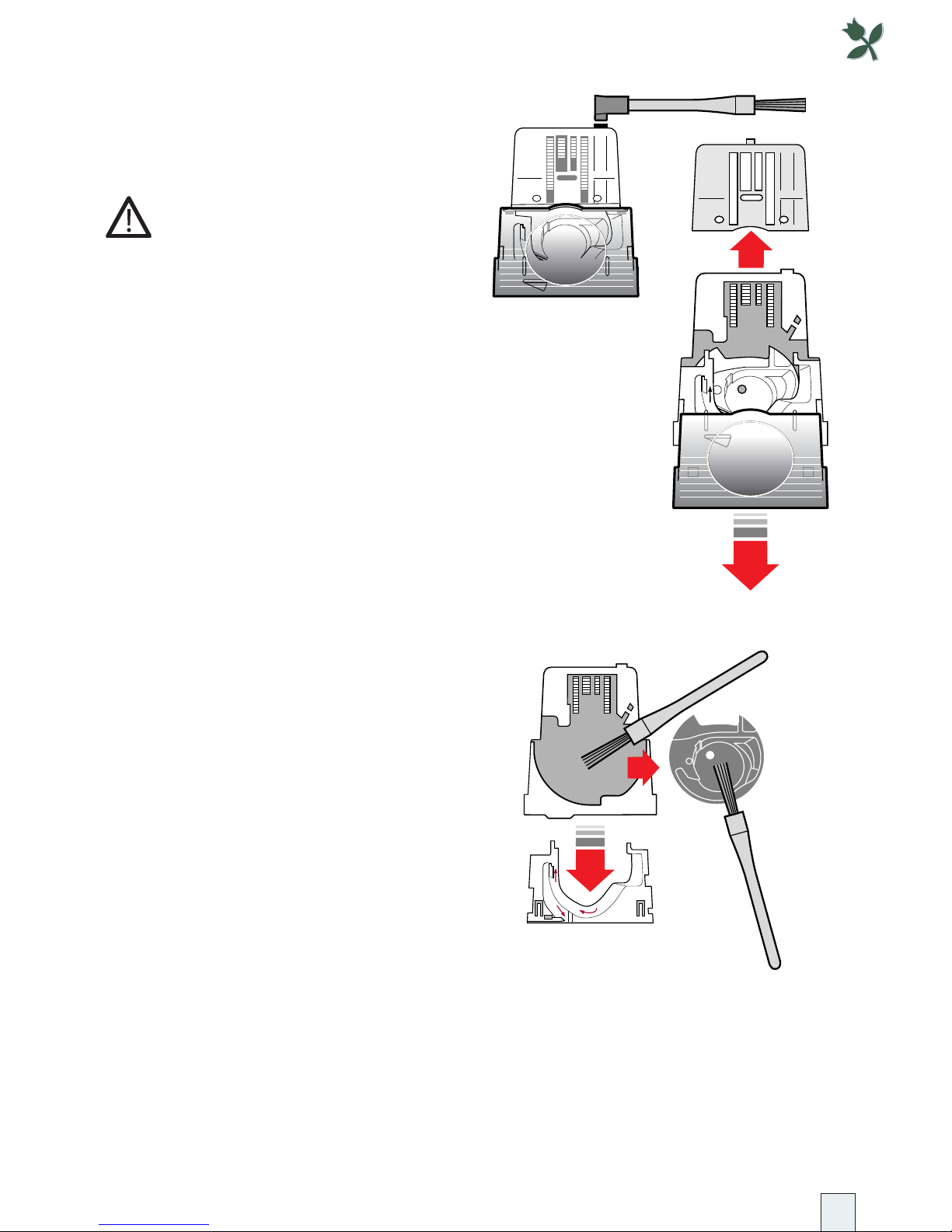

Care of your Platinum 770 33-37

Trouble Shooting 36-37

Index 38-40

Content on your Platinum 770 Instructions Video 40

Page 4

Learn your Platinum 770

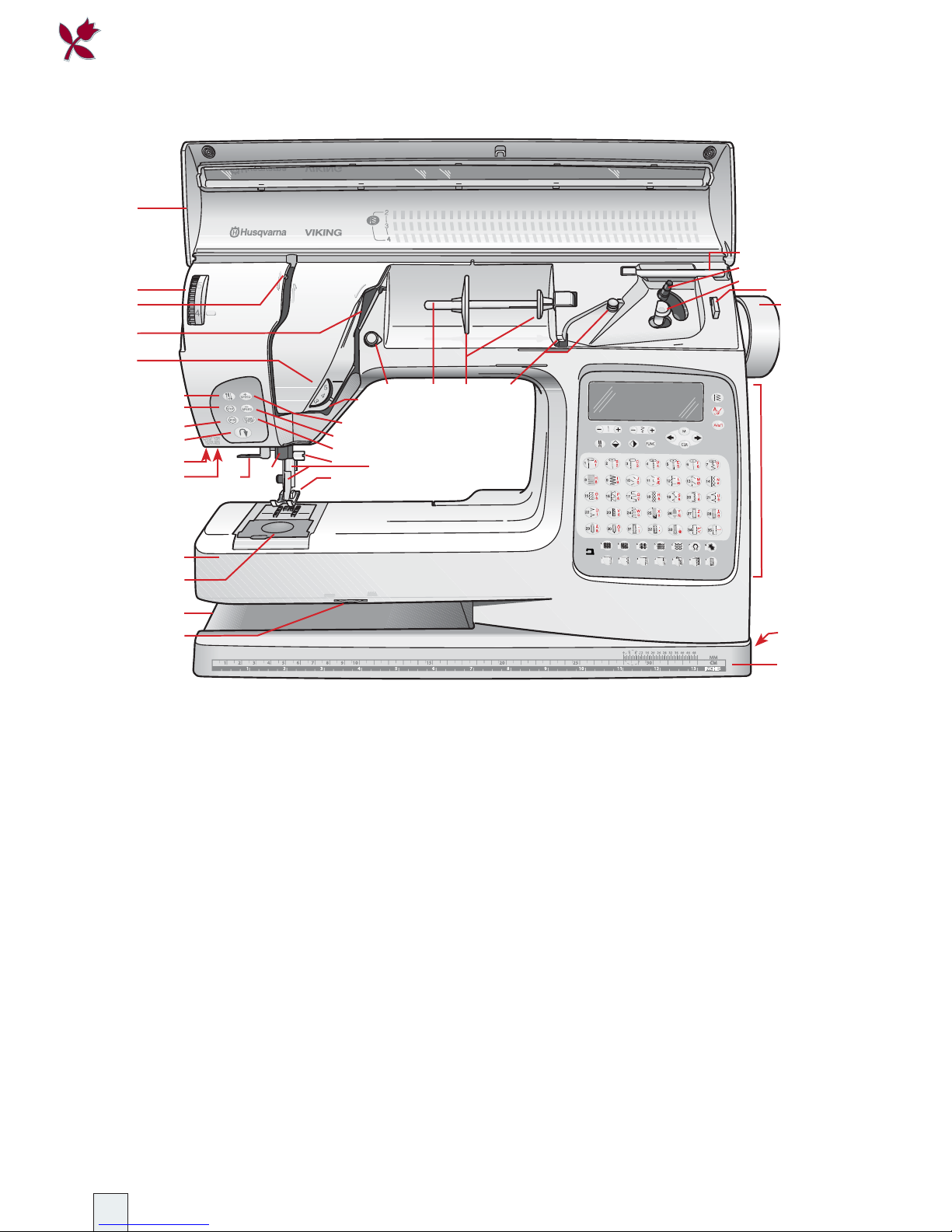

Overview - Front

1. Lid

2. Dial to set presser foot pressure

3. Thread take-up lever

4. Thread tension

5. Pre-tension disc

6. Needle stop up/down button

7. Finishing Stop button

8. FIX button

9. Sewing speed button - faster

10. Sewing speed button - slower

11. Start/Stop button

12. Reverse button

13. Dial to set thread tension

14. Sensor Buttonhole Foot socket

15. Light

16. Needle threader

17. Needle bar

18. Presser foot

19. Free arm

20. Bobbin cover

21. Base plate

22. Feed teeth up/down dial

23. Presser foot bar and presser foot ankle

24. Needle clamp screw

25. Thread tension disk for bobbin winding

26. Main spool pin

27. Spool holders

28. Bobbin winding guides

29. Auxiliary spool pin

30. Bobbin winder spindle

31. Bobbin stop

32. Thread cutter for bobbin winding

33. Handwheel

34. GraphicDisplay and Touch Panel

35. Power switch, connectors for power supply and foot control

36. Ruler (inches and centimeters)

13.

10.

11.

12.

14.

15.

16.

17.

18.

20.

19.

21.

22.

23.

24.

25. 26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

Page 5

Learn your Platinum 770

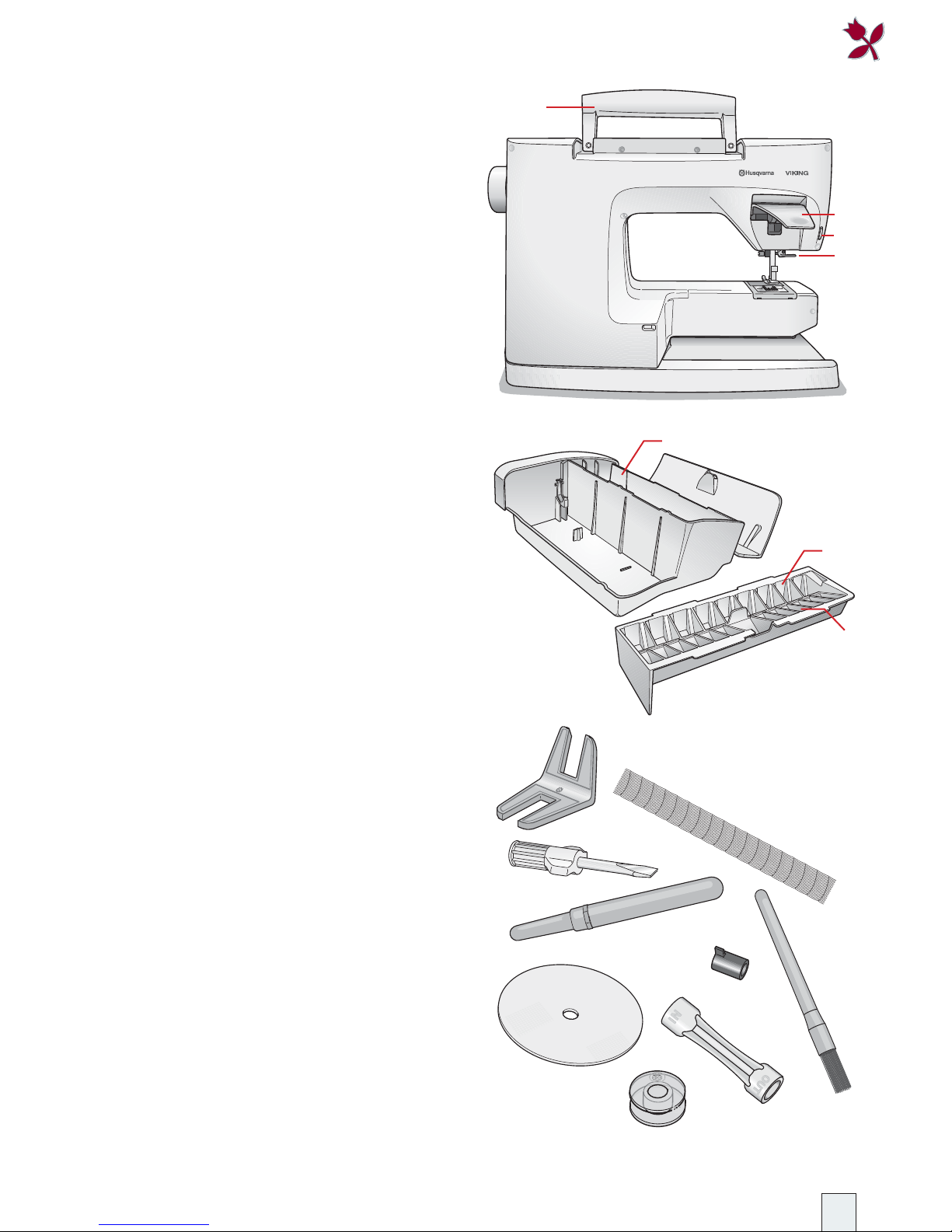

Overview - Rear

37. Handle

38. Thread cutter

39. Presser foot lifter

40. Needle threader

Accessory Tray

41. Space for accessories

42. Space for presser feet

43. Space for bobbins

Accessories

Pictogram pen Needles Thread spool Presser feet A, B, C, D, E, H, J and the

Sensor Buttonhole Foot (see page 13-14 for presser feet overview)

44. Brush

45. Stitch plate opener (to be attached to the brush)

46. Screwdriver

47. Seam ripper

48. Clearance plate

49. Bobbins

50. Felt pad

51. Light bulb remover

52. Thread net

37.

38.

39.

40.

41.

42.

43.

44.

45.

52.

48.

46.

47.

50.

51.

49.

Page 6

Learn your Platinum 770

3. 1. 2.

Unpack Platinum 770

1. Place the machine on a table or cabinet, remove the packaging and lift off the cover.

2. Remove the packing material, the foot control and ﬁ nally the protection cover.

3. The machine is delivered with an accessory bag and a main cord.

4. Wipe off the machine, particularly around the needle and needle plate to remove any soil before sewing.

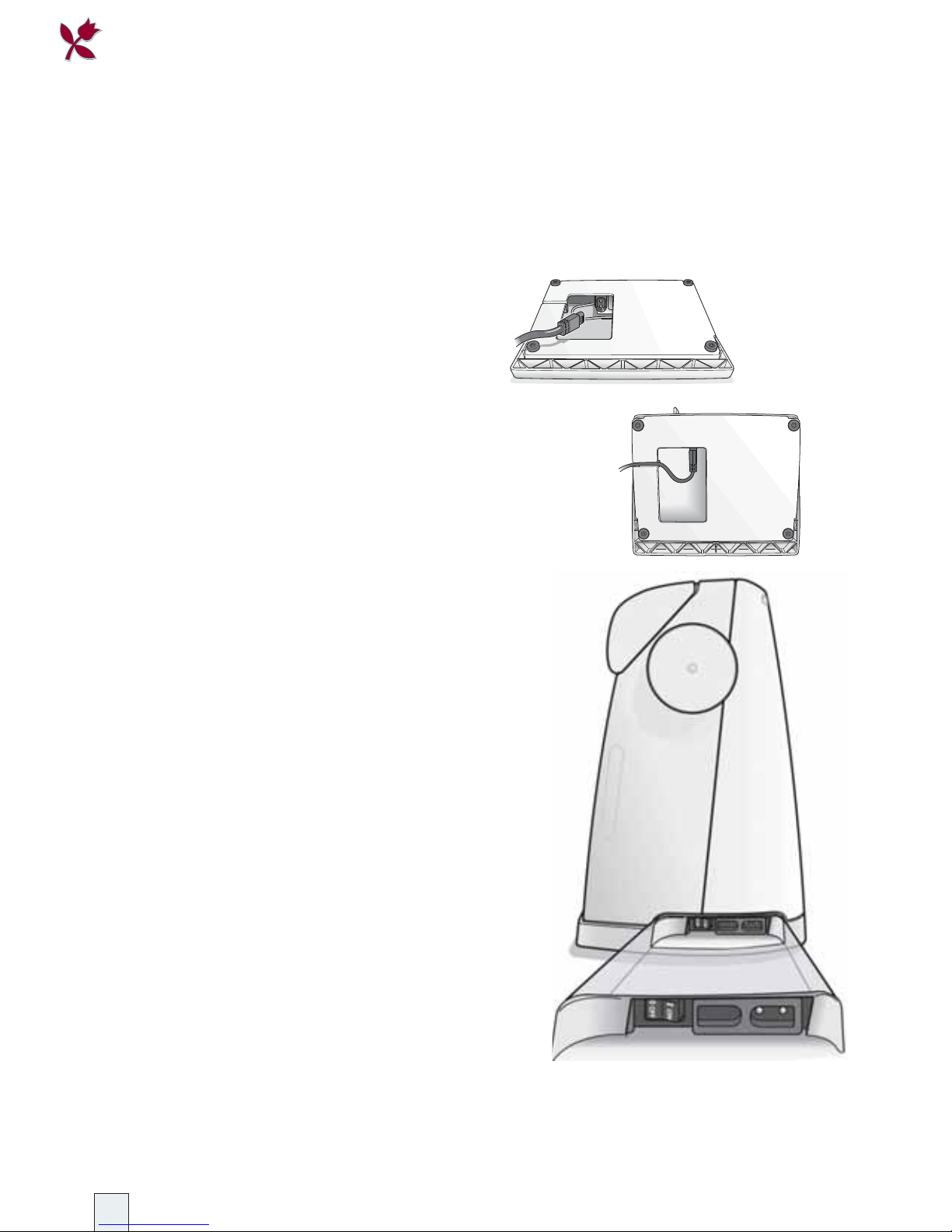

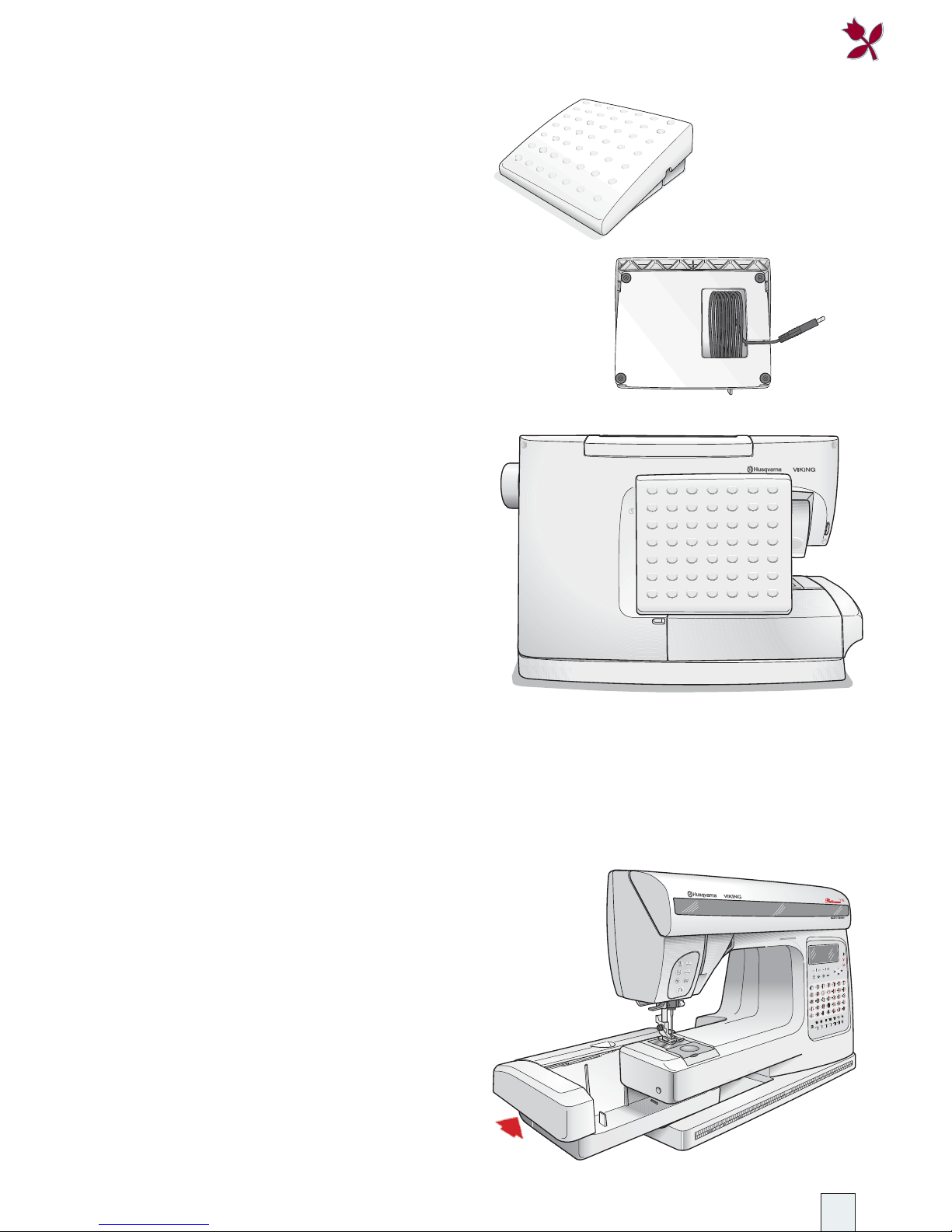

Connecting the foot control

Among the accessories you will ﬁ nd the foot control cord and the main cord. Connecting the foot control cord to the foot control is only necessary the very ﬁ rst time you are going to use the machine.

1. Take out the foot control cord. Turn the foot control over. Connect the cord to the socket inside the space of the foot control.

2. Push ﬁ rmly to make sure it is properly connected.

3. Put the cord through the slot on the right hand side of the foot comtrol.

Connect to the Power Supply

On the underside of the machine you will ﬁ nd information about the power supply (V) and the frequency (Hz).

Before plugging in the foot control, check to ensure that it is of type “FR4” (see underside of foot control).

1. Connect the foot control cord to the front socket on the bottom right side of the machine.

2. Connect the power cord to the rear socket on the bottom right side of the machine.

3. When you press the power switch to ON, both the machine and the light are switched on.

For the USA and Canada

This sewing machine has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to ﬁ t in a polarized outlet only one way. If the plug does not ﬁ t fully in the outlet, reverse the plug. If it still does not ﬁ t, contact a qualiﬁ ed electrician to install the proper outlet. Do not modify the plug in any way.

Page 7

Learn your Platinum 770

Pack Away After Sewing

1. Press the power switch to turn off the machine.

2. Unplug the cord from the wall socket ﬁ rst and then from the machine.

3. Wind the main cord around your hand and place the cord in the pocket of the hard cover. Here you can also place the User’s Guide and the Handbook.

4. Unplug the foot control cord from the machine. Wind the foot control cord around your hand and place it in the space of the foot control.

5. Check to ensure that all accessories are in the accessory tray. Slide the tray on to the machine around the free arm.

6. Place the foot control, with the underside towards you, ﬁ tting into the recess of the accessory tray at the rear side of the machine.

Accessory Tray

In the accessory tray there are special places for presser feet, and bobbins plus space for needles and other accessories. Store the accessories in the tray so they are easily accessible.

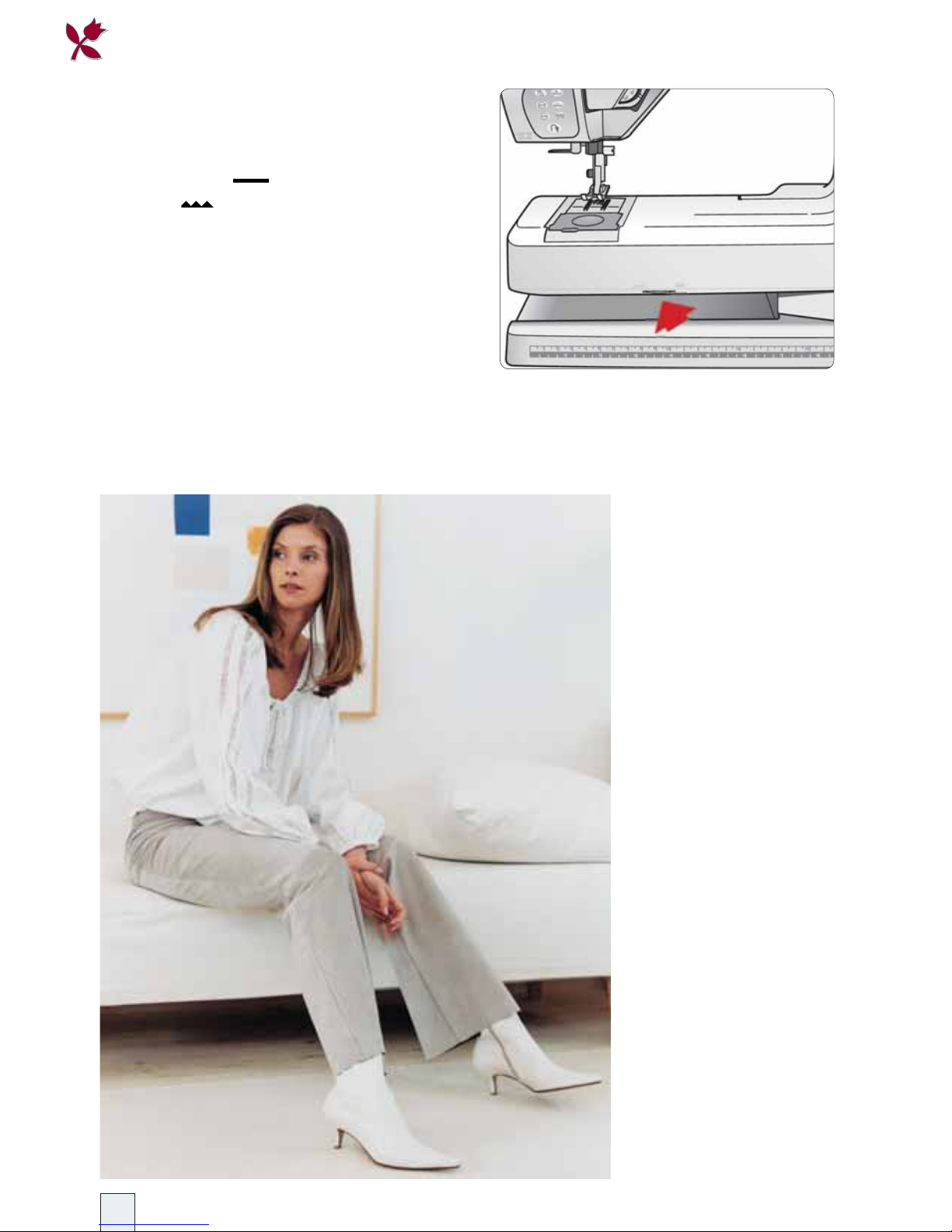

Remove the Accessory Tray

To use the free arm, you have to remove the accessory tray. When attached, there is a plastic hook that keeps the accessory tray locked to the machine. There is a button on the left underside of the accessory tray (1) that is used to unlock and remove it. Press the button upwards and slide the accessory tray to the left, passing the stop position, and remove it.

Page 8

Learn your Platinum 770

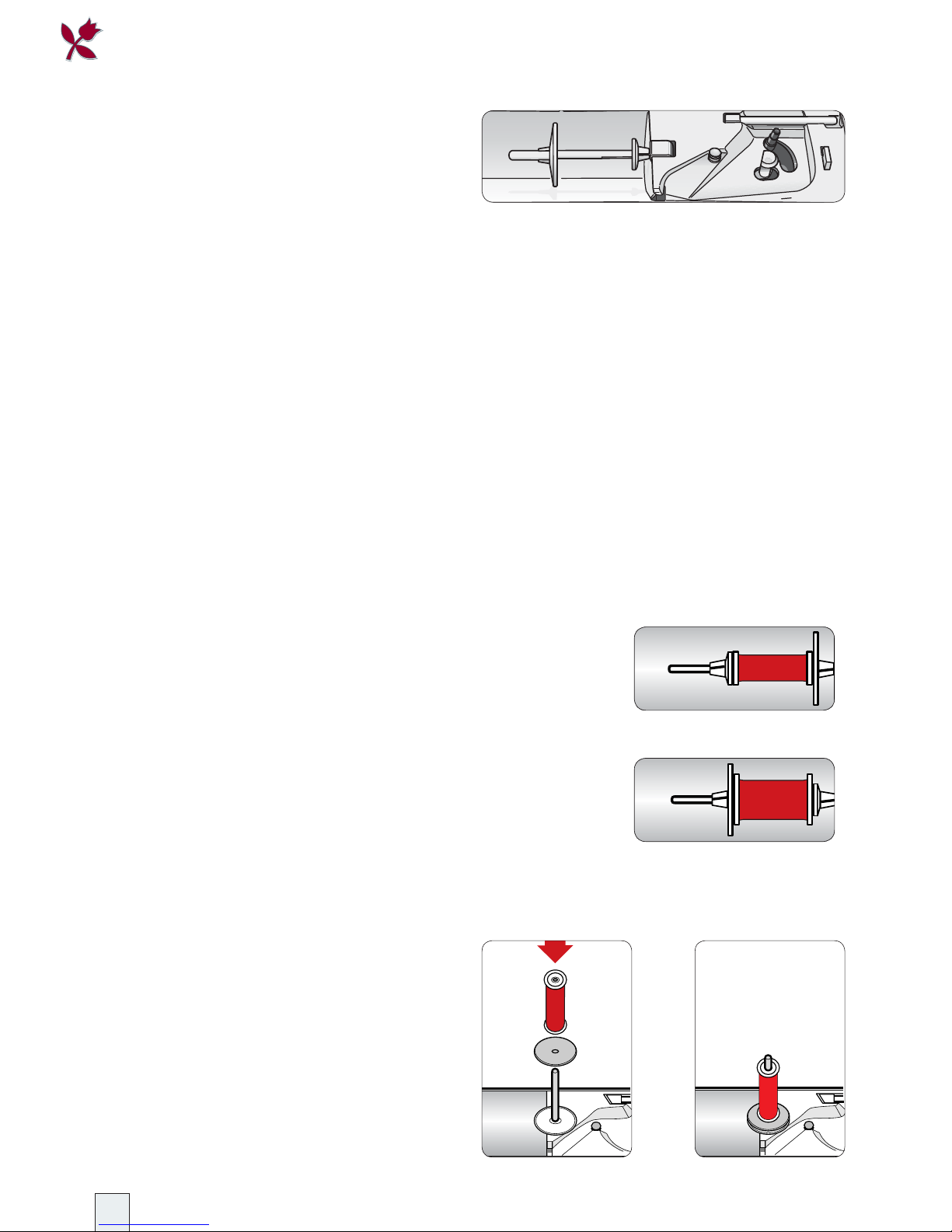

Spool Pins

Your Platinum 770 has two spool pins, a main spool pin and an auxiliary spool pin. The spool pins are suitable for all types of thread. Fold the spool pin out towards the right. Place the thread spool on the spool pin so that the thread reels clockwise. Slide on a spool holder (see below) and then fold the spool pin back to the horizontal position.

Main Spool Pin

The main spool pin is adjustable and can be used in a horizontal position (the thread reels off the stationary spool) or in a vertical position (the thread spool rotates). There are two spool holders on the spool pin, one large (a) and one small (b). Depending on what thread spool size or which spool pin position you are using, the spool holders are used differently. Use the horizontal position for normal threads and the vertical position for large spools or threads with special characteristics.

Horizontal Position

When using the pin in horizontal position and with narrow thread spools, place the large spool holder (a) under the thread spool. The small holder (b) is placed in front of the thread spool.

If you use large spools, place the small spool holder (b) under the thread spool and the large holder (a) in front of it.

The ﬂ at side of the spool holder should be pressed ﬁ rmly against the spool. There should be no space between spool holder and thread spool.

Vertical Position

To use the spool pin in its vertical position, fold the spool pin out towards the right. Slide on the large spool holder and place a felt pad under the thread spool. This is to prevent the thread from reeling off too fast.

Auxiliary spool pin

Main spool pin

Narrow thread spool

Large thread spool

Page 9

Learn your Platinum 770

Auxiliary Spool Pin

The auxiliary spool pin is used when winding a bobbin from a second spool of thread or for a second spool when sewing with a twin needle.

When using the auxiliary spool pin, place the large spool holder and a felt pad under the thread spool.

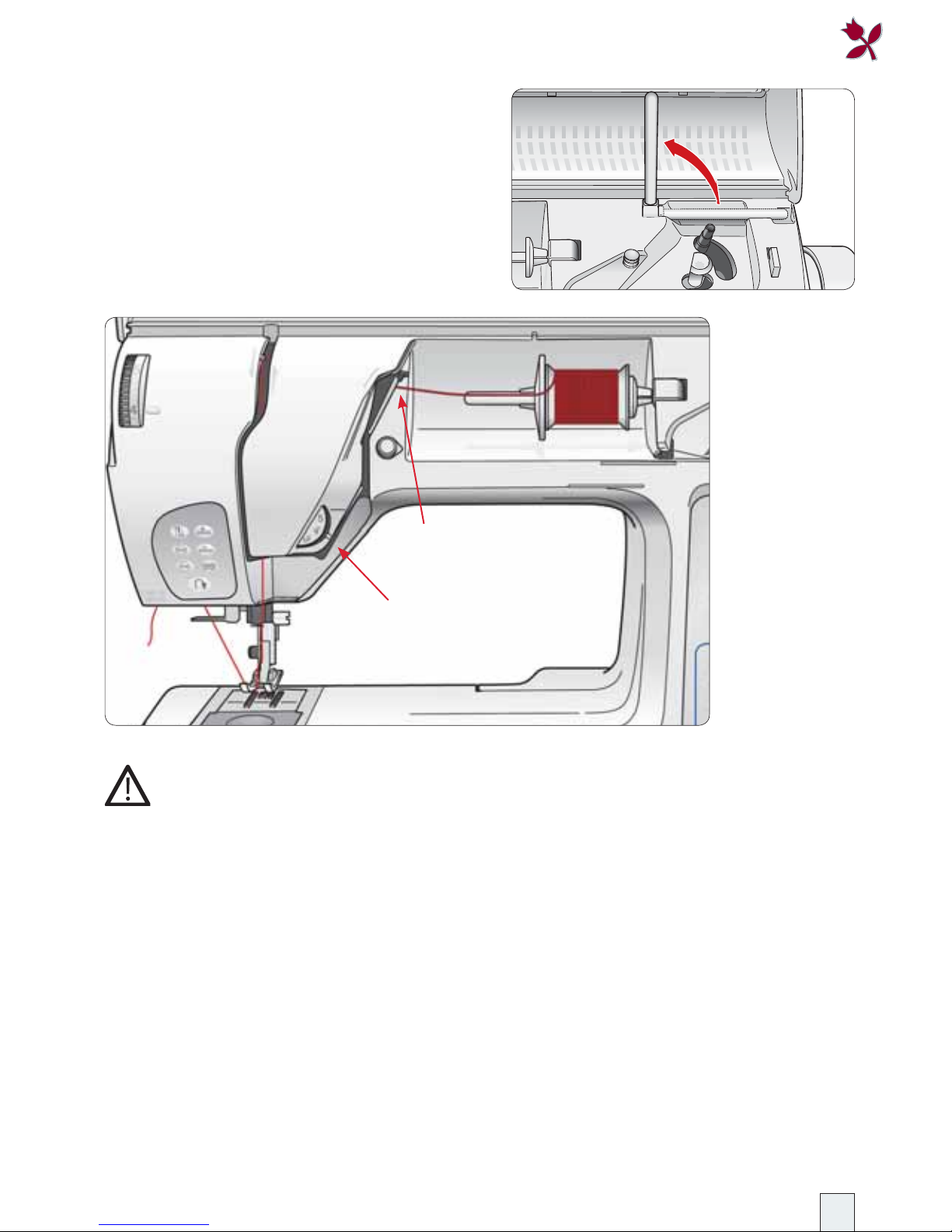

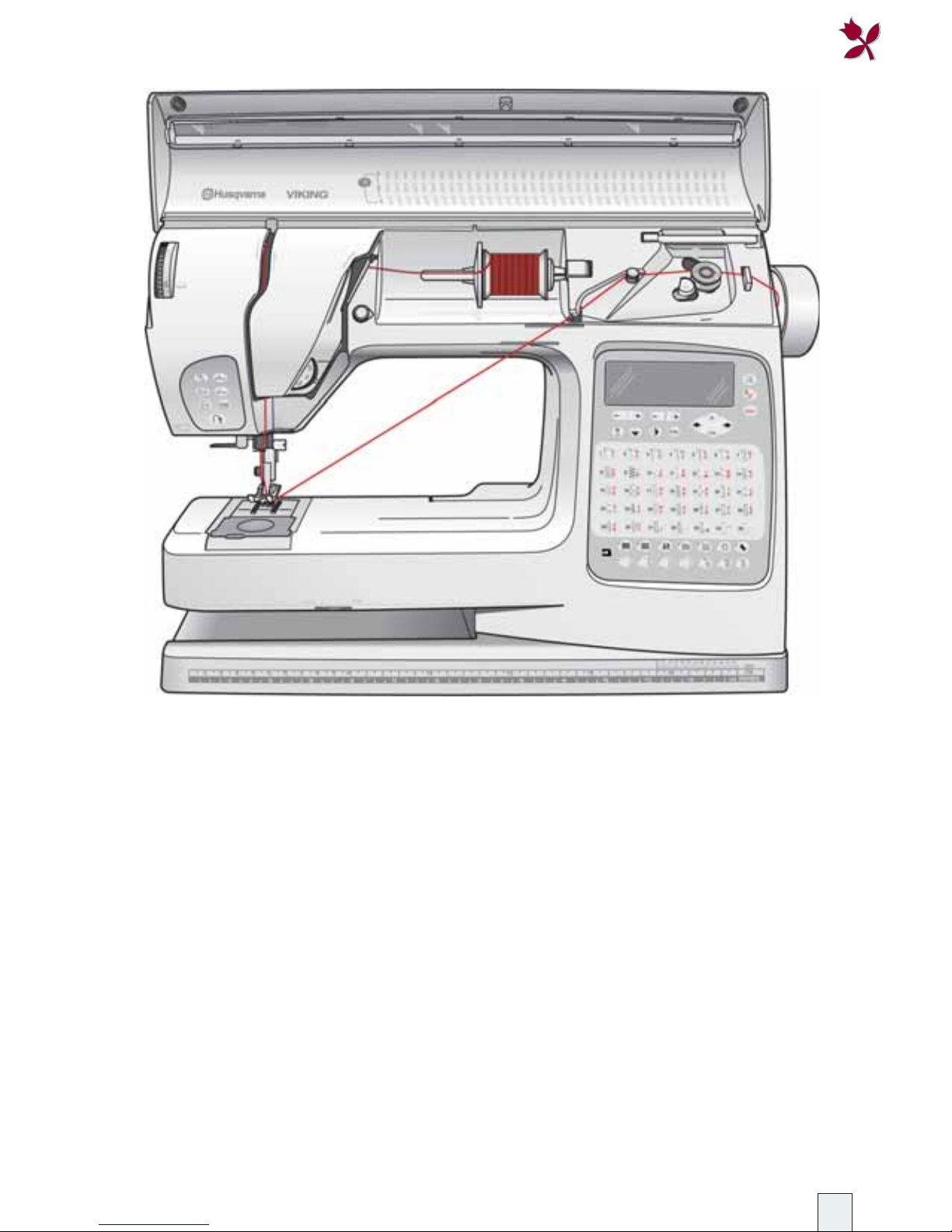

Threading the Upper Thread

Switch off the main switch.

When threading the upper thread, make sure that the presser foot is raised and the needle is in the up position.

1. Pull the spool pin out. Place the

spool on the spool pin with spool holder (follow the instuctions on previous page). The thread should reel clockwise. Push the spool pin back in.

Hold the thread near the spool using your right hand. Use your left hand to bring the end of the thread in the direction of the arrows on the machine.

2. Bring the thread into the pre-tension thread guide (a). Bring the thread down and up between the thread tension discs (b).

3. Continue threading in the direction indicated by the arrows. Bring the thread from the right when threading into the slot on the take-up lever.

4. Pull the thread into the last guide just above the needle.

5. The needle is threaded from front to back (see needle threader for further instructions).

6. Place the thread under the presser foot and into the thread cutter on the left side of the machine, pull it downwards to cut it.

Page 10

Learn your Platinum 770

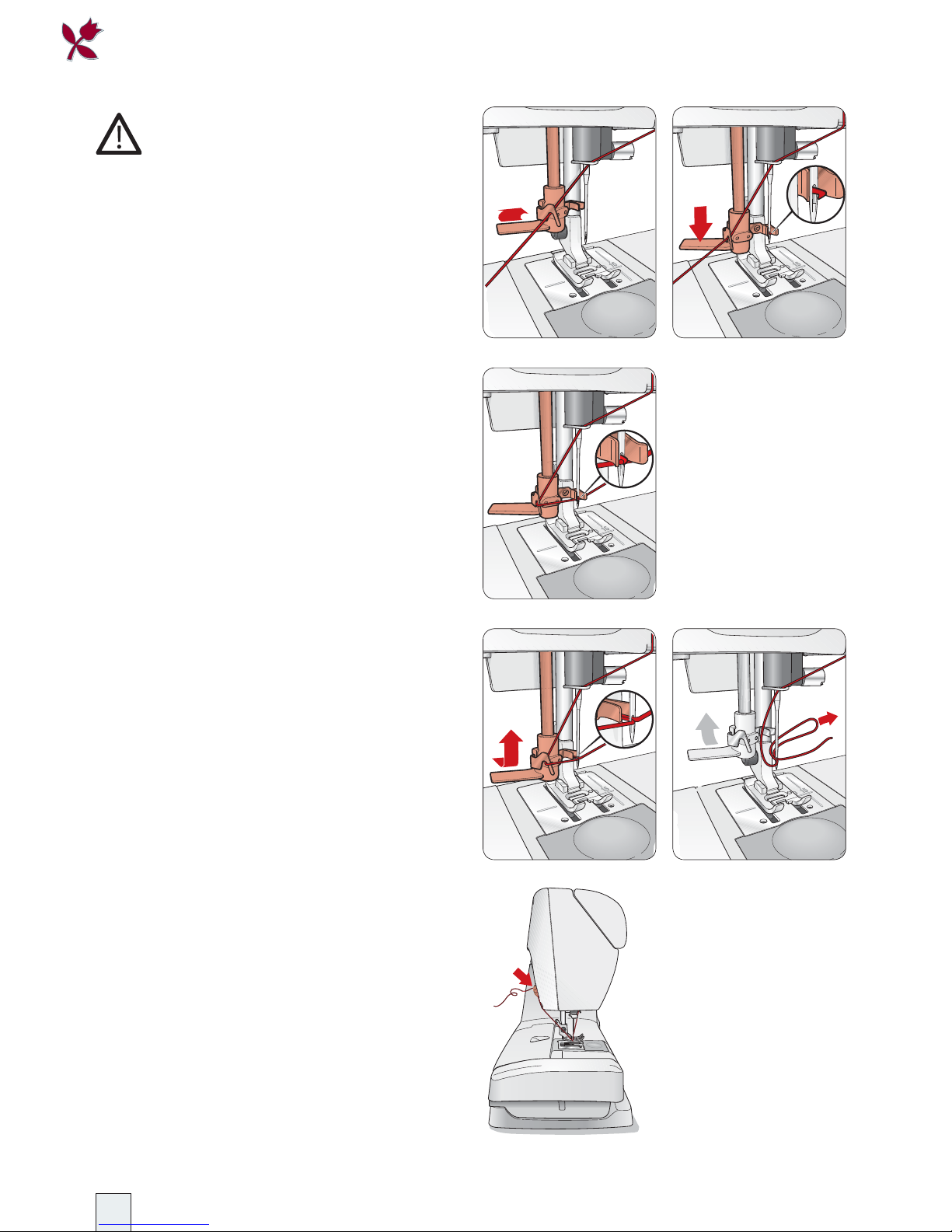

Needle Threader

Switch off the main switch.

The needle must be in the up position to use the needle threader. We also recommend lowering the presser foot.

1. Pull the needle threader all the way down, catching the thread under the guide (a).

2. Bring it forward until the metal ﬂ anges cover the needle. A small hook will pass through the needle eye.

3. Place the thread around the guide (a) and under the ﬂ anges in front of the needle, so the thread catches into the small hook.

4. Let the needle threader gently swing back. The hook pulls the thread through the needle eye and forms a loop behind the needle. Pull the thread loop out behind the needle.

5. Place the thread under the presser foot and cut the thread.

NOTE: The needle threader is designed to be

used for size 70-120 needles. You cannot use the needle threader for size 60 needles or smaller, the wing needle, twin needle, triple needle or when the Buttonhole Sensor Foot is on. There are also some optional accessories that require manual threading of the needle (see below).

When threading the needle manually make sure that the needle is threaded from front to back. The white presser foot ankle makes it easy to see the eye of the needle. The bobbin case cover can be used as a magnifying glass.

Page 11

Learn your Platinum 770

Threading for Twin Needle

Switch off the main switch.

1. Insert a twin needle. See page 12 “Changing the needle”.

2. Use a second thread spool or wind a bobbin with the thread you are going to use as the second upper thread.

3. LEFT NEEDLE (RED): Thread the machine as explained on page 7 and check to ensure that the thread lies between the inner thread tension discs, and inside the last thread guide. Thread the left needle.

4. RIGHT NEEDLE (BLUE): Pull up the auxiliary spool pin. Place the large spool holder and a felt pad on the spool pin.

5. Place the thread spool or the bobbin with the second thread on the spool pin.

6. Thread the machine as before but this thread should lie between the outer thread tension discs, and outside the last thread guide. Thread the right needle.

Page 12

Learn your Platinum 770

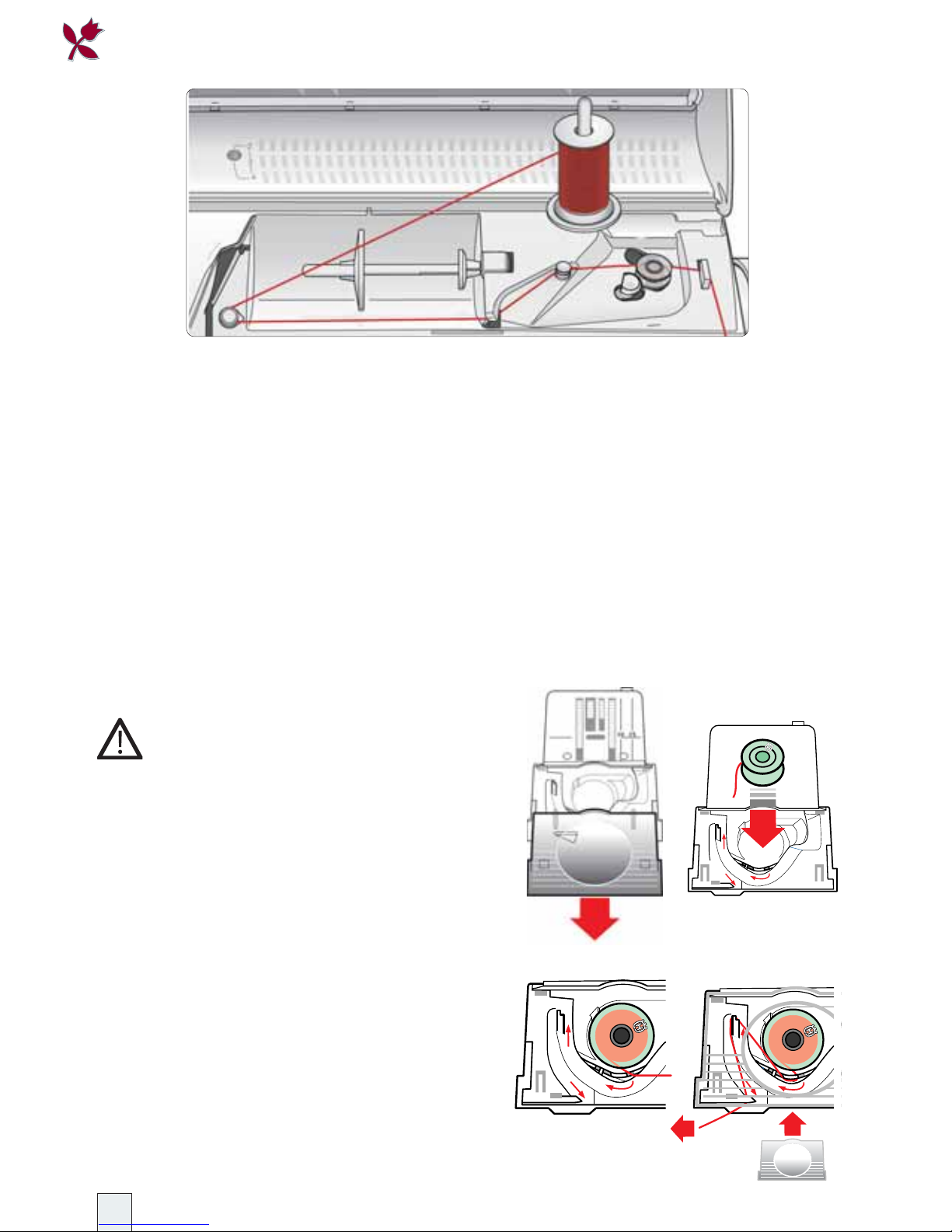

Placing the Bobbin in the Machine

Switch off the main switch.

1. Remove the bobbin cover by sliding it towards you.

2. Place the bobbin in the bobbin case with the markafacing up and the thread to the left of the bobbin. The bobbin will then rotate counter clockwise while pulling out the thread.

3. Place your ﬁ nger on the bobbin to keep it from turning as you pull the thread ﬁ rmly to the right and then to the left into the tension spring (a) until it ‘‘clicks’’ into place.

4. Continue threading around (b) and to the right of and then left into the thread cutter (c). Replace the cover (1). Pull the thread to the left to cut it (2).

Bobbin Winding

1. Place an empty bobbin on the bobbin spindle at the front of the machine (the markafacing up). Push the bobbin spindle down.

2. Place the large spool holder and a felt pad under the spool on the auxiliary spool pin.

3. Bring the thread into the thread tension guide (a), and under thread guide (b) then over thread guide (c) as illustrated.

NOTE: Depending on thread quality, take the

thread one or two turns around the bobbin thread tension guide (a).

4. From above wind a few turns of thread clockwise around the bobbin and into the thread cutter (d).

5. Press the foot control. When the bobbin is full, the winding will stop automatically. Remove the bobbin and cut off the thread. Bring the bobbin spindle up.

Page 13

Learn your Platinum 770

Winding from the Needle

Make sure that the presser foot and the needle are in the up position. Use only the original Husqvarna Viking green bobbins.

Only use a metal presser foot when bobbin winding from the needle.

To wind, follow the instructions for “Bobbin winding”. The difference is that the thread is brought up from the needle, under the presser foot and to the right over thread guide (c).

Note: We do not recommend winding specialty threads such as invisible or other stretchy threads through the needle. Instead see “Bobbin Winding”.

Page 14

Learn your Platinum 770

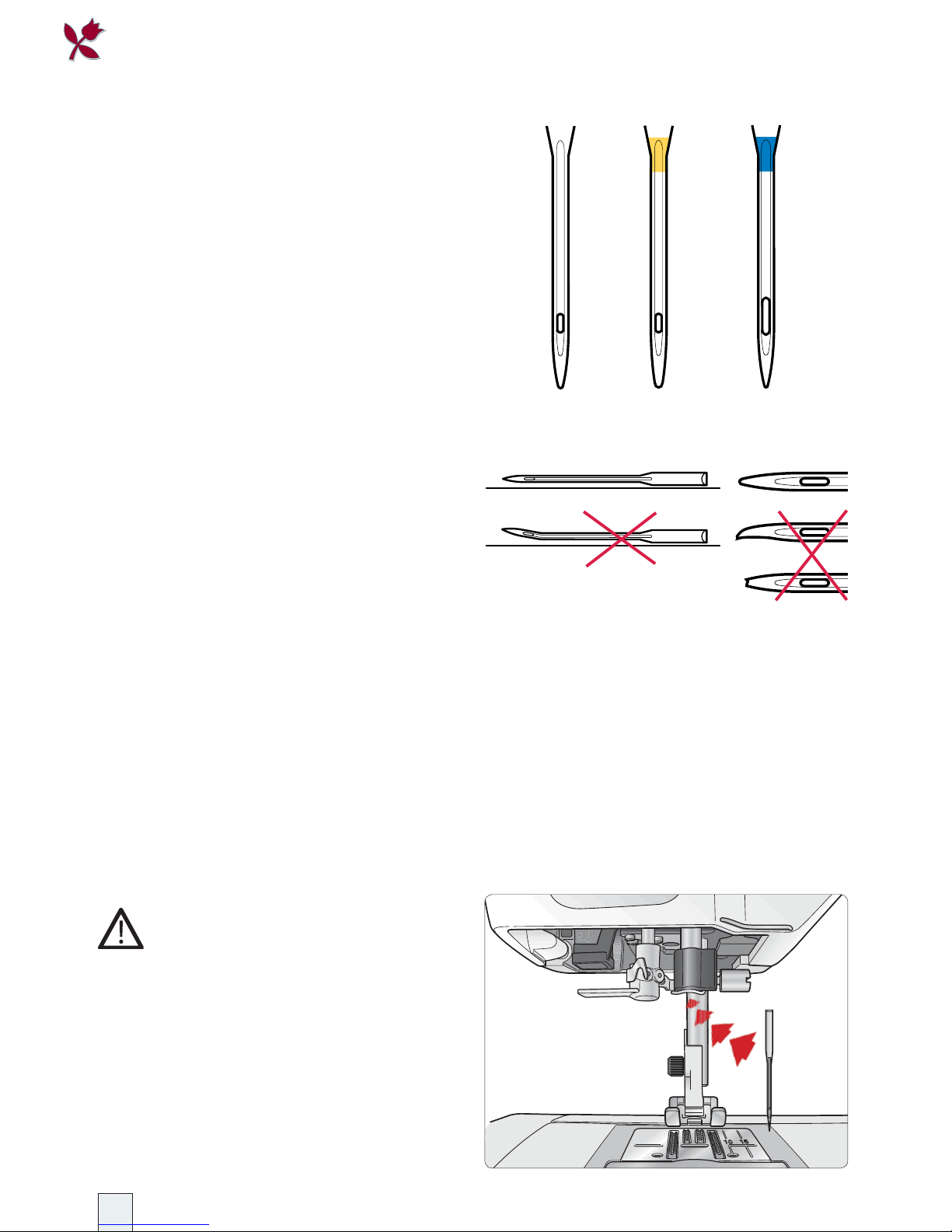

Needles

The sewing machine needle plays an important role in successful sewing. To ensure you will get a quality needle, we recommend needles of system 130/705H. The needle package included with Platinum 770 contains needles of the most used sizes for sewing in woven and stretch fabrics.

A. Universal Needles Sizes 80 and 90

These needles are used for sewing in all woven fabrics. The needle point is designed to penetrate between the threads of the fabric so the fabric will not be damaged.

B. Stretch Needles Sizes 90

These needles are used for sewing in knit and stretch fabrics. The stretch needle is marked yellow and has a rounded point.

C. Jeans Needles Sizes 90

These needles are used for sewing woven heavy fabrics, for example denim and canvas fabric. The jeans needle is marked blue and has an extremely sharp point to facilitate the penetrating of the fabric.

Note: Change the needle often, always use a straight needle with a sharp point (a).

A damaged needle (b) can cause skipped stitches, breakage of needles or snapping of thread. A damaged needle can also damage the needle plate.

Changing the Needle

Switch off the main switch.

1. Loosen the screw in the needle clamp with the screwdriver.

2. Remove the needle.

3. Push up the new needle with the ﬂ at side away from you until it will go no further.

4. Use the screwdriver to tighten the screw properly.

AB C

Page 15

Learn your Platinum 770

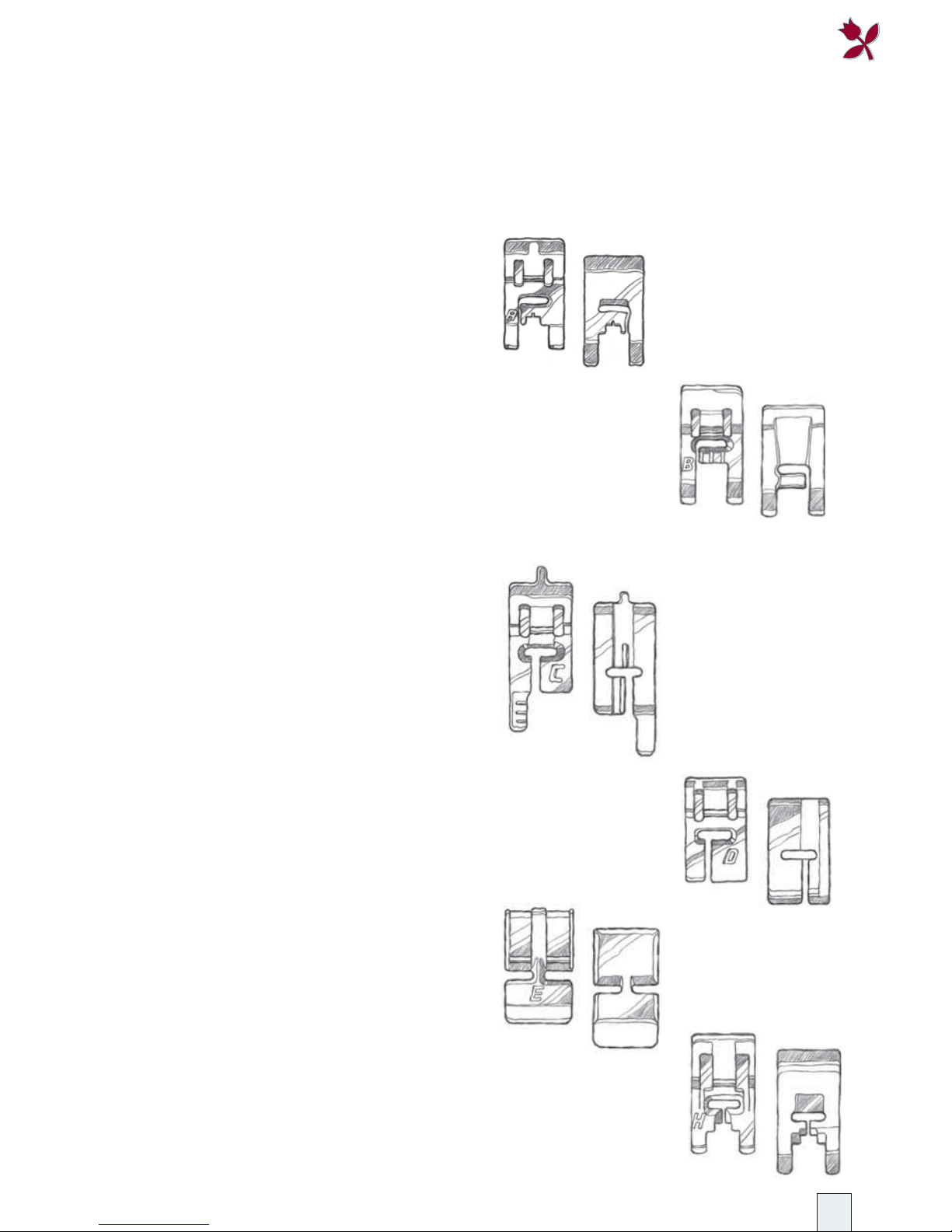

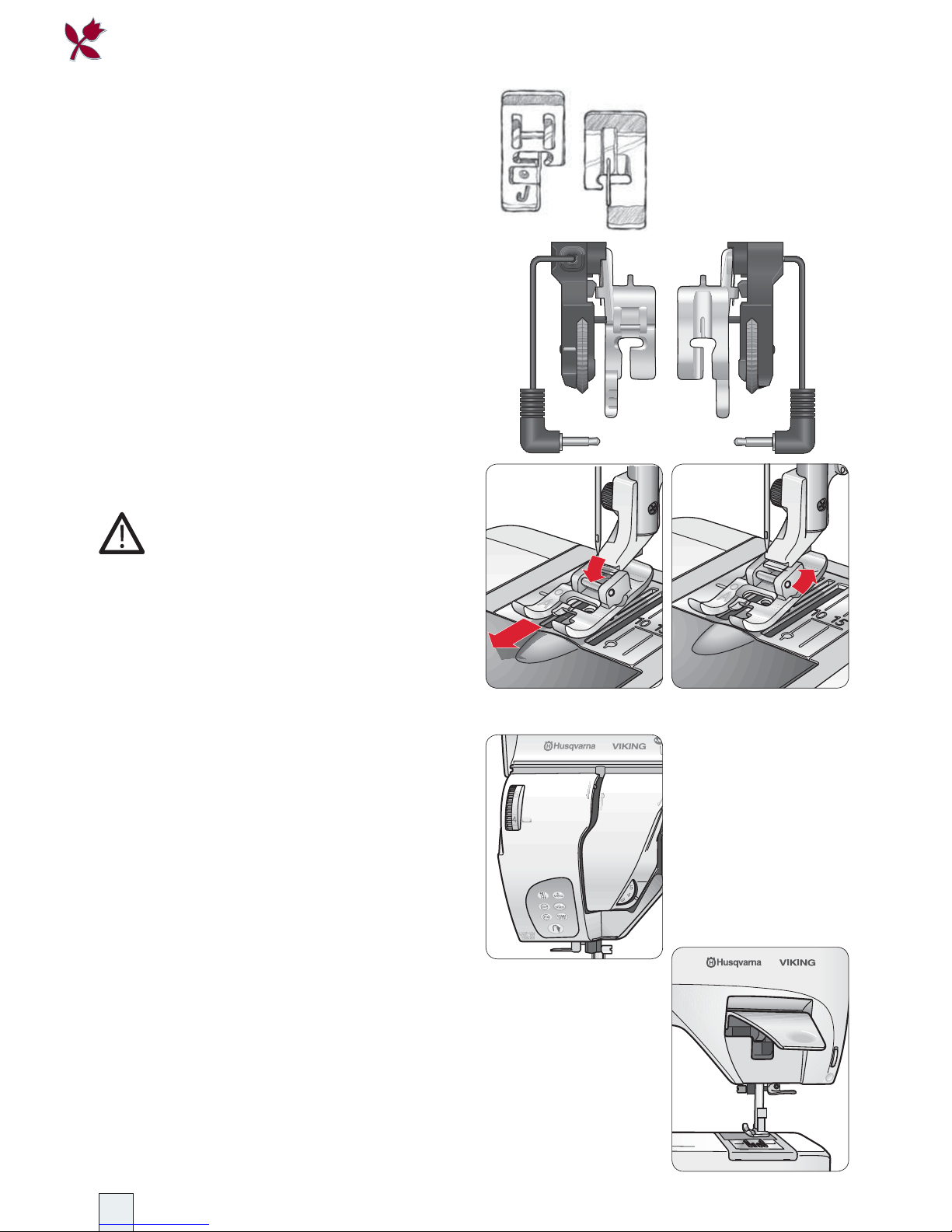

Presser Feet

Included there are a number of presser feet for different purposes.

Presser Foot A

Fitted on the machine upon delivery. This foot is used mainly for straight stitching and zigzag stitching with a stitch length longer than 1.0.

Presser Foot B

When sewing close zigzag stitches with less than 1.0 mm stitch length; other utility stitches or decorative stitches use this foot. The tunnel at the bottom of the foot is designed to feed smoothly over the stitches.

Presser Foot C

This is the buttonhole foot and it has guide lines to determine buttonhole length. The middle mark gives a 9/16'' (15 mm) buttoning edge. The two tunnels on the bottom of the foot feed smoothly and straight over the buttonhole columns.

Presser Foot D

This foot is used for blind hem stitches. The inner edge of this foot guides the fabric. The bottom of the foot is designed to ride along the hem edge.

Presser Foot E

This is the zipper foot and can be snapped on either to the right or to the left of the needle. This makes it easy to sew on both sides of the zipper.

Presser Foot H

This foot with a glide plate underneath, is used when sewing foam, plastic, or leather, min i miz ing the risk of these materials sticking to the foot.

Page 16

Learn your Platinum 770

Presser Foot J

This foot is used for overcasting, seam and overcasting, i.e. stitches which have a stitch width of 5.0 and 5.5 mm. Stitches form over the pin which prevents puckering at the edge of the fabric.

Sensor Buttonhole Foot

When connected to the machine it measures buttonhole length and sews the buttonhole size that has been entered into the machine. The middle mark gives a 9/16'' (15 mm) buttoning edge.

Read more about different optional presser feet in the Accessory User’s Guide.

Changing the Presser Foot

Switch off the main switch.

1. Make sure that the needle is in the

highest position. Pull the presser foot towards you.

2. Line up the cross pin on the foot

between the spring and the presser foot ankle. Press back until the foot snaps into place.

Presser Foot Pressure (a)

The presser foot pressure is adjusted with the dial found under the lid on your Platinum 770. Normal setting is around four. The higher the number the more pressure on the fabric. Knit and soft fabrics should be sewn at lower pressure.

Presser Foot Lever (b)

The presser foot is raised and lowered with the presser foot lever. The presser foot must be lowered when sewing.

By raising the presser foot lever as far as it goes and press it upwards, the lift height of the presser foot can be increased by several millimeters.

2.1.

Page 17

Learn your Platinum 770

Thread Tension

Use the recommended thread tension setting given on the GraphicDisplay.

You can adjust the top thread tension for special fabrics and/or techniques. To adjust, turn the numbered tension dial (a). The higher the number the tighter the tension. Normally top thread tension is set to around 4.

When sewing buttonholes and decorative stitches set thread tension to around 3.

When topstitching with a coarse thread in thick fabric, increase the tension to 7-9.

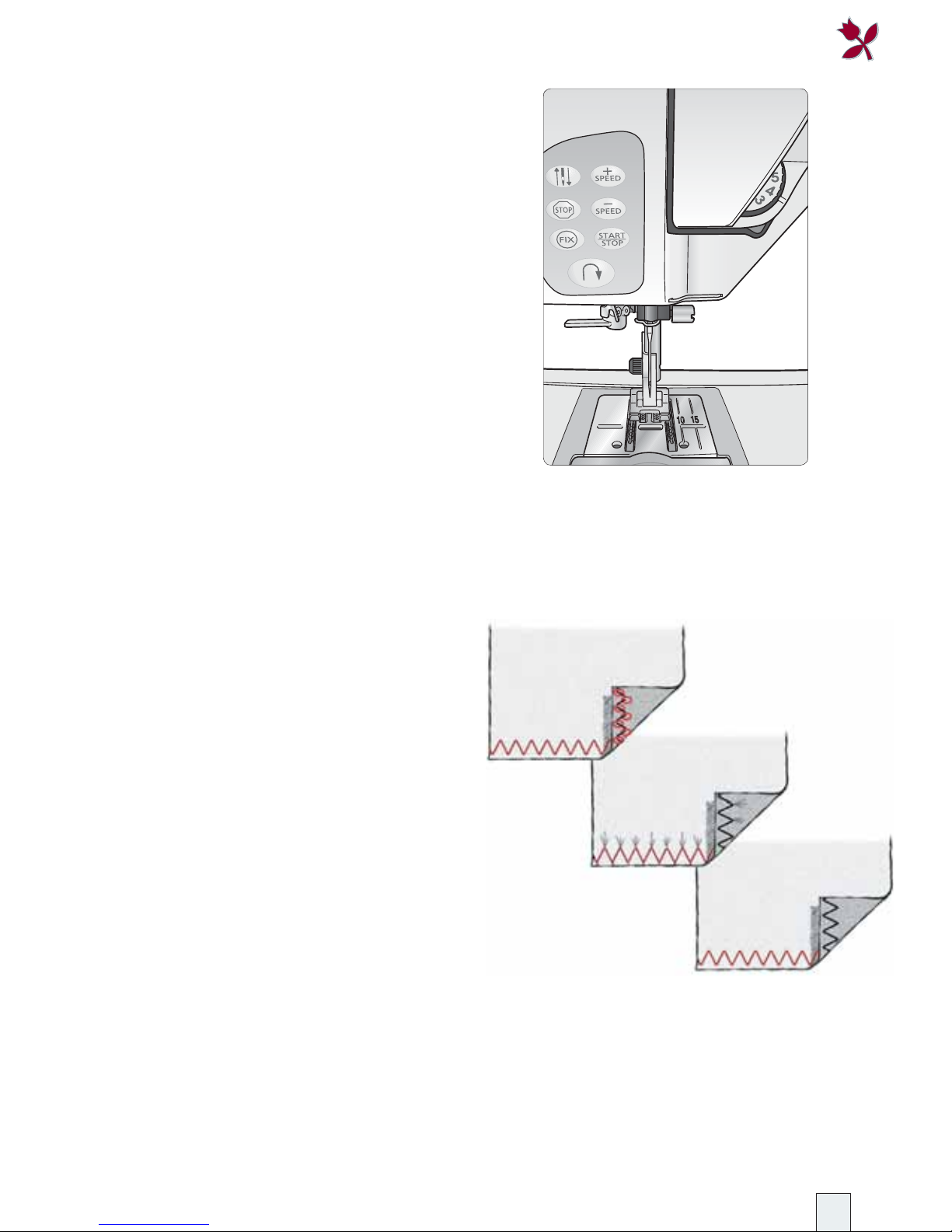

Correct and Incorrect Thread Tension

To understand the correct thread tension, sew a few sample zigzag stitches at different settings.

1. Begin with a tension that is too loose, i.e. set at the lowest number. The lower thread will lie straight and the upper thread will be drawn down on the underside.

2. If you set the tension at the highest number, the opposite will occur, and the seam may pucker and or thread breaks.

3. The correct thread tension is set when the threads interlock in the middle of both layers of material or, in the case of decorative stitches, on the underside.

Make a few tests on a scrap piece of the fabric you are going to sew and check the tension.

Page 18

Learn your Platinum 770

Lowering the Feed Teeth

The feed teeth are lowered when you turn the dial on the front of the free arm to the left . Turn the dial to the right if you wish to raise the feed teeth. The feed teeth will raise as you begin to sew. The feed teeth should be lowered when sewing buttons and for free-motion work.

Page 19

Functions and GraphicDisplay

FUNCTIONS AND GRAPHICDISPLAY

Page 20

Functions and GraphicDisplay

NEEDLE STOP UP/DOWN is used to

move the needle down or up and/or to set the needle stop position up or down.

NOTE: When sewing, the needle can

be raised/lowered by lightly tapping the foot control.

STOP is used to conclude a stitch.

Your Platinum 770 fastens the thread and stops automatically when a stitch sequence has been completed. STOP is cancelled when you touch the button again or by selecting a new stitch. When STOP is active, an icon is shown on the GraphicDisplay. The stop-function can be programmed.

FIX is used to tie off stitches.

When the button is pressed, an icon is visible on the GraphicDisplay. By pressing the button again the function can be turned off. When beginning to sew, Platinum 770 sews a few tie off stitches and goes on with the selected stitch. Touch FIX while sewing and Platinum 770 sews a few tie off stitches and stops automatically. The ﬁ x-function can be programmed.

Touch + SPEED or - SPEED to increase or decrease the sewing speed.

All stitches in Platinum 770 have a pre-set, recommended sewing speed. When you select a stitch Platinum 770 automatically sets the correct sewing speed.

If you have reduced the speed manually, your setting is retained and kept for all stitches until your Platinum 770 is turned off.

START/STOP is touched when you

want to run the machine without using the foot control. Touch START/STOP to begin and touch it again to stop sewing.

REVERSE is pressed to sew in

reverse. When the button is released, Platinum 770 sews forwards. The longest reverse stitch length is 3 mm.

For permanent reverse, touch the button twice in quick succession before starting to sew. The reverse sewing is indicated by an icon on the GraphicDisplay.

Platinum 770 sews in reverse until you touch the button again.

Function Buttons

Page 21

Functions and GraphicDisplay

The stitch width is automatically adjusted to ﬁ t the set twin needle width. The stitch settings remain until the twin needle function is turned off.

The twin needle function is active until you cancel it, even if your Platinum 770 is turned off. Touch the twin needle button and set the value to “0” to turn off the function.

Mirror Side to Side

Touch this button to mirror the selected stitch side to side. If this button is pressed when straight stitch with left needle position is selected, the needle position is changed from left to right. If touched in REP, the whole stitch combination is mirrored (see page 30).

If you try to mirror a stitch that cannot be mirrored, Platinum 770 beeps.

Mirror End to End

Touch this button to mirror the selected stitch end to end. If touched in REP, the whole stitch combination is mirrored (see page 30). If a STOP is programmed at the end of a combination, and the combination is mirrored end to end, the

STOP will be placed at the beginning

instead.

If you try to mirror a stitch that cannot be mirrored, Platinum 770 beeps.

The Functions Panel

Stitch length

When you select a stitch, your Platinum 770 automatically sets the best stitch length. The set length is visible on the GraphicDisplay above the stitch length button. You can change the stitch length by pressing either the (+) or (-) button. Some stitches have a limited stitch length. Minimum and maximum settings are indicated with a “beep” signal.

Stitch width

The stitch width is set in the same way as the stitch length. The set width is visible on the GraphicDisplay above the stitch width button. The width can be adjusted between 0 and 6 mm. If straight stitch is selected, the width button is used to adjust the needle position. Some stitches have a limited stitch width. Minimum and maximum settings are indicated with a “beep” signal.

Twin needle

When pressing this button, a pop-up message appears on the GraphicDisplay, prompting you to set the twin needle width. Select the width by touching the selection buttons. A twin needle icon is shown in the upper left corner of the GraphicDisplay. Touch the button again to see the current twin needle setting.

Page 22

Functions and GraphicDisplay

CLR

Touch this button in PROG to delete the whole or a part of a program (see page

28). When a program in a memory has been deleted, the stitch length and width are shown as 0.0 on the display.

CLR – Language

This button is also used to set the LAN-

GUAGE used by your Platinum 770. All

machines are pre set to English. To change the language, touch CLR while turning on the machine. Then step between the langages by pressing the selection buttons. Touch M to conﬁ rm

your langauge selection.

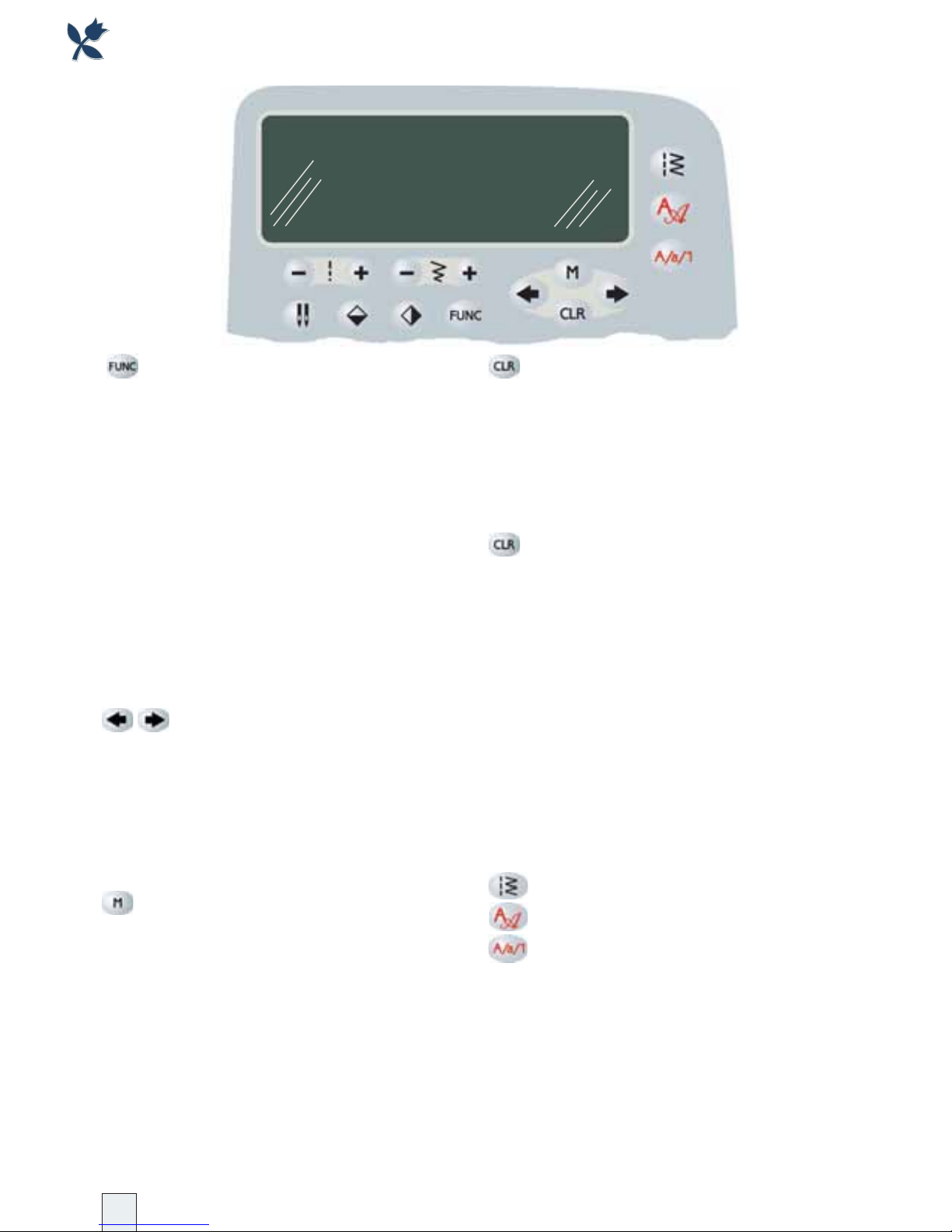

Stitch Selection Menus

Your Platinum 770 has three different main menus:

Stitches Alphabets Alphabet sub menu

An icon in the upper right corner of the GraphicDisplay shows the currently selected menu.

Read more about how to select the different stitches on the following pages.

FUNC

Touch this button to step between the different modes of your Platinum 770. There are three different modes,

NORM,

PROG and REP. The NORM mode (normal

sewing mode) is always active when the machine is turned on. Touch once to activate the program mode (used when programming), then touch again to enter the REP mode that is used to sew a programmed combination. Touch again to return to NORM mode. The active mode is indicated on the GraphicDisplay.

Selection Buttons

These buttons are used to advance or return within a programmed sequence, when adjusting the twin needle width, the buttonhole size or the buttonhole balance.

Memory

Your Platinum 770 has four different memories where programmed combinations can be saved. Each memory will hold up to 55 stitches or letters. The button is used to advance to the memory required in PROG or REP. The current memory number is shown in the lower right corner of the GraphicDisplay.

Page 23

Functions and GraphicDisplay

Stitch Selection

Your Platinum 770 has three different main menus: Stitches, Alphabets, Alphabet sub menu.

Utility and Decorative Stitches

Platinum 770 has 35 utility stitches (menu 1), and 105 decorative stitches (menu 2-4). The utility stitches are visible on the Touch Panel and the decorative stitches are pictured inside the lid. You can also ﬁ nd an utility stitch overview on page 62 in your Handbook.

Touch the stitch menu button to open a pop-up on the GraphicDisplay, that shows the different sub menus. Step between the sub menus by touching the button. The currently selected menu is surrounded by a frame on the display.

Touch one of the stitch buttons to select the stitch. The pop-up is closed and the selected stitch is shown on the GraphicDisplay. When the stitch is shown as 1:02 on the GraphicDisplay or in the User’s Guide/Handbook, 1 indicates the stitch menu 1 and 02 the selected stitch. Likewise, 4:20 is stitch number 20 on stitch menu 4.

Your Platinum 770 sets the speed, stitch length and -width. The recommended presser foot, presser foot pressure, thread tension and needle are shown on the GraphicDisplay. Set your Platinum 770 according to the recommendations.

Page 24

Functions and GraphicDisplay

Alphabets

Your Platinum 770 has two different alphabets, Outline Block and Script. The Outline Block alphabet is the default font.

Touch the alphabet menu button, a pop-up showing the different alphabets appears. Touch the button again to step between the alphabets. The currently selected alphabet is surrounded by a frame on the display.

Touch a letter (shown in red on the stitch selection buttons) to conﬁ rm the selection. The selected letter appears on the Graphic-Display in upper case letters.

Alphabet Sub Menu

When the Alphabet sub menu button is pressed, a pop-up appears on the GraphicDisplay. You can choose between upper case letters, lower case letters or numbers/special characters by pressing the Alphabet sub menu button. The currently selected alphabet sub menu is surrounded by a frame on the display.

As soon as a letter is selected, the display changes and the selected letter is shown with recommended settings.

Note: If the Alphabet sub menu button is pressed before an alphabet font is selected, the latest used font or the default font (Outline block) is active.

The selected alphabet and alphabet sub menu is shown in the upper right corner of the GraphicDisplay.

Upper case and lower case letters

Numbers/Special characters

Outline Block alphabet

Script alphabet

Page 25

Functions and GraphicDisplay

Russian and Japanese alphabets

Your Platinum 770 features also Russian and Japanese alphabets. When the Russian or Japanese language is selected, the script alphabet is replaced with Russian or Japanese. The Russian and Japanese alphabets differ from the Latin alphabet that is displayed on the buttons:

The Russian alphabet starts in the top left corner, on the button marked with A, and then continues from left to right moving down, row by row.

The Japanese alphabet starts in the top right corner, on the button marked with G and then continues from top to bottom moving left, row by row.

Below you ﬁ nd a conversion table showing the two alphabets and how to select the letters.

Russian Japanese

Page 26

Functions and GraphicDisplay

Sewing Advisor

Your Platinum 770 sewing machine features the exclusive Husqvarna Viking Sewing Advisor. It is always active and is located at the bottom of the Touch Panel. When beginning a sewing project, touch your fabric type and weight then touch the technique you desire to sew.

The Sewing Advisor sets the best stitch, stitch length, stitch width, and sewing speed for your project. Platinum 770 also gives you recommendations on thread tension, presser foot pressure and presser foot for the selected fabric and technique.

Fabric Selection

Woven or Knit

The difference between woven and knit fabric is the way the threads are put together. Woven fabrics are made of two thread systems, warp lengthwise and weft crosswise that intersect at right angles. A knit fabric is made of one thread system with interlaced stitches. A knit fabric usually has stretch.

As a general rule, enter Woven for stable fabrics that have no stretch and Stretch for fabrics that have stretch.

WOVEN LIGHT: chiffon, organza,

batiste, silkies, wool challis, etc.

WOVEN MEDIUM: calico, quilting

fabrics, wool crepe, and broadcloth, etc.

WOVEN HEAVY: for denim, wool

suiting and coating, canvas, etc.

STRETCH LIGHT: for charmeuse

nylon, single knit jerseys, etc.

STRETCH MEDIUM: for double knit,

velour, plush, swimwear, etc.

STRETCH HEAVY: for sweater knits,

ﬂ eece, etc.

Knit fabric

Woven fabric

Page 27

Functions and GraphicDisplay

Leather

Vinyl

Leather/Vinyl

Leather is animal skin with the coat (fur) removed. Leather can be smooth or sueded and has some give.

Vinyl is a synthetic material which often has a woven wrong side. Vinyl can be smooth or patterned and some vinyl has give.

LEATHER/VINYL: for suede, real

leather and for artiﬁ cial leather

and suede.

Techniques

SEAM: sews two pieces of fabric

together.

OVERCAST: overcast fabric edges to

prevent them from fraying and to

help them lay ﬂ at.

SEAM/OVERCAST: sews the seam and

overcasts the edge all at one time.

BASTE: a temporary stitching for

ﬁ tting garments, gathering and

marking.

BLIND HEM: creates an invisible

hem on garments. Is not recom-

mended for light weight fabric or for leather/vinyl, but your Platinum 770 selects the best stitch possible.

HEM: selects the best visible or top

stitch hem for your fabric type

and weight.

BUTTONHOLE: the Sewing Advisor

selects the best buttonhole possi-

ble for your fabric.

Note: If an unsuitible combination is selected (for example woven light-blind hem), Platinum 770 beeps.

Page 28

Functions and GraphicDisplay

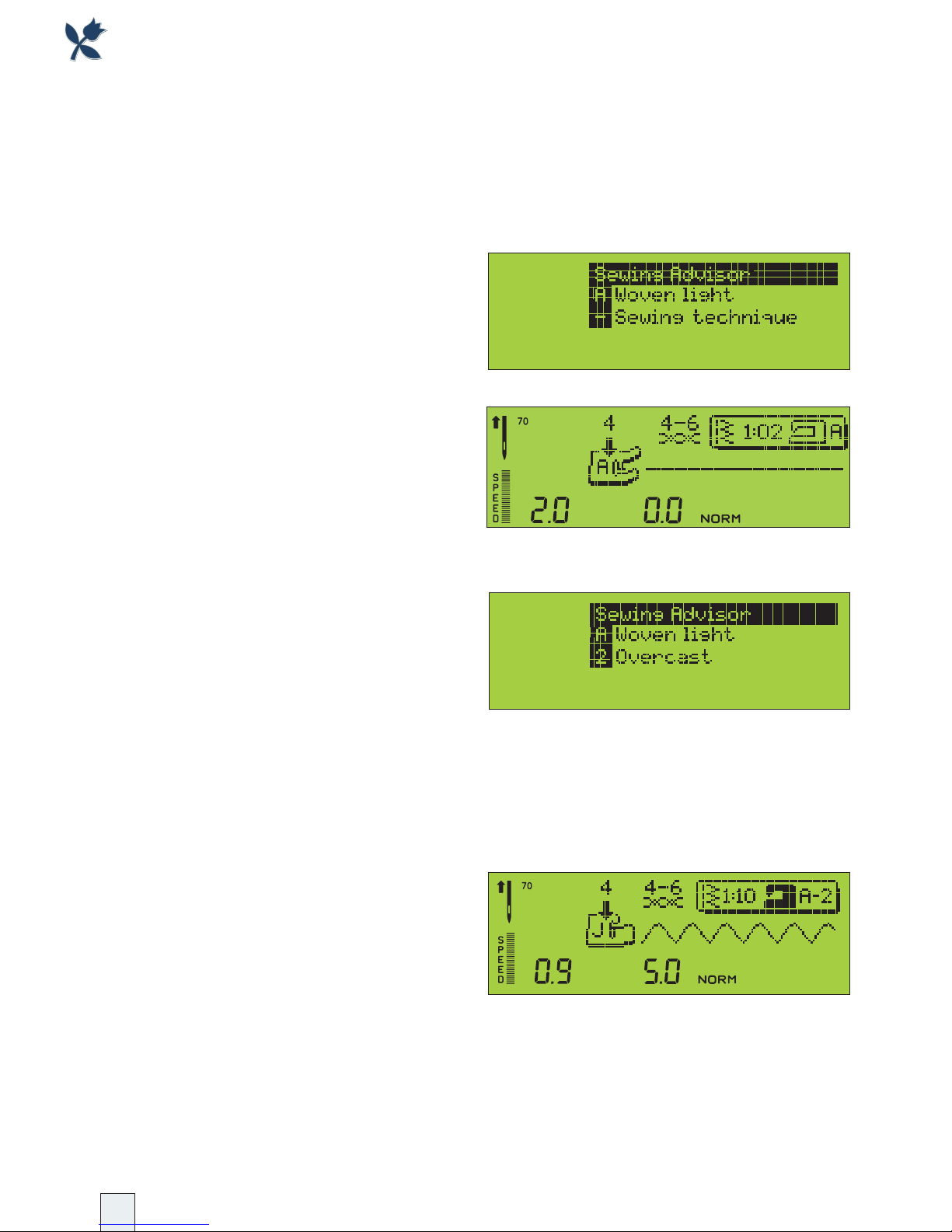

How to Use the Sewing Advisor

Woven medium is the default fabric and is active until another fabric is selected. The last fabric selected is always active and retained in the memory even when the machine is turned off.

When pressing a fabric icon, a pop-up appears on the GraphicDisplay showing the selected fabric.

If your Platinum 770 is used for the ﬁ rst time or if a stitch has been selected from the stitch selection buttons, the

text “Sewing technique” is visible in the technique ﬁ eld. If no sewing technique

is used, your Platinum 770 switches to the last used stitch. The selected fabric is indicated within the SEWING ADVISOR icon in the upper right corner of the display.

If a sewing technique is selected, the last fabric selected (or the default) and the selected technique are visible in a pop-up on the GraphicDisplay.

The text is visible for as long as the button is pressed, and a few seconds after it has been released. Then you can see the selected stitch and all recommendations.

The settings made on the SEWING ADVI-

SOR are always visible in the upper right

corner of the GraphicDisplay. The letter indicate the fabric and the number the technique. If another stitch than the one recommended by the SEWING ADVISOR is selected, the selected fabric remains and your Platinum 770 leaves the Sewing Advisor mode.

Learn to sew with your SEWING ADVISOR in the Platinum Family Handbook.

Page 29

Functions and GraphicDisplay

General Icons

1. NEEDLE SETTINGS: here, you get information about needle size and type, whether single or twin needle is selected or if the needle stop position is set to up or down.

2. The set SPEED is shown here.

3. Indicates that the STOP function is activated.

4. Indicates that the

FIX function is acti-

vated.

5. The set

STITCH LENGTH is shown

here.

6. The set STITCH WIDTH is shown here.

7. Indicates that REVERSE is active.

8. The recommended PRESSER FOOT and

PRESSER FOOT PRESSURE is shown here.

9. The recommended THREAD TENSION is shown here.

10. The SELECTED STITCH is shown here.

11. Indicates that STABILIZER should be used.

12. Indicates the active SEWING MODE.

Icons on the GraphicDisplay

On the GraphicDisplay, there are always icons that give you all information you need to attain the best sewing result possible. Some icons are always active and some appear only at speciﬁ c occasions. The icons visible on the GraphicDisplay are listed and explained below.

13. Stitch Information

SEWING ADVISOR

The selected fabric (letter) and sewing technique (number) are shown next to the sewing machine icon. Also the stitch

selected by the Sewing Advisor is visible to the left of the SewingAdvisor icon.

STITCH SELECTION BUTTONS

When a stitch is selected from one of the stitch selection buttons, the selected stitch menu and stitch is shown together with the currently selected fabric.

LETTERS

When a letter is selected, the selected alphabet and alphabet sub menu is shown together with the currently selected fabric.

3. 4. 8.

5. 7. 11. 6. 12.

9. 13.10.

Page 30

Functions and GraphicDisplay

Programming Icons

14. PROG or REP is visible here indicating whether you are in the programming mode or if you are in the repetition mode to sew out your program.

15. A number indicating the ACTIVE

MEMORY is shown here.

Buttonhole Icons

16. CORD the buttonhole.

17. Use SENSOR BUTTONHOLE FOOT.

18. Indicates SEWING DIRECTION and what part of the buttonhole that is currently sewn.

19. Touch REVERSE to set the buttonhole size.

When the Sensor Buttonhole Foot is connected.

20. Arrows indicate that the two columns of the buttonhole are SEWN IN THE

SAME DIRECTION (only for satin stitch

buttonholes).

21. Set BUTTON SIZE, by pressing the selection arrows.

Tapering Icons

22. A cursor indicates what PA RT OF THE

TAPER that is currently sewn.

23. Touch REVERSE to sew the taper point.

15.14.

16.17. 18. 19.

21.20.

22. 23.

Page 31

Functions and GraphicDisplay

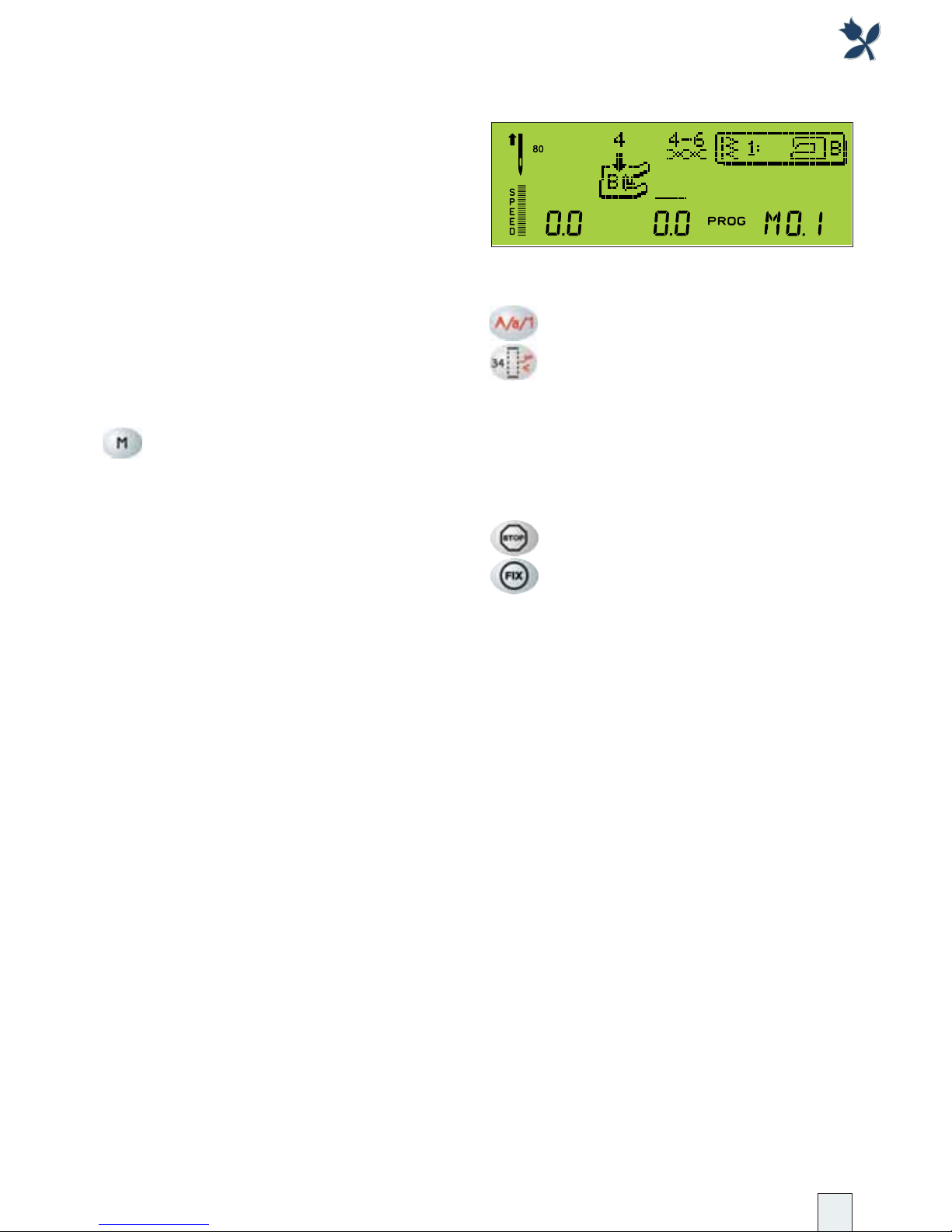

Programming

With Platinum 770 you can program stitches and letters into combinations. Save the programmed combinations in the permanent memories. A programmed stitch combination that is saved is retained in the memory even when the machine is turned off.

PROG mode

When programming, the Sewing Advisor is not active. Touch FUNC to activate the

PROG mode.

Memories

Touch M to select memory. The M and the number that follows indicates the active memory. There are four different memories (M01 to M04). Each of the four memories holds up to 55 stitches, which means that you can program and save up to 220 stitches and/or letters.

When activating PROG, the last used memory is active. To save your programmed combination in a memory other than the active, select the memory number ﬁ rst, before programming any stitches. The programmed combination will be saved automatically in memory.

Move the Cursor

The cursor on the GraphicDisplay is under the active programming space. Use the selection buttons to move the cursor sideways.

Delete Stitches or Programs

If there is a stitch or letter combination in the selected memory that is displayed in the programming area, touch CLR to clear the memory. To reload a deleted program, touch CLR again before you enter new stitches.

Note: When programming, you have the possiblity to decrease the dis-

tance between two letters. Touch < when the numbers/special characters menu is active, to program short reverse stitches. The more reverse stitches you program the shorter the distance to the next entered letter.

Note: Both the stop and ﬁ x functions

can be programmed. The stop func-

tion is programmed when you want to sew only one sequence of your program. The ﬁ x function can be used if you want to ﬁ x at the end or in the begining of a stitch within the programmed combination.

Page 32

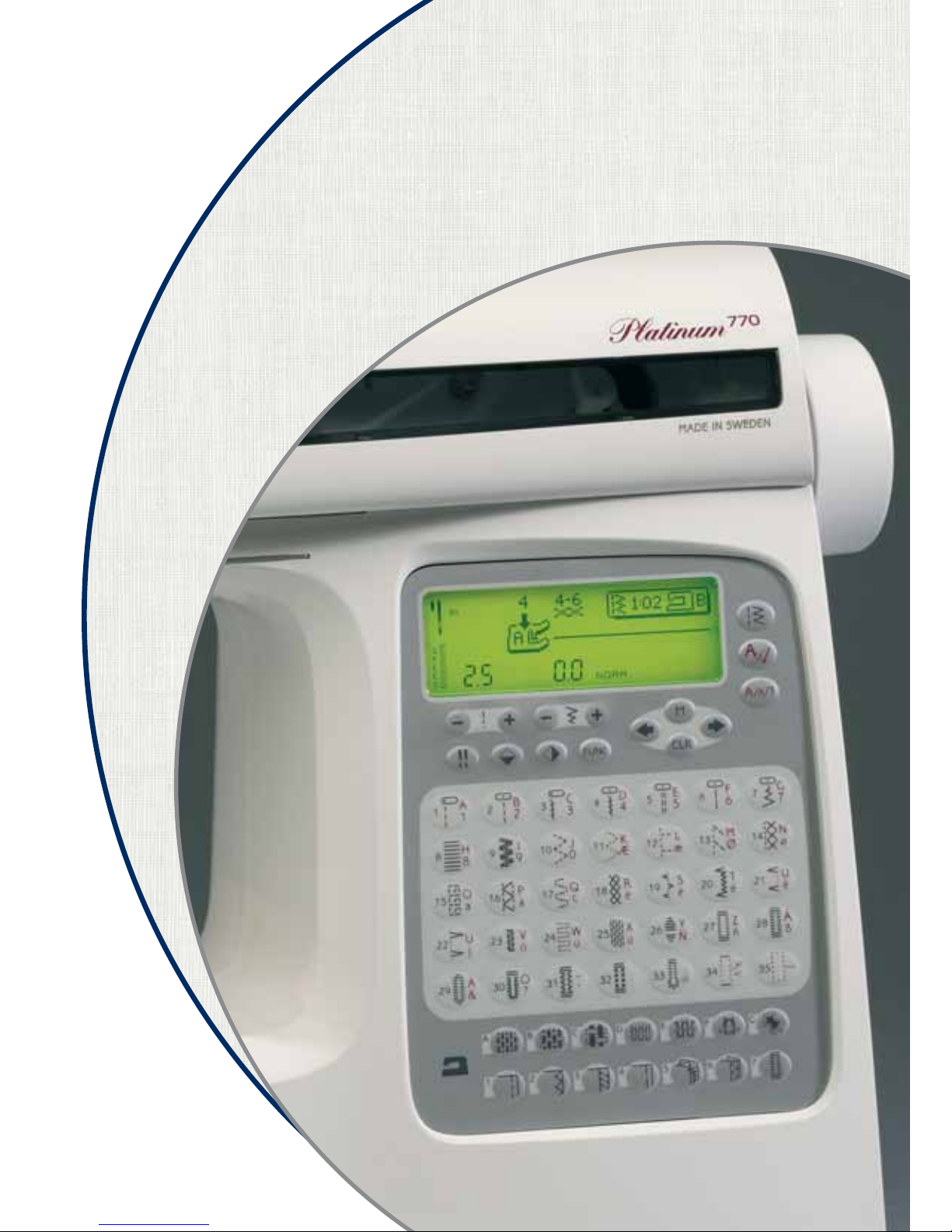

Functions and GraphicDisplay

Program Stitches and Letters

To program the stitch combination shown:

• Touch FUNC to activate PROG.

• Select stitch menu 4.

• Select stitch 4:20. It appears on the GraphicDisplay.

The cursor moves automatically to the next position ready to receive the next stitch, or to adjust the one just entered.

• Touch

to mirror image the stitch

end to end.

To program “E” in upper case letters, select the Outline Block alphabet from the Alphabet selection menu.

• Select “E”. “E” appears on the display next to the fashion stitch.

To program “rika” in lower case letters, select lower case letters from the Alphabet sub menu. When the lower case submenu is activated, a.. is visible on the display next to the “Alphabet menu icon”.

• Touch R, the letter appears on the GraphicDisplay and the cursor moves to the next position. Continue to enter the letters: I, K, and A.

Select stitch menu 4 to program the last fashion stitch.

• Select stitch 4:20. It appears on the GraphicDisplay.

Touch the function button on the machine to enter stop to sew only one sequence of your program.

Page 33

Functions and GraphicDisplay

Change or Add a Stitch or Letter

Any stitch or letter can be changed in PROG when the cursor is positioned underneath it. Simply select the correct stitch or letter, to replace the one you would like to change.

To add a stitch or letter in PROG, move the cursor to the position following the one where you wish to add a stitch. Touch CLR. Select the stitch you wish to add. Touch CLR to bring up the rest of the program again.

Adjust Stitches in a Program

If you want to adjust a stitch in a programmed sequence, position the cursor under the stitch. The last stitch in a programmed sequence can be adjusted even though the cursor is positioned after the stitch. You can adjust the stitch length and width or mirror image a stitch/letter.

The changes will automatically be stored in the permanent memory.

Sew your Program

To sew your program, touch FUNC to bring up the REP mode. Presser foot B is recommended. A stop is indicated by a stop sign symbol.

If you have programmed a stitch sequence that is too long to be seen on the GraphicDisplay, check it by stepping forwards/backwards in the sequence using the selection buttons.

Sew your program on a stabilized piece of fabric.

Adjust Entire Stitch Program

In REP you can adjust the stitch length and width or mirror image the entire program. The changes will not be saved in the permanent memory.

Page 34

Functions and GraphicDisplay

Page 35

Care of Your Platinum 770

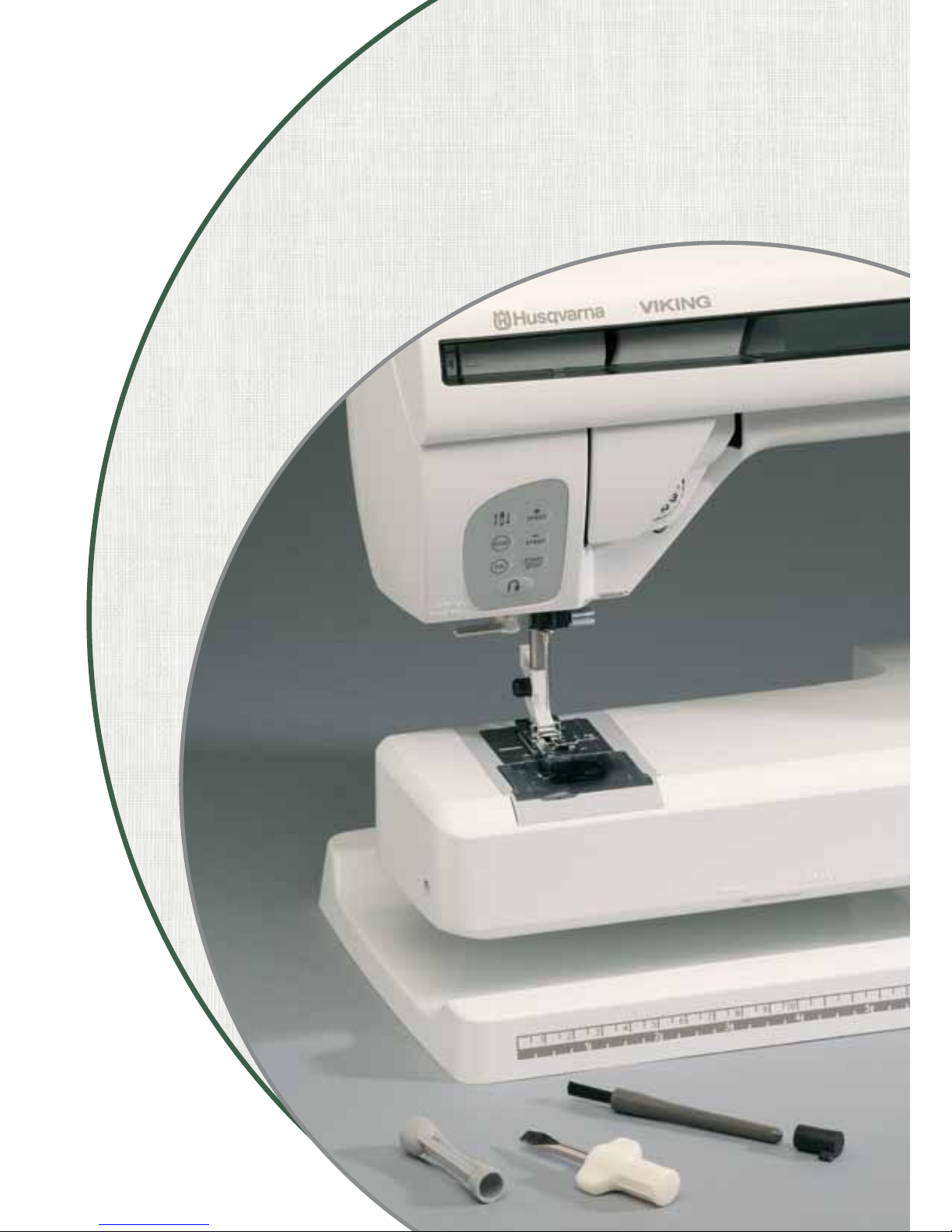

CARE OF YOUR PLATINUM 770

Page 36

Care of Your Platinum 770

Changing the Light Bulb

Use light bulb designed as indicated on the front of the machine (12V, 5W). They are available at your authorized Husqvarna Viking dealer.

Switch off the main switch.

1. Place the light bulb remover with its deep hole, marked OUT, around the bulb.

Do not turn the bulb, just pull it out

to remove it.

2. When inserting, place the light bulb remover with its shallow hole, marked IN, around the new bulb. Insert the bulb by pushing it up.

Page 37

Care of Your Platinum 770

10 15

Care of the Machine

To keep your sewing machine operating well, clean it often. No lubrication (oiling) is needed.

Switch off the main switch.

Cleaning

Wipe the exterior surfaces of your Platinum 770 with a soft cloth to remove any dust or lint built up.

Clean the Bobbin Area

Remove the presser foot and slide off the bobbin cover. Lower the feed teeth. Place the stitch plate opener on the brush, and then in the recess at the rear of the stitch plate. Turn toward you to pop off the stitch plate. Clean the feed teeth with the brush.

Cleaning Under the Bobbin Area

When lint builds up, the area under the bobbin case must be cleaned.

Remove the bobbin case holder (1) covering the front part of the bobbin case (2). Remove the bobbin case by lifting it up. Clean with the brush.

Replace the bobbin case and the bobbin case holder.

Replacing the Stitch Plate

With feed teeth down, place the stitch plate about 5 mm in front of the rear edge and push it back. Slide on the bobbin cover. Raise the feed teeth.

Page 38

Care of Your Platinum 770

Trouble Shooting

Any Time You Experience a Problem When Sewing:

• Enter correct type and weight of fabric in the Sewing Advisor.

• Insert new needle size and type as recommended on the GraphicDisplay.

• Rethread the top and bobbin threads.

• Use different spool pin positions (vertical or horizontal).

• Use thread nets and quality thread. We recommend the same sewing thread on top and bobbin for general sewing. For decorative sewing we recommend Sulky 40 weight Rayon embroidery thread on top and Sulky bobbin thread on bobbin.

Fabric Puckers?

• Enter correct type and weight of fabric into Sewing Advisor.

• Check needle, it could be damaged.

• Insert new needle size and type as recommended on the GraphicDisplay.

• Rethread top and bobbin threads.

• Change thread type to match ﬁ ber and sewing technique.

• Use quality thread.

• Shorten stitch length.

• Use stabilizer.

Skipped Stitches?

• Check needle, it could be damaged.

• Change needle to recommended size and type.

• Be sure the needle is inserted correctly and all the way into the clamp.

• Rethread top and bobbin threads.

• Use recommended presser foot.

• Turn machine off and on to reset.

• Consult your dealer for service.

Needle Breaks?

• Use care not to pull fabric when sewing.

• Insert new needle size and type as recommended on the GraphicDisplay

• Insert needle correctly as page 12 explains.

Poor Tension?

• Enter fabric weight and type in Sewing Advisor.

• Rethread top and bobbin - use quality thread.

• Insert new needle size and type as recommended on the GraphicDisplay.

• Follow recommendations for thread tension.

• Follow recommendations for stabilizer.

Upper Thread Breaks?

• Does thread feed smoothly/not catching?

• Use thread nets and quality thread.

• New needle size and type as HELP recommends.

• Rethread top and bobbin threads check for correct threading.

• Try different spool pin positions (horizontal or vertical).

• If stitch plate hole is damaged, replace stitch plate.

• Is the correct spool holder used in front of the thread?

Page 39

Care of Your Platinum 770

Nothing is Visible on the GrapichDisplay

• The GraphicDispaly can be sensitive to static electicity (ESD). If the GraphicDisplay is turned out due to static electricity, turn the machine off and back on again. If the problem remains, contact an authorized Husqvarna Viking dealer.

Have your Platinum 770 Serviced Regularly by your Husqvarna Viking Dealer!

If you have followed this trouble shooting information and still are having sewing problems, take the machine to your dealer. If there is a speciﬁ c problem, it is a great help to test sew with your thread on a scrap of your sewing fabric. A sewing sample will often give much better information than words.

Non-Original Parts and Accessories

The Platinum 770 warranty does not cover any defect or damage caused by use of non-original accessories or parts.

Fabric Does Not Move?

• Feed teeth up.

• Increase stitch length.

Bobbin Thread Breaks?

• Wind a new bobbin.

• Replace the bobbin in the machine, check correct threading, page 10.

• If stitch plate hole is damaged replace stitch plate.

• Clean bobbin area.

Bobbin Winds Irregularly?

• Check threading for bobbin winding.

Wrong Stitch, Irregular or Narrow Stitches?

• Cancel twin needle safety.

• Turn machine off and on to reset.

• Change needle, rethread top and bobbin threads.

• Use stabilizer.

Machine Sews Slowly?

• Check speed

• Remove stitch plate and brush lint from bobbin and teeth area.

• Have the machine serviced at your dealer.

Machine Will Not Sew?

• Put bobbin winder spindle up into sewing position.

• Check plugs are all the way into machine.

• Check wall plug and power to wall plug.

Page 40

Index

Accessory Tray 3

Adjust an entire stitch program 31 Adjust stitches in a program 31 Alphabets 21 Auxiliary spool pin

Baste - Sewing Advisor 25 Blind hem - Sewing Advisor 25 Bobbin

placing in the machine 11

winding 10 Built-in memory 20, 29 Buttonhole

Sensor Foot 14

Sewing Advisor 24

Care of your Platinum 770 33-38 Changing

light bulbs 34

needle 12

presser foot 14 Cleaning 35

bobbin area 35

under the bobbin area 35 Connecting

the foot control 4

the machine 4 Correct thread tension 15

Delete stitches or programs 20

Fabric selection 24-25

Fault-ﬁ nding 36-37 Feed teeth, lowering 16 FIX 18 Foot control 4, 5 FUNC 20 Function

FUNC 20

NORM 20

PROG 20

REP 20 Function buttons 18

Hem - Sewing Advisor 25

Icons on the GraphicDisplay 27

Incorrect thread tension 15

Knit fabric 24

Language 20

Leather 25 Lowering the feed teeth 16

Main spool pin 6 Memory 20, 29 Menu

Stitch 21 Alphabet 21

Alphabet sub menu 22 Mirror side to side 19 Mirror end to end 19

Needle

changing 12

defective 12

stop up/down 18

Threader 8 Needles 12 NORM 20

Outline Block Alphabet 21 Overcast - Sewing Advisor 25 Overview 2

Packing away after sewing 5 Placing the accessories 5 Placing the bobbin in the machine 11 Presser feet 13 Presser foot

change 14

lever 14

pressure 14 PROG 20, 29 Programming 29-31

Letters and stitches 30-31

Page 41

Index

Twin needle

threading 9 setting 19

Unpack Platinum 770 4

Vinyl 24

Woven fabric 24 Winding from the needle 10

Remove the stitch plate 35 Remove the accessory tray 5 Replace the stitch plate 35 REP 20 Reverse button 18

Safety instructions 2 Script Alphabet 21 Seam - Sewing Advisor 25 Seam and Overcast Sewing Advisor 25 Select fabric 26 Select technique 26 Selection buttons 20 Sensor Buttonhole Foot 14

Sewing

speed 18 Sewing Advisor 24-26 Spool holders 6 Spool pin

Main spool pin 6

Auxiliary spool pin 7 Start/Stop 18 Stitch length 19 Stitch plate 35 Stitch selection menus 20 Stitch selection 21

utility and decorative 21

alphabets 21

alphabet sub menu 21 Stitch width 19 STOP 18 Stretch fabric 24

Table of contents 1 Thread tension 15 Threading

bobbin 11

needle 8

top thread 7

twin needle 9 Trouble shooting 36-37

Page 42

Index

Content on your Platinum 770 Instructions Video

Each technique section on your Husqvarna Viking Platinum 770 Instructions Video is numbered in the upper right corner so you can easily return to the technique instruction on the tape. The following table of contents lists the techniques shown on the instruction video.

1. Getting Started

2. Threading & Bobbin Winding

3. Graphic Display & Touch Panel

4. Sewing Advisor

5. Function Buttons

6. Overcasting an Edge

7. Seam

8. Zipper

9. Reinforced Straight Stitch

10. Decorative Stitches

11. Sensor Buttonhole

12. Manual Buttonhole

13. Button Sewing

14. Topstitching & Needle Positions

15. Blind Hem

16. Seam/Overcast in Stretch fabric

17. Twin Needle Stitching

18. Hem in Stretch fabric

19. Program Stitches & Letters

20. Heirloom Techniques

21. Sewing Leather

22. Jeans Hem

23. Darning and Mending

24. Appliqué

25. Care of your Husqvarna Viking Platinum 770

Page 43

We reserve the right to change the machine equipment and the ass ort ment of accessories without prior notice, or make modiﬁ cations to the performance or design.

Such modiﬁ cations, however, will always be to the beneﬁ t of the user and the product.

Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products. If in doubt please contact your retailer for guidance

Page 44

VSM Group AB • SE-561 84 Huskvarna, Sweden

www.husqvarnaviking.com
