Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

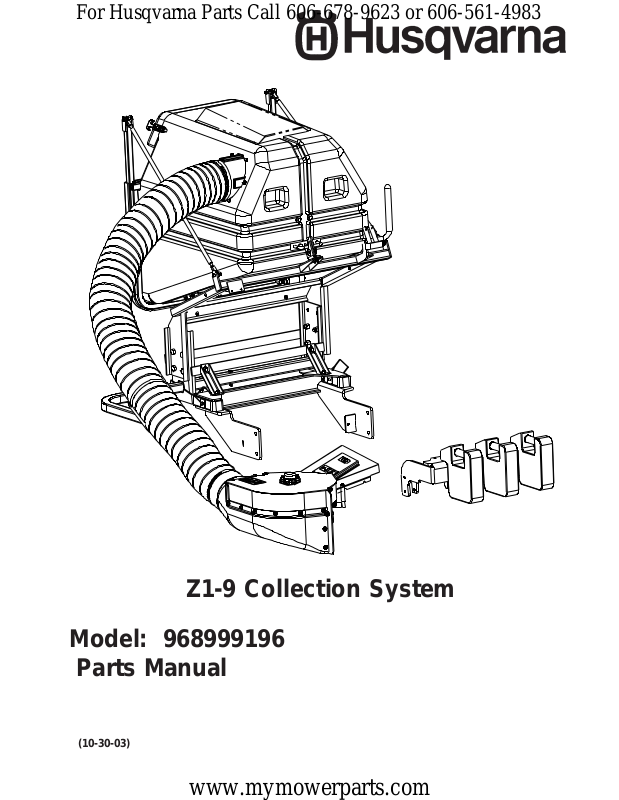

Z1-9 Collection System
Model: 968999196
Parts Manual
(10-30-03)
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CONT AINER ASSEMBL Y
27
24
16
4
6
7
3
8
2
28
1
15
26
11
12
18
13
4
12
8
17
10
9
5
17
25
17
23
19
7
14
20
21
22
16
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
CONT AINER ASSEMBL Y
ITEM P ART NO. QTY DESCRIPTION
1 ......... 539108970 .......1..........CONTAINER ASM.
2 ......... 540200873 .......1..........EXHAUST ASM.
3 ......... 540200691 .......2..........CLEVIS PIN, 1/4 X 2 3/4
4 ......... 540099082 .......4..........HAIR PIN, #13
5 ......... 540200872 .......1..........DOOR ASM.
6 ......... 540200692 .......2..........CLEVIS PIN, 3/8 X 1 3/4
7 ......... 540030425 .......4..........ROD END
8 ......... 540200690 .......4..........PLUG
9 ......... 540000224 .......2..........NUT, 3/8-24
10 ....... 540200520 .......2..........ARM
11........ 540099008 .......6..........BOLT, 1/4-28 X 1
12 ....... 540000405 .......12........WASHER, 1/4
13 ....... 540200408 .......1..........INLET
14 ....... 540097076 .......1..........HOSE CLAMP
15 ....... 540200478 .......2..........RUBBER LATCH
16 ....... 540200641 .......6..........SCREW, 10-24 X 1 1/4, P.T .H.
17 ....... 540108134 .......1..........DOOR SEAL KIT (CONT AINS 3 SEALS)
18 ....... 540099072 .......6..........NUT, 1/4-20, NYLOC
19 ....... 540099065 .......4..........NUT, 3/8-16, NYLOC
20 ....... 540200688 .......1..........BACK PLATE
21 ....... 540200695 .......1..........LATCH
22 ....... 540000168 .......4..........BOLT, 3/8-16 X 1
23 ....... 540000417 .......2..........WASHER, 3/8
24 ....... 540200423 .......2..........LATCH BASE
25 ....... 540000134 .......2..........BOLT, 1/4-20 X 2
26 ....... 539109399 .......1..........HOOD
27 ....... 539108535 .......6..........SCREW #10-24 X 3/4 STD RD
28 ....... 539976977 .......6..........NUT #10-24, NYLOC
........... 540002004 .......6..........NUT, #10-24, NYLOC(NOT SHOWN)
........... 540000403 .......6..........WASHER, #10 (NOT SHOWN)
17
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

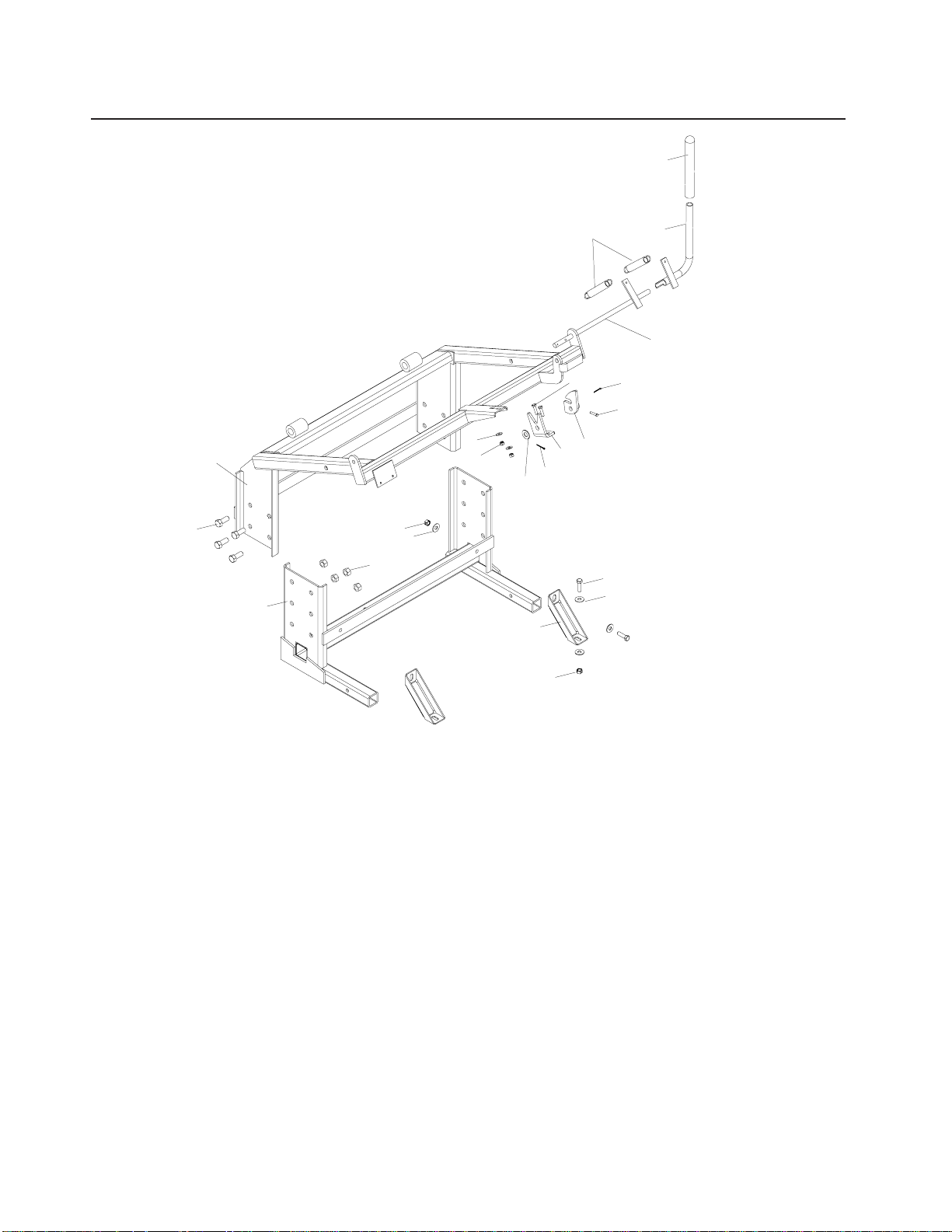

FRAME ASSEMBLY
19
17
14
9
2
3
1
7
6
5
8
10
20
11
12
13
18
16
11
15
4
6
7
ITEM PART NO. QTY DESCRIPTION
1 ......... 540062072.......1..........LOWER FRAME
2 ......... 540200510.......1..........UPPER FRAME
3 ......... 540099069 ....... 8..........BOLT, 1/2-13 X 1 1/4
4 ......... 540099020 ....... 4..........BOLT, 3/8-16 X 1 1/4
5 ......... 540093082 ....... 8..........NUT, 1/2-13, NYLOC
6 ......... 540000415 ....... 8..........WASHER, 3/8
7 ......... 540099065 ....... 4..........NUT, 3/8-16, NYLOC
8 ......... 540099072 ....... 2..........NUT, 1/4-20, NYLOC
9 ......... 540000405 ....... 2..........WASHER, 1/4
10 ....... 540000425 .......1..........WASHER, 1/2
11........ 540003585 ....... 2..........PIN, COTTER, 3/32 X 3/4
12 ....... 540200423.......1..........LATCH BASE
13 ....... 540200708.......1..........LATCH CATCH
14 ....... 540099008 .......2..........BOLT, 1/4-20 X 1
15 ....... 540000382 .......1..........PIN, CLEVIS, 3/16 X 1
16 ....... 540200710.......1..........LATCH ROD
17 ....... 540010195.......2..........SPRING
18 ....... 540200712.......1..........LATCH HANDLE
19 ....... 540061481.......1..........HANDLE GRIP
20 ....... 540061532.......2..........HITCH BRACKET
18
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

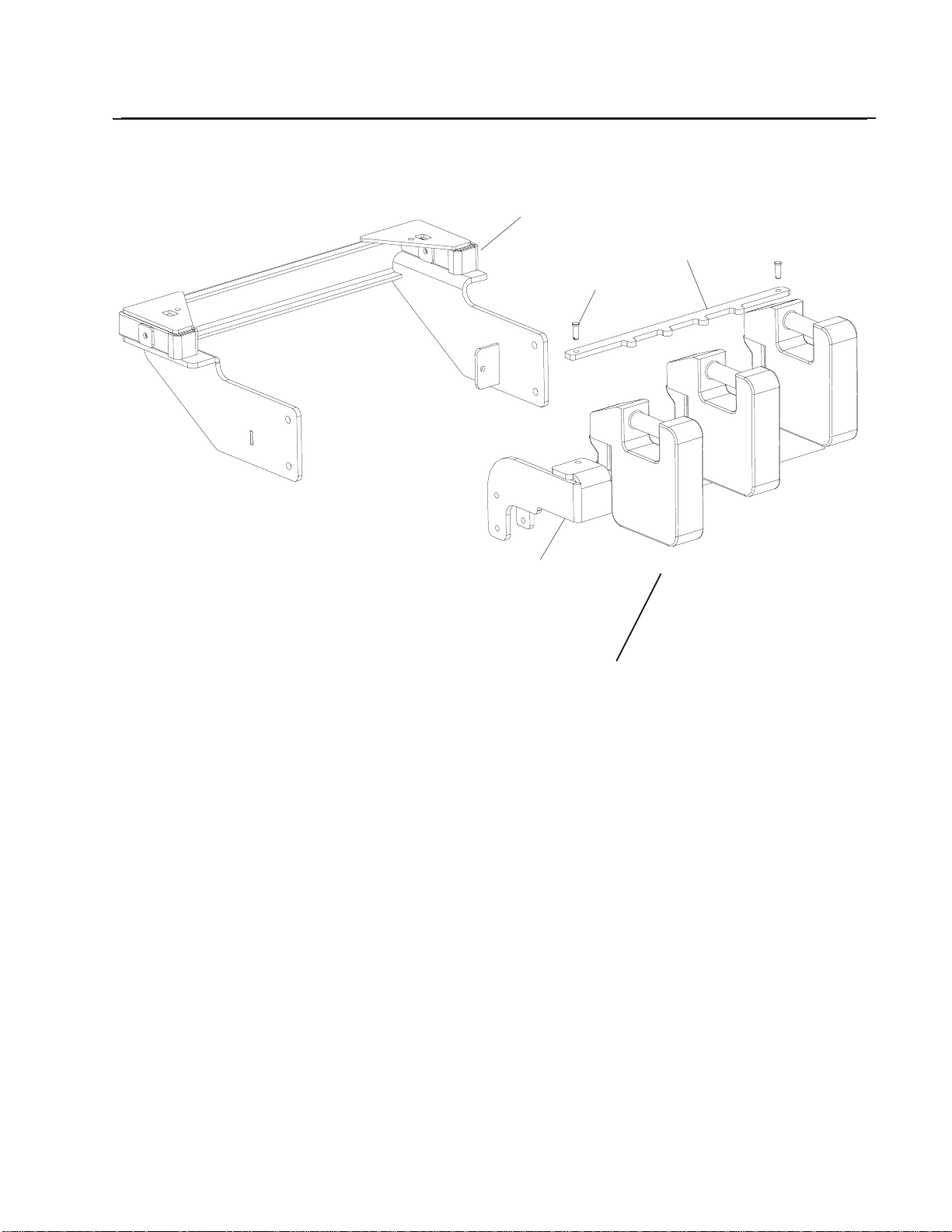

HITCH & FRONT WEIGHT BAR ASSEMBLY
540200809
540092731
540099668
540200932
540092531 FRONT WEIGHT
QTY 2 INCLUDED WITH COLLECTION UNIT
QTY 1 INCLUDED WITH CUSTOM KIT
SEE INSTRUCTION SHEET INCLUDED WITH CUSTOM KIT FOR PARTS LIST.
19
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

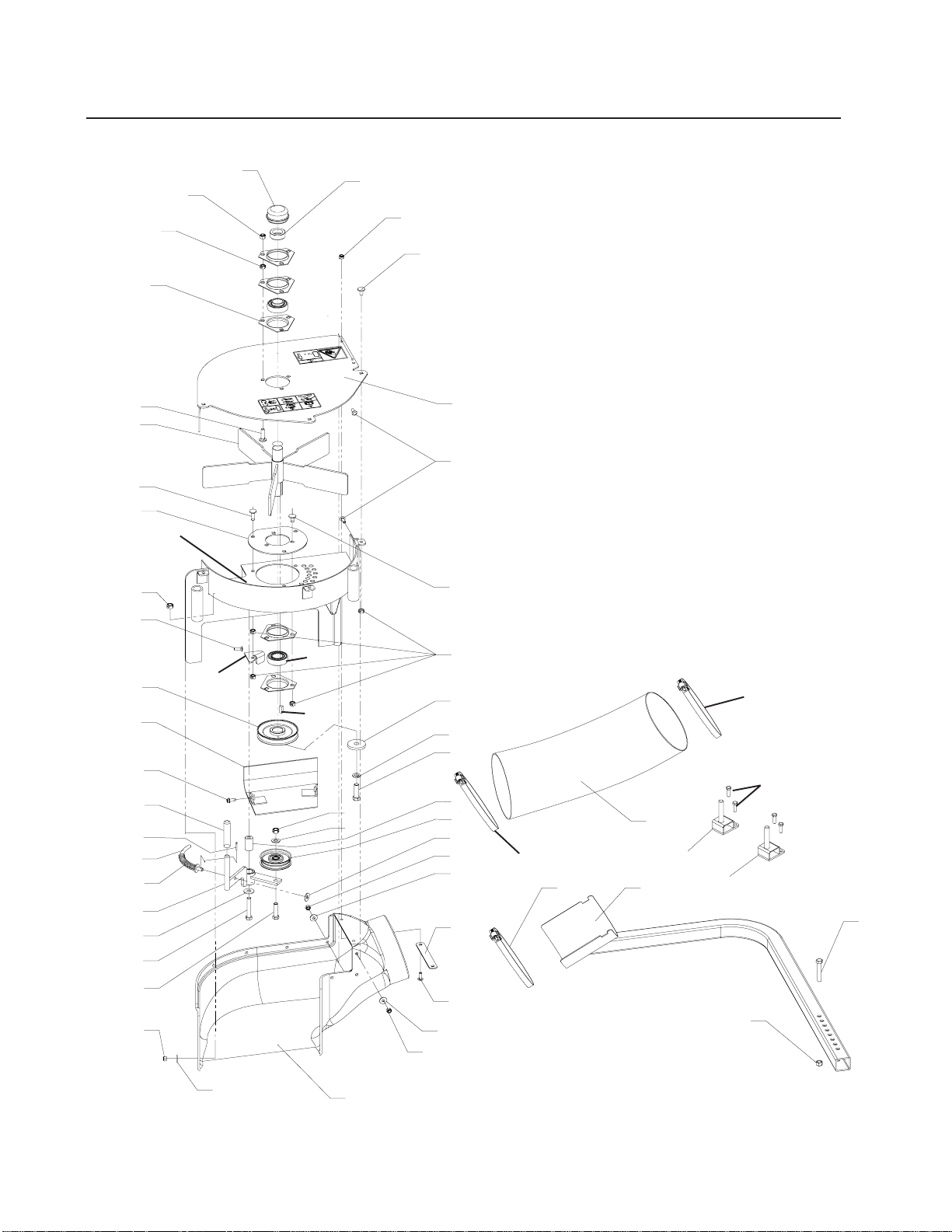

SPINDLE DRIVE ASSEMBLY
20
24
39
14
19
22
21
7
6
2
5
28
23
1
27
23
27
10
9
25
33
31
32
15
34
12
17
16
28
40
4
42
14
18
28
29
21
36
37
35
13
26
30
28
29
41
27
46
45
43
46
11
44
8
8
15
38
29
3
20
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SPINDLE DRIVE ASSEMBLY
ITEM P ART NO. QTY DESCRIPTION
1 ......... (539) 106752 ....1..........FAN COVER W/DECALS
2 ......... (539) 108941 ....1..........UPPER HOUSING
3 ......... (539) 109900 ....1..........LOWER HOUSING
4 ......... (539) 106786 ....2..........BEARING W/O COLLAR
5 ......... (539) 106786 ....1..........LOCKING COLLAR
6 ......... (539) 106707 ....1..........FAN WLDMT.
7 ......... (539) 102691 ....5..........FLANGETTE
8 ......... (539) 108944 ....2..........BLOWER PIN WELDMENT
9 ......... (539) 108301 ....1..........SHEA VE FLOOR
10 ....... (539) 106713 ....1..........SHEAVE, 4”
1 1........ (539) 976941 ....4..........HCS 3/8-16 X 1 1/4
12 ....... (539) 106715 ....1..........IDLER ARM
13 ....... (539) 101836 ....1..........SLEEVE BUSHING
14 ....... (539) 990546 ....2..........NUT 3/8 CTR. LOCK
15 ....... (539) 990629 ....2..........HCS 3/8 X 2.25
16 ....... (539) 990655 ....1..........HCS 3/8 X 1.50
17 ....... (539) 990517 ....1..........WASHER 3/8 FLA T
18 ....... (539) 990122 ....1..........WASHER 3/8 SAE
19 ....... (539) 102535 ....1..........GREASE CAP
20 ....... (539) 100472 ....3..........RHSNB 5/16 X 1.25
21 ....... (539) 990184 ....13........NUT 5/1 6 CTR. LOCK
22 ....... (539) 990717 ....3..........NUT 5/16 NYLOC
23 ....... (539) 990799 ....8..........RHSNB 5/16 X .625 SHO RT NECK
24 ....... (539) 990208 ....1..........RHSNB 5/16 X 1.00
25 ....... (539) 990362 ....2..........SCREW 1/4 X .625 SELF TAP
26 ....... (539) 106721 ....1..........IDLER
27 ....... (539) 990074 ....16........RHSNB 1/4 X .75 SHORT NECK
28 ....... (539) 976978 ....16........NUT 1/4 NYLOC
29 ....... (539) 990598 ....14........WASHER 1/4 FLA T
30 ....... (539) 990188 ....1..........WASHER 5/16 FLA T SAE
31 ....... (539) 106801 ....1..........SPRING ROD
32 ....... (539) 106720 ....1..........SPRING
33 ....... (539) 101050 ....1..........VINYL GRIP
34 ....... (539) 990037 ....1..........COTTER PIN 3/32 X .750
35 ....... (539) 100141 ....1..........HCS 7/16F X 1.5
36 ....... (539) 106504 ....1..........HEAVY WASHER
37 ....... (539) 990247 ....1..........WASHER 7/16 LOCK
38 ....... (539) 976979 ....9..........NUT 3/8 NYLOC
39 ....... (539) 106809 ....1..........BEARING PLATE
40 ....... (539) 10681 1 ....1..........BELT GUIDE
41 ....... (539) 106812 ....1..........BACKING
42 ....... (539) 102067 ....1..........KEY 1/4 X .75 SQ.
43 ....... (539) 106751 ....1..........SUPPORT
44 ....... (539) 106748 ....1..........HOSE
45 ....... (539) 097076 ....1..........HOSE CLAMP
46 ....... (539) 109901 ....2..........OVER CENTER BAND
21
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

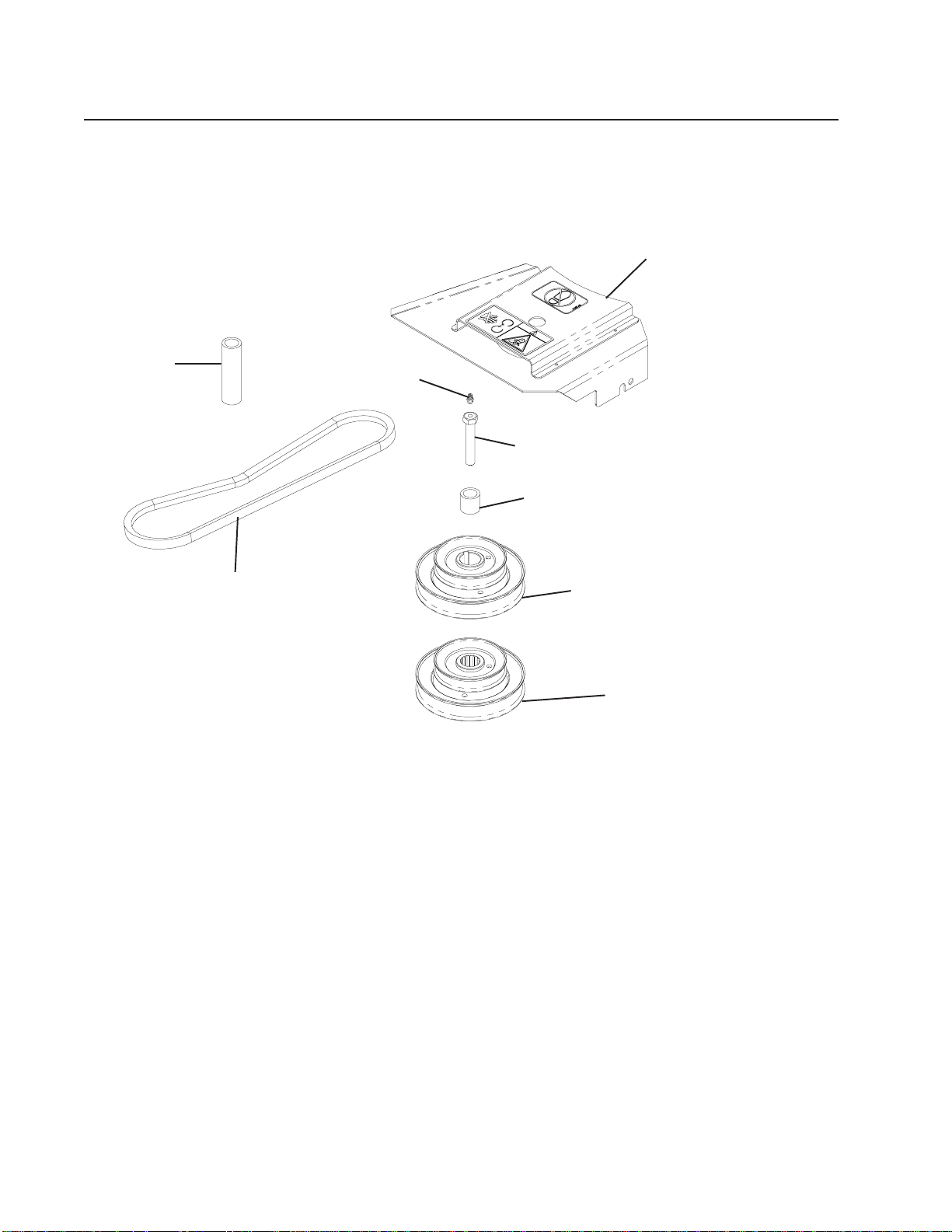

DRIVE KIT ASSEMBLY
(539) 108960 - 42 INCH DECK
(539) 108961 - 48 INCH DECK
(539) 108962 - 52 INCH DECK
(539) 108963 - 61 INCH DECK
1
8
5
ITEM PART NO. QTY DESCRIPTION
1 ......... (539) 108950 ....1..........42 SHIELD
........... (539) 108953 ....1..........48 SHIELD
........... (539) 108958 ....1..........52 SHIELD
........... (539) 108959 ....1..........61 SHIELD
2*........ (539) 106739 ....1..........SPACER
3 ......... (539) 976998 ....1..........ZERK
4 ......... (539) 108951 ....1..........HCS 7/16 X 2.5, SPEC.
5 ......... (539) 106723 ....1..........BELT-42
........... (539) 106724 ....1..........BELT-48
........... (539) 106725 ....1..........BELT-52
........... (539) 106726 ....1..........BELT-61
6 ......... (539) 106744 ....1..........STACKED SHEAVE 42-48
........... (539) 106745 ....1..........ST ACKED SHEA VE 52
........... (539) 106746 ....1..........ST ACKED SHEA VE 61
7 ......... (539) 108946 ....1..........DOUBLE HEX ST ACKED SHEA VE 42-48
........... (539) 108947 ....1..........DOUBLE HEX STACKED SHEA VE 52
........... (539) 108948 ....1..........DOUBLE HEX STACKED SHEA VE 61
8 ......... (539) 106787 ....2..........STOP - USED ON 42” & 48” ONLY
3
4
2
6
7
*NOTE: ITEM 2 USED ON KEYED SHAFT ASSEMBLIES ONL Y.
22
www.mymowerparts.com
