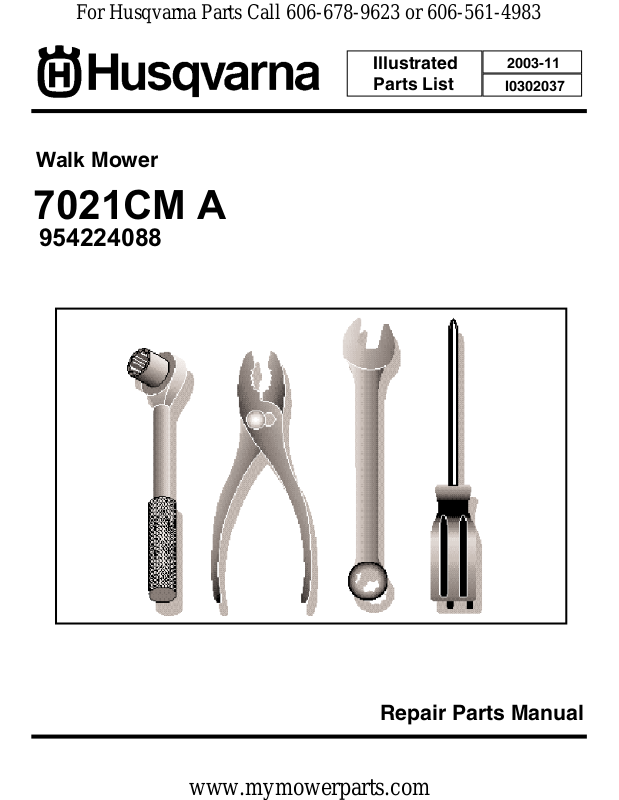

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Walk Mower
7021CM A
954224088
Illustrated
Parts List
2003-11
I0302037
Repair Parts Manual
www.mymowerparts.com
Page 2

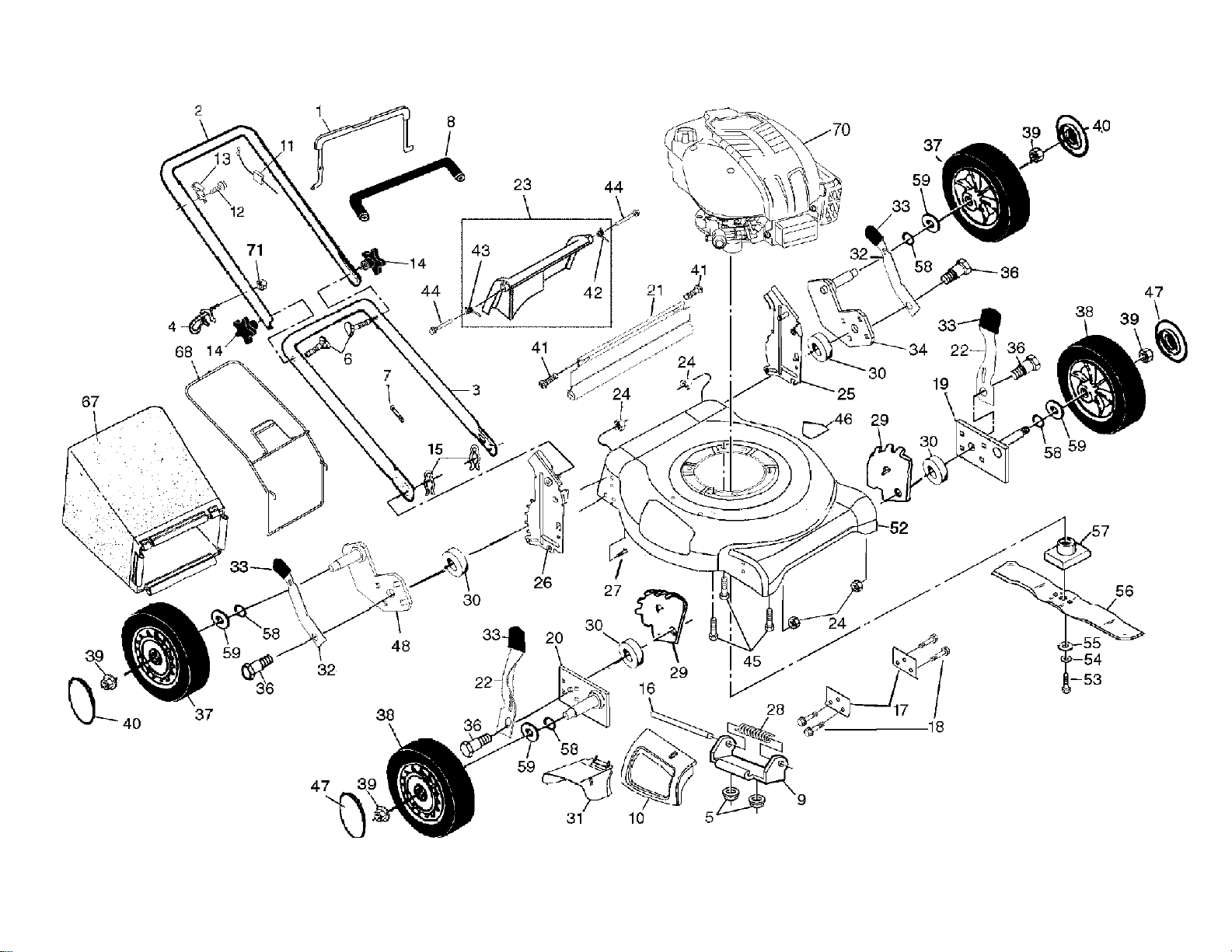

ROTARY LAWN MOWER - - MODEL NUMBER 7021CM (7021CMA) - PRODUCT NUMBER 954 22 40-88
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
ROTARY LAWN MOWER - - MODEL NUMBER 7021CM (7021CMA) - PRODUCT NUMBER 954 22 40-88
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
1 532 17 65-55 Control Bar
2 532 17 36-58 Upper Handle, with Grip
www.mymowerparts.com
17
3 532 17 41-10 Lower Handle
4 532 17 95-85 Rope Guide
5 873 80 04-00 Locknut 1/4-20
6 532 13 19-59 Handle Bolt
7 532 06 64-26 Wire Tie
8 532 16 42-65 Grip, Foam
9 532 15 41-32 Hinge Bracket
10 532 18 55-89 Mulcher Door
11 532 17 65-56 Engine Zone Control Cable
12 532 75 06-34 Hex Washer Head Screw
13 532 12 52-03 Up-Stop Bracket
14 532 18 55-88 Handle Knob
15 532 05 17-93 Hairpin Cotter
16 532 14 72-86 Hinge Rod
17 532 17 41-12 Support Bracket
18 817 60 04-06 Screw
19 532 18 92-78 Axle Arm Assembly - LF
20 532 18 92-77 Axle Arm Assembly - RF
21 532 18 89-87 Rear Skirt
22 532 16 85-99 Selector Spring - Front
23 532 18 66-12 Rear Door Assembly Kit (Includes Springs)
24 873 93 05-00 Locknut 5/16-18
25 532 17 41-05 Handle Bracket Assembly (Left)
26 532 17 41-06 Handle Bracket Assembly (Right)
27 532 85 18-56 Screw 1/4-20 x 3/8
28 532 15 21-24 Hinge Spring
29 532 16 57-04 Wheel Adjusting Bracket - Front
30 532 18 39-01 Spacer
31 532 18 55-95 Clip on Discharge Guard
32 532 18 57-16 Selector Spring - Rear
33 532 18 55-74 Selector Knob
KEY PART
NO. NO. DESCRIPTION
34 532 18 57-18 Axle Arm Assembly - LR
36 532 16 08-28 Shoulder Bolt 5/16-18
37 532 18 01-83 Wheel Assembly, Rear
38 532 18 05-41 Wheel Assembly, Front
39 532 08 39-23 Flanged Locknut
40 532 18 01-23 Hubcap
41 532 08 86-52 Hinge Screw
42 532 16 57-66 Spring (LH)
43 532 16 57-67 Spring (RH)
44 532 18 41-93 Door Bolt
45 532 15 04-06 Hex Head Thread Rolling Screw 3/8-16 x 1
46 532 10 73-39 Danger Decal
47 532 18 06-26 Hubcap
48 532 18 57-17 Axle Arm Assembly - RR
52 532 16 36-62 Housing Assembly
(Includes Key Numbers 17, 18 and 46)
53 532 85 10-84 Hex Head Screw 3/8-24 x 1-3/8 Grade 8
54 532 85 02-63 Helical Lockwasher
55 532 85 10-74 Hardened Washer
56 532 17 50-64 21" Blade
57 532 18 45-90 Blade Adapter
58 532 18 81-52 O-Ring
59 532 08 83-48 Washer, Flat 3/8
67 532 18 97-88 Grass Bag
68 532 18 88-13 Frame, Grass Bag
70 - - - Engine, Briggs & Stratton, Model Number 12H602
(Order parts from engine manufacturer)
71 532 13 20-04 Nut, Hex 1/4-20
- - 532 16 23-00 Warning Decal (Not Shown)
- - 532 18 99-72 Owner’s Manual, English / French
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
