I0302034
Parts Manuals
7 pgs197.43 Kb0

Husqvarna I0302034 Parts Manuals

Download
Page 1
Walk Mower
5521RS B
954223470
Illustrated Parts List
2003-12
I0302034
Repair Parts Manual
www.mymowerparts.com
Page 2
www.mymowerparts.com
Page 3
ROTARY LAWN MOWER
MODEL NUMBER 5521RS (5521RSB) - PRODUCT NUMBER 954 22 34-70
GEAR CASE ASSEMBLY - PART NUMBER 532 18 72-13
KEY PART NO. NO. DESCRIPTION
1 532 18 75-30 Case, Lower 2 532 18 75-31 Case, Upper 3 532 18 75-32 Gear, 24 Teeth 6 532 18 75-33 Shaft, Input 9 532 18 35-05 Wire, Formed 10 532 18 35-06 Bearing, Ball 12 532 18 35-08 Seal, Output Shaft 13 532 18 35-09 Washer 15 532 18 35-11 Bushing 16 532 18 75-34 Shaft, Output 17 532 18 35-13 Screw 18 532 18 35-14 Seal, Input Shaft
NOTE: Use Dow Corning #709 to reseal Gear Case Halves.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
17
www.mymowerparts.com
Page 4
ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (5521RSB) - PRODUCT NUMBER 954 22 34-70
www.mymowerparts.com
18
Page 5

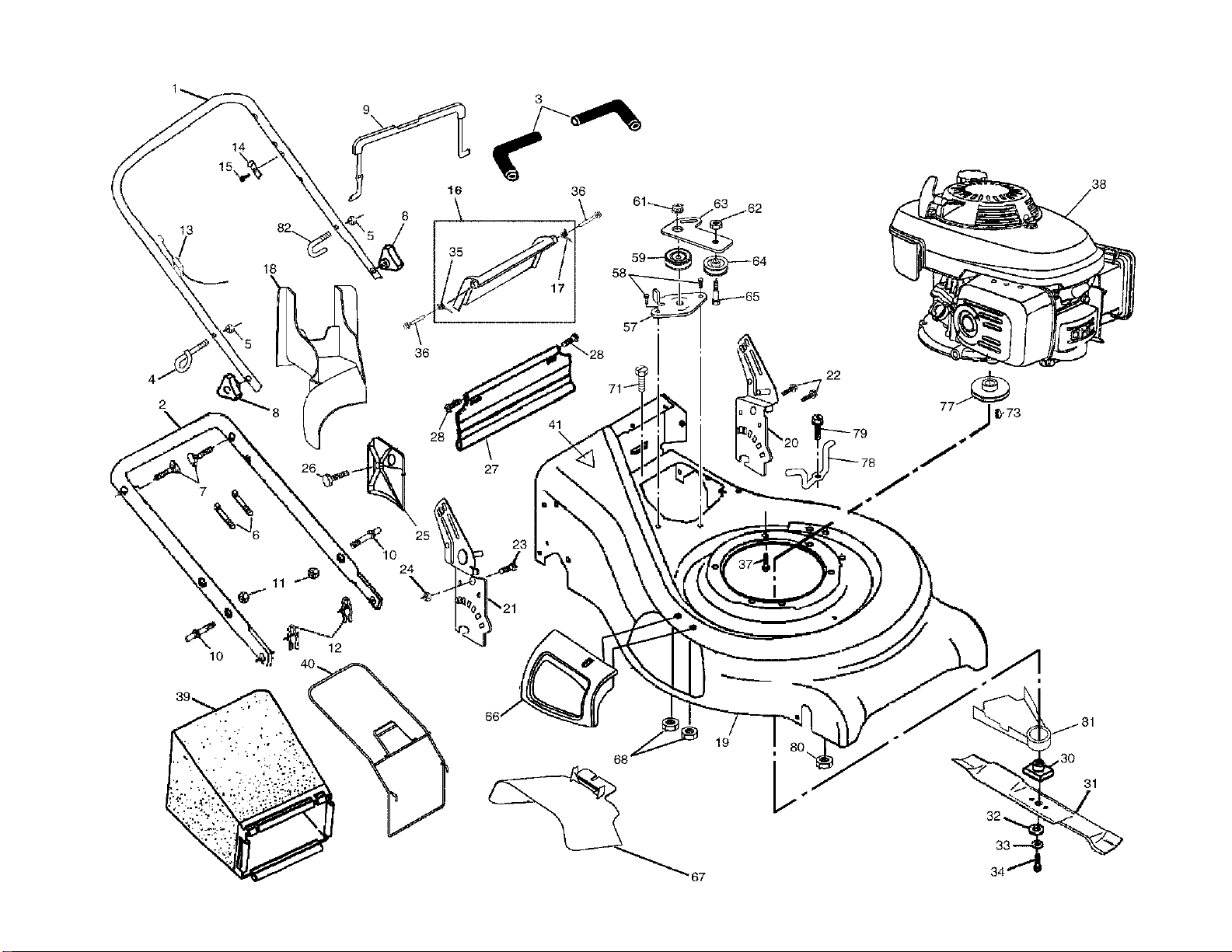

ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (5521RSB) - PRODUCT NUMBER 954 22 34-70
KEY PART NO. NO. DESCRIPTION
1 532 18 97-40 Handle, Upper (Includes Foam Grip)
www.mymowerparts.com
19
2 532 17 42-05 Handle, Lower 3 532 18 27-48 Grip, Handle, Foam, Smooth 4 532 17 95-85 Guide, Rope, Side 5 532 13 20-04 Nut, Hex Lockwasher Insert 1/4-20 6 532 06 64-26 Wire, Tie 7 532 13 19-59 Bolt, Handle 5/16-18 x 1.75 8 532 18 55-88 Knob, Handle 9 532 19 06-20 Bail, Flat, Auto-Walk, Orange 10 532 18 88-12 Bolt, Carriage 11 873 93 05-00 Nut, Hex, Centerlock 5/16-18 UNC 12 532 05 17-93 Cotter, Hairpin 13 532 18 27-55 Engine Zone Control Cable 14 532 12 51-62 Bracket, Upstop 15 532 75 06-34 Screw 16 532 19 05-74 Kit, Door Rear 17 532 18 60-52 Spring, Rear Door, LH 18 532 18 75-35 Plug, Mulcher 19 532 18 56-01 Kit, Housing 20 532 19 05-63 Handle Bracket Assembly, LH 21 532 19 05-64 Handle Bracket Assembly, RH 22 532 15 00-78 Screw, Hex Washer Head 23 532 16 31-83 Bolt, Hex Head 5/16-18 x 5/8 24 873 80 05-00 Nut, Hex, with Lock Washer Insert 5/16-18 25 532 16 13-33 Baffl e, Side 26 532 16 34-09 Screw 12 x 5/8 27 532 18 89-86 Skirt, Rear 28 532 08 86-52 Screw, Hinge 1/4-20 x 1.25 30 532 18 45-90 Adapter, Blade 31 532 17 50-64 Blade, 21" 32 532 85 10-74 Washer, Hardened 33 532 85 02-63 Lockwasher, Helical Spring 3/8
KEY PART NO. NO. DESCRIPTION
34 532 85 10-84 Screw, Hex Head 3/8-24 x 1.38 35 532 18 60-53 Spring, Rear Door, RH 36 532 18 41-93 Bolt, Rear Door 37 532 15 04-06 Bolt, Engine 38 - - - Engine, Honda, Model Number GCV160 (Order parts from engine manufacturer) 39 532 18 72-40 Grass Catcher Bag 40 532 18 88-17 Grass Catcher Frame 41 532 10 73-39 Danger Decal 57 532 18 58-99 Bracket Assembly 58 532 05 78-08 Screw 59 532 18 45-43 Pulley Assembly, V-Groove 61 532 14 52-12 Flange Nut 62 532 15 55-52 Locknut 63 532 18 58-98 Idler Arm 64 532 16 60-43 Idler Pulley 65 532 16 08-29 Shoulder Bolt 66 532 19 05-10 Mulcher Door Assembly 67 532 19 05-12 Defl ector, Discharge 68 532 08 83-49 Nut 71 532 05 45-83 Screw 73 532 18 77-23 Hi-Pro Key 77 532 18 49-41 Pulley, Engine 78 532 18 82-44 Belt Keeper 79 532 18 22-27 Screw 80 532 18 22-28 Nut, Hex 81 532 18 82-45 Debris Shield 82 532 18 20-03 Clip
- - 532 16 23-00 Warning Decal (Not Shown)
- - 532 18 72-39 Owner’s Manual, English / French
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
Page 6
ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (5521RSB) - PRODUCT NUMBER 954 22 34-70
www.mymowerparts.com
20
Page 7

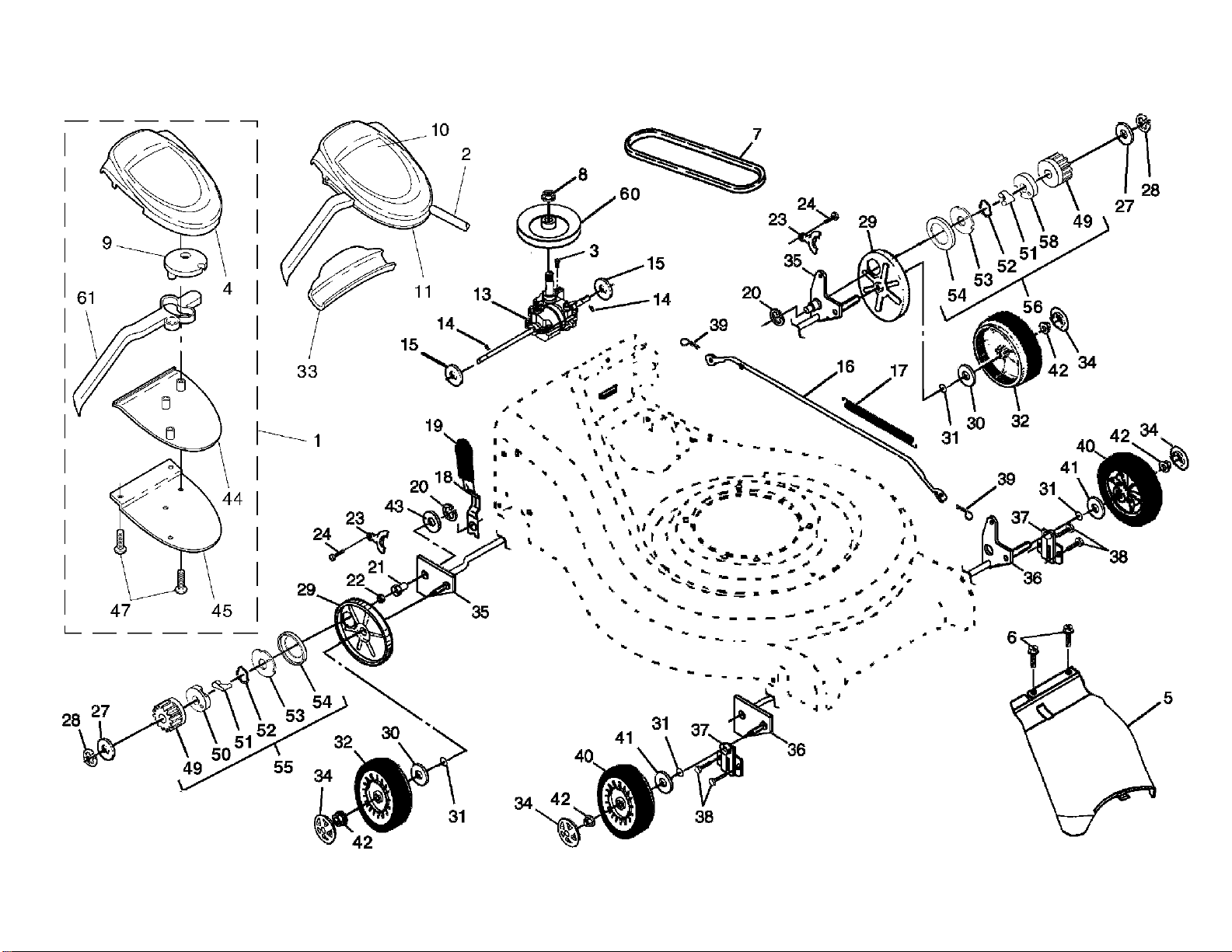

ROTARY LAWN MOWER - - MODEL NUMBER 5521RS (5521RSB) - PRODUCT NUMBER 954 22 34-70
KEY PART NO. NO. DESCRIPTION
1 532 18 97-41 Drive Control Assembly, Auto-Walk
www.mymowerparts.com
21
2 532 19 02-84 Cable, Drive Control 3 532 18 76-53 Screw 4 532 18 82-79 Cover, Top, Auto-Walk Drive Control 5 532 18 55-92 Cover Drive 6 532 75 06-34 Screw, Threaded, Rolled #10-25 x .50 7 532 18 22-12 V-Belt 8 532 13 20-10 Nut, Hex, Flanglock, Zinc Plated 3/8-16 9 532 18 73-53 Pulley 10 532 18 90-74 Decal, Drive Control 11 532 18 59-13 Decal, Drive Control Adjustment (bottom) 13 532 18 72-13 Gear Case Assembly (See Breakdown) 14 532 14 53-54 Pin, Spring, Thrust 15 532 05 70-79 Washer, Hardened 16 532 16 15-84 Rod, Connecting 17 532 16 16-02 Spring, Extension 18 532 16 45-54 Spring Selector 19 532 19 06-22 Knob, Selector Spring 20 812 00 00-22 E-Ring 7/8 21 532 16 33-65 Bearing, Support 22 532 16 99-11 Bearing, Ball 23 532 16 45-55 Retainer, Drive Assembly, Stamped 24 532 05 78-08 Screw, Tapping, Hex Head 1/4-20 x .75 27 532 05 21-60 Washer 28 812 00 00-58 E-Ring 7/16 29 532 18 05-04 Cover, Dust, Wheel 30 532 06 77-25 Washer 1/2 x 1-1/2 x .134 31 532 18 81-52 O-Ring 32 532 18 07-53 Wheel 9 x 2
KEY PART NO. NO. DESCRIPTION
33 532 18 62-97 Cap, Drive Control, Bottom 34 532 18 06-26 Hubcap 35 532 16 45-52 Shaft Assembly, Rear 36 532 16 45-50 Shaft Assembly, Front 37 532 16 14-63 Retainer, Front Shaft 38 532 16 34-09 Screw #12 x 5/8 39 532 70 02-79 Clip, Retainer 40 532 14 35-93 Wheel 8 x 2 41 532 08 83-48 Washer, Flat 3/8 42 532 08 39-23 Nut, Hex, Flangelock 3/8-16 43 819 57 22-16 Washer 44 532 18 82-78 Cover, Bottom, Auto-Walk Drive Control 45 532 18 70-97 Plate, Trigger, Auto-Walk Drive Control 47 532 18 16-98 Screw, Phillips Head #10 x 5/8 48 532 18 58-59 Decal, Drive Control Operation 49 532 17 51-03 Gear, Pinion 50 532 17 51-02 Retainer, Drive, RH 51 532 17 50-98 Pawl 52 532 18 82-91 Spring, Torsion 53 532 17 51-04 Disc, Drive 54 532 17 51-01 Seal, Friction 55 532 18 82-93 Pinion/Pawl Assembly, RH 56 532 18 82-92 Pinion/Pawl Assembly, LH 58 532 17 51-05 Retainer, Drive, LH 60 532 18 47-49 Pulley, Drive 61 532 19 00-39 Lever, Auto-Walk Drive Control
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
