Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Walk Mower
65RSW21HVB
(65C21HVB, 917.374781)
Illustrated
Parts List
2003-10
I0302021
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

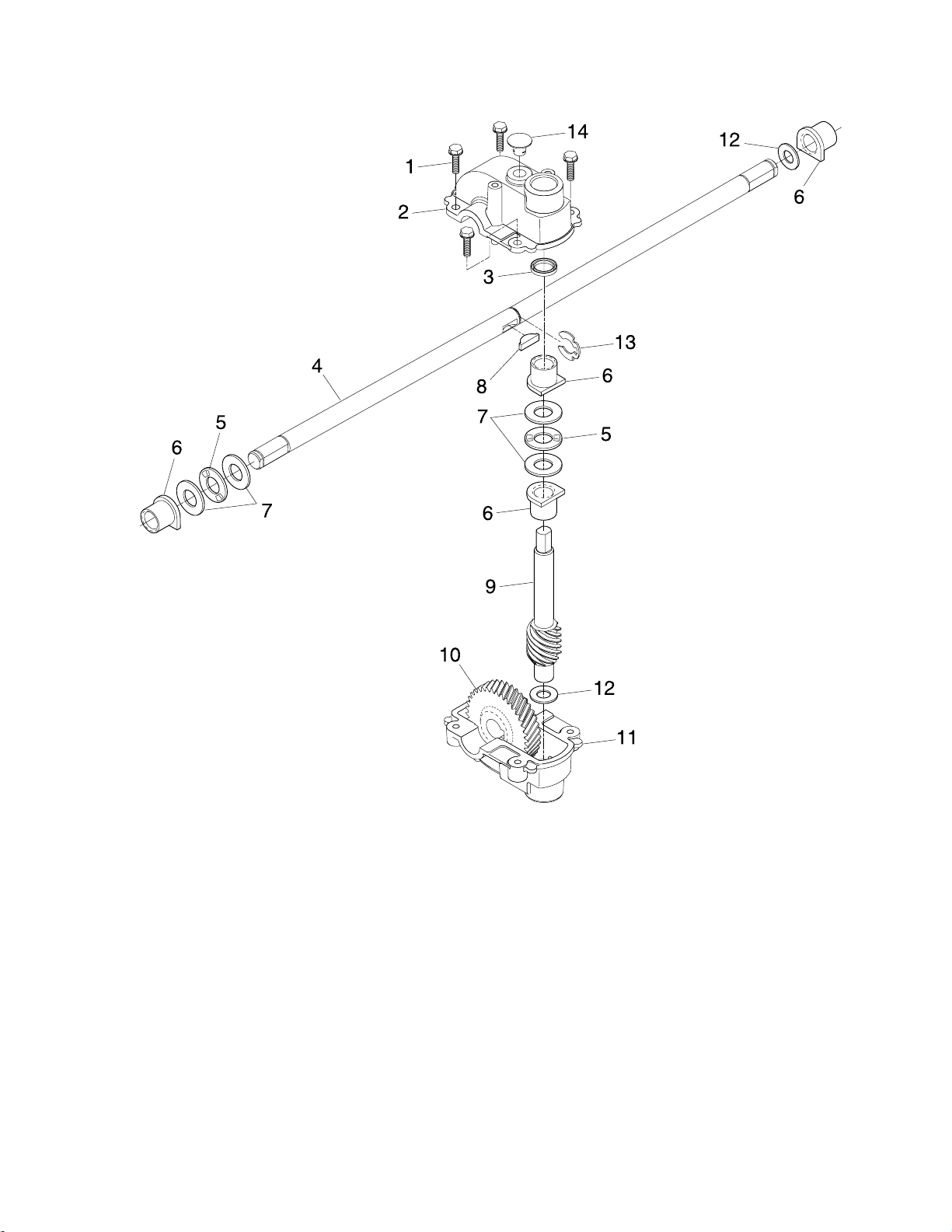

ROTARY LAWN MOWER - - MODEL NUMBER 917.374781 (65RSW21HVB)
GEAR CASE ASSEMBLY - - PART NUMBER 532183699
KEY PART
NO. NO. DESCRIPTION
1 817541011 Screw, Tapping #10-24 x .668
2 532160672 Gear Case, Upper
3 532057072 Seal
4 532183908 Drive Shaft
5 532160818 Bearing, Needle, Thrust
6 532077881 Bearing
7 532160817 Washer, Thrust
8 532850848 Key, Hi-pro
9 532184134 Shaft, Worm
10 532160679 Gear, Helical
11 532160673 Gear Case, Lower
12 532057079 Washer, Hardened
13 812000039 E-Ring
14 532086447 Plug
- - 532750369 Grease
- - 532184208 Kit, Gearcase Replacement (Includes Grease)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
19
www.mymowerparts.com
Page 4
ROTARY LAWN MOWER - - MODEL NUMBER 917.374781 (65RSW21HVB)
www.mymowerparts.com
20
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 5

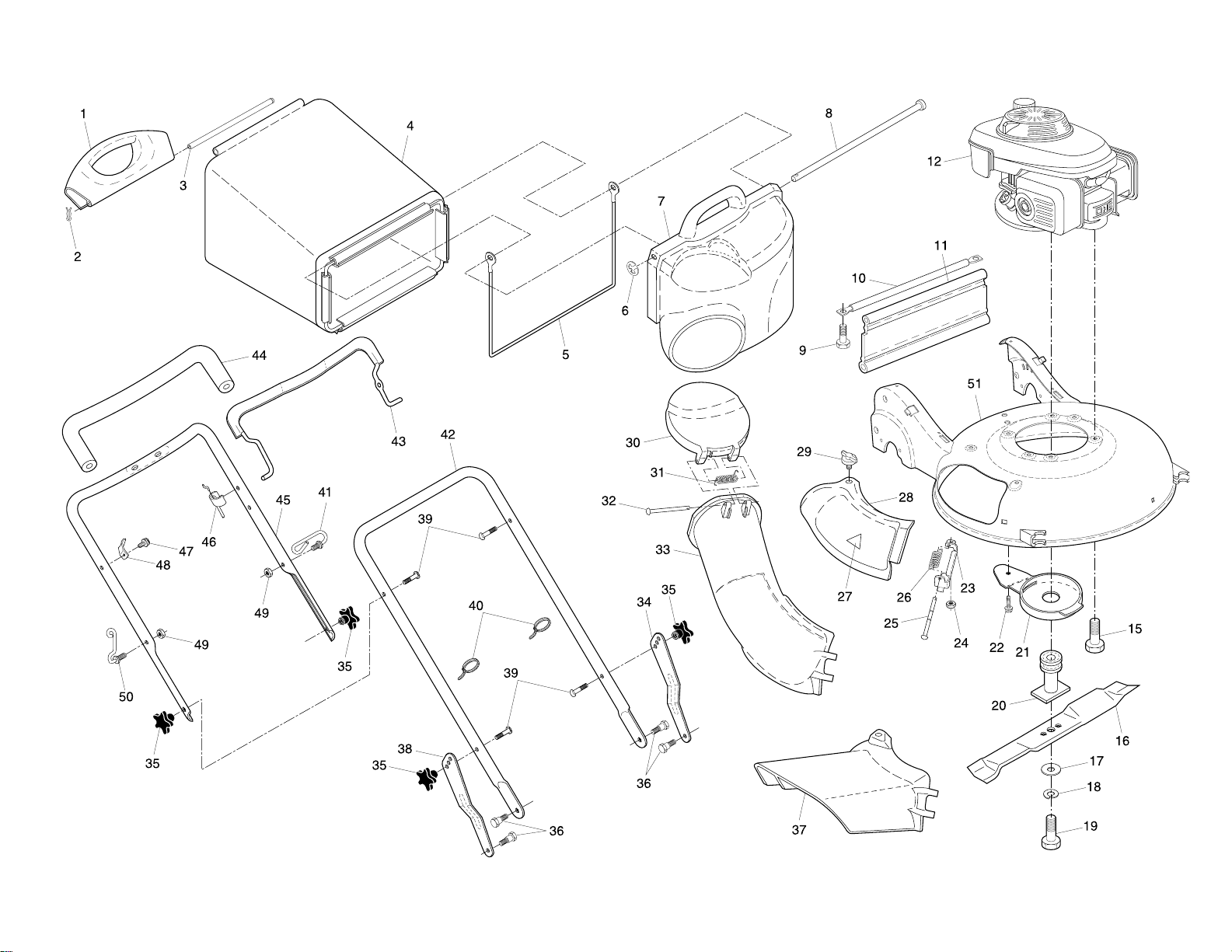

ROTARY LAWN MOWER - - MODEL NUMBER 917.374781 (65RSW21HVB)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
www.mymowerparts.com
21
1 532188513 Handle, Grassbag, Rear
2 532065322 Hairpin Cotter
3 532183483 Rod, Rear Handle, Grassbag
4 532188367 Grassbag
5 532183481 Frame, Grassbag
6 812000014 E-Ring
7 532188500 Door, Grassbag
8 532183479 Rod, Pivot
- - 532188656 Grassbag Assembly, Complete
(Consists of Key Numbers 1-8)
9 817411318 Screw
10 532184331 Tube, Rear Skirt
11 532183463 Skirt, Rear
12 - - - Engine, Honda, Model Number GCV190
(Order parts from Engine Manufacturer)
15 532150406 Bolt, Engine Mounting
16 532159267 Blade, 21"
17 532851074 Washer, Hardened
18 532850263 Washer, Lock
19 532183431 Screw, Hex Head, Grade 8
20 532183428 Adapter, Blade
21 532183690 Debris Shield
22 817600406 Screw, Hex Head, Serrated
23 532183609 Mounting Bracket, Mulcher Door
24 532751152 Nut, Hex
25 532183445 Rod, Hinge
26 532183446 Spring, Mulcher Door
27 532107339 Decal, Danger
28 532185995 Mulcher Door
KEY PART
NO. NO. DESCRIPTION
29 532183447 Knob
30 532188499 Door, Discharge Chute
31 532183478 Spring, Door, Discharge Chute
32 532183445 Rod, Door, Discharge Chute
33 532186000 Discharge Chute, Plastic
- - 532188660 Discharge Chute Assembly, Complete
(Consists of Key Numbers 30-33)
34 532187425 Adjustment Bracket, Lower Handle, LH
35 532185588 Knob, Star
36 532183465 Bolt, Shoulder
37 532185996 Defl ector, Discharge
38 532187426 Adjustment Bracket, Lower Handle, RH
39 532184568 Bolt, Handle
40 532066426 Wire Tie
41 532187162 Bracket, Anti-Fold
42 532187096 Handle Assembly, Lower
43 532186298 Bail, Control
44 532182748 Grip, Foam
45 532186296 Handle Assembly, Upper (Includes Foam Grip)
46 532183473 Cable, Engine Zone Control
47 532184570 Screw
48 532125203 Bracket, Upstop
49 532184569 Nut, Hex
50 532183469 Rope Guide
51 532186477 Kit, Housing
- - 532162300 Decal, Warning (not shown)
- - 532188686 Owner's Manual
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
Page 6
ROTARY LAWN MOWER - - MODEL NUMBER 917.374781 (65RSW21HVB)
www.mymowerparts.com
22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 7

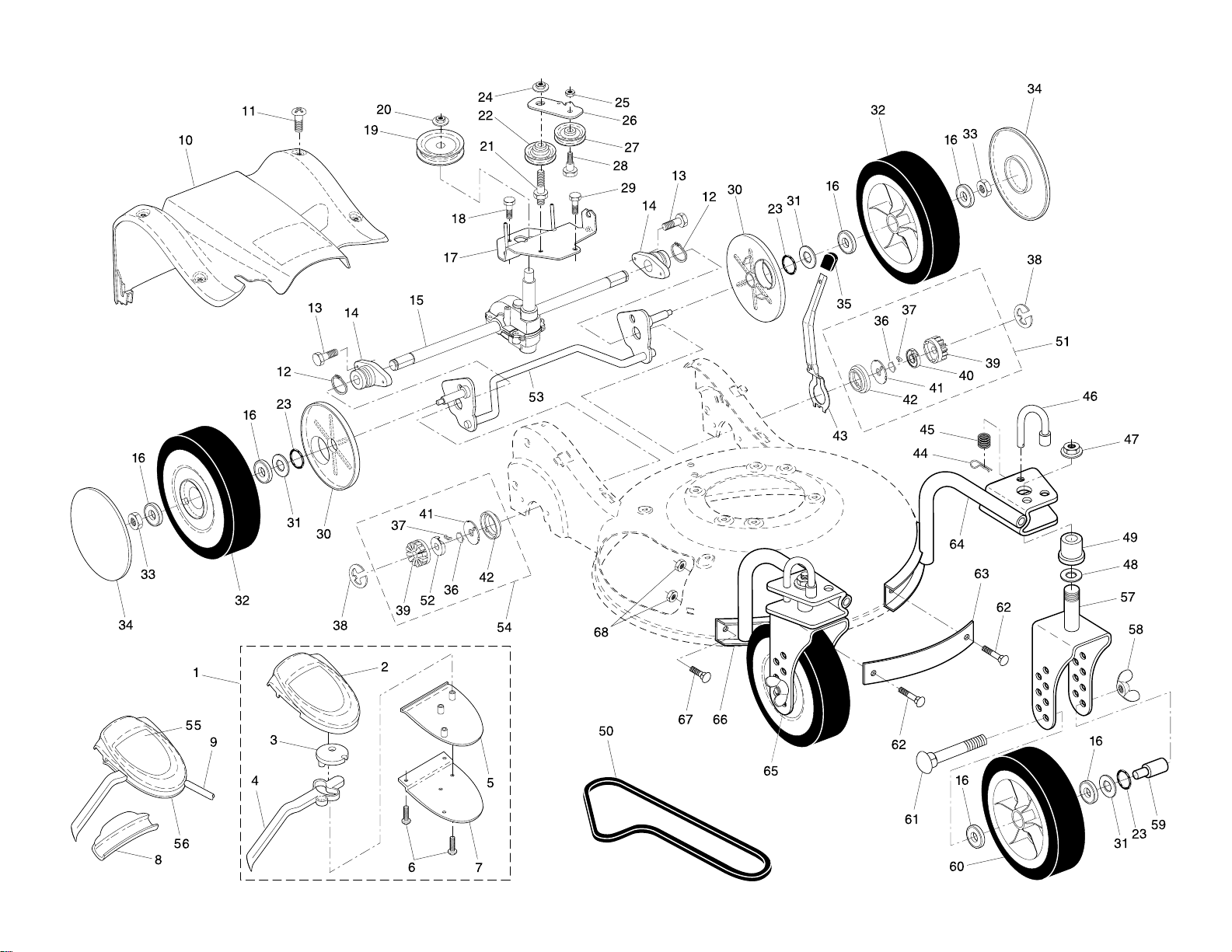

ROTARY LAWN MOWER - - MODEL NUMBER 917.374781 (65RSW21HVB)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
1 532185312 Drive Control Assembly, Complete
(Consists of Key Numbers 2 through 7)
www.mymowerparts.com
23
2 532188279 Cover, Drive Control, Top
3 532187353 Pulley, Drive Control
4 532185964 Lever, Drive Control (blue)
5 532188278 Cover, Drive Control, Bottom
6 532181698 Screw, Torx Head #8-5/8
7 532187097 Bracket, Mounting, Drive Control
8 532186297 Cap, Drive Control, Bottom
9 532180612 Cable, Drive Control
10 532185997 Cover Assembly, Drive
11 532184571 Screw, Hex Washer Head 1/4-20 x 1/2
12 812000012 Ring, Retaining
13 532183450 Screw
14 532187120 Bearing / Axle Support
15 532183699 Gear Case Assembly (See Breakdown)
16 532751068 Bearing, Ball (Wheel)
17 532187093 Bracket, Gear Case / Drive Pulley
18 817541011 Screw
19 532184749 Pulley, Drive
20 532132010 Nut, Hex, Flangelock
21 532183701 Bolt, Idler
22 532184543 Pulley Assembly, V-Groove
23 532188152 O-Ring
24 532145212 Nut, Hex, Flangelock
25 873930500 Nut, Hex, Lock
26 532187098 Idler Arm
27 532166043 Pulley, Idler
28 532160829 Bolt, Hex Head, Shoulder
29 817060410 Screw 1/4-20 x 1/16
30 532183457 Cover, Dust, Wheel
31 532088348 Washer, Flat 3/8
32 532184368 Wheel Assembly, Rear 9 x 2-1/4
33 532083923 Nut, Hex
34 532183695 Hubcap
35 532185994 Knob
KEY PART
NO. NO. DESCRIPTION
36 532188291 Spring, Torsion
37 532175098 Pawl
38 812000058 E-Ring
39 532175103 Gear
40 532175105 Retainer, Drive, LH
41 532175104 Disc, Drive
42 532184172 Seal, Friction
43 532187681 Lever, Selector, Wheel Height, Rear
44 532065322 Hairpin
45 532185051 Spring
46 532185054 Rod, Lock
47 532187247 Nut, Hex, Flangelock
48 819171713 Washer, Flat 1/2
49 532188435 Bushing
50 532183688 Belt, Drive
51 532188331 Pinion Assembly, LH
52 532175102 Retainer, Drive, RH
53 532187091 Rear Axle Assembly
54 532188330 Pinion Assembly, RH
55 532187356 Decal, Drive Control
56 532185913 Decal, Drive Control Adjustment (bottom)
57 532188682 Bracket, Caster Wheel, LH
58 532187248 Wing Nut 5/16-18
59 532185111 Spacer
60 532186440 Wheel Assembly, Front 9 x 2
61 872270528 Bolt, Carriage 5/16-18 x 3-1/2
62 532187474 Bolt, Carriage 5/16-18 x 7/8
63 532188475 Strap, Front
64 532188681 Support Tube Assembly, LH
65 532188684 Bracket, Caster Wheel, RH
66 532188683 Support Tube Assembly, RH
67 532187555 Bolt, Carriage 5/16-18 x 5/8
68 532187263 Nut, Hex 5/16
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
