Parts Manuals
11 pgs477.59 Kb0

Husqvarna I0301002 Parts Manuals

Download
Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SERVICE
13

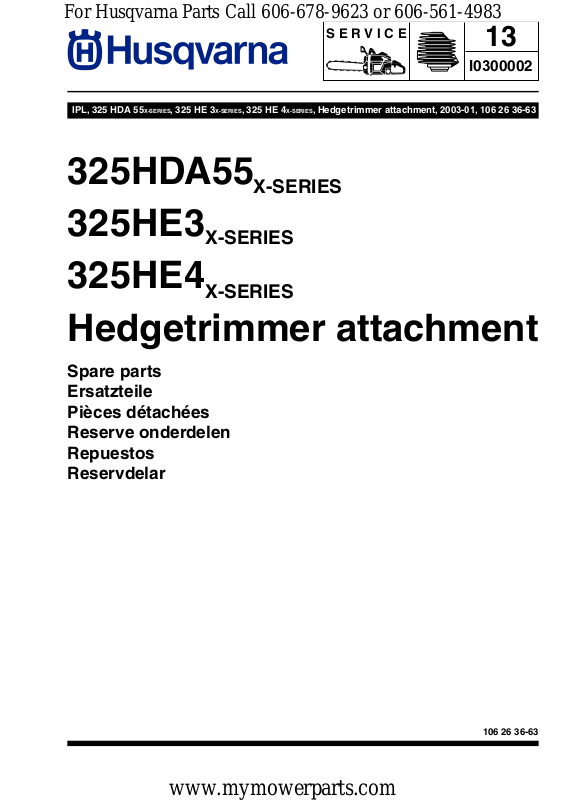

I0300002
325HDA55
X-SERIES
325HE3
X-SERIES
325HE4
X-SERIES
Hedgetrimmer attachment
Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar
www.mymowerparts.com
106 26 36-63
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

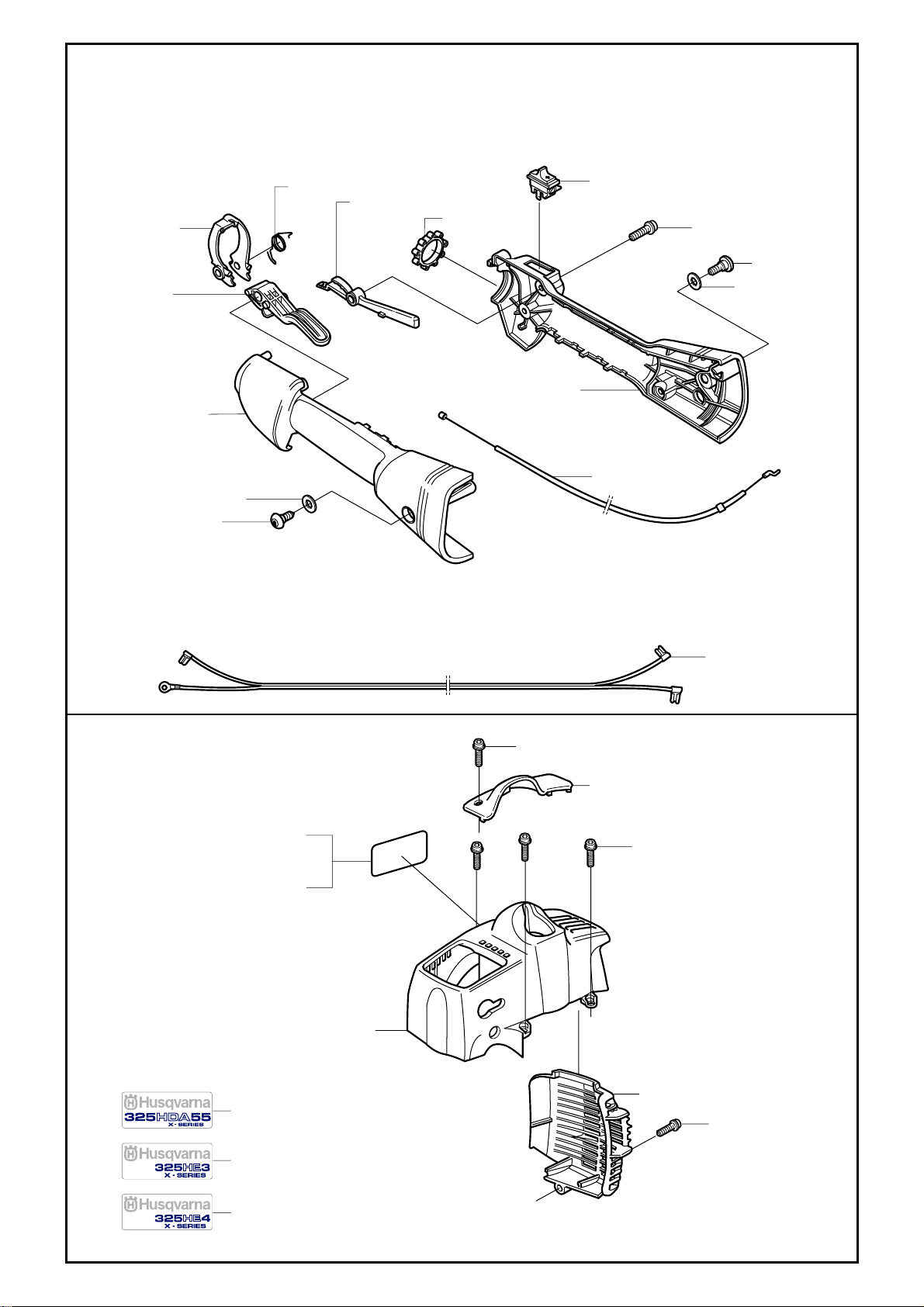

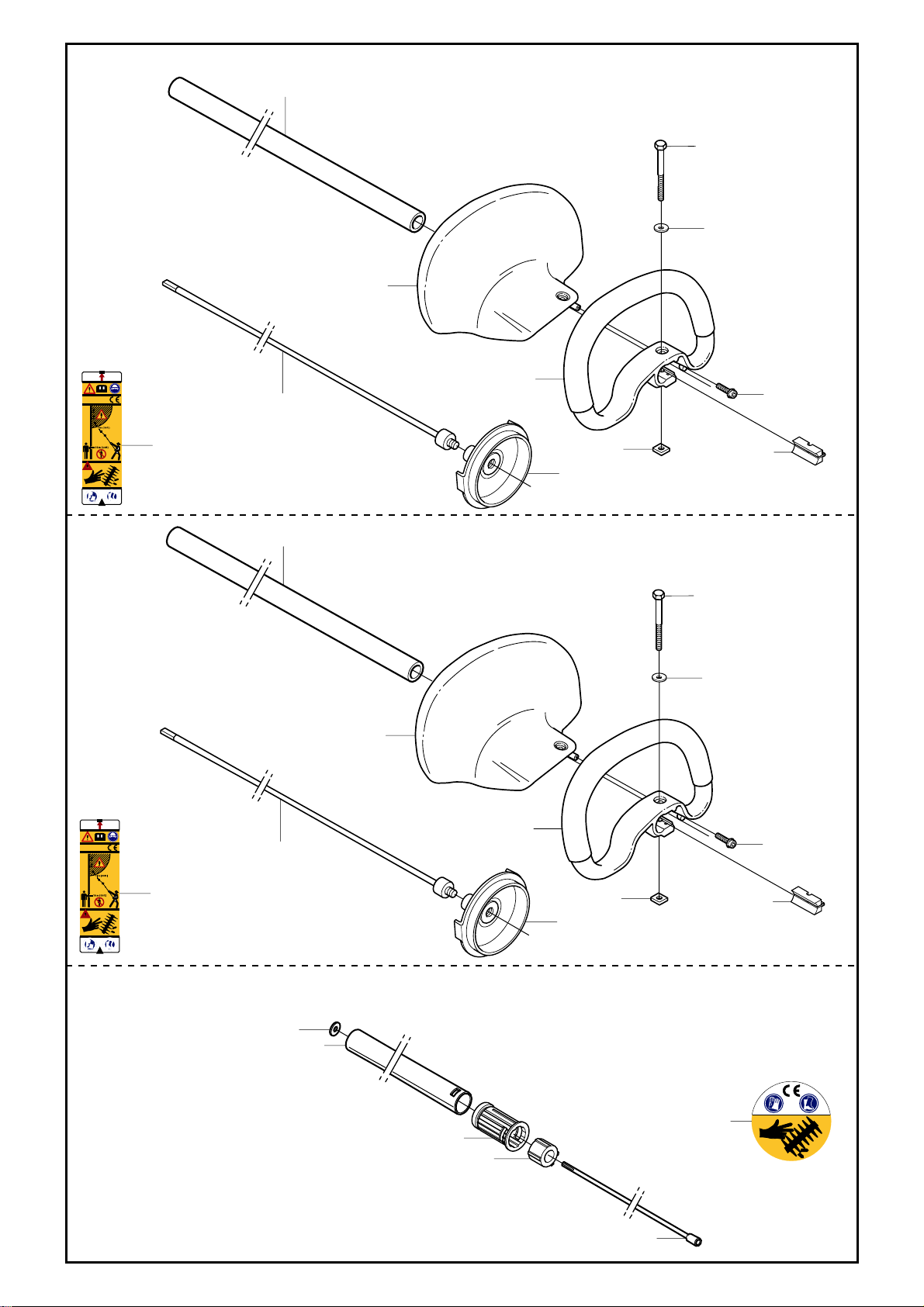

A
537 12 60-01 (x2)
537 12 59-01
537 12 58-01
**compl 537 26 75-01
537 17 98-01**
**537 22 54-01
738 88 10-01
537 22 55-01**
537 12 66-01
(HDA55x) 537 12 54-01 (x2)
738 88 10-01
537 12 55-01
537 12 47-01
537 12 48-01
537 12 48-01
537 12 47-01
537 17 31-01
(HDA55x)
725 53 25-55
537 12 57-01
537 12 56-01
537 12 64-01
537 12 65-01
*
537 12 30-01
537 15 46-01 537 12 30-01
*
537 12 31-01
537 12 54-01
537 12 39-01
537 12 40-01
*compl 537 12 63-01
537 12 53-01
**537 22 22-01
(HE3x, HE4x)
738 88 10-01
537 12 62-01 (x2)
(HE3x, HE4x)
537 12 54-01
537 12 53-01
725 53 33-55
537 12 45-01
www.mymowerparts.com
*
537 12 44-01
537 12 44-01
537 12 46-01
537 12 34-01 (x2)
537 12 22-01
537 12 21-01
537 12 22-01
537 12 32-01
531 00 49-57 (x6)
537 12 23-01
537 12 23-01
537 12 33-01
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

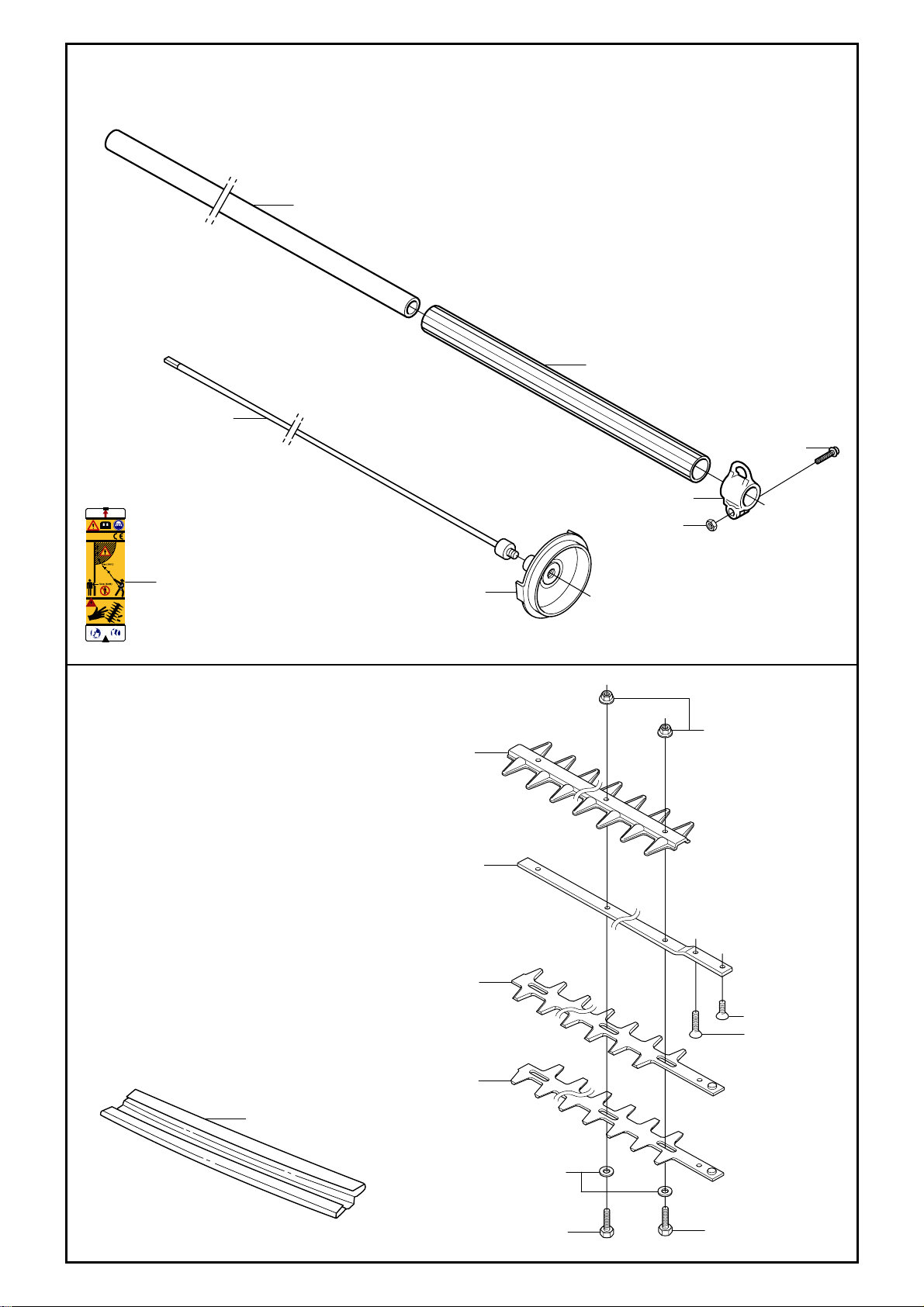

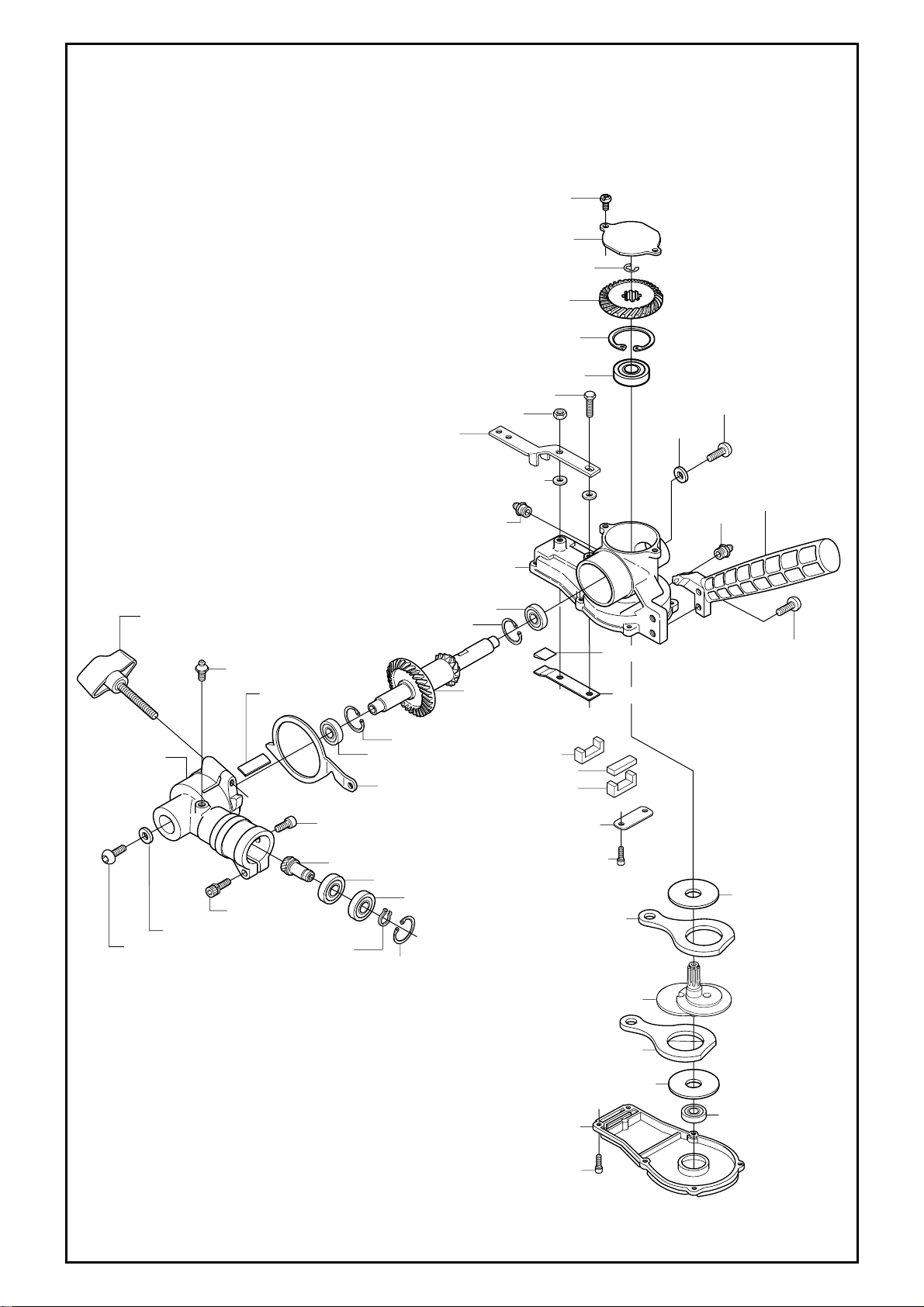

HDA55x

B
537 09 11-01
725 23 78-51
734 11 52-01
537 09 52-01
B

HE3x

537 08 39-01
537 09 10-01
537 08 27-01
537 09 52-01
537 09 12-01
503 87 19-03
503 87 19-03
502 19 71-01
537 08 86-01
503 21 68-16
503 94 03-01
725 23 78-51
734 11 52-01
503 21 68-16
537 08 39-01
Hedgetrimmer Attachment
B
*735 58 55-01
www.mymowerparts.com
502 19 71-01
537 08 86-01
*
*compl 537 19 58-01
*503 98 54-01
*503 78 52-01
*537 19 59-01
503 94 03-01
537 19 85-01
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

HE4x

B
503 88 88-01
537 08 55-01
503 86 45-01
503 20 07-16

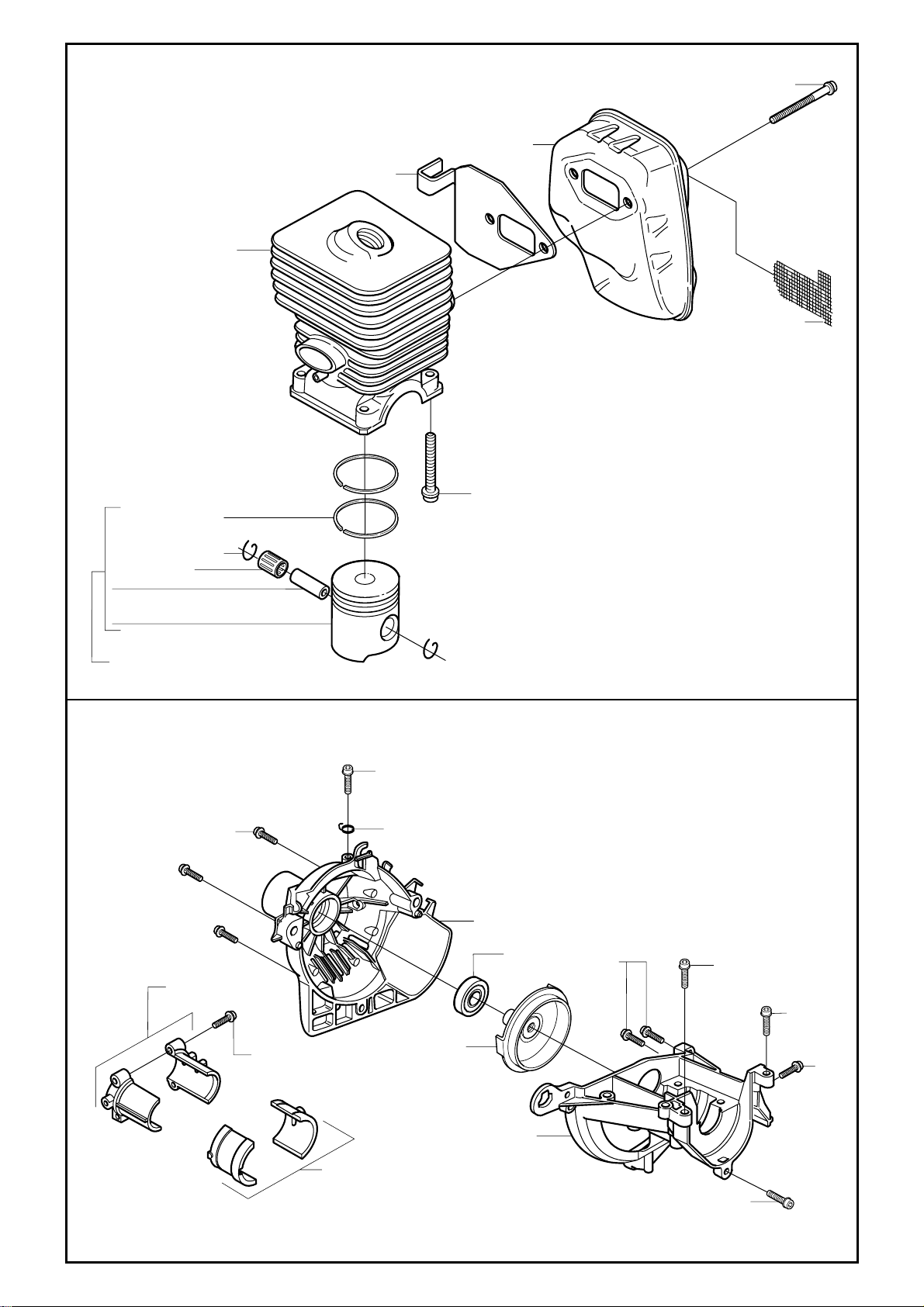

C
537 08 39-01
503 94 10-01
731 23 14-01
537 08 86-01
537 18 47-01 (x4)
537 12 41-01 (HDA55x)
537 18 44-01
537 12 25-01
537 12 25-01
537 12 36-01
501 36 02-05 (x4)
537 18 46-01 (x3)
www.mymowerparts.com
501 36 49-38 537 12 38-01
537 18 45-01
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

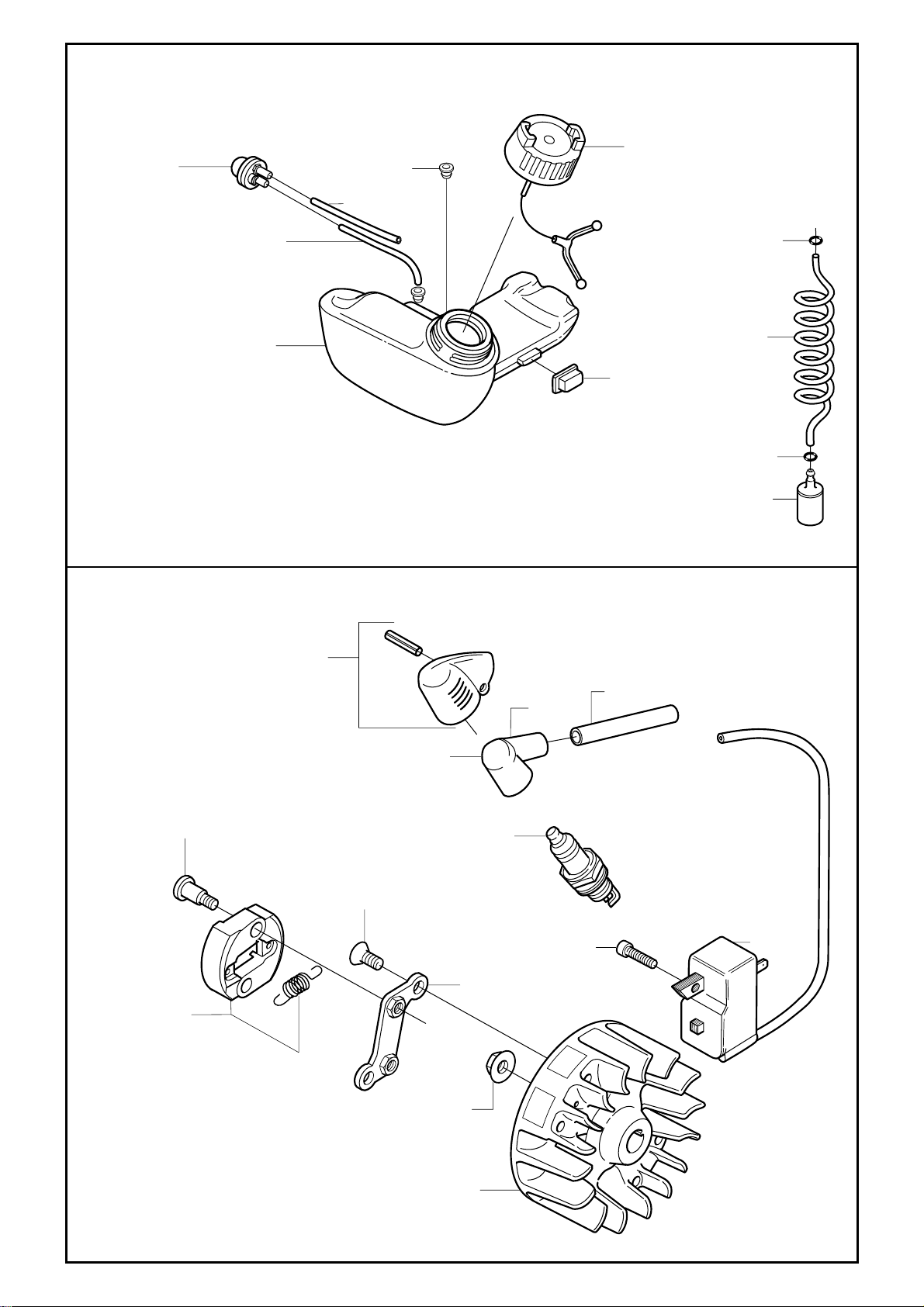

D
503 91 81-01
503 87 79-01
503 99 56-02
503 96 13-01
740 42 06-00
537 01 13-01
503 87 80-01
503 96 14-01
503 99 55-02
503 71 82-01
503 21 66-20 (x5)
503 96 13-01
740 42 06-00
537 05 25-01
E
503 98 12-37 325HDA55x 503 98 12-32 325HE3x 503 98 12-33 325HE4x
503 87 18-01
503 98 12-37 325HDA55x
503 87 85-01
503 21 35-12 (x2)
537 10 44-01
503 21 68-20 (x3)
503 87 21-01
503 21 68-20
503 98 12-32 325HE3x
503 98 12-33 325HE4x
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
F
502 20 65-03
502 20 40-01
503 88 80-01
503 91 09-01
503 88 81-01
503 21 75-16
503 96 25-01
*compl 503 89 03-01
*
*503 88 79-01
731 23 14-01*
503 21 75-50 (x2)
**compl 503 87 33-02 *compl 503 85 28-01
503 28 31-13
503 49 71-01
503 20 03-25 (x2)
G
735 31 08-20**
**
503 85 89-01*
503 94 26-01
503 22 65-04 (x2)
**503 87 36-01
**503 87 35-02
731 71 16-51
503 21 77-16*
*503 96 49-01
503 97 98-38 325HDA55x
503 97 98-30 325HE3x
503 97 98-31 325HE4x
503 21 66-20 (x3)
537 00 84-01*
503 85 87-01*
503 97 98-38 325HDA55x 503 97 98-30 325HE3x 503 97 98-31 325HE4x
503 21 68-20
537 03 41-01
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*compl 537 06 86-02

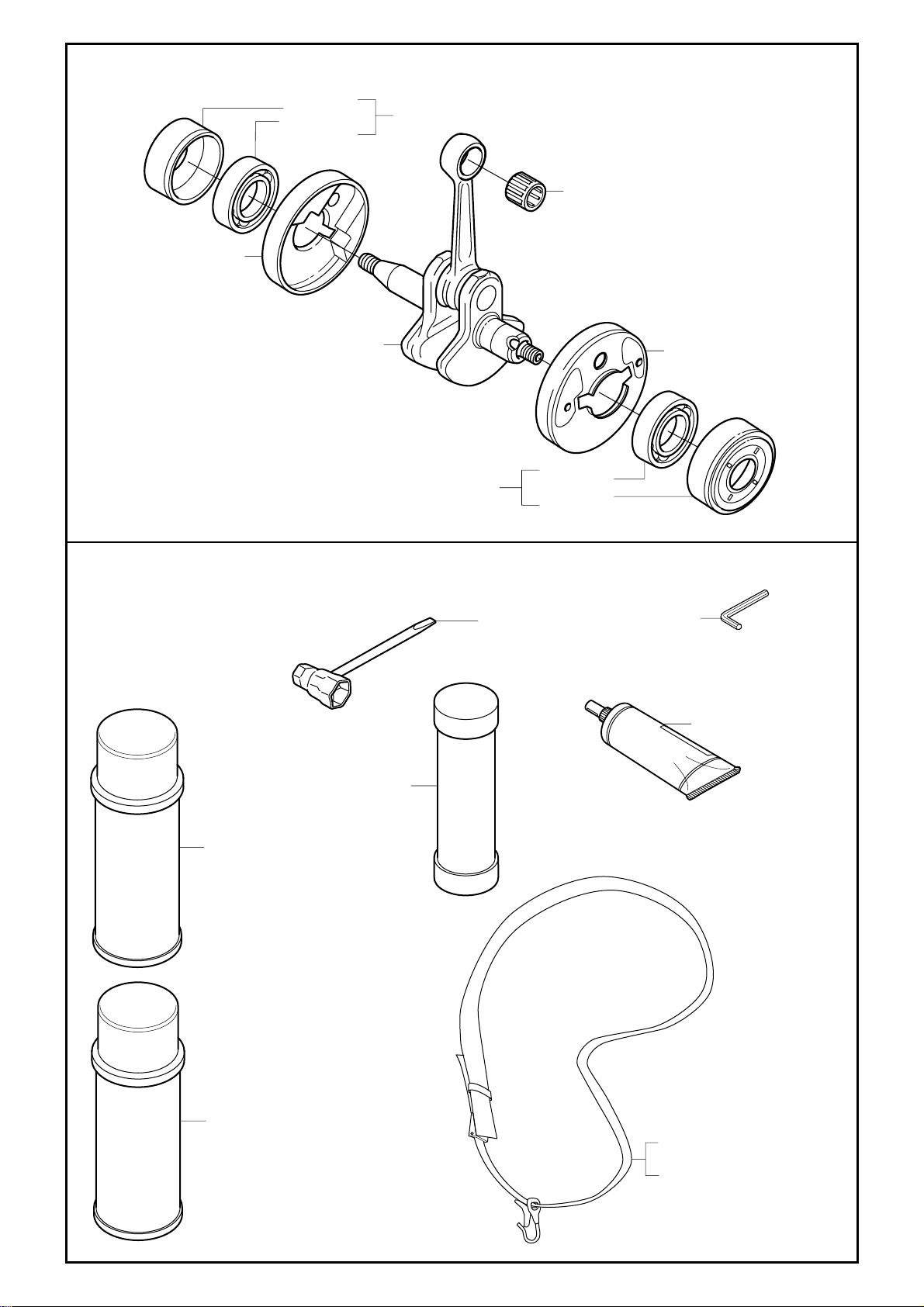

H
503 91 18-02
503 93 66-01
*503 73 58-01 (x2)
537 04 24-01
* compl 537 13 75-01
J
*537 04 24-01
*
537 04 58-01
537 18 49-01
*503 57 76-01
503 91 10-01 (x4)
*537 18 49-01
*503 44 32-01
537 00 00-01 (x2)
537 04 01-01
*501 48 54-02
503 23 51-11 NGK BPMR 7A
503 21 48-01 (x2)
731 71 16-51
*
503 21 71-16 (x2)
537 03 99-01
*
*
503 87 28-01
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*compl 537 03 94-01

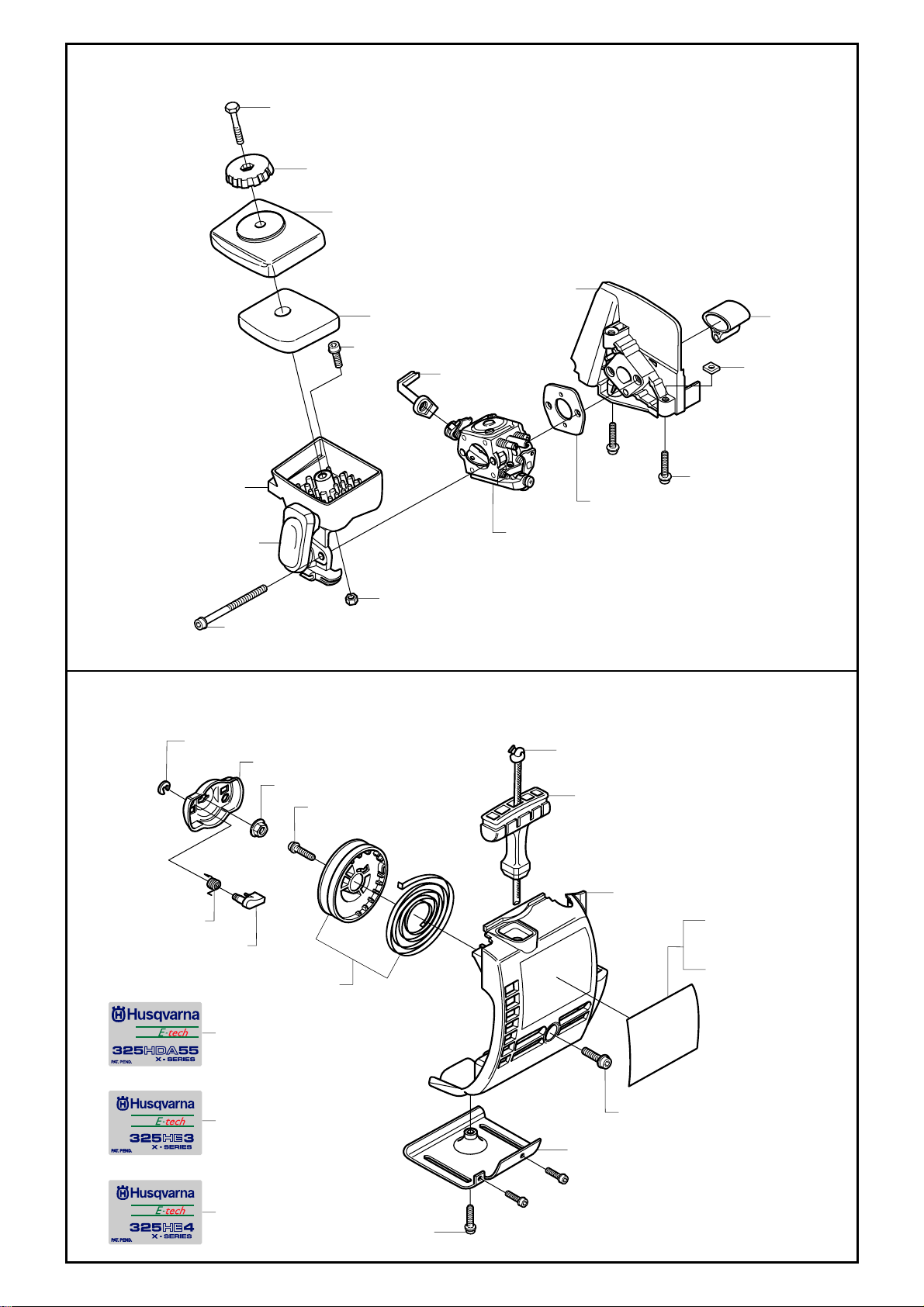

K
*
537 01 41-01
**
**compl 537 03 20-05
*503 20 29-50 (x2)
*503 87 17-01
503 28 90-41 (x2)
737 44 08-00 (x2) 503 71 22-01
537 01 32-75**
**compl 537 04 12-03
L
*503 21 68-20 (x3)
503 21 68-20**
537 07 36-01
503 20 02-35** (x4)
**
*compl 537 04 11-01
537 03 23-01
**
*503 21 71-16
503 21 68-25 (x2)
537 03 24-01
537 08 86-01
*
www.mymowerparts.com
503 21 68-20* (x4)
*
*
*
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*compl 503 85 24-74
M
*503 94 05-01
503 83 61-01 738 21 01-10
503 94 02-01*
*
*503 94 02-01
503 71 22-01*
503 94 05-01*
738 21 01-10 503 83 61-01
*compl 537 04 07-11 (HE3x, HE4x) *compl 537 04 07-13 (HDA55x)
N
Accessories Zubehöre Accessoires Acessorios Tillbehör
531 00 75-12 UL21
531 00 92-05
501 69 17-01*
400g
GREASE
*502 21 58-01
503 98 96-01*
531 00 75-13 UL22
www.mymowerparts.com
503 74 16-01 (HE4x) 503 74 16-02 (HE4x USA)
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
compl 503 28 31-13

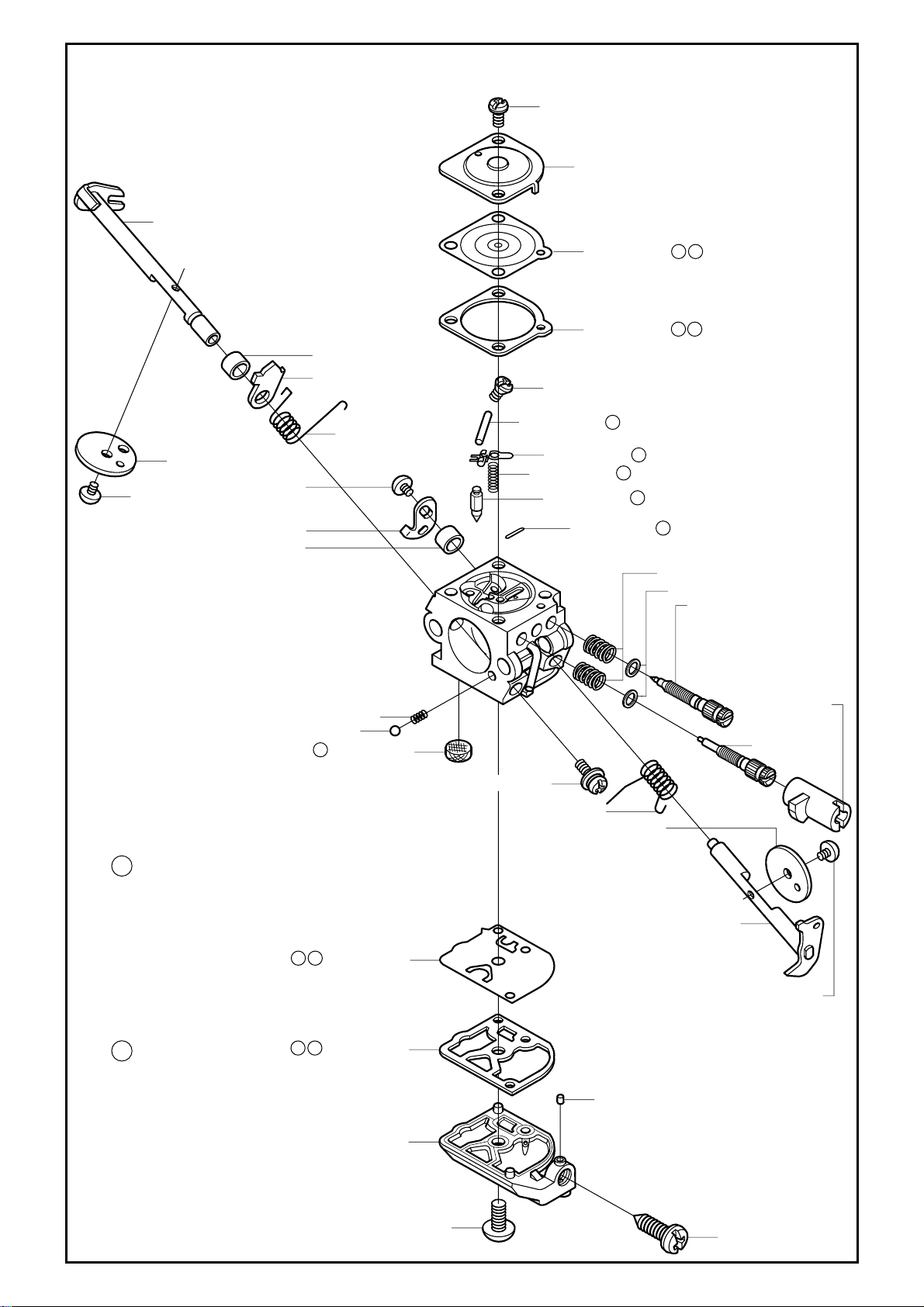

P
503 48 18-01
537 02 09-01
537 02 11-01
503 47 90-01
503 48 19-01
537 14 34-01
537 02 10-01
503 48 05-01 (x2)
503 97 43-01
537 04 89-01
537 02 04-01
503 48 01-01
503 48 00-01
503 66 59-01
537 02 03-01
503 47 97-01
ZAMA C1Q - EL 14
2211
2
2
2
2
537 01 98-01 503 47 89-01
531 00 45-52
1 Set of gaskets Dichtungssatz Juego de juntas Jeu de joints Packningssats
537 01 26-01
537 01 25-01
2
503 53 57-01
21
537 02 00-01
503 75 53-01
537 01 97-01
537 02 08-01
537 01 99-01
2
503 48 08-01
503 97 40-01
537 12 78-01
537 14 09-01
537 02 06-01
537 01 96-01
503 47 92-01
2
531 00 45-53
Repairkit Reparatursatz Juego de reparación Kit de réparation Reparationssats
www.mymowerparts.com
21
537 02 01-01
537 02 02-01
503 47 96-01
503 48 11-01
537 02 07-01
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
325 HDA 55X-SERIES, 325 HE 3X-SERIES, 325 HE 4X-SERIES, Hedgetrimmer attachment
PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE
501 36 02-05 C 501 36 49-38 C 501 48 54-02 J 501 69 17-01 N 502 19 71-01 B 502 20 40-01 F 502 20 65-03 F 502 21 58-01 N 503 20 02-35 K 503 20 03-25 F
503 20 07-16 B 503 20 29-50 K 503 21 35-12 E 503 21 48-01 J 503 21 66-20 DG 503 21 68-16 B 503 21 68-20 EGL 503 21 68-25 L 503 21 71-16 JL 503 21 75-16 F
503 21 75-50 F 503 21 77-16 G 503 22 65-04 F 503 23 51-11 J 503 28 31-13 FP N 503 28 90-41 K 503 44 32-01 H 503 47 89-01 P 503 47 90-01 P 503 47 92-01 P
503 88 88-01 B 503 89 03-01 F 503 91 09-01 F 503 91 10-01 H 503 91 18-02 H 503 91 81-01 D 503 93 66-01 H 503 94 02-01 M 503 94 03-01 B 503 94 05-01 M
503 94 10-01 B 503 94 26-01 F 503 96 13-01 D 503 96 14-01 D 503 96 25-01 F 503 96 49-01 G 503 97 40-01 P 503 97 43-01 P 503 97 98-30 G 503 97 98-31 G
503 97 98-38 G 503 98 12-32 E 503 98 12-33 E 503 98 12-37 E 503 98 54-01 B N 503 98 96-01 N 503 99 55-02 D 503 99 56-02 D 531 00 45-52 P 531 00 45-53 P
537 05 25-01 D 537 06 86-02 H 537 07 36-01 L 537 08 27-01 B 537 08 39-01 B 537 08 55-01 B 537 08 86-01 BL 537 09 10-01 B 537 09 11-01 B 537 09 12-01 B
537 09 52-01 B 537 10 44-01 E 537 12 21-01 A 537 12 22-01 A 537 12 23-01 A 537 12 25-01 C 537 12 30-01 A 537 12 31-01 A 537 12 32-01 A 537 12 33-01 A
537 12 34-01 A 537 12 36-01 C 537 12 38-01 C 537 12 39-01 A 537 12 40-01 A 537 12 41-01 C 537 12 44-01 A 537 12 45-01 A 537 12 46-01 A 537 12 47-01 A
735 58 55-01 B N 737 44 08-00 K 738 21 01-10 M 738 88 10-01 A 740 42 06-00 D
503 47 96-01 P 503 47 97-01 P 503 48 00-01 P 503 48 01-01 P 503 48 05-01 P 503 48 08-01 P 503 48 11-01 P 503 48 18-01 P 503 48 19-01 P 503 49 71-01 F
503 53 57-01 P 503 57 76-01 H 503 66 59-01 P 503 71 22-01 KM 503 71 82-01 D 503 73 58-01 H 503 74 16-01 N 503 74 16-02 N 503 75 53-01 P 503 78 52-01 B N
503 83 61-01 M 503 85 24-74 M 503 85 28-01 G 503 85 87-01 G 503 85 89-01 G 503 86 45-01 B 503 87 17-01 K 503 87 18-01 E 503 87 19-03 B N 503 87 21-01 E
531 00 49-57 A 531 00 75-12 N 531 00 75-13 N 531 00 92-05 N N 537 00 00-01 J 537 00 84-01 G 537 01 13-01 D 537 01 25-01 P 537 01 26-01 P 537 01 32-75 K
537 01 41-01 K 537 01 96-01 P 537 01 97-01 P 537 01 98-01 P 537 01 99-01 P 537 02 00-01 P 537 02 01-01 P 537 02 02-01 P 537 02 03-01 P 537 02 04-01 P
537 02 06-01 P 537 02 07-01 P 537 02 08-01 P 537 02 09-01 P 537 02 10-01 P 537 02 11-01 P 537 03 20-05 K 537 03 23-01 L 537 03 24-01 L 537 03 41-01 G
537 12 48-01 A 537 12 53-01 A 537 12 54-01 A 537 12 55-01 A 537 12 56-01 A 537 12 57-01 A 537 12 58-01 A 537 12 59-01 A 537 12 60-01 A 537 12 62-01 A
537 12 63-01 A 537 12 64-01 A 537 12 65-01 A 537 12 66-01 A 537 12 78-01 P N 537 13 75-01 J 537 14 09-01 P 537 14 34-01 P 537 15 46-01 A 537 17 31-01 A
537 17 98-01 A N 537 18 44-01 C N 537 18 45-01 C N 537 18 46-01 C N 537 18 47-01 C N 537 18 49-01 H N 537 19 58-01 B N 537 19 59-01 B N 537 19 85-01 B N 537 22 22-01 A N
503 87 28-01 J 503 87 33-02 G 503 87 35-02 G 503 87 36-01 G 503 87 79-01 D 503 87 80-01 D 503 87 85-01 D 503 88 79-01 F 503 88 80-01 F 503 88 81-01 F
N = New part, Neues teil,
Nouvelle piece, Nueva pieza Ny detalj
537 03 94-01 K 537 03 99-01 J 537 04 01-01 J 537 04 07-11 N 537 04 07-13 N 537 04 11-01 L 537 04 12-03 L N 537 04 24-01 H 537 04 58-01 J 537 04 89-01 P
537 22 54-01 A N 537 22 55-01 A N 537 26 75-01 A N 725 23 78-51 B 725 53 25-55 A 725 53 33-55 A N 731 23 14-01 BF 731 71 16-51 GJ 734 11 52-01 B 735 31 08-20 G
