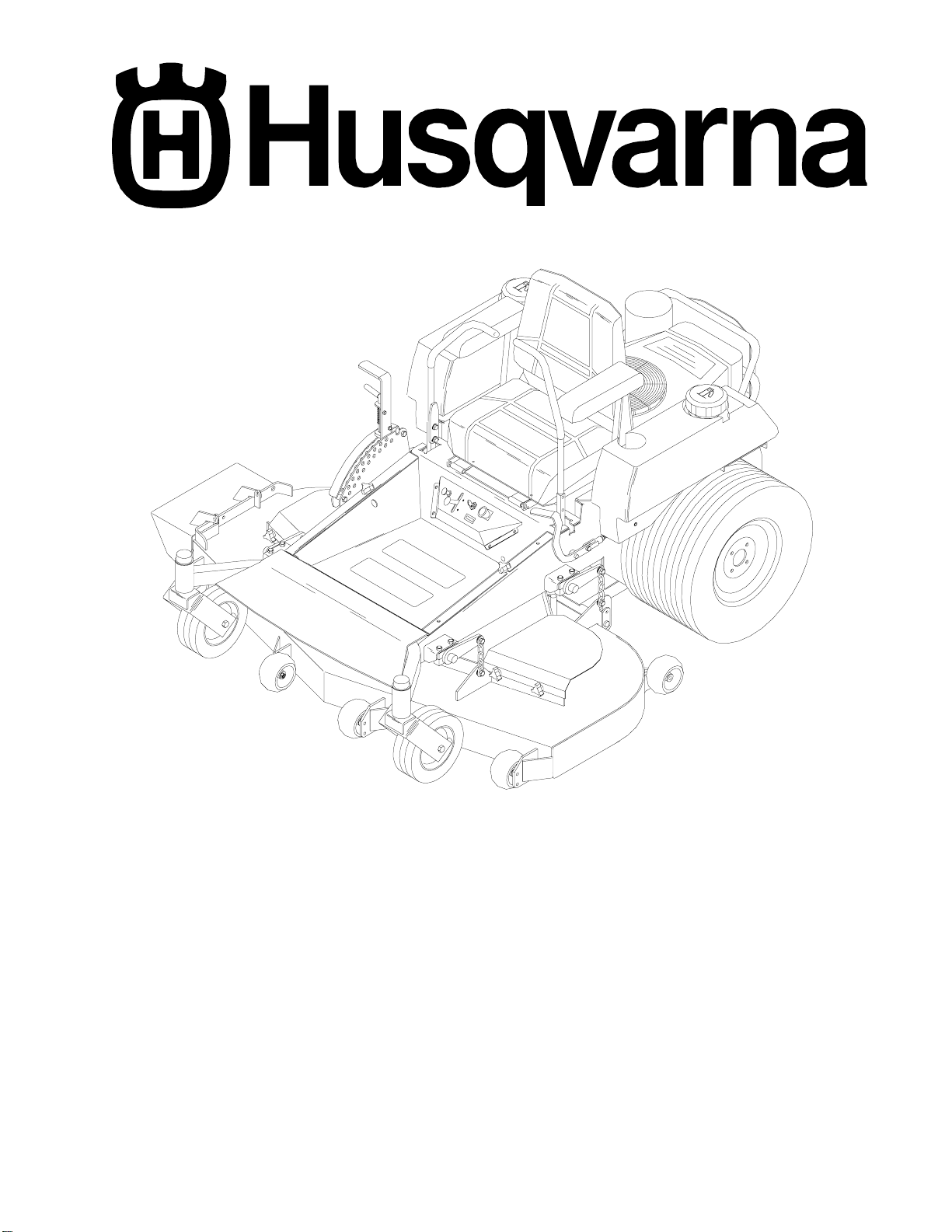

Parts Manual Models:
968999175 / ZTH7226KOA
968999180 / ZTH5221KAA
968999181 / ZTH5223KAA
968999182 / ZTH5223KOA
968999183 / ZTH5223KOLA
968999184 / ZTH5225KOA
968999185 / ZTH5225KAA
968999186 / ZTH6125KAA
968999187 / ZTH6125KOA
968999188 / ZTH6126KOA
968999189 / ZTH6123KOLA
968999202 / ZTH7227KOA
968999203 / ZTH6123KAA
MANUAL 539107973 REV . IR (10/10/02)
968999224/ZTH6127KOB
968999225/ZTH7227KOB
968999201/ZTH6127KOA
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Model Number:
Serial Number:
Date of Purchase:
Dealer Information:
Notes:
2
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TABLE OF CONTENTS
MAIN FRAME ASSEMBLY ................................................................... 4
EFI ENGINE ASSEMBLY .....................................................................6
KAW ASAKI ENGINE ASSEMBLY ........................................................ 8
KOHLER ENGINE ASSEMBLY ........................................................... 10
LIQUID COOL KOHLER ENGINE ASSEMBLY ..................................12
52” FRONT DECK ASSEMBLY ..........................................................14
61” FRONT DECK ASSEMBLY ..........................................................16
72” FRONT DECK ASSEMBLY ..........................................................18
MOTION CONTROL ASSEMBLY ....................................................... 20
DECK LIFT ASSEMBLY ......................................................................22
P ARK BRAKE ASSEMBLY .................................................................. 24
HYDRAULIC SYSTEM ASSEMBLY ....................................................26
CASTER ASSEMBLIES ....................................................................... 28
EFI FUEL ASSEMBLY..........................................................................30
KAW ASAKI AND KOHLER ASSEMBLIES ........................................... 32
STANDARD SEAT ASSEMBLY............................................................ 33
SUSPENSION SEAT ASSEMBLY ....................................................... 34
WIRING ASSEMBLY ............................................................................36
DECAL PLACEMENT ASSEMBLY...................................................... 38
3
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Main Frame Assembly
4
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Main Frame Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539105492 .......1..........FRAME 72” MODEL
........... 539105886 .......1..........FRAME 52” & 61”
2 ......... 539101474 .......2..........ZERK
3 ......... 539977778 .......3..........ANTI SKID PAD
4 ......... 53910441 1........2..........KNOB
5 ......... 53999041 1........2..........HCS # 10 X 1/2
6 ......... 539990362 .......4..........1/4 x 5/8 SELF TAP
7 ......... 539104721 .......1..........FOOT PLA TE
8 ......... 539102587 .......6..........BUMPER
9 ......... 539990052 .......4..........1/4 LOCK WASHER
10 ....... 539990598 .......4..........1/4 FLA T W ASHER
11........ 539105151 .......1..........CONSOLE W DECAL
12 ....... 539976977 .......2..........NUT #10 NYLOC
13 ....... 539102732 .......1..........THROTTLE CABLE
14 ....... 539990563 .......8..........HCS 3/8 X 1.0
15 ....... 539990517 .......14........3/8 FLAT W ASHER
16 ....... 539990546 .......10........NUT 3/8 LOCK
17 ....... 539104329 .......1..........ENGINE GUARD
18 ....... 539990247 .......2..........7/16 LOCK WASHER
19 ....... 539105905 .......2..........HCS 7/16 X 1.0 GD 8
20 ....... 539105022 .......2..........SKID PLATE
21 ....... 539104521 .......1..........STRUT SPACER
22 ....... 539976998 .......3..........ZERK
23 ....... 539976934 .......4..........HCS 5/16 X 3/4
NOTE:
ITEMS 21, 24, 26 QUANITY WILL BE 2 FOR 52”
AND 61” MODELS.
ITEM PART NO. QTY DESCRIPTION
24 ....... 539102619 .......2..........STRUT PIN
25 ....... 539990184 .......2..........NUT 5/16 LOCK
26 ....... 539104390 .......2..........STRUT
27 ....... 539105478 .......1..........CROSS SHAFT 72”
........... 539104332 .......1..........CROSS SHAFT 52” & 61”
28 ....... 539103433 .......1..........HCS 1/2 X 3.25
29 ....... 539104388 .......1..........IDLER ARM
30 ....... 539103427 .......1..........PIVOT BUSHING
31 ....... 539102236 .......1..........SUPPORT PLATE
32 ....... 539990655 .......1..........HCS 3/8 X 1.5
33 ....... 539105716 .......1..........IDLER COVER
34 ....... 539103256 .......1..........SPRING
35 ....... 539990730 .......1..........HCS 3/8 X 1.75
36 ....... 539976688 .......1..........IDLER PULLEY
37 ....... 539976695 .......1..........IDLER BUSHING
38 ....... 539102717 .......4..........5/16 X 5/8 SETSCW.
39 ....... 539101176........2 ..........PULLEY
40 ....... 539104334 .......1..........PUMP BEL T
41 ....... 539101177........2 ..........KEY 5mm SQ.
42 ....... 539104763 .......4..........CLIP
43 ....... 539990692 .......2..........5/16 FLA T W ASHER
44 ....... 539990187 .......2..........5/16 LOCK WASHER
45 ....... 539105577 .......1..........STRUT RT . SIDE
..................................................(NOT SHOWN)
46 ....... 539105481 .......1..........STRUT PIN RT . SIDE
..................................................(NOT SHOWN)
47 ....... 539105484 .......1..........STRUT SPACER RT.SIDE
..................................................(NOT SHOWN)
48 ....... 539990209 .......2..........HCS 5/16 X 1.0
ITEMS 45, 46, AND 47 ARE SPECIFIC TO 72”
MODELS ONL Y .
www.mymowerparts.com
5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
EFI Engine Assembly
6
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
EFI Engine Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539990184 .......6..........NUT 5/16 LOCK
2 ......... 539990669 .......4..........HCS 5/16 X 1.75
4 ......... 539100152 .......1..........KEY 1/4 SQ.
5 ......... 539106057 .......1..........PULLEY
7 ......... 539105406 .......1..........CLUTCH
8 ......... 539990247 .......1..........7/16 LOCK WASHER
9 ......... 539991 120........1..........HCS 7/16F X 2.5
10 ....... 539106819 .......1..........CLUTCH TIE DOWN
12 ....... 539105333 .......1..........EFI HARNESS
13 ....... 539105335 .......1..........EFI MUFFLER
14 ....... 539990187 .......2..........5/16 LOCK WASHER
15 ....... 539105410 .......1..........REAR ENGINE MT.
16 ....... 539105025 .......1..........ENGINE MOUNT
17 ....... 539990209 .......2..........HCS 5/16 X 1.0
18 ....... 539990692 .......2..........5/16 FLA T W ASHER
19 ....... 539103433 .......4..........HCS 1/2 X 3.25
20 ....... 539101331 .......4..........NUT 1/2 NYLOC
21 ....... 539104959 .......4..........ISOLA TOR W ASHER
22 ....... 539104958 .......4..........ISOLATORS
24 ....... 539105034 .......4..........ISOLA TOR SP ACER
25 ....... 539105072 .......1..........90 DEG. ELBOW
26 ....... 539105073 .......1..........PIPE 3/8 X 1.5 NPT
27 ....... 539101362 .......1..........OIL DRAIN HOSE
28 ....... 539101364 .......1..........DRAIN CAP
29 ....... 539101363 .......1..........CLAMP
30 ....... 539990580 .......1..........HCS 1/4 X 3/4
31 ....... 539990761 .......1..........NUT 1/4 LOCK
32 ....... 539991034 .......3..........SCREW SELF TAP
33 ....... 539976977 .......2..........NUT #10 NYLOC
34 ....... 539105407 .......2..........SCREW #10 X 2.0
35 ....... 539105408 .......2..........#10 WASHER
36 ....... 539107651 .......1..........INDICATOR LAMP BULB
37 ....... 539105637 .......1..........CLUTCH PIGTAIL
NOTE:
Torque item 9 to 50 ft/lbs
www.mymowerparts.com
7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Kawasaki Engine Assembly
8
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Kawasaki Engine Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539990184 .......5..........NUT 5/16 LOCK
2 ......... 539990669 .......4..........HCS 5/16 X 1.75
3 ......... 539100152 .......1..........KEY 1/4 SQ.
4 ......... 539106057 .......1..........PULLEY
5 ......... 539105406 .......1..........CLUTCH
6 ......... 539990247 .......1..........WASHER 7/16 LOCK
7 ......... 539991 120........1..........HCS 7/16F X 2.5
8 ......... 539106819 .......1..........CLUTCH TIE DOWN
9 ......... 539104415 .......1..........KAWASAKI PIGTAIL
10 ....... 539105897 .......1..........MUFFLER
11........ 539990187 .......2..........WASHER 5/16 LOCK
12 ....... 539105410 .......1..........ENGINE MOUNT
13 ....... 539105025 .......1..........ENGINE MOUNT
14 ....... 539976934 .......2..........HCS 5/16 X .750
15 ....... 539990692 .......2..........WASHER 5/16 FLA T
16 ....... 539103433 .......4..........HCS 1/2 X 3.25
17 ....... 539101331 .......4..........NUT 1/2 NYLOC
18 ....... 539104959 .......4..........WASHER
19 ....... 539104958 .......4..........ISOLATOR
20 ....... 539102757 .......1..........CABLE, POSITIVE
21 ....... 539101714 .......1..........SOLINOID
22 ....... 539990072 .......2..........HCS 1/4 X .625
23 ....... 539990761 .......3..........NUT 1/4 CTR. LOCK
24 ....... 539105034 .......4..........SPACER
25 ....... 539105968 .......1..........MUFFLER GUARD
26 ....... 539990053 .......1..........WASHER 1/4 INT . TOOTH
27 ....... 539105409 .......1..........GROUND WIRE
28 ....... 539105395 .......1..........OIL DRAIN HOSE
29 ....... 539102685 .......1..........LOOM CLIP
30 ....... 539990580 .......1..........HCS 1/4 X .750
31 ....... 539102733 .......1..........CHOKE CONTROL(NOT SHOWN)
32 ....... 539102877 .......1..........CLAMP
33 ....... 539102759 .......2..........INSULATOR
34 ....... 539105637 .......1..........CLUTCH PIGTAIL
9
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Kohler Engine Assembly
10
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Kohler Engine Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539990184 .......4..........NUT 5/16 LOCK
2 ......... 539990669 .......4..........HCS 5/16 X 1.75
3 ......... 539100152 .......1..........KEY 1/4 SQ.
4 ......... 539106057 .......1..........PULLEY
5 ......... 539105406 .......1..........CLUTCH
6 ......... 539990247 .......1..........WASHER 7/16 LOCK
7 ......... 539991120........1..........HCS 7/16F X 2.5
8 ......... 539106819 .......1..........CLUTCH TIE DOWN
9 ......... 539104416 .......1..........KOHLER PIGT AIL
10 ....... 539105896 .......1..........MUFFLER
11........ 539990187 .......2..........WASHER 5/16 LOCK
12 ....... 539105410 .......1..........ENGINE MOUNT
13 ....... 539105025 .......1..........ENGINE MOUNT
14 ....... 539976934 .......2..........HCS 5/16 X .750
15 ....... 539990692 .......2..........WASHER 5/16 FLA T
16 ....... 539103433 .......4..........HCS 1/2 X 3.25
17 ....... 539101331 .......4..........NUT 1/2 NYLOC
18 ....... 539104959 .......4..........WASHER
19 ....... 539104958 .......4..........ISOLATOR
20 ....... 539105034 .......4..........SPACER
21 ....... 539105072 .......1..........ELBOW
22 ....... 539105073 .......1..........3/8 NPT PIPE
23 ....... 539101362 .......1..........OIL DRAIN HOSE
24 ....... 539101364 .......1..........DRAIN CAP
25 ....... 539101363 .......1..........CLAMP
26 ....... 539990580 .......1..........HCS 1/4 X .750
27 ....... 539990761 .......3..........NUT 1/4 CTR. LOCK
28 ....... 539102733 .......1..........CHOKE CONTROL(NOT SHOWN)
29 ....... 539105637 .......1..........CLUTCH PIGTAIL
11
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Liquid Cooled Kohler Engine Assembly
12
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Liquid Cooled Kohler Engine Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539990184 .......4..........NUT 5/16 LOCK
2 ......... 539990669 .......4..........HCS 5/16 X 1.75
3 ......... 539100152 .......1..........KEY 1/4 SQ.
4 ......... 539106057 .......1..........PULLEY
5 ......... 539105406 .......1..........CLUTCH
6 ......... 539990247 .......1..........WASHER 7/16 LOCK
7 ......... 539991 120........1..........HCS 7/16F X 2.5
8 ......... 5391068 ...........1..........CLUTCH TIE DOWN
9 ......... 539105300 .......1..........KOHLER PIGTAIL L/C(NOT SHOWN)
10 ....... 539105896 .......1..........MUFFLER
11........ 539990187 .......2..........WASHER 5/16 LOCK
12 ....... 539105410 .......1..........ENGINE MOUNT
13 ....... 539105025 .......1..........ENGINE MOUNT
14 ....... 539976934 .......2..........HCS 5/16 X .750
15 ....... 539990692 .......4..........WASHER 5/16 FLA T
16 ....... 539103433 .......4..........HCS 1/2 X 3.25
17 ....... 539101331 .......4..........NUT 1/2 NYLOC
18 ....... 539104959 .......4..........WASHER
19 ....... 539104958 .......4..........ISOLATOR
20 ....... 539105034 .......4..........SPACER
21 ....... 539105072 .......1..........ELBOW
22 ....... 539105073 .......1..........3/8 NPT PIPE
23 ....... 539105246 .......1..........WATER TEMP. GAUGE
24 ....... 539105248 .......1..........GAUGE BRACKET
25 ....... 539105247 .......1..........GUAGE HARNESS
26 ....... 539976937 .......1..........HCS 5/16 X 2.0
27 ....... 539101362 .......1..........OIL DRAIN HOSE
28 ....... 539101364 .......1..........DRAIN CAP
29 ....... 539101363 .......1..........CLAMP
30 ....... 539990580 .......1..........HCS 1/4 X .750
31 ....... 539990761 .......3..........NUT 1/4 CTR. LOCK
32 ....... 539102733 .......1..........CHOKE CONTROL(NOT SHOWN)
33 ....... 539102685 .......1..........LOOM CLIP
34 ....... 539105637 .......1..........CLUTCH PIGTAIL
NOTE:
ITEMS 23, 24, 25, 26, 33 ARE NOT SHOWN. LOCATION OF THESE ITEMS ON THE UNIT ARE AT
THE RIGHT SIDE OF THE OPERATORS SEAT MOUNTED TO THE FRAME
13
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
52” Front Deck Assembly
14
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
52” Front Deck Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539105150 .......1..........DECK W/DECALS
2 ......... 539104403 .......3..........CUTTER HOUSING ASM.
3 ......... 539104421 .......3..........PULLEY
4 ......... 539100341 .......3..........BLADE
5 ......... 539990184 .......21 ........NUT 5/16 LOCK
6 ......... 539102643 .......6..........ROLLER
7 ......... 539102698 .......6..........BUSHING
8 ......... 539990517 .......9..........3/8 FLA T W ASHER
9 ......... 539990546 .......8..........NUT 3/8 LOCK
10 ....... 539104335 .......1..........BELT
11........ 539102754 .......6..........HCS 3/8 X 3.5
12 ....... 539990209 .......14........HCS 5/16 X 1.00
13 ....... 539107312 .......1..........DISCHARGE CHUTE
14 ....... 539105104 .......1..........BELT SHIELD RT.
........... 539105105 .......1..........BELT SHIELD LT .
15 ....... 539106504 .......3..........WASHER
16 ....... 539101995 .......3..........KEY 1/4 SQ.
17 ....... 539976934 .......2..........HCS 5/16 X .750
18 ....... 539105192 .......1..........SPRING
19 ....... 539103257 .......2..........PULLEY 1.31
20 ....... 539103258 .......1..........PULLEY 1.62
21 ....... 539103295 .......2..........IDLER BUSHING
22 ....... 539990839 .......8..........NUT 7/16 LOCK
23 ....... 539990637 .......2..........HCS 3/8 X 2.5
24 ....... 539102582 .......8..........NUT 7/16 WHIZ
25 ....... 539103299 .......3..........HCS 5/8F X 1.25
26 ....... 539990333 .......3..........WASHER 5/8 LOCK
27 ....... 539990247 .......3..........7/16 LOCK WASHER
28 ....... 539100141 .......3..........HCS 7/16F X 1.5
31 ....... 539102070 .......6..........KNOB
32 ....... 539103303 .......2..........PAD
33 ....... 539990582 .......1..........HCS 3/8 X 1.0 SERR.
34 ....... 539101331 .......1..........NUT 1/2 NYLOC
35 ....... 539990550 .......1..........WASHER 1/2 FLA T
36 ....... 539976998 .......1..........ZERK
37 ....... 539103230 .......1..........IDLER ARM
38 ....... 539103427 .......1..........PIVOT BUSHING
39 ....... 539102243 .......1..........SUPPORT WASHER
40 ....... 539103433 .......1..........HCS 1/2 X 3.25
41 ....... 539104402 .......1..........SPINDLE
42 ....... 539102675 .......1..........MACHINE BUSHING
43 ....... 539102244 .......2..........MACHINE BUSHING
44 ....... 539102677 .......2..........BEARING
45 ....... 539102676 .......1..........SPACER
46 ....... 539104852 .......1..........HOUSING
47 ....... 539990692 .......5..........5/16 FLA T W ASHER
48 ....... 539101175........8..........HCS 7/16 X 1.5
49 ....... 539102641 .......4..........LIFT CHAIN
50 ....... 539102619 .......2..........PIVOT PIN
51 ....... 539105453 .......1..........BAFFLE , CENTER
52 ....... 539105457 .......1..........BAFFLE, MAIN
53 ....... 539990799 .......5..........RHSNB 5/16 X 5/8
15
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
61” Front Deck Assembly
16
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
61” Front Deck Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539105149 .......1..........DECK W/DECALS
2 ......... 539104403 .......3..........CUTTER HOUSING ASM.
3 ......... 539104420 .......3..........PULLEY
4 ......... 539101733 .......3..........BLADE
5 ......... 539990184 .......21 ........NUT 5/16 LOCK
6 ......... 539102643 .......6..........ROLLER
7 ......... 539102698 .......6..........BUSHING
8 ......... 539990517 .......9..........3/8 FLAT WASHER
9 ......... 539990546 .......8..........NUT 3/8 LOCK
10 ....... 539104336 .......1..........BELT
11........ 539102754 .......6..........HCS 3/8 X 3.5
12 ....... 539990209 .......14........HCS 5/16 X 1.00
13 ....... 539104422 .......1..........DISCHARGE CHUTE
14 ....... 539105102 .......1..........BELT SHIELD RT.
........... 539105103 .......1..........BELT SHIELD L T .
15 ....... 539106504 .......3..........WASHER
16 ....... 539101995 .......3..........KEY 1/4 SQ.
17 ....... 539976934 .......2..........HCS 5/16 X .750
18 ....... 539105192 .......1..........SPRING
19 ....... 539103257 .......2..........PULLEY 1.31
20 ....... 539103258 .......1..........PULLEY 1.62
21 ....... 539103295 .......2..........IDLER BUSHING
22 ....... 539990839 .......8..........NUT 7/16 LOCK
23 ....... 539990637 .......2..........HCS 3/8 X 2.5
24 ....... 539102582 .......8..........NUT 7/16 WHIZ
25 ....... 539103299 .......3..........HCS 5/8F X 1.25
26 ....... 539990333 .......3..........WASHER 5/8 LOCK
27 ....... 539990247 .......3..........7/16 LOCK WASHER
28 ....... 539100141 .......3..........HCS 7/16F X 1.5
31 ....... 539102070 .......6..........KNOB
32 ....... 539103303 .......2..........PAD
33 ....... 539990582 .......1..........HCS 3/8 X 1.0 SERR.
34 ....... 539101331 .......1..........NUT 1/2 NYLOC
35 ....... 539990550 .......1..........WASHER 1/2 FLA T
36 ....... 539976998 .......1..........ZERK
37 ....... 539103230 .......1..........IDLER ARM
38 ....... 539103427 .......1..........PIVOT BUSHING
39 ....... 539102243 .......1..........SUPPORT WASHER
40 ....... 539103433 .......1..........HCS 1/2 X 3.25
41 ....... 539104402 .......1..........SPINDLE
42 ....... 539102675 .......1..........MACHINE BUSHING
43 ....... 539102244 .......2..........MACHINE BUSHING
44 ....... 539102677 .......2..........BEARING
45 ....... 539102676 .......1..........SPACER
46 ....... 539104852 .......1..........HOUSING
47 ....... 539990692 .......5..........5/16 FLA T W ASHER
48 ....... 539101175........8..........HCS 7/16 X 1.5
49 ....... 539102641 .......4..........LIFT CHAIN
50 ....... 539102619 .......2..........PIVOT PIN
51 ....... 539105461 .......1..........BAFFLE , CENTER
52 ....... 539105465 .......1..........BAFFLE, MAIN
53 ....... 539990799 .......5..........RHSNB 5/16 X 5/8
17
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
72” Front Deck Assembly
18
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
72” Front Deck Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539105488 .......1..........DECK W/DECALS
2 ......... 539105632 .......3..........CUTTER HOUSING ASM.
3 ......... 539105485 .......3..........PULLEY
4 ......... 539105476 .......3..........BLADE
5 ......... 539990184 .......19 ........NUT 5/16 LOCK
6 ......... 539102643 .......8..........ROLLER
7 ......... 539102698 .......8..........BUSHING
8 ......... 539990517 .......11 ........3/8 FLA T WASHER
9 ......... 539990546 .......9..........NUT 3/8 LOCK
10 ....... 539105477 .......1..........BELT
11........ 539102754 .......6..........HCS 3/8 X 3.5
12 ....... 539990627 .......12........HCS 5/16 X 1.25
13 ....... 539105981 .......1..........DISCHARGE CHUTE
14 ....... 539105564 .......1..........BELT SHIELD RT.
........... 539105566 .......1..........BELT SHIELD LT.
15 ....... 539106504 .......3..........WASHER
16 ....... 539101995 .......3..........KEY 1/4 SQ.
17 ....... 539105192 .......1..........SPRING
18 ....... 539103257 .......2..........PULLEY 1.31
19 ....... 539103258 .......1..........PULLEY 1.62
20 ....... 539103295 .......2..........IDLER BUSHING
21 ....... 539101341 .......2..........HCS 3/8 X 3.0
22 ....... 539105633 .......3..........HCS 5/8F X 2.0 GD. 8
23 ....... 539105634 .......3..........5/8 SPRING WASHER
24 ....... 539990247 .......3..........7/16 LOCK WASHER
25 ....... 539100141 .......3..........HCS 7/16F X 1.5
26 ....... 539104763 .......8..........“U” CLIP
27 ....... 539104411........8..........KNOB
28 ....... 539103303 .......2..........PAD
29 ....... 539990582 .......1..........HCS 3/8 X 1.0 SERR.
30 ....... 539976998 .......1..........ZERK
31 ....... 539103230 .......1..........IDLER ARM
32 ....... 539103427 .......1..........PIVOT BUSHING
33 ....... 539105615 .......1..........BAFFLE, CENTER
34 ....... 539105614 .......1..........BAFFLE, MAIN
35 ....... 539990799 .......5..........RHSNB 5/16 X 5/8
36 ....... 539990692 .......5..........5/16 FLA T W ASHER
37 ....... 539105422 .......1..........HCS 3/8 X 6.0 GD. 8
38 ....... 539105501 .......1..........SPINDLE
39 ....... 539102675 .......1..........MACHINE BUSHING
40 ....... 539102244 .......2..........MACHINE BUSHING
41 ....... 539102677 .......2..........BEARING
42 ....... 539102676 .......1..........SPACER
43 ....... 539104852 .......1..........HOUSING
44 ....... 539990550 .......1..........WASHER 1/2 FLA T
45 ....... 539101175........8..........HCS 7/16 X 1.5
46 ....... 539102641 .......4..........CHAIN
47 ....... 539102582 .......8..........NUT 7/16 WHIZ
48 ....... 539990839 .......8..........NUT 7/16 LOCK
49 ....... 539103433 .......1..........HCS 1/2 X 3.25
50 ....... 539101331 .......1..........NUT 1/2 NYLOC
19
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Motion Control Assembly
20
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Motion Control Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539104190 ..........2 ......CONT . LEVER
2 ......... 539102592 ..........2 ......GRIP
3 ......... 539990563 ..........4 ......HCS 3/8C X 1
4 ......... 539102593 ..........4 ......3/8 SPRING WASHER
5 ......... 539102809 ..........2 ......ARM CONT . SHAFT
6 ......... 539990655 ..........6 ......HCS 3/8C X 1 1/2
7 ......... 539990546 ..........10.....NUT 3/8C CTR. LOCK
8 ......... 539105279 ..........2 ......PUMP CONTROL LINK
9 ......... 539990223 ..........6 ......NUT 5/16F
10 ....... 539102590 .......... 2 ......BALL JOINT RT.
11........ 539990692 .......... 6 ......5/16 FLA T W ASHER
12 ....... 539104382 .......... 2 ......PUMP LEVER
13 ....... 539105079 .......... 2 ......5/16C X 5/8 “V” POINT
14 ....... 539990209 .......... 4 ......HCS 5/16C X 1
15 ....... 539990582 .......... 4 ......HCS 3/8C X 1
16 ....... 539991055 .......... 2 ......TAPBOL T 5/16C X 2.25
17 ....... 539103297 .......... 2 ......REV. DETENT SPRING
18 ....... 539103547 .......... 2 ......WASHER
19 ....... 539976998 .......... 2 ......ZERK
20 ....... 539991073 .......... 2 ......NUT 5/16F LH.
21 ....... 539104995 .......... 2 ......SPACER
22 ....... 539990184 .......... 14.....5/16C CTR. LOCK
23 ....... 539102720 .......... 2 ......DAMPENER
24 ....... 539990627 .......... 4 ......HCS 5/16C X 1.25
25 ....... 539990585 .......... 2 ......5/16C WHIZ NUT
26 ....... 539105023 .......... 2 ......BRACKET “L”
27 ....... 539976979 .......... 2 ......3/8C NYLOC
28 ....... 539976934 .......... 4 ......HCS 5/16C X 3/4
29 ....... 539990517 .......... 2 ......3/8 FLA T W ASHER
30 ....... 539976952 .......... 4 ......SCREW #10-24 X 5/8
31 ....... 539104363 .......... 1 ......CONTROL WLDMT . LEFT
32 ....... 539102591 .......... 1 ......BALL JOINT LH.
33 ....... 539104364 .......... 1 ......CONTROL WLDMT. RIGHT
34 ....... 539101080 .......... 2 ......SWITCH
35 ....... 539102678 .......... 2 ......TAPPED PLA TE
36 ....... 539990613 .......... 2 ......3/8C WHIZ NUT
37 ....... 539990588 .......... 2 ......HCS 3/8C X 2
38 ....... 539102685 .......... 1 ......HOSE CLAMP
21
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Deck Lift Assembly
NOTE: ENTIRE FOOT ASSIST ASSEMBLY P/N 539105180 ITEMS 40 THRU 44
22
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Deck Lift Assembly
ITEM PART NO. QTY DESCRIPTION
1 ......... 539105060 ..........2 ......CLEVIS PIN
2 ......... 539991043 ..........4 ......MACH. BUSHING
3 ......... 539105069 ..........2 ......5/8 E - RING
4 ......... 539990546 ..........5 ......NUT 3/8C CTR. LOCK
5 ......... 539102526 ..........1 ......HI TC H PI N
6 ......... 539105059 ..........1 ......LANY ARD
7 ......... 539102641 ..........4 ......LIFT CHAIN
8 ......... 539104321 ..........1 ......ADJ. PLA TE WLDMT .
9 ......... 539104530 ..........4 ......DECK LIFT SP ACER
10 ....... 539104323 .......... 1 ......ADJ. PLA TE P AINTED
11........ 539990637 .......... 1 ......HCS 3/8C X 2.5
12 ....... 539976989 .......... 1 ......# 4 HAIR PIN
13 ....... 539990629 .......... 3 ......HCS 3/8C X 2.25
14 ....... 539102515 .......... 1 ......GRIP
15 ....... 539104320 .......... 1 ......LEVER WLDMT.
16 ....... 539105050 .......... 2 ......LIFT LINKAGE
17 ....... 539101232 .......... 2 ......FLANGE BUSHING
18 ....... 539104761 .......... 1 ......ZERK - LONG
19 ....... 539104389 .......... 1 ......LIFT SHAFT
20 ....... 539976982 .......... 4 ......5/8 SAE WASHER
21 ....... 539990654 .......... 4 ......COTTER PIN
22 ....... 539104808 .......... 8 ......PILLOW BLOCK
23 ....... 539104807 .......... 4 ......SUPPOR T PLA TE
24 ....... 539991046 .......... 8 ......HCS 5/16C X 2.5
25 ....... 539104424 .......... 1 ......LIFT SHAFT, FRONT
26 ....... 539990184 .......... 11 .....NUT 5/16C CTR. LOCK
27 ....... 539101982 .......... 3 ......EYE BOL T
28 ....... 539990585 .......... 3 ......5/16C WHIZ NUT
29 ....... 539104760 .......... 3 ......DECK LIFT SPRING
30 ....... 539101050 .......... 1 ......GRIP
31 ....... 539104523 .......... 1 ......PIN
32 ....... 539103534 .......... 1 ......PIN MT.,UPPER
33 ....... 539101058 .......... 1 ......SPRING
34 ....... 539923787 .......... 1 ......MACH. BUSHING
35 ....... 539990761 .......... 2 ......NUT 1/4C CTR. LOCK
36 ....... 539101082 .......... 1 ......3/16 X 1 ROLL PIN
37 ....... 539990580 .......... 2 ......HCS 1/4C X 3/4
38 ....... 539101802 .......... 1 ......7/8 E - RING
39 ....... 539104310 .......... 2 ......CONN. LINK
40 ....... 539990655 .......... 3 ......HCS 3/8 X 1.5
41 ....... 539105181 .......... 1 ......LIFT PEDAL
42 ....... 539105187 .......... 1 ......ANTI-SKID P AD
43 ....... 539105184 .......... 1 ......TIGHTING PLA TE
44 ....... 539976979 .......... 3 ......NUT 3/8 NYLOC
23
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Park Brake Assembly
NOTE:
ITEM 16 P ART NO. 539105978 REAR TIRE ASSEMBLY USED ON 52” MODELS. PART NO.
539105983 RIM ONLY. ALL OTHER COMPONETS ARE THE SAME IN THE REAR TIRE ASSEMBLY
SEE ITEM 16 ON NEXT P AGE FOR TIRE AND V ALVE P ART NO’S.
24
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Park Brake Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ...........539990580 ........ 1 ........... HCS 1/4C X 3/4
2 ...........539990052 ........ 1 ........... 1/4 LOCK WASHER
3 ...........539102843 ........ 4 ........... WASHER 7/16 SPRING
4 ...........539990598 ........ 1 ........... 1/4 FLAT W ASHER
5 ...........539103576 ........ 1 ........... ARM, PARK BRAKE
.............539106523........ 1 ........... ARM, PARK BRAKE
........................................................(NEW STYLE)
6 ...........539102519 ........ 2 ........... BUSHING
7 ...........539101331 ........ 8 ........... NUT 1/2C NYLOC
8 ...........539101332 ........ 8 ........... HCS 1/2C X 2.75
9 ...........539104327 ........ 2 ........... MOTOR ST ANDOFF
10 .........539990622 ........ 8 ........... HCS 1/2C X 1.25
11 .........539104417 ........ 2 ........... WHEEL MOTOR
.............539106068........ 1 ........... SEAL KIT
12 .........539105278 ........ 2 ........... WOODRUFF KEY
13 .........539102415 ........ 2 ........... HUB W/ BRAKE DRUM
14 .........539990297 ........ 2 ........... COTTER PIN
15 .........539105277 ........ 2 ........... CASTLE NUT
16 .........539105486 ........ 2 ........... REAR TIRE ASM OFFSET
RIM (61” & 72” MODELS)
.............539105978........ 2 ........... REAR TIRE ASM
.............539105152........ 1 ........... TIRE
.............539105487........ 1 ........... RIM (OFFSET)
.............539105983........ 1 ........... RIM (MOD)
.............539912234........ 1 ........... AIR VAL VE
17 .........539101173 ........ 8 ...........LUG NUT 1/2F
18 .........539102455 ........ 2 ........... 3/8 X 1.50 CLEVIS PIN
19 .........539102822 ........ 2 ........... BRAKE BAND
20 .........539106793 ........ 2 ........... SUPPORT BKT. -
........................................................AFTER 03/2002
.............539105070........ 2 ........... HCS 3/8C X 3 GD 8
21 .........539106794 ........ 2 ........... BAND PIVOT -
........................................................AFTER 03/2002
.............539105043........ 2 ........... SPACER
22 .........539990258 ........ 8 ........... NUT 1/2C
23 .........539990254 ........ 8 ........... 1/2 LOCK WASHER
24 .........539102454 ........ 4 ........... E - RING 3/4
ITEM PART NO. QTY. DESCRIPTION
25 .........539106791 ........ 2 ........... HCS 3/8 X 1.0 GD 8 -
........................................................AFTER 03/2002
.............539990546........ 2 ........... NUT 3/8C CTR. LOCK
26 .........539990365 ........ 8 ........... COTTER PIN
27 .........539105303 ........ 1 ........... BRAKE LINKAGE LT .
.............539105302........ 1 ........... BRAKE LINKAGE RT .
28 .........539104984 ........ 2 ........... HCS 3/8F SPECIAL
29 .........539105040 ........ 2 ........... BELLCRANK
30 .........539105044 ........ 2 ...........BRONZE BEARING
31 .........539102821 ........ 2 ........... TRUNION PIN
32 .........539104986 ........ 2 ........... SPRING
33 .........539990122 ........ 6 ...........3/8 SAE WASHER
34 .........539990155 ........ 4 ........... NUT 3/8F
35 .........539977465 ........ 2 ........... YOKE
36 .........539977703 ........ 2 ........... 3/8 X 1.125
37 .........539104351 ........ 1 ........... BRAKE LEVER WLDMT .
.............539106526........ 1 ........... BRAKE ARM WLDMT
........................................................(NEW STYLE)
38 .........539102519 ........ 2 ........... BUSHING
39 .........539105036 ........ 1 ........... GRIP
41 .........539991050 ........ 2 ........... MACH. BUSHING 3/4
43 .........539104346 ........ 1 ........... LEFT BRAKE BKT .
.............539104347........ 1 ........... RIGHT BRAKE BKT .
44 .........539976998 ........ 2 ........... ZERK
45 .........539103547 ........ 2 ........... WASHER
46 .........539102717 ........ 1 ........... SETSCRW. 5/16 X .625
47 .........539106528 ........ 1 ........... KEY 1/4 X .875
48 .........539990118 ........ 2 ...........WASHER 3/8 LOCK
NOTE:
1. MACHINES MANUFACTURED AFTER 03 / 2002HA VE THE P ARTS SHOWN IN ITEMS 20, 21, 25,
AND 48. ITEMS ARE MARKED AFTER 03/2002.
2. TORQUE ITEM 25 TO 46 FT . LBS.
25
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Hydraulic System Assembly
26
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Hydraulic System Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539107749 ....... 2..........PUMP
2 ......... 539105024 ....... 1..........OIL T ANK
3 ......... 539102606 ....... 1..........FILTER
4 ......... 539101165........1..........FILTER HEAD
5 ......... 539105167 ....... 1..........COOLER
6 ......... 539101202 ....... 1..........HYD. CAP
7 ......... 539105027 ....... 1..........TANK MOUNT LT .
........... 539105026 .......1..........TANK MOUNT RT.
8 ......... 539105028 ....... 1..........FILTER BRACKET
9 ......... 539976934 ....... 4..........HCS 5/16 X 3/4
10 ....... 539990580 .......8..........HCS 1/4C X 3/4
11........ 539990052 .......2..........1/4 LOCK WASHER
12 ....... 539990372 .......10........1/4 LOCK NUT
13 ....... 539990598 .......8..........1/4 FLA T W ASHER
14 ....... 539101313 .......4..........HCS 1/4C X 2.0
15 ....... 539105769 .......1..........COOLER BRACKET
........... 539105767 .......1..........COOLER BRACKET
16 ....... 539976966 .......2..........HOSE CLAMP
17 ....... 539101237 .......4..........F6400-8-8-0
18 ....... 539102396 .......4..........STR. FITTING
19 ....... 539103316 .......1..........F6400-6-6-0
20 ....... 539101238 .......5..........F6801-6-6-0
21 ....... 539106067 .......1..........HYD. LINE
22 ....... 539106067 .......1..........HYD. LINE
23 ....... 539106067 .......1..........HYD. LINE
24 ....... 539106067 .......1..........HYD. LINE
25 ....... 539104722 .......1..........7” TUBE
26 ....... 539104723 .......1..........“T” ASM (SUCTION)
27 ....... 539104896 .......1..........HOSE
28 ....... 539105154 .......1..........“T” ASM (RETURN)
29 ....... 539105168 .......1..........CAP
30 ....... 539103114........4..........7/8 “O” RING
31 ....... 539103115........4..........3/4 “O” RING
32 ....... 539103117........6..........3/8 “O” RING
33 ....... 539103118........8..........3/8 “O” RING FLARE
34 ....... 539103119........8..........3/8 “O” RING FLARE
37 ....... 539105532 .......4..........HCS 1/4 SELF TAP
27
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wide Caster Assemblies
MODELS: 968999175, 968999181, 968999182, 968999183, 968999184, 968999185,
968999186, 968999187, 968999188, 968999189, 968999202, 968999203,
968999201, 968999224, 968999225
CASTER ASSEMBLY 539105895 includes items 1,2,3,4,5
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 539105517 ....... 1..........HCS 1/2 X 9.5
2 ......... 539105982 ....... 1..........CASTER YOKE
3 ......... 539105518 ....... 2..........AXLE SPACER
4 ......... 539105521 ....... 1..........TIRE ASM.
........... 539105522 .......1..........TIRE
........... 539105523 .......1..........RIM
........... 539105524 .......2..........SEAL
........... 539105525 .......2..........TAPERED BEARING
........... 539912234 .......1..........AIR VAL VE
5 ......... 539101331 ....... 1..........NUT 1/2 NYLOC
6 ......... 539102851 ....... 1..........SEAL
7 ......... 539102626 ....... 2..........BEARING W/CUP
8 ......... 539101474 ....... 1..........ZERK
9 ......... 539102852 ....... 1..........NUT 1.0 CASTLE
10 ....... 539102889 .......1..........COTTER PIN 1/8 X 2
11 ........ 539102535 .......1..........GREASE CAP
28
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Narrow Caster Assemblies
MODEL: 968999180
CASTER ASSEMBLY 539104743 includes items 1,2,3,4,5
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 539102855 ....... 1..........HCS 1/2 X 7.5
2 ......... 539104571 ....... 1..........CASTER YOKE
3 ......... 539102856 ....... 1..........AXLE SPACER
4 ......... 539104572 ....... 1..........TIRE ASM.
........... 539102546 .......1..........TIRE
........... 539104573 .......1..........RIM
........... 539102485 .......2..........ROLLER BEARING
........... 539102484 .......2..........END CAPS
........... 539912234 .......1..........AIR V AL VE
5 ......... 539101331 ....... 1..........NUT 1/2 NYLOC
6 ......... 539102851 ....... 1..........SEAL
7 ......... 539102626 ....... 2..........BEARING W/CUP
8 ......... 539101474 ....... 1..........ZERK
9 ......... 539102852 ....... 1..........NUT 1.0 CASTLE
10 ....... 539102889 .......1..........COTTER PIN 1/8 X 2
11........ 539102535 .......1..........GREASE CAP
29
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
EFI Fuel Assembly
30
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
EFI Fuel Assembly
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 539105330 ....... 1..........FUEL TANK RT .
2 ......... 539105329 ....... 1..........FUEL TANK L T.
3 ......... 539991034 ....... 4..........SCREW SELF TAP
4 ......... 539977351 ....... 2..........FUEL LINE
5 ......... 539914359 ....... 2..........FILTER
6 ......... 539105532 ....... 4..........HCS 1/4 SELF TAP
7 ......... 539105531 ....... 1..........FUEL LINE
8 ......... 539105526 ....... 2..........FUEL LINE
9 ......... 539105245 ....... 2..........RUBBER GROMMET
10 ....... 539105244 .......2..........ELBOW
11........ 539105527 .......1..........FUEL LINE
12 ....... 539105331 .......1..........FUEL V ALVE
13 ....... 539105398 .......1..........EFI HOSE
14 ....... 539912222 .......14........HOSE CLAMP
15 ....... 539105411........1..........VENT HOSE
16 ....... 539105399 .......2..........EFI HOSE
17 ....... 539105400 .......1..........EFI HOSE
18 ....... 539105529 .......8..........CLAMP
19 ....... 539105530 .......1..........FUEL LINE
20 ....... 539105334 .......1..........DECAL
21 ....... 539106188 .......2..........FUEL CAP
22 ....... 539102650 .......2..........TANK FITTING , 90°
NOTE: Items 13, 16, and 17 are high pressure lines.
Refer to Kohler engine manual for information on the fuel regulator , fuel
pump, and the high pressure fuel filter.
31
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Kawasaki and Kohler Fuel Assembly
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 539106188 ....... 2..........FUEL CAP
2 ......... 539104410 ....... 1..........FUEL TANK R T .
........... 539104409 .......1..........FUEL TANK L T .
3 ......... 539102502 ....... 6..........STUD
4 ......... 539102650 ....... 2..........HOSE BARB
5 ......... 539912222 ....... 6..........HOSE CLAMP
6 ......... 539922091 ....... 1..........FUEL LINE
7 ......... 539104897 ....... 2..........TANK SP ACER
8 ......... 539990692 ....... 18........WASHER 5/16 FLA T
9 ......... 539102845 ....... 8..........SPRING
10 ....... 539990717 .......8..........NUT 5/16 NYLOC
11........ 539990187 .......2..........WASHER 5/16 LOCK
12 ....... 539102335 .......2..........HCS 5/16 X 4.0
13 ....... 539102679 .......1..........FUEL V ALVE
14 ....... 539105280 .......1..........FUEL LINE
15 ....... 539105281 .......1..........FUEL LINE KAWASAKI
........... 539104980 .......1..........FUEL LINE KOHLER
16 ....... 539990209 .......2..........HCS 5/16 X 1.0
32
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Standard Seat Assembly
MODELS: 968999180, 968999181, 968999182, 968999183, 968999184, 968999185,
968999186, 968999187, 968999189, 968999203, 968999224, 968999225
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 539104584 ....... 1..........SEAT COMPLETE
........... 539105294 .......1..........SEAT RAILS (NOT SHOWN)
2 ......... 539102844 ....... 2..........ARM REST CUSHIONS (1 P AIR)
3 ......... 539102539 ....... 1..........SEAT CUSHION W/SWITCH
4 ......... 539105283 ....... 1..........SEAT MOUNT
5 ......... 539104525 ....... 1..........SEA T ROD
6 ......... 539105039 ....... 4..........STUD
7 ......... 539990761 ....... 2..........NUT 1/4 LOCK
8 ......... 539101341 ....... 2..........HCS 3/8 X 3.0
9 ......... 539990546 ....... 4..........NUT 3/8 LOCK
10 ....... 539990717 .......4..........NUT 5/16 NYLOC
11........ 539104789 .......1..........DECAL, CROWN
12 ....... 539104565 .......1..........BACK CUSHION
13 ....... 539990580 .......5..........HCS 1/4 X 3/4
14 ....... 539105224 .......1..........SEAT BRACKET W/DECAL
15 ....... 539990365 .......1..........COTTER PIN
16 ....... 539105544 .......1..........SEAT RAILS(NOT SHOWN)
17 ....... 539976978 .......4..........NUT 1/4 NYLOC
18 ....... 539102917 .......1..........SEA T LA T CH
19 ....... 539105962 .......1..........SEA T LA TCH MOUNT
20 ....... 539102685 .......1..........LOOM CLIP (NOT SHOWN)
21 ....... 539105542 .......1..........SEAT SWITCH(NOT SHOWN)
33
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Suspension Seat Assembly
MODELS: 968999175, 968999188, 968999201, 968999202
34
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Suspension Seat Assembly
MODELS: 968999175, 968999188, 968999201, 968999202
ITEM P ART NO. QTY. DESCRIPTION
1 ......... 53910521 1........1..........SEAT COMPLETE
2 ......... 539105539 ....... 2..........ARM REST CUSHIONS (1 PAIR)
3 ......... 539105541 ....... 1..........SEAT CUSHION
4 ......... 539105283 ....... 1..........SEAT MOUNT
5 ......... 539104525 ....... 1..........SEA T ROD
6 ......... 539105039 ....... 4..........STUD
7 ......... 539990372 ....... 2..........NUT 1/4 LOCK
8 ......... 539101341 ....... 2..........HCS 3/8 X 3.0
9 ......... 539990546 ....... 4..........NUT 3/8 LOCK
10 ....... 539976975 .......4..........NUT 5/16 LOCK
11........ 539104789 .......1..........DECAL, CROWN
12 ....... 539105540 .......1..........BACK CUSHION
13 ....... 539990580 .......2..........HCS 1/4 X 3/4
14 ....... 539105224 .......1..........SEAT BRACKET W/DECAL
15 ....... 539990365 .......1..........COTTER PIN
16 ....... 539105544 .......1..........SEAT RAILS
17 ....... 539976978 .......4..........NUT 1/4 NYLOC
18 ....... 539105545 .......1..........SEAT HARNESS
19 ....... 539105542 .......1..........SEAT SWITCH
20 ....... 539102685 .......1..........LOOM CLIP (NOT SHOWN)
35
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wiring Assembly
36
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Wiring Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539104414 ....... 1..........CONSOLE HARNESS
2 ......... 539102463 ....... 1..........12V BATTERY
3 ......... 539105728 ....... 1..........BATTERY HOLD DOWN
4 ......... 539104974 ....... 1..........POSITIVE CABLE
5 ......... 539102758 ....... 1..........NEGITIVE CABLE
6 ......... 539102759 ....... 2..........INSULATOR
7 ......... 539101080 ....... 3..........INTERLOCK SWITCH
8 ......... 539102678 ....... 1..........TAPPED PLA TE
9 ......... 539976952 ....... 2..........#10-24 X 5/8
10 ....... 539101770 .......1..........IGNITION SWITCH ASSY .
11........ 539101768 .......1..........PTO SWITCH
12 ....... 539102540 .......1..........HOUR METER
13 ....... 539104964 .......1..........FRAME HARNESS
14 ....... 539976934 .......2..........HCS 5/16C X 3/4
15 ....... 539990184 .......2..........NUT 5/16C CTR. LOCK
16 ....... 539102617 .......2..........#10-24 X 7/8 SCREW
17 ....... 539976977 .......2..........#10-24 HEX NYLOC NUT
18 ....... 539991034 .......2..........SELF TAPPING SCREW
19 ....... 539103177 .......1..........NUT IGN. SWITCH
20 ....... 539103178 .......1..........CAP , IG N. SWITCH
21 ....... 539105169 .......2..........KNOB
22 ....... 539102914 .......3..........RELAY
23 ....... 539101771 .......1..........7.5 AMP 32V ATO FUSE
24 ....... 539102086 .......1..........20.0 AMP 32V ATO FUSE
25 ....... 539102587 .......4..........BUMPER
26 ....... 539104812 .......1..........KEY, P ADDED
37
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Decal Assembly
38
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Decal Assembly
ITEM PART NO. QTY. DESCRIPTION
1 ......... 539105232 ....... 1 .......... DECAL, ANTI SCALP
2 ......... 539100344 ....... 1 .......... DECAL, DANGER
3 ......... 539105746 ....... 1 .......... DECAL, WARNING
4 ......... 539105012 ....... 1 .......... DECAL, BELT ROUTING
5 ......... 539104790 ....... 1 .......... DECAL, HUSQVARNA
6 ......... 539105334 ....... 1.......... DECAL, FUEL VALVE
........... 539102670 ....... 1.......... DECAL, FUEL VALVE STD.
7 ......... 539105010 ....... 1 .......... DECAL, CONSOLE
8 ......... 539100128 ....... 1 .......... DECAL, EXHAUST
9 ......... 539104789 ....... 1 .......... DECAL, CROWN
10 ....... 539104787 ....... 1 .......... DECAL, HUSQVARNA
11 ........ 539105745 ....... 1 .......... DECAL, BATTERY
12 ....... 539101881 ....... 1..........DECAL, PROP 65
13 ....... 539103333 ....... 2 .......... DECAL, MOTION CONTROL
14 ....... 539103328 ....... 1 .......... DECAL, THROWN OBJECTS
15 ....... 539105785 ....... 1 .......... DECAL, WARNING
16 ....... 539104898 ....... 1 .......... DECAL, HEIGHT
17 ....... 539104899 ....... 1 .......... DECAL, HEIGHT
18 ....... 539105011 ........1..........DECAL, SERVICE
19 ....... 539105743 ....... 2 .......... DECAL, NO STEP
20 ....... 539105071 ....... 1 .......... DECAL, NASCAR
21 ....... 539106056 ....... 2 .......... DECAL, 7226 EFI
........... 539105051 ....... 2 .......... DECAL, 5221
........... 539105052 ....... 2 .......... DECAL, 5223
........... 539105053 ....... 2 .......... DECAL, 5223L
........... 539105054 ....... 2 .......... DECAL, 5225
........... 539105055 ....... 2 .......... DECAL, 6123L
........... 539105056 ....... 2 .......... DECAL, 6125
........... 539105548 ....... 2 .......... DECAL, 6126 EFI
........... 539107128 ....... 2 .......... DECAL, 6127
22 ....... 539105301 ....... 1 .......... DECAL, MOBIL 1
23 ....... 539106061 ....... 1 .......... DECAL, XP SERIES
24 ....... 539105744 ....... 2 .......... DECAL, BELT DRIVES
39
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Loading...
