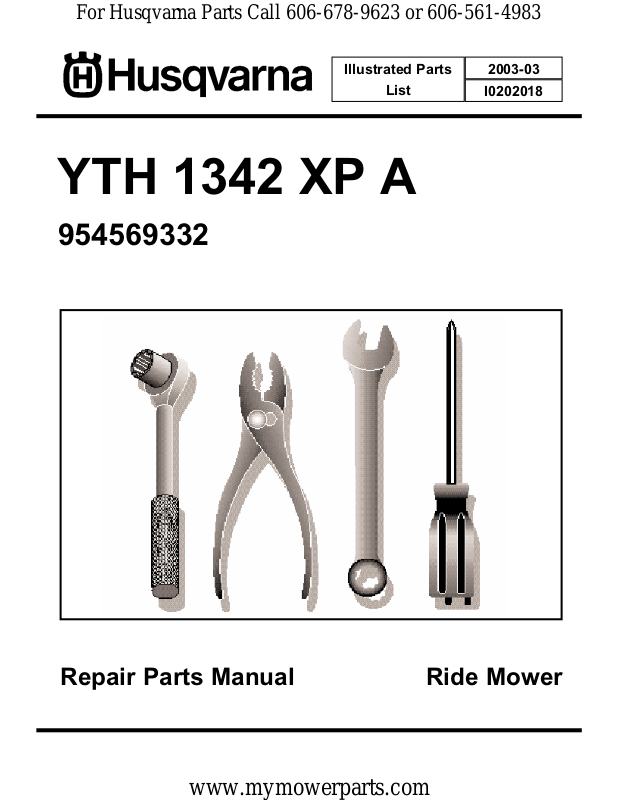

Illustrated Parts
List
YTH 1342 XP A
954569332
2003-03
I0202018
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH1342XP (YTH1342XPA), PRODUCT NO. 954 56 93-32

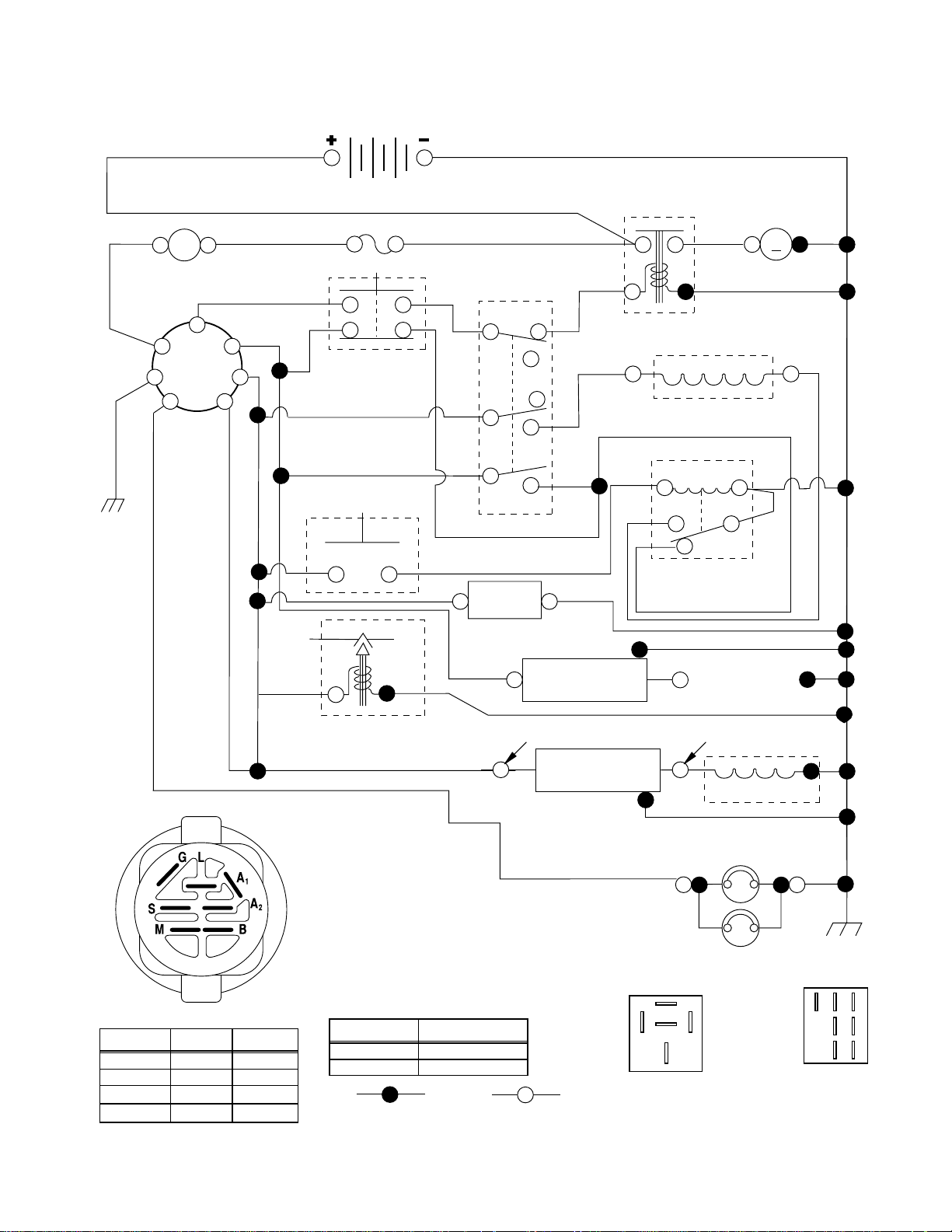

SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
S
B
L
A2
BLACK
M
A1
CLUTCH / BRAKE
(PEDAL UP)
RED
BLACK
F
H
RED
B
ELECTRIC CLUTCH
BLACK
E
ORANGE
SEAT SWITCH
(NOT OCCUPIED)
A
D
PTO (DISENGAGED)
85 86
87
BLACK
30
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B+S+A1START
FUEL SHUT-OFF SOLENOID
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
“MAKE”
NONE
A2+L
NONE
NONE
OFF
NON-REMOVABLE
CONNECTIONS
RED
PTO SWITCH
CIRCUITPOSITION
C+G,B+H
C+F,B+E,A+DON
CHARGING SYSTEM OUTPUT
13 AMP DC @ 3600 RPM
REGULATOR
REMOVABLE
CONNECTIONS
27
BROWN
87
87A
30
RELAY
12 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1342XP (YTH1342XPA), PRODUCT NO. 954 56 93-32

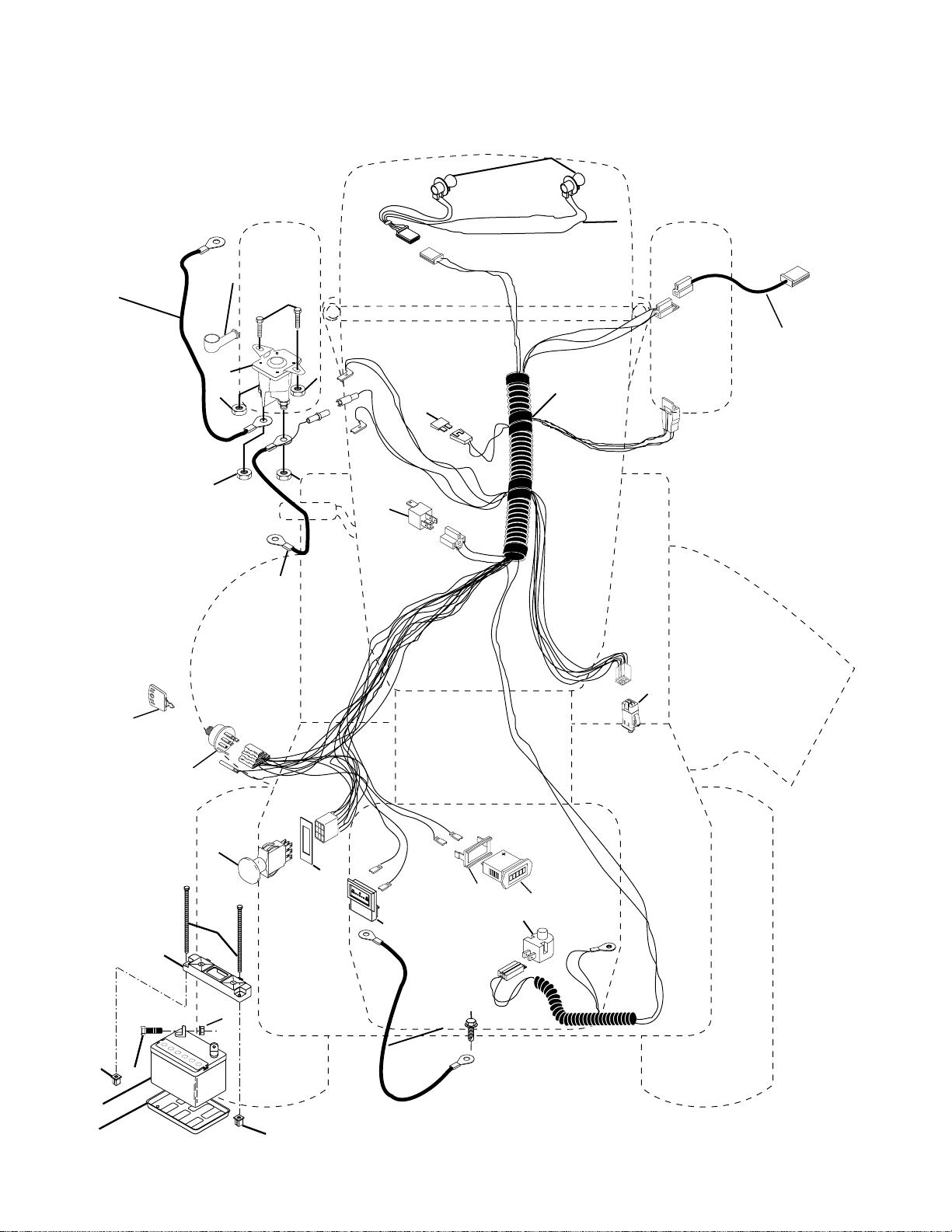

ELECTRICAL
22
21
42
24
41
80
33
30
27
43
27
25
27
27
40
26
81
16
12
50
51
D
.
C
.
A
M
P
E
R
E
S
10
11
27
2
1
8
12
45
28
55
89
29
46
28
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1342XP (YTH1342XPA), PRODUCT NO. 954 56 93-32
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-25 Battery 12 Volt 25 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20unc X 3/4
8 532 12 48-86 Tray Battery
10 532 14 52-11 Bolt Brt Frt 1/4-20 x 75 Ainc
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut Push Nylon 1/4" Battery Frt
16 532 17 61-38 Switch Interlock Push-In
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 14 61-48 Cable Battery 6 Ga 22" red w/16 wire
25 532 12 47-80 Cable Battery 6 Ga 11" red
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 Unc
28 532 14 54-91 Cable Ground 6 Ga 21" black
29 532 16 07-84 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
40 532 17 97-24 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 28-22 Ammeter Rectangular 15 Amp
46 532 16 96-35 Meter Hour
50 532 17 46-51 Switch PTO
51 532 14 04-05 Ring Retainer PTO
55 817 49 05-08 Screw Thdrol 5/16-18 x 1-1/2 Tyt
80 532 14 66-85 Harness Clutch Evx
81 532 10 97-48 Relay Asm.
89 532 16 96-39 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1342XP (YTH1342XPA), PRODUCT NO. 954 56 93-32

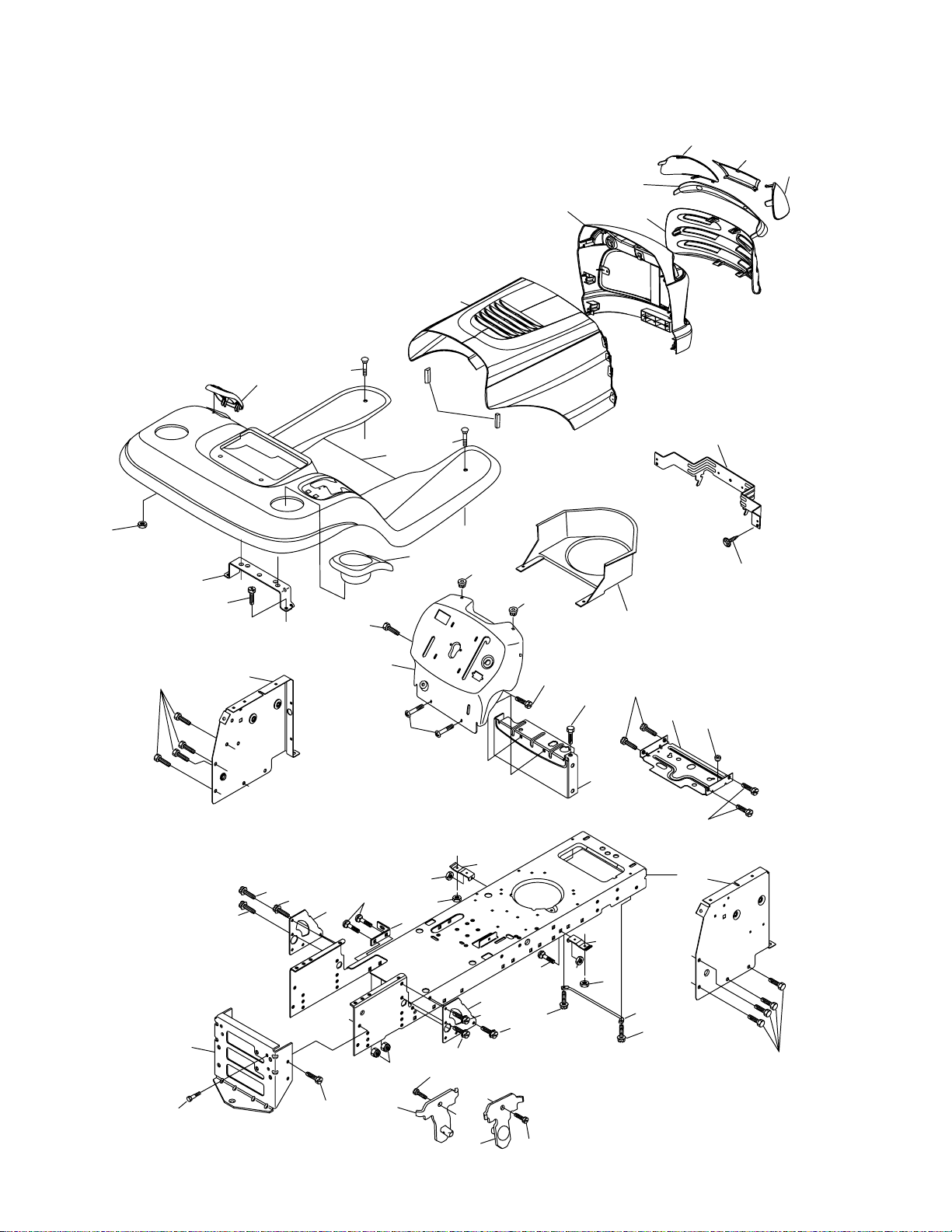

CHASSIS AND ENCLOSURES
90
31
209
217
10
209
30
159
257
10
17
259
212
28
5
5
261
58
260
258
39
166
208
206
60
9
207
26
26
143
74
38
144
142
3
3
14
209
208
60
26
37
3
64
144
26
219
145
37
20
23
219
1
13
208
11
3
3
3
2
142
3
38
14
30
