Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
List
LTH 1342
(LTHK 1342 B), 954568519
2002-02
I0202007
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

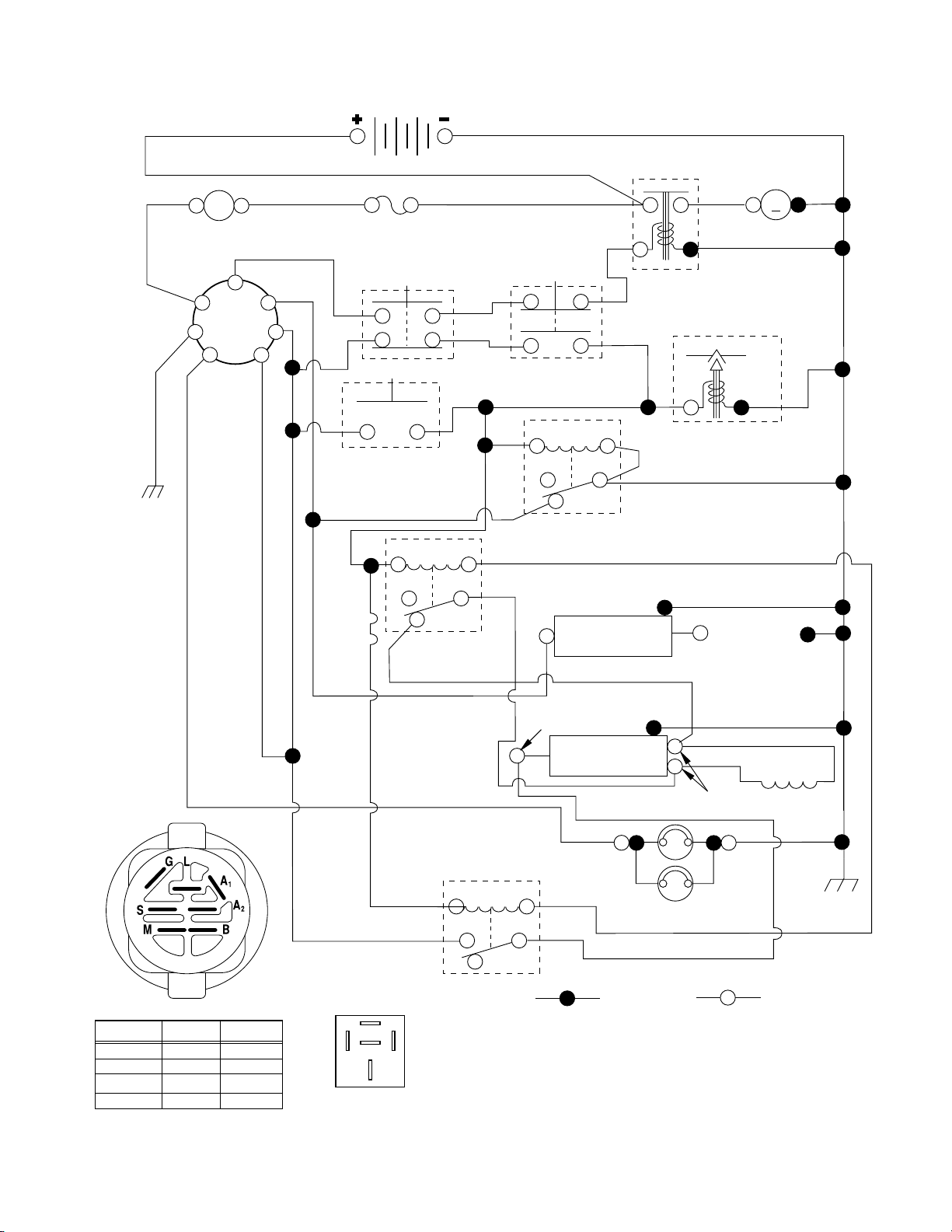

SCHEMATIC
AMMETER
(OPTIONAL)
RED
BLACK
A
S
B
G
A2L
IGNITION
SWITCH
RED
WHITE
BATTERY
RED
FUSE
CLUTCH / BRAKE
BLACK
RED
WHITE
SOLENOID
M
STARTER
BLACK
(PEDAL UP)
BLACK
M
A1
BLUE
WHITE
BLUE
ATT'MENT CLUTCH
BLUE
FUEL
LINE
(CLUTCH OFF)
GREEN
GREEN
SEAT SWITCH
(NOT OCCUPIED)
85 86
BLUE
87
30
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
BLACK
87A
OPERATOR
BLUE
85 86
PRESENCE RELAY #1
BLACK
BROWN
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START NONE
ORANGE
“MAKE”
NONE
A2+L
NONE
87
87A
OPERATOR
PRESENCE RELAY #2
PRESENCE RELAY #3
BLUE
RED
87
87A
8586
30
RELAY
30
SPARK
IGNITION
UNIT
YELLOW
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
YELLOW
BROWN
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
YELLOW
ALTERNATOR
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
OPERATOR
85 86
HEADLIGHTS
87
30
87A
NON-REMOVABLE
CONNECTIONS
BLACK
RED
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
BLACK
27
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

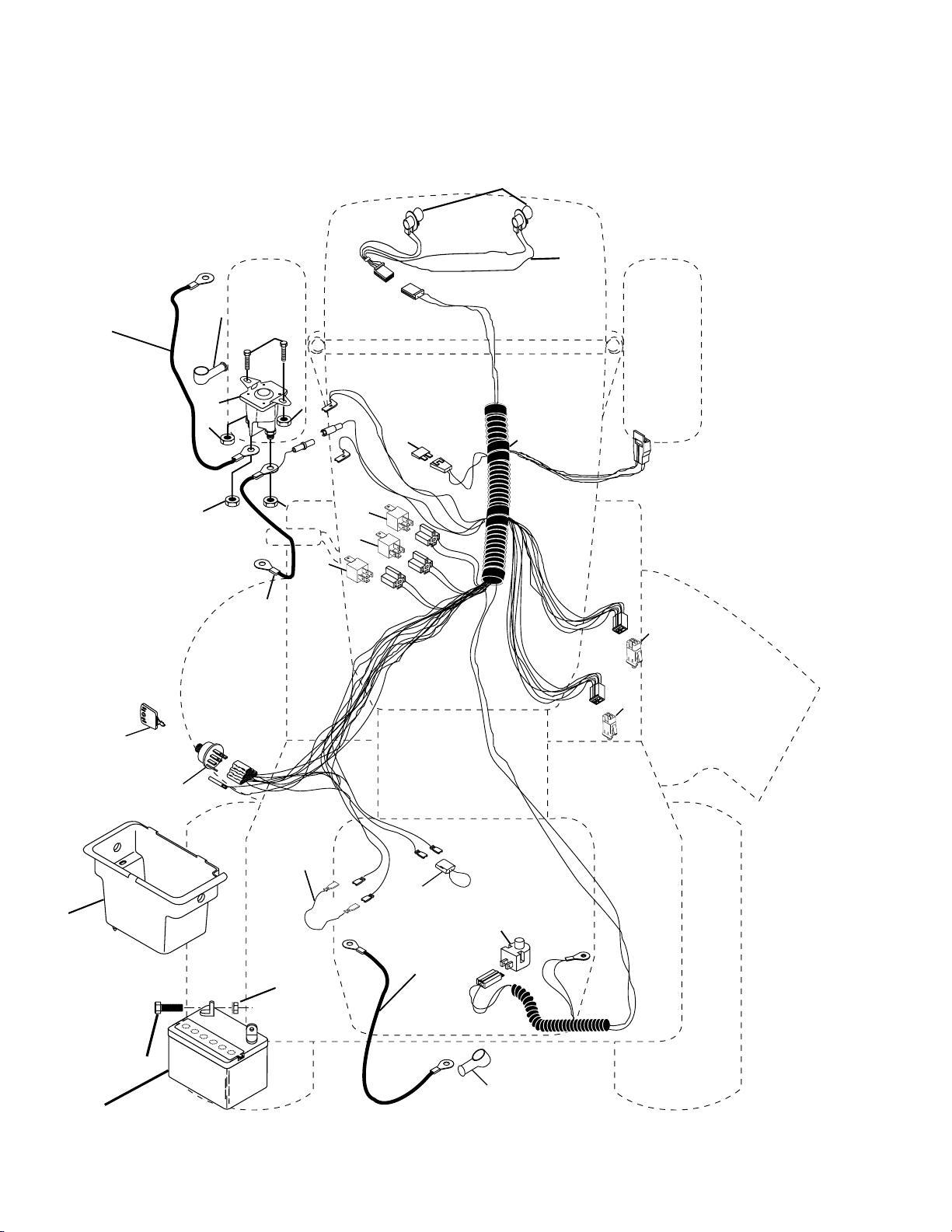

ELECTRICAL
22
21
42
24
41
33
30
27
43
27
25
27
27
81
81
81
26
40
16
16
48
52
8
28
29
27
2
90
1
28
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20unc X 3/4
8 532 17 66-89 Box Battery
16 532 17 61-37 Switch Interlock
21 532 17 56-85 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga 11" red
25 532 14 61-47 Cable Battery 6 Ga 44" red w/16 wire
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 Unc
28 532 12 47-73 Cable Ground 6 Ga 12" black
29 532 16 07-84 Switch Plunger Olive
30 532 17 55-66 Switch Ign Delta
33 532 14 04-01 Key Ign Molded Generic
40 532 17 97-22 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
48 532 14 08-44 Adapter Ammeter Rectangular
52 532 14 19-40 Protection Wire Loop
81 532 10 97-48 Relay Asm.
90 532 18 04-49 Cover Terminal Battery
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

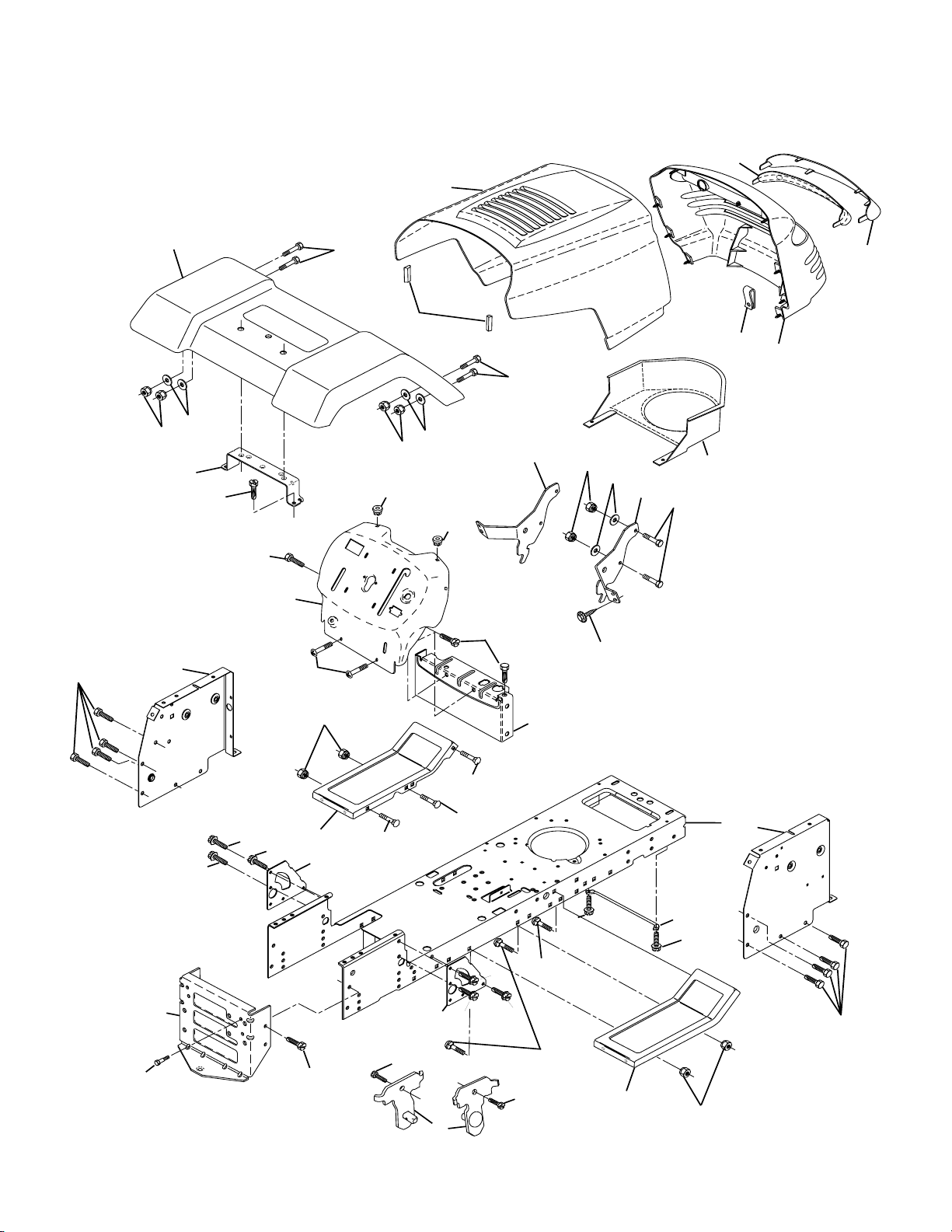

CHASSIS AND ENCLOSURES
212
17
208
26
30
11
31
25
24
18
12
28
24
25
26
3
208
9
207
5
5
208
53
51
54
52
55
58
57
29
206
26
3
35
3
3
2
33
3
142
3
10
142
3
14
38
64
1
13
37
3
3
3
35
14
34
145
37
208
26
30
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar, 12 Ga.
3 817 06 06-12 Screw 3/8-16 x 3/4
5 532 15 52-72 Bumper Hood/Dash
9 532 17 18-53 Dash Slkscr
10 872 14 06-08 Bolt Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash Lh
12 532 14 56-60 Clip Tinnerman Grille P/L
13 532 18 17-19 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 16 22-37 Hood LT/PL
18 532 12 69-38 Bumper Hood
24 874 78 06-16 Bolt Fin Hex 3/8-16unc x 1 Gr 5
25 819 13 13-12 Washer 13/32 X 13/16 X 12 Ga
26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 Unc
28 532 17 91-00 Grille/Lens Asm
29 532 16 81-54 Lens P/L
30 532 17 69-53 Fender Footrest LTST Pnt
31 532 13 66-19 Bracket Fender
33 532 18 10-57 Footrest Pnt Lh
34 532 18 10-58 Footrest Pnt Rh
35 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm Pivot Mower Rear
51 873 80 04-00 Nut Lock W/Insert 1/4-20unc
52 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
53 532 14 46-97 Bracket Grille Lh
54 532 16 14-64 Screw Hex Wshd 8-18 x 7/8
55 532 14 46-96 Bracket Grille Rh
57 874 78 04-12 Bolt Hex 1/4-20 x 3/4
58 532 15 01-27 Air Duct Engine P/L
64 532 15 47-98 Dash Lower STLT
142 532 17 57-02 Plate Reinforcement STLT
145 532 15 65-24 Rod Pivot Chassis/Hood
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2
208 817 67 06-08 Screw Thdrol 3/8-16x1/2 Ty-tt
212 532 15 62-29 Insert Lens Reflective
- - 532 00 54-79 Plug Button
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

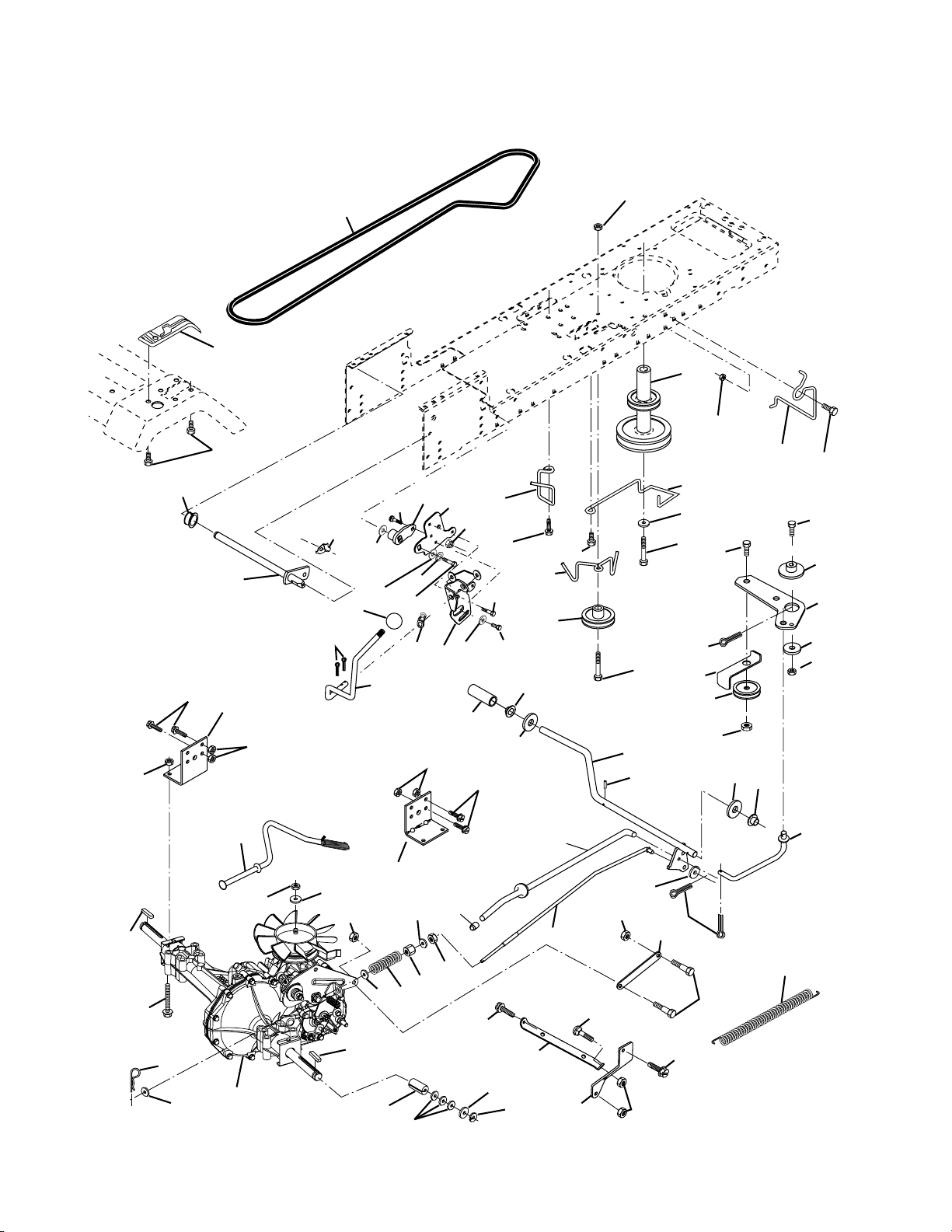

DRIVE
16
197
32
89
69
81
30
52
169
10
57
21
198
164
8
161
14
163
82
159
52
165
158
162
83
156
62
32
59
168
166
61
36
35
41
38
56
51
34
39
37
66
64
63
65
27
49
47
120
212
50
36
35
70
116
202
150
48
151
51
77
15
96
26
95
1
103
28
30
205
16
77
26
74
25
75
26
19
24
29
250
78
76
22
200
71
73
26
16
16
32
www.mymowerparts.com
84
53
27
55
199
250
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gr Model 322-0510
(Order parts from transaxle mfg.)
8 532 16 56-19 Rod Shift Fender
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flg Hd 5/16-18 X Gr.5
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 Unc P
19 873 80 06-00 Nut Lock Hex W/Wsh 3/8-16 Unc
21 532 14 08-45 Knob, Deluxe
22 532 16 94-98 Rod, Brake Hydro
24 873 35 06-00 Nut
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap, Parking Brake
30 532 17 49-73 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 Unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite
39 874 76 06-48 Bolt
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove
48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl
49 532 12 32-05 Retainer, Belt
50 874 76 06-24 Bolt
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crownlock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
63 532 17 54-10 Pulley, Clutch Eng
64 871 17 07-64 Bolt Hex 7/16-20 x 4 Ga. 5
65 810 04 07-00 Washer
66 532 15 47-78 Keeper Belt Engine
69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
KEY PART
NO. NO. DESCRIPTION
70 532 13 46-83 Guide Belt Mower Drive RH
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Gauge
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Gauge
81 532 16 55-96 Shaft Asm. Cross Hydro
82 532 12 37-82 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 98-43 Link Transaxle
89 532 17 69-40 Console, Shift
95 532 17 02-01 Control Asm Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
103 873 94 08-00 Nut Hex Jam Toplock 1/2-20 Unf
116 872 14 06-08 Boulon 3/8-16 x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrtd 5/16 ID x 1.0 x .125 Tk
158 532 16 55-89 Bracket Shift Mount
159 532 16 54-94 Hub Tapered Flange Shift LT
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 Unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
164 819 09 10-10 Washer 5/8 x .281 x 10 Ga
165 532 16 56-23 Bracket Pivot Lever
166 532 16 68-80 Screw 5/16-18 x 5/8 TT Yellow
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 TT
169 532 16 55-80 Plate Fastening Cross Shf. STLT/
CRD
197 532 16 96-13 Nyliner Snap-In 5/8" ID
198 532 16 95-93 Washer Nyl. 7/8 ID x .105"
199 532 16 96-12 Bolt Shoulder 5/16-18 Unc
200 872 14 05-08 Bolt Rdhd Sq Neck 5/16-18unc x 1
202 872 11 06-14 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
205 819 17 16-16 Washer 17/32 x 1 x 16 Ga.
212 532 14 52-12 Nut Hex Flg Lock
250 817 06 06-12 Screw 3/8-16 x 3/4
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

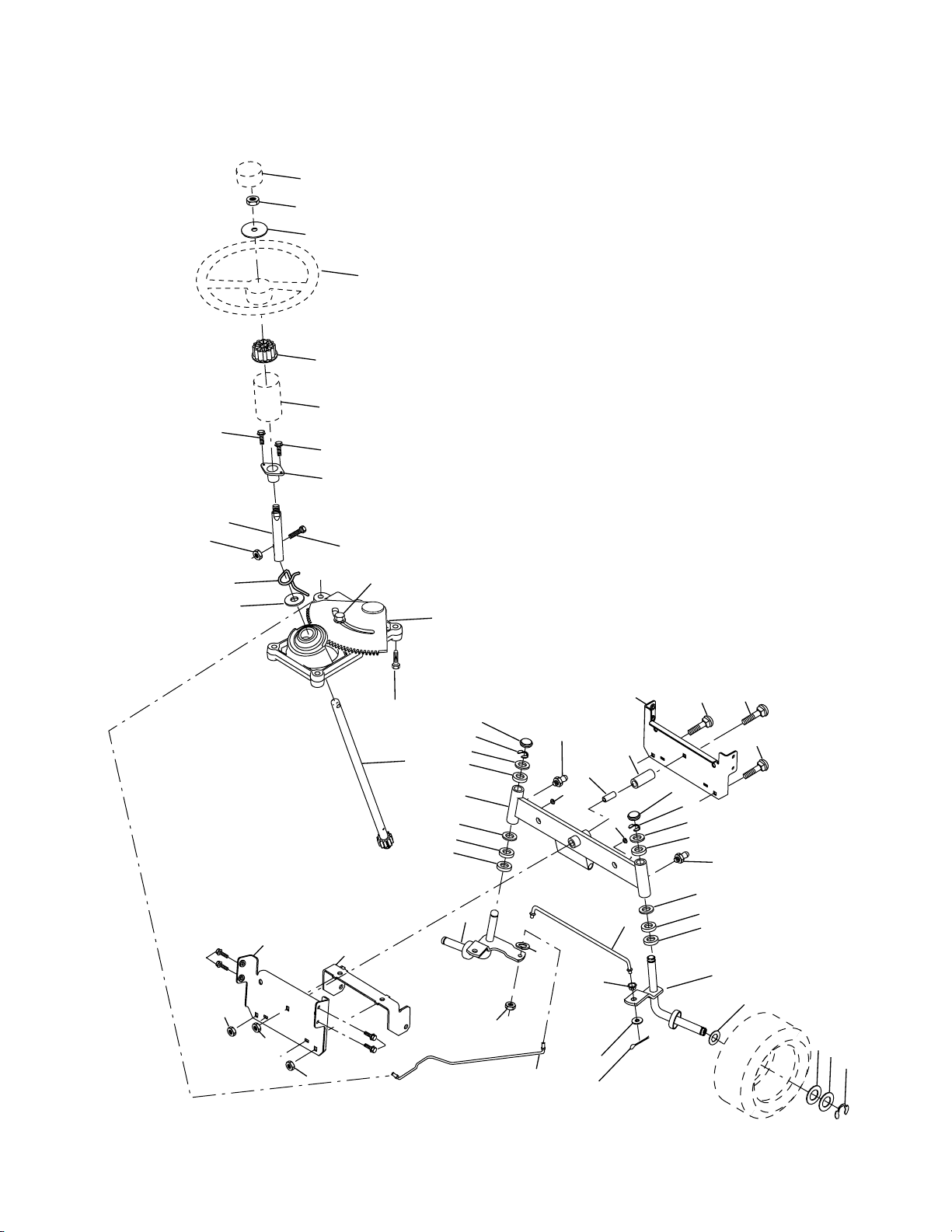

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
44
51
91
43
68
29
15
15
54
88
71
29
17
82
29
15
46
8
6
9
2
7
9
5
3
40
47
65
85
11
10
68
13
46
8
85
32
26
28
30
6
67
67
67
9
47
7
9
5
4
43
43
6
8
34
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 12 44-15 Wheel Steering
2 532 17 51-31 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 X 1-5/8 X 16 Ga
7 819 27 20-16 Washer 27/32 X 1-1/4 X 16 Ga
8 812 00 00-29 Ring Klip #t5304-75
9 532 12 49-37 Bearing Col Strg Blk
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 Unf
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 18 06-41 Shaft Asm Strg
26 532 12 68-47 Bushing Link Drag Blk LR
28 819 13 14-16 Washer 13/32 X 7/8 X 16 Ga
29 817 06 06-12 Screw 3/8-16x3/4
30 876 02 04-12 Pin Cotter 1/8 X 3/4 Cad
32 532 13 04-65 Rod Tie Wire Form 19 75 Mech
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw
38 532 12 44-16 Cap Wheel Steering
39 819 18 38-12 Washer 9/16 ID X 2-3/8 OD X 12 Ga
40 532 12 47-01 Lock nut
41 532 10 07-11 Adaptor Wheel Strg
42 532 16 96-34 Boot Steering Shaft
43 532 12 17-49 Washer 25/32 X 1 1/4 X 16 Ga
44 532 18 06-40 Extension Steering Shaft LR/LT
46 532 12 12-32 Cap Spindle Fr Top Blk
47 532 12 48-36 Fitting Grease
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28unf x 1-1/4 Ga. 8
65 532 16 03-67 Spacer Brace Axle
67 872 14 06-18 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
85 532 13 38-35 Fastner Christmas Tree
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

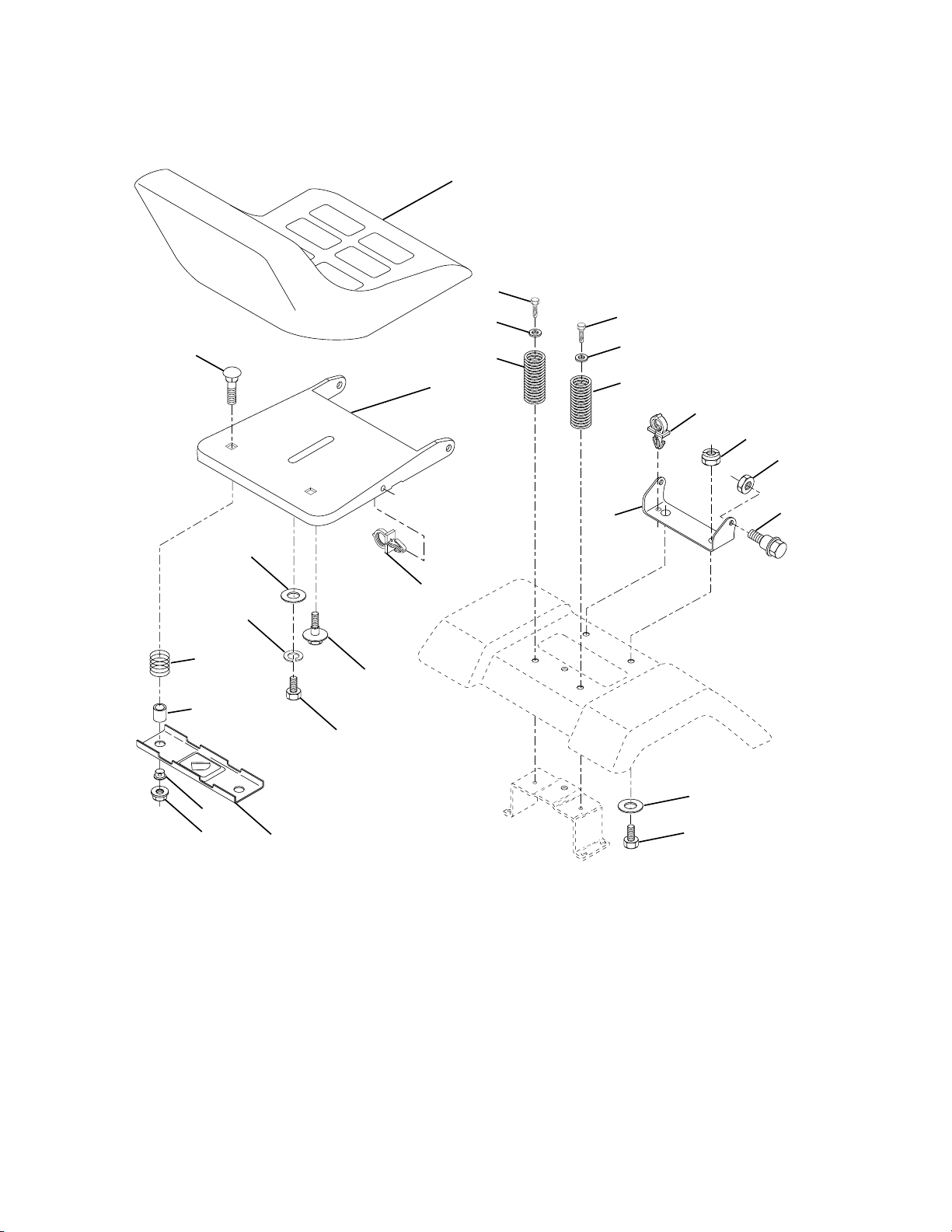

SEAT ASSEMBLY
1
8
8
9
7
5
6
22
14
9
7
10
24
26
16
25
15
23
13
17
KEY PART
NO. NO. DESCRIPTION
1 532 14 08-38 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16unc X 1
4 819 13 16-10 Washer 13/32 X 1 X 10 Ga
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 Unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 X 1
9 819 13 16-14 Washer 13/32 X 1 X 14 Ga.
10 532 18 24-93 Pan Seat
12 532 12 12-46 Bracket Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20x1-1/2
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
15 532 13 43-00 Spacer Split 28x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 Unc-2A
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
23 871 11 08-14 Bolt, Hex Black
24 819 17 19-12 Washer 17/32 X 1-3/16 X 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 X 62
26 810 04 08-00 Washer Lock
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
36
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

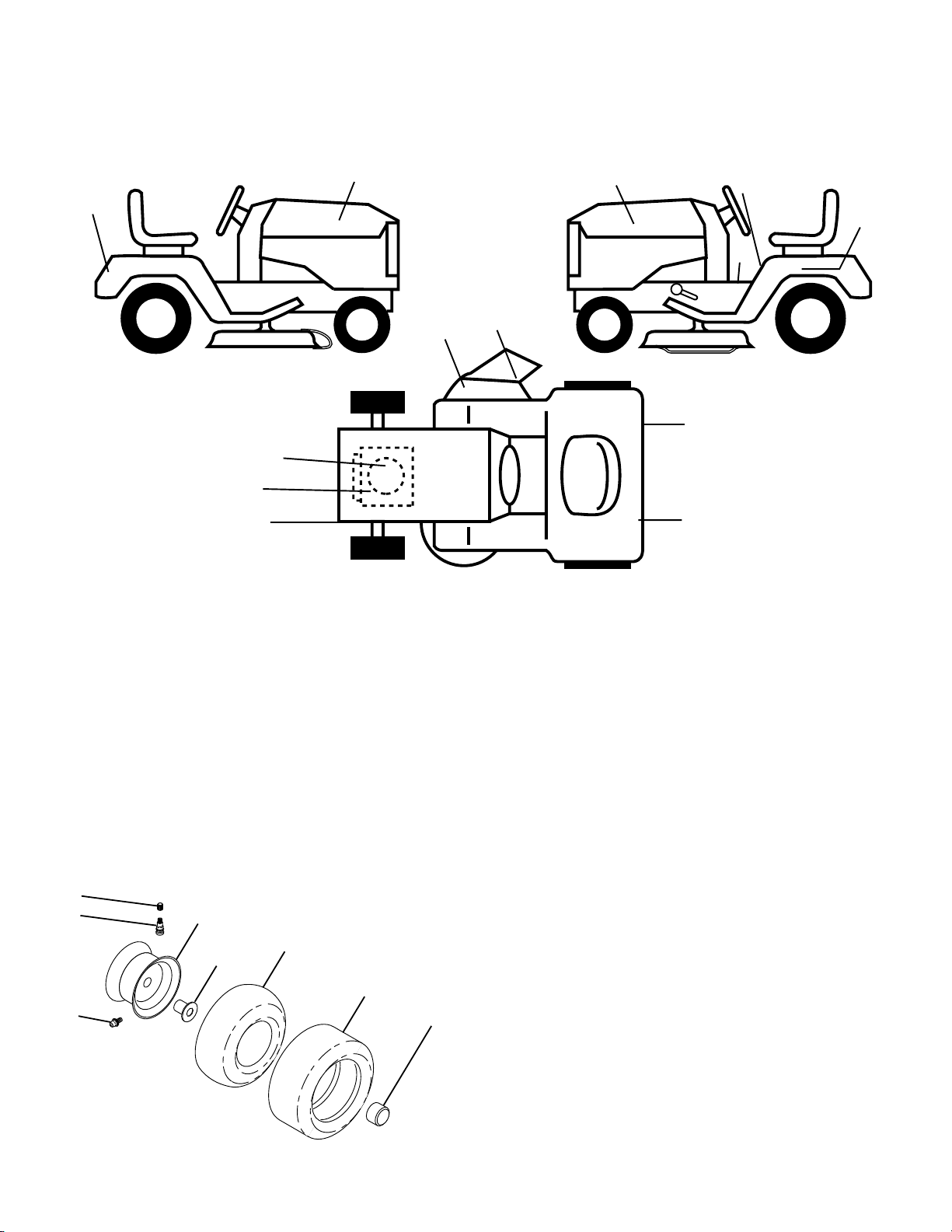

DECALS
3
9
5
6
14
KEY PART
NO. NO. DESCRIPTION
1 532 15 70-32 Decal Oper. Step Thru Eng/Fr
2 532 10 62-02 Reflector Tail Light Red/Amber
3 532 18 01-55 Decal Hood RH
4 532 18 01-56 Decal Hood LH
5 532 18 09-41 Decal Hood Cust.
6 532 16 61-02 Decal Engine
7 532 17 91-28 Decal Deck B 42
8 532 17 05-63 Decal Warning
9 532 17 68-22 Decal Fender Husq
4
8
7
KEY PART
NO. NO. DESCRIPTION
10 532 15 71-40 Decal Fender Danger Eng/Fr
14 532 16 03-96 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 92-10 Decal Bypass Lt Hydro
- - 532 18 23-88 Decal Replc Part
- - 532 18 10-90 Pad Footrest RH
- - 532 18 10-91 Pad Footrest LH
- - 532 18 27-30 Manual Owner's (English)
- - 532 18 27-31 Manual Owner's (French)
10
20
1
2
2
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
4,10
7
3,9
11
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 10 62-68 Tire R Ts 18x9 5-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

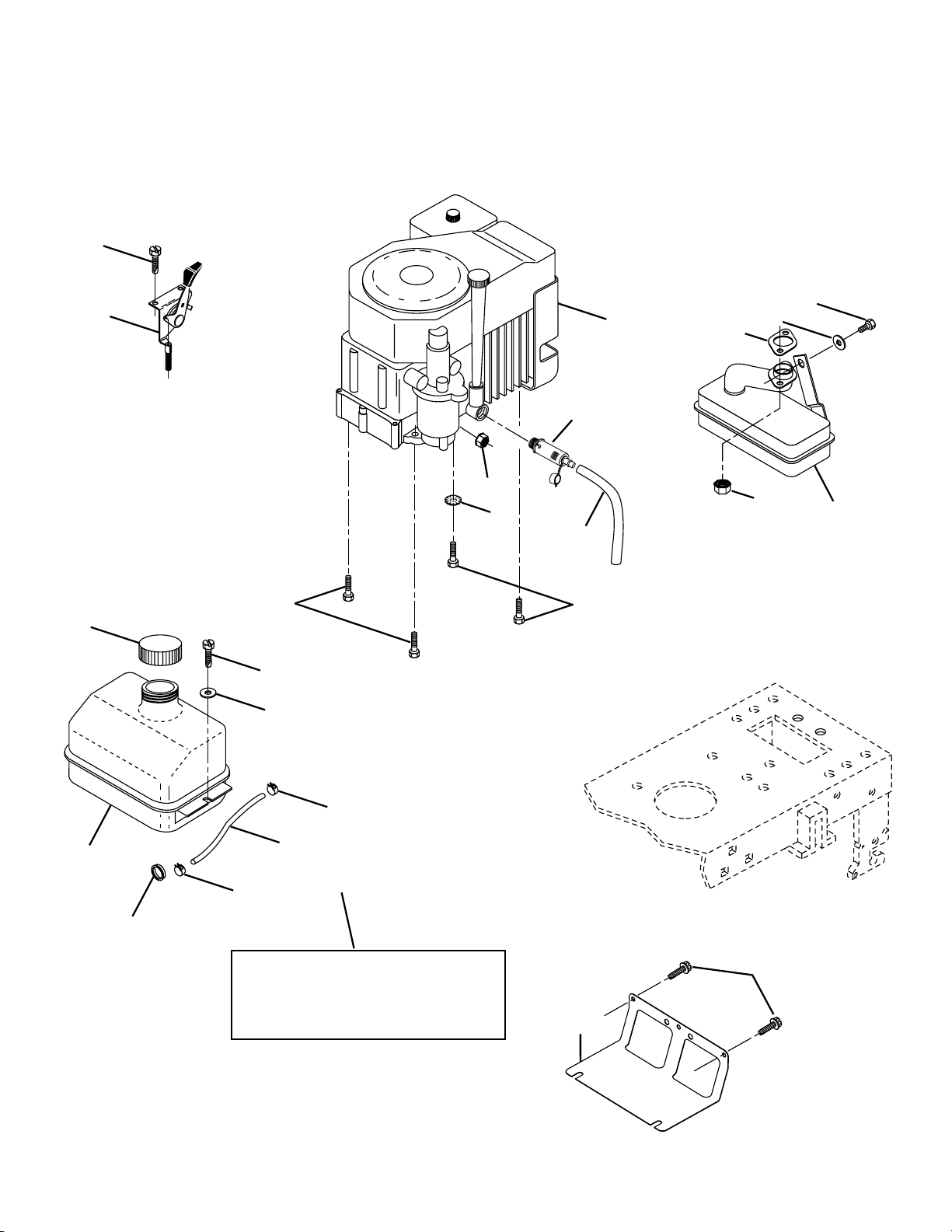

ENGINE
2
32
1
81
16
105
44
46
38
14
105
3
13
77
101
80
4
31
40
33
37
29
33
OPTIONAL EQUIPMENT
Spark Arrester
www.mymowerparts.com
45
23
38
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532 17 08-05 Control Th/ch Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine, Kohl CV13
(Order parts from engine manufacturer)
4 532 15 94-20 Muffler
13 532 16-38-31 Ga sket Eng
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
23 532 16 98-37 Shield Brn/Dbr Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 10 92-02 Tank Fuel Front
32 532 14 05-27 Cap Asm Fuel W/sym Vented
33 532 12 34-87 Clamp Hose Black
37 532 13 70-40 Line Fuel 20"
38 532 14 83-15 Plug Drain Oil Easy
40 532 12 40-28 Bushing Snap Nyl Blk Fuel Line
44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga
77 819 10 12-16 Washer 5/16x 3/4 x 16 Ga.
80 874 76 05-08 Bolt Hex Hd 5/16-18 x 1/2
81 873 51 04-00 Nut Keps Hex 1/4-20 Unc
101 532 16 33-05 Nut Flange M8 1.25 N/LK Zinc
105 817 12 06-16 Screw 3/8-16 x 1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

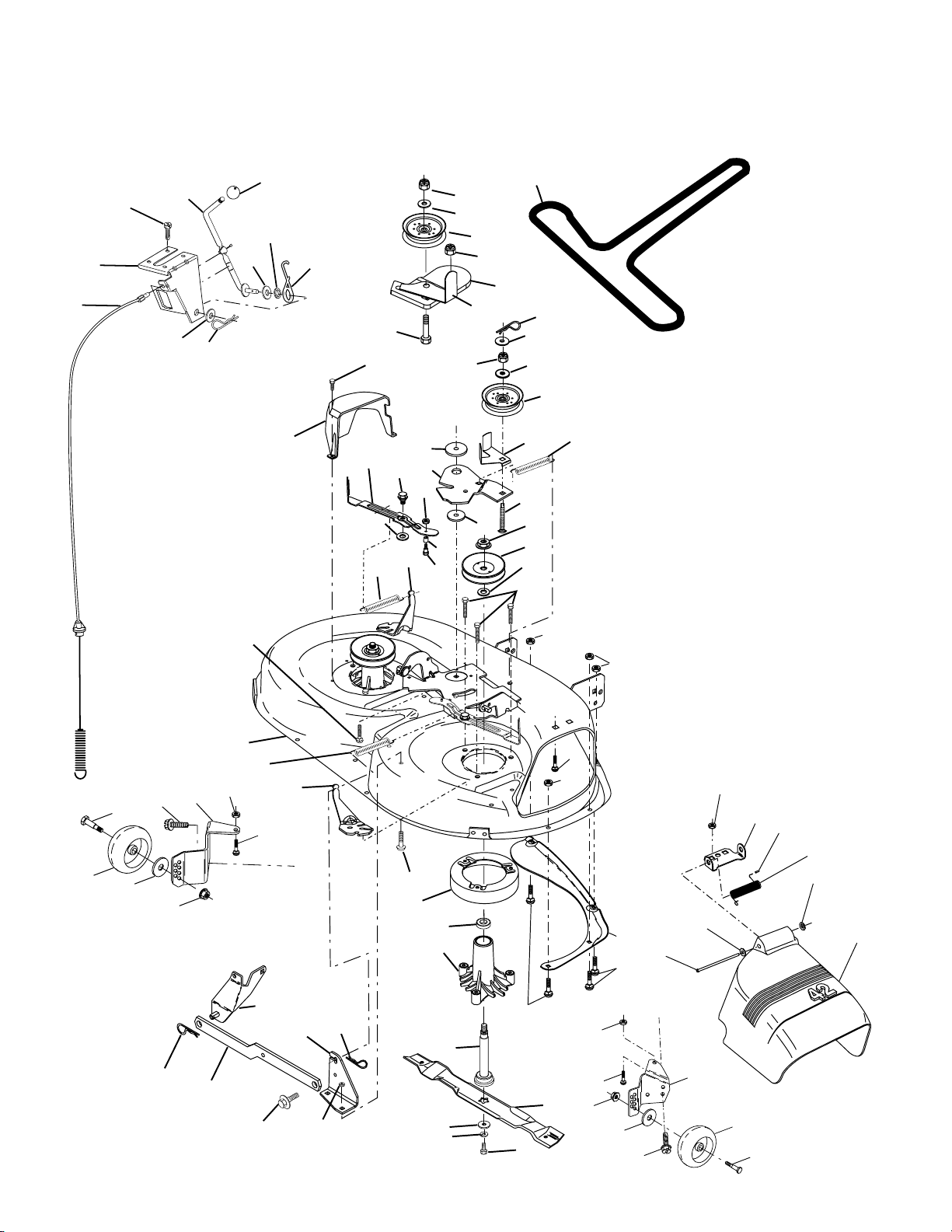

MOWER DECK
152
151
158
153
157
154
153
67
156
44
155
159
46
53
48
147
52
142
56
55
51
49
50
40
37
144
40
36
40
54
143
150
59
146
32
31
30
68
45
37
145
148
33
117
116
119
113
118
5
111
34
1
147
114
142
115
2
16
15
14
3
149
4
13
6
19
21
10
9
18
21
21
2
21
20
29
18
114
115
11
118
119
8
113
21
23
24
25
26
28
27
112
117
116
40
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 17 69-22 Deck Asm MWR 42"weldment
2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532 13 80-17 Bracket Asm Fr Sway Bar 38/42
4 532 16 54-60 Bracket Asm Deck 42"sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Deck Sway Bar
8 532 85 08-57 Bolt 3/8 - 24 X 1.25 Gr 8
9 810 03 06-00 Washer Lock Hvy 3/8
10 532 14 02-96 Washer Hard Blade Mower Vented
11 532 13 84-98 Blade Mower 42"
13 532 13 76-45 Shaft Asm W/lower Bearing
14 532 12 87-74 Housing Mandrel Vented
15 532 11 04-85 Bearing Ball Mandrel
16 532 17 44-93 Stripper Mower
18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 X 5/8
19 532 13 28-27 Bolt Shoulder
20 532 15 97-70 Baffle Vortex 42
21 873 68 05-00 Nut Crownlock 5/16-18 UNC
23 532 17 75-63 Bracket Deflector Mower 42"
24 532 10 53-04 Cap Sleeve 80x 112 Blk Mower
25 532 12 37-13 Spring Torsion Deflector 2 52
26 532 11 04-52 Nut Push Phos & Oil
27 532 17 18-59 Shield Deflector Mower 42" Blk
28 819 11 10-16 Washer 11/32 X 5/8 X 16 Ga
29 532 13 14-91 Rod Hinge 42"6 75 Wlg
30 532 17 39-84 Screw Thd Rolling
31 532 12 99-63 Washer Spacer Mower Vented
32 532 17 34-36 Pulley Mandrel 42"
33 532 17 83-42 Nut Toplock Flng
34 872 11 06-14 Bolt Rdhd 3/8-16uncx1-3/4 Gr5
36 532 17 34-38 Pulley Idler Flat 3 060
37 819 13 13-16 Washer 13/32 X 13/16 X 16
40 873 68 06-00 Nut Crownlock 3/8-16 UNC
44 532 14 00-88 Guard Mandrel LH Black
45 532 12 47-88 Spring Retainer 1" Zinc/cad
46 532 13 77-29 Screw Hex Thd Cut 1/4-20 x 5/8 T
48 532 13 39-44 Washer Hardened Smaller
49 532 17 42-84 Roller Asm Cam Follower 42"dec
50 532 13 13-40 Bolt Shldr 10-24 Zinc Gr 5 42"
51 532 06 9180 Nut Lock #10-24 Unc
52 532 13 98-88 Bolt Shoulder 5/16-18 Unc Blkz
53 532 13 18-45 Arm Asm Pad Brake
KEY PART
NO. NO. DESCRIPTION
54 532 13 39-43 Washer Hardened
55 532 15 50-46 Arm Idler 42"mower LT/YT
56 532 12 20-52 Spacer Retainer Mower
59 532 17 34-42 Guard TUV Idler
67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk
68 532 14 49-59 V-Belt Mower 42"
111 532 18 13-92 Bracket Wheel Gauge LH 42" Deck
112 532 18 13-93 Bracket Gauge Wheel RH 42" Deck
113 817 06 05-10 Screw Tapping 3/8-16 x .625
114 873 51 05-00 Nut Keps 5/16-18 Unc
115 872 11 05-05 Bolt Carriage 5/16-Unc x 5/8
116 532 12 48-42 Bolt Shoulder
117 532 16 57-46 Wheel Gauge
118 873 93 06-00 Nut Centerlock 3/8-16 UNC
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
142 532 16 58-90 Arm Spring Brake Mower
143 532 15 71-09 Bracket Arm Idler 42"
144 532 17 34-41 Keeper Belt 42" Clutch
145 532 17 34-37 Pulley Idler Flat
146 532 17 34-43 Bolt Carriage Idler
147 532 17 97-48 Spring Extension
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow
150 819 09 12-16 Washer 9/32 x 3/4 x 16 Ga.
151 532 16 96-70 Bracket Clutch Cable
152 532 16 96-76 Clutch Cable 42"
153 532 16 96-74 Washer Flat 3/8" Type B
154 532 16 96-75 Spring Retainer
155 532 16 96-71 Spring Retention Lvr Cltch Cab
156 532 16 96-72 Spacer Clutch Cable
157 532 16 96-69 Rod Clutch Cable 3/8"
158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4
- - 532 13 07-94 Mandrel Assembly(Includes Housing,
Shaft and Shaft Hardware OnlyPulley not Included)
- - 532 17 66-34 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19

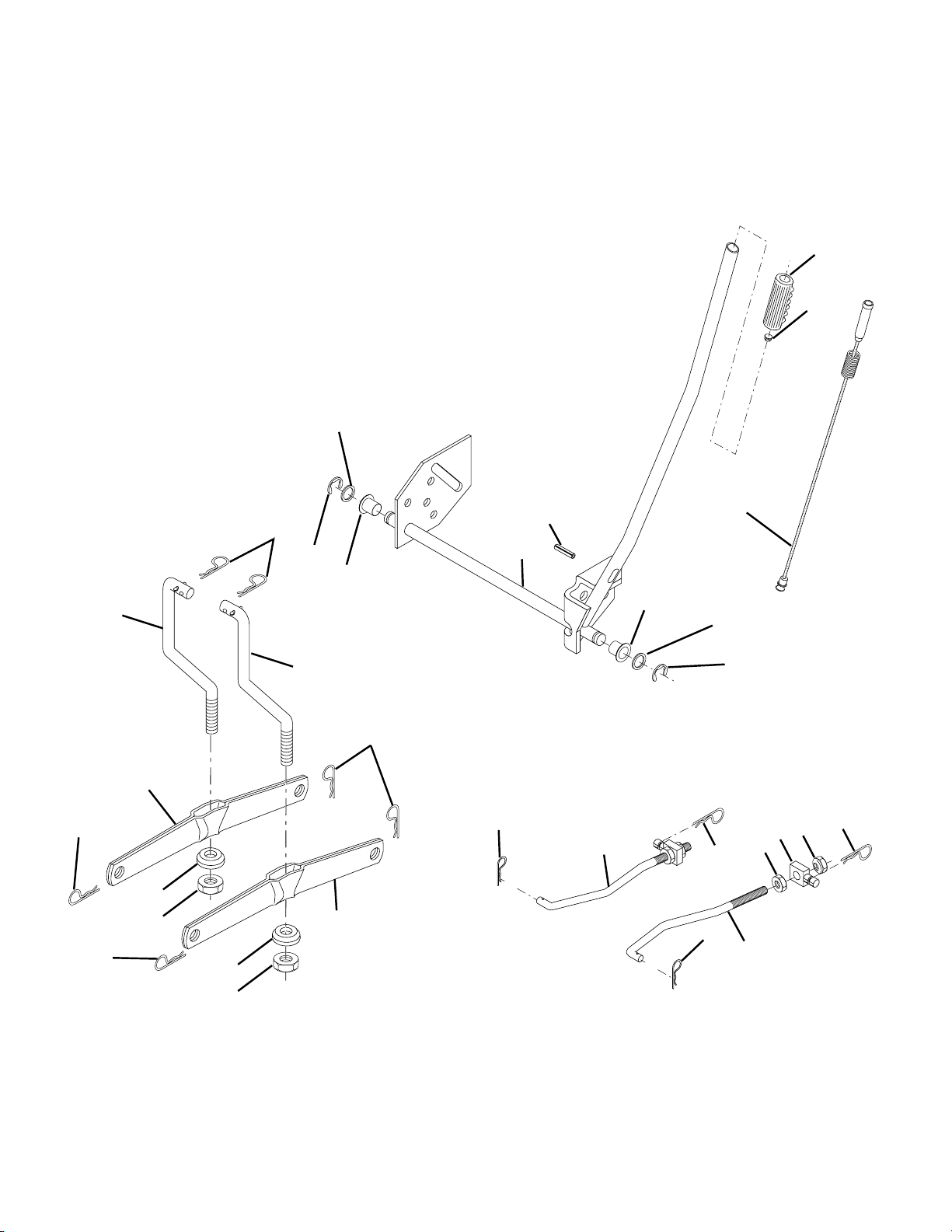

MOWER LIFT
5
7
8
13
13
11
19
31
32
31
13
4
12
19
20
5
20
1
4
20
18
17
16
15
3
2
6
6
13
20
15
32
42
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. LTH1342 (LTHK1342B), PRODUCT NO. 954 56 85-19
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger LT
2 532 15 94-71 Shaft Asm Lift
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer PLTD 21/32 X 1 X 21ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 10 94-13 Grip Handle Bicycle
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 Unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock W/Wsh 1/2-13 Unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Spring, Retainer
31 532 16 98-65 Bearing Pvt. Lift
32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
