Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
6522 SH C
954222718
Illustrated Parts
List
2001-11
I0102045
Repair Parts Manual Walk Mower
www.mymowerparts.com
Page 2

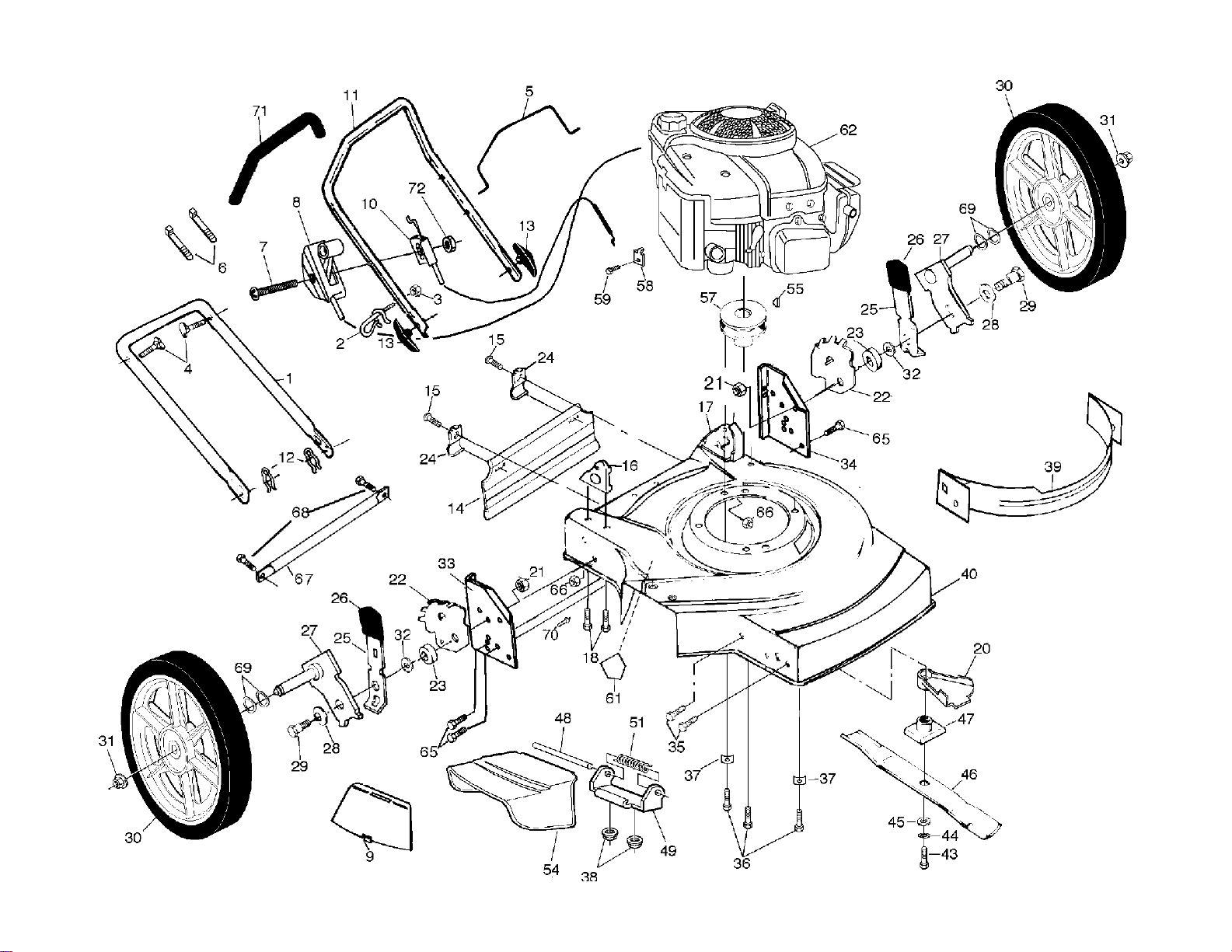

ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHC)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHC)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
1 532 15 36-05 Lower Handle
2 532 17 95-85 Rope Guide
www.mymowerparts.com
17
3 532 06 36-01 Locknut 1/4-20
4 532 13 19-59 Handle Bolt
5 532 17 65-80 Control Bar
6 532 06 64-26 Wire Ties
7 532 14 49-29 Hex Washer Head Screw 1/4-20 x 2-1/8
8 532 16 69-71 Throttle Control
9 532 12 54-44 Mulcher Plate
10 532 13 08-61 Engine Zone Control Cable
11 532 17 80-67 Upper Handle
12 532 05 17-93 Hairpin Cotter
13 532 13 63-76 Handle Knobs
14 532 14 05-40 Rear Skirt
15 532 75 00-97 Hex Head Screw
16 532 17 09-75 Handle Bracket Assembly (Right)
17 532 17 09-77 Handle Bracket Assembly (Left)
18 532 14 97-41 Screw 5/16-18 x 3/4
20 532 13 46-12 Debris Shield
21 532 75 15-92 Locknut
22 532 15 50-47 Wheel Adjusting Bracket
23 532 14 66-30 Spacer
24 532 12 52-07 Skirt Bracket
25 532 14 17-30 Selector Spring
26 532 08 78-77 Selector Knob
27 532 16 22-33 Axle Arm Assembly
28 532 06 16-51 Belleville Washer
29 532 14 27-48 Shoulder Bolt 3/8-16
30 532 75 20-63 Wheel & Tire Assembly (Rear)
31 532 08 39-23 Flanged Locknut 3/8-16
32 532 08 83-48 Flat Washer
33 532 17 80-65 Wheel Support Bracket (RT)
34 532 17 80-66 Wheel Support Bracket (LT)
35 817 60 04-06 Screw
36 532 15 04-06 Thread Rolling Screw 3/8-16 x 1
KEY PART
NO. NO. DESCRIPTION
37 532 12 50-78 Engine Washer
38 532 06 36-01 Nut
39 532 17 00-31 Front Baffle Kit
40 532 17 66-05 Mower Housing Kit (Includes Key No. 61)
43 532 85 10-84 Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
44 532 85 02-63 Helical Washer 3/8
45 532 85 10-74 Hardened Washer
46 532 14 11-14 22'’ Blade
47 532 85 15-14 Blade Adapter
48 532 14 72-86 Hinge Rod
49 532 08 75-93 Housing Bracket
51 532 08 75-89 Torsion Spring
54 532 85 07-78 Discharge Guard
55 532 08 76-77 Hi-Pro Key
57 532 08 45-96 Engine Pulley
58 532 21 31-46 * Cable Clamp
59 532 08 38-16 Screw #10 x 5/8
61 532 10 73-39 Danger Decal
62 - - - * Engine, Briggs & Stratton, Model No. 120602
65 874 76 06-12 Bolt
66 532 75 15-92 Nut
67 532 17 71-41 Support Rod
68 532 05 45-83 Screw hex Tap. 1/4/20
69 532 05 71-43 Wave Washer
70 532 12 84-15 Pop Rivet
71 532 16 42-65 Foam Grip
72 532 13 20-04 Nut, Hex 1/4-20
- - 532 16 23-00 Warning Decal (not shown)
- - 532 12 53-81 Rear Baffle (not shown)
- - 532 18 12-87 Owner’s Manual (English/French)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
* Order parts from engine manufacturer
Page 4
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHC)
www.mymowerparts.com
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 5

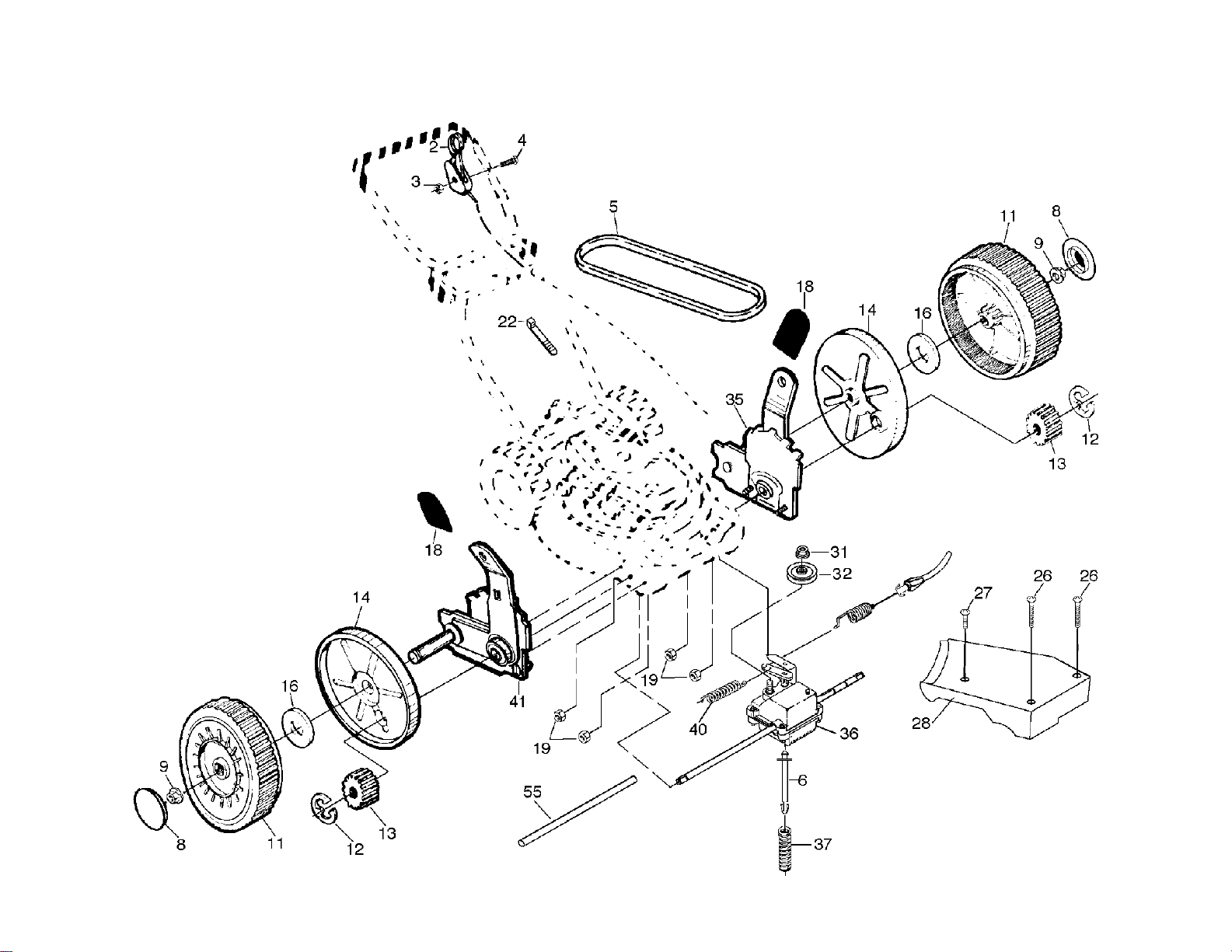

ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHC)
www.mymowerparts.com
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
19
KEY PART
NO. NO. DESCRIPTION
2 532 14 57-55 Drive Control
3 532 75 11-52 Locknut #10-24
4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12
5 532 14 65-27 V-Belt
6 532 15 04-95 Spring Retainer
8 532 07 74-00 Hubcap
9 532 14 52-12 Flanged Locknut 3/8-16
11 532 18 07-80 Wheel & Tire Assembly
12 812 00 00-58 E-Ring
13 532 13 70-54 Pinion
14 532 18 05-04 Dust Cover
16 532 06 77-25 Washer 1/2 x 1-1/2 x .134
18 532 08 78-77 Selector Knob
19 532 06 36-01 Hex Locknut 1/4-20
KEY PART
NO. NO. DESCRIPTION
22 532 06 64-26 Wire Tie
26 532 14 60-72 Pan Head Tapping Screw #10-24 x 2-3/4
27 532 75 00-97 Hex Head Tapping Screw #10
28 532 70 04-22 Drive Cover
31 532 13 20-10 Hex Flange Nut
32 532 13 70-52 Drive Pulley
35 532 15 15-21 Wheel Adjuster Assembly (Left)
36 532 70 25-11 Gear Case Assembly
37 532 13 70-90 Spring
40 532 07 51-92 Spring
41 532 15 15-20 Wheel Adjuster Assembly (Right)
55 532 08 60-12 Driveshaft Cover
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ROTARY LAWN MOWER - - MODEL NUMBER 6522SH (6522SHC)

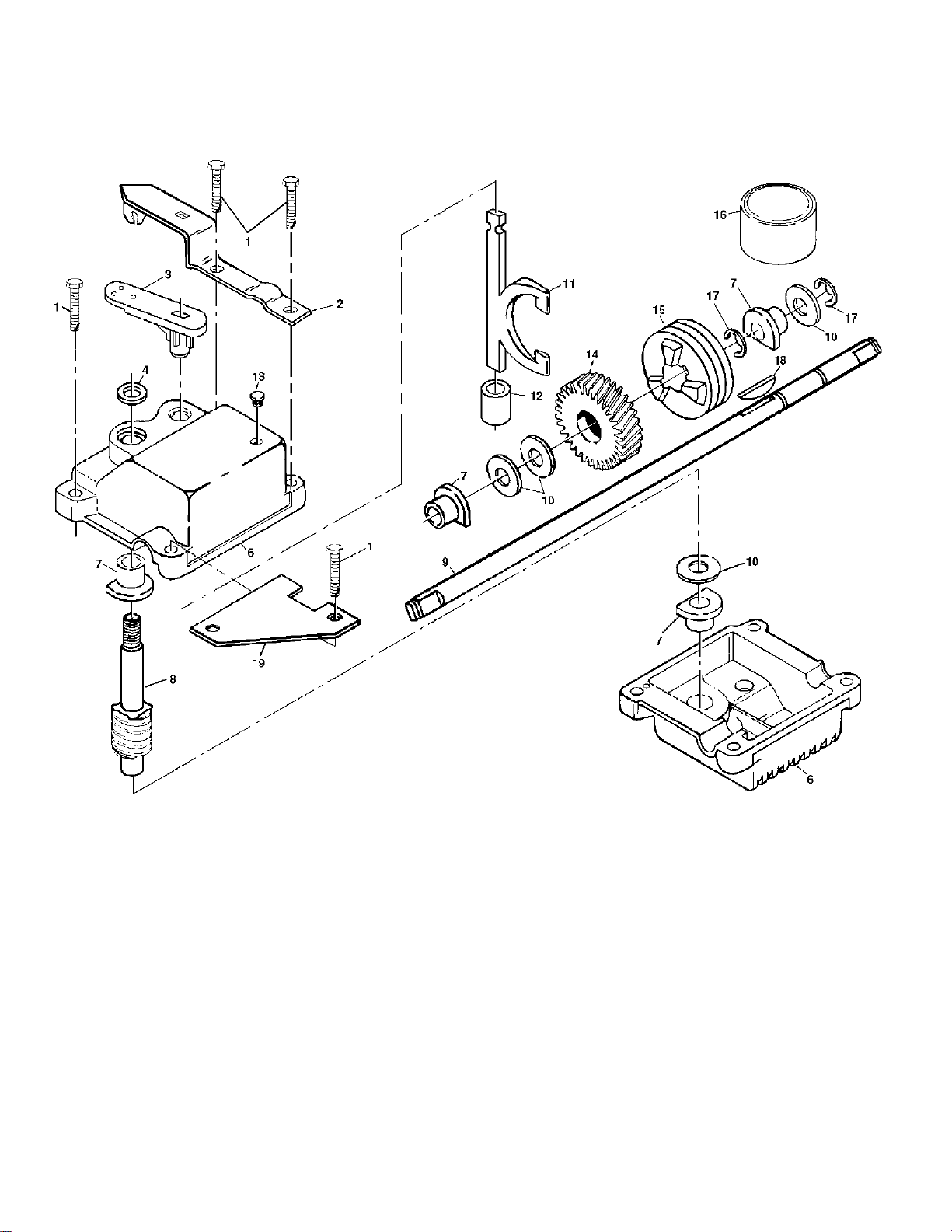

GEAR CASE ASSEMBLY - PART NUMBER 532702511
KEY PART
NO. NO. DESCRIPTION
1 817 49 04-16 Tapping Screw 1/4-20 x 1-1/4
2 532 14 02-69 Engagement Bracket
3 532 13 70-53 Shifter
4 532 05 70-72 Seal
6 532 04 83-73 Gear Case Halves Kit
7 532 07 78-81 Bearing
8 532 13 70-51 Worm Shaft
9 532 13 70-74 Drive Shaft
10 532 05 70-79 Hardened Washer
11 532 13 14-84 Clutch Yoke
12 532 70 03-43 Bushing
13 532 08 64-47 Plug
14 532 13 70-50 Helical Gear
15 532 75 04-36 Clutch Jaw
16 532 75 03-69 Grease
17 812 00 00-03 E-Ring
18 532 85 08-48 Hi-Pro Key
19 532 12 54-41 Spring Bracket
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
(Includes Key Numbers 4 and 7)
20
www.mymowerparts.com
