Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

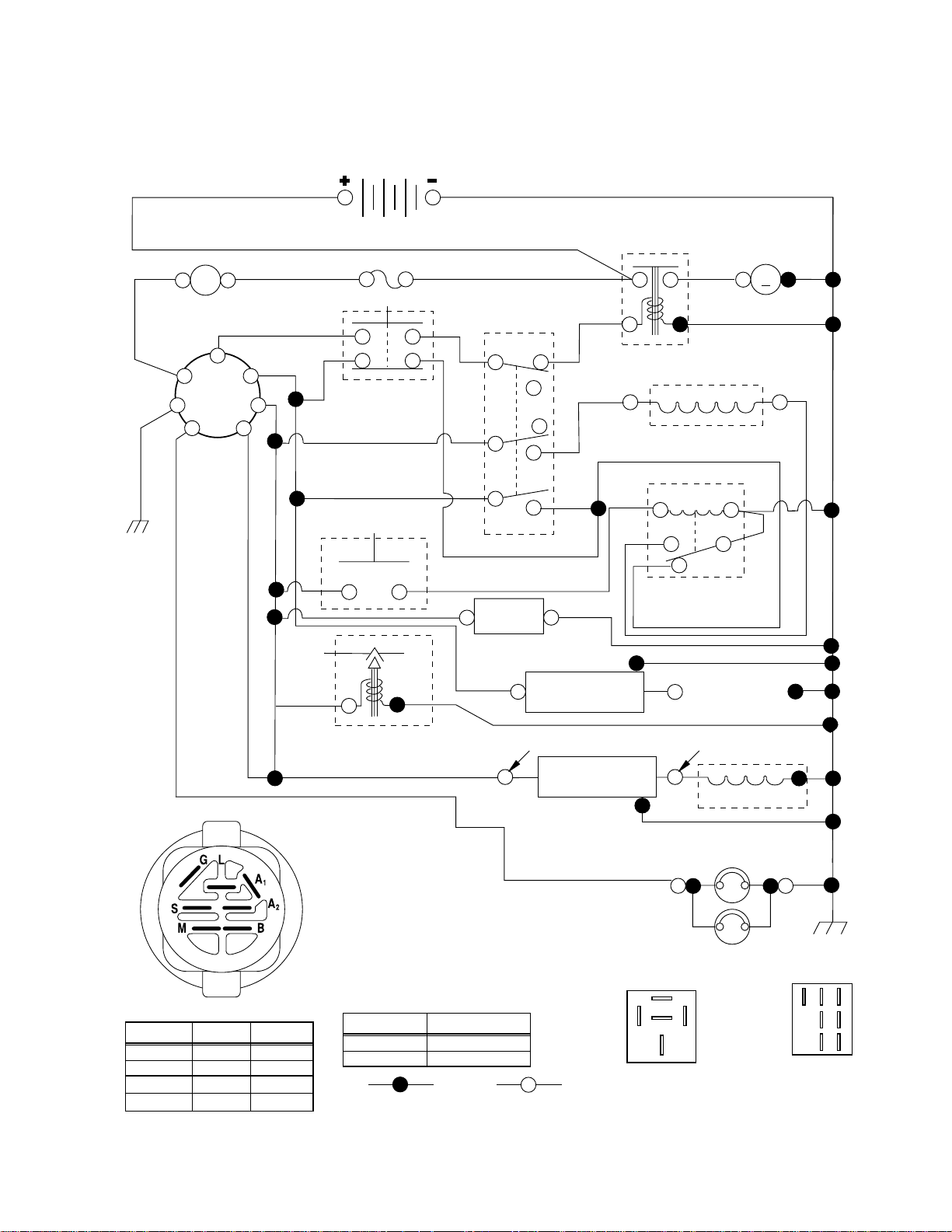

SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
M
A1
BLACK
ORANGE
CLUTCH / BRAKE
(PEDAL UP)
RED
SEAT SWITCH
(NOT OCCUPIED)
BLACK
F
H
B
E
A
D
PTO (DISENGAGED)
RED
ELECTRIC CLUTCH
BLACK
85 86
87
BLACK
30
S
B
L
A2
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
FUEL SHUT-OFF SOLENOID
RED
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
REGULATOR
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
PTO SWITCH
“MAKE”
NONE
A2+L
NONE
NONE
OFF
NON-REMOVABLE
CONNECTIONS
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + DON
REMOVABLE
CONNECTIONS
29
www.mymowerparts.com
BROWN
87
87A
30
RELAY
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

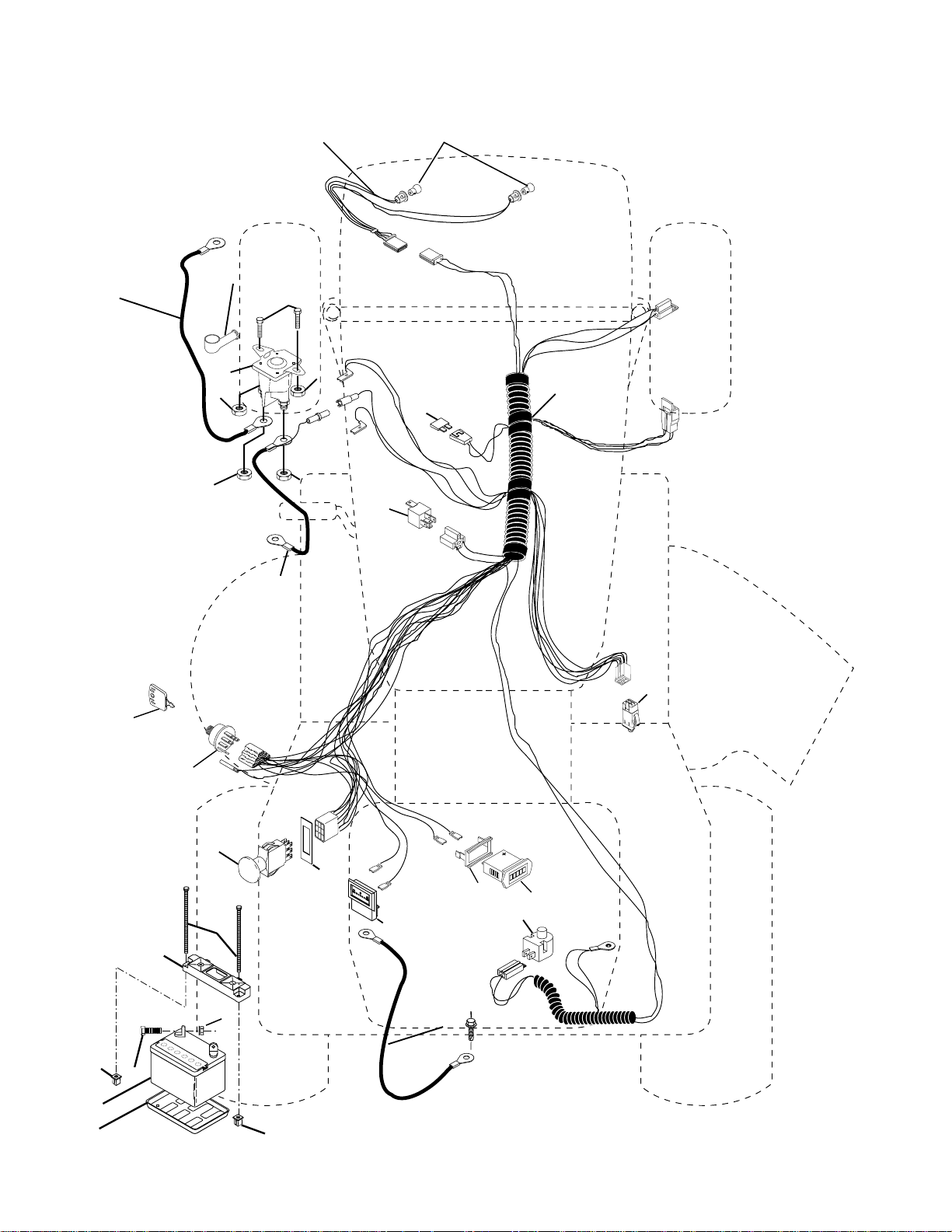

REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
ELECTRICAL
2221
42
24
41
33
30
27
43
27
25
27
27
40
26
81
16
12
50
51
28
55
89
29
46
D
.
C
.
A
M
P
E
R
E
S
10
11
27
2
1
8
12
45
30
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144927 Battery 12 Volt 35 AMP
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
8 532124886 Tray Battery
10 532145211 Bolt Brt Frt 1/4-20 x 75 Ainc
11 532150109 Holddown Battery Front Mount
12 532145769 Nut Push Nylon 1/4" Battery Frt
16 532153664 Switch Interlock Push-In
21 532166181 Harness Asm Light W/4152j
22 532004152 Bulb Light #1156
24 532124780 Cable Battery 6 Ga 11" red
25 532146148 Cable Battery 6 Ga 22" red w/16 wire
26 532175158 Fuse
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532145491 Cable Ground 6 Ga 21" black
29 532160784 Switch Plunger Nc Gray
30 532175566 Switch Ign
33 532140401 Key Ign Molded Generic
40 532178441 Harness Ign.
41 871110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532131563 Cover Terminal Red
43 532175141 Solenoid
45 532122822 Ammeter Rectangular 15 Amp
46 532169635 Meter Hour
50 532174651 Switch PTO
51 532140405 Ring Retainer TTO
55 817490508 Screw Thdrol 5/16-18 x 1-1/2 Tyt
81 532109748 Relay Asm.
89 532169639 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
31
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

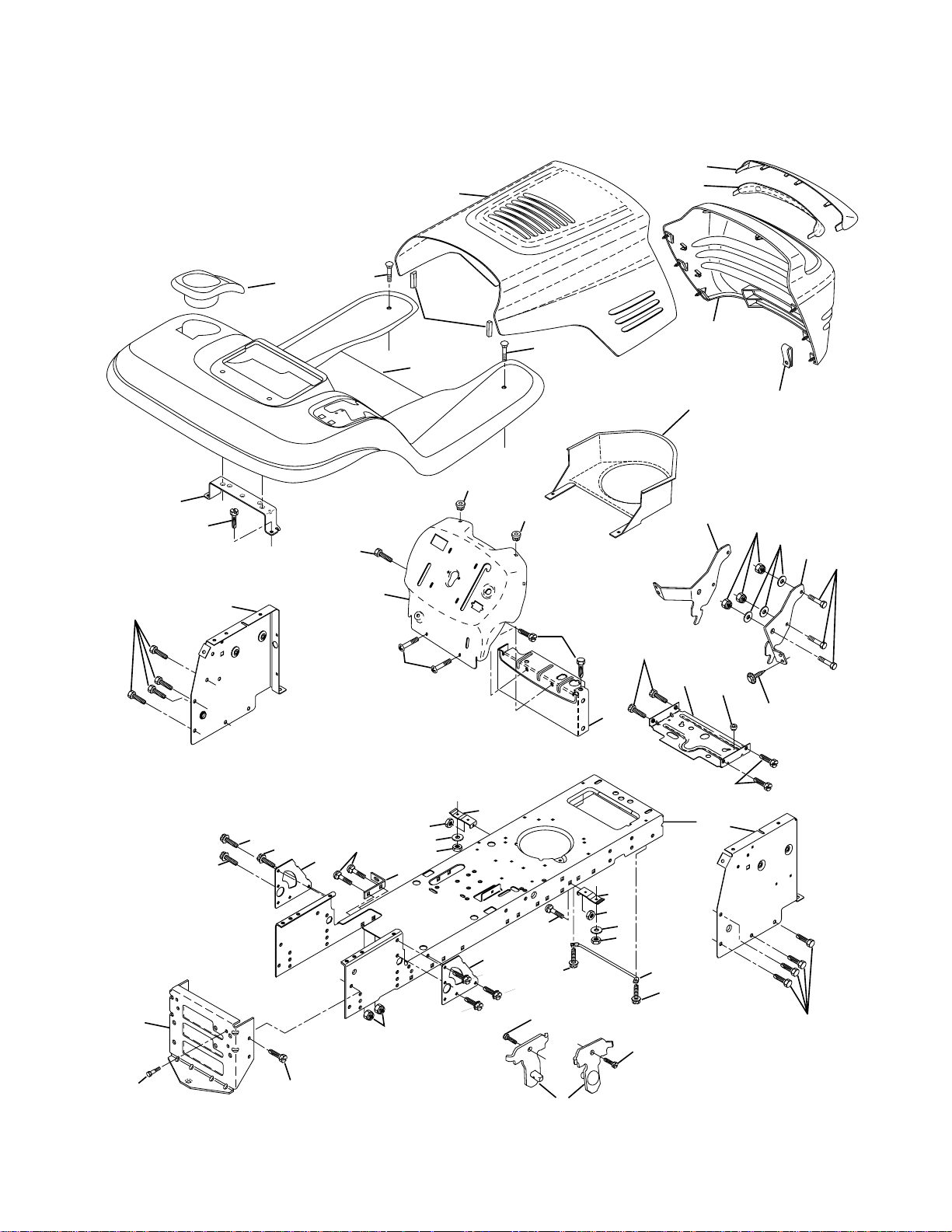

CHASSIS AND ENCLOSURES
29
17
212
208
31
208
60
18
60
30
5
5
9
208
207
207
64
20
58
53
28
23
51
54
12
52
55
57
159
3
11
206
207
144
74
143
26
25
26
144
26
10
142
3
3
37
3
14
38
25
26
14
3
3
3
2
3
60
142
145
37
1
13
208
32
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532174619 Chassis Stamping
2 532176554 Drawbar
3 817060612 Screw 3/8-16x3/4
5 532155272 Bumper
9 532171682 Dashboard
10 872140608 Bolt Rdhd Sqnk 3/8-16 Unc x 1
11 532155927 Panel Dash Lh
12 532145660 Clip Tinnerman Grille
13 532172106 Panel Dash Rh
14 817490608 Screw Thdrol 3/8-16 x 1/2
17 532162237 Hood
18 532126938 Bumper
20 532156437 Plate Mtg Battery/Fuel Tank
23 532124028 Bushing
25 819131312 Washer 13/32 x 13/16 x 12 Ga.
26 873800600 Nut Lock w/Insert 3/8-16 UNC
28 532170475 Grille Lens Asm
29 532176645 Lens
30 532171625 Fender
31 532139976 Bracket
37 817490508 Screw Thdrol 5/16-18 x 1/2
38 532175710 Bracket Asm Pivot Mower Rear
51 873800400 Nut Lock w/Insert 1/4-20
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532144697 Bracket Grille Lh
54 532161464 Screw Hex Wshd 8-18 x 7/8
55 532144696 Bracket Grille Rh
57 874780412 Bolt Fin Hex 1/4-20 Unc x 3/4
58 532162266 Duct Air
60 872140606 Bolt RDHD SQNK 3/8-16 x 3/4
64 532154798 Dash Lower Stlt
74 873680600 Nut Crownlock 3/8-16
142 532165867 Plate Reinforcement Stlt
143 532154966 Bracket Swaybar Chassis
144 532175582 Bracket Ft Rest
145 532156524 Rod Pivot Chassis Hood
159 532166508 Cupholder YTGT Grey
206 532170165 Bolt Shoulder 5/16-18 TT
207 817670508 Screw Thdrol 5/16-18 x 1/2 TYTT
208 817670608 Screw Thdrol 3/8-16 x 1/2 Ty-TT
212 532156229 Insert Lens Reflect
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

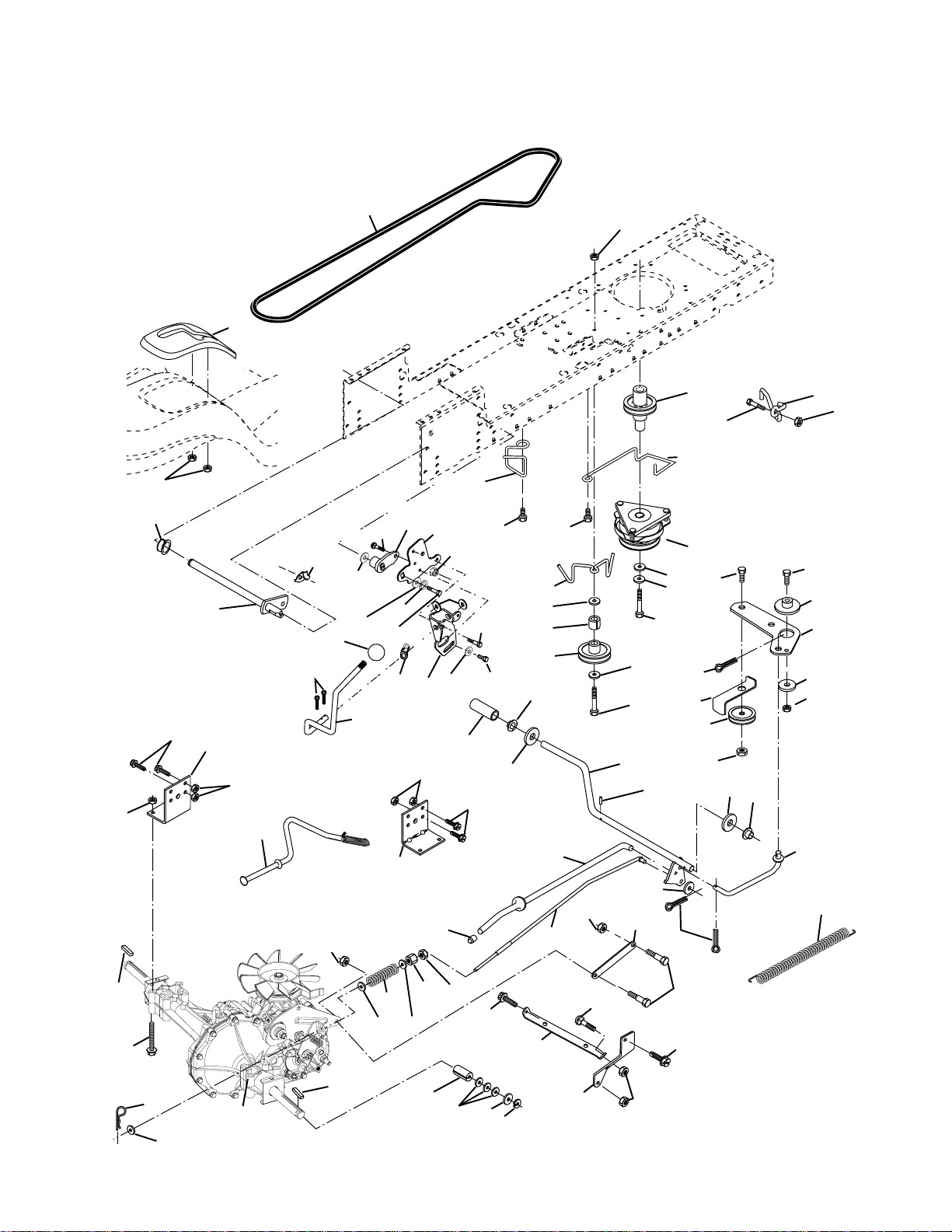

DRIVE
57
51
89
16
90
197
32
81
30
52
95
169
10
21
198
164
8
161
14
163
82
30
159
165
52
158
162
83
156
62
59
168
32
166
61
36
42
35
41
40
38
28
56
34
42
39
37
20
65
17
66
27
49
63
9
47
120
116
50
36
23
212
202
150
48
151
51
35
53
77
15
96
26
26
16
26
19
74
29
75
24
78
61
76
16
25
26
77
1
22
200
71
73
84
27
199
61
16
55
34
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle, Hydro 314-0510
(Order Parts From Transaxle
Manufacturer)
8 532165866 Rod Shift Fender Adjust STLT
9 532174367 Clutch Elecric
10 876020416 Pin Cotter 1/8 x 1 CAD
14 810040400 Washer Lock Hvy Helical
15 874490544 Bolt Hex 5/16-18 Unc Flghd
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
17 532126197 Washer 1-1/2 x 15/32
19 873800600 Nut Lock Hex W/Ins 3/8-16 Unc
20 532173937 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532140845 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532169498 Rod, Brake Hydro
23 532178289 Bracket Asm Mtg CL
24 873350600 Nut Hex Jam 3/8-16 UNC
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532175765 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532169592 Bracket, Transaxle
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
34 532175578 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532165936 Pulley, Composite, Flat
39 874760648 Bolt, Fin, Hex 3/8-16 x 3
40 532175461 Spacer Split
41 532175556 Keeper, Belt Idler
42 819131312 Washer 13/32 x 13/16 x 12 Ga
47 532127783 Pulley, Idler, V-Groove Plastic
48 532154407 Bellcrank Clutch Grnd Drv STL
49 532123205 Retainer, Belt Style Spring
50 874760624 Bolt Hex Hd 3/8-16 Unc x 1-1/2
51 873680600 Nut
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 817060616 Screw 3/8-16 x 1.0
57 532140294 V-Belt, Ground Drive
59 532169691 Keeper, Center Span
61 817060612 Screw 3/8-16 x 3/4
KEY PART
NO. NO. DESCRIPTION
62 532124872 Cover, Pedal
63 532175417 Pu ll ey, Clutch E lect
65 810040700 Washer Lock Hvy HLCL Spr 7/16
66 532154778 Keeper Belt Engine
71 532169183 Strap Torque Lh Hydro
73 532169182 Strap Torque Rh Hydro
74 532137057 Spacer, Axle
75 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16 Ga
81 532165596 Shaft Asm Cross Tapered
82 532165711 Spring Torsion T/A
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532169594 Link Transaxle
89 532166510 Console, Shift
90 532124346 Nut Self Thd 1/4
95 532170201 Control Asm. Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
116 872140608 Bolt Rdhd Sqnk 3/8-16 Unc x 1
120 873900600 Nut Lock Flg 3/8-16
150 532175456 Spacer Retainer
151 819133210 Washer 13/32 x 2 x 10 Ga.
156 532166002 Washer Srrted 5/16ID x 1.125
158 532165589 Bracket Shift Mount
159 532165494 Hub Tapered Flange Shift Lt
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819091010 Washer 5/8 x .281 x 10 Ga
165 532165623 Bracket Pivot Lever
166 532166880 Screw 5/16-18 x 5/8
168 532165492 Bolt Shoulder 5/16-18 x .561
169 532165580 Plate Fastening STLT/CRD
197 532169613 Nyliner Snap 5/8" ID
198 532169593 Washer Nyl 7/8 ID x .105 Hyd
199 532169612 Bolt Shoulder 5/16-18 Unc
200 872140508 Bolt Rdhd Sqnk 5/16-18 Unc x 1
202 872110612 Bolt
212 532145212 Nut Hex Flange Lock
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

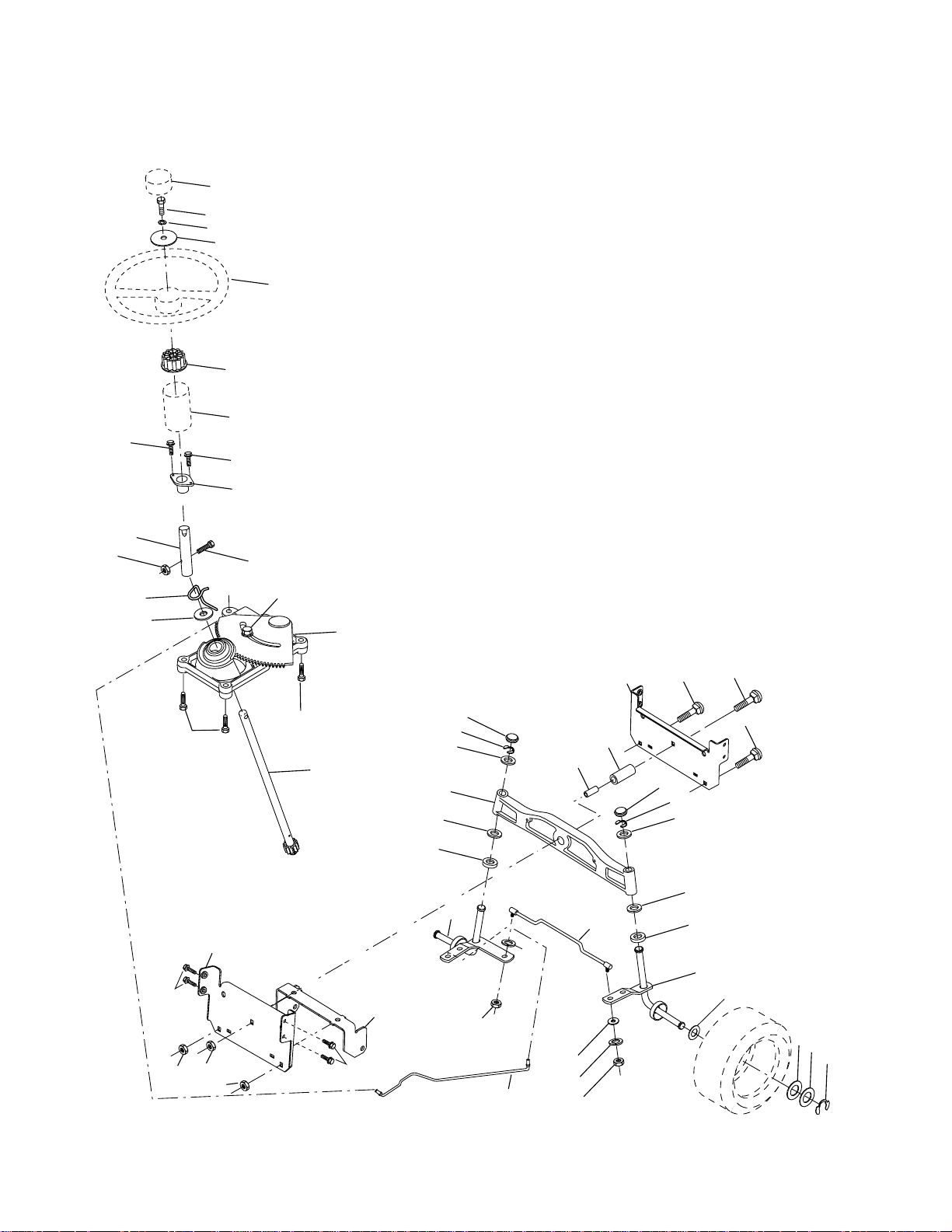

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
44
51
91
43
29
29
15
15
54
88
71
68
29
17
68
82
29
15
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
36
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532166627 Wheel Steering
2 532172393 Axle Cast Lt Machined
3 532169840 Spindle Asm LH
4 532169839 Spindle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
8 812000029 Ring Klip #t5304-75
10 532175121 Link Drag
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
13 532136518 Spacer Brg Axle Front
15 532145212 Nut Hex Flange Lock
17 532177876 Shaft Asm Strg
29 817060612 Screw 3/8-16x3/4
32 532170162 Rod Tie Ball J
33 819111216 Washer 11/32 x 3/4 x 16 Ga.
34 810040500 Washer Lock Hvy Helical 5/16
35 873540500 Nut Crown Lock 5/16-24Unf
36 532155099 Bushing Strg
37 532152927 Screw
38 532166626 Insert Cap Strg Wh
39 819132411 Washer 13/32 x 1-1/20 x 11 Ga
40 532124701 Lock nut
41 532159945 Adaptor Wheel Strg
42 532169634 Boot Steering Shaft
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga
44 532153720 Extension Steering Shaft LR/LT
46 532121232 Cap Spindle Fr Top Blk
51 873800500 Nut Lock Hex w/Ins 5/16-18
54 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4
63 874780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
65 532160367 Spacer Brace Axle
67 872140618 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532169827 Axle, Brace
71 532175146 Steering Asm
82 532169835 Bracket Susp Chassis Front
87 532173966 Washer Flat .781 x 1-1/2 x .14
88 532175118 Bolt Shoulder 7/16-20
91 532175553 Cli p Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
37
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

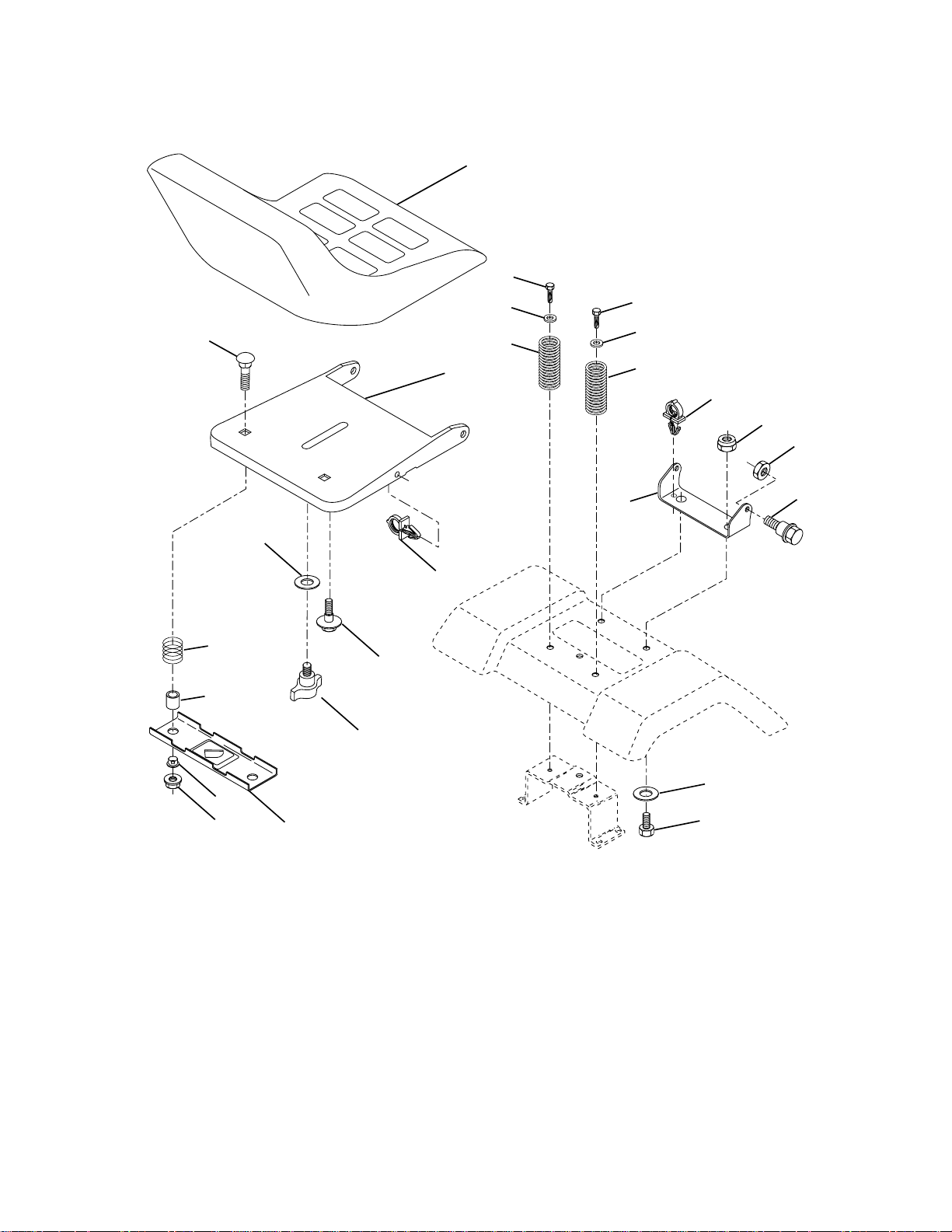

SEAT ASSEMBLY
1
8
8
9
7
5
6
22
14
9
7
10
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 532140840 Seat
2 532140551 Bracket Pivot Seat 8 720
3 871110616 Bolt Fin Hex 3/8-16 x 1
4 819131610 Washer Flat 13/32 x 1.0 x 10 Ga.
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817000616 Screw 3/8-16 x 1
9 819131614 Washer 13/32 x 1.0 x 14 Ga.
10 532174894 Pan Seat
11 532166369 Knob Seat Adj Wingnut
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532121249 Spacer Split 28 x .88 Zinc
16 532123740 Spring Cprsn Plate
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532171852 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
24 819171912 Washer 17/32 X 1 -3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
38
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

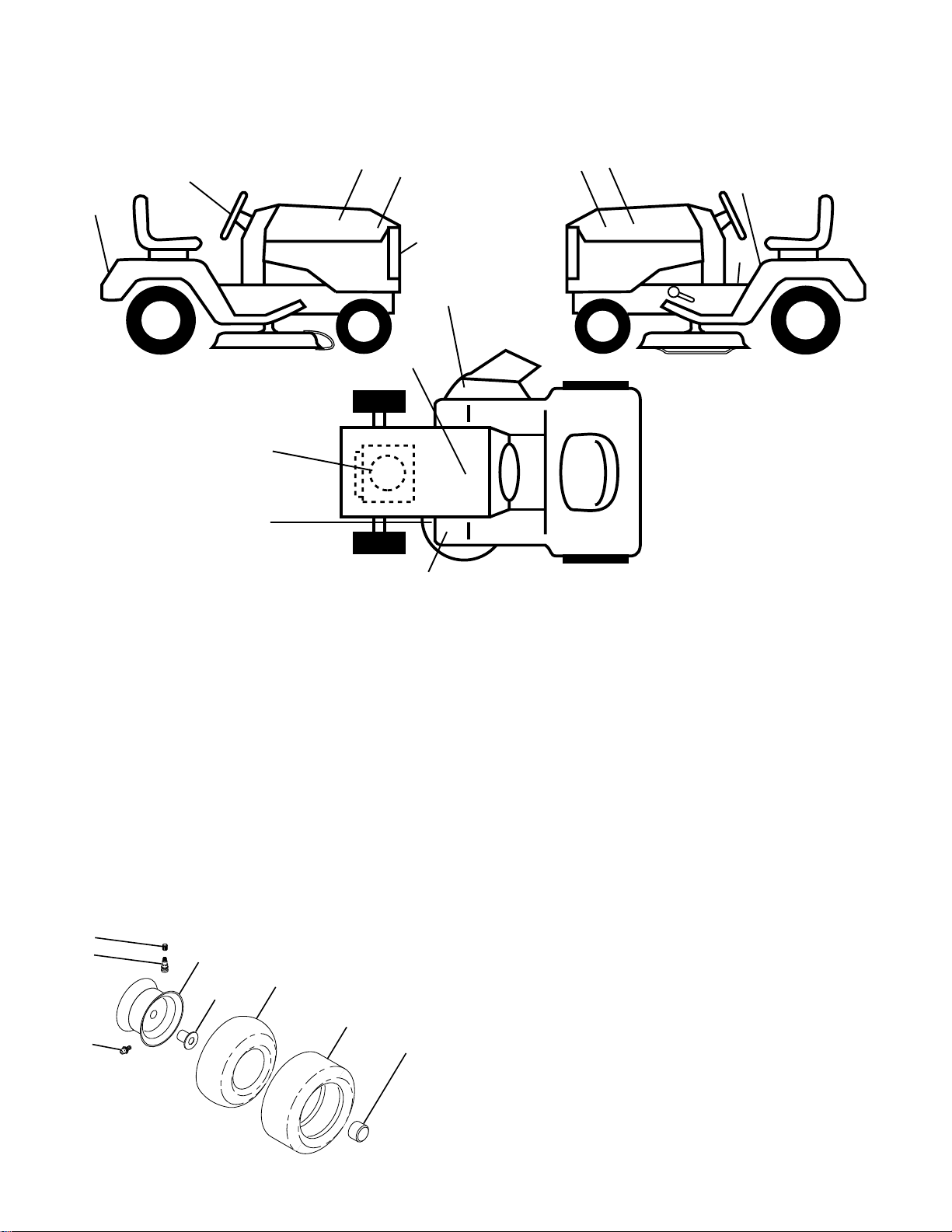

DECALS
4
3
2
9
11
11
10
5
14
KEY PART
NO. NO. DESCRIPTION
1 532157032 Decal Oper Inst Hyd E/F
2 532170564 Decal Strg Wheel Logo
3 532177672 Decal Hood RH
4 532177673 Decal Hood LH
5 532178386 Decal Engine
6 532150616 Decal Grille Husq
8 532170563 Dec al Warning
9 532176822 Decal Fender Husq
10 532157140 Decal Fender Danger E/F
11 532176871 Decal Hood Sides
6
1
8
20
12
KEY PART
NO. NO. DESCRIPTION
12 532178502 Decal Clutch/Brake
14 532175291 Decal V-Belt Schematic
20 532145005 Decal Bat Dan/Psn
- - 532169210 Decal By Pass Lt Hydro
- - 532171284 Pad Footrest LH
- - 532171285 Pad Footrest RH
- - 532138311 Decal Handle Lft Height Adjust
- - 532179564 Manual Owner's (English)
- - 532179565 Manual Owner's (French)
WHEELS & TIRES
1
2
6
5,8
7
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
4,10
3,9
11
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532122082 Tire R Ts 20x10-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532175039 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
ENGINE
2
1
25
26
14
38
105
32
31
3
13
81
105
16
80
34
33
8
10
6
5
39
33
29
OPTIONAL EQUIPMENT
Spark Arrester
37
45
23
4
40
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

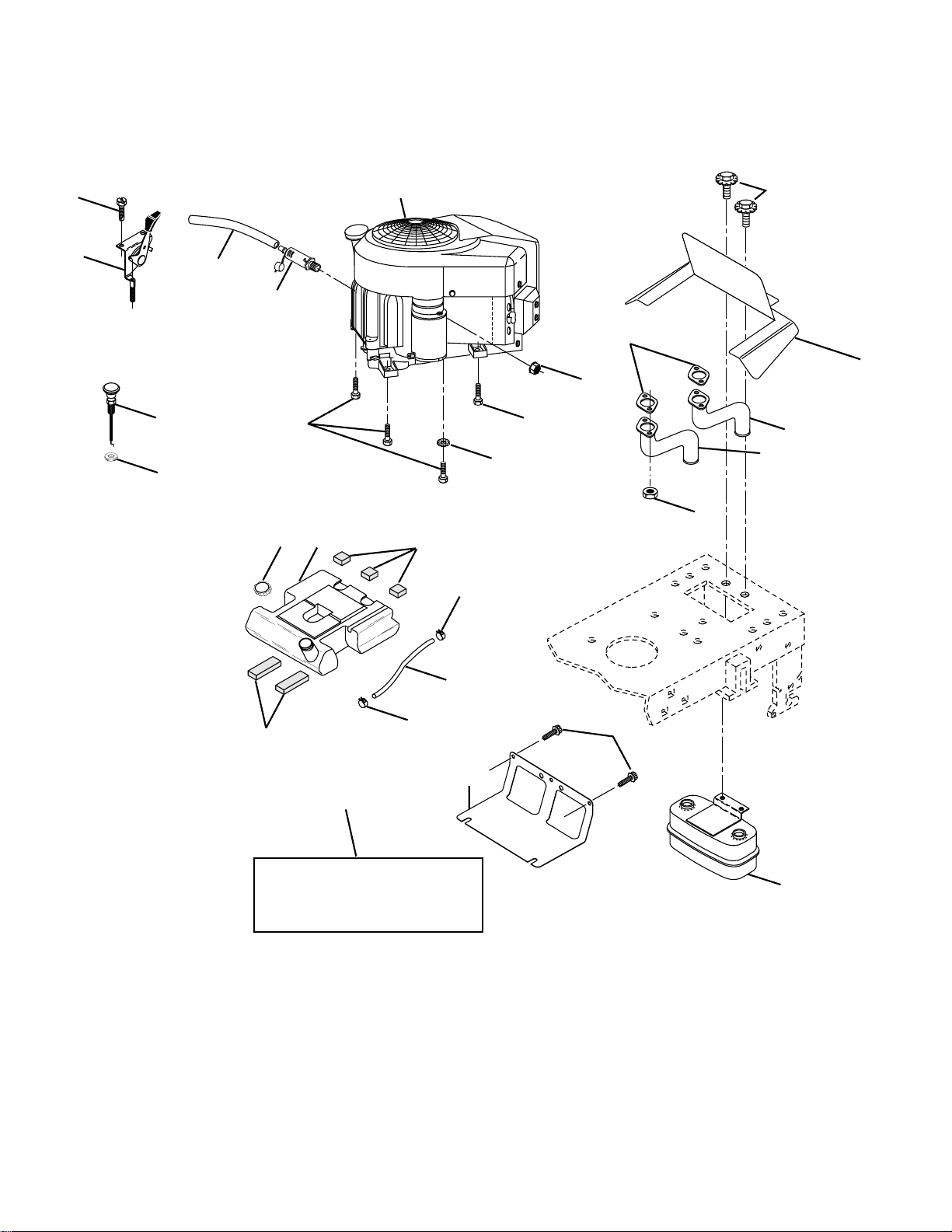

ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532170803 Control Throt Flg
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine KAWA FH531V
(Order Parts from Engine Manufacturer)
4 532149723 Muffler Asm Twin Lo-Tone
5 532176067 Exhaust Tube
6 532176068 Exhaust Tube
8 532171877 Bolt 5/16-18unc x 3/4 W/Sems
10 532146629 Shield Browning
13 532178591 Gasket Muffler
14 532148456 Tube Drain Oil Easy
16 811050600 Washer Lock Ext Tooth 3/8
23 532169837 Shield Browning
25 532132782 Choke Control
26 873920600 Nut, Keps 3/8-24 Unf
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532157103 Tank Fuel 3 50 Rear
32 532140527 Cap Asm Fuel Top N/Lany Vented
33 532123487 Clamp Hose Blk
34 532106082 Pad, Spacer
37 532142158 Line Fuel
38 - - - - - - - - Plug Drain Oil (Order from Engine Manufacturer)
39 532109227 Pad, Idler
45 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4
80 532163305 Nut Flange M8-1.25
81 873510400 Nut Keps Hex 1/4-20 Unc
105 817120616 Screw 3/8-16 x 1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

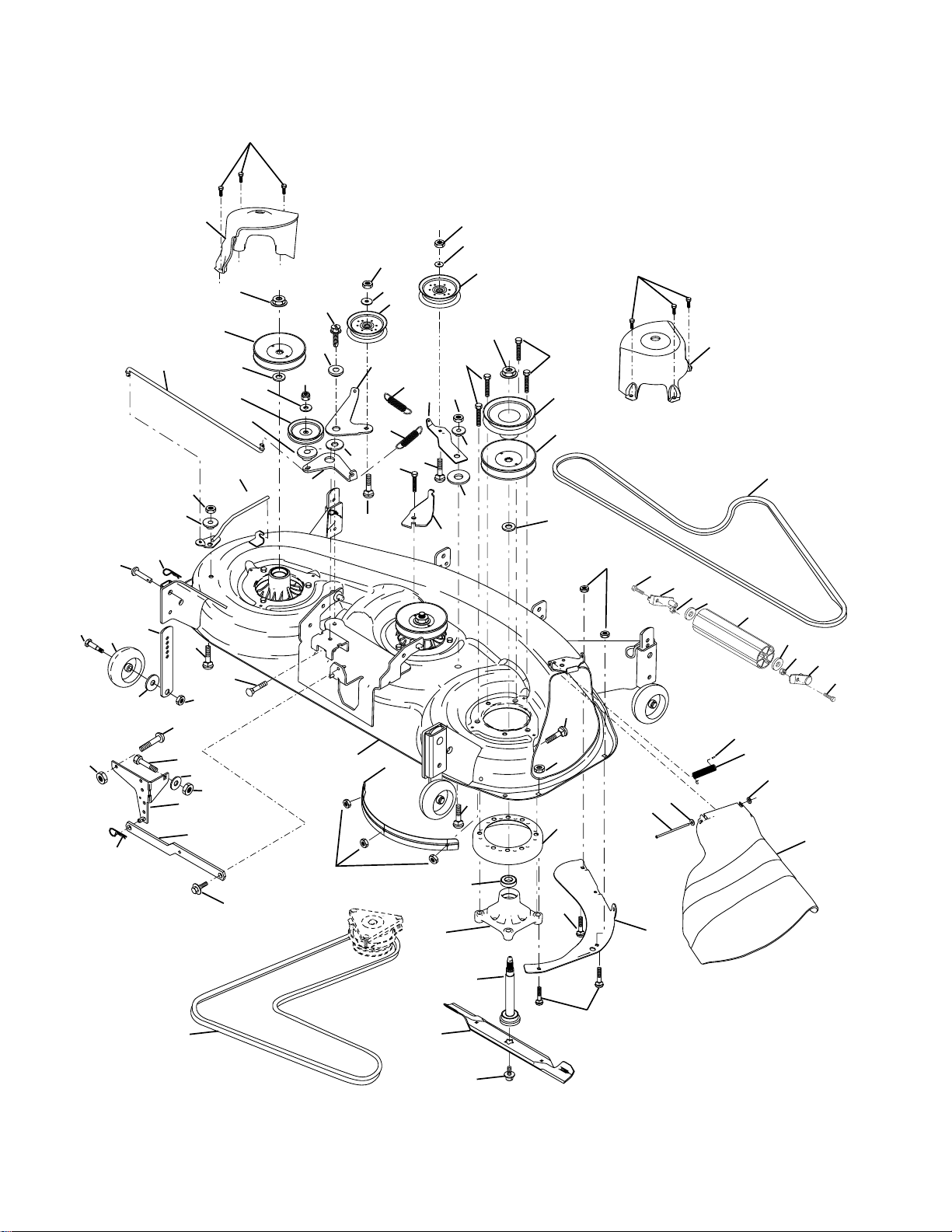

MOWER DECK
46
116
92
57
117
45
49
43
98
97
50
1 107
36
30
52
121
50
33
32
112
21
122
5
56
113
119
55
54
5
3
118
72
6
92
31
99
100
19
36
42
114
130
42
49
115
109
126
110
14
49
30
15
49
17
36
42
97
37
33
31
18
30
39
32
108
21
16
21
46
29
20
90
28
91
180
45
93
24
94
25
47
26
93
180
95
90
27
48
13
18
11
8
42
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532174348 Deck Weldment Mower 48
3 532138017 Bracket Asm., Sway Bar
5 532004939 Ret ainer Spring
6 532130832 Arm, Suspension, Rear (Sway Bar)
8 532174365 Bolt, 7/16 Asm. Blade
10 532140296 Washer, Hard Blade, Mower Vented
11 532173920 Blade
13 532174360 Shaft Asm. greaseable
14 532174358 Housing Mandrel 48"
15 532110485 Bearing, Ball, Mandrel
16 532174493 Stripper, Mower
17 872110610 Bolt Rdhd Sq Neck 3/8-16 x 1.25
18 872140505 Bolt, Carriage 5/16-18 x 5/8
19 532132827 Bolt, Hex Head, Shoulder 5/16-18
20 532174378 Baffle, Vortex Mower
21 873680500 Nut, Crownlock 5/16-18 UNC
24 532105304 Cap, Sleeve
25 532178102 Spr ing, Torsion
26 532110452 Nut, Push
27 532174346 Shield, Deflector Mower
28 819111016 Washer 11/32 x 5/8 x 16 Ga.
29 532131491 Rod, Hinge
30 532157722 Screw, Thdroll, Washer Head
31 532129963 Washer, Spacer Mower Vented
32 532177865 Pulley, Mandrel
33 532178342 Nut, Flg. Top Lock Cntr. 9/16
36 819131316 Washer 13/32 x 13/16 x 16 Ga.
37 532173437 Pulley, Idler, Flat
39 532174375 Pulley, Idler, Driven
42 532122052 Spacer, Retainer
43 532174373 Arm, Idler Secondary
45 532174343 Cover, Mandrel Deck
46 532137729 Screw, Thdroll. 1/4-20 x 5/8
47 532174369 V-Belt, Mower, Secondary
48 532174368 V-Belt, Mower, Primary
49 873680600 Nut, Crownlock 3/8-16 UNC
50 872110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
52 532175820 Pulley Idler Flat 46 Pri. Drive
54 874780616 Bolt Fin Hex 3/8-16 x 1
KEY PART
NO. NO. DESCRIPTION
55 872140608 Bolt Rdhd Sqnk 3/8-16 x 1
56 532155986 Bar Pnt Adjusting Wheel Gauge
57 532156941 Pin Head Rivet
72 819131312 Washer 13/32 x 13/16 x 12
90 874760516 Bolt, Fin, Hex 5/16-18 x 1.0
91 532175384 Bracket, Asm Noseroller, LH 48
92 873800600 Nut Lock Hex w/Ins 3/8-16
93 819171416 Washer 17/32 x 7/8 x 16 Ga.
94 532176066 Roller, Nose 48"
95 532175996 Bracket, Asm Noseroller RH 48
97 532133943 Washer Hardened
98 532174370 Spring Primary Drive
99 532175080 Pulley Idler "V"
100 872110616 Bolt RDHD Sqnk 3/8-16 Unc x 2
107 532175294 Baffle Vac Edge Mower
108 872110404 Bolt Carr.
109 87360400 Nut Crownlock 1/4-20
110 532175016 Arm Spring Secondary
112 532174387 Link Tension Relief Lever
113 872110508 Bolt Carr. 5/16-18 x 1
114 532174384 Tension Asm Relief Lever
115 532174609 Arm Spring Tension Relief
116 532137644 Bolt, Shoulder
117 532133957 Gauge Wheel
118 873930600 Nut, Centerlock 3/8-16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
121 532174371 Spring Secondary Drive
126 532174372 Arm, Idler, Primary Deck
130 817060616 Screw 3/8-16 x 1.0
180 873800500 Nut, Lock, Hex 5/16-18
- - 532177146 Replacement Mower, Complete
- - 532174356 Mandrel Assembly Service (Includes
Key Nos. 13-15)
NOTE: All component dimensions given in U.S. inche
1 inch = 25.4 mm
43
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60

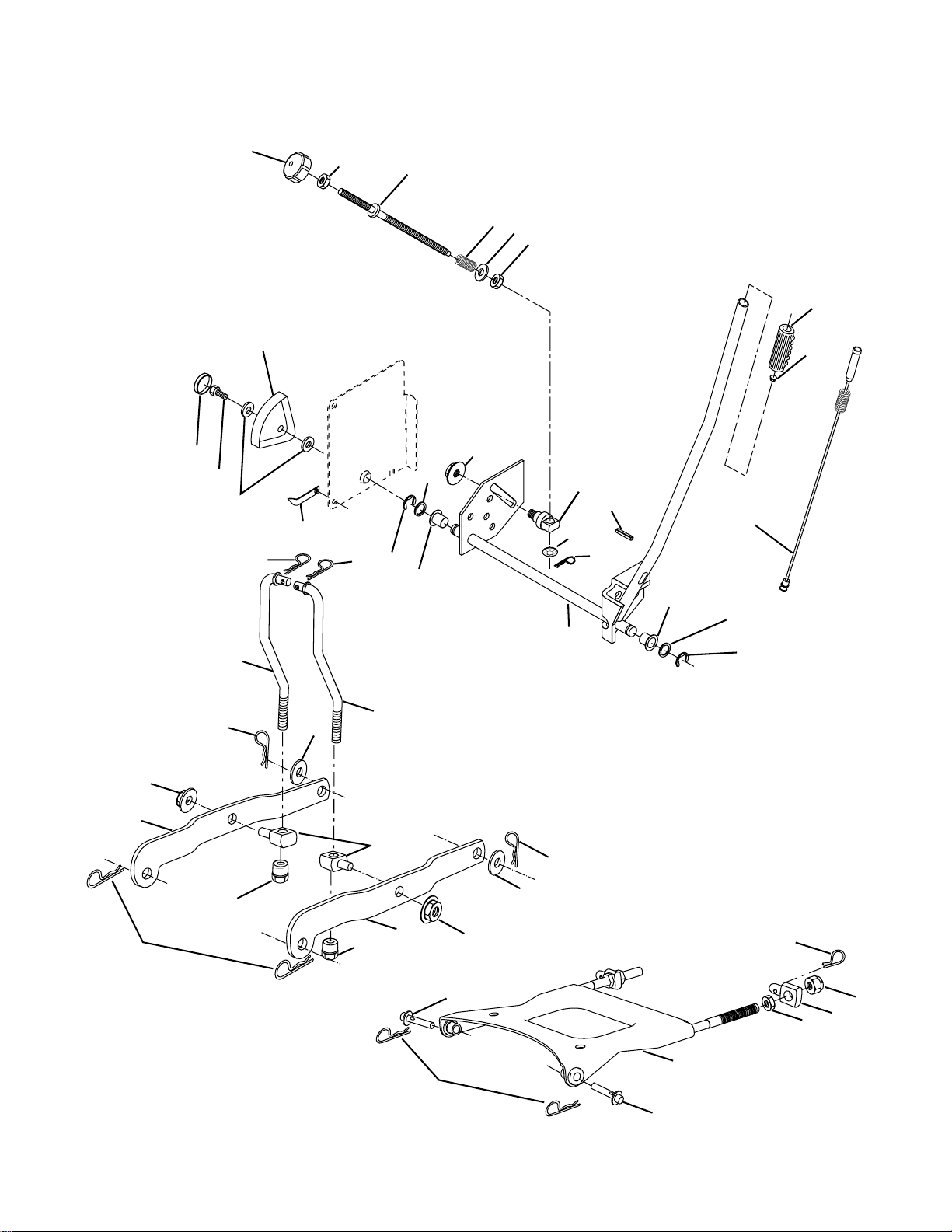

MOWER LIFT
37
38
11
29
40
41
13
36
28
13
27
25
24
23
7
8
49
5
4
6
2
30
3
1
50
26
6
5
4
49
52
13
13
32
51
32
12
31
53
13
54
49
51
13
54
15
20
18
16
17
44
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (YTH1848XPB), PRODUCT NO. 954 56 72-60
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532159460 Wire Asm Inner/Spring W/Plunger LT
2 532159471 Shaft Asm Lift RH w/Inf
3 532105767 Pin Groove 1 500 Zinc
4 812000002 E Ri ng #5133-62
5 819211621 Washer 21/32 X 1 X 21 Ga
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
11 532175370 Link Lift LH
12 532175371 Link Lift RH
13 532124670 Reta iner S pring
15 532175562 Plate Asm Susp Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532175689 Trunnion
18 873800800 Nut Lock w/Wsh 1/2-13unc
20 532163552 Reta iner S pring
23 532110807 Nut Special
24 819131016 Washer 13/32 X 5/8 X 16 Ga
25 532124874 Spr ing 2 -1/8"
26 532169484 Retainer Clip
27 532126971 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532150233 Trunnion Infin Height
31 532176205 Trunnion
32 532175994 Nut Lift Link 7/16-20
36 532155097 Indicator Height STLT
37 532123935 Plug Hole Blk 1.485/1.515 Dia.
38 817060516 Screw 5/16-18 x 1
40 819112410 Washer 11/32 x 1-1/2 10 Ga.
41 532155098 Scale Ind. Height Blk.
49 532145212 Nut Hex Flange Lock
50 532110452 Nut, Push Phos & Oil
51 819171416 Washer 17/32 x 7/8 x 16 Ga.
52 532175378 Arm Susp. Rear Lh
53 532175802 Arm Susp. Rear Rh
54 532175560 Pin Flange
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
Loading...
