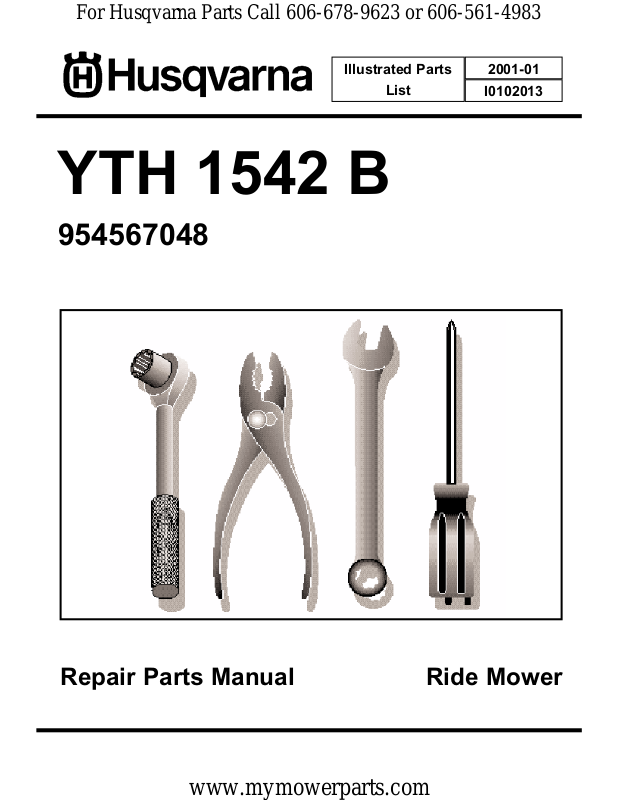

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
YTH 1542 B
954567048
List
2001-01
I0102013
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

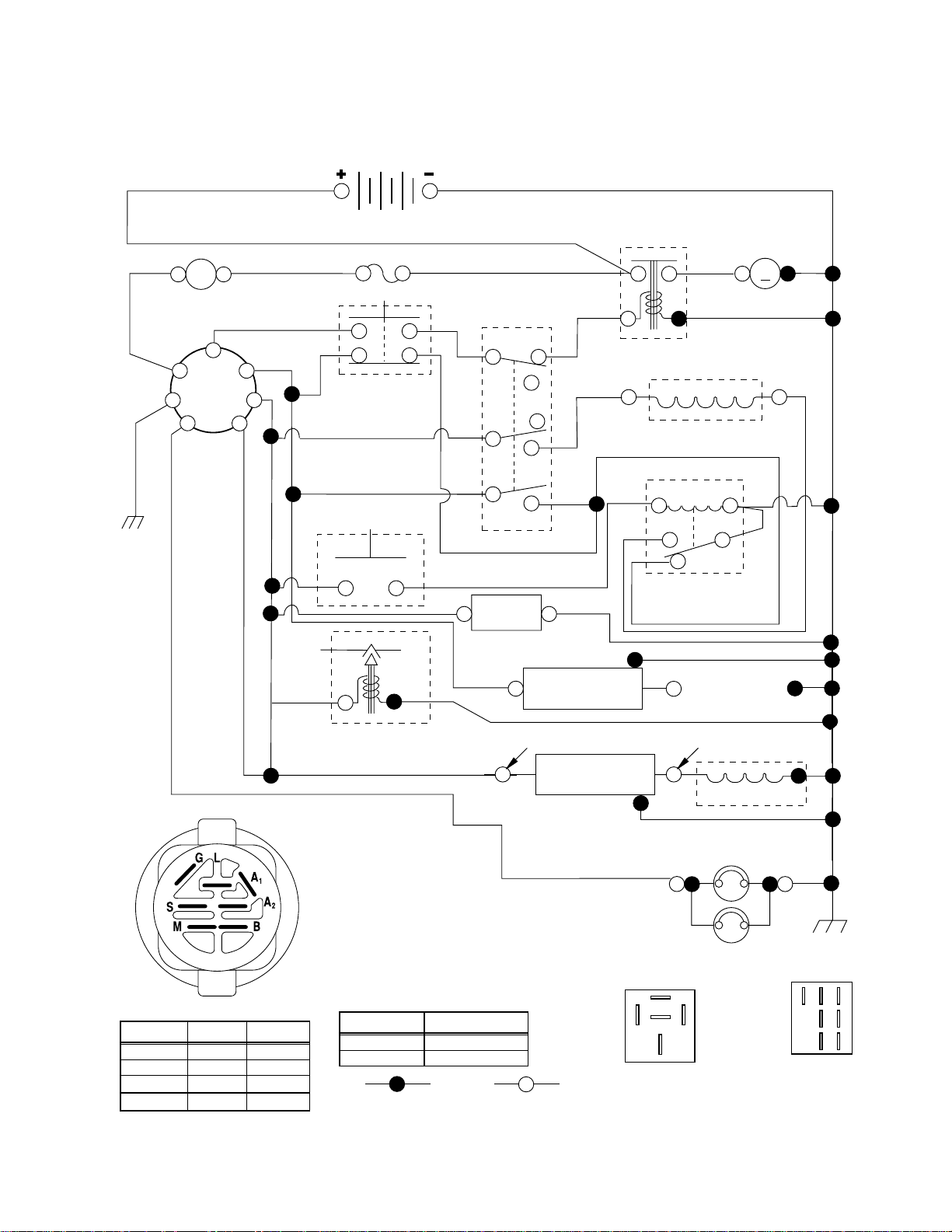

SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
M
A1
BLACK
ORANGE
CLUTCH / BRAKE
(PEDAL UP)
RED
SEAT SWITCH
(NOT OCCUPIED)
BLACK
F
H
B
E
A
D
PTO (DISENGAGED)
RED
ELECTRIC CLUTCH
BLACK
85 86
87
BLACK
30
S
B
L
A2
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
FUEL SHUT-OFF SOLENOID
RED
CHARGING SYSTEM OUTPUT
9 AMP DC @ 3600 RPM
REGULATOR
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
PTO SWITCH
“MAKE”
NONE
A2+L
NONE
NONE
OFF
ON
NON-REMOVABLE
CONNECTIONS
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + D
REMOVABLE
CONNECTIONS
27
www.mymowerparts.com
BROWN
87
87A
30
RELAY
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

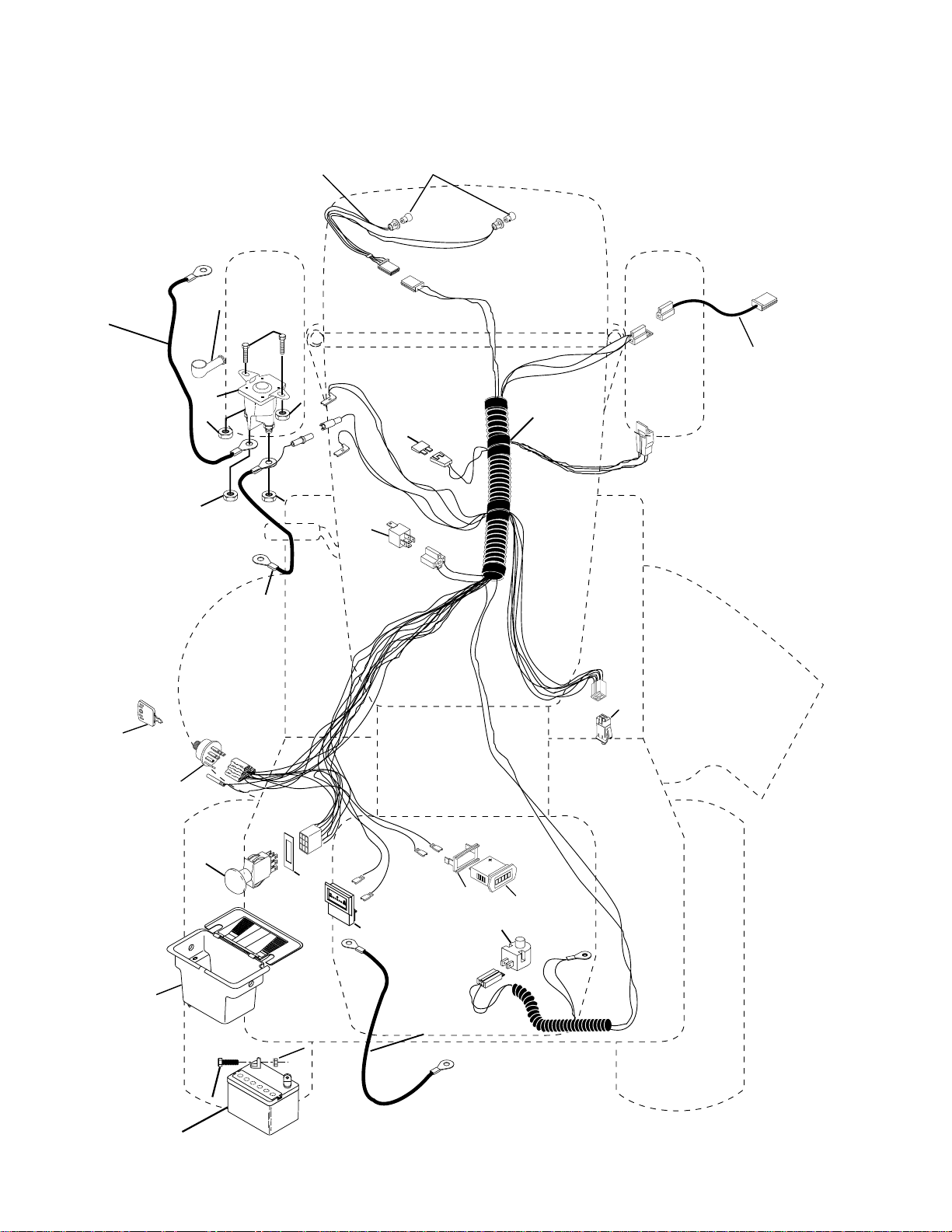

REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
ELECTRICAL
2221
42
24
41
80
33
30
27
43
27
25
27
27
40
26
81
16
50
51
D
.
C
.
A
M
P
E
R
E
S
45
8
27
2
1
28
89
46
29
28
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144925 Battery 12 Volt 25 AMP
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
8 532156417 Case Battery Mech Hinge
16 532153664 Switch Interlock Push-In
21 532166181 Harness Asm Light W/4152j
22 532004152 Bulb Light #1156
24 532124780 Cable Battery 6 Ga 11" red
25 532146147 Cable Battery 6 Ga 44" red w/16 wire
26 532175158 Fuse
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532124773 Cable Ground 6 Ga 12" black
29 532160784 Switch Plunger Nc Gray
30 532175566 Switch Ign
33 532140401 Key Ign Generic
40 532170221 Harness Ign.
41 871110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532131563 Cover Terminal Red
43 532175141 Solenoid
45 532122822 Ammeter Rectangular 15 Amp
46 532169635 Meter Hour
50 532174651 Switch PTO
51 532140405 Ring Retainer PTO
80 532146685 Harness Clutch Evx
81 532109748 Relay Asm.
89 532169639 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

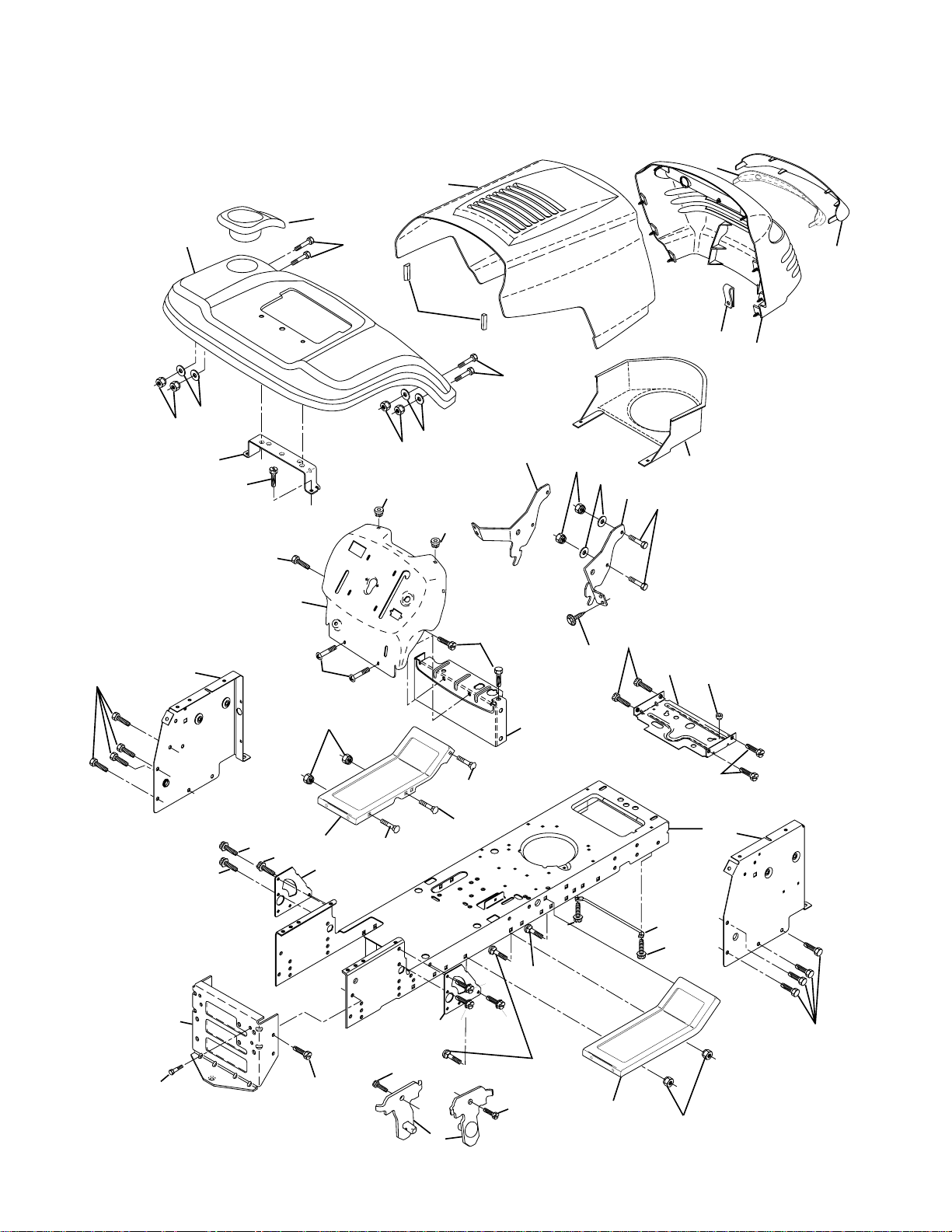

CHASSIS AND ENCLOSURES
212
17
159
26
30
25
31
3
24
18
12
28
24
25
26
5
5
53
51
52
55
58
57
29
208
11
208
9
208
207
26
3
35
3
3
33
3
142
10
64
37
3
3
54
207
20
145
37
23
207
1
13
206
2
3
142
3
14
38
3
35
14
34
26
208
30
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532174619 Chassis stamping
2 532176554 Drawbar, 12 Ga.
3 817060612 Screw 3/8-16x3/4
5 532155272 Bumper Hood/Dash
9 532171682 Dash Slkscr
10 872140608 Bolt Carriage 3/8-16 x 1
11 532155927 Panel Dash Lh
12 532145660 Clip Tinnerman
13 532172106 Panel Dash Rh
14 817490608 Screw Thdrol 3/8-16 x 1/2
17 532162237 Hood LT/PL
18 532126938 Bumper Hood
20 532156437 Plate Mtg Battery Fuel Tank Fr
23 532124028 Bushing
24 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
25 819131312 Washer 13/32 X 13/16 X 12 Ga
26 873800600 Nut Lock Hex w/Ins. 3/8-16 Unc
28 532170475 Grille/Lens Asm
29 532176645 Lens
30 532169470 Fender
31 532136619 Bracket Fender
33 532147203 Footrest Pnt Lh
34 532147202 Footrest Pnt Rh
35 872110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817490508 Screw Thdrol 6/16-18 x 1/2 TYT
38 532169834 Bracket Asm Pivot Mower Rear
51 873800400 Nut Lock w/Insert 1/4-20 Unc
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532144697 Bracket Grille Lh
54 532161464 Screw Hex Wsh 8-18 x 7/8
55 532144696 Bracket Grille Rh
57 874780412 Bolt Hex 1/4-20 x 3/4
58 532150127 Air Duct Engine P/L
64 532154798 Dash Lower STLT
142 532165867 Plate Reinforcement STLT
145 532156524 Rod Pivot Chassis/Hood
159 532177088 Cupholder Stlt Grey
206 532170165 Bolt Shoulder 5/16-18 TT
207 817670508 Screw Thdrol 5/16-18 x 1/2
208 817670608 Screw Thdrol 3/8-16 x 1/2
212 532156229 Insert Lens Reflective
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

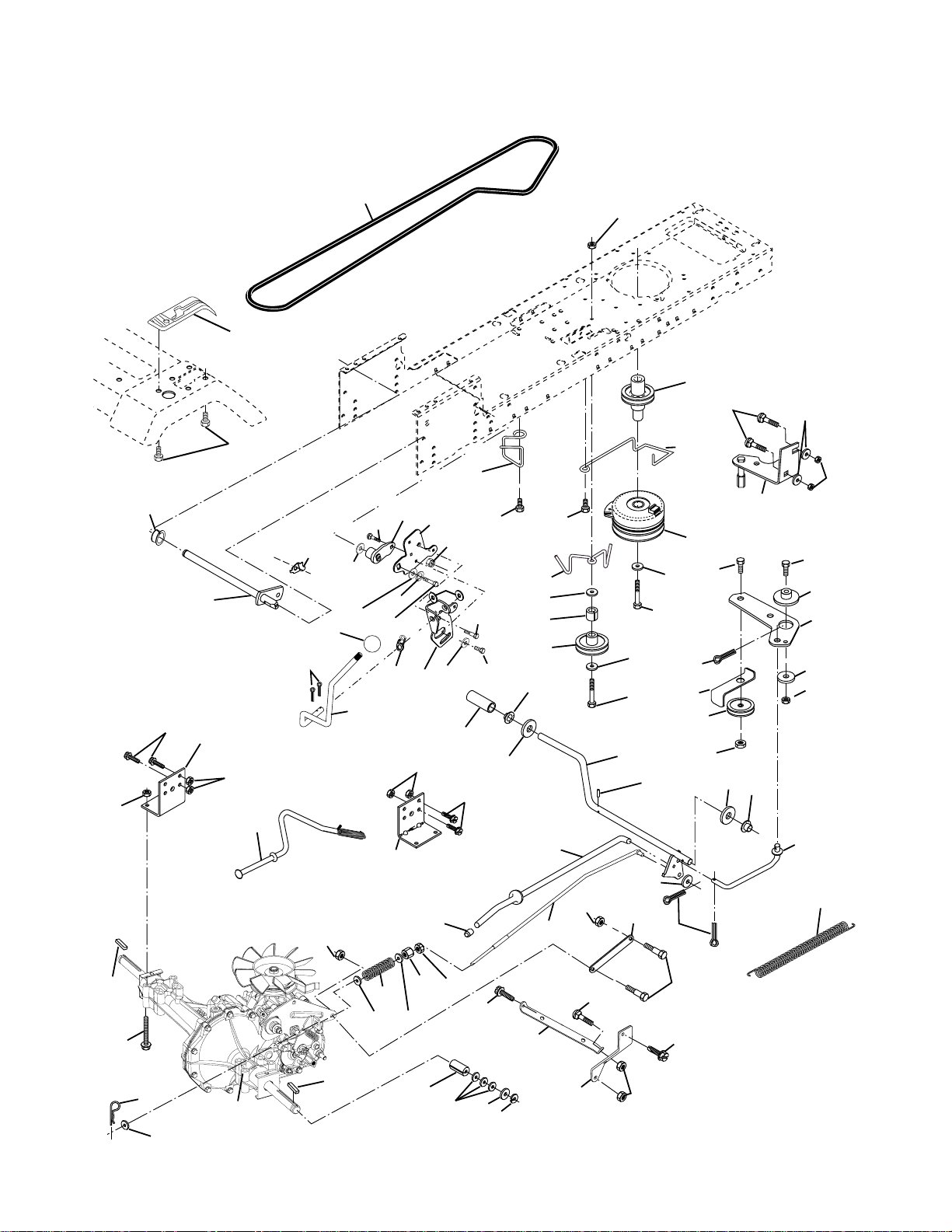

DRIVE
57
51
89
63
33
144
16
197
32
81
30
69
52
95
169
10
16
21
198
164
8
161
14
163
82
30
159
165
52
158
162
29
83
156
62
59
168
32
166
61
36
42
35
40
38
41
28
22
56
16
34
39
84
42
26
37
20
65
27
66
27
49
9
47
120
50
36
52
23
202
150
48
151
51
35
53
55
77
15
96
26
19
26
74
75
24
78
61
200
71
73
76
25
26
77
1
199
61
16
32
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gr. 314-0510
(Order parts from transaxle mfg.)
8 532165619 Rod Shift Fender Adjust LT
9 532145028 Clutch Elecric
10 876020416 Pin Cotter 1/8 x 1 CAD
14 810040400 Washer Lock Hvy Helical
15 874490544 Bolt Hex 5/16-18 Gr. 5
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
19 873800600 Nut Lock Hex W/Ins 3/8-16 Unc
20 532150280 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532140845 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532169498 Rod, Brake Hydro
23 532171258 Bracket A sm. Anti-Rot EVX
24 873350600 Nut Hex Jam 3/8-16 UNC
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532175765 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532169592 Bracket, Transaxle
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
33 872140506 Bolt Carriage 5/16-18 UNC x 3/4
34 532175578 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532165936 Pulley, Idler, Flat
39 874760648 Bolt
40 532175461 Spacer Split
41 532175556 Keeper, Belt Idler
42 819131312 Washer 13/32 x 13/16 x 12 Ga
47 532127783 Pulley, Idler, V-Groove Plastic
48 532154407 Bellcrank Clutch Grnd Drv Stl
49 532123205 Retainer, Belt Style Spring
50 874760624 Bolt Hex Hd 3/8-16 Unc x 1-1/2
51 873680600 Nut
52 873680500 Nut Crown Lock 5/16-18
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 817060616 Screw 3/8-16 x 1.0
57 532140294 V-Belt, Ground Drive
59 532169691 Keeper, Center Span
KEY PART
NO. NO. DESCRIPTION
61 817060612 Screw 3/8-16 x 3/4
62 532124872 Cover, Pedal
63 532175414 Pulley, Engine
65 810040700 Washer Lock Hvy HLCL Spr 7/16
66 532154778 Keeper Belt Engine
69 532142432 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
71 532169183 Strap Torque Lh
73 532169182 Strap Torque Rh
74 532137057 Spacer, Axle
75 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16 Ga
81 532165596 Shaft Asm Cross Tapered
82 532123782 Spring Torsion
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532169594 Link Transaxle
89 532176940 Console, Hydro
95 532170201 Control Asm. Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
120 873900600 Nut Lock Flg. 3/8-16
144 819111016 Washer 11/32 x 5/8 x 16 Ga.
150 532175456 Bushing Bellcrank Grd Drive
151 819133210 Washer 13/32 x 2 x 10 Ga.
156 532166002 Washer Srrted 5/16 ID X 1 X .125
158 532165589 Bracket Shift Mount
159 532165494 Hub Tapered Flange Shift LT
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5
164 819091010 Washer 5/8 x .281 x 10 Ga.
165 532165623 Bracket Pivot Lever
166 532166880 Screw 5/16-18 x 5/8
168 532165492 Bolt Shoulder 5/16-18 x .561
169 532165580 Plate Fastening LT
197 532169613 Nyliner Snap-In 5/8" ID
198 532169593 Washer Nyl 7/8ID x .105 Hyd
199 532169612 Bolt Shoulder 5/16-18 Unc
200 872140508 Bolt Rdhd Sqnk 5/16-18 Unc x 1
202 872110612 Bolt
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

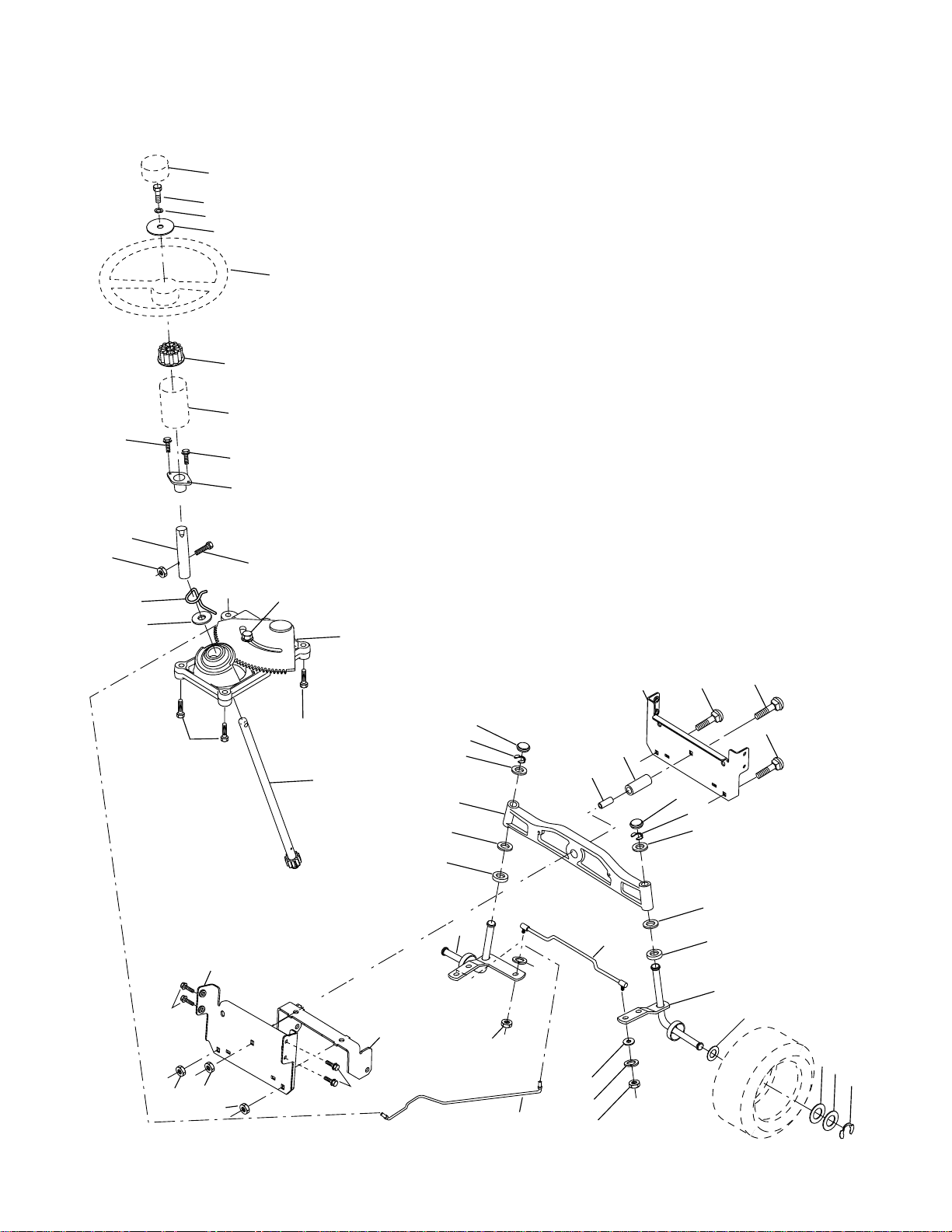

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
44
51
91
43
29
29
15
15
54
88
71
68
29
17
68
82
29
15
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
34
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532166627 Wheel Steering
2 532172393 Axle Cast LT Machined
3 532169840 Spindle Asm Cast LH
4 532169839 Spindle Asm Cast RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
8 812000029 Ring Klip #t5304-75
10 532175121 Link Drag
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
13 532136518 Spacer Brg Axle Front
15 532145212 Nut Hex Flange Lock Yel D
17 532177876 Shaft Asm Steering
29 817060612 Screw 3/8-16x3/4
32 532171888 Rod Tie
33 819111216 Washer 11/32 x 3/4 x 16 Ga.
34 810040500 Washer Lock Hvy. Helical 5/16 SD
35 873540600 Nut Crown Lock 5/16-24
36 532155099 Bushing Strg
37 532152927 Screw TT #32.5 x 5 x 3/8 Flange
38 532166626 Cap Wheel Steer
39 819132411 Washer 13/32 x 1-1/20 x 11 Ga.
40 532124701 Nut Lock Center 3/8-24 Unf
41 532159945 Adaptor Wheel Strg
42 532169634 Boot Dash Steering
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga
44 532153720 Extension Steering Non-adjust
46 532121232 Cap Spindle Fr Top Blk
51 873800500 Nut Lock Hex W/Ins 5/16-18 UNC
54 874780520 Bolt Fin Hex 5/16-18 UNC x 1-1/4
63 874780616 Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5
65 532160367 Spacer, Brace Axle
67 872140618 Bolt Rdhd 3/8-16 x 2-1/4
68 532169827 Brace, Axle
71 532175146 Steering Asm.
82 532169835 Bracket Susp Chassis Front 15"
87 532173966 Washer Flat .781 x 1-1/2 x .14
88 532175118 Bolt Shoulder 7/16-20
91 532175553 Clip, Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

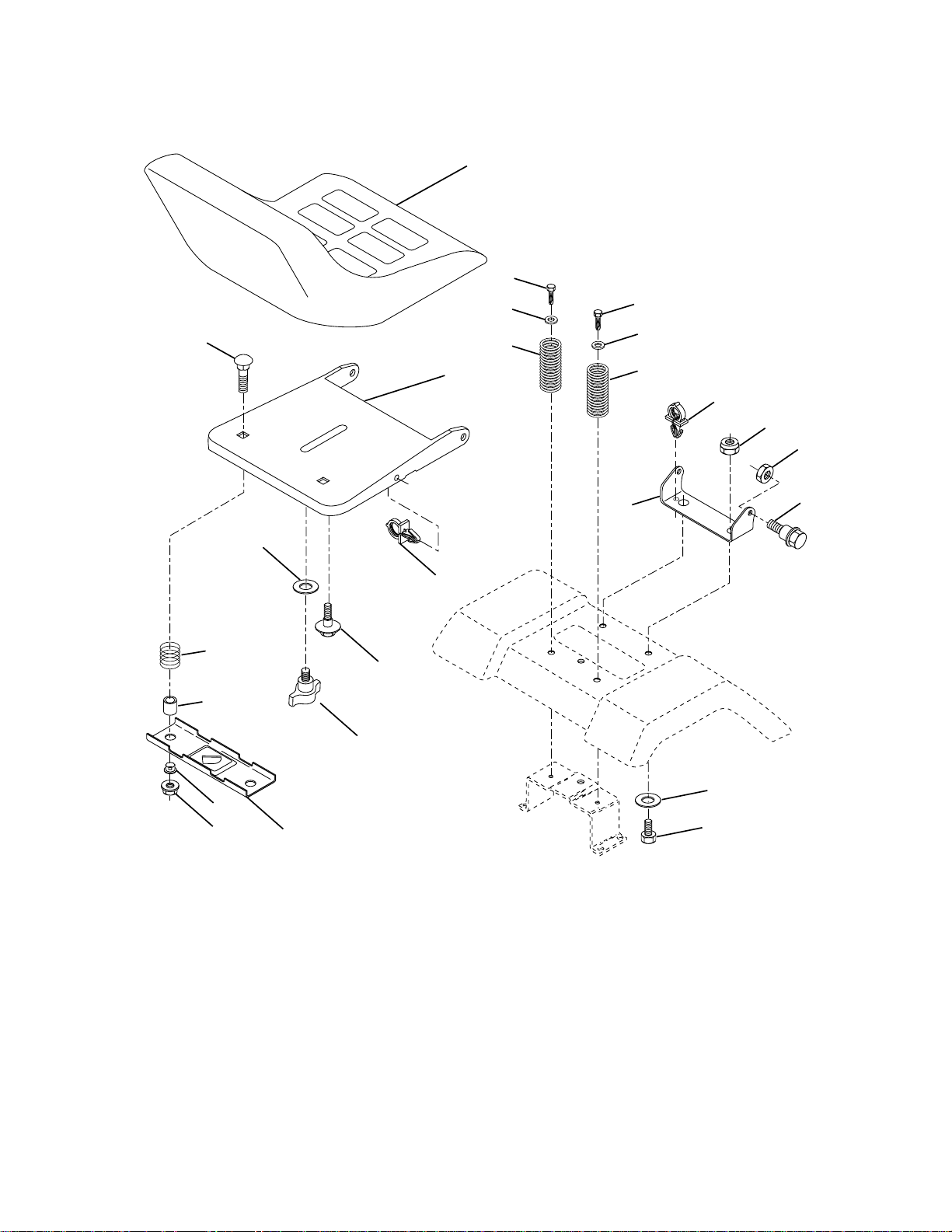

SEAT ASSEMBLY
1
8
8
9
7
5
14
9
7
10
6
22
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 532140839 Seat
2 532140551 Bracket Pivot Seat 8 720
3 871110616 Bolt Fin Hex 3/8-16unc X 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817000616 Screw 3/8-16 X 1
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532174894 Pan Seat
11 532166369 Knob Seat Adj Wingnut
12 532121246 Bracket Mounting Switch
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532134300 Spacer Split 28x 96 Yel Zinc
16 532121250 Spring Cprsn 1 27 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532171852 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
36
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

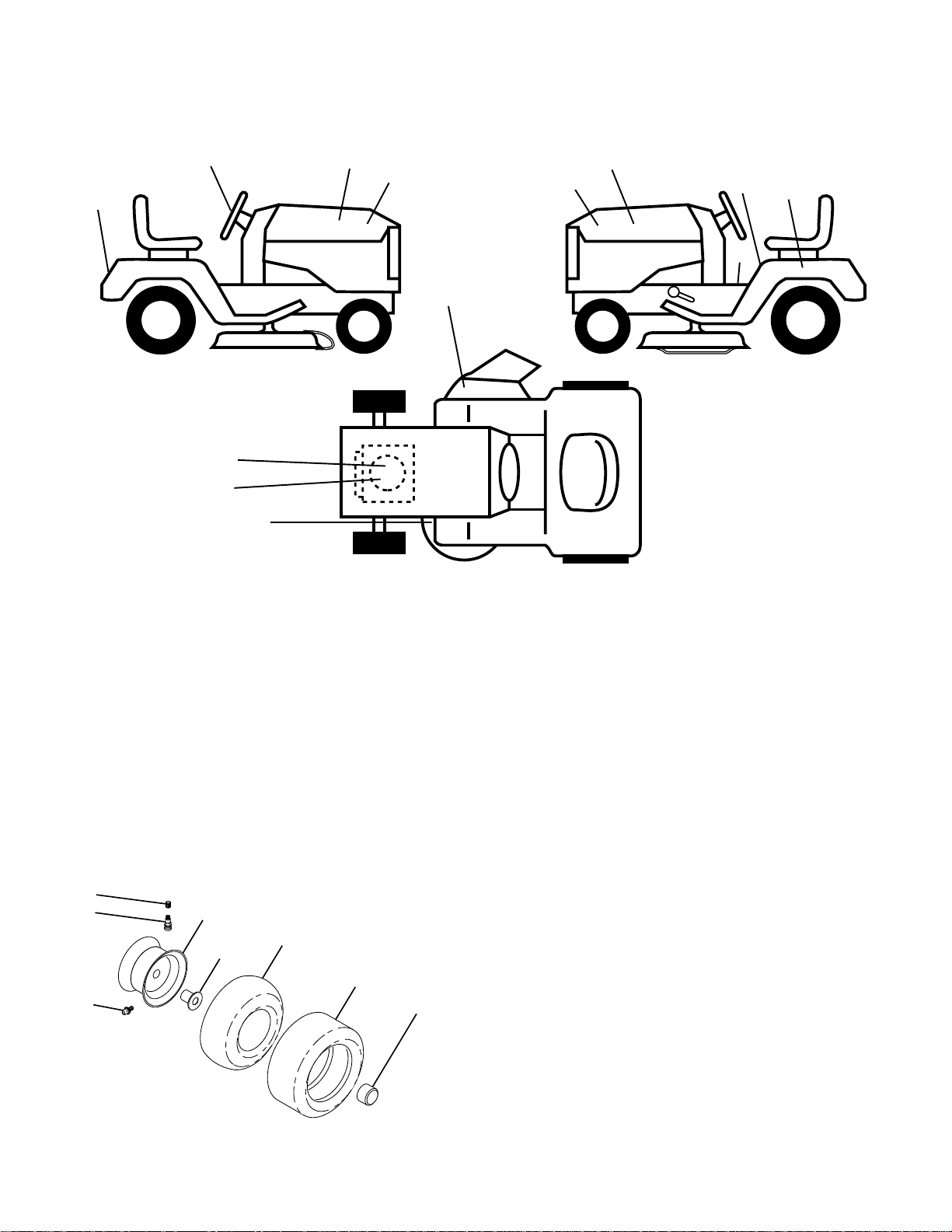

DECALS
7
9
5
11
14
3
12
8
12
4
10
1
2
KEY PART
NO. NO. DESCRIPTION
1 532157032 Decal Oper. Step Thru E/F
2 532145005 Decal Battery
3 532176784 Decal Hood RH
4 532176785 Decal Hood LH
5 532176779 Decal HP Engine
7 532170564 Decal Wheel Steering
8 532170563 Decal Warning
9 532176822 Decal Fender Husq
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
11
KEY PART
NO. NO. DESCRIPTION
10 532157140 Decal Fender Danger E/F
11 532176775 Decal Engine
12 532176776 Decal Hood Logo
14 532160396 Decal V-Belt Schematic
- - 532133671 Pad Footrest
- - 532138311 Decal Handle Lft Height Adjust
- - 532169210 Decal By Pass Lt Hydro
- - 532177979 Manual Owner's (English)
- - 532177980 Manual Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532122082 Tire R Ts 20x10-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532175039 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

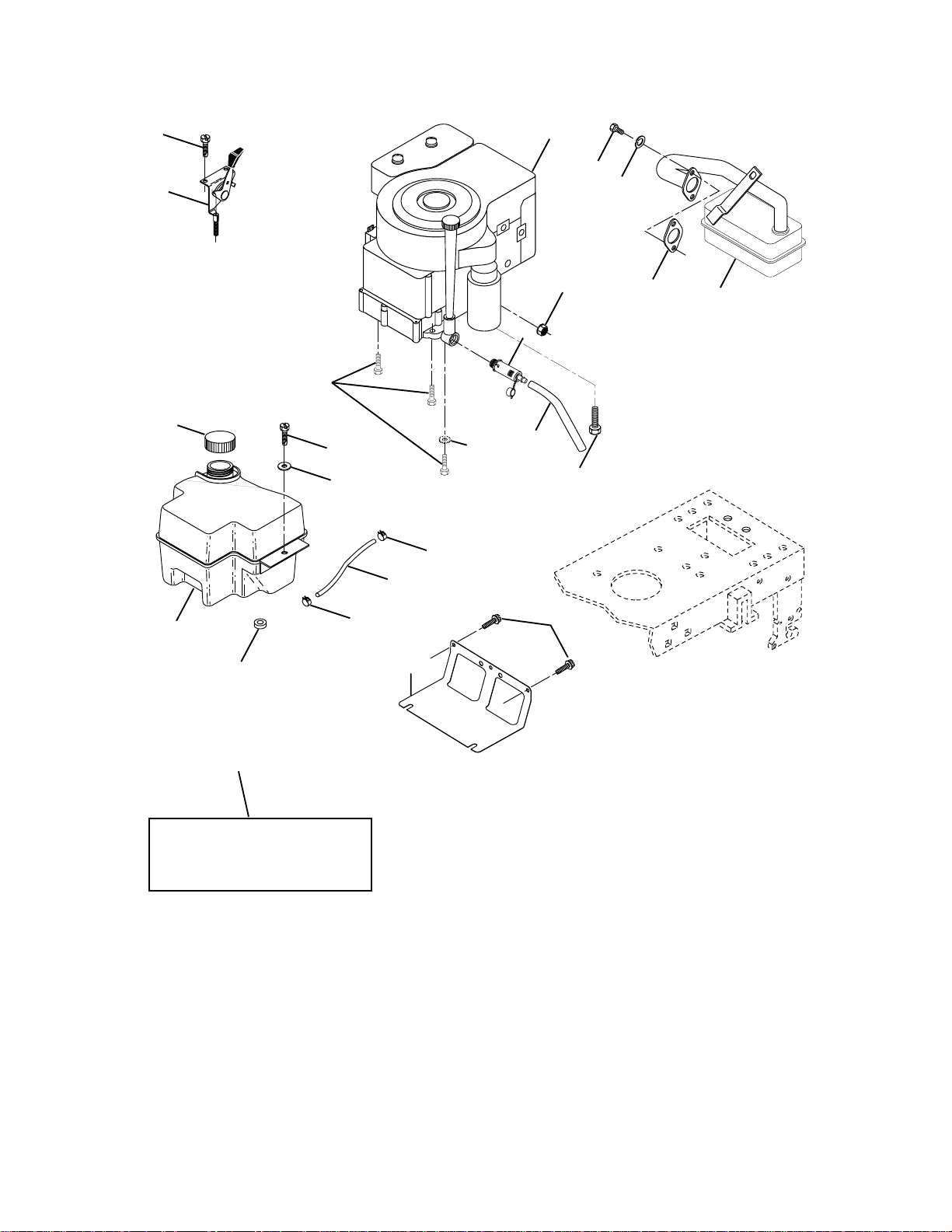

ENGINE
2
1
3
72
62
32
31
40
78
44
46
33
37
23
33
16
38
14
45
81
78
13
4
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532170551 Control Th/ch Flag Dom.
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine B&S Model 311777
(Order parts from engine
manufacturer)
4 532137352 Muffler
13 532165291 Gasket
14 532148456 Tube Drain Oil Easy
16 811050600 Washer Lock Ext Tooth 3/8
23 532169837 Shield BRN/DBR Guard
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532174642 Tank Fuel
32 532140527 Cap Asm Fuel W/sym Vented
KEY PART
NO. NO. DESCRIPTION
33 532123487 Clamp Hose Black
37 532137040 Line Fuel
38 532148315 Plug Drain Oil Easy
40 532124028 Bushing Snap Nyl Black Fuel Line
44 817670412 Screw Hex Wsh Thdrol 1/4-20 x 3/4
45 817000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4
46 819091416 Washer 9/32 x 7/8 x 16 Ga.
62 810040500 Washer Lock Hvy Hlcl Spr. 5/16
72 871070512 Screw Hex Hd Cap 5/16-18 x 3/4
78 817060620 Screw 3/8-16 x 1-1/4
81 873510400 Nut Keps Hex 1/4-20 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

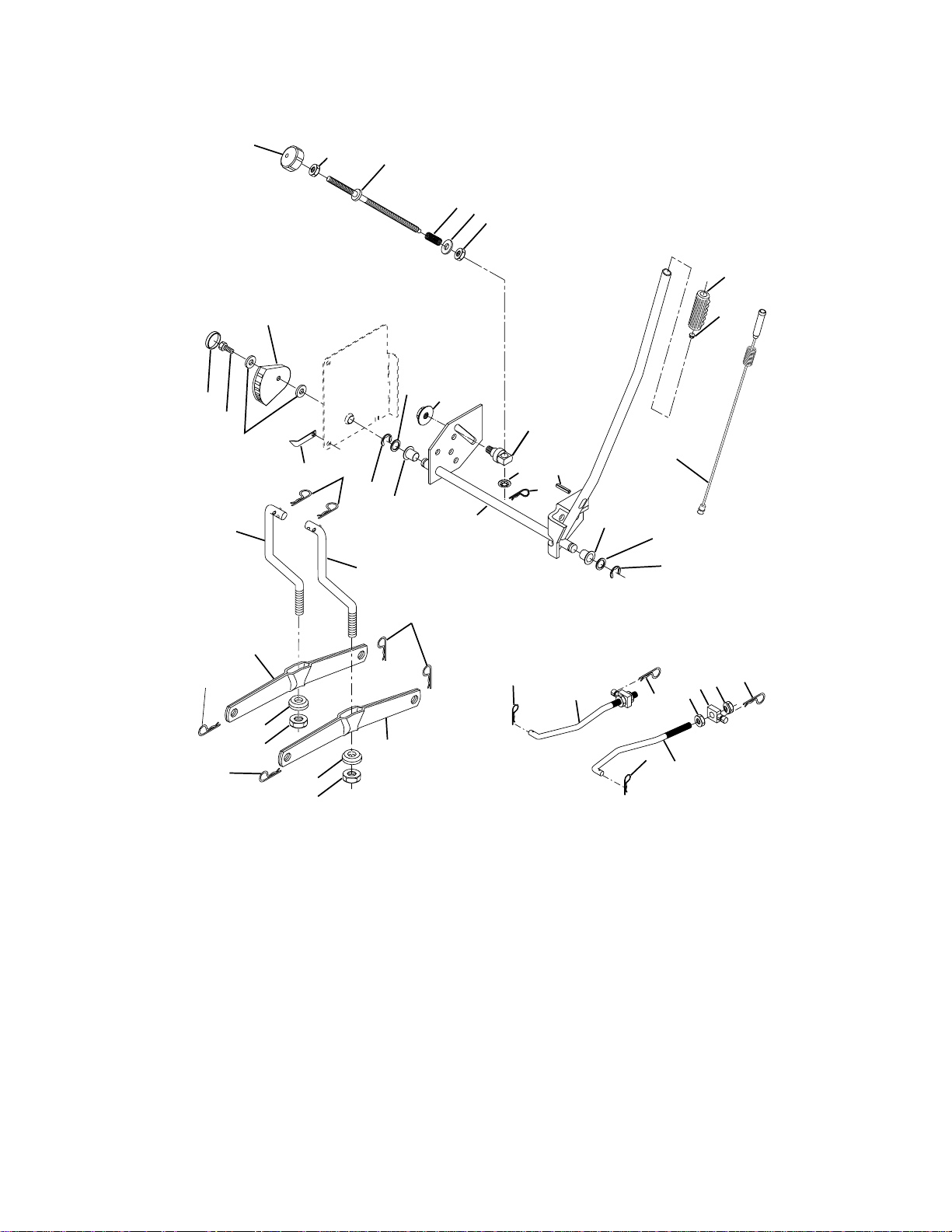

MOWER LIFT
37
38
11
29
40
41
36
28
13
12
27
25
24
23
7
8
5
49
30
3
50
4
6
2
26
6
1
5
4
19
13
31
32
13
31
32
KEY PART
NO. NO. DESCRIPTION
1 532159460 Wire Asm Inner W/plunger
2 532159471 Shaft Asm Lift RH w/Inf
3 532105767 Pin Groove 1 500 Zinc
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 X 1 X 21 Ga
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
11 532139865 Link Lift LH Fixed Length
12 532139866 Link Lift RH Fixed Length
13 532124670 Retainer Spring
15 532173288 Link Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873800800 Nut Lock w/Wsh 1/2-13unc
19 532139868 Arm Suspension Rear
20 532163552 Retainer Spring
23 532110807 Nut Special
19
13
20
15
20
20
16
15
17
18
20
KEY PART
NO. NO. DESCRIPTION
24 819131016 Washer 13/32 X 5/8 X 16 Ga
25 532124874 Spring 2-1/8"
26 532169484 Retainer Clip
27 532126971 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532150233 Trunnion Infin Height
31 532169865 Bearing Pvt Lift
32 873540600 Nut Crownlock 3/8 - 24
36 532155097 Pointer Height Indicator
37 532123935 Plug Hole Blk 1.485/1.515 Dia.
38 817060516 Screw 5/16-18 x 1
40 819112410 Washer 11/32 x 1-1/2 10 Ga.
41 532155098 Indicator Height STLT
49 532145212 Nut Hex Flange Lock
50 532110452 Nut Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR P ARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48

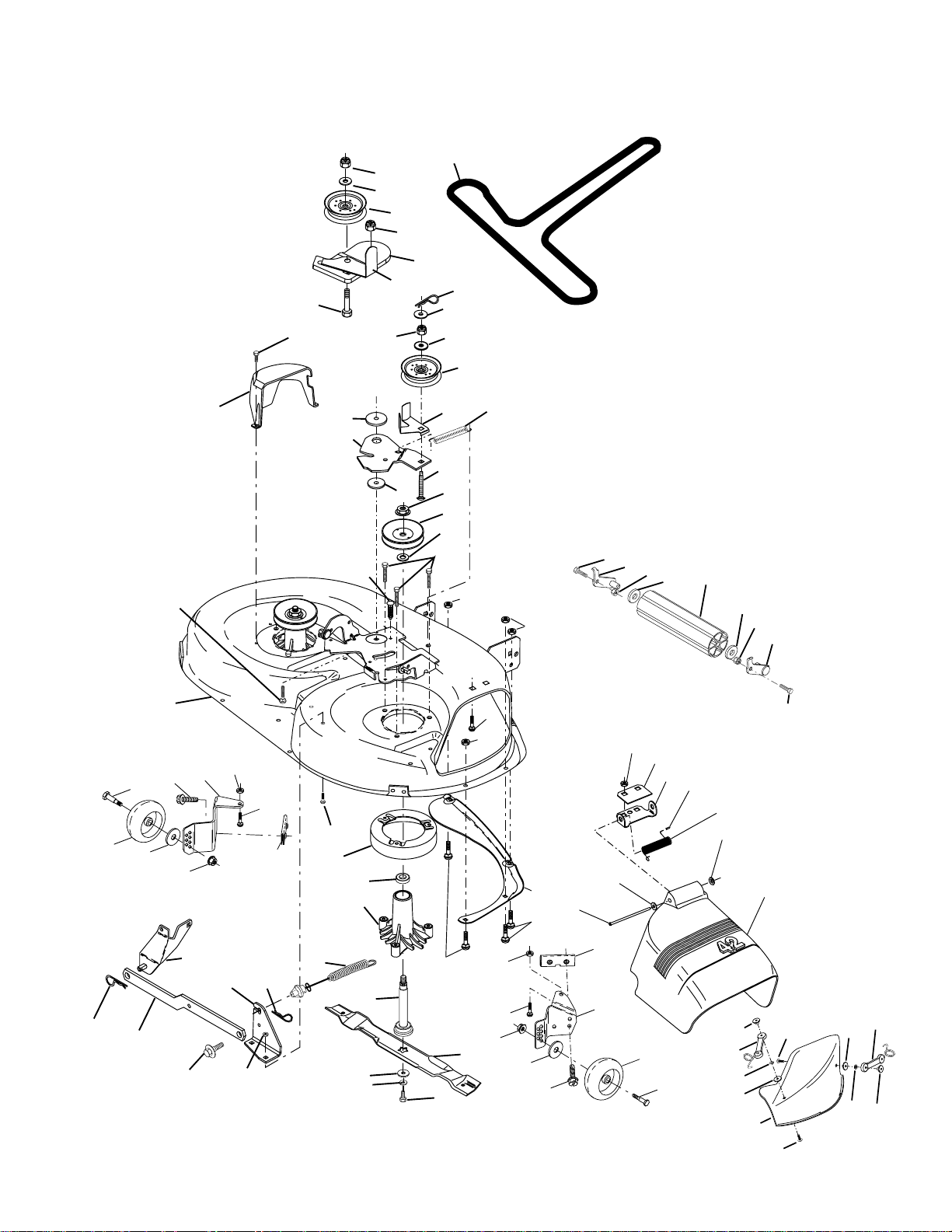

MOWER DECK
68
40
37
36
40
143
117
116
119
34
1
113
118
44
111
114
115
121
159
46
16
150
59
146
32
31
30
37
33
45
145
21
148
2
21
21
20
18
29
90
28
91
21
92
22
23
93
94
93
92
95
90
24
25
26
27
144
40
56
55
54
35
2
15
14
3
149
4
5
6
19
21
61
10
13
9
18
114
115
118
11
119
8
113
121
112
117
116
106
105
104
103
101
102
102
103
104
105
106
40
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542B), PRODUCT NO. 954 56 70-48
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532176922 Mower Deck Assembly, 42”
2 872140506 Bolt
3 532138017 Bracket Assembly,Sway Bar, Front
4 532176935 Bracket Sway Bar 38/42” Deck
5 532124670 Retainer Spring
6 532130832 Arm, Suspension, Rear
8 532850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 810030600 Washer, Lock
10 532140296 Washer, Hardened
11 532138498 Blade Mower 42" High Perf.
532134149 Blade, Mulching
13 532137645 Shaft Assembly, Mandrel, Vented
14 532128774 Housing, Mandrel, Vented
15 532110485 Bearing, Ball, Mandrel
16 532174493 Stripper
18 872140505 Bolt, Carriage 5/16-18 x 5/8
19 532132827 Bolt, Shoulder
20 532159770 Baffle, Vortex
21 873680500 Nut Crownlock 5/16-18 UNC
22 532176929 Stiffener Bracket
23 532176927 Bracket, Deflector
24 532105304 Cap, Sleeve
25 532123713 Spring, Torsion, Deflector
26 532110452 Nut, Push
27 532171634 Shield, Deflector
28 819111016 Washer 11/32 x 5/8 x 16 Ga.
29 532131491 Rod, Hinge
30 532157722 Screw Thdrol Washer Head
31 532129963 Washer, Spacer
32 532173436 Pulley, Mandrel
33 532137266 Nut, Toplock, Flanged
34 872110614 Bolt
35 532133835 Fastner, Christmas Tree
36 532173438 Pulley, Idler, Flat
37 819131316 Washer 13/32 x 13/16 x 16 Gauge
40 873680600 Nut Crownlock 3/8-16 UNC
44 532140088 Guard, Mandrel, L.H.
45 532124788 Retainer
46 532137729 Screw, Thd. Roll 1/4-20 x 5/8
54 532133943 Washer, Hardened
55 532176932 Arm, Idler
56 532122052 Spacer, Retainer
59 532173442 Guard, TUV Idler
KEY PART
NO. NO. DESCRIPTION
61 532174882 Spring Ext Elect Clutch 42” Dck
68 532174883 V-Belt
90 874760616 Bolt Fin Hex 3/8-16 Unc x 1
91 532132274 Bracket Asm Noseroller Lh
92 873800600 Nut Lock Hex w/Ins. 3/8-16 Unc
93 819171416 Washer 17/32 x 7/8 x 16 Ga.
94 532132264 Roller Nose 38"-50"
95 532132273 Bracket Asm Noseroller Rh
101 532136420 Mulcher Cover
102 871081010 Screw
103 819061216 Washer #10
104 810071000 Washer, Lock
105 532160793 Latch Assembly, Bagger
106 532125004 Nut, Weld
111 532176933 Bracket, Gauge, Wheel L.H.
112 532176934 Bracket, Gauge, Wheel R.H.
113 817060514 Screw Tapping 5/16-18 Unc
114 873510500 Nut, Hex, Keps 5/16-18 UNC
115 872110504 Bolt, Carriage 5/16 UNC x 1/2
116 532137644 Bolt, Shoulder
117 532165746 Wheel, Gauge
118 873930600 Nut, Centerlock 3/8-16
119 819121414 Washer 3/8 x 7/8 x 14 Gauge
121 532173986 Bracket
143 532176931 Bracket Arm Idler 42”
144 532173441 Keeper Belt 42” Clutch Cable
145 532173437 Pulley Idler Flat
146 532171977 Bolt Carriage Idler
148 532169022 Spring Return Idler
149 532165898 Retainer Spring Yellow Zinc
150 819091216 Washer 9/32 x 3/4 x 16 Ga.
159 872140614 Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4
- - 532130794 Mandrel Assembly (Includes Key
Numbers 8-10, 13-15, 31 and 32)
- - 532176789 Mower Deck, Complete (Standard
Deck, Order Separately Noseroller,
Mulcher Plate and Gauge Wheel
Components, Key Nos. 90-95, 101106 and 111-121)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Loading...
