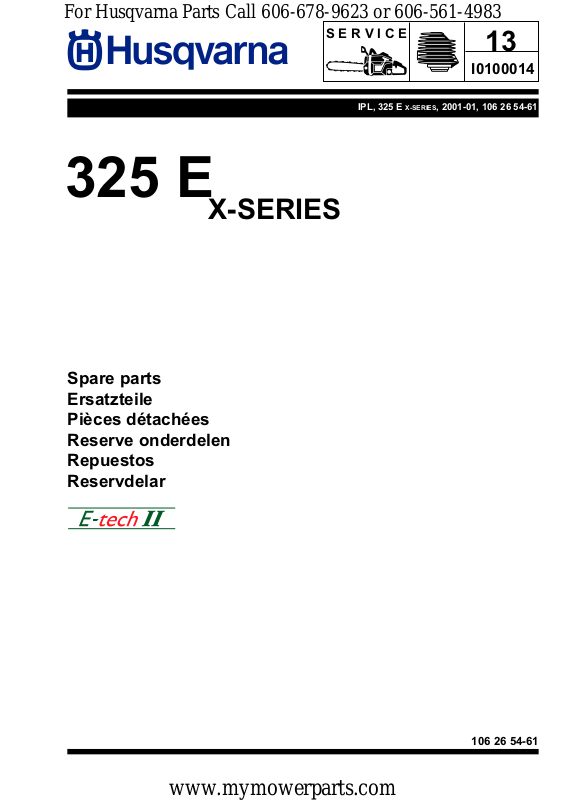

SERVICE

I0100014

IPL, 325 E X-SERIES, 2001-01, 106 26 54-61

325 E

X-SERIES

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

www.mymowerparts.com

106 26 54-61

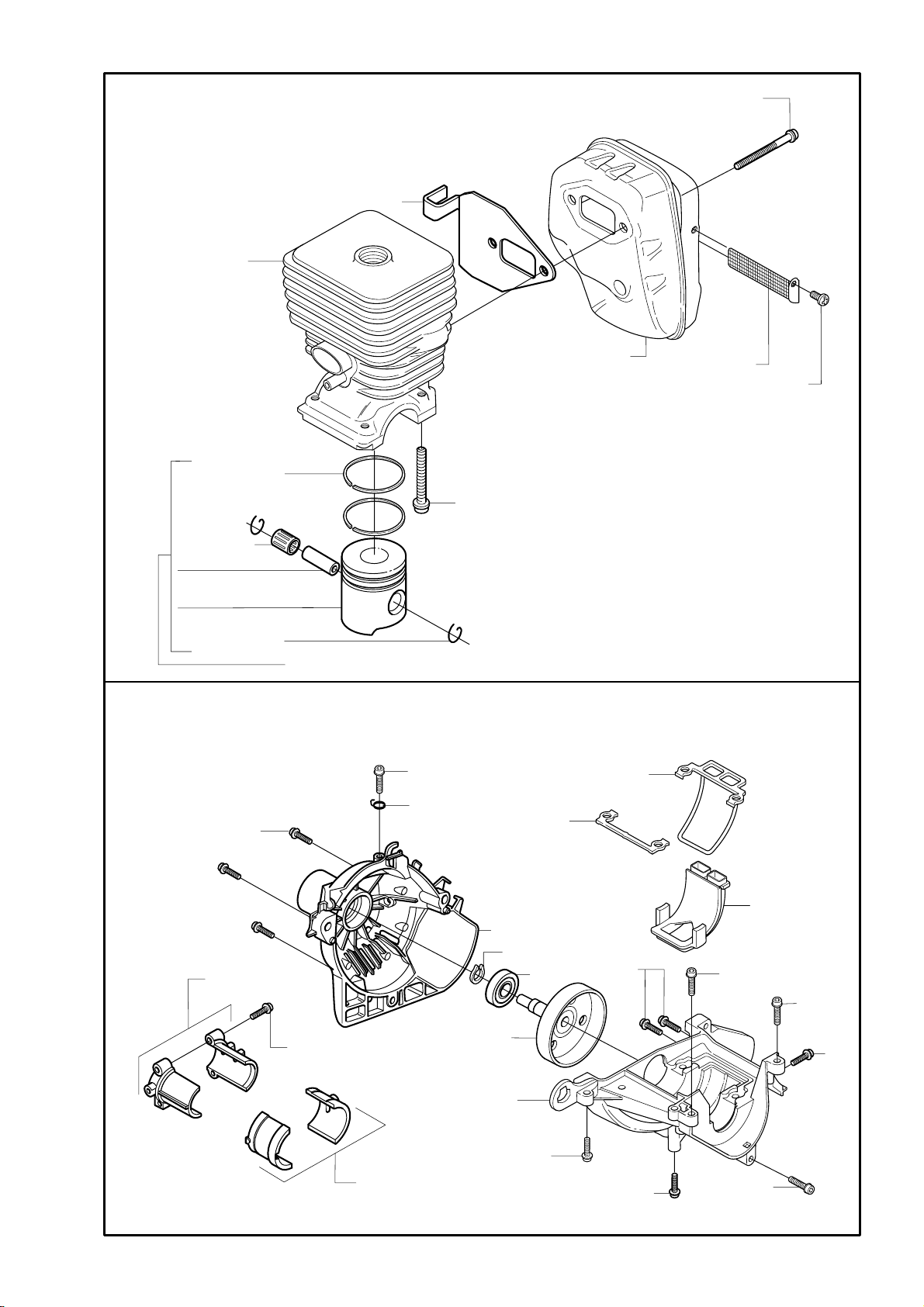

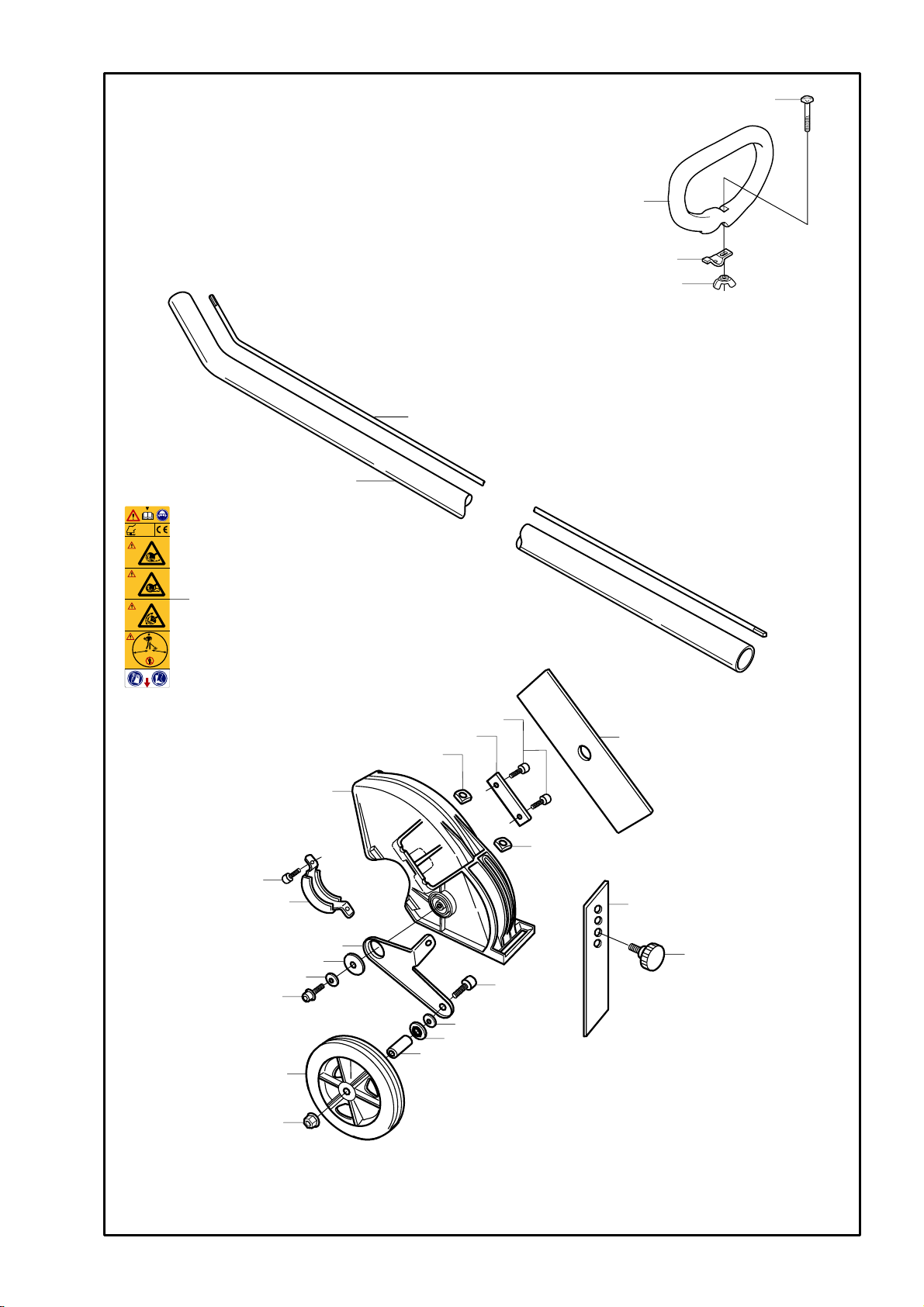

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

10000 rpm

503 21 98-35

537 07 68-02

537 04 25-01

503 22 26-01

503 84 69-01

537 03 83-01

max

503 84 78-01

15 m

725 53 68-56 (x2)

503 84 81-01

503 21 06-16

503 84 74-01

503 84 65-01

503 84 67-01

734 11 74-41

503 23 43-02

503 20 02-25

503 84 77-01

502 19 71-01

503 84 73-01

531 00 40-44

502 19 71-01

503 84 68-01

503 84 80-01

725 54 61-51

734 11 64-01

503 26 15-01

503 22 00-01

www.mymowerparts.com

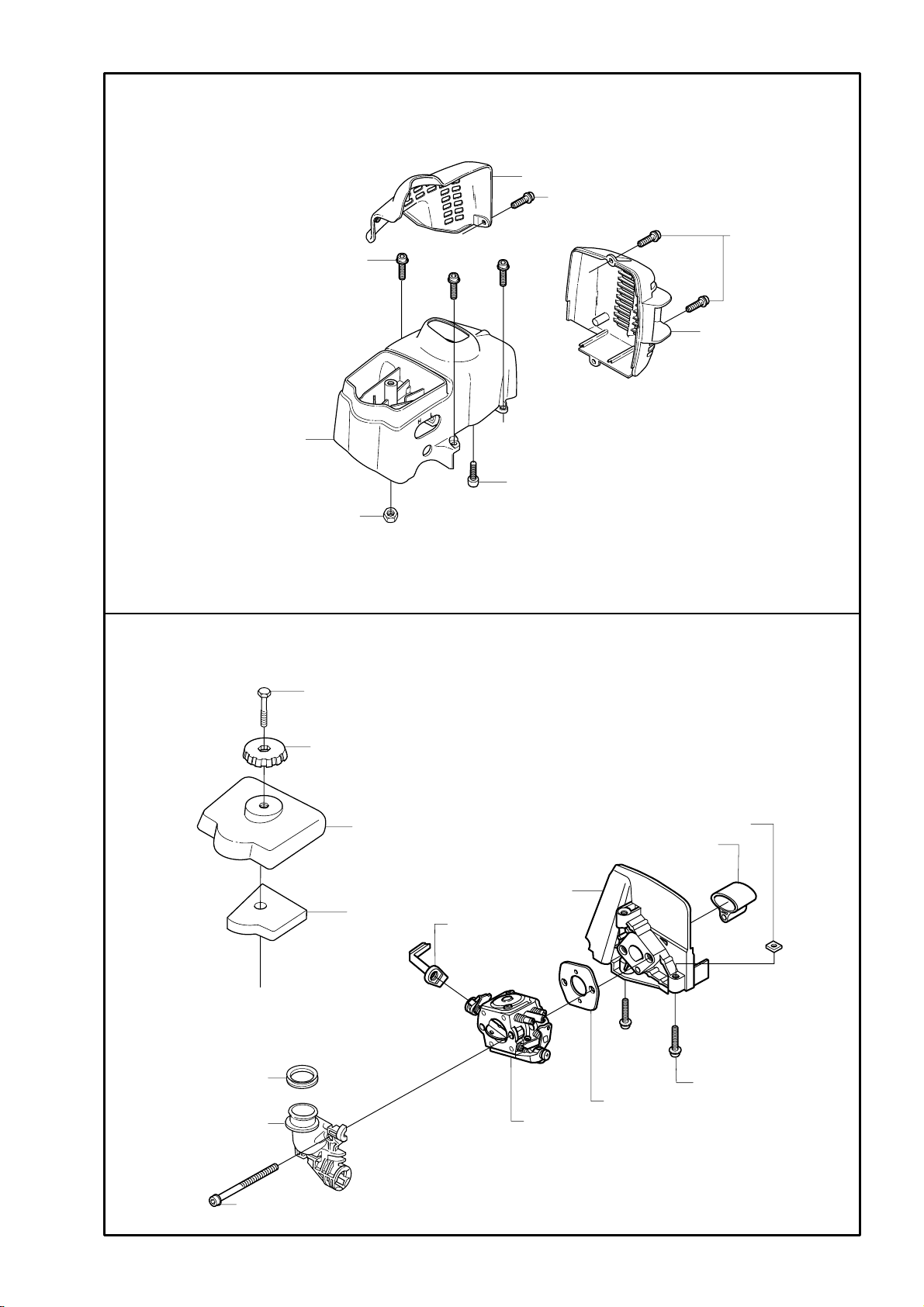

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 502 21 92-06

503 20 15-01

738 22 01-19

503 70 55-01

503 71 48-01

735 31 31-10

503 89 58-01

503 70 29-02

503 85 32-01

738 21 99-00

503 20 02-25

738 21 99-00 735 31 11-00

735 31 25-10 503 69 67-01

503 20 02-25 (x4)

503 84 90-01

503 91 81-01

503 87 79-01

740 42 06-00

503 96 13-01

503 99 56-02

537 01 13-01

503 87 80-01

503 96 14-01

503 99 55-02

503 71 82-01

503 21 71-20 (x5)

503 96 13-01

740 42 06-00

537 05 25-01

www.mymowerparts.com

503 87 85-01

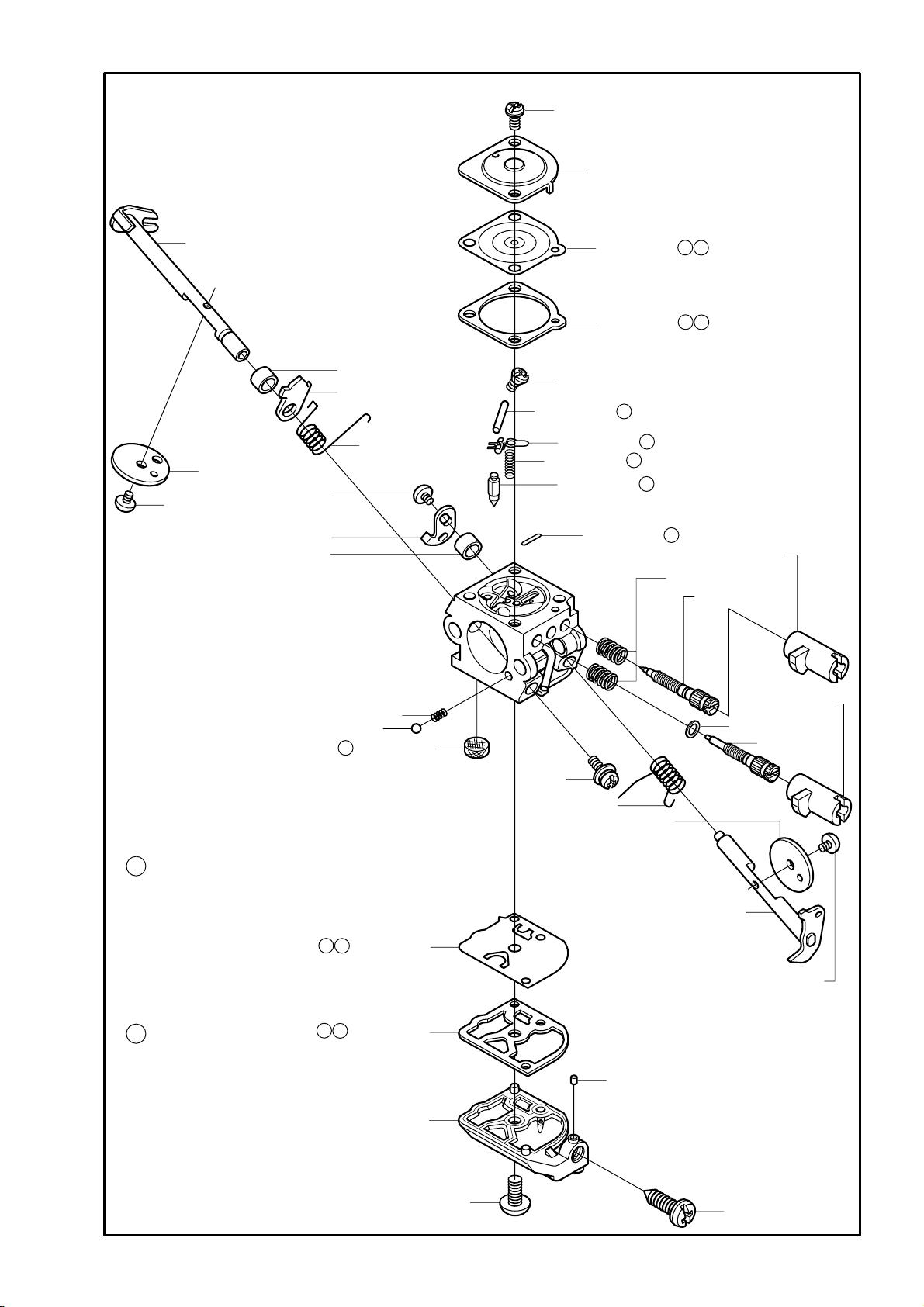

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

537 06 66-01

503 21 68-20

503 21 68-20 (x3)

537 06 65-01

537 06 61-01

731 23 14-01

502 20 65-03

502 20 40-01

537 06 63-01

537 14 31-01

503 21 71-16

503 22 65-04 (x2)

503 94 26-01

503 91 09-01

503 96 25-01

740 68 11-21

537 05 78-01

503 21 75-50 (x2)

503 20 03-25 (x2)

503 49 71-01

503 28 31-11

www.mymowerparts.com

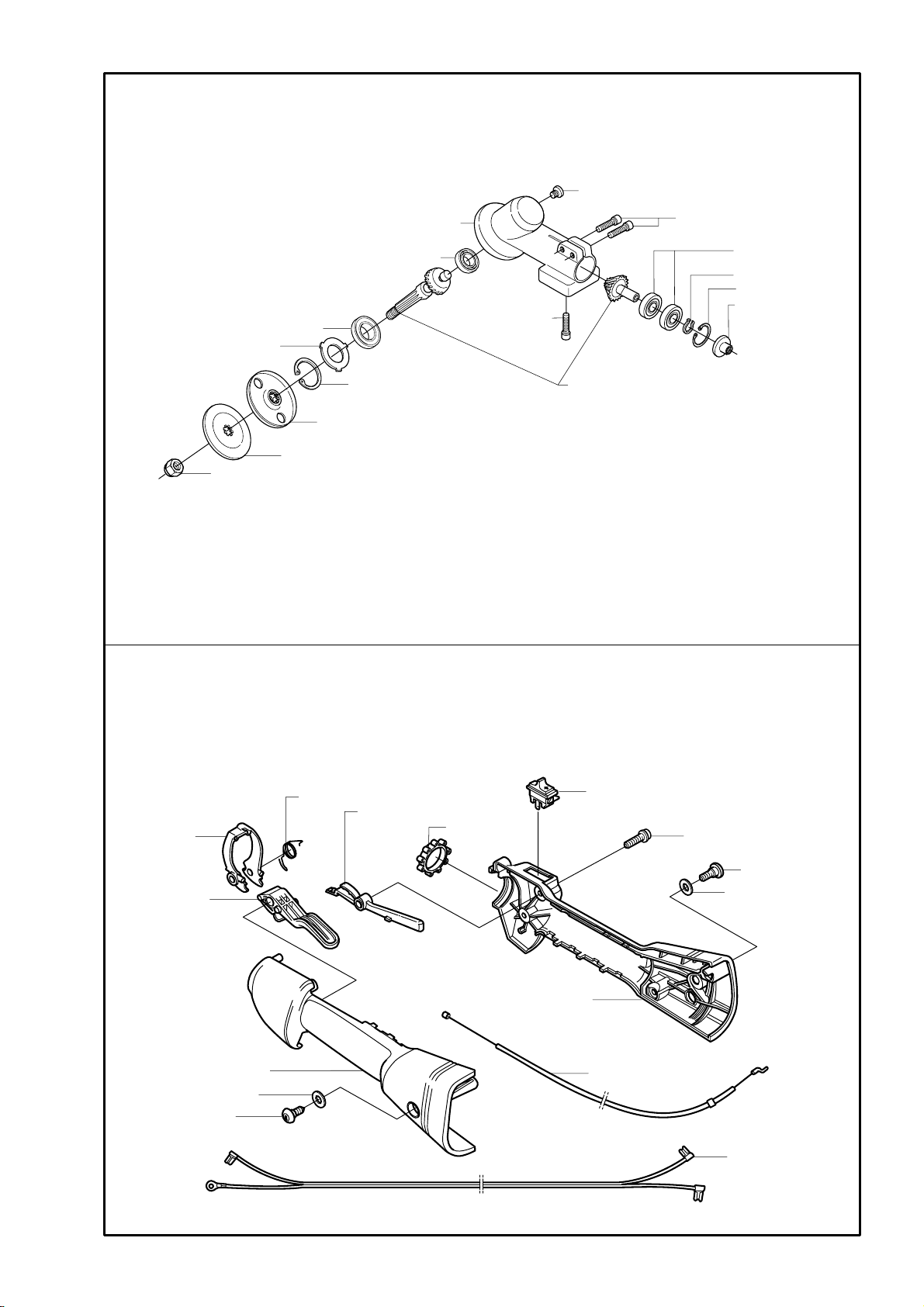

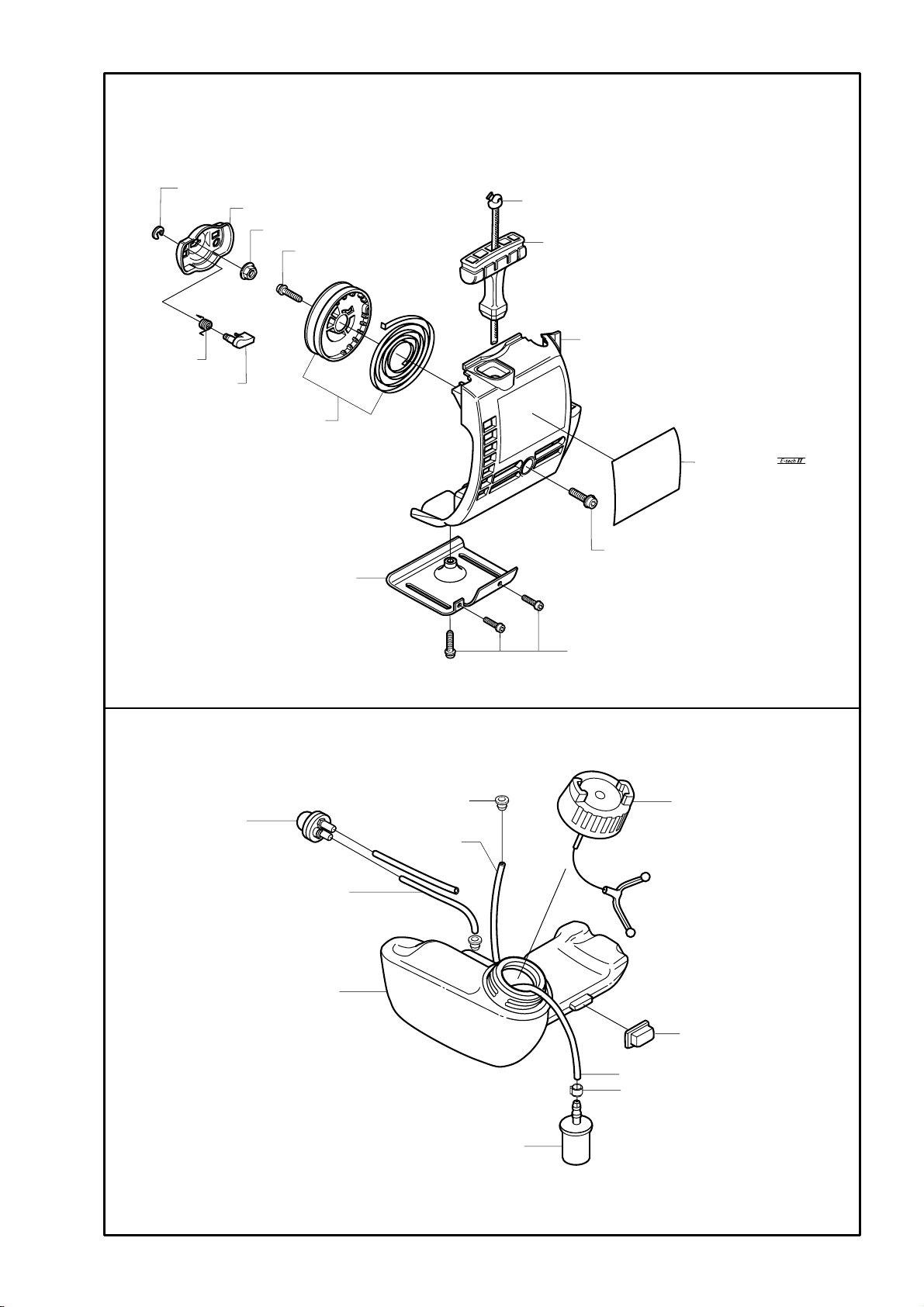

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

**503 87 36-01

**compl 503 87 33-02

735 31 08-20**

**503 87 35-02

731 71 16-51

503 21 77-16*

*503 96 49-01

537 03 41-01

*compl 503 85 28-01

503 85 89-01*

537 00 84-01*

503 85 87-01*

537 17 22-09

503 21 68-20

*compl 537 06 86-01

503 93 66-01

*537 04 24-01 (x2)

*503 73 58-01 (x2)

*537 05 23-01

503 21 66-20 (x3)

503 91 18-02

503 91 10-01 (x4)

537 05 23-01*

537 05 11-01*

*503 44 32-01

www.mymowerparts.com

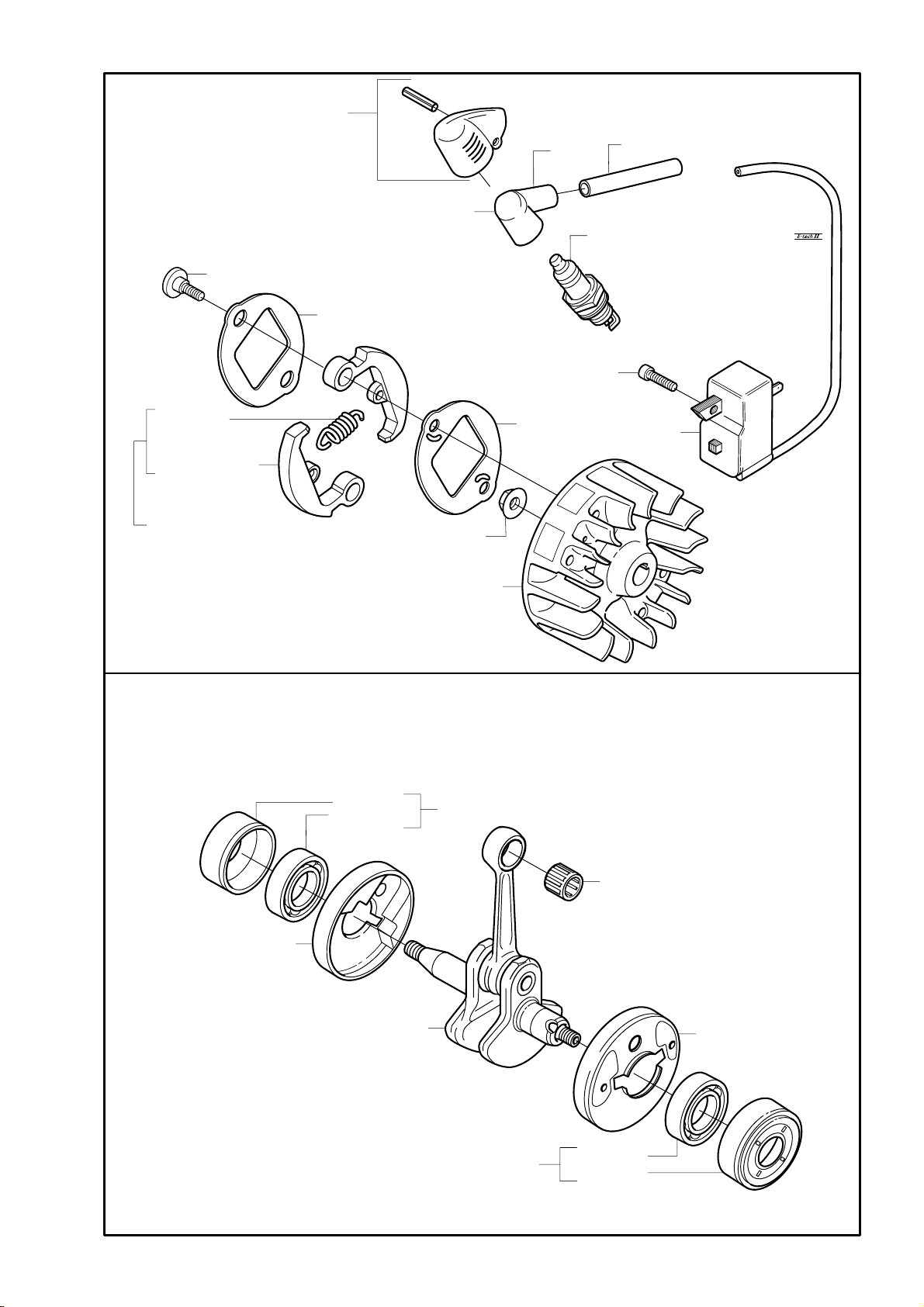

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 81 60-01

503 84 28-01 (x2)

compl 537 03 22-01

537 04 58-01

503 84 29-01

537 04 67-01

501 48 54-02

731 71 16-51

503 23 51-09 Champion RCJ 6Y

503 21 71-16 (x2)

537 04 68-01

*compl 537 02 53-01

*compl 503 85 24-73

*503 94 05-01

503 83 61-01 738 21 01-10

503 87 28-01

503 94 02-01*

503 71 22-01

503 94 05-01*

*503 94 02-01

738 21 01-10 503 83 61-01

www.mymowerparts.com

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

**compl 537 08 51-01

503 28 90-43 (x2)

503 71 22-01

537 01 41-01

503 20 02-35** (x4)

*503 20 29-56 (x3)

*compl 537 05 36-71

*537 07 07-01

*724 12 87-59

737 44 08-00 (x2)

*compl 537 08 52-01

**compl 537 04 12-01

*503 21 68-20 (x3)

537 03 23-01

537 08 46-71**

503 21 68-25 (x2)

503 21 68-20**

537 07 36-01

*537 08 85-01

503 88 41-01

735 31 12-00

*537 06 69-01

*503 21 71-16

537 06 68-01*

503 21 68-20* (x5)

537 03 24-01

*503 21 66-20

www.mymowerparts.com

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 503 28 31-11

537 02 09-01

537 02 11-01

503 48 18-01

503 47 90-01

537 01 98-01 503 47 89-01

503 48 19-01

537 04 90-01

537 02 10-01

503 48 05-01 (x2)

503 97 43-01

537 04 89-01

537 02 04-01

503 48 01-01

503 48 00-01

503 66 59-01

537 02 03-01

503 47 97-01

537 02 08-01

ZAMA C1Q - EL 12

537 02 16-01

503 48 08-01

537 12 78-01

531 00 45-52

1 Set of gaskets Dichtungssatz Juego de juntas Jeu de joints Packningssats

531 00 45-53

Repairkit Reparatursatz Juego de reparación Kit de réparation Reparationssats

537 01 26-01

537 01 25-01

503 53 57-01

537 02 00-01

537 02 01-01

537 02 02-01

537 02 16-01

503 97 40-01

537 02 06-01

503 75 53-01

537 01 97-01

537 01 99-01

537 01 96-01

503 47 92-01

503 48 11-01

503 47 96-01

www.mymowerparts.com

537 02 07-01

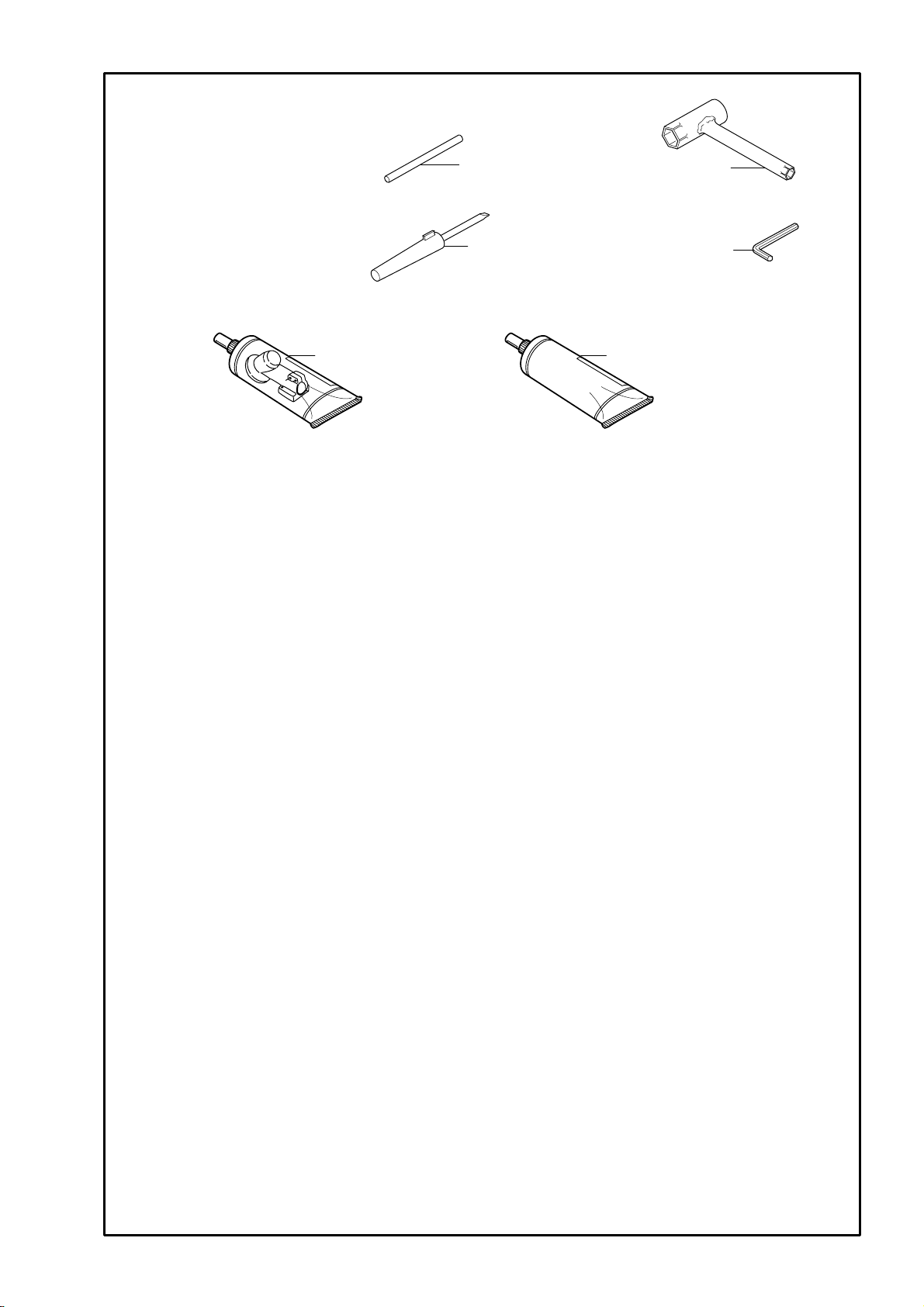

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

Accessories Zubehöre Accessoires Acessorios Tillbehör

503 97 64-01

502 28 59-01

501 60 02-03

502 11 46-02

502 21 58-01

503 80 17-01
