Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

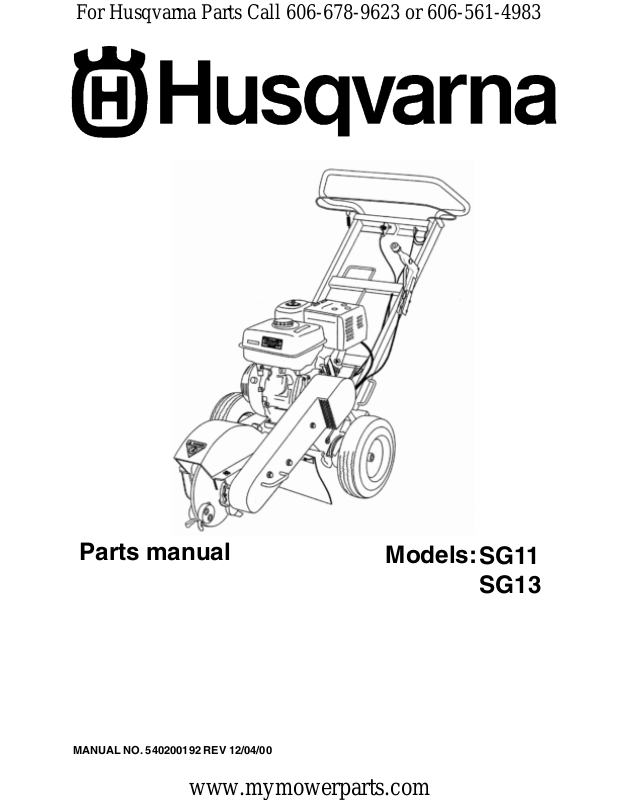

Parts manual
MANUAL NO. 540200192 REV 12/04/00
www.mymowerparts.com
Models:
SG11
SG13
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

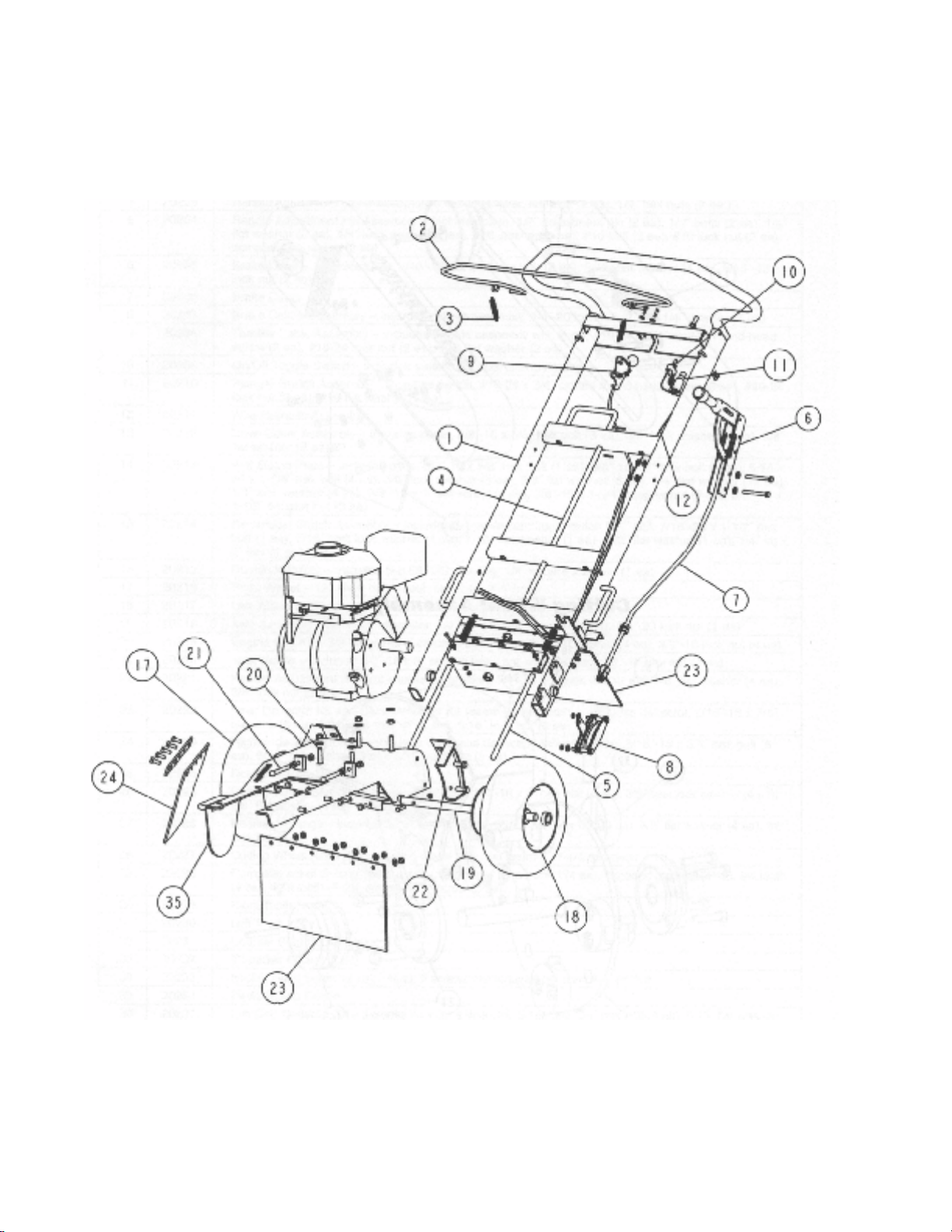

Handle and Deck Assembly
2
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

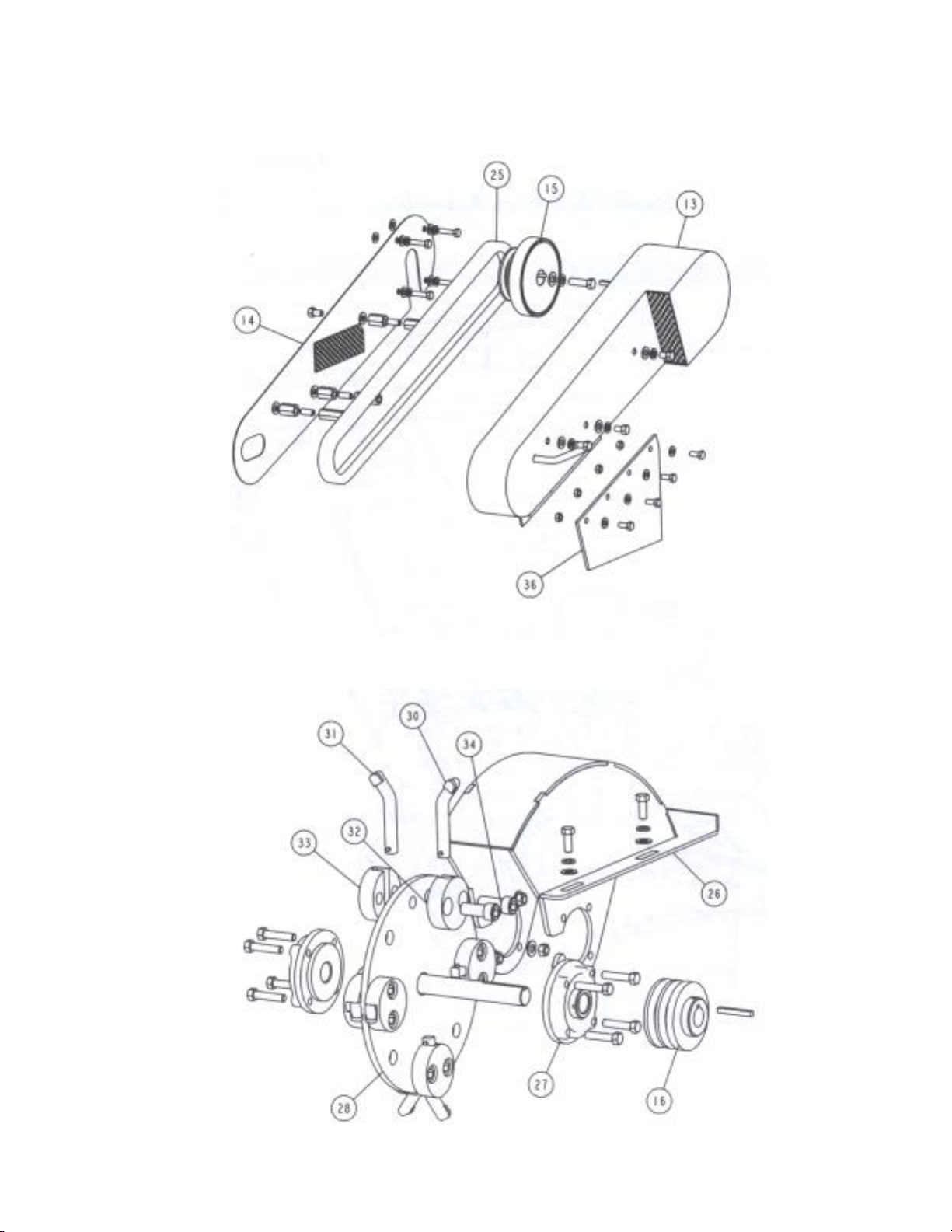

Belt Cover Guard Assembly
Cutting Wheel Assembly
3
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Parts List
1 ............ 540020200 ............ Handle
2 ............ 540020201 ............ Bail Assy - includes bail and extension spring (2 ea)
3 ............ 540020202 ............ Extension spring (1 ea)
4 ............ 540020203 ............ Handle Adjustment Lever Assembly - includes lever, roll pins (2 ea), 1/2'’hex nuts (2 ea.)
5 ............ 540020204 ............ Handle Adjustment Pin Assembly - includes plate, 1/2'’adjustment pin (2 ea), 1/4'’bolts (2
ea), 1/4'’ flat washer (2 ea), 1/4" lock washer (2 ea), #10 washer (4 ea), #10 bolt (2 ea), #10
lock nut (2 ea), compression spring (2 ea)
6 ............ 540020205 ............ Brake Lever - includes lever, 5/16”-18 x 2-3/4'’ hex bolt (2 ea), 5/16'’flat washer (4 ea), 5/
16'’-18 lock nut (2 ea)
7 ............ 540020206 ............ Brake Cable
8 ............ 540020207 ............ Brake Caliper Assembly - includes caliper assembly, 1/4'’-20 lock nut (2 ea),1/4'’ washer
(2ea)
9 ............ 540020208 ............ Throttle Cable Assembly - includes throttle assembly with knob, #10-24 x 3/4'’slotted round
head screw (2 ea), #10-24 lock nut (2 ea), #10 flat washer (2 ea)
10 .......... 540020209 ............ On/Off Toggle Switch - includes switch, boot cover and hardware
11 .......... 540020210 ............ PlungerSwitchAssembly- includes switch, #10-24 x 3/4” slotted round head screw (2 ea),
#10-24 lock nut (2 ea), #10 flat washer (2 ea)
12 .......... 540020211 ............ Wire HarnessAssembly
13 .......... 540020212 ............ Drive Cover Assembly - includes cover, 3/8"-16 x 5/8'’ hex bolt (3 ea), 3/8'’ lock washer (3 ea),
3/8” flat washer (3 ea)
14 .......... 540020213 ............ Belt Guard Plate-includes plate, 3/8':16 xS/8'’hexbolt (1 ea), 3/8'’-16 x 1"hex bolt (2 ea), 5/16':
24x 1-1/4” hexbolt (4 ea), 3/8”1lockwasher (3 ea), 3/8” flatwasher (6 ea), 1/4'’flatwasher
(12ea) 1/4'’ lock washer (4 ea), 3/8” -18 x 1'’set screw (3 ea), 3/8"-16 x 1-3/4"coupler nut
(3ea), 3/8” -16 x 1-1/8” coupler nut (3 ea)
15 .......... 540020214 ............ Centrifugal Clutch Assembly - includes 2-groove centrifugal clutch B-4'’OD 7/16'’-20 x 1-1/
2'’hex bolt (1 ea) 7/16” split lock washer (1 ea), 7/16” flat washer (1 ea), 1/2” flat washer
(1ea), 1/4'’sq x 2'’ key (1 ea)
16 .......... 540020215 ............ Double V-Pulley - includes B-3.55'’OD V-pulley, 1/4'’ square x 2” key (1 ea)
17 .......... 540020216 ............ Right Wheel - 12'’short hub wheel, set collar 3/4'’bore
18 .......... 540020217 ............ Left Wheel- 12” wheel with disc brake, setcollar 3/4"bore
19 .......... 540020218 ............ AxleAssembly-Axle 3/4'’diameter, 1/4"-20 x 1-1/4'’hexholt (1 ea), 1/4”-20 lock nut (1 ea)
20 .......... 540020219 ............ Engine Bolt Kit-3/8"-16x 1-3/4'’carriage bolt (4 ea), 3/8'’flatwasher(4ea), 3/8'’-16 lock nut (4ea)
21 .......... 540020220 ............ Jack Screw- includes3/8”-16x3 1/2” hex head screw(2 ea), 3/8”-16 hex jam nut (2ea)
22 .......... 540020221 ............ Handle Adjustment Bracket - includes bracket, 3/8”-16 x 1” hex bolt (2 ea), 3/8” flat washer
(4ea) 3/8'’lock nut (2 ea)
23 .......... 540020222 ............ Rear Deflector Kit and Deck Deflector Kit (same P/N for both) - includes deflector, 5/16”-18 x
3/4" hex bolt (6 ea), 5/16”flat washer (6 ea), 5/16”lock nut (6 ea)
24 .......... 540020223 ............ Right Side Deflector Kit - includes neoprene deflector, deflector strap, 5/16”-18 x 3/4" hex bolt
(5ea), 5/16'’flat washer (5 ea), 5/16” lock nut (5 ea)
25 .......... 540020224 ............ Double V-Belt, BP54
26 .......... 540020225 ............ Cutting Wheel Shroud Kit - includes shroud, 3/8”-16 x 1” hex bolt (4 ea), 3/8'’split lock
washer (4 ea), 3/8'’flat washer (4 ea)
27 .......... 540020226 ............ Bearings, Flange-includes bearing (1 ea), 3/8”-16 x 1-3/4'’hex bolt (4 ea), 3/8'’flatwasher
(4ea), 3/8" lock nut (4 ea)
28 .......... 540020227 ............ Cutting Wheel Assembly - (cutting wheel only / no teeth) - 11 -1 /4" diameter
29 .......... 540020228 ............ Complete set of Cutting Teeth - includes counter bore pocket (4 ea), threaded pockets (4 ea),
left tooth (4 ea), right tooth (4 ea), socket head screw (8 ea)
30 .......... 540020229 ............ Right Tooth (1 ea)
31 .......... 540020230 ............ Left Tooth (1 ea)
32 .......... 540020231 ............ Counter Bore Pocket (1 ea)
33 .......... 540020232 ............ Threaded Pocket (1 ea)
34 .......... 540020233 ............ Socket Head Screw (2 ea) - Note: 2 screws are required per complete pocket
35 .......... 540020234 ............ Deck, Stump Grinder
36 .......... 540020237 ............ Left Side Deflector Kit- includes neoprene deflector, 5/16”-18x 3/4"hex bolt (4 ea), 5/16”flat
washer (4 ea), 5/16'’ lock nut (4 ea)
37 .......... 540020236 ............ SG11 Decal Kit (11 hp) - See page 5 for detail of decals
38 .......... 540020238 ............ SG13 Decal Kit (13 hp) - See page 5 for detail of decals
4
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Safety and Instruction Decals
The following decals are found on Model SG1 1 and SG13 stump grinders. If any are missing or not
legible, replace them before putting the equipment into operation.
1 ........... Decal, Husqvarna logo and crown
2 ........... Decal, Crown
3 ........... Decal, Caution list
4 ........... Decal, Warning Carbon monoxide
5 ...........Decal, Eye and hearing
6 ........... Decal, Danger foot
7 ...........Decal, Model SG11
8 ...........Decal, Model SG13
9 ...........Decal, On/Off toggle
10 .........Decal, Throttle control
11 .........Decal, Handle adjusment
12 ......... Decal, Nascar
www.mymowerparts.com
5
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

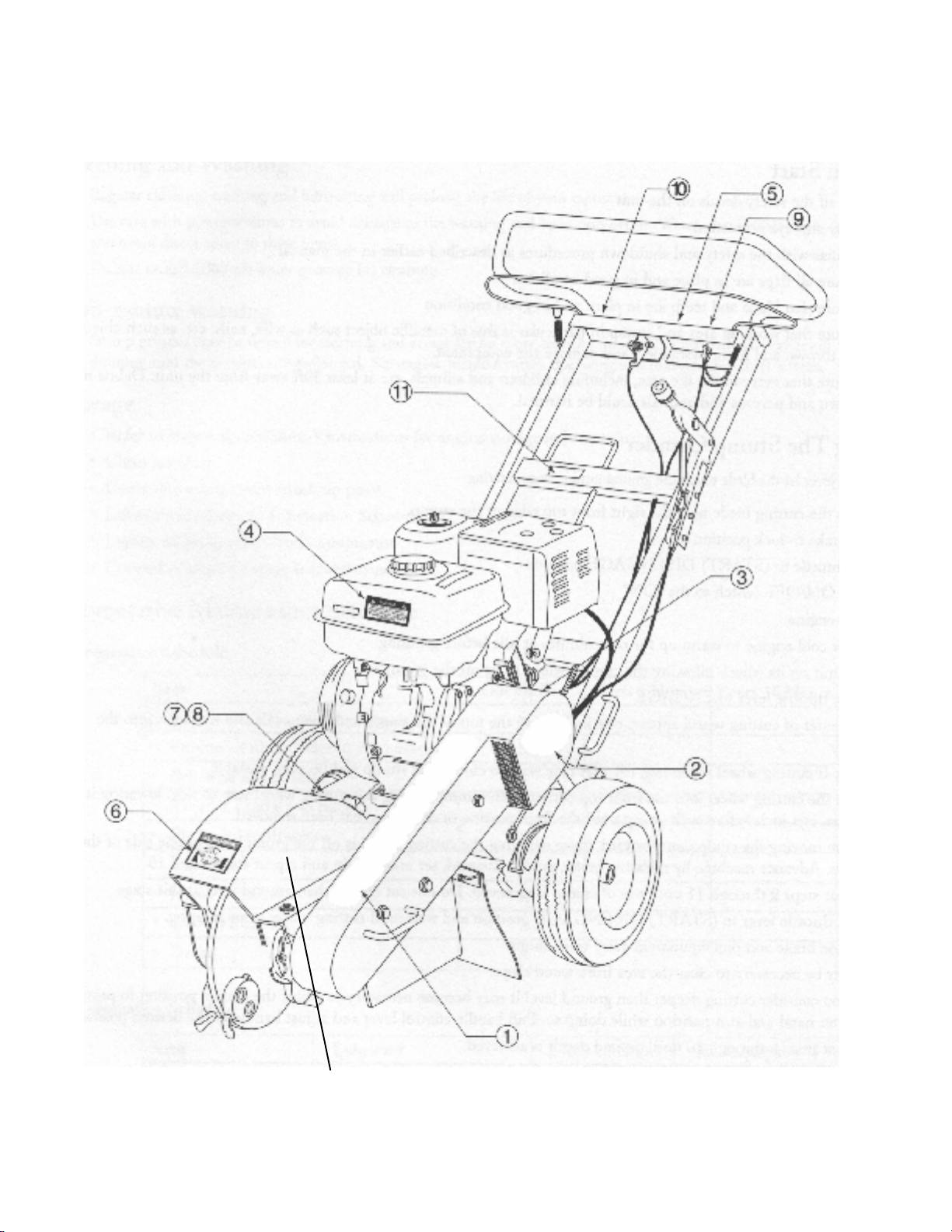

Decal Placement
12
6
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
This page left blank intentionally
7
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Technical assistance:
For technical assistance please contact your Local Dealer.
