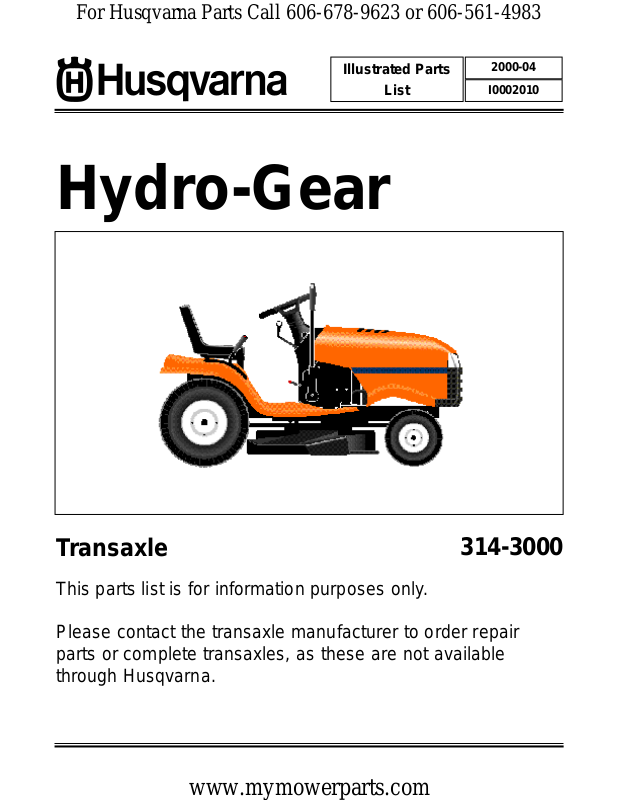

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
Hydro-Gear
List
2000-04
I0002010
Transaxle
This parts list is for information purposes only.
Please contact the transaxle manufacturer to order repair
parts or complete transaxles, as these are not available
through Husqvarna.
314-3000
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

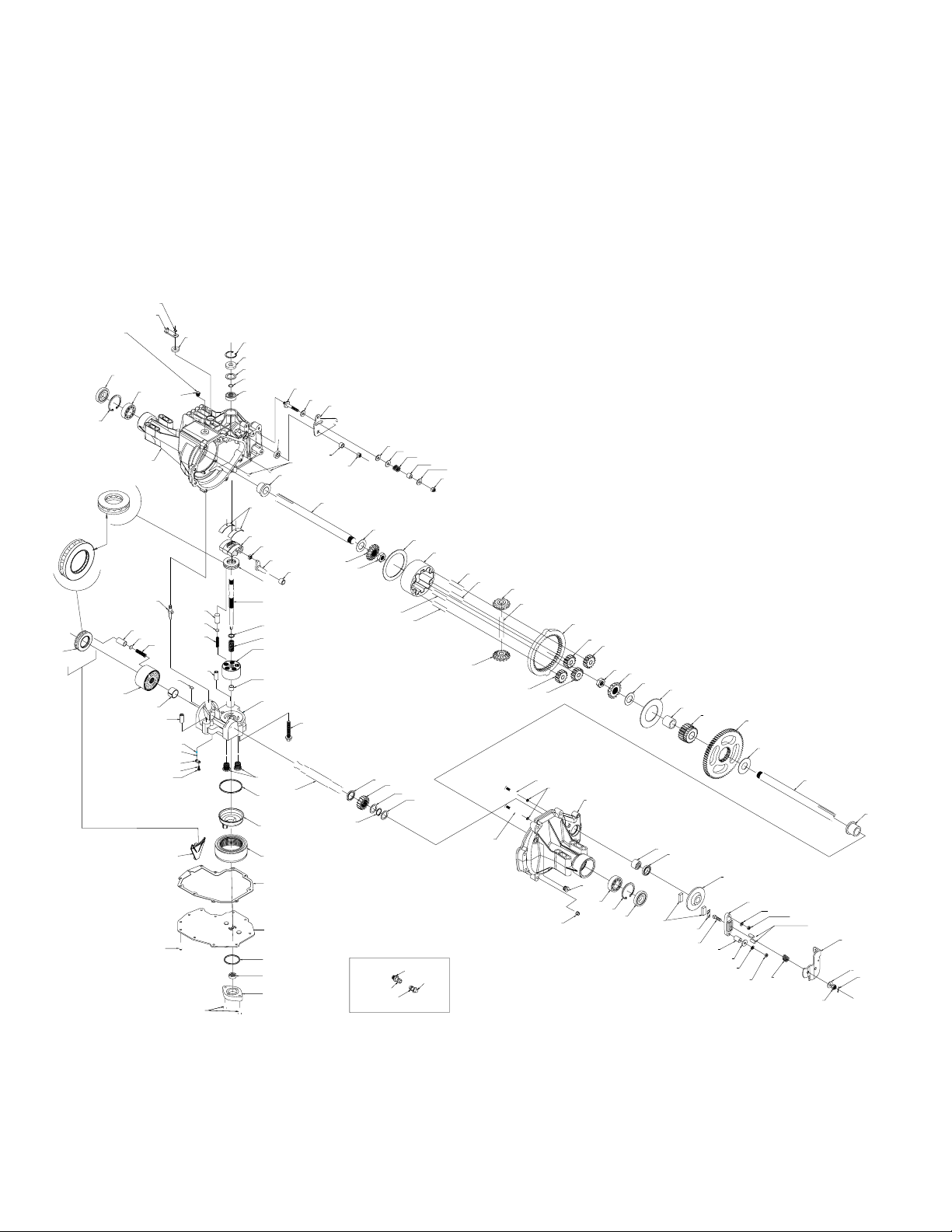

HYDRO GEAR TRANSAXLE 314-3000
42
41
40
75
74
108
116
1
39
22
25
18
21
20
16
18
17
23
43
38
43
145
146
147
138
57
50
29
7
5
4
6
8
36
37
26
33
106
117
69
9
10
30
31
11
12
13
14
15
19
3
45
24
144
56
55
49
51
53
52
54
95
76
65
32
73
44
83
(ASSY #70110)
70
27
110
58
111
37
77
93
68
58
28
82
82
109
112
(ASSY #70109)
94
77
95
64
58
58
66
67
63
59
59
66
59
59
121
91
132
80
2
153
74
116
73
65
70
62
96
61
60
71
76
69
81
84
85
122
126
151
127
128
125
124
77
129
75
120
131
123
130
139
126
127
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HYDRO GEAR TRANSAXLE 314-3000
KEY PART
NO. NO. DESCRIPTION
1 70297 Main housing assembly
2 70298 RH housing assembly
3 70299 Center section assembly
4 2003018 Spacer
5 9008000-0128 Seal-lip
6 2003016 Wire retaining ring
7 2003052 Retaining ring
8 2003043 Ball bearing
9 2003023 Cradle bearing
10 2003087 V ariable swashplate
11 50551 Thrust bearing 30 x 52 x 13
12 50795 Input shaft
13 2003017 Block thrust washer
14 2003014 Block spring
15 70079 10cc cylinder block assembly
21 70082 10cc cylinder block assembly
24 50662 Output (motor) shaft
25 50552 Thrust bearing 42 x 68 x 16
26 50857 Control arm
27 50774 Spacer
28 50661 16t pinion gear
29 50940 Capscrew, M6 x 1-22
30 2000015 Slot guide
31 50807 Trunnion arm
32 2003009 Trunnion bushing
33 9008000-0126 Lip seal
36 50284 5/16-24 stud
37 50281 Puck, friction
38 2003554 Bypass plate
39 2003555 Bypass actuator
40 45074 Lip seal
41 50270 Bypass arm
42 44870 Retaining ring
43 50002 Pin
44 50016 Screw
49 50783 Gasket, lower
50 50437 Screw-self tapping
51 50785 Lower cover
52 50273 Gerotor assembly
53 9004101-1340 O-ring
54 50260 Gerotor cover
55 50784 Filter
56 50786 Charge manifold
57 50796 Retainer, motor bearing
58 50776 Pin, carrier
59 50763 15t planet gear
60 50646 67t spur gear
61 50645 21 tooth sun gear
62 50769 Planet thrust plate
63 50764 51t ring gear
KEY P ART
NO. NO. DESCRIPTION
64 50765 Planetary carrier
65 50647 Miter gear. diff. (splined)
66 50648 Miter gear, diff.
67 50766 Shaft, differential
68 50767 Diff. thrust plate
70 50770 Washer
71 50788 Washer
73 50791 Hex jam nut, 5/8-18
75 50772 Seal, 1" ID x 2.0472 x 0.375
76 50663 Shaft, axle
77 44130 Washer
79 44813 Gasket material
80 50868 Torx head screw , 5/16-18
81 44752 Needle bearing (SCE1412)
82 50777 Washer
83 50775 Retaining ring
84 50773 Lip seal (.8751.D. x 1.30.D. x.25)
85 50779 Brake disk
96 50866 Sleeve bearing
93 50277 Spring, friction pack
94 50278 Spacer, friction pack
95 50108 Hex lock nut 5/16-24
97 50006 Oil
106 50850 Spacer , trunnion
109 70110 Fitting-O ring assembly
1 11 70109 Cap-vent assembly
1 16 50059 Retaining ring
1 1 7 9004800-2506 Std hdls pin
120 44132 Puck, brake
122 50879 Brake yoke
123 44138 Bolt, square head
124 50916 Arm, brake
125 44127 Pins, brake
126 43177 Lockwasher, 1/4
127 43178 Nut, 1/4-20
128 44142 Nut, castle
129 44101 Cotter pin
1 3d 2371 1 Spacer
131 44134 Puck plate
138 50653 Screw
139 44278 Washer, 7/80D x .2651D x .125 THK
T44 50793 O ring, 2.864 ID 0.070 THK
145 50654 Charge relief spring
T46 9001214-2500 Ball
147 50651 Plate, relief
151 50919 Comp. spring, brake anti-drag
153 90051 10-5600 Plug, straight thread
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
www.mymowerparts.com
