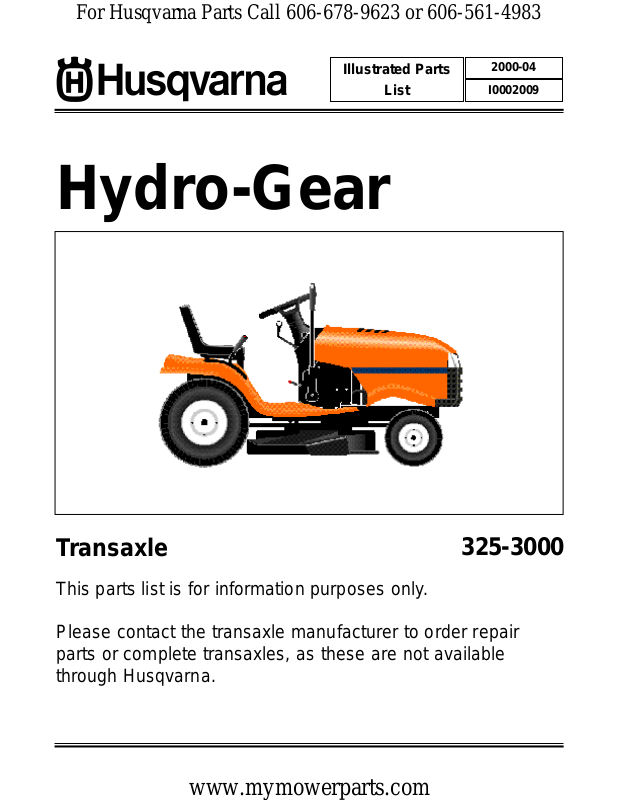

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
Hydro-Gear
List
2000-04
I0002009
Transaxle
This parts list is for information purposes only.
Please contact the transaxle manufacturer to order repair
parts or complete transaxles, as these are not available
through Husqvarna.
325-3000
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

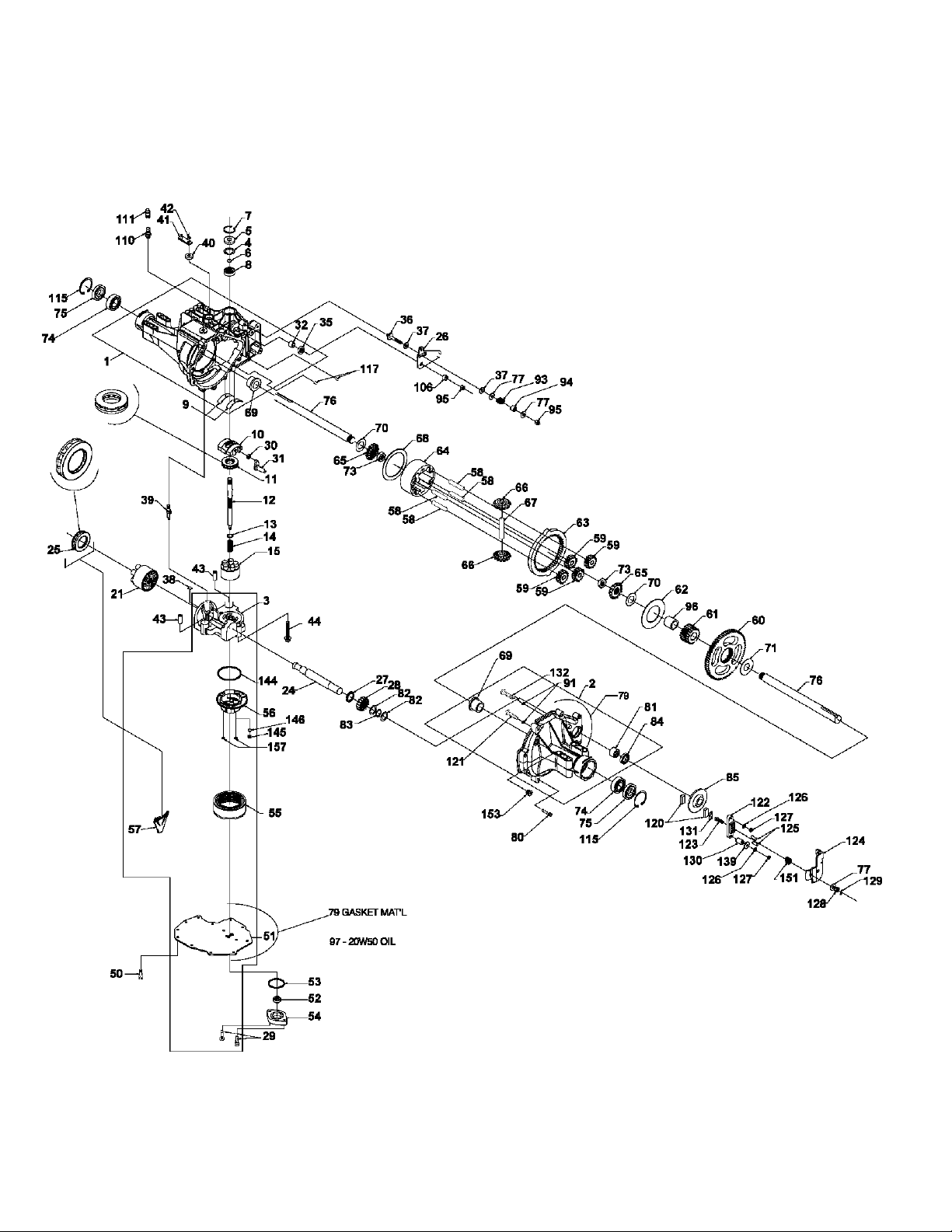

HYDRO GEAR TRANSAXLE 325-3000
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
HYDRO GEAR TRANSAXLE 325-3000
KEYPART
NO.NO. DESCRIPTION
1 70297 MAIN HOUSING ASSEMBLY
2 70298 R.H. HOUSING ASSEMBLY
3 70438 CENTER SECTION ASSEMBLY
4 2003018 SPACER
5 9008000-0128SEAL-LIP
6 2003016 WIRE RETAINING RING
7 2003052 RETAINING RIN G
8 2003043 BALL BEARING
9 2003023 CRADLE BEARING
10 2003087 VARIABLE SWASHPLATE
11 50551 THRUST BEARING 30 X 52 X 13
12 50795 INPUT SHAFT
13 2003017 BLOCK THRUST WASHER
14 2003014 ARM - TRUNNION
15 70331 10cc CYLINDER BLOCK ASSEMBLY
21 70082 21cc CYLINDER BLOCK ASSEMBLY
24 50662 OUTPUT (MOTOR) SHAFT
25 50552 THRUST BEARING 42 X 68 X 16
26 50857 CONTROL ARM
27 50774 SPACER
28 50661 16T PINION GEAR
29 50975 CAPSCREW, M6 X 1-22
30 2000015 SLOT GUIDE
31 50807 TRUNNION ARM
32 2003009 TRUNNION BUSHING
33 9008000-0126LIP SEAL
36 50284 5/16-24 STUD
37 50281 PUCK, FRICTION
38 2003554 BYPASS PLATE
39 2003555 BYPASS ACTUATOR
40 45074 LIP SEAL
41 50270 BYPASS ARM
42 44870 RETAINING RING
43 50002 PIN
44 50016 SCREW
50 50437 SCREW-SELF TAPPING
51 50972 LOWER COVER
52 50273 GEROTOR ASSEMBLY
53 9004101-1340O-RING
54 50260 GEROTOR COVER
55 50957 FILTER
56 51156 CHARGE MANIFOLD
57 50796 RETAINER, MOTOR BEARING
58 50776 PIN, CARRIER
59 50763 15T PLANET GEAR
60 50646 67T SPUR GEAR
61 50645 21T SUN GEAR
62 50769 PLANET THRUST PLATE
63 50764 51T RING GEAR
64 50765 PLANETARY CARRIER
65 50647 MITER GEAR, DIFF. (SPLINED)
66 50648 MITER GEAR, DIFF.
67 50766 SHAFT, DIFFERENTIAL
KEYPART
NO.NO. DESCRIPTION
68 50767 DIFF. THRUST PLATE
69 50768 FLANGE BEARING
70 50770 WASHER
71 50788 WASHER
73 50791 HEX JAM NUT, 5/8-18
74 50771 BALL BRG 6205-1
75 50772 SEAL 1"ID x 2.0472" x 0.375"
76 50663 SHAFT, AXLE
77 44130 WASHER
79 44813 GASKET MATERIAL
80 50868 TORX HEAD SCREW, 5/16-18
81 44752 NEEDLE BEARING (SCE1412)
82 50777 WASHER2
83 50775 RETAINING RING
84 50773 LIP SEAL (0.875I.D.x1.3O.D.x0.25
85 50779 BRAKE DISK
91 50867 ORING, 0.070 X 0.239
93 50277 SPRING, FRICT I O N PA C K
94 50278 SPACER, FRICTION PACK
95 50108 HEX LOCK NUT 5/16-24
96 50866 SLEEVE BEARING
97 50006 OIL
106 50850 SPACER, TRUNNION
110 70110 FITTING-O RING ASS’Y
111 70109 CAP VENT ASS’Y
116 50859 RETAIINING RING
117 9004800-2506STD HDLS PIN
120 44132 PUCK, BRAKE
121 50874 RIB NECK BOLT, 2"
122 50879 BRAKE YOKE
123 44138 BOLT, SQUARE HEAD
124 50916 ARM, BRAKE
125 44127 PINS, BRAKE
126 43177 LOCKWASHER, 1/4"
127 43178 NUT, 1/4-20
128 44142 NUT, CASTLE
129 44101 COTTER PIN
130 23711 SPACER
131 44134 PUCK PLATE
132 50865 RIB NECK BOLT, 3" 1
139 44278 WASHER, 7/8OD X 0.265ID X 0.125
144 50974 O RING, 2.864 ID X 0.070 THK
145 51157 SPRING, RELIEF
146 9001214-4400BALL, 7/16
151 50919 COMP. SPRING, BRAKE ANTI-DRAG
153 9005110-5600 PLUG, STRAIGHT THREAD
157 50977 SCREW O-RING
180 70449 MANIFOLD KIT
