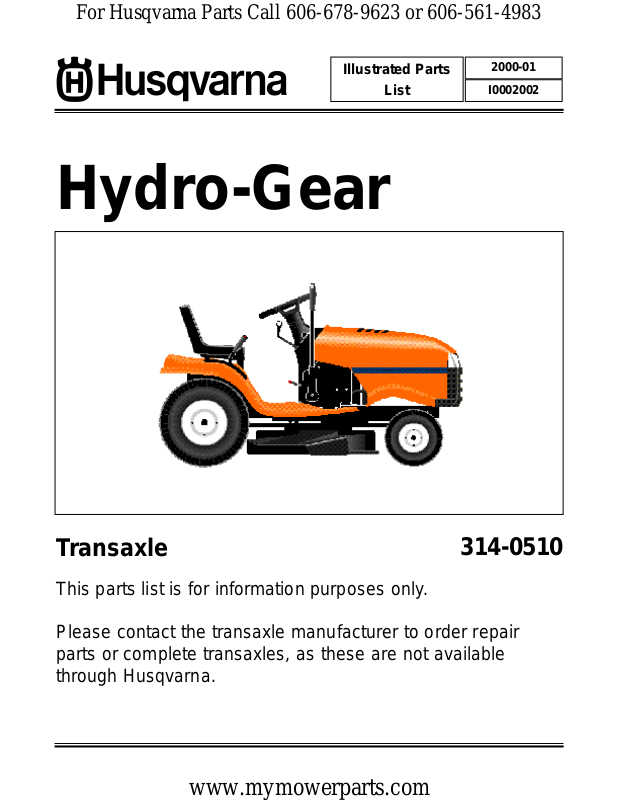

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
Hydro-Gear
List
2000-01
I0002002
Transaxle
This parts list is for information purposes only.
Please contact the transaxle manufacturer to order repair
parts or complete transaxles, as these are not available
through Husqvarna.
314-0510
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

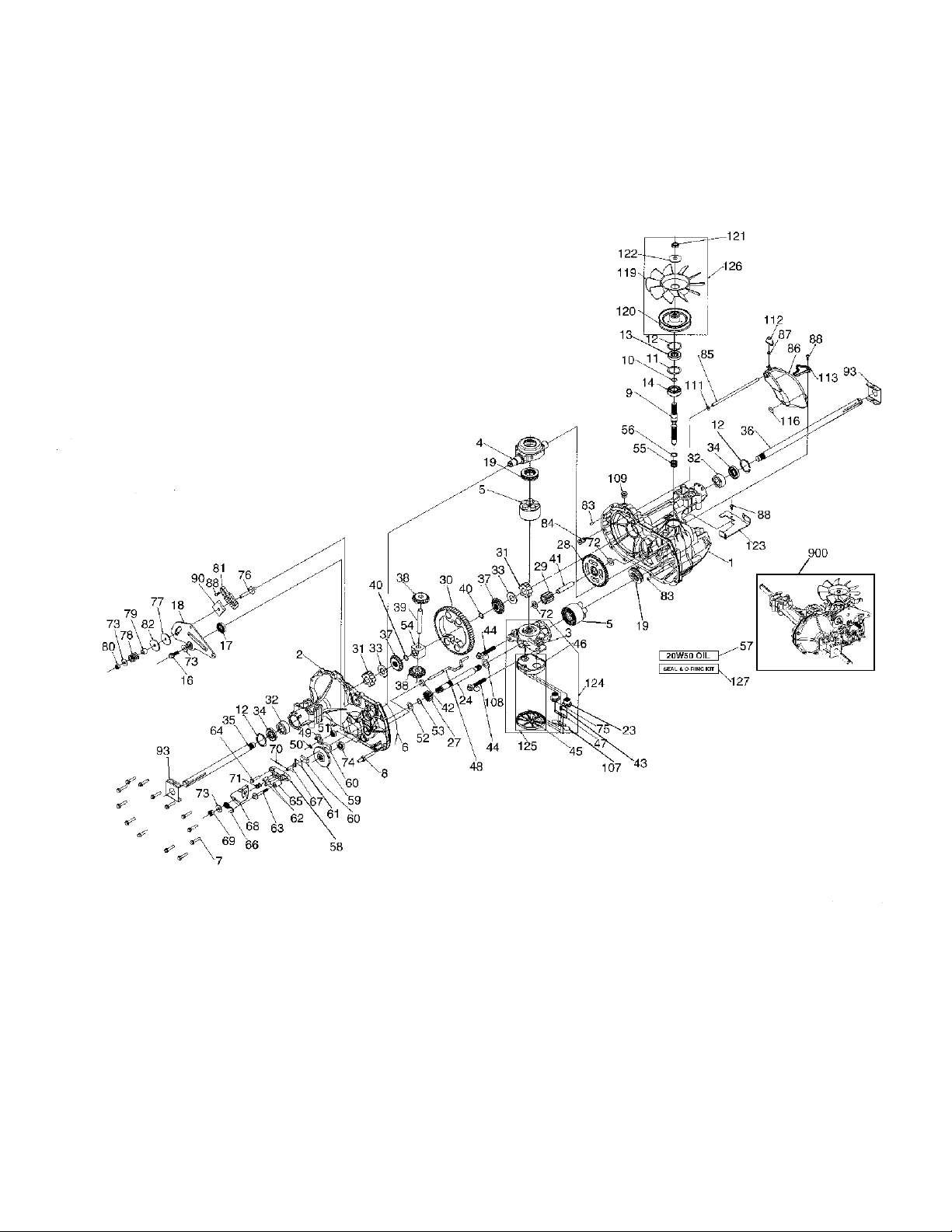

REPAIR PARTS
HYDRO GEAR TRANSAXLE - MODEL NUMBER 314-0510
44
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
HYDRO GEAR TRANSAXLE - MODEL NUMBER 314-0510
KEY PART
NO. NO. DESCRIPTION
1 170351 Main Housing, Assembly
2 170352 Side Housing, Assembly
3 170353 Center Section, Assembly
4 170354 Swashplate, Trunion Machined
5 169898 Block - Assembly
6 170355 Sealant 10.5 Oz
7 170356 Hex Flange Screw 1/4-20 X 1.25
8 170357 Stud, 5/16-24 Hex Double End
9 170358 Shaft, Input
10 170359 Ring - Retaining
11 170360 Spacer
12 169870 Ring - Retaining
13 170361 Seal, Lip .67 X 1.58 X .276
14 169869 Ball Brg 17mm Id X 40mm Od X 12mm
16 170362 Hex Flange Head Screw 5/16-24X0.75
17 170363 Lip Seal 18 X 32 X 7
18 170364 Arm, Control
19 150771 Bearing, 30x52x13 Thrust
23 170365 Check Plug Assembly, Washer
24 170366 Shaft, Motor
27 170367 Gear - Pinion, 13t
28 170368 10t/48t Gear
29 170369 Gear, 10t Jackshaft
30 170370 60t Bull Gear
31 170371 Sleeve Bearing .75 X 1.575 X .625
32 170389 SleeveBearing(Outboard)
.75x1.750x.625
33 142991 Washer, 3/4 Id X 1-1/2 Od X .13 Thk
34 170390 Lip Seal Axle Seal
35 170391 Shaft, Axle .75 X 11.39 (Key, R.H.)
36 170392 Shaft, Axle .75 X 16.99 (Key, L.H.)
37 150792 Miter Gear (Splined)
38 150793 Miter Gear 15t (0.5 Id)
39 150809 Shaft
40 170393 Ring, Spiral Retaining
41 170394 Pin, Jackshaft
42 170395 Magnet, Ring
43 170396 Spring, Bypass
44 150797 Hydro Mtg Screw 3/8-24 X 2.5 Long
45 170397 Filter
46 170398 Base, Filter
47 170999 Actuator, Bypass
48 170400 Rod, Bypass Actuator
49 170401 Arm, Bypass
50 170202 Retaining Ring .250 External
51 170403 Seal, Lip .741 X .250 X .250 Tc
52 170404 Flat Washer, 5/8 Id X 1.0 Od X .05 Thk
53 170405 Retaining Ring
54 170406 Bearing, Center Block
55 142977 Spring - Helical Compression
56 142978 Washer
57 150798 20w-50 Oil
58 170407 Brake Yoke
KEY PART
NO. NO. DESCRIPTION
59 170408 Rotor, Brake
60 142883 Brake Puck
61 142881 Puck Plate
62 142887 Brake Actuating Pin
63 170410 Hfhcs 1/4-20x2 W/Patch,SpecialFlange
64 142892 Bolt, 1/4-20 X 1 W/Patch
65 170411 Spacer
66 170412 Spring, Brake Arm Bias
67 170413 Sq. Hd. Bolt 5/16-24-Ribbed
68 170414 Arm, Brake
69 170415 Slotted Hex Nut 5/16-24
70 170416 Cotter Pin 3/32 X 3/4
71 170417 Compression Spring Brake Anti-Drag
72 170418 Washer, Ht .5 I.D. X 1 O.D. X .032
73 142884 Flat - Washer 11/32 I.D. X 7/8 O.D
74 170419 Oil Seal .625 X 1.0 X .25
75 170420 Check Plug Assembly, .027, Washer
76 170421 Stud, 5/16-24 Friction Pack
77 170422 Puck, .330 X 1.50 X .0975
78 142969 Spring, Helical Comp
79 142980 Spacer
80 150778 Hex Lock Nut 5/16-24Unjf(Nylon Insert)
81 170423 Wedge, Friction Pack
82 170424 Clip, Washer .316x1.50x.1046 (Plated)
83 161162 Pin, Standard Headless
84 170425 Fitting, 5/16 Sae 5/32 Tube
85 170426 Hose, Expansion Tank
86 170427 Expansion Tank
87 170424 Cap - Poppet Valve
88 170429 Bolt, Self Tapping 10-32 X 1/2
90 170430 Puck, Inner Wedge
93 170431 Spring Clip - Housing Thrust
107 170432 Deflector
108 170433 Washer,Motor Shaft
.71idx1.15odx.030thk
109 170434 Plug, Sae #6
111 170435 O-Ring .07 X .301 I.D.
112 170436 Shield, Vent
113 170437 Bracket, Support Expansion Tank
116 170438 Silicon Sponge
119 170439 Fan , 7 In.
120 170440 Pulley
121 170441 Hex Lock Nut 1/2-20 (Nylon Insert)
122 170442 Washer, Belleville
123 170443 Belt Keeper
124 170444 Center Section-Filter-Bypass Assembly
125 170445 Filter Assembly
126 170446 Fan - Pulley Service Assembly
127 170447 Seal - O-Ring Kit
900 166768 Transaxle Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
