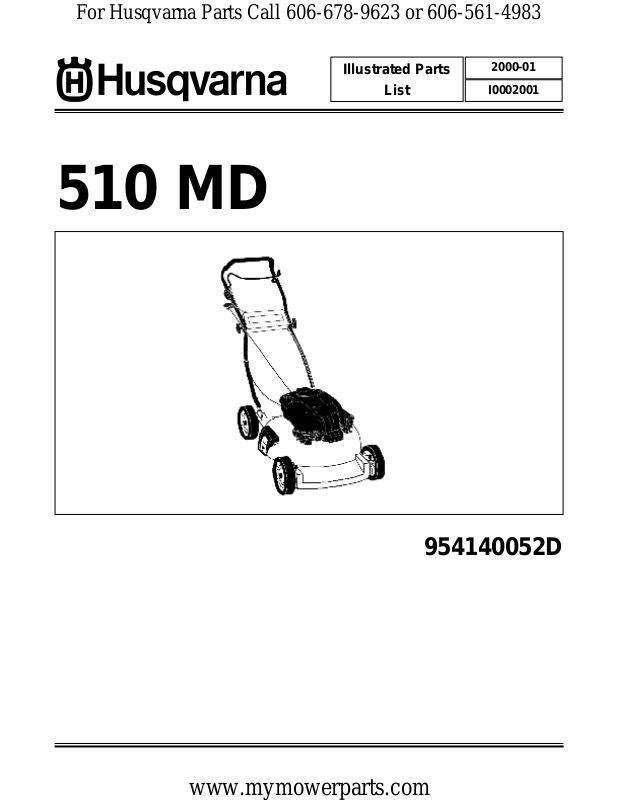

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
510 MD
Illustrated Parts
List
2000-01
I0002001
www.mymowerparts.com
954140052D
Page 2
REPAIR PARTS
ROTARY LAWN MOWER - - MODEL NO. 510md (954140052D)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
ROTARY LAWN MOWER - - MODEL NO. 510md (954140052D)
17
KEY PART
NO. NO. DESCRIPTION
1 532850735 Control Bar
2 532164265 Handle Grip
3 532132001 Rope Guide
4 532166267 Upper Handle
5 532157082 Lower Handle
6 532131959 Handle Bolt 5/16-18 x 1-3/4
7 532063601 Locknut 1/4-20
8 532125162 Up-Stop Bracket
9 532750097 Hex Washer Head Screw #10-24 x 1/2
10 532851671 Engine Zone Control Cable
11 532144929 Hex Washer Head Screw 1/4-20 x 2.12
12 532051793 Hairpin Cotter
13 532136376 Handle Knob
14 532008508 Hubcap
15 532083923 Hex Locknut 3/8-16
16 532057143 Washer
17 532800372 Wheel & Tire Assembly
18 532142748 Shoulder Bolt
19 532062335 Belleville Washer
20 532125066 Selector Spring
21 532701037 Selector Knob
22 532151254 Axle Arm Assembly
23 532141934 Lawn Mower Housing (Includes Key No. 29)
24 532701477 Push-in Fastener
25 532146630 Spacer
26 532800370 Wheel Adjusting Bracket (R.F./L.R.)
27 532800368 Wheel Adjusting Bracket (L.F./R.R.)
28 532170975 Handle Bracket Assembly (Right)
29 532107339 Danger Decal
KEY PART
NO. NO. DESCRIPTION
30 532170977 Handle Bracket Assembly (Left)
32 532751592 Locknut 3/8-16
33 532066426 Wire Ties
34 532149741 Thread Cutting Screw 5/16-18 x 3/4
35 532851084 Hex Head Screw 3/8-24 x 1-3/8
36 532850263 Helical Lockwasher 3/8
37 532851074 Hardened Washer
38 532145106 20'’ Blade
39 532851514 Blade Adapter
42 532150984 Deflector Rod
43 532150985 Rear Deflector
44 532700279 Retainer Clip
45 532700583 Throttle Control
49 - - - - - - - - *Engine - Briggs Model No. 121602
(Order parts from engine manufacturer)
50 532157070 Trim Plate
51 532150406 Hex Head Screw, Self Tap. 3/8 - 16 x 1.1
53 532063601 Locknut
55 532152124 Torsion Spring
56 532147286 Hinge Rod
57 532087593 Housing Assembly Bracket
58 532154829 Mulcher Door
61 532751399 Chute Mounting Bracket
62 532752118 Mulcher Deflector
63 874180410 Truss Head Screw
65 532213146 Cable Clamp
66 532083816 Screw
- - 532173129 Owner's Manual (English/French)
- - 532162300 Warning Decal
