Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

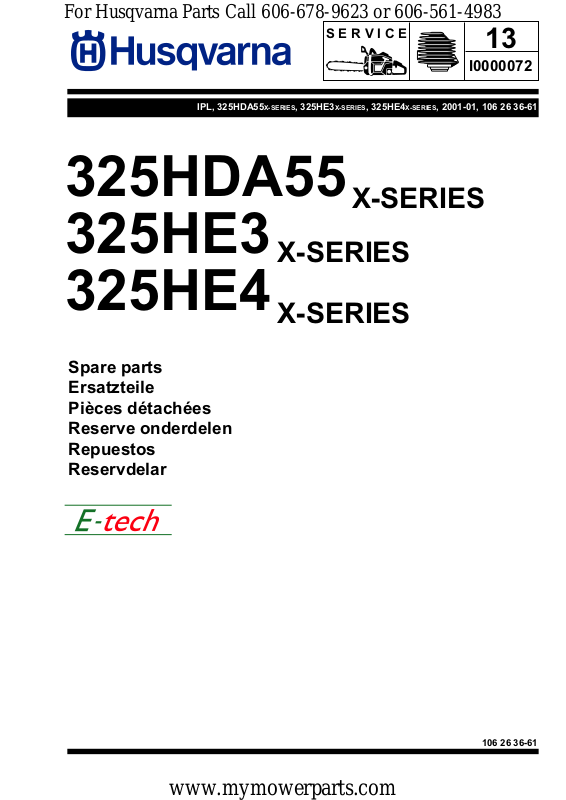

SERVICE
13
I0000072
325HDA55
X-SERIES
325HE3 325HE4
Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar
X-SERIES
X-SERIES
www.mymowerparts.com
106 26 36-61
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
A
537 12 60-01
537 12 59-01
537 12 58-01
*
537 12 57-01
537 12 56-01
*compl 537 12 63-01
537 12 66-01
727 63 70-01
503 23 31-02
537 12 19-01 (325HE3,HE4)
738 88 10-01
537 12 20-01 (325HDA55)
537 12 64-01
537 12 65-01
537 12 54-01(x2)
537 12 53-01
537 12 54-01
537 12 61-01 (x2) 537 12 62-01 (x2)
738 88 10-01
503 23 30-02
537 13 04-01
537 12 53-01
537 12 52-01
537 12 54-01
537 12 48-01
537 12 50-01
537 12 48-01
537 12 47-01
537 12 51-01
537 12 42-01
*
537 12 47-01
*
537 12 43-01
537 12 44-01
537 12 45-01
537 12 46-01
537 12 39-01 537 12 40-01
537 12 30-01
537 15 46-01 537 12 30-01
537 12 31-01
537 12 34-01 (x2)
738 88 10-01
537 12 55-01
537 12 23-01
537 12 22-01
537 12 21-01
537 12 22-01
537 12 23-01
537 12 32-01
531 00 49-57 (x6)
www.mymowerparts.com
537 12 33-01
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
325HDA55
B
537 09 11-01
725 23 78-51
734 11 52-01
537 09 52-01
B
537 08 39-01
325HE3
537 09 10-01
537 08 27-01
503 87 19-03
502 19 71-01
537 08 86-01
503 21 68-16
503 94 03-01
725 23 78-51
537 09 12-01
537 08 39-01
537 09 52-01
503 87 19-03
502 19 71-01
537 08 86-01
www.mymowerparts.com
734 11 52-01
503 21 68-16
503 94 03-01
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
B
325HE4
503 88 88-01
537 08 55-01
503 86 45-01
503 20 07-16
C
537 08 39-01
503 94 10-01
731 23 14-01
537 08 86-01
501 36 11-88 (x4)
537 12 41-01 (325HDA55)
537 12 24-01
537 12 25-01
537 12 25-01
537 12 36-01
501 36 02-05 (x4)
537 12 37-01(x3)
www.mymowerparts.com
501 36 49-38 537 12 38-01
501 36 48-78
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

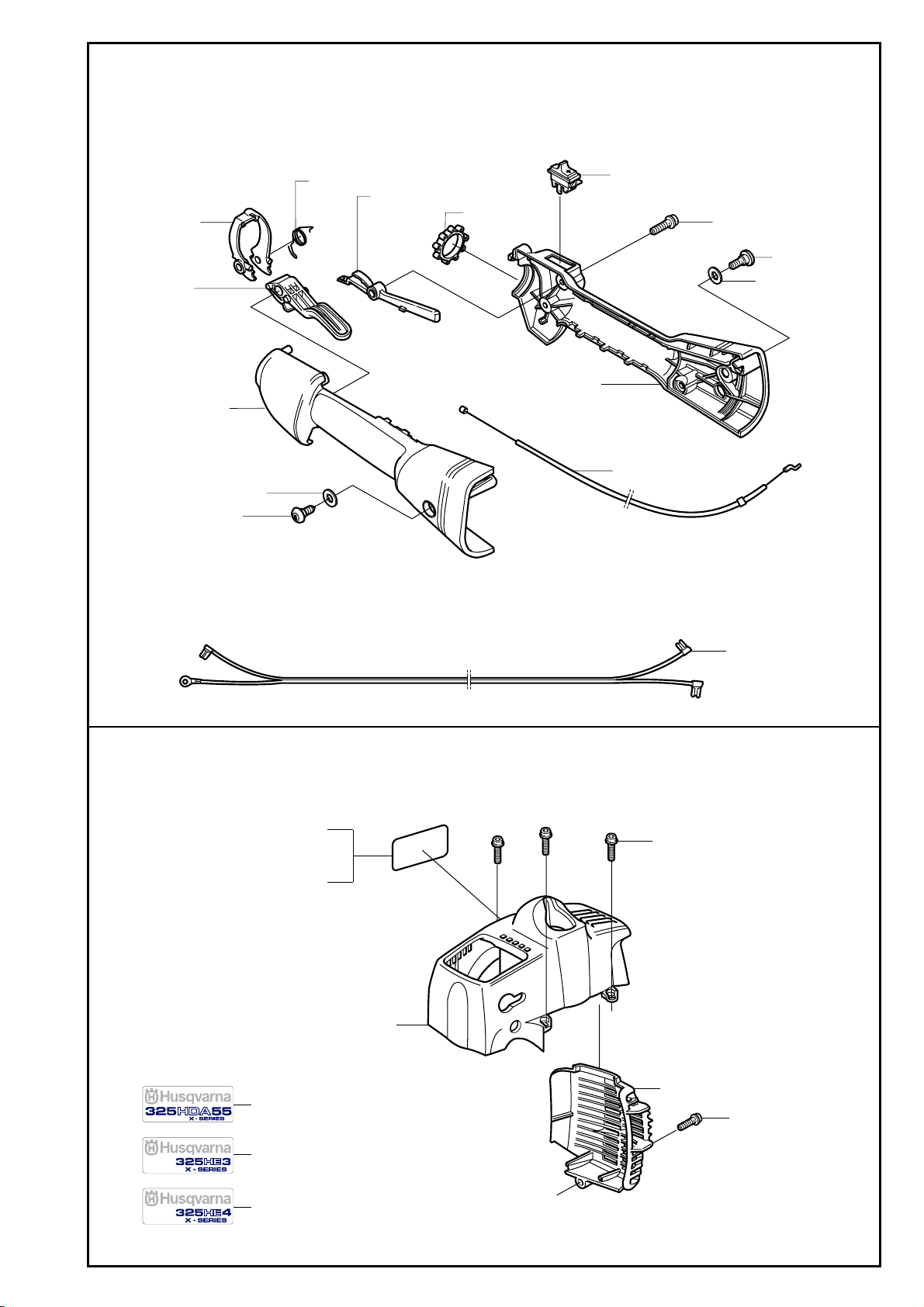

D
503 91 81-01
503 87 79-01
503 99 56-02
503 96 13-01
740 42 06-00
537 01 13-01
503 87 80-01
503 96 14-01
503 99 55-02
503 71 82-01
503 21 66-20 (x5)
503 96 13-01
740 42 06-00
537 05 25-01
E
503 98 12-37 325HDA55 503 98 12-32 325HE3 503 98 12-33 325HE4
503 87 18-01
503 98 12-37 325HDA55
503 87 85-01
503 21 68-20 (x3)
503 87 21-01
503 21 68-20
503 98 12-32 325HE3
503 98 12-33 325HE4
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

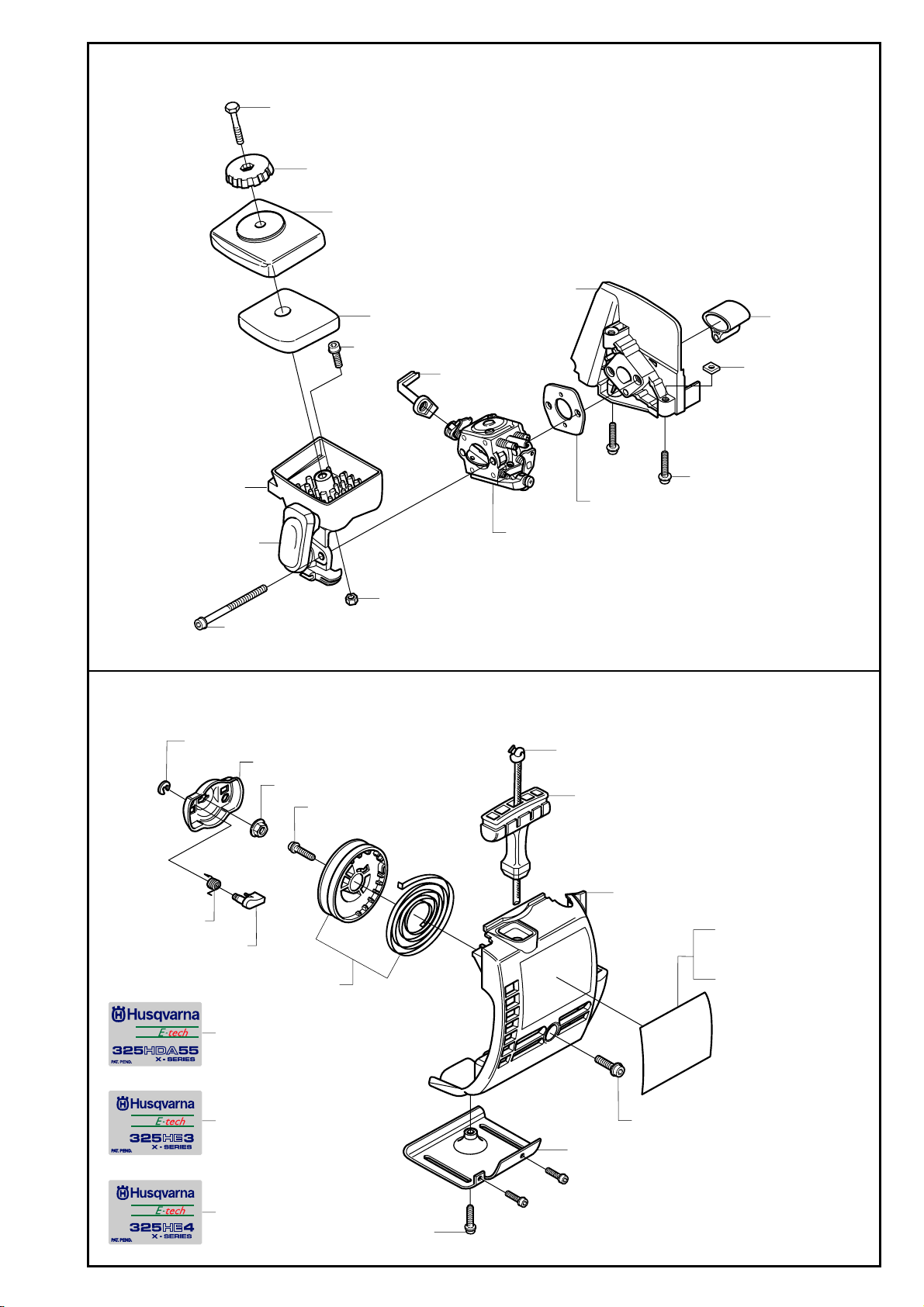

F
502 20 65-03
502 20 40-01
503 88 80-01
503 91 09-01
*compl 503 89 03-01
*503 88 79-01
**compl 503 87 33-02
G
735 31 08-20**
503 21 75-50 (x2)
**
503 88 81-01
503 21 75-16
731 23 14-01*
503 96 25-01
503 28 31-12
503 94 26-01
503 22 65-04 (x2)
503 20 03-25 (x2)
503 49 71-01
*compl 503 85 28-01
503 85 89-01*
**503 87 36-01
**503 87 35-02
731 71 16-51
503 21 77-16*
*503 96 49-01
503 97 98-38 325HDA55
503 97 98-30 325HE3
503 97 98-31 325HE4
503 21 66-20 (x3)
537 00 84-01*
503 85 87-01*
503 97 98-38 325HDA55 503 97 98-30 325HE3 503 97 98-31 325HE4
503 21 68-20
537 03 41-01
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

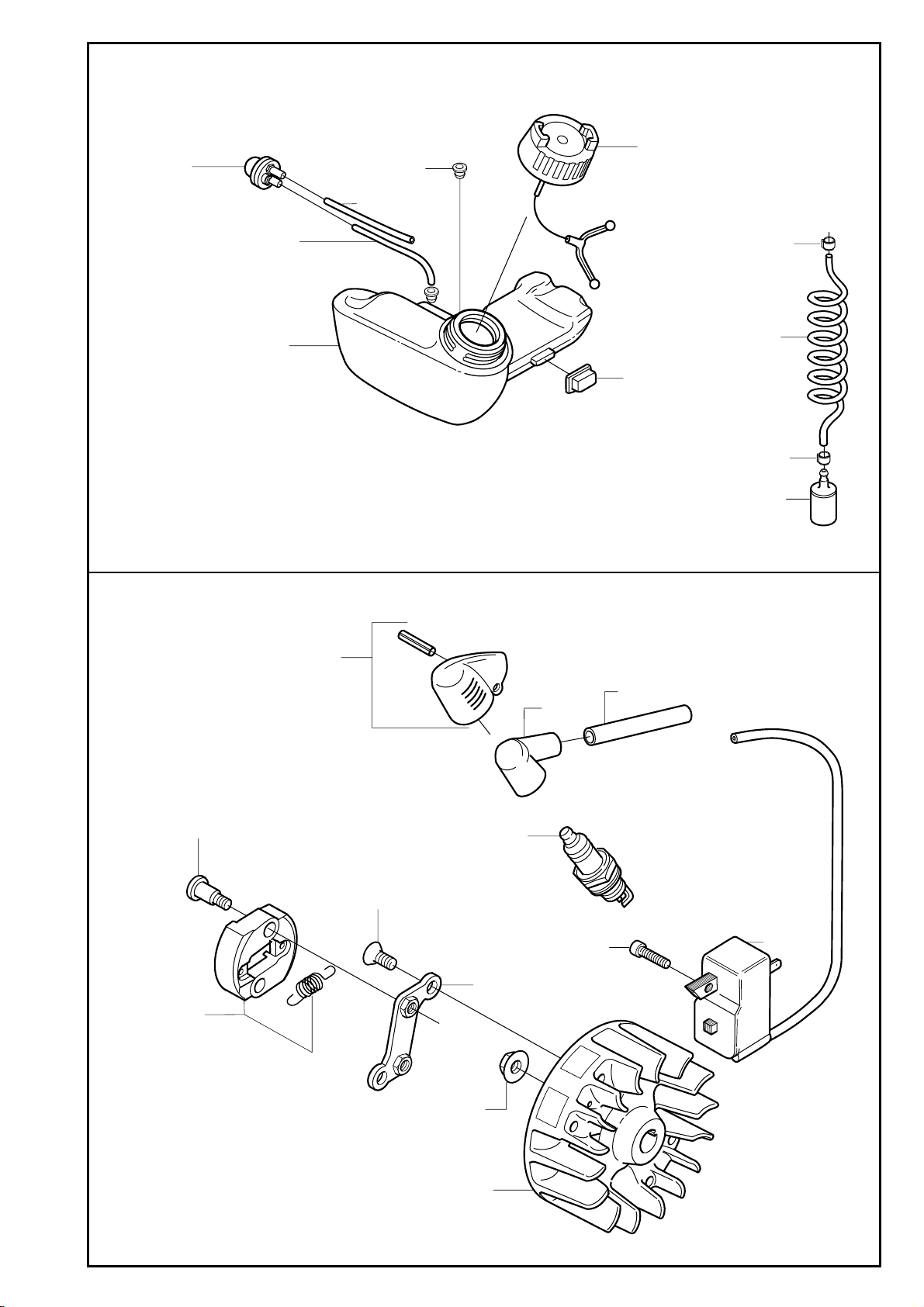

H
503 91 18-02
503 93 66-01
*503 73 58-01 (x2)
537 04 24-01
J
*537 04 24-01
*compl 537 06 86-02
537 04 58-01
537 05 11-01
*503 57 76-01
503 91 10-01 (x4)
*537 05 11-01
*503 44 32-01
* compl 537 13 75-01
*
*
537 00 00-01 (x2)
537 04 01-01
503 23 51-11 NGK BPMR 7A
503 21 48-01 (x2)
537 03 99-01
731 71 16-51
503 87 28-01
503 21 71-16 (x2)
*
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

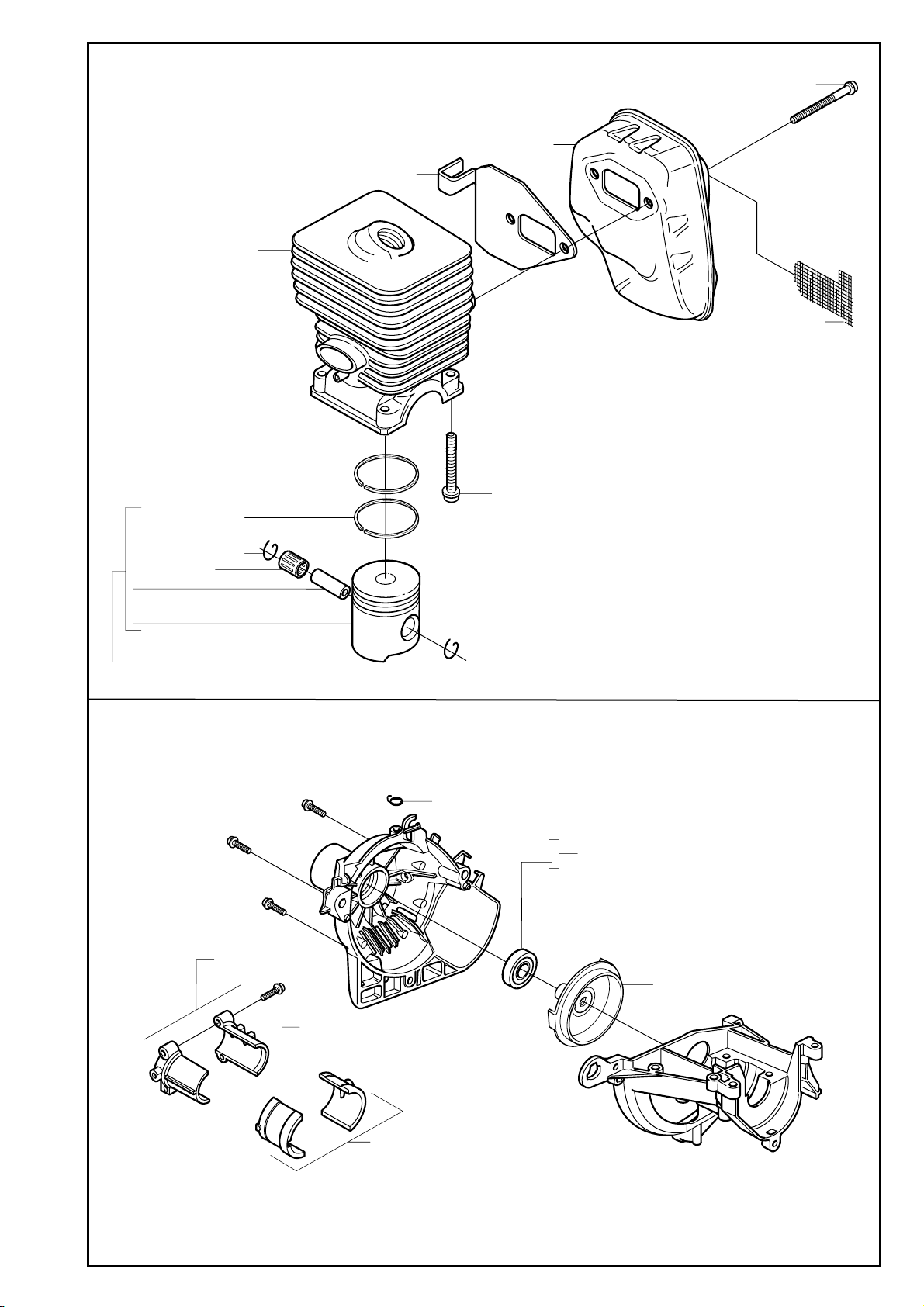

K
**compl 537 03 20-05
503 28 90-41 (x2)
*compl 503 85 27-71
*
537 01 41-01
**
503 20 02-35** (x4)
*503 20 29-50 (x2)
*503 87 17-01
737 44 08-00 (x2) 503 71 22-01
537 01 32-75**
L
*503 21 68-20 (x3)
537 07 36-01
537 04 12-01
537 03 23-01
537 08 86-01
503 21 68-25 (x2)
*compl 537 04 11-01
537 03 24-01
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
M
*compl 503 85 24-74
*503 94 05-01
503 83 61-01 738 21 01-10
503 94 02-01*
*
*503 94 02-01
503 71 22-01
503 94 05-01*
738 21 01-10 503 83 61-01
N

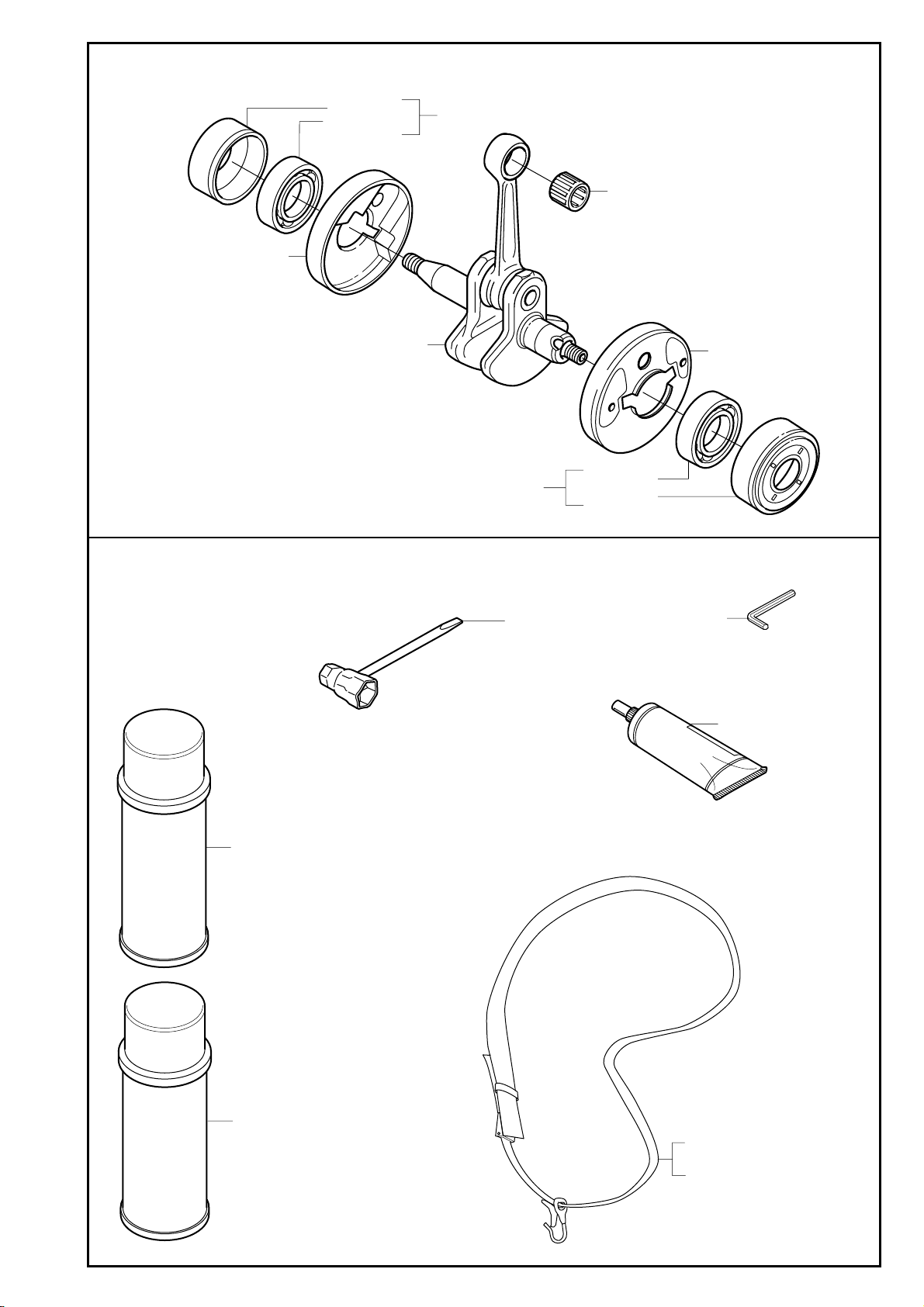

Accessories Zubehöre Accessoires Acessorios Tillbehör
*compl 537 04 07-11
531 00 75-12 UL21
501 69 17-01*
*502 21 58-01
503 98 96-01*
531 00 75-13 UL22
www.mymowerparts.com
503 74 16-01 (325HE4) 503 74 16-02 (325HE4 USA)
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
compl 503 28 31-12
P
537 02 09-01
503 48 18-01
537 02 11-01
503 47 90-01
503 48 19-01 537 14 34-01
537 02 10-01
503 48 05-01 (x2)
503 97 43-01
537 04 89-01
537 02 04-01
503 48 01-01
503 48 00-01
503 66 59-01
537 02 03-01
503 47 97-01

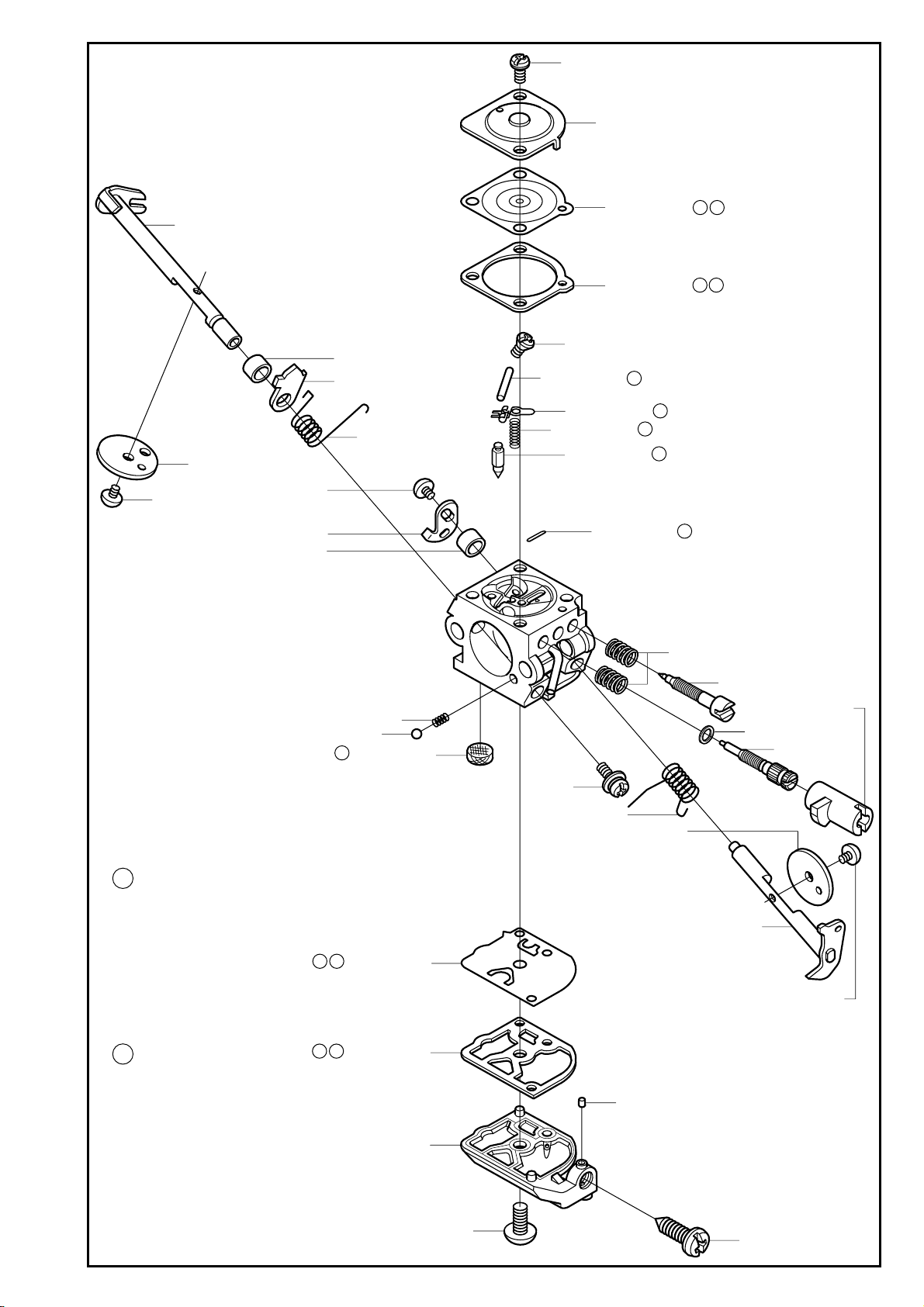

ZAMA C1Q - EL 13
2211
2
2
2
2
537 01 98-01 503 47 89-01
531 00 45-52
1 Set of gaskets Dichtungssatz Juego de juntas Jeu de joints Packningssats
537 01 26-01
537 01 25-01
2
503 53 57-01
21
537 02 00-01
503 75 53-01
537 01 97-01
537 02 08-01
537 01 99-01
2
503 48 08-01
537 02 05-01
537 14 09-01
503 97 40-01
537 02 06-01
537 01 96-01
503 47 92-01
2
531 00 45-53
Repairkit Reparatursatz Juego de reparación Kit de réparation Reparationssats
www.mymowerparts.com
21
537 02 01-01
537 02 02-01
503 47 96-01
503 48 11-01
537 02 07-01
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
MODEL 325HDA55X-SERIES, 325HE3X-SERIES, 325HE4X-SERIES
PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE
501 36 02-05 C 501 36 11-88 C 501 36 48-78 C 501 36 49-38 C 501 69 17-01 N 502 19 71-01 B 502 20 40-01 F 502 20 65-03 F 502 21 58-01 N 503 20 02-35 K
503 20 03-25 F 503 20 07-16 B 503 20 29-50 K 503 21 48-01 J 503 21 66-20 DG 503 21 68-16 B 503 21 68-20 EGL 503 21 68-25 L 503 21 71 -16 J 503 21 75-16 F
503 21 75-50 F 503 21 77-16 G 503 22 65-04 F 503 23 30-02 A 503 23 31-02 A 503 23 51-11 J 503 28 31-12 FP 503 28 90-41 K 503 44 32-01 H 503 47 89-01 P
503 88 81-01 F 503 88 88-01 B 503 89 03-01 F 503 91 09-01 F 503 91 10-01 H 503 91 18-02 H 503 91 81-01 D 503 93 66-01 H 503 94 02-01 M 503 94 03-01 B
503 94 05-01 M 503 94 10-01 B 503 94 26-01 F 503 96 13-01 D 503 96 14-01 D 503 96 25-01 F 503 96 49-01 G 503 97 40-01 P 503 97 43-01 P 503 97 98-30 G
503 97 98-31 G 503 97 98-38 G 503 98 12-32 E 503 98 12-33 E 503 98 12-37 E 503 98 96-01 N 503 99 55-02 D 503 99 56-02 D 531 00 45-52 P 531 00 45-53 P
537 07 36-01 L 537 08 27-01 B 537 08 39-01 B 537 08 55-01 B 537 08 86-01 BL 537 09 10-01 B 537 09 11-01 B 537 09 12-01 B 537 09 52-01 B 537 12 19-01 A
537 12 20-01 A 537 12 21-01 A 537 12 22-01 A 537 12 23-01 A 537 12 24-01 C 537 12 25-01 C 537 12 30-01 A 537 12 31-01 A 537 12 32-01 A 537 12 33-01 A
537 12 34-01 A 537 12 36-01 C 537 12 37-01 C 537 12 38-01 C 537 12 39-01 A 537 12 40-01 A 537 12 41-01 C 537 12 42-01 A 537 12 43-01 A 537 12 44-01 A
503 47 92-01 P 503 47 96-01 P 503 47 97-01 P 503 48 00-01 P 503 48 01-01 P 503 48 05-01 P 503 48 08-01 P 503 48 11-01 P 503 48 18-01 P 503 48 19-01 P
503 49 71-01 F 503 53 57-01 P 503 57 76-01 H 503 66 59-01 P 503 71 22-01 KM 503 71 82-01 D 503 73 58-01 H 503 74 16-01 N 503 74 16-02 N 503 75 53-01 P
503 83 61-01 M 503 85 24-74 M 503 85 27-71 K 503 85 28-01 G 503 85 87-01 G 503 85 89-01 G 503 86 45-01 B 503 87 17-01 K 503 87 18-01 E 503 87 19-01 B
531 00 49-57 A 531 00 75-12 N 531 00 75-13 N 537 00 00-01 J 537 00 84-01 G 537 01 13-01 D 537 01 25-01 P 537 01 26-01 P 537 01 32-75 K 537 01 41-01 K
537 01 96-01 P 537 01 97-01 P 537 01 98-01 P 537 01 99-01 P 537 02 00-01 P 537 02 01-01 P 537 02 02-01 P 537 02 03-01 P 537 02 04-01 P 537 02 05-01 P
537 02 06-01 P 537 02 07-01 P 537 02 08-01 P 537 02 09-01 P 537 02 11-01 P 537 03 20-05 K 537 03 23-01 L 537 03 24-01 L 537 03 41-01 G 537 03 99-01 J
537 12 45-01 A 537 12 46-01 A 537 12 47-01 A 537 12 48-01 A 537 12 50-01 A 537 12 51-01 A 537 12 52-01 A 537 12 53-01 A 537 12 54-01 A 537 12 55-01 A
537 12 56-01 A 537 12 57-01 A 537 12 58-01 A 537 12 59-01 A 537 12 60-01 A 537 12 61-01 A 537 12 62-01 A 537 12 63-01 A 537 12 64-01 A 537 12 65-01 A
537 12 66-01 A 537 13 04-01 A 537 13 75-01 J 537 14 09-01 P 537 14 34-01 P 537 15 45-01 A 537 15 46-01 A 725 23 78-51 B 727 63 70-01 A 731 23 14-01 BF
503 87 21-01 E 503 87 28-01 J 503 87 33-02 G 503 87 35-02 G 503 87 36-01 G 503 87 79-01 D 503 87 80-01 D 503 87 85-01 D 503 88 79-01 F 503 88 80-01 F
537 04 01-01 J 537 04 07-11 N 537 04 11-01 L 537 04 12-01 L 537 04 24-01 H 537 04 58-01 J 537 04 89-01 P 537 05 11-01 H 537 05 25-01 D 537 06 86-02 H
731 71 16-51 GJ 734 11 52-01 B 735 31 08-20 G 737 44 08-00 K 738 21 01-10 M 738 88 10-01 A 740 42 06-00 D
