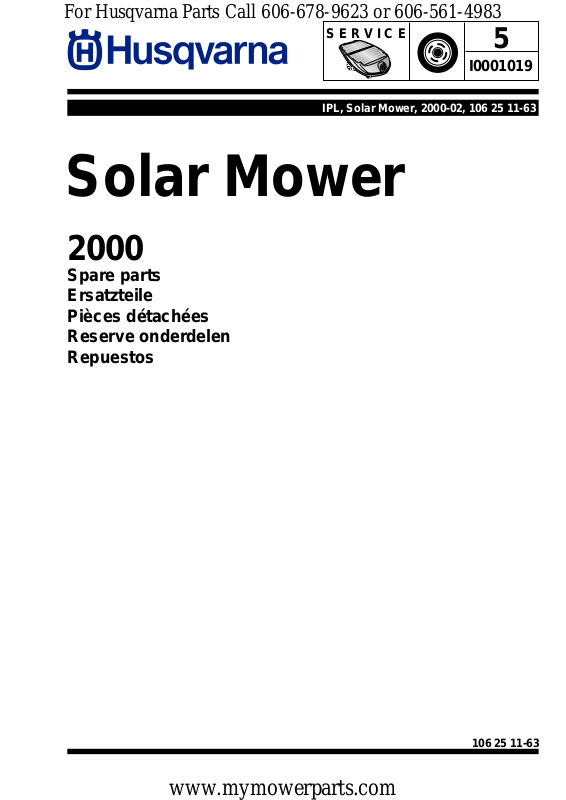

IPL, Solar Mower, 2000-02, 106 25 11-63
Solar Mower
2000
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
www.mymowerparts.com
106 25 11-63
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
A
compl 535 05 04-01
Body Assembly Complete
**compl 535 05 03-01
Solar Panel, Front
* compl 535 05 02-01
Solar Panel, Rear
** ***
** ***
* ***
535 06 86-01
Bumper, Panel
535 04 95-02
Screw
535 06 85-01
Washer
***compl 535 07 07-01
535 06 65-01* **
Hinge, Upper Panel
535 06 65-02* **
Hinge, Lower Panel
* ***
* ***
Set, Body Strip
B
535 08 51-01
Harness, Collision Sensor
compl 535 05 45-01**
Latch, Rear Panel
535 03 28-01
LH Cover, Collision Tower
535 05 83-01
Microswitch, Collision
535
04
95-03
Bolt
05 88-01
535
Plate, Attachment
732 25
Locknut
722 78 22-09* ** (x4)
Pop Rivet
734 11 23-71* ** (x4)
Washer
535 05 47-01*
Switch, Panel
535 05 47-02**
Magnet, Panel Switch
12-01
535 03 31-01
Nut, Adjuster
535 03 30-01
Spring
535 03 37-01
Bolt, Adjuster
535 05 87-01
Lever, Actuator
535 03 24-01
Tower, Collision
535 03 27-01
RH Cover, Collision Tower
www.mymowerparts.com
535 03 61-01 (x2)
Screw, Tower Cover
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
C
535 06 43-01
Wire, Ground
535 06 45-01
Buzzer, External
535 08 85 -01
Control Board
535 06 14-02
LH Endcap, Wheel Motor
535 07 63-01
Harness, Wheel Motor
535 08 87-01
Harness, Tilt Sensor
535 09 02-01
Sensor, Tilt
535 05 86-01
Chassis
535 04 95-02 (x3)
Screw
734 11 37-41
Screw, Body
535 04 95-02 (x3)
Screw
732 25 12-01 (x3)
Locknut
535 06 14-01
RH Endcap, Wheel Motor
535 03 61-01 (x8)
Screw
735 21 36-01 (x2)
Star Washer
535 04 97-01
Rear Wheel
535 03 11-01 (x2)
Spring, Board Retainer
535 04 95-02 (x2)
Screw
3
1
4
5
2
6
535 08 37-01
Keyboard
D
535 06 48-01
Plate, On/Off
732 25 12-01 (x2)
Locknut
1
2
3
5
4
67
90
8
#
S
T
O
P
ON
535 07 71-01
Spacer
*535 06 44-01
Switch Assembly
535 08 20-01
Wheel Motor, L&R
*
*
535 06 25-01
Cover. Rear Wheel
725 64 49-01
Bolt, Rear Wheel
535 03 22-02
Plate, Chassis
535 04 95-02 (x3)
Screw
www.mymowerparts.com
535 06 20-01
Battery
535 06 19-01
Cover, Battery
535 03 61-01
Screw
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

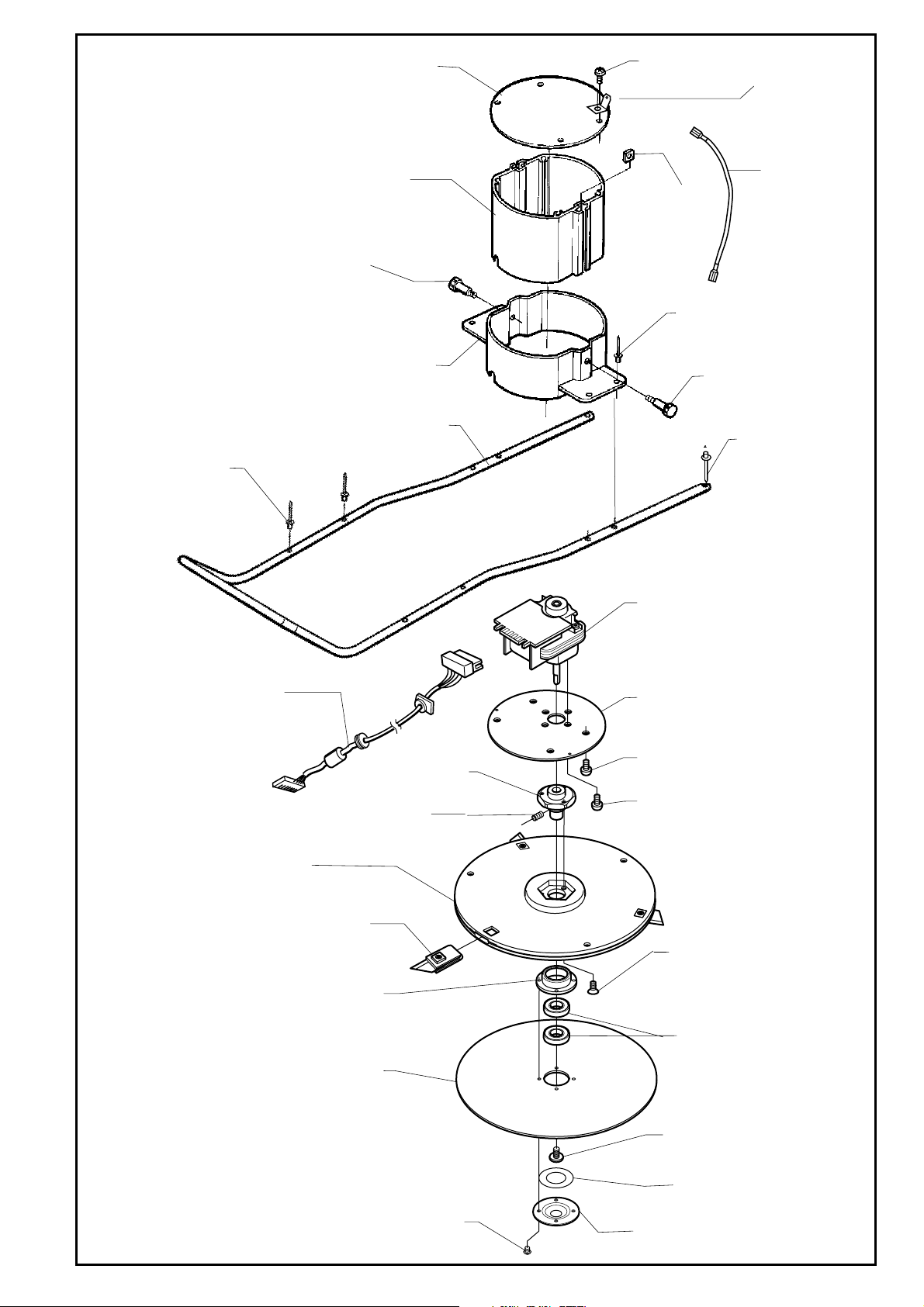

E
722 78 33-09 (x4)
Pop Rivet
535 03 52-01
Cover, Cutting Motor
535 05 50-01
Housing, Cutting Motor
535 03 56-01
Bolt, Height Adjuster
535 03 51-01
Support, Motor
535 06 46-01
Tube, Frame
535 03 61-01 (x4)
Screw
535 04 20-01 (x2)
Nut, Adjuster
722 79 30-09 (x4)
Pop Rivet
535 03 56-01(x2)
Bolt, Height Adjustment
535 03 95-01
Terminal, Ground
535 05 55-01
Ground Wire
Cutting Motor
722 78 22-09 (x2)
Pop Rivet
535 05 60-01
Harness, Cutting Motor
*compl 535 03 58-01
Cutting Disc Assembly
*535 04 88-01 (x3)
Cutting Blade ( Set 3 )
728 82 83-01
Setscrew, Hub
535 07 58-01
Holder, Bearing
535 07 59-01
Plate, Skid
535 07 55-01
Hub, Cutting Disc
535 03 49-01
Cutting Motor
535 07 53-01
Cover, Cutting Motor
535 03 61-01 (x4)
Screw, Cover
535 03 50-01 (x4)
Screw, Motor
724 32 87-51 (x3)
Screw
535 07 57-02 (x2)
Bearing, Skid Plate
535 04 95-01(x4)
Screw
www.mymowerparts.com
535 07 60-01
Bolt, Bearing
535 08 25-01
Seal, Skid Plate
535 08 15-01
Cover, Skid Plate
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

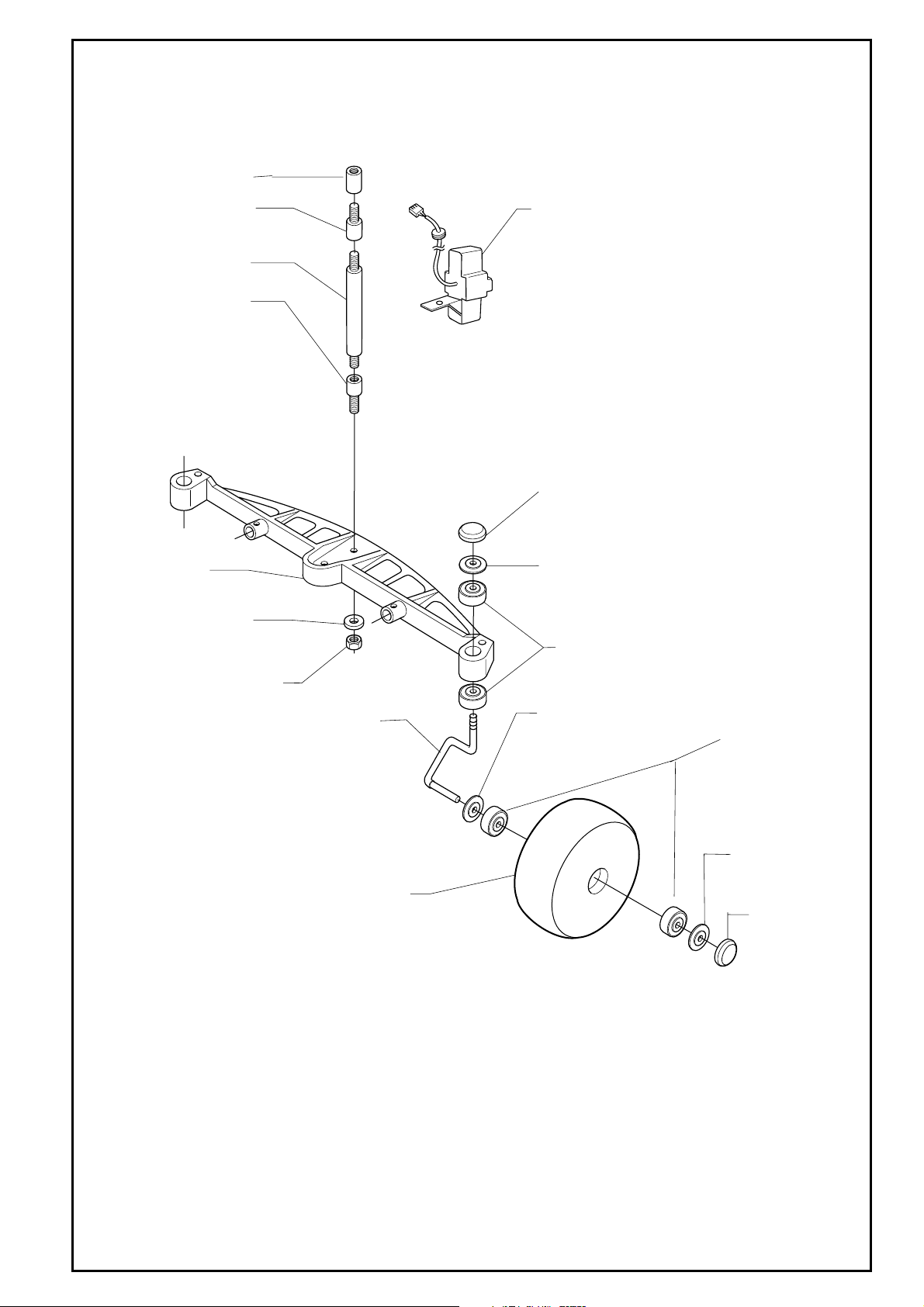

F
535 05 11-01
Spacer, Damper
535 05 77-02
Damper, Upper
535 05 90-01
Post, Damper
535 05 77-01
Damper, Lower
535 06 50-01
Sensor, Field
535 09 07-01
Beam, Front Axle
734 11 37-41
Flat Washer
732 25 12-01
Locknut
*535 08 77-01
Axle, Front Wheel
*535 08 76-01
Wheel, Front
535 09 12-01*
Retainer, Axle Cap
535 08 78-01*
Washer, Sealing
738 22 95-55
Bearing, Axle
535 08 78-01*
Washer, Sealing
738 22 95-55*
Bearing, Wheel
535 08 78-01*
Washer, Sealing
535 09 12-01*
Retainer, Axle Cap
*compl 535 09 24-01
Front Wheel Assembly, With Axle
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

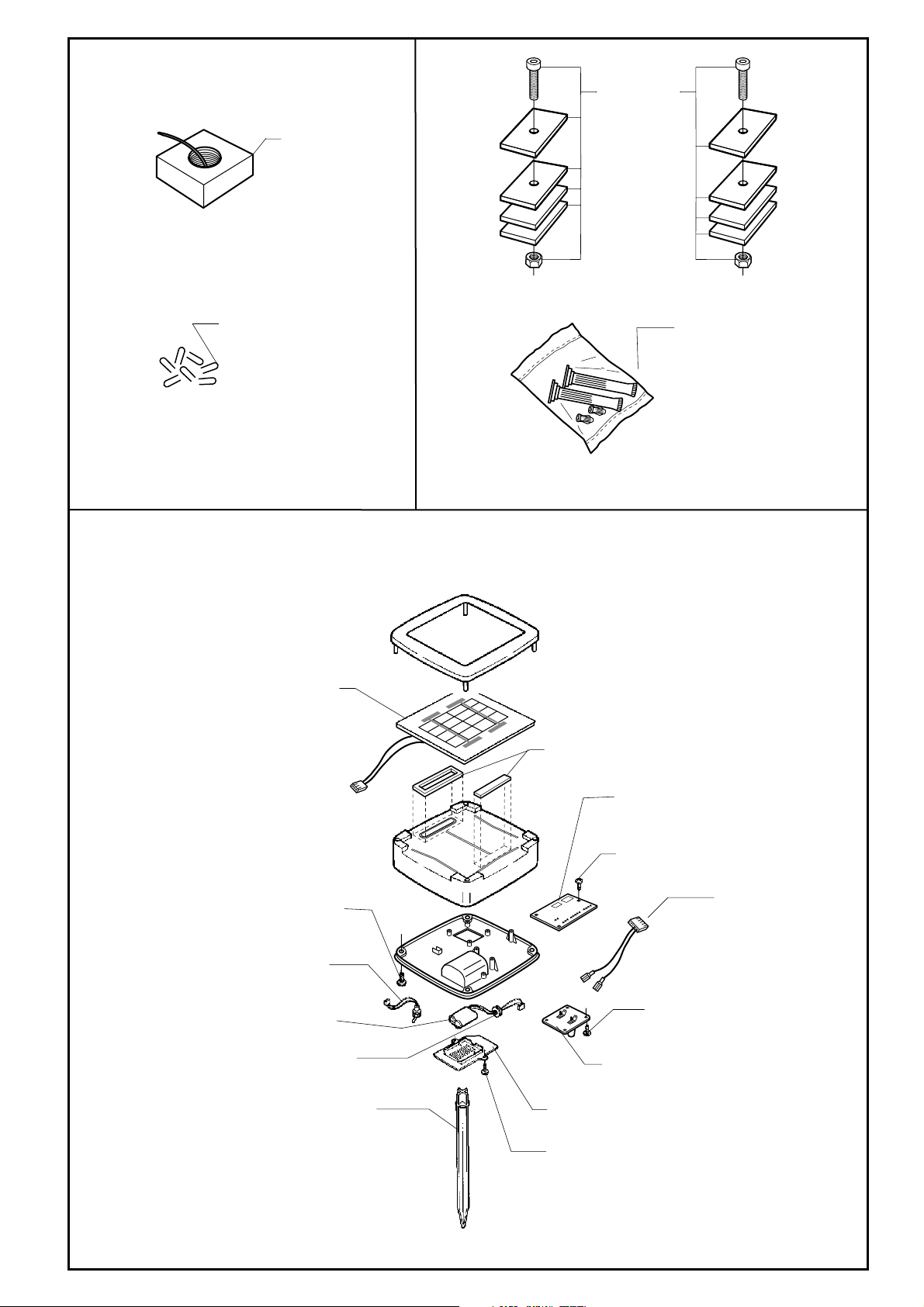

J
535 04 16-01
Boundary Wire, 750'
535 05 05-01
Staples, Boundary Wire (200 )
H
535 09 11-01
Weight Kit
535 04 43-01
Waterproof DBY Connectors
G
compl 535 05 67-01
Solar Generator Assembly
535 06 57-01
Panel, Solar
729 52 94-71 (x4)
Screw
535 06 56-01
Switch, Loop Test
535 06 11-01
Pads, Support
535 06 37-01
Board, Generator Control
729 52 24-71 (x3)
Screw
535 06 58-01
Harness, Generator
535 05 85-01
Battery, Generator
501 43 00-01
Grommet, Wire
535 04 05-01
Stake, Generator
535 04 07-01
Cover, Battery
729 52 24-71 (x2)
Screw, Cover
www.mymowerparts.com
729 52 24-71 (x4)
Screw
535 04 79-01
Mounting Plate
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Solar Mower
PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE
501 43 00-01 G
505 69 99-90 J N
535 03 11-01 C
535 03 22-02 D
535 03 24-01 B
535 03 27-01 B
535 03 28-01 B
535 03 30-01 B
535 03 31-01 B
535 03 37-01 B
535 03 49-01 E
535 03 50-01 E
535 03 51-01 E
535 03 52-01 E
535 03 56-01 E
535 03 58-01 E
535 03 61-01 BCE
535 03 95-01 E
535 04 05-01 G
535 04 07-01 G
535 04 16-01 J
535 04 20-01 E
535 04 43-01 H
535 04 79-01 G
535 04 88-01 E
535 04 95-01 E
535 04 95-02 ACD
535 04 95-03 B
535 04 97-01 C
535 05 02-01 A
535 07 07-01 A
535 07 53-01 E
535 07 55-01 E
535 07 57-02 E
535 07 58-01 E
535 07 59-01 E
535 07 60-01 E
535 07 71-01 C
535 08 15-01 E
535 08 20-01 C
535 08 25-01 E
535 08 37-01 C
535 08 51-01 B N
535 08 76-01 F N
535 08 77-01 F N
535 08 78-01 F N
535 08 85-01 C N
535 08 87-01 C N
535 09 02-01 C N
535 09 07-01 F N
535 09 11-01 H N
535 09 12-01 F N
535 09 24-01 F N
722 78 22-09 AE
722 78 33-09 E
722 79 30-09 E
724 32 87-51 E
725 64 49-01 C
728 82 83-01 E
729 52 24-71 G
535 05 03-01 A
535 05 04-01 A
535 05 05-01 J
535 05 11-01 F
535 05 13-01 C
535 05 45-01 A
535 05 47-01 A
535 05 47-02 A
535 05 50-01 E
535 05 55-01 E
535 05 60-01 E
535 05 67-01 G
535 05 77-01 F
535 05 77-02 F
535 05 83-01 B
535 05 85-01 G
535 05 86-01 C
535 05 87-01 B
535 05 88-01 B
535 05 90-01 F
535 06 11-01 G
535 06 14-01 C
535 06 14-02 C
535 06 19-01 D
535 06 20-01 D
535 06 25-01 C
535 06 37-01 G
535 06 43-01 C
535 06 44-01 C
535 06 45-01 C
729 52 94-71 G
732 25 12-01 BCF
734 11 23-71 A
734 11 37-41 CF
735 21 36-01 C N
738 22 95-55 F
535 06 46-01 E
535 06 48-01 C
535 06 50-01 F
535 06 56-01 G
535 06 57-01 G
535 06 58-01 G
535 06 65-01 A
535 06 65-02 A
535 06 85-01 A
535 06 86-01 A
N = New part
Neues teil
Nouvelle piece
Nueva pieza
Ny detalj
www.mymowerparts.com
