Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
SERVICE
5
I0001018
IPL, Auto Mower, 2000-02, 106 25 12-63
Auto Mower
2000
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
www.mymowerparts.com
106 25 12-63
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
*compl 535 08 73-02 (US)
A
535 07 60-01 (x3)
Screw
*535 08 13-01
Bumper, Rear Panel
Body Assembly
535 05 47-01*
Panel Switch
722 78 22-09*
Pop Rivet
* **535 07 08-01
Body Strip Set
* **
Charger Bolt Nut
*731 23 14-01
535 07 13-01*
Charger Contact Bolt
535 05 82-01*
Insulator washer
535 08 09-01 (x2)*
Pop Rivet
*compl 535 08 63-02 (US)
B
Rear Panel Assembly
535 06 81-01
Spring, Panel
535 08 56-01
Damper Pad, Handle
C
734 11 23-71*
Washer
*
*535 06 72-01
Switch Cover
535 03 28-01
LH Cover, Collision Tower
535 04 95-03
Bolt
*734 11 46-01 (x2)
Washer
725 23 33-71*
Bolt, Panel Pivot
535 07 02-01
Pivot Spacer
732 25 14-01
Locknut
535 06 78-01 (x3) *
Rivet, Push
535 05 57-01
Plate, Attachment
732 25 12-01
Locknut
535 07 72-01*
Front Protector
Pad
535 05 47-02*
Magnet, Panel Switch
722 78 22-09*
Pop Rivet
734 11 23-71*
Washer
535 05 83-01
Microswitch, Collision
535 08 51-01
Harness, Collision Sensor
535 05 87-01
www.mymowerparts.com
535 03 37-01
Bolt, Adjuster
Lever, Actuator
535 03 31-01
Nut, Adjuster
535 03 30-01
Spring
(x2) 535 03 61-01
Screw, Tower Cover
535 03 24-01
Tower, Collision
535 03 27-01
RH Cover, Collision Tower
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
D
535 06 14-04
LH Endcap, Chassis
535 04 95-02
Screw
535 06 74-01
Ground Wire
535 05 86-01
Chassis
535 04 95-02
Screw
732 25 12-01
Locknut
535 04 95-05
Screw, Tower/Rectifier
535 08 74-01
Fiber washer
734 11 37-41
Steel washer
535 06 14-03
RH Encap, Chassis
535 04 95-02
Screw
535 03 61-01 (x8)
Screw, Endcap
735 21 36-01 (x2)
Star Washer
732 25 12-01
Locknut
535 06 45-01
Buzzer, External
535 08 82-01
Control Board
535 03 11-01 (x2)
Spring, Board Retainer
535 04 95-02 (x2)
Screw
3
1
4
5
2
6
535 08 37-01
Keypad
E
535 06 48-01
Plate, On/Stop
732 25 12-01 (x2)
Locknut
1
2
3
5
4
67
90
8
#
535 07 63-01
Harness, Wheel Motor
S
TO
P
ON
535 07 71-01
Spacer
*535 06 44-01
Switch Assembly
535 06 80-01
Harness, Rectifier
535 08 20-01
Wheel Motor, L & R
*
*
535 04 95-02 (x3)
Screw
535 04 97-01
Rear Wheel
535 06 25-01
Cover, Rear Wheel
725 64 49-01
Bolt, Rear Wheel
535 05 09-01
Plate, Chassis
535 05 44-01
Harness, Charger Pin
535 08 87-01
Harness, Tilt Sensor
535 09 04-01
Rectifier Board
535 04 95-02 (x4)
Screw
535 09 02-01
Sensor Assembly, Tilt
535 06 36-01
Battery
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
535 03 61-01 (x4)

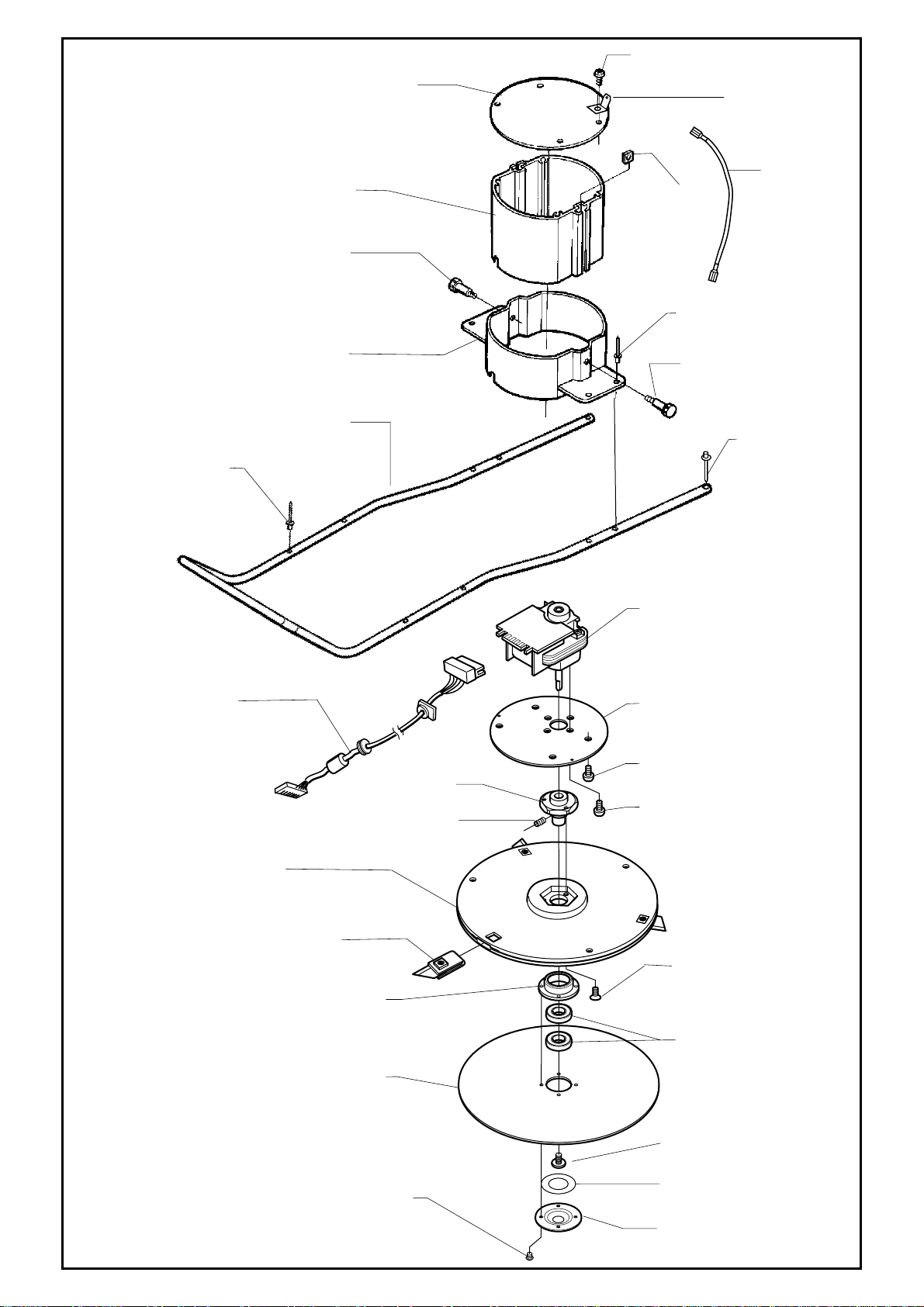

F
535 03 52-01
Cover, Cutting Motor
535 05 50-01
Housing, Cutter Motor
535 03 56-01
Bolt, Height Adjustment
535 03 51-01
Support, Motor
535 06 46-01
Tube, Frame
722 78 33-09 (x4)
Pop Rivet
Screw
535 03 95-01
Terminal, Ground
535 04 20-01 (x2)
Nut, Adjuster
722 79 30-09 (x4)
Pop Rivet
535 03 56-01
Bolt, Height Adjustment
722 78 22-09 (x2)
Pop Rivet
535 05 55-01
Ground Wire
535 05 60-01
Harness, Cutting Motor
*compl 535 03 58-01
Cutting Disc Assembly
*535 04 88-01 (x3)
Cutting Blade (Set 3)
535 07 55-01
Hub, Cutting Disc
728 82 83-01
Setscrew, Hub
535 07 58-01
Holder, Bearing
535 03 49-01
Cutting Motor
535 07 53-01
Cover/Mount, Cutting Motor
535 03 61-01 (x4)
Screw, Housing
535 03 50-01 (x4)
Screw, Motor
724 32 87-51 (x3)
Screw
535 07 57-02 (x2) US
Bearing, Skid Plate
535 07 59-01
Plate, Skid
535 04 95-01(x4)
Screw
www.mymowerparts.com
535 07 60-01
Screw
535 08 25-01
Seal, Cover
535 08 15-01
Cover, Bearing/Skid Plate
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

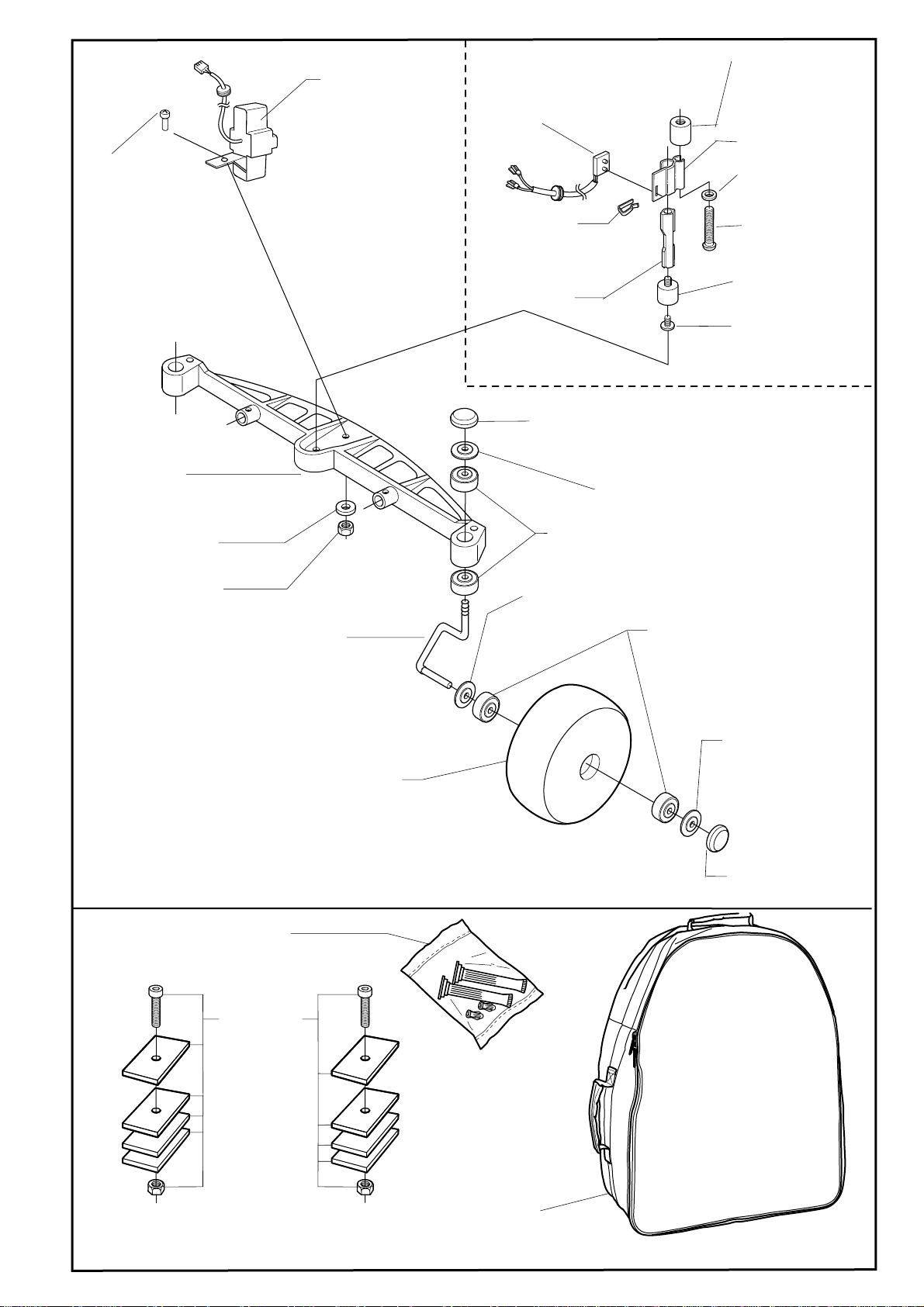

G
**535 04 95 05
Screw
535 09 07-01
Beam, Front Axle
734 11 37-41
Washer
535 06 50-01
Sensor, Field
**compl 535 09 13-01 (US)
Assembly, Lift Sensor
535 08 50-01**
Microswitch, Lft Sensor
**535 08 98-01
Clip, Retainer
**535 08 45-01
Post, Slide
535 09 12-01*
Retainer, Axle Cap
535 08 78-01*
Washer, Sealing
738 22 95-55
Bearing, Axle
535 09 14-01**
Damper, Upper
535 08 44-01**
Bracket, Switch
535 09 18-01**
Washer
535 09 16-01**
Bolt, Damper
535 09 15-01**
Damper, Upper
535 09 16-02**
Screw, Damper
732 25 12-01
Locknut
*compl 535 09 24-01
Front Wheel Assembly w/axle
J
535 04 43-01
Waterproof DBY Connector
535 09 11-01
Weight Kit
*535 08 77-01
Axle, Front Wheel
*535 08 76-01
Front Wheel
535 08 78-01*
Washer, Sealing
738 22 95-55*
Bearing, Axle
535 08 78-01*
Washer, Sealing
535 09 12-01*
Retainer, Axle Cap
505 69 99 90
Storage & Transport Bag
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

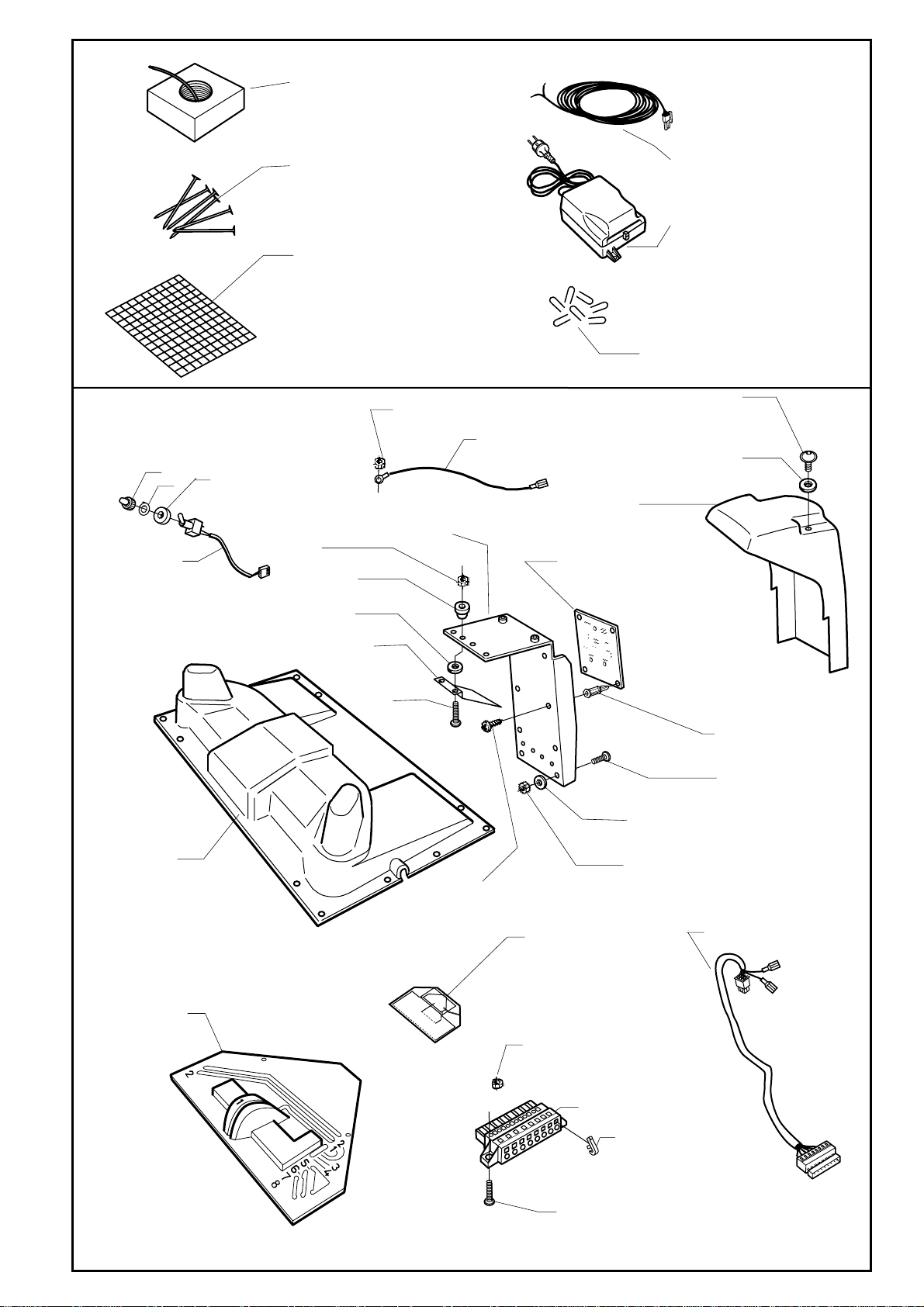

K
*compl 535 09 10-01
H
*535 06 56-01
Switch Assembly
Charge Station Assembly
*
*
535 07 71-01
Spacer
535 04 16-01
Boundary Wire, 750'
535 08 89-01
Staples, Charge Station (6)
535 08 79-01
Ground Mesh, Charger
732 25 14-01
Locknut
535 05 33-01
731 23 14-01
Nut
506 55 06-01
Insulator
506 55 07-01
Insulator
535 05 32-01
Plate, Charge
Tower, Charge Station
535 06 16-01
Wire, Charger Post
535 05 34-01
Cover, Charge Tower
535 08 17-01
Control Board, Charge Station
535 07 89 -01
Power Cable, Charge Station
535 07 88-01
Transformer
535 05 05-01
Staples, Boundary Wire (200)
535 07 60-01
Screw, Cover
535 08 14-01
Washer, Nylon
US
535 07 83-01
Platform, Charge Station
535 07 82-01
Base, Charger
535 03 39-02
Screw
729 57 09-01
Screw
(x4)
535 07 84-01
Decal, Instruction
731 23 09-01
Nut
535 08 96-01
Wire Connector, Base
734 11 46-01
Washer
731 23 14-01
Nut
(x2)
535 06 73-01 (x4)
Standoff, Board
535 03 39-01
Screw
(x4)
(x4)
535 08 97-01
Harness, Charge Station
(x4)
535 08 12-01 (x8)
Lever, Release
724 11 95-01 (x2)
Screw
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Auto Mower
PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE
505 69 99-90 J N
506 55 06-01 H
506 55 07-01 H
535 03 11-01 D
535 03 24-01 C
535 03 27-01 C
535 03 28-01 C
535 03 30-01 C
535 03 31-01 C
535 03 37-01 C
535 03 39-01 H
535 03 39-02 H
535 03 49-01 F
535 03 50-01 F
535 03 51-01 F
535 03 52-01 F
535 03 56-01 F
535 03 58-01 F
535 03 61-01 CDF
535 03 95-01 F
535 04 16-01 K
535 04 20-01 F
535 04 43-01 J
535 04 88-01 F
535 04 95-01 F
535 04 95-02 DE
535 04 95-03 C
535 04 95-05 DG N
535 04 97-01 D
535 05 05-01 K
535 07 57-01 F
535 07 57-02 F N
535 07 58-01 F
535 07 59-01 F
535 07 60-01 AFH
535 07 63-01 D
535 07 71-01 DH
535 07 72-01 A
535 07 82-01 H
535 07 83-01 H
535 07 84-01 H
535 07 85-01 K
535 07 86-01 K
535 07 87-01 K
535 07 88-01 K
535 07 89-01 K
535 08 09-01 A
535 08 12-01 H
535 08 13-01 A
535 08 14-01 H
535 08 15-01 F
535 08 17-01 H
535 08 20-01 D
535 08 25-01 F
535 08 37-01 D
535 08 44-01 G N
535 08 45-01 G N
535 08 50-01 G N
535 08 51-01 C N
535 08 56-01 B N
732 25 14-01 BH
734 11 23-71 AB
734 11 37-41 DG
734 11 46-01 AH N
735 21 36-01 D N
738 22 95-55 G N
535 05 09-01 E
535 05 32-01 H
535 05 33-01 H
535 05 34-01 H
535 05 44-01 E
535 05 47-01 A
535 05 47-02 B
535 05 50-01 F
535 05 55-01 F
535 05 57-01 C
535 05 60-01 F
535 05 77-01 G
535 05 78-01 G
535 05 82-01 A
535 05 83-01 C
535 05 86-01 D
535 05 87-01 C
535 05 91-01 G
535 06 14-03 D
535 06 14-04 D
535 06 16-01 H
535 06 25-01 D
535 06 36-01 E
535 06 44-01 D
535 06 45-01 D
535 06 46-01 F
535 06 48-01 D
535 06 50-01 G
535 06 56-01 H
535 06 72-01 B
535 08 63-01 B N
535 08 63-02 B N
535 08 73-01 A N
535 08 73-02 A N
535 08 74-01 D N
535 08 76-01 G N
535 08 77-01 G N
535 08 78-01 G N
535 08 79-01 K N
535 08 82-01 D N
535 08 87-01 E N
535 08 88-01 K N
535 08 96-01 H N
535 08 97-01 H N
535 08 98-01 G N
535 09 02-01 E N
535 09 04-01 E N
535 09 07-01 G N
535 09 10-01 H N
535 09 11-01 J N
535 09 12-01 G N
535 09 13-01 G N
535 09 14-01 G N
535 09 15-01 G N
535 09 16-01 G N
535 09 16-02 G N
535 09 18-01 G N
535 09 24-01 G N
722 78 22-09 ABF
722 78 33-09 F
535 06 73-01 H
535 06 74-01 D
535 06 78-01 B
535 06 80-01 E
535 06 81-01 B
535 07 02-01 B
535 07 08-01 A
535 07 13-01 A
535 07 53-01 F
535 07 55-01 F
N = New part
Neues teil
Nouvelle piece
Nueva pieza
Ny detalj
722 79 30-09 F
724 11 95-01 H
724 32 87-51 F
725 23 33-71 B
725 64 49-01 D
728 82 83-01 F
729 57 09-01 H
731 23 09-01 H
731 23 14-01 AH
732 25 12-01 CDG
