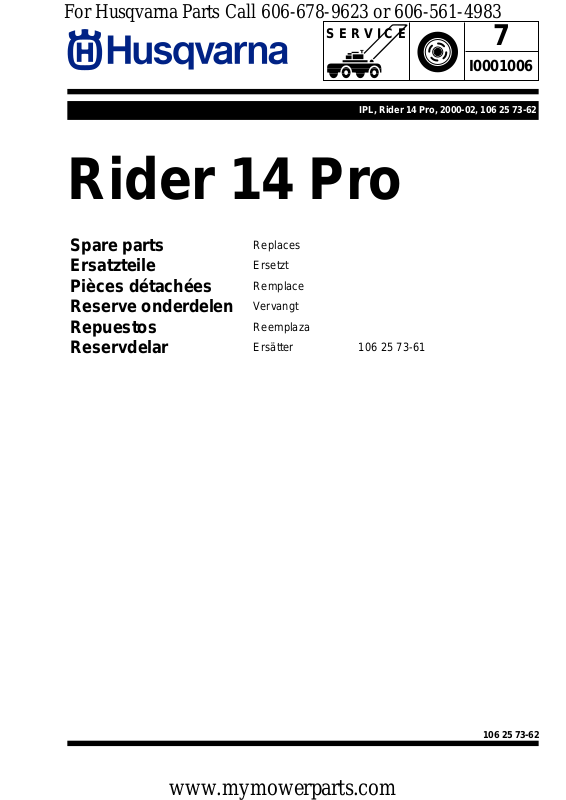

SERVICE

IPL, Rider 14 Pro, 2000-02, 106 25 73-62

Rider 14 Pro

Spare parts Ersatzteile Pièces détachées Reserve onderdelen

Replaces Ersetzt Remplace Vervangt

I0001006

Repuestos Reservdelar

Reemplaza Ersätter

106 25 73-61

www.mymowerparts.com

106 25 73-62

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 86 70-01

506 86 73-01 735 31 14-20

506 86 71-01

506 86 77-01 506 86 69-01

506 66 88-01

734 11 72-01

732 21 20-51 725 24 51-51 506 96 58-01 732 21 18-01

506 86 71-01 506 50 99-01 735 31 12-00

874 78 05-12

506 86 68-01

506 86 66-02

506 59 75-01

734 11 64-41 506 89 08-01

506 56 56-01

734 11 56-01 506 55 80-01

506 96 71-02

506 96 71-01

506 86 72-01 735 31 12-00

*compl 506 98 34-02

506 83 94-01 506 59 74-01

** compl 506 93 94-01

*506 98 35-01

**734 11 36-01

**506 93 96-01

506 98 36-01* 506 98 36-02*

722 79 54-02*

506 96 92-01 506 96 92-03

506 55 36-01* 734 11 46-01* 732 21 14-01*

506 88 69-01*

506 91 31-01

506 93 95-01**

506 96 35-01 506 96 36-01

506 98 27-01

722 79 54-02*

734 11 37-41*

506 98 26-01 506 55 97-01

506 91 31-03

506 98 26-01 506 55 97-01

506 99 49-01*

**722 78 39-02

734 11 36-41*

506 98 26-01

506 55 97-01

www.mymowerparts.com

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 78 68-01

506 92 93-01 506 82 79-01 506 98 44-01

506 82 89-01 506 89 41-01 506 81 54-01

506 82 82-02

506 78 77-01

506 66 84-01

735 21 64-00

725 23 66-71

506 66 82-01

725 24 51-51

506 98 15-01

732 21 18-01

725 24 59-51 734 11 64-01 732 21 18-01

506 55 59-01

506 50 92-01

506 93 24-01 506 93 61-01 506 93 21-01 506 93 23-01 506 93 02-01

USA

506 66 34-01 506 82 79-01 506 98 44-01

725 23 66-71

506 82 89-01 506 89 41-01 506 81 54-01

506 82 82-01

506 78 77-01

506 78 69-01

506 78 68-01

735 21 64-00

506 66 82-01

725 24 51-51

506 98 15-01

732 21 18-01

725 24 59-51 734 11 64-01 732 21 18-01

506 55 59-01

506 50 92-01

506 89 09-01

506 66 84-01

506 78 69-01

www.mymowerparts.com

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 76 98-03

734 11 64-01 725 24 49-51

506 94 67-02 506 94 68-01 732 21 16-01

506 96 56-01 725 23 68-51

506 67 33-01USA 506 67 33-02 506 76 96-01

732 21 18-01

734 11 56-01 725 23 70-51

506 76 97-03 734 11 56-01 732 21 16-01

506 57 01-04 506 92 74-01

506 91 76-06

721 61 83-01

506 96 57-01

721 43 49-01 506 91 44-01

725 23 29-51 506 80 00-01 732 21 14-01

506 56 65-01 732 21 14-01

506 59 46-01

506 57 01-03

729 53 29-71 506 53 85-01 506 53 87-01

506 53 86-01 735 58 35-01

725 23 64-61

506 53 89-01 506 53 88-01 735 58 35-01

729 54 14-01 506 91 37-01 506 91 38-01

506 66 45-01

506 57 64-01

731 23 20-51

506 55 60-02

531 00 60-20

506 59 75-01

506 93 90-01 531 00 50-14

506 67 19-01 506 67 08-01 506 59 74-01

738 21 04-04 735 31 38-10

531 00 50-14

506 77 57-01 734 11 64-41

506 89 20-01

506 57 63-01

506 77 56-01 531 00 50-17

506 99 81-01

725 24 49-51

506 96 95-01

www.mymowerparts.com

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 98 59-02

506 67 33-01

725 23 68-51 734 11 53-41 506 93 49-01

506 56 65-01 725 23 64-61

725 23 74-71 731 23 16-01

506 94 67-01 506 94 68-01

725 24 67-71

740 68 14-21

725 23 68-51 506 93 85-01 732 21 14-01

732 21 18-01 725 24 67-71 734 11 64-01

735 31 26-00 506 77 34-01

506 98 61-01 506 98 61-02

738 21 10-04 506 93 47-01 506 57 61-03

*compl 506 59 51-02

731 23 18-01*

735 31 17-00 506 94 82-01 506 94 81-01

506 93 91-01 506 95 72-01

506 95 66-01

734 11 78-01 506 95 61-01 721 42 56-50

506 95 71-01

506 93 78-01 506 83 43-01

506 88 99-01 725 24 93-71

725 24 55-51 506 93 89-01

506 94 69-01 734 11 64-41 732 21 18-01

725 23 81-51 731 23 16-01

506 93 48-01

738 21 05-04 735 31 40-10 735 31 26-00

506 91 87-02 725 24 57-51 506 54 25-01

506 93 79-01 506 94 59-01 721 43 47-01 506 95 60-01

506 93 77-01 740 48 12-02

506 93 87-01 740 48 12-02

*734 11 64-41 *735 31 38-10 *738 21 04-04 *506 92 89-01 *506 54 35-01 *506 59 50-01

*506 66 56-01 *735 31 26-01

725 24 49-51 506 94 78-01

506 66 58-01

734 11 64-01

506 93 76-01 506 93 76-02 (USA)

506 95 65-01 506 55 59-01

725 24 59-51* 738 88 10-01*

506 90 61-01

506 79 86-01

721 62 01-01

506 59 93-01 732 21 18-01

506 95 75-01 725 24 47-71

www.mymowerparts.com

734 11 64-01 732 21 18-01

506 95 64-01 735 31 16-00 506 95 63-01 735 11 64-01 725 24 51-71

506 95 71-01

721 61 54-01 734 11 52-01

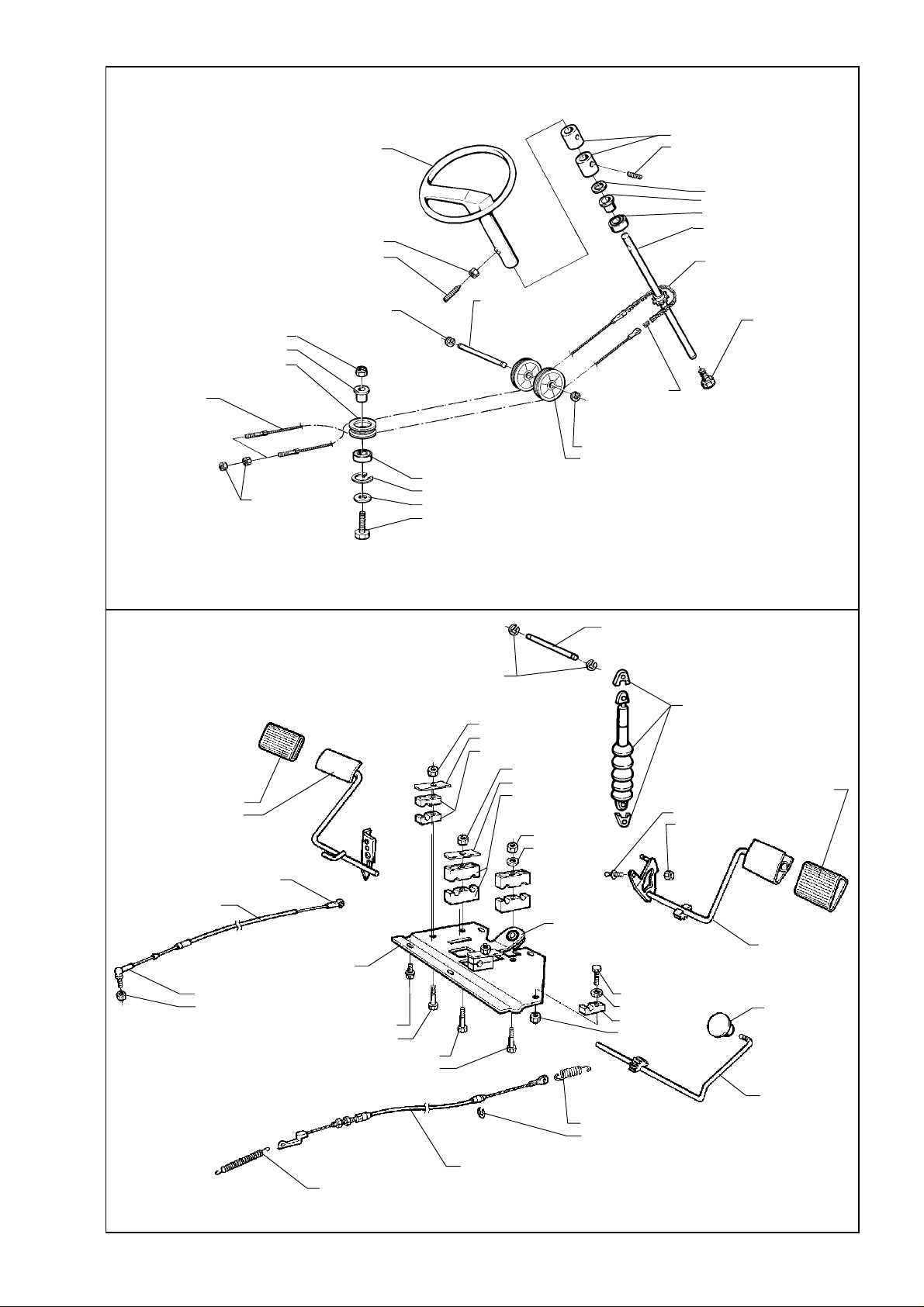

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

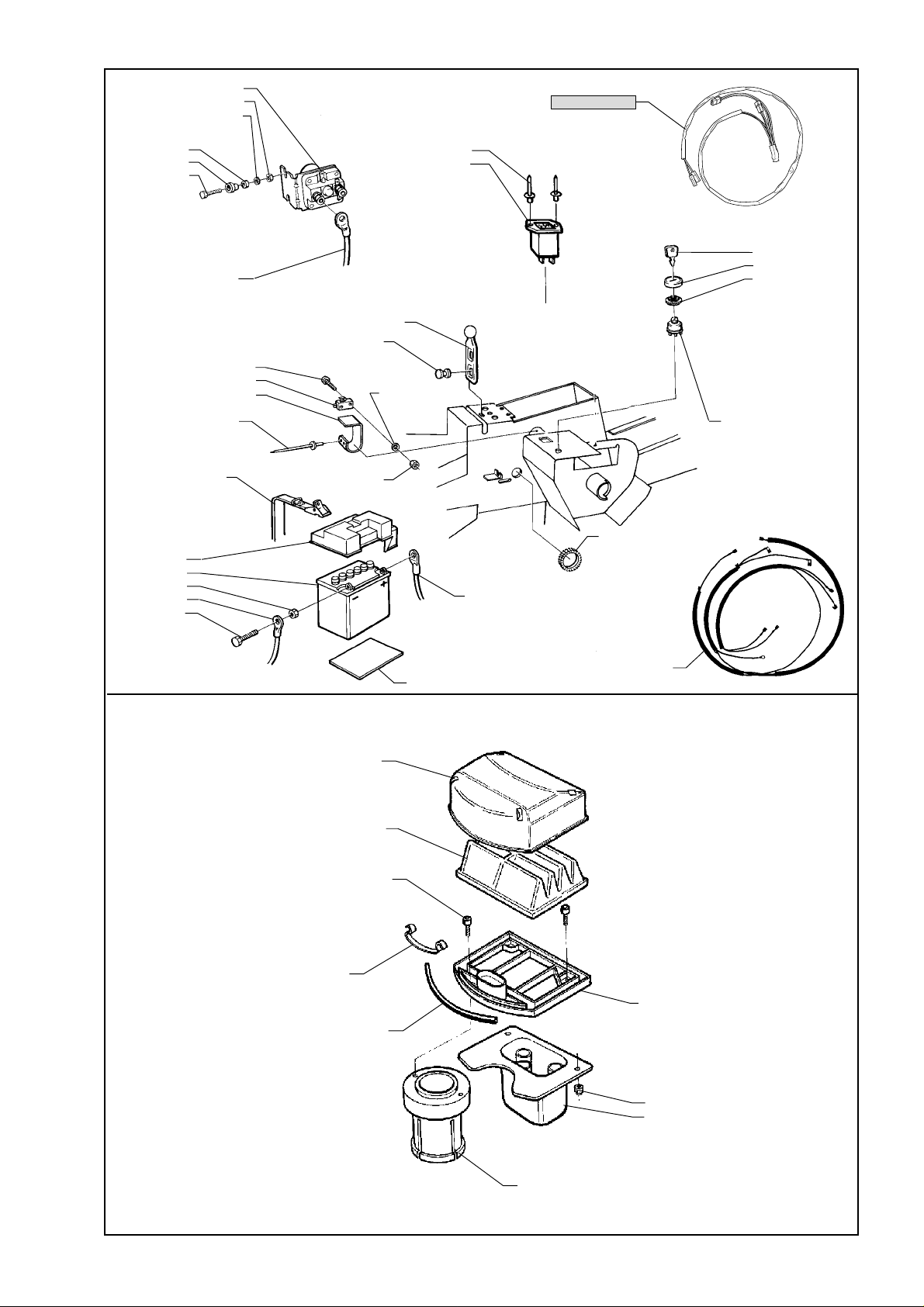

506 86 34-01

506 59 20-01

731 23 18-01 728 74 55-05

728 84 43-05

506 86 36-01 506 88 78-01 738 21 04-04

506 86 33-01

506 55 46-01

506 58 91-01

506 50 62-02 506 94 71-01

732 21 20-51 506 50 08-01 506 50 07-01

731 23 20-51

735 31 14-20

506 53 94-01

738 22 04-19 735 31 40-10 734 11 74-41 725 24 97-51

735 31 09-20

732 21 18-01 506 80 41-01 506 95 41-01

732 21 18-01 506 80 41-01 506 50 65-01

732 21 18-01 734 11 64-01

506 57 01-04

506 55 47-01

735 31 14-20 506 52 24-01

506 93 84-01

506 93 83-01

506 50 62-01

506 55 73-01 732 21 14-01

506 55 73-01

506 96 70-01

506 55 73-01 732 21 14-01

738 21 02-04

506 96 53-01

725 24 53-51 734 11 64-01

506 57 01-04 725 24 57-51

725 24 62-51 725 24 61-51

506 94 64-01

506 94 62-01

506 95 41-01 732 21 18-01

506 94 63-01 735 31 09-20

www.mymowerparts.com

506 96 01-01

506 79 43-01

506 95 99-01

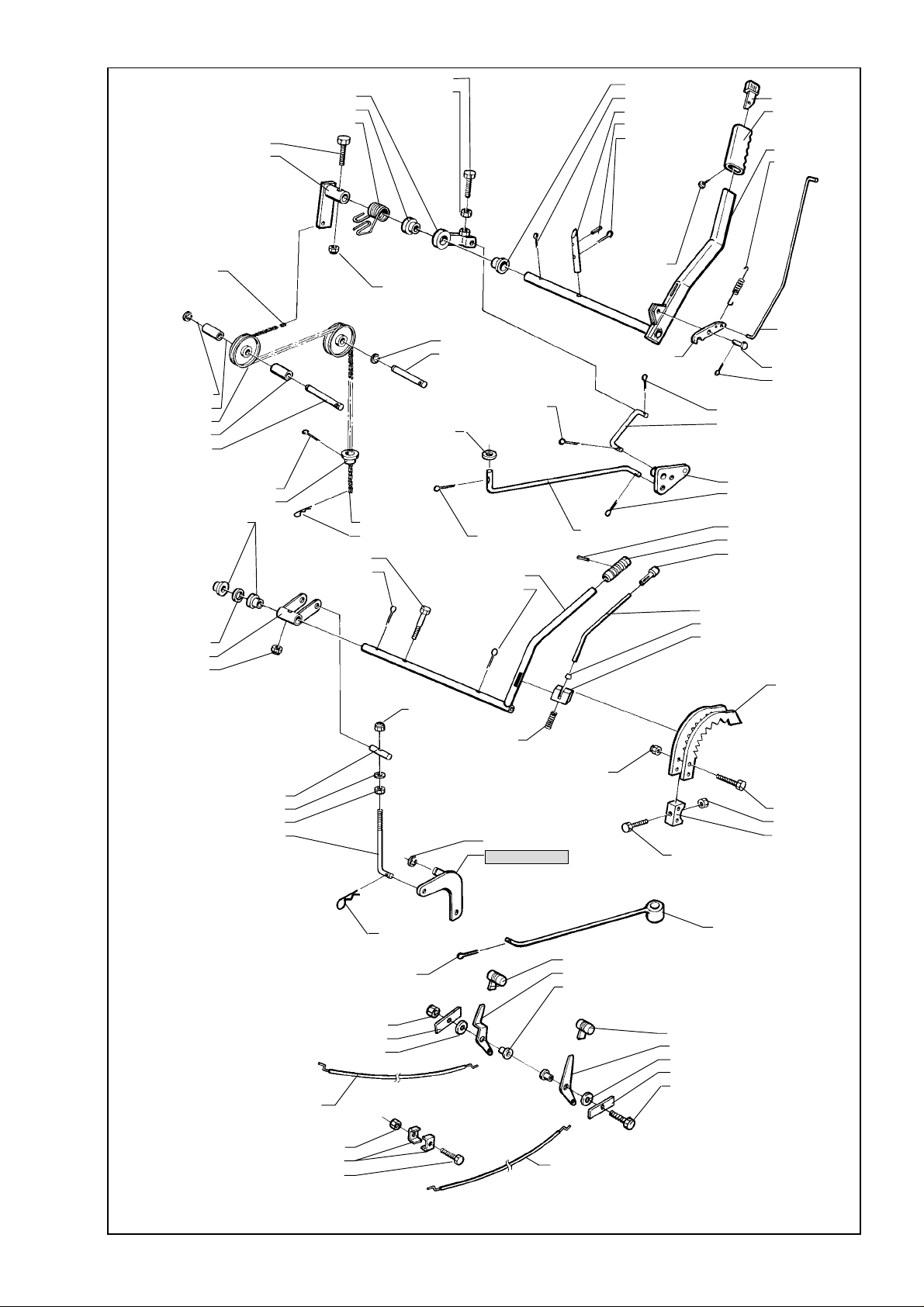

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 55 47-01

735 31 18-20 506 90 58-01 506 90 56-01 506 90 58-01 506 90 57-01

506 76 88-01

506 50 48-05 506 90 80-01 732 21 18-01

725 25 42-51 506 90 54-01

721 61 87-01 506 90 59-01

506 78 43-01 506 55 65-01 506 91 68-01

725 24 57-51 721 61 87-01

725 24 97-51 731 23 20-51

732 25 22-01

734 11 64-41

506 55 46-07 506 96 66-01

732 21 18-01

735 31 18-20 506 90 57-01

721 61 83-01

506 90 76-01 721 61 87-01

506 55 65-01 721 61 83-01 506 90 53-01 721 42 56-01 721 61 83-01

729 44 08-01

506 90 51-01

506 66 58-01

506 78 39-01 506 79 17-01

506 90 47-01 506 83 43-01

506 90 52-01

721 83 99-01 721 61 52-01

721 61 83-01 506 90 61-01

506 90 62-02 721 61 83-01

721 42 12-26 506 90 71-01 506 90 70-01

506 90 79-01 506 83 17-01 506 83 18-01

506 83 56-01

506 51 08-01 734 11 64-01 731 23 18-01 506 90 82-01

506 54 66-02 Choke

732 21 14-01 506 50 82-01 725 23 35-51

721 61 83-01

732 21 16-01 506 92 85-01 506 83 94-01

506 83 23-01

721 68 02-51

732 21 16-01

735 31 15-20

506 99 83-01

506 86 39-01Gas

725 23 74-71 731 23 18-01 506 83 57-01

725 24 53-51

506 97 51-01

506 88 91-02 506 86 59-02 506 88 89-01

506 88 91-01 506 86 59-01 506 83 94-01 506 92 85-01 725 23 74-71

www.mymowerparts.com

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

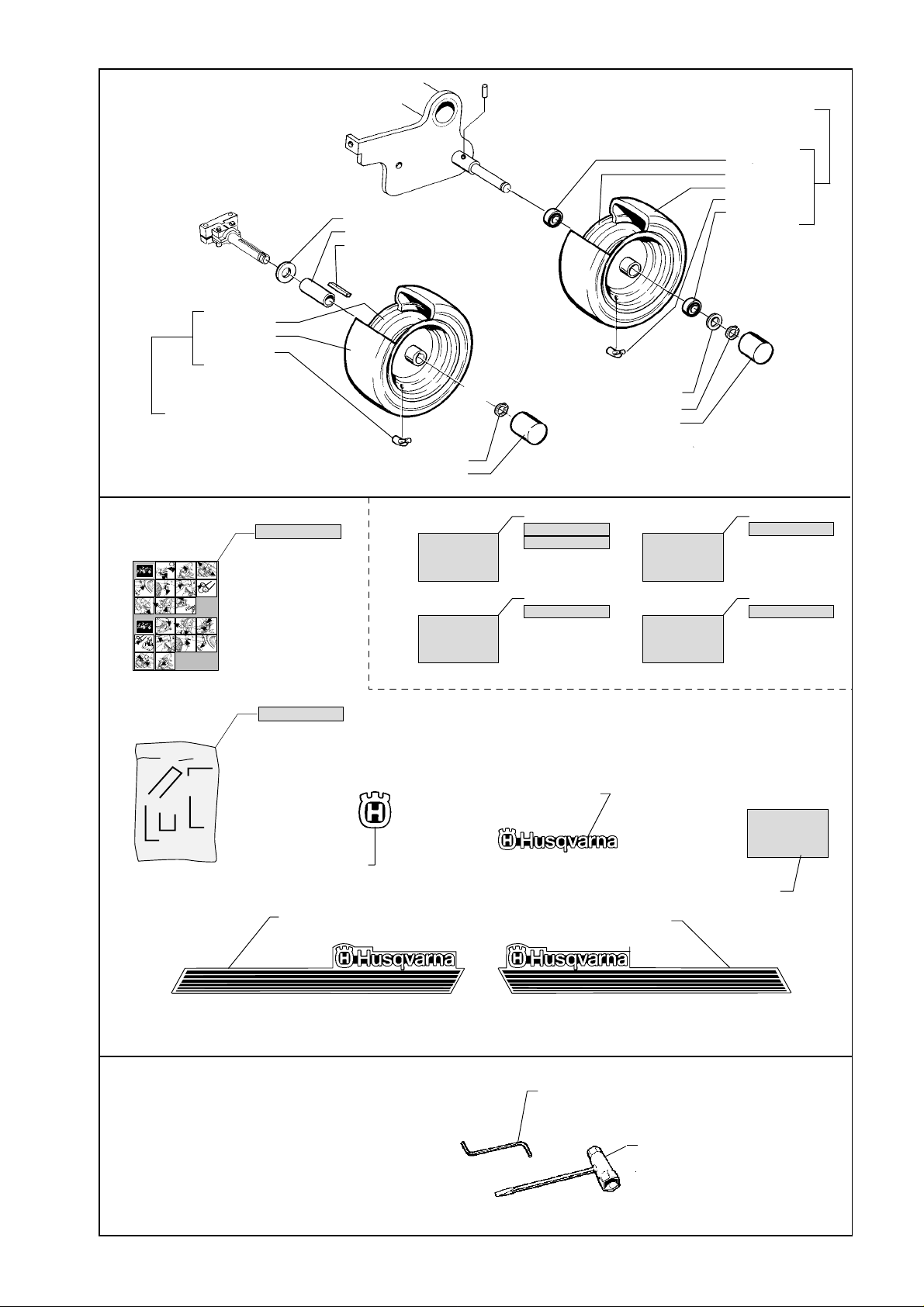

506 97 20-01 506 98 02-01

506 57 43-01

compl 506 55 48-02

506 99 96-01

506 94 58-01 506 80 09-01 506 55 59-01

735 31 26-00 506 98 03-01

USA

506 50 48-05 735 31 22-00 506 95 58-01

Side discharge

506 81 80-01 506 88 18-01

compl 506 55 49-04

738 22 04-19 506 79 61-01 506 98 02-01 506 57 43-01 738 22 04-19

CPSC

506 67 62-01

506 99 96-01

Start/Warning

506 94 92-01

Standard decal

506 88 07-02

Decal kit

531 00 65-78

506 94 30-01

506 94 27-01

Warning

506 94 48-01

506 98 37-01

RIDER 14 PrRIDER 14 Proo

HYDROSTHYDROSTAATICTIC

506 98 37-02

HYDROSTHYDROSTAATICTIC

RIDER 14 PrRIDER 14 Proo

Leverans endast som reservdel

Delivery as spare part only Nur als Ersatzteil lieferbar Livrable seulement comme pièce de rechange Solo como repuesto Zasilà se jenom jako nàhradni dil

www.mymowerparts.com

502 71 36-01

501 69 17-02

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 55 86-01

731 23 14-01 734 11 46-01

506 99 97-01

506 55 07-01 506 55 06-01 725 23 29-51

506 55 08-06

722 79 44-02

506 83 68-02

506 80 99-01 506 78 88-01 731 23 16-01 506 55 08-08 725 23 70-71

725 62 30-51

506 91 64-01 506 90 93-01

722 78 29-02 506 89 15-01

506 91 74-01* 506 91 56-01* 506 91 73-01*

506 59 96-01

506 59 95-01

734 11 24-01

*compl 506 91 71-02

731 23 10-01

506 55 91-01

506 55 08-06

506 82 96-01

506 94 80-02

*compl 506 93 24-01

*503 44 69-01

*503 44 72-01

*725 52 89-55

*503 44 68-01

503 44 67-01*

*503 44 71-02

732 25 12-01* 506 93 22-01*

506 93 05-01*

www.mymowerparts.com

Page 10

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 97 68-01

506 83 76-01 506 83 77-01

725 24 57-51 734 11 64-41 506 53 27-01 506 82 68-01

725 24 95-71 506 98 25-01 506 59 75-01 506 97 63-01

732 21 18-01

732 21 20-51 732 25 22-01

506 89 58-01

734 11 72-01 731 23 20-51

725 24 61-51

721 86 17-01

732 21 18-01

506 97 46-01

506 99 79-01

506 96 37-01

506 98 28-01 722 78 39-02

721 68 02-51 506 59 74-01

506 97 26-01

506 97 50-01 506 82 68-01 506 97 48-01 734 11 64-41 732 21 18-01

506 97 96-01 735 31 15-20

506 98 00-01 734 11 77-71

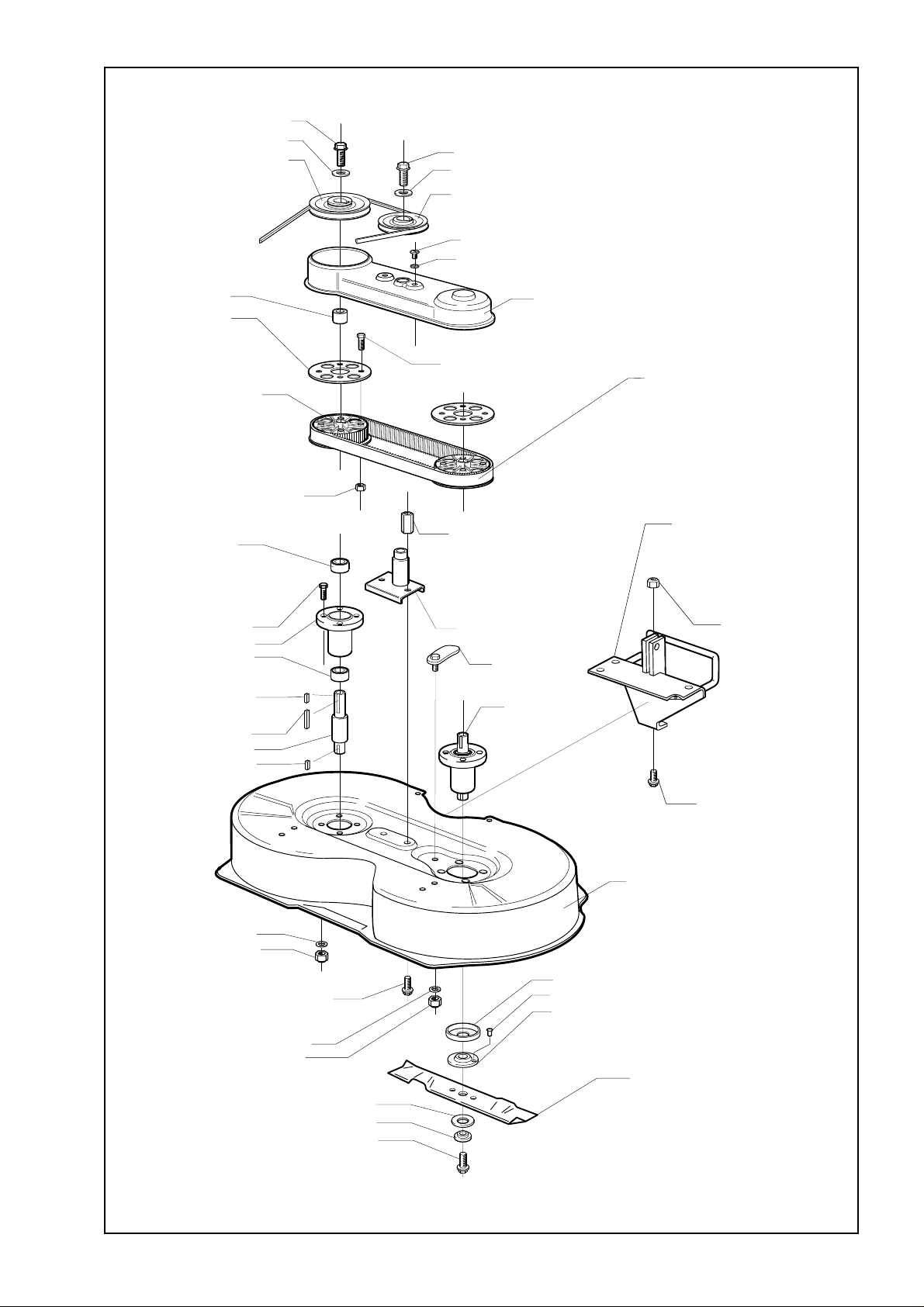

BioClip 90

506 97 81-01

506 59 74-01

506 81 38-01 506 86 96-01

506 86 96-01 725 24 61-51

506 59 74-01

732 21 18-01 506 96 66-01

732 21 18-01

506 81 49-05

506 78 99-01

506 86 96-01

506 97 91-01

506 59 74-01

506 89 76-01 732 21 20-51

506 86 87-02

725 24 62-51 725 24 61-51

732 21 20-51 506 95 17-01 725 24 95-71

506 78 99-01 505 89 76-01

506 94 13-04

506 53 56-03

734 11 82-01

506 59 74-01

506 97 85-01

506 98 00-01 734 11 77-71

506 96 30-01 735 31 17-00

506 97 96-01 735 31 15-20

www.mymowerparts.com

Page 11

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

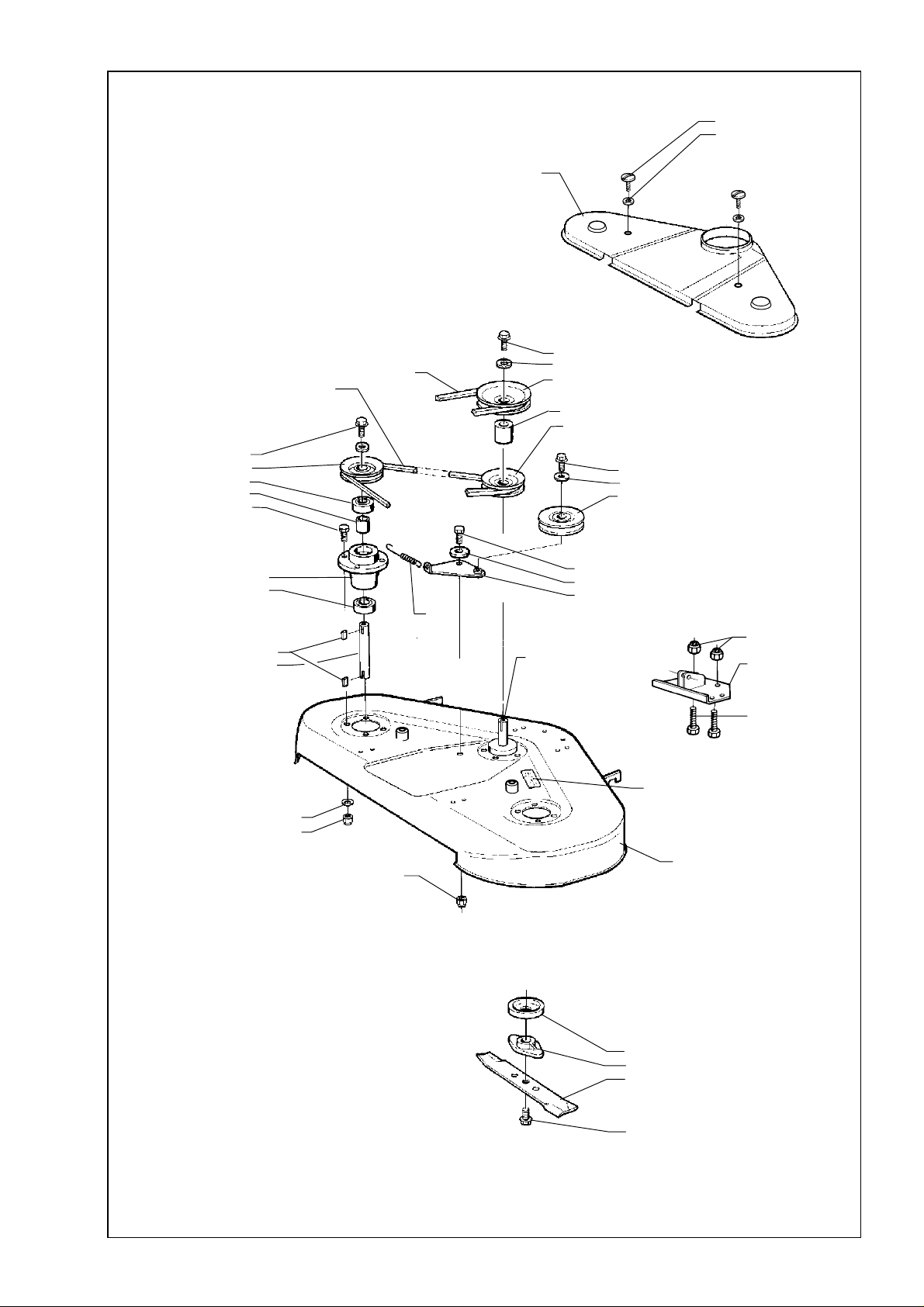

Rear 97, BioClip 103

506 59 74-01

506 97 81-01

506 81 38-01 506 86 96-01

506 86 96-01 725 24 61-51

506 59 74-01

732 21 18-01 506 96 66-01

506 81 49-04

506 78 99-01

732 21 18-01

506 89 76-01 732 21 20-51

506 86 96-01

506 97 91-01

732 21 16-01

506 59 74-01

732 21 20-51 506 95 17-01 725 24 95-71

506 78 99-01 505 89 76-01

506 94 13-03

506 53 56-03

506 92 46-02

725 24 62-51

734 11 82-01

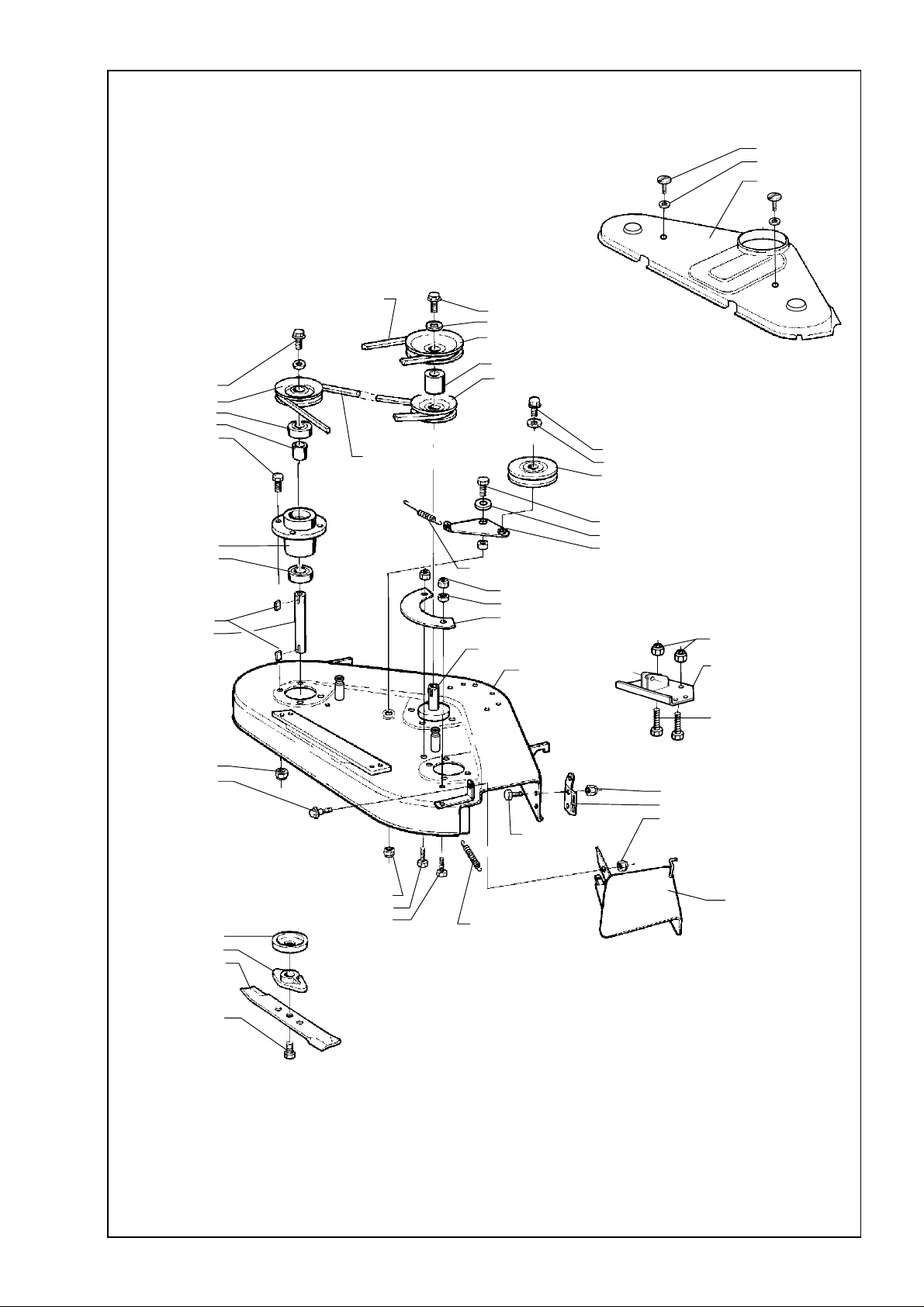

Side 97

506 81 38-01 506 86 96-01

506 59 74-01

506 86 96-01 725 24 62-51

506 97 81-01

506 96 66-01

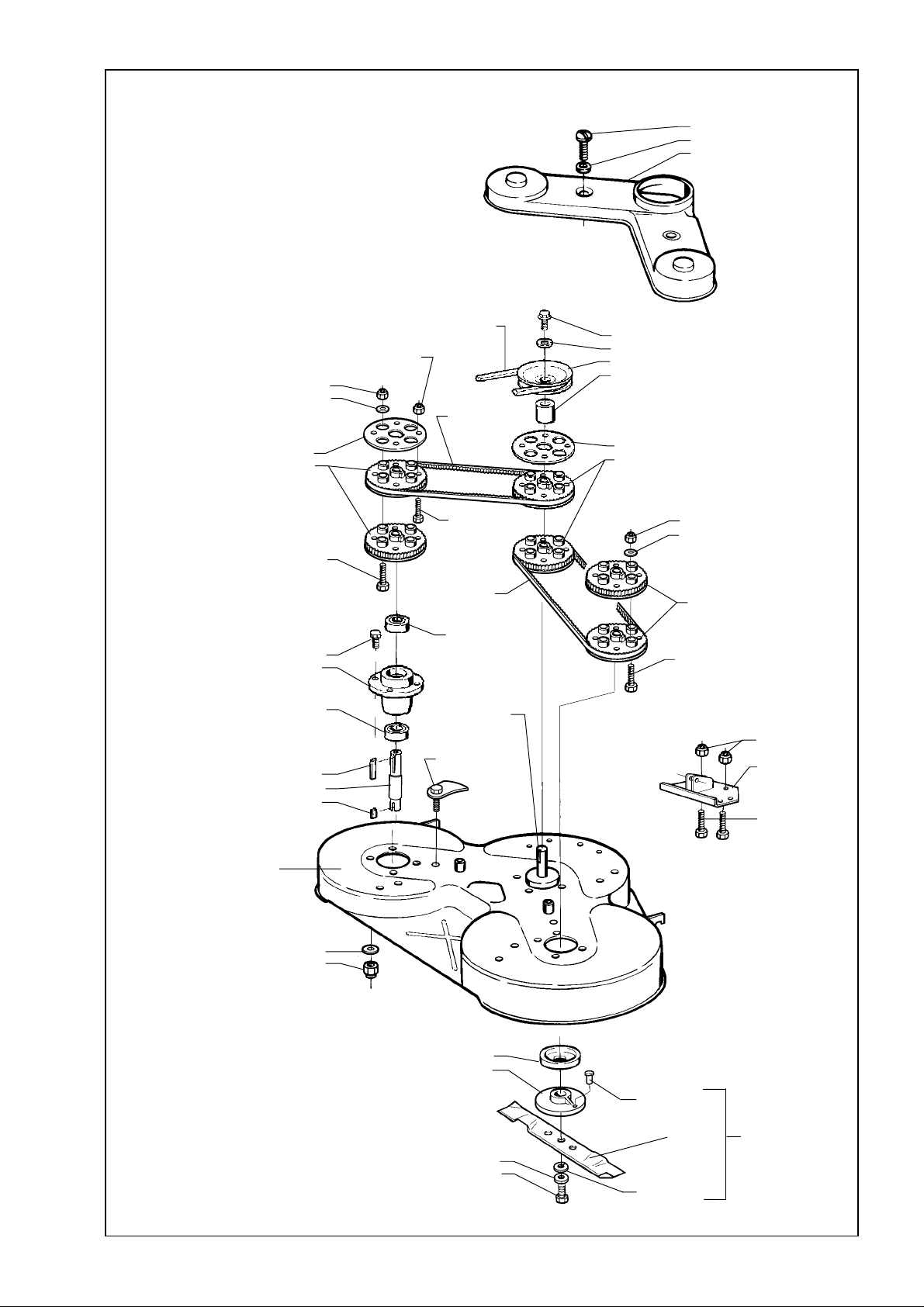

(BioClip 103) 506 93 19-02 (R 97) 506 92 48-02

(BioClip 103) 734 11 56-01

(BioClip 103) 506 98 05-01

(BioClip 103) 727 63 83-01

732 21 18-01

506 59 74-01

732 21 18-01

506 98 07-01

506 87 32-01 724 64 51-01

506 86 96-01

506 97 91-01

506 97 13-02

506 59 74-01

506 98 00-01 734 11 77-71

506 78 99-01

506 92 46-03

732 21 18-01

506 81 49-04

725 24 62-51

725 24 57-51 734 11 64-01 506 88 97-01

734 11 82-01

506 59 74-01 506 96 30-01 735 31 17-00

506 97 96-01 735 31 15-20

732 21 20-51 506 95 17-01 725 24 95-71

506 78 99-01 505 89 76-01

506 89 76-01 732 21 20-51

506 94 13-03

506 53 56-03

735 31 17-00 506 96 30-01 506 59 74-01

506 97 96-01

506 98 00-01 734 11 77-71

735 31 15-20

www.mymowerparts.com

Page 12

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

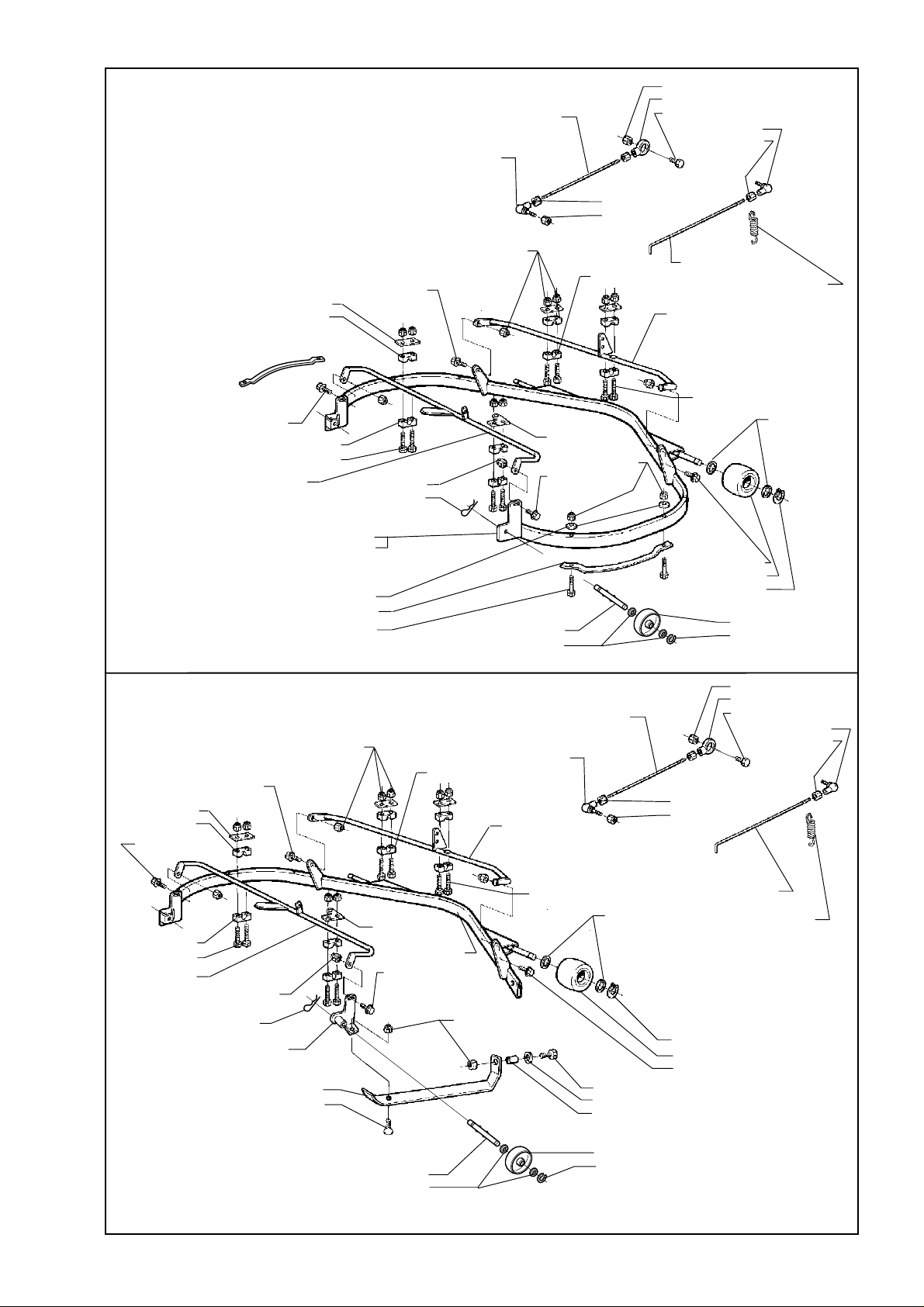

*compl 506 75 11-01 Yttre. Outer. Exterieur. Äusser. Ulko. *compl 506 75 11-04 Mitten. Centre. Centre. Zentrum. Keski.

Rear 97

506 67 54-01 506 92 21-01 *738 22 04-19 *506 75 14-01 725 24 53-51

531 00 50-20

531 00 50-17

506 97 24-01

506 67 54-01 734 11 74-41 506 77 86-01

506 77 87-02 506 92 21-01

506 55 83-02 734 11 64-41 506 53 27-01

506 56 93-01 506 55 97-01

*506 75 12-01 *738 22 04-19

506 53 35-01 506 75 13-01

734 11 64-01 732 21 18-01

732 21 18-01

506 53 31-01

725 24 51-51 506 91 87-02 506 51 95-01

506 75 13-04

732 21 18-01 506 97 55-01

725 24 51-51

506 78 97-01

506 75 03-04

506 51 87-01 506 53 41-01 531 00 50-10

506 67 54-01

www.mymowerparts.com

Page 13

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 506 75 11-01 Yttre. Outer. Exterieur. Äusser. Ulko.

*compl 506 75 11-04 Mitten. Centre. Centre. Zentrum. Keski.

Side 97

506 67 54-01 506 92 21-01 *738 22 04-19 *506 75 14-01 725 24 53-51

*506 75 12-01 *738 22 04-19

506 53 35-01 506 75 13-01

531 00 50-17

531 00 50-20

506 67 54-01 734 11 74-41 506 77 86-01

506 77 87-02

506 92 21-01

506 53 31-01

732 21 18-01 731 23 18-01 506 84 63-01

506 75 13-04

506 75 04-02

506 56 93-01 506 55 97-01

506 97 25-01

506 55 83-02 734 11 64-41 506 53 27-01

725 24 51-51 506 91 87-02 506 51 95-01

732 21 18-01 506 97 55-01

732 21 18-01 506 59 74-01

506 51 87-01 506 53 41-01 531 00 50-10

506 67 54-01

732 21 18-01 724 24 49-51 724 24 53-51

725 24 51-51

732 21 18-01 506 75 79-01 732 21 18-01

725 24 49-51

506 76 81-01

506 53 57-02

www.mymowerparts.com

Page 14

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

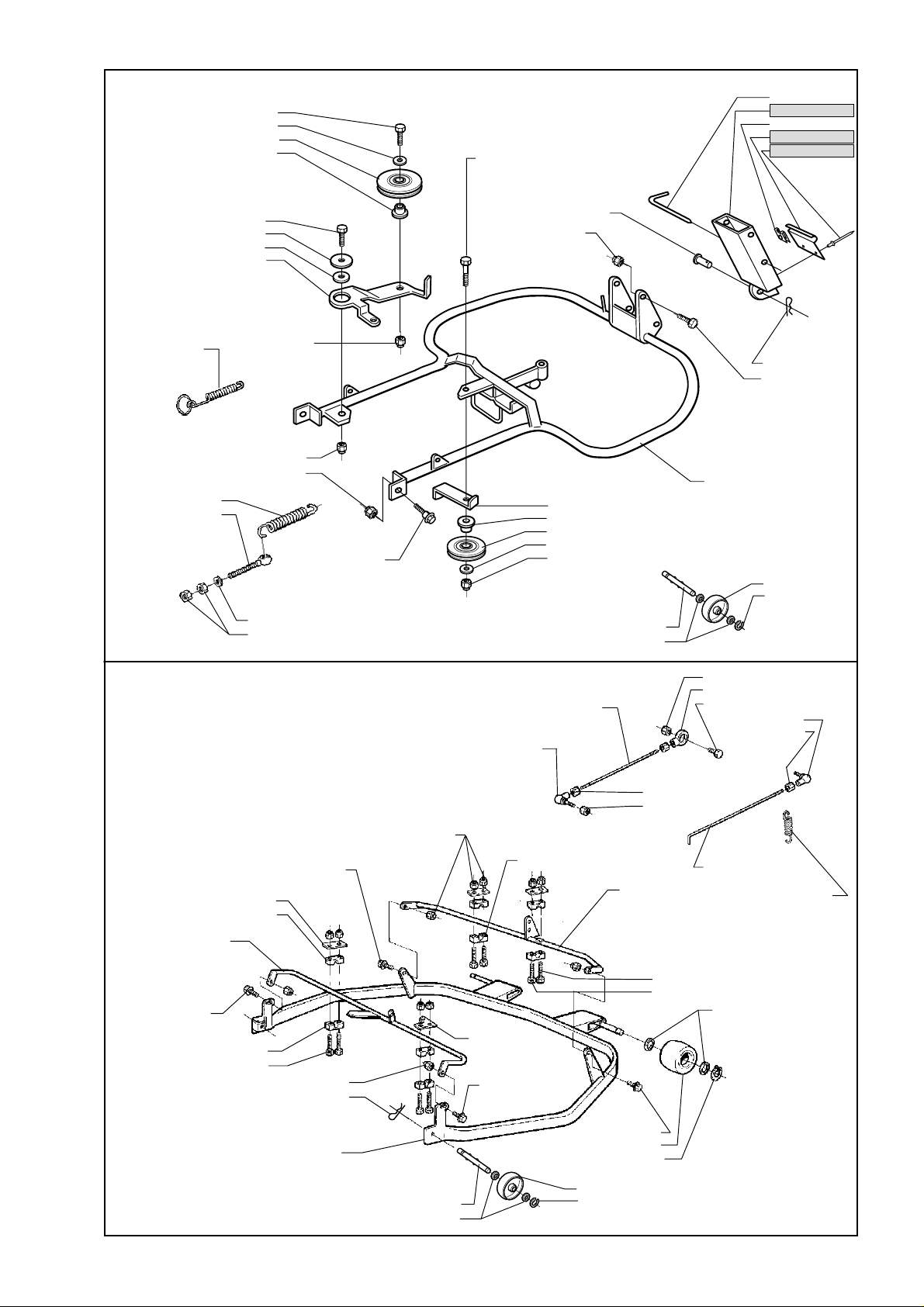

*compl 506 75 11-07 (a)

*compl 506 75 11-06 (b)

BioClip 103

506 56 93-01 506 55 97-01 506 93 52-01

732 21 16-01 734 11 56-01

506 93 10-01 506 93 09-01

725 23 74-71

725 24 53--51 *506 75 12-01

*738 22 04-19

506 93 62-01 *506 96 60-02 506 53 35-01

732 21 14-01

531 00 50-17

531 00 50-80

725 23 29-71

531 00 50-80

738 22 04-19*

*506 96 60-01

506 96 04-01

506 67 54-02 734 11 74-41 506 77 86-01 506 77 87-05

506 93 10-01 506 93 09-01

732 21 16-01 734 11 56-01

506 93 09-01

725 23 74-71

732 21 18-01 506 97 55-01

725 24 53-51

506 93 06-03

734 11 64-01 732 21 18-01

(a) = Yttre. Outer. Exterieur. Äusser. Ulko. (b) = Mitten. Center. Centre. Zentrum. Keski.

www.mymowerparts.com

506 51 87-01 506 96 61-01

506 96 65-01 506 67 54-02

506 96 62-01

506 96 64-01

*531 00 75-24

Page 15

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

506 77 87-06 506 93 10-01

738 22 04-19

BioClip 90

506 67 54-02 734 11 74-41 506 97 74-01

506 96 98-01

732 21 14-01

506 67 54-02

734 11 74-41

506 97 48-01

506 98 26-01 506 55 97-01

725 23 29-71

506 96 11-02

506 97 75-01

506 97 73-01

506 97 76-01

725 24 53-71

506 75 12-01

738 22 04-19

506 53 35-01

506 93 62-01 506 96 60-01 506 53 35-01

734 11 64-01

732 21 18-01

734 11 64-01 732 21 18-01

725 24 49-51

506 96 64-01 506 96 65-01 506 67 54-02

506 97 57-01

506 96 04-01

506 96 60-02

732 21 18-01

725 24 49-51

506 97 72-01

506 51 87-01 506 96 62-02

506 96 61-01

506 96 97-01

www.mymowerparts.com
