GGTTVVHH 220000
7
03.1999
PARTS LISTING
MRW 3-29-99
954140016B
Page 2
REPAIR PARTS
70
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
ELECTRICAL
2221
42
24
41
80
11
33
32
31
10
27
30
19
20
50
43
44
25
20
44
19
51
D.C. AMPERES
40
26
81
16
47
46
29
45
12
8
2
55
28
1
12
30
Page 3
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144927 Battery, 12 Volt, 35 Amp
2 874760412 Bolt, Hex Head 1/4-20 UNC x 3/4
8 532124886 Tray, Battery
10 532145211 Bolt, Battery Front 1/4-20 x 7.5 Zinc
11 532150109 Holddown Battery Dash Mount
12 532145769 Nut, Push Nylon 1/4" Battery Front
16 532153664 Switch Interlock Push-In
19 810090400 Washer, Lock 1/4
20 873350400 Nut, Jam, Hex Head 1/4-20 UNC
21 532166181 Harness, Light
22 532004152 Bulb, Light
24 532124780 Cable, Battery, 6 Gauge, 11", Red
25 532146148 Cable, Battery
26 532166180 Fuse, 15 Amp
27 873510400 Nut, Hex, Keps 1/4-20 UNC
28 532145491 Cable, Ground, 6 Gauge, 12", Black
29 532160784 Switch, Plunger, Normal Op Olive
30 532140301 Switch, Ignition, 4 Position
31 532124211 Nut, Ignition
32 532141226 Cover, Ignition Switch
33 532122147 Key, Ignition
40 532166149 Harness, Ignition
41 871110408 Bolt, Hex, Fin. 1/4-20 x 1/2
42 532131563 Cover, Terminal, Red
43 532145673 Solenoid
44 873640400 Nut, Hex, Keps 1/4-20 UNC
45 532122822 Ammeter, Rectangular, 15 AMP
46 532110940 Meter, Hour
47 817011008 Screw 10-24 x 1/2 Black
50 532154959 Switch, PTO
51 532140405 Ring, Retainer, PTO
55 817490508 Screw, Thdrol 5/16-18 x 1/2 TYT
70 532166668 Harness, Engine
80 532146685 Harness Clutch EVX
81 532109748 Relay Assembly
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
Page 4
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
CHASSIS AND ENCLOSURES
14
26
31
58
52
28
37
53
134
20
57
110
23
68
29
57
129
109
113
148
17
159
3
25
47
3
11
24
44
14
4
3
15
18
30
24
25
26
9
3
5
5
53
51
3
8
3
33
26
3
6
16
35
74
10
2
38
3
108
35
3
37
39
34
140
145
37
3
3
37
1
3
26
14
4
13
14
32
Page 5
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532165480 Chassis Weldment
2 532140356 Drawbar
3 817490612 Screw Thdrol 3/8-16x3/4 Ty-tt
4 819131216 Washer 13/32 x 3/4 x 16 Ja.
5 532155272 Bumper
6 532155923 Saddle
8 532126471 Clip Insulator
9 532166689 Dashboard
10 872140608 Bolt
11 532156682 Panel Asm.
13 532164335 Panel Asm.
14 817490608 Screw 3/8-16 x 1/2 Ty-Tt
15 874180512 Screw 5/16-18 Unc x 3/4
16 873510500 Nut Keps 5/16-18 Unc
17 532165378 Hood
18 532126938 Bumper
20 532156437 Plate Mtg Battery/Fuel Tank
23 532124028 Bushing
24 874780616 Bolt 3/8-16 Unc x 1 Gr. 5
25 819131312 Washer 13/32 x 13/16 x 12 Ga.
26 873800600 Nut Lock w/Insert 3/8-16 UNC
28 532165379 Grille
29 532165380 Grille Lens
30 532163982 Fender
31 532137113 Bracket
33 532147203 Foot Rest, L.H.
34 532147202 Foot Rest, R.H.
35 872110606 Bolt 3/8-16 x 3/4
37 817490508 Screw 5/16-18 x 1/2 Tyt
38 532139886 Bracket Asm Pivot LH
39 532139887 Bracket Asm Pivot RH
44 532140675 Strap Asm. Fender
47 532105531 Nylon Washer
51 873800400 Lock Nut 1/4-20
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532150067 Bracket LT/PL Husq.
57 874780412 Hex Bolt 1/4-20 x .75
58 532162266 Duct Intake Air
68 873510400 Nut Keps 1/4-20 UNC
74 873680600 Nut, Crownlockt 3/8-16 UNC
108 874760612 Hex Bolt 3/8-16 UNC x 3.4
109 532141461 Bracket Extension Bumper
110 532143679 Plug Plastic
113 532150300 Bumper Asm.
129 819091016 Washer 9/32 x 5/8 x 16 Ga.
134 532160219 Rod Support Hood
140 532158418 Bracket Suspension Front
145 532156524 Rod Pivot Chassis Hood
148 817490620 Screw Throl 3/8-16 x 1-1/4
159 532163975 Cupholder YTGT Grey
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
33
Page 6
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
DRIVE
51
57
89
69
51
63
16
100
33
76
139
71
135
189
146
96
16
141
110
136
16
95
127
26
77
19
138
146
110
81
16
30
51
134
138
169
10
8
103
1
31
102
21
94
3
160
171
161
164
139
2
163
77
14
82
131
26
159
158
165
25
136
73
19
189
162
83
156
19
142
24
29
168
111
62
166
51
22
135
59
42
61
93
36
110
76
41
35
110
126
42
56
40
38
28
126
42
129
133
128
34
43
140
42
39
37
26
137
66
9
65
20
27
129
131
32
27
49
47
26
51
50
36
23
50
150
48
151
51
35
53
55
34
Page 7
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gear 314-3000
(Order parts from transaxle
manutacturer)
2 532142431 Spring, Brake Return
3 532143995 Pulley, Transaxle
8 532166020 Rod Shift Fender Adjust
9 532160889 Clutch Elect EVX 80 lb.
10 876020416 Pin, Cotter 1/8 x 1
14 810040400 Washer Lock Hvy Helical
16 873800500 Nut, Lock Hex w/Ins. 5/16-18 UNC
19 873800600 Nut, Lock Hex w/Washer 3/8-16
Unc
20 532150280 Bolt Hex 7/16-20 x 4-1/4 5 Ga.
21 532140845 Knob Delux 1/2-13 Unc
22 532158274 Rod, Brake
23 532154978 Bracket Asm Clutch Mtg. Evx
24 873350600 Nut, Hex Jam 3/8-16
25 532106888 Spring, Rod, Brake
26 819131316 Washer 13/32 x 13/16 x 16 Ja.
27 876020412 Pin, Cotter 1/8 x 3/4
28 532145204 Rod, Brake, Park
29 532071673 Cap, Brake Parking Black
30 532123780 Bracket, Transaxle
31 532123791 Keeper, Belt, Transaxle,
32 874760512 Hex Bolt 5/16-18 UNC x 3/4
33 872140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3//4
34 532155071 Shaft, Foot Pedal
35 532120183 Bearing Nylon
36 819211616 Washer
37 532124963 Pin,Roll
38 532131494 Idler, Flat
39 874760644 Bolt
40 532124965 Spacer, Split
41 532165838 Keeper, Idler
42 819131312 Washer 13/32 x 13/16 x 12 Ja.
43 819111012 Washer 11/32 x 5/8 x 12 Ga.
47 532127783 Pulley, Idler
48 532154407 Bellcrank Clutch Grnd Drv Stl
49 532123205 Retainer, Belt
50 874760624 Bolt, Hex 3/8-16 x 1-1/2
51 873680600 Nut, Crownlock 3/8-16
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 874760620 Bolt, Hex 3/8-16 UNC x 1-1/4
57 532161741 V-Belt Drive
59 532140312 Keeper Belt Centerspan
61 817490612 Screw Thdrol 3/8-16 x 3/4
62 532123533 Cover, Foot Pedal
63 532161400 Engine Pulley
65 810040700 Washer
66 532161488 Keeper, Belt Engine
KEY PART
NO. NO. DESCRIPTION
69 532142432 Screw
71 532158283 Torque Fastener L.H.
73 532158282 Torque Fastener R.H.
74 532160849 Spacer, Split
76 812000053 E-Ring
77 532124762 Key, Square
81 532165598 Shaft Asm Cross Tapered
82 532123782 Spring, Torsion
83 819171216 Washer 17/32 x 3/4 x 16 Ja.
89 532166624 Console, Shift
93 532142564 Fuel Line
94 532140462 Fan 7"
95 532158508 Control Assembly Bypass Hydro
96 532124788 Retainer, Spring 1"
100 819111216 Washer 11/32 x 3/4 x 16 Ja.
102 532141322 Washer .501 x 1.50D
103 873940800 Nut Hex Jam Toplock 1/2-20 UNF
110 874760612 Bolt, Hex 3/8-16 UNC x 3/4
111 532123776 Bracket
126 532124949 Locknut
127 874490548 Bolt, Hex 5/16-18 UNC x 3
128 532158284 Bracket
129 532105529 Bolt 5/16-18 UNC
131 810140500 Push Nut 5/16
133 532165926 Link Transaxle Hydro 3000
134 532158278 Belt, Guide
135 532123800 Washer 1-1/32 x 1-5/8 x 16 Ja.
136 532163168 Washer
137 819111212 Washer 11/32 x 3/4 x 12 Ja.
138 819112016 Washer 11/32 x 1.25 x 16 Ja.
139 874780612 Bolt, Hex 3/8-16 UNC x 3/4
140 532004475 Bushing
141 532159197 Pin
142 874330516 Bolt 5/16 x 24 x 1
146 874490536 Bolt Hex Flghd 5/16-18 x 2-1/4
150 532165850 Bushing Bellcrank Grd Drive
151 819133210 Washer 13/32 x 2 x 10 Ja.
156 532166002 Washer Srrted 5/16ID x 1.125
158 532165589 Bracket Shift Mount
159 532165494 Hub Tapered Flange Shift Lt
160 819292016 Washer 29/32 x 1-1/4 x 16 Ga
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819091010 Washer 5/8 x .281 x 10 Ga
165 532165623 Bracket Pivot Lever
166 532166880 Screw 5/16-18 x 5/8
168 532165492 Bolt Shoulder 5/16-18 x .561
169 532165581 Plate Fastening Lt
171 817490608 Screw Thdrol 3/8-16 x 1/2 Ty-Tt
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
Page 8
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

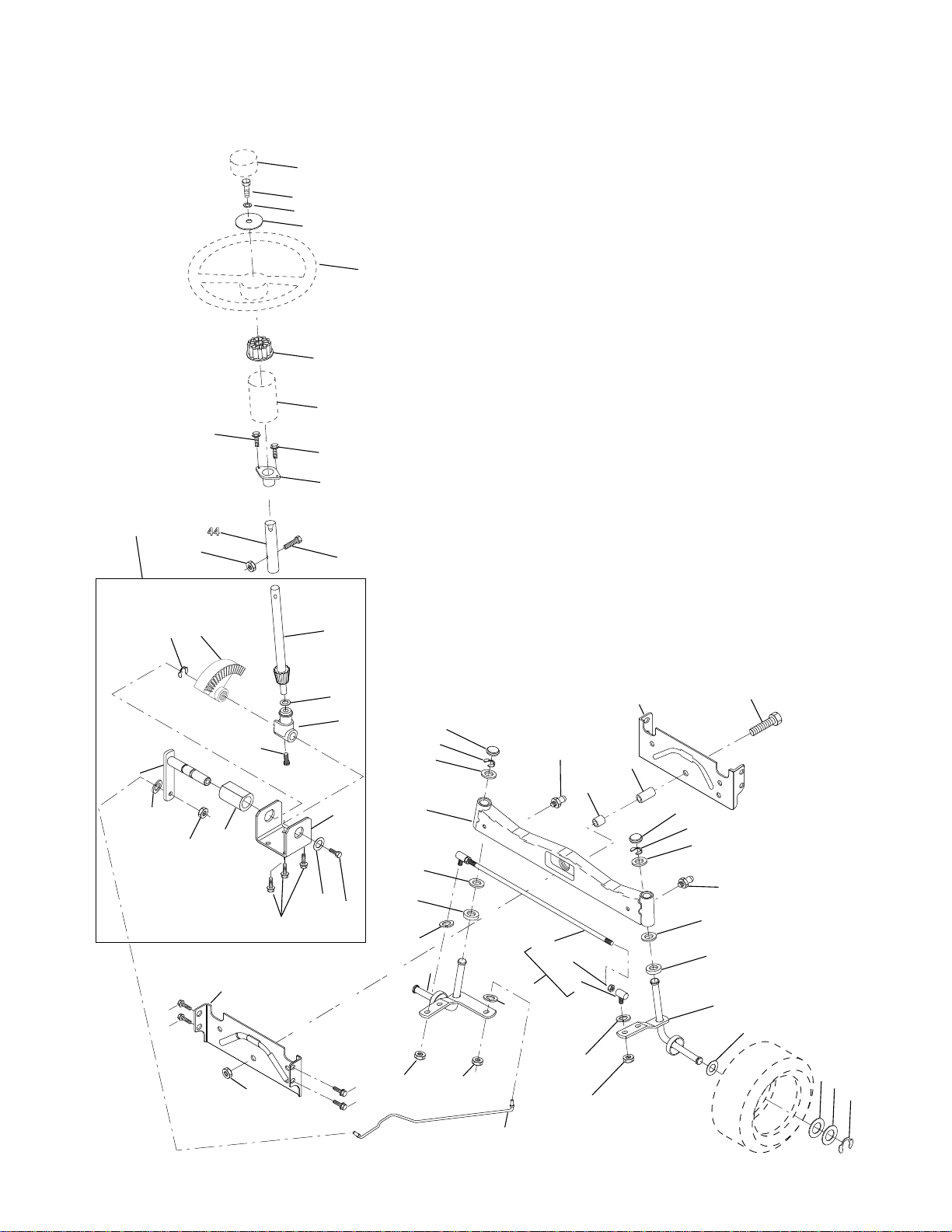

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
62
23
11
29
29
44
51
27
8
22
66
40
29
68
54
17
18
19
25
79
80
46
8
6
2
7
5
11
3
11
47
65
76
78, 77
74, 75
32
68
13
46
8
6
67
47
7
5
4
43
11
40
15
29
29
40
40
10
43
6
8
36
Page 9
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532124415 Steering Wheel
2 532137094 Axle, Front
3 532157479 Spindle, L.H.
4 532157478 Spindle, R.H.
5 532124931 Bearing, Thrust
6 532121748 Washer 25/32 x 1-5/8 x 16 Gauge
7 819272016 Washer 27/32 x 1-1/4 x 16 Ga.
8 812000029 Klip Ring
10 532154432 Link, Drag
11 810040600 Washer, Lock 3/8
12 873940800 Nut, Hex, Jam, Top Lock 1/2-20 UNF
13 532167118 Bearing Axle
15 873901000 Locknut, Hex with Washer Insert 5/8-11 UNC
17 532156546 Shaft, Steering
18 532057079 Washer
19 532160395 Shaft, Support
22 532165857 Screw Hex Wsh hd Torx
23 532165851 Shaft, Pitman
25 532154406 Bracket, Steering
27 532136874 Gear, Sector
29 817490612 Screw, Hex Washer Head, Thdrol. 3/8-16 x 3/4
32 532137347 Rod, Tie
36 532155099 Bushing Steering
37 532152927 Screw TT #10-32 X 5 x 3/8 Flange
38 532124416 Insert, Steering Wheel
39 819133808 Washer
40 532124701 Nut, Lock Center 3/8-24 UNF
41 532100711 Adapter, Steering Wheel
42 532155092 Boot Steering Dash P/L Mtl
43 532121749 Washer, 25/32 x 1-1/4 x 16 Gauge
44 532153720 Extension Steering Non-Adjust
46 532121232 Spindle, Cap
47 532124836 Grease Zerk
51 873800500 Nut Lock Hx w/Ins. 5/16-18 Unc
54 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4
62 532167902 Kit Steering Asm Service
63 874780616 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
65 532154780 Spacer Axle
66 532154404 Bearing Arm Pittman
67 874781044 Bolt Fin Hex 5/8-11 UNC x 2-3/4
68 532154429 Brace Axle
74 532109850 Joint Asm Ball Rh
75 532109851 Joint Asm Ball Lh
76 532137156 Rod Tie Ball J Adj
77 873700600 Nut Hex Jam 3/8-24 Unf Lh
78 873360600 Nut Hex Jam 3/8-24 Unf
79 819132012 Washer 13/32 x 1-1/4 x 12 Ga
80 847950612 Bolt Hex Nylon 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
37
Page 10
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

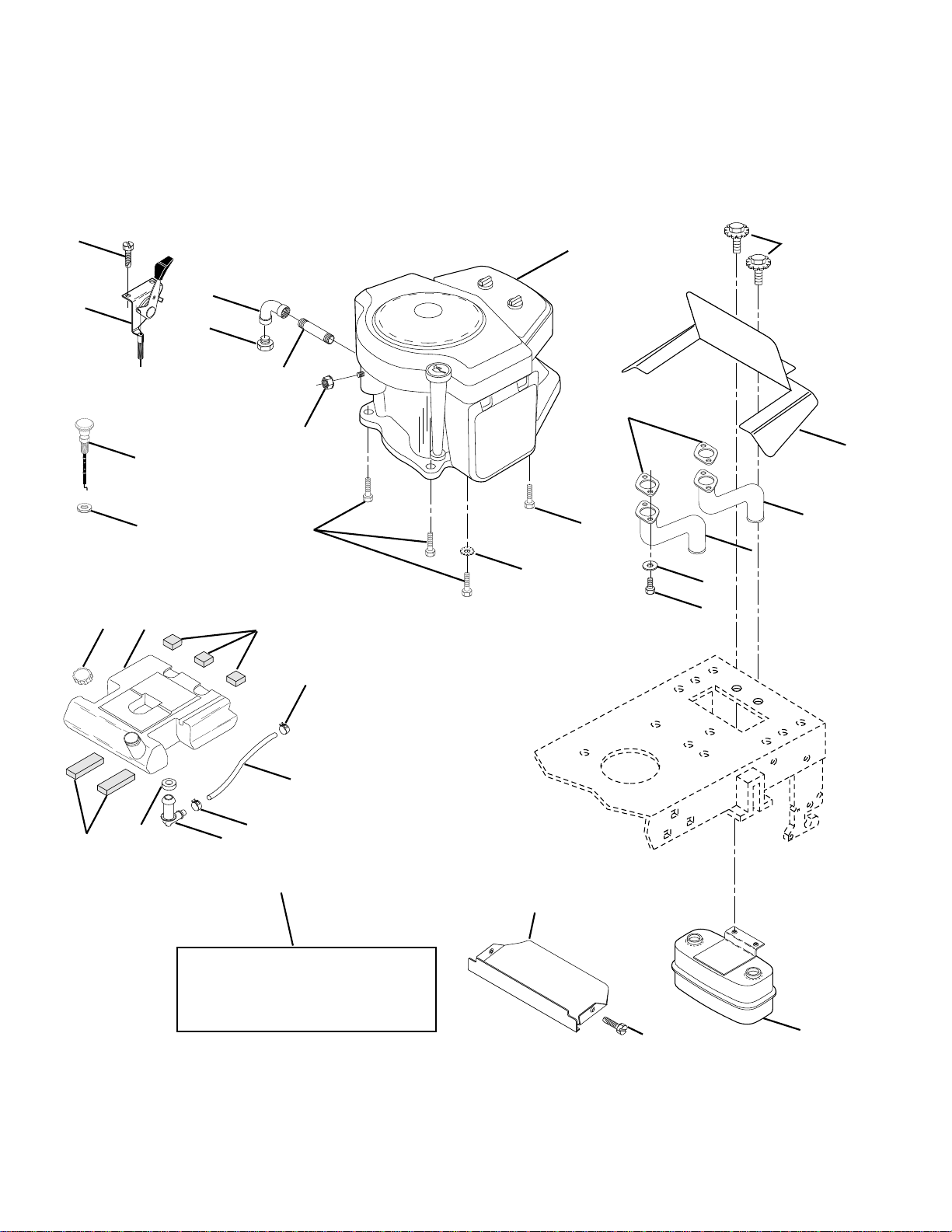

ENGINE
2
1
25
26
32
31
15
38
14
81
17
16
34
33
3
13
17
62
72
8
10
6
5
39
40
37
33
41
29
OPTIONAL EQUIPMENT
Spark Arrester
38
23
35
4
Page 11
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532148875 Control, Throttle
2 817720410 Screw, Hex Head, Thread Cutting 1/4-20 x 5/8
3 - - - - - - - Engine, B&S 407777-0121-E1
(Order parts from engine manufacturer)
4 532149723 Muffler
5 532159955 Tube, Manifold, LH
6 532160589 Tube, Manifold, RH
8 532150176 Bolt 5/16-18 UNC x 3/4 w/Sems
10 532162797 Shield, Browning
13 532165391 Muffler Gasket
(Order from Engine Manufacturer)
14 813280336 Nipple, Pipe 3/8 NPT x 4-1/2
15 813200300 Elbow, Standard 90° 3/8-18 NPT
16 811050600 Washer, Lock, External Tooth 3/8
17 817490624 Screw Thdrol 3/8-16 x 1-1/2
23 532159880 Shield, Browning / Debris Guard
25 532145996 Choke Control
26 873920600 Nut, Keps 3/8-24 UNF
29 532137180 Kit, Spark Arrestor
31 532151346 Tank Fuel 3 50 Rear
32 532140527 Cap Asm Fuel W/sym Vented
33 532123487 Clamp, Hose
34 532106082 Pad, Spacer
35 817490512 Screw, Thd. Roll. 5/16-18 x 3/4
37 532007833 Line, Fuel
38 - - - - - - - Plug, Oil Drain
(Order From Engine Manufacturer)
39 532109227 Pad, Idler
40 532003645 Bushing
41 532139277 Stem, Fuel Tank
62 810040500 Washer, Lock 5/16 (Order from engine mfg.)
72 871070512 Screw, Hex Socket Head 5/16-18 x
(Order from engine mfg.)
81 532128861 Nut, Flange 1/4-20 Starter Nut
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
39
Page 12
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

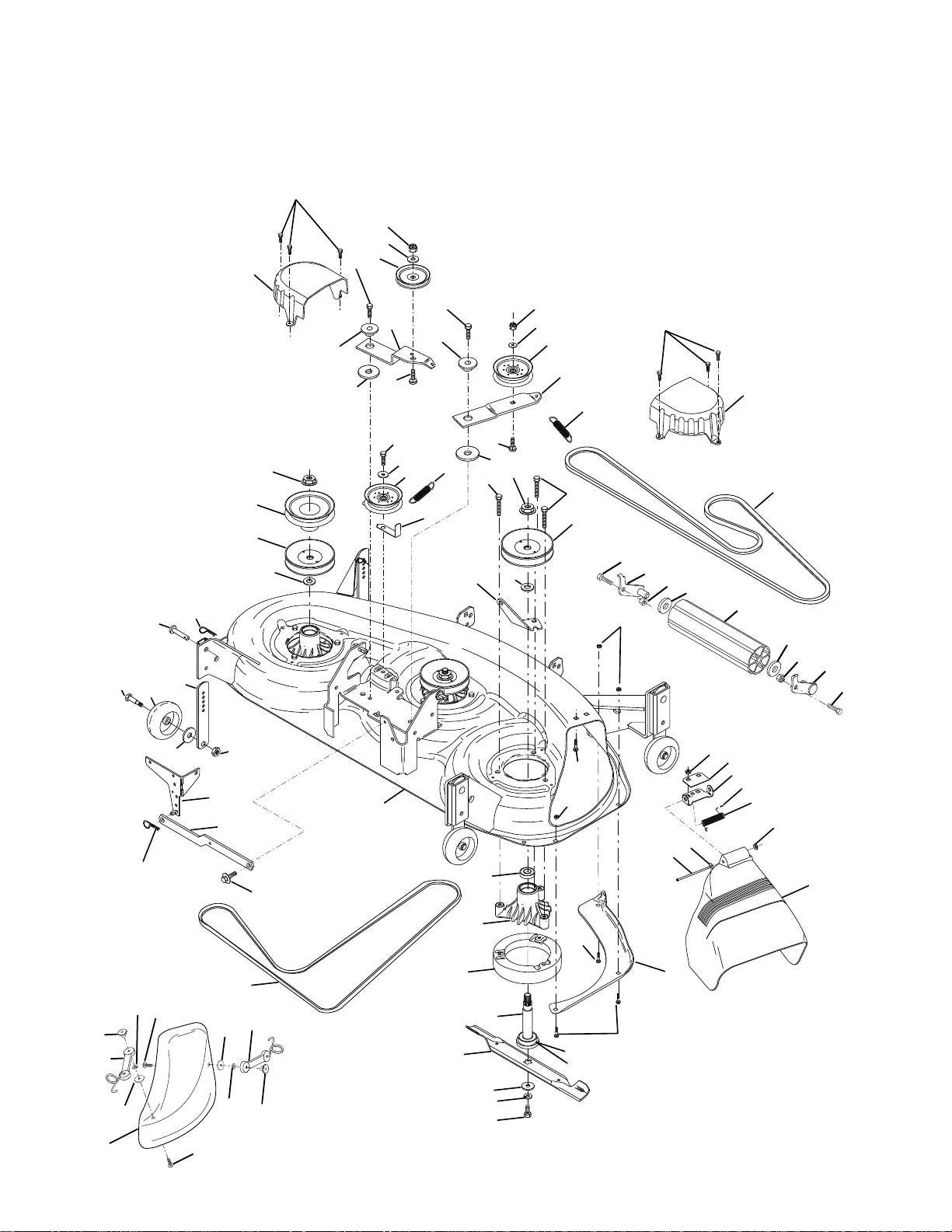

MOWER DECK
46
49
36
127
45
41
116
57
117
5
56
119
44
31
33
49
36
37
43
30
32
40
21
90
91
46
92
93
45
47
94
41
126
42
50
44
33
39
32
31
5
35
72
52
38
42
40
50
30
34
93
92
95
90
28
21
22
23
24
25
26
27
118
18
3
1
6
15
19
21
29
106
105
101
104
103
102
102
104
103
48
105
106
11
16
40
14
10
13
18
20
12
51
9
8
18
Page 13
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532164212 Deck Asm., Mower 46"
3 532138457 Bracket Asm., Sway Bar
5 532124670 Retainer Spring
6 532130832 Arm, Suspension, Rear (Sway Bar)
8 532850857 Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
9 810030600 Washer, Lock Hvy., Unplated 3/8
10 532140296 Washer, Hard Blade, Mower
Vented
11 532163819 Blade, 46" Mower Deck
12 532129895 Bearing, Ball, Mandrel #6204
13 532137553 Shaft Asm. w/Lower Bearing
(Includes Key No. 12)
14 532137152 Housing, Mandrel
15 532110485 Bearing, Ball, Mandrel
16 532140329 Stripper, Mower Round
18 872140505 Bolt, Carriage 5/16-18 x 5/8
19 532132827 Bolt, Hex Head, Shoulder 5/16-18
20 532145055 Baffle, Vortex Mower 46"
21 873680500 Nut, Crownlock 5/16-18 UNC
22 532134753 Stiffiner, Bracket
23 532131267 Bracket, Deflector
24 532105304 Cap, Sleeve
25 532149287 Spring, Torsion, Deflector
26 532110452 Nut, Push
27 532157788 Shield, Deflector Mower
28 819111016 Washer 11/32 x 5/8 x 16 Ga.
29 532131491 Rod, Hinge
30 532157722 Screw, Thdroll Washer Head
31 532129963 Washer, Spacer Mower Vented
32 532153531 Pulley, Mandrel
33 532137266 Nut, Flg. Top Lock Cntr. 9/16
34 532144945 Anchor, Spring Deck 46"
35 817490628 Screw, Thdroll 3/8-16 x 1-3/4 Tytt
36 819131316 Washer 13/32 x 13/16 x 16 Ga.
37 532131494 Pulley, Idler, Flat
38 532156086 Keeper, Belt, Idler
39 532144917 Pulley, Idler, Driven
40 532137273 Spring, Secondary 44/46/50 Vent
41 817490620 Screw, Thdroll 3/8-16 x 1-1/4 Tytt
KEY PART
NO. NO. DESCRIPTION
42 532122052 Spacer, Retainer
43 532144949 Arm, Idler Secondary
44 532133943 Washer, Hardened
45 532145059 Cover, Mandrel Deck
46 532137729 Screw, Thdroll. 1/4-20 x 5/8
47 532144959 V-Belt, Mower, Secondary
48 532148763 V-Belt, Mower, Primary
49 873680600 Nut, Crownlock 3/8-16 UNC
50 872110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
51 532153390 Washer Felt
52 532156493 Pulley Idler 46 Pri Drive 97
56 532155986 Bar Adjusting Guage Wheel
57 532156941 Pin Head Rivet
72 819131616 Washer 13/32 x 1 x 16 Ga.
90 874760616 Bolt, Fin Hex 3/8-16 UNC x 1
91 532132274 Bracket Asm. Noseroller, Lh
92 873800600 Nut Lock Hex w/Ins 3/8-16 UNC
93 819171416 Washer 17/32 x 7/8 x 16 Ga.
94 532132264 Roller Nose 38 & 42
95 532132273 Bracket Asm. Noseroller, Rh
101 532145579 Cover Mulcher
102 871161010 Screw Truss Hd Phil 10-24 x 5/8
103 810071000 Washer Lock #10
104 532125004 Nut Weld
105 819061216 Washer #10
106 532160793 Latch Asm Mulch/Bagger
116 532137644 Bolt, Shoulder
117 532133957 Gauge Wheel
118 873930600 Nut, Centerlock 3/8-16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
126 532144948 Arm, Idler, Primary Deck 46"
127 532146763 Pulley, Idler, V-Groove Dim. 4.25
- - 532143651 Mandrel Asm 44"/46"/50" Service
- - 532166208 Deck Complete (Std. Deck-Order
separately nose roller and gauge
wheel components Key Nos. 90-95
and 116-118)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
Page 14
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

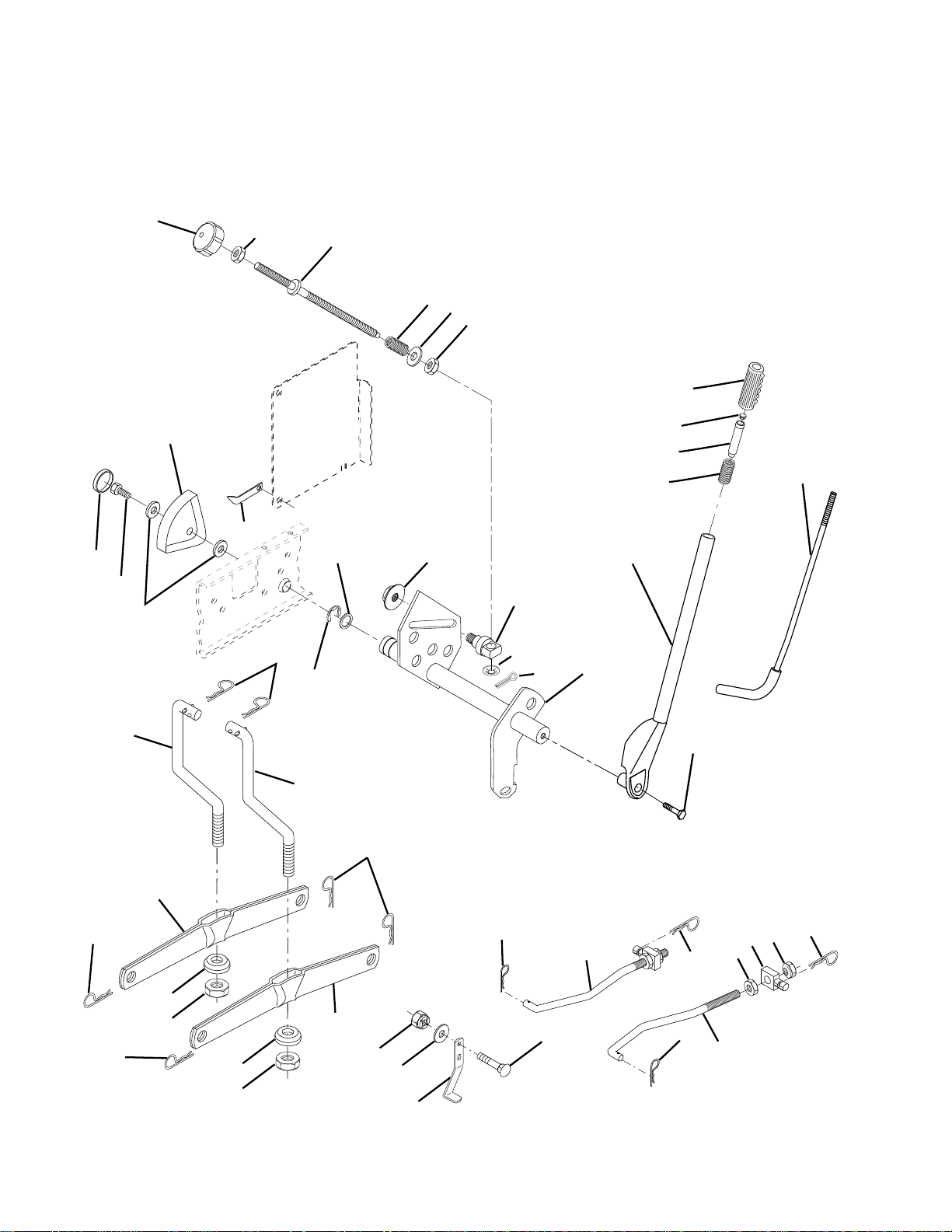

MOWER LIFT
37
38
29
40
41
36
28
13
46
27
47
25
49
24
23
30
50
26
7
8
9
10
14
2
1
13
13
11
19
31
32
31
32
12
19
13
42
43
39
42
20
44
15
20
6
20
16
15
17
18
20
Page 15
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532121006 Rod Assembly, Lever
2 532159188 Shaft Assembly, Lift
6 874780624 Bolt, Hex Head, Fin. 3/8-16 x 1-1/2
7 532125631 Grip Handle
8 532124526 Button Plunger Black
9 532122364 Plunger Lever Lift
10 532124874 Spring
11 532145537 Link, Lift, LH
12 532145536 Link, Lift, RH
13 532124670 Retainer Spring
14 532159189 Lever Assembly, Lift, RH
15 532127218 Link, Front
16 873350800 Nut, Hex, Jam 1/2-13 UNC
17 532130171 Trunnion
18 873680800 Nut Crownlock 1/2-13 Unc
19 532139868 Arm, Suspension, Rear
20 532163552 Retainer Spring
23 532110807 Nut, Special
24 819131016 Washer 13/32 x 5/8 x 16 Gauge
25 532124874 Spring
26 876020308 Pin, Cotter 3/32 x 1/2
27 532126971 Adjustment Rod, Lift
28 873350600 Nut, Hex, Jam 3/8-16 UNC
29 532138057 Knob, Infinite Height Adjustment
30 532150233 Trunnion, Inf. Height
31 532140302 Bearing
32 873540600 Nut, Crownlock 3/8-24
36 532155097 Pointer Height Indicator
37 532123935 Plug Hole Blk 1.485/1.515 Dia.
38 817490512 Screw Thdrol 5/16-18 x 3/4
39 532142992 Stop Over Center
40 819112410 Washer 11/32 x 1-1/2 10 Ga.
41 532123934 Scale Ind. Height Blk.
42 873680600 Nut, Crownlock 3/8-16 UNC
43 819131612 Washer 13/32 x 1 x 12 Ga.
44 872240608 Bolt, Carriage 3/8-16 x 1.00
46 812000022 E-Ring
47 819292016 Washer
49 532145212 Nut Hex Flange Lock
50 532110452 Nut Push Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
Page 16
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

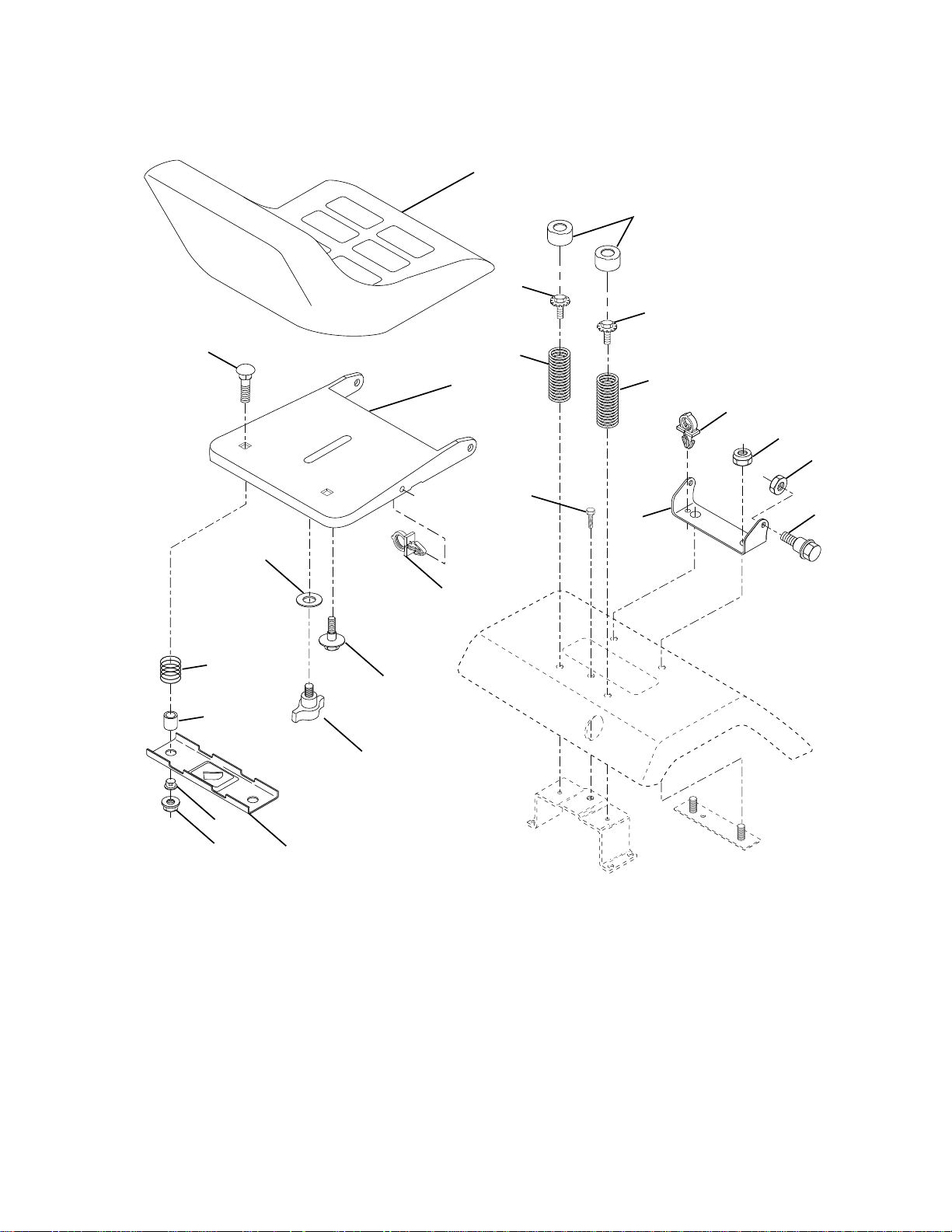

SEAT ASSEMBLY
1
18
28
28
14
16
15
24
11
25
7
10
27
5
7
5
6
22
2
21
13
17
KEY PART
NO. NO. DESCRIPTION
1 532140840 Seat
2 532140551 Pivot Bracket, Seat
5 532145006 Clip, Push-in Hinged
6 873800600 Nut, Lock Hex w/Ins 3/8-16 UNC
7 532124181 Spring, Seat
10 532155925 Pan, Seat
11 532166369 Knob, Seat
12 532121246 Bracket, Switch Mounting
13 532121248 Bushing, Snap, Black, Nylon
14 872050412 Bolt, Carriage 1/4-20 x 1-1/2
15 532121249 Spacer, Split .28 x .96
16 532123740 Spring
12
KEY PART
NO. NO. DESCRIPTION
17 532123976 Locknut, Flange 1/4 Grade 5
18 532124238 Cap Spring Seat Blk 1.75 x 1.0
21 532153236 Bolt, Shoulder 5/16-18 Unc -2A
22 873680500 Nut, Crownlock 5/16-18
24 819171912 Washer 17/32 x 1-3/16 x 12 Gauge
25 532127018 Bolt, Shoulder 5/16-18 x .62
27 817490608 Screw Thdrol 3/8-16 x 3/4
28 532150176 Bolt 5/16-18 UNC x 3/4 w/Sems
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
44
Page 17
REPAIR PARTS
TRACTOR - MODEL NO. GTVH200 (954140016B), PRODUCT NO. 954 14 00-16

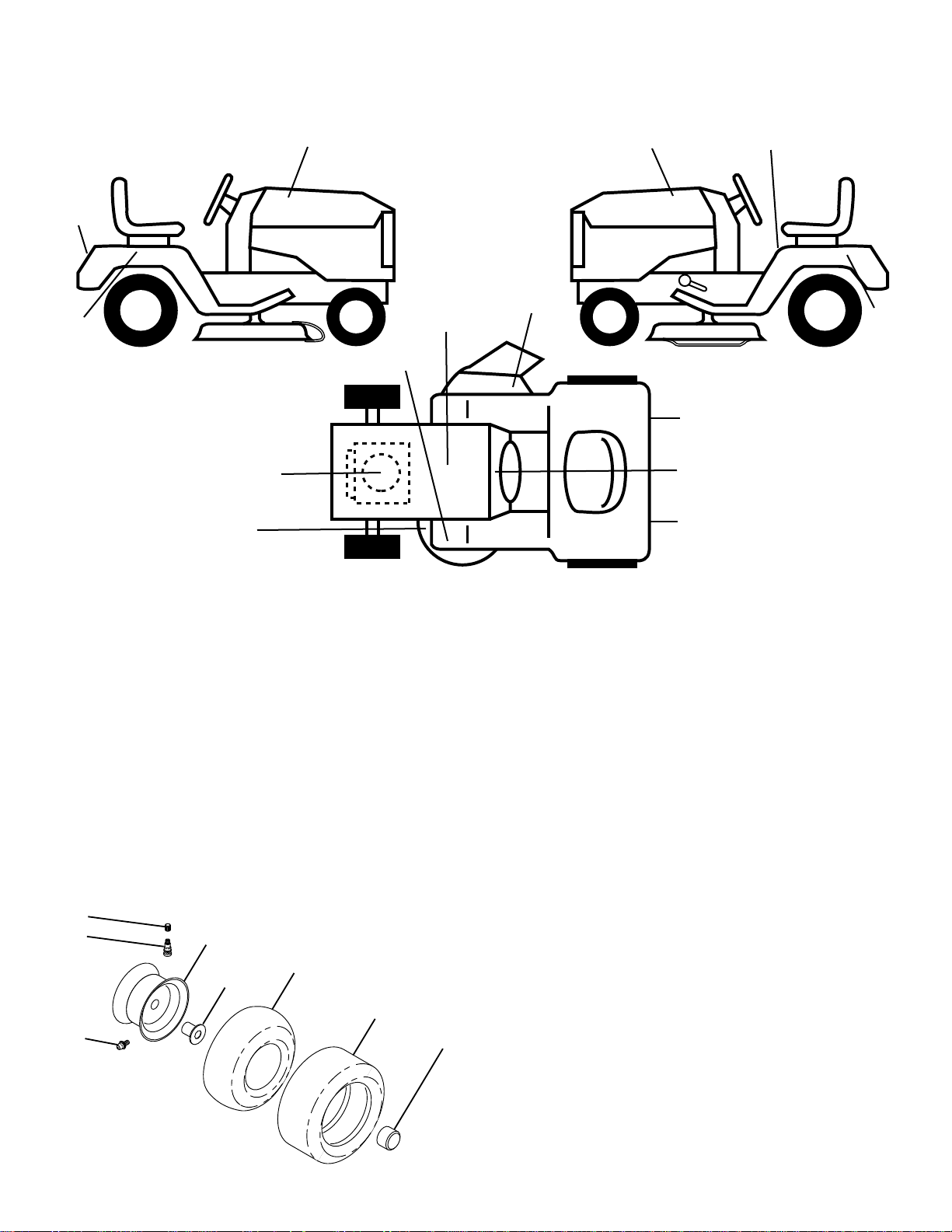

DECALS
16
4
1
15
14
17
3
13
7
16
5
10
KEY PART
NO. NO. DESCRIPTION
1 532150617 Decal, Fender
3 532166321 Decal, Hood LH
4 532166319 Decal, Hood RH
5 532166323 Decal, HP Engine
7 532157140 Decal, Danger Fender English/
French
10 532160397 Decal, V-Belt Sch
12 532156993 Decal, Saddle Oper Instr.
13 532106202 Reflector Taillight
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
11
12
13
KEY PART
NO. NO. DESCRIPTION
14 532145005 Decal, Btry Dngr/Psn
15 532137259 Decal, Warning Multi-Language
16 532155862 Decal, Fender Automatic
17 532101892 Decal, Clutch/Brake
- - 532142341 Decal, Drawbar Cntrl Mvt
- - 532157199 Pad, Footrest
- - 532138311 Decal, Handle Lft Height Adjust
- - 532168312 Manual, Owner's (English)
- - 532168313 Manual, Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F
4 532059904 Tube Front (Service Item Only)
5532138336Rim Asm 6" front
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532164127 Rim Asm 12" rear
9 532124106 Tire Rear
10 532007154 Tube Rear (Service Item Only)
11 532104757 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire (1 Doz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
Loading...
