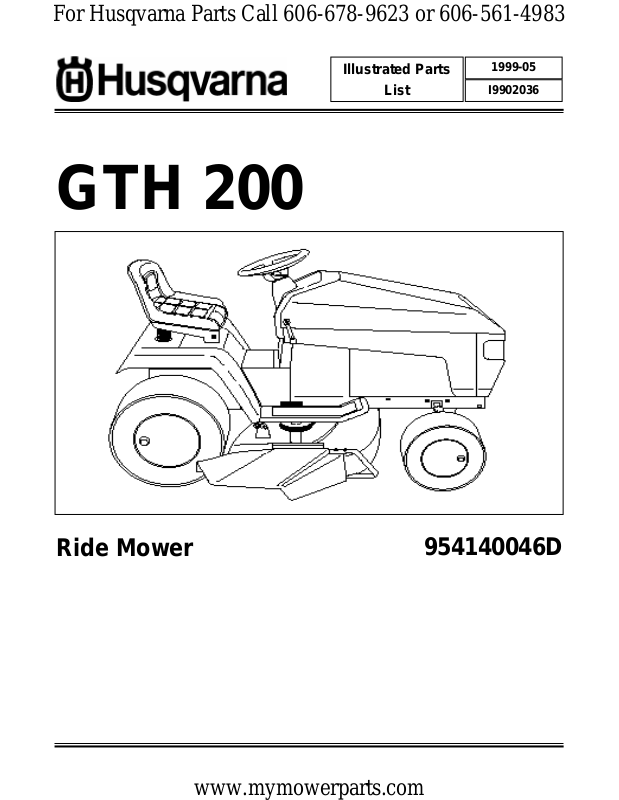

GTH 200
Illustrated Parts
List
1999-05
I9902036
Ride Mower
954140046D
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
SCHEMATIC
BATTERY
BLACK
G
IGNITION
SWITCH
BROWN
RED
FUSE
S
B
M
A1
A2L
ORANGE
(NOT OCCUPIED)
RED
85 86
87
OPERATOR PRESENCE
CLUTCH / BRAKE
(PEDAL UP)
SEAT SWITCH
HOUR
METER
(OPTIONAL)
30
87A
RELAY #2
WHITE
RED
WHITE
1
BLACK
FUEL
LINE
RED
WHITE
CG
B
A
PTO
(DISENGAGED)
BLACK
M
STARTER
BLACK
SOLENOID
F
H
RED
E
D
GREEN
85 86
87
BLACK
IGNITION
UNIT
ELECTRIC CLUTCH
OPERATOR
PRESENCE RELAY #3
85 86
87
30
87A
2
BLACK
30
87A
OPERATOR PRESENCE
ON TWIN CYL. ENGINES)
WHITE
RELAY #1
SPARK
PLUGS GAP
(2 PLUGS
RED
BLUEBLUE
4
IGNITION SWITCH
OFF
CIRCUITPOSITION
M + G + A1
B + S + A1START
“MAKE”
B + A1ON + LIGHTS
B + A1ON
NONE
L + A2
NONE
NONE
INDICATOR LIGHTS
1 DEPRESS FOOT PEDAL
2 DISENGAGE ATTACHMENT
3 CHECK OIL
4 BATTERY DISCHARGING
FUEL SHUT-OFF SOLENOID
3
12.2 VOLT
SENSOR
(OPTIONAL)
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE
YOUR WIRING.
PTO SWITCH
CIRCUITPOSITION
OFF
ON
FC
G
E
H
D
NON-REMOVABLE
CONNECTIONS
C + G, B + H
C + F, B + E, A + D
B
A
RELAY
CHARGING SYSTEM
OUTPUT 15 AMP DC
@ 3600 RPM
87
87A
8586
30
REMOVABLE
CONNECTIONS
REGULATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
OIL PRESSURE SWITCH
(ENGINE OFF)
IGNITION SWITCH
"M" FOR ENGINE
SHORTING
(BLACK WIRE)
OIL SENTRY
OPTION (YELLOW
WIRE TO LIGHT PKG.)
ENGINE CONNECTOR
REGULATOR
(PURPLE WIRE,
RED WIRE)
CARBURETOR
SOLENOID
(RED WIRE,
BLUE WIRE)
YELLOW
ALTERNATOR
BROWN
HEADLIGHTS
TRACTOR ENGINE
BATTERY
CHARGING
(RED WIRE)
SWITCHED
(BLUE WIRE)
ENGINE
SHORTING
(WHITE WIRE)
OIL SENTRY
(GREEN WIRE)
BLACK
+12V
31
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
ELECTRICAL
22 21
42
24
43
41
12
25
20
81
19
26
40
19
20
51
50
16
10
11
DEPRESS
FOOT
PEDAL
DISENGAGE
ATTACHMENT
CHECK
OIL
61
FUEL
33
27
62
28
2
1
29
8
12
47
30
46
32
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144927 Battery
2 874760412 Bolt Hex Head 1/4-20 x 3/4
8 532124886 Tray, Battery
10 532145211 Bolt, Btr Frt 1/4-20 x 7-1/2 Zinc
11 532150109 Holddown Battery Front Mount
12 532145769 Nut Push Nylon 1/4" Battery Frt.
16 532153664 Switch Interlock Push-In
19 810090400 Washer, Lock 1/4
20 873350400 Nut, Jam Hex 1/4-20
21 532166182 Harness Socket Light w/4152J
22 532004152 Bulb Light
24 532004014 Cable, Starter
25 532146686 Cable, Battery
26 532108824 Fuse
27 873510400 Nut Keps Hex 1/4-20 UNC
28 532157899 Cable, Ground
29 532160784 Switch, Plunger
30 532163968 Switch, Ign
33 532140401 Key
40 532166174 Harness Ign.
41 817720408 Screw 1/4-20 x 1/2
42 532131563 Cover, Terminal Red
43 532145673 Solenoid
46 532110940 Meter Hour
47 817011008 Screw #10-24 x 1/2
50 532154959 Switch, PTO
51 532140405 Ring Retainer PTO
61 532138101 Light Pkg Asm
62 532110143 Bulb, Light Pkg.
81 532109748 Relay Asm.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
CHASSIS AND ENCLOSURES
72
17
35
54
92
138
47
5
29
38
46
108
27
37
109
74
63
17
15
18
9
110
109
130
112
82
7
14
107
31
76
17
8
6
68
80
79
3
108
132
131
68
35
17
90
7
7
25
22
58
21
139
32
17
30
33
106
40
70
39
20
17
50
114
45
63
17
17
17
60
139
1
84
117
21
17
115
116
118
119
17
44
24
23
47
17
43
28
17
56
47
17
20
19
68
2
103
100
86
4
91
102
99
101
52
34
16
17
36
98
34
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532150253 Rail, Frame RH
2 532140506 Drawbar, Gt
3 532150478 Panel Asm., Side LH
4 873800700 Nut, Lock Hex 7/16 Unc
5 532140452 Dash, Plastic Black
6 532157882 Dash 1-PCS, Lower
7 817720408 Screw, Thd Cut 1/4-20 x 1/2
8 532145166 Support, Battery
9 532108067 Nut Pal
14 532150477 Hood Asm., Pnt
15 532168214 Lens, Headlight LH
16 532121794 Cover, Access
17 817490612 Screw, Thdrol 3/8-16 x 3/4
18 532157236 Grille
19 819131312 Washer 13/32 x 13/16 x 12 Ga.
20 874760616 Bolt, Fin Hex 3/8-16 x 1
21 873680600 Nut, Crownlock 3/8-16 Unc
22 532150479 Panel Asm., Side RH
23 817490616 Screw Thdrol. 3/8-16 x 1 Ty-TT
24 532147202 Footrest, RH
25 532168213 Lens Headlight RH
27 873220400 Nut Fin Hex 1/4-20
28 532147203 Footrest, LH
29 532145205 Bracket, Support Dash
30 532145052 Saddle
31 532161419 Brace, Support Steering
32 532161327 Bracket Asm., Frame Pivot Lh
33 532161326 Bracket Asm., Frame Pivot Rh
34 532142131 Bracket, Engine Support Rear
35 819111116 Washer 11/32 x 11/16 x 16 Ga.
36 874780512 Bolt, Fin Hex 5/16-18 x 3/4
37 532169426 Fender, Pnt.
38 810040400 Washer, Lock 1/4
39 532136961 Bracket, Axle Front
40 532156111 Bracket, Support Axle/Engine
43 532136939 Bracket, Spnsn Front Lh
44 532136940 Bracket, Spnsn Front Rh
45 532154913 Bracket Asm., Susp Chassis Rh
46 819091216 Washer 9/32 x 3/4 x 16 Ga.
47 817490608 Screw Thdrol 3/8-16 x 1/2
50 532152728 Bracket, Chassis Front
52 873800500 Locknut, Hex W/Ins 5/16-18 Unc
54 873510500 Nut 5/16-18
56 532154914 Bracket Asm., Susp Chassis Lh
KEY PART
NO. NO. DESCRIPTION
58 532137113 Bracket Asm., Fender
60 817490620 Screw Thdrol 3/8-16 x 1-1/4
63 819131614 Washer 13/32 x 1 x 14 Ga.
68 817490508 Screw, Thdrol 5/16-18 x 1/2
70 532137159 Guide, Belt Mid Span
72 874180512 Screw, Mach Trhd 5/16-18 x 3/4
74 874191008 Screw, Machine #10-24
76 532125004 Nut, Weld #10-24
79 874981020 Screw, Machine #10-24 x 1/4
80 532007206 Spacer, Split
82 873731000 Nut #10-24
84 532142992 Stop, Over Center 44" 20/23" T. 94
86 874760716 Bolt, Fin Hex 7/16-14 Unc x 1
90 811050600 Washer, Lock External Tooth 3/8
91 532156586 Rail, Frame Lh
92 532168203 Plate, Silkscreen Dash
98 532140503 Bracket Chassis Skid
99 532140871 Rod Asm. Bypass
100 532124236 Cap Brake Parking Red
101 817490628 Screw Thdrol. 3/8-16 x 1-3/4
102 532124788 Retainer Spring 1"
103 532142273 Bracket Lock Bypass
106 532138776 Screw Thdrol. Hex Hd Zinc Mur
107 532109808 Latch, Chute Blk
108 532110356 Cap, Snap Black
109 532110357 Cap, Washer Snap
110 532150200 Pivot Asm. Grille/Hood Husq. VGT
112 532060867 Nut, Acorn, Hex #10-24
114 872140610 Bolt, Carriage 3/8-16 x 1-1/4
115 532150300 Bumper Asm.
116 532141461 Bracket Extension Bumper
117 532143679 Plug Plastic
118 819131316 Washer 13/32 x 13/16 x 16 Ga.
119 873680600 Nut Crownlock 3/8-16 UNC
130 532164863 Screw, HwHd Hi-Lo #13-16 x 3/4
131 532150195 Bracket Support Hood/Panel YP
132 874291006 Screw Truss Hd. #10-24 x 3/8
138 532166625 Cupholder YTGT Grey
139 532161330 Bolt, Shoulder 5/16-18
- - 532125085 Plug, Hole
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

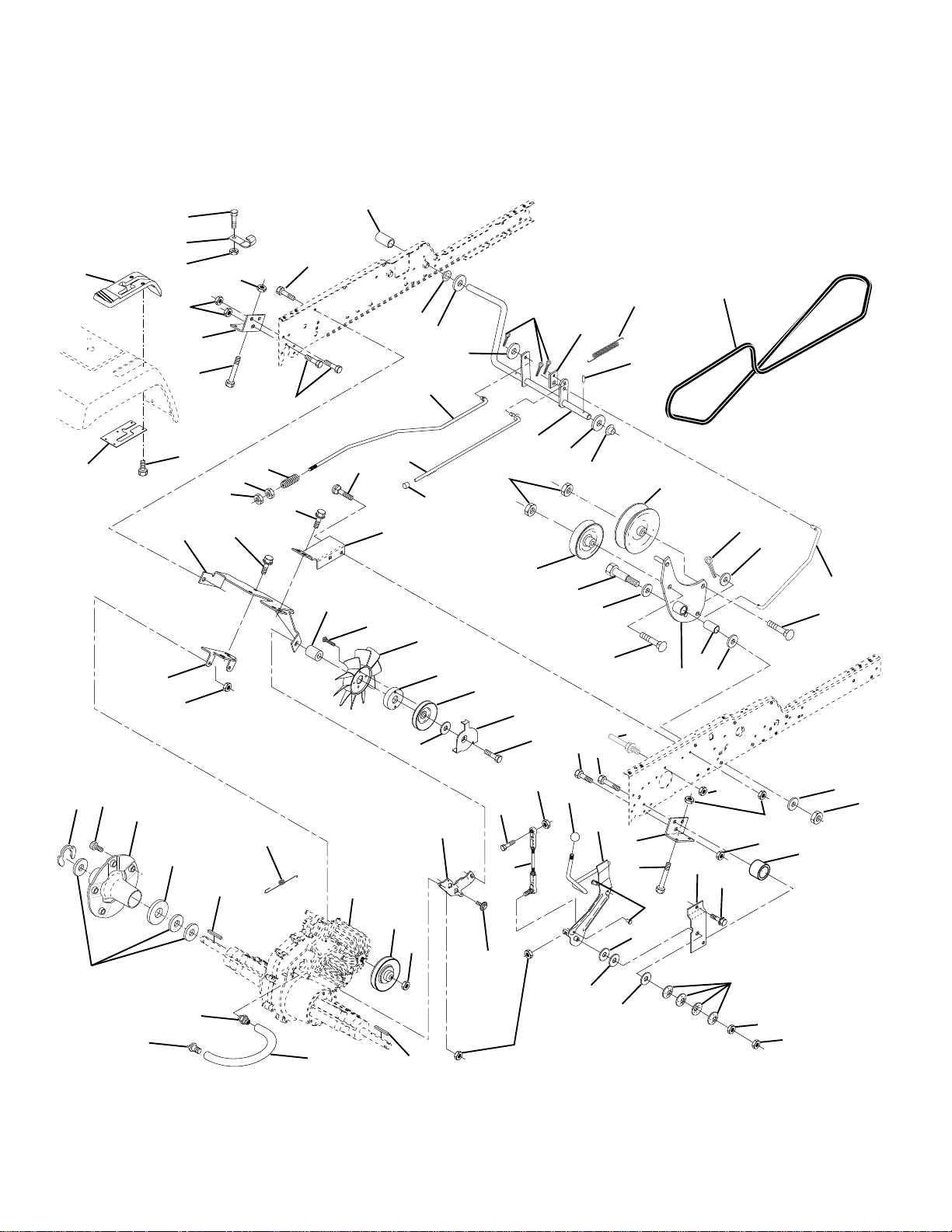

GROUND DRIVE
42
39
70
71
83
41
72
40
89
82
76
73
74
28
81
72
51
17
81
77
81
84
79
85
35
80
67
38
29
86
37
34
87
30
88
117
52
90
64
54
56
6
15
47
48
55
66
6
46
37
38
65
53
91
77
36
68
50
48
115
99
33
69
72
9
7
104
61
20
2
108
3
106
109
2
1
107
92
93
105
23
22
76
73
94
96
112
100
72
116
72
89
98
99
101
113
89
67
5
111
36
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
GROUND DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro 222-3010
(Order parts from transaxle mfg.)
2 532007070 Key 1/4 x 2.5
3 532007563 Washer Thrust Axle Harden
5 873680600 Nut Crownlock 3/8-16
6 876020412 Pin Cotter 1/8 x 3/4
7 532140507 Wheel Hub Asm.
9 532140080 Bolt Hub
15 819131316 Washer 13/32 x 13/16 x 16 Ga.
17 532140921 Spring Rod Brake
20 873940800 Nut Hex Jam Toplock 1/2-20
22 532156103 Shaft Arm Asm
23 532121274 Knob
28 873350600 Nut, Hex Jam 3/8-16
29 532140494 Brake Rod
30 819131616 Washer 13/32 x 1 x 16Ga
33 812000053 Ring E
34 532071673 Cap Plunger
35 532137648 Rod Parking Brake
36 532149412 Spring Drive Ground
37 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
38 532150035 Nyliner
39 874321016 Screw Fin #10-24 x 1
40 532005304 Actuator Interlock Switch
41 873661000 Nut Lock #10-24 Unc
42 532123533 Cover Pedal
46 532145170 Retainer Spring
47 532138228 Clutch Rod
48 872110612 Bolt Carriage 3/8-16 x 1-1/2 Gr. 5
50 532131494 Pulley Idler Flat
51 873800600 Nut Lock Hex 3/8-16
52 532139123 Pulley Idler Grooved
53 532000207 Washer Hartdened
54 532161590 Clutch Arm Asm
55 532105706 Bearing, Idler
56 532140218 V-Belt
58 874760724 Bolt Fin Hex 7/16-14 x 1-1/2
61 532140488 Pullery Transaxle
64 532154752 Shaft Asm Brake Parking Clutch
65 532067609 Bolt Shoulder
66 532140296 Washer Hardened
67 819131312 Washer 13/32 x 13/16 x 12 Ga
68 532005142 Pin Roll
KEY PART
NO. NO. DESCRIPTION
69 532123800 Washer
70 532166624 Console Hydro Fender
71 532151179 Plate Console Shift
72 873800500 Locknut Hex W/Washer Insert
73 874490548 Bolt Hex Flghd 5/16-18 x 3 Gr. 5
74 532142432 Screw, Hex Wsh Hi-Lo 1/4-1/2
76 532140481 Bracket Transaxle
77 874760716 Bolt Fin Hex 7/16-14 x 1
79 872110505 Bolt Carriage 5/16-18 x 5/8
80 532140484 Bracket Torque RH
81 817490612 Screw Thdrol 3/8-16 x 3/4
82 532150586 Bracket Mount Torque/Fan
83 532140479 Strap Torque Mid
84 532140490 Spacer
85 817541020 Screw #10-24 x 1-1/4
86 532140462 Fan 7" Hydro
87 532140491 Adapter Fan
88 532161592 Pulley Idler
89 873680700 Nut, Crownlock 7/16-14
90 532140489 Keeper Belt
91 817490644 Screw Thdrol 3/8-16 x 2-3/4
92 874760520 Bolt Fin Hex 5/16-18 x 1.75
93 532140502 Link Shift Asm
94 532133835 Fastner Christmas Tree
96 532141103 Washer Nickel Plated
98 532141004 Bracket Shift
99 817490624 Screw Thdrol 3/8-16 x 1-1/2
100 532126881 Washer Compression
101 532156106 Washer Bellville
104 532140480 Bracket Idler
105 817580408 Screw Tap 1/4-20 x 1/2
106 532142918 O-Ring Asm. Hydro Gear
107 532154739 Line Fuel Hydro
108 532142917 Cap Vent
109 532140929 Spring Return Brake
111 532156240 Spacer Shift Lever VGTH
112 532156104 Washer Nylon High Temp
113 873220700 Nut Hex ASF 7/16-14 UNC
115 532123405 Keeper Belt Gnd Dr.
116 873900500 Nut Lock Hex Flange 5/16-18
117 873900600 Nut Lock Flg. 3/8-16 UNC
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

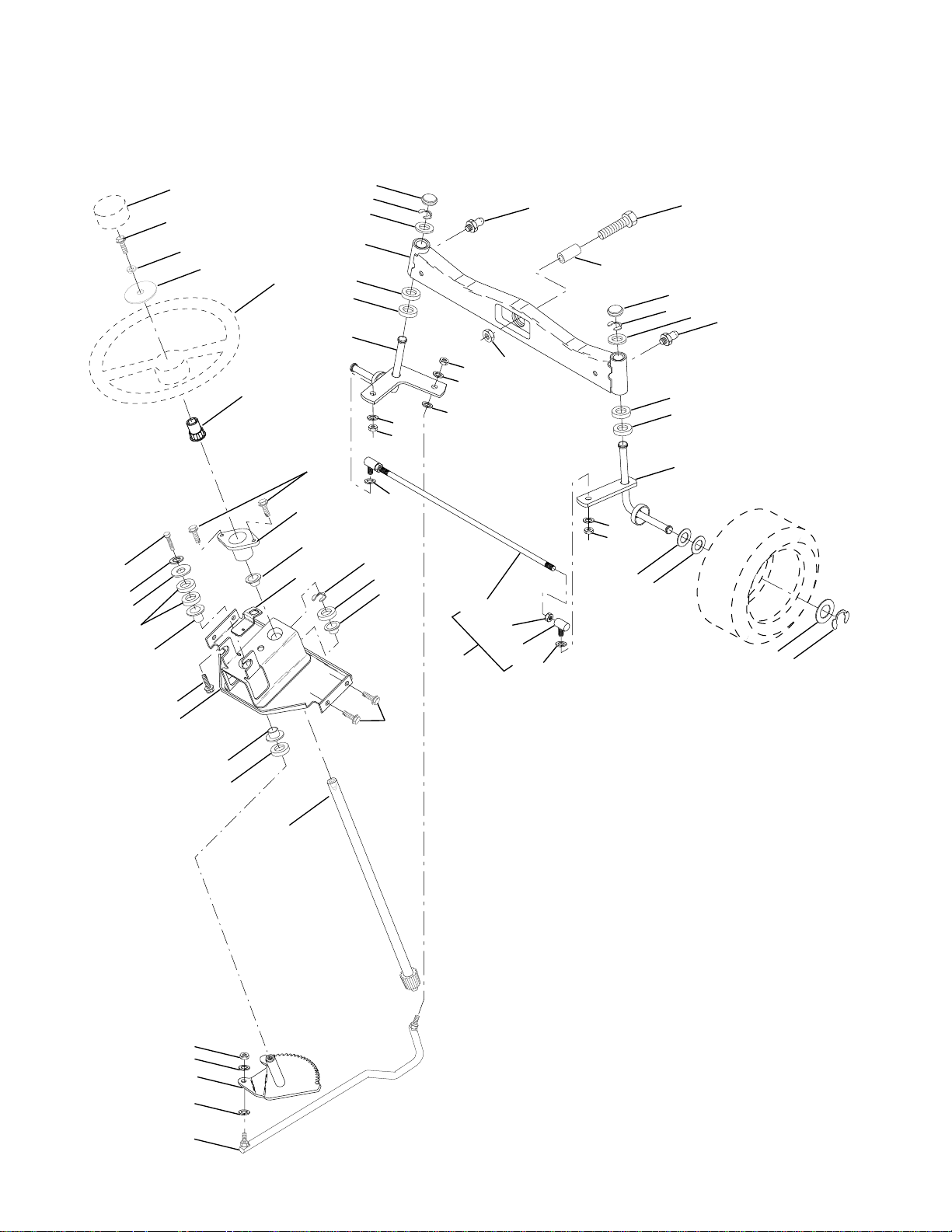

STEERING ASSEMBLY
34
33
32
26
25
14
24
1
21
23
22
31
41
6
27
9
8
7
2
6
6
4
15
14
14
15
14
30
6
29
14
36
37,39
17
12
38,40
14
3
11
14
15
13
13
10
9
8
7
3
6
6
5
7
8
42
19
15
14
14
18
28
27
6
16
35
38
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532166627 Wheel, Steering
2 532137094 Axle Asm., Front
3 532124836 Fitting, Grease
4 532161849 Spindle Asm, LH
5 532161848 Spindle Asm., RH
6 532124931 Bearing, Race Thrust Harden
7 532121748 Washer 25/32 x 1-5/8 x 16 Ga.
8 812000029 Ring, Klip #T5304-75
9 532121232 Cap, Spindle
10 874781044 Bolt, Fin Hex 5/8-11 x 2-3/4
11 532136518 Spacer, Brg. Axle Front
12 873901000 Nut, Lock Flange 5/8-11 Unc
13 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
14 810040600 Washer, Lock Hvy Hlcl Spr 3/8
15 532124701 Nut, Lock Center 3/8-24 Unf
16 532145103 Shaft Asm., Steering
17 532137347 Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)
18 532137155 Draglink, Ball Joint Solid Vgt
19 532156011 Support Asm., Steering Vgt
21 532159945 Adapter, Wheel Steering
22 532155105 Bushing, Strg.
23 532152927 Screw
24 819132411 Washer 13/32 x 1-1/20 x 11 Ga.
25 874780616 Bolt, Fin Hex 3/8-16 x 1 Gr. 5
26 532166626 Cap , Wheel Steering
27 532124937 Bearing, Col. Strg.
28 817490612 Screw Thdrol 3/8-16 x 3/4
29 532104239 Bearing, Flange
30 812000034 Ring, Klip Truarc #5304-75
31 532138136 Bushing, Nyliner Snap
32 819111610 Washer 11/32 x 1 x 10 Ga.
33 810040500 Washer, Lock Hvy Hlcl Spr 5/16
34 874760512 Bolt, Hex Hd 5/16-18 x 3/4
35 532138059 Gear, Sector Steering
36 532137156 Tie Rod
37 873360600 Jam Nut RH Thread
38 532109850 Joint Asm. Ball RH Thread
39 873700600 Jam Nut LH Thread
40 532109851 Joint Asm. Ball LH Thread
41 532155246 Bracket Switch Interlock VGT 97
42 817490508 Screw Thdrol 5/16-18 x 1/2 TYT
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

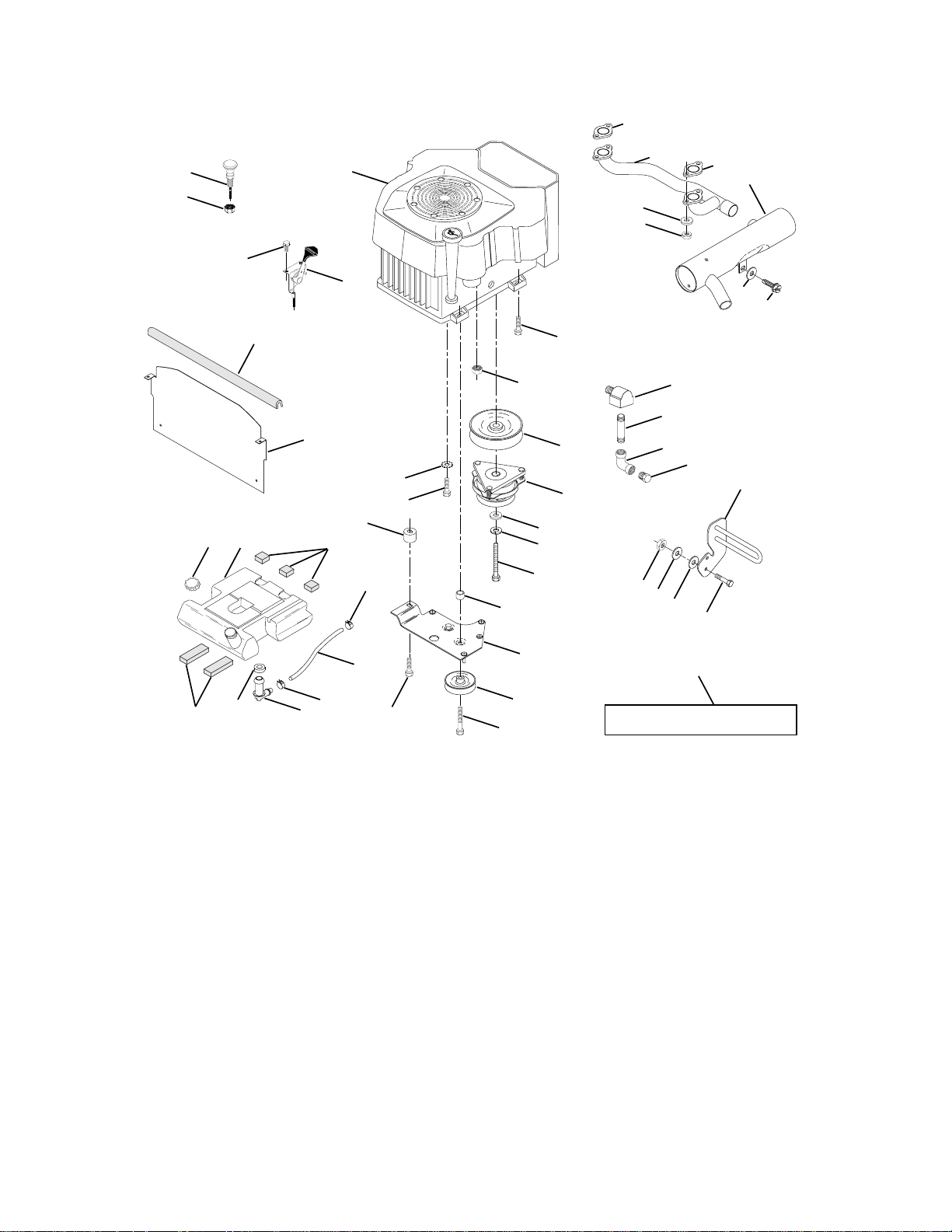

ENGINE
25
22
1
21
20
69
35
80
51
69
2
65
76
30
63
24
39
47
18
16
15
26
27
17
37
28
37
39
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Engine Kohler, Model No. CV20S
(Oder parts from engine
manufacturer)
2 532161063 Muffler Side 1-1/4
5 813200300 Elbow STD 90 Degree 3/8-18 NPT
7 532151396 Muffler Assembly Guard
8 532121361 Pulley V-Idler
9 532150828 Keeper Asm Belt Engine VGT 96
10 532105432 Bushing
11 532140923 Clutch Electric
12 532143996 Pulley Engine VGT Elect Clutch
15 532151346 Tank Fuel Rear
16 532109227 Pad Spacer
17 532106082 Pad Spacer
18 532140527 Cap Asm Fuel W/Sym Vented
19 813290300 Plug Oil Drain (Order From Engine
Manufacturer)
20 532132747 Control Throttle
21 817720410 Screw Hex Thd Cut 1/4-20 X 5/8
22 532132781 Control Choke
24 811050600 Washer Ext Tooth 3/8
25 873920600 Nut Keps 3/8 - 24 UNF
26 532124952 Bushing
27 532139277 Stem Tank Fuel
28 532124703 Fuel Line
39
33
54
74
55
5
19
7
48
38
29
10
40
45
12
11
41
42
43
9
8
SPARK ARRESTER KIT
KEY PART
NO. NO. DESCRIPTION
29 532132920 Spark Arrester Kit
30 532161547 Extrusion Hood
33 873800600 Nut, Hex W/Ins. 3/8-16 UNC
35 810010500 Washer Split
37 532123487 Clamp Hose
38 874780624 Bolt, Fin Hex 3/8-16 UNC x 1-1/2
39 817490636 Screw TT 3/8-16 x 2-1/4 UNC
40 817490664 Screw TT 3/8-16 x 4 UNC
41 532126197 Washer 1-1/2 OD X 15/32 ID X .250
42 810040700 Washer Lock 7/16
43 532150280 Bolt Hex 7/16-20 X 4-1/4 Ga 5
45 532128861 Nut Flange 1/4-20 Starter Nut
47 532142040 Spacer Engine
48 819132007 Washer 13/32 x 1-1/4 x 7 Ga.
51 532161231 Manifold Pipe VGT CV 1-1/4
54 819131414 Washer Flat 13/32 x 7/8 x 14 Ga.
55 813280336 Nipple, Pipe 4-1/2
63 532145549 Shield, Heat VGT YP/Husq.
65 819131614 Washer 13/32 x 1 x 14 Ga.
69 532163307 Gasket Kohler
74 532162295 Elbow Street Brass
76 817490612 Screw Thdrol 3/8-16 x 3/4 TY-TT
80 532163305 Nut Flange M8-1.25
NOTE: All component dimensions given in U.S. inches
40
1 inch = 25.4 mm
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

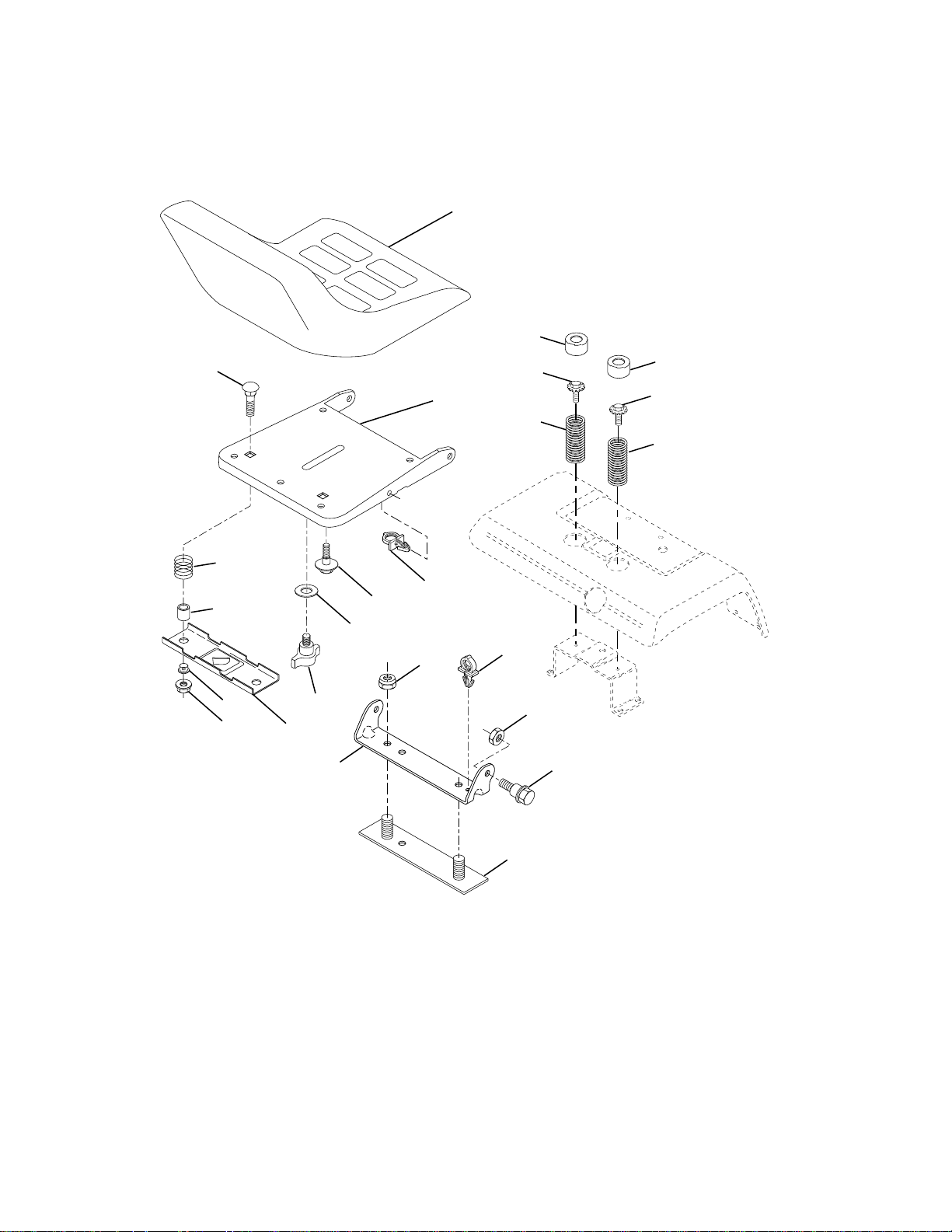

SEAT ASSEMBLY
1
20
14
8
10
7
20
8
7
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
1 532141525 Seat
2 532140551 Bracket, Pivot Seat
3 532140675 Strap, Fender
4 532127018 Bolt, Shoulder 5/16-18 X .62
5 532145006 Clip, Push In Hinged
6 873800600 Nut, Lock Hex W/Ins. 3/8-16 Unc
7 532124181 Spring, Seat Cprsn
8 532150176 Bolt 5/16-18unc x 3/4 W/Sems
10 532155925 Pan, Seat
12 532121246 Bracket, Mounting Switch
13 532121248 Bushing, Snap
19
12
4
18
2
5
6
5
22
21
3
KEY PART
NO. NO. DESCRIPTION
14 872050412 Bolt, Carriage 1/4-20 X 1-1/2
15 532121249 Spacer, Split
16 532123740 Spring, Cprsn
17 532123976 Nut, Lock 1/4 Lge Flg Gr. 5
18 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
19 532166369 Knob, Seat
20 532124238 Cap, Spring Seat
21 532153236 Bolt, Shoulder 5/16-18 Unc-2A
22 873680500 Nut, Crownlock 5/16-18 Unc
NOTE: All component dimensions given in U.S. inches
41
1 inch = 25.4 mm
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

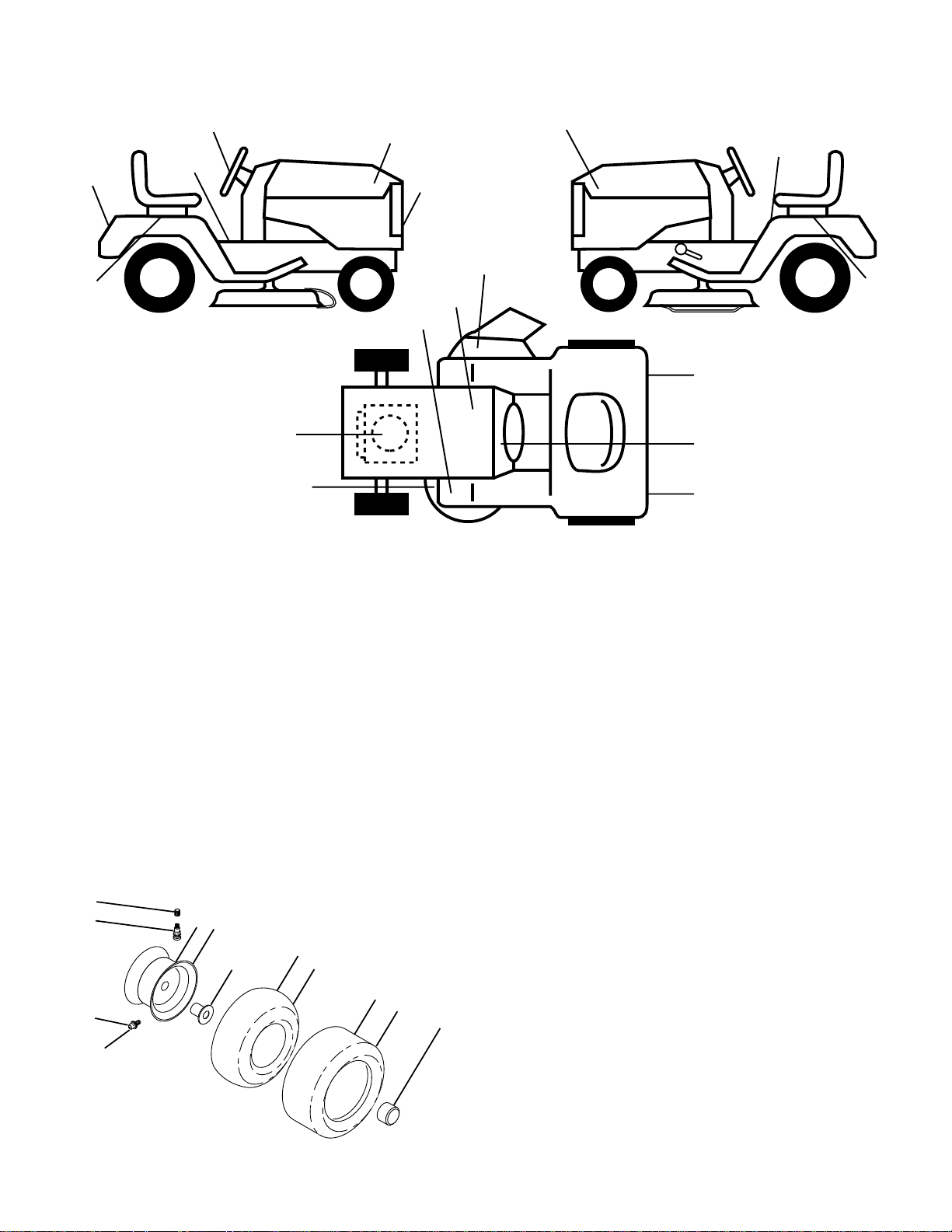

DECALS
9
7
12
8
6
2
4
19
11
5
10
23
7
3
14
KEY PART
NO. NO. DESCRIPTION
1 532156964 Decal, Operating Instruction
2 532150616 Decal, Grille Husqvarna
3 532166105 Decal, HP Engine
4 532137259 Decal, Warning, Mult. Lang.
5 532157327 Decal, Hood LH GTH200
6 532157326 Decal, Hood RH GTH200
7 532155862 Decal, Fender Automatic Husq.
8 532165948 Decal, SW Deluxe Husq.
9 532150617 Decal, Fender
10 532157140 Decal, Danger
WHEELS & TIRES
1
2
6
12
11
3
4
7
10
5
1
23
KEY PART
NO. NO. DESCRIPTION
11 532101892 Decal, Clutch/Brake
12 532140837 Decal, Brake Parking Saddle
14 532160397 Decal, V-Belt Schematic
19 532145005 Decal, Battery
23 532106202 Reflector, Taillight
- - 532138311 Decal, Handle Lft Height Adjust
(Lift Handle)
- - 532157199 Pad Ftrest Rbr Sq Generic
- - 532142342 Decal, Drawbar Cntrl Mvt Hyd Gt
- - 532167834 Manual, Owner’s (English)
- - 532167835 Manual, Owner’s (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Valve, Tire
2 532065139 Stem, Valve
3 532144509 Rim Assembly, Front
4 532008134 Tube, Front (Service Item Only)
5 532106230 Tire, Front
6 532124860 Fitting, Grease
7 532124959 Bearing, Flange (Front Wheel Only)
9
8
8 532104757 Cap, Hub, Axle Blk.
9 532105588 Tire, Rear
10 532007154 Tube, Rear (Service Item Only)
11 532144510 Rim Assembly, Rear
12 532124957 Fitting, Grease
- - 532144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

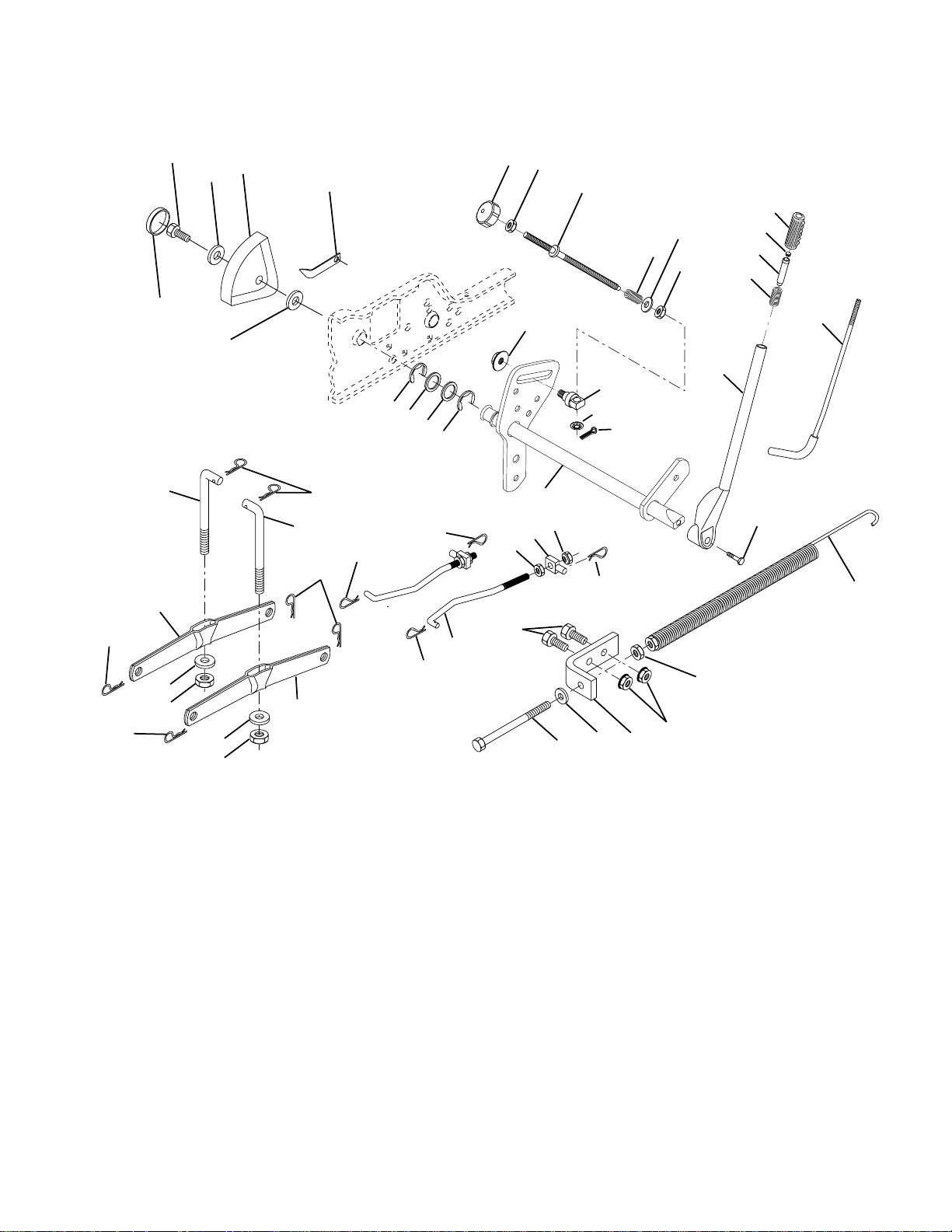

LIFT ASSEMBLY
40
42
43
38
35
17
34
32
31
30
7
8
9
10
23
23
11
13
14
41
39
14
41
42
13
11
23
23
12
70
3
29
20
12
72
19
33
18
6
17
15
4
5
5
4
2
26
12
22
12
25
24
21
1
16
KEY PART
NO. NO. DESCRIPTION
1 532121006 Rod Asm., Lever
2 532159187 Shaft Asm., Lift Vgt
3 532159189 Lever Asm., Lift Rh
4 812000022 E-Ring Truarc #5133-87
5 819292016 Washer 29/32 x 1-1/4 x 16 Ga.
6 874780624 Bolt, Fin Hex 3/8-16 x 1-1/2
7 532125631 Grip, Handle Fluted
8 532124526 Button, Plunger
9 532122364 Plunger, Lever Lift
10 532124874 Spring 2-1/8"
11 532146704 Link Lift
12 532163552 Retainer, Spring
13 532139868 Arm, Suspension Vgt
14 532140302 Bearing
15 873680600 Nut, Crownlock 3/8-16 Unc
16 532124687 Spring Asm., Assist Lift
17 873350600 Nut, Hex Jam 3/8-16 Unc
18 532143363 Bracket, Spring Assist
19 819131316 Washer 13/32 x 13/16 x 16 Ga.
20 532005328 Bolt, Adjust Spring Assist
21 874760616 Bolt, Fin Hex 3/8-16 x 1
22 532127218 Link, Front
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
23 532124670 Retainer, Spring
24 873350800 Nut, Jam Hex 1/2-13 Unc
25 532130171 Trunnion
26 873680800 Nut, Crownlock 1/2-13 Unc
29 532150233 Trunnion, Infin Height
30 532110807 Nut, Special
31 819131016 Washer 13/32 x 5/8 x 16 Ga.
32 532137150 Spring, Compression Inf Hgt
33 876020308 Pin, Cotter 3/32 x 1/2
34 532137167 Rod, Adj Lift
35 532138057 Knob, Inf 3/8-16 Unc
38 532155097 Pointer, Height Indicator
39 532123935 Plug, Hole
40 817490512 Screw Thdrol 5/16-18 x 3/4
41 873540600 Nut, Crownlock 3/8-24
42 819112410 Washer 11/32 x 1-1/2 x 10 Ga.
43 532123934 Scale, Indicator Height
70 532145212 Nut Hex Flange Lock
72 532110452 Nut Push Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46

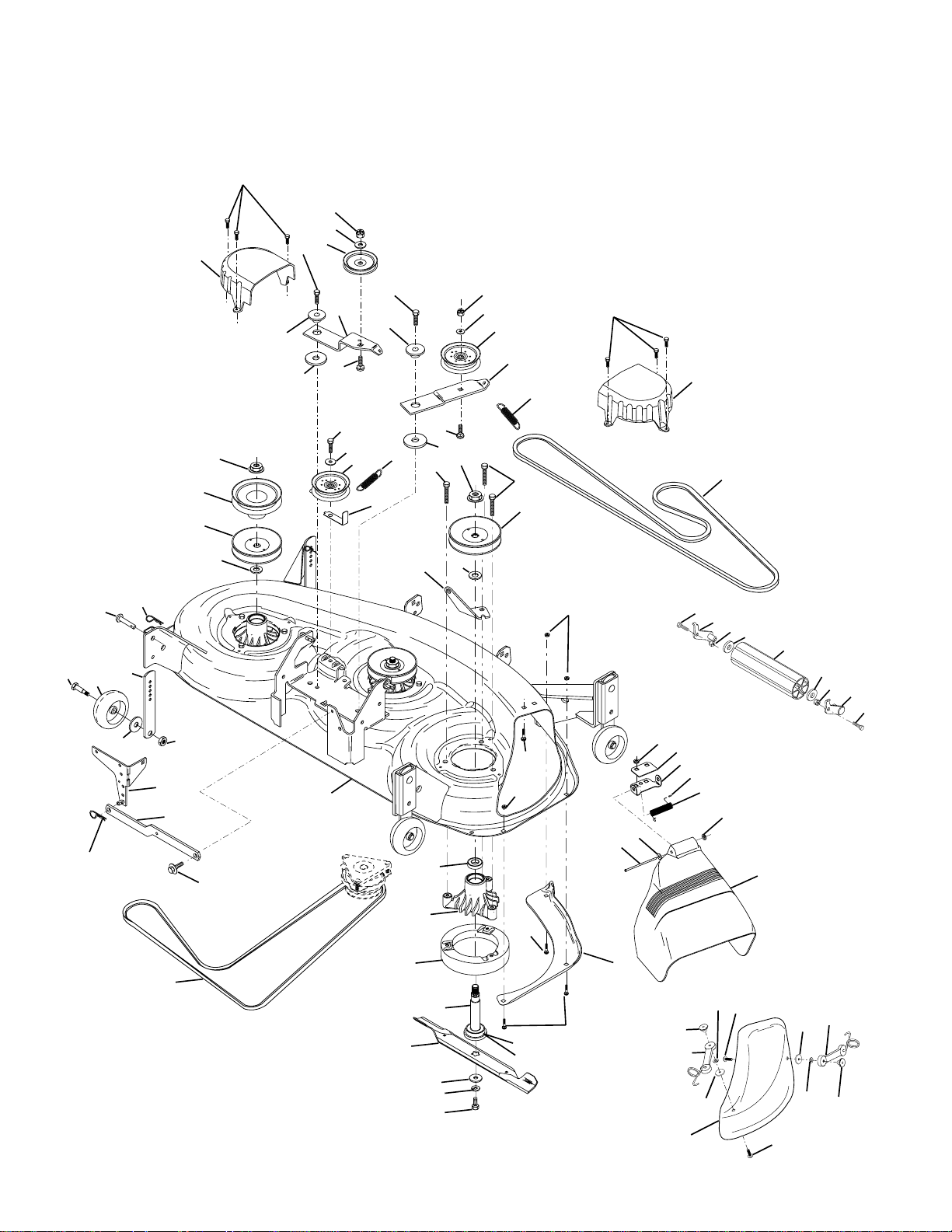

MOWER DECK
46
49
36
127
45
41
116
57
117
5
56
119
44
31
33
49
36
37
43
30
21
32
18
40
21
46
29
28
21
22
23
45
24
90
25
91
47
26
92
93
27
94
93
92
95
90
41
126
42
50
44
33
39
32
31
5
118
3
6
19
1
35
72
52
38
42
40
50
30
34
15
48
14
16
13
11
10
9
8
12
51
18
20
18
44
www.mymowerparts.com
106
105
101
104
103
102
102
104
103
105
106
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH200 (954140046D), PRODUCT NO. 954 14 00-46
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532164212 Deck Asm., Mower 46"
3 532138457 Bracket Asm., Sway Bar
5 532124670 Retainer Spring
6 532130832 Arm, Suspension, Rear (Sway Bar)
8 532850857 Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
9 810030600 Washer, Lock Hvy., Unplated 3/8
10 532140296 Washer, Hard Blade, Mower Vented
11 532163819 Blade, 46" Mulching
12 532129895 Bearing, Ball, Mandrel #6204
13 532137553 Shaft Asm. w/Lower Bearing
(Includes Key No. 12)
14 532137152 Housing, Mandrel
15 532110485 Bearing, Ball, Mandrel
16 532140329 Stripper, Mower Round
18 872140505 Bolt, Carriage 5/16-18 x 5/8
19 532132827 Bolt, Hex Head, Shoulder 5/16-18
20 532145055 Baffle, Vortex Mower 46"
21 873680500 Nut, Crownlock 5/16-18 UNC
22 532134753 Stiffiner, Bracket
23 532131267 Bracket, Deflector
24 532105304 Cap, Sleeve
25 532149287 Spring, Torsion, Deflector
26 532110452 Nut, Push
27 532157788 Shield, Deflector Mower
28 819111016 Washer 11/32 x 5/8 x 16 Ga.
29 532131491 Rod, Hinge
30 532157722 Screw, Thdroll Washer Hd
31 532129963 Washer, Spacer Mower Vented
32 532153531 Pulley, Mandrel
33 532137266 Nut, Flg. Top Lock Cntr. 9/16
34 532144945 Anchor, Spring Deck 46"
35 817490628 Screw, Thdroll 3/8-16 x 1-3/4 Tytt
36 819131316 Washer 13/32 x 13/16 x 16 Ga.
37 532131494 Pulley, Idler, Flat
38 532156086 Keeper, Belt, Idler
39 532144917 Pulley, Idler, Driven
40 532137273 Spring, Secondary 44/46/50 Vent
41 817490620 Screw, Thdroll 3/8-16 x 1-1/4 Tytt
42 532122052 Spacer, Retainer
43 532144949 Arm, Idler Secondary
KEY PART
NO. NO. DESCRIPTION
44 532133943 Washer, Hardened
45 532145059 Cover, Mandrel Deck
46 532137729 Screw, Thdroll. 1/4-20 x 5/8
47 532144959 V-Belt, Mower, Secondary
48 532148763 V-Belt, Mower, Primary
49 873680600 Nut, Crownlock 3/8-16 UNC
50 872110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
51 532153390 Washer Felt
52 532156493 Pulley Idler Flat 46 PRI drive
56 532155986 Bar Pnt Adjusting Wheel Gauge
57 532156941 Pin Head Rivet
72 819131616 Washer 13/32 x 16 Ga.
90 874760616 Bolt Fin Hex 3/8-16 x 1
91 532132274 Bracket Asm Noseroller LH
92 873800600 Nut Lock Hex W/Ins 3/8-16 UNC
93 819171416 Washer 17/32 x 7/8 x 16 Ga.
94 532132264 Roller Nose
95 532132273 Bracket Asm Noseroller RH
101 532145579 Cover, Mulching
102 871161010 Screw
103 810071000 Washer, Lock #10
104 819061216 Washer
105 532160793 Latch Asm. Mulch/Bagger
106 532125004 Nut, Weld
116 532137644 Bolt, Shoulder
117 532133957 Gauge Wheel, Wide
118 873930600 Nut, Centerlock 3/8-16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
126 532144948 Arm, Idler, Primary Deck 46"
127 532146763 Pulley, Idler, V-Groove Dim. 4.25
- - 532143651 Mandrel Asm 44"/50" Service
(Includes Key No.s 8-10, 12-15, 31
and 33)
- - 532166208 Deck Complete (Std. Deck-Order
separately mulcher plate and gauge
wheel components Key Nos. 101106 and 116-118)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
Loading...
